ICE MAKER
PRODUCT USE GUIDE
DBJ-32A
Please read this instruction
carefully before use.
Damage caused by
improper operation is not
covered by the warranty.
Please Note
After opening the box, please do not use it
immediately. Let the ice machine stand upright
for 24 hours first.
This is because the ice machine has experienced a long time of shipping. This
will cause uneven distribution of refrigerant in the compressor. If you use it
immediately after receiving it, it may cause damage to the compressor, and
we will not bear this compensation.
Please pay special attention to the red text
GENERAL INFORM ATION PAGE3-4
TABLE OF CONTENTS
SECTION 1
INSPECTION AFTER DELIVERY PAGE4
PRECAUTIONS FOR SAFE OPERATION PAGES6-7
SECTION 2
SPECIFICATION PAGE8
SECTION 3
SAFETY PRECAUTIONS PAGE9
PARTS & ACCESSORIES PAGE10
PRESET DATA & PRECAUTIONS PAGES13-14
SECTION 5
INSTALLATION STEPS OF ICE MAKER PAGES15-16
SECTION 6
DISCHARGE SEWAGE STEPS PAGES18
OPERATION INTRODUCTION PAGES19-20
SECTION 7
ERROE CODES & TROUBLESHOOTING PAGE21-22
FAULT SELF-DIAGNOSIS PAGES23-26
CLEANING & MAINTENANCE PAGE28
SECTION 4
CONTROL PANEL PAGE11-12
SECTION 8
SECTION 9
GENERAL INFORMATION
1. This ice maker uses advanced production technology and skilled processes,
as well as the strict quality inspection, guarantees the excellent performance of
the ice maker.
2. The compressor of the ice maker is very strong and efficient, it makes the ice
making speed of the ice machine faster.
3. The design of stainless steel makes it look more fashionable and beautiful.
4. The automatic microcomputer control system can make the ice making and
harvest process automatically. It also has fault detection function, make it easier
to troubleshoot. Common faults and solutions are on page 21 - 26. If you still
can't solve the faults, please contact us via [email protected]. We will
reply you within 24 hours. Please tell us your order ID in the email.
INSPECTION AFTER DELIVERY
Thank you for choosing our ice maker. In order to ensure a happy shopping
experience for you, please pay attention to the following matters after opening
the package:
1. Dents on the ice machine;
2. Missing parts, such as drain hose...
If the above matters occur, please contact us via [email protected] for
solutions. Please tell us your order ID in the email.
- 3 -
- 9 -

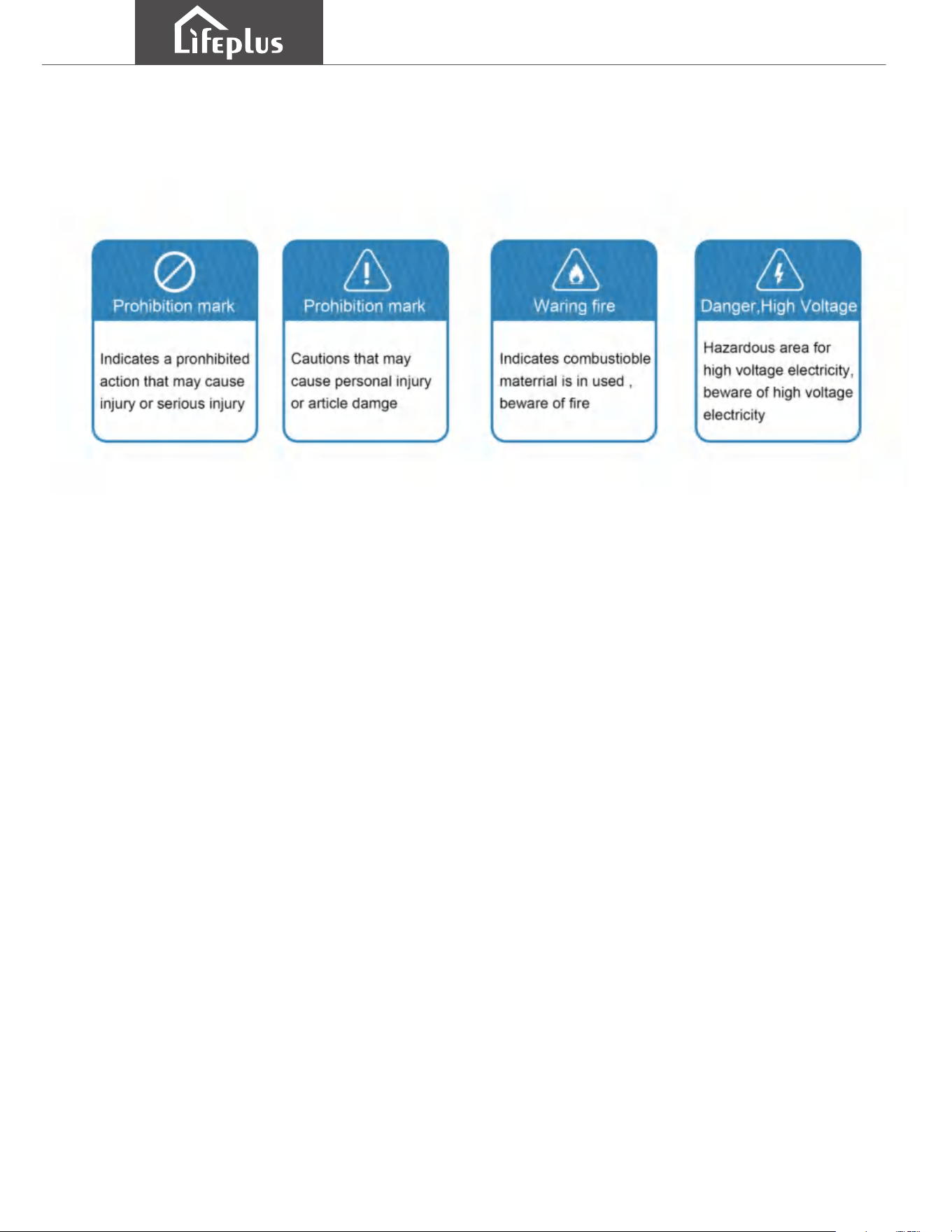

PRECAUTIONS FOR SAFE OPERATION
!
AFTER RECEIVING THE ICE MAKER, LET THE ICE MAKER STAND UPRIGHT FOR 24
HOURS FIRST. OTHERWISE THE COMPRESSOR MAY BE DAMAGED .
Please do not use it outdoors. If necessary, be sure to make the ice maker
waterproof. And avoid direct sunlight, high temperature may cause ice machine failure.
Do not disassemble, repair or modify the ice maker without permission. Fire hazard
or personal injury may be caused by work errors without professors or professional
guidance.
Do not directly spray water on the ice maker, it may cause electric shock or short
circuit.
Do not locate the ice maker in a humid place or a place prone to splashing water, to
avoid the damage to the insulating material, so to prevent leakage or electric shock.
Do not earth the ice maker through a gas pipe, a water main, a telephone line, or a
lightning rod.
Do not insert metallic materials such as wires into the air vents, passage or exhaust
vents of the ice maker, to avoid electric shock or personal injury due to accidental
movement of active parts.
Do not put volatile or flammable substances into the ice maker. Storage of such
substances may cause explosion or fire hazard.
The ice maker should be repaired by professional technicians or under their
guidance.
Please keep the ice maker on a flat ground to avoid equipment failure and danger
caused by inclination.
Please use a power supply that is specified on the ice maker's label.
Disconnect the main plug from the supply socket when the ice maker gets failures.
Continued abnormal operation may cause electric shock or fire hazard.
- 10 -
Please remove the dust from the supply socket before plugging the power plug into it,
to avoid fire hazard.
Keep the ice maker free of obstructions and keep the ventilation open.
Do not store combustion sprays, volatile or flammable substances in the ice maker.
Storage of such substances may cause an explosion or fire hazard.
Do not use the ice maker when handling toxic or hazardous materials or radioactive
materials, as it may harm health and damage the environment.
Disconnect from the main socket before cleaning, maintaining or servicing the
appliance. To prevent electric shock or personal injury.
Do not use other electrical appliances in the ice machine. This appliance contains
flammable materials, and must be handled and recycled by qualified personnel and
institutions when discarded.
Do not damage the refrigeration circuit.
Use a grounded outlet to prevent electric shock. If there is no, the grounded socket
device must be assembled by a professional technician. The unit must be positioned so
that the plug is accessible.
Some models use flammable refrigerants and flammable foaming
agents, so beware of fire (The product is marked "Warning fire"). When
the appliance is abnormal, it must be repaired by professional personnel
and institutions.
- 11 -
TECHNICAL PARAMETERS
Specification
Rated power / frequency
Ice making current
Ice harvest current
Ice cubes number / tray
Protection against electric shock
Water inlet mode
Tap water inlet pressure
Refrigerant / Weight
Insulation materials
Applicable environmental level
Gross / net weight
Product size
DBJ-32A
120V/60Hz
1.9A
2.7A
32
ⅠLevel
Tap water / bucket water
100-800KPa
R134a / 0.24lb
Cyclopentane (C5H10)
SN / N
53.86 / 46.75 LBS
13.78*14.09*24.8 INCH
- 12 -
SAFETY PRECAUTIONS
1. The voltage of this ice maker is: 120V / 60Hz. Please solve the voltage problem before
installing.
2. In order to protect the compressor, do not start the ice maker again within 5 minutes
after power off.
3. Better not not plug other appliances in the same socket.
4. If the power cord is damaged, in order to avoid danger, it must be repaired or
replaced by professionals.
5. The working voltage of the ice machine is higher than 36V. Please do not disassemble
the ice machine when it is working.
WARNING:
Do not operate the ice maker when there is a gas leak in its environment. Fire hazard
may occur due to sparks caused by unplugging or plugging or the start-stop controlled by
the temperature controller, the gas source should be cut off first, and allow air to circulate
to outdoor.
- 13 -

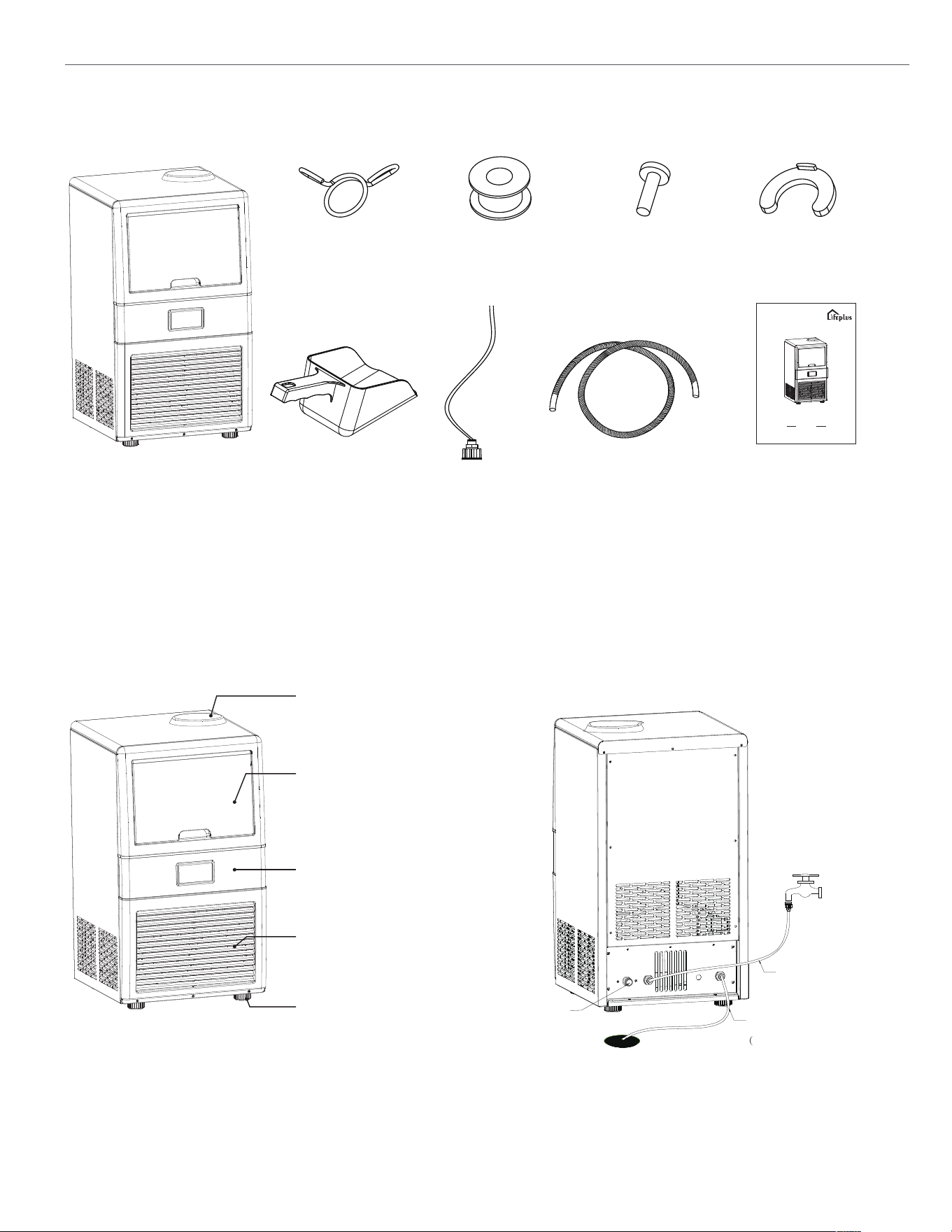

PARTS & ACCESSORIES
DBJ-32A
ICE MAKER
PRODUCT USE GUIDE
Sealing Tape Water Inlet Plug Blue Buckle
Commercial Ice Maker Ice Shovel Water Inlet Hose
Drain Hose
Instruction
Snap Spring
PRODUCT DIAGRAM
Control panel
Foot
Water drain hose
Water inlet Hose
Dust cover of bucket
water inlet hole
Door of ice bin
Hot air outlet
Sewage outlet
�Drain the water in the water
tank after cleaning�
�
�Drain the melted water in
the ice bin�
Note: the ice machine is gravity drainage, which requires
drainage holes or bottles to collect the water after the ice
melts.
- 14 -

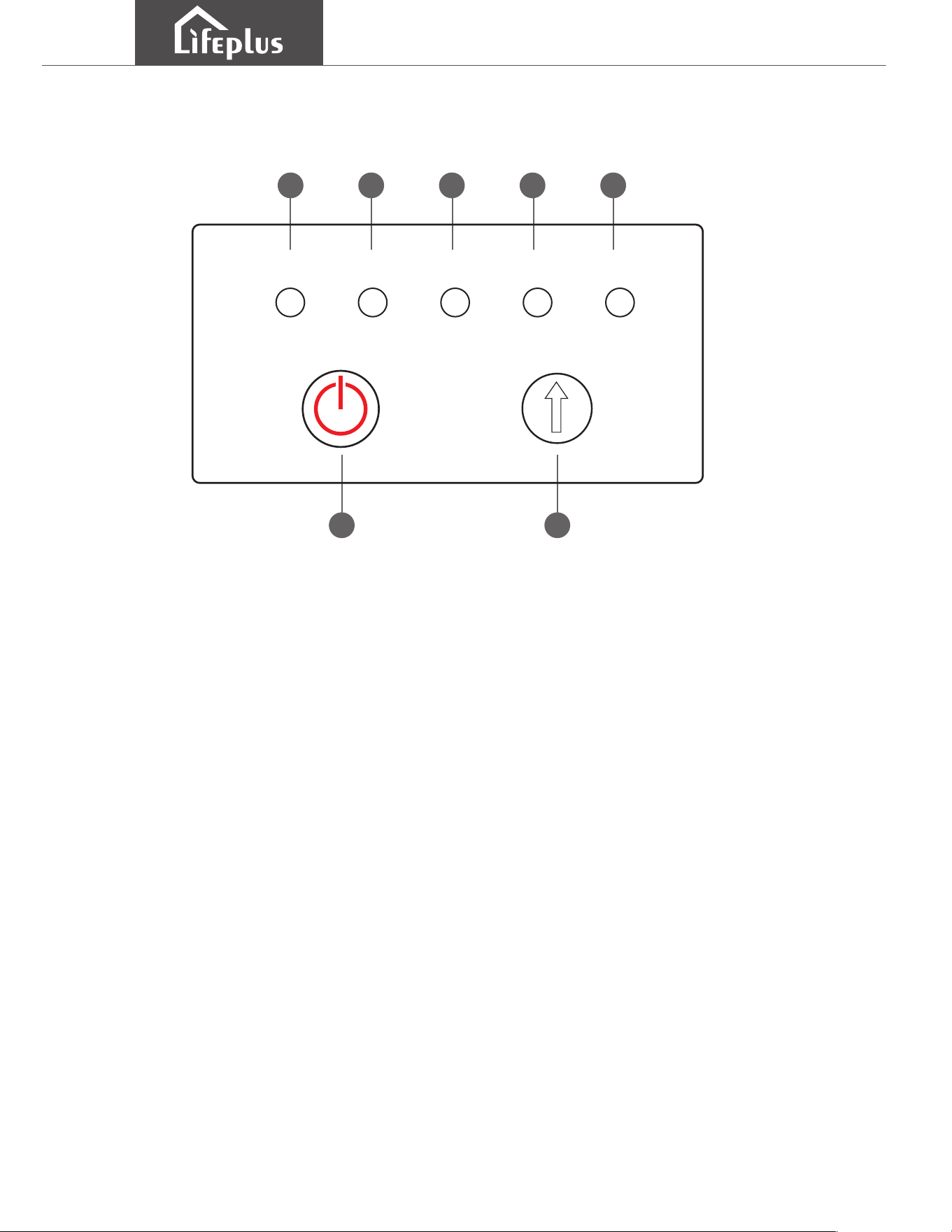

CONTROL PANEL
1.
Ice full indicator (Red):
When it lights up, it means that the ice machine is full of
ice. Please take out the ice for use or put them in a frozen place for storage.
2.
Water shortage indicator (Red):
When it lights up, it means that the ice maker is
short of water. You can't turn on the ice machine until it goes out.
3. Small size
indicator (Green):
Tell you that the ice thickness you choose to make
now is the thinnest.
4. Mednium size
indicator (Green):
Tell you that the ice you choose to make now is
medium thick.
5. Large size
indicator (Green):
Tell you that the thickness of the ice you choose to
make now is the thickest.
6. On/ Off button
:
Click to turn on or turn off the ice maker. (Do not press for
seconds, just click.)
7. Ice thickness selection button
:
Click to choose ice thickness, the ice thickness you
choose will be reflected on the size indicator light.
1 2 3 4 5
76
FULL
WATER
S
M L
Press the ice thickness selection button for 5 seconds, the machine will enter the self-cleaning mode.
- 15 -
ICE MAKING OPERATION STEPS
Step 1: Plug in the power, at this time, all the indicator lights will be on. Just wait a few
seconds.
Step 2: Adjust the valve according to the water inlet mode.
Step 3: Hook up the water source and let water enter slowly. (Refer to page 13-14)
Step 4: Wait for a few minutes, the water shortage indicator will go out.
Step 5: After the water shortage indicator light goes out, click size button to select the
thickness of the ice.
Step 6: Click the button, the hot air outlet in front of the ice maker will blow out hot
air. Wait for a few minutes, the ice maker will automatically start making ice cubes.
SELF-CLEANING OPERATION STEPS
Step 1: Plug in the power, at this time, all the indicator lights will be on. Just wait a few
seconds.
Step 2: Adjust the valve according to the water inlet mode.
Step 3: Hook up the water source and let water enter slowly. (Refer to page 13-14)
Step 4: Wait for the water shortage indicator to go out. (At this time, it is recommended
to cut off the water source. Otherwise, when you discharge the sewage, the water will
keeps entering the ice machine.)
Step 5: After the water shortage indicator light goes out, press size button for 5
seconds to enter self-cleaning mode.
FORCE HARVEST ICE
During the ice making process, press the On/Off button for 3 seconds, the ice maker
will harvest ice in advance. It will continue to run the next ice-making cycle after
completion.
NOTE:
1. When each batch of ice falls into the ice bin, please shovel it into 32 small ice cubes with the ice
shovel to hold more ice in the ice bin. Otherwise, the ice bin may be full soon.
2. It is recommended to put the excess ice in the ice bags and store them in an freezer.
- 16 -

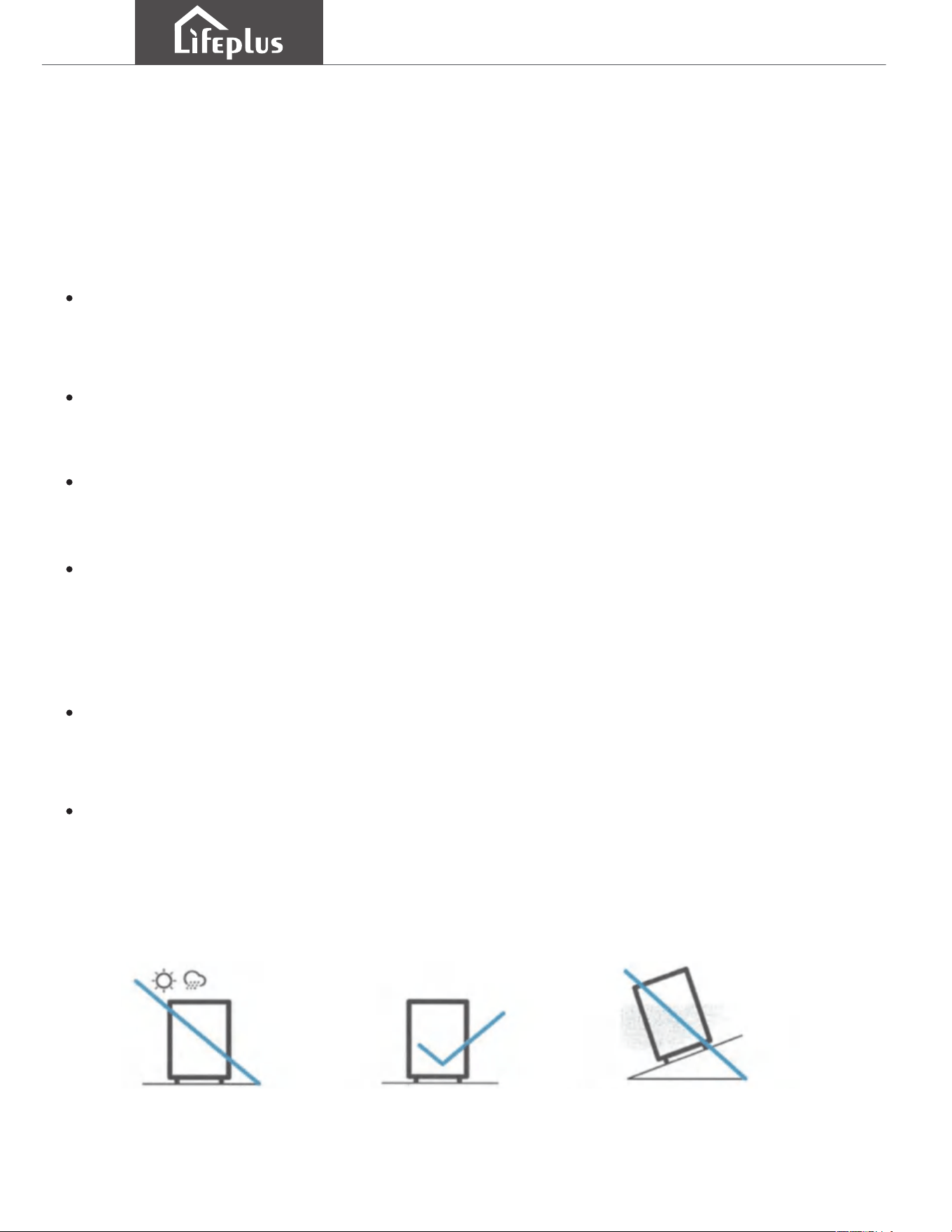

PRECAUTIONS BEFORE INSTALLATION
CORRECT OPERATION
When using the ice maker for the first time or using it continuously, please follow
below rules!
Use an independent water source for the ice maker, and check regularly to prevent low
water pressure or pipe blocked.
Do not store anything in the ice bin, this will make the ice machine difficult to clean or
the pipes blocked.
When using the plastic door of the ice bin, open and close it gently, and do not hit the
door, and please also close the door after take out the ice.
The ice maker should be kept away from heat sources, strictly forbidden to use it in
super high or super low temperature environment. Away from direct sunlight to avoid
affecting the heat dissipation of the unit.
The ice machine is not waterproof, so please don't wash it directly with a lot of water.
You can use wet or dry rags.
If you will not use this ice maker for a long time, it should be powered on for 4-6 hours
every 2 months to prevent damage.
Avoid sunlight and rain Good ventilation Placement should be stable
- 17 -

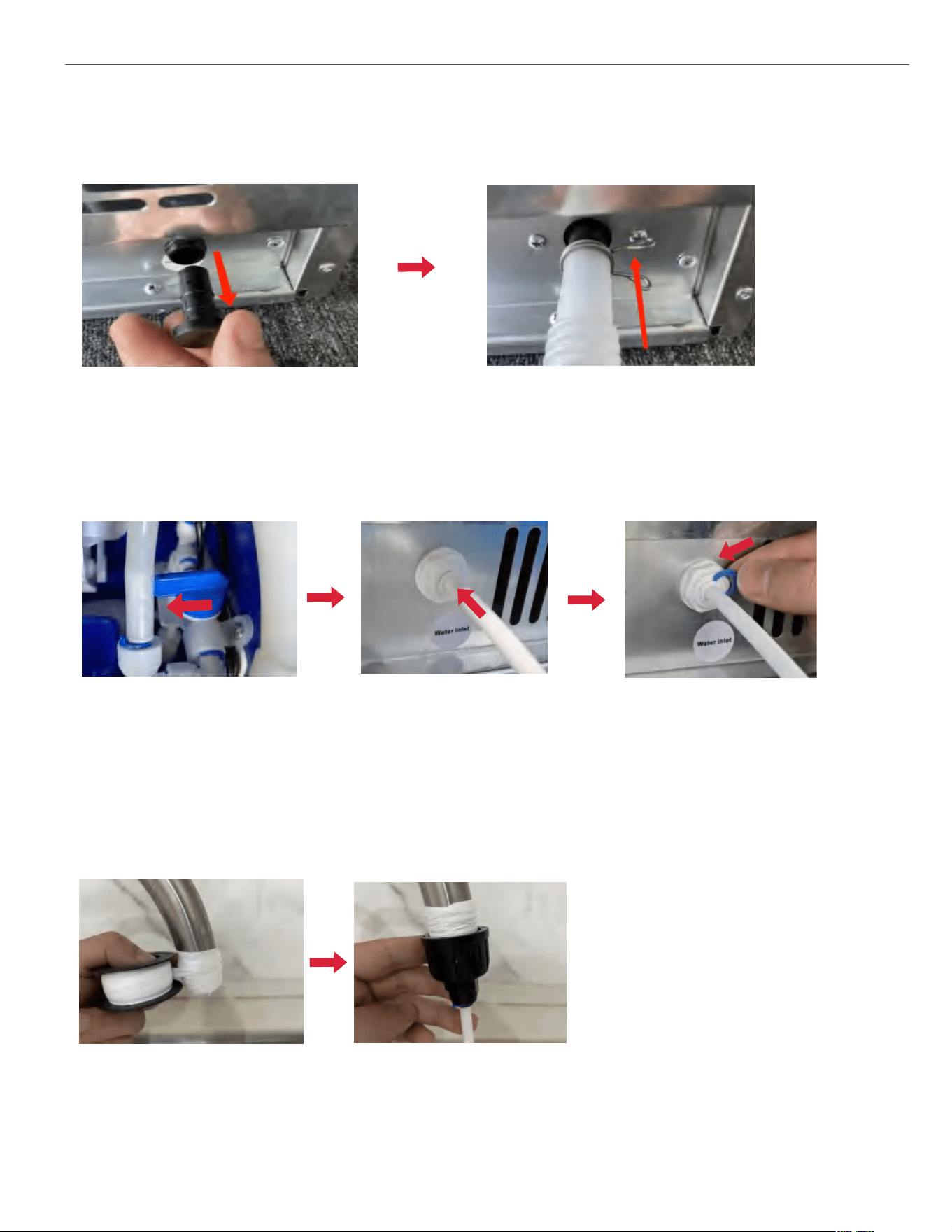

Step 1: Hook up the drain hose
1.Pull out the water outlet plug (Not
sewage outlet plug)
2.Insert the drain hose and install the
snap spring to fix the drain hose.
Step 2: Adjust the valve and insert the water inlet hose
Installation steps of tap water inlet mode
1. Wrap the sealing tape
around the faucet
2.Insert the white water
inlet hose
1.Adjust the direction of the
valve to be perpendicular
to the water pipe (tap water
inlet mode)
2.Tighten the water pipe
with the connector
3.Fix the water inlet hose
with a blue buckle
Step 3: Hook up the water source
If the complimentary
connector does not
fit your faucet,
please buy it in your
local store.
- 18 -
Installation steps of bucket water inlet mode

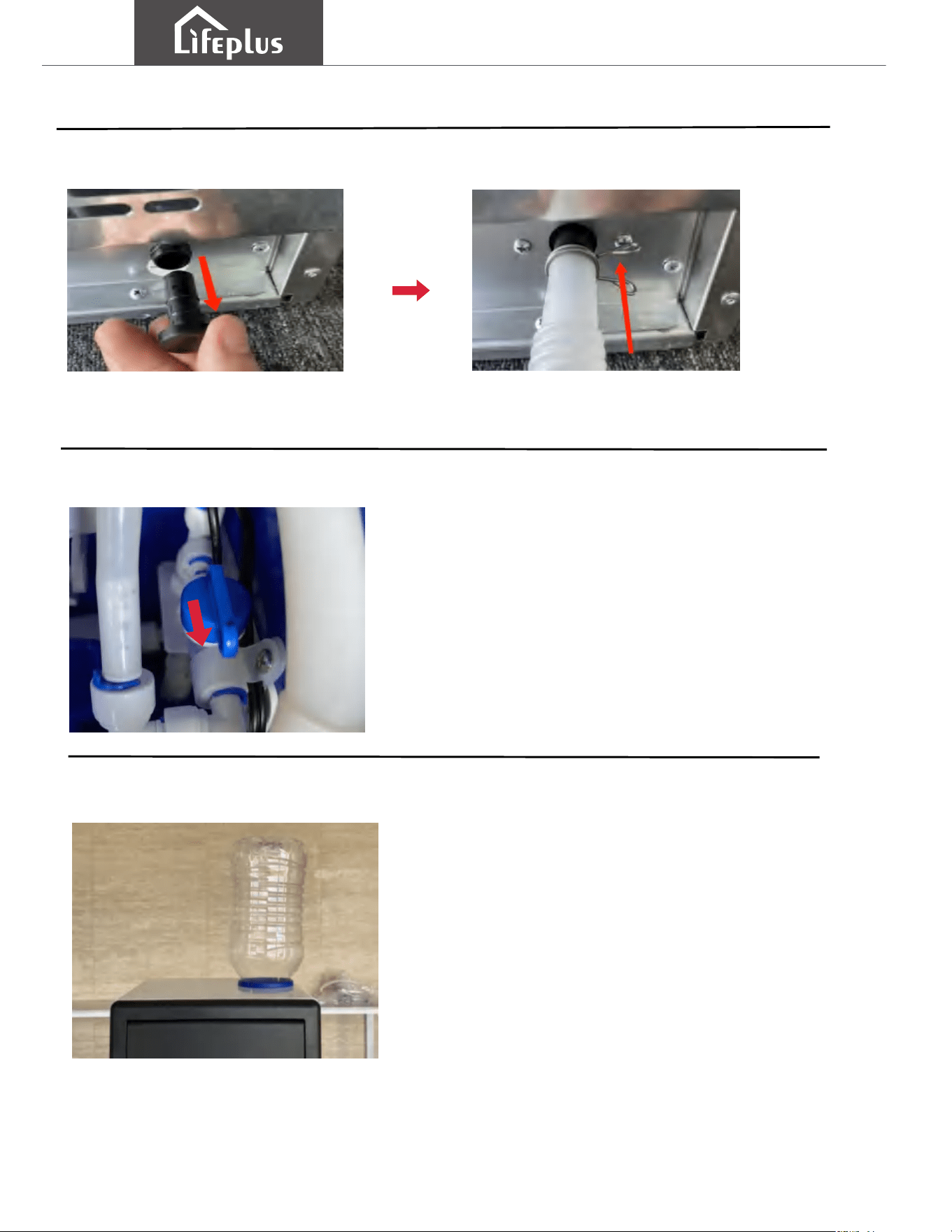

Step 1: Hook up the drain hose
1.Pull out the water outlet plug (Not
sewage outlet plug)
2.Insert the drain hose and install the
snap spring to fix the drain hose.

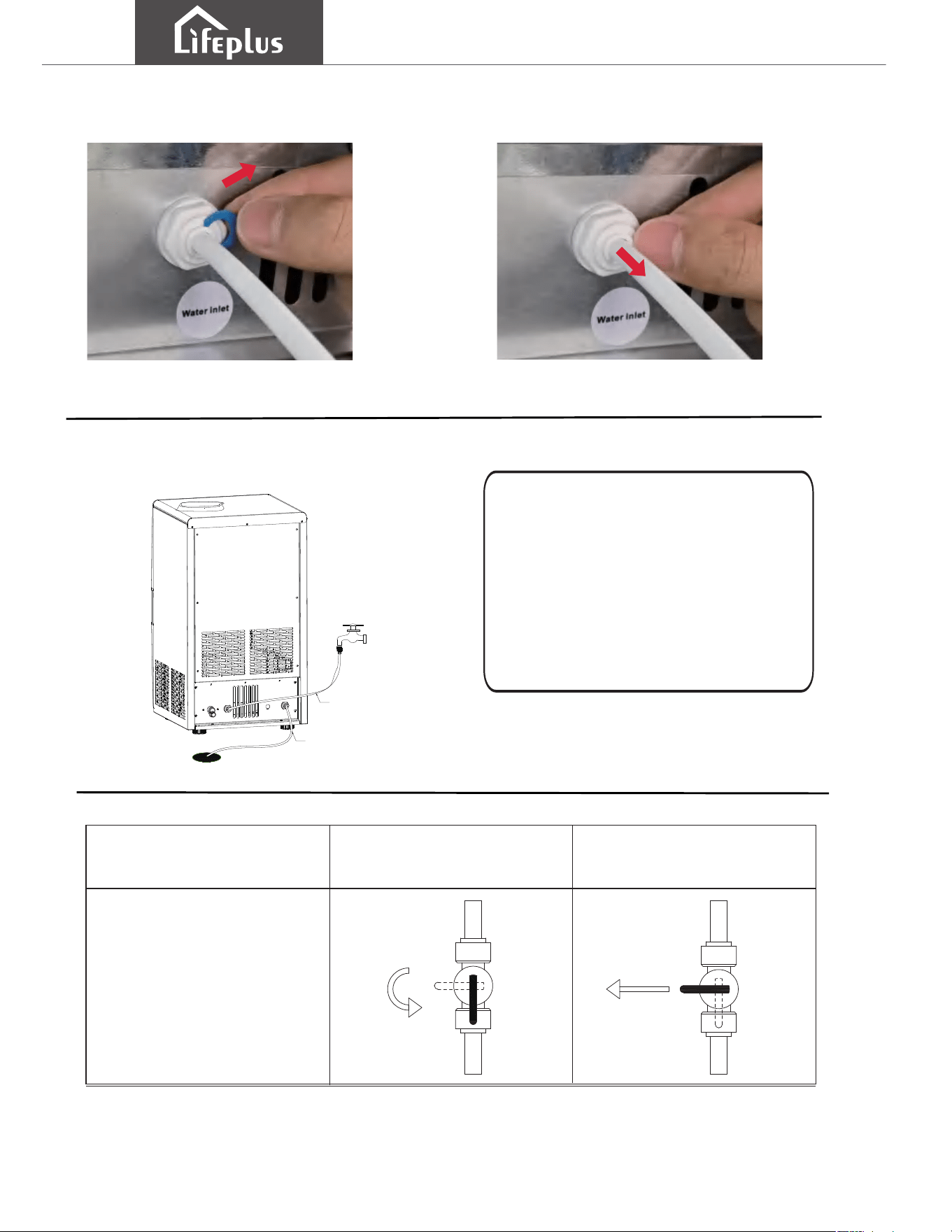

Step 2: Adjust the valve to the bucket water inlet mode
Step 3: Install the water jug
1.Adjust the valve to the direction
parallel to the water pipe.
(bucket
water inlet mode)
1.Variety of water jugs are
applicable. The diameter of the
water jug outlet needs to be less
than 3.2 inches. If water cannot
enter, try lifting the jug several
times to exhaust the air.
- 19 -

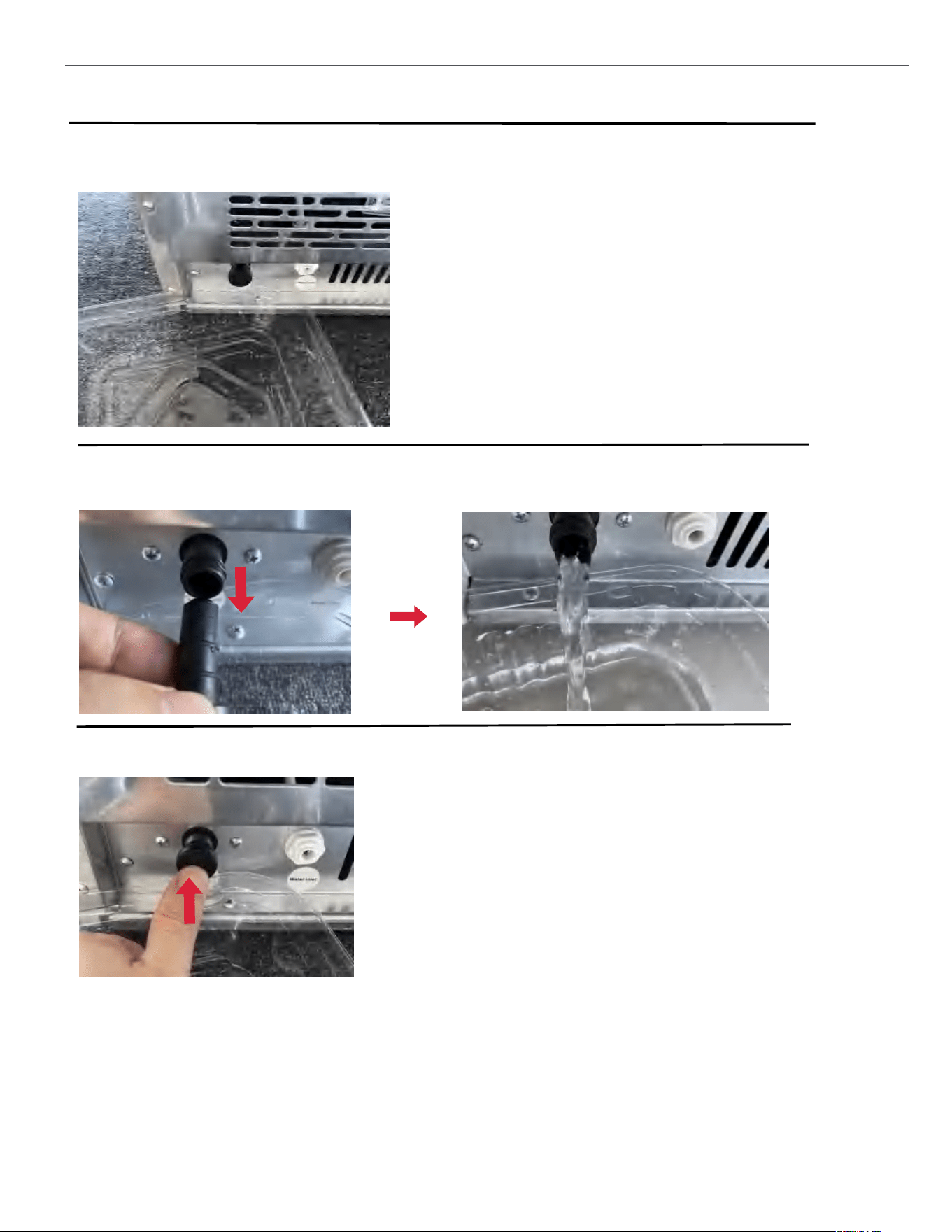

Discharge the sewage after self-cleaning.
Step 1: Place a container that can hold at least 0.2 gallons of water
under the sewage outlet in advance
Step 2: Pull out the sewage outlet plug slowly
Step 3: Plug in the sewage outlet plug again
NOTE: Please cut off the water source before starting to
discharge the sewage, otherwise the water will flow out from the
sewage outlet all the time.
- 20 -
WARNING: CLEAN WATER ONLY
Ice bin drain hose
Water inlet hose
Water Inlet Supply Bucket Water Supply Tap Water Supply
Valve Direction
Please adjust the valve direction
correspondingly BEFORE use
How to Remove the Water Inlet Pipe?
1. Remove the Blue Buckle 2. Press the white part as the picture
and pull out the Inlet Pipe
Each outlet has been marked on
the unit. If there is a conflict with
the instruction, it may be that the
workers pasted it incorrectly.
Please take the instruction as the
standard.
- 21 -
TROUBLESHOOTING
Fault indication:
Ice full indicator flashes quickly: The ambient temperature detector is faulty, try to
restart ice maker. If unable to solve, please contact the seller.
Ice full indicator and water shortage indicator flash alternately: the open and
closed signals of the ice full switch cannot be detected for 3 consecutive times, the
machine stops working and reports a mechanical failure.
FAULT SELF-DIAGNOSIS
1. Water pump —— You can directly observe whether the water flows down from the top
of the ice tray. If not, the water pump may dameged.
2. Ice making —— After the ice-making last running for 10 minutes, the water in the
insede water tank will be cold. You can touch the ice tray or the running water to feel the
water temperature. If it is not cold, the compressor may be damaged.
3. If you use tap water inlet mode to make ice and find that the water overflows from the
inside water tank. Please check whether the water pressure in your house exceeds the
specified range. If it is confirmed that the problem is water pressure, you need a pressure
reducing valve to reduce the water pressure.
- 22 -
Problem
Possible cause Solution
Ice maker
does not
start
Ice maker
stops after
running
The
production
of ice
cubes
decreased
Bad socket contact Change socket
The ice bin is full of ice
cubes
Remove the ice cubes
Adjust the flap to enable
The flap is not reset
reset free
Water source is not turned
on or connected not strong
Recheck water resource
Ice maker is not located
horizontally
Adjust the feet and locate
them horizontally
Over temperature
shutdown protection
Remove the front panel
and clean the condenser
Not cleaned up for more
than two months
Remove the front panel
and clean the condenser
High water temperature
(Possible in summer)
Ambient temperature is too
high
Move it to a cool room
Small or closed
environmental spaces
Clean surrounding and
allow air to circulate
FAULT SELF-DIAGNOSIS
Do not use hot water
Water overflow in the
inside tank
Check valve again and
reset the water level float
- 23 -
The
transparency
of the ice
cube is not
very good or
ice cube
shape is
irregular
Improper adjustment of ice
thickness
Reset ice thickness
Water quality is bad
Ice maker water tank or the
ice tray is very dirty
Clean the ice maker and
replace the filter
Uneven water flow above
the ice tray
The shunt tube needs to be
cleaned or the unit is not level.
Too much water above the
ice tray
Tie the water pump silicone
tube
Ice cube is too thin or too
thick
Adjust ice thickness
The ice maker is not stable
and the soles of the feet
are floating
Locate the ice maker on
a stable surface
The ice maker touches
other objects
Avoid touching other objects
The door is not
completely closed
Close the door completely
Working in high
temperature and high
humidity environment
Normal
Can't take off
ice
Excessive
noise
Condensation
on the shell
Install a filter on the water
inlet pipe.
Water pressure is too high
Contact us for replacement
The ice cubes are stuck and
can’t fall off from ice tray
Forgot to adjust the water inlet
valve
Water overflow
to the ice bin
Ice full
indicator and
water shortage
indicator flash
alternately
Reduce the water pressure or
install a pressure reducing valve
Damaged float ball
Press the power button for 3
seconds to force havest ice, and
restart after 5 minutes
Check the valve and ice
full sensing plate

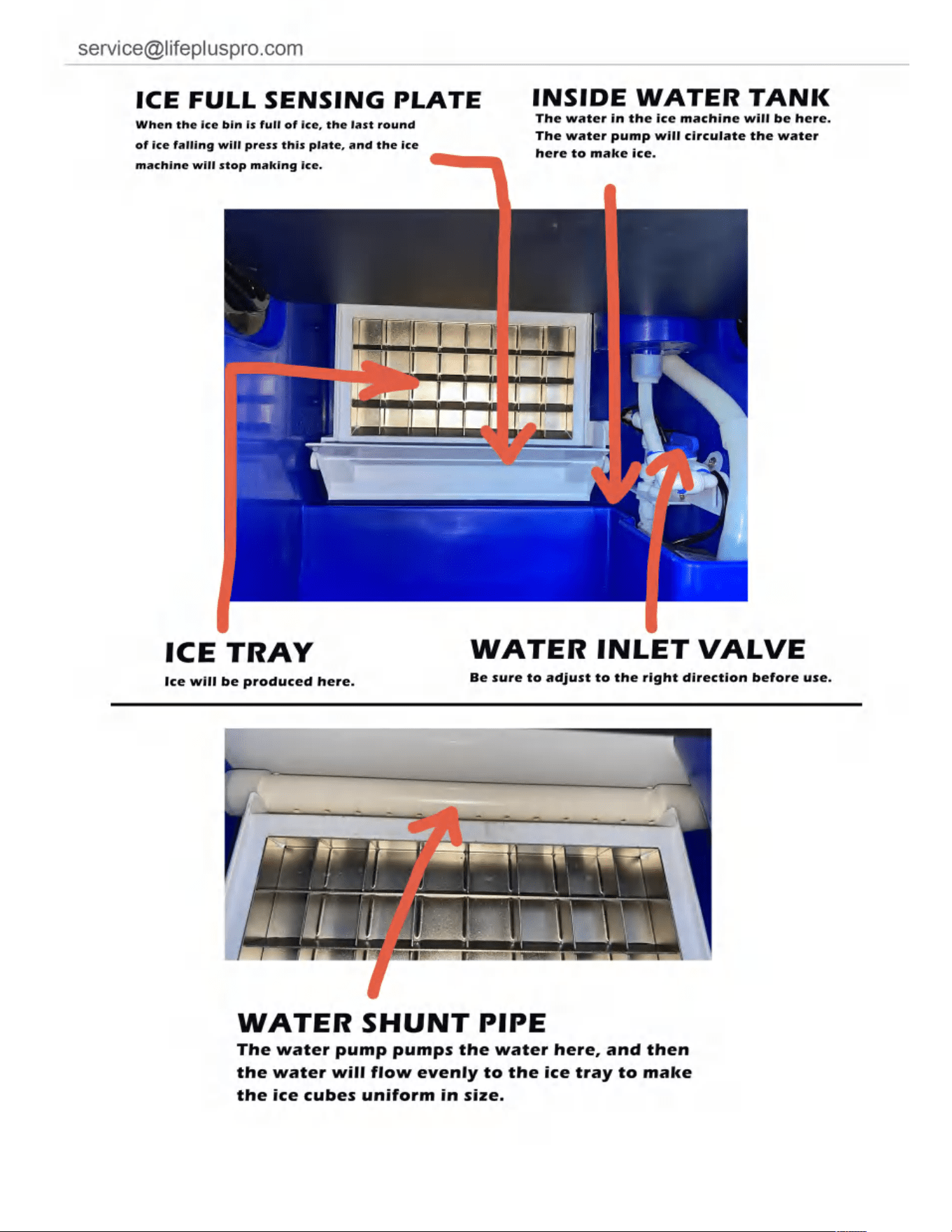

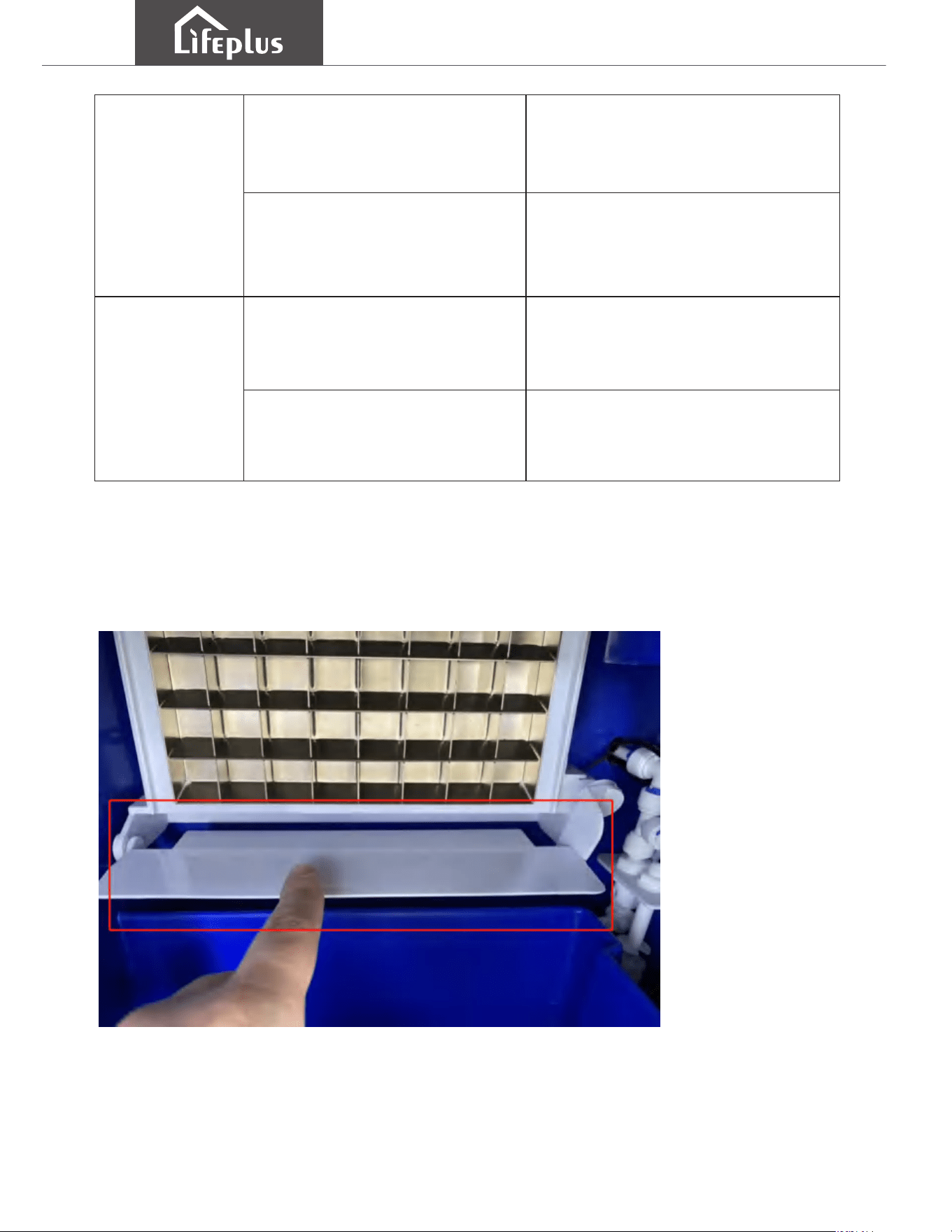

This is ice full sensing plate
- 24 -
IF HAVE STRANGE SMELL
If the ice has a strange smell or taste. And there is a disgusting or mildewy odor in the
machine, follow the self-clean steps to clean the machine.
SOUND DURING MACHINE OPERATION
The new ice machine may have abnormal sounds. Most sounds are
normal. For example:
* The compressor occurs beating or sharp sounds.
* Water splashes from the ice tray to the ice bin.
* At the end of each cycle, you may hear the gurgling of refrigerant flow.
* The sound of air compressed by the cooling fan over the condenser.
- 26 -
- 27 -
CLEANING AND MAINTENANCE
MAINTENANCE
Please maintain the ice maker according to this manual to ensure its performance and
service life.
1. Always keep the cold air inlet and hot air outlet at the lower end of the ice machine
unobstructed. When you need to embed it into the cabinet, please reserve a little space
around the ice machine.
2. The exterior can be cleaned with a neutral detergent solution, and then wiped clean
with a soft cloth. If necessary, commercial stainless steel cleaners and polishing agents
can be used.
3. If you install a filter element on the water system, you should check the filter element
regularly and replace it.
4. When cleaning the inside of the ice machine, you can wash the ice bin directly with
water. But don't wash other places, otherwise the circuit part of the ice machine may be
damaged. Use an cloth to clean it or let it self clean.
5. You should maintain the condenser of the ice machine every 3 months. Use a soft
brush or a vacuum cleaner with a brush to wipe the condenser fins along the direction of
the fins to ensure the performance of the fins.
6. If you will not use it for a long time, please unplug it and empty the residual water in
the water tank and water pipe of the ice machine.
- 28 -
ATTENTION
1. Cleaning and maintenance of the ice maker is not included in the our free service. We
suggest you use filtered water.
2. Before cleaning and maintenance, please make sure to cut off the power supply.
3. Please cut off the water source before pulling out the water inlet hose of the ice
machine to prevent high-pressure water splashing.
4. On-site service charges will be charged when there is a failure due to user errors
(such as no water, no electricity, environmental factors, etc.).
5. You should clean the ice maker regularly to prevent the internal pipes from being
blocked by scale. You can buy detergent to remove scale and use it with self-cleaning.
6. The edges of the air-cooled condenser fins are sharp, so please be careful when
cleaning.
7. The ice maker's consumables are not covered by the warranty. In case of damage,
please buy it at the local store.
- 29 -
HOW TO STORAGE
If you will not use it for a long time, please unplug it and empty the residual water
in the water tank and water pipe of the ice machine. Dry the interior with a clean
soft cloth (refer to maintenance and cleaning)
This sign “ ” on the product or packaging indicates that the product cannot be treated as
household waste. Should be delivered specific recycling points for electronic and electrical
products. Proper handling of this product can help prevent environmental problems
caused by improper handling of this product and harm to human health. If you need more
details about recycling, please contact the office responsible for household waste disposal
services or the manufacturer or purchase point that purchases our products.
Warning:
Don't touch the power supply with wet hands!
Don't pull out the machine by pulling the power code!
