User Manual
Tailgate Handle Camera for
Dodge Ram (2009-2016)
PCAM-RAM
Introduction
Key Features
u 1/4” CMOS Sensor
u Operates at 0.5 LUX
u 170 Degree Viewing Angle
u Parking Lines
Box Contents
u Camera
u Wiring Harness
u Manual
u RCA Barrel Adapter

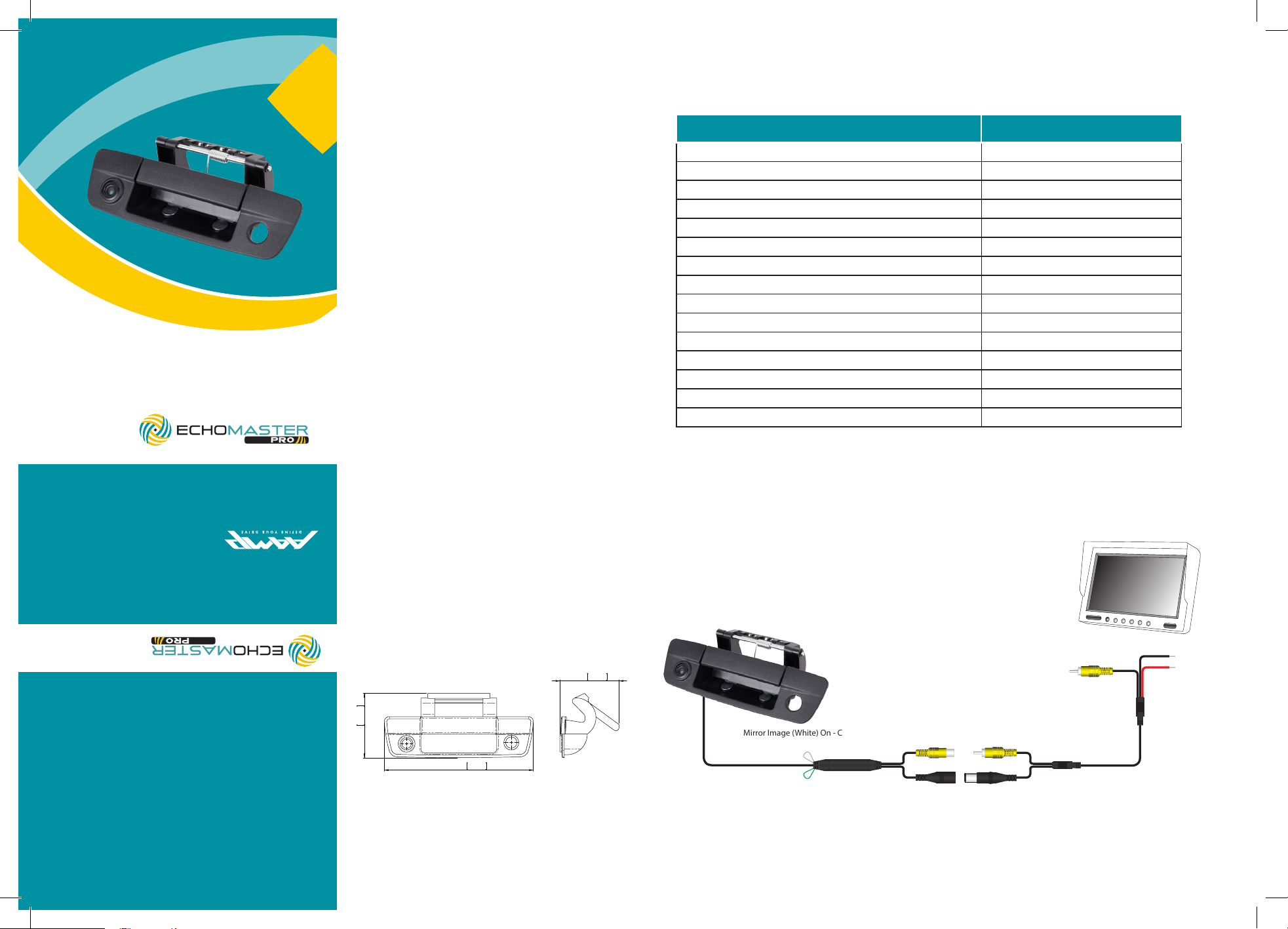

Wiring Diagram & Pin Out
Specications
Dimensions
PCAM-RAM-N
Sensor 1/4” CMOS
IR 0
Illumination 0.5 LUX
Viewing Angle 170 degrees
Mirror Image Yes
Normal Image NO
Water/Debris-Proof IP67
Audio NO
Power Supply 9-15V DC
Current <250mA
Working Temperature -30ºC - +70ºC
Dimensions (mm) D (95) x W (239) x H (103)
System NTSC
TV Lines 420
Resolution (HxV) 648 x 488
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers
u PCAM-RAM-N
EchoMaster Pro cameras are designed to improve
safety during driving by providing high quality images
of surrounding areas and obstacles in the vicinity of
the vehicle. They will also improve vehicle maneuvering
capability by displaying blind spots not normally visible to
the driver.
Please ensure you read and understand all aspects of
this manual before tting or using your EchoMaster Pro
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses
or hoses/pipes located behind this panel before drilling.
Parking Lines (Green) On - Cut (Default)
O - Joined
Mirror Image (White) On - Cut (Default)
O - Joined
GND (Black)
VIDEO
+12V (Red)
