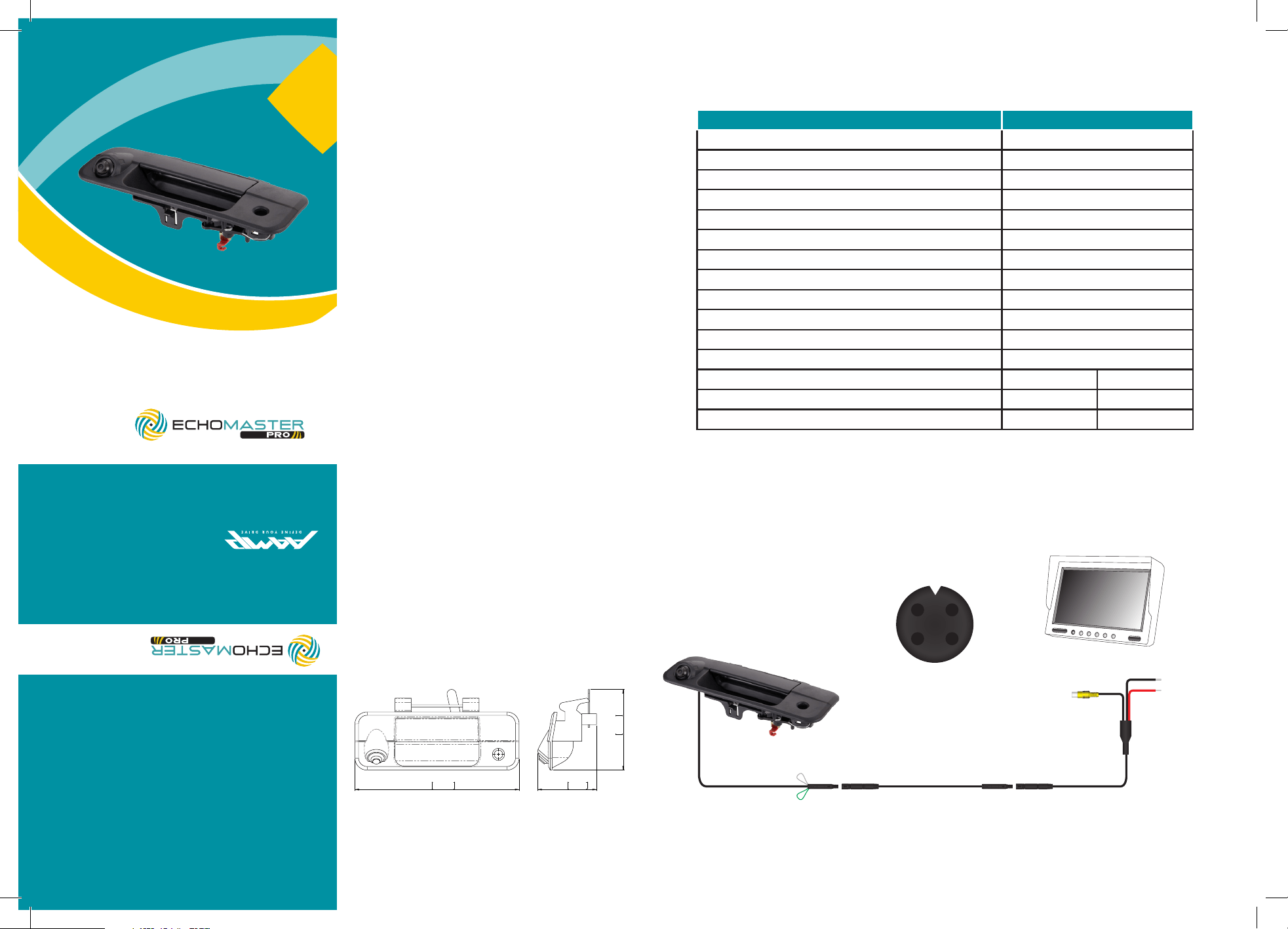

User Manual
Tailgate Handle Camera
for Toyota Tundra 2009-2016
PCAM-TTN
Introduction
Key Features
u 1/3” CMOS Sensor
u Operates at 0.3 LUX
u IP67 Rated
u 170 Degree Viewing Angle
Box Contents
u Camera
u Manual
u Wiring Harness
u Mounting Hardware
Wiring Diagram & Pin Out
Dimensions
Specications
PCAM-TTN-P I PCAM-TTN-N
Sensor Type
1/3” CMOS
LEDs
0
Illumination
0.3 LUX
Viewing Angle
170 degrees
Mirror Image
YES
Normal View
NO
Water/Debris-Proof
IP67
Audio
NO
Power Supply
12V DC
Current
<145mA
Working Temperature
-30ºC - +70ºC
Dimensions (mm)
D (97) x W (271) x H (133)
System
PAL NTSC
TV Lines
N/A 420
Resolution
N/A 648 x 488
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers:
u PCAM-TTN-P
u PCAM-TTN-N
EchoMaster Pro cameras are designed to improve safety
during driving by providing high quality images of surrounding
areas and obstacles in the vicinity of the vehicle. They will also
improve vehicle maneuvering capability by displaying blind
spots not normally visible to the driver.
Please ensure you read and understand all aspects of
this manual before tting or using your EchoMaster Pro
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
270.7mm
10.66in
97mm
3.82in
133mm
5.24in
Extension (sold separately)
Parking Lines (Green) On - Cut (Default)
O - Joined
Mirror Image (White) On - Cut (Default)
O - Joined
GND (Black)
VIDEO
+12V (Red)
+12V
GND
1 2
43
Video
Audio
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
email - [email protected] (US)
email - [email protected] (Europe)
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
