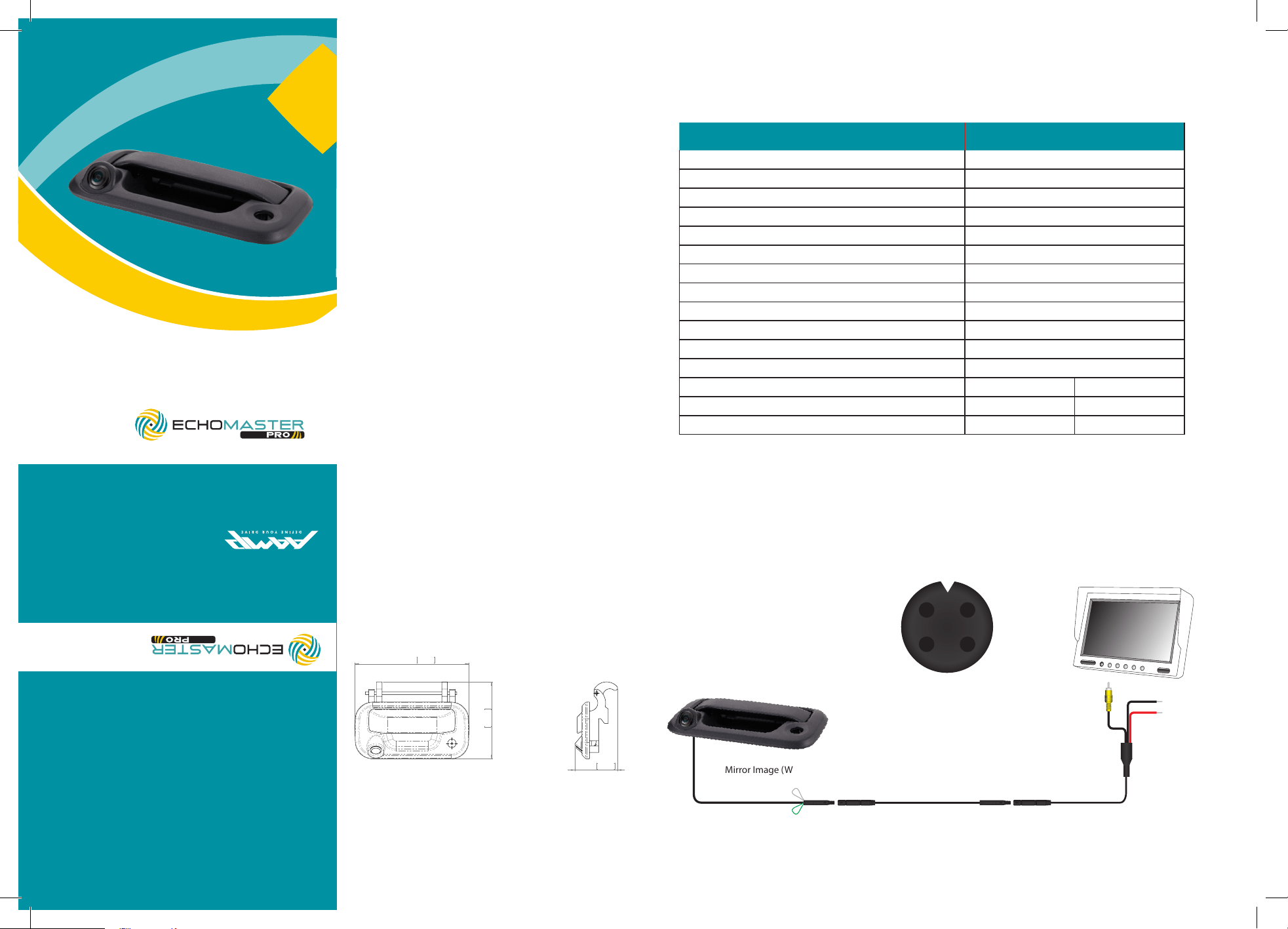

PCAM-FF150
Introduction
Key Features
u 1/4” CMOS Sensor
u Operates at 0.5 LUX
u IP67 Rated
u 170 Degree Viewing Angle
u Mirrored Image
Box Contents
u Camera
u Manual
u Mounting Hardware
u Wiring Harness
Wiring Diagram & Pin Out
Specications
Dimensions
PCAM-FF150-P I PCAM-FF150-N
Sensor 1/4” CMOS
LEDs 0
Illumination 0.5 LUX
Viewing Angle 170 degrees
Mirror Image YES
Normal Image NO
Water/Debris-Proof IP67
Audio NO
Power Supply 9-16V DC
Current <50mA
Working Temperature -30ºC - +70ºC
Dimensions (mm) D (76) x W (203) x H (137)
System PAL NTSC
TV Lines N/A 420
Resolution (HxV) N/A 648 x 488
User Manual
Tailgate Handle Camera for 2005-2014
Ford F150 & 2008-2016 Super Duty
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers:
u PCAM-FF150-P
u PCAM-FF150-N
EchoMaster Pro cameras are designed to improve safety
during driving by providing high quality images of surrounding
areas and obstacles in the vicinity of the vehicle. They will
also improve vehicle maneuvering capability by displaying
blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of
this manual before tting or using your EchoMaster Pro
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
+12V
GND
1 2
43
Video
Audio
Extension (sold separately)
VIDEO
GND (Black)
+12V (Red)
Parking Lines (Green) On - Cut (Default)
O - Joined
Mirror Image (White) On - Cut (Default)
O - Joined
