ATTACH YOUR RECEIPT HERE
MASTER FORGE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 800.963.0211, 8 a.m. - 8 p.m., EST, Monday -
Sunday. You could also contact us at [email protected].
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only!
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Read
this instruction manual thoroughly
before installing or servicing this
equipment.
DANGER
If you smell gas：
• Shut off gas to appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from
the appliance and immediately
call your gas supplier or your fire
department.
WARNING
• Do NOT store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
• An LP cylinder not connected for use
shall NOT be stored in the vicinity of this
or any other appliance.
DANGER
• Never operate this appliance unattended.
WARNING
FOR YOUR SAFETY:
DO NOT LEAVE THIS APPLIANCE UN-
ATTENDED WHILE IN USE, ESPECIAL-
LY COOKING THE FATTY MEAT AND
CLOSE THE LID TOO LONG TIME.
GBC23693LE-RA-E-OM-F100
6 BURNER GAS GRILL
WARNING:
This product can expose
you to chemicals including carbon
monoxide, soot, lead and lead components,
which are known to the State of California
to cause cancer and birth defects or other
reproductive harm.For more information go
to www.P65Warnings.ca.gov.
ITEM#5232009
MODEL#GBC23693LE
2
W The use and installation must conform with local
codes or, in the absence of local codes, with
either the National Fuel Gas Code, ANSI Z223.1/
NFPA 54, or the Natural Gas and Propane
Installation Code, CSA B149.1,or the Propane
Storage and Handling Code, CSA B149.2, or
the Standard for Recreational Vehicles, ANSI
A119.2/NFPA 1192, and CSA Z240 RV Series,
Recreational Vehicle Code, as applicable.
W This grill is for outdoor use only, and should
not be used in a building, garage or any other
enclosed area.
W Do NOT operate, light or use this appliance
within ten feet (3.05 m) of walls, structures or
buildings.
W For residential use only. This grill is NOT for
commercial use.
W This grill is not intended for and should never be
used as a heater. TOXIC fumes can accumulate
and cause asphyxiation.
W This grill is safety certified for use in the United
States and/or Canada only. Do NOT modify for
use in any other location. Modification will result
in a safety hazard and will void your warranty.
W This grill is for use with liquid propane (LP) gas
only. The conversion to or attempted use of
natural gas in this LP gas grill is dangerous, may
cause bodily harm and will void your warranty.
W LP gas characteristics:
a. LP gas is flammable and hazardous if
handled improperly. Become aware of the
characteristics before using any LP gas
product.
b. LP gas is explosive under pressure, heavier
than air, and settles / pools in low areas.
c. LP gas in its natural state has no odor. For
your safety, an odorant is added that smells
like rotten cabbage.
d. Contact with LP gas can cause freeze burns
to skin.
W Apartment dwellers: Check with management
to learn the requirements and fire codes for
using a LP gas grill in your apartment complex.
If allowed, use outside on the ground floor with
a ten foot (3.05 m) clearance from any structure.
Do NOT use on or under balconies.
W The LP gas cylinder must be:
a. constructed and marked in accordance with
the Specifications for LP gas Cylinders of the
U.S. Department of Transportation (D.O.T.)
or the Standard for Cylinders, Spheres and
Tubes for Transportation of Dangerous
Goods and Commission, CAN / CSA-B339,
as applicable; and Commission.
b. provided with a listed overfilling prevention
device.
c. provided with a cylinder connection device
compatible with the connection for outdoor
cooking appliances.
W LP gas cylinder must be arranged for vapor
withdrawal.
W The LP gas cylinder must have a listed overfilling
prevention device (OPD).
W Only use LP gas cylinders equipped with a
cylinder connection device compatible with the
connection for outdoor cooking appliances.
TABLE OF CONTENTS
Safety Information .......................................................... Page 2

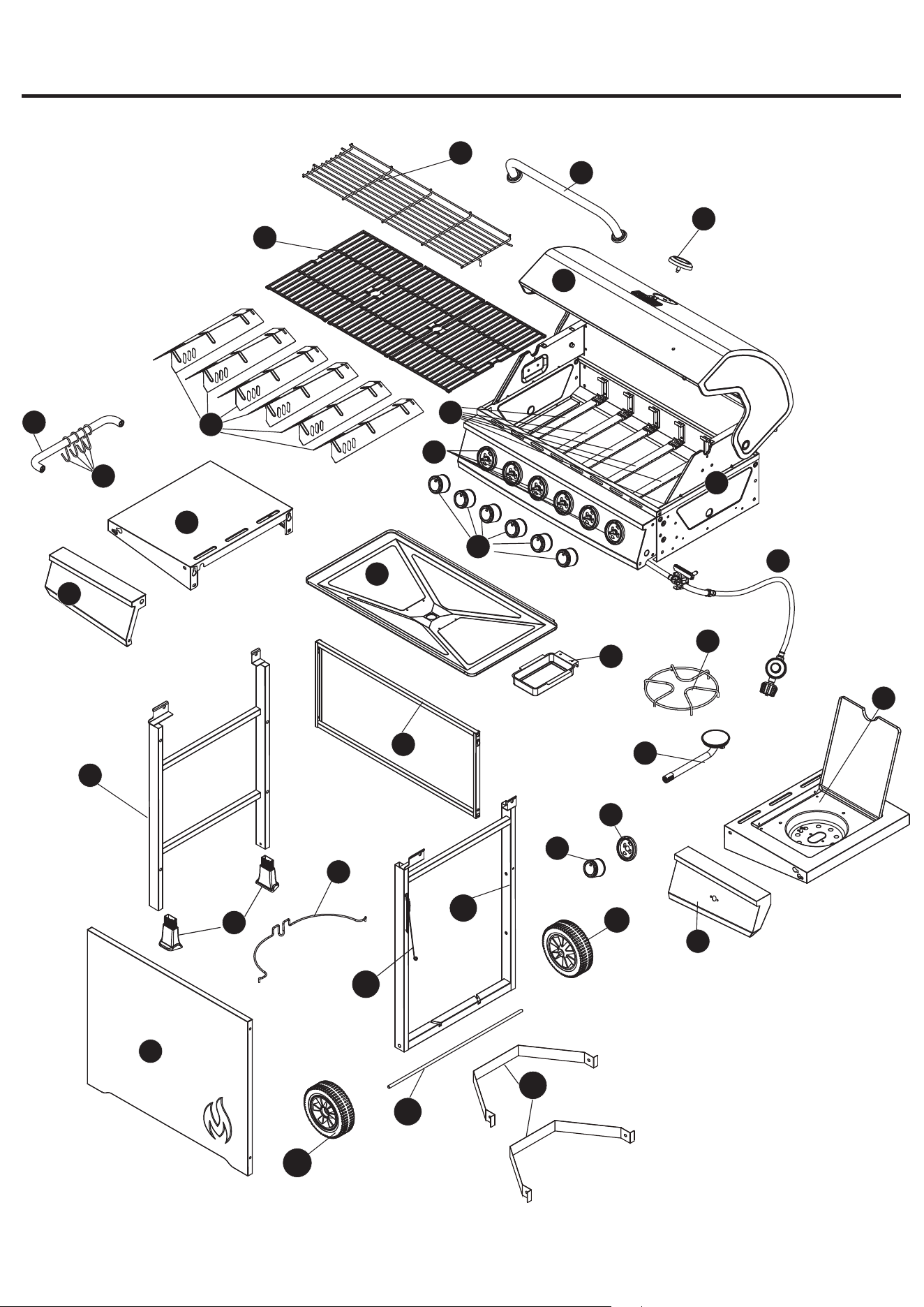

Package Contents .............................................................. 5

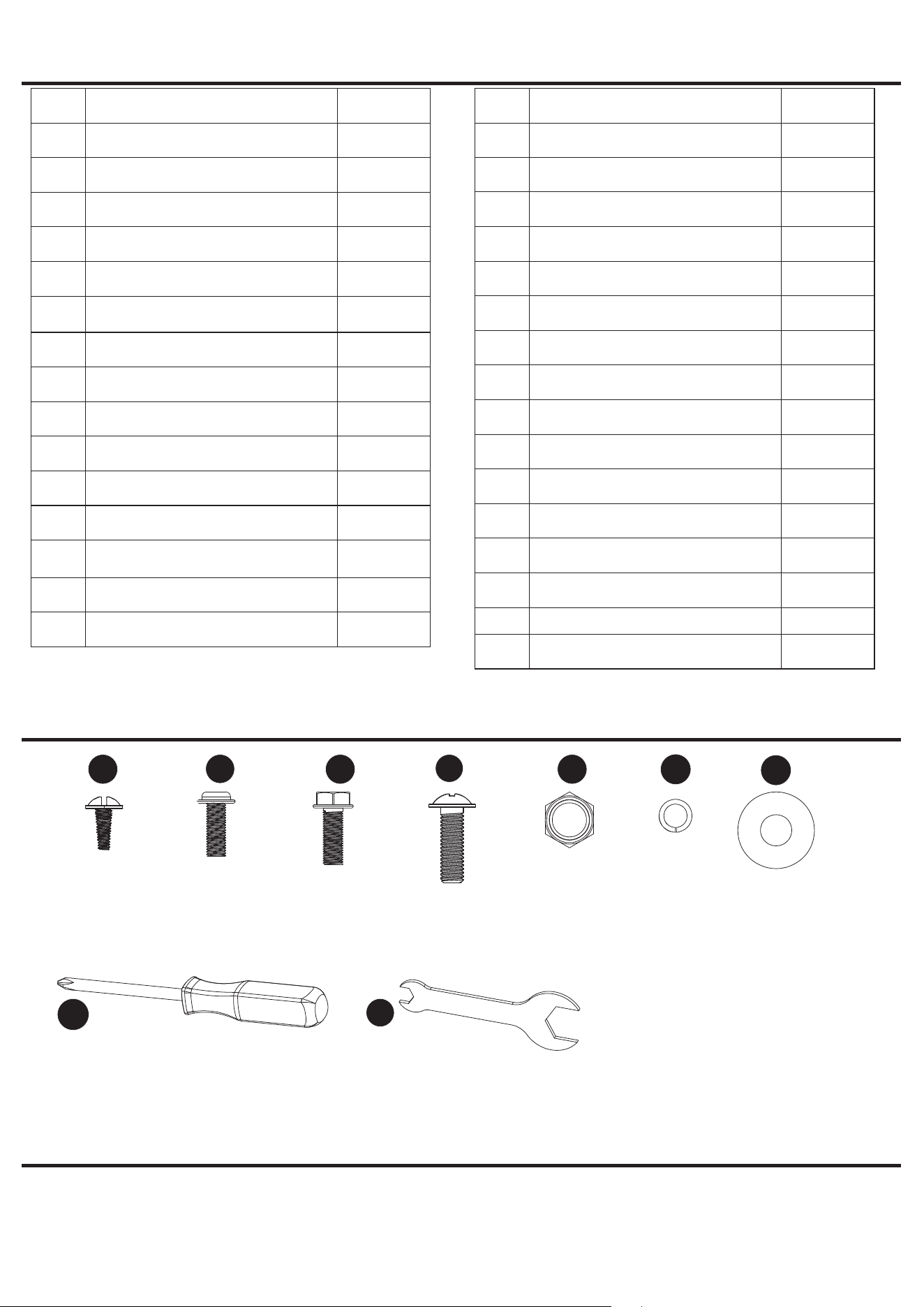

Hardware Contents .............................................................. 6
Preparation .................................................................... 6

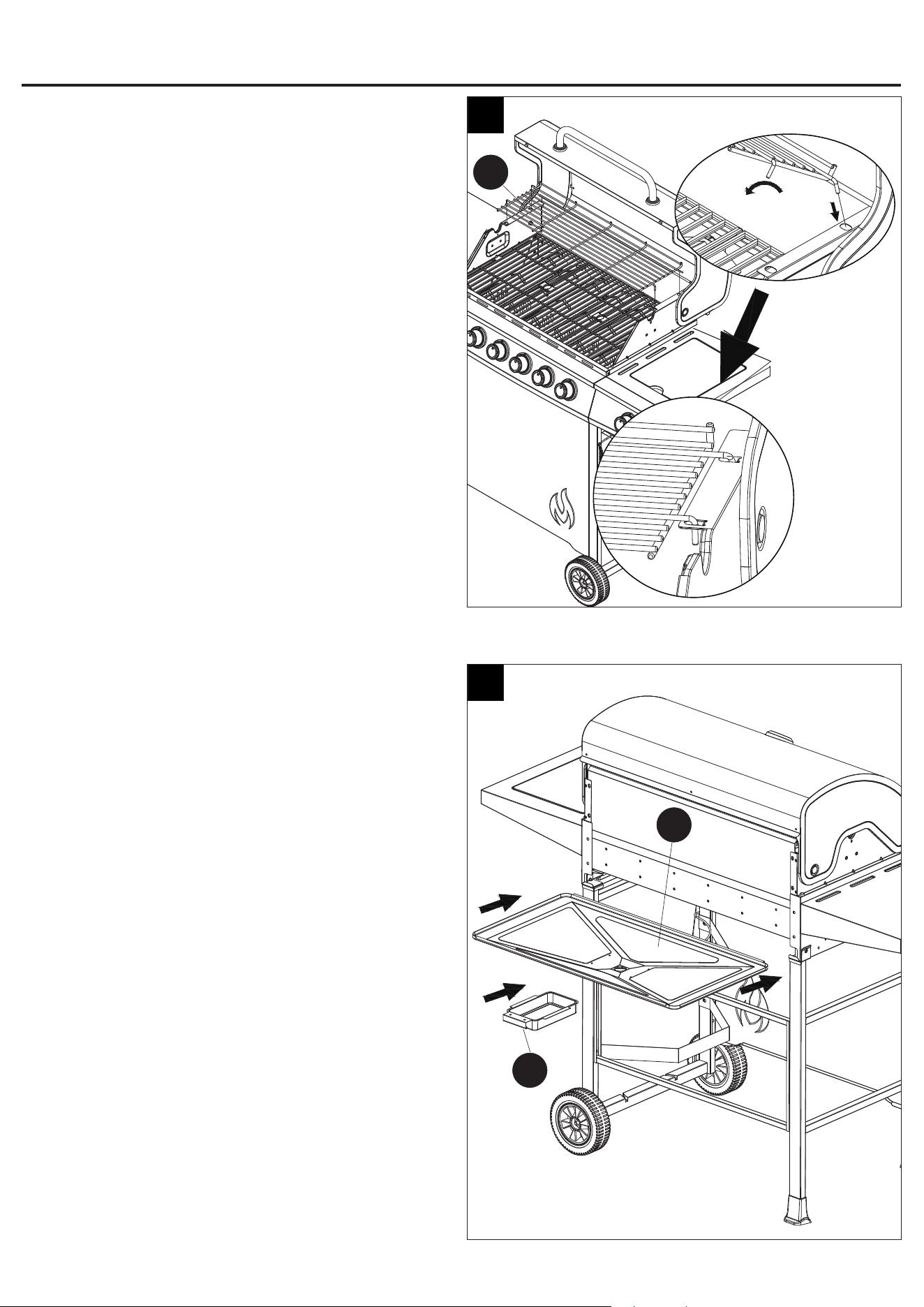

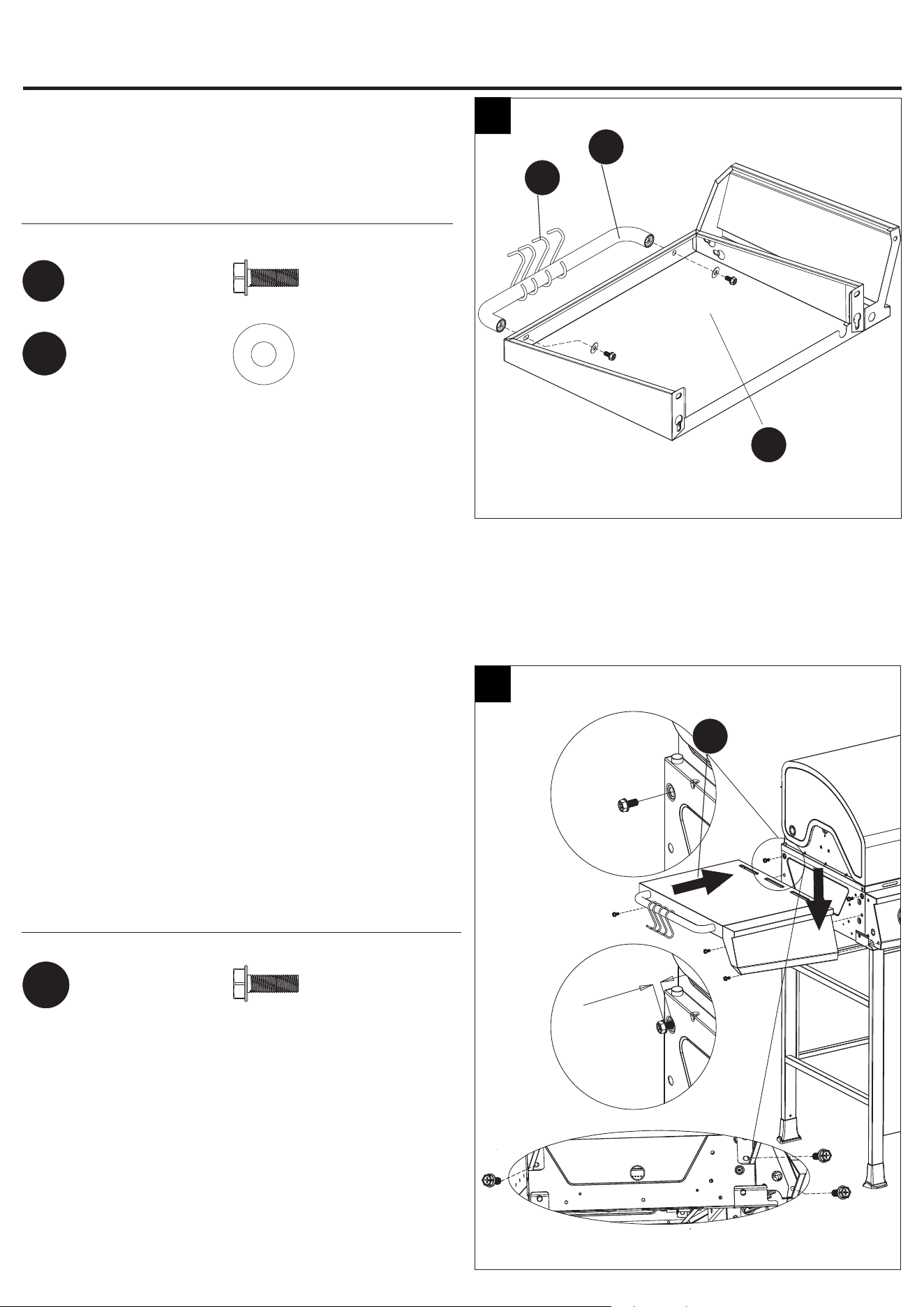

Assembly Instructions ............................................................ 7

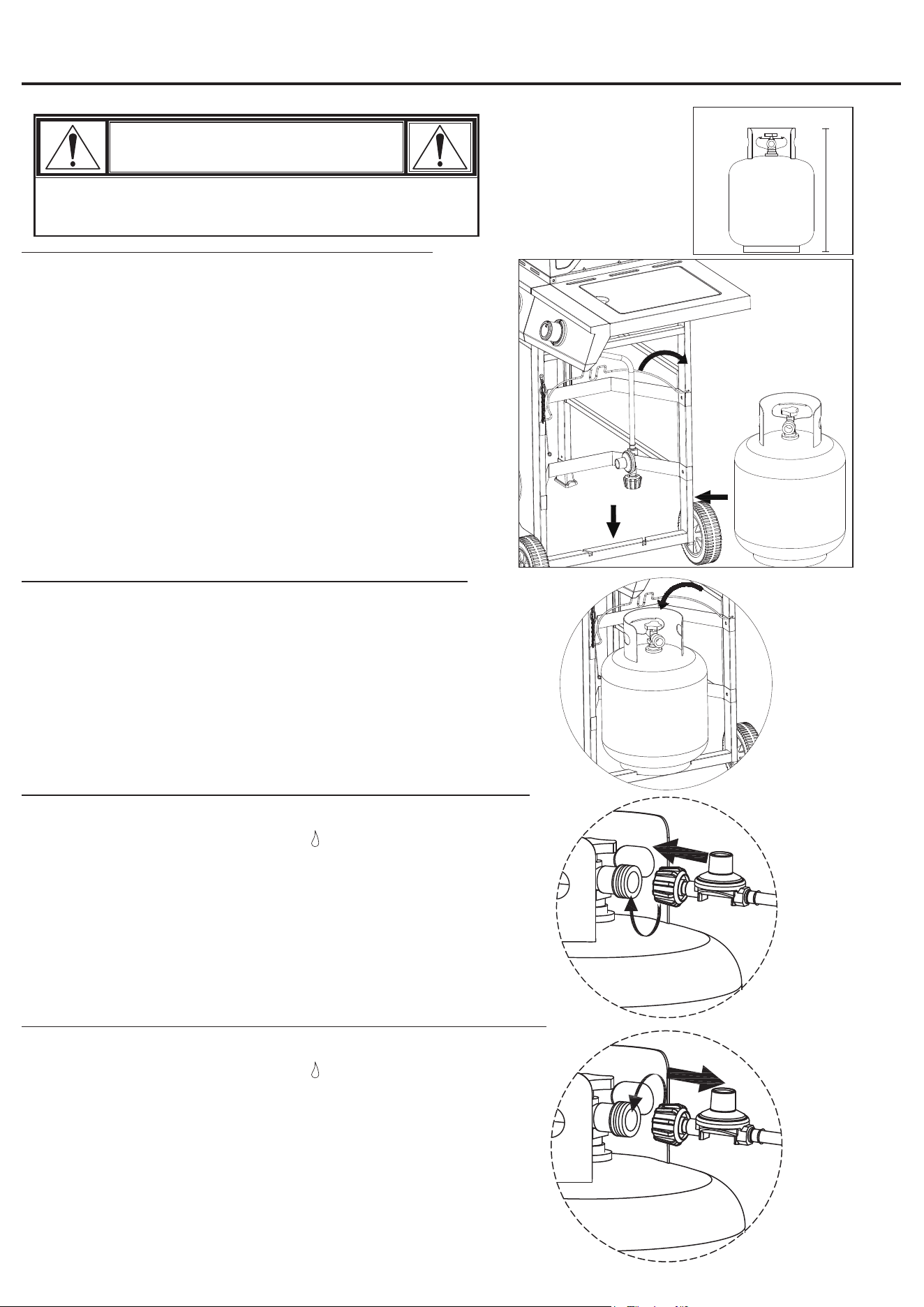

Installation Instructions .......................................................... 16

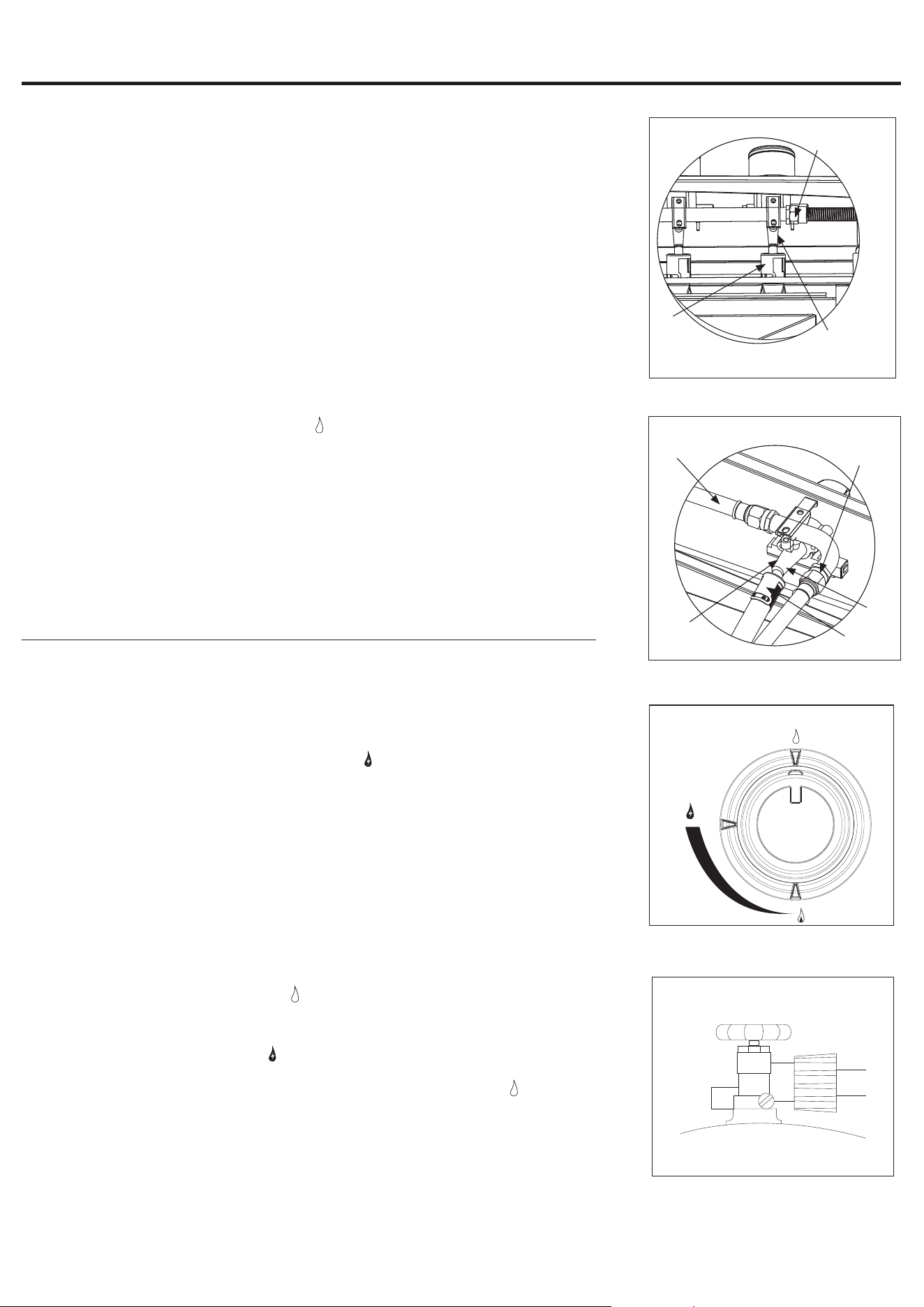

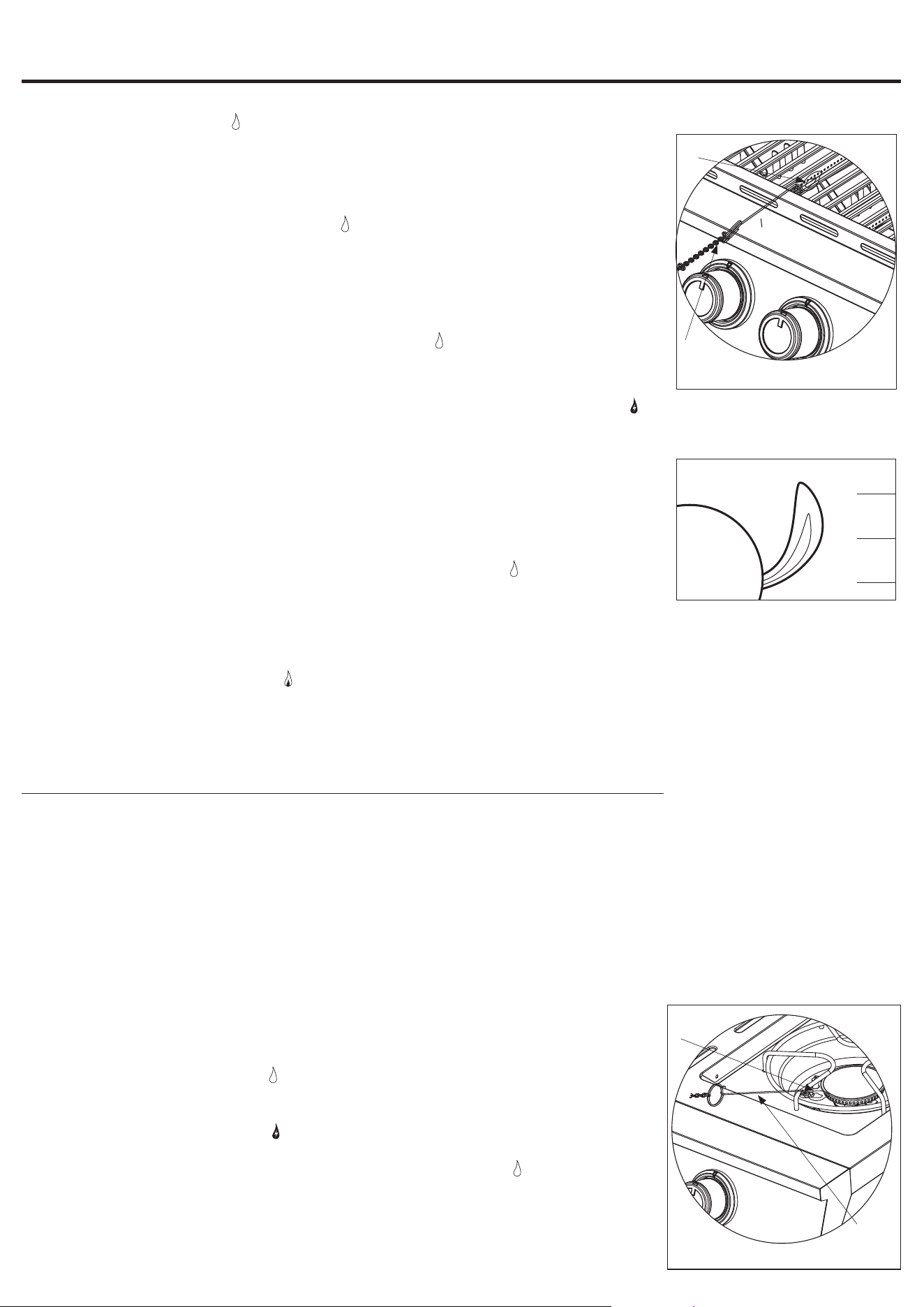

Operating Instructions ........................................................... 17

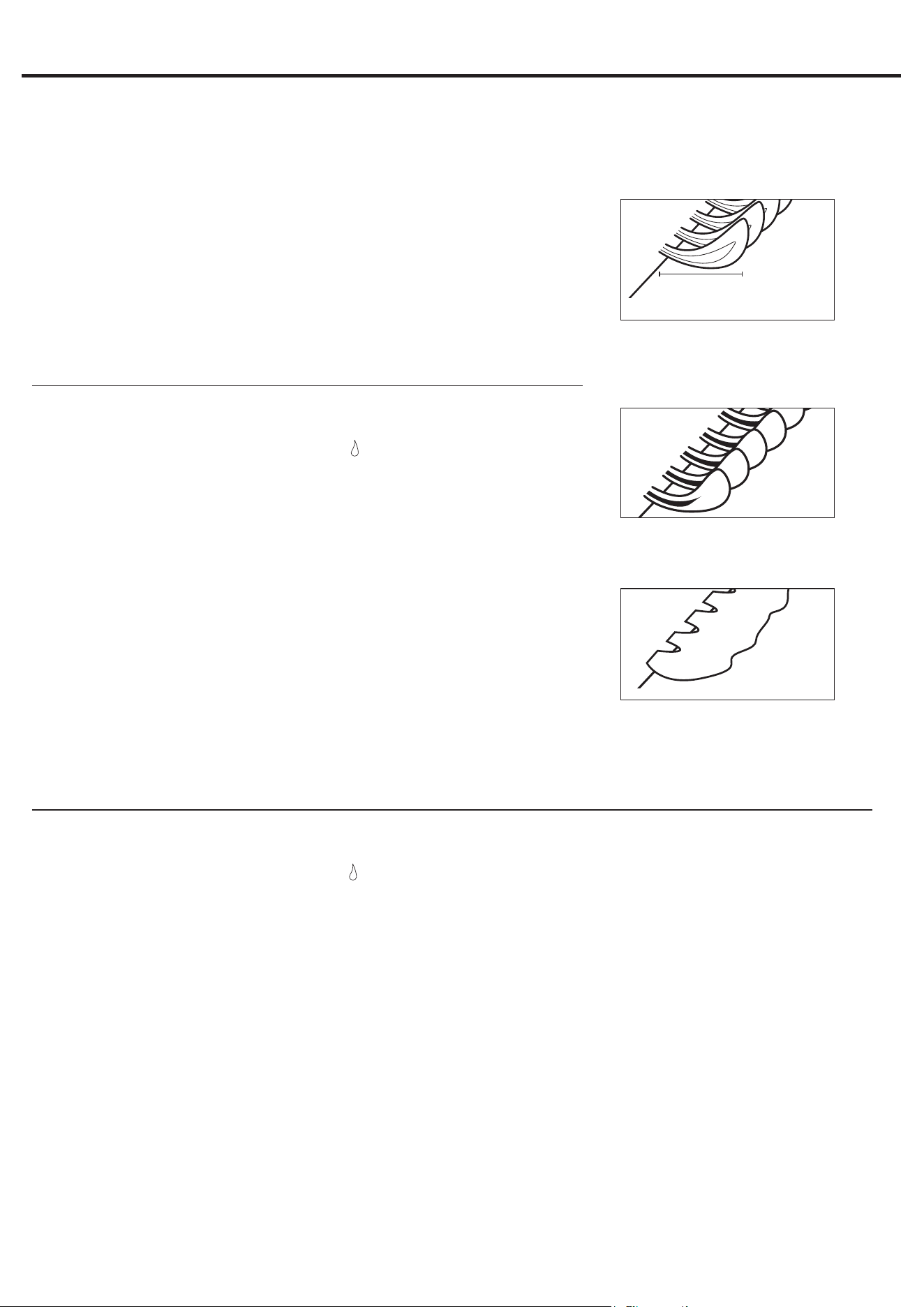

Care and Maintenance .......................................................... 19
Limited Warranty ............................................................... 21
Troubleshooting................................................................ 21
Replacement Parts List ....................................................... 23
W DANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious
bodily injury or death, or in a fire or an explosion causing damage to property.
W WARNINGS:
SAFETY INFORMATION
3
W The LP gas cylinder must have a cylinder collar
to protect the cylinder valve.
W Never use an LP gas cylinder with a damaged
body, valve, collar or footing.
W Dented or rusted LP gas cylinders may be
hazardous and should be checked by your LP
gas supplier prior to use.
W The LP gas cylinder should not be dropped or
handled roughly.
W LP gas cylinders must be stored outdoors out
of the reach of children and must not be stored
in a building, garage or any other enclosed
area. Your cylinder must never be stored where
temperatures can reach over 125°F.
W Do NOT insert any tool or foreign object into
the valve outlet or safety relief valve. You may
damage the valve and cause a leak. Leaking
propane may result in an explosion, fire, severe
personal injury or death.
W Do NOT block holes in sides or back of grill.
W Never keep an LP gas cylinder in a hot car
or trunk. Heat will cause the gas pressure to
increase, which may open the relief valve and
allow gas to escape.
W Place dust cap on cylinder valve outlet
whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve outlet
that is provided with the cylinder valve. Other
types of caps or plugs may result in leakage of
propane.
W If grill is not in use, the gas must be turned off at
the supply cylinder and disconnected.
W Do NOT store a spare LP gas cylinder under or
near this appliance.
W Never fill the cylinder beyond 80 percent full.A
fire causing serious injury or damage to property
may occur if the above is not followed exactly.
W Never attempt to attach this grill to the self-
contained LP gas system of a camper trailer,
motor home or house.
W Never use charcoal, lighter fluid, lava rocks,
gasoline, kerosene or alcohol with this product.
W Your grill has been checked at all factory
connections for leaks. Re-check all connections
as described in the “Operating Instructions”
section, as shipping can loosen connections.
W Check for leaks even if your unit was assembled
for you by someone else.
W Do NOT operate if a gas leak is present. Gas
leaks may cause a fire or explosion.
W You must follow all instructions in the “Checking
for Leaks” section before operating. To prevent
fire or explosion hazard when testing for a leak:
a. Always perform a leak test before lighting the
grill and each time the cylinder is connected
for use.
b. No smoking. Do NOT use or permit sources
of ignition in the area while conducting a leak
test.
c. Conduct the leak test outdoors in a well-
ventilated area.
d. Do NOT use matches, lighters, or a flame to
check for leaks.
e. The use of alcohol, prescription or
non-prescription drugs may impair the
consumer’s ability to properly assemble or
safely operate the appliance.
f. Strong odors, colds, sinus congestion, etc.
may prevent the detection of propane. Use
caution and common sense when testing for
leaks.
g. Do NOT use grill until any and all leaks are
corrected.
If you are unable to stop a leak, disconnect
the LP gas supply. Call a gas appliance
serviceman or your local LP gas supplier.
W This grill is designed to operate at an inlet
pressure of: 11 inches water column.
W Do NOT store or use gasoline or other
flammable liquids or vapors within 25 feet (7.62
m) of this appliance.
W Do NOT use in an explosive atmosphere.
Keep grill area clear and free from combustible
materials, gasoline and other flammable vapors
and liquids.
W Minimum clearance from sides and back of unit
to combustible construction is 50 inches (127
cm). Do NOT use this appliance under any type
of overhang or roof.
W It is essential to keep the grill’s valve
compartment, burners and circulating air
passages clean.
W Inspect grill before each use.
W Do NOT alter grill in any manner. Any alteration
will void your warranty.
W Do NOT use the grill unless it is COMPLETELY
assembled and all parts are securely fastened
and tightened.
W Do NOT build this model of grill in any built-in or
slide-in construction. Ignoring this warning could
cause a fire or an explosion that can damage
property and cause serious bodily injury or
death.
W This grill should be thoroughly cleaned and
inspected on a regular basis.
W Clean and inspect the hose before each use of
the appliance. If there is evidence of abrasion,
wear, cuts or leaks, the hose must be replaced
SAFETY INFORMATION
4
prior to operation.
W Use only the regulator and hose assembly
provided. Use only the replacement regulator
and hose assembly specified by Lowe's Home
Centers LLC.
W Use only Lowe's Home Centers LLC-authorized
parts. The use of any part that is not factory-
authorized can be dangerous and will void your
warranty.
W Do NOT operate this appliance without reading
“Operating Instructions” in this manual.
W Do NOT touch metal parts of grill until they have
completely cooled to avoid burns, unless you
are wearing protective gear (pot holders, gloves,
BBQ mittens, etc.).
W Do NOT install or use in or on boats or
recreational vehicles.
W When cooking, fire extinguishing materials
should be readily accessible. In the event of an
oil / grease fire, do NOT attempt to extinguish
with water. Use type BC dry chemical fire
extinguisher or smother with dirt, sand or baking
soda.
W Do NOT use grill in high winds.
W Never lean over the grill when lighting.
W Do NOT leave a lit grill unattended. Keep
children and pets away from grill at all times.
W Do NOT leave grill unattended while preheating
or burning off food residue on high. If grill has
not been cleaned, a grease fire can occur that
may damage the product.
W Do NOT place empty cooking vessels on the
appliance while in operation.
W Use caution when placing anything on the grill
while the appliance is in operation.
W Do NOT attempt to move grill when in use.
Allow the grill to cool before moving or storing.
W LP gas cylinder must be properly disconnected
and removed prior to moving this grill.
W Storage of grill indoors is permissible only if the
cylinder is disconnected, removed from the grill
and properly stored outdoors.
W Always open grill lid carefully and slowly as heat
and steam trapped within grill can cause severe
burns.
W Do NOT attempt to disconnect the gas regulator
from the cylinder or any gas fitting while the grill
is in use.
W Always place your grill on a hard, non-
combustible, level surface. An asphalt or
blacktop surface may not be acceptable for this
purpose.
W Move gas hoses as far away as possible from
hot surfaces and dripping hot grease.
W Keep all electrical cords away from a hot grill.
W After a period of storage and / or nonuse, check
for leaks, burner obstructions and inspect for any
abrasion, wear or cuts to the hose.
W Failure to open lid while igniting the grill’s
burners, or not waiting 5 minutes to allow the
gas to clear if the grill does not light, may result
in an explosive flame-up.
W Never operate grill without its heat plates
installed.
W Always use a meat thermometer to ensure food
is cooked to a safe temperature.
W Use protective gloves when assembling this
product.
W Never turning the grill to high, and letting it run
for a while.
W Do NOT force parts together as this can result in
personal injury or damage to the product.
W Never cover entire cooking area with aluminum
foil. Laying the foilon the grates can restrict the
intended air flow inside the grill, create barriers
to the proper flow of grease to the catch pan,
which sets thestage for lots of it to build up
on the bottom tray, which in turn, builds the
potential for grease fires and flare ups.
W Deaths, serious injury or damage to property
may occur if the above is not followed exactly.
SAFETY INFORMATION
5
PACKAGE CONTENTS
A
V
G
Y
H
I
B
U
J
E
O
Q
P
C
F
L
M
N
Z
K
S
AC
AB
AA
AC
AE
R
X
AD
I
J
D
T
W
6
Part Description Quantity
A Warming Rack 1
B Cooking Grid 3
C Lid Handle 1
D Temperature Gauge 1
E Lid* 1
F Heat Plate 6
G Grill Body Assembly* 1
H Main Burner* 6
I Control Knob Bezel* 7
J Control Knob 7
K Regulator/Hose Assembly* 1
L Towel Bar 1
M Towel Hook 4
N Left Side Shelf Front Panel* 1
O Left Side Shelf 1
Part Description Quantity
P Grease Tray 1
Q Grease Cup 1
R Side Burner Grid 1
S Side Burner 1
T Right Side Shelf 1
U Right Side Shelf Front Panel* 1
V Left Cart Frame 1
W Rear Cart Frame 1
X Foot 2
Y Front Panel 1
Z LP Gas Tank Retainer Wire 1
AA Right Cart Frame 1
AB Lighting Rod* 1
AC Wheel 2
AD Axle 1
AE LP Gas Tank Blocking Wire 2
ST4.8x10
Screw
Qty:2
M4x10
Screw
Qty:4
M6x16
Bolt
Qty:28
M6x25
Screw
Qty:2
M10
Nut
Qty:2
Ø6.5
Lock Washer
Qty:6
Ø6.4
Washer
Qty:8
AA
BB
CC
DD
EE
FF
GG
#2 Philips Head
Screwdriver
Qty:1
M6-M10
Wrench
Qty:2
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the
product.
Estimated assembly time: 45 minutes by two people.
Tools required for assembly: Wrench and Philips screwdriver (included).
PACKAGE CONTENTS
HARDWARE CONTENTS
Preparation
HH
II
* Pre-assembled
7

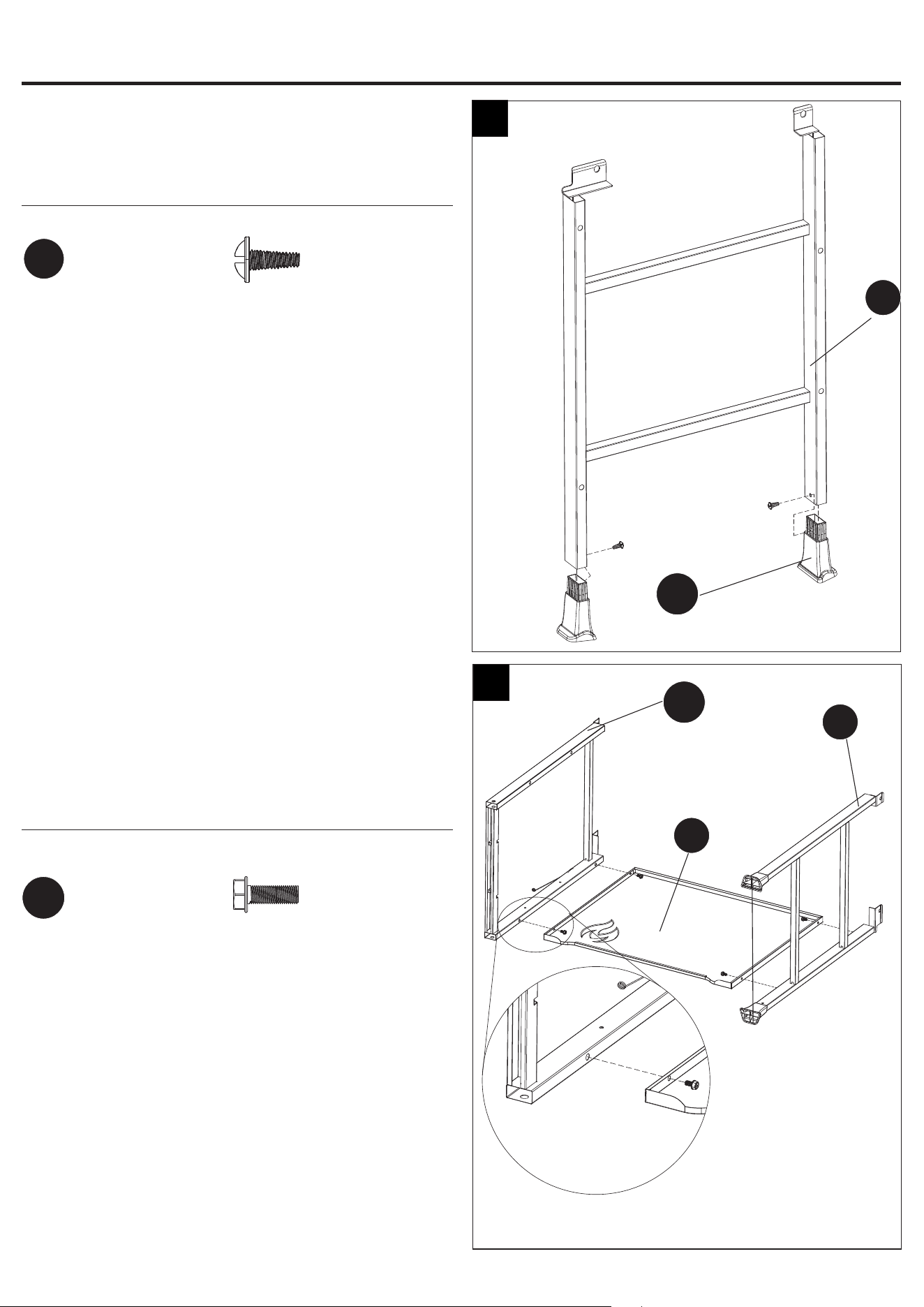

Step 1: Insert Feet
Insert the feet (X) into the left cart frame (V).
Hardware Used
1
V
X
ST4.8x10
Screw
AA
x 2
Step 2: Attach Front Panel
Align the holes in the front panel (Y), the left cart
frame (V) and right cart frame (AA). Then insert the
M6x16 bolts (CC) into the holes shown in Fig.2.
Tighten both screws completely.
Hardware Used
2
ASSEMBLY INSTRUCTIONS
V
AA
Y
M6x16
Bolt
CC
x 4
8

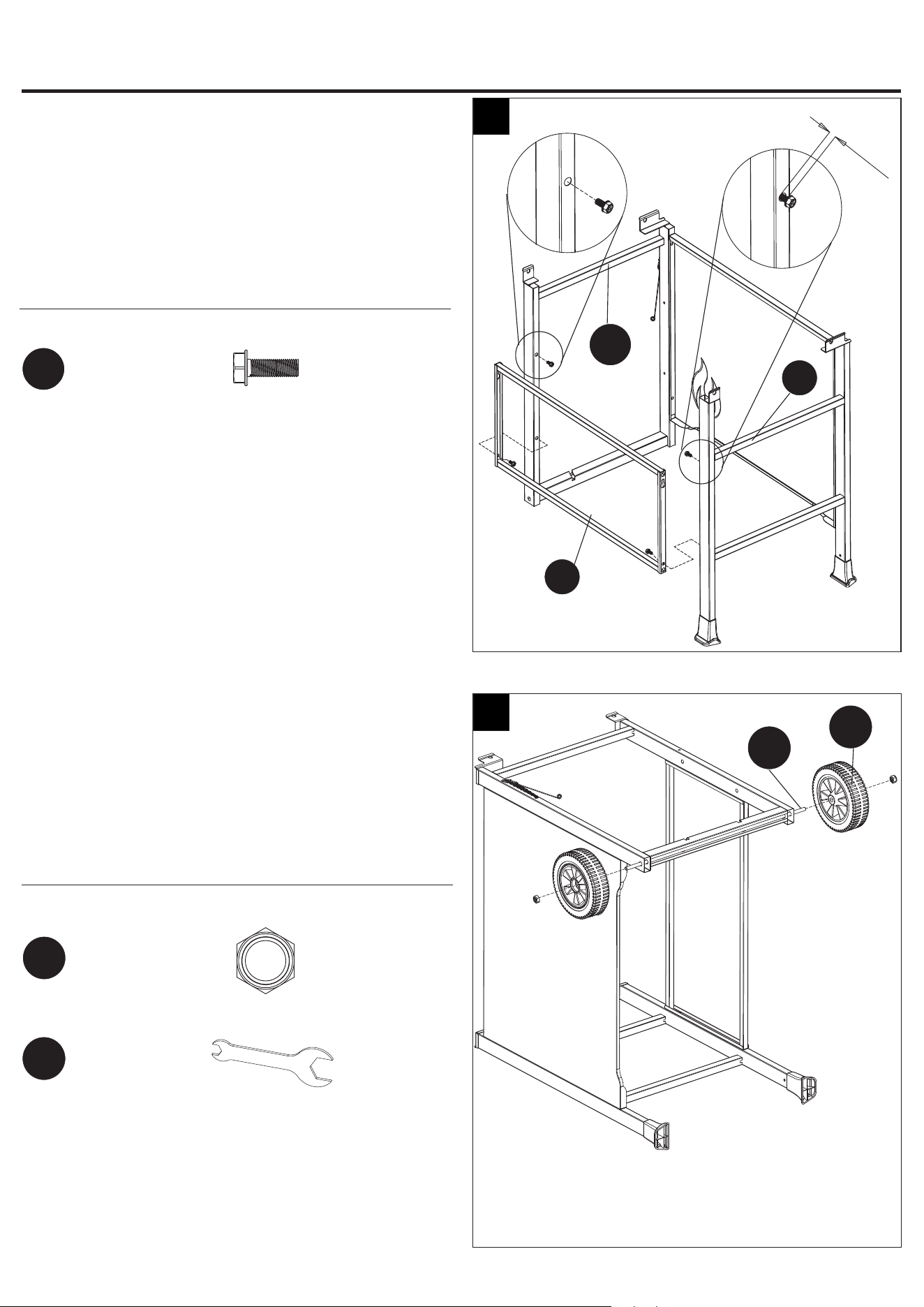

Step 3: Attach Rear Cart Frame
Align the holes in the rear cart frame (W), the left
cart frame (V) and right cart frame (AA). Then insert
the M6x16 bolts (CC) into the holes shown in Fig.3.
NOTE: Insert the two screws into the upper frame
holes with leaving 5 mm threads exposed.
Hardware Used
5MM
3
Step 4: Attach Axles and Wheels
Attach the wheels (AC) and the axle (AD) with two
M10 nuts (EE).
NOTE: Use M6-M10 wrenchs (II) to tighten the
wheel nuts.
Hardware Used
4
W
ASSEMBLY INSTRUCTIONS
AA
V
M6x16
Bolt
CC
x 4
AC
AD
M10
Nut
EE
x 2
M6-M10
Wrench
II
x 2
First
Second
9

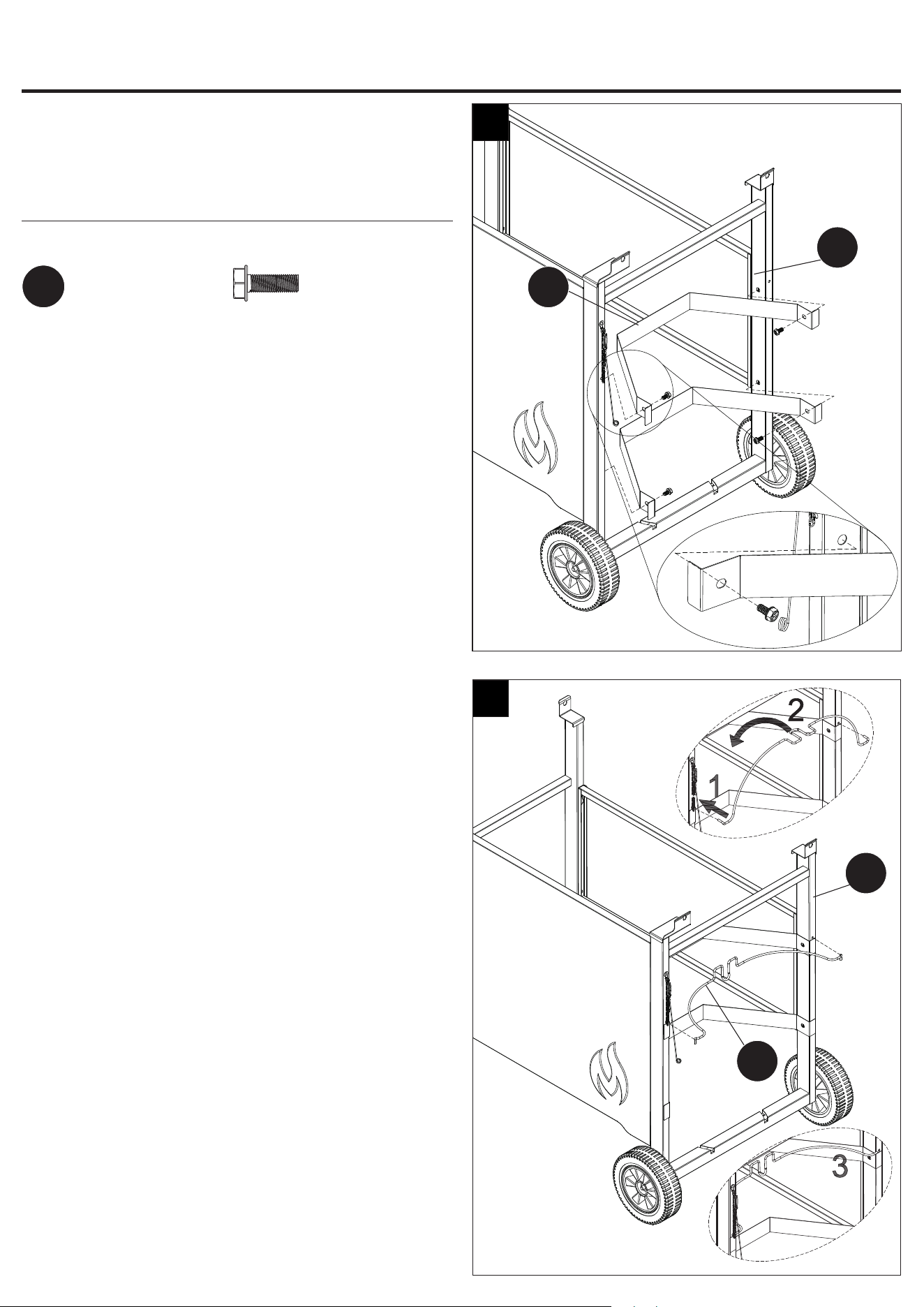

Step 5: Attach LP Gas Tank Blocking Wires
Attach the LP gas tank blocking wires (AE) onto the
right cart frame (AA) with four M6x16 bolts (CC).
Hardware Used
5
Step 6: Attach LP Gas Tank Retainer Wire
Attach the LP gas tank retainer wire (Z) onto the
right cart frame (AA).
6
AA
ASSEMBLY INSTRUCTIONS
AE
AA
M6x16
Bolt
CC
x 4
Z
10

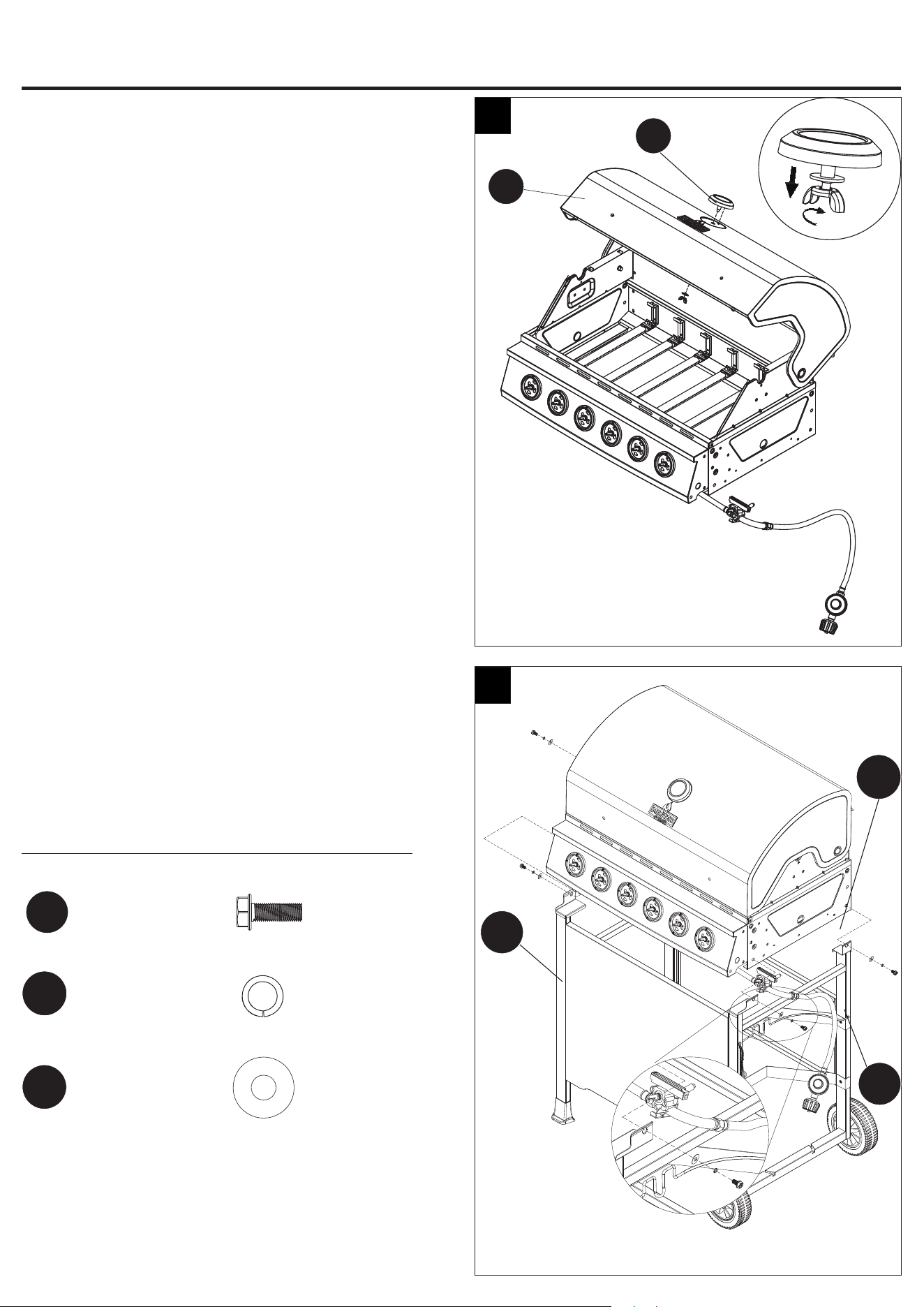

Step 7: Attach Temperature Gauge
Attach the temperature gauge (D) onto the lid (E).
NOTE: Remove the washer and wing nut
pre-assembled on the temperature gauge (D) in rst.
7
Step 8: Attach Grill Body Assembly
Attach the grill body assembly (G) with four M6x16
bolts (CC), Ø6.5 lock washers (FF) and Ø6.4
washers (GG).
NOTE: Two people are needed to perform this step.
Hardware Used
8
G
D
ASSEMBLY INSTRUCTIONS
V
AA
M6x16
Bolt
CC
x 4
Ø6.4
Washer
GG
x 4
Ø6.5
Lock Washer
FF
x 4
E
11
5mm
Step 9: Attach Towel Bar and Towel Hook
Attach the towel bar (L) and towel hooks (M) with
two M6x16 bolts (CC) and Ø6.4 washers (GG).
Hardware Used
9
O
10
L
O
ASSEMBLY INSTRUCTIONS
First
Second
M
Ø6.4
Washer
GG
x 2
Third
Step 10: Attach Left Side Shelf
Attach the left side shelf (O) with five M6x16 bolts
(CC)
.
NOTE: Insert two bolts into the upper holes with
leaving 5 mm threads exposed. Then slide the left
side shelf onto the bolts and insert the other three
bolts into the lower holes shown in Fig.10. Tighten all
screws completely.
Hardware Used
M6x16
Bolt
CC
x 5
M6x16
Bolt
CC
x 2
12
5MM
Step 11: Attach Right Side Shelf
Attach the right side shelf (T) with ve M6x16
bolts (CC).
NOTE: Insert two bolts into the upper holes with
leaving 5 mm threads exposed. Then slide the
right side shelf onto the bolts and insert the other
three bolts into the lower holes shown in Fig.11.
Tighten all screws completely.
Hardware Used
5mm
11
K
T
First
Second
12
ASSEMBLY INSTRUCTIONS
Third
M6x16
Bolt
CC
x 5
First
Second
Third

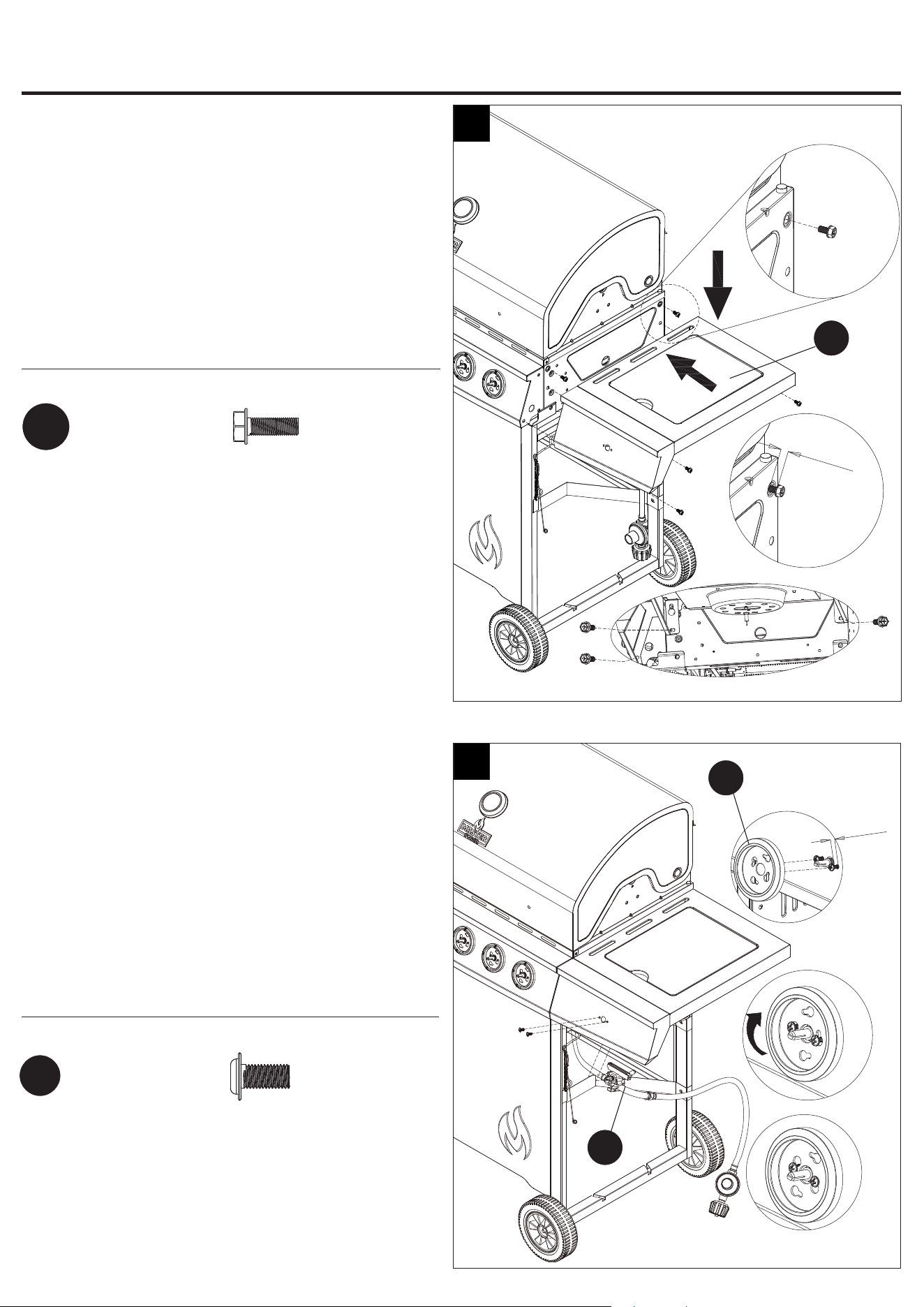

Step 12: Install Side Burner Valve and Control
Knob Bezel on Right Side Shelf
Install the Regulator/Hose Assembly (K) with
two M4x10 screws (BB). Then attach the control
knob bezel (I) onto the stem of the valve shown in
Fig.12.
NOTE: Insert two screws into the valve holes with
leaving 5 mm threads exposed.
Hardware Used
M4x10
Screw
BB
x 2
I
13
13
S
T
ASSEMBLY INSTRUCTIONS
First
Second
Third
First
Second
Third
First
Third
Second

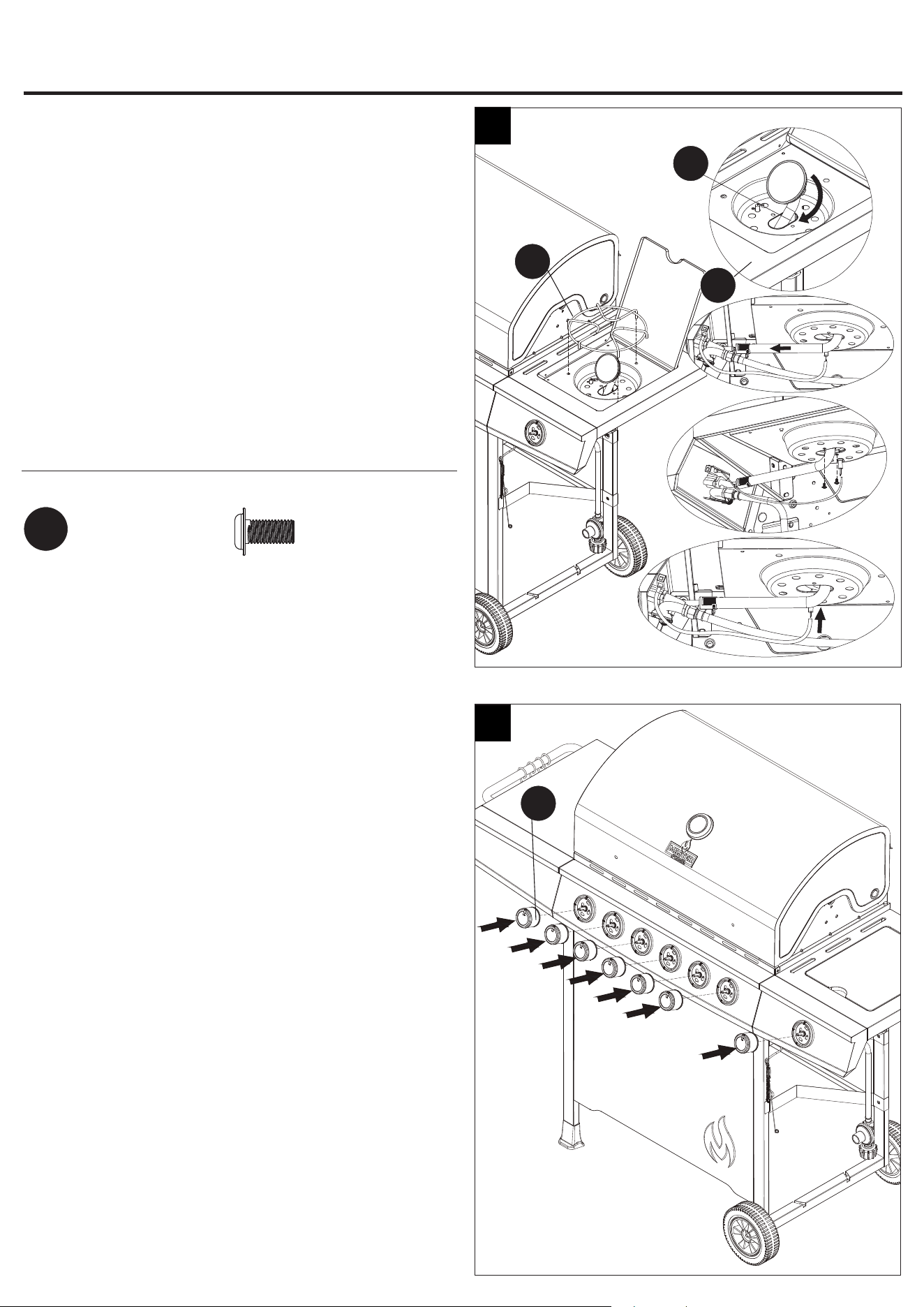

Step 13: Attach Side Burner, Side burner Grid and
Ignition Wire
Push the side burner (S) through the right side shelf (T)
and put the venturi tube of side burner (S) into place.
Attach the side burner (S) to the right side shelf (T) by
using two M4x10 screws (BB).
Connect the side burner ignition wire as fourth
illustrated.
NOTE: Failure to plug the wire to the ignitor electrode
will result in no ignition.
Hardware Used
M4x10
Screw
BB
x 2
J
14
Step 14: Attach Control Knobs
Push seven control knobs (J) onto the stem of the
valve.
R
Fourth
14

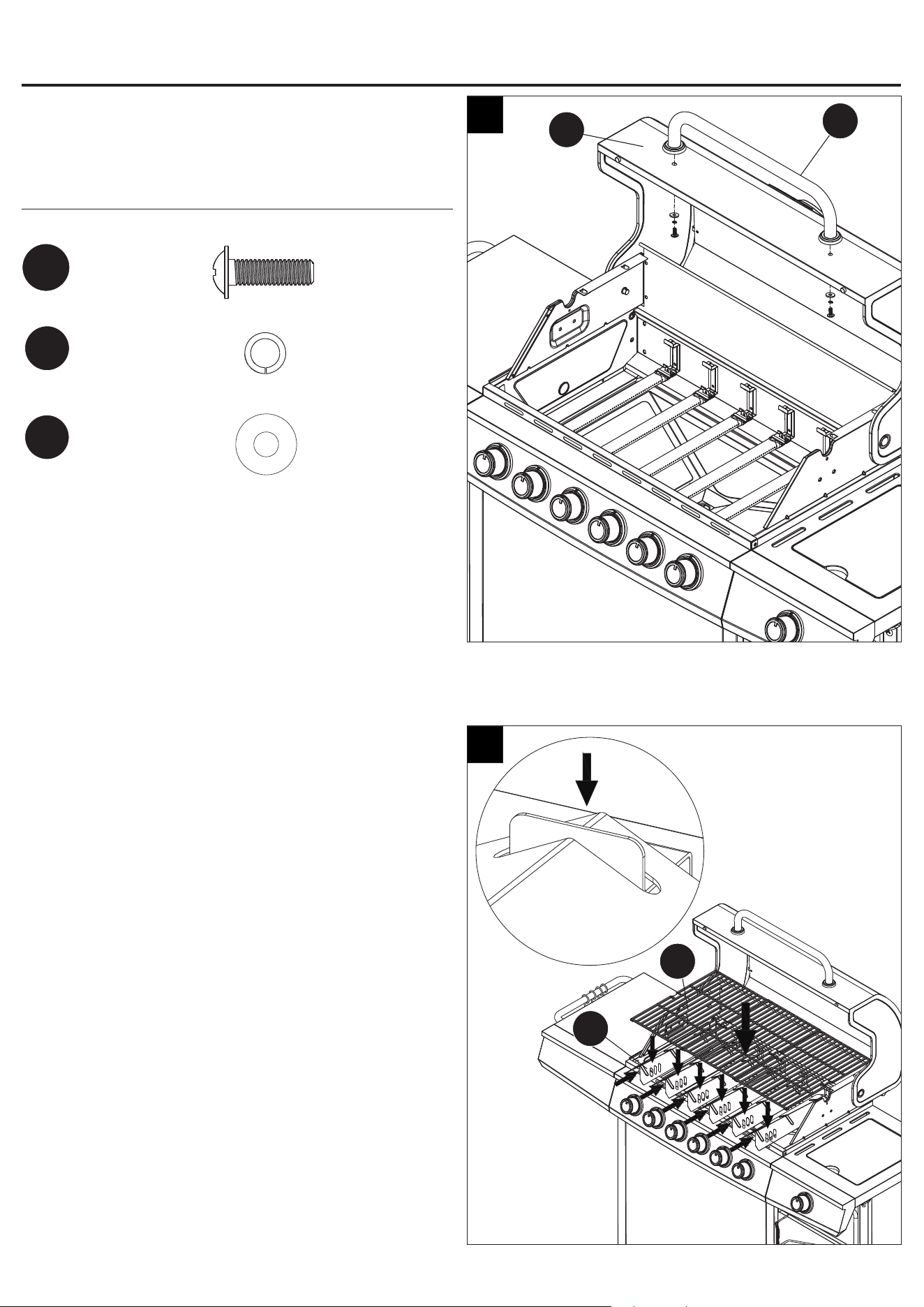

Step 15: Attach Lid Handle
Attach the lid handle (C) onto the lid (E).
Hardware Used
15
Step 16: Attach Heat Plates and Cooking Grids
Put the heat plates (F) into place.
Put the cooking grids (B) into place.
16
ASSEMBLY INSTRUCTIONS
M6x25
Screw
DD
x 2
C
E
Ø6.4
Washer
GG
x 2
Ø6.5
Lock Washer
FF
x 2
F
B
15
Step 17: Attach Warming Rack
Put the warming rack (A) into place.
17
Step 18: Attach Grease Tray and Grease Cup
Insert the grease tray (P) and the grease cup (Q)
into the grill body.
18
ASSEMBLY INSTRUCTIONS
P
1
2
A
Q
To operate, you will need one precision-filled standard grill LP gas tank with external valve threads.
20 lb
9 Kg
17.9 in. / 45.5 cm
12.2 in. / 31 cm
W LP gas tank must be properly disconnected
and removed prior to moving this grill.
CAUTION
Securing LP Gas Tank
Secure tank by sliding the tank retainer wire over shoulder of
LP gas tank.
Inserting LP Gas Tank
Place precision-filled LP gas tank upright into the notches
in the right cart frame so the tank valve is facing the gas
line connection.
Connecting LP Gas Tank
1. Make sure control knobs are in the “ OFF” position (Figure 3).
2. Before connecting, be sure there is no debris caught in the head of
the LP gas tank, head of the regulator valve or in the head of the
burner or burner ports.
3. Connect regulator/hose assembly to tank by turning knob clockwise
until it stops
4. Perform leak test per “Checking for Leaks” section.
Disconnecting LP Gas Tank
1. Make sure control knobs are in the “ OFF” position (Figure 3).
2. Before disconnecting, make sure the LP gas tank valve is “CLOSED”.
3. Disconnect regulator/hose assembly from LP gas tank by turning knob
counterclockwise until it is loose.
W CAUTION: LP gas tank must be properly disconnected and
removed prior to moving this griddle.
4. Place the protective cap cover on the LP tank and store the tank
outdoors in a well ventilated area out of direct sunlight.
16
INSTALLATION INSTRUCTIONS
Checking for Leaks
Burner Connections
1. Make sure the regulator hose and valve connections are securely fastened to
the burner and the tank.
2. Visually check the connection between the burner/venturi tube and orifice.
3. Make sure the burner/venturi tube fits over the orifice.
W WARNING: Failure to inspect this connection or follow these instructions
could cause a fire or an explosion which can cause death, serious bodily
injury or damage to property.
4. Please refer to diagram for proper installation (Figures 1 and 3).
5. If the burner/venturi tube does not rest flush to the orifice, as shown, please
contact 800.963.0211 for assistance.
Tank / Gas Line Connection
1. Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing
soap with three parts water.
2. Make sure control knobs are in the “ OFF” position (Figure 3).
3. Connect LP gas tank per “Installing LP Gas Tank” section.
4. Turn LP gas tank valve to “OPEN”.
5. Spoon several drops of solution, or use a squirt bottle, at all “X” locations
(Figures 1, 2 and 4).
a. If any bubbles appear, turn LP gas tank valve to “CLOSED”, reconnect and
re-test.
b. If you continue to see bubbles after several attempts, turn LP gas tank valve
to “CLOSED” and disconnect LP gas tank, per “Disconnecting LP Gas Tank”
section.
c. If no bubbles appear after one minute, turn LP gas tank valve to “CLOSED”,
wipe away solution and proceed.
Operating Main Burners
First Use
1. Make sure all labels, packaging and protective films have been removed from the
grill.
2. Remove manufacturing oils before cooking on this grill for the first time by
operating the grill for at least 15 minutes on
(HIGH) with the lid closed. This will
“heat clean” the internal parts and dissipate odors.
Lighting
W CAUTION: Keep outdoor gas cooking appliance area clear and free from
combustible materials, gasoline and other flammable vapors and liquids.
W CAUTION: Do NOT obstruct the flow of combustion and ventilation air.
W CAUTION: Check and clean burner / venturi tubes for insects and insect
nests. A clogged tube can lead to a fire.
W CAUTION: Attempting to light the burner with the lid closed may cause an
explosion.
1. Open lid.
2. Check for obstructions of airflow to the burners. Spiders, insects and webs can
clog the burner/venturi tube. A clogged burner tube can lead to a fire.
3. All control knobs must be in the “ OFF” position (Figure 3).
4. Connect LP gas tank per “Installing LP Gas Tank” section.
5. Turn LP gas tank valve to “OPEN”.
6. Push and turn control knob to
(HIGH). the burner should light. Repeat up to three
times.
7. If ignition does not occur in 5 seconds, turn burner control knob “ OFF,” wait 5
minutes, and repeat lighting procedure.
8. If igniter does not light burner, use a lit match secured with the lighting rod
(included with grill) to light burners. Access the burners through the cooking grid
and heat plates. Position lit match near side of burner (Figure 5).
Important: Always use the lighting rod (included) when lighting burners with a match.
9. After lighting, observe the burner flame. Make sure all burner ports are lit and flame height matches illustration
(Figure 6).
Note: Each burner lights independently - repeat steps 5-9 for the other burners.
OPERATING INSTRUCTIONS
Figure 1 Main Burners
Burner /
Venturi Tube
LP Gas Valve
with Orice
LP Gas
Connection
Figure 2 Side Burner
LP Gas
Connection
Valve
Soft Pipe
Connection
Burner/
Venturi
Tube
LP Gas
Valve with
Orice
Figure 3
LOW
HIGH
OFF
Figure 4
X
X
X
X
X
17
Operating Side Burner
NOTE: Side burner can be used while main burners are operating.
Never use side burner as a grill.
W CAUTION: Maximum weight for side burner and side shelf is 33 lbs.
W CAUTION: Using pots larger than 6 quarts in capacity could exceed weight limit
of the side burner shelf, resulting in failure of grill cart components.
W CAUTION: Do NOT lean on the side burner shelf.
W CAUTION: Attempting to light the burner with the lid closed may cause an
explosion.
Lighting
1. Open lid.
2. Check for obstructions of airflow to the burners. Spiders, insects and webs can clog
the burner/venturi tube A clogged burner tube can lead to a fire.
3. Control knob must be in the “ OFF” position (Figure 3).
4. Connect LP gas tank per “Installing LP Gas Tank” section.
5. Turn LP gas tank valve to “OPEN”.
6. Push and turn control knob to
(HIGH). The burner should light. If not, repeat up to
three times.
7. If ignition does not occur in 5 seconds, turn burner control knob “ OFF,” wait 5
minutes and repeat lighting procedure.
Figure 5
Lighting
hook
Match
Figure 6
Burner
Flame
Slight
Yellow
Slight
Blue
Dark
Blue
Figure 7
Lighting
Hook
Match
W CAUTION: If burner flame goes out during operation, immediately turn the
control knobs to the “ OFF” position, LP gas tank valve “CLOSED” and open
lid to let the gas clear for 5 minutes before re-lighting.
Turning Off
1. Turn LP gas tank valve to “CLOSED”.
2. Turn all control knobs clockwise to the “ OFF” position.
NOTE: A “poof” sound is normal as the last of the LP gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
Controlling Flare-ups
W CAUTION: Putting out grease fires by only closing the lid is not possible.
1. If a grease fire develops, turn control knobs to the “ OFF” position and LP gas
tank valve “CLOSED”. Do NOT use water on a grease fire. This can cause
the grease to splatter and could result in serious burns, bodily harm or other
damage.
2. Do NOT leave grill unattended while preheating or burning off food residue on
(HIGH). If grill has not been cleaned, a grease fire can occur.
W WARNING: When cooking, fire extinguishing materials should be readily
accessible. In the event of an oil / grease fire, use type BC dry chemical fire
extinguisher or smother with dirt, sand or baking soda. Do NOT attempt to
extinguish with water.
Flare-ups are a part of cooking meats on a grill and add to the unique flavor of grilling.
Excessive flare-ups can over-cook your food and be dangerous.
Important: Excessive flare-ups result from the build-up of grease in the bottom of your grill.
If a grease fire occurs, close the lid AND turn the control knob(s) to “ OFF” until the
grease burns out. Be careful when opening the lid as sudden flare-ups may occur.
If excessive flare-ups occur, do NOT pour water onto the flames.
Minimize Flare-ups:
1. Trim excess fat from meats prior to cooking.
2. Cook high fat content meats on
(LOW) setting or indirectly.
3. Ensure that your grill is on a hard, level, non-combustible surface and the grease is
allowed to drain into grease receptacle.
OPERATING INSTRUCTIONS(CONTINUED)
18
W CAUTION: If burner flame goes out during operation, immediately turn the control knob to the “ OFF” position
and LP gas tank valve “CLOSED” and open lid to let the gas clear for 5 minutes before re-lighting.
Turning Off
1. Turn LP gas tank valve to “CLOSED”.
2. Turn control knob clockwise to the “ OFF” position.
Note: A “poof” sound is normal as the last of the LP gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
Cooking
1. Open lid and ignite the side burner per “Lighting” instructions.
2. Adjust control knob to desired flame height.
3. Place pan on center of grid.
4. Cook and adjust temperature as needed.
5. Turn grill off per “Turning Off” instructions.
W CAUTION:
1. All cleaning and maintenance should be done when grill is cool and with the fuel supply disconnected.
2. Do NOT clean any grill part in a self-cleaning oven. The extreme heat will damage the finish.
3. Do NOT enlarge valve orifices or burner ports when cleaning the valves or burners.
Notices
1. This grill should be thoroughly cleaned and inspected on a regular basis.
2. Abrasive cleaners will damage this product.
3. Never use oven cleaner to clean any part of grill.
Before Each Use
1. Keep the grill area clean and free from any combustible materials, gasoline, and other flammable vapors and liquids.
2. Do NOT obstruct the flow of the combustion of LP gas and the ventilation of air.
3. Keep the ventilation opening(s) of the LP gas tank area free and clear from debris.
4. Visually check the burner flames to make sure your grill is working properly (Figure 8).
5. See sections below for proper cleaning instructions.
6. Check for obstructions of airflow to the burners. Spiders, insects and webs can clog the burner / venturi tube.
A clogged burner tube can lead to a fire.
Cleaning Surfaces
1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water.
2. For stubborn surfaces, use a citrus-based degreaser and a nylon scrubbing brush.
3. Rinse clean with water.
4. Allow to air dry.
Cleaning Main Burners
1. Turn LP gas tank valve to “CLOSED”.
2. Turn all control knobs clockwise to the “ OFF” position.
Note: A “poof” sound is normal as the last of the gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
4. Remove cooking grids and heat plates.
8. If igniter does not light burner, use a lit match secured with the lighting rod (included with grill) to light burners. Position the
lit match near side of the burner (Figure 7).
9. Important: Always use the lighting rod (included) when lighting burner with a match. After lighting, observe the burner
flame. Make sure all burner ports are lit and flame height matches illustration (Figure 6).
OPERATING INSTRUCTIONS(CONTINUED)
CARE AND MAINTENANCE
19
5. Remove burners by removing the fasteners, which secure the burners to
the grill bottom.
6. Lift burners up and away from gas valve orifice.
7. Disconnect wire from spark electrode.
8. Clean venturi of each burner with small bottle brush or compressed air.
9. Remove all food residue and dirt from burner surface.
10. Clean any clogged ports with a stiff wire (such as an opened paper clip).
11. Inspect burners for any damage (cracks or holes). If damage is found,
replace with new burner(s) from manufacturer.
12. Re-install burner(s). Checking to insure that gas valve orifice is correctly
positioned inside each burner/venturi tube. Also, check position of spark
electrode.
13. Replace heat plate(s) and cooking grid(s).
14. Connect LP gas tank per “Installing LP Gas Tank” section.
15. Perform leak test per “Checking for Leaks” section.
Cleaning Side Burner
1. Turn LP gas tank valve to “CLOSED”.
2. Turn all control knobs clockwise to the “ OFF” position.
Note: A “poof” sound is normal as the last of the gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
4. Remove side burner grid.
5. Remove burner by removing the screws that secure the burner to the side
shelf.
6. Lift burner up and away from gas valve orifice.
7. Clean venturi of burner with small bottle brush or compressed air.
8. Remove all food residue and dirt from burner surface.
9. Clean any clogged ports with a stiff wire (such as an opened paper clip).
10. Inspect burner for any damage (cracks or holes). If damage is found,
replace with new burner from manufacturer.
11. Re-install burner(s). Checking to insure that gas valve orifice is correctly
positioned inside each burner/venturi tube. Also, check position of spark
electrode.
12. Replace cooking grid(s).
13. Connect LP gas tank per “Installing LP Gas Tank” section.
14. Perform leak test per “Checking for Leaks” section.
Figure 8
Burner Flame Conditions
Use this chart to see if your burners need
to be cleaned.
1-2 in. /
25.4 - 50.8 mm
Normal: Soft blue flames with
yellow tips between 1 in. - 2 in.
height.
Needs cleaning: Noisy with
hard blue flames.
Has to be replaced: Wavy with
yellow flames.
Before Storing
1. Turn LP gas tank valve to “CLOSED”.
2. Turn all control knobs clockwise to the “ OFF” position.
Note: A “poof” sound is normal as the last of the gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
4. Clean all surfaces.
5. Lightly coat the burner(s) and cooking grid(s) with cooking oil to prevent excess rusting.
6. If storing the grill indoors, disconnect the LP tank per “Disconnecting LP Gas Tank” section.
7. Place the protective cap cover on the LP tank and store the tank outdoors in a well-ventilated area out of direct
sunlight.
8. If storing the grill indoors, cover the grill and store in a cool dry place.
9. If storing the grill outdoors, cover the grill with a grill cover for protection from the weather.
CARE AND MAINTENANCE(CONTINUED)
20
21
LIMITED WARRANTY
TROUBLESHOOTING
Problem Possible Cause Prevention / Cure
Burner will not light
using igniter
LP gas tank valve is closed
Make sure regulator is securely attached to the LP gas tank per
“Installing LP Gas Tank”, then turn LP gas tank valve to “OPEN”
LP gas tank is low or empty Exchange, refill or replace LP gas tank
LP gas
1. Turn LP gas tank valve to “CLOSED”
2. Wait 5 minutes for gas to clear
3. Follow “Checking for Leaks” section
Wires or electrode covered with
cooking residue
Clean wire and/or electrode with rubbing alcohol
Electrode and burners are wet Wipe dry with cloth
Electrode cracked / broken -
sparks at crack
Replacement part(s) may be needed - contact Customer Care at
800.963.0211
Wire loose or disconnected
Reconnect wire or replacement part(s) may be needed - contact
Customer Care at 800.963.0211
Wire is shorting (sparking)
between ignitor and electrode
Replacement part(s) may be needed - contact Customer Care at
800.963.0211
Bad igniter
Replacement part(s) may be needed - contact Customer Care at
800.963.0211
Proof of purchase is required to access this warranty program, which is in effect from the date of
purchase. Customers will be subject to parts, shipping, and handling fees if unable to provide proof of the
purchase or after the warranty has expired.
If you have any questions or problems, you can call our customer service department at 800.963.0211,
8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at [email protected]
Limited Warranty
1-Year Warranty on all parts affecting the operation of the gas grill due to damage.
Warranty Provisions:
This warranty is non-transferable and does not cover failures due to misuse or improper installation or
maintenance.
This Warranty is for replacement of defective parts only. We are not responsible for incidental or
consequential damages or labor costs.
This warranty does not cover corrosion or discoloration after the grill is used, or due to lack of
maintenance, hostile environment, accidents, alterations, abuse or neglect.
This warranty does not cover damage caused by heat, abrasive and chemical cleaners, or any damage to
other components used in the installation or operation of the gas grill.
Some states do not allow the limitation or exclusion of incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights that vary from state to state.
22
TROUBLESHOOTING
Burner will not light with
match
No gas flow
Check if LP gas tank is empty
A. If empty, exchange, refill or replace LP gas tank
B. If LP gas tank is not empty, refer to “Sudden drop in gas ow
or reduced ame height” (see below)
LP gas tank is low or empty Exchange, refill or replace LP gas tank
LP gas
1. Turn LP gas tank valve to “CLOSED”
2. Wait 5 minutes for gas to clear
3. Follow “Checking for Leaks” section
Coupling nut and regulator not
fully connected
Turn the coupling nut about one-half to three-quarters additional
turn until solid stop. Tighten by hand only - do NOT use tools
Obstruction of gas flow
1. Clear burner / venturi tube
2. Check for bent or kinked hose
Disengagement of burner to
valve
Reengage burner and valve
Spider webs or insect nest in
venturi
Clean burner / venturi tube
Burner ports clogged or blocked Clean burner ports
Sudden drop in gas
flow or reduced flame
height
Out of gas Exchange, refill or replace LP gas tank
Overfilling prevention device
may have been activated
1. Turn control knobs to “
OFF”
2. Wait 30 seconds and light grill
3. If ames are still too low, reset the overlling prevention device:
a. Turn control knob(s) “ OFF”
b. Turn LP gas tank valve to “CLOSED”
c. Disconnect regulator
d. Turn control knobs to (HIGH)
e. Wait 1 minute
f. Turn control knobs to “ OFF”
g. Reconnect regulator and leak check connections, being
careful not to fully open valve
h. Light grill per “Lighting” section
Irregular flame pattern,
flame does not run the
full length of burner
Burner ports are clogged or
blocked
Clean burner ports
Flame is yellow or
orange
New burner may have residual
manufacturing oils
Burn grill for 15 minutes on
(HIGH) with the lid closed
Spider webs or insect nest in
venturi
Clean venturi
Food residue, grease, etc. on
burners
Clean burner
Poor alignment of valve to
burner / venturi tube
Ensure burner/venturi tube is properly engaged with valve
Flame goes out
High or gusting winds Do not use grill in high winds
Low on LP Gas Exchange, refill or replace LP gas tank
Overfilling prevention device
may have been activated
Refer to “Sudden drop in gas flow or reduced flame height” (see
above)
Flare-up
Grease buildup Remove and clean all grill parts per “Cleaning and Care” section
Excess fat in meat Trim fat from meat before grilling
Excessive cooking temperature Adjust to lower cooking temperature
Persistent grease fire
Grease trapped by food buildup
around burner system
1. Turn control knobs to “
OFF”
2. Turn LP gas tank valve to “CLOSED”
3. Leave lid in closed position and let re burn out
4. After grill cools, remove and clean all parts per “Cleaning and
Care” section
Flashback (fire in
burner tube(s))
Burner and / or burner / venturi
tube are blocked
Clean burners and / or burner / venturi tube
Inside of lid is peeling
(like paint peeling)
Baked on grease buildup has
turned to carbon and is flaking
off.
Clean all grill parts per “Cleaning and Care” section.
23
REPLACEMENT PARTS LIST
Part Description Part#
1 Warming Rack G23693-010
2 Cooking Grid G23693-020
3 Lid Handle G23693-030
4 Temperature Gauge B0104-J02
5 Lid* G23693-040
6 Heat Plate B0212-030
7 Grill Body Assembly* G23693-050
8 Main Burner* G23693-060
9 Control Knob Bezel* G23693-070
10 Control Knob G23693-080
11 Regulator/Hose Assembly* G23693-090
12 Towel Bar G0976-210
13 Towel Hook G0750-220
14 Left Side Shelf Front Panel* G23693-100
15 Left Side Shelf G23693-110
16 Grease Tray G1143-240
17 Grease Cup B0219-H01
18 Side Burner Grid B0222-C01
Part Description Part#
19 Side Burner G23693-120
20 Right Side Shelf G23693-130
21 Right Side Shelf Front Panel* G23693-140
22 Left Cart Frame G23693-150
23 Rear Cart Frame G23693-160
24 Foot G1349-170
25 Front Panel G23693-170
26 LP Gas Tank Retainer Wire G1349-190
27 Right Cart Frame G23693-180
28 Lighting Rod* B0223-D04
29 Wheel B0302-FA0
30 Axle G23693-190
31 LP Gas Tank Blocking Wire G23693-200
32 Main Valve* G23693-PMV
33 Side Valve* G23693-PSV
34 Rubber Spacer* G23693-PRS
35 Main Electrode* G23693-PME
36 Side Electrode* G23693-PSE
* Pre-assembled
For replacement parts, call the customer service department at 800.963.0211, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
Printed in China
