U-SHAPED WINDOW AIR CONDITIONER
ENGLISH
USER’S MANUAL
Models
1PACU8000
1PACU10000
1PACU12000
Distributed By:
Perfect Aire, LLC
5401 Dansher Road
Countryside, IL 60625
1220_M558
Important Safety Instructions .....................................................................................................

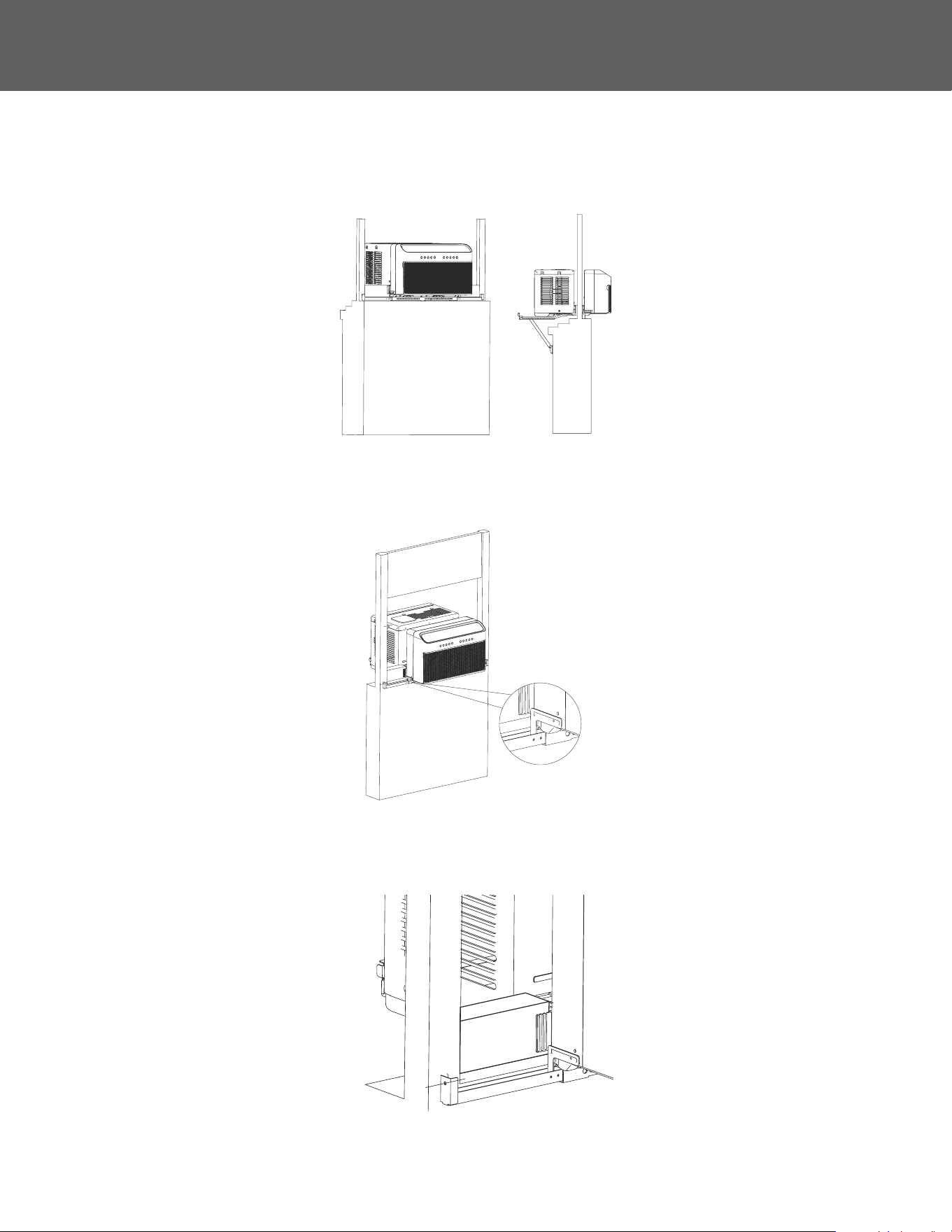

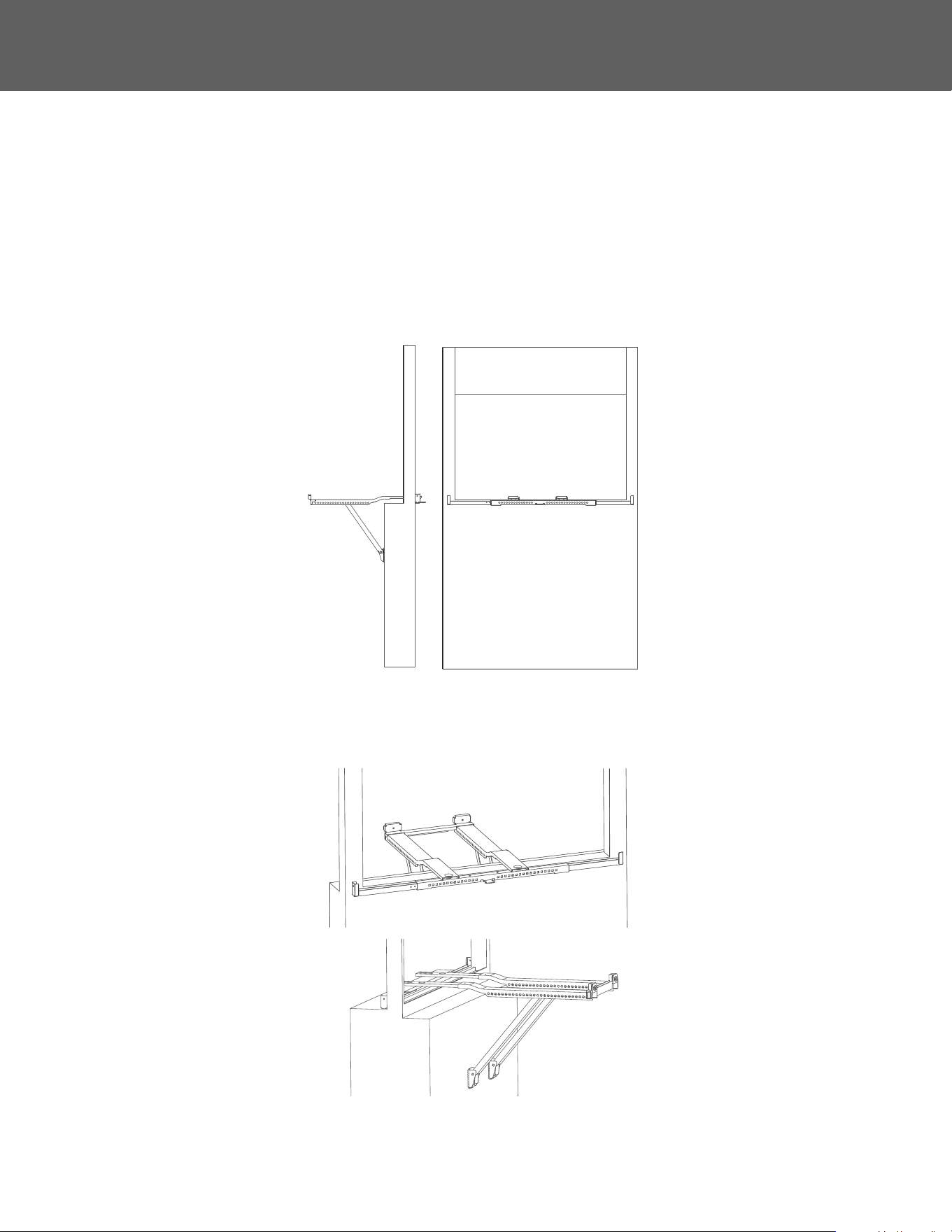

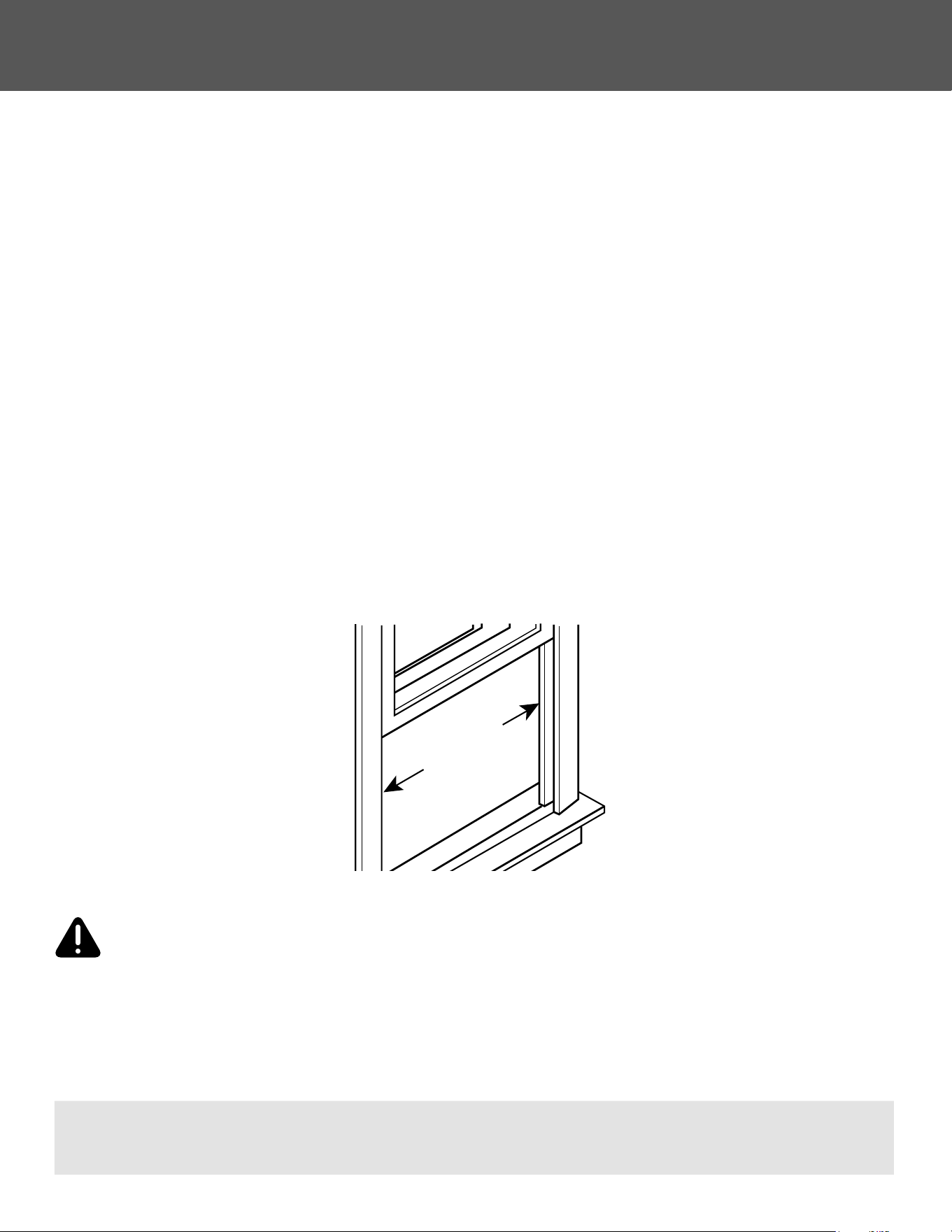

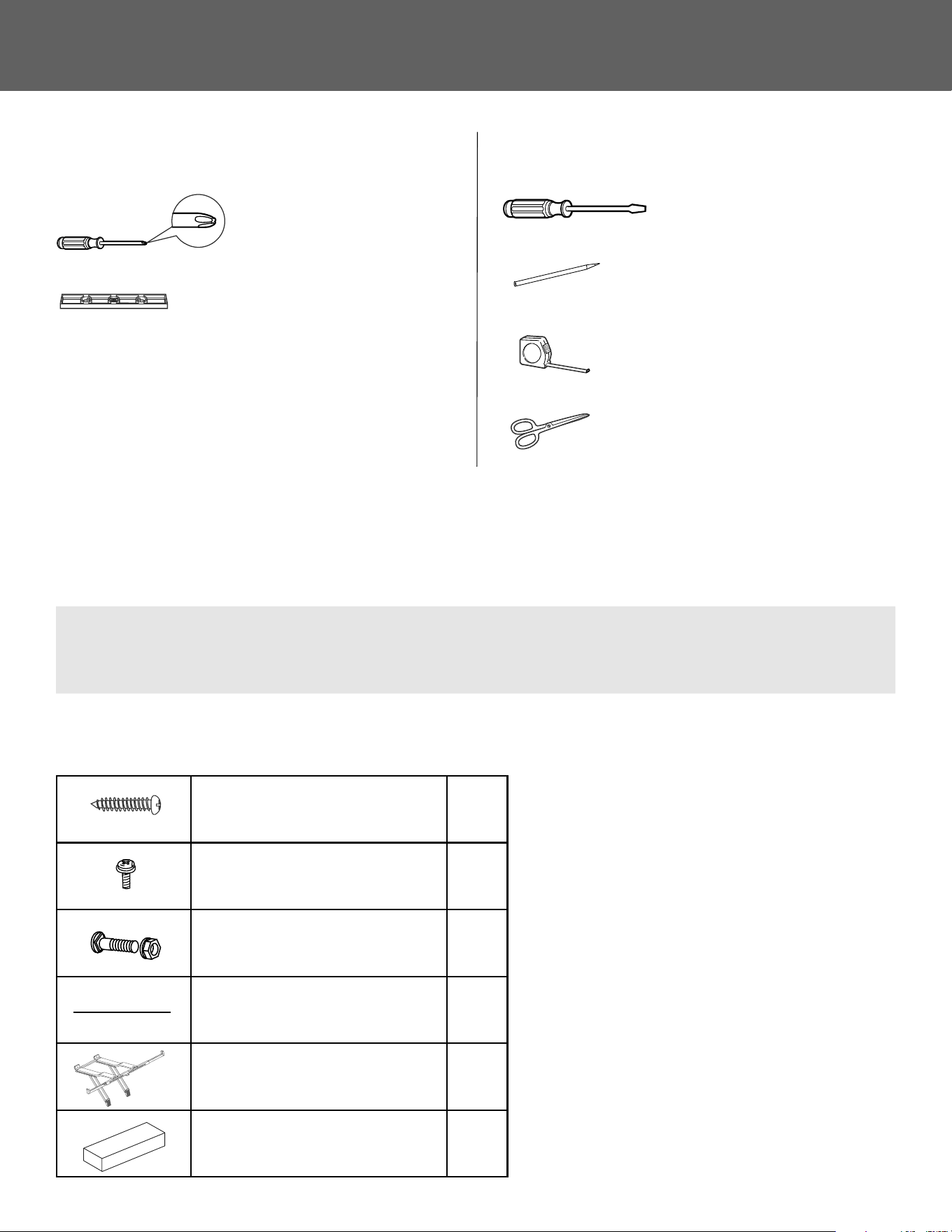

Installation Instructions ..............................................................................................................
Normal Sounds ..........................................................................................................................

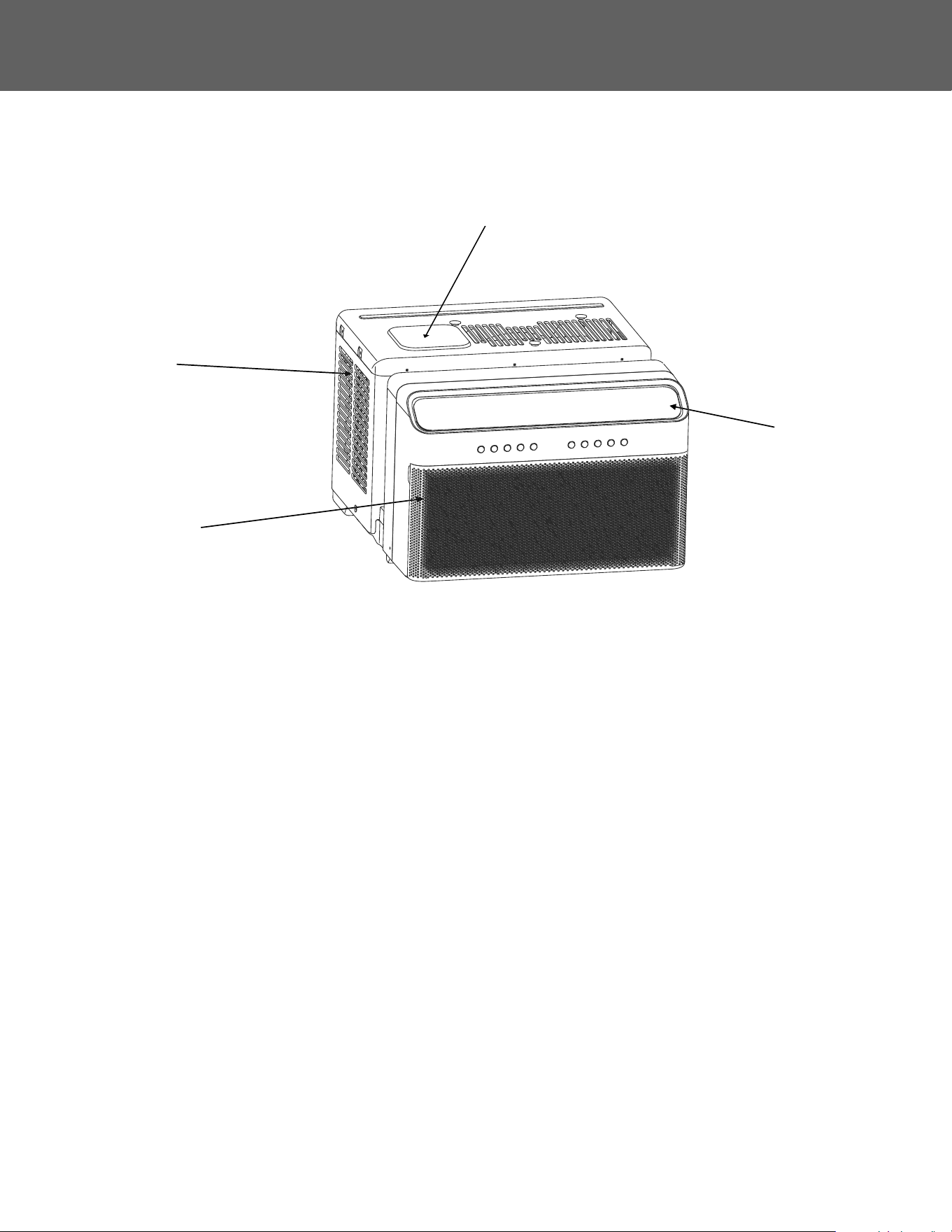

Air Conditioner Features .............................................................................................................

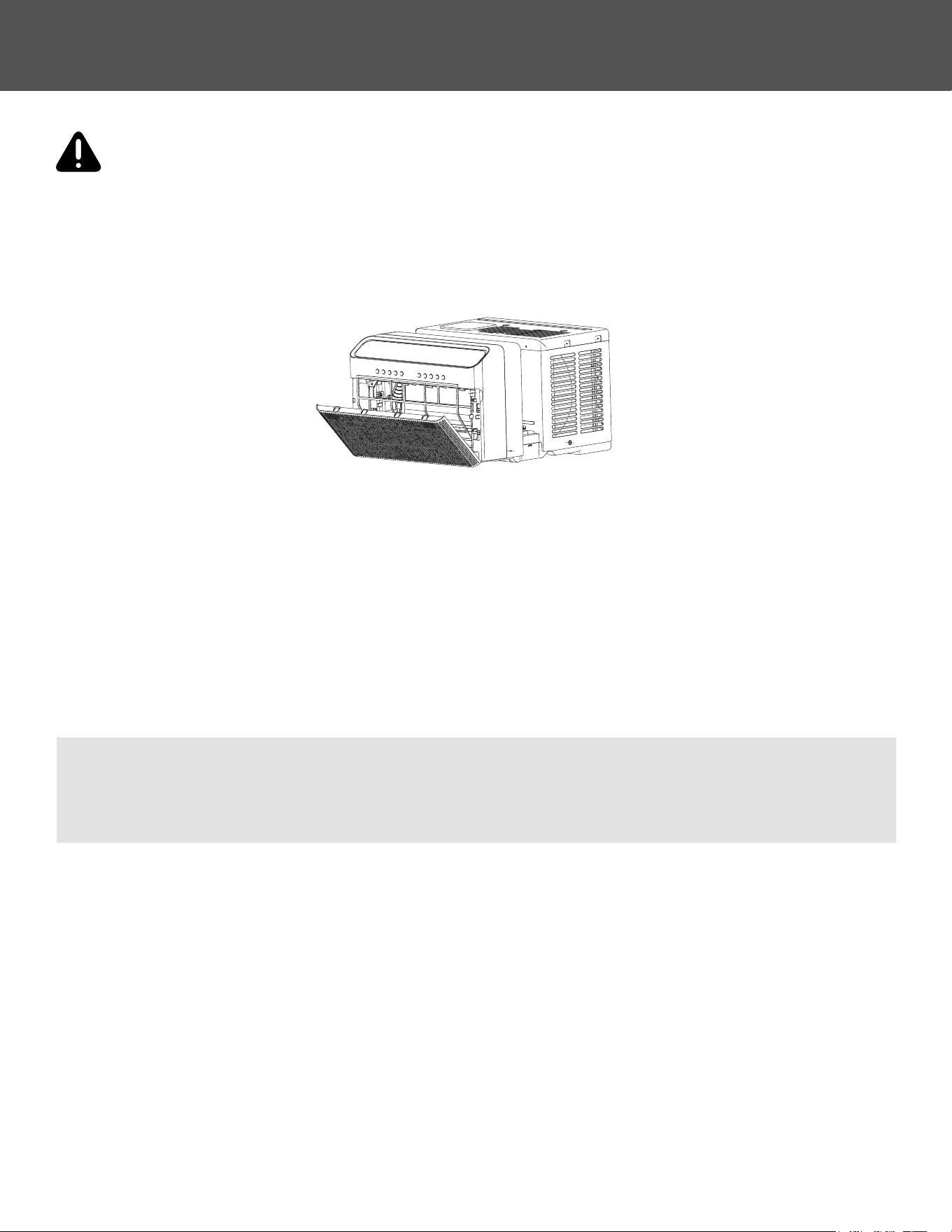

Care and Cleaning .....................................................................................................................
Troubleshooting Tips ..................................................................................................................
3
14
IMPORTANT NOTE:
Before using your air conditioner, please read this manual carefully and keep it for future reference.
CONTENTS
20
21
26
27
3
Inside you will nd many helpful hints on how to use and maintain your air conditioner properly. Just a little
preventive care on your part can save you a great deal of time and money over the life of your air conditioner.
You’ll nd many answers to common problems in the chart of Troubleshooting Tips. If you review our chart of
Troubleshooting Tips rst, you may not need to call for service at all.
To prevent injury to the user or other people and property damage, the following instructions must be followed.
Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classied by
the following indications.
READ THIS MANUAL
This symbol indicates the possibility of death or serious injury.

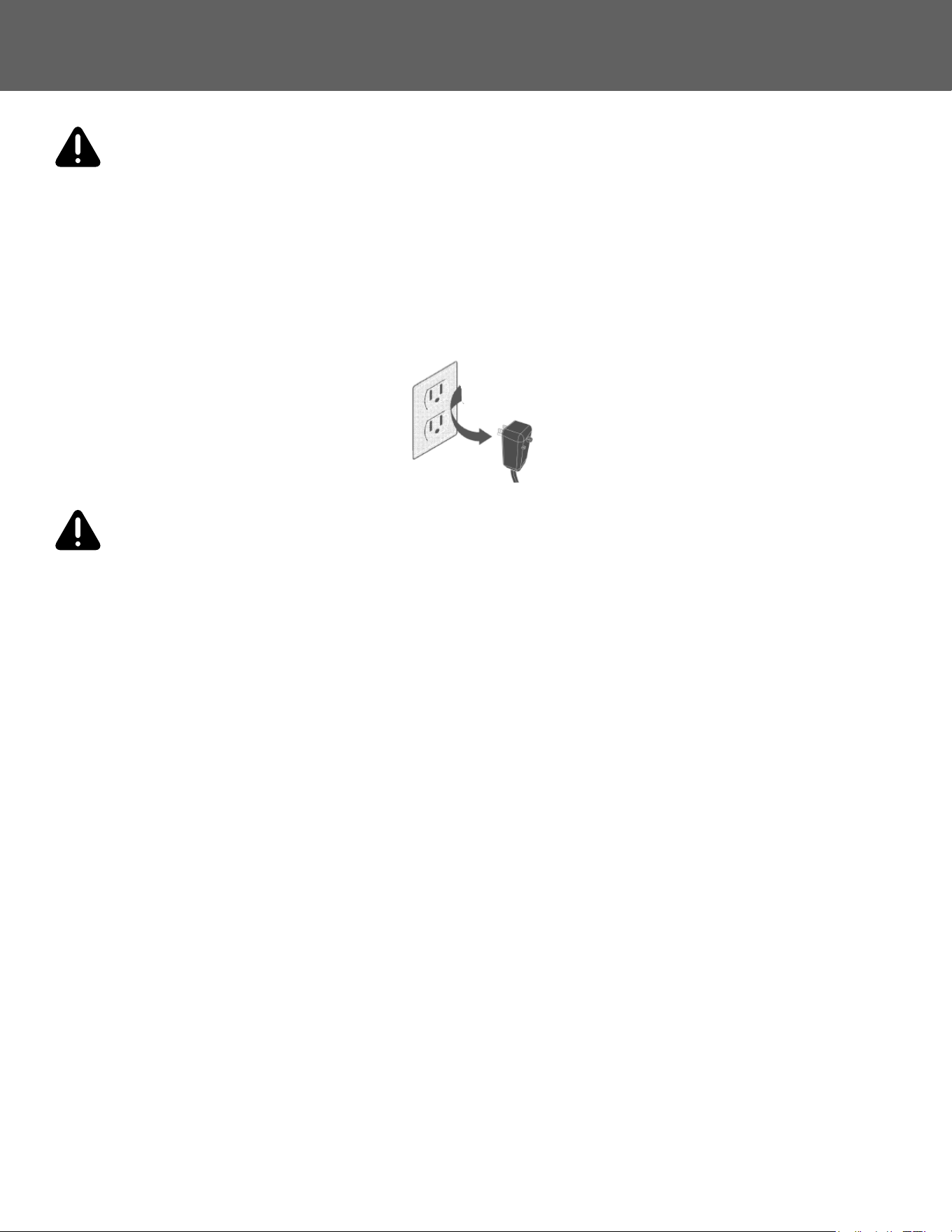

• Plug in power plug properly. Otherwise, it may cause electric shock or re due to excess heat generation.
Do not operate or stop the unit by inserting or pulling out the power plug. It may cause electric shock or re
due to heat generation. Do not damage or use an unspecied power cord. It may cause electric shock or
re. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center
or a similarly qualied person in order to avoid a hazard. .
• Always install circuit breaker and a dedicated power circuit. Incorrect installation may cause re and electric
shock. Do not operate with wet hands or in damp environment. It may cause electric shock. Do not direct
airow at room occupants only. This could damage your health. Always ensure eective grounding. Incorrect
grounding may cause electric shock. Do not allow water to run into electric parts. It may cause failure of
machine of electric shock. Do not modify power cord length or share the outlet with other appliances. It may
cause electric shock or re due to heat generation.
• Unplug the unit if strange sounds, smell, or smoke come from it. It may cause re and electric shock.
Do not use the socket if it is loose or damaged. It may cause re and electric shock. Do not open the unit
during operation. It may cause electric shock.
• Keep rearms away. It may cause re. Do not use the power cord close to heating appliances.
• It may cause re and electric shock. Do not use the power cord near ammable gas or combustibles,
such as gasoline, benzene, thinner, etc. It may cause an explosion or re. Ventilate the room before
operating air conditioner if there is a gas leakage from another appliance. It may cause explosion, re and,
burns. Do not disassemble or modify unit. It may cause failure and electric shock.
This symbol indicates the possibility of injury or dame to property.
WARNING
WARNING
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
4
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
IMPORTANT SAFETY INSTRUCTIONS
CONTINUEDCONTINUED
CAUTION
CAUTION
• When the air lter is to be removed, do not touch the metal parts of the unit. It may cause an injury.
Do not put a pet or house plant where it will be exposed to direct air ow. This could injure the pet or plant.
Ventilate the room well when used together with a stove, etc. An oxygen shortage may occur.
• Do not use strong detergent such as wax or thinner but use a soft cloth. Appearance may be deteriorated
due to change of product color or scratching of its surface. Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation. It may cause an electric shock. Do not use for special
purposes. Do not use this air conditioner to preserve precision devices, food, pets, plants, and art objects.
It may cause deterioration of quality, etc. Stop operation and close the window in storm or hurricane.
Operation with windows opened may cause wetting of indoor and soaking of household furniture. When
the unit is to be cleaned, switch o, and turn o the circuit breaker. Do not clean unit when power is on as it
may cause re and electric shock, it may cause an injury. Ensure that the installation bracket of the outdoor
appliance is not damaged due to prolonged exposure. If bracket is damaged, there is concern of damage
due to falling of unit.
• Always insert the lters securely. Clean lter once every two weeks. Operation without lters may cause
failure. Hold the plug by the head of the power plug when taking it out. It may cause electric shock and
damage. Turn o the main power switch when not using the unit for a long time. It may cause failure of
product or re.
• Do not place obstacles around air-inlets or inside of air-outlet. It may cause failure of appliance or accident.
Do not place heavy object on the power cord and ensure that the cord is not compressed. There is danger
of re or electric shock. Do not drink water drained from air conditioner. It contains contaminants and could
make you sick.
• Use caution when unpacking and installing. Sharp edges could cause injury.
• If water enters the unit, turn the unit o at the power outlet and switch o the circuit breaker. Isolate supply
by taking the power-plug out and contact a qualied service technician.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
• The appliance shall be installed in accordance with national wiring regulations.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room. The appliance
with electric heater shall have at least 1meter space to the combustible materials.
• Contact an authorized service technician for repair or maintenance of this unit. Contact the authorized
installer for installation of this unit.
Note
The power supply cord with this air conditioner contains a current detection device designed to reduce the risk
of re. Please refer to the section Operation of Current Device for details. In the event that the power supply
cord is damaged, it cannot be repaired. it must be replaced with a cord from the Product Manufacturer.
5
IMPORTANT SAFETY INSTRUCTIONS
CONTINUED
WARNING
WARNING
Avoid re hazard or electric shock. Do not use an extension cord or an adaptor plug.
Do not remove any prong from the power cord.
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance.
To reduce the risk of re, electrical shock, or injury to persons when using your air conditioner, follow basic
precautions, including the following:
• Be sure the electrical service is adequate for the model you have chosen. This information can be found
on the serial plate, which is located on the side of the cabinet and behind the grille.
• Clean both sides of glass before installing your air conditioner. If your window includes a screen, remove
the screen completely before installation.
• Be sure the air conditioner has been securely and correctly installed according to the Installation Instructions
in this manual. Save this manual for possible future use in removing or installing this unit.
• When handling the air conditioner, be careful to avoid cuts from sharp ns on front and rear coils.
The complete electrical rating of your new room air conditioner is stated on the serial plate. Refer to the rating
when checking the electrical requirements.
• Be sure the air conditioner is properly grounded. To minimize shock and re hazards, proper grounding
is important. The power cord is equipped with a three-prong grounding plug for protection against
shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend
to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualied
electrician install the proper receptacle. Ensure the receptacle is accessible after the unit installation.
• Do not run air conditioner without side protective cover in place. This could result in mechanical damage
within the air conditioner.
• Do not use an extension cord or an adapter plug.
Do not, under any circumstances, cut, remove, or bypass the grounding prong.
Power supply cord with 3-prong grounding plug and current detection device.
Grounding Type Wall Receptacle
For Your Safety
Prevent Accidents
Electrical Information
OPERATING INSTRUCTIONS
CONTINUED
IMPORTANT SAFETY INSTRUCTIONS
CONTINUED
6
Operation of GFCI Device
WARNING (For using R290/R32 refrigerant only)
This air conditioner is designed to be operated under condition as follows:
The power supply cord contains a ground fault circuit interrupter (GFCI) device that senses damage
to the power cord. To test your power supply cord, do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button,
you will notice a click as the RESET button pops out.
3. Press the RESET button, again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit.
(On some products this is also indicated by a light on the plug head.)
Note
Please Note
Do not use this device to turn the unit on or o. Always make sure the RESET button is pushed in for correct
operation. The power supply must be replaced if it fails reset when either the TEST button is pushed, or it
cannot be reset. A new one can be obtained from the product manufacturer. If power supply cord is damaged,
it cannot be repaired. It MUST be replaced by one obtained from the product manufacturer.
Performance may be reduced outside of these operating temperatures.
Cooling Operation
Outdoor Temperature 64 - 109°F / 18 - 43°C (64 - 125°F / 18 - 52°C for special tropical models)
Indoor Temperature 60 - 90°F / 16 - 32°C
• Do not use means to accelerate the defrosting process or to clean, other than those recommended
by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources
• (for example: open ames, an operating gas appliance) and ignition sources or (for example: an operating
electric heater) close to the appliance. The appliance shall be stored in a room without continuously operating
ignition sources (for example: open ames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that the refrigerants may not contain an odor.
• Compliance with national gas regulations shall be observed.
• Keep ventilation openings clear of obstruction.
• The appliance shall be stored so as to prevent mechanical damage from occurring.
• A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds
to the room area as specied for operation.
7
IMPORTANT SAFETY INSTRUCTIONS
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid
certicate from an industry-accredited assessment authority, which authorizes their competence to handle
refrigerants safely in accordance with an industry recognized assessment specication.
• Servicing should only be performed as recommended by the equipment manufacturer. Maintenance
and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the
person competent in the use of ammable refrigerants.
• DO NOT modify the length of the power cord or use an extension cord to power the unit.
• DO NOT share a single outlet with other electrical appliances. Improper power supply can cause re
or electrical shock.
• Please follow the instructions carefully to handle, install, clear, service the air conditioner to avoid any damage
or hazard. Flammable Refrigerant R32 is used within the air conditioner. When maintaining or disposing the air
conditioner, the refrigerant (R32 or R290) should be recovered properly and should not be discharged into the
air directly.
• DO NOT have any open re or device-like switch which may generate a spark/arcing around the air conditioner
to avoid causing ignition of the ammable refrigerant used.
• Please follow the instructions carefully to store or maintain the air conditioner to prevent mechanical damage
from occurring.
• Flammable refrigerant - R32 is used in air conditioner. Please follow the instructions carefully to avoid
any hazard.
CAUTION:
Risk of re/ammable materials (Required for R32/R290 units only
IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit.
Make sure to save this manual for future reference.
Explanation of symbols displayed on the unit (For units with R32/R290 Refrigerant only)
WARNING
This symbol shows that this appliance used a ammable refrigerant. If the refrigerant
is leaked and exposed to an external ignition source, there is a risk of re.
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service professional should be handling this equipment
with reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operation manual
installation manual.
CONTINUED
IMPORTANT SAFETY INSTRUCTIONS
8
CONTINUED
WARNING
Transport of equipment containing ammable refrigerants
• See transport regulations.
Marking of equipment using signs
• See local regulations.
Disposal of equipment using ammable refrigerants
• See national regulations.
Storage of equipment/appliances
• The storage of equipment should be in accordance with the manufacturer’s instructions.
Storage of packed (unsold) equipment
• Storage package protection should be constructed such that mechanical damage to the equipment inside
the package will not cause a leak of the refrigerant charge.
• The maximum number of pieces of equipment permitted to be stored together will be determined
by local regulations.
Information on servicing
1. Checking the area
• Prior to beginning work on systems containing ammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system,
the following precautions shall be complied with prior to conducting work on the system.
2. Work procedure
• Work shall be undertaken under a controlled procedure so as to minimize the risk of a ammable
gas or vapor being present while the work is being performed.
3. General work area
• All maintenance sta and others working in the local area shall be instructed on the nature
of work being carried out. Work in conned spaces shall be avoided. The area around the
workspace shall be sectioned o. Ensure that the conditions within the area have been made
safe by control of ammable material.
4. Checking for presence of refrigerant
• The area should be checked with an appropriate refrigerant detector prior to and during work,
to ensure the technician is aware of potentially ammable atmospheres. Ensure that the leak
detection equipment being used is suitable for use with ammable refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
5. Presence of a re extinguisher
• If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate re extinguishing equipment shall be available to hand. Have a dry powder or CO
2
re extinguisher adjacent to the charging area.
6. No ignition sources
• No person carrying out work in relation to a refrigeration system which involves exposing any
pipe work that contains or has contained ammable refrigerant shall use any sources of ignition
in such a manner that it may lead to the risk of re or explosion. All possible ignition sources,
including cigarette smoking, should be kept suciently far away from the site of installation,
repairing, removing and disposal, during which ammable refrigerant can possibly be released
to the surrounding space. Prior to work taking place, the area around the equipment is to be
surveyed to make sure that there are no ammable hazards or ignition risks. No Smoking signs
shall be displayed.
(For using R290/R32 refrigerant only)
IMPORTANT SAFETY INSTRUCTIONS
CONTINUED
9
7. Ventilated area
• Ensure that the area is in the open or that it is adequately ventilated before breaking
into the system or conducting any hot work. A degree of ventilation shall continue during the
period that the work is carried out. The ventilation should safely disperse any released refrigerant
and preferably expel it externally into the atmosphere.
8. Checks to the refrigeration equipment
• Where electrical components are being changed, they shall be t for the purpose and
to the correct specication. At all times the manufacturer’s maintenance and service guidelines
shall be followed. If in doubt consult the manufacturer’s technical department for assistance.
• The following checks shall be applied to installations using ammable refrigerants:
• The charge size is in accordance with the room size within which the refrigerant containing
parts are installed.
• The ventilation machinery and outlets are operating adequately and are not obstructed.
• If an indirect refrigerating circuit is being used, the secondary circuit shall be checked
for the presence of refrigerant.
• Marking to the equipment continues to be visible and legible. Markings and signs that
are illegible should be corrected.
• Refrigeration pipe or components are installed in a position where they are unlikely
to be exposed to any substance which may corrode refrigerant containing components,
unless the components are constructed of materials which are inherently resistant to being
corroded or are suitably protected against being so corroded.
9. Checks to electrical devices
• Repair and maintenance to electrical components should include initial safety checks
and component inspection procedures. If a fault exists that could compromise safety, then
no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the
fault cannot be corrected immediately but it is necessary to continue operation, an adequate
temporary solution should be used. This should be reported to the owner of the equipment,
so all parties are advised.
• Initial safety checks should include:
• That capacitors are discharged: this shall be done in a safe manner to avoid possibility
of sparking.
• That there no live electrical components and wiring are exposed while charging, recovering
or purging the system.
• That there is continuity of earth bonding.
WARNING
(For using R290/R32 refrigerant only)
CONTINUED
IMPORTANT SAFETY INSTRUCTIONS
10
10. Repairs to sealed components
• During repairs to sealed components, all electrical supplies shall be disconnected from
the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely
necessary to have an electrical supply to equipment during servicing, then a permanently
operating form of leak detection shall be located at the most critical point to warn of a potentially
hazardous situation.
• Particular attention shall be paid to the following to ensure that by working on electrical
components, the casing is not altered in such a way that the level of protection is aected.
This shall include damage to cables, excessive number of connections, terminals not made
to original specication, damage to seals, incorrect tting of glands, etc.
• Ensure that seals or sealing materials have not degraded such that they no longer serve
the purpose of preventing the ingress of ammable atmospheres. Replacement parts should
be in accordance with the manufacturer’s specications.
11. Repair to intrinsically safe components
• Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that
this will not exceed the permissible voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the presence
of a ammable atmosphere. The test apparatus shall be at the correct rating.
• Replace components only with parts specied by the manufacturer. Other parts may result
in the ignition of refrigerant in the atmosphere from a leak.
12. Cabling
• Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp
edges or any other adverse environmental eects. The check shall also take into account the
eects of aging or continual vibration from sources such as compressors or fans.
13. Detection of ammable refrigerants
• Under no circumstances, should potential sources of ignition be used in the searching
for or detection of refrigerant leaks. A halide torch (or any other detector using a naked ame)
should not be used.
Note
The use of silicon sealant may inhibit the eectiveness of some types of leak detection equipment. Intrinsically
safe components do not have to be isolated prior to working on them.
WARNING
(For using R290/R32 refrigerant only)
IMPORTANT SAFETY INSTRUCTIONS
CONTINUED
11
14. Leak detection methods
• The following leak detection methods are deemed acceptable for systems containing ammable
refrigerants. Electronic leak detectors shall be used to detect ammable refrigerants, but the
sensitivity may not be adequate, or may need re-calibration. (Detection equipment should
be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of
ignition and is suitable for the refrigerant used. Leak detection equipment should be set at a
percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and
the appropriate percentage of gas (25 % maximum) is conrmed.
• Leak detection uids are suitable for use with most refrigerants but the use of detergents
containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode
the copper pipework.
• If a leak is suspected, all naked ames should be removed/ extinguished. If a leakage
of refrigerant is found which requires brazing, all of the refrigerant should be recovered from the
system, or isolated (by means of shut o valves) in a part of the system remote from the leak.
Oxygen free nitrogen (OFN) should then be purged through the system both before and during
the brazing process.
15. Removal and evacuation
• When breaking into the refrigerant circuit to make repairs or for any other purpose conventional
procedures shall be used. However, it is important that best practice is followed since
ammability is a consideration. Opening of the refrigeration systems should not be done
by brazing.
• The following procedure shall be adhered to:
• Remove refrigerant
• Purge the circuit with inert gas
• Evacuate
• Purge again with inert gas
• Open the circuit by cutting or brazing.
• The refrigerant charge should be recovered into the correct recovery cylinders. The system
should be ushed with OFN to render the unit safe. This process may need to be repeated
several times. Compressed air or oxygen shall not be used for this task.
• Flushing should be achieved by breaking the vacuum in the system with OFN and continuing
to ll until the working pressure is achieved, then venting to atmosphere, and nally pulling down
to a vacuum. This process shall be repeated until no refrigerant is within the system.
• When the nal OFN charge is used, the system shall be vented down to atmospheric
pressure to enable work to take place. This operation is absolutely vital if brazing operations
on the pipework are to take place.
• Ensure that the outlet for the vacuum pump is not close to any ignition sources and
there is ventilation available.
WARNING
(For using R290/R32 refrigerant only)
CONTINUED
IMPORTANT SAFETY INSTRUCTIONS
12
16. Charging procedures
• In addition to conventional charging procedures, the following requirements should be followed.
Ensure that contamination of dierent refrigerants does not occur when using charging
equipment. Hoses or lines should be as short as possible to minimize the amount of refrigerant
contained in them.
• Cylinders should be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care should be taken not to overll the refrigeration system.
• Prior to recharging the system, it should be pressure tested with OFN. The system should
be leak tested on completion of charging but prior to commissioning. A follow up leak test
should be carried out prior to leaving the site.
17. Decommissioning
• Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants are
recovered safely. Prior to the task being carried out, an oil and refrigerant sample should be
taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that
electrical power is available before the task is commenced.
• Become familiar with the equipment and its operation.
• Isolate the system electrically.
• Before attempting the procedure ensure that:
• When breaking into the refrigerant circuit to make repairs or for any other purpose,
conventional procedures should be used.
• Mechanical handling equipment is available, if required, for handling refrigerant cylinders.
• Personal protective equipment is available and being used correctly.
• The recovery process is supervised at all times by a competent person.
• Recovery equipment and cylinders conform to the appropriate standards.
• Pump down refrigerant system, if possible.
• If a vacuum is not possible, make a manifold so that refrigerant can be removed from
various parts of the system.
• Make sure that cylinder is situated on the scales before recovery takes place.
• Start the recovery machine and operate in accordance with manufacturer’s instructions.
Do not overll cylinders. (No more than 80 % volume liquid charge).
• Do not exceed the maximum working pressure of the cylinder, even temporarily.
• When the cylinders have been lled correctly and the process is completed, make sure that
the cylinders and the equipment are removed from the site promptly and all isolation valves
on the equipment are closed o.
• Recovered refrigerant should not be charged into another refrigeration system unless
it has been cleaned and checked.
WARNING
(For using R290/R32 refrigerant only)
IMPORTANT SAFETY INSTRUCTIONS
CONTINUED
13
18. Labelling
• Equipment should be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label should be dated and signed. Ensure that there are labels on the equipment
stating the equipment contains ammable refrigerant.
19. Recovery
• When removing refrigerant from a system, either for servicing or decommissioning,
it is recommended good practice that all refrigerants are removed safely.
• When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery
cylinders are employed. Ensure that the correct number of cylinders for holding the total system
charge is available. All cylinders to be used are designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall
be complete with pressure relief valve and associated shut-o valves in good working order.
Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.
• The recovery equipment shall be in good working order with a set of instructions concerning
the equipment that is at hand and shall be suitable for the recovery of ammable refrigerants.
In addition, a set of calibrated weighing scales shall be available and in good working order.
• Hoses shall be complete with leak-free disconnect couplings and in good condition. Before
using the recovery machine, check that it is in satisfactory working order, has been properly
maintained and that any associated electrical components are sealed to prevent ignition in the
event of a refrigerant release. Consult manufacturer if in doubt.
• The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery
cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units
and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that
they have been evacuated to an acceptable level to make certain that ammable refrigerant does
not remain within the lubricant. The evacuation process shall be carried out prior to returning the
compressor to the suppliers. Only electric heating to the compressor body should be employed
to accelerate this process. When oil is drained from a system, it should be carried out safely.
WARNING
(For using R290/R32 refrigerant only)
14
INSTALLATION INSTRUCTIONS

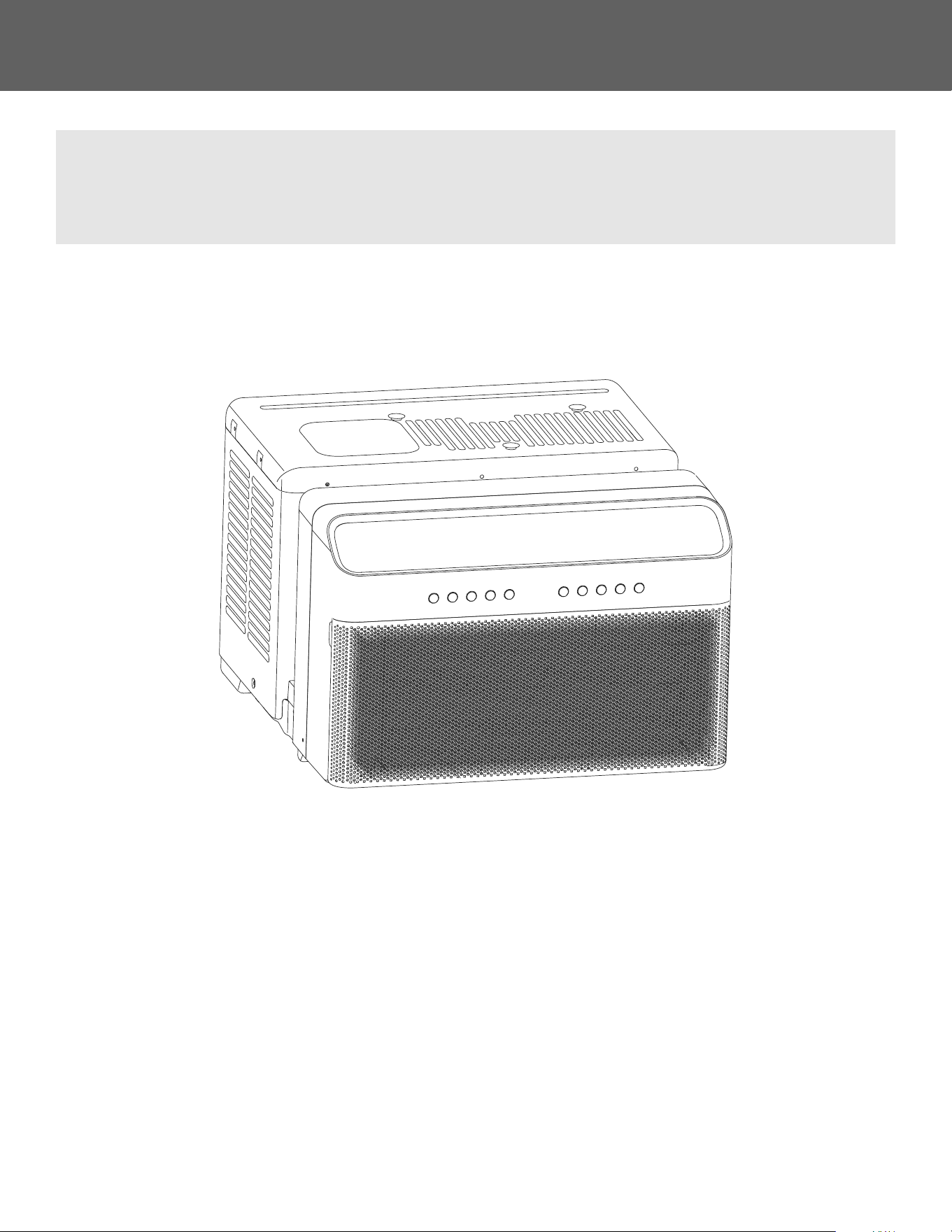

Note
The unit you purchased may look like the following. All the illustrations in this manual are for explanation
purposes only. The air conditioner you have may be slightly dierent.
BEFORE YOU BEGIN
WINDOW REQUIREMENTS
15
• Read these instructions completely and carefully.
• IMPORTANT - Save these instructions for local inspector’s use.
• IMPORTANT - Observe all governing codes and ordinances.
• Note to Installer - Be sure to leave these instructions with the Consumer.
• Note to Consumer - Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical skills.
• Completion time - Approximately 1 hour.
• We recommend that two people install this product.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the warranty.
• You MUST use all supplied parts and use proper installation procedures as described
in these instructions when installing this air conditioner.
Your air conditioner is designed to install in standard double hung windows with opening widths
of 20 to 38 inches (508mm to 965mm).
20" to 38"
508mm to 965mm
Wooden Windows
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
• Do not change the plug on the power cord of the air conditioner.
• Aluminum house wiring may present special problems - consult a qualied electrician.
• When handling unit, be careful to avoid cuts from sharp metal edges and aluminum ns on front
and rear coils.
CAUTION
Note
If there is interference between the shaft and the window, seal it with a sponge.
INSTALLATION INSTRUCTIONS
CONTINUED
INSTALLATION INSTRUCTIONS
16
CONTINUED
TOOLS YOU WILL NEED TOOLS YOU MAY USE
Phillips Screwdriver
Level
Flathead Screwdriver
Pencil
Ruler or Tape Measure
Scissors or Knife
Phillips Screwdriver
Level
Flathead Screwdriver
Pencil
Ruler or Tape Measure
Scissors or Knife
1. PREPARE THE WINDOW
2.
PREPARE THE AIR CONDITIONER
Lower sash must open suciently to allow a clear vertical opening of 13 inches (330mm). Side louvers and
the rear of the AC must have clear air space to allow enough air ow through the condenser, for heat removal.
The rear of the unit must be outdoors, not inside a building or garage.
Remove the air conditioner and hardware from the carton and place on a at surface.
Note
Save the carton and these Installation Instructions for future reference.
Self-tapping Screw (ST3.9 x 10) 6
Self-tapping Screw (ST3.9 x 6.5) 4
Flat Head Bolt and Locknut 2
Snap Ring 2
Support Bracket 1
Sealed Sponge 2
INSTALLATION INSTRUCTIONS
CONTINUED
17
INSTALLATION INSTRUCTIONS
CONTINUED

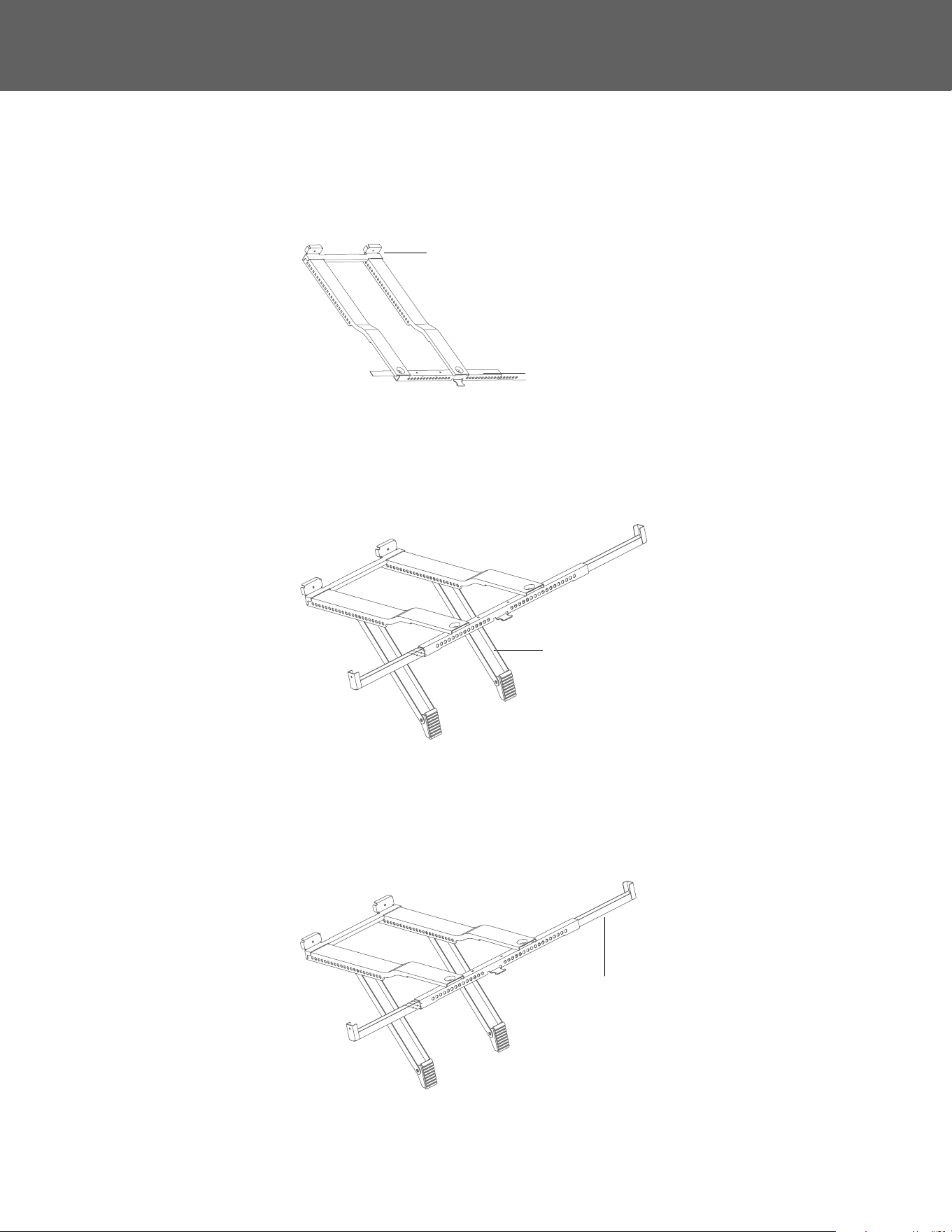

3. ASSEMBLE THE SUPPORT BRACKET
Connect the retaining plate and support rail via snaps. Fix the horizontal support plate to the main support
connection plate with screws. See Figure 1.
Attach Legs: Slide leg into support rail while pressing BOTH spring button. Release the button so that
it extends out from the inner or outer hole of support rail. Repeat for second leg. See Figure 2.
Figure 1
Retaining Plate
Horizontal Support Plate
Figure 1
Leg
Figure 2
Figure 2
Prepare Sill Stop Wings: Slide wings (left and right) onto frame. See Figure 3.
Sill Stop Wings
Figure 3
INSTALLATION INSTRUCTIONS
18
INSTALLATION INSTRUCTIONS
CONTINUED
Figure 4A
Figure 4B
4. INSTALL THE SUPPORT BRACKET
• Adjust the bracket until the sliding leg is rmly secure against exterior surface.
• Place in window.
• Rest bracket on the bottom sill. Adjust each sill stop wing until it reaches the outermost side
of the window frame.
• Connect the horizontal support plate and the sill stop wings by bolts. See Figure 4.
Fig.4A
Fig.4B
Fig.4B
19
INSTALLATION INSTRUCTIONS
CONTINUED
5. INSTALL AC
A. Place the AC unit on support bracket: Align the window to the grooved part of the unit. See Figure 5.
B. Fasten the AC with the L plate. See Figure 6.
C. Cut the sealed sponge to proper length for sealing the space between the window and unit. See Figure 7.
D. Close the window.
Fig.5
Fig.7
Fig.8
Figure 5
Figure 6
Figure 7
20
NORMAL SOUNDS
High-Pitched Chatter
High eciency compressors may
have a high-pitched chatter during
the cooling cycle.
Pinging or Switching
Droplets of water hitting
condenser during normal
operation may cause “pinging
or swishing” sounds.
Gurgle/Hiss
“Gurgling or hissing” noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
Sound of Rushing Air
At the front of the unit,
you may hear the sound
of rushing air being
moved by the fan.
21
AIR CONDITIONER FEATURES
WARNING
CAUTION
To reduce the risk of re, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS
before operating this appliance.
Please always wait 3 minutes when turning unit o then on again, and when changing from cool to fan and back
to cool. This prevents compressor from overheating & possible circuit breaker tripping.

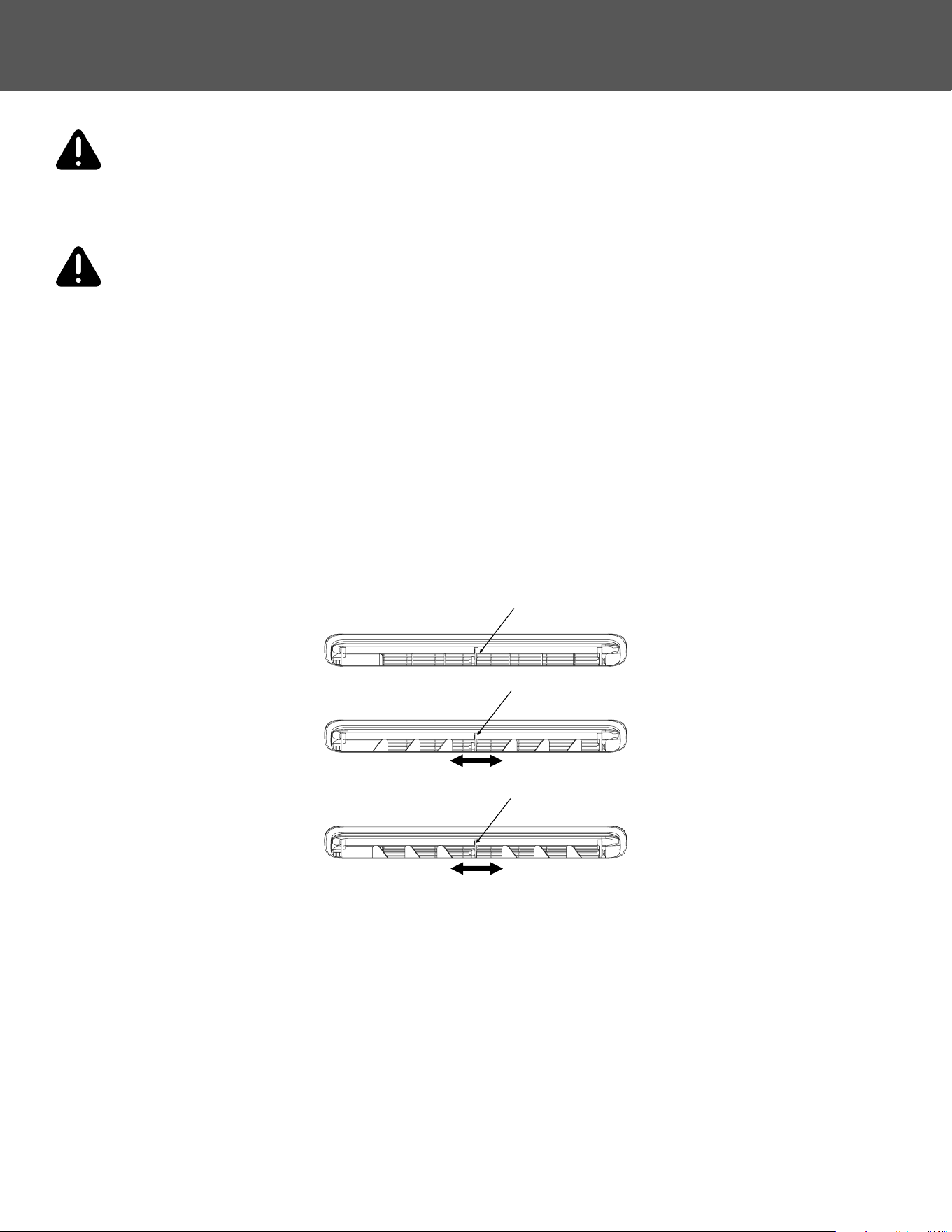

Air Directional Louvers
The louvers will allow you to direct the airow Up or Down (on some models) and Left or Right throughout
the room as needed. Pivot horizontal louvers until the desired Up/Down direction is obtained. Move the
lever(s) from side to side until the desired Left/Right direction is obtained.
To begin operating the air conditioner, follow these steps:
1. Set the thermostat to the highest number (coldest or cooler setting).
2. Set the selector control to the highest COOL setting.
3. Adjust the louver for comfortable air ow (see Air Directional Louvers).
4. Once the room has cooled, adjust the thermostat to the setting you nd most comfortable.
5. Make sure that the air ow inside and outside are not obstructed by anything.
Air Direction
Lever
Lever
Lever
22
AIR CONDITIONER FEATURES
CONTINUED

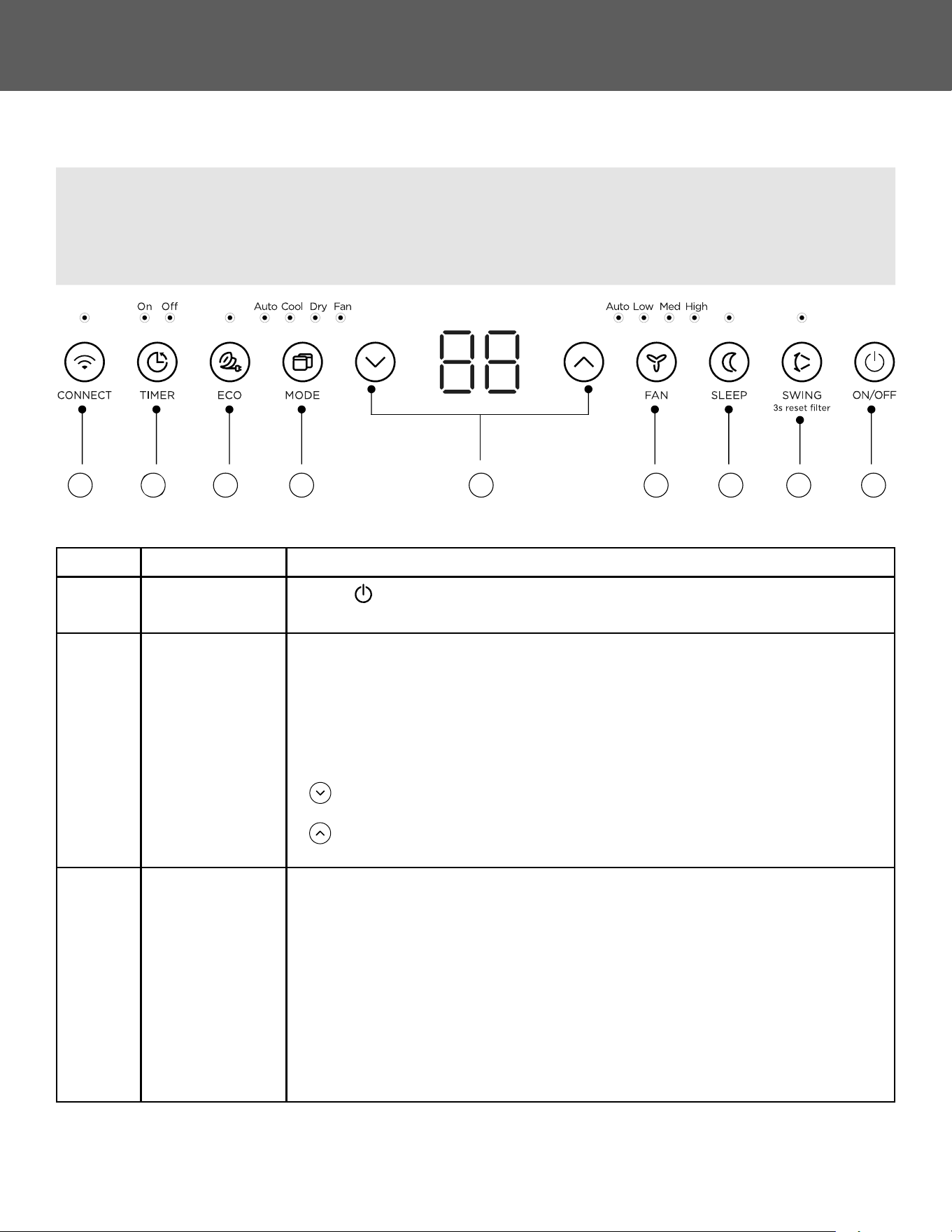

ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Note
Dierent models have dierent control buttons and indicator lights. Not all the control buttons and
indicator lights describing below are available for the unit you purchased. Please check the control panel
of the unit you purchased. The unit can be controlled by the unit control alone or with the remote.
2 3 4 5 6 7 8 9 1
# ITEM DESCRIPTION
1
ON/OFF
Button
• Press ON/OFF button to turn unit on or o. Note: The unit will initiate
automatically the Energy Saver function under Cool, Dry and Auto modes.
2
CONNECT
Button
• For the rst time to use WLAN function, press the button for 3 seconds to
initiate the WLAN connection mode. The LED DISPLAY shows ‘AP’ to
indicate you can set WLAN connection. If connection (router) is successful
within 8 minutes, the unit will exit WLAN connection mode automatically
and the CONNECT indicator illuminates. If connection is failure within 8
minutes, the unit exits WLAN connection mode automatically. After WLAN
connection is successful, you can press and hold CONNECT and DOWN
buttons at the same time for 3 seconds to turn o WLAN function and
the LED DISPLAY shows ‘OFF’ for 3 seconds, press CONNECT and UP
buttons at the same time to turn on WLAN function and the LED
DISPLAY shows ‘ON’ for 3 seconds.
3
TIMER
Button
• Press Timer button, the TIMER ON or TIMER OFF indicator light will
illuminate. lt indicates the Auto Start or Auto Stop program is initiated. For
some units, keep pressing the Timer button will cancel the timer settings.
• Press or hold the UP or DOWN button to change the Auto time by 0.5-hour
increments, up to 10 hours, then at 1-hour increments up to 24 hours. The
control will count down the time remaining until start.
• The selected time will register in 5 seconds, and the system will
automatically revert back to display the previous temperature setting or room
temperature when the unit is on. (when the unit is o, there is no display.)
• Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0
will cancel the Auto Start/Stop timed program.
AIR CONDITIONER FEATURES
CONTINUED
23
# ITEM DESCRIPTION
4
ECO
Button
• Press ECO button to initiate this function. This function is available on
COOL, DRY, AUTO (only AUTO-COOLING and AUTO-FAN) modes. The
fan will continue to run for 3 minutes after the compressor shuts o. The
fan then cycles on for 2 minutes at 10-minute intervals until the room
temperature is above the set temperature, at which time the compressor
turns back on and cooling starts.
5
MODE
Button
• To choose operating mode, press Mode button. Each time you press the
button, a mode is selected in a sequence that goes from Auto, Cool, Dry
and Fan. The indicator light beside will be illuminated and remained on
once the mode is selected.
• The unit will initiate automatically the Energy Saver function under Cool,
Dry, Auto (only Auto-Cooling and Auto-Fan) modes.
To operate on AUTO feature:
• When you set the air conditioner in AUTO mode, it will automatically select
cooling, or fan only operation depending on what temperature you have
selected and the room temperature.
• The air conditioner will control room temperature automatically round
the temperature point set by you.
• In this mode, the fan speed cannot be adjusted, it starts automatically
at a speed according to the room temperature.
To operate on COOL mode:
• Choose Cool Mode to set the cooling function. Use the Up and Down
buttons to choose the desired temperature. When Cool Mode is selected,
the fan speed can be adjusted by pressing the fan button.
To operate on DRY mode:
• In this mode, the air conditioner will generally operate in the form
of a dehumidier. Since the conditioned space is a closed or sealed area,
some degree of cooling will continue. On Dry mode, the automatic wind
is not adjustable.
To operate on FAN ONLY mode:
• Use this function only when cooling is not desired, such as for room air
circulation or to exhaust stale air (on some models). (Remember to open
the vent during this function, but keep it closed during cooling for maximum
cooling eciency.) You can choose any fan speed you prefer.
• In Fan Only mode, the temperature is not adjusted.
6
Button
• Press “ ” “ ” button to change temperature setting.
Note: Press or hold either “ ” “ ” button until the desired temperature
is shown on the display.
• This temperature will be automatically maintained anywhere between
60℉ (16℃) and 86℉ (30℃).
• If you want the display to read the actual room temperature, see
Operate on Fan Only section.
CONTINUED
AIR CONDITIONER FEATURES
24
# ITEM DESCRIPTION
7
FAN
Button
• Fan button to select the Fan Speed in four steps-Auto, Low, Med or High.
Each time the button is pressed, the fan speed mode is shifted. For some
models, the fan speed cannot be adjusted.
8
SLEEP
Button
• Press Sleep button to initiate the sleep mode. In this mode the selected
temperature will increase (cooling) by 2℉/1 (or 2)℃ 30 minutes after the
mode is selected. The temperature will then increase (cooling) by another
2℉/1 (or 2)℃ after an additional 30 minutes. This new temperature will
be maintained for 7 hours before it returns to the originally selected
temperature. This ends the Sleep mode and the unit will continue to operate
as originally programmed.
• The Sleep mode program can be cancelled at any time during operation
by pressing the Sleep button again.
9
SWING
Button
• Used to initiate the Auto swing feature. When the operation is ON, press the
SWING button can stop the louver at the desired angle.
• Press SWING button for 3 seconds to initiate the lter feature. This feature
is a reminder to clean the Air Filter for more ecient operation. The LED (the
light above the button) will illuminate after 250 hours of operation.
AIR CONDITIONER FEATURES
Displays
Error Codes
ADDITIONAL THINGS YOU SHOULD KNOW
Shows the set temperature in “ ℃” or “ ℉” and the Auto-timer settings. While on Fan only mode, it shows
the room temperature. If the room temperature is too high or low, it will display “ HI” or “ LO”.
• The unit may stop operation or continue to run safely. If the error codes appear, wait for about 10 minutes.
• The problem may resolve itself. If not, disconnect the power, then connect it again. Turn the unit on.
• If the problem persists, disconnect the power and contact your nearest customer service center.
• Error code appears and begins with the letters as the following in the window display of indoor unit:
EH(xx), EL(xx), EC(xx) , PH(xx), PL(xx), PC(xx)
Now that you have mastered the operating procedure, here are more features in your
control that you should become familiar with.
• The Cool circuit has an automatic 3 minutes time delayed start if the unit is turned o and on quickly.
This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue to
run during this time.
• The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert
from one to the other, press and hold the Up and Down buttons at the same time for 3 seconds.
25
Note
If the unit breaks o unexpectedly due to a power outage, it will restart with the previous function setting
automatically when the power resumes.
Display
CONTINUED
26
CARE AND CLEANING
CAUTION
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning
to prevent shock or re hazards.
The air lter should be checked at least once a month to see if cleaning is necessary. Trapped particles
in the lter can build up and cause an accumulation of frost on the cooling coils.
• Push the vent handle to the Vent Closed position (where applicable). Open the front panel.
• Take the lter by the center and pull up and out.
• Wash the lter using liquid dishwashing detergent and warm water.
• Rinse lter thoroughly.
• Gently shake excess water from the lter.
• Be sure the lter is thoroughly dry before replacing.
• Instead of washing, you may vacuum the lter clean.
• Be sure to unplug the air conditioner to prevent shock or re hazard. The cabinet and front may be dusted
with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid
dishwashing detergent. Rinse thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish on the cabinet front. Be sure to wring excess water from the cloth
before wiping around the controls.
• Excess water in or around the controls may cause damage to the air conditioner.
• Plug in air conditioner.
If you plan to store the air conditioner during the winter, remove it carefully from the window according to the
installation instructions. Cover it with plastic or return it to the original carton.
Cabinet Cleaning
Winter Storage
Air Filter Cleaning
Note
Never use hot water over 104°F (40°C) to clean the air lter. Never attempt to operate the unit without
the air lter.
TROUBLESHOOTING TIPS
27
Problem Solution
Air conditioner does not start Wall plug disconnected. Push plug rmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
Plug current device has tripped. Press the RESET button.
Power is OFF. Turn power ON.
Air from unit does not feel cold
enough
Room temperature below 60°F (16°C). Cooling may not occur until room temperature rises above
60°F (16°C).
Temperature sensing behind air lter element touching cold coil. Keep it from the cold coil.
Set to a lower temperature.
Compressor stopped when changing modes. Wait for 3 minutes after set to the COOL mode.
Air conditioner cooling, but
room is too warm - Ice
forming on cooling coil behind
decorative front.
Outdoor temperature below 64°F (18°C). To defrost the coil, set FAN ONLY mode.
Air lter may be dirty. Clean lter. Refer to Care and Cleaning Section. To defrost, set to
FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY mode.
Then, set temperature to a higher setting.
Air conditioner cooling, but
room is too warm- NO
ice forming on cooling coil
behind decorative front.
Dirty air lter - air restricted. Clean air lter. Refer to Care and Cleaning Section.
Temperature is set too high, set temperature to a lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage
in front of unit.
An open door, window, or register may allow cold air to escape. Close any doors, windows,
or registers.
The room may be too warm. Allow additional time to remove “Stored heat” from walls, ceiling, oor
and furniture.
Air conditioner turns on and o
rapidly
Dirty air lter – air restricted. Clean air lter.
Outside temperature extremely hot. Set FAN speed to a higher setting to bring air past cooling coils
more frequently.
Noise when unit is cooling
Air movement sound. This is normal. If too loud, set to a slower FAN setting.
Window vibration – poor installation. Refer to Installation Instructions or check with installer.
Water dripping INSIDE when
unit is cooling
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer
to Installation Instructions and check with installer.
Water dripping OUTSIDE when
unit is cooling
Unit removing a large quantity of moisture from a humid room. This is normal during excessively
humid days.
Remote sensing deactivating
prematurely (some models)
Remote control not located within range. Place remote control within 20 feet and point it in the
general direction of the air conditioner.
Remote control signal obstructed. Remove obstruction.
Room too cold Set temperature too low. Increase set temperature.
Noise when unit starts A “da-da” sound may occur when the unit is turned on in 30 seconds due to the compressor
starting (for inverter type). It is normal.
Before calling for service, review this list. It may save your time and expense. This list includes common
occurrences that are not the result of defective workmanship or materials in this appliance.
3
14
The design and specications are subject to change without prior notice for product improvement.
Consult with the sales agency or manufacturer for details.
Any updates to the manual will be uploaded to the service website, please check for the latest version.
20
21
26
27
844-4PA-AIRE | 844-472-2473
www.perfectaire.us
Printed in China
Distributed By:
Perfect Aire, LLC
5401 Dansher Road
Countryside, IL 60625
1220_M558
