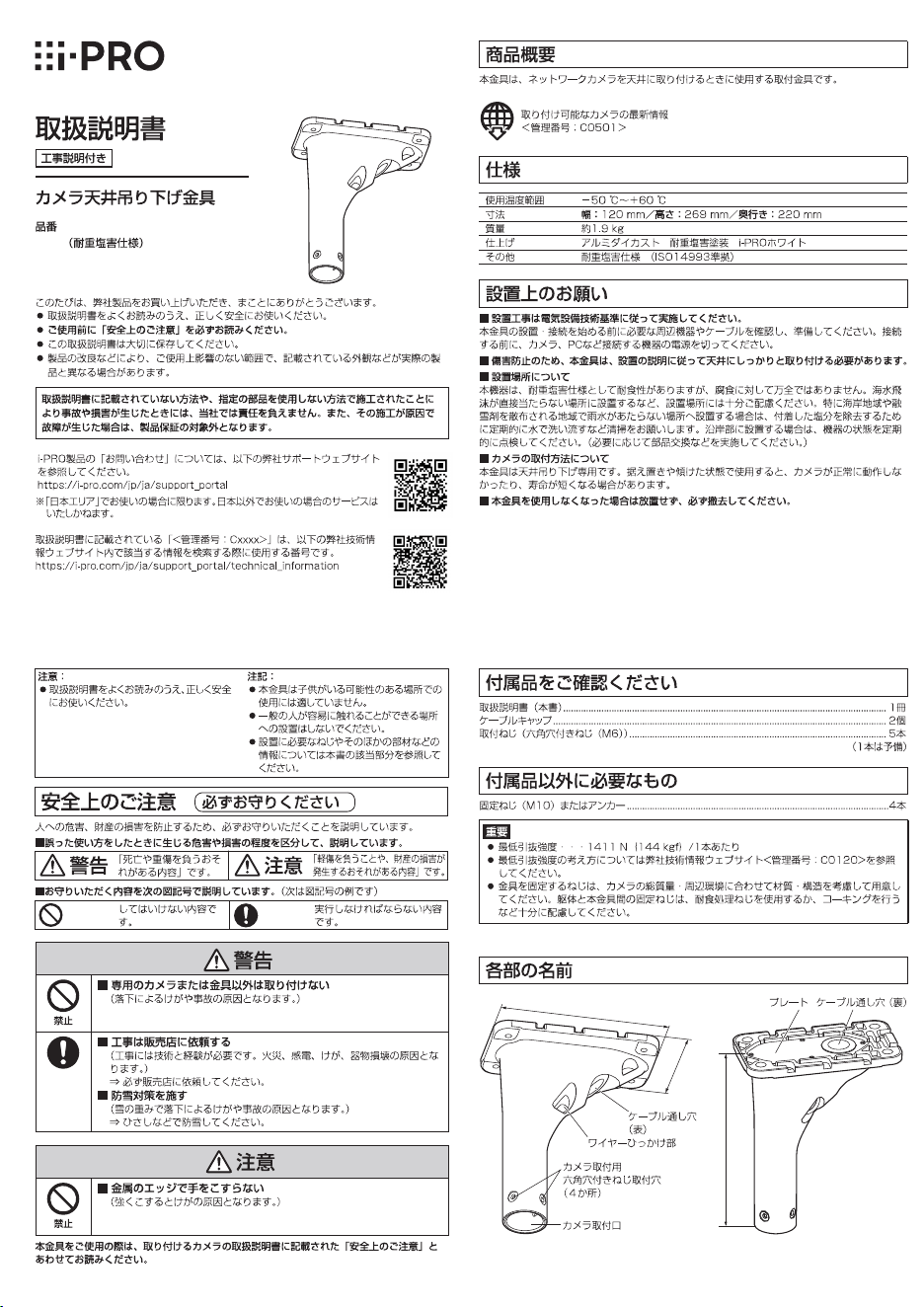

Preface
This product is used for installing the network camera on a ceiling.
The latest information about the supported cameras
<Control No.: C0501>
Specifications
Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}
Dimensions:
120 mm (W) x 269 mm (H) x 220 mm (D)
{4-23/32 inches (W) x 10-19/32 inches (H) x 8-21/32 inches (D)}
Mass: Approx. 1.9 kg {4.19 lbs}
Finish: Aluminum die cast Heavy salt damage prevention coating
i-PRO white
Others: Heavy salt damage prevention (ISO14993-compliant)
Precautions for installation
In order to prevent injury, the product must be securely mounted to the ceiling according
to the Operating Instructions.
Installation place
Salt damage prevention is applied to this product. However, it is not completely anti-corrosive.
Therefore, consider a place for installation where direct splash of seawater can be avoided. Especially
when installing this product in a seashore area or a place where a snow-melting agent is applied, and
also where rainwater is avoided, it is recommended to regularly clean and rinse off salt with water.
In case of installing this product in a seashore area, regularly check the status of equipment. (Replace
the parts as required.)
Mounting method for this product
This product is designed to be hanged from the ceiling. If it is mounted on a desktop or at a slant, the
camera may not work correctly and its lifetime may be shortened.
Make sure to remove this product if it will no longer be used.
Precaution
Do not use this product except with suitable cameras or brackets.
Failure to observe this may cause a drop resulting in injury.
Refer installation work to the dealer.
Installation work requires technique and experiences.
Failure to observe this may cause fire, electric shock, injury, or damage to the product.
Be sure to consult the dealer.
The measures of protection against snowfall shall be taken.
Weight of snow may cause a fall of the product resulting in injury or accidents.
Protect the product against snowfall by installing it under eaves.
Do not rub the edges of metal parts with your hand.
Strong rubbing may cause injury.
When using this product, also read the “Precautions” described in the operating instruc-
tions for the camera to be attached.
Operating Instructions
Included Installation Instructions
Ceiling Mount Bracket
Model No.
WV-QCL501
(Heavy salt damage prevention applied)

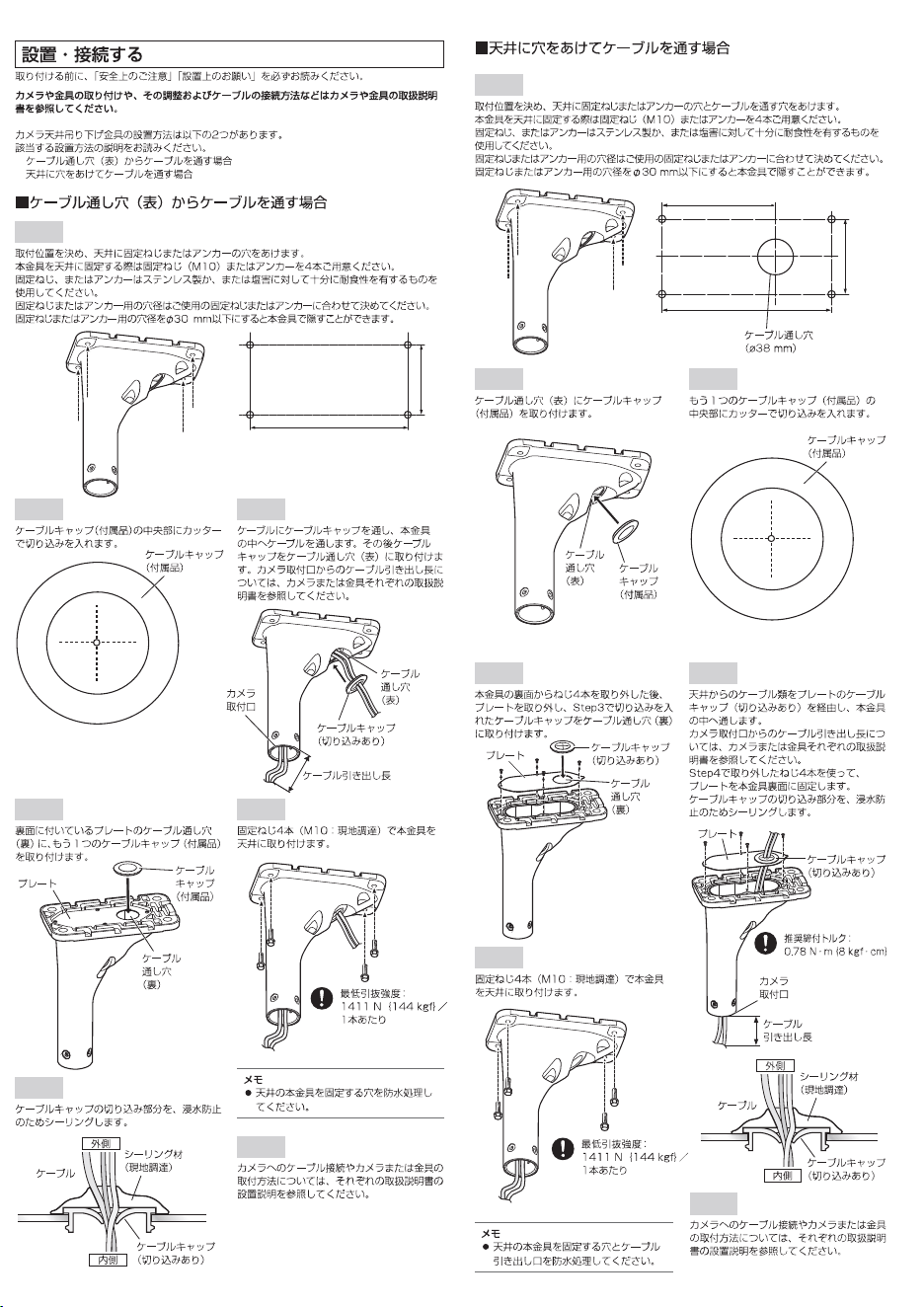

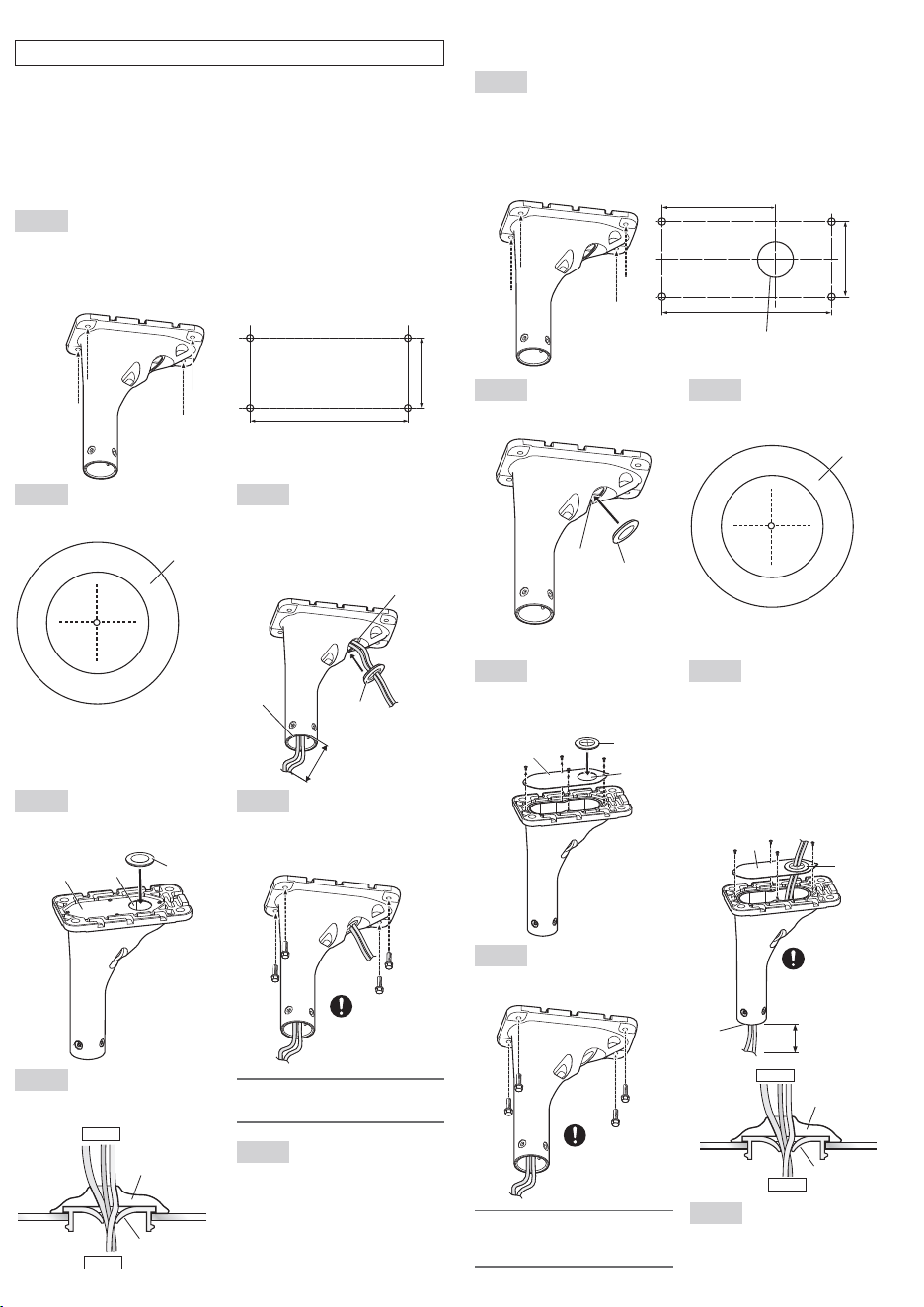

Installation/Connections
Be sure to read "Precautions" and "Precautions for installation" before installation.
Refer to the operating instructions of the camera or the bracket for details including the
camera or bracket mounting, their adjustment and the cable connection.
The installation of the ceiling mount bracket is roughly divided into 2 methods.
Refer to the applicable description.
When laying cables through the cable access hole (front)
When laying cables after drilling a hole through the ceiling
When laying cables through the cable access hole (front)
Step 1
Decide the mounting position and then drill holes for fixing screws or anchors in the ceiling.
Procure 4 pieces of M10 fixing screws or anchors to secure the this product on the ceiling.
For screw and anchor, make sure to use the one made of stainless steel, or enough salt damage
prevention is applied. The hole diameter for fixing screws or anchors shall be decided in accordance
with the fixing screws or anchors to be used. A hole on the ceiling with a diameter of 30 mm
{ø1‑3/16inches} or less for a fixing screw or an anchor can be hidden with this product.
Ns0522-0
Printed in China
Step 2
Make a slit in the center of the cable cap (acces-
sory) with a cutter.
Step 3
Pass the cable cap through the cable and then
pass the cable into this product. Mount the
cable cap to the cable access hole (front).
Refer to each manual of the camera and the
bracket for further information about the length
of the cable to be pulled out from the camera
mounting part.
Step 2
Mount the cable cap (accessory) on the cable
access hole (front).
Step 3
Make a slit in the center of another cable cap
(accessory) with a cutter.
When laying cables after drilling a hole through the ceiling
Step 1
Decide the mounting position, and drill a hole for a fixing screw or an anchor and a hole for cable
installation in the ceiling.
Procure 4 pieces of M10 fixing screws or anchors to secure the this product on the ceiling.
For screw and anchor, make sure to use the one made of stainless steel, or enough salt damage
prevention is applied. The hole diameter for fixing screws or anchors shall be decided in accor-
dance with the fixing screws or anchors to be used.
A hole on the ceiling with a diameter of 30 mm {ø1-3/16 inches} or less for a fixing screw or an
anchor can be hidden with this product.
Step 6
Seal the slit of the cable cap for the prevention of
water leakage.
Outside
Inside
Cable
Sealant (locally procured)
Cable cap (with a slit)
Step 4
After removing the screws (4 pcs.) from the
rear side of the bracket, remove the plate and
mount the cable cap in which a slit was made
in Step 3 on the cable access hole (rear).
Step 5
Pass the cables from the ceiling through the
cable cap (with a slit) on the plate and then
through this product.
Refer to each manual of the camera and the
bracket for further information about the length
of the cable to be pulled out from the camera
mounting part.
Secure the plate with the screws (4 pcs.)
removed in Step 4 on the rear side of the
bracket.
Seal the slit of the cable cap for the prevention
of water leakage.
Step 6
Mount this product on the ceiling with fixing
screws (4 pcs.) (M10: locally procured).
Step 7
Refer to each manual of the camera and the
bracket for further information about cable
connection and how to install the camera or
the bracket.
Hole for cable
installation: ø38 mm
{ø1-1/2 inches}
120 mm
{4-23/32 inches}
180 mm
{7-3/32 inches}
80 mm
{3-5/32 inches}
Caution:
Before attempting to connect or operate this
product, please read these instructions care-
fully.
Notice:
This product is not suitable for use in loca-
tions where children are likely to be present.
Do not install this product in locations where
ordinary persons can easily reach.
For information about screws and other
parts required for installation, refer to the
corresponding section of this document.
Standard accessories
Operating Instructions (this document) ....................................................................................... 1 pc.
Cable cap .................................................................................................................................. 2 pcs.
Camera mounting screw (Hexagon screw (M6)) ......................................................................... 5 pcs.
(of them, 1 for spare)
Other items that are needed (not included)
Fixing screw (M10) or anchor ..................................................................................................... 4 pcs.
IMPORTANT
Minimum pullout strength: 1411 N {317 lbf} (per 1 pc.)
Refer to our technical information website <ControlNo.: C0120> for information on the mini-
mum pull-out strength.
Considering the material and strength of the area where the product is to be installed, prepare
the screws according to the total weight of the camera and peripheral environment. Use the
corrosion-resistant screws, or apply caulking to the screws to be used for fixing the framework
and this product.
Parts and functions
Step 7
Refer to each manual of the camera and the
bracket for further information about cable con-
nection and how to install the camera or the
bracket.
Cable cap
(accessory)
Cable
access hole
(front)
Cable cap
(accessory)
Note:
Apply a waterproofing to the holes for fix-
ing this product on the ceiling and the
cable inlet.
Note:
Apply a waterproofing to the holes for fixing
this product on the ceiling.
Hexagon screw hole for
mounting camera
(4 places)
Wire hook section
Camera mounting part
Cable access hole
(front)
Plate
269 mm {10-19/32 inches}
120 mm
{4-23/32 inches}
220 mm {8-21/32 inches}
Cable access hole
(rear)
180 mm
{7-3/32 inches}
80 mm
{3-5/32 inches}
Cable cap
(accessory)
Cable cap
(with a slit)
Camera
mounting part
Length of cable
to be pulled
Cable access hole
(front)
Cable
access hole
(rear)
Plate
Cable cap
(accessory)
Cable cap
(with a slit)
Cable access
hole (rear)
Plate
Outside
Inside
Cable
Sealant
(locally procured)
Cable cap (with a slit)
Cable cap
(with a slit)
Length of cable
to be pulled
Camera
mounting
part
Plate
