Breville BFP610BSS the Kitchen Wizz 9 Food Processor User Manual

the Kitchen Wizz

™

Instruction Book - BFP610

2 Breville Recommends Safety First

8 Components

11 Assembly

14 Functions

15 Tips

17 Care & Cleaning

18 Troubleshooting

Contents

BREVILLE

RECOMMENDS

SAFETY FIRST

At Breville we are very

safety conscious. We

design and manufacture

consumer products with the

safety of you, our valued

customer, foremost in mind.

In addition, we ask that you

exercise a degree of care

when using any electrical

appliance and adhere to the

following precautions.

IMPORTANT

SAFEGUARDS

READ ALL INSTRUCTIONS

BEFORE USE AND SAVE

FOR FUTURE REFERENCE

• Remove any packaging

material and promotional

labels before using the

food processor for the

rst time.

• Do not place the food

processor near the edge

of a bench or table or on

a sink drain board during

operation. Ensure the

surface is level, clean

and free of water, our,

etc. Vibration during

operation may cause the

appliance to move.

• Handle the food

processor and

attachments with care

- remember the blades

and discs are razor-

sharp and should be

kept out of reach from

children.

• Care shall be taken

when handling the sharp

cutting blades, emptying

the bowl and during

cleaning.

• Always make sure

the food processor is

completely assembled,

with the processing

lid securely in position

before operating.

The appliance will not

operate unless properly

assembled.

• Ensure the OFF button

has been pressed, and

the food processor

is switched o and

unplugged from the

power outlet before

attaching or removing

the blades, discs or

processing lid.

• To unplug, grasp the

plug and pull from the

outlet. Never pull from

the power cord.

• Always secure the

processing bowl onto

the motor base before

attaching the blades or

discs.

• Do not push food into

the feed chute with your

ngers or other utensils.

Always use the food

pusher provided.

• Keep hands, knives and

other utensils away from

moving blades or discs.

• Do not place hands or

ngers in the bowl of the

food processor unless

the motor, blades or discs

have come to a

complete stop.

• To reduce the risk of re,

electric shock, or injury,

do not use attachments

other than those provided

with the food processor.

• Do not attempt to operate

the food processor by

any method other than

those described in this

booklet.

• Ensure the motor, blades

or discs have completely

stopped before

disassembling.

• Ensure the OFF button

has been pressed and

unplugged from the

power outlet when not

in use, if left unattended

and cleaning, or storing.

• Care should be taken

when removing the food

from the processing bowl

by ensuring the motor,

blades or discs, have

completely stopped

before disassembling.

The processing bowl

should then be unlocked

from the motor body

and the blade or disc

carefully removed before

attempting to remove the

processed food.

• Please do not crush

ICE in the processing

bowl. This will cause

damage to the blades.

We recommend that

you use a blender for ice

crushing.

• Some sti mixtures,

such as dough may

cause the processing

blade to rotate more

slowly than normal. If this

happens, do not process

for longer than 1 minute.

Allow the appliance to

cool down before next

use.

• Do not process hot

or boiling liquids -

allow liquids to cool

before placing into the

processing bowl. Hot

liquid can be ejected

to cause injury due to

sudden steaming.

• Do not move the food

processor whilst in

operation.

• Do not leave the food

processor unattended

when in use.

• Do not place any part of

the food processor in the

microwave oven.

• Do not place on or near

a hot gas or electric

burner or in a heated

oven

• Do not ll the processing

bowl above the marked

maximum ll line

for each type of the

ingredients. Always

add drier or thicker

ingredients to the

processing bowl prior

to adding uids. Failing

to follow this instruction

may cause product

malfunction, product

damage or personal

injury due to damage to

the cover or bowl.

• Keep the appliance

clean. Follow the

cleaning instructions

provided in this book.

IMPORTANT

SAFEGUARDS FOR

ALL ELECTRICAL

APPLIANCES

• Fully unwind the power

cord before use.

• Do not let the power

cord hang over the edge

of a table, counter, touch

hot surfaces or become

knotted.

• This appliance shall not

be used by children.

Keep the appliance and

its cord out of reach of

children. Appliances

can be used by persons

with reduced physical,

sensory or mental

capabilities or lack

of experience and

knowledge if they have

been given supervision

or instruction concerning

use of the appliance in

a safe way and if they

understand the hazards

involved.

• Children should be

supervised to ensure

they do not play with the

appliance.

• It is recommended to

regularly inspect the

appliance. Do not use the

appliance if power supply

cord, plug or appliance

becomes damaged

in any way. Return the

entire appliance to the

nearest authorised

Breville Service Centre

for examination and

/or repair.

• Any maintenance other

than cleaning should

be performed at an

authorised Breville

Service Centre, or

contact the Breville

Customer Care Centre

by phone on 1300 273

845 or email AskUs@

breville.com.au

• This appliance is for

household use only. Do

not use this appliance

for anything other than

its intended use. Do not

use in moving vehicles

or boats. Do not use

outdoors. Misuse may

cause injury.

• The processing blades

and discs are extremely

sharp, handle with

care at all times. Avoid

contact with moving parts

during operation. Keep

hands, hair, clothing,

spatulas and other

utensils out of food

processor feed chute

to prevent personal

injury or damage to the

appliance. Always use

the food pusher to push

the food down the feed

chute.

• Cleaning and user

maintenance shall not

be made by children

without supervision.

• To avoid a hazard due

to inadvertent resetting

of the thermal cut-out,

this appliance must not

be supplied through

an external switching

device, such as a timer,

or connected to a circuit

that is regularly switched

on and o by the utility.

• The installation of

a residual current

device (safety switch)

is recommended to

provide additional safety

protection when using

electrical appliances.

It is advisable that a

safety switch with a

rated residual operating

current not exceeding

30mA be installed in

the electrical circuit

supplying the appliance.

See your electrician for

professional advice.

WARNING

To avoid possible

malfunction of the

processing bowl’s auto

switch, do not place the

processing lid in the

locked position when the

appliance is not in use.

FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

To protect against

electric shock or re,

do not immerse the power

cord, power plug or

appliance

in water or any

other liquid.

The symbol shown

indicates that this

appliance should not

be disposed of in normal

household waste. It should

be taken to a local

authority waste collection

centre designated for this

purpose or to a dealer

providing this service.

For more information,

please contact your local

council oce.

A. Small pusher cap

The small pusher cap functions as a cover of

the smaller feed chute.

B. Small food pusher

For improved processing control of smaller

ingredients. It also doubles as a measuring cup.

The food processor will run continually whether

the small pusher is in or out.

C. Large food pusher

For pushing food down the feed chute. The food

processor will not start unless the large pusher

is correctly in place.

D. Feed chute safety system

Prevents the motor from operating unless the

bowl and lid are correctly locked in position,

and large feed pusher is inserted.

E. Processing Lid with silicone seal

Locks onto the processing bowl.

F. Main bowl with handle

The bowl locks onto the motor base.

G. POWER button

H. PULSE button

Press down and hold briey for short bursts of

power. The motor will automatically stop after

the PULSE button has been released.

I. PLAY | STOP button

Press to start and stop operation of the motor.

J. Powerful induction motor base

Induction motor with safety braking system.

K. Non-skid rubber feet

For added safety and stability.

Components

1. Main Spindle

Attaches to blade or discs.

2. Reversible Shredder

Use one side of this disc for ne

shredding and the other side for coarse

shredding.

3. Adjustable Slicer

Use this disc for slicing ingredients. Able

to slice from 0.3 mm – 5.0 mm thick.

4. S Blade

For swiftly chopping, mixing, and

blending a variety of ingredients.

5. Dough blade

Soft material blade for kneading dough.

6. Caddy

To store all accessories.

TIP

How to remove the caddy from the bowl?

With the lid removed from the bowl, grasp the

caddy by the handle and lift it up and out of

the bowl to access the accessories.

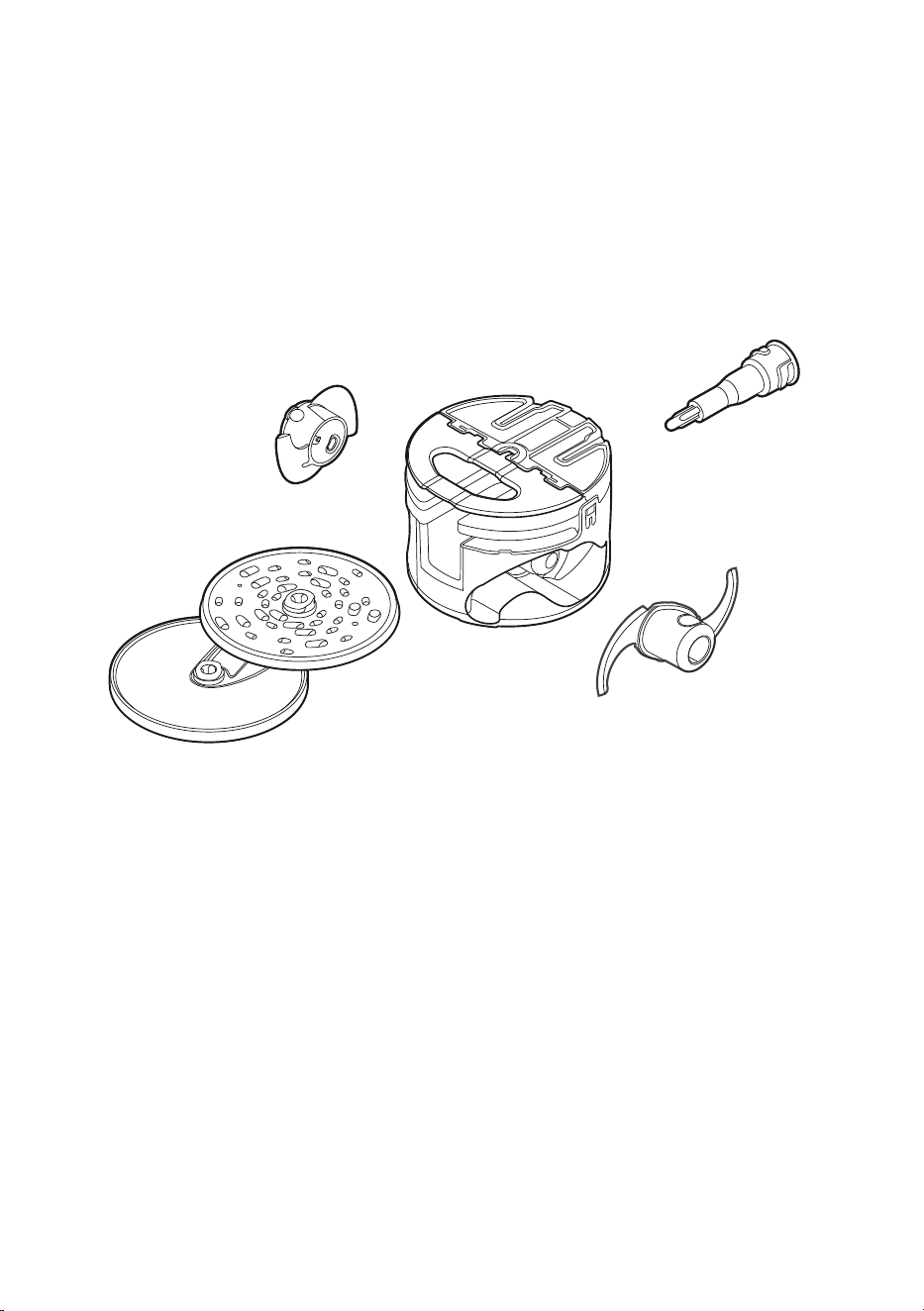

DETACHMENT OF ACCESSORIES

• Accessories all have a place in the caddy which has been color coordinated.

• All accessories can be accessed independently of each other.

ASSEMBLY

Motor Base and Bowl

1. Position the processing bowl onto the motor

base with the handle in line with the ALIGN

HANDLE graphic on the motor base.

2. Turn the bowl clockwise until the handle locks

to the front. The processing bowl should now

be securely locked into position. The food

processor will not operate unless the bowl is

locked into position correctly.

BEFORE FIRST USE

• Before using your food processor for the rst

time, remove any packaging material and

promotional labels. Ensure the POWER button is

OFF and the food processor is unplugged.

• Be careful when handling the blades and discs

as they are extremely sharp.

• When rst using your food processor, you may

notice an odour coming from the motor.

• This is normal and will dissipate with use.

• Always use the food processor on a dry, level

work surface.

• Wash the processing bowl, processing lid and

all attachments in warm soapy water with a soft

cloth. Rinse and dry thoroughly.

Assembly

Spindle and Blades

WARNING

Do not touch the Blades.They

are extremely sharp.

First, is to assemble your chosen attachment

(S blade or Dough blade) over the spindle and

place them in position over the coupling in the

centre of the processing bowl; then, place the lid

onto the processing bowl.

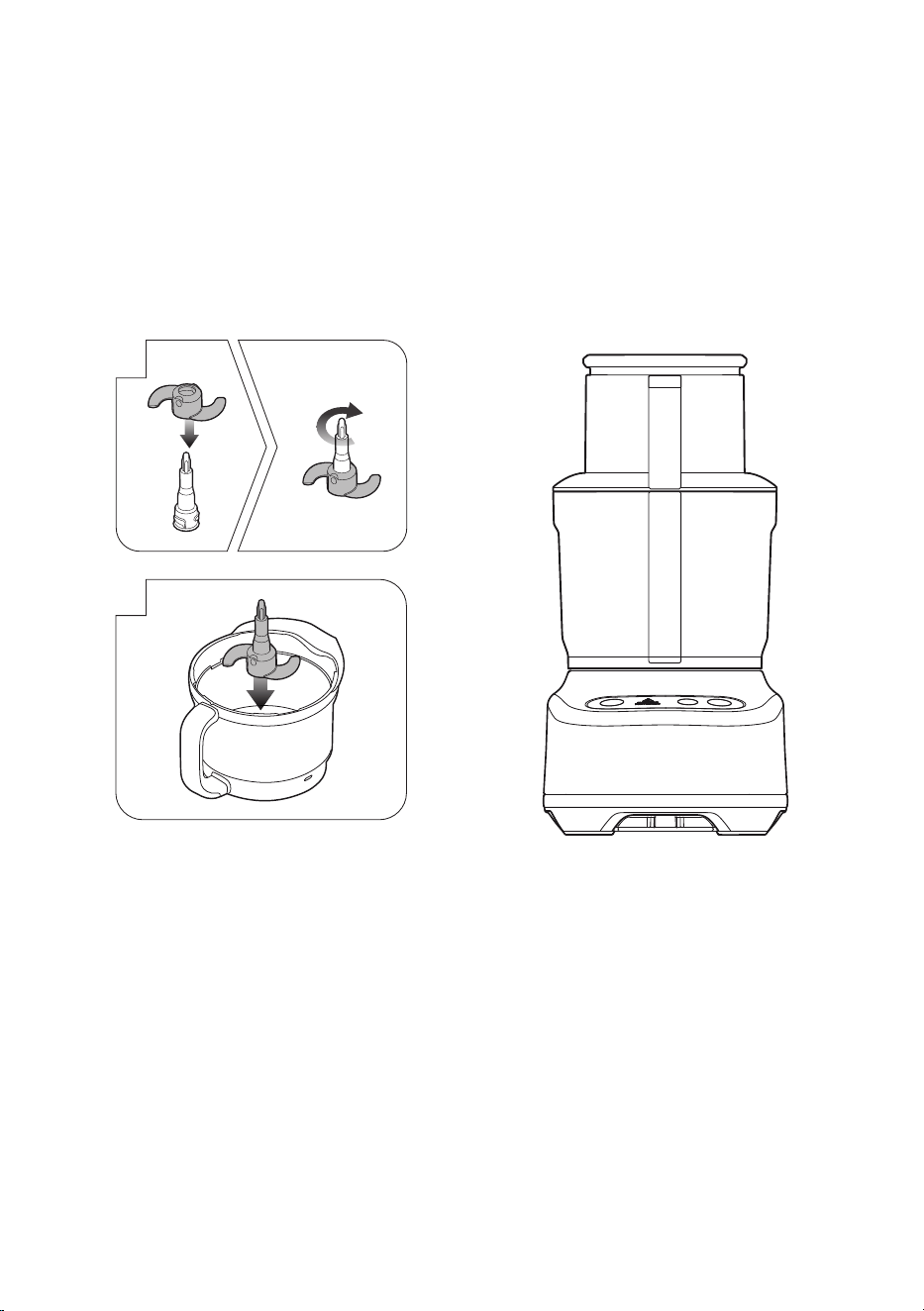

Spindle and S Blade

1. Carefully insert the S blade into the

spindle and turn clockwise until it is rmly

locked in place.

2. Place the assembled spindle and S blade over

the coupling in the centre of the bowl

with caution. Avoid touching the blades.

S blade

to spindle

Dough blade

to spindle

Spindle and Dough Blade

1. Insert the dough blade into the spindle and

turn clockwise until it is rmly locked in place.

2. Place the assembled spindle and dough blade

over the coupling in the centre of the bowl.

Lid

Place lid onto the processing bowl. To LOCK the

lid, hold the chute and turn clockwise so that the

handle parts align. Locking the lid correctly will

engage the interlocking safety catch on.

After Processing

Wait until the blades or discs have stopped

moving before unlocking the lid. Ensure that the

unit has been turned o using the POWER button

and unplug from the power outlet before handling

the blades.

When removing the blades or discs, carefully grip

the plastic hub area at the centre to lift the part.

Overload Protection System

The food processor has an overload protection

system to prevent damage to the motor – this will

cause the food processor to go into standby mode.

Unplug the food processor and allow to cool for

30 minutes.

If the blades or discs stall while processing,

immediately stop the machine, then unplug

from the power outlet before clearing the wedge

ingredients. If this happens more than once, the

bowl may be overloaded. Try processing in

smaller batches.

OPERATION

Getting started

The food processor will only operate when the

processing bowl, lid and large pusher are correctly

assembled. This engages the safety interlock, and

allows the motor to run.

The chute has a CHUTE FILL MAX graphic to

indicate the maximum volume of food that can be

placed in the chute for the pusher to activate the

safety locking catch.

Control Panel

When the machine is connected to power, and

the POWER button is pressed; the buttons will

illuminate and the food processor will be ready to

operate.

Pressing the POWER button at this stage will

turn the unit o.

Pressing the PLAY | STOP button will start the

motor running continuously.

Press PLAY | STOP again while processing and

the motor will stop.

Press PLAY | STOP to continue processing or

press POWER to return to standby.

Removing the large pusher during processing will

stop the motor. Ingredients can be added into the

lid chute, and when the large pusher is re-inserted,

the unit will continue to process.

Pressing the PULSE button will cause the motor

to operate only while the button is held down.

Use a combination of the PULSE and

PLAY | STOP buttons for more control when

processing ingredients.

Functions

Tips listed below are suggestions only. For more detailed instructions, refer to specic recipes provided

online at sageappliances.com

ACCESSORY ACTION TYPES OF INGREDIENTS

/ DISHES

TIPS

S Blade™

Chop • Raw fruits and vegetables

• Raw or cooked meats and sh

• Fresh herbs

• Breadcrumbs

• Nuts

• Dried fruits

• Trim and cut food, if necessary,

into 2.5cm cubes before processing.

WARNING

Motor should run for no more than

1 minute at a time.

Mince /

Ground Meat

• Raw and cooked proteins • Trim and cut food into 2.5 cm cubes

before processing.

• For best results, freeze meat for

30 minutes.

• Trim excess fats and sinew.

Puree / Blend • Cooked fruit and vegetables • Allow food to cool before pureeing

or blending.

Mix • Sauces

• Batters

• Pesto

• Compound butters

• For batters, use PULSE button until

mixed evenly. Do not over process.

Dough Blade

Knead • Bread and pizza doughs • Add liquid through small feed

chute whilst the motor is running

to incorporate.

• Recommended Recipe

- 375 g our - 7 g salt

- 8 g yeast - 235 g of water

- 10 g sugar

• Maximum our quantity = 575 g

Adjustable

Slicer Disc

Slice • Raw foods and vegetables

• Salamis and deli meats

• Place ingredients vertically on the

left side of appropriate sized feed

chute to minimize tilting.

• For deli meats like salami

or pepperoni, trim one end

and process one at a time.

Reversible

Shredding Disc

Coarse and

Fine Shred

• Cheeses

• Fruits and vegetables such as

apples, potatoes, and cabbage

• For best results, freeze softer cheeses

for 45 minutes before grating.

NOTE

Grating soft white cheeses such as

fresh mozzarella is not recommended.

• Remove the rind from hard cheeses

before grating.

Tips

IMPORTANT NOTES

For optimal results, use the chute size appropriate

to the food to be processed. Position food in

the chute and use the pusher to push food with

light downward force prior to starting the food

processor.

Smaller Ingredients

For long thin foods such as carrots, cucumbers,

zucchini, etc., use the small or medium feed chute.

This will avoid the ingredient from tipping over,

during slicing.

Larger Ingredients

The wide feed chute is 14 cm wide and can t

ingredients up to this size. The food should t

snugly so it is supported in an upright position in

the chute, but not so tight that it could prevent the

food from moving down the chute. Ensure not to

overll the chute, as the pusher will not activate the

interlock safety catch if the chute is too full. Do not

ll over the MAX indicator.

Pressure

When processing, never force the food down the

chute as this can damage the discs. Apply light,

even pressure for soft foods such as tomatoes

and bananas. Apply medium, even pressure for

rmer foods such as potatoes, cheese, deli meats

and apples.

NOTE

If foods do get stuck inside the chute, remove the

pusher, remove the lid from the bowl, and while

the chute is away from the bowl and away from the

blades; dislodge the food stuck inside the chute

by hand.

Blades and discs

• Blades and discs are razor sharp, do not touch.

Always use a spatula or brush to remove food or

when cleaning blades.

• Blades and discs can be washed in the

dishwasher.

Motor base

To clean the motor base, wipe with a soft, damp

cloth then dry thoroughly. Wipe any excess food

particles from the power cord.

Cleaning agents

Do not use abrasive scouring pads or cleansers

on either the motor base or the bowls, as they may

scratch the surface. Use only warm soap water

with a soft cloth. Stubborn food stains and odours

Strong smelling foods such as garlic, sh and

some vegetables such as carrots may leave an

odour or stain the bowl or lid. To remove, pour

warm soapy water (do not overll). Set aside to

soak for 5 minutes, without immersing the whole

bowl. Then wash with a mild detergent and warm

water, rinse well and dry thoroughly. Store the bowl

with the lid o.

Remove the power cord from the power outlet after

use for safety reasons.

Processing bowl and lid

Due to the interlock components, we do not

recommend immersing the bowl and lid in water

for long periods.

To keep your bowl and lid clean, and to avoid food

drying on, follow these steps as soon as possible

after use:

• Rinse most of the ingredients o the bowl and lid.

• Hand wash in clean warm, soapy water using a

mild liquid detergent and non-abrasive sponge.

• The processing bowl and lid may occasionally

be washed in the dishwasher (top shelf only),

however washing in the dishwasher is not

recommended on a regular basis, as prolonged

exposure to harsh detergents, hot water and

pressure will damage and shorten the life of the

plastic and the interlock components.

WARNING

Oils in citrus rind can damage the material of your

food processor bowl if being exposed to it for a

longer period. Always clean your processing bowl

immediately after processing citrus rind.

WARNING

Do not touch the blades. They are extremely sharp.

Care & Cleaning

PROBLEM EASY SOLUTION

Food is unevenly

processed

• Ingredients should be cut evenly into 2.5 cm pieces before processing.

• Ingredients should be processed in batches to avoid overloading.

Slices are slanted

or uneven

• Apply even pressure on the pusher.

Food falls over

in the feed chute

• Food sliced tall and thick, use the large feed chute. The large feed chute must be

packed full for best results. Use a smaller feed chute where possible, and depending

on the food size.

Some food remains on top

of the disc after processing

• It is normal for small pieces to remain after processing.

Motor slows down

when kneading dough

• Amount of dough must not exceed maximum recommended quantity on the recipe.

Remove half and process in two batches.

• Dough may be too dry. If motor speeds up, continue processing.

If not, add more water, 1 tablespoon at a time until the motor speeds up.

Process until dough cleans the side of the processing bowl.

Dough doesn’t clear inside

of the processing bowl

• Amount of dough may exceed food processor maximum capacity.

Remove half and process in two batches.

• Dough may be too dry.

Dough nub forms on

top of dough blade and

dough does not become

uniformly kneaded

• Stop machine, carefully remove dough, divide it into 3 pieces and redistribute them

evenly in the processing bowl.

Dough feels tough

after kneading

• Divide dough into 2 or 3 pieces and redistribute evenly in processing bowl.

Process 10 seconds or until uniformly soft and pliable. Allowing dough to rest allows

the gluten strands to relax and become more pliable.

Dough is too dry

• While machine is running, add water through the small feed chute,

1 tablespoon at a time until dough clears the inside of the processing bowl.

Dough is too wet

• While machine is running, add our through the small feed chute,

1 tablespoon at a time until dough clears the inside of the processing bowl.

The motor does not start

• There is a safety interlock switch to prevent the motor from starting if it is not properly

assembled. Make sure the processing bowl and lid and large pusher are securely

locked into position.

• The food content in the feed chute should be below the maximum ll line.

• If the motor still will not start, check the power cord and power outlet.

The food processor shuts

o during operation

• The lid may have become unlocked; check to make sure it is securely in position.

• If the motor overloads, the 'OVERLOAD PROTECTION' icon in the screen will start

to ash. Switch o by pressing the POWER button and unplug the power cord.

Allow the food processor to cool for 30 minutes before resuming.

Troubleshooting

PROBLEM EASY SOLUTION

The motor slowed down

during operation

• This is normal as some heavier loads (e.g. slicing / shredding cheese) may require

the motor to work harder. Reposition the food in the feed chute and cut the food into

smaller sizes and process using a smaller pusher and continue processing.

• The maximum load capacity may have been exceeded.

Remove some of the ingredients and continue processing.

The food processor

vibrates / moves

during processing

• Make sure the rubber feet at the bottom of the unit are clean and dry.

Also make sure that the maximum load capacity is not being exceeded.

• This is normal as some heavier loads may require the motor to work harder.

• Turn the unit o and clear any ingredients that may be caught on the disc,

before continuing.

• If this occurs while mixing dough – then turn unit o and redistribute the dough

mixture more evenly around the bowl before continuing.

• Process hard and brous foods such as carrots, through the small chute.

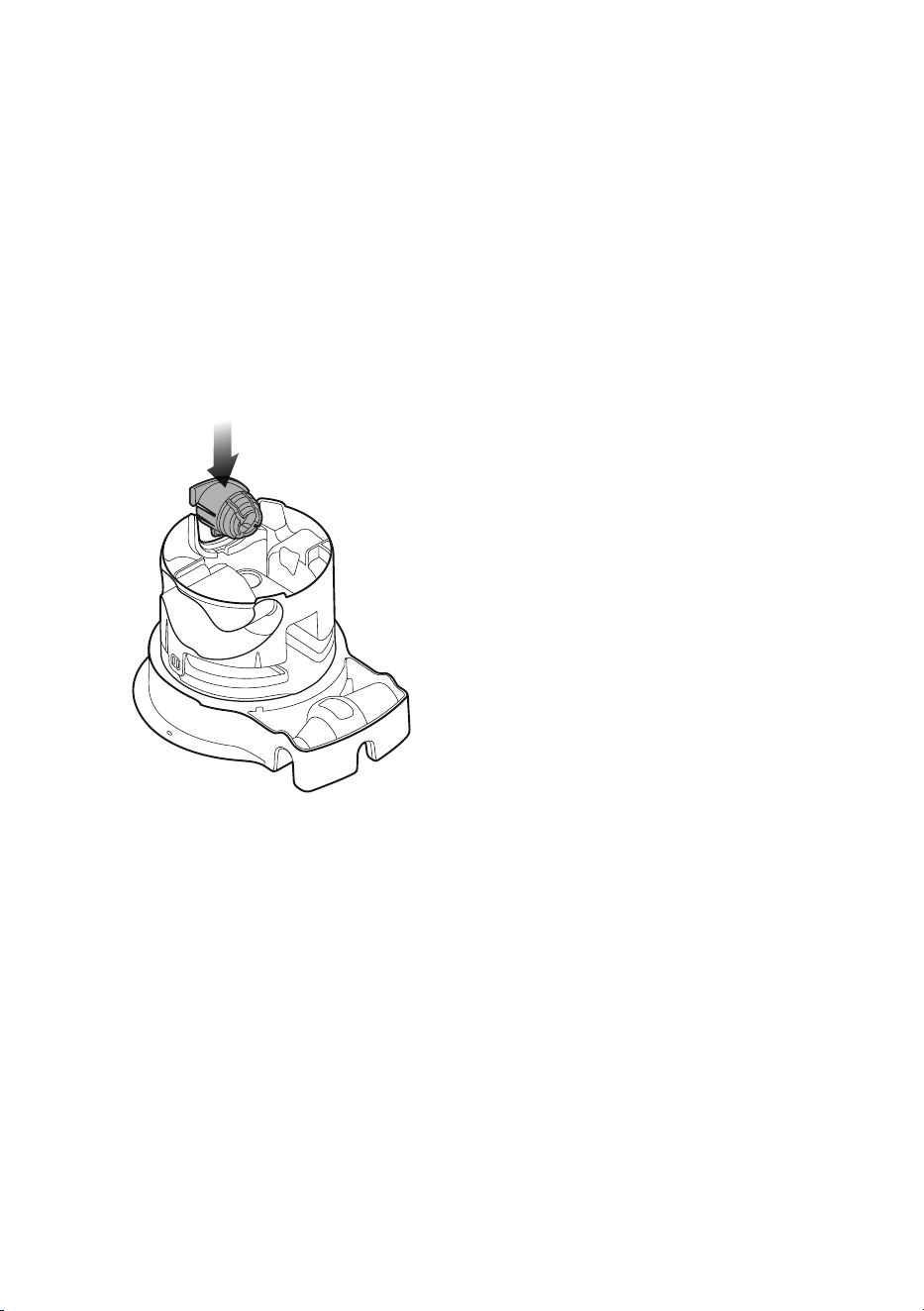

ATTACHMENT OF CADDY COMPONENTS

Attachment of caddy only after all the accessories have been removed.

Refer to this instructions for:

If dropped and fallen apart.

ATTACHMENT

Blade Clips

1. Locate correct side of caddy (dough blade or

chopping blade) and correct blade clip.

2. Insert blade clip spigot onto caddy base peg -

maintaining correct alignment of blade clip legs

3. Push blade clip further until blade clip legs have

exed into caddy base holes. Ensure all three

legs have engaged with caddy base.

S Blade Clip Dough Blade Clip

Right Side View Left Side View

WARNING

Do not touch the blades of the

Dicing Grid and Dicing Blade.

They are extremely sharp.

ATTACHMENT

Spindle Sheath

1. Remove all accessories and ip caddy

upside-down (WARNING! Blades are sharp).

2. Slide sheath downwards into guide ribs.

Press further until clip is locked into position.

BFP610 ANZ WEB - A23

Breville, the Breville Logo, are trademarks of Breville Pty Ltd (“Breville”) and Breville's products are distributed

in Australia and New Zealand under license.

Due to continued product improvement, the products illustrated/photographed

in this brochure may vary slightly from the actual product.

B##### ANZ – #23

Breville Service Centre

Australian Customers

Phone:

1300 139 798

Web: www.breville.com

New Zealand Customers

Phone:

0800 273 845

Web: www.breville.com

Breville BFP610BSS the Kitchen Wizz 9 Food Processor

Product's Documents

User Manual

Specifications

Breville BFP610BSS Questions and Answers
