U s e r M a n u a l
X150
This Dashboard Camera (dashcam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed rmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combina-
tion of user settings and the level of impact during the collision.
ACMA-021JAM101
C o n t e n t s
Before Using THINKWARE DASH CAM
TM
X150 2
FCC Statement 2
Caution 3
Getting Started
1-1. In the Package 4
1-2. Optional Accessories 4
1-3. Product Overview 5
1-4. Inserting a Memory Card 6
1-5. Vehicle Installation 7
Basic
2-1. Turning the Device Power On/O 9
2-2. Date/Time Settings 9
2-3. Connecting External GPS Receiver(Optional Accessory) 10
2-4. Recorded Files 11
2-5. Recording Videos While Driving 12
2-6. Recording Videos While Parked (Optional Accessory) 13
2-7. Manual Recording 14
2-8. Upgrading Firmware 15
Touch LCD
3-1. Using Live View 16
3-2. File List 17
PC Viewer Software
4-1. Thinkware Dash Cam PC Viewer 21
4-2. PC Viewer Conguration 25
Device Information
5-1. Specications 26
01
02
03
04
05
2
Before Using THINKWARE DASH CAM
TM
X150
Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent
of THINKWARE.
Every eort has been made to ensure this Guide's accuracy. However, we cannot guarantee the accuracy of
the contents in this document as there may be technical errors, omissions, and/or future changes.
THINKWARE reserves the right to change or modify the product and the content of this manual at any time
without prior notice for product improvements.
Images contained in this user guide are illustrations for instructional purposes only and may dier from the
actual product.
Users do not reserve the right to use the product for purposes other than as specied in this user guide.
According to the Personal Information Protection Act and other related regulations, the user/owner may be
held liable if the video and/or conversation recorded by the device are distributed without their consent.
Thus, special attention should be paid in using this product.
●
The MicroSD memory card should be tested for errors on a regular basis and as the memory card is a
consumable item, it will need to be replaced periodically.
●
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from the use of
disingenuous, modied, or unauthorized parts and accessories.
●
The device and the recorded videos are intended for personal use and the recorded videos should be
used for reference only.
●
The device does NOT guarantee video recording of all accidents as built-in impact sensor may not be
activated due to combination of user settings and the level of impact during the collision.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-
ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: Any changes or modications to the equipment not expressly approved by the party responsi-
ble for compliance could void your authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
3
Caution
Depending on the make and model of your car,
the power may be constantly supplied to the
dash cam even with the ignition turned o. This
may result in vehicle battery discharge.
This device is designed to record video while the
vehicle is in operation. The quality of the video
might be aected by weather conditions and the
road environment such as day or night, presence
of street lighting, entering/exiting tunnels, and
the surrounding temperature.
THINKWARE is NOT responsible for the loss of any
recorded video during operation.
Although designed to withstand high impact of
car collision, THINKWARE does NOT guarantee re-
cording of accidents where the impact may cause
the device to be damaged.
Keep the windshield clean for optimal video qual-
ity.
If a foreign substance (e.g. ngerprints) is at-
tached to the lens, it may reduce the quality of the
recorded videos. Keep the lens clean all the time.
The specied operating temperature of this prod-
uct is -10°C to 60°C (14°F to 140°F) and storage
temperature is -20°C to 70°C (-4°F to 158°F). En-
sure that the device is kept within these tempera-
ture ranges; otherwise, the device may not func-
tion as designed and at extreme temperatures,
permanent physical damage can result which is
not covered by warranty.
Avoid placing the device under direct sunlight.
Avoid using the device in extreme conditions
where the Product is exposed to high tempera-
ture and/or humidity.
Only use genuine accessories and peripherals
from THINKWARE or authorized THINKWARE deal-
er. THINKWARE does not warrant the safety and
compatibility from use of peripherals from other
manufacturers. Use genuine parts supplied by
THINKWARE.
Do not apply excessive force when pushing the
buttons on the device.
Do not clean the Product using chemical cleaner
or solvents as it may damage plastic components.
Use soft, clean, dry fabric to gently wipe the Prod-
uct.
Do not place or store the device where it can be
accessible by children and pets.
Do not disassemble the Product as it will void
product warranty and may also damage the prod-
uct.
Handle with care. Drop, shock, and mishandling
the Product may result in malfunction and/or
damage to the device.
Do not operate this device while driving.
Install this device in a location where it has unob-
structed view of the road but does not interfere
with the driver’s view. Check with your local and
regional laws before mounting to windshield.
The device and/or installation parts have moving
parts and may shift in extreme road conditions
such as unpaved road. Check frequently to ensure
the device is positioned as instructed in this guide.
Do not operate or handle power cable with wet
hands.
Do not use a damaged power cable.
Keep the power cable away from heaters or other
hot objects.
Check that power cable with correct connector is
used and the connections are secure and rmly in
place.
Do not pull, insert, or bend the power cable using
excessive force.
Do not place heavy objects on the device and the
power cable.
Do not modify or cut the power cable.
THINKWARE does not guarantee that devices or
peripherals not authorized by THINKWARE will be
compatible with its Product.
Do not attempt to insert foreign objects into the
device or power cable.
Do not spill or spray liquid into the device as it
may cause malfunction, re, or electric shock.
This device is intended to be used inside the ve-
hicle only.
4
Main Dash Cam Unit
Mount with 3M tape
(1ea)
Car Charger
Adhesive Cable Holder
(5ea)
External GPS Receiver Rear View Camera Hardwiring Cable
1-2. Optional Accessories
1. Getting Started
This unit was tested with shielded cables on the peripheral devices.
Shielded cables must be used with the unit to ensure compliance.
1-1. In the Package
MicroSD memory card with adapter
(consumable)
USB MicroSD card
reader
Quick Start Guide/Warranty/
User Manual (stored in the MicroSD card)
5
Getting Started
01
DC-INV-INGPSOBD
No. Name Description
1 Camera Lens Front facing camera for video recording
2 Mount Connector Connects to the windshield mount
3 Security LED
Operation indicator lights that are used to visually indicate that the vehicle
is equipped with a dash cam
4 Speaker For voice guidance and alert/notication sounds
5 Operation Status LED Indicates the device operating status
6 GPS LED Indicates the GPS connection status
7 Microphone Records audio along with video
8 Touch LCD Screen Live view, video playback, and dash cam conguration
9 DC-IN Connects to power cable
10 V-IN Socket
Connects to rear view camera
(Optional rear view camera is not included and requires separate purchase)
11 GPS Receiver Socket
Connects to external GPS receiver
(optional accessory that requires separate purchase)
12 REC Button Initiates manual recording
13
Power
Switch
Turns the device on/o
14 Memory Card Slot Location for the memory card
1-3. Product Overview
Front view
Top view
Rear view
Right view
6
2
4
31 7 8
9
10 11
RECPWR
micro SD
12
13
14
5
6
Insert the MicroSD card
into the slot with the metal
contacts facing up toward the
mount connector and push
until it locks into place.
Press the end of MicroSD card
until it clicks out from the slot.
Pull out the MicroSD card.
MicroSD card
1-4. Inserting a Memory Card
1-4-1. About Memory Cards
The MicroSD card should be formatted every 2 weeks to maximize the lifetime of the memory card.
1-4-2. Installing a MicroSD Card
Do not apply excessive force on the MicroSD card or attempt to insert it in the wrong direction as it may
cause damage to the MicroSD card and the card slot.
The MicroSD card should be tested for errors on a regular basis and as the memory card is a consumable
item, it should be replaced periodically.
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories. It is strongly recommended that THINKWARE memory cards
are used to minimize memory card error.
Ensure that the device is completely o before removing the MicroSD card to avoid damages to the
memory card.
To prevent loss of important data, frequently copy recorded videos from MicroSD card to another storage
device such as personal computer for back up.
Cautions

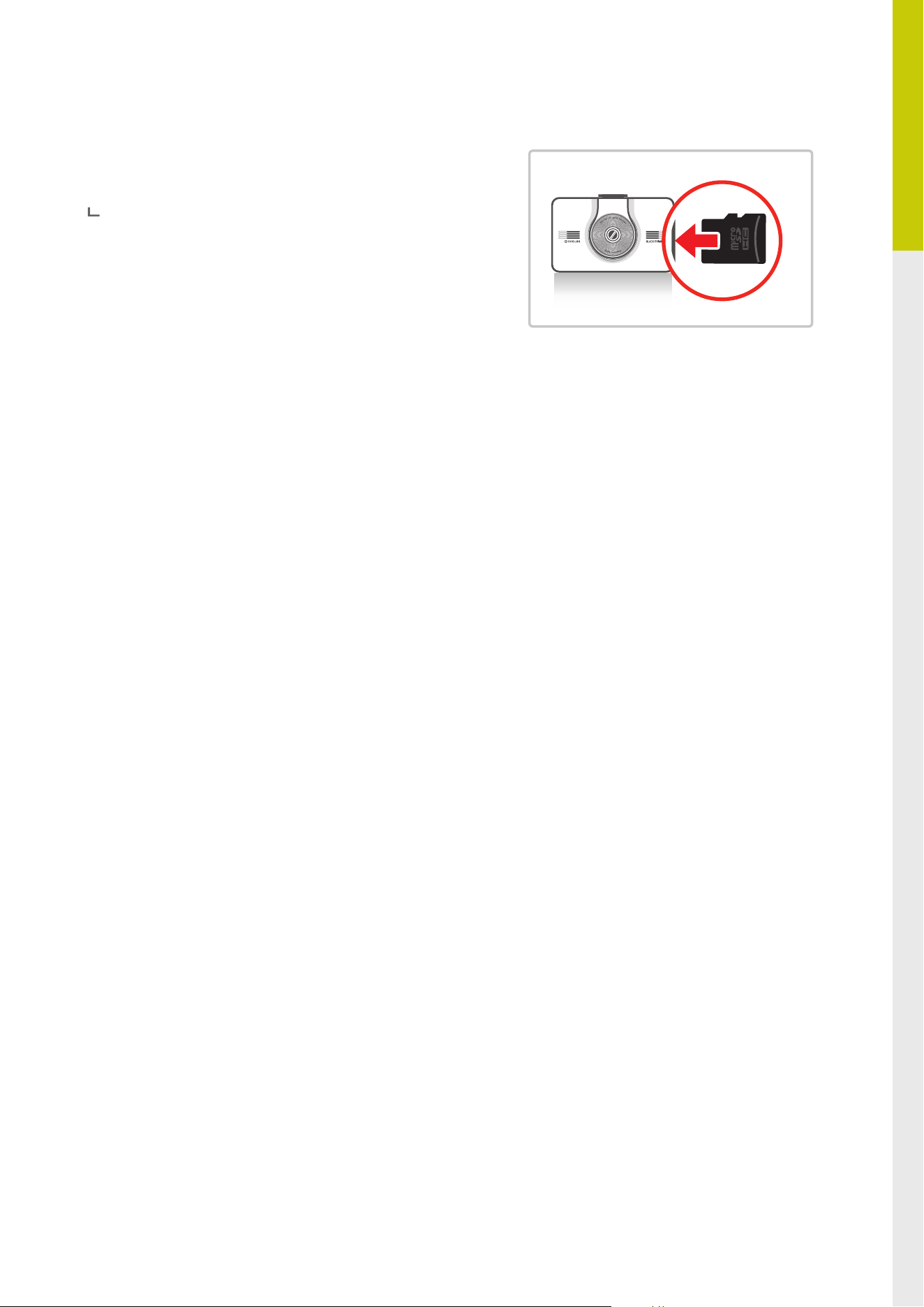

Inserting the memory card
Removing the memory card
7
Getting Started
01

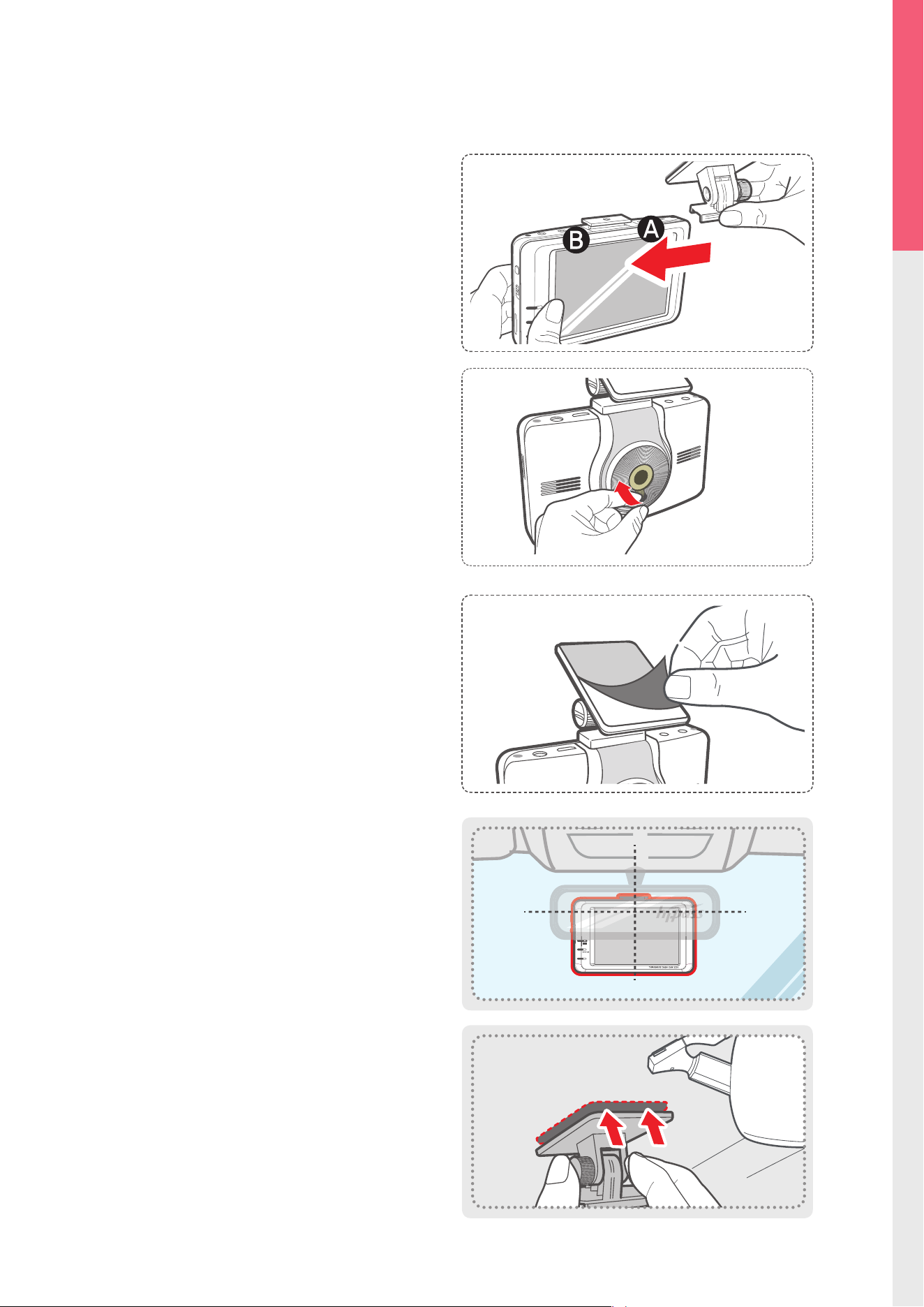

1-5-1. Connecting the Device and the
Mount
①
Align the mount with the connector (A), and slide it
towards (B) until it clicks into place.
②
Remove the protective lm from the camera lens.
1-5. Vehicle Installation
1-5-2. Installing the Device
①
Remove the protective cover from adhesive mount
and attach mount on the windshield where it has
unobstructed view of the road but does not inter-
fere with the driver’s view.
┗
Select the location on the windshield where
buttons are accessible and clean the area before
securing the mount with attached 3M tape
②
To ensure that the mount is safely secured, sepa-
rate the device from the mount after installation.
Press the mount towards the windshield to allow
the adhesive on the mount to set before connect-
ing the dash cam.
┗
Attach the dash cam to the mount once the
mount has been securely attached
8
After installation, turn on the dash cam and use the live view
on the LCD screen to adjust the camera angle.
TIP
Tighten/loosen the screw on the mount with a coin to re-ad-
just the vertical viewing angle of the dash cam.
TIP
1-5-3. Connecting to power
①
Connect the power cable to DC-IN socket of the
device.
②
Plug the car charger adapter end of the power
cable into a 12V DC vehicle power socket
.
③Arrange the wire by using the adhesive cable hold-
ers as shown below.
④
Adjust the camera so that the dash cam is
facing forward and is level with the road.
Preventing Vehicle Battery Discharge
■ Depending on the make and model of your car, the power may be supplied to the dash cam
even with the ignition turned off. This may result in vehicle battery discharge.
■ Some vehicles with multiple power sockets might be equipped with at least 1 outlet that does
not shut off the power with the ignition. Test each power outlet to ensure you connect to an
outlet that shuts off with vehicle ignition.
For more information on the power cable routing instruction, please visit Thinkware homepage.
(www.thinkware.com)
Recommended locations for
attaching adhesive wire clips
to arrange the power cable are
illustrated in the diagram
Hide the power cable by placing (tucking)
it in the space between the vehicle ceiling
and headliner at the top of the windshield
9
Basic
02
2. Basic Operations
2-1. Turning the Device Power On/O
Once connected to the vehicle, the device will automatically turn on and o with vehicle ignition.
To manually turn the device ON/OFF, use the power switch on the side.
┗Push up the power switch to turn the device ON
Power ON/OFF
switch
Power cable for vehicle
Red Light ON
Bottom
OFF
Top
Operation LED
If the LCD is o, touch the LCD screen to activate the display.
① Go to "System Settings" >
"Set time" > "Time Zone
Setting" to set the local time
zone.
②Go to "System Settings" > "Set time" > "Date/Time Set-
ting" to set the local date and time.
2-2. Date/Time Settings
It is strongly recommended to have the date, time, and time zone congured on the device.
10
Blue Light ON
GPS LED
2-3. Connecting External GPS Receiver(Optional Accessory)
THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using
genuine or authorized parts and accessories. It is strongly recommended that THINKWARE external GPS
receiver is used.
Turn the device o completely before connecting the GPS receiver to avoid damages.
Cautions
External GPS Receiver is available as an optional accessory that can be purchased from Thinkware autho-
rized dealers.
External GPS Receiver enables recording of vehicle locations in the video le for driving route tracking.
┗Connect external GPS Receiver to the GPS port of the dash cam.
11
Basic
02
Recorded video les are saved in the folder by date and hour in the MicroSD card.
┗Files are created based on the time when the videos are recorded.
As a loop-recording surveillance product, the dash cam will
automatically overwrite oldest le in the memory card once
the memory is full. However, event recording and manual
recording videos are stored in separate locations and will be
protected from le overwriting.
2-4. Recorded Files
Front view
recording
Rear view recording
(optional rear view cam-
era must be installed)
Do not use the MicroSD card as an external storage device.
Do not tamper with the system les within the in the MicroSD card.
This may result in unexpected behavior during operation.
Cautions
Year Month Day Hour
Minute
Second
12
2-5. Recording Videos While Driving
2-5-1. Continuous Recording Mode
Videos are recorded in 1 minute segments and saved as
les in the MicroSD card under the folder named “cont_
r e c ”.
2-5-2. Incident Recording During Continuous Recording Mode
When the dash cam detects impact, it will immediately
store the 10 seconds prior and after the impact.
The 20-second impact recording is saved on the MicroSD
card under the "evt_rec" folder. Note that the dash cam
will detect impact as incident only if the level of impact is
greater than the sensitivity of the G-sensor set in the user
conguration.
OFF
Bottom
Green Light ON
Top
White Light Blinking
OFF
Operation LED Security LED
Security LED
Red Light
Blinking
Bottom
Green Light ON
Top
Operation LED
Driving over speed bumps, manholes, or uneven roads at high speeds can also be detected as an impact
and may trigger incident recording.
The device can record up to 1 minute of incident recordings in the case of continuous impacts or multiple
accidents.
The duration of incident footage recorded may vary according to the device settings.
Cautions
13
Basic
02
2-6. Recording Videos While Parked (Optional Accessory)
2-6-1. Incident Recording
When the dash cam detects impact while parked, it will
imme diately store the 10 seconds prior and after the
impact.
The 20-second impact recording is saved on the MicroSD
card under the "evt_rec" folder.
White Light Blinking
Security LED
This feature is available only when the dash cam has been hardwired directly to the vehicle battery.
Separate purchase for the hardwiring cable accessory and professional installation is required.
2-6-2. Motion Detection Recording
The dash cam and the optional rear view camera are both equipped with motion detectors which are used
to detect motion that initiates video recording while the vehicle is parked.
When the dash cam detects motion while parked, it will immediately store the previous 10 seconds prior to
the activation of motion detection start recording video for the next 10 seconds.
The 20-second motion detection recording is then saved on the MicroSD card under the folder named
"parking_rec".
The device can record up to 1 minute for continuous impacts in the case of multiple collisions.
Cautions
14
Briey press the REC button to start recording.
The de vice will record video for 1 minute (10 seconds be-
fore and 50 seconds after) as of the time when the button
is pressed. The recorded video will be saved under the
“manual_rec ” folder.
2-7. Manual Recording
In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to cap-
ture scenery and/or places while driving. This feature can also be used to "save video as witness" where the
installed vehicle is not directly involved in an accident. Video les saved during manual recording mode are
stored in a separate location on the memory card and will be protected from video overwriting in continuous
recording mode.
Red Light
Blinking
Bottom
Green Light ON
Top
Operation LED
15
Basic
02
The system will automatically be updated if the MicroSD card
contains the rmware upgrade le.
The device restarts automatically after the upgrade has
been completed.
Make sure your device is always up to date with latest rm-
ware. Please check back frequently at THINKWARE website
(www.thinkware.com) for the latest rmware updates.
2-8. Upgrading Firmware
16
3. Touch LCD
3-1. Using Live View
GPS Connection Status
Rearview (appears only when rear-
view camera is connected)
Rearview screen enlarges when the viewing
area is touched
Current Date/Time
Current Speed
Speed information is provided when the
external GPS antenna is connected
Back to
main menu
File List
Device Settings
System Settings
Audio Settings
Front View
17
Touch LCD
03
3-2-1. File List
Continuous Recording : Lists loop recording videos during continuous mode in 1 minute segments
Parking Recording : Lists motion detection recording videos during parking surveillance mode
Incident Recording : Lists incident recording videos during both continuous and parking surveillance mode
Manual Recording : Lists manual recording videos initiated by pressing REC button
3-2. File List
Recording will suspend when browsing through video list and settings menu. Visual notication will ap-
pear on the screen to conrm the suspension of recording prior to entering the menu.
18

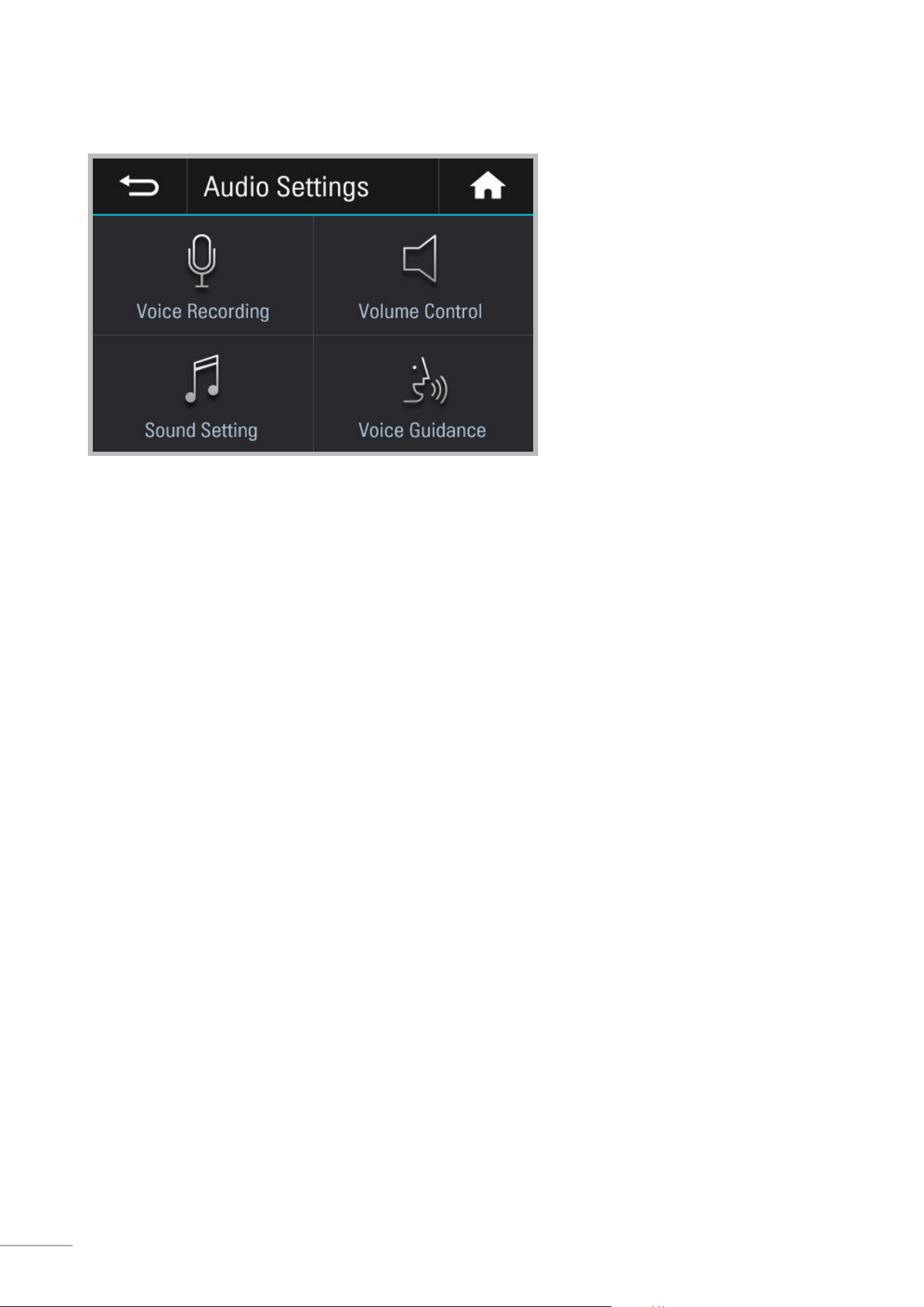

3-2-2. Audio Settings
Voice Recording : Sets voice recording on/o
Volume Control : Sets the volume level (low/mid/high)
Sound Setting : Sets the audible alerts on/o
Voice guidance : Sets voice guidance on/o
19
Touch LCD
03

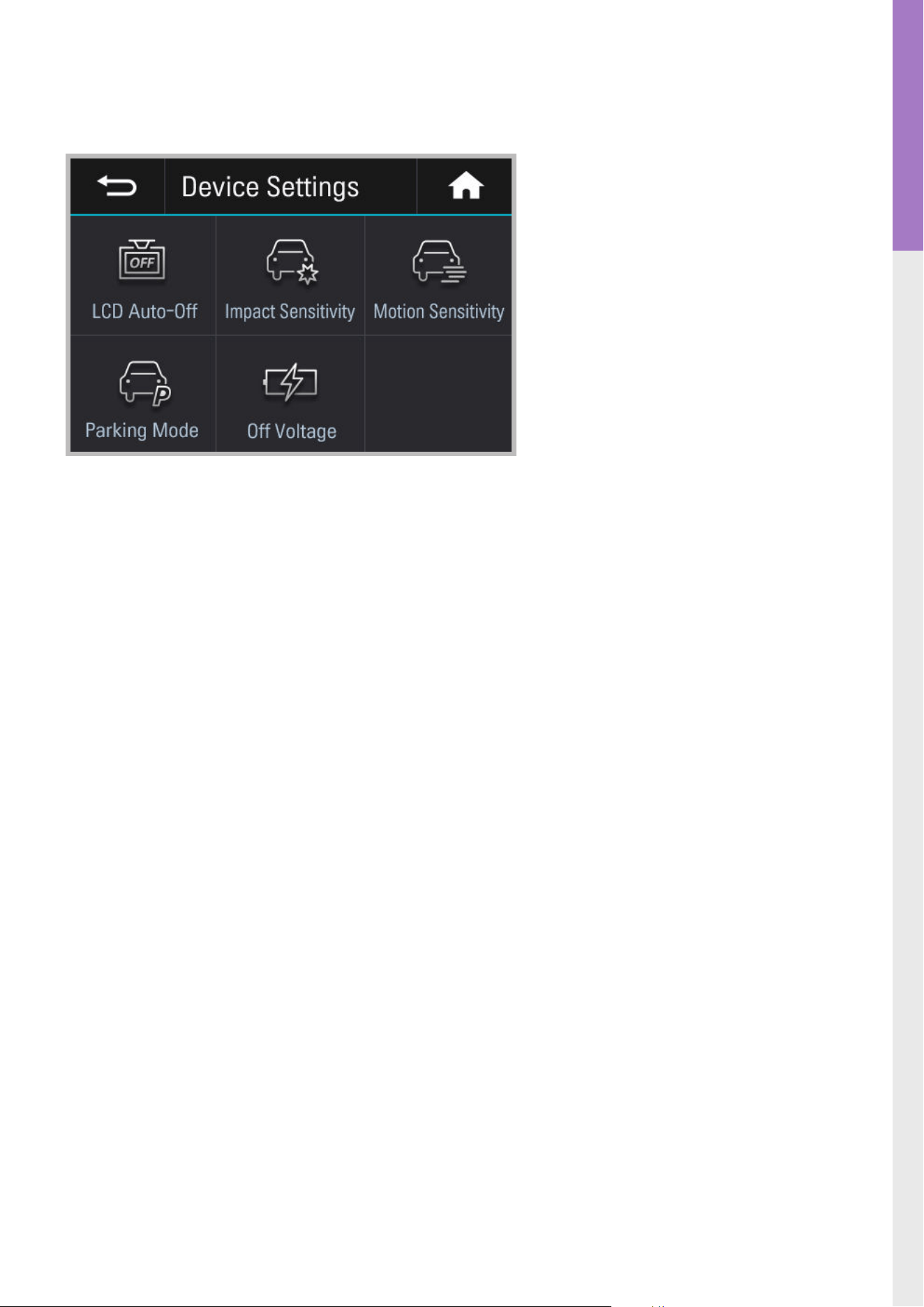

3-2-3. Device Settings
LCD Auto O : Sets the time for LCD auto shut o
Impact Sensitivity : Sets the impact sensitivity level (low/mid/high)
Motion Sensitivity : Sets the sensitivity of the motion detection sensor
Parking Mode : Monitors vehicle ignition status to automatically convert to parking mode when the vehi-
cle engine is turned o
O Voltage : Sets the voltage level for the dash cam to automatically shut down in order to prevent drain-
ing of the vehicle battery
20

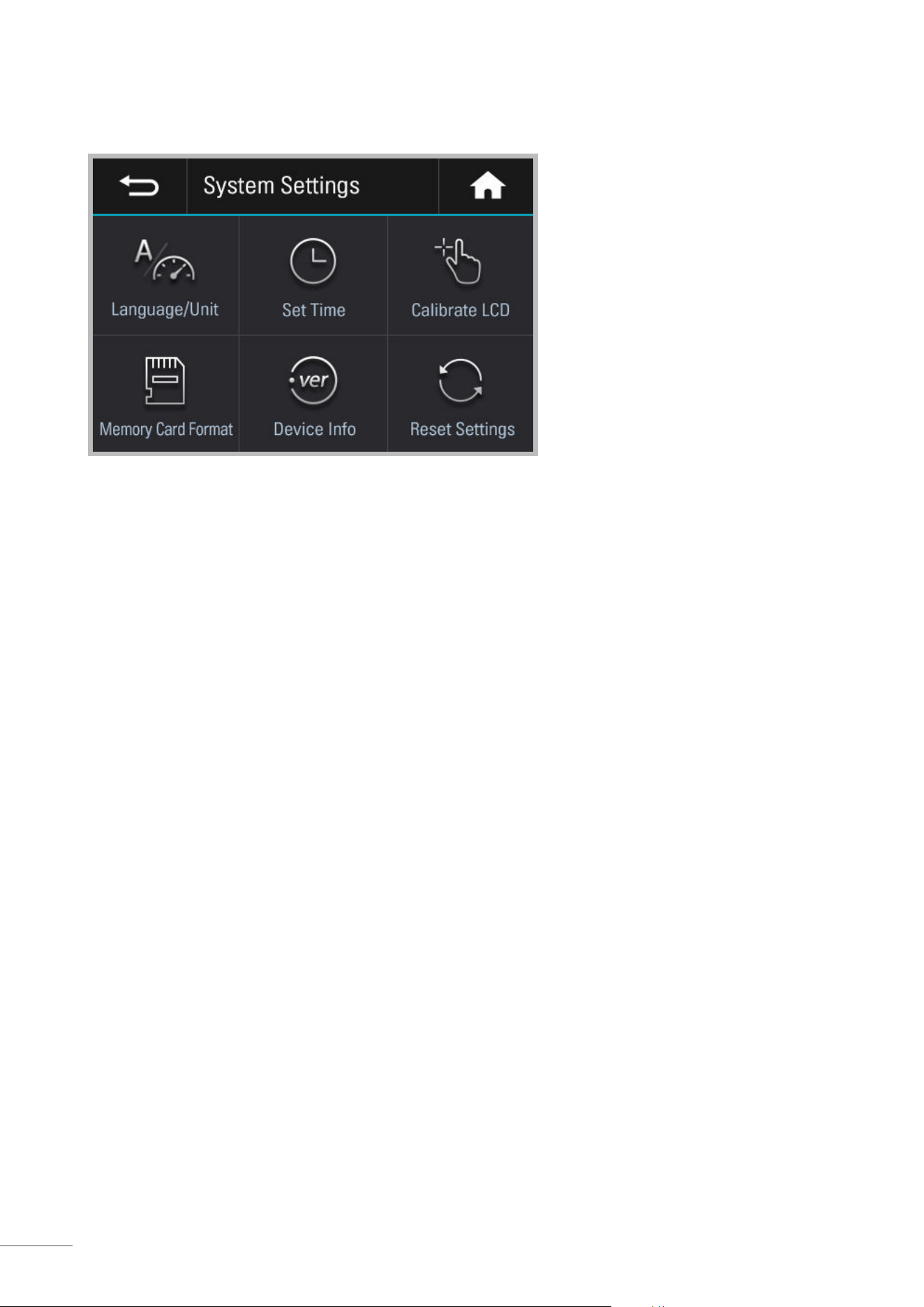

3-2-4. System Settings
Language/Unit : Sets the system language and speed unit
Set Time : Sets the time
Calibrate Touch Screen : Calibrate touch screen to ensure accurate touch response (Touch center of the
cross as instructed)
Format Memory Card : Formats the MicroSD card
Device Info : Displays current rmware version
Factory Reset : Restores to factory setting
21
PC Viewer Software
04
4. PC Viewer Software
4-1. Thinkware Dash Cam PC Viewer
Thinkware Dash Cam Viewer for Windows/MacOS is provided which can be used to watch videos recorded
with the dash cam. The video les recorded by the dash cam are in one minute segments and the PC viewer
allows the user to watch these segments as a single continuous video.
The setup le for the Thinkware Dash Cam PC Viewer is included in the MicroSD card within the package.
Please check THINKWARE homepage(www.thinkware.com) for the latest Dash Cam PC Viewer
application.
4-1-1. Thinkware Dash Cam PC Viewer Software
①
Insert the MicroSD card into the USB MicroSD card
reader (included in the package) with front side
facing up as shown in the illustration.
②
Connect the USB MicroSD card reader to the PC.
Front Rear
MicroSD card
Ensure that the USB card reader is correctly
oriented when inserting it into the USB drive
Removing MicroSD card
22
4-1-2. Installing Thinkware Dash Cam Viewer
Windows
①
Double-click the Thinkware Dash Cam Viewer setup
le saved in the MicroSD card to initiate program
installation.
②
Double-click the application icon once PC Viewer
installation completes and the application main
screen will then appear.
MAC
System requirements : MAC OS X 10.8 Mountain Lion or later (OS X 10.9 Mavericks, OS X 10.10 Yosemite)
Cautions
System requirements :
Windows XP (32 bit), Windows 7 (32/64 bit),
Windows 8.x (32/64 bit)
Cautions
①
Move the le named “Dashcam Viewer.zip” stored in the MicroSD card to the desktop.
②
Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash Cam
viewer application.
23
PC Viewer Software
04
4-1-3. Select the Device Drive for X150
The MicroSD card will not be recognized by the software until it has been initialized in the dash cam.
It is recommended that the user record at least one video clip on the MicroSD card with the dash cam
unit before accessing the Thinkware Dash Cam PC Viewer.
Cautions
①
Click File from menu and select the drive for
the portable storage drive for the connected
MicroSD card.
②
Select any le from the list to load entire video
playlist in the memory card.
24
Rear view
(Enabled only if Mi-
croSD card contains
video captured
using rear view
camera)
Dash cam setting / Information
Full screen
Switch between front/rear view
File open
Viewing screen
Playback
Progress
Current Playing Time
/ Total Playing Time
Driving speed
Impact sensor value
Map
Checks the location
of the recorded
video (Enabled only
if video is captured
while connected
using GPS antenna
(optional in some
models) and must
also be connected
to the Internet)
Playlist
4-1-4. Thinkware Dash Cam Viewer Overview
No. Name Description
Play Previous Plays the previous le before the current le
Rewind by 10 Sec
Rewinds the current le being played by 10 seconds
(If selected, it continues to rewind by 10 seconds)
Play/Pause Plays the recorded le / temporarily pauses playback
Stop
Stops the le being played. The playback status resets to the starting point of
the video.
Fast-forward by 10 Sec
Fast-forwards the current le being played by 10 seconds
(If selected, it continues to fast-forward by 10 seconds)
Play Next Plays the next le after the current le
Auto Play Automatically loops the video back to beginning once the end has reached
Zoom Sets the video expansion ratio (0.5x / 1.0x / 1.5x / 2.0x)
Screen Setting Sets brightness/speed of the video
Save Saves the video in play
Volume Sets the volume of the playback
※Note: In the parking surveillance video playlist, motion detection playlist
is not used so incident and motion detection recordings during
parking surveillance mode are displayed in the same playlist labeled
'Incident P'.
25
PC Viewer Software
04
4-2. PC Viewer Conguration
Memory Partition : Sets how storage space on the memory card will be allotted for each recording mode
Formatting memory card : Initiates memory card format
Voice recording : Sets the voice recording on/o during video recording
Voice Guidance : Sets the voice guidance on/o and the voice guidance volume
Impact Sensitivity : Sets the impact sensitivity
Motion Sensitivity : Sets the sensitivity of the motion detection sensor
Parking Mode :Sets the use of parking surveillance mode when the dash cam is installed using hardwiring
Battery voltage setting for stop recording :
Sets the voltage level for the dash cam to automatically power
down in order to prevent the vehicle battery from draining
Date/Time : Sets the date and time
┗ Get current time : Retrieves the current time from the PC
Time zone : Sets the time zone
Daylight Saving Time (DST): Sets the daylight saving time
Language : Sets the system language for the dash cam (PC Viewer Setting only supports English)
Speed unit : Sets the unit for the vehicle speed
Security LED : Sets the security LED on/o
Version :
Version information for the dash cam and its rmware
Save
①
Press Save button to store the new configuration on the MicroSDcard and apply the changed settings
②
Saved configuration is stored in blackbox.cfg file located in MicroSD card under Settings folder
③
Insert the MicroSD card with changed settings to apply the changes to the device
Deleting/Removing blackbox.cfg le using PC le explorer will disable the use of PC Viewer. In such
case, insert the MicroSD card and power on the device which automatically generates blackbox.cfg le
with default settings to enable use of PC Viewer.
26
5. Specications
5-1. Specications
The specications of this product may change without prior notice for product improvements.
Item Standard Note
Model X150
Size/weight
104 x 63 x 27.5mm / 102g
4.1 x 2.48 x 1.08inches / 0.225lbs
Display Panel 3.5"TFT LCD (480x320)
Capacity
MicroSD card
8/16/32GB Class 10
Recording mode
Continuous Recording Mode Records in 1 minute segments
Incident Recording Mode
10 seconds before/after incident
(total 20 seconds)
Manual Recording Mode
10 seconds before and 50 seconds after
manual recording initiates (total 1 minute)
Parking Surveillance Mode
Optional hardwiring cable and installa-
tion are required for continuous supply of
power when vehicle ignition is o
Audio Recording
Camera 5.0 Megapixel CMOS Sensor
Viewing angle Approximately 120° (diagonally)
Video Full HD (1920 x 1080/H.264/extension AVI)
HD (1280 x 720/H.264/extension AVI) for
rear view camera when connected
Frame rate 1 channel (Front view) : up to 24 fps 2 channel (Rear view): up to 15 fps
Audio PCM (Pulse code modulation)
Acceleration sensor 3-axis acceleration sensor (3D, ±3G) Adjustable impact sensitivity (5levels)
Rear camera Support V-IN port
Optional accessory that requires separate
purchase
GPS External GPS Receiver
Optional accessory that requires separate
purchase
Input power source DC 12/24V Rear view camera: 5V DC
Current consumption 4.5W (Max)
Indication LED
Front: Security LED
Rear: Status LED (2ea), GPS LED
Warning sound Embedded speaker Voice (buzzer sound) guidance
Operation/
Storage Temperature
-10°C to 60°C/ -20°C to 70°C
14°F to 140°F/ -4°F to 158°F
