1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this
equipment.
9 Familiarise yourself with the application and the limitations of the grease gun, as well as the potential hazards.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the grease gun clean for best and safest performance.
9 Check moving parts alignment on a regular basis.
8 DO NOT use the grease gun for any purpose other than that it was designed for.
8 DO NOT operate the grease gun if any parts are damaged or missing, as this may cause failure and/or personal injury.
9 When not in use store in a safe, dry, childproof location.
WARNING! Always wear approved eye protection when operating the grease gun.
2. INTRODUCTION
3-Way ll with cartridge, bulk or manual capability. Supplied with rigid delivery tube and push-on hydraulic 4-jaw coupling. Contoured
pump handle. Accepts standard 400g cartridges.
3. SPECIFICATION
4. OPERATION
WARNING! An empty grease cartridge or grease may be under pressure
from the spring in the barrel, use caution when removing it.
4.1. GREASE GUN LOADING
4.1.1. Separate the gun head from the grease gun barrel (g.1).
4.2. CARTRIDGE LOADING
4.2.1. Withdraw the plunger rod fully
4.2.2. Remove plastic cap from end of grease gun cartridge, insert into barrel of grease gun.
4.2.3. Remove seal from grease gun cartridge and mount grease gun head back onto the barrel.
4.2.4. Release the plunger rod using its tab.
4.2.5. Pump the grease gun handle until grease flows.
MANUAL GREASE GUN 3-WAY FILL
MODEL NO: AK445.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Model No: AK445.V3
Capacity: 500cm³
Delivery per Stroke: 1.2cm³
Delivery Pressure: 7000psi
Nett Weight: 1.22kg

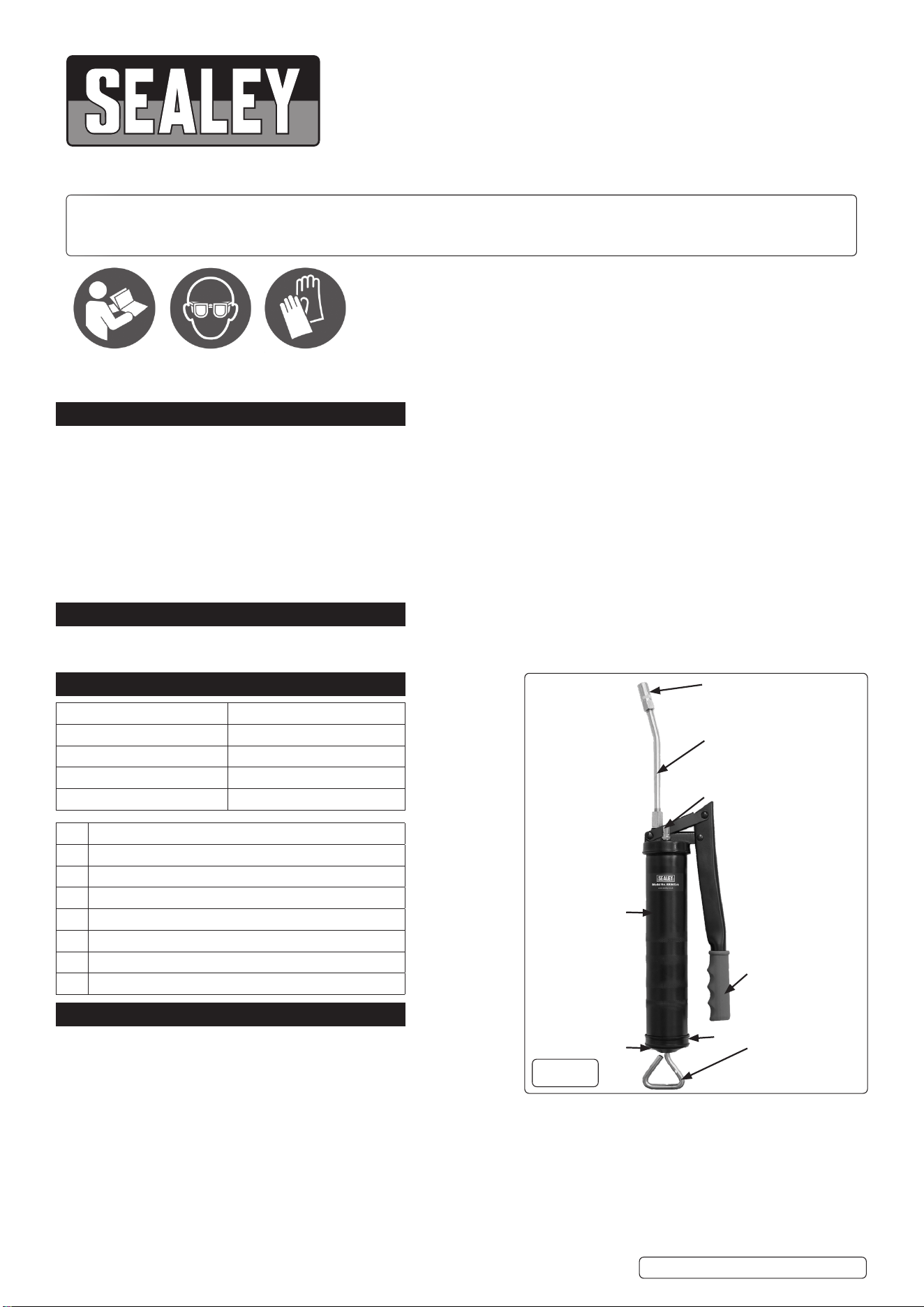

1 Coupler
2 Outlet Nozzle
3 Grease ller plug
4 Handle
5 Plunger Handle
6 Lock Lever
7 End Cap
8 Barrel
g.1
3
4
5
8
6
2
7
1
Original Language Version
© Jack Sealey Limited
AK445.V3 Issue 1 28/05/24
4.3. SUCTION LOADING
4.3.1. Put open end of grease barrel into grease container to a depth of
50mm.
4.3.2. Slowly pull back the plunger handle (g.1) to pull the grease into the
barrel. Lock the rod with the tab (g.1).
4.3.3. Shake the grease gun to settle the grease into the barrel.
4.3.4. Mount grease gun head back onto the barrel.
4.3.5. Release the plunger rod using its tab.
4.3.6. Pump the grease gun handle until grease ows continuously.
4.4. FILLER PUMP LOADING

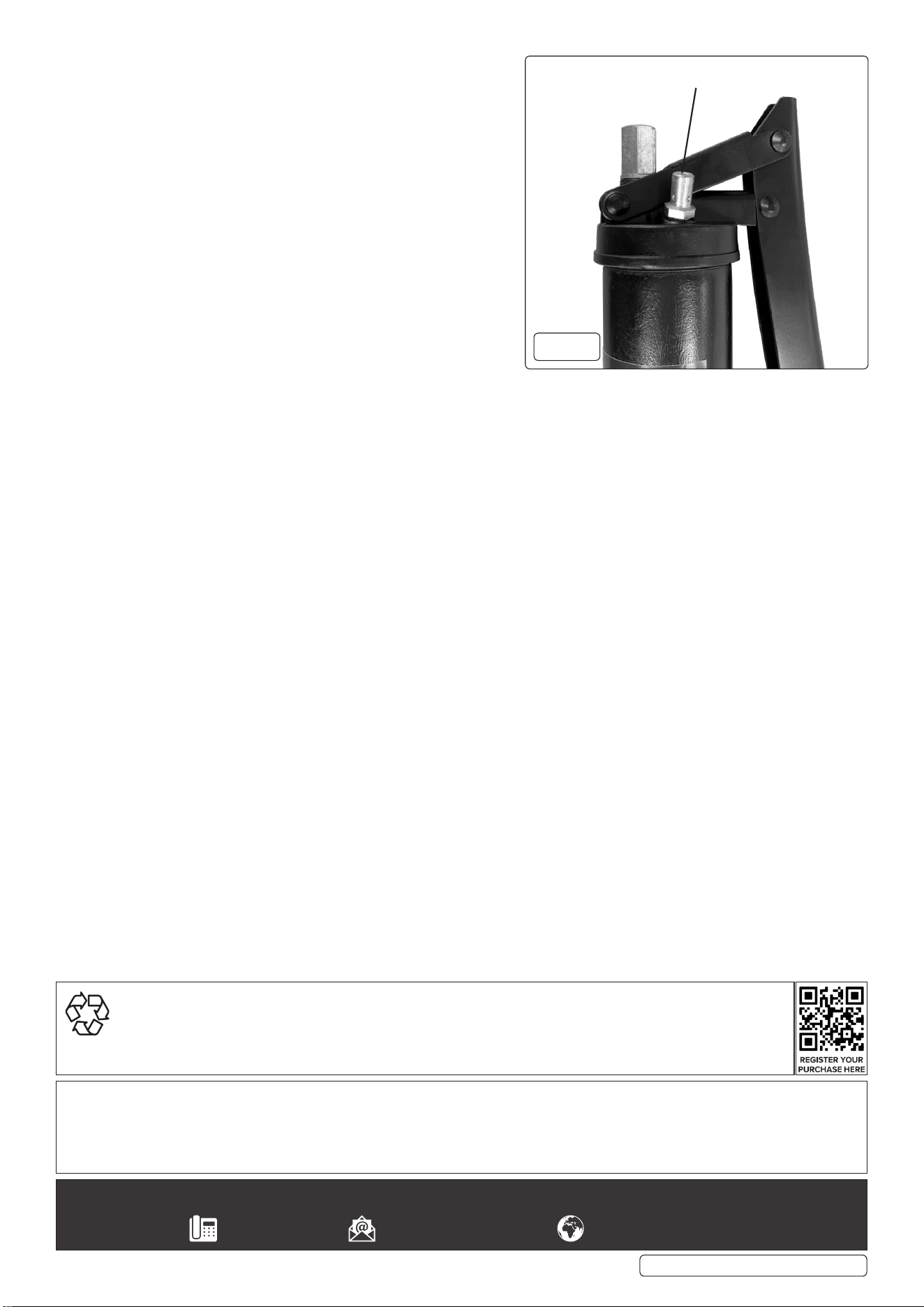

4.4.1. Connect delivery mechanism from dispenser to the gun head filler
plug (fig.2).
4.4.2. Check that the bulk filler valves are compatible with gun filler plug.
4.4.3. Wipe both the grease ttings clean of any dirt before lling.
4.4.4. Connect the bulk ller valve to the grease bulk ller pump, keeping
weight on the grease gun to keep it connected.
4.4.5. Pumping becomes very hard once the grease gun barrel is lled.
4.4.6. Pump grease gun handle until grease flows continuously.
USING THE GUN
4.4.7. The coupler has jaws which snap onto a grease tting. Push the
coupler straight onto the grease tting to form a good t.
4.4.8. Operate the grease gun as square onto the grease tting as possible.
Original Language Version
© Jack Sealey Limited
AK445.V3 Issue 1 28/05/24
g.2
Filler plug
