Welcome to the GV-IP Decoder Box Series and Display User’s Manual.
This Manual is designed for the following models:
Model
GV-IP Decoder Box Lite
GV-IP Decoder Box Plus
GV-IP Decoder Box Ultra
GV-IP Decoder Box Optimal
GV-Pad Mini
GV-IP Display 101
GV-IP Display 116
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are
trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
ii
Creating GV-IP Device’s Login
Credentials
When purchasing new GV-IP devices, or after resetting them, you need to create a login
username and password for these devices before they can be accessed by other software /
hardware.
1. Download and install GV-IP Device Utility from GeoVision’s website.
2. Once started, the utility will automatically search for GV-IP devices connected in the
same LAN.

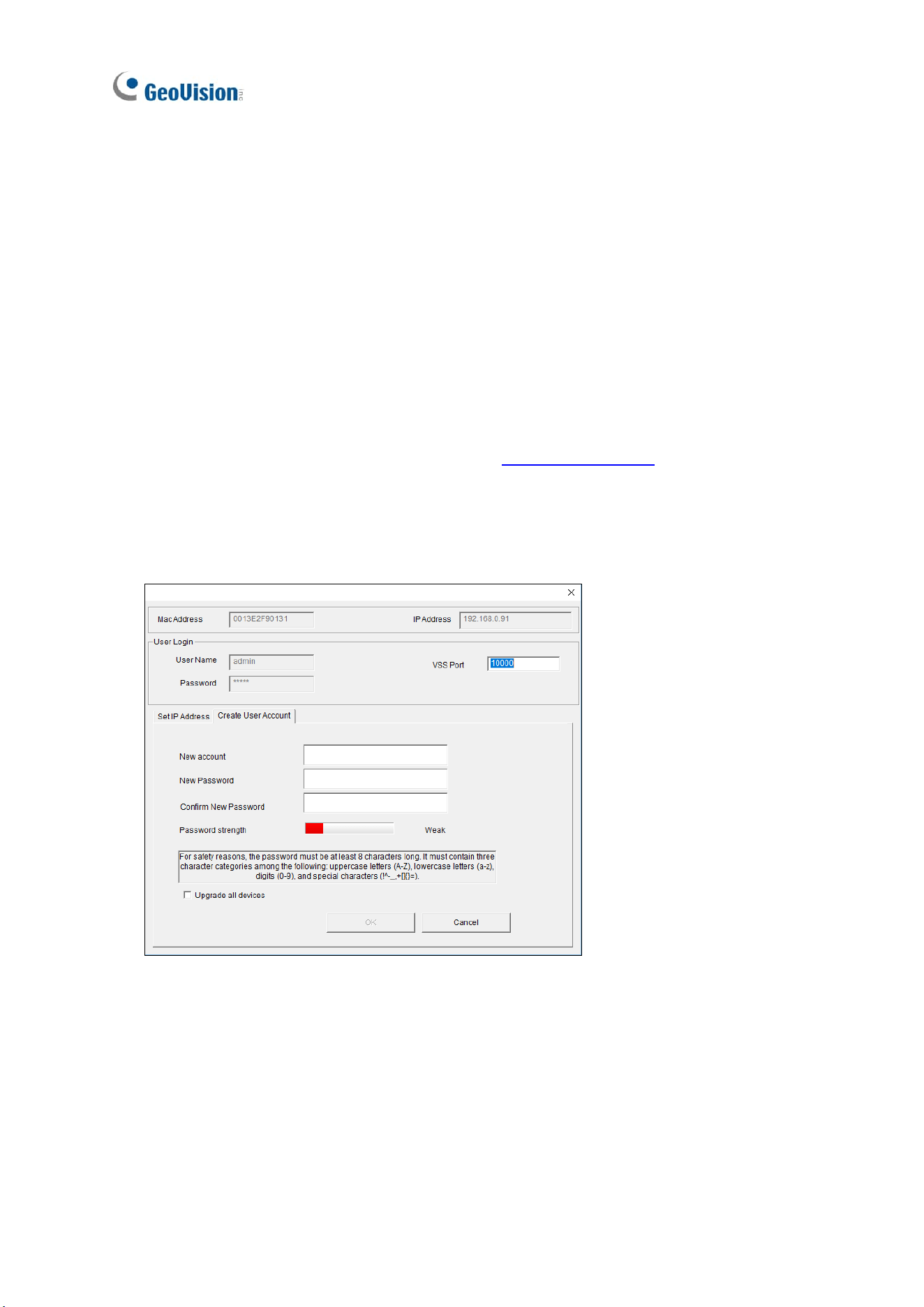

3. Double-click on a device in the list. This dialog box appears.
4. Click the Create User Account tab and type a username and password. The password
must meet the password strength required.
5. Optionally, click Upgrade all devices to apply the created username and password to all
devices which also don’t have any login credentials.
iii
Contents
Preface .................................................................................................................................. i
Creating GV-IP Device’s Login Credentials ....................................................................... ii
Chapter 1 Introduction ..................................................................................................... 1
1.1 GV-IP Decoder Box Optimal ...................................................................................... 1
1.1.1 Features ................................................................................................... 2
1.2 GV-IP Decoder Box Ultra ........................................................................................... 3
1.2.1 Features ................................................................................................... 4
1.3 GV-IP Decoder Box Plus ........................................................................................... 5
1.3.1 Features ................................................................................................... 6
1.4 GV-IP Decoder Box Lite ............................................................................................ 7
1.4.1 Features ................................................................................................... 8
1.5 GV-Pad Mini .............................................................................................................. 9
1.5.1 Features ..................................................................................................10
1.6 GV-IP Display 116 .................................................................................................... 11
1.6.1 Features ..................................................................................................12
1.7 GV-IP Display 101 ....................................................................................................13
1.7.1 Features ..................................................................................................14
1.8 Compatible Devices .................................................................................................14
1.9 Packing List ..............................................................................................................16
1.10 Optional Accessories ..............................................................................................17
1.11 Overview ................................................................................................................18
1.11.1 GV-IP Decoder Box Series .....................................................................18
1.11.2 GV-Pad Mini / GV-IP Display 101 / GV-IP Display 116 ............................24
1.11.3 GV-IR Remote Control ...........................................................................26
Chapter 2 Getting Started................................................................................................28
2.1 Installing GV-IP Decoder Box Series ........................................................................28
2.2 Connecting GV-IP Decoder Box Series ....................................................................29
2.3 Connecting GV-Pad Mini / GV-IP Display 101 / 116 ..................................................31
2.4 The Main Screen ......................................................................................................32
2.5 Setting Up the Network .............................................................................................33
2.6 Adding IP Devices to Live View Grid.........................................................................34
2.6.1 Adding IP Devices through Automatic Search ..........................................34
2.6.2 Adding IP Devices Manually ....................................................................36
2.7 Adding Devices Using GV-IP Device Utility ...............................................................39
2.7.1 Adding a GV-IP Device ............................................................................39
2.7.2 Adding a Third-party Device ....................................................................42
iv
Chapter 3 Accessing Live View ......................................................................................44
3.1 Live View ..................................................................................................................44
3.2 Capturing Snapshots ................................................................................................47
3.3 Fisheye Dewarping ...................................................................................................48
3.4 Controlling PTZ and Speed Dome Cameras with GV-Joystick V2.............................49
Chapter 4 System Settings ..............................................................................................51
4.1 System .....................................................................................................................52
4.2 Network ....................................................................................................................53
4.3 Date & Time .............................................................................................................53
4.4 Account ....................................................................................................................54
4.5 Display .....................................................................................................................55
4.6 Camera ....................................................................................................................56
Chapter 5 Advanced Applications ..................................................................................57
5.1 Upgrading the Firmware ...........................................................................................57
5.1.1 Upgrading Firmware through a Storage Device .......................................57
5.1.2 Upgrading Firmware through GV-IP Device Utility ....................................58
5.2 Restoring Default Settings ........................................................................................59
Chapter 6 Integration to GV-Software.............................................................................61
6.1 Connecting to GV-VMS ............................................................................................61
6.2 Connecting to GV-Control Center .............................................................................63
Introduction
1
1
Chapter 1 Introduction
1.1 GV-IP Decoder Box Optimal
GV-IP Decoder Box Optimal is designed to decode and display up to 64 IP videos in Single,
4-Division, 6-Division, 8-Division, and 9-Division View. It supports third-party IP cameras that
adhere to RTSP or ONVIF, and can automatically search for any ONVIF-compliant under the
same LAN. With HDMI/VGA output ports, dual monitor display is made accessible for a more
effective surveillance environment. The security administrator can monitor channels, take
snapshots of critical moments, and pause a channel when events occur. GV-Joystick V2 can
be installed to control any PTZ / Speed Dome cameras connected onto the GV-IP Decoder
Box Optimal.

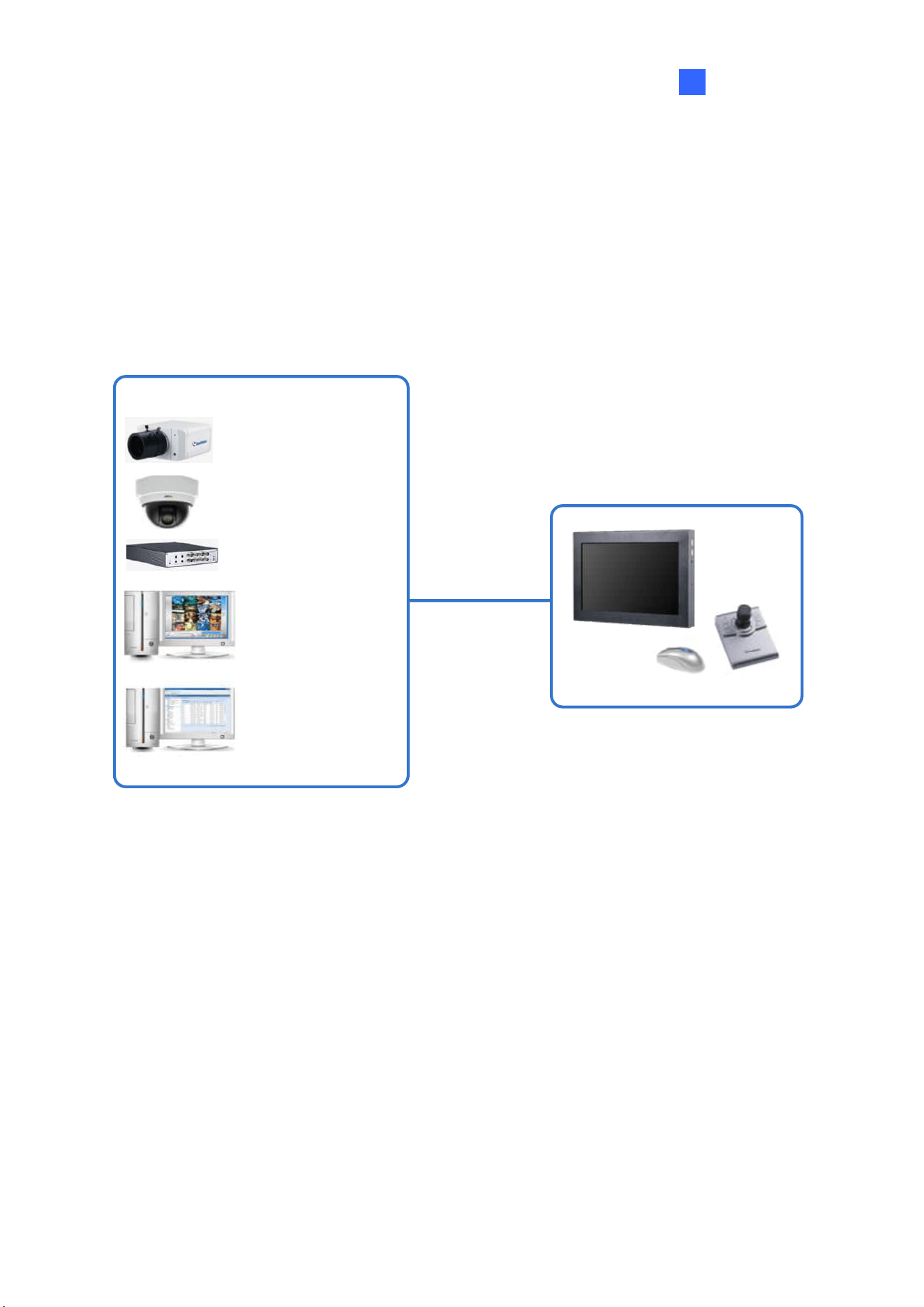

GV-IP Decoder Box Optimal
+
Display Monitor
HDMI /
VGA
GV-IP Camera
ONVIF IP Camera
GV-Video Server
for analog cameras
GV-NVR / VMS &
GV-Mobile Server
GV-Video Gateway /
Recording Server
through GV-Mobile
Server
Video Source
Note: GV-VMS can connect directly to GV-IP Decoder Box Optimal without using GV-Mobile Server.

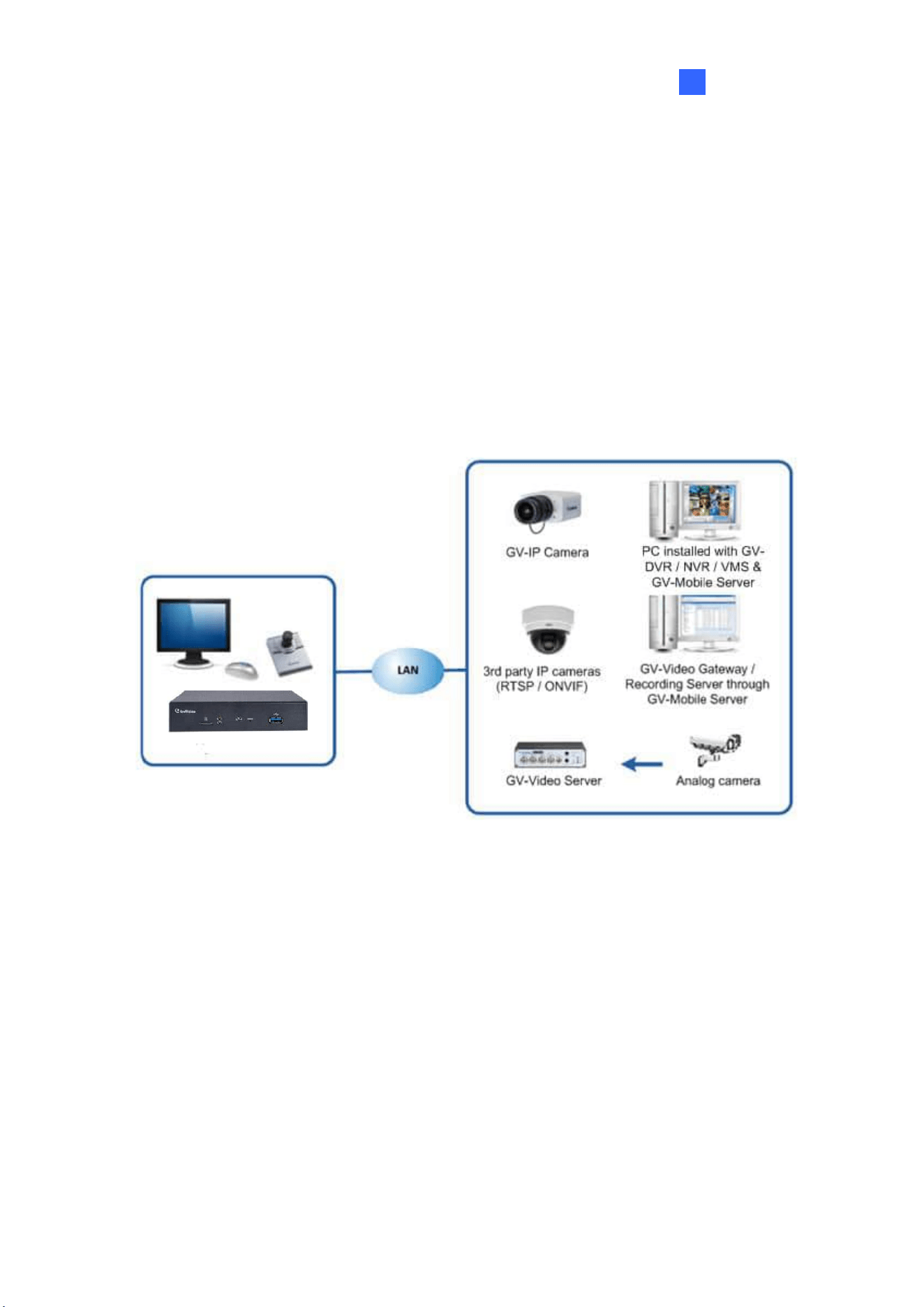

Figure 1-1
2
1.1.1 Features
• Decode video streams in H.264 / H.265 codec up to 30 fps
• Decode up to 8-megapixel IP cameras
• Decode up to 64 IP streams
• Auto-search for ONVIF IP devices
• Support for third-party IP cameras that adhere to RTSP or ONVIF
• Single, 4-Divsion, 6-Division, 8-Division, and 9-Division View
• Display of Matrix view through GV-Mobile Server
• Support for 10/100 Ethernet over LAN
• DC 12V / PoE (IEEE 802.3af)
• Dual monitor display for HDMI / VGA output
• PTZ and Speed Dome camera control using GV-Joystick V2
• Remote firmware upgrade, IP address configuration, and addition of new channel
• Micro SD card and USB drive for snapshot storage and firmware upgrade
• Support for camera and layout assignment remotely from GV-VMS or GV-Control Center
Note: GV-VMS V17.4.5B / V18.3.1 or later and GV-Control Center V4.2.1 or later support
GV-IP Decoder Box Optimal to be assigned with the desired camera channels of GV-VMS
and GV-Control Center for remote display. See details in Chapter 6 Integration to
GV-Software.
Introduction
3
1
1.2 GV-IP Decoder Box Ultra

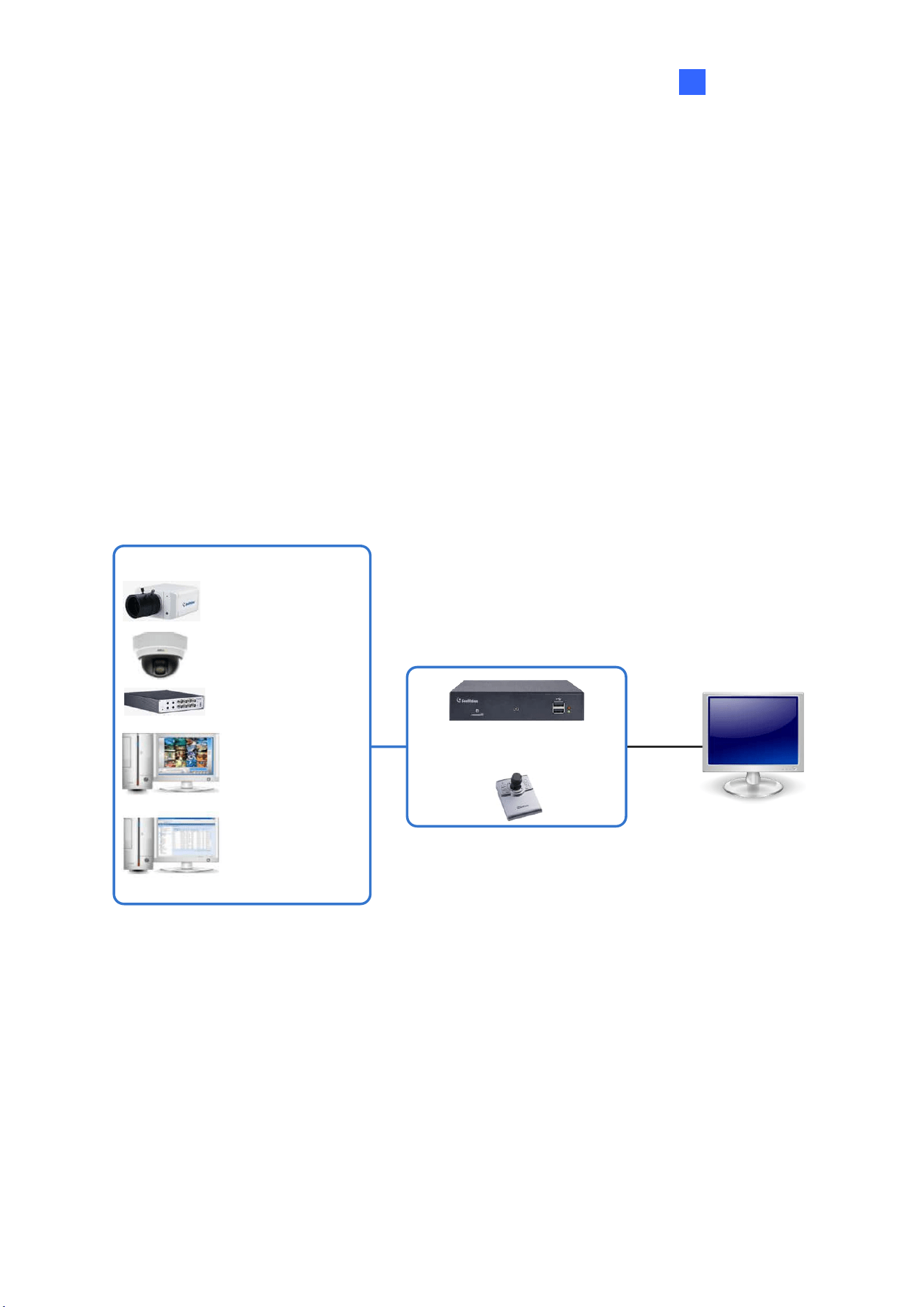

GV-IP Decoder Box Ultra can decode IP streams from GeoVision and third-party IP devices.
It connects cameras and a monitor for video display in single or split screen divisions. It
supports RTSP or ONVIF IP cameras and can detect ONVIF IP devices on the same LAN
automatically. Enjoy a cost-effective alternative to conventional DVRs and PC-based video
surveillance systems. With GV-IP Decoder Box Ultra, you can monitor channels, capture
snapshots of critical moments, and pause a channel when events occur. Additionally,
GV-Joystick V2 can be installed to efficiently control GeoVision and third-party PT / PTZ /
Speed Dome cameras.

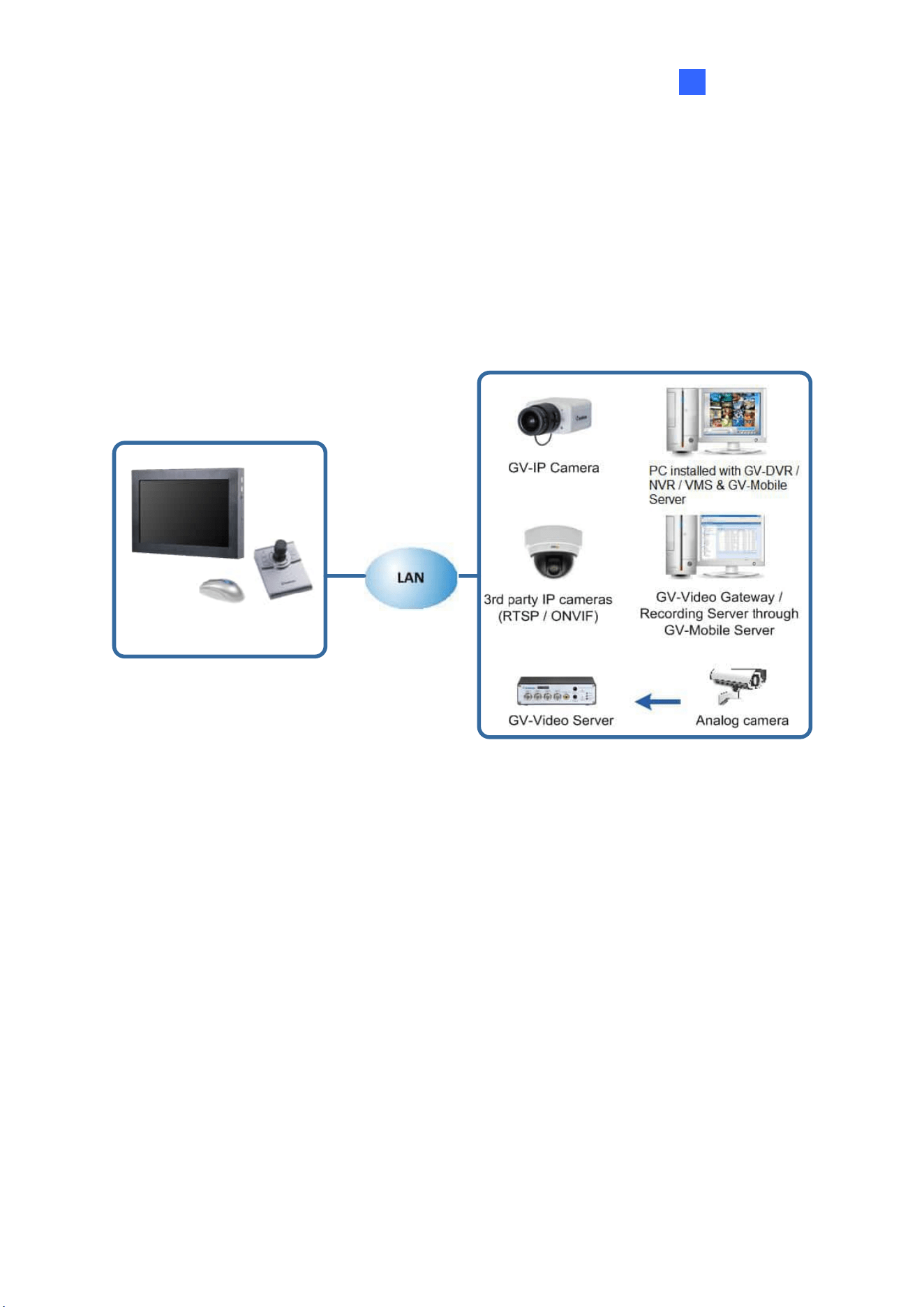

PC installed with GV-
DVR / NVR / VMS &
GV-Mobile Server
GV-IP Decoder Box Ultra
Figure 1-2
4
1.2.1 Features
⚫ Decode video streams in H.264 / H.265 codec up to 30 fps
⚫ Decode up to 8-megapixel IP cameras
⚫ Decode up to 64 IP streams
⚫ Auto-search for ONVIF IP devices
⚫ Support for third-party IP cameras that adhere to RTSP or ONVIF
⚫ Support for Single, 4-Divsion, 6-Division, 8-Division, and 9-Division View
⚫ Display of Matrix view through GV-Mobile Server
⚫ Support for 10/100 Ethernet over LAN
⚫ DC 12V / PoE (IEEE 802.3af)
⚫ HDMI video output resolutions up to 4K
⚫ Control the user interface using GV-IR Remote Control
⚫ PTZ and Speed Dome camera control using GV-Joystick V2
⚫ Remote firmware upgrade, IP address configuration, and addition of new channel
⚫ Micro SD card and USB drive for snapshot storage and firmware upgrade
⚫ Support for camera and layout assignment remotely from GV-VMS and GV-Control
Center
Note: GV-VMS (V17.4.0 / V18.1.0 or later) and GV-Control Center (V3.8.0 / V4.1.0 or later)
support GV-IP Decoder Box Ultra to be assigned with the desired camera channels of
GV-VMS and GV-Control Center for remote display. See details in Chapter 6 Integration to
GV-Software.
Introduction
5
1
1.3 GV-IP Decoder Box Plus
GV-IP Decoder Box Plus can decode IP streams from GeoVision and third-party IP devices. It
connects cameras and a monitor for video display in single or split screen divisions. It
supports RTSP or ONVIF IP cameras and can detect ONVIF IP devices on the same LAN
automatically. Enjoy a cost-effective alternative to conventional DVRs and PC-based video
surveillance systems. With GV-IP Decoder Box Plus, you can monitor channels, capture
snapshots of critical moments, and pause a channel when events occur. Additionally,
GV-Joystick V2 can be installed to efficiently control GeoVision and third-party PT / PTZ /
Speed Dome cameras.

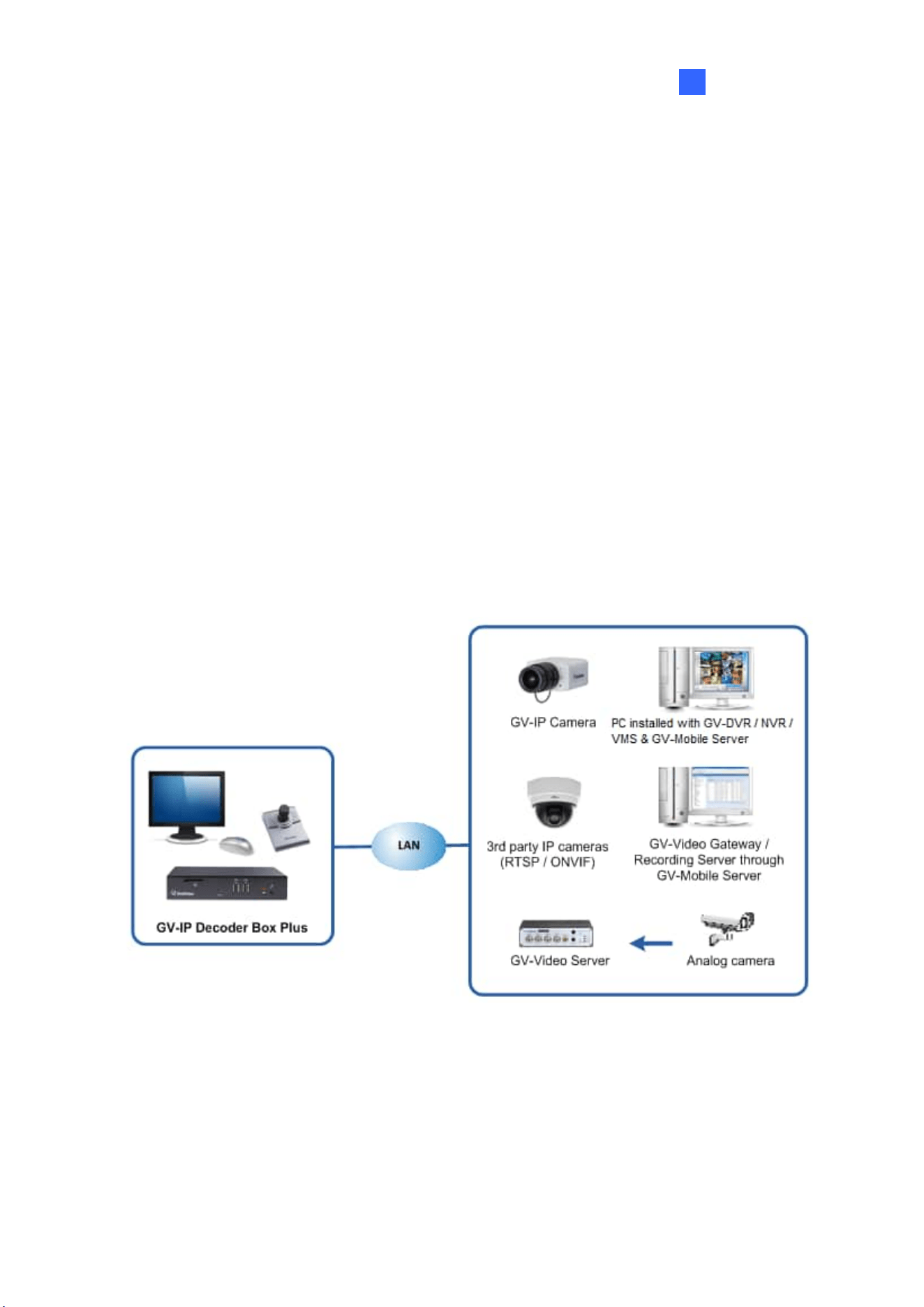

Figure 1-3
6
1.3.1 Features
⚫ Decode video streams in H.264 codec at up to 30 fps
⚫ Decode up to 4-megapixel IP cameras
⚫ Decode up to 64 IP streams
⚫ Auto-search for ONVIF IP devices
⚫ Support for third-party IP cameras that adhere to RTSP or ONVIF
⚫ Support for fisheye dewarping in Single View and Grid 1 of Quad View
⚫ Single View, Quad View, and 9-Division View in sequential display
⚫ Display of Matrix view through GV-Mobile Server
⚫ Support for 10/100/1000 Ethernet over LAN
⚫ VGA or HDMI video output resolutions up to 1080p
⚫ PTZ and Speed Dome camera control using GV-Joystick V2
⚫ Remote firmware upgrade, IP address configuration, and addition of new channel
⚫ SD card slot and USB drive for snapshot storage and firmware upgrade
⚫ Support for camera and layout assignment remotely from GV-VMS and GV-Control
Center
Note: GV-VMS (V17.4.0 / V18.1.0 or later) and GV-Control Center (V3.8.0 / 4.1.0 or later)
support GV-IP Decoder Box Plus to be assigned with the desired camera channels of
GV-VMS and GV-Control Center for remote display. See details in Chapter 6 Integration to
GV-Software.
Introduction
7
1
1.4 GV-IP Decoder Box Lite

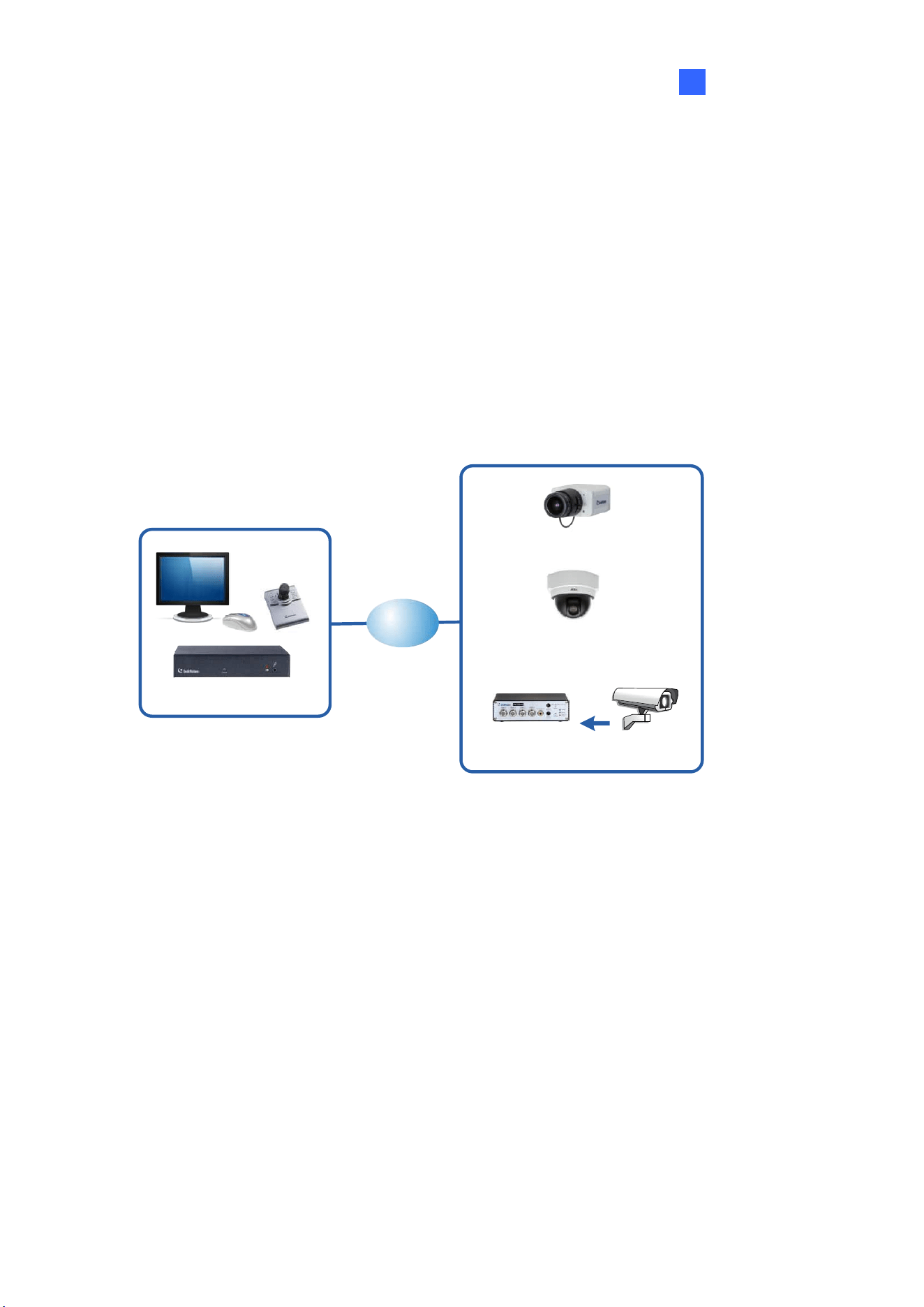

GV-IP Decoder Box Lite can decode IP streams from GeoVision and third-party IP devices. It
connects cameras and a monitor for video display in single or split screen divisions. It can
detect ONVIF IP devices on the same LAN automatically. Enjoy a cost-effective alternative to
conventional DVRs and PC-based video surveillance systems. With GV-IP Decoder Box Lite,
you can monitor channels, capture snapshots of critical moments, and pause a channel when
events occur. Additionally, GV-Joystick V2 can be installed to efficiently control GeoVision
and third-party PT / PTZ / Speed Dome cameras.
GV-IP Decoder Box Lite
GV-IP Camera
3rd party IP cameras
(ONVIF)
Analog camera
LAN
GV-Video Server
Figure 1-4
8
1.4.1 Features
⚫ Decode video streams in H.264 codec at up to 30 fps
⚫ Decode up to 2-megapixel IP cameras
⚫ Decode up to 16 IP streams
⚫ Auto-search for ONVIF IP devices
⚫ Support for third-party IP cameras that adhere to ONVIF
⚫ Single View and Quad View in sequential display
⚫ Support for 10/100/1000 Ethernet over LAN
⚫ VGA or HDMI video output resolutions up to 1080p
⚫ PTZ and Speed Dome camera control using GV-Joystick V2
⚫ Remote firmware upgrade, IP address configuration, and addition of new channel
⚫ USB drive for firmware upgrade
Introduction
9
1
1.5 GV-Pad Mini

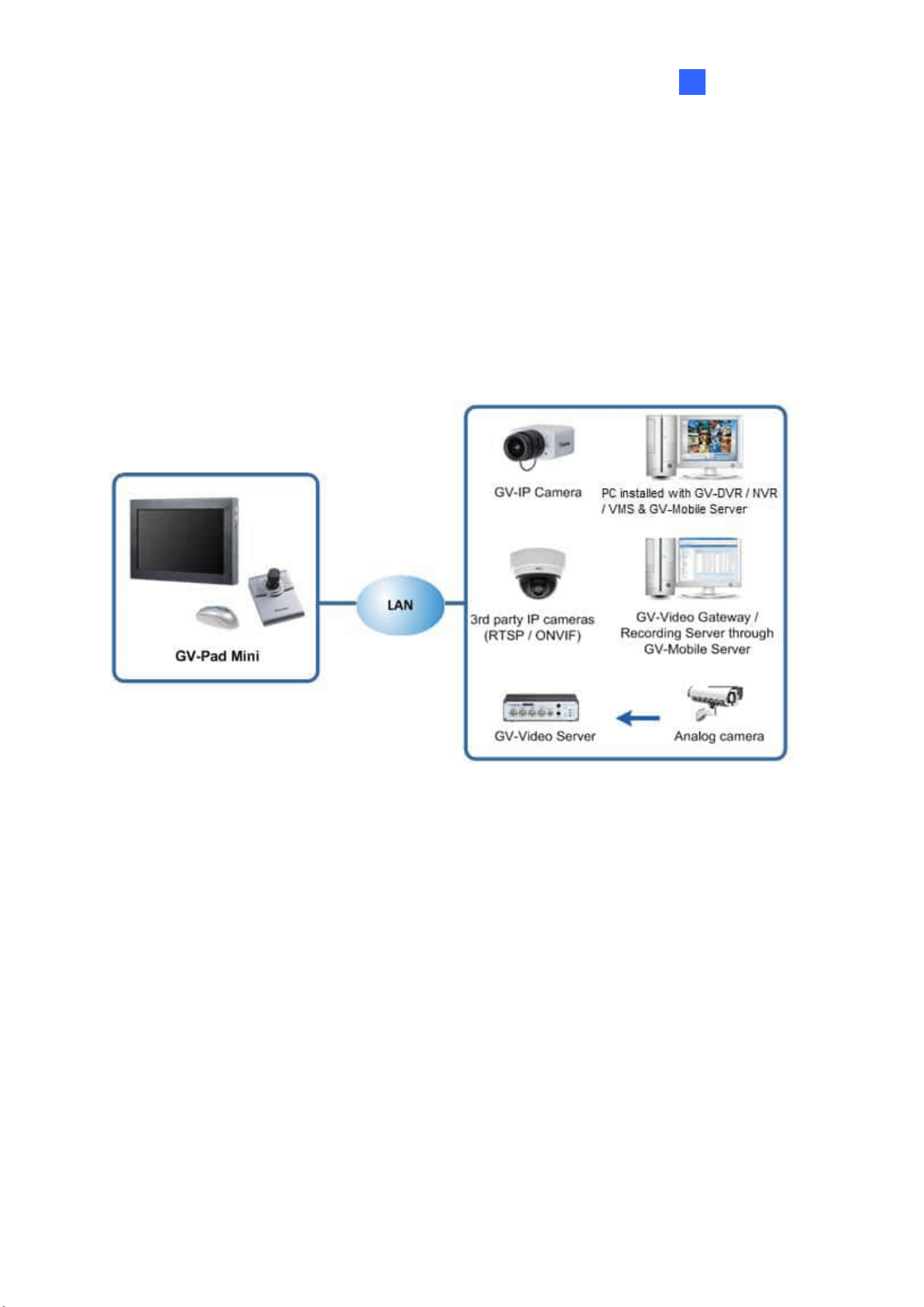

GV-Pad Mini is a panel device capable of decoding and displaying up to 64 IP cameras in
single or split screen divisions. It is light weighted and requires only a minimal amount of
installation. GV-Pad Mini allows you to monitor channels, capture snapshots of critical
moments, and pause a channel when events occur. In addition, GV-Joystick V2 can be
installed to effectively control GeoVision and third-party PTZ / Speed Dome cameras.
Figure 1-5
10
1.5.1 Features
⚫ Decode video streams in H.264 codec at up to 30 fps
⚫ Decode up to 4-megapixel IP cameras
⚫ Decode up to 64 IP streams
⚫ Auto-search for ONVIF IP devices
⚫ Support for third-party IP cameras that adhere to RTSP or ONVIF
⚫ Single View, Quad View, and 9-Division View in sequential display
⚫ Display of Matrix view through GV-Mobile Server
⚫ Support for 10/100/1000 Ethernet over LAN
⚫ PTZ and Speed Dome camera control using GV-Joystick V2
⚫ Micro SD card slot and USB drive for snapshot storage and firmware upgrade
Introduction
11
1
1.6 GV-IP Display 116
GV-IP Display 116 is a panel device capable of decoding and displaying up to 64 IP cameras
in single or split screen divisions. It is light weighted and requires only a minimal amount of
installation. GV-IP Display 116 allows you to monitor channels, capture snapshots of critical
moments, and pause a channel when events occur. In addition, GV-Joystick V2 can be
installed to effectively control GeoVision and third-party PTZ / Speed Dome cameras.
GV-IP Display 116
GV-IP Camera
ONVIF IP Camera
GV-Video Server for
analog cameras
GV-NVR / VMS &
GV-Mobile Server
GV-Video Gateway /
Recording Server
through GV-Mobile
Server
Video Source
Note: GV-VMS can connect directly to GV-IP Display116l without using GV-Mobile Server.
LAN
Figure 1-6
12
1.6.1 Features
⚫ Decode video streams in H.264 / H.265 codec at up to 30 fps
⚫ Decode up to 8-megapixel IP cameras
⚫ Decode up to 64 IP streams
⚫ Auto-search for ONVIF IP devices
⚫ Support for third-party IP cameras that adhere to RTSP or ONVIF
⚫ Single, 4-Divsion, 6-Division, 8-Division, and 9-Division View
⚫ Display of Matrix view through GV-Mobile Server
⚫ Support for 10/100 Ethernet over LAN
⚫ PTZ and Speed Dome camera control using GV-Joystick V2
⚫ Micro SD card slot and USB drive for snapshot storage and firmware upgrade
⚫ Support for camera and layout assignment remotely from GV-VMS or GV-Control Center
Note: GV-VMS (V17.4.5B / V18.3.1 or later) and GV-Control Center (V4.2.1 or later) support
GV-IP Decoder Box Optimal to be assigned with the desired camera channels of GV-VMS
and GV-Control Center for remote display. See details in Chapter 6 Integration to
GV-Software.
Introduction
13
1
1.7 GV-IP Display 101
GV-IP Display 101 is a panel device capable of decoding and displaying up to 64 IP cameras
in single or split screen divisions. It is light weighted and requires only a minimal amount of
installation. GV-IP Display 101 allows you to monitor channels, capture snapshots of critical
moments, and pause a channel when events occur. In addition, GV-Joystick V2 can be
installed to effectively control GeoVision and third-party PTZ / Speed Dome cameras.
GV-IP Display 101
Figure 1-7
14
1.7.1 Features
⚫ Decode video streams in H.264 / H.265 codec at up to 30 fps
⚫ Decode up to 8-megapixel IP cameras
⚫ Decode up to 64 IP streams
⚫ Auto-search for ONVIF IP devices
⚫ Support for third-party IP cameras that adhere to RTSP or ONVIF
⚫ Single, 4-Divsion, 6-Division, 8-Division, and 9-Division View
⚫ Display of Matrix view through GV-Mobile Server
⚫ Support for 10/100 Ethernet over LAN
⚫ PTZ and Speed Dome camera control using GV-Joystick V2
⚫ Micro SD card slot and USB drive for snapshot storage and firmware upgrade
1.8 Compatible Devices
The compatible devices for GV-IP devices vary according to different models.
GV-IP Decoder Box Optimal / Ultra / GV-IP Display 101 / GV-IP Display 116
1. GV-IP Camera and GV-Video Server using H.264 / H.265 codec
2. Third-party IP devices that support H.264 / H.265 and adhere to RTSP or ONVIF
3. GV-Mobile Server
4. GV-VMS
To decode and display non-H.264 / H.265 IP cameras or GV-FER12203 / 12700, connect the
cameras to GV-NVR / GV-VMS and access them through GV-Mobile Server.
Introduction
15
1
GV-IP Decoder Box Plus / GV-Pad Mini
1. GV-IP Camera and GV-Video Server using H.264 codec
2. Third-party IP devices that support H.264 and adhere to RTSP or ONVIF
3. GV-Mobile Server
To decode and display non-H.264 IP cameras, connect the cameras to GV-NVR / GV-VMS
and access them through GV-Mobile Server.
GV-IP Decoder Box Lite
1. GV-IP Camera and GV-Video Server using H.264 codec
2. Third-party IP devices that support H.264 and adhere ONVIF
To decode and display analog cameras, connect the cameras to GV-IP Decoder Box Lite
through GV-Video Server.
Note:
1. GV-Mobile Server is an application that encodes up to 64 video channels and
subsequently allows GV-IP Decoder Box Optimal / Ultra / Plus / GV-Pad Mini / GV-IP
Display 101 / 116 to decode and display:
⚫ IP cameras connected to GV-NVR / VMS
⚫ IP channels connected to GV-Recording Server / GV-Video Gateway
⚫ Third-party IP cameras through ONVIF
⚫ 4 matrix views
For details, see GV-Mobile Server User’s Manual.
2. Upgrade your GV-IP devices to the latest firmware version if you encounter any
connection problems.
16
1.9 Packing List
GV-IP Decoder Box Optimal
1. GV-IP Decoder Box Optimal

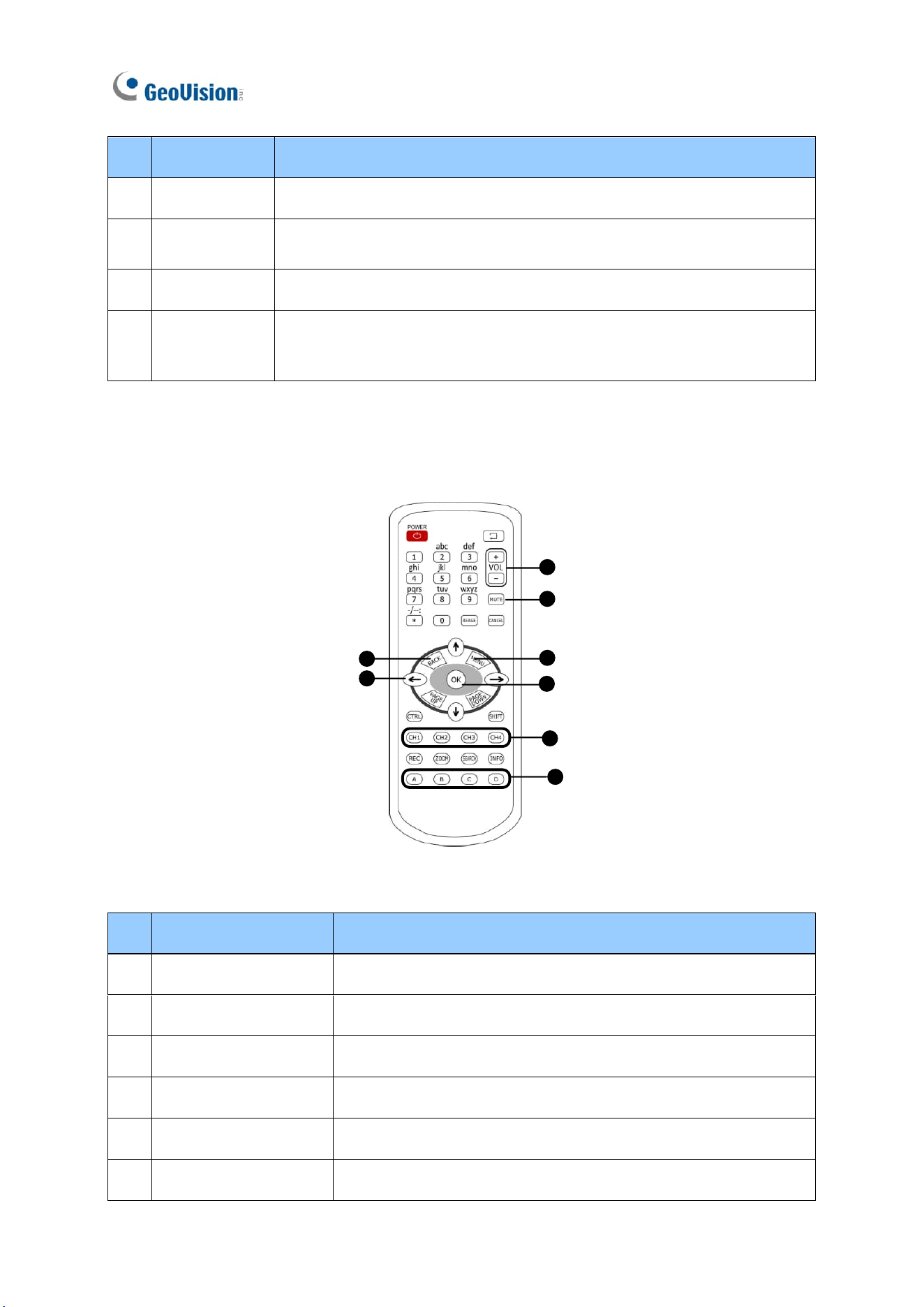

2. GV-IR Remote Control
3. Download Guide
4. Warranty Card
GV-Pad Mini
1. GV-Pad Mini
2. AC/DC Adapter (12 V, 3 A, 36 W)
3. Power Cord
4. USB Mouse
5. Download Guide
6. Warranty Card
GV-IP Decoder Box Ultra
5. GV-IP Decoder Box Ultra
6. GV-IR Remote Control
7. Download Guide
8. Warranty Card
GV-IP Display 116
1. GV-IP Display 116
2. AC/DC Adapter (12 V, 3 A, 36 W)
3. Power Cord
4. Download Guide
5. Warranty Card
GV-IP Decoder Box Plus
1. GV-IP Decoder Box Plus
2. AC/DC Adapter (12 V, 3 A, 36 W)
3. Power Cord
4. USB Mouse
5. Download Guide
6. Warranty Card
GV-IP Display 101
1. GV-IP Display 101
2. AC/DC Adapter (12 V, 3 A, 36 W)
3. Power Cord
4. Download Guide
5. Warranty Card
GV-IP Decoder Box Lite
1. GV-IP Decoder Box Lite
2. AC/DC Adapter (12 V, 3 A, 36 W)
3. Power Cord
4. USB Mouse
5. Download Guide
6. Warranty Card
Introduction
17
1
1.10 Optional Accessories

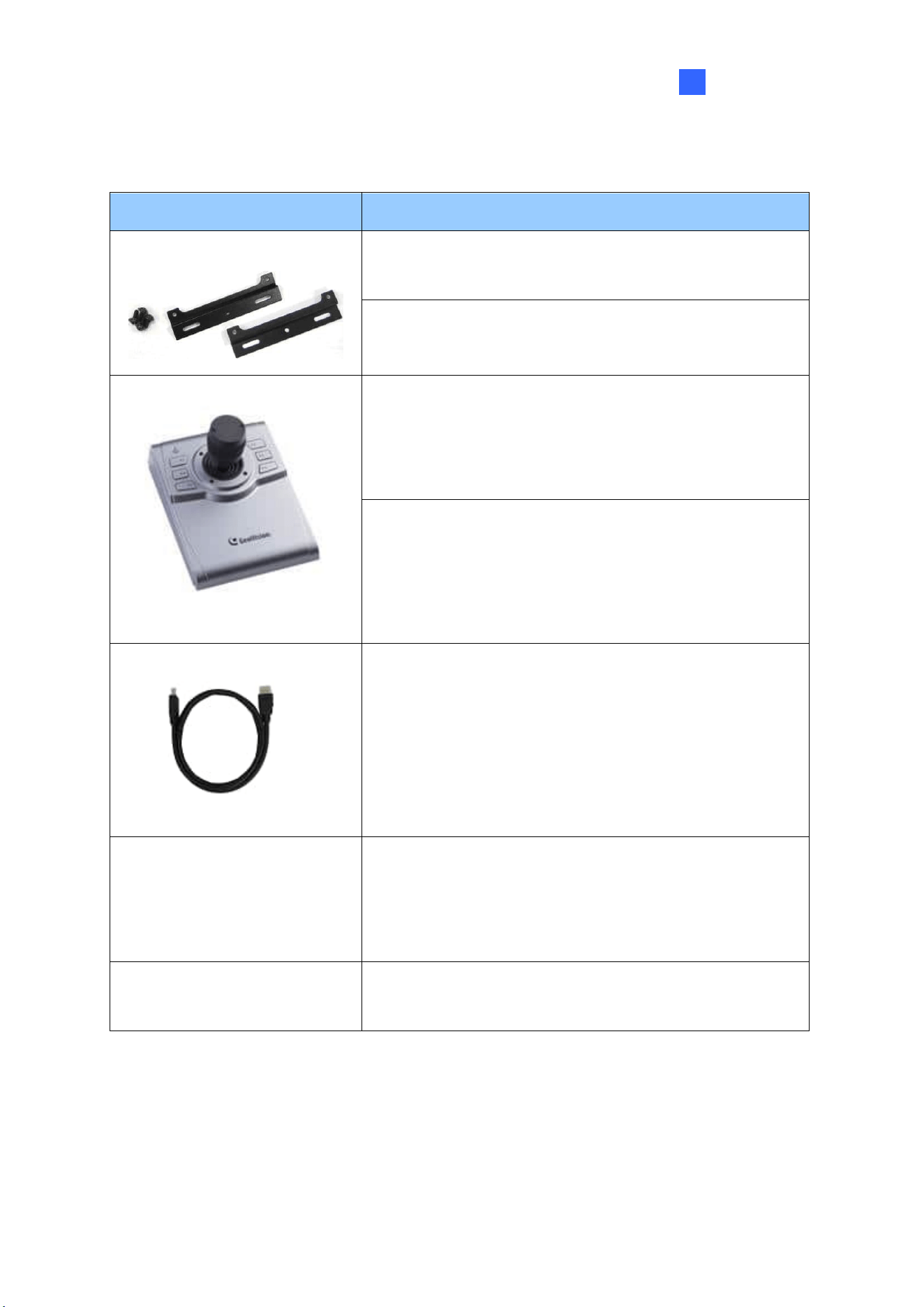

Optional Accessory
Details
Wall Mount Kit
The Wall Mount Kit is used to mount GV-IP Decoder Box
Series to the wall.
⚫ L-type brackets x 2
⚫ Small screws x 4
GV-Joystick V2
GV-Joystick V2 facilitates focusing, zooming, panning,
and tilting of GeoVision and third-party PT, PTZ, and
Speed Dome cameras on GV-IP Decoder Box Series /
GV-Pad Mini / GV-IP Display 101.
⚫ GV-Joystick V2
⚫ USB Type A to Type B Cable
⚫ RJ-45 Cable
⚫ Download Guide
HDMI Cable
Only available for GV-IP Decoder Box Ultra / Optimal.
Use the HDMI cable to connect GV-IP Decoder Box Ultra
/ Optimal with a HDMI monitor for high-quality display of
images.
Length: 150 cm (4.92 ft)
Version: 1.4a
GV-PoE Switch
GV-PoE Switch is designed to provide power along with
network connection for IP devices. GV-PoE Switch is
available in various models with different numbers and
types of ports.
Power Adapter
For GV-IP Decoder Box Ultra / Optimal, contact our sales
representatives for the countries and areas supported.
18
1.11 Overview
1.11.1 GV-IP Decoder Box Series

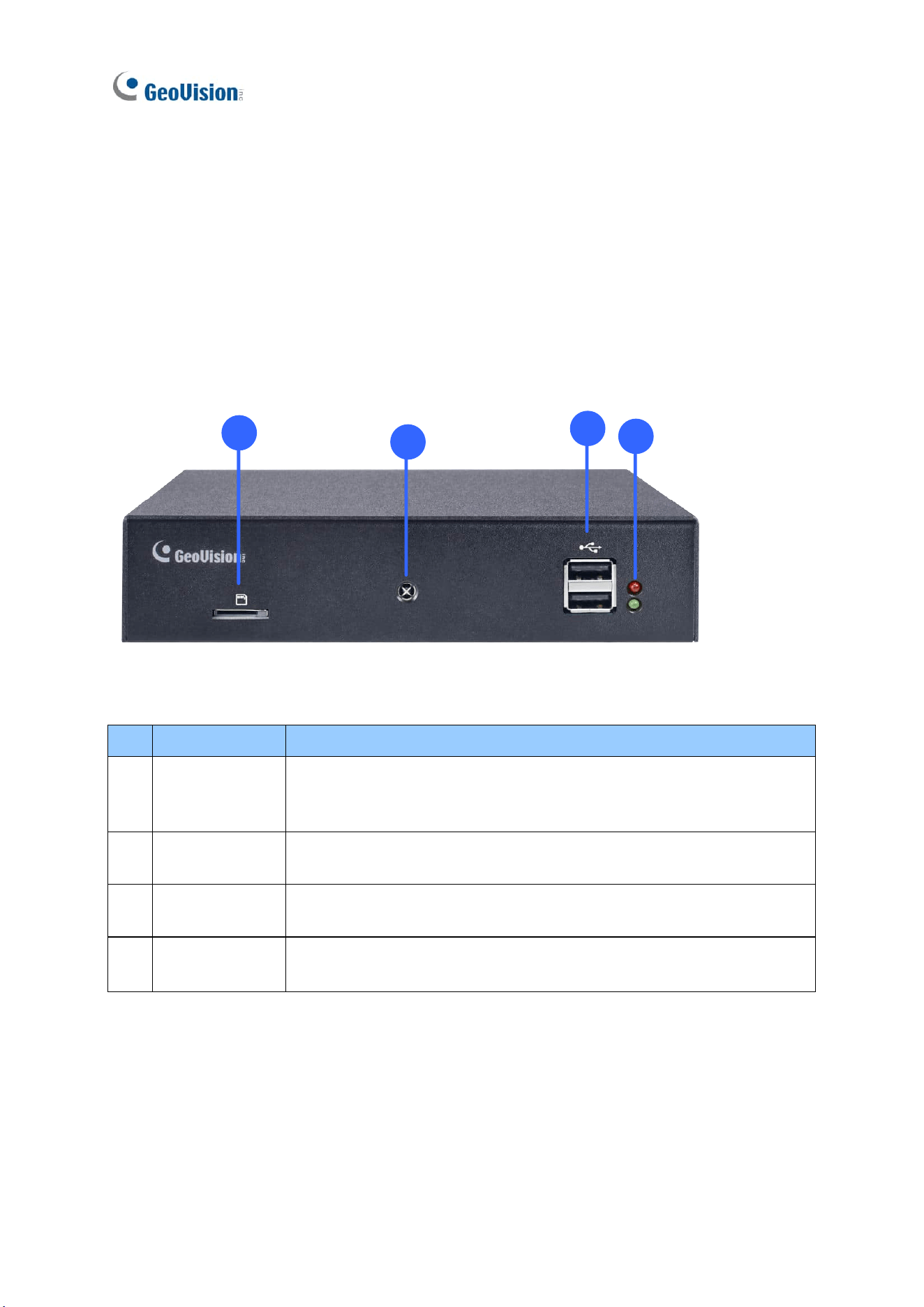

1.11.1.1 Front View

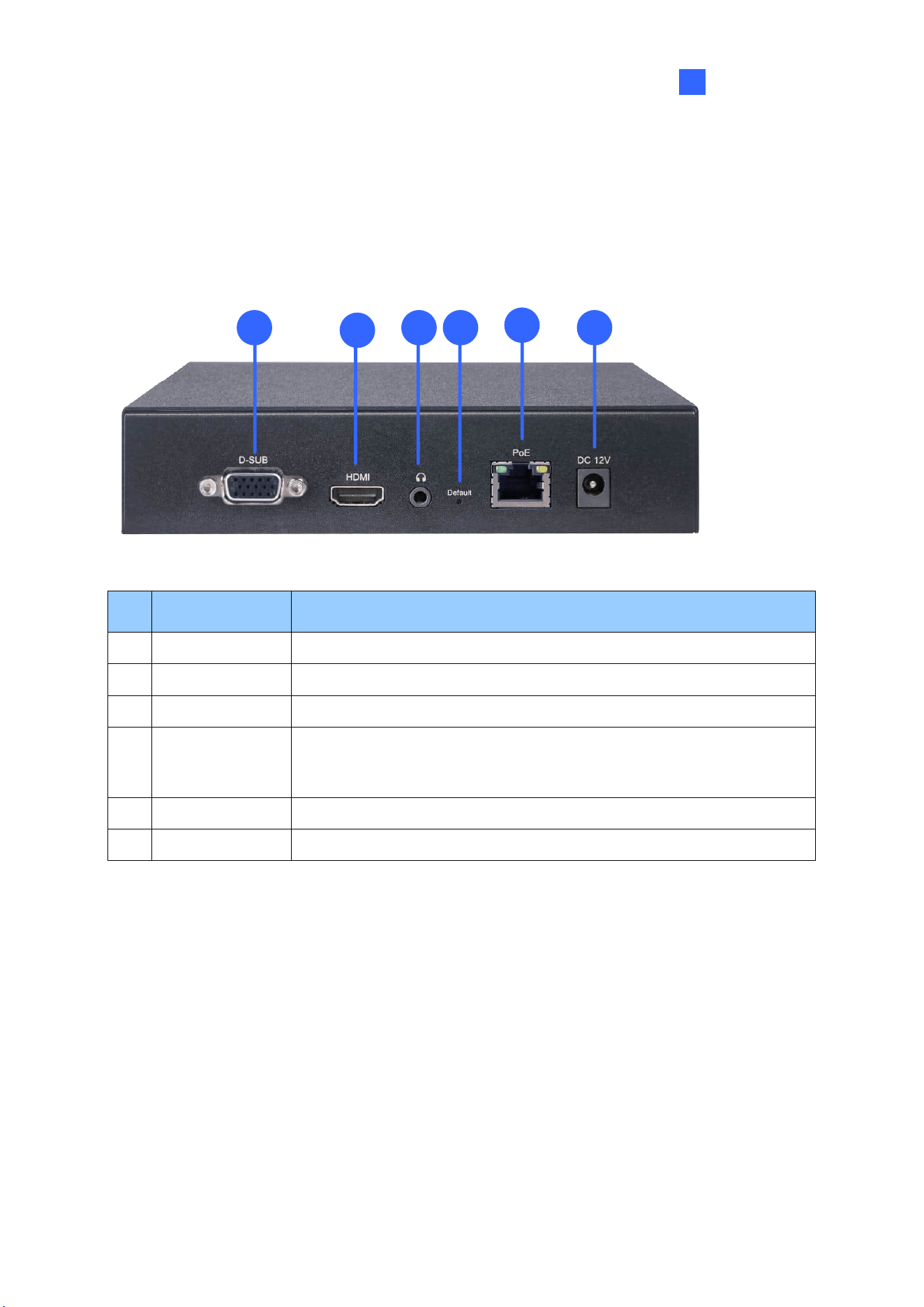

GV-IP Decoder Box Optimal
1
2
3
4
Figure 1-8
No.
Name
Function
1
Micro SD Card
Slot
Connect to a micro SD card for local storage of snapshots and
firmware upgrade.
2
IR sensor
Receive signal from GV-IR Remote Control for controlling the user
interface at the maximum operation distance of 7 m (22.97 ft).
3
USB 2.0
Connect to a GV-Joystick V2, USB mouse, or USB storage device
4
LED Indicators
The red LED indicates the power is supplied.
The green LED indicates the system is ready for use.
Introduction
19
1

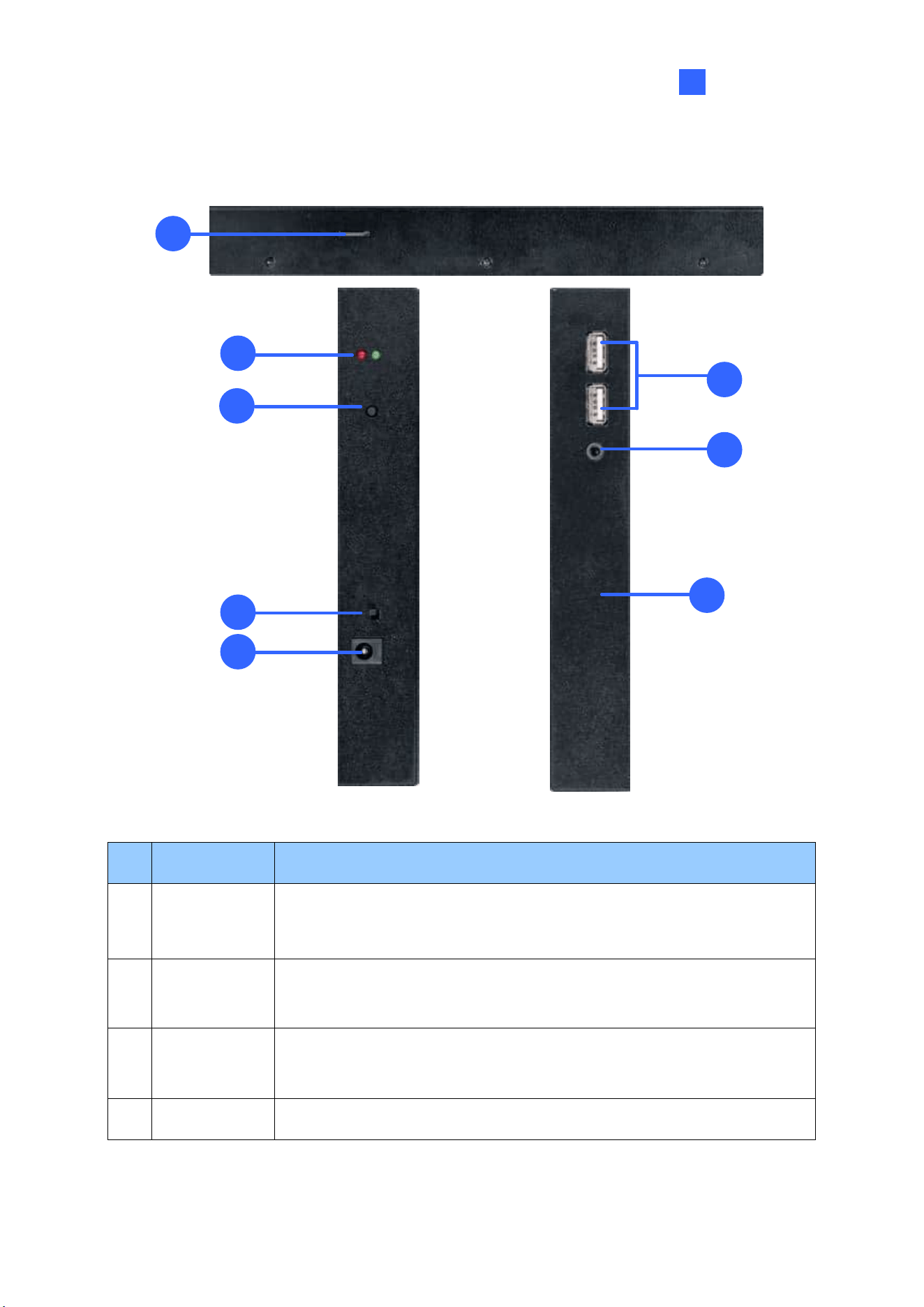

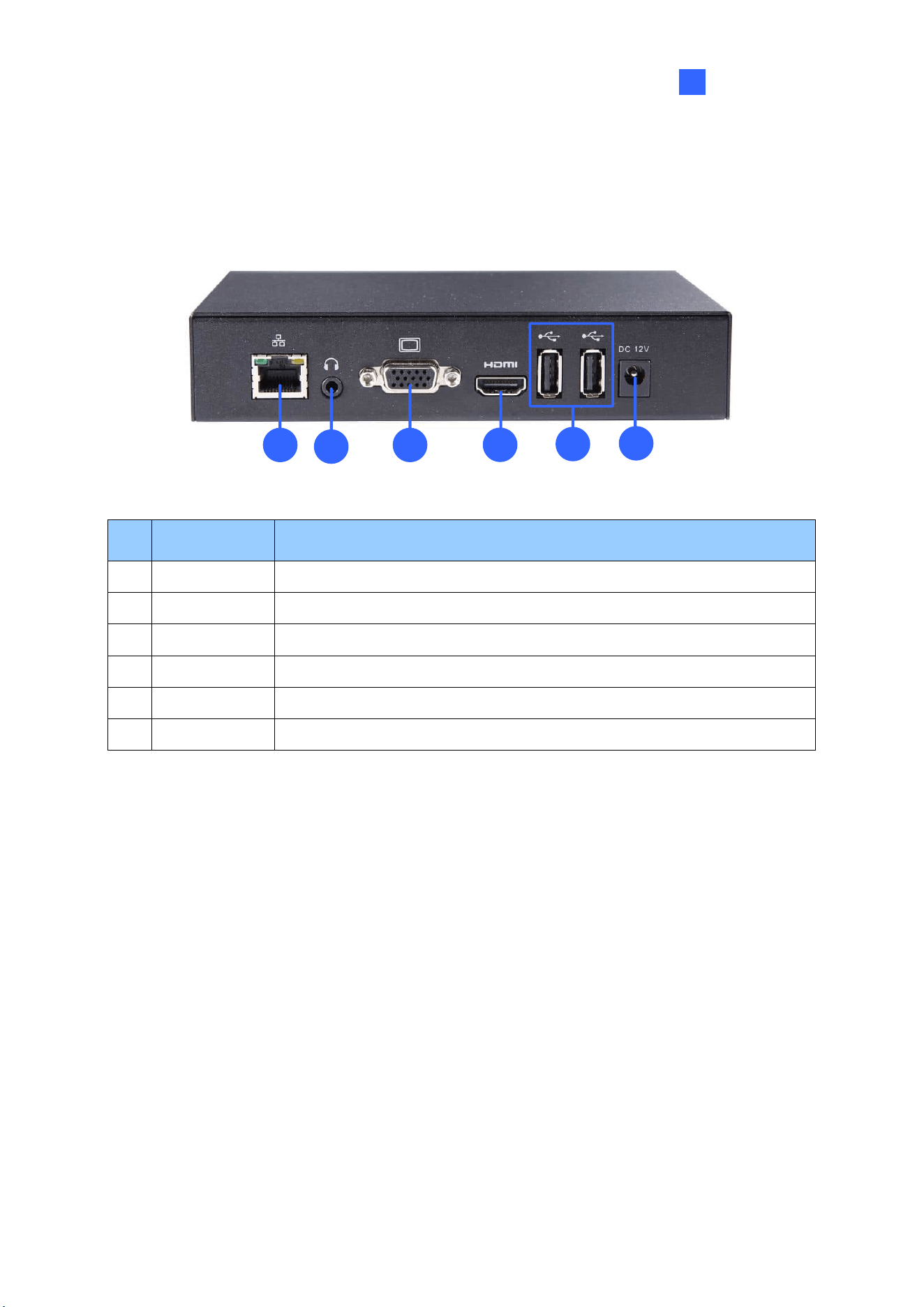

GV-IP Decoder Box Ultra
1
2
3
4
5

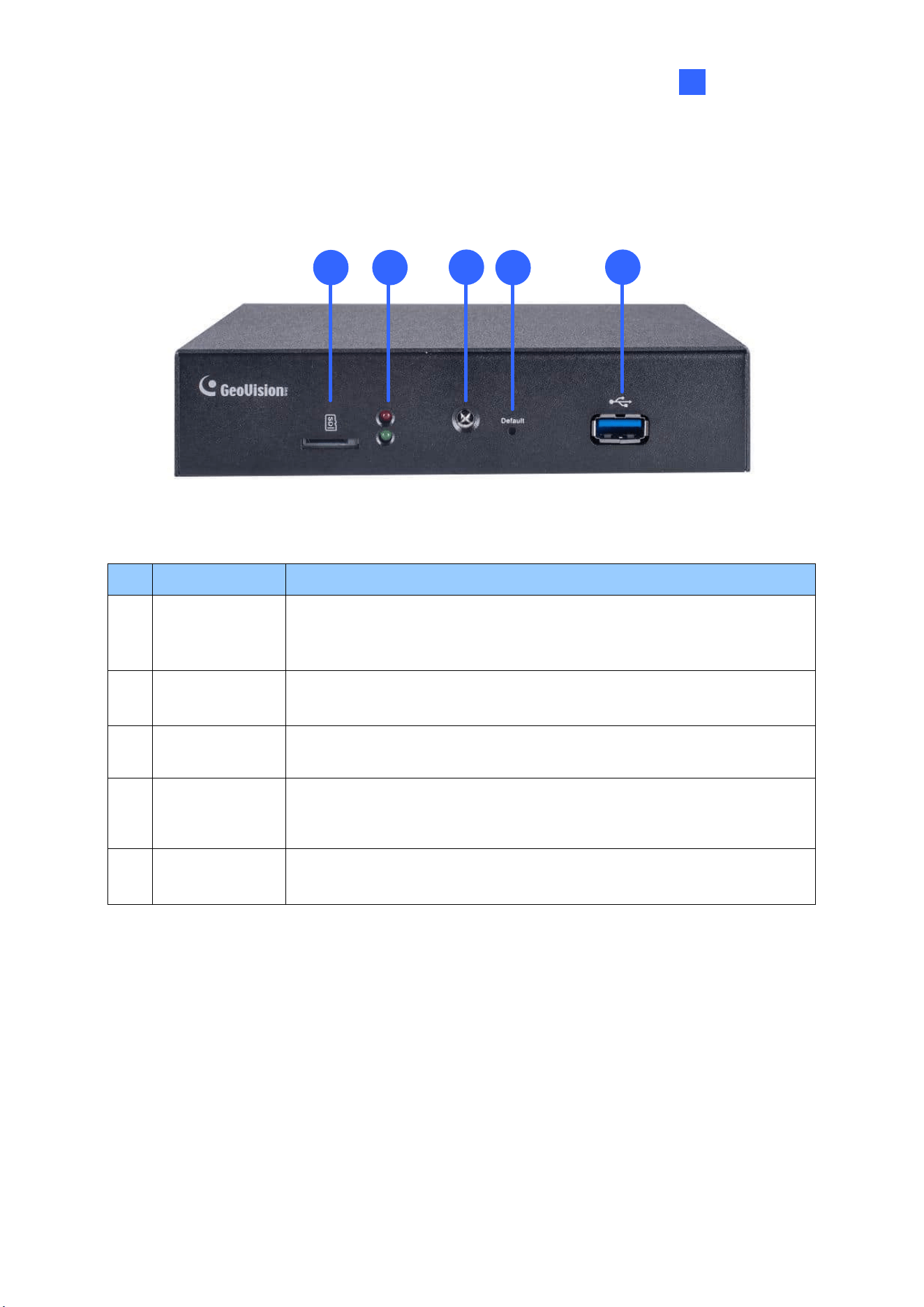

Figure 1-9
No.
Name
Function
1
Micro SD Card
Slot
Connect to a micro SD card for local storage of snapshots and
firmware upgrade.
2
LED Indicators
The red LED indicates the power is supplied.
The green LED indicates the system is ready for use.
3
IR sensor
Receive signal from GV-IR Remote Control for controlling the user
interface at the maximum operation distance of 7 m (22.97 ft).
4
Default
Reset the device to the default factory settings. Use a pin to press the
default button for about 10 seconds. The system will then reset and
reboot itself shortly. See 5.2 Restoring Default Settings.
5
USB 3.0
Connect to a GV-Joystick V2, USB mouse, or USB storage device
20

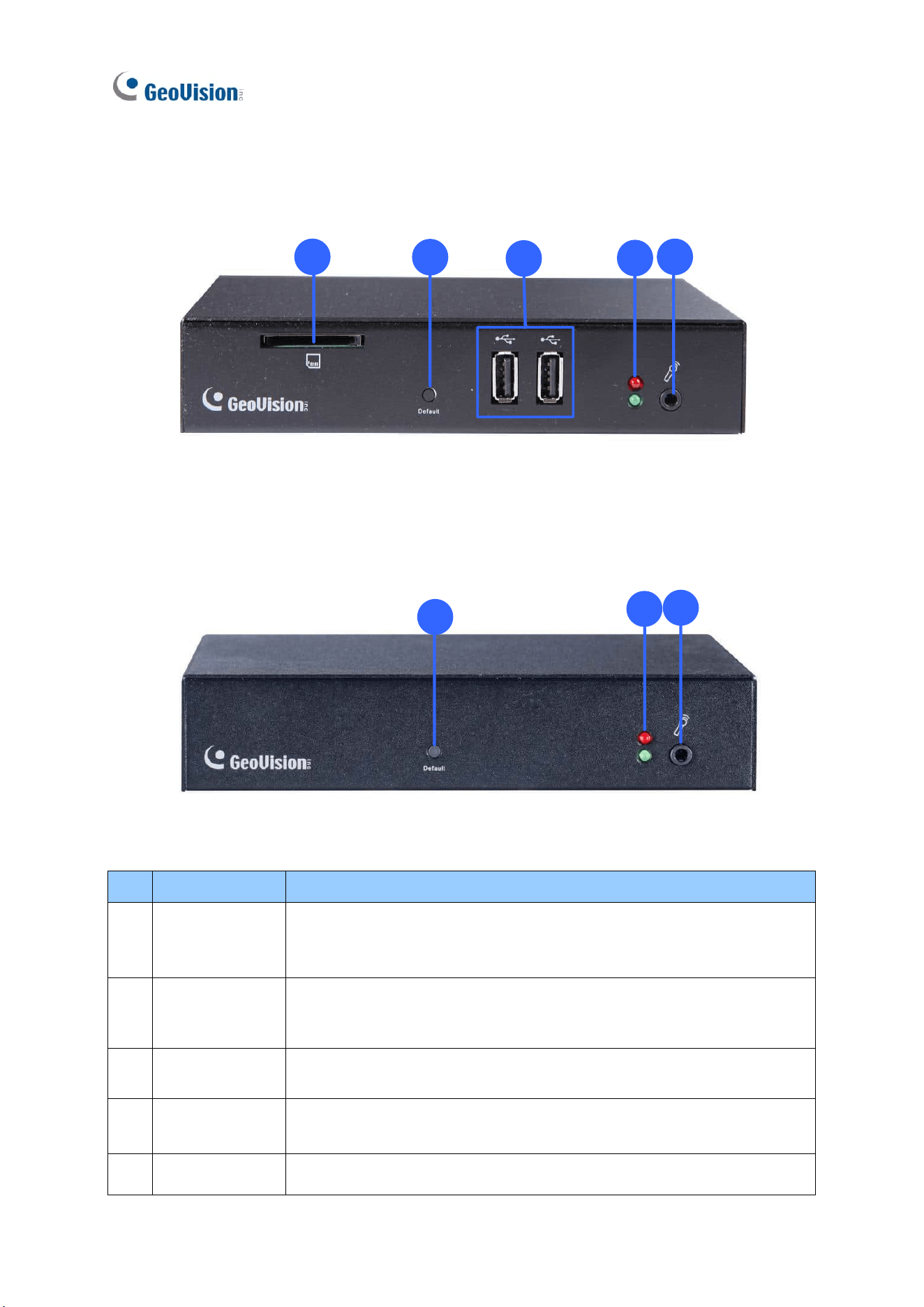

GV-IP Decoder Box Plus
1
4
2
3
5
Figure 1-10
GV-IP Decoder Box Lite
4
2
5
Figure 1-11
No.
Name
Function
1
SD Card
Slot
Connect to a SD card for local storage of snapshots and firmware
upgrade. Only supported by GV-IP Decoder Box Plus.
2
Default
Reset the device to the default factory settings. Use a pin to press the
default button for about 10 seconds. The system will then reset and
reboot itself shortly. See 5.2 Restoring Default Settings.
3
USB
Connect to a GV-Joystick V2, USB mouse, or USB storage device.
Only supported by GV-IP Decoder Box Plus.
4
LED Indicators
The red LED indicates the power is supplied.
The green LED indicates the system is ready for use.
5
Audio In
Not functional.
Introduction
21
1
1.11.1.2 Rear View
GV-IP Decoder Box Optimal
1
2
3 4
5
6
Figure 1-12
No.
Name
Function
1
VGA
Connect to a VGA monitor.
2
HDMI
Connect to an HDMI-compliant display device.
3
Audio Out
Connect to a speaker.
4
Default
Reset the device to the default factory settings. Use a pin to press
the default button for about 10 seconds. The system will then reset
and reboot itself shortly. See 5.2 Restoring Default Settings.
5
Network / PoE
Connect to the network or a PoE adaptor.
6
DC 12V
Connect to power by using the supplied power adapter.
22
GV-IP Decoder Box Ultra
1
2 3 4
5

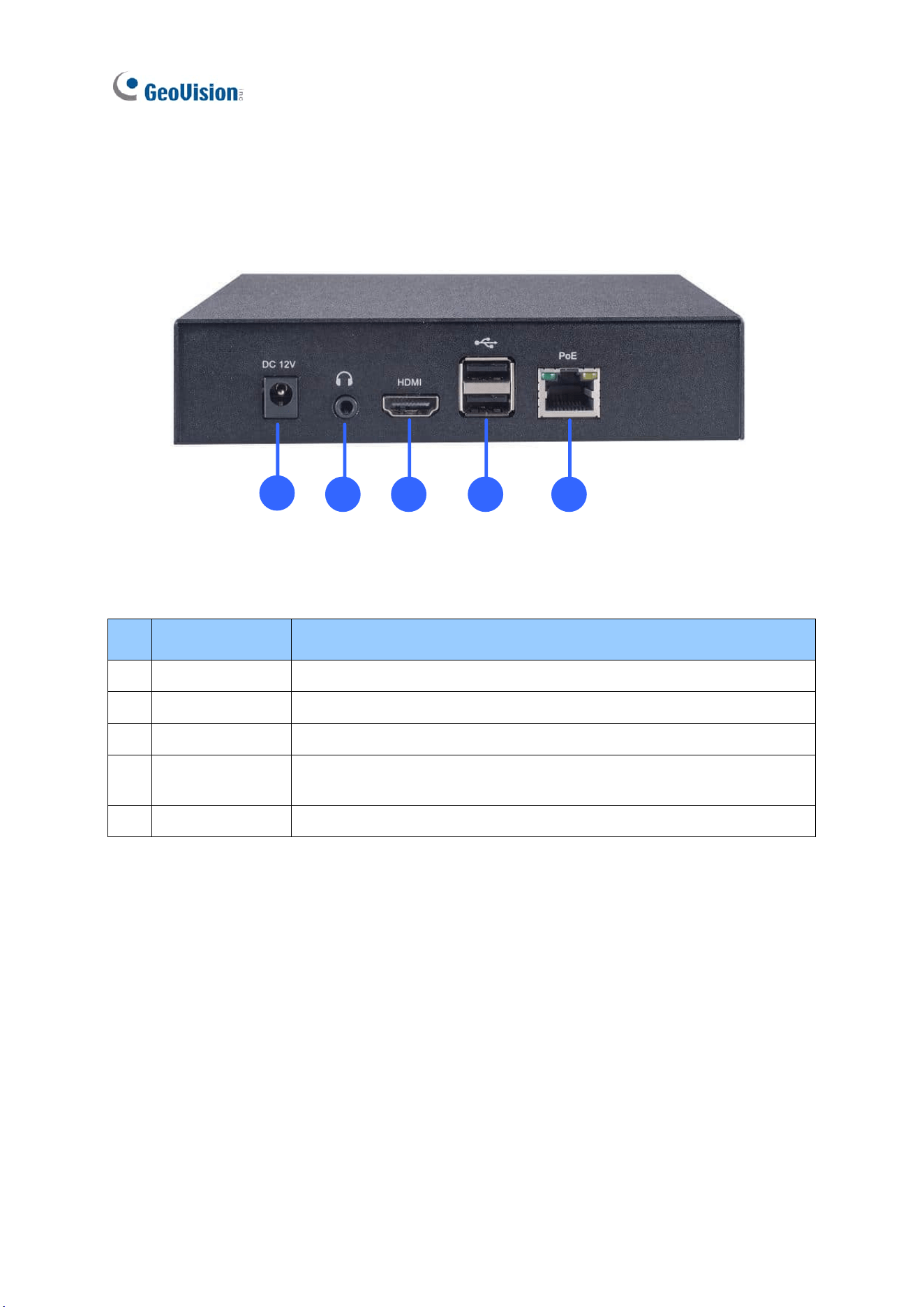

Figure 1-13
No.
Name
Function
1
DC 12V
Connect to power by using the supplied power adapter.
2
Audio Out
Connect to a speaker.
3
HDMI
Connect to an HDMI-compliant display device.
4
USB 2.0
Connect to a GV-Joystick V2, USB mouse, or USB storage
device.
5
Network / PoE
Connect to the network or a PoE adaptor.
Introduction
23
1
GV-IP Decoder Box Plus / Lite
1
5
3
4
6
2
Figure 1-14
No.
Name
Function
1
Network
Connect to the network.
2
Audio Out
Connect to a speaker.
3
VGA
Connect to a VGA monitor.
4
HDMI
Connect to an HDMI-compliant display device.
5
USB
Connect to a GV-Joystick V2, USB mouse, or USB storage device.
6
DC 12V
Connect to power by using the supplied power adapter.
24
1.11.2 GV-Pad Mini / GV-IP Display 101 / GV-IP Display 116
1.11.2.1 Front and Rear Views
1
4
2
3
4

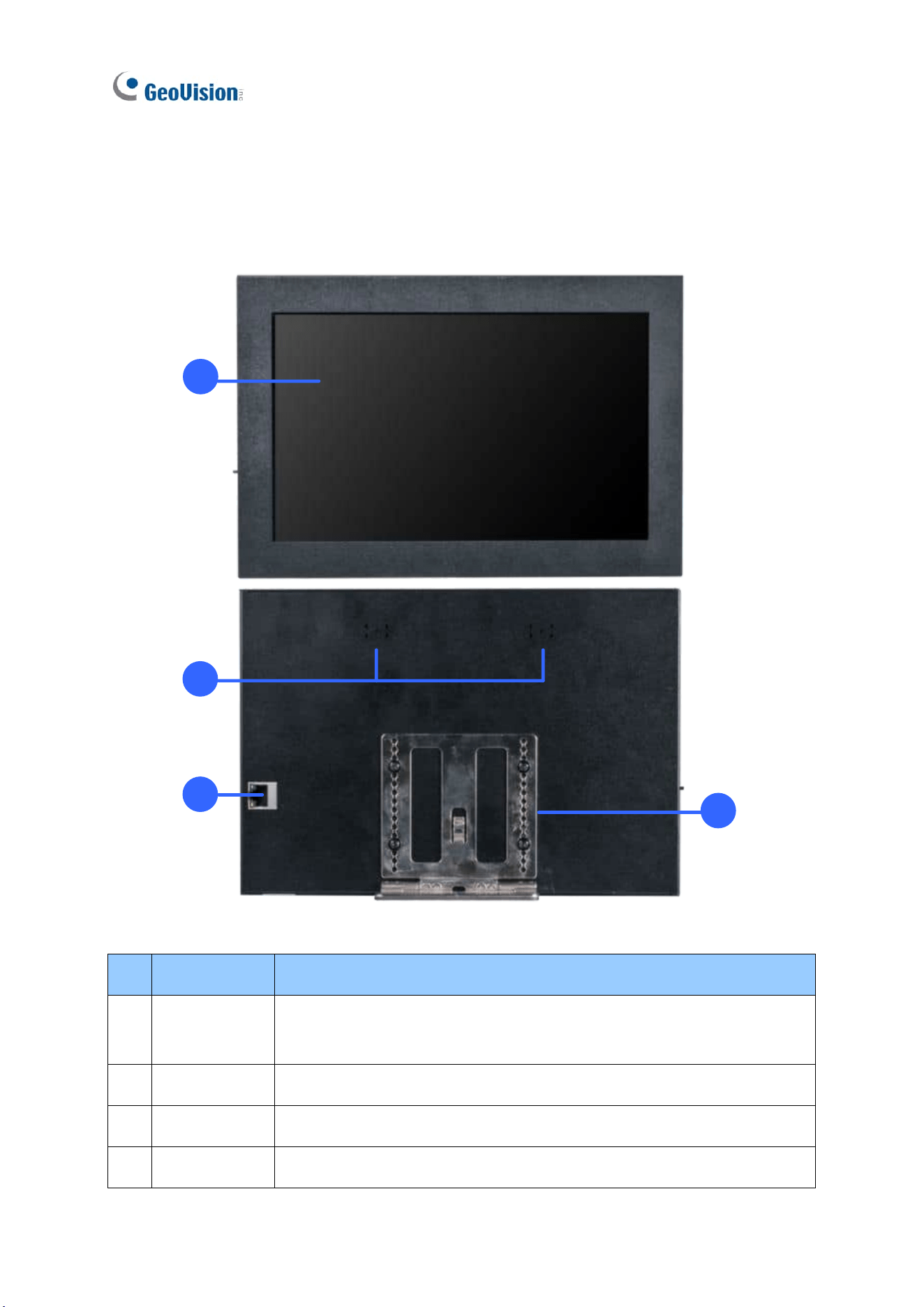

Figure 1-15
No.
Name
Function
1
LCD screen
Display the system settings of the device and the images of connected
IP devices.
2
Speaker
Listen to the audio around the connected IP device.
3
Ethernet Port
Connect to the network.
4
Stand
Position GV-Pad Mini / GV-IP Display 101 / 116 to your preference.
Introduction
25
1
1.11.2.2 Top, Left-Side and Right-Side Views
1
2
3
4
5
7
8
6
Figure 1-16
No.
Name
Function
1
Micro SD Card
Slot
Connect to a micro SD card for local storage of content and firmware
upgrade.
2
LED Indicators
The red LED indicates the power is supplied.
The green LED indicates the system is ready.
3
Stand By
Press to enter Standby/Sleep mode. In standby mode, the screen
turns off to minimize power consumption. Press the key again to enter
ON mode.
4
Power Off/On
Switch the power on or off.
26
No.
Name
Function
5
DC 12V
Connect to power using the supplied power adapter.
6
USB
Connect to a GV-Joystick V2, USB mouse, or USB storage device for
local storage of content and firmware upgrade.
7
Line Out Port
Connect to a headphone or speaker.
8
Default
Reset the device to the default settings. Use a pin to press the default
button for about 5 to 10 seconds. The system will then reset and
reboot itself shortly. See 5.2 Restoring Default Settings.
1.11.3 GV-IR Remote Control
GV-IR Remote Control is only supported by GV-IP Decoder Box Ultra / Optimal.
3
4
2
1
5
6
7
8
Figure 1-17
No.
Name
Function
1
Back
Return to the previous page in the Main Screen.
2
Menu Control
Move up, down, right and left in the Main Screen.
3
Volume Control
Increase or decrease the volume.
4
Mute
Mute the volume.
5
Menu
Switch to the Main Screen.
6
OK
Enter the setup options or save the settings in the Main Screen.
Introduction
27
1
No.
Name
Function
7
Hotkeys
Use the following hotkeys to execute commands when a
camera live view is selected in the main screen.
CH1: Take a screenshot
CH2: Activate the PTZ function.
CH3: Enter in full screen mode.
CH4: Activate the audio out function.
PTZ Controls
No.
Name
Function
2
Menu Control
Control PTZ movements (pan and tilt) on live view display when
the PTZ function is enabled.
6
OK
Bring the camera to a home position when the PTZ function is
enabled.
Press an alphabet key to adjust the zoom / focus.
No.
Alphabet Key
Function
8
A
Zoom In
B
Zoom Out
C
Focus In
D
Focus Out
28
Chapter 2 Getting Started
2.1 Installing GV-IP Decoder Box Series
You can install GV-IP Decoder Box Series on the wall or simply use it as desk mount device.
Wall Mount Installation
For wall mount installation, you need to purchase the wall mount kit.
1. Unscrew the 4 screws on the back panel of GV-IP Decoder Box Series.

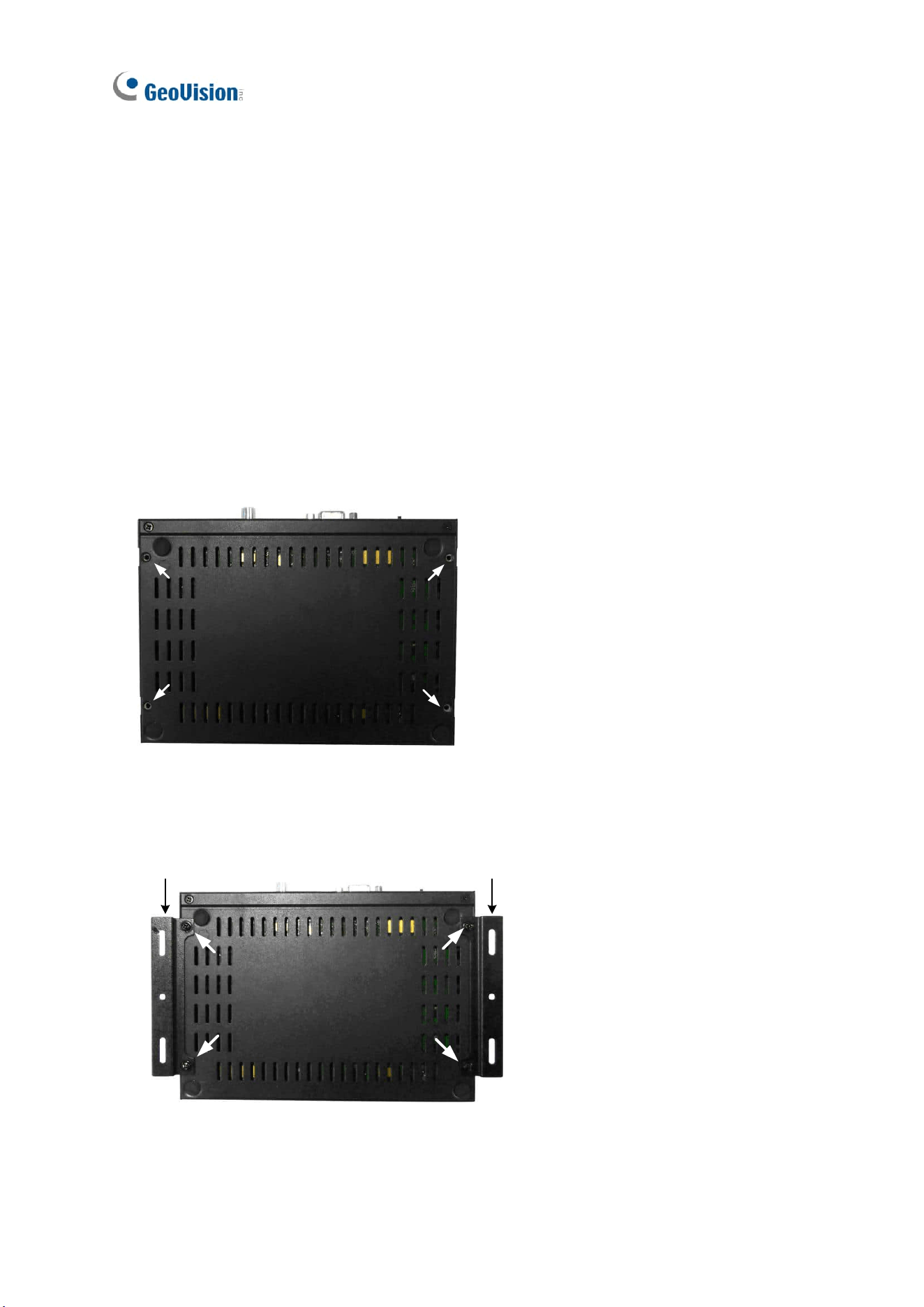

Figure 2-1
2. Use the 4 small screws in the package to tighten the L-type brackets on GV-IP Decoder
Box Series.
L-type bracket L-type bracket
Figure 2-2
3. Secure GV-IP Decoder Box Series to the wall with self-prepared screws.
Getting Started
29
2
2.2 Connecting GV-IP Decoder Box Series

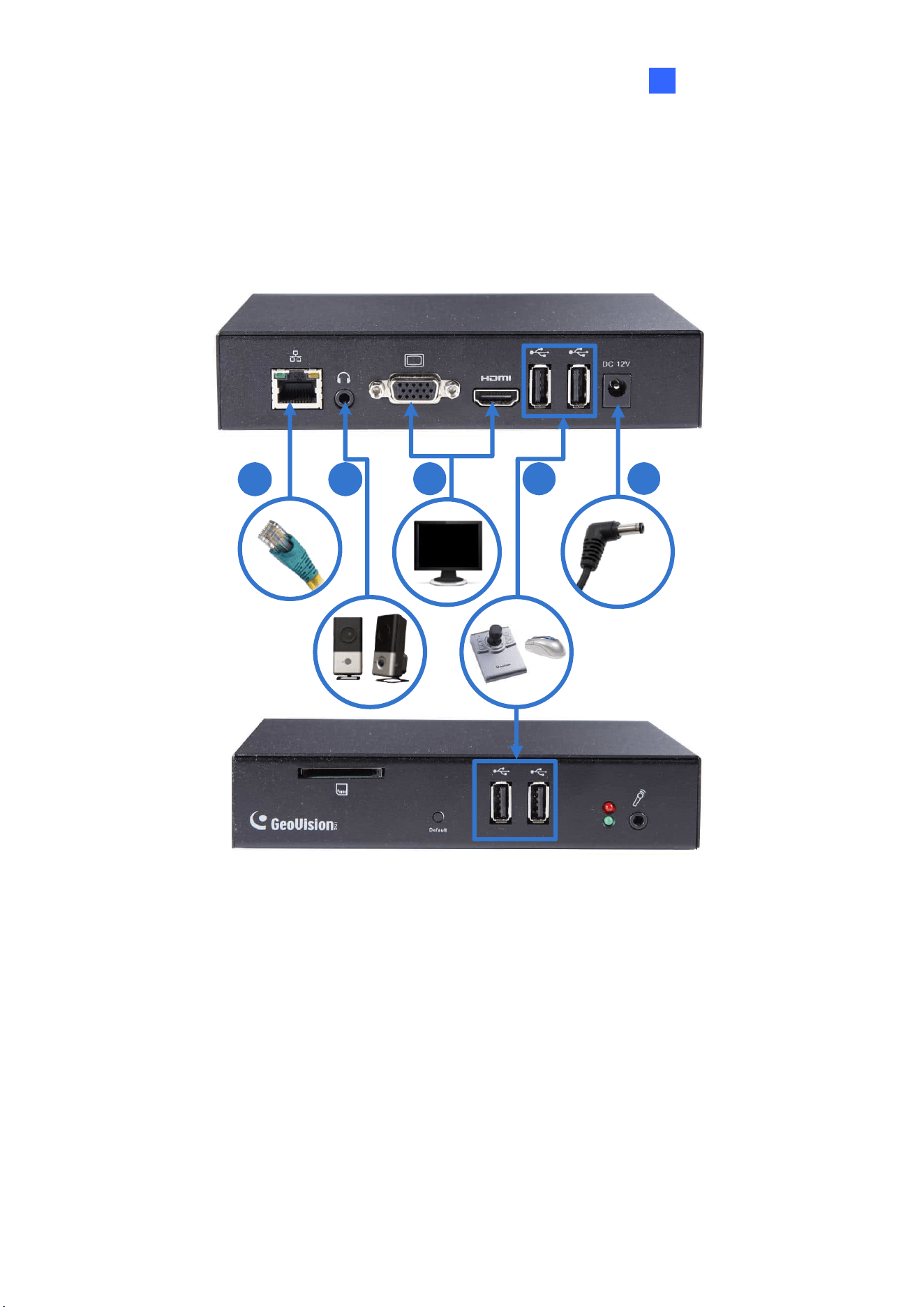

Follow the steps below to connect GV-IP Decoder Box Series. Here we use GV-IP Decoder
Box Plus as an example.
4
1 2
5
3
Figure 2-3
1. Connect the device to the LAN port using an RJ-45 cable.
2. Connect a speaker to the audio line out port if needed.
3. Connect a display device to VGA or HDMI connector for video output.
4. Connect a mouse and / or GV-Joystick V2 to the USB ports.
5. Connect to power using the supplied power adapter.
30
Note:
1. You can only connect GV-IP Decoder Box Ultra / Plus / Lite to one display device through
either the HDMI or VGA connector at a time. Dual monitor display is only available for
GV-IP Decoder Box Optimal.
2. The default video output resolution is set to 1080P for GV-IP Decoder Box Optimal and
HD 720P for GV-IP Decoder Box Ultra / Plus / Lite. If you use a VGA monitor, be sure to
change the output resolution to VGA 1920 x 1080. If you want to configure your GV-IP
Decoder Box Optimal / Ultra to 4K resolution, make sure your monitor is 4K-capable and
change the resolution to 3840 x 2160. To change the output resolution, see 4.1 System.
Getting Started
31
2
2.3 Connecting GV-Pad Mini / GV-IP Display 101 / 116
Follow the steps below to connect GV-Pad Mini / GV-IP Display 101 / 116.
1
2
4
3

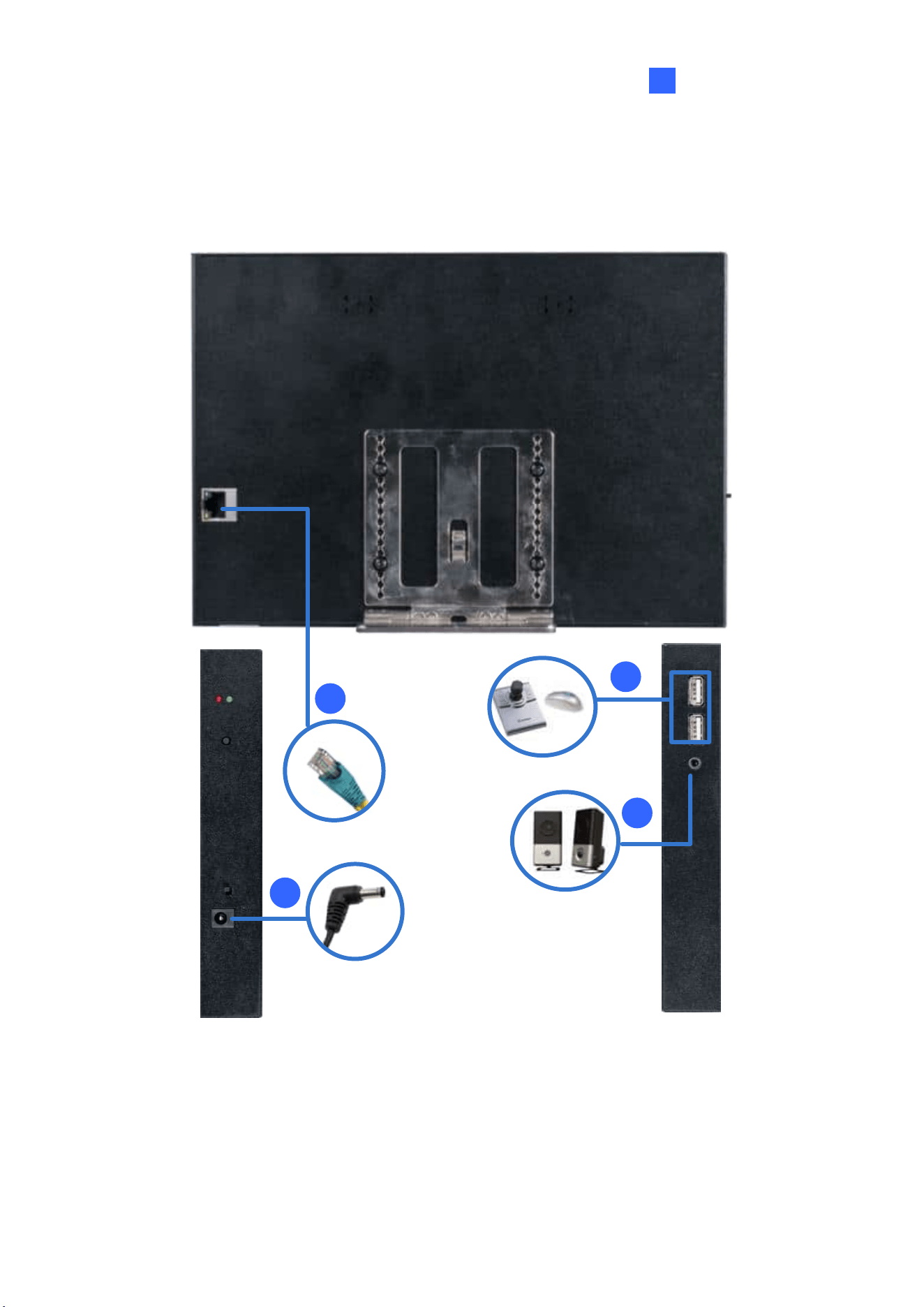

Figure 2-4
1. Connect the device to the LAN port using an Ethernet cable.
2. Connect to power using the supplied power adapter.
3. Connect a speaker / headphone to the line out port if needed.
4. Connect a mouse and / or GV-Joystick V2 to the USB ports.
32

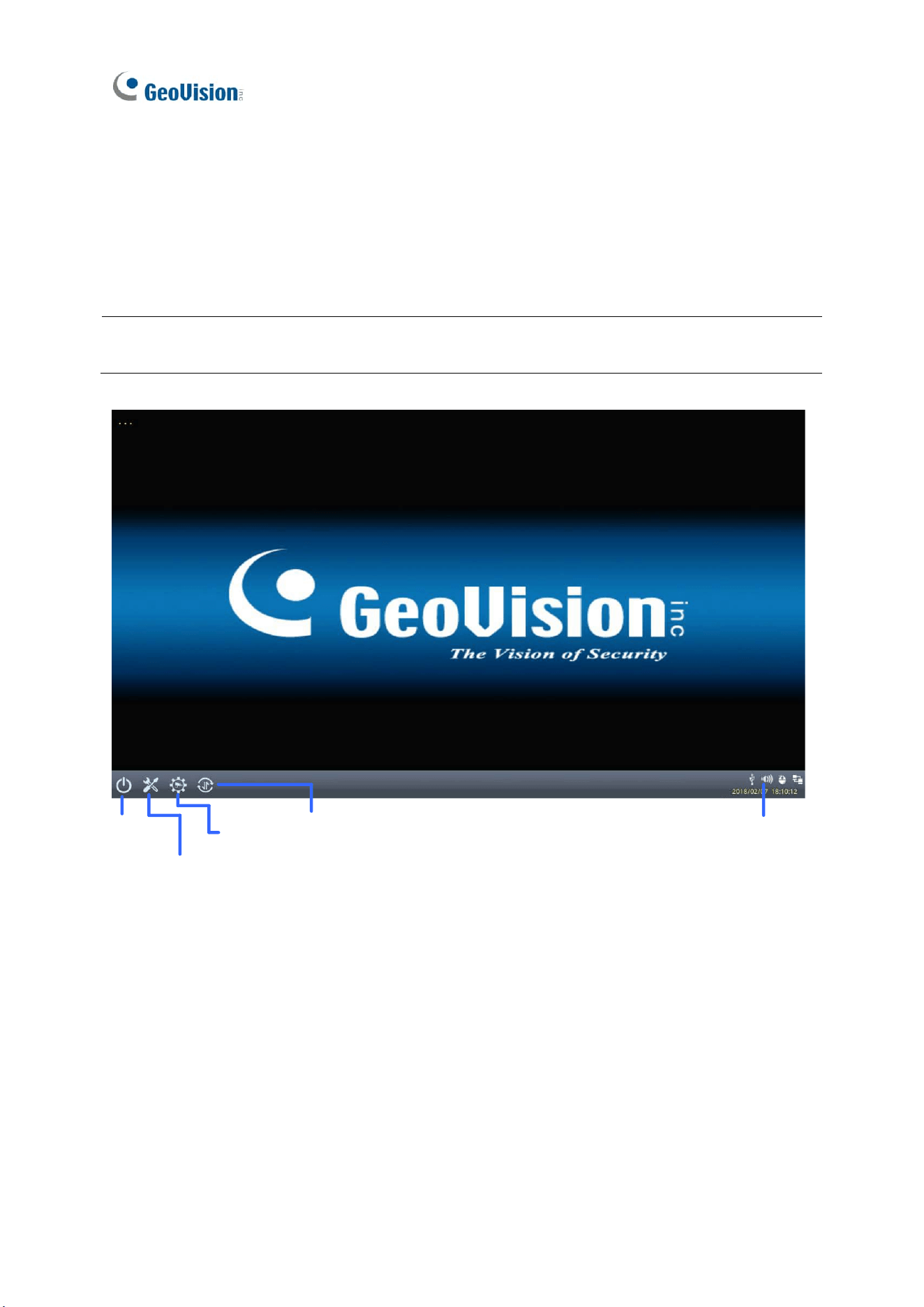

2.4 The Main Screen
After you have connected the necessary wires and cables, GV-IP Decoder Box Series /
GV-Pad Mini / GV-IP Display 101 / 116 will power on and the main screen will display on the
monitor.
Note: The user interfaces differ by models. Find the relevant settings corresponding to your
device. Here we use GV-IP Decoder Box Ultra / GV-IP Display 101 as an example.
Reboot
System
Setting
Camera
Search
Update
Adjust
Volume
Figure 2-5
Getting Started
33
2
2.5 Setting Up the Network
By default, GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 / 116 will be
automatically assigned an IP address by the DHCP server without requiring additional
settings. To change the IP address to a fixed one, follow the steps below.
Note: By default, if GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 / 116 is
connected to LAN without the DHCP server, it will be assigned a static IP address:
192.168.0.100.

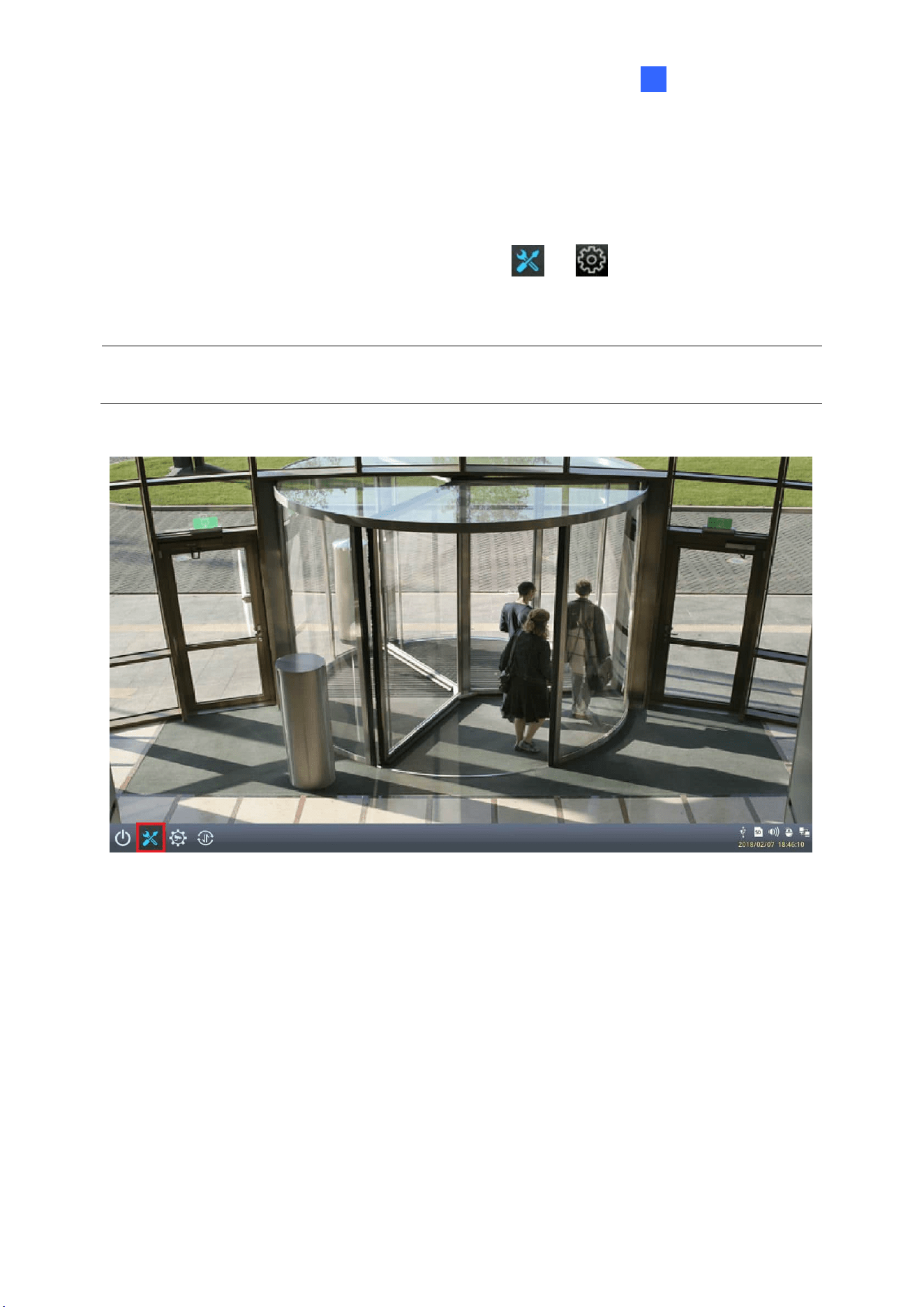

1. Click the System Settings icon or at the bottom of the main screen, and
select Network. You will see the following window.

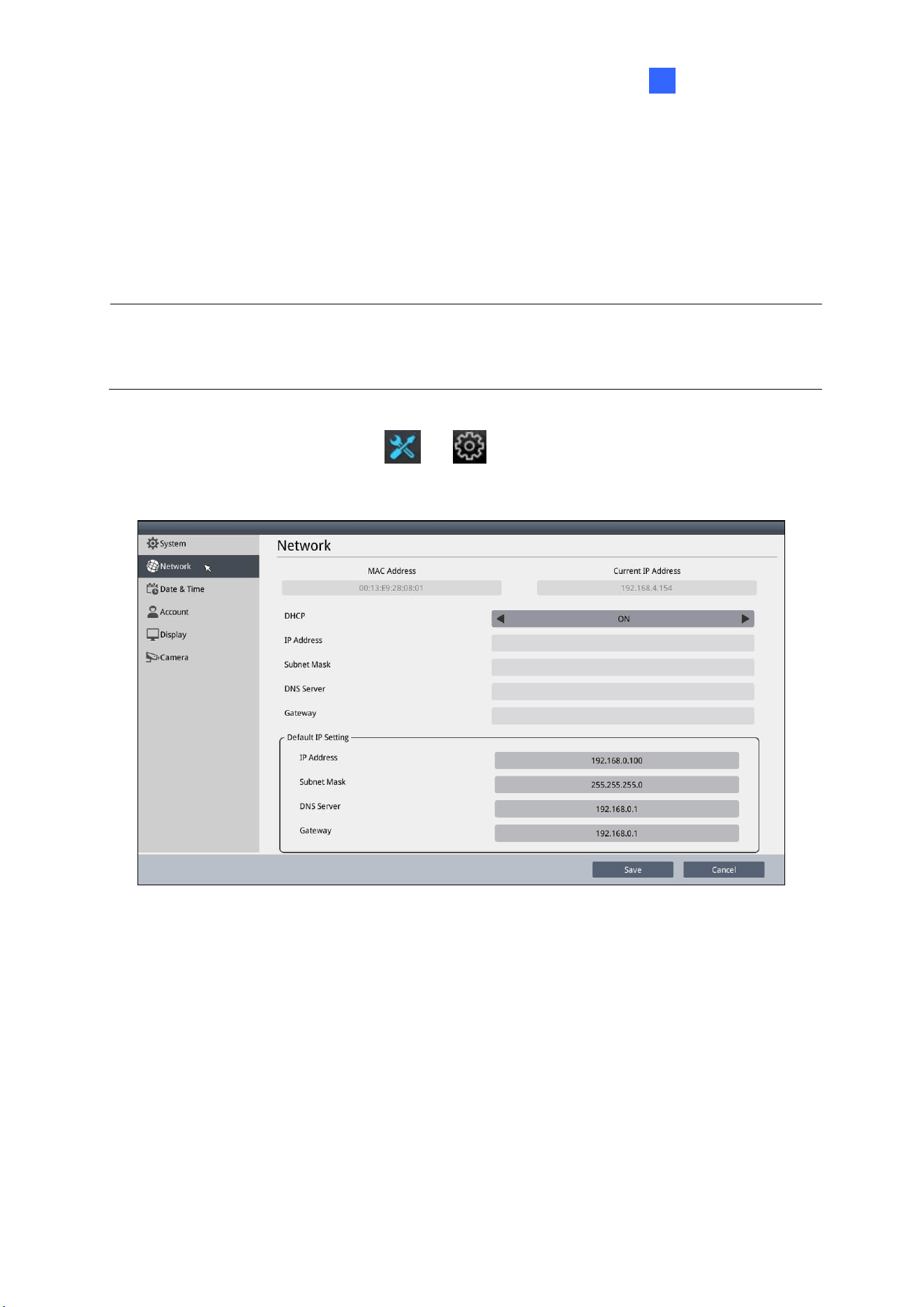

Figure 2-6
2. To configure the static IP address,
• For GV-IP Decoder Box Ultra / Optimal / GV-IP Display 101 / 116, switch the DHCP
option to OFF.
• For GV-IP Decoder Box Plus / Lite / GV-Pad Mini, select Static IP Address.
3. Fill out the fields of IP Address, Subnet Mask, DNS Server, and Default Gateway.
4. Click Save. When the device is connected to the network, the IP address will be shown in
the Connected IP Address field.
34

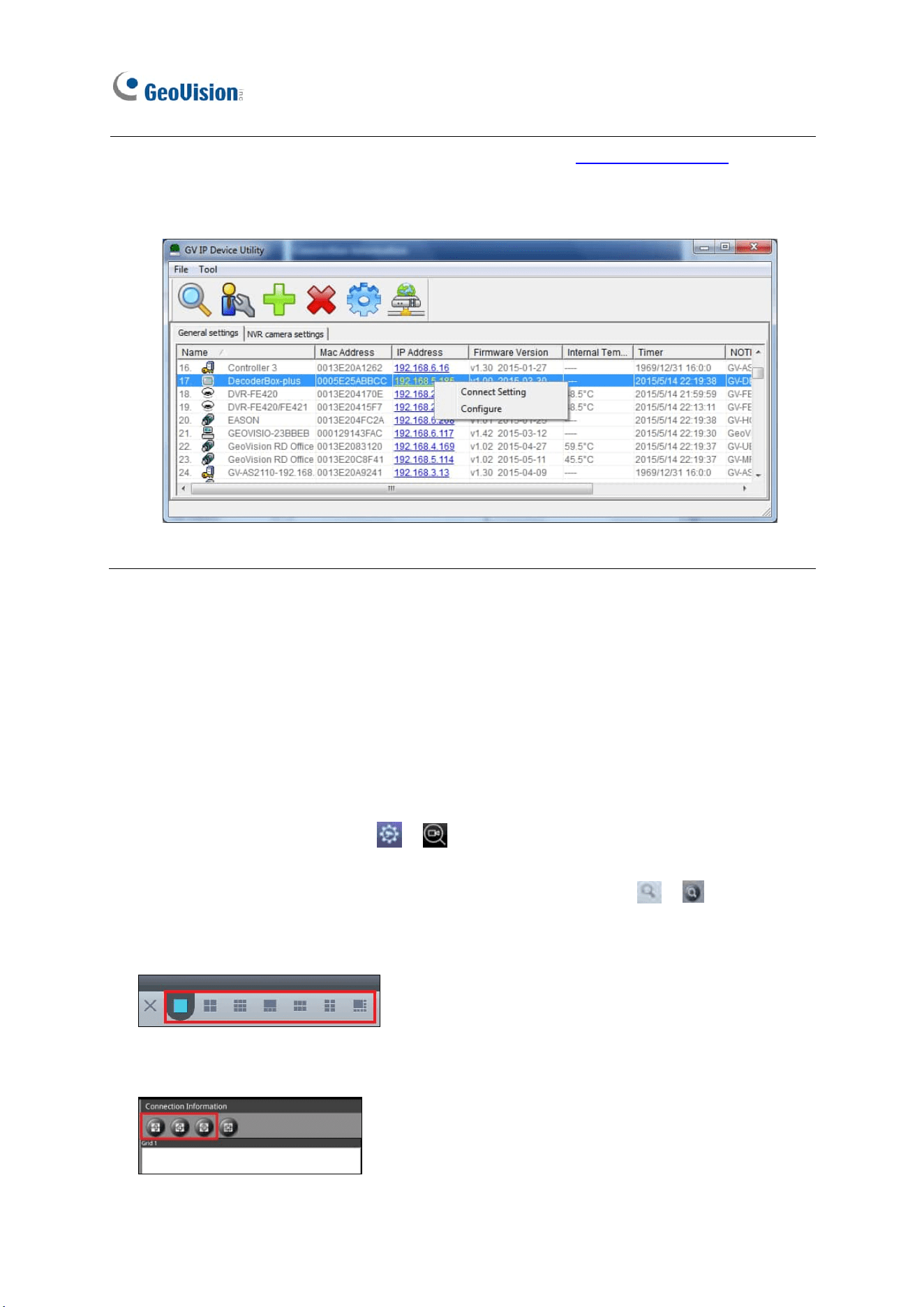

Tip: You can also use GV-IP Device Utility downloaded from GeoVision’s website. to modify
the IP address by clicking on GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 /
116 and selecting Configure.
Figure 2-7
2.6 Adding IP Devices to Live View Grid
Before you start, make sure all the IP devices or GV-Mobile Server is under the same LAN as
GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 / 116.
2.6.1 Adding IP Devices through Automatic Search
1. Click the Camera Search icon / on the main page.
2. Search for GV-IP Devices, GV-Mobile Server, or the third-party devices that adhere to
ONVIF under the same LAN by clicking the Search Camera icon / .
3. Select a live view layout.
For GV-IP Decoder Box Optimal / Ultra / GV-IP Display 101 / 116:
Figure 2-8
For GV-IP Decoder Box Plus / Lite / GV-Pad Mini:
Figure 2-9
Getting Started
35
2

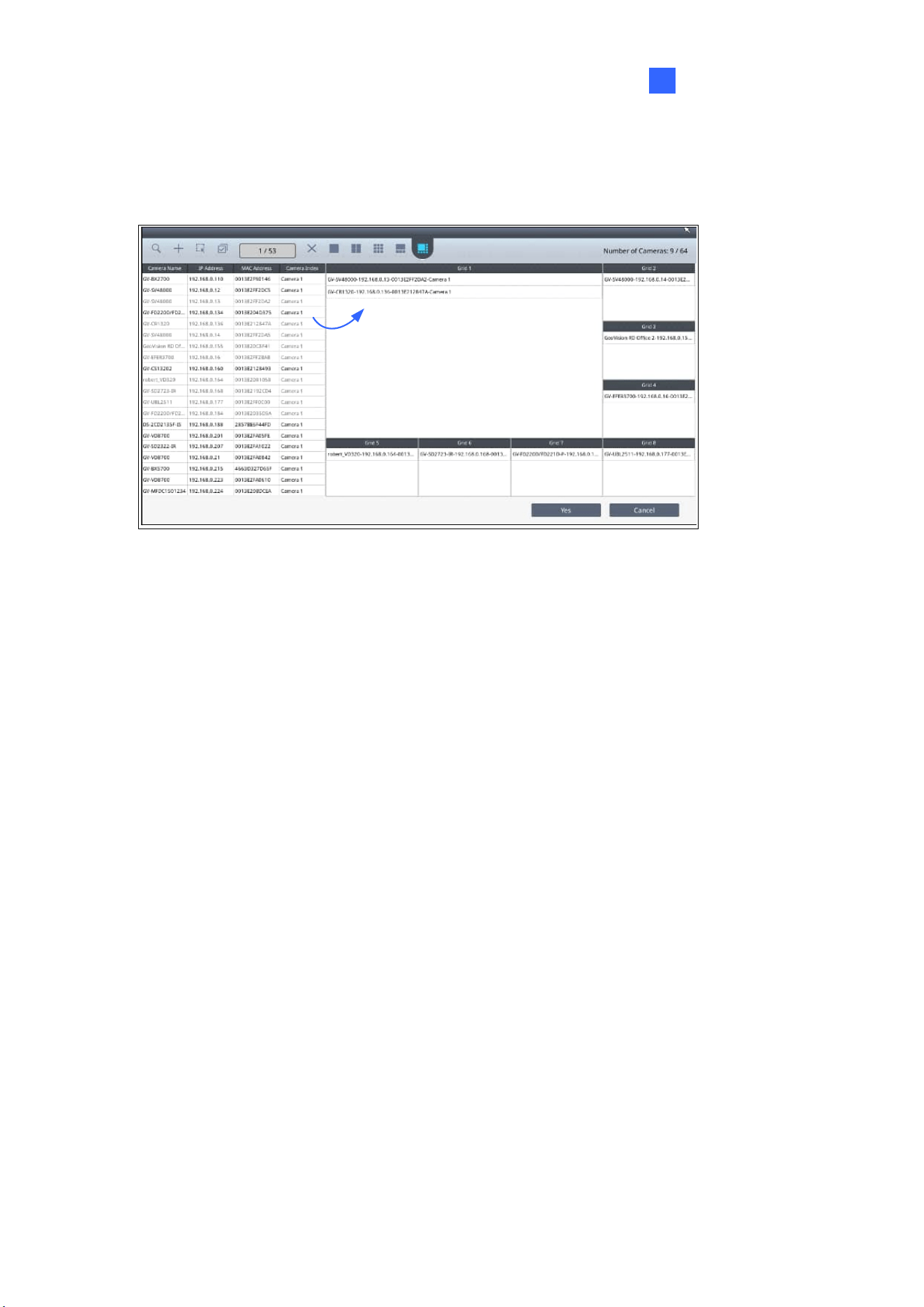

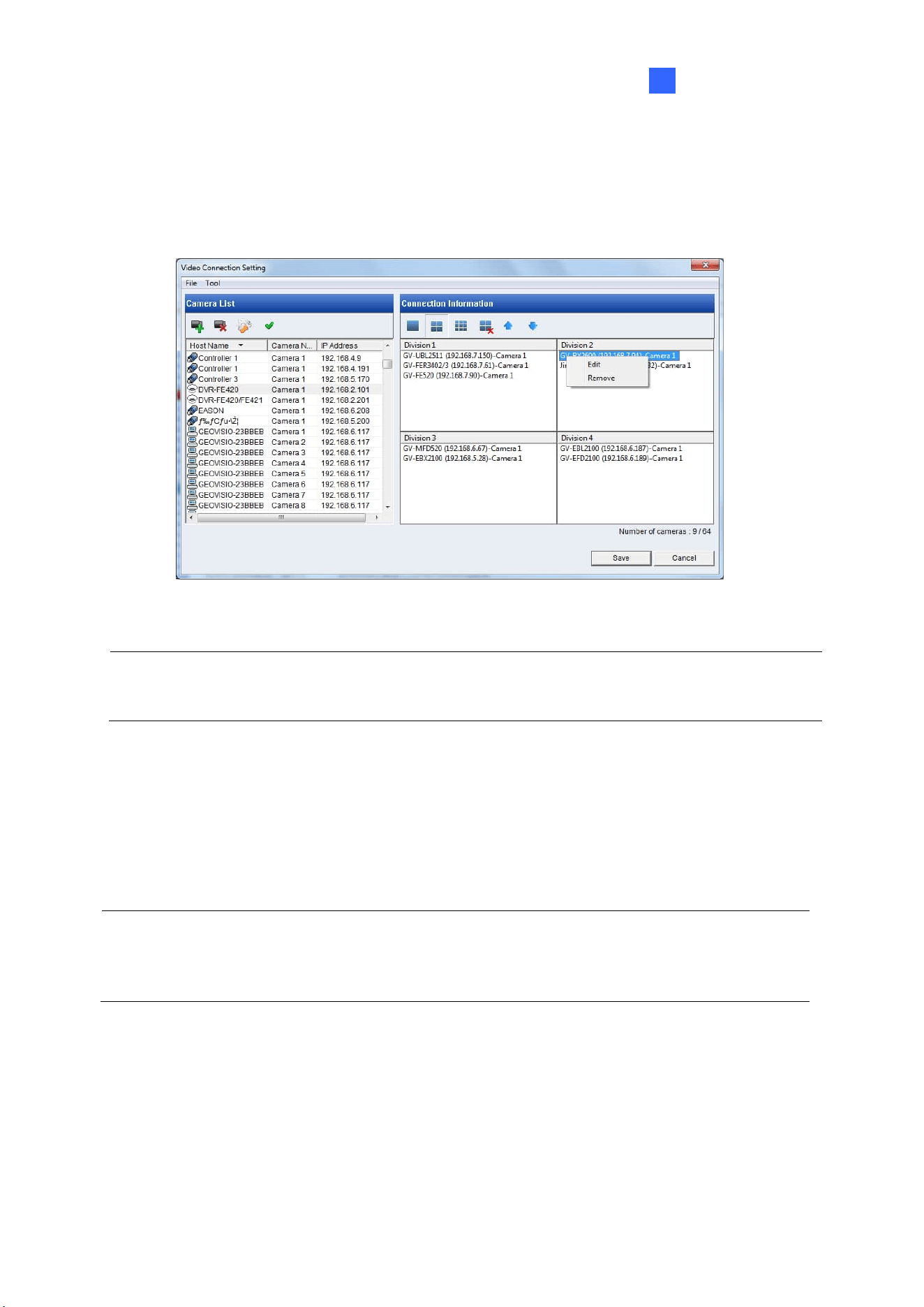

4. Drag and drop an IP device from the camera list to the grid. To select multiple cameras at
a time, click Select Multiple Cameras at the top and select more than one camera from
the camera list.
Figure 2-10
5. To change the device settings, hold for right-clicking on a device in the grid and select
Edit to modify the following settings:
◼ Camera Name: Type a customized name for the IP device.
◼ Port: Change the port number if needed.
◼ Loop Time Interval: Specify a time interval, ranging from 10 ~ 600 seconds, for the
device to display before switching to the next one. The default value is 30 seconds.
◼ Login Information: Change the login user name and password of the device if
necessary.
◼ Stream Mode: Only for GV-IP Decoder Box Optimal / Ultra / GV-IP Display 116,
select one of the following modes.
Single Stream: Select this option for the highest image quality.
Single Stream (Save bandwidth): Select this option for the lowest bandwidth.
Dual Stream: Select this option to automatically optimize the image quality
when displaying multiple channels.
36

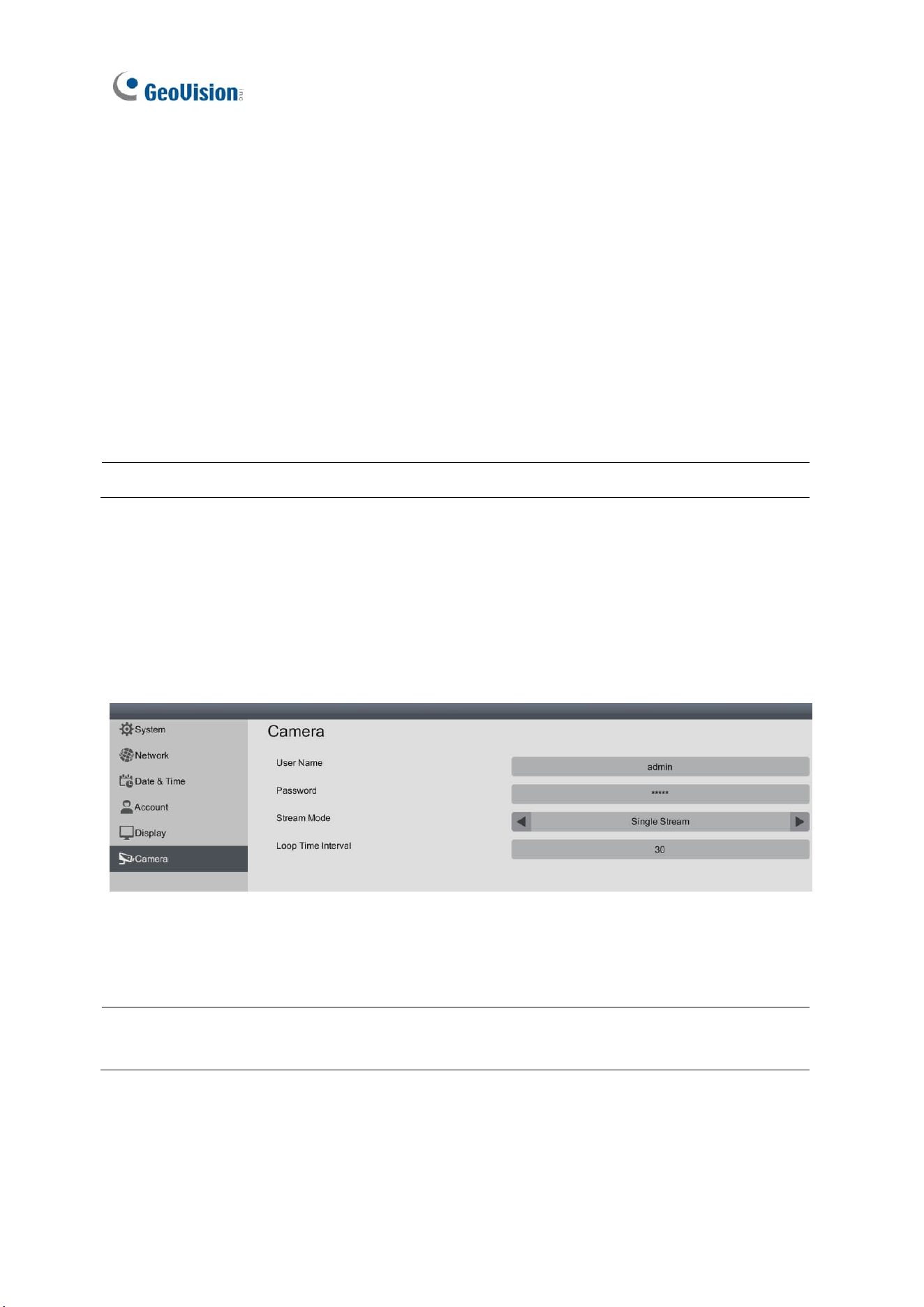

Note: When connecting, all cameras will have the default user name and password set as
admin. To modify the default login settings, find the user name and password under Camera
in System Settings (see 4.6 Camera).
6. To adjust the display order of the cameras, hold for right-clicking on a camera and click
Move Up or Move Down.
7. To remove a camera, hold for right-clicking on a camera and click the Delete button.
8. To delete all the added devices at once, click the Delete All button / .
9. Click Yes or Save to apply the settings.
The selected channels will be displayed on the monitor and be looped at an interval of 30
seconds by default. To change the looping interval, hold for right-clicking on a camera and
click Edit.
Note:
1. Refer to 3.1 Live View for the maximum resolution supported in different live view
layouts.

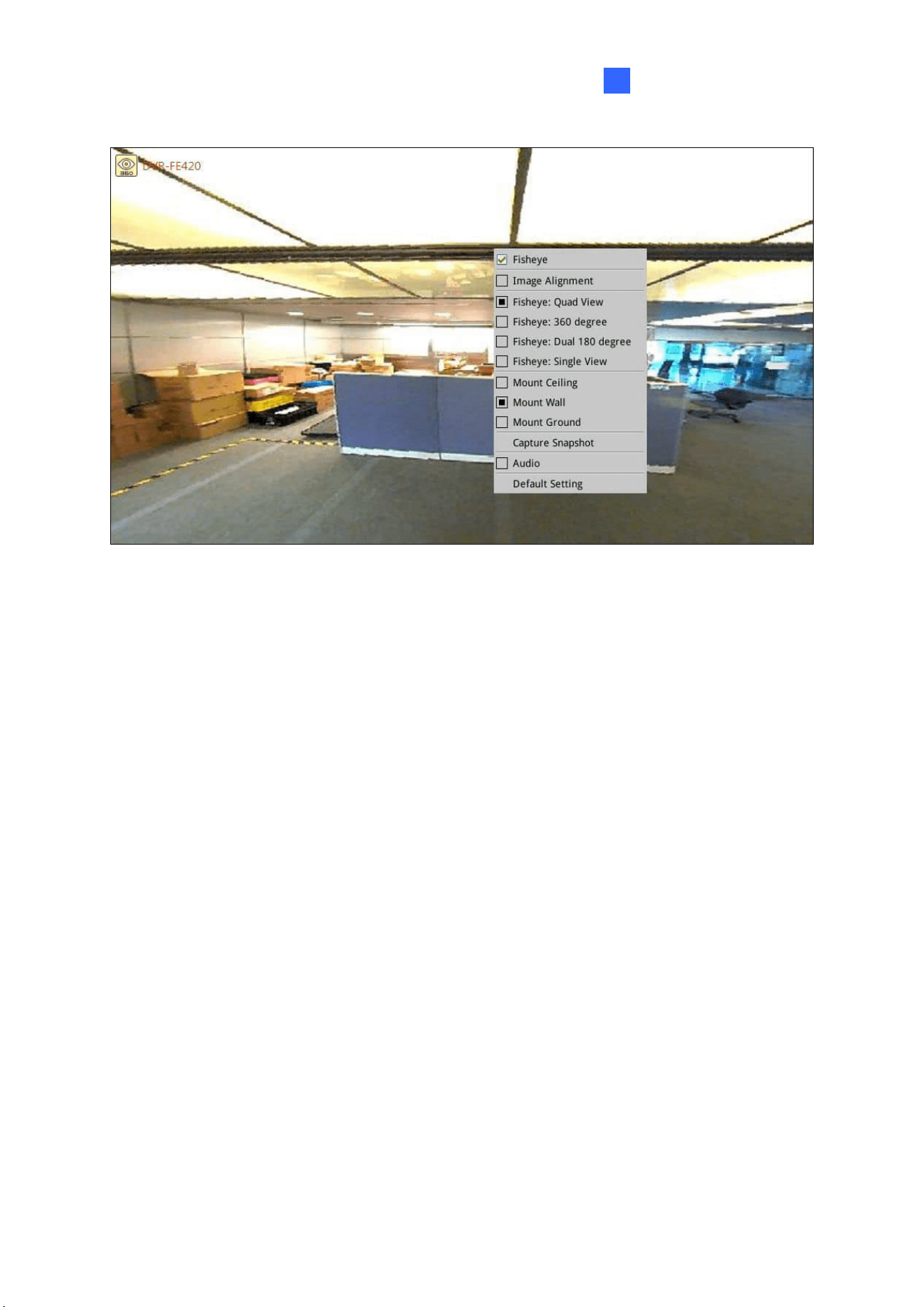

2. Fisheye dewarping is only supported by GV-IP Decoder Box Plus. To dewarp the fisheye
view, you need to choose 1-division layout or assign the camera to Grid 1 of the
4-division view.
2.6.2 Adding IP Devices Manually
If GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 / 116 is unable to detect the
IP device using the search function, you can search for the device manually.
1. Click the Camera Search icon /
at the bottom of the main page.
Getting Started
37
2

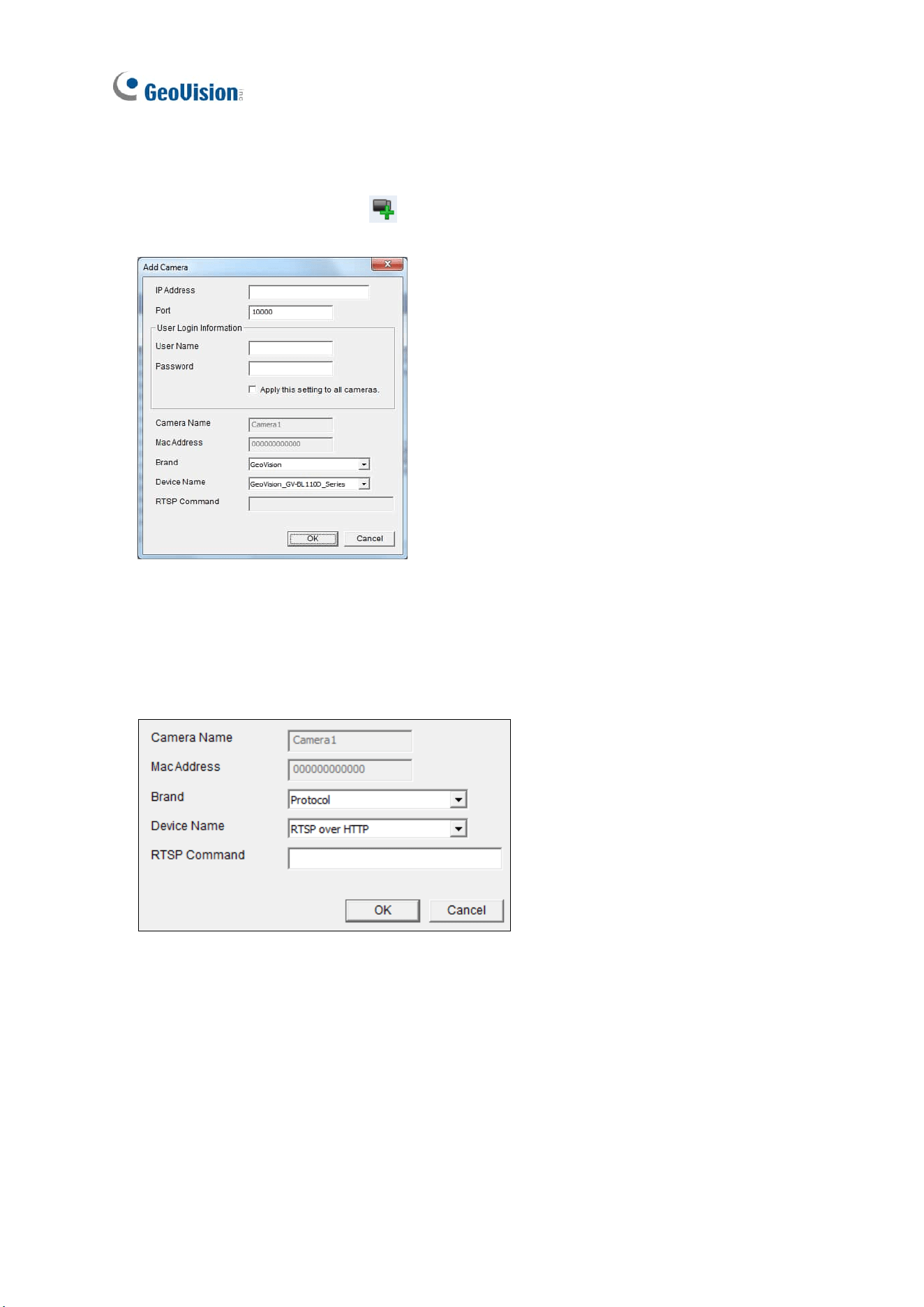

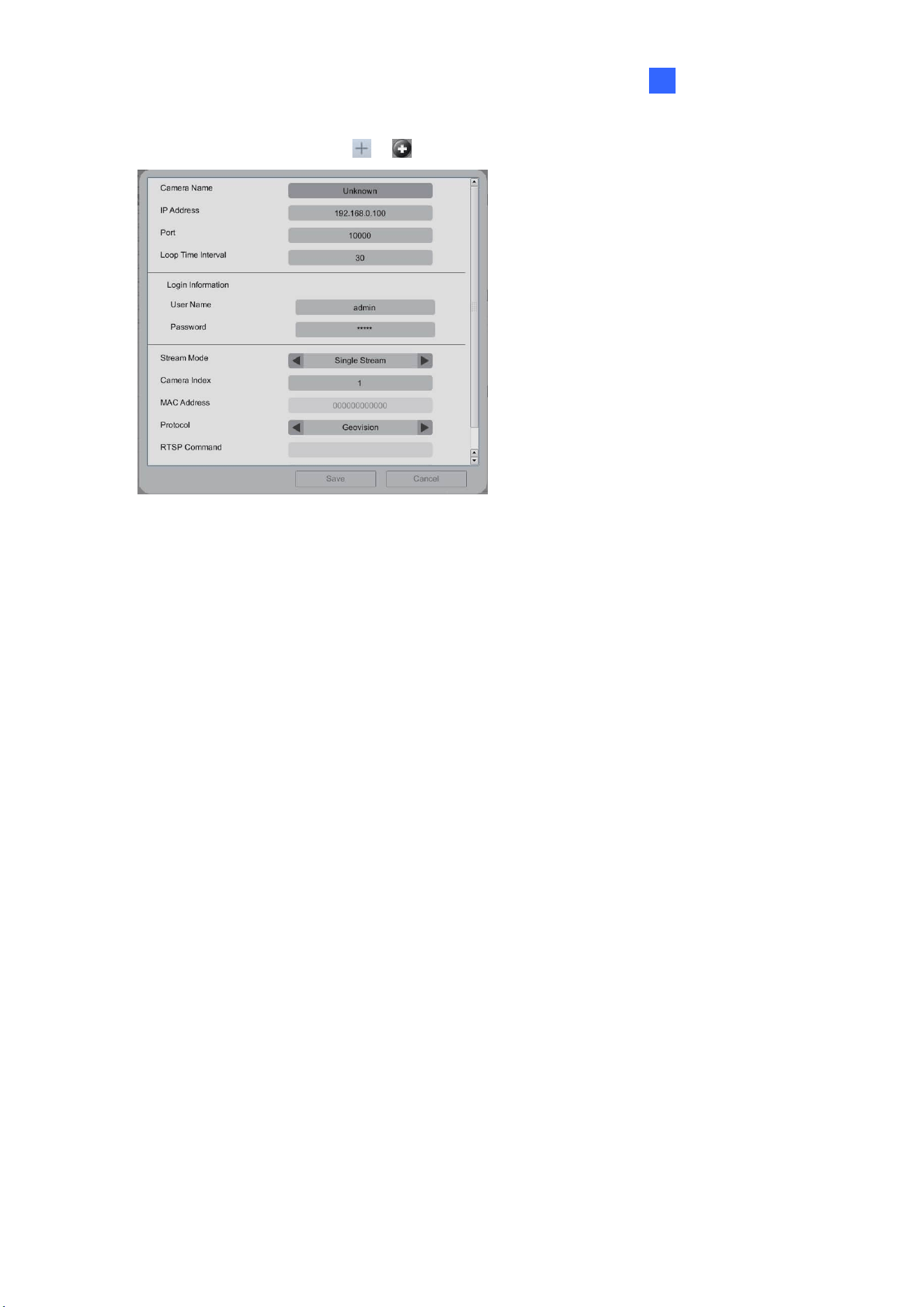

2. Click the Add Camera icon / . This dialog box appears.
Figure 2-11
3. Fill out the following camera information.
◼ Camera Name: Type a personalized name for the device.
◼ IP Address: Type the IP address of the device.
◼ Port: Change the port number if needed. The default port is 10000.
◼ Loop Time Interval: Specify a time interval, ranging from 10 ~ 600 seconds, for the
device to display before switching to the next one. The default value is 30 seconds.
◼ Login Information: Type the ID and password of the IP device if needed. The
default ID and Passwords are admin.
◼ Stream Mode: Only for GV-IP Decoder Box Optimal / Ultra / GV-IP Display 116,
select one of the following modes.
Single Stream: Select this option for the highest image quality.
Single Stream (Save bandwidth): Select this option for the lowest bandwidth.
Dual Stream: Select this option to automatically optimize the image quality
when displaying multiple channels.
◼ Camera Index: Number the IP device for searching convenience.
◼ Protocol: For GV-IP Devices, select Geovision as the protocol. For third-party
devices, select ONVIF or one of the RTSP protocols.
◼ RTSP Command: Type the RTSP link if you are connecting to the device through
RTSP protocols.
4. Click Save. The IP device is now added to the camera list.
38
Note: When connecting, all cameras will have the default user name and password set as
admin. To modify the default login settings, find the user name and password under Camera
in System Settings (see 4.6 Camera).
Getting Started
39
2
2.7 Adding Devices Using GV-IP Device Utility
Use GV-IP Device Utility to add channels.
Before you start, make sure that all the IP devices / software must be under the same LAN as
GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 / 116.
GV-IP Decoder Box Optimal /
GV-Pad Mini /
GV-IP Display 101 / 116
Ultra / Plus

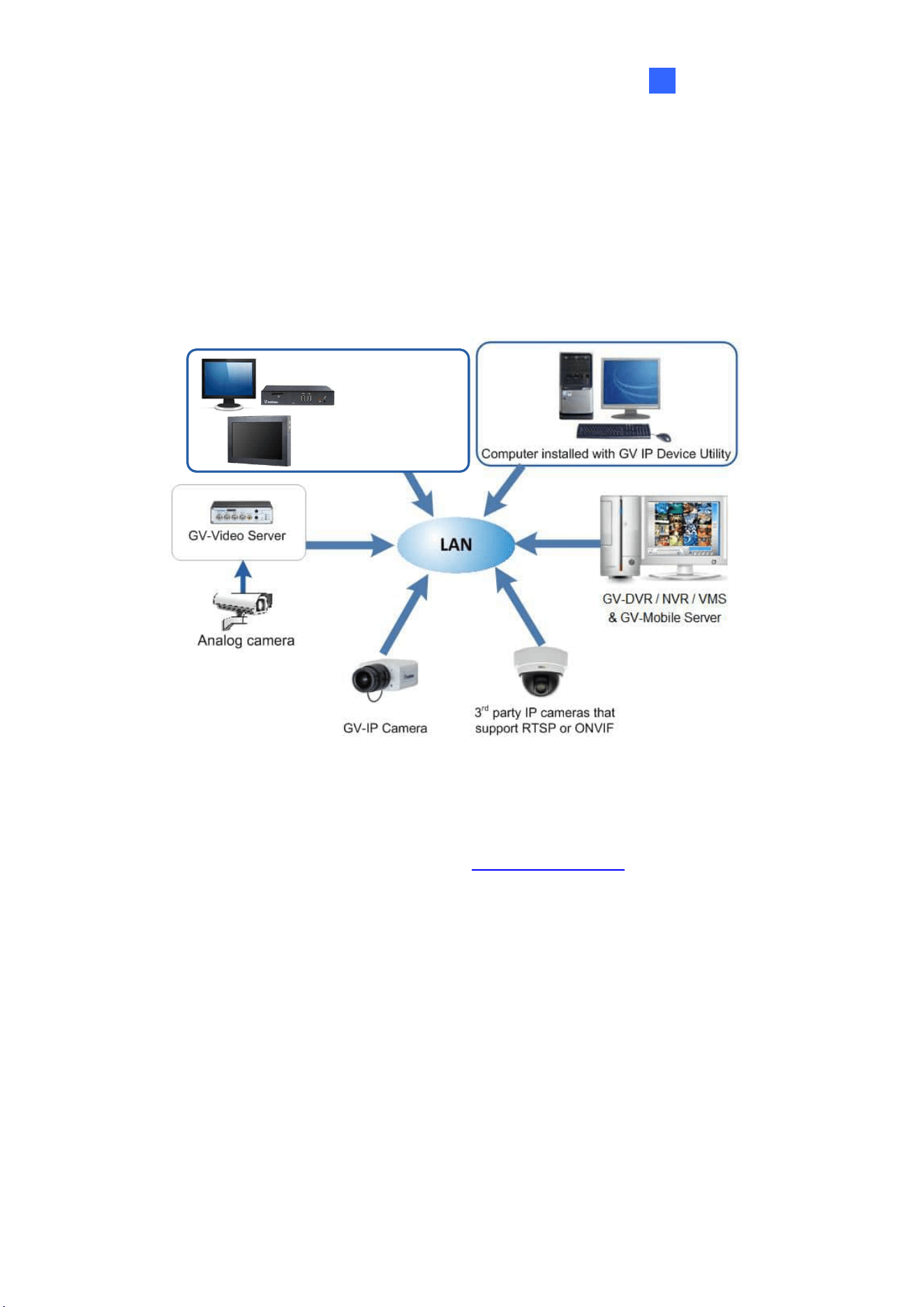

Figure 2-12
2.7.1 Adding a GV-IP Device
1. Run GV-IP Device Utility downloaded from GeoVision’s website. Once started, the utility
will automatically search for all GV devices under the same LAN.
2. Click on the IP address of GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 /
116, and select Connect Setting. A login window appears.
40
3. Type the username and password of the device, and click OK. This window appears. By
default, the username and password both are admin.
Figure 2-13

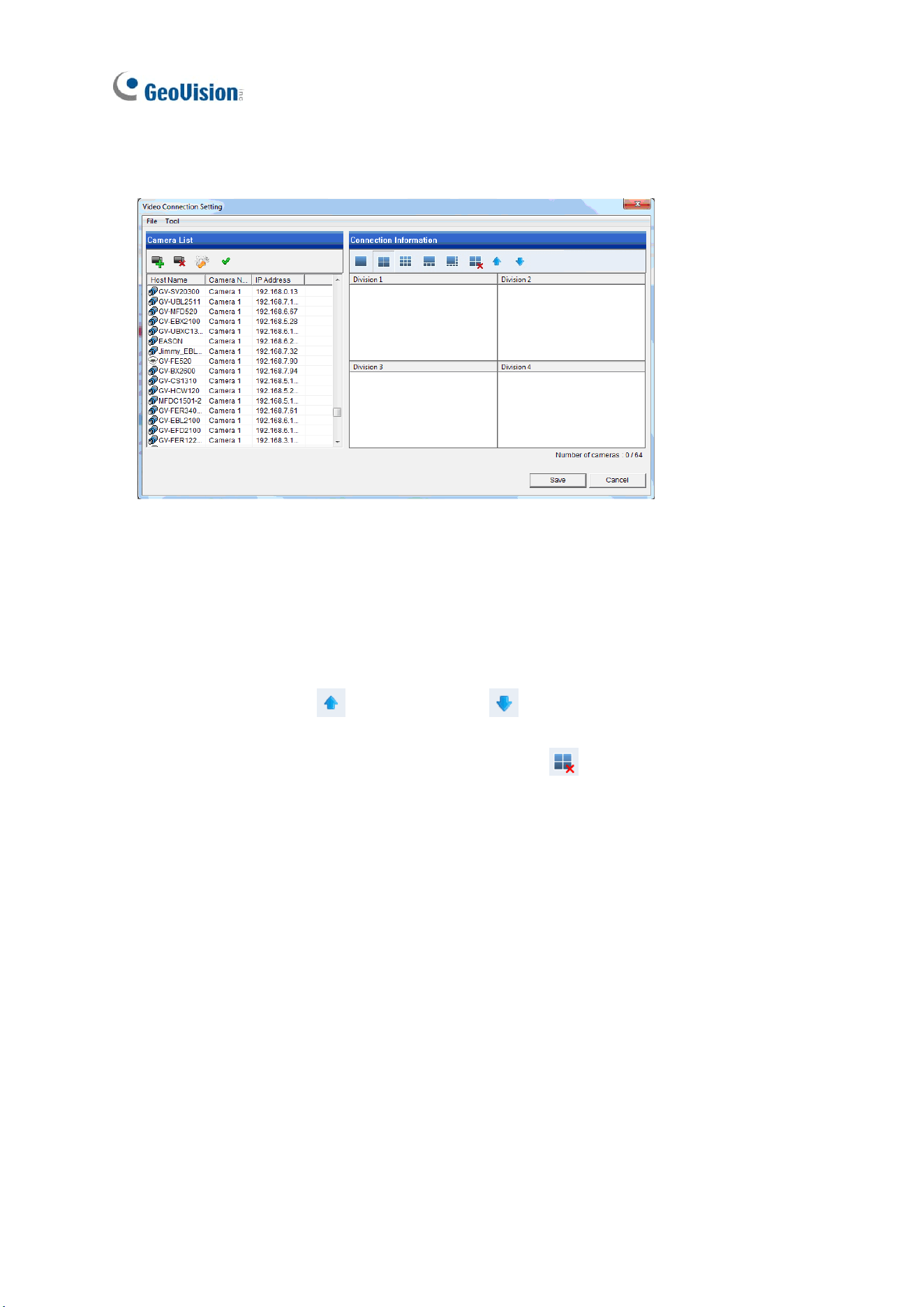

4. Use the Camera List toolbar to add, remove, or configure a camera in the Camera List.
5. Under Connection Information, select a live view layout.
6. Add channels to the Connection Information column.
A. Drag and drop the camera from the Camera List to the Connection Information
column.
B. Use the Move Up and Move Down buttons to change the display order of
these channels.
C. To remove a selected camera, click the Remove button.
Getting Started
41
2
D. If you have changed the default ID and password of the added GV-IP Devices /
GV-Mobile Server, right-click the channel, select Edit and type the username and
password to log in for connection. By default, the login ID and password for all GV-IP
Devices are admin.
Figure 2-14
Note: Only for GV-Decoder Box Optimal / Ultra, you are also allowed to configure the stream
mode and loop time interval for a specific or all IP devices connected on the Edit page.
7. Click Save.
The cameras in the Connection Information column will be updated to GV-IP Decoder Box
Series / GV-Pad Mini / GV-IP Display 101 / 116 and looped at a 30-second interval by default.
Note: Fisheye dewarping is only supported by GV-IP Decoder Box Plus. To dewarp the
fisheye view, you need to choose 1-division layout or assign the camera to Grid 1 of the
4-division view.
42
2.7.2 Adding a Third-party Device
1. Click the Add Camera button on the Video Connection Setting window (Figure
2-13). This dialog box appears.
Figure 2-15
2. Type the IP address, user name, and password of the device.
3. Select Protocol for Brand and one of the following protocols for Device Name. Type the
RTSP command if required. Refer to your third-party IP camera’s manual for this
command.
Figure 2-16
◼ ONVIF: Select this protocol if your camera adheres to ONVIF.
◼ RTSP over HTTP: The RTSP protocol uses an HTTP port for data streaming from
the IP camera.
◼ RTSP over TCP: The RTSP protocol uses a TCP port for data streaming from the
IP camera.
◼ RTSP over UDP: The RTSP protocol uses a UDP port for data streaming from the
IP camera.
Getting Started
43
2
Note: GV-IP Decoder Box Light does not support RTSP connection.
4. Click OK. The camera is added to the list.
5. Add channels to the Connection Information column. See Step 6, 2.7.1 Adding a GV-IP
Device.
6. Click Save.
44

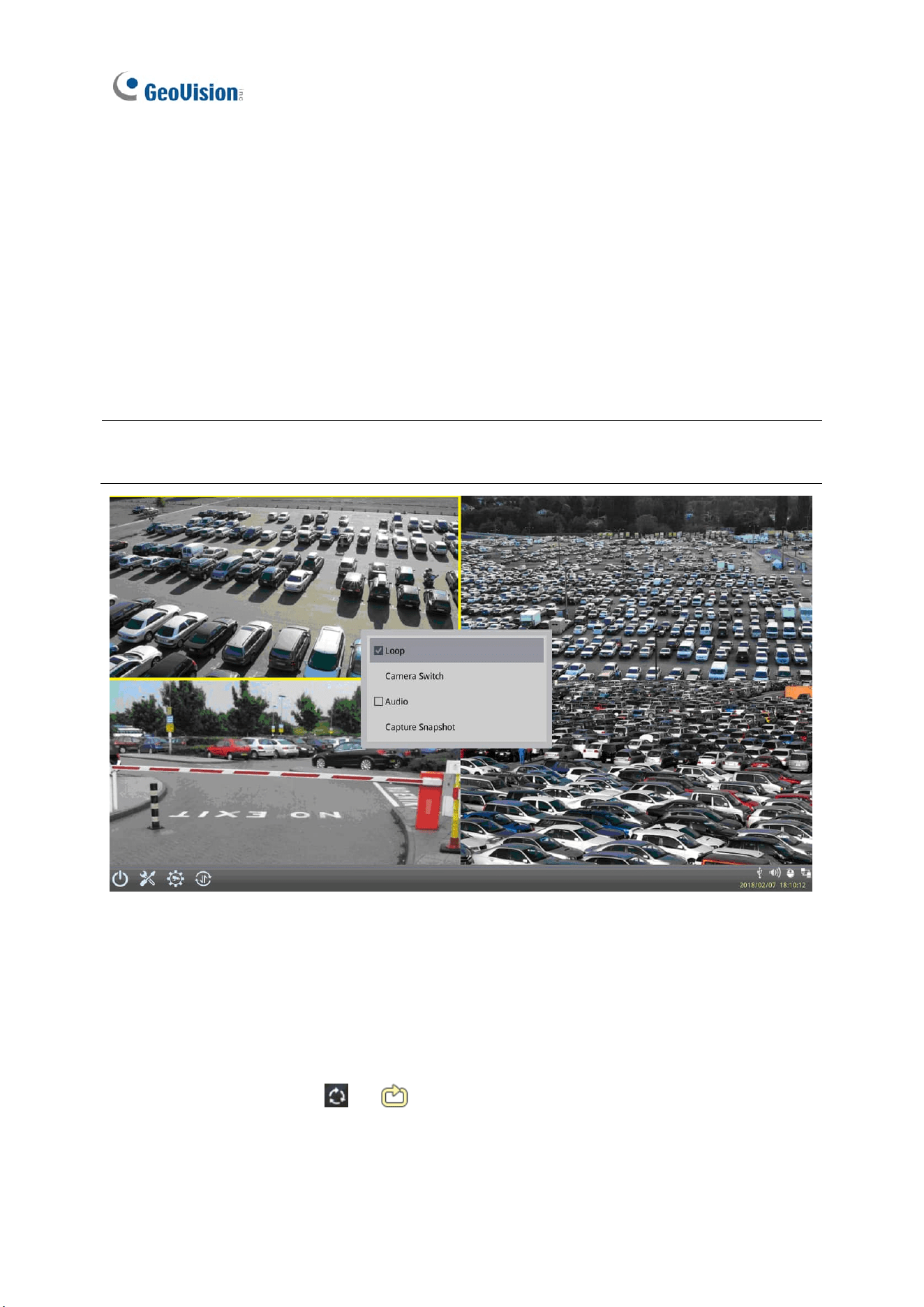

Chapter 3 Accessing Live View
3.1 Live View
After adding and assigning IP devices to the live view grid, the camera live views are
displayed on the main screen. Hold for right-clicking on a live view grid to access the
following options:
Note: The user interfaces are different by models. Find the relevant settings corresponding to
your device. Here we use GV-IP Decoder Box Ultra / GV-IP Display 101 as an example.

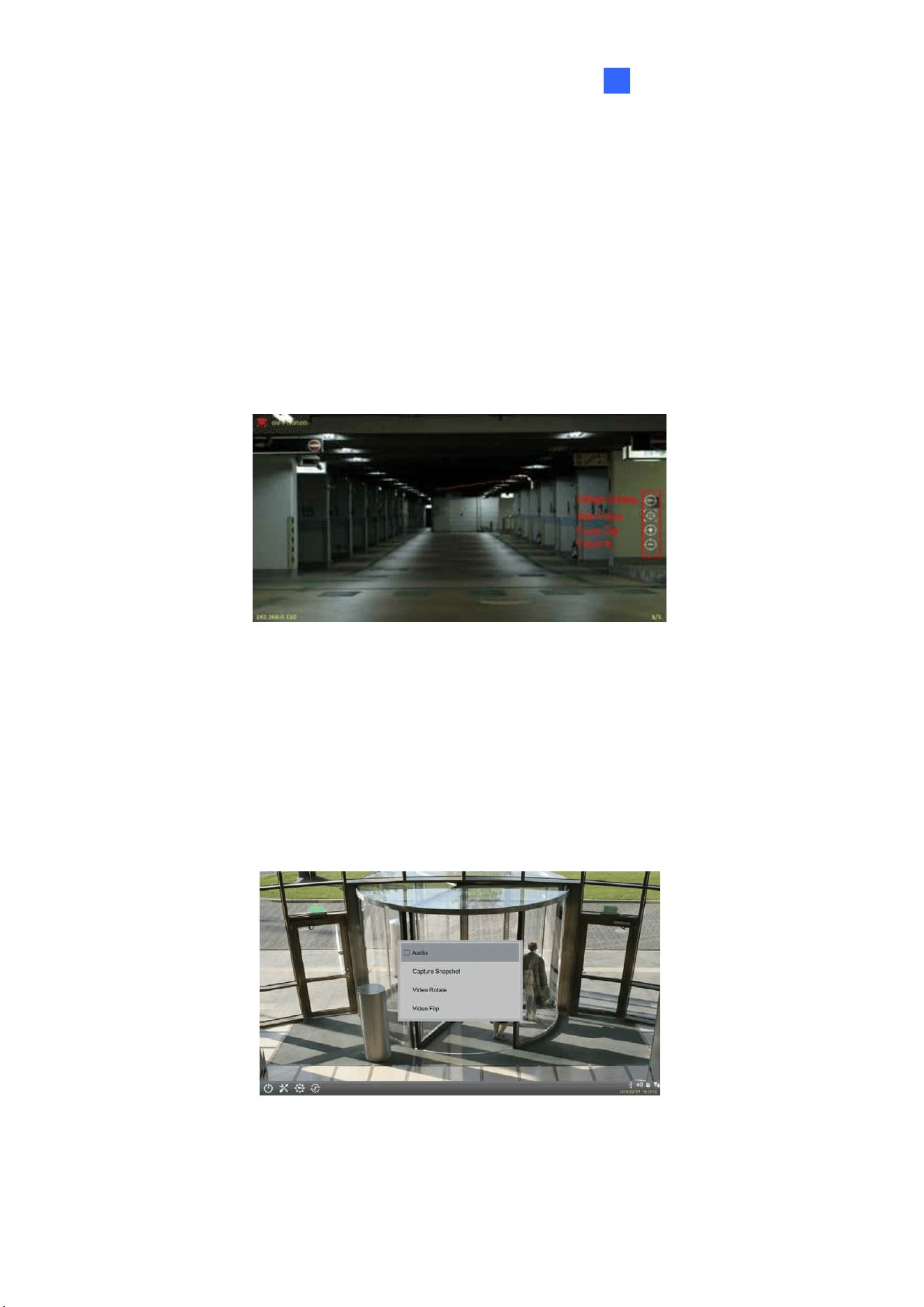

Figure 3-1
◼ Capture Snapshot: Only supported by GV-IP Decoder Box Optimal / Ultra / Plus /
GV-Pad Mini / GV-IP Display 101 / 116, capture a snapshot of the live view. This option
is only available when the live view grid is not looping. See 3.2 Capturing Snapshots.
◼ Play Mode: When more than one device is added to a grid, select Loop to start looping
through the devices or select a device number to fix the live view grid to the selected
device. A looping icon or will appear on the live view grid if you select Loop.
Note: To fix the live view grid to a selected device for GV-IP Decoder Box Optimal /
Ultra, click Camera Switch and click the desired camera number.
Accessing Live View
45
3
◼ PTZ: Select to allow GV-Joystick V2 / your mouse / GV-IR Remote Control to control the
PTZ device. To pan and tilt the live view, click and hold the arrow on the image. This
function is only available for devices with PTZ function and only one PTZ device can be
enabled at a time.
◼ Audio: Enables or disables the audio out function. You can only enable the audio out
function of one device at a time.
◼ Visual PTZ Button: Only for GV-IP Decoder Box Optimal / Ultra / Plus / GV-Pad Mini /
GV-IP Display 101 / 116, select to activate the PTZ control buttons. This function is only
available for devices with PTZ function.
Figure 3-2
Default Setting: Selects to return to the camera’s home position.
Auto Focus: Automatically adjusts the sharpness of the camera view.
Focus In / Out: Adjusts the sharpness of the camera view.
Only for GV-IP Decoder Box Ultra V1.05 or later, GV-IP Decoder Box Optimal, and GV-IP
Display 116, the following functions become available when only one IP device is connected
and assigned to a Single View layout.
Figure 3-3
◼ Video Rotate: Adjust the image orientation by selecting 0°, 90°, 180°, or 270°.
46
◼ Video Flip: Adjust the image orientation by selecting Normal, Horizontal, Vertical, or
Both. (Not available for GV-IP Decoder Box Optimal / GV-IP Display 116)
Note the following live view specifications:
⚫ The resolution of the added device must be lower than the maximum resolution listed
below for each screen division. When the device resolution exceeds the maximum
resolution supported, GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 /
116 will connect to stream 2 of the device instead. If stream 2 is unavailable, the
message “Resolution Error” will appear on the screen.
⚫ For a smooth operation for the GV-IP Decoder Box Series, the bitrate of each channel
should be below 6 Mbps.
⚫ Fisheye dewarping is only supported by GV-IP Decoder Box Plus in Single View and the
Grid 1 of Quad View.
GV-IP Decoder Box Optimal / Ultra
Screen Division
Maximum Resolution
Fisheye Dewarping
1-Division (Single View)
3840 x 2160
Not supported
4-Division
(Quad View)
Grid 1
2560 x 1920
Other 3 Grids
1920 x 1080
6-Division
1280 x 720
8-Division
1280 x 720
9-Division
1280 x 720
GV-IP Decoder Box Plus
Screen Division
Maximum Resolution
Fisheye Dewarping
1-Division (Single View)
2048 x 1944
Supported
4-Division
(Quad View)
Grid 1
2048 x 1944
Supported
Other 3 Grids
1920 x 1080
Not supported
9-Division
1280 x 720
Not supported
Accessing Live View
47
3
GV-IP Decoder Box Lite
Screen Division
Maximum Resolution
Fisheye Dewarping
1-Division (Single View)
1920 x 1080
Not supported
4-Division (Quad View)
GV-Pad Mini
Screen Division
Maximum Resolution
Fisheye Dewarping
1-Division (Single View)
2048 x 1944
Not supported
4-Division
(Quad View)
Grid 1
2048 x 1944
Other 3 Grids
1920 x 1080
9-Division
1280 x 720
GV-IP Display 101 / 116
Screen Division
Maximum Resolution
Fisheye Dewarping
1-Division (Single View)
3840 x 2160
Not supported
4-Division
(Quad View)
Grid 1
2560 x 1920
Other 3 Grids
1920 x 1080
6-Division
1280 x 720
8-Division
1280 x 720
9-Division
1280 x 720
Note: The camera view will display the message “Connection Lost” if the login ID and
password are incorrect.
3.2 Capturing Snapshots
You can take snapshots of the live view and the snapshots will be automatically saved to the
selected storage device (USB drive or SD card) in JPEG format.
Before you start, be sure:
48
⚫ You have inserted a USB drive or SD card for storage.
⚫ You have at least 30 MB of space on your storage device.
⚫ The storage type is configured as FAT32 format (or as NTFS format for GV-IP Decoder
Box Optimal / Ultra).
⚫ You have assigned a storage device in the System Setting page (see below).
Otherwise, the error icon or
will appear when attempting to capture an image.
1. On the main menu, click the System Setting icon or and select System on
the left.
2. Select a storage device from the Storage Device option to store the captured
screenshots, and click Save.
3. If the live view grid is still under looping mode, hold for right-clicking on the live view grid,
select Camera Switch / Play Mode and select the device number to stop the looping.
4. Hold for right-clicking on the live view grid again, and select Capture Snapshot.
When captured successfully, a snapshot icon or will appear at the top right
corner of the screen.
Note: Capturing snapshots is not supported by GV-IP Decoder Box Lite.
3.3 Fisheye Dewarping
You can enable fisheye dewarping if the fisheye camera is in Single View or Grid 1 of the
Quad View. Right-click the live view of the fisheye camera and select Fisheye to enable
fisheye dewarping.
Note: Fisheye dewarping is only supported by GV-IP Decoder Box Plus.
Accessing Live View
49
3
Figure 3-4
The following fisheye settings are available:
◼ Image Alignment: Align the red circle with the inner edge of the camera image if
needed. You can adjust the red circle by dragging and by scrolling the mouse.
◼ Camera Modes:
◼ Fisheye: Quad view: Composed of 3 PTZ views and a circular source image.
◼ Fisheye: 360 degree: Composed of two PTZ views and one 360º panoramic
view.
◼ Fisheye: Dual 180 degree: Composed of two 180º views.
◼ Fisheye: Single view: Composed of one PTZ view.
◼ Mount Ceiling / Mount Wall / Mount Ground: Select according to where the camera is
mounted.
3.4 Controlling PTZ and Speed Dome Cameras with
GV-Joystick V2
GV-Joystick V2 can be connected to GV-IP Decoder Box Series / GV-Pad Mini / GV-IP
Display 101 / 116 to control GeoVision PT, PTZ, and Speed Dome cameras, and also
third-party PTZ and Speed Dome cameras. The supported functions include zoom in, zoom
out, tilt (vertical movement), pan (horizontal movement), focus in, focus out, and automatic
focus. The functions corresponded to each button on GV-Joystick V2 are listed below:
50
Button
Function
F1
Focus In
F2
Focus Out
F3
Auto Focus
F4
Home
F5 / F6
No functions
Note: For PTZ control, GV-SD200 and third-party cameras must be connected through
ONVIF. GV-Joystick V2 cannot control channels connected through GV-Mobile Server or
RTSP.
1. Connect a GV-Joystick V2 to the USB port.
2. Right-click the live view of the PTZ device and select PTZ.
3. You can start to control the camera using GV-Joystick V2.
Note: For GV-IP Decoder Box Optimal / Ultra, you can also use GV-IR Remote Control to
control PTZ movements. See 1.11.3 GV-IR Remote Control.
System Settings
51
4
Chapter 4 System Settings

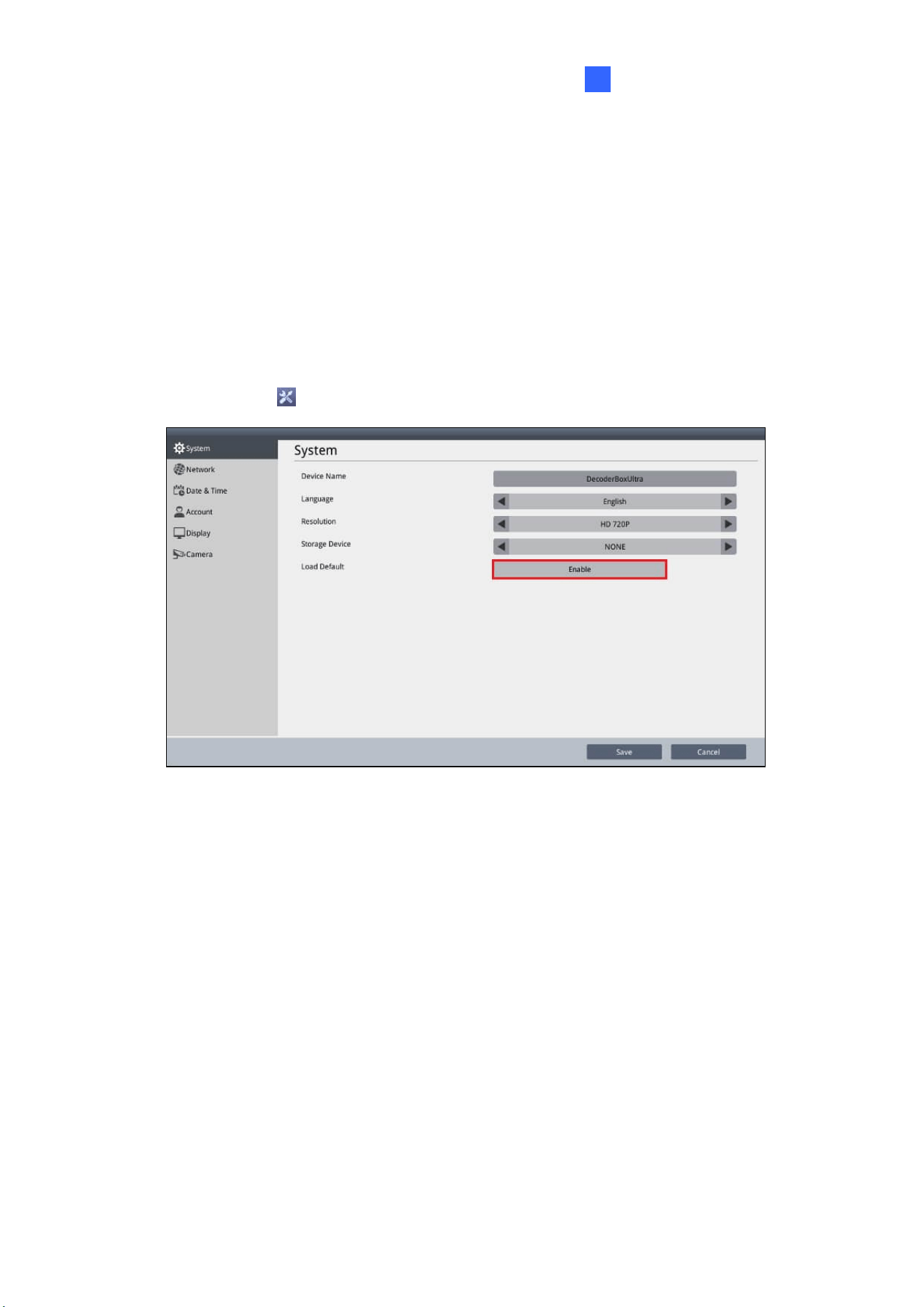

On the main screen, click the System Settings icon or to access the following
setting pages: System, Network, Date & Time, Account, Display, and Camera.
Note: The user interfaces are different by models. Find the relevant settings corresponding to
your device. Here we use GV-IP Decoder Box Ultra / GV-IP Display 101 as an example.
Figure 4-1
52
4.1 System
On the System page, you can change the device name, interface language, resolution, or the
designated storage device for storing snapshots.
Note: Capturing snapshots is not supported by GV-IP Decoder Box Lite.

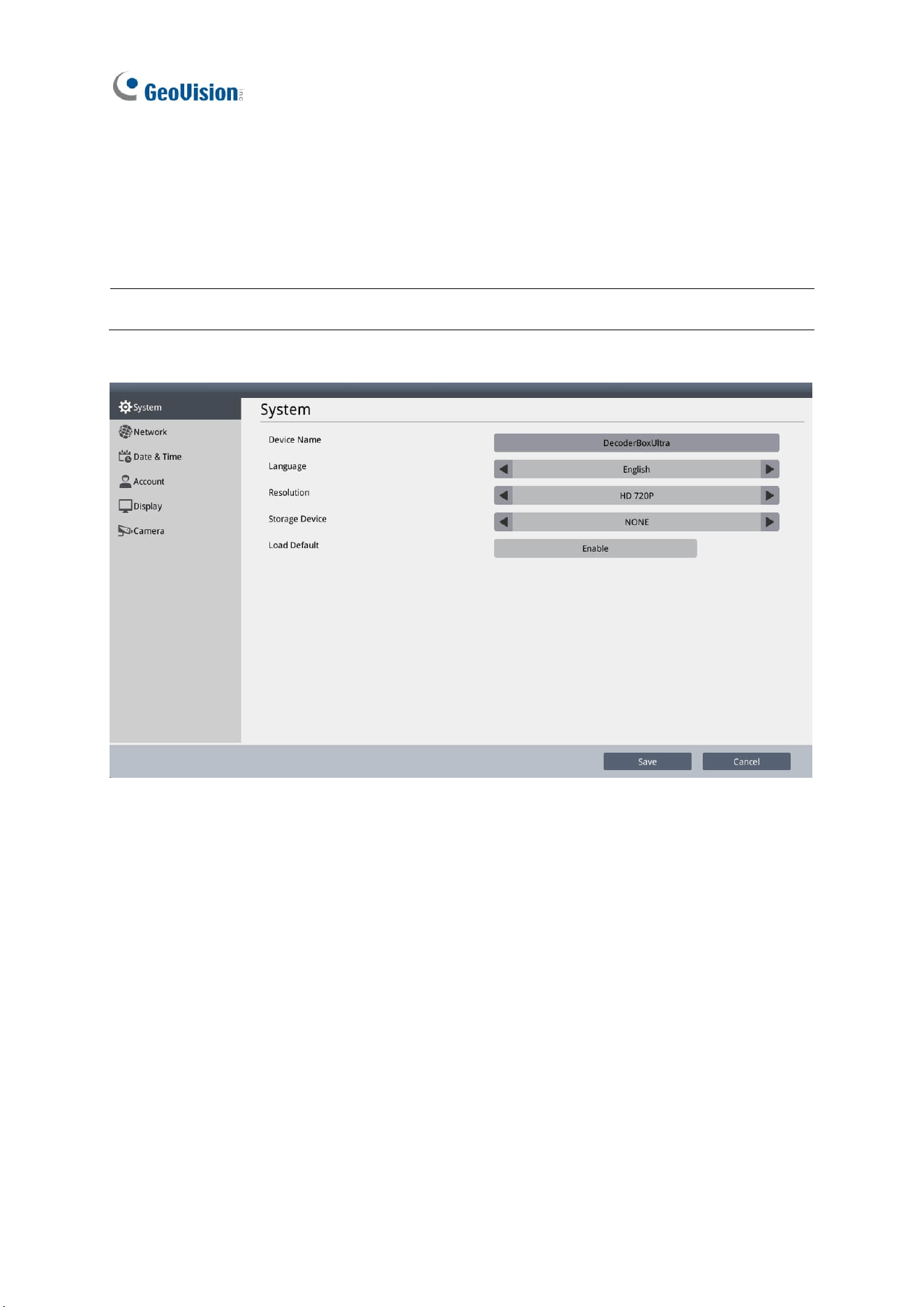

Figure 4-2
◼ Device Name: Click to change the device name.
◼ Language: Select a language for the user interface.
◼ Resolution: Only for GV-IP Decoder Box Series, select a resolution for your monitor.
The default is HD 720P. If you are using a VGA monitor, select VGA 1024 x 768 / HD
1080P.
◼ Storage Device: Select the storage device you want to use for storing captured
snapshots.
◼ Load Default: Only for GV-IP Decoder Box Optimal / Ultra and GV-IP Display 101 / 116,
click Enable to restore the device to default settings. For details, see 5.2 Restoring
Default Settings.
Click Save to apply the settings.
System Settings
53
4
4.2 Network
To configure the network settings for GV-IP Decoder Box Series / GV-Pad Mini / GV-IP
Display 101 / 116, see 2.5 Setting Up the Network.
4.3 Date & Time
On the Date & Time page, you can configure the date and time of GV-IP Decoder Box Series
/ GV-Pad Mini / GV-IP Display 101 / 116.

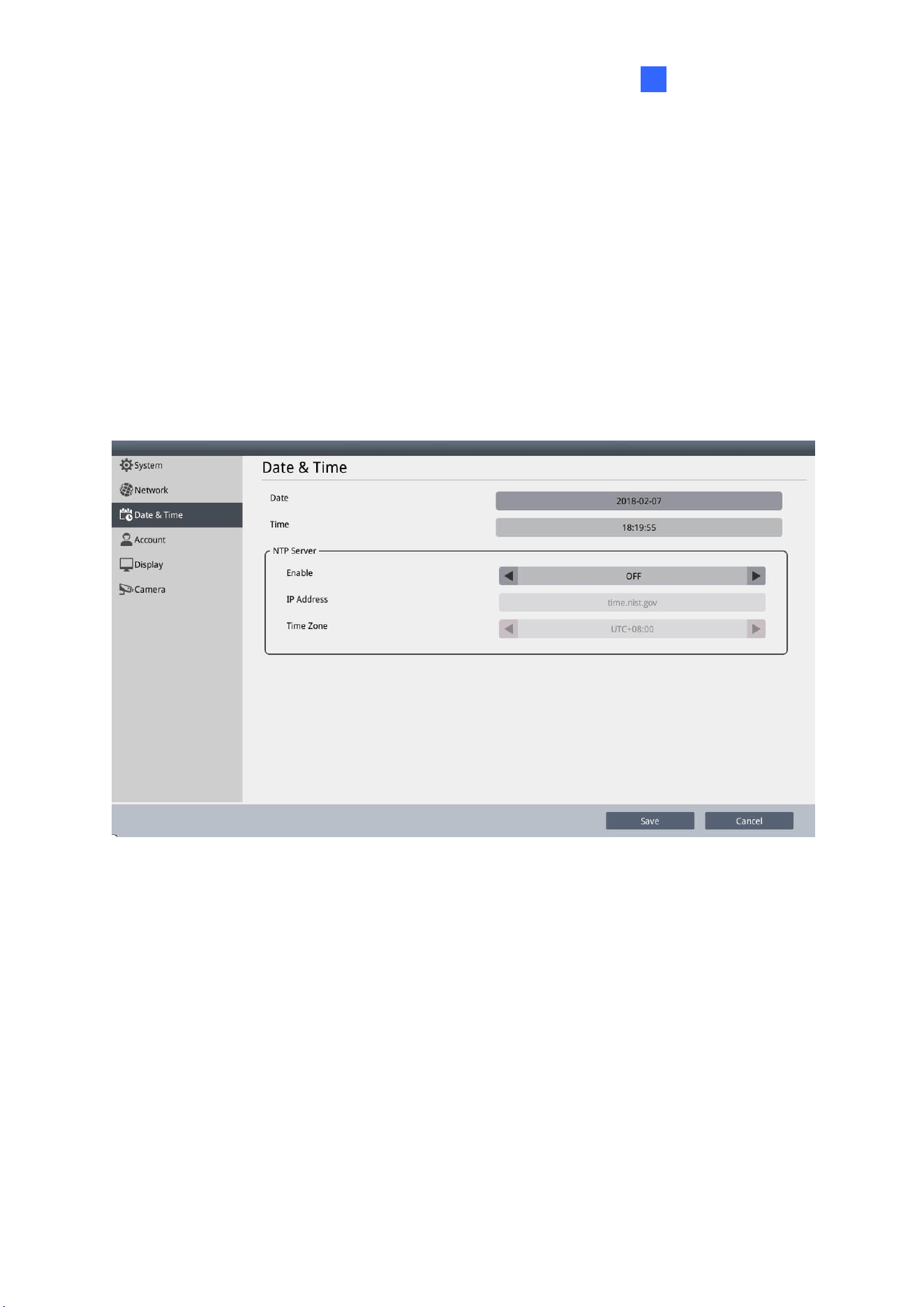

Figure 4-3
◼ Date & Time: Click to adjust the date and time.
◼ NTP Server: Switch the Enable option to ON or Select Enable NTP and type the URL
of a network time server to synchronize the clock with the network time server.
◼ Time Zone: Select a time zone for your location.
Click Save to apply the settings.
54

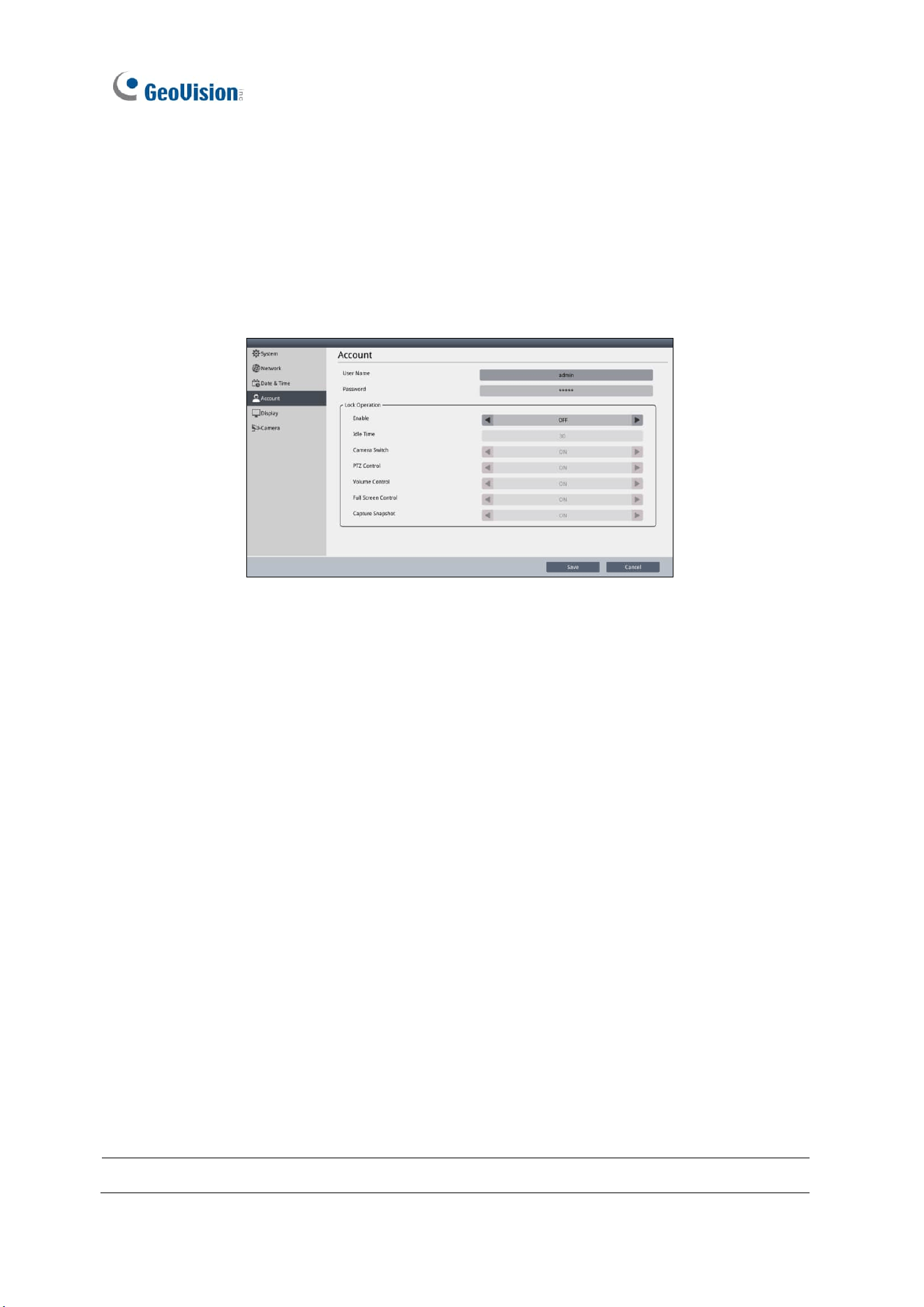

4.4 Account
On the Account page, you can configure the login account of GV-IP Decoder Box Series /
GV-Pad Mini / GV-IP Display 101 / 116. The default user name and password are both admin.
You will need the login information if you want to access the device through GV-IP Device
Utility.
Figure 4-4
Configure the lock function by enabling Lock Operation (for GV-IP Decoder Box Optimal /
Ultra / GV-IP Display 101 / 116) / Login window (for GV-IP Decoder Box Plus / Lite / GV-Pad
Mini) to manage users’ accessibility. Once you enable the function, you must enter the User
Name and Password if the device has been idle for a specified time period.
◼ Idle / Wait Time: Specify an idle time from 30 to 300 seconds.
Only for GV-IP Decoder Box Optimal / Ultra / Plus / GV-Pad Mini / GV-IP Display 101 / 116,
you can specify the following functions to be locked or unlocked after the specified time
period. Enter the User Name and Password again to unlock the functions.
◼ Camera Switch / Lock Play Control
◼ PTZ Control / Lock PTZ Control
◼ Volume Control / Lock Audio Control
◼ Full Screen Control / Lock Full screen
◼ Capture Snapshot / Lock Capture Snapshot
◼ Lock Dewarp Control
◼ Video Rotate (only available for GV-IP Decoder Box Optimal / GV-IP Display 116)
◼ Video Flip (only available for GV-IP Decoder Box Optimal)
Note: The Lock Dewarp Control function is only available for GV-IP Decoder Box Plus.
System Settings
55
4
Click Save to apply the settings.

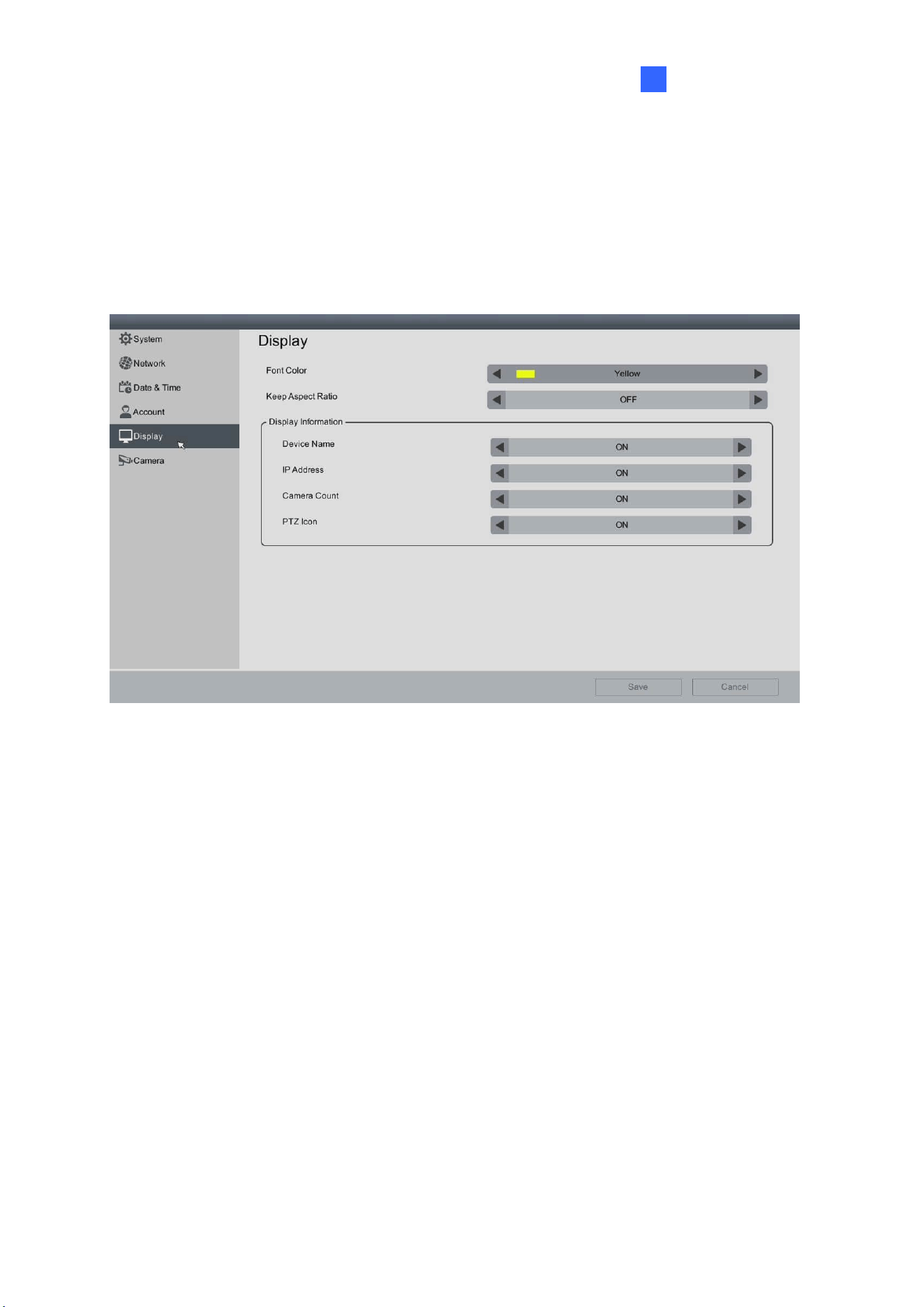

4.5 Display
On the Display page, you can adjust the orientation of the live view and specify what
information to overlay on the live view.
Figure 4-5
◼ Font Color: Change the font color of the text overlay.
◼ Keep Aspect Ratio: For GV-IP Decoder Box Ultra V1.05 or later, GV-IP Decoder Box
Optimal, GV-IP Display 101 V1.01 or later, GV-IP Display 116 only, select ON to avoid
enlarging the live view image to fit your screen size. This applies to all cameras
connected.
◼ Device Name / Display Name: Select to display the device name of the camera.
Camera Name: Select to display the camera name.
Custom Name: Select to display the personalized camera name.
◼ IP Address / Display IP Address: Select to display the IP address of the camera on
the live view.
◼ Camera Count / Display Camera Count: Select to display the camera count of the live
view grid. For example, 7/8 indicates that there are 8 cameras assigned to the live view
grid, and live view of the 7
th
camera is currently being displayed.
◼ PTZ Icon / Display PTZ Icon: Select to display a PTZ icon when the camera supports
PTZ functions.
56
◼ Extend Screen: Select Enable to cast the cameras’ live view in single division on the
monitor connected via VGA port. When disabled, the cameras’ live view on the monitor
connected via the HDMI port will be cast to the other monitor simultaneously. (Only
applicable to GV-IP Decoder Box Optimal).
◼ Loop Time Interval: Specify a time interval, ranging from 10 ~ 600 seconds, for the
device to display before switching to the next one when Extend Screen is enabled. The
default value is 10 seconds.
Click Save to apply the settings.
Note: After enabling / disabling the Extend Screen function, the device will reboot.
4.6 Camera
On the Camera page, you can specify an ID, password, stream mode and loop time interval
to all newly-added IP devices. By default, user name and password both are admin and
stream mode is Dual Stream.
Figure 4-6
Click Save to apply the settings.
Note: The stream mode and loop time interval functions are only available on GV-IP
Decoder Box Optimal / Ultra and GV-IP Display 101 / 116.
Advanced Applications
57
5

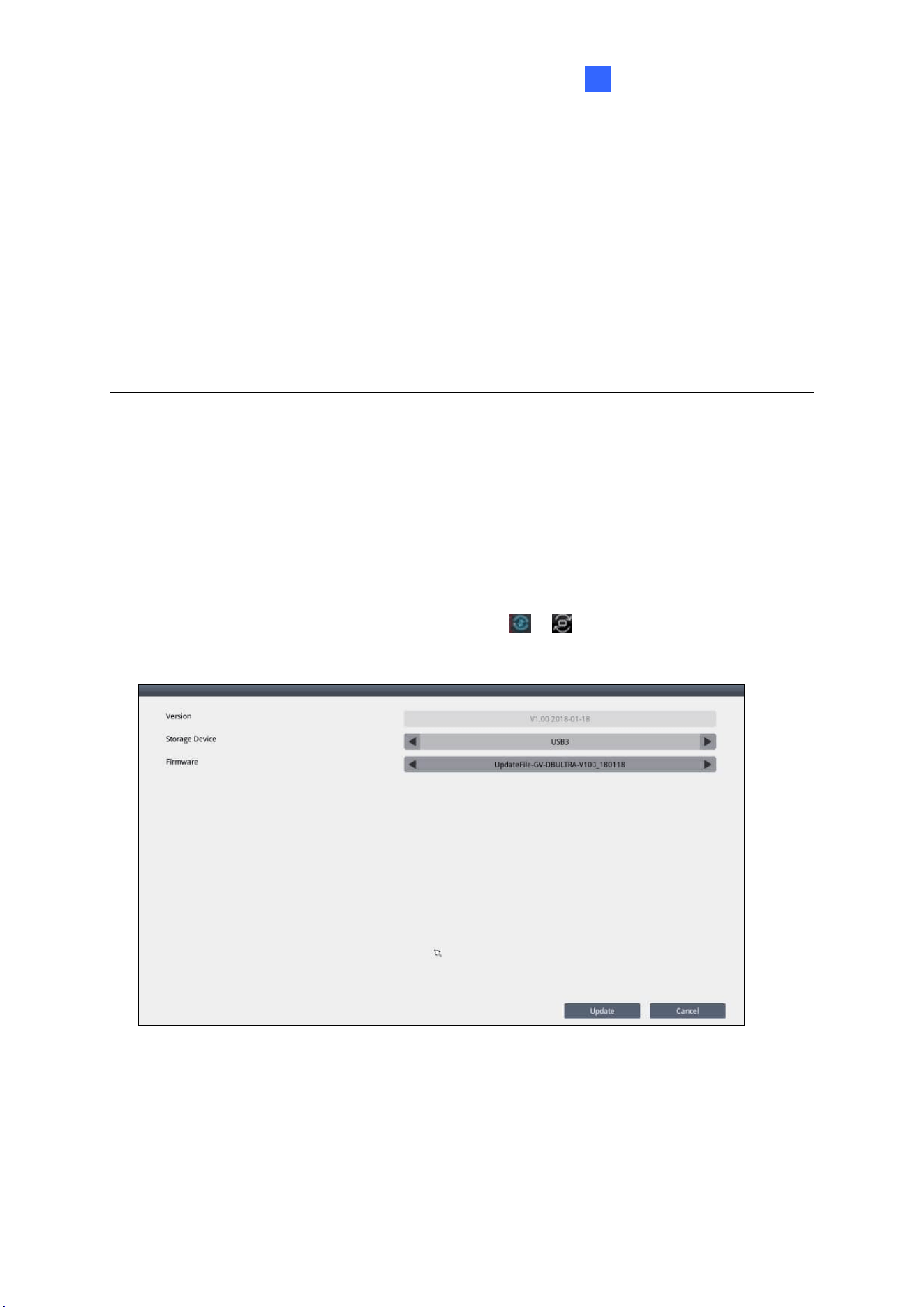

Chapter 5 Advanced Applications
5.1 Upgrading the Firmware
GeoVision will periodically release firmware updates on the website. You can upgrade
firmware locally using a USB drive or SD card or remotely through GV-IP Device Utility.
Note: SD card is not supported by GV-IP Decoder Box Lite.
5.1.1 Upgrading Firmware through a Storage Device
1. Copy the firmware file to the root folder of a USB drive or an SD card.
2. Insert the storage device to GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101
/ 116.
3. On the main screen, click the Firmware Update / icon.
4. Select the storage device and select the firmware file.
Figure 5-1
5. Click Update to begin upgrading the firmware. GV-IP Decoder Box Series / GV-Pad Mini /
GV-IP Display 101 / 116 will restart after the firmware upgrade is completed.
58

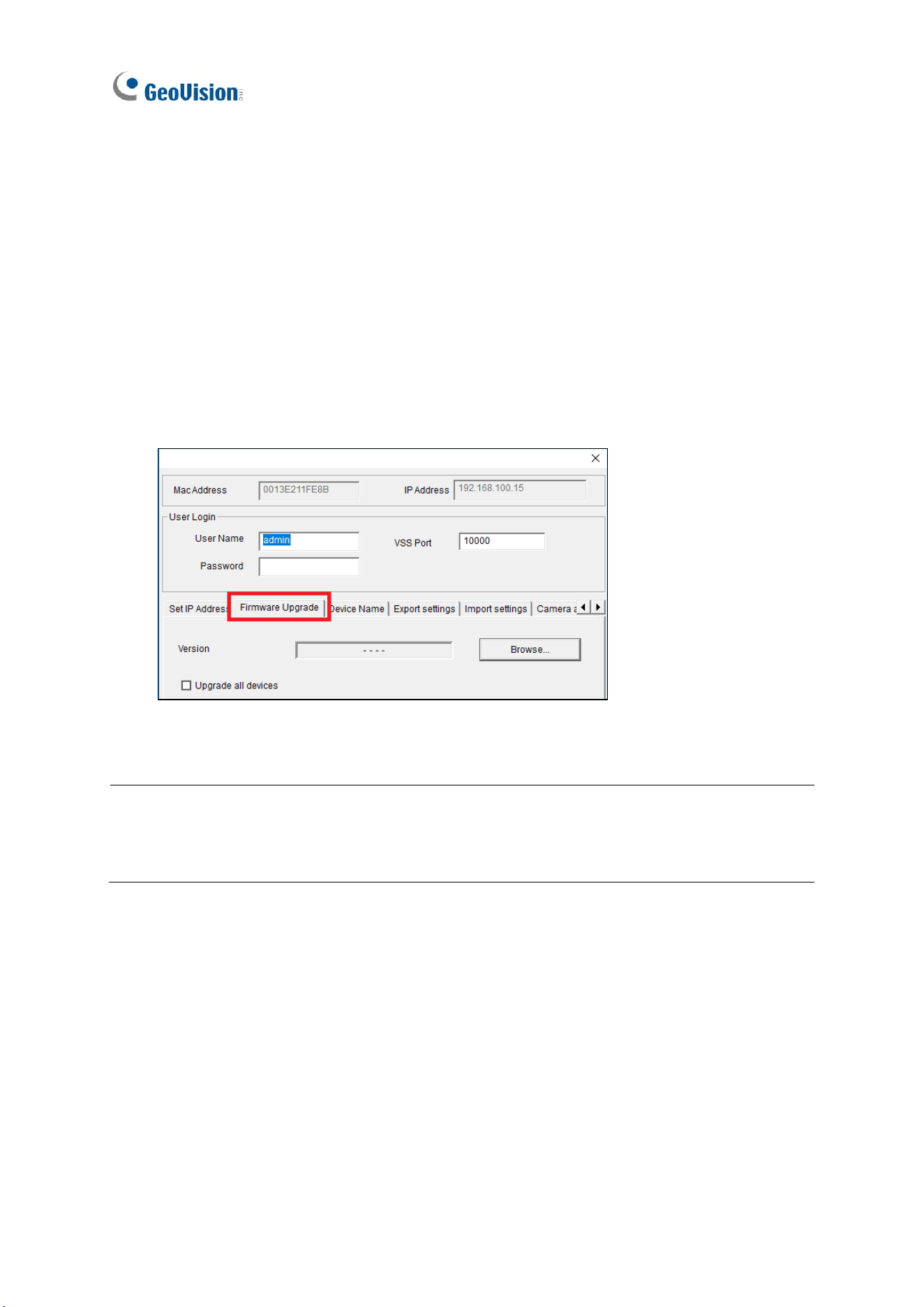

5.1.2 Upgrading Firmware through GV-IP Device Utility
1. Run GV-IP Device Utility. Once started, the utility will automatically search for GV
devices connected in the same LAN.
2. Double-click the desired device in the list and select the Firmware Upgrade tab.
3. Click Browse to locate the firmware file downloaded saved on your local PC.
4. Type the username and password of the device under User Login.
5. Optionally, select Upgrade all devices to update the firmware of the devices, with the
same username, password and model, in the list.
6. Click Upgrade. The system will restart itself when the upgrade is completed.
Figure 5-2
Note: The default username and password are both admin. To see how to change the login
information of GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 / 116, refer to
4.4 Account.
Advanced Applications
59
5
5.2 Restoring Default Settings
If for any reason GV-IP Decoder Box Series / GV-Pad Mini / GV-IP Display 101 / 116 is not
responding correctly, there are two ways to restore the device to default settings.
1. Use the pin to press the load default button on the front / side panel for about 10 seconds.
2. Use the local interface to configure the setting.
• For GV-IP Decoder Box Optimal / Ultra / GV-IP Display 101 / 116, click the System
Settings icon on the main page, click System, and enable Load Default.
Figure 5-3
60
• For GV-IP Decoder Box Plus / Lite / GV-Pad Mini, click the System Settings icon
on the main screen and click the Load Default button on the bottom of any of the
setting pages.

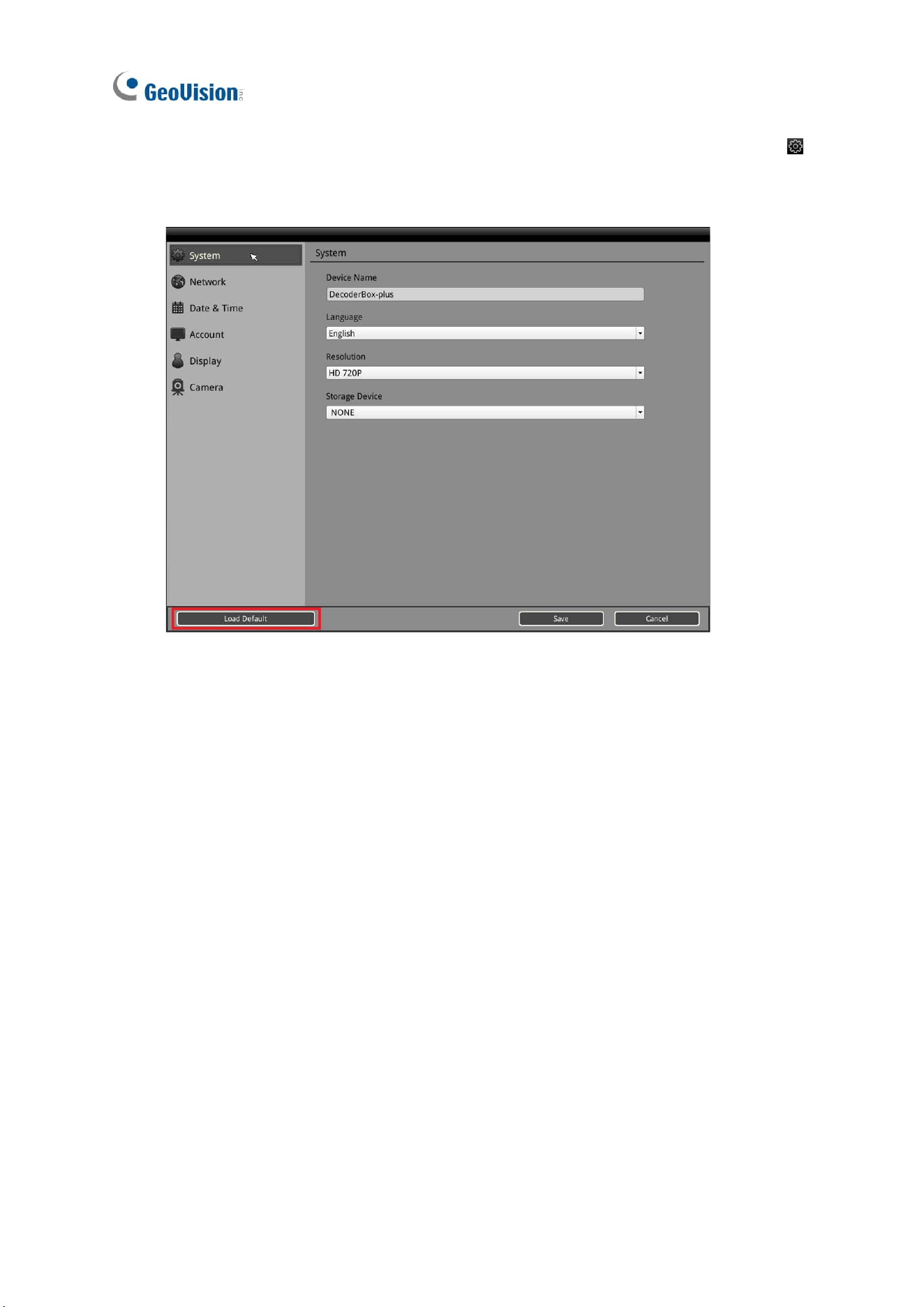

Figure 5-4
The system will restore default settings and reboot itself.
Integration to GV-Software
61
6
Chapter 6 Integration to GV-Software
GV-IP Decoder Box and GV-IP Display 116 can be added to GV-VMS and GV-Control Center
to be assigned with the desired camera channels and layouts for remote display.
Note:
1. This function is only supported by GV-IP Decoder Box Plus / Ultra (V1.02 or later) and
only compatible with GV-VMS (V17.4.0 / V18.1.0 or later) and GV-Control Center
(V3.8.0 / V4.1.0 or later).
2. GV-IP Decoder Box Optimal and GV-IP Display 116 only supports the integration with
GV-VMS (V17.4.5B / V18.3.1 or later) and GV-Control Center (V4.2.1 or later).
3. Make sure GV-IP device is within the same LAN as GV-VMS or GV-Control Center.
6.1 Connecting to GV-VMS
1. In the Content List of GV-VMS, (Home > Toolbar
> Content List), right-click
Decoder Box and select Add Decoder Box.

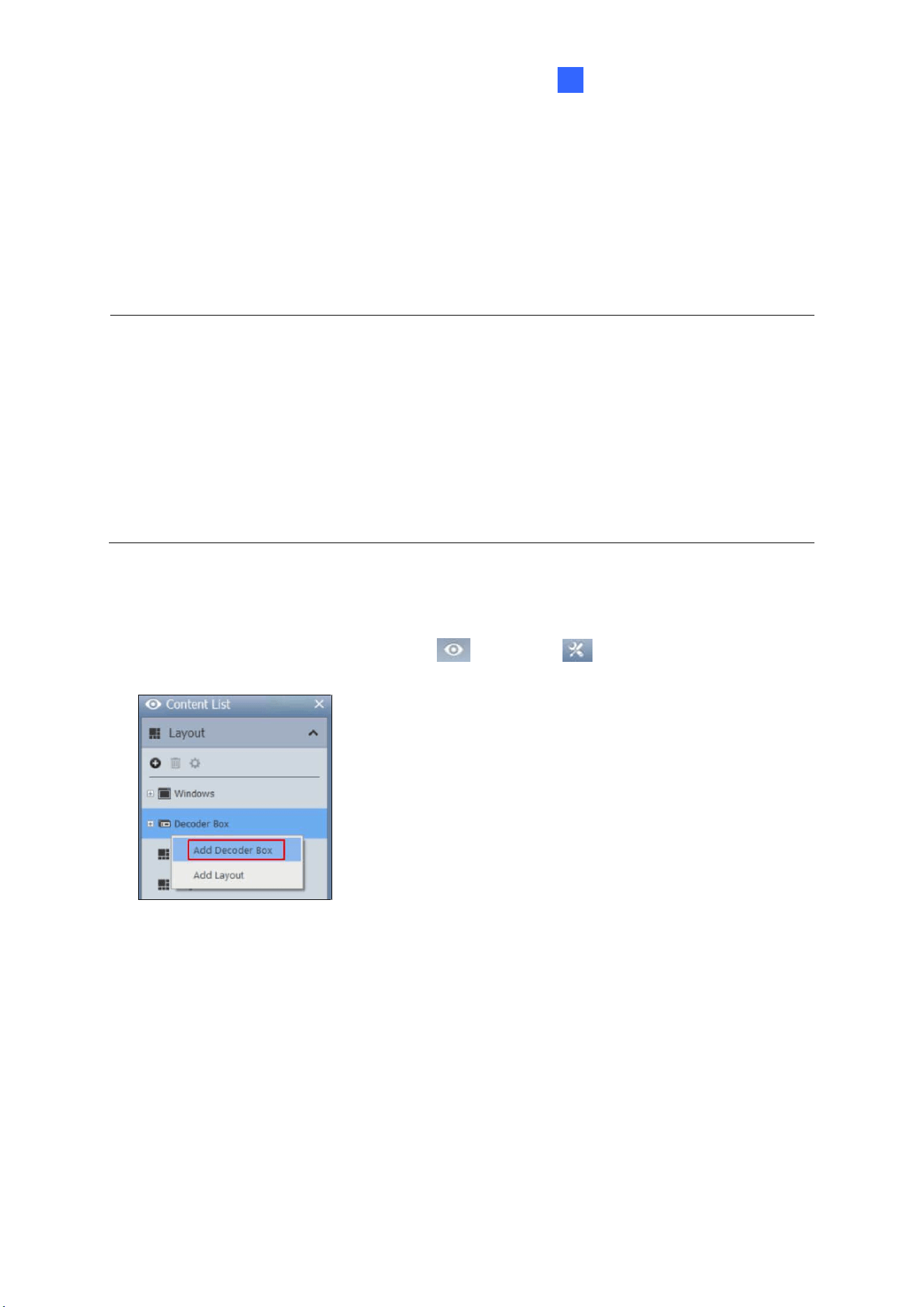

Figure 6-1
62
2. Type a desired Name for GV-IP Decoder Box you’re connecting to, its IP Address, Port,
ID and Password, and click OK to add it to GV-VMS.
Figure 6-2
3. Once added, you’re prompted to set the layout of GV-IP Decoder Box. Click OK. The
Layout Setup dialog box appears.
4. Select a desired layout at the top, and drag the desired camera channels of GV-VMS to
each of the layout divisions. When two or more camera channels are assigned to the
same division, their live views will be displayed within the division in sequential order.
Figure 6-3
5. Optionally select a camera channel within a division to adjust its display order or remove it
by using the Up , Down or Delete buttons.
6. Click OK. GV-IP Decoder Box added will display the camera channels assigned as
configured.
Integration to GV-Software
63
6

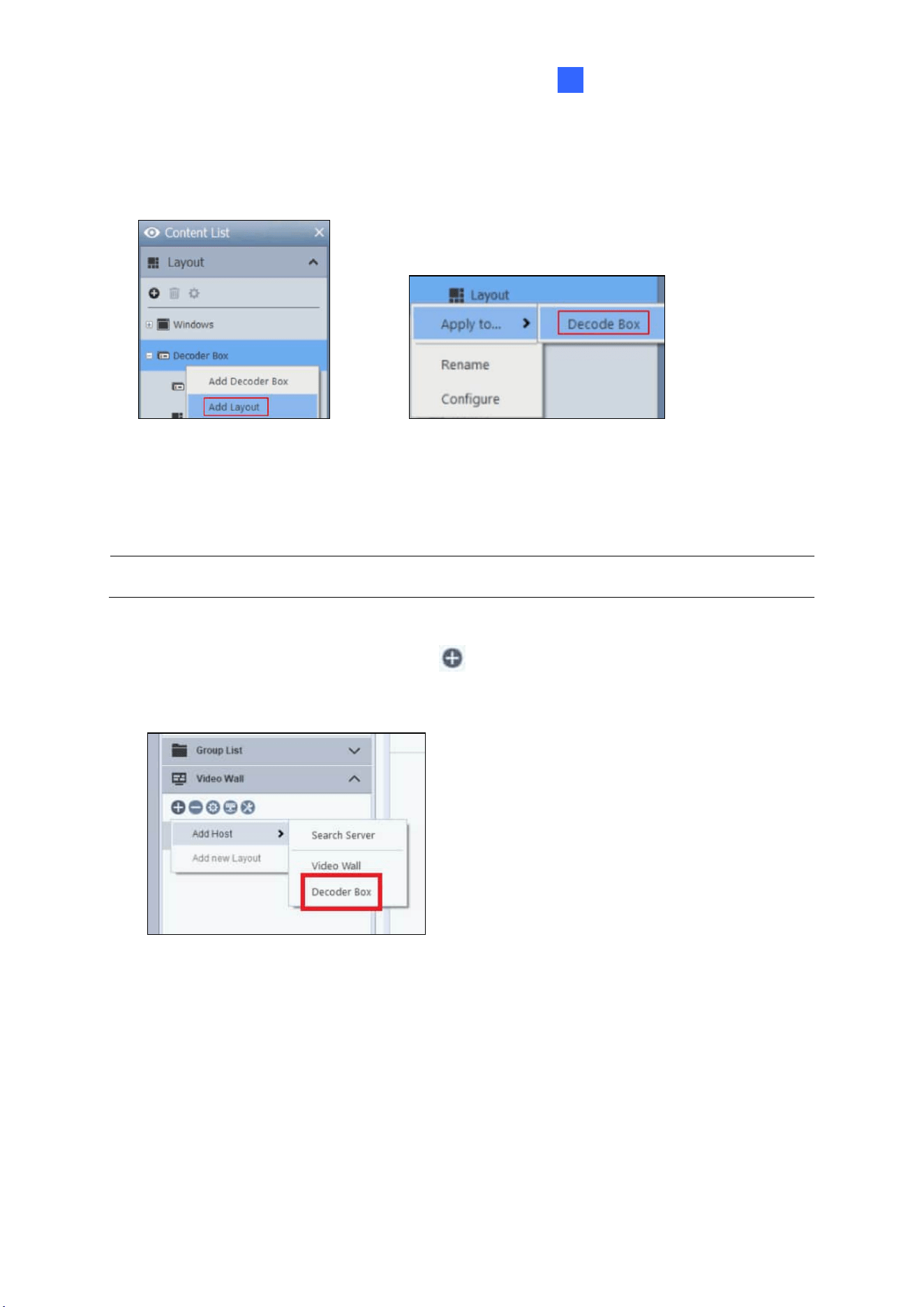

7. You can add more layouts for GV-IP Decoder Box and alternate between them by
right-clicking Decoder Box and clicking Add Layout. To apply a layout, right-click a layout,
click Apply to… and select the decoder box.
Figure 6-4 Figure 6-5
6.2 Connecting to GV-Control Center
Note: The following instructions are exemplified from GV-Control Center V4.1.0.
1. Click the Video Wall tab and click the button.
2. Click the Add Host > Decoder Box.
Figure 6-6
64

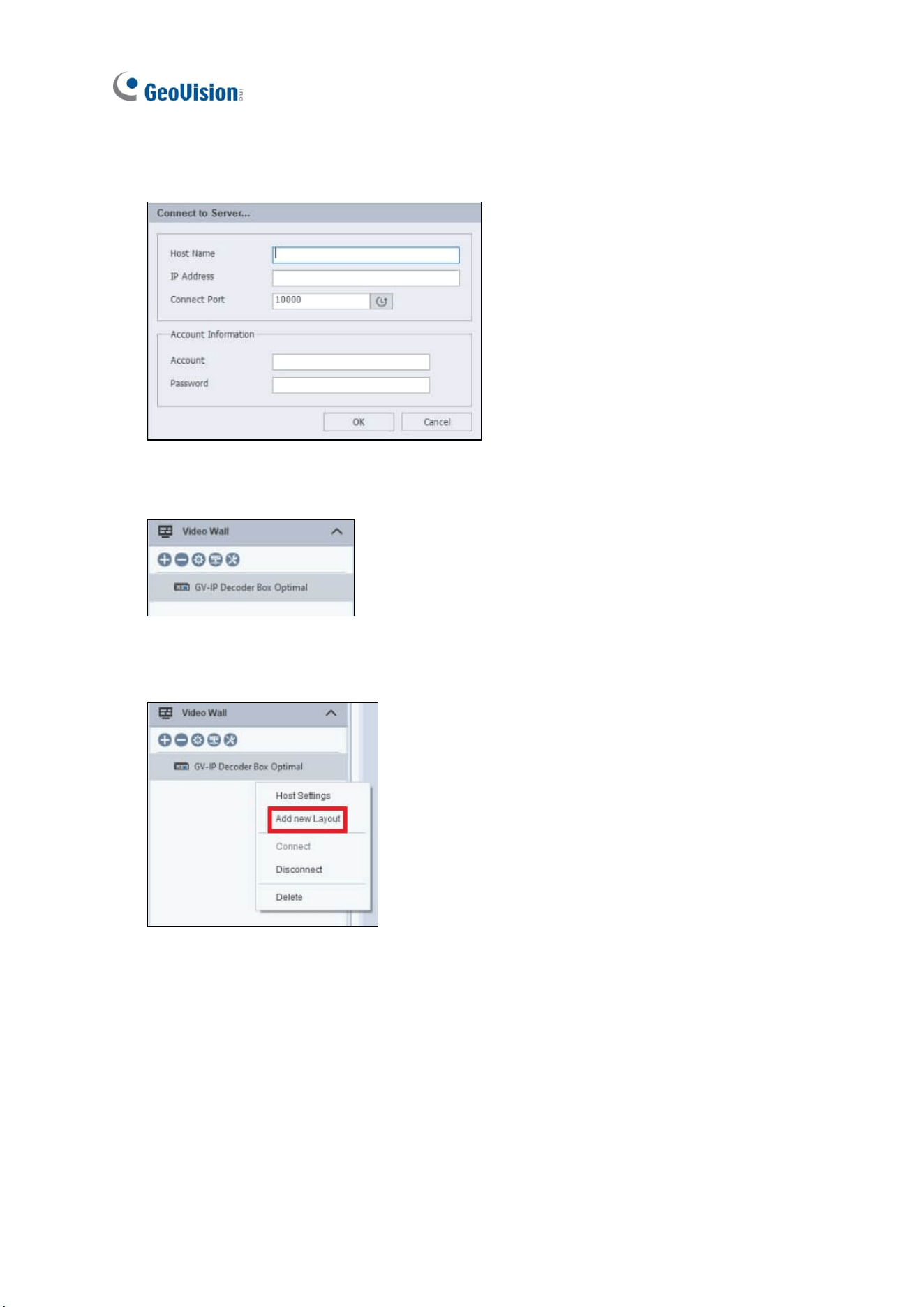

3. Type a desired Host Name for the GV-IP Decoder Box you’re connecting to, its IP
Address, Connect Port, Account and Password, and click OK.
Figure 6-7
4. Once connected, GV-IP Decoder Box will appear in the Video Wall list.
Figure 6-8
5. Right-click on the connected IP Decoder Box and select Add new Layout.
Figure 6-9
Integration to GV-Software
65
6

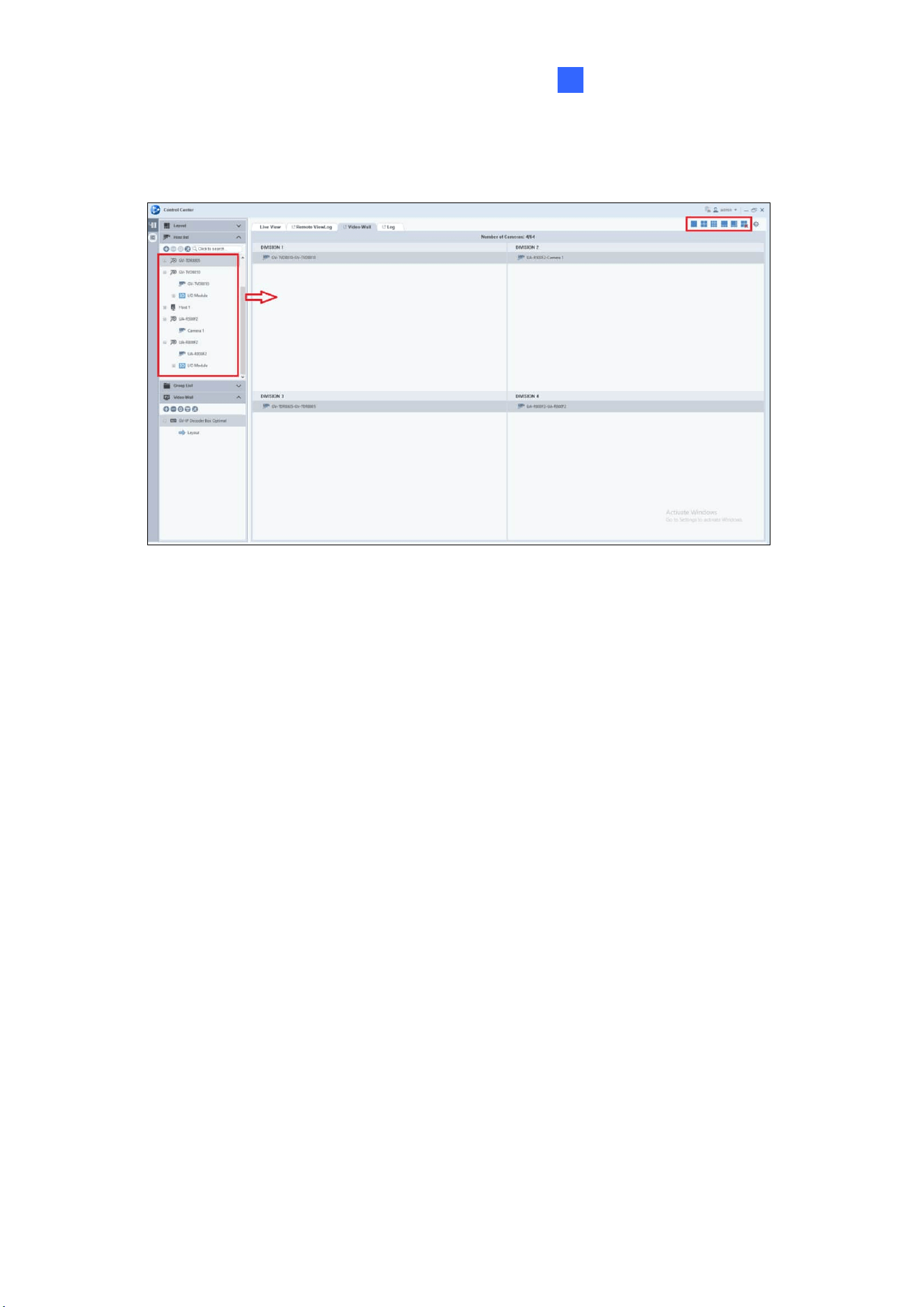

6. Select a desired layout at the top, and drag the desired camera channels to each of the
layout divisions.
Figure 6-10
7. Click OK. The GV-IP Decoder Box added will display the camera channels as
configured.
