High Priority
Low Priority Medium Priority
CZ
PL
Koble til en hensiktsmessig strømkilde.
PWR-lampen blinker til å begynne med. Vent til
PWR-lampen lyser kontinuerlig. Det angir at bryteren er
klar for bruk.
Anslut till en lämplig strömkälla.
Vänta till PWR-lampan lyser med ett fast sken. När
PWR-lampan inte längre blinkar är enheten redo att
användas.
Liitä laite yhteensopivaan virtalähteeseen.
Odota kunnes PWR-valo palaa tasaisesti. Kun PWR-valo
ei vilku, laite on käyttövalmis.
Připojte do odpovídajícího zdroje energie.
Počkejte, dokud kontrolka PWR nezačne trvale svítit.
Pokud kontrolka PWR nebliká, zařízení je připraveno k
provozu.
Podłącz do odpowiedniego źródła zasilania.
Poczekaj, aż lampka PWR zaświeci się stale. Gdy lampka
PWR nie miga, urządzenie jest gotowe do użycia.
NO
SE
FIFI
Connect to an appropriate power source.
The PWR light initially blinks. Wait for the PWR light to
turn steady on, indicating the Switch is ready for use.
Connect to a modem or router that has internet access.
An eine geeignete Stromquelle anschließen.
Warten Sie, bis das PWR-Licht dauerhaft leuchtet. Wenn
die PWR-Anzeige nicht blinkt, ist das Gerät betriebsbereit.
Connectez-vous à une source d'alimentation appropriée.
Le voyant PWR se met tout d'abord à clignoter. Attendre
que le voyant PWR s'allume en continu, indiquant que le
commutateur est prêt à être utilisé.
Collegare ad una fonte di alimentazione appropriata.
La luce di accensione all'inizio lampeggia. Attendi che sia
fissa, che significa che lo Switch è pronto all'uso.
EN
FR
IT
DE

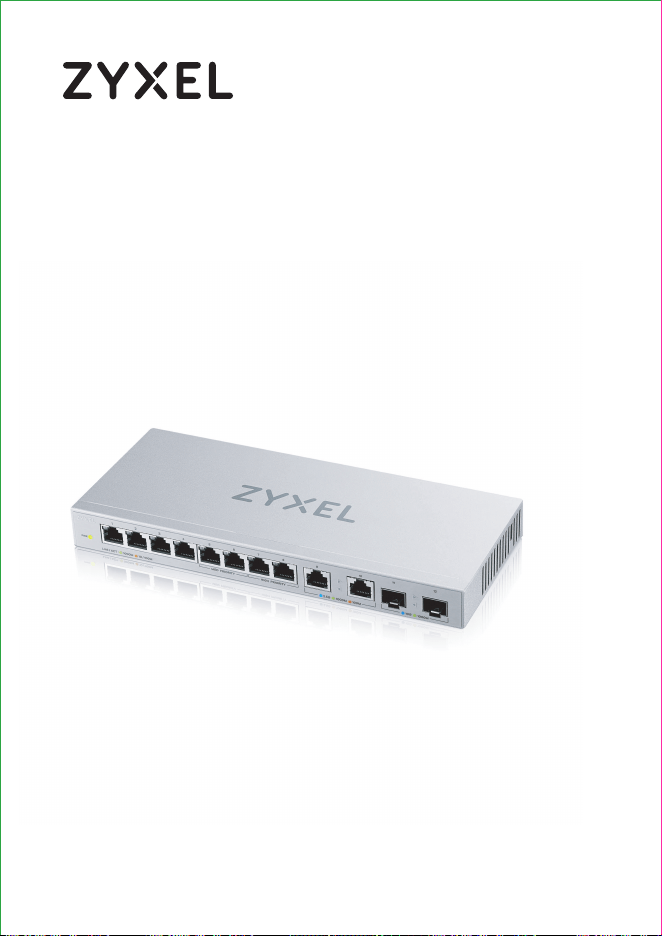

XGS1010-12
12-Port Unmanaged Multi-Gigabit Switch
with 2-Port 2.5G and 2-Port 10G SFP+
Declaration of Conformity
Safety Warnings
QSG
DoC
XGS1010-12
Package Contents
Hardware Installation
1
DC 12V
DC 12V
Power outlet
1
11
2
3
4
5
6
7 8
9
0
11 1
12
PWR
Lin k / ACT
100 0M 10 / 10 0M
:
M
ED PR IORIT Y
2.5 G 100 0M 100 M 10G 1000 M
HIG H PRIOR ITY
PC VOIP
Phone
IPTV 2.5G Router/AP
2.5G Gaming PC
10G NAS
Core
Backbone
International Power Adapter
ENGLISH | DEUTSCH | FRANÇAIS | ITALIANO
NORSK | ESPAÑOL | SUOMI | ČEŠTINA | POLSKI
Quick Start Guide
+ 66 2831 5315
Thailand Taiwan
+ 886 2 2739 9889
retail@zyxel.com.tw
Support Information
USA
+ 1 800 255 4101
EU, Turkey and Russia
https://support.zyxel.eu
LEDs
PWR
Green
On - Switch Ready
Off - Switch Off
Off - No Connection
Blue
On - 2.5 Gbps connection ready
Off - No Connection
Ports 1-8
LINK/ACT
Amber
On
Blinking - Data transmitting
Blinking - Switch Starting
Green
On
Blinking - Data transmitting
Blinking - Data transmitting
- 1000 Mbps connection ready
- 10/100 Mbps connection ready
Green
On
Blinking - Data transmitting
- 1000 Mbps connection ready
Amber
On
Blinking - Data transmitting
- 100 Mbps connection ready
Blue
On - 10 Gbps connection ready
Off - No Connection
Blinking - Data transmitting
Green
On
Blinking - Data transmitting
- 1000 Mbps connection ready
Ports 9-10
(Left LED)
(Right LED)
Ports 11-12
(Left LED)
(Right LED)
Copyright © 2020 Zyxel Communications Corp. All Rights Reserved.
EU Importer
Zyxel Communications A/S
Gladsaxevej 378, 2. th. 2860 Søborg, Denmark
US Importer
Zyxel Communications, Inc
1130 North Miller Street Anaheim, CA 92806-2001
https://www.zyxel.com/us/en/
https://www.zyxel.com/dk/da/
