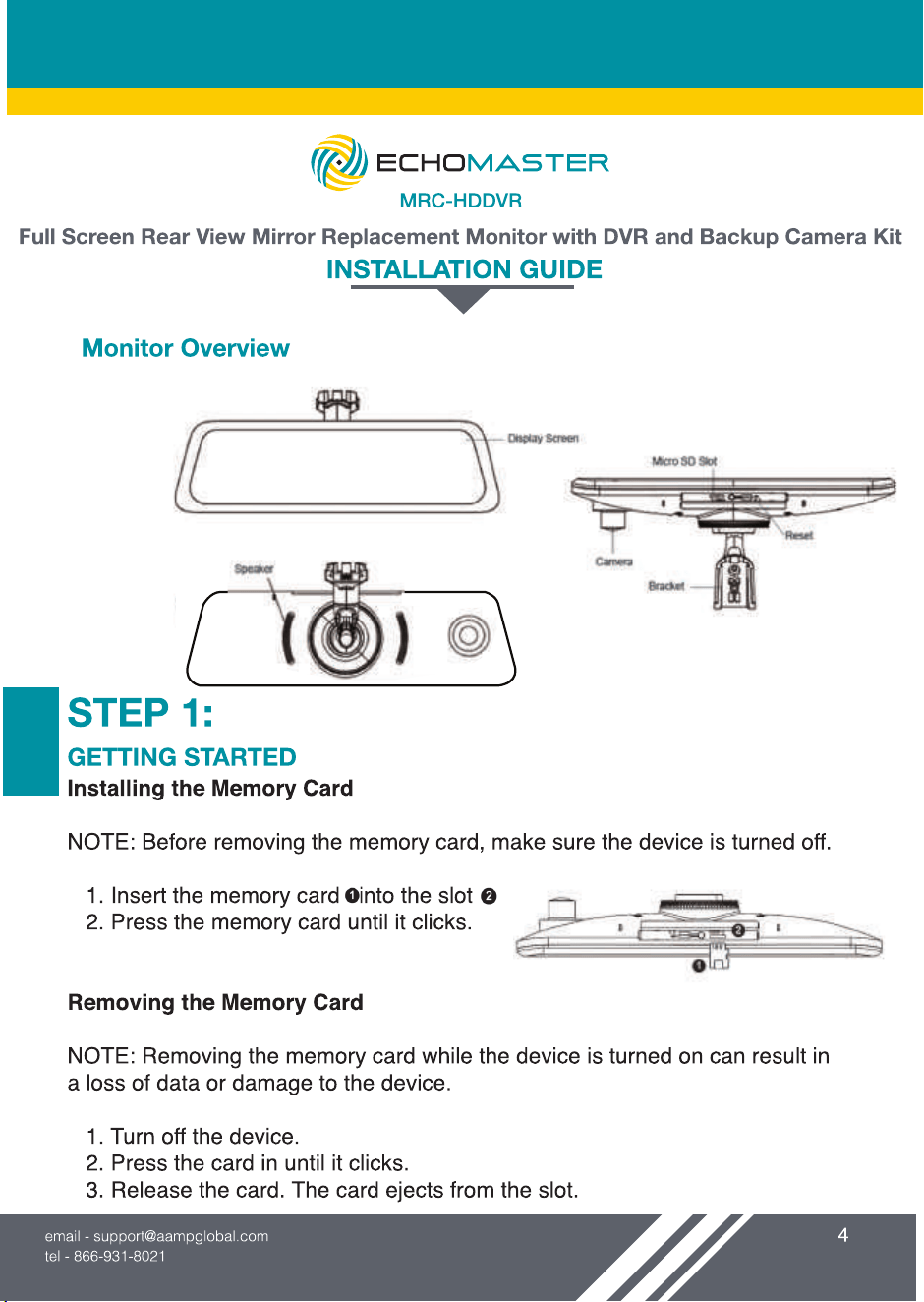

MRCHDDVR2

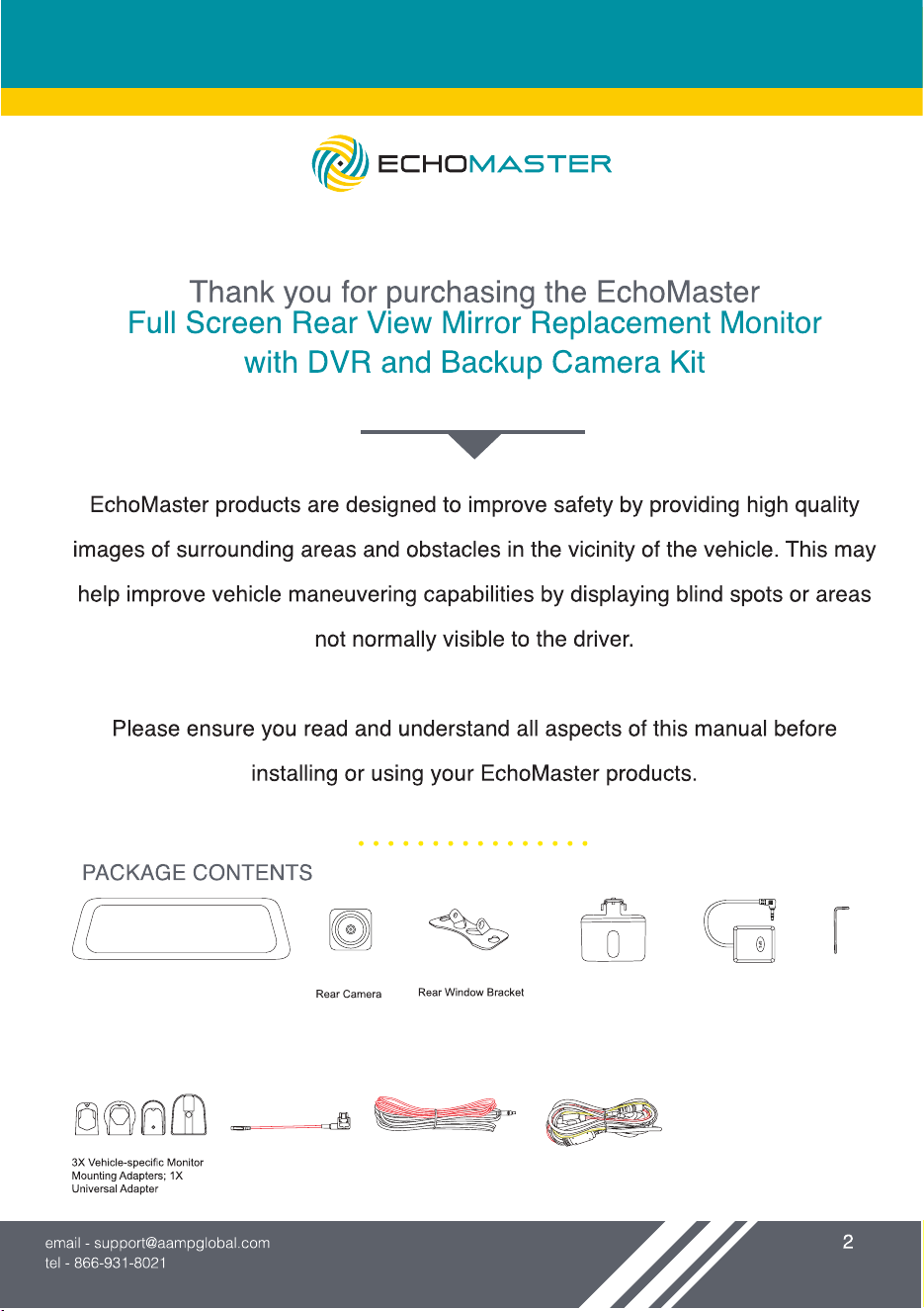

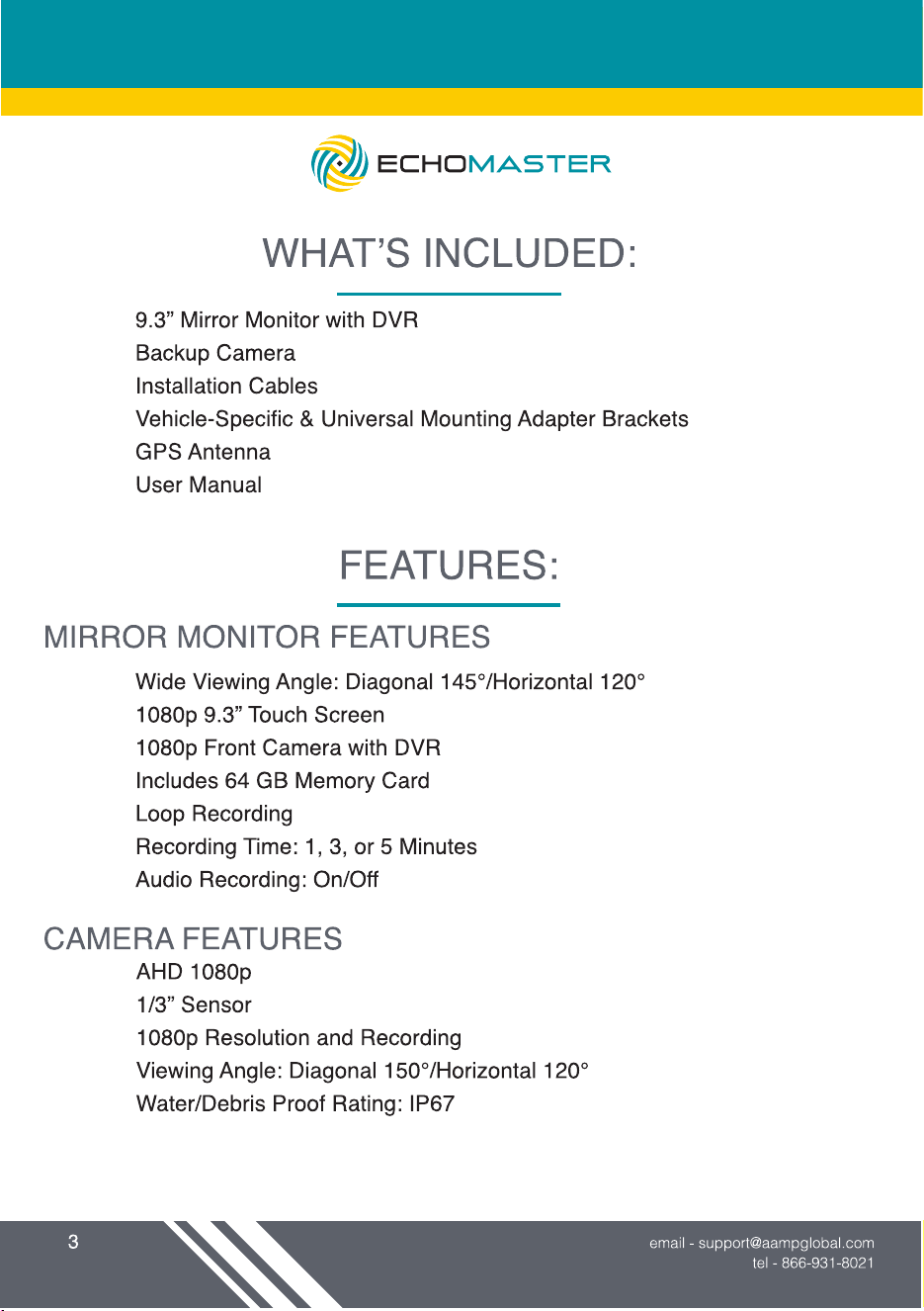

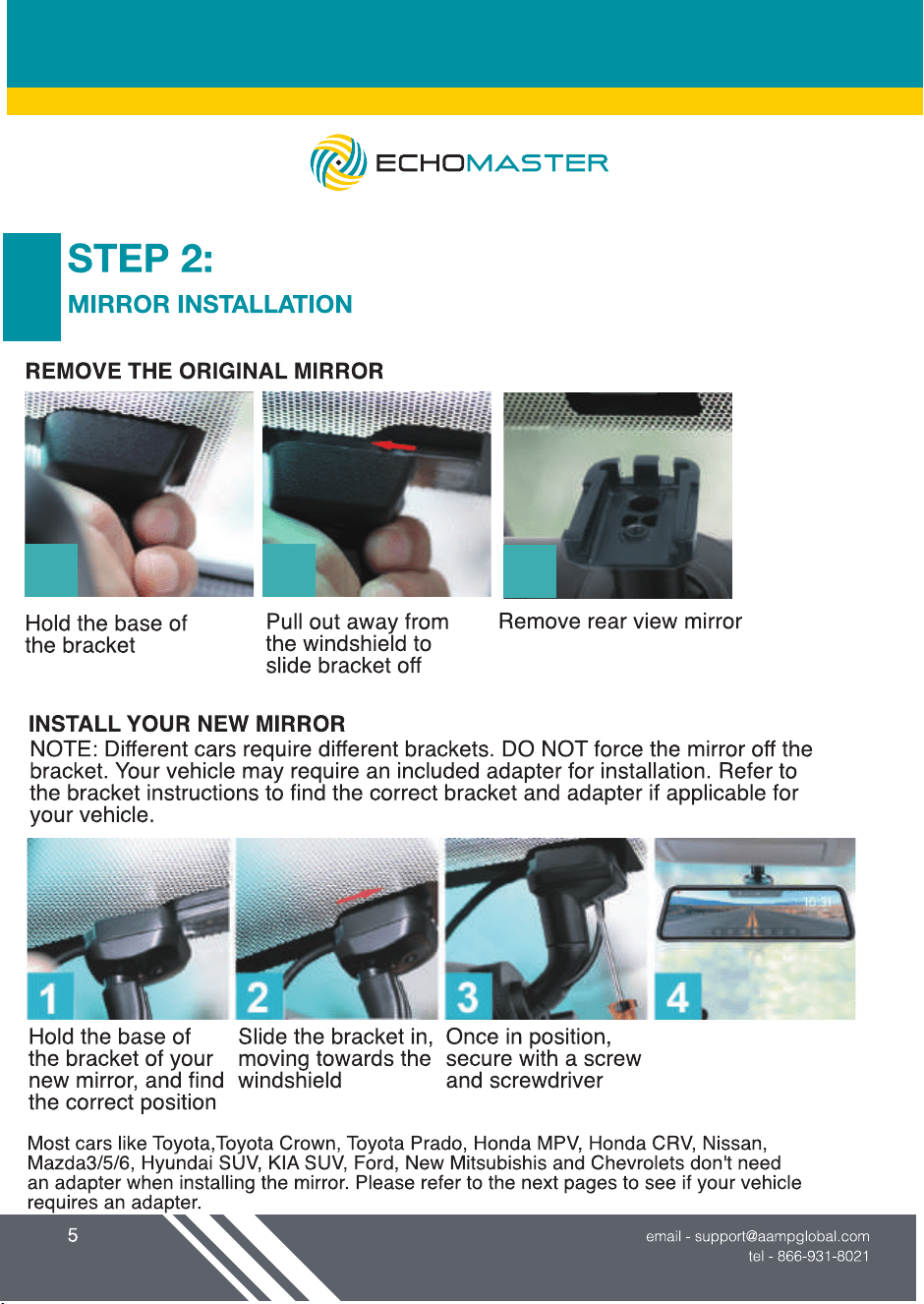

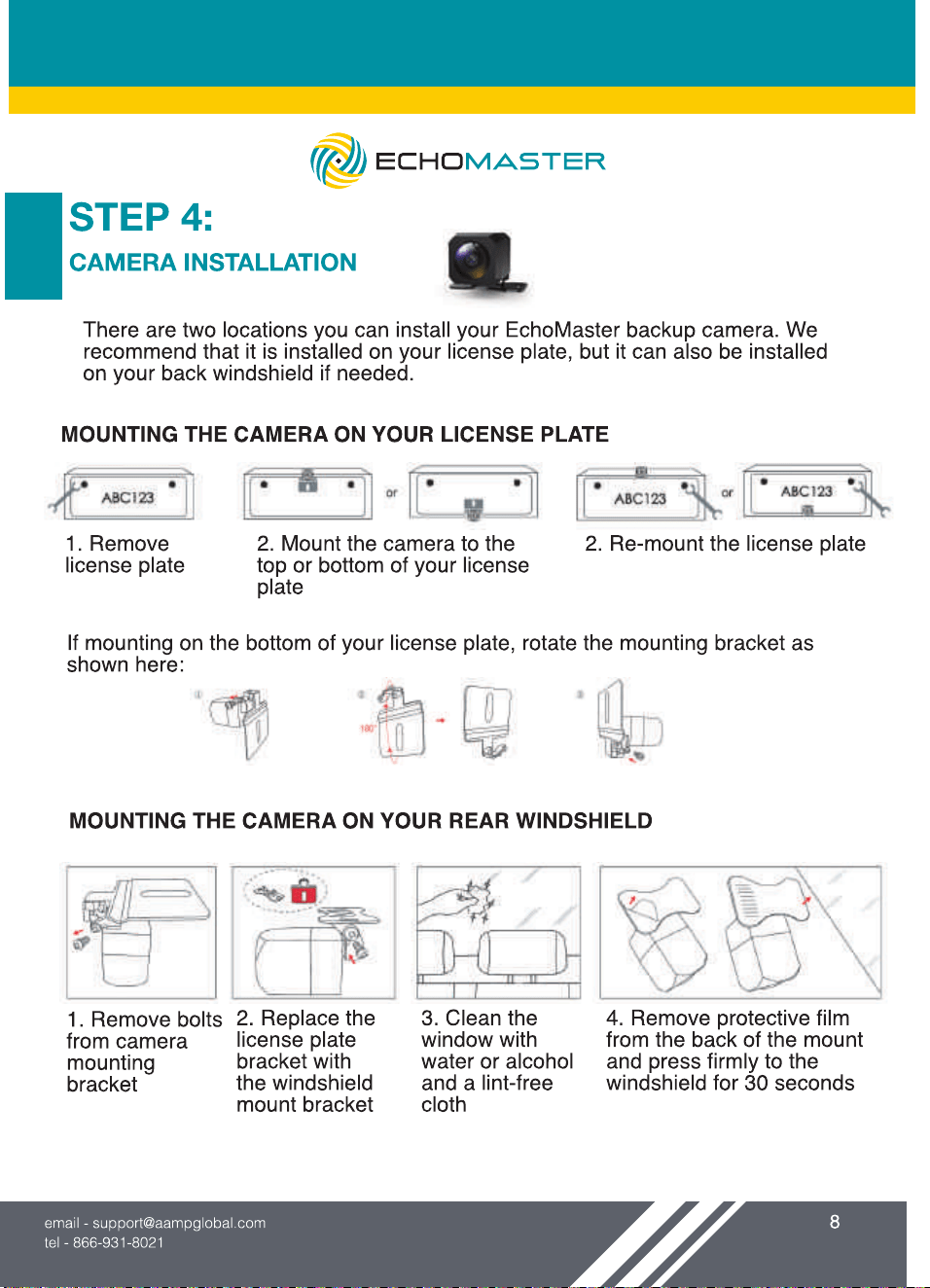

Mirror Dash Camera Rear CameraC ar Rear Window Bracket License Plate Bracket
Wrench

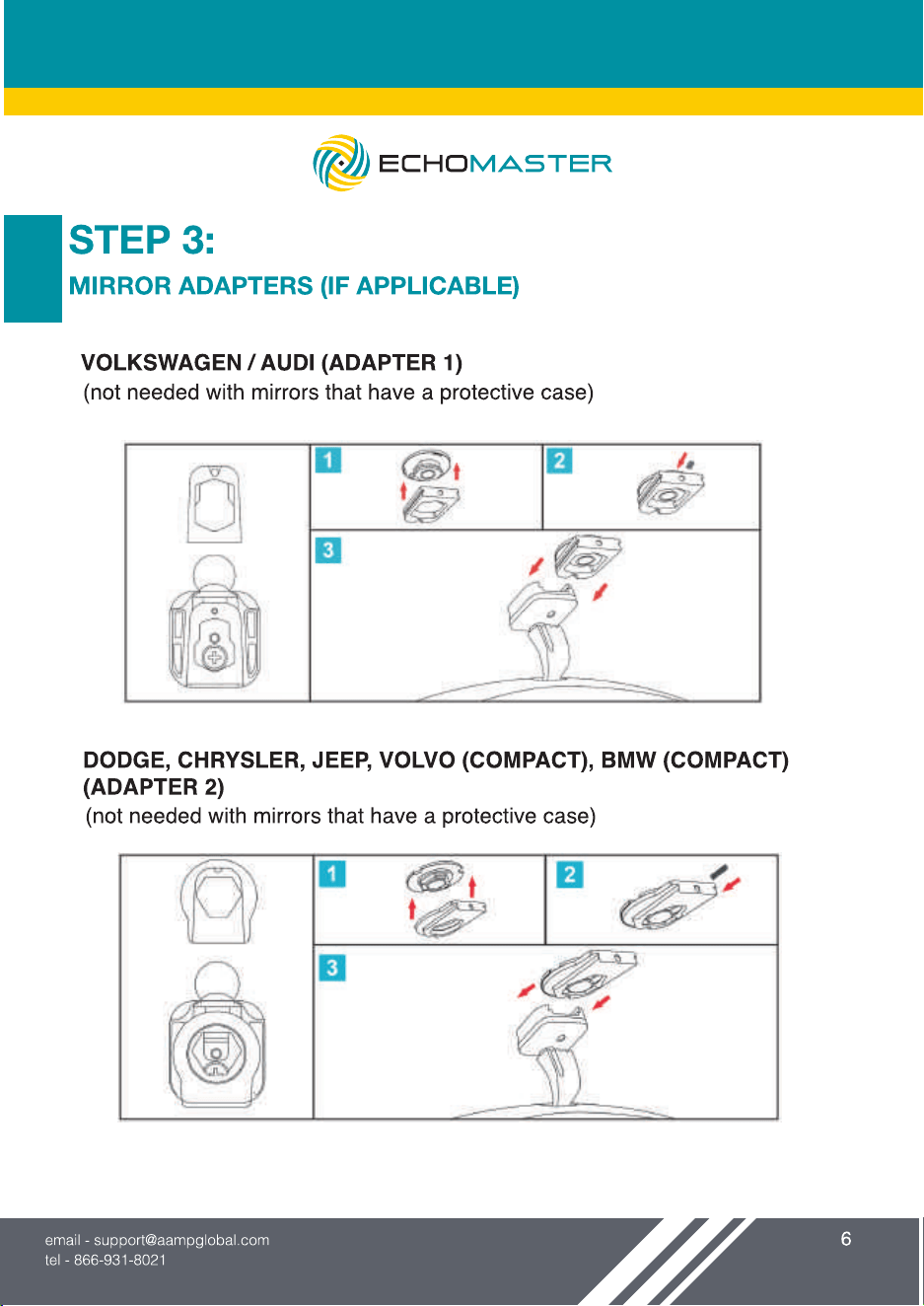

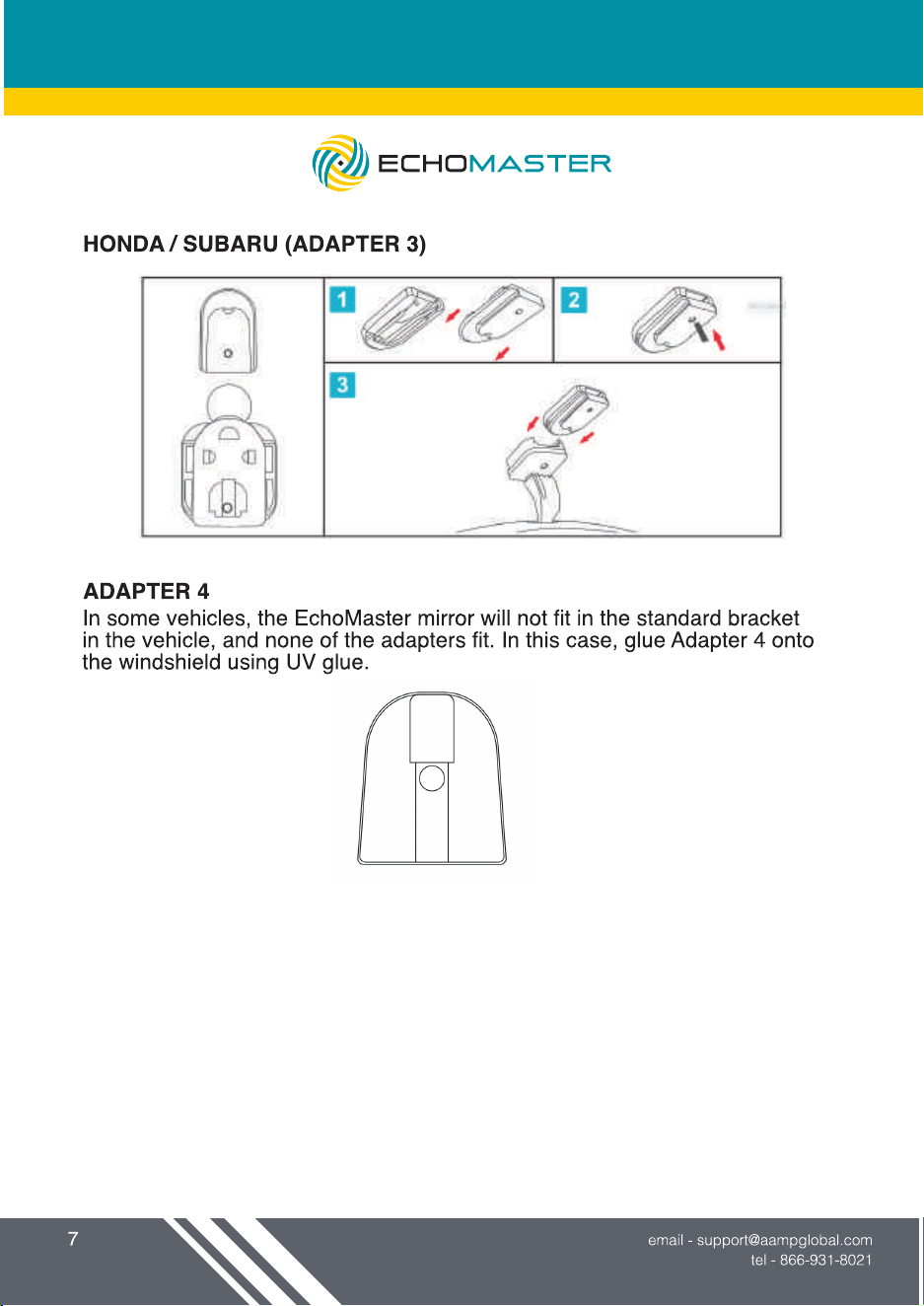

4X Vehicle-Specific
Monitoer Mounting
Adapters 1X Universal
Adapter

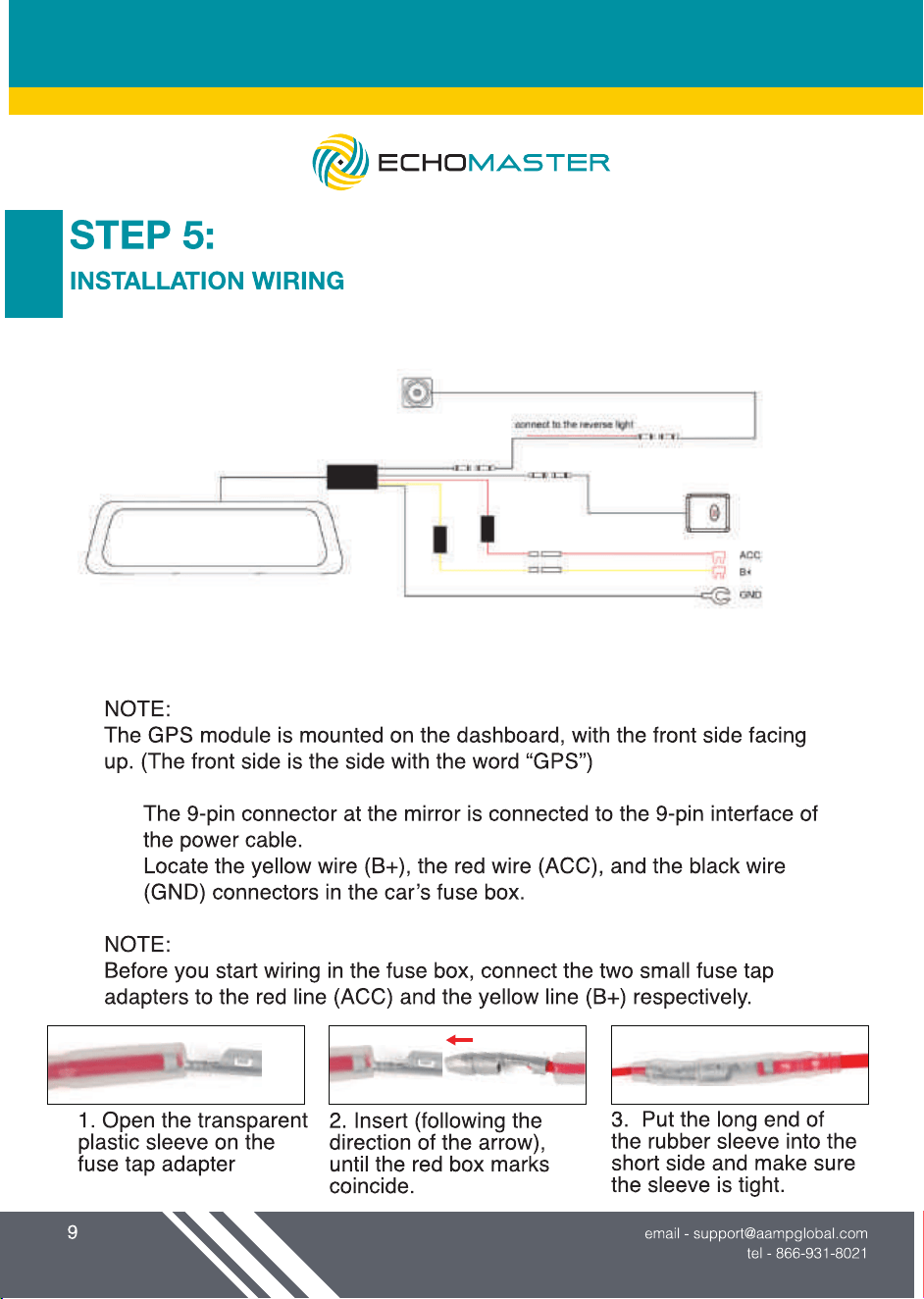

Micro Fuse Tap Adapter x2
GPS Antenna
Video Cable
Power Cable
21
3
Beep
Volume
Turn on or off the keytone
Turn off speaker or set a desired volume for speaker
On / Off
Off / High / Middle / Low
Clock Settings Set date and time Time; Date & Year ;
Date Format
Set a desired date format
YYYY MM DD
/
MM DD YYYY
/
DD MM YYYY
Time Format Set a desired time format 12 hours / 24 hours
Protect Level Set the desired sensitivity level for detection of a collision Off / High / Middle / Low
Language Set the on-screen display menu language Multilanguage, English(default)
Speed Unit Set the desired speed unit
km / h; mph
LCD Power Save
Set the desired duration for backlight, always "Off" or
shutdown within a specific time
Off / 1 Minute / 3 Minutes
Automatic Rear View
On / Off
Once this mode is activated, the device will automatically
switch over to rear view within 30 sec.
GPS Time Sync
Receive actual time from the satellite and then automatically
adjust the time on the device
On / Off
Menu Options Description
Available Options
------Time Zone Select an appropriate time zone manually
------FW Version
Firmware Version
Yes / No
Format SD-Card
Format a memory card(All data will be erased)
Restore all settings to the factory default values
Yes / No
Reset Setup
12
Memory Card Size
8GB
16GB
32GB
64GB
1.5H
3H
7H
14H
1H
2H
4H
9H
720P 30fps+1080P 25fps 1080P 30fps+1080P 25fps
16
17
1
1
3 3
2
2
2 3 5
4
Camera Field of View
Front Camera
Display Screen
Car Charger
G-Sensor
Storage
Working Temperature
Rear Camera
Sound Video
GPS
Front: FOV 145°(diagonal), Rear: FOV 145°(diagonal)
1080P 30fps/720P 30fps
Built-in microphone/speaker
Input: 12-24V; Output: 5V
Built-in three-axis accelerometer
8-64GB MicroSD (FAT 32) card Class 10 and above required
AHD (1080P) 25fps
9.35 inch, resolution 1280*320
H.264 encoding (MOV)
JPEG
Support
