1200 WATT INVERTER GENERATOR
Model No. PGD16iSCO
1
4
5
6
7
8
8
9
10
12
13
14
15
2
3
4

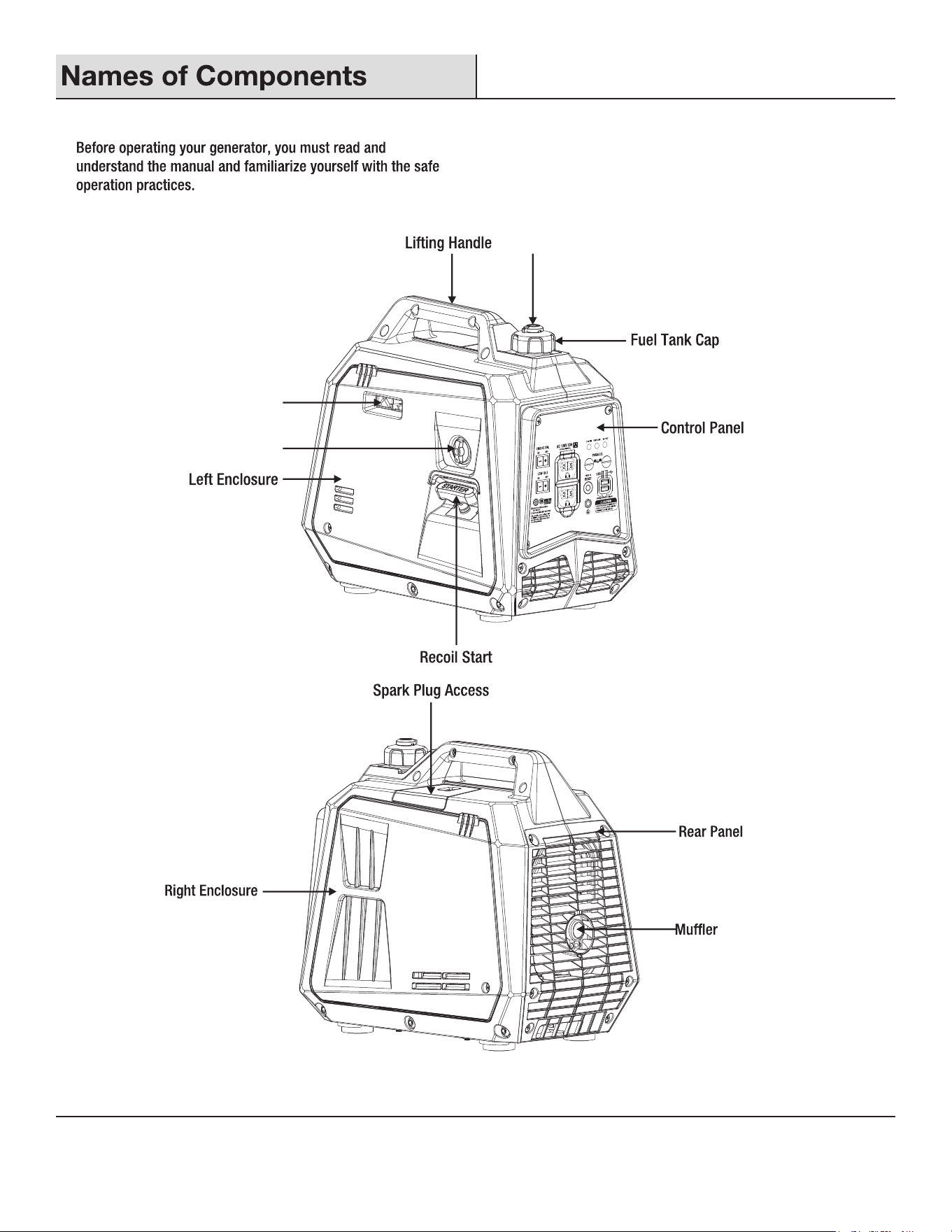

Vent
Choke Lever
Fuel Valve
5
6

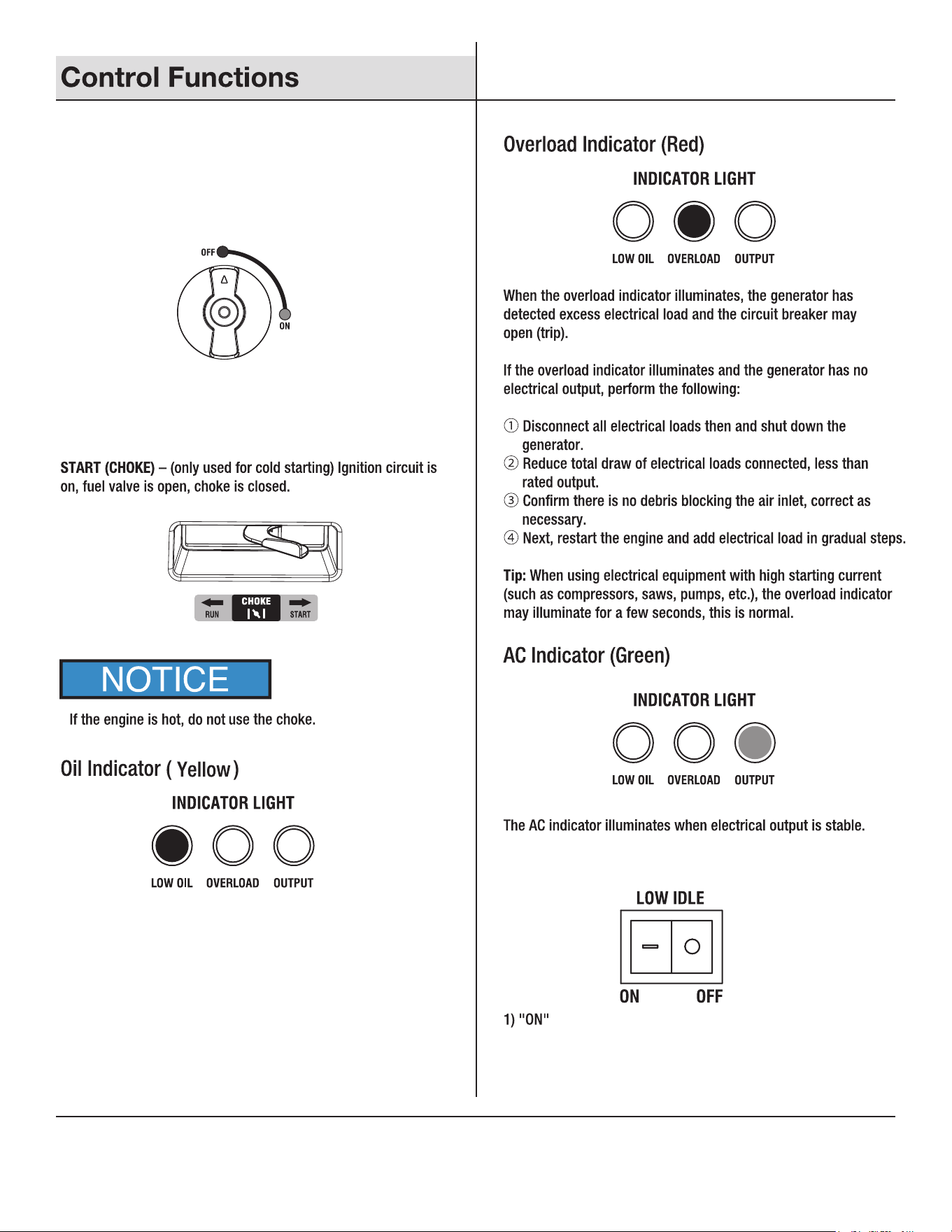

FUEL VALVE
Fuel Valve
OFF - With the fuel valve OFF, the engine will not run.
ON - With the fuel valve ON, the engine can start normally.
Choke Lever
When the engine oil level drops too low the engine will
automatically shut down and the oil indicator illuminates.
The engine can be restarted up only after the engine oil is
lled correctly.
Tip: If the engine does not start, turn the fuel valve to "ON"
position and pull the recoil handle. If the oil lamp ashes for
a few seconds, it indicates that the oil is insufcient. Fill the
oil to the high mark of the dipstick and restart it.
Low Idle (Energy Saving) Switch
When low idle switch is switched to "ON" position
engine speed is reduced when the generator is under
light load. This feature will reduce fuel consumption
and noise.
7

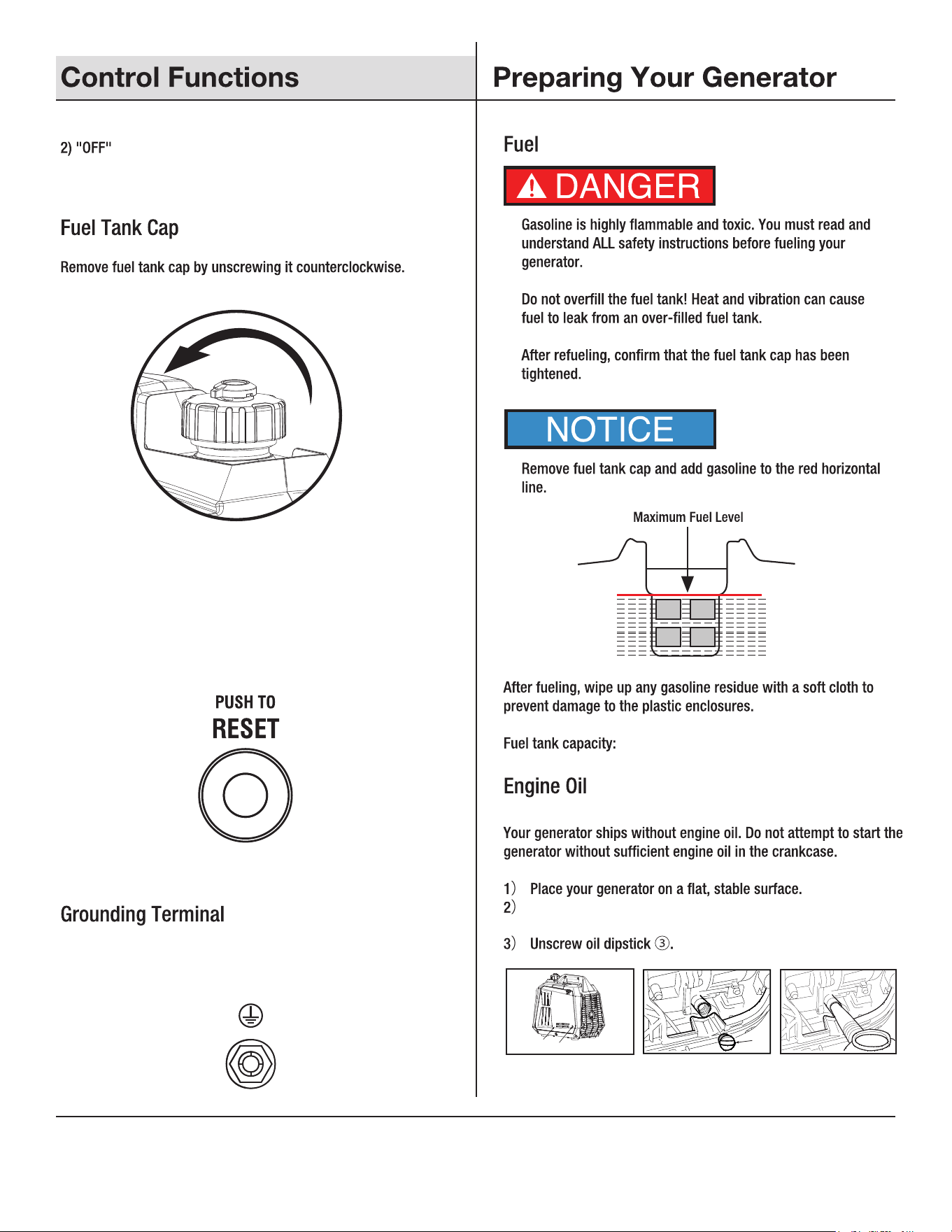

0.63 US gallon, (2.4l)
③
②
①

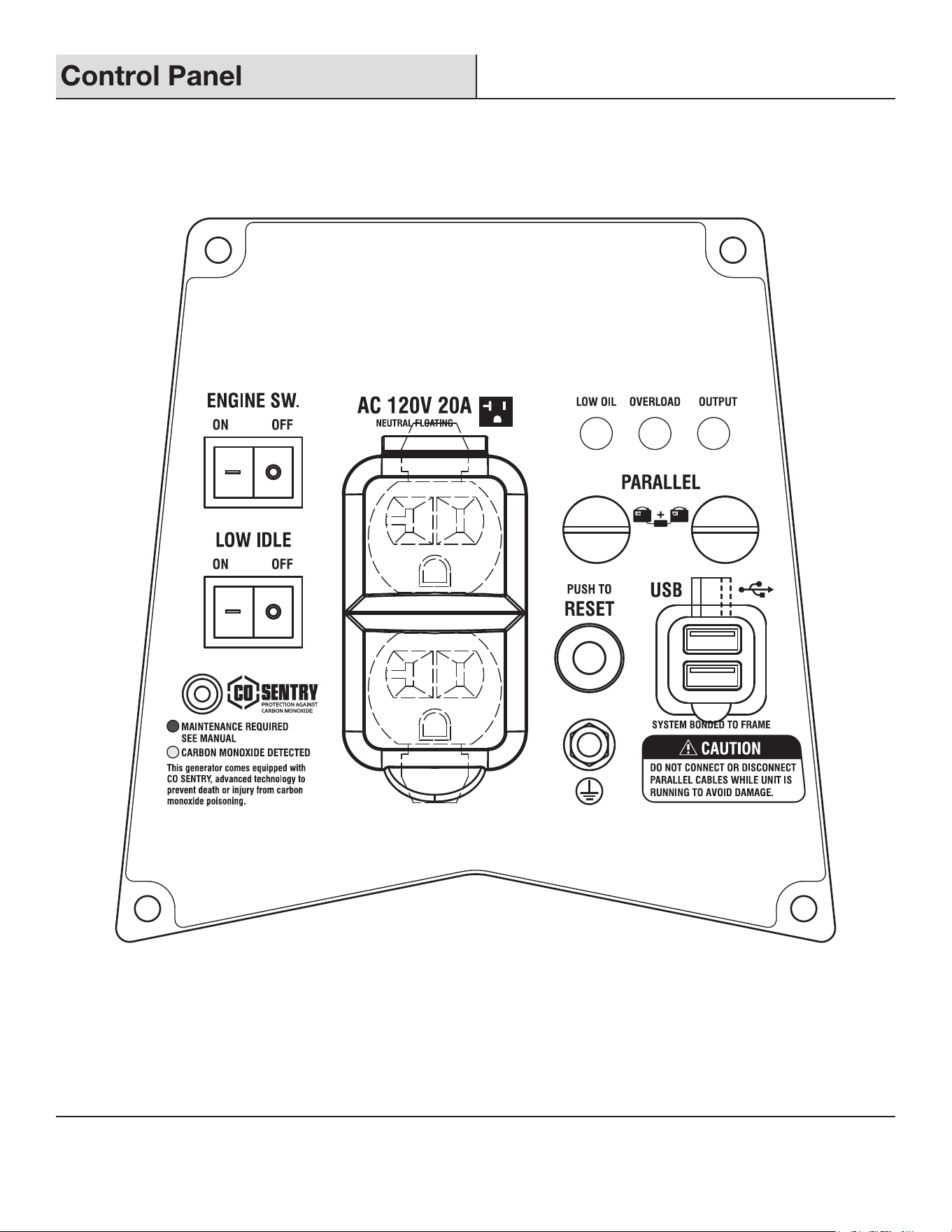

If the inverter is overloaded, the reset breaker will trip. The engine
will continue to run, but there will be no output from the inverter.
Unplug the devices and reduce the load. Push in the reset breaker
to reset it.
RESET

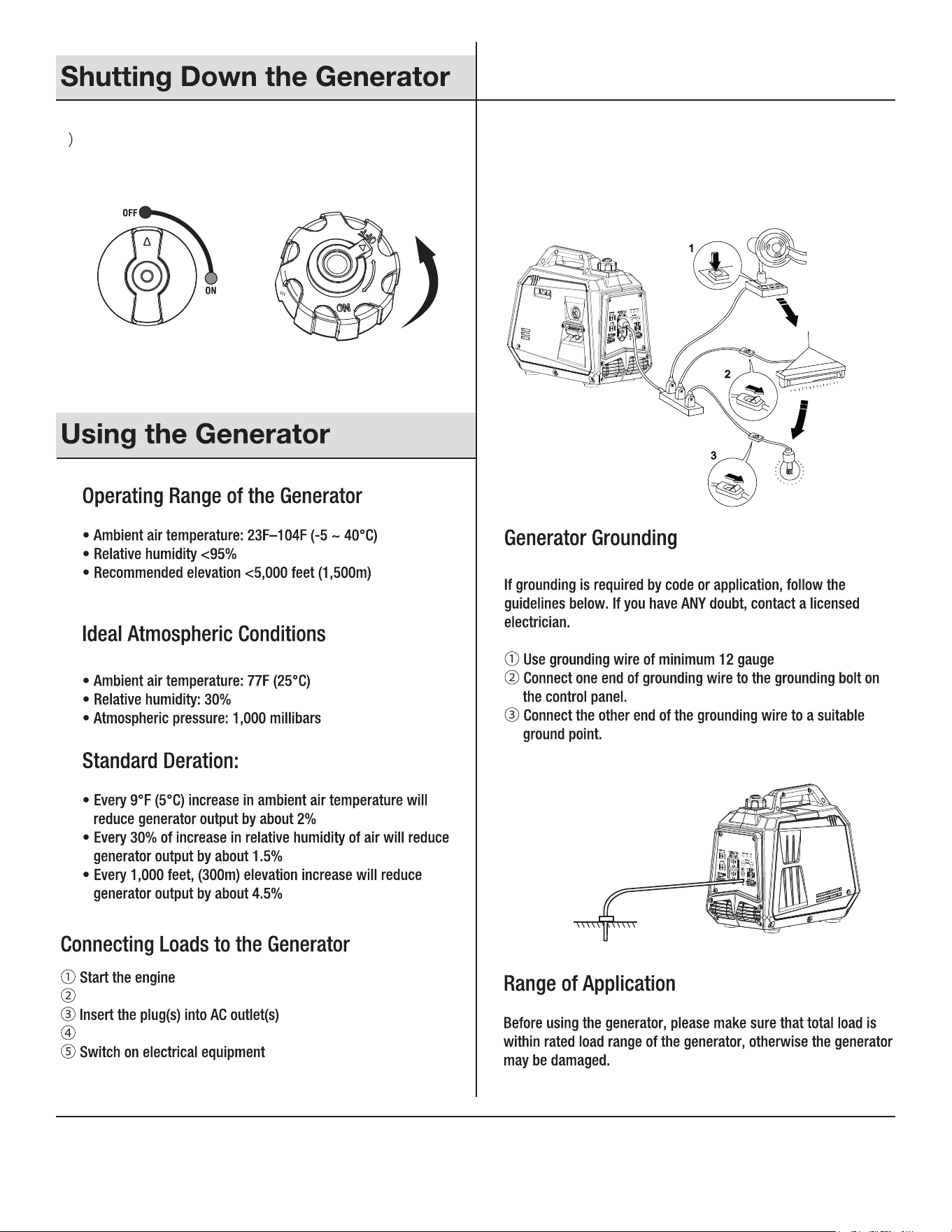

If grounding is required by code or application, follow the guidelines
on page 9.
When low idle switch is set to the "OFF" position, the engine will run
at rated speed, regardless of connected load.
Screw out the bolts on the right service access panel ①
counterclockwise and remove the right service access panel .②
8
Turn the fuel valve to "ON".
Move Low Idle (Energy Saving) Switch to "OFF".
Turn ventilation knob of fuel tank cap to "ON".
3
Pull the choke knob to "START".
6
7
8
After starting, push choke lever in to "RUN".
9
4
Move engine switch to "ON".
5
Move engine switch to "OFF".
Turn the fuel valve to "OFF".
3
FUEL VALVE
Use a funnel to add 11 uid ounces (0.33 L) of 10W-30
engine oil to the crankcase, verify oil level with the dipstick.
bolts.
9
After the generator has completely cooled down, turn the
ventilation knob on fuel tank cap to "OFF".
4
FUEL VALVE
Move Low Idle Switch to "OFF"
Make sure the AC indicator is illuminated
Tip: If total load is less than half rated capacity, move the Low Idle
Switch to 'ON'. If the generator supplies power to multiple devices
plug-in those devices in from large to small according to rated
electrical load.
10
11
③
②
①
Screw out the bolts on the right service access panel ①
counterclockwise and remove the right service access panel .②
Rell crankcase with 11 ounces (0.33L) 10w-30 engine oil; check
with dipstick.
bolts.
12
②
①
1). Remove the left service access panel bolts , fuel switch ①
bolts , start the hand handle cover bolts , remove the left ① ①
service access panel .②
2
3
4
5
6

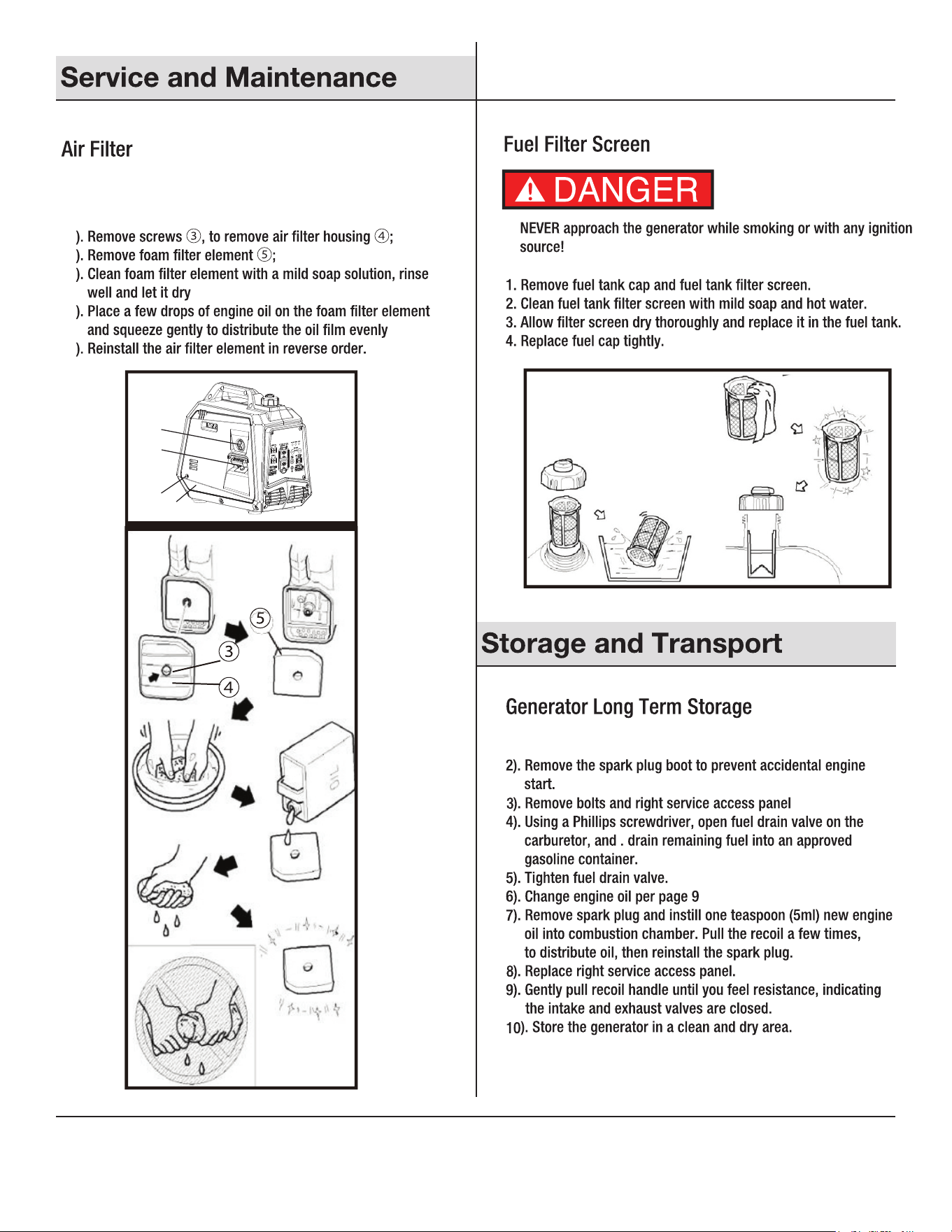

1). Turn off the generator and allow it to cool completely.
①
①
13
1) Verify that the engine switch is ON.
Spark plug is fouled, service it per page 11.
14
145F/P
45×36
57
0.63 Gallon (2.4L)
11 Ounces (0.33L)
1.2
17.1”x9.6”x15.7”
25.3lbs.(11.5kg)
56
8.5±0.2
1.4/5000
Noise dB (@ 7m)(1/4 load)
15

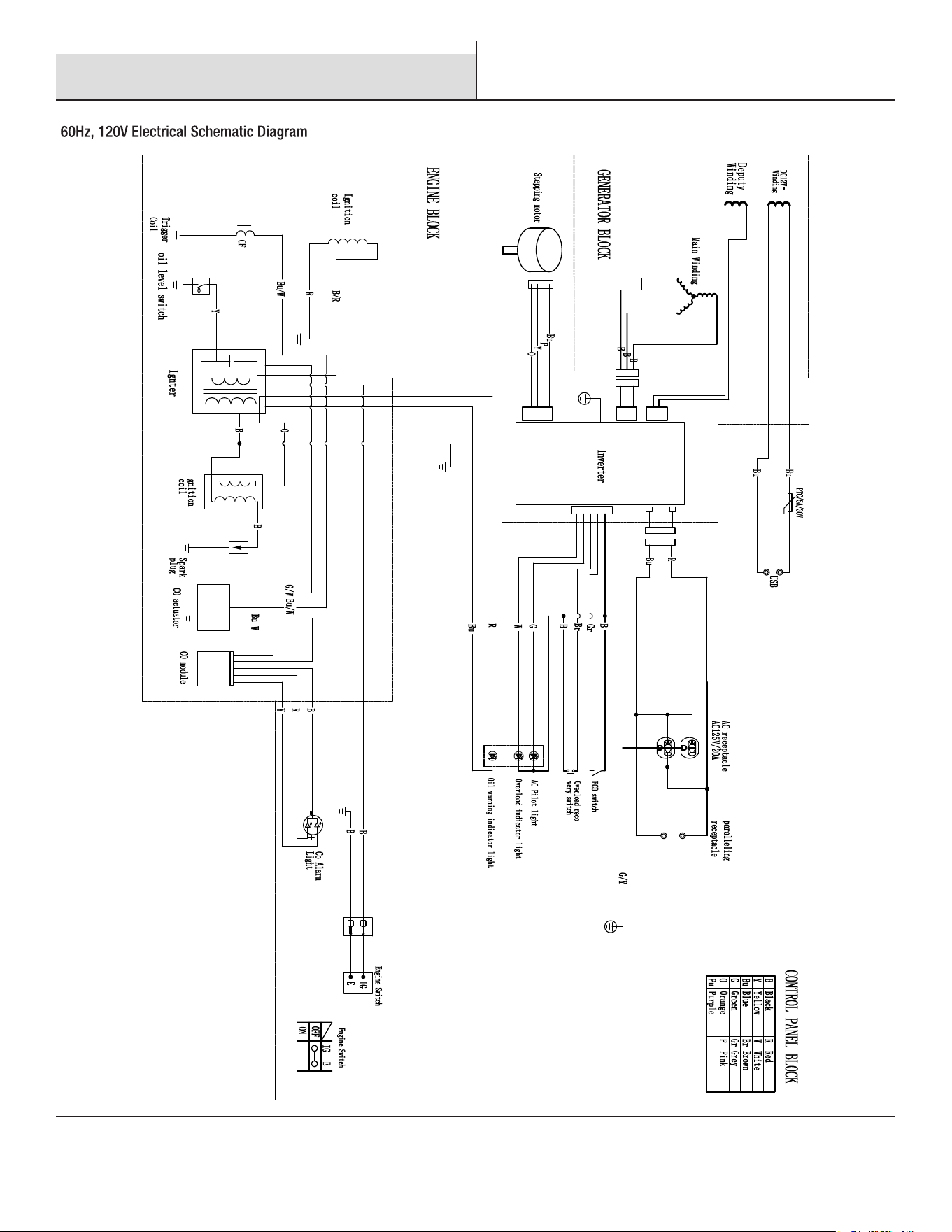

Electrical Schematic
16
