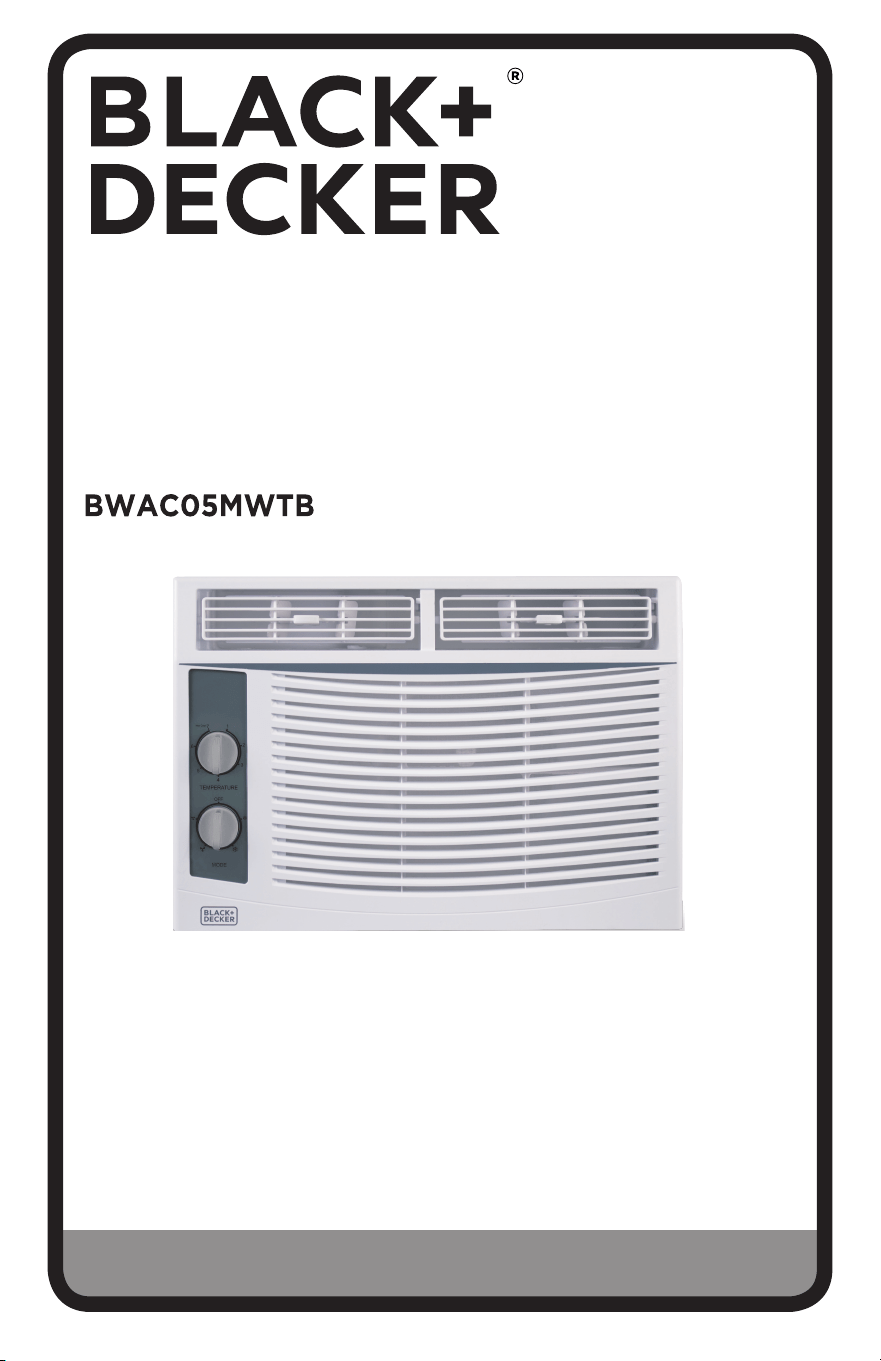

INSTRUCTION MANUAL
5,000 BTU MECHANICAL
WINDOW AIR CONDITIONER
Thank you for choosing BLACK+DECKER!
PLEASE READ BEFORE RETURNING THIS PRODUCT FOR
ANY REASON.
If you have a question or experience a problem with your BLACK+DECKER
purchase, go to www.blackanddecker.com/instantanswers
If you can’t find the answer or do not have access to the Internet, call
844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an
agent. Please have the catalog number available when you call.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
CATALOG NUMBER
Page 2
Thank you for purchasing our
BLACK+DECKER product. This
easy-to-use manual will guide you
in getting the best use of your air
conditioner.
Remember to record the model and
serial numbers. They are on a label
on the rear.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS
Page 3
SAFETY INFORMATION
Introduction To Refrigerants R32 .................................................................................................................................... 4
Grounding Instructions .........................................................................................................................................................6
Power Supply Cord................................................................................................................................................ 7
Safety Guidelines.................................................................................................................................................... 8
SET UP & USE

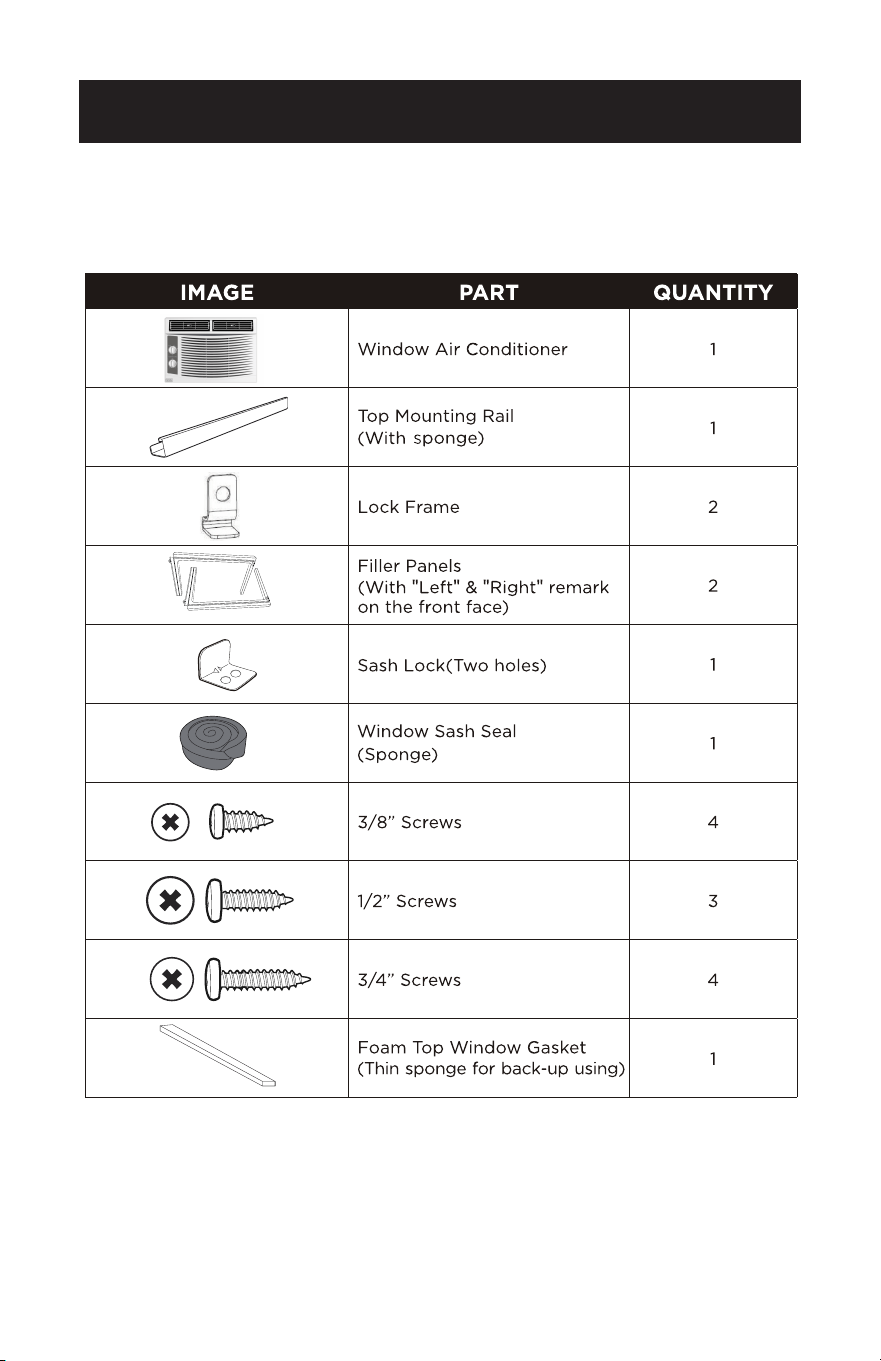

Parts Included ..........................................................................................................................................................................10
Installation & Assembly .................................................................................................................................11-18
Control Panel ...................................................................................................................................................19-20
CLEANING & CARE .......................................................................................................................................21-22
TROUBLE SHOOTING & WARRANTY
Before You Call For Service ............................................................................................................................. 23
Customer Service ................................................................................................................................................. 23
Troubleshooting .............................................................................................................................................. 24-25
Limited Warranty ...................................................................................................................................................................26
Important Safety Instructions............................................................................................................................................. 5
LCDI Power Cord And Plug.................................................................................................................................9
≤9K
≤12K
≤18K
≤24K
Warnings
R32
Refrigerant
Capacity(Btu)
Room Area
Above 4m
2
Above 4m
2
Above 15m
2
Above 25m
2
Page 4
INTRODUCTION TO REFRIGERANTS R32
The refrigerants used for air conditioners are environmentally friendly
hydrocarbons R32. This kind of erant is combustible and odorless. Moreover, it can
burn and explode under certain condition. However, there will be no risk of burning
and explosion if you comply with the following table to install your air conditioner
in a room with an appropriate area and use it correctly.
Compared with ordinary refrigerants, Refrigerant R32 is environmentally friendly
and does not destroy the ozone sphere and its value of greenhouse effect is also
very low.
• Please read the manual before installation, using, maintenance.
• Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
• Do not pierce or burn the appliance.
• The appliance shall be stored in a room without continuously operating sources
(for example: open flames, an operating ignition gas appliance or an operating
electric heater.)
• Please contact the nearest after-sale service center when maintenance is
necessary. At the time of maintenance, the maintenance personnel must strictly
comply with the Operation Manual provided by the corresponding manufacturer
and any non-professional is prohibited to maintain the air conditioner.
• The handling, installation, storage, servicing and disposal must comply with the
provisions of gas-related national laws and regulations, and also national wiring
regulation.
• It is necessary to clear away the refrigerant in the system when maintaining or
scrapping an air conditioner. Be aware that refrigerants may not contain an odor.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or supervision or instruction concerning
use of the appliance by a person responsible fortheir safety.
Children should be supervised to ensure that they do not play with the appliance.
Unit operation limits: Outdoor side 61~110°F, 80%RH; indoor side 61~90°F, 80%RH.
Room area requests for air conditioner with Refrigerant R32
SAFETY INFORMATION
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. Air conditioner must be connected to proper electrical outlet with
the correct electrical outlet with the correct electrical supply.
2. Proper grounding must be ensured to reduce the risk of shock and
fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do
not have a three-prong electric receptacle outlet in the wall, have a
certified electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
3. Do not operate air conditioner if power cord is frayed or otherwise
damaged. Avoid using it if there are any cracks or abrasion damage
along the length, plug connector or if the unit malfunctions or is
damaged in any manner. Contact an authorized service technician
for examination, repairs or adjustments.
4. DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5. Do not block airflow around the air conditioner.
6. Always unplug the air conditioner before servicing it or moving it.
7. Do not install or use the air conditioner in any area where the
atmosphere contains combustible gases or where the atmosphere is
oily or sulphurous. Avoid any chemical coming in contact with your
air conditioner.
8. Do not place any object on the top of the unit.
9. Do not use the air conditioner near a bathtub, shower or wash basin.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following
Page 5
SAFETY INFORMATION
GROUNDING INSTRUCTIONS
ELECTRICAL REQUIREMENTS
The electrical requirements are a 115 volt 60 Hz, AC only, 15 amp. It is
recommended that a separate circuit serving only the product be provided. The
product is equipped with a 3-wire cord having a 3-prong grounding plug. It must
be plugged into a wall receptacle that is properly installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an escape wire for the
electric current. The cord provided with this appliance is equipped with a
grounding wire and a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded.
Avoid the use of three prong adapters or cutting o the third grounding prong
in order to accommodate a two prong outlet. This is a dangerous practice since
it provides no eective grounding for the air conditioner and may result in shock
hazard.
Consult a qualified electrician or serviceman if:
1) The grounding instructions are not completely understood.
2) You are unsure that the appliance is properly grounded.
3) You have any questions about the grounding or electrical instructions.
WARNING
Improper use of the grounding plug can result in a risk
of electric shock.
Page 6
POWER SUPPLY CORD
1. Avoid the use of an extension cord because of potential safety hazards under
certain conditions. Have a qualified electrician or serviceman to install an
outlet near the appliance.
2. If it is absolutely necessary to use longer cord sets or an extension cord,
extreme care must be exercised.
a) Use only a grounding type 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will accept the plug on the
appliance.
b) The marked electrical rating of the cord set or extension cord must equal
to or greater than the electrical rating of the appliance. The longer cord
should be arranged so that it will not drape over the counter top or table
top where it can be pulled on by children or tripped over unintentionally.
NOTE: Neither BLACK+DECKER nor the dealer can accept any liability for damage to the
product or personal injury resulting from failure to observe the electrical connection
procedures.
SAFETY INFORMATION
Page 7
SAFETY GUIDELINES
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions
may cause harm or damage.
SAFETY INFORMATION
ALWAYS DO THIS NEVER DO THIS ENERGY SAVE
• Your air conditioner should
be used in such a way
that it is protected from
moisture. e.g. condensation,
splashed water, etc. Do
not place or store your air
conditioner where it can
fall or be pulled into water
or any other liquid. Unplug
immediately.
• Always transport your air
conditioner in a vertical
position and stand on a
stable, level surface during
use.
• Turn o the product when
not in use.
• Always contact a qualified
person to carry out
repairs. If the supply cord
is damaged it must be
repaired by a qualified
technician.
•
Keep an air path of at least
12 inches all around the unit
from walls, furniture and
curtains.
• If the air conditioner is
knocked over during use,
turn o the unit and unplug
from the power supply
immediately.
• Do not operate your air
conditioner in a wet room
such as a bathroom or
laundry room.
• Do not touch the unit with
wet or damp hands or when
barefoot.
• Do not press the buttons
on the control panel with
anything other than your
fingers.
• Do not remove any fixed
covers. Never use this
appliance if it is not working
properly, or if it has been
dropped or damaged.
• Never use the plug to start
and stop the unit.
• Always use the switch on the
control panel to start or shut
o the unit.
• Do not cover or obstruct the
inlet or outlet grilles.
• Do not use hazardous
chemicals to clean or come
into contact with the unit.
Do not use the unit in the
presence of inflammable
substances or vapour such
as alcohol, insecticides,
petrol,etc.
• Do not allow children to
operate the unit unsupervised.
• Do not use this product for
functions other than those
described in this instruction
manual.
• Use the unit in the
recommended room size.
• Locate the unit where
furniture cannot obstruct
the air flow.
• Keep blinds/curtains
drawn.
• Keep the filters clean.
• Keep doors and windows
closed to keep cool air in
and warm air out.
Page 8
LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current Detection and
Interruption) power cord that is required by UL. This power supply cord contains
state-of-the-art electronics that sense leakage current. If the cord is damaged and
leakage occurs, power will be disconnected from the unit.
The test and reset buttons on the LCDI Plug are used to check if the plug is
functioning properly.
To test the plug:
1. Plug power cord into a grounded 3 prong outlet.
2. Press RESET (on some units a green light will turn on).
3. Press the TEST button, the circuit should trip and cut all power to the air
conditioner (on some units a green light may turn o).
4. Press the RESET button for use. You will hear a click and the A/C is not ready for
use.
NOTES:
• The RESET button must be engaged for proper use.
• The power supply cord must be replaced if it fails to trip when the TEST button is
pressed and the unit fails to reset.
• Do not use the power supply cord as an ON/OFF switch. The power supply cord
is designed as a protective device.
• A damaged power supply cord must be replaced with a new power supply cord.
• The power supply cord contains no user serviceable parts. Opening the
tamper-resistant case voids all warranty and performance claims.
NOTE: Your units power cord and plug may dier from the one shown.
SAFETY INFORMATION
WARNING – RISK OF FIRE
It is important the plug fits tightly into the wall outlet.
If the plug does not fit securely and appears loose, it should not be used.
Have a licensed electrician replace the receptacle.
Page 9
PARTS INCLUDED
(appearance may vary)
SET UP & USE
Page 10
23” to 36”

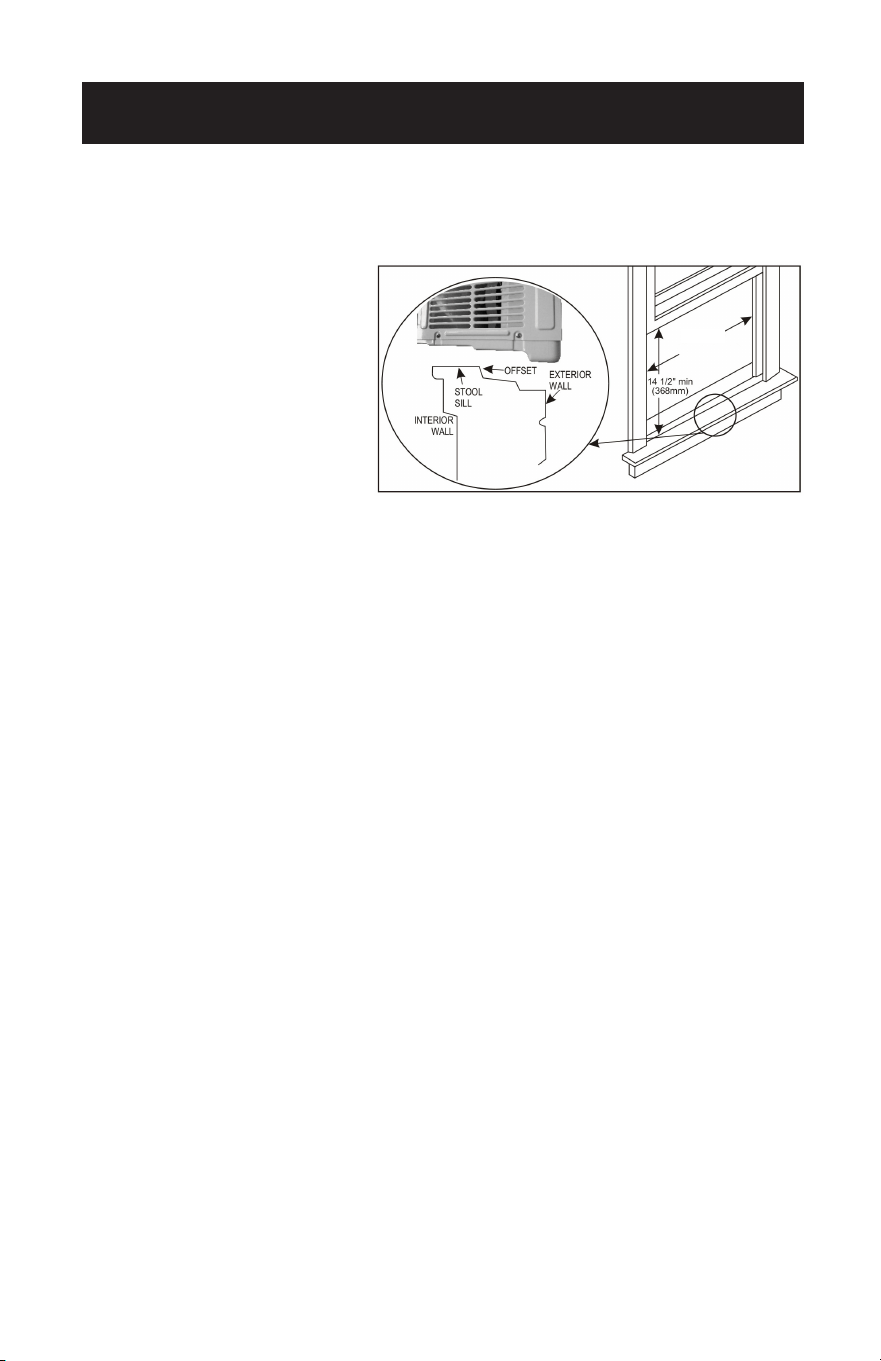

INSTALLATION & ASSEMBLY
Some assembly is required for your new air conditioner. Please read and follow
these instructions carefully.
1. This air conditioner is designed
to be installed in a standard
double-hung window with a
window width between 23”
and 36” (584mm - 914mm).
2. The air conditioner can be
installed without the accordion
panels to fit in a narrow
window opening. See the
window dimensions.
3. The lower sash (the lower part of the window that moves up and down) must allow
for 14.5” of vertical clearance when open. (See Fig. 1)
4. All supporting parts must be secured to firm wood, masonry or metal.
5. The electrical outlet must be within reach of the power cord.
NOTE:
Save the product packaging and installation instructions for future reference.
Store the air conditioner in the product box when not in use for an extended
amount of time.
SET UP & USE
Fig. 1
584 mm to 914 mm
Page 11
SET UP & USE

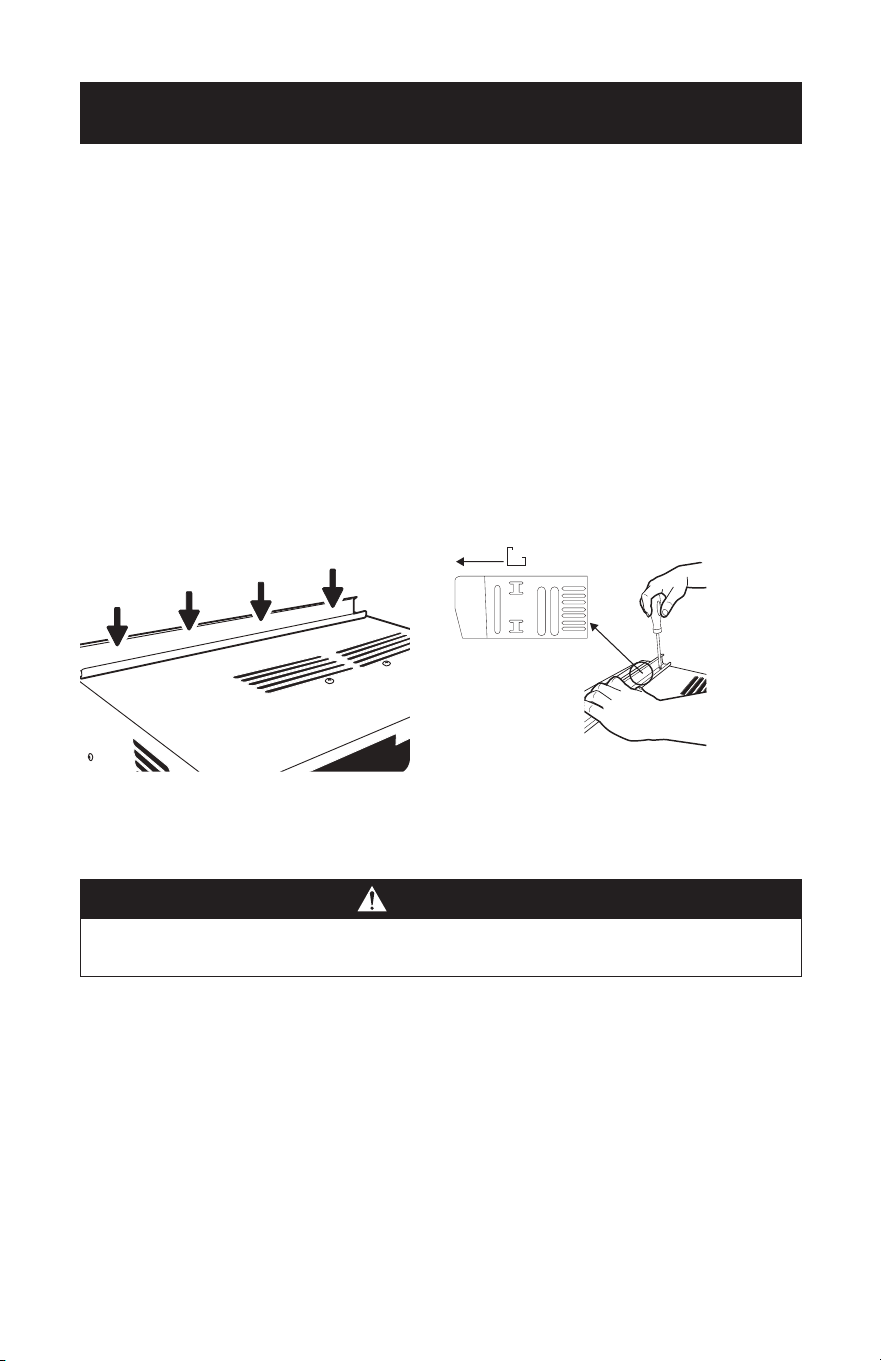

TOP RAIL ASSEMBLY
The top rail must be assembled prior to installing the air conditioner in the window.
Tools Needed: Phillips screwdriver
1. Remove the air conditioner from the box and place on a hard flat surface.
2. Remove top rail from the bottom of the packaging material.
3. Align the hole in the top rail with those in the top of the unit. (See Fig. 2)
4. Secure the top rail to the unit with the 3/8” screws. (See Fig. 3)
NOTE: For safety reasons, all 4 screws must be used to attach top rail.
CAUTION
When handling the unit, be careful to avoid cuts from the sharp metal edges and
aluminum fins on the front and rear coils
Room Side
Fig. 2
Fig. 3
Page 12
SET UP & USE
HOW TO INSTALL
NOTE: Top rail and sliding panels at each side are oset to provide the proper pitch to
the rear of 5/16”. This is necessary for proper condensed water utilization and
drainage. If you are not using the side panels for any reason, this pitch to the
rear must still be maintained.
1. Place unit on floor, a bench or a table. There is a left and right window filler panel -
be sure to use the proper panel for each side. NOTE: Filler panels are clearly marked
left and right. When installed, the flange for securing the panel in place to the
window sill should be facing into the room.

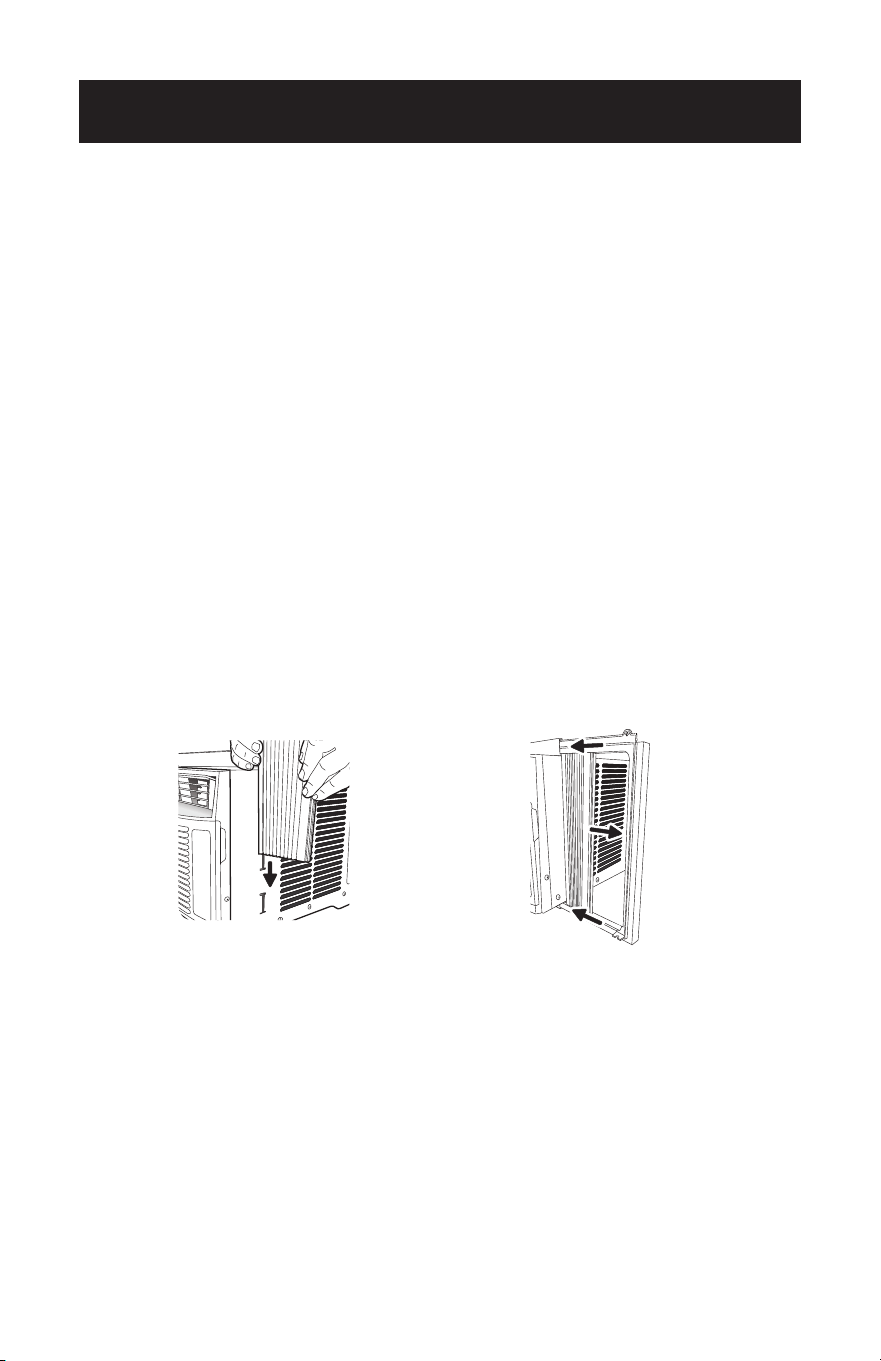

A. Hold the accordion panel in one hand and gently pull back the center to
free the open end.
B. Slide the free end of the panel into the cabinet. Slide the panel down. Be
sure to leave enough space to slip the top and bottom of the frame
into the rails on the cabinet. (See Fig. 4)
C. Once the panel has been installed on the side of the cabinet, make sure it
sits securely inside the frame channel by making slight adjustments.
Slide the top and bottom ends of the frame into the top and bottom rails
of the cabinet. (See Fig. 5)
D. Slide the panel all the way in and repeat on the other side.
NOTE: Once installed, the accordian panel cannot be removed without detaching the
frame from the air conditioner.
2. Keep a firm grip on the air conditioner. Carefully place the unit into the window
opening so the bottom of the air conditioner frame is against the window sill.
Carefully close the window behind the top rail of the unit.
CLICK
Fig. 4 Fig. 5
Page 13
SET UP & USE

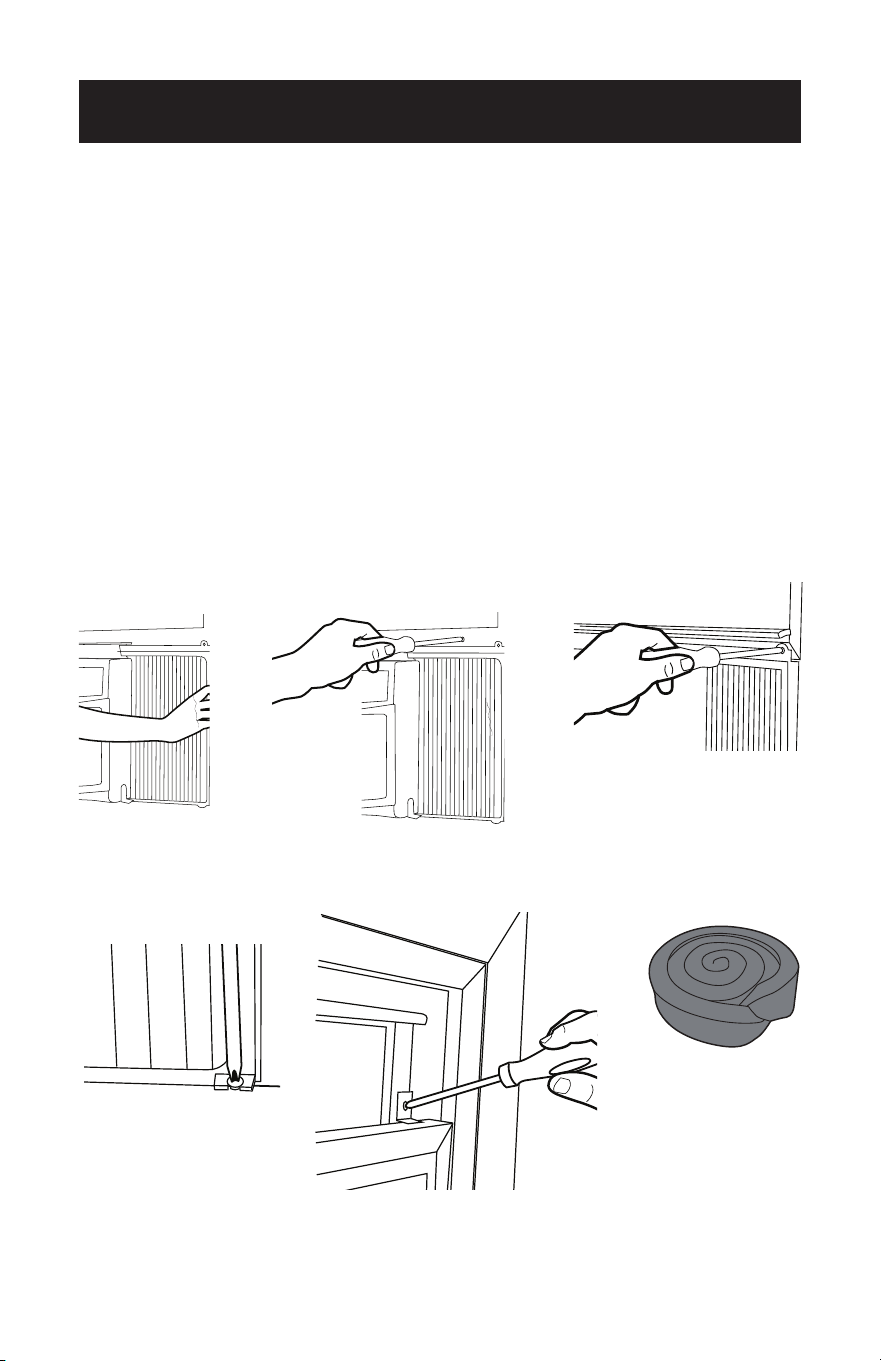

3. Extend the side panels out against the window frame. (See Fig. 6)
4. Drive three 1/2” locking screws through filler panel frame holes into window sash on
both the left and right side. (See Fig. 7 & 8)
5. Place the frame lock between the frame extensions and the window sill. Drive 3/4”
locking screws through the frame lock and into the sill on both the left and right
side. (See Fig. 9)
NOTE: To prevent window sill from splitting, drill 1/8” pilot holes before driving
screws.
6. To secure lower sash in place, attach right angle sash lock with two 3/4” screws.
(See Fig. 10)
7. Cut foam seal strip and insert in the window space between the upper and lower
sashes. (See Fig. 11)
Fig. 6
Fig. 9
Fig. 8
Fig. 10 Fig. 11
Fig. 7
Page 14
SET UP & USE

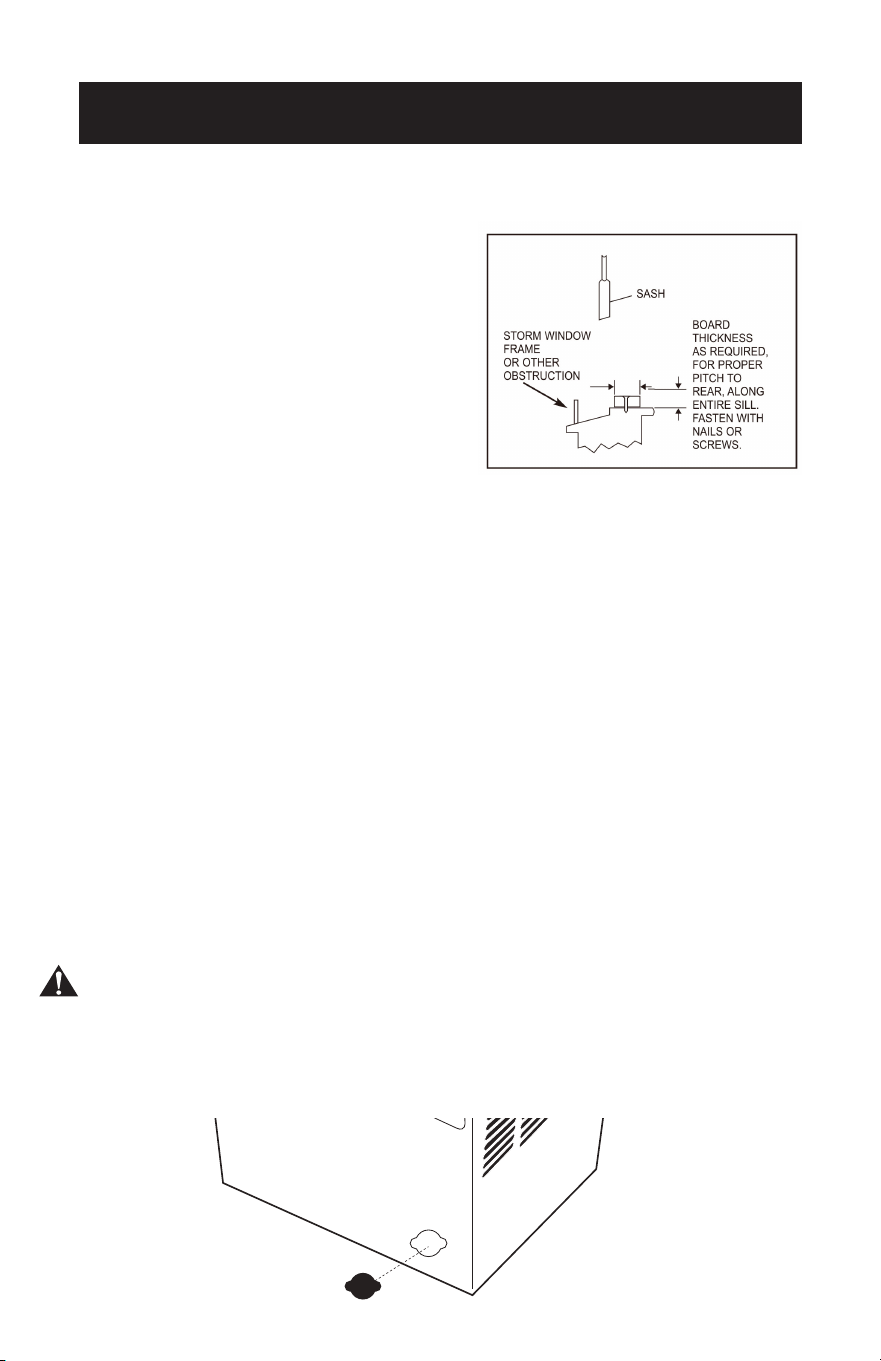

IF A/C IS BLOCKED BY STORM WINDOW
Add wood or remove storm window
before air conditioner is installed.
(See Fig. 12)
If storm window frame must remain,
be sure the drain holes or slots are not
caulked or painted shut. Accumulated
rain water or condensation must be
allowed to drain out.
REMOVING A/C FROM WINDOW
• Turn A/C o and disconnect power cord.
• Remove sash seal from between windows and unscrew safety lock.
• Remove screws installed through frame and frame lock.
• Close (slide) side panels into frame.
• Keeping a firm grip on air conditioner, raise sash and carefully “rock” air
conditioner backward to drain any condensate water in base of unit. Be careful
not to spill any remaining water while lifting unit from window. Store parts WITH
air conditioner.
WINTER STORAGE – BEFORE REMOVING AIR
CONDITIONER FROM WINDOW
To store the air conditioner when it is not in use for an extended period of time,
remove the black rubber drain plug found on the lower left hand corner of the back
of the air conditioner. (see fig. 13) This will allow you to remove any water that has
collected inside the bottom of the unit while it is still outdoors. To make access easier
to the drain plug, collapse the side filler panels toward the AC unit.
CAUTION: Be sure to maintain support of the air conditioning unit as you reach to
remove the drain plug.
Once water has been removed, replace drain plug by aligning inside of plug with
cutout in wall of unit and push firmly until plug is completely sealed to the opening.
Store air conditioner in dry environment and cover with plastic or place it back in the
original box.
Fig. 12
Fig. 13
Page 15
AIR CONDITIONER USE
Operating your air conditioner properly helps you obtain the best possible results.
This section explains proper air conditioner operation.
IMPORTANT:
• If you turn o the air conditioner, wait at least 3 minutes before turning it back on.
This prevents the air conditioner from blowing a fuse or tripping a circuit breaker.
• Do not try to operate your air conditioner in the cooling mode when outside
temperature is below 65˚F (18˚C). The inside evaporator coil will freeze up and the
air conditioner will not operate properly.
NOTE:
In the event of a power failure, your air conditioner will operate at the previous
settings when the power is restored.
SET UP & USE
Page 16
Table GG.1 Maximum charge (kg)
Category
R32 0.306
0.6
1
1.8
2.2
4
0.68
1.14
2.05
2.5
7
0.9
1.51
2.71
3.31
10
1.08
1.8
3.24
3.96
15
1.32
2.2
3.97
4.85
20
1.53
2.54
4.58
5.6
30
1.87
3.12
5.61
6.86
50
2.41
4.02
7.254
8.85
LFL
(kg/m
3
)
h
0
(m)
Floor area(m
2
)
Category
R32 0.306
0.6
1
1.8
2.2
1.224kg
/
/
/
/
1.836kg
29
10
3
2
2.448kg
51
19
6
4
3.672kg
116
42
13
9
4.896kg
206
74
23
15
6.12kg
321
116
36
24
7.956kg
543
196
60
40
LFL
(kg/m
3
)
h
0
(m)
Minimum room area(m
2
)
Charge amount(M)(kg)
Table GG.2 Minimum room area (m
2
)
INTRODUCTION TO REFRIGERANTS R32
The maximum charge and the required minimum floor area
• Before installing the appliance, you must read the manual carefully
to get the safety information and notes.
• When filling the combustible refrigerant, any of your rude
operations may cause serious injury or injuries to human body or
bodies and object or objects.
• A leak test must be done after the installation is completed.
• It is a must to do the safety inspection before maintaining or repairing an
air conditioner using combustible refrigerant in order to ensure that the fire risk
is reduced to minimum.
• It is necessary to operate the machine under a controlled procedure in order to
ensure that any risk arising from the combustible gas or vapor during the
operation is reduced to minimum.
• Requirements for the total weight of filled refrigerant and the area of a room to
be equipped with an air conditioner.
m
1
= (4 m
3
) x LFL, m
2
= (26 m
3
) x LFL, m
3
= (130 m
3
) x LFL
Where LFL is the lower flammable limit in kg/m
3
, R32 LFL is 0.306 kg/m
3
.
For the appliances with a charge amount m
1
< M≤m
2
:
The maximum charge in a room shall be in accordance with the following:
m
max
= 2.5 x (LFL)
(5/4)
x h
0
x (A)
1/2
The required minimum floor area Amin to install an appliance with refrigerant
charge M(kg) shall be in accordance with following: A
min
= (M/ (2.5 x (LFL)
(5/4)
xh
0
))
2
Where:
m
max
is the allowable maximum charge in a room, in kg;
M is the refrigerant charge amount in appliance, in kg;
A
min
is the required minimum room area, in m
2
;
A is the room area, in m
3
;
LFL is the lower flammable limit, in kg/m ;
h
0
is the installation height of the appliance, in meters for calculating m
max
or A
min
,
1.8 m for wall mounted;
SET UP & USE
Page 17
2.Operation Safety
Open Flames Prohibited Ventilation Necessary
Open Flames Prohibited
Mind Static Electricity Must Wear Protective Clothing
and anti-static gloves
Don't use mobile phone
3.Installation Safety
Please note that:
1. The installation site should be in a well-ventilated location.
2. The sites for installing and maintaining an air conditioner using Refrigerant R32
should be free from open fire or welding, smoking, drying oven or any other heat
source higher than 548°C which easily produces open fire.
3. When installing an air conditioner, it is necessary to take appropriate anti-static
measures such as wearing anti-static clothing and/or gloves.
4. It is necessary to choose a site convenient for installation or maintenance wherein
the air inlets and outlets of the indoor and outdoor units should be not surrounded
by obstacles or close to any heat source or combustible and/or explosive
environment.
5. If the indoor unit incurs a refrigerant leak during the installation, all the personnel
should go out till the refrigerant leaks completely for 15 minutes. If the product is
damaged, you must return the damaged product back to the manufacturer; it is
prohibited to weld the refrigerant pipe or conduct other changes to the product.
6. It is necessary to choose a place where the inlets and outlets air of the indoor unit
is even.
7. It is necessary to avoid using in places where there are other electrical products,
power switch plugs and sockets, kitchen cabinets, beds, sofas and other valuables
that are placed right under the indoor unit, as this prevents mechanical damage
from occurring.
• Refrigerant Leak Detector
• Appropriate Installation
Location
The left picture is the schematic diagram
of a refrigerant leak detector.
INTRODUCTION TO REFRIGERANTS R32
1.Site Safety
SET UP & USE
Page 18
SET UP & USE

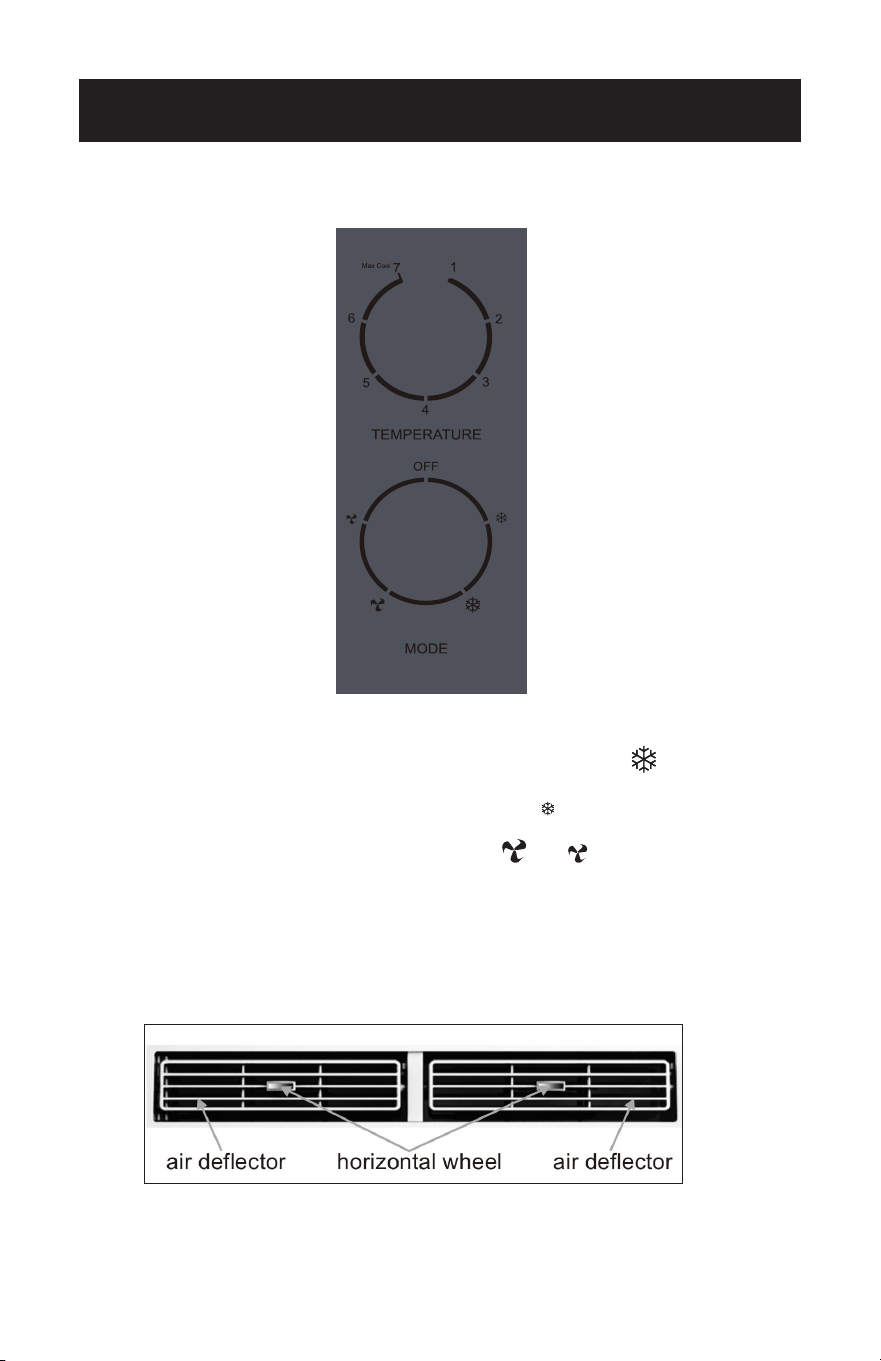

CONTROL PANEL
1. POWER: Turn on the unit by rotating the MODE dial to the desired setting.
2. COOLING MODE: For maximum cooling set the MODE dial to “ “. In HIGH COOL
mode, the fan will automatically go to high. This will help circulate the cool air
throughout the room. The fan will operate on low in “
” mode.
3. FAN MODE: For fan only modes, choose either “ ” or “ ”. The air conditioner will
not cool the room when in fan mode.
4. THERMOSTAT: Turn the TEMP dial to set the desired room temperature. For
maximum cooling turn the TEMP dial to 7 (max cool).
5. DIRECTIONAL LOUVERS: To direct the airflow, use horizontal wheel to control the
horizontal direction, air deflector to control the vertical direction.
NOTE: To minimize wear and tear on the air conditioner, always wait at least 3 minutes
before changing modes. This will help prevent the compressor from overheating and
the circuit breaker from tripping.
Page 19
SET UP & USE
NORMAL OPERATING SOUNDS
• You may hear a pinging noise caused by water hitting the condenser, or rainy
days, or when the humidity is high. This design feature helps remove moisture and
improve eciency.
• You may hear the thermostat click when the compressor cycles on and o.
• Water will collect in the base pan during rain or days of high humidity. The water
may overflow and drip from the outside part of the unit.
• The fan may run even when the compressor is not on.
Page 20
SET UP & USE
CARE AND CLEANING
Clean your air conditioner to keep it looking new and to minimize dust build up.
AIR FILTER CLEANING
The air filter should be checked at least once every month to see if it needs cleaning.
Trapped particles and dust can build up in the filter and may decrease airflow as well
as cause the cooling coils to accumulate frost. To clean the air filter:

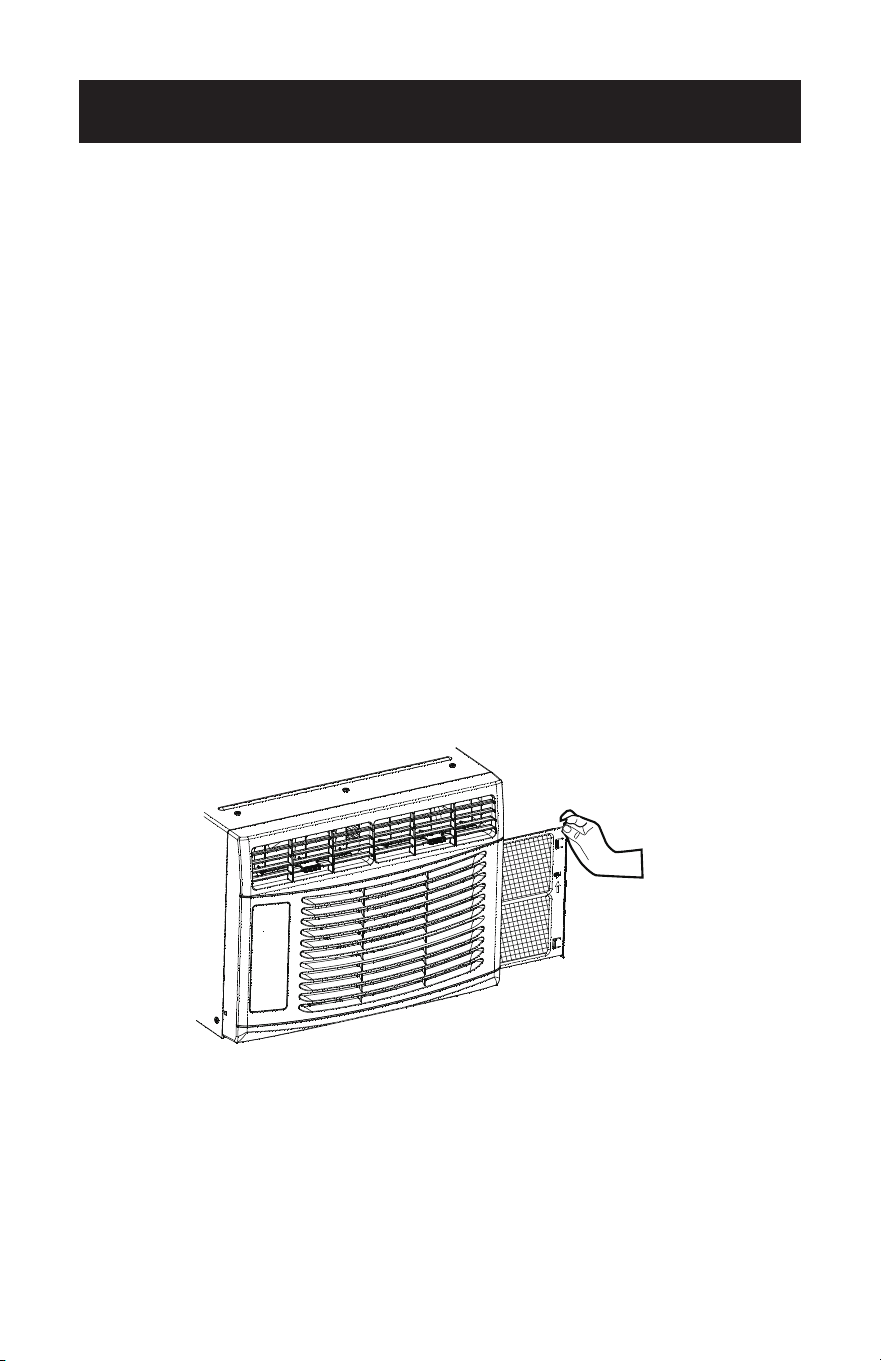

1. Remove the filter by sliding it out from the front right side of the air conditioner
(See Fig. 14).
2. Wash the filter using liquid dish soap and warm water. Rinse the filter thoroughly.
Gently shake the filter to remove excess water.
3. Let the filter dry completely before placing it into the air conditioner.
4. If you do not wish to wash the filter, you may vacuum the filter to remove the dust
and other particles.
Fig. 14
Page 21
SET UP & USE
WEAR AND TEAR
To minimize wear and tear on the air conditioner, always wait at least 3 minutes
before changing modes. This will help prevent the compressor from overheating and
the circuit breaker from tripping.
CABINET CLEANING
To clean the air conditioner cabinet:
• Unplug the air conditioner to prevent shock or a fire hazard. The cabinet and front
panel of the air conditioner may be dusted with an oil free cloth or washed with a
cloth dampened in a solution of warm water and mild liquid soap. Rinse thoroughly
with a damp cloth and wipe dry.
• Never use harsh cleaners, wax or polish on the cabinet front.
• Be sure to wring excess water from the cloth before wiping around the controls.
Excess water in or around the controls may cause damage to the air conditioner.
Page 22
TROUBLESHOOTING & WARRANTY
BEFORE YOU CALL FOR SERVICE
IF THE AIR CONDITIONER FAILS TO OPERATE:
A) Check to make sure that the air conditioner is plugged in securely. If it is not,
remove the plug from the outlet, wait 10 seconds and plug it in again securely.
B) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem
to be operating properly, test the outlet with another appliance.
IF NONE OF THE ABOVE SOLVES THE PROBLEM, CONTACT A QUALIFIED
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE AIR CONDITIONER
YOURSELF.
CUSTOMER SERVICE
IMPORTANT
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have a problem with this product, please contact the
W Appliance Co. Customer Satisfaction Center at
844-299-0879 or servic[email protected]om.
DATED PROOF OF PURCHASE, MODEL # AND SERIAL #
REQUIRED FOR WARRANTY SERVICE
Page 23
TROUBLESHOOTING & WARRANTY
Troubleshoot your problem by using the chart below. If the air conditioner still does
not work properly, contact W Appliance Co. customer service center. Customers
must never troubleshoot internal components.
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
The air
conditioner will
not start
The air conditioner is
unplugged
• Make sure the air conditioner plug
is pushed completely into the
outlet.
The fuse is blown/circuit
breaker is tripped
• Check the house fuse/circuit
breaker box and replace the fuse
or reset the breaker.
Power failure
• The unit will automatically restart
when power is restored.
• There is a protective time delay
(approx. 3 minutes) to prevent
tripping of the compressor
overload. For this reason, the unit
may not start normal cooling for 3
minutes after it is turned back on.
The current interrupter device
is tripped
• Press the RESET button located on
the power cord plug.
• If the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified
service technician.
The air
conditioner does
not cool as it
should
Air flow is restricted
• Make sure there are no curtains,
blinds or furniture blocking the
front of the air conditioner.
The temperature control may
not be set correctly.
• Lower the set thermostat
temperature.
The air filter is dirty
• Clean the filter. See the Cleaning &
Care section of the manual.
The room may be too warm
• Please allow time for the room to
cool down after turning on the air
conditioner.
Cold air is escaping
• Check for open furnace registers
and cold air returns.
The cooling coils are frozen
• See “Air Conditioner Freezing Up”
below.
The air
conditioner is
freezing up
Ice blocks the air flow and
stops the air conditioner from
cooling the room
• Set the MODE dial to HIGH FAN or
HIGH COOL and set the thermostat
to a higher temperature.
Page 24
TROUBLESHOOTING & WARRANTY
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Water is dripping
outside
Hot and humid weather • This is normal.
Water is dripping
inside the room
The air conditioner is not
correctly tilted outside
• For proper water drainage, make
sure the air conditioner is slightly
tilted downward from the front of
the unit to the rear.
Water collects in
the base pan
Moisture removed from the air
is draining into the base pan
• This is normal for a short period
in areas with low humidity and
normal for a longer period in areas
with high humidity.
Page 25
TROUBLESHOOTING & WARRANTY
LIMITED WARRANTY
Any repair, replacement, or warranty service,
and all questions about this product should be
directed to W Appliance Co. at 844-299-0879
from the USA or Puerto Rico.
W Appliance Co. warrants to the original purchaser
that the product will be free from defects in material,
parts and workmanship for the period designated for
this product. The warranty commences the day the
product is purchased and covers up to a period of 1
year (12 months) for labor/1 year (12 months) for parts
(manufacturing defects only)/and a total of 5 years
(60 months) for compressor parts only.
W Appliance Co. agrees that it will, at its option,
replace the defective product with either a new
or remanufactured unit equivalent to your original
purchase during the warranty period.
Exclusions: This warranty does not apply to the
below:
1. If the appearance or exterior of
the product has been damaged or
defaced, altered or modified in design or
construction.
2. If the product original serial number
has been altered or removed or cannot
be readily determined.
3. If there is damaged due to power line
surge, user damage to the AC power
cord or connection to improper voltage
source.
4. If damage is due to general misuse,
accidents or acts of God.
5. If repair attempts are done by
unauthorized service agents, use of
parts other than genuine parts or parts
obtained from persons other than
authorized service companies.
6. On units that have been transferred
from the original owner.
7. On products that have been purchased
as refurbished, like new, second-hand, in
a “As-Is” or “Final Sale” terms.
8. To products used in a commercial or
rental setting.
9. To products used in settings other than
ordinary household use or used other
than in accordance with the provided
instructions.
10. To damages for service calls for
improper installations.
11. To glass parts and other accessory items
that are included with the unit.
12. Transportation and shipping costs
associated with the replacement of the
unit.
13. Food loss for loss due to product
failure or delay in service, repair or
replacement.
14. Service calls to instruct you how to use
your product.
15. Service calls to repair or replace the
house fuse, reset the circuit breaker or
correct the wiring in the house.
REPAIR OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CUSTOMER; W Appliance Co. SHALL NOT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY ON THIS PRODUCT, EXCEPT
TO THE EXTENT PROHIBITED BY APPLICABLE LAW.
ANY IMPLIED WARRANTY OF MERCHANTABILITY
OF FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED TO THE DURATION OF THE
WARRANTY.
Some states do not allow the exclusion or limitations
of incidental or consequential damages, or limitations
on how long the warranty lasts. In these cases the
above exclusions or limitations may not apply to you.
This warranty gives you specific legal rights and you
may also have other rights which vary from state to
state.
Obtaining Service: To obtain service, product
literature, supplies or accessories please call
844-299-0879 to create a ticket for exchange/repair.
Please make sure to provide the date of purchase,
model number and a brief description of the problem.
Our customer service representative
will contact you or send detailed return instructions.
W Appliance Co. does not warrant that the appliance will work
properly in all environmental conditions, and makes no warranty
and representation, either implied or expressed, with respect
to the quality, performance, merchantability, or fitness for a
particular purpose other than the purpose identified within this
user’s manual. W Appliance Co. has made every eort to ensure
that this user’s manual is accurate and disclaims liability for any
inaccuracies or omissions that may have occurred. Information in
this user’s manual is subject to change without notice and does
not represent a commitment on the part of W Appliance Co.. W
Appliance Co. reserves the right to make improvements to this
user’s manual and/or to the products described in this user’s
manual at any time without notice. If you find information in this
manual that is incorrect, misleading, or incomplete, please contact
us at 844-299-0879.
W Appliance Co.
1356 Broadway
New York, NY 10018
Page 26
Page 24
BLACK & DECKER, BLACK+DECKER, the BLACK & DECKER and
BLACK+DECKER logos and product names and the orange and black color
scheme are trademarks of The Black & Decker Corporation, used under license.
All rights reserved.
Product in this box may differ slightly from that pictured. Does not affect
function. Not all accessories shown in photography are included in this
package.
Imported by W Appliance, Inc., 1356 Broadway, New York, NY 10018
Printed in China
