M11S Complete User Manual
All the pictures below are for illustrations only. Specifics are
subject to the actual product.
2
Foreword
Thank you so much for purchasing FiiO's portable high resolution
lossless music
player M11S. We have prepared this complete user manual for you. We
hope
this manual can help you get the hang of the M11S and unleash
its full
potential.
3
An introduction to the M11S..................................................................................................... 5
Buttons and ports ..........................................................................................................................6
1. Pictorial guide to buttons and ports ........................................................................... 6
2. Instructions for buttons and ports...............................................................................6
Status bar and display page....................................................................................................... 9
Instructions for entry-level functions...................................................................................... 9
1. Five working modes......................................................................................................... 9
2. How to connect the M11S to a computer............................................................... 12
3. How to upgrade firmware?.......................................................................................... 13
4. How to install third-party apps?.................................................................................14
5. How to change the language?.................................................................................... 14
6. How to enable the USB DAC function?.................................................................... 15
7. How to use the M11S as a Bluetooth transmitter?............................................... 15
8. What power supply adapter is suggested to charge the M11S?......................17
Introduction to Settings menu................................................................................................ 18
WiFi.................................................................................................................................................. 18
Bluetooth........................................................................................................................................19
Bluetooth transmitting.......................................................................................................19
Bluetooth receiving............................................................................................................. 21
Audio............................................................................................................................................... 22
SPDIF OUT..............................................................................................................................23

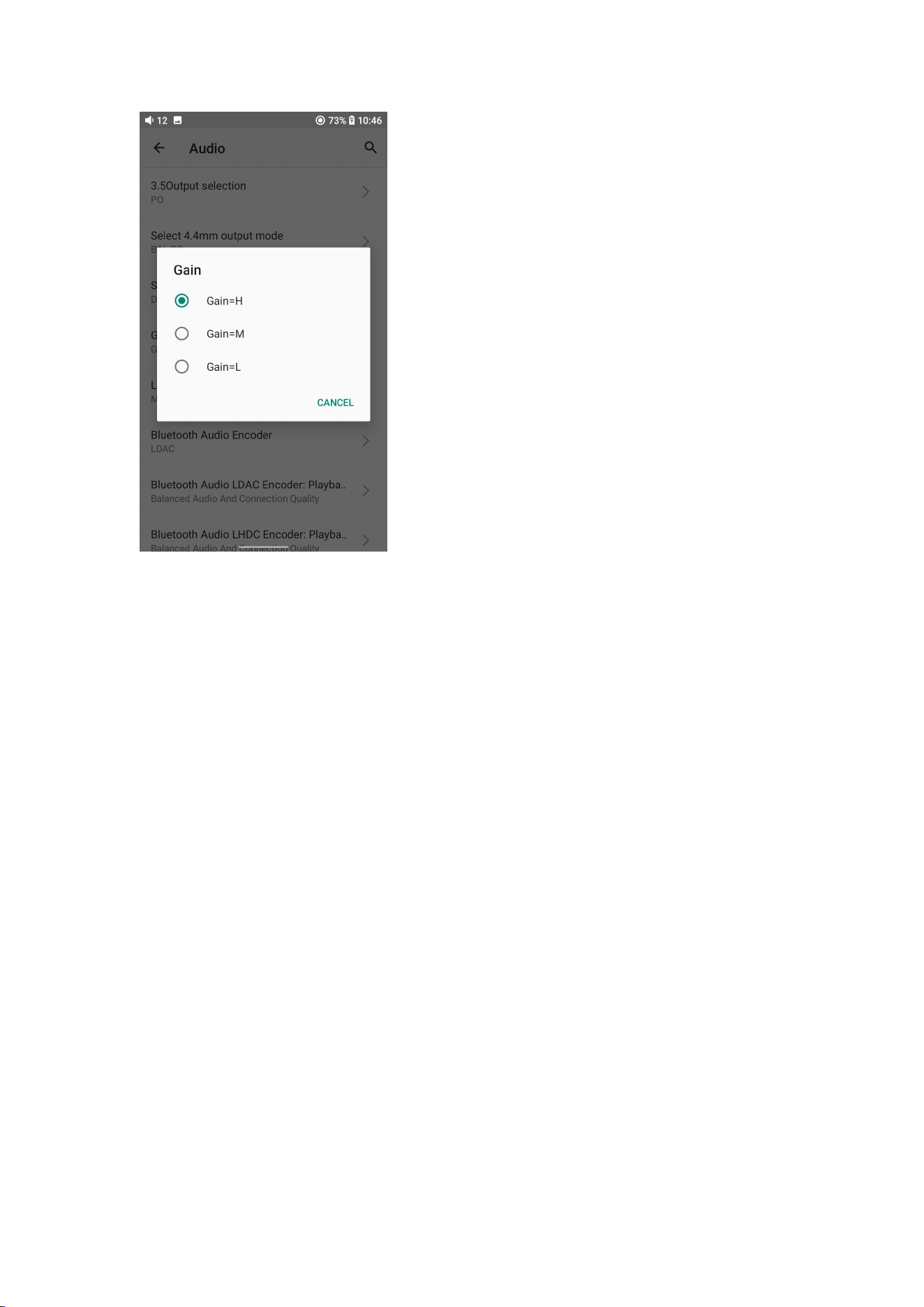

Gain..........................................................................................................................................24
Lowpass filter mode............................................................................................................25
Bluetooth Audio Encoder.................................................................................................. 26
Balance....................................................................................................................................27
All To DSD.............................................................................................................................. 28
Adjustable volume at LO................................................................................................... 28
Display.............................................................................................................................................29
Sample rate display .............................................................................................................29

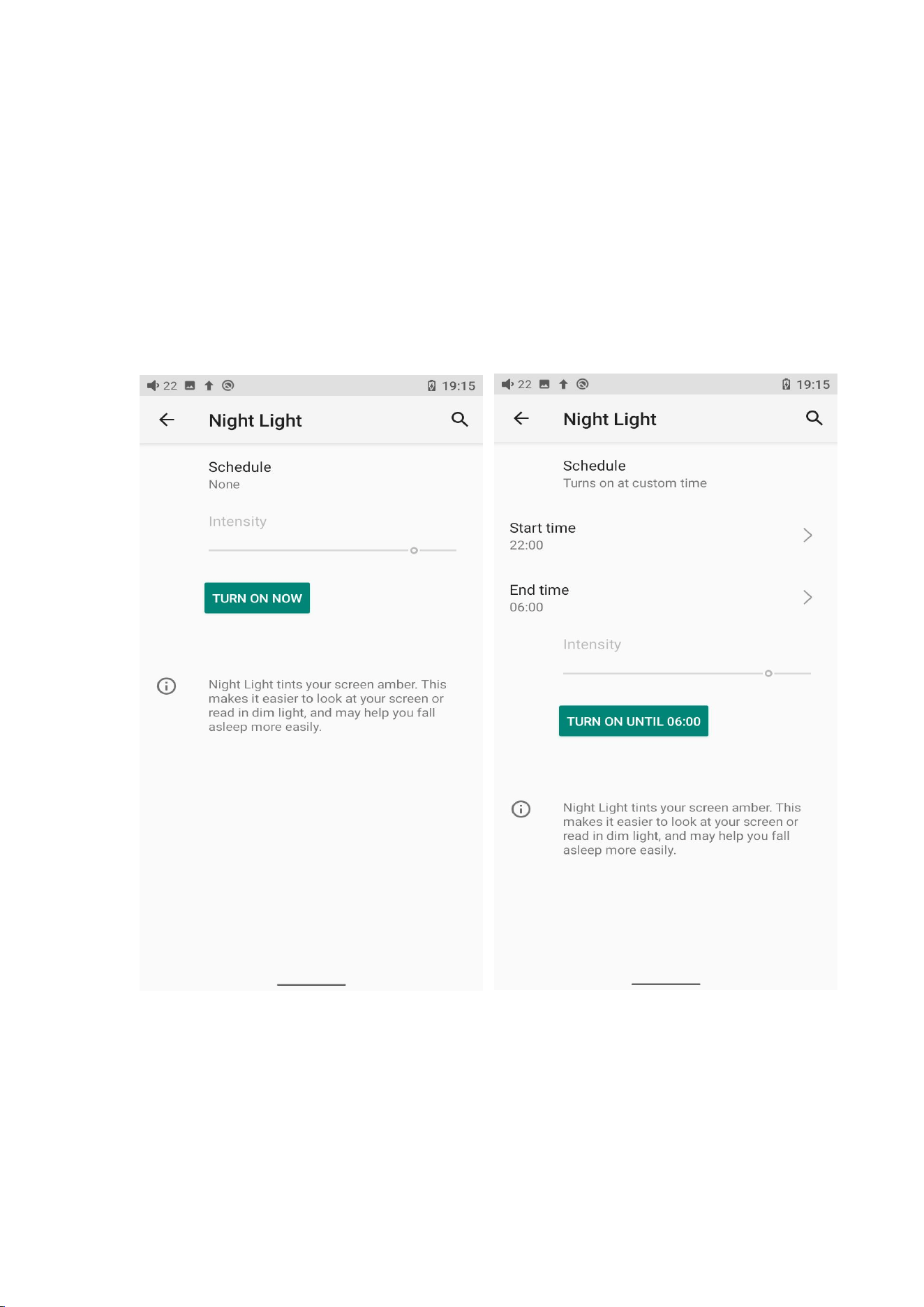

Night light..............................................................................................................................30
Screen timeout..................................................................................................................... 30

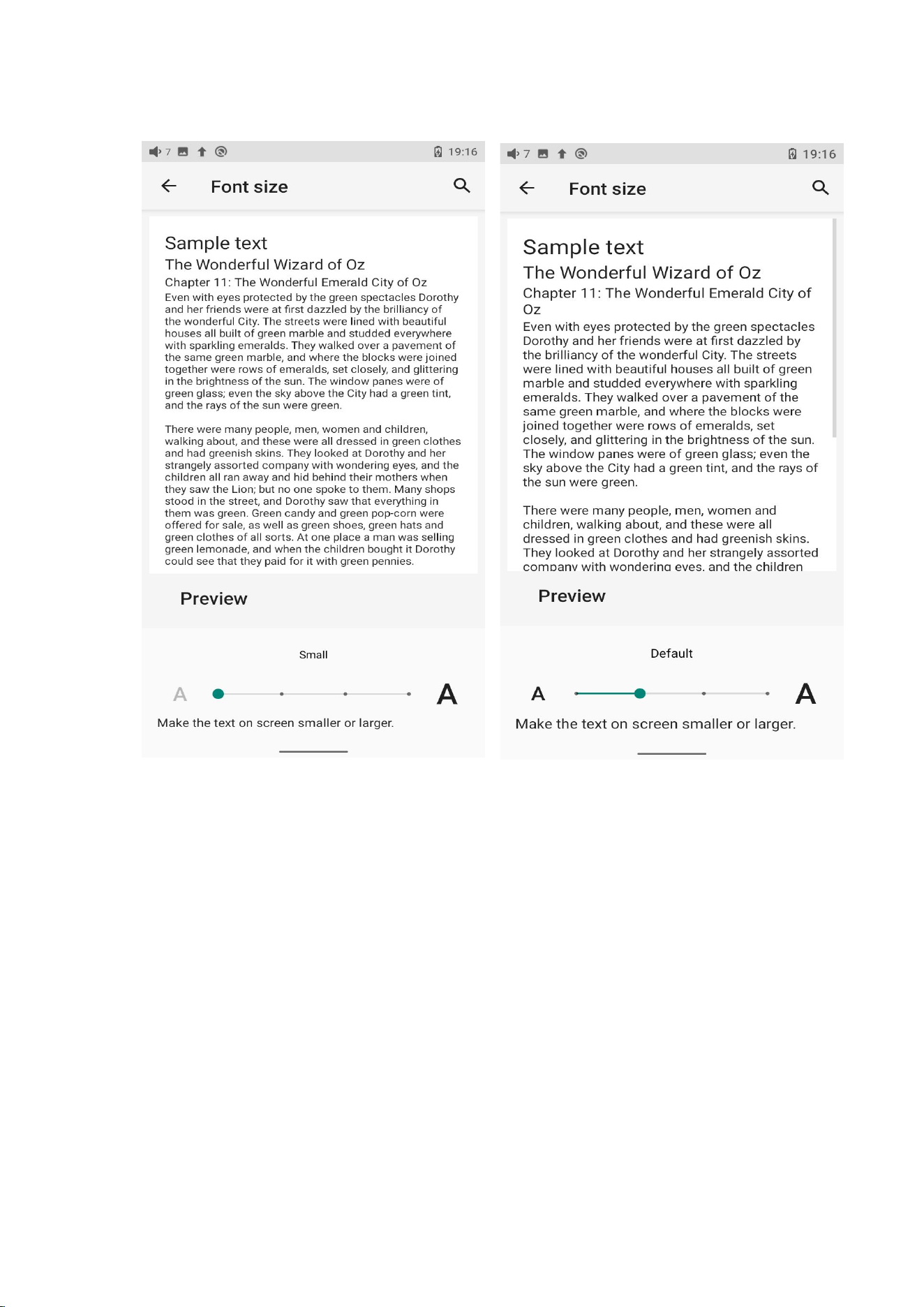

Font size................................................................................................................................. 31
Display size............................................................................................................................ 32
Global.............................................................................................................................................. 33
System navigation............................................................................................................... 33
Power-off timer.....................................................................................................................35
In-vehicle mode................................................................................................................... 36
4
Double tap to wakeup........................................................................................................37
System.............................................................................................................................................38
Languages & input..............................................................................................................38

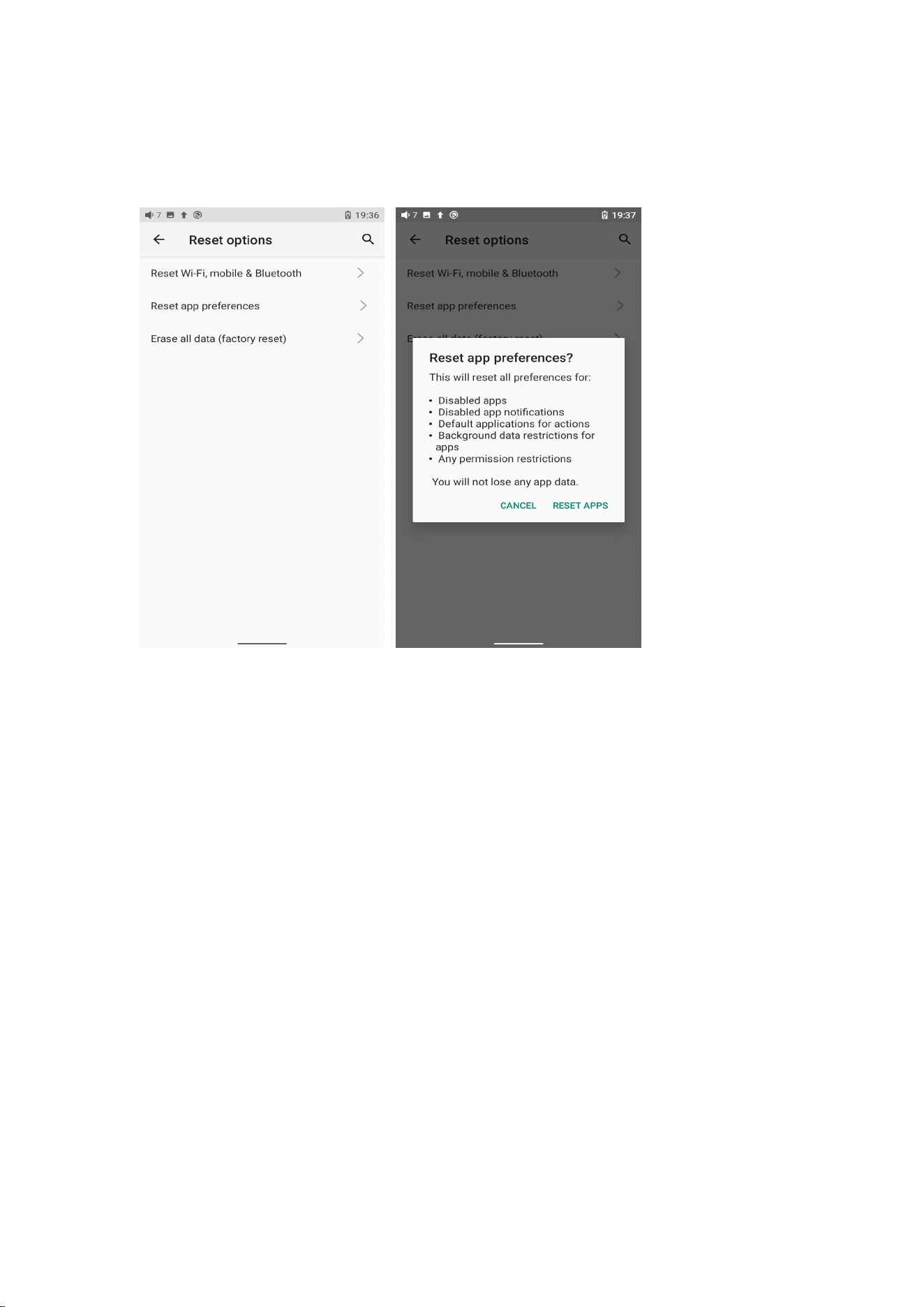

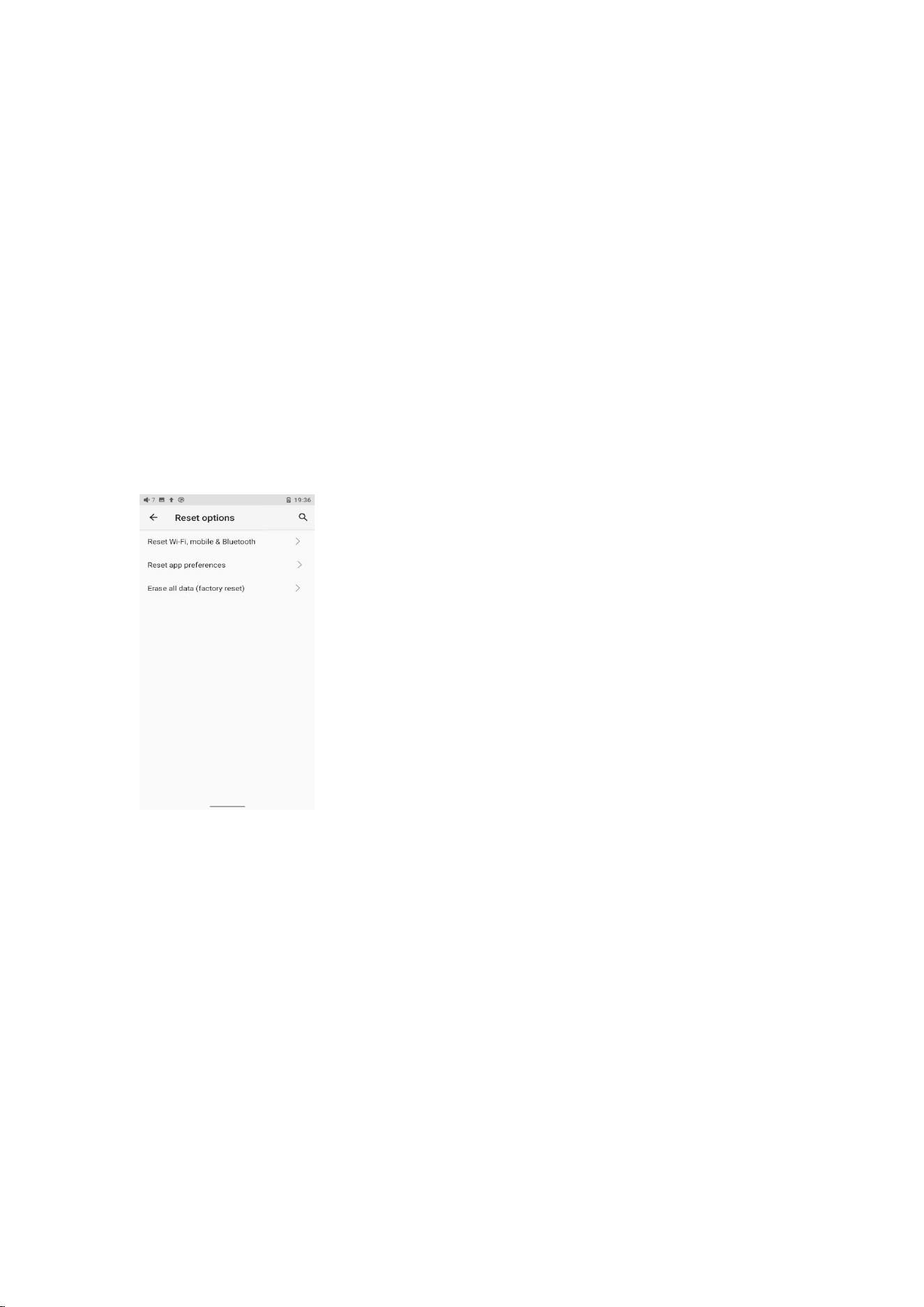

Reset options........................................................................................................................ 39
FiiO Music APP............................................................................................................................. 40
Instructions for commonly-used functions..........................................................................66
1. Screenshot.........................................................................................................................66
2. USB Audio digital output..............................................................................................66
3. FiiO Link Bluetooth control.......................................................................................... 66
4. FiiO Link Wifi control......................................................................................................67
5.How to use the DLNA function?.................................................................................. 68
6.How to use the coaxial function of M11S?...............................................................69
7.What can be done if I forget my password? How to enter recovery mode?. 71
Firmware upgrade, factory data reset and technical support ........................................ 71
1.How to upgrade firmware?........................................................................................... 71
2.Force to reboot................................................................................................................. 73
3.Factory data reset.............................................................................................................73
4.Technical support............................................................................................................. 74
5
An introduction to the M11S
As a high fidelity portable music player, the M11S is equipped with
Qualcomm's Snapdragon 660 SoC and 5.0 inch/720P bezel-less display,
supporting an internal storage of 32GB and up to 2TB Micro SD card,
image zooming and multi-touch.
In the M11S, a variety of audio decoding architectures can be built,
including local decoding/USB DAC. It supports outputs of
LO/BAL_LO(4.4)/PO/BAL(2.5+4.4)/SPDIF/USB Audio/BT.
Not only does the M11S support dual-band wifi and Bluetooth 5.0, but
also support high-quality Bluetooth codecs, such as AAC, aptX, aptX-HD
and LDAC.
Its battery life goes up to 14 hours (PO playing) with a standby time
over 45 days, allowing a versatile HiFi music experience.
6
Buttons and ports

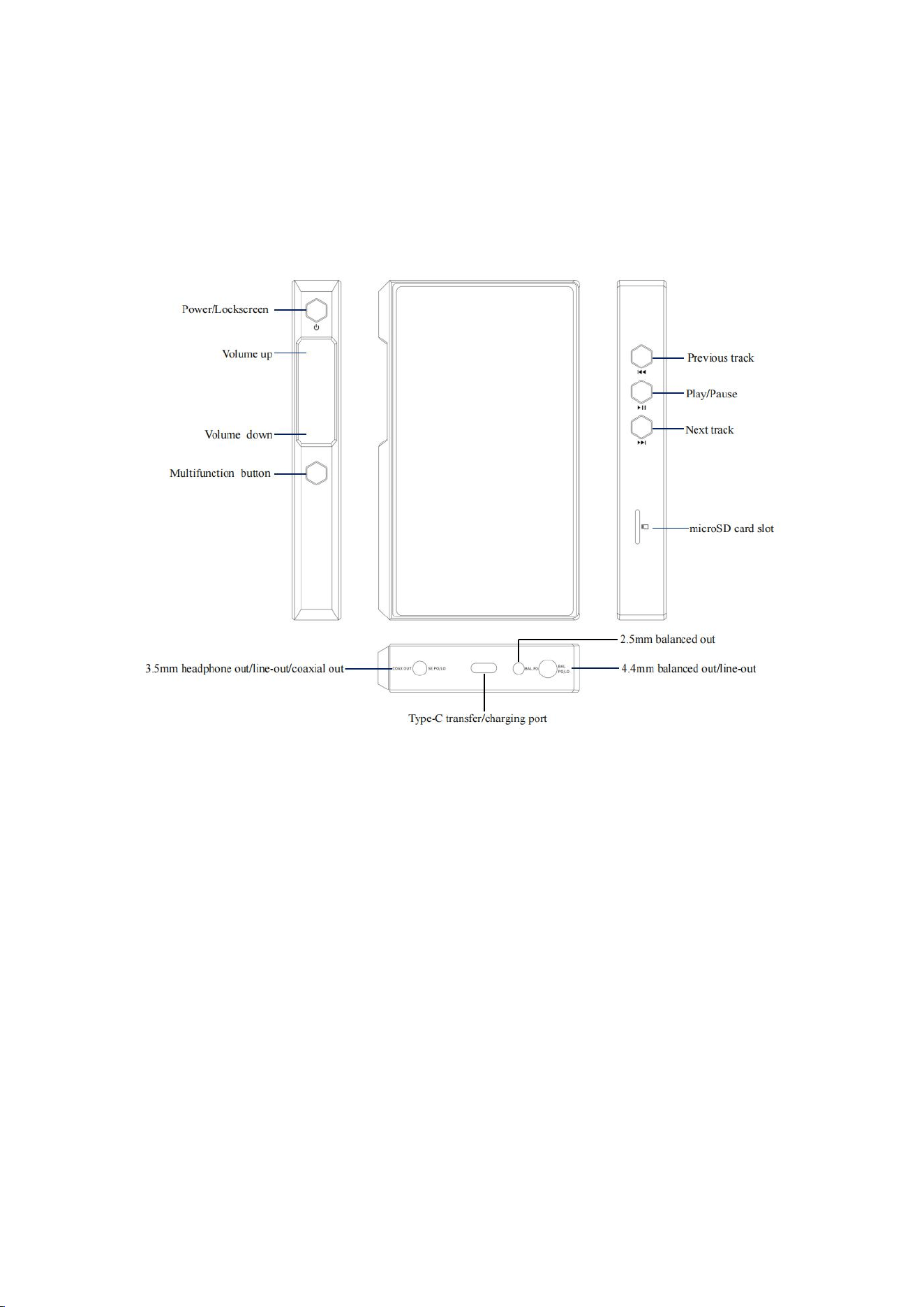

1. Pictorial guide to buttons and ports
(Pictures are for reference only)
2. Instructions for buttons and ports
1) Power/Lockscreen: long press it for about 2 seconds when the
device is off to turn it on; long press it when the device is on to pop up
the menu of reboot/shutdown; short press it when the device is on to
turn off/wake up the screen; long press it for about 10 seconds to reset
the device.
2) Previous track: short press to play the previous track; long press to
rewind.
7
3) Play/Pause: short press it when music is playing to pause the music;
short press it when music is paused to resume the playback.
4) Next track: short press to play the next track; long press to
fastforward.

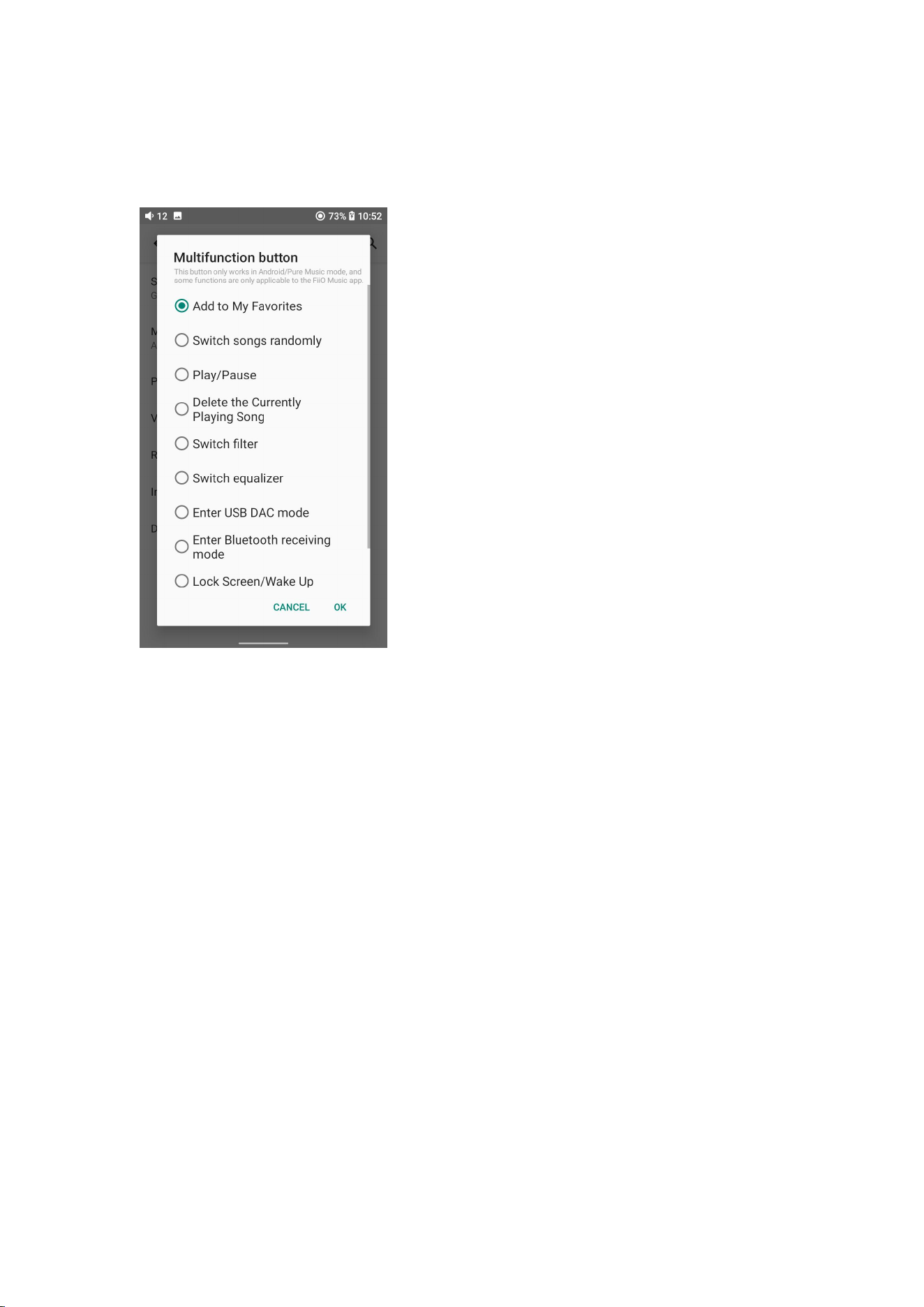

5) Multi-function button：You can customize the multi-function
buttons to select a frequently used function for one-button quick start.
For example, you can set the button to add to favorites, random play,
play/pause, switch filter, switch equalizer, delete the currently playing
song, switch to USB DAC mode, switch to Bluetooth mode, no function,
etc.
6) microSD card slot: supports one TF card (micro SD card),
theoretically up to 2TB expansion.
7) Volume up/down: press the volume up button to increase the
volume, press the volume down button to decrease the volume.
8) USB Type C transfer/charging port: used for charging, data
transmission and USB Audio. It is recommended to use a QC3.0 or
above power supply adapter, which needs at least 3.5 hours for a full
charge.
9) 4.4mm balanced output: supports 4.4mm balanced
headphone/line-out output.
10) 2.5mm balanced output: supports 2.5mm balanced headphone
output.
11) 3.5mm headphone/line-out/SPDIF output: shared outputs of line-
out, spdif out and PO
The priority of the M11S output port
1. When the 3.5mm, 2.5mm and 4.4mm earphones are inserted at the
8
same time at the same time, the output will be given priority in the
order of insertion
2. According to the Android system's own processing method,
Bluetooth transmission and analog output (including SPDIF) will follow
the principle of post-access priority.
9
Status bar and display page
The status bar on the top screen shows the working states of the M11S.
Instructions for entry-level functions
1. Five working modes
10
The M11S supports five working modes, including Android mode, Pure
Music mode, AirPlay, USB DAC mode and Bluetooth Receiving mode. It
is defaulted to be Android mode when the device is powered on for the
first time, which can be switched to other modes on the drop-down or
settings menu.
Android mode
Third party applications will be available at will. It can be switched to
other modes on the drop-down or settings menu.
11
Pure Music mode
Third party applications will be automatically disabled while FiiO Music
app will be auto-enabled. It can be switched to other modes on the
drop-down or settings menu.
AirPlay
The M11S can be connected to Apple devices, receiving audio signals
transmitted from them.
USB DAC mode
In USB DAC mode, the M11S can be connected to other devices like a
computer, working as a USB DAC/Amp. It can be switched to other
modes on the drop-down or settings menu.
Notes: when the M11S is going to work in the USB DAC mode for the
first time, FiiO's exclusive USB DAC driver is required. Please download
it on our website and follow relevant instructions to install it.
Bluetooth Receiving mode
The M11S can be connected to Bluetooth transmitting devices like a
mobile phone, working as a Bluetooth DAC/Amp. It can be switched to
other modes on the drop-down or settings menu.
12
2. How to connect the M11S to a computer
For Windows systems, the M11S runs driver-free. Connect the M11S to
the computer through the included USB cable, the required driver will
be automatically installed. After it is finished, the FiiO M11S disk can be
directly seen on the computer.
For Mac systems, a driver is needed.
1) After connecting the M11S to the Mac computer, click the "NO
NAME" folder emerging on the desktop->double click Mac->Mac/MAC
OS MTP Client->Android File Transfer.dmg. Drag the "Android File
Transfer.dmg" to the desktop of the computer.
2) Drag the "Android File Transfer" file to the "Applications" folder and
wait for the completion of the copy.
3) Enter "Applications", and double click the "Android File Transfer".
Then
you can manage the files stored in the internal storage of the M11S or
the Micro SD card.
Notes: The M11S folder will directly pop up the next time it is being
connected to the same computer.
13
3. How to upgrade firmware?
The M11S supports online upgrade and local upgrade.
1) Online upgrade
If a new firmware is available and can be detected (with the M11S
connected to an available internet), an upgrade notification will show
up in the notification center. Tap on it to enter the update menu for the
online upgrade. If there's no upgrade notification showing up, you can
go to the "Technical Support->Firmware Upgrade" menu, and tap the
"Check for updates" icon to check manually.
2) Local upgrade
Also, the M11S can be upgraded locally by a firmware package.
Download the firmware package file from FiiO.com, and copy it to the
internal storage of the M11S or an SD card. Go to the "Technical
Support->Firmware Upgrade->Local Upgrade" menu, and find the
firmware package file to start the upgrade.
Notes:
1) Do not unzip the firmware package file.
2) Before the upgrade, ensure the power of the device is adequate
(>30%) so to avoid upgrade failure.
14
3) If the device goes to factory mode which cannot detect the firmware,
the reason may be that the firmware file is damaged. At this time, press
the power button to reboot the device. Re-download the firmware file
and restart the upgrade.
4. How to install third-party apps?
There are two ways that are similar to mobile phones' to install
applications.
1) Method 1: After connecting the device to a valid WiFi, go to FiiO
market, Google Play or other app markets to download and install the
app directly.
2) Method 2 (Local installation): copy the APK file to the M11S. Go to
the file management menu to find the file and install it.

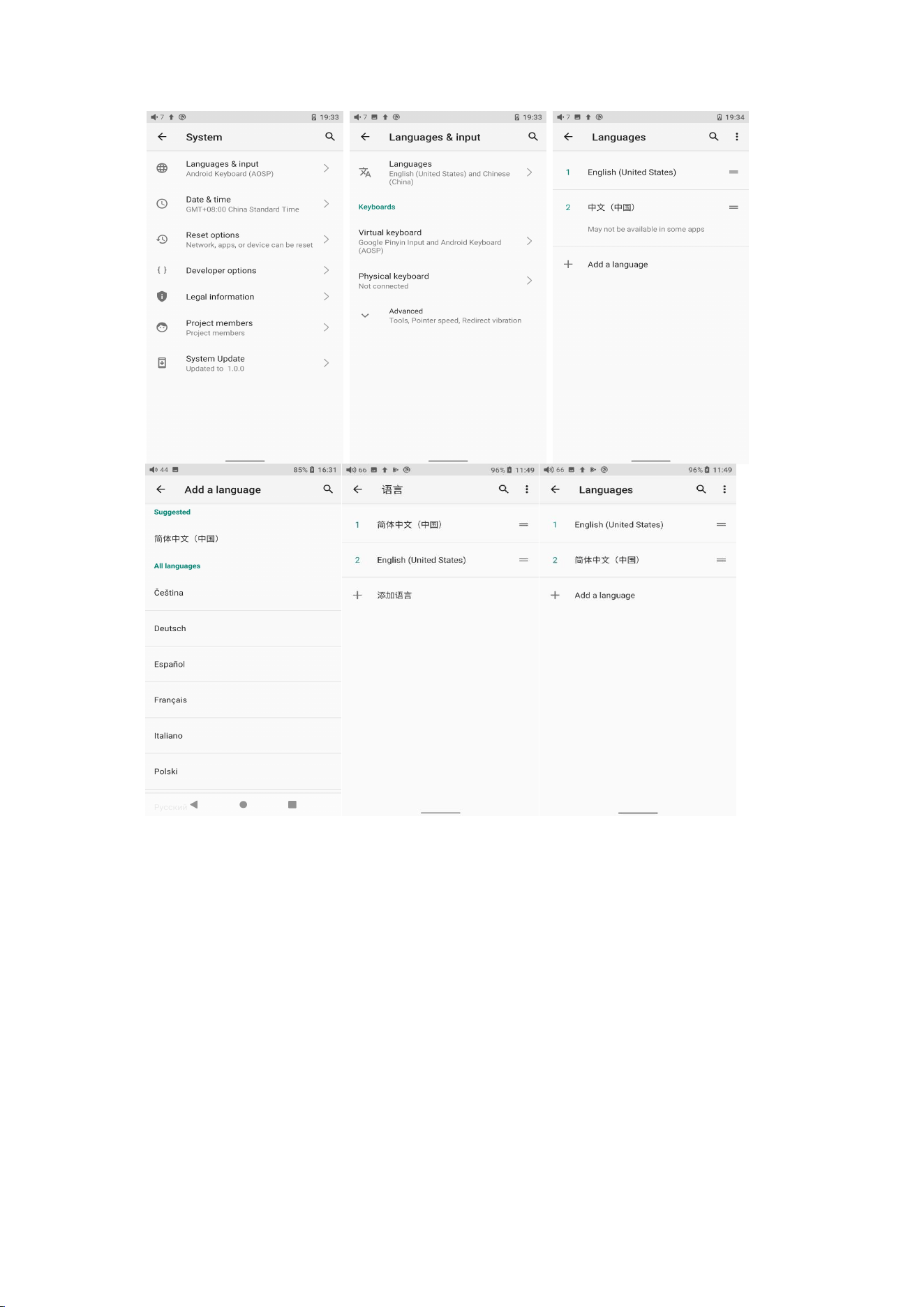

5. How to change the language?
Go to Settings->System->Languages and input->Languages->Add a
language to choose the intended language. Press the "=" icon on the
right side and drag it to the first line to select the language successfully.
15
The language of the FiiO Music app defaults to follow the system's. You
can also go to FiiO Music app-> Settings->Languages to choose the
language independently.
6. How to enable the USB DAC function?
For Mac computers, the M11S runs driver-free.
For Windows computers, please make the settings as the followed
steps.
1) Install the FiiO DAC driver in the computer first.
2) Switch the working mode of the M11S to USB DAC mode on the
drop-down menu or go to Settings->Mode choose menu to enter the
USB DAC mode.
3) Connect the M11S to the computer by the USB port. Select the
M11S as the audio input both in the computer and the music app, so it
can work.
Notes:
When in the USB DAC mode, the M11S does not support Bluetooth
transmitting.
7. How to use the M11S as a Bluetooth transmitter?
16
It is similar to mobile phone's. Here are the instructions.
1) Go to the Settings->Bluetooth menu to turn on the Bluetooth
function.
2) Make the Bluetooth receiving device, such as Bluetooth earphones,
enter the pairing state. (Please refer to the user manual of the
Bluetooth receiving device about how to enter the pairing state.)
3) Go to the Bluetooth device list of the M11S->Pair new device to
complete the connection.
What can be done if the M11S fails to connect to Bluetooth
earphones?
If it fails to connect to Bluetooth earphones for the first time, please
make sure the earphones are in the pairing state (the connection will
fail if the earphones are in reconnecting state for the first-time
connection). Go to the Bluetooth menu of the M11S to start the
connection.
What Bluetooth codecs does the M11S support? And how to switch
the Bluetooth codecs?
The M11S supports LDAC, aptX-HD, aptX, AAC and SBC which can be
switched on Settings->Audio->Wireless playback quality menu. Note
17
that it needs to be disconnected and reconnected to enable the new
codec after changing it.
What can be done if the volume is too low when the M11S is
connected to AirPods?
Go to Settings->About phone, and continuously tap the "Build
number" 7 times. Go back to Settings->System->Developer options
menu to turn off the"Disable absolute volume". Disconnect and
reconnect the two devices through Bluetooth.
8. What power supply adapter is suggested to
charge the M11S?
QC2.0, QC3.0 and MTK PE quick charging protocols are supported. If
the power adapter does not support the above protocols, it will not
trigger the quick charging function. Therefore, it is not suggested to
use it.
For non-quick charging adapters, it is recommended to use the 5V
1A/2A adapters.
18
Introduction to Settings menu
WiFi
The M11S supports a WiFi connection of 2.4/5G dual-band for music
resources access. Here are the steps to connect the M11S to a new WiFi
device.
1) In the settings menu of the M11S, tap "WiFi".
2) Turn it on. The M11S will automatically search for and list available
WiFi devices nearby.
3) Tap the intended WiFi device and connect them.
19
Bluetooth
The M11S supports lots of Bluetooth codecs for both transmission and
reception, allowing for rich wireless connections.
Bluetooth transmitting
When being a Bluetooth transmitter connecting to new Bluetooth
devices (such as Bluetooth headphones, Bluetooth speakers), the M11S
needs to pair with the Bluetooth device first. Here are the steps.
1) Go to the Settings->Bluetooth menu.
2) Turn on Bluetooth.
3) Tap "Pair new device". The M11S will automatically search for and list
available Bluetooth devices nearby.
20
4) Tap the intended device to start the connection. Successfully
connected devices will be displayed on the list of Available media
devices with an "Active" prompt.
Before connecting to a Bluetooth device, you can select the Bluetooth
codec you like in the M11S. Here are the steps.
1) Go to the Settings->Audio menu.
2) Tap Bluetooth Audio Encoder-> choose the intended Bluetooth codec.
Disconnect the current connection and reconnect the M11S to the
Bluetooth devices.
21
Note: When the Bluetooth is enabled, the M11S will preferentially
connect to the last-connected available Bluetooth devices.
Bluetooth receiving
When the M11S is working as a Bluetooth receiver to connect to a new
Bluetooth device, such as a mobile phone, turn on the Bluetooth, go to
the Settings menu-> Mode choose, and select Bluetooth Receiving
Mode. When it is enabled, the M11S will automatically enter the BT
Receiving UI.
22
Audio
23
Output selection
Both PO and LO are available for 3.5mm and 4.4mm.
SPDIF OUT
The SPDIF out (Coaxial Out) supports DoP and D2P modes. In D2P
mode, PCM will be output originally while DSD will be converted to
PCM signal. In DoP mode, both PCM and DSD signal will be output
originally (Note that when outputting DSD signal, the latter decoding
device is required to support DSD decoding for normal output.)
24
Gain
There are 3 gain levels, high, medium and low. For common situations,
the low gain can help to achieve longer music experience. When using
high-impedance headphones and other similar devices, high gain can
help to achieve smoother music experience.
25
Lowpass filter mode
There are 7 different filters (internal configuration of the ES9038Q2M)
built in the M11S for your preference.
Filters are the sound effects born with the chip, which only has slight
adjustments for the sound. Here are some introductions to different
filters. These are only for reference since actual listening also has
something to do with the matched device.
1) fast roll-off,linear phase filter: Most Common filter with clean
suppression and high rejection, best for music with high transients.
Provides crisp clean highs
2) slow roll-off,linear phase filter: coherent and clear sounds, positioned
near the middle. It is suitable for classical music.
3) fast roll-off, minimum phase filter: Minimal Pre- Ringing, preferred for
Imaging and soundstage. No aliasing in frequency domain. Stronger
bass than Linear Phase,clean highs
26
4) slow roll-off, minimum phase filter: Non-Symetrical filter designed to
minimize pre-ringing. Strong punchy bass with good transient attacks
5) apodizing fast roll-off,linear phase filter: Version of Linear phase fast
roll-off filter optimized to improve pre-ringing.
6) hybrid fast roll-off, minimum phase filter: Combination of Linear-
phase and Minimum-phase. Fast transient attack, strong punchy bass,
crisp highs.
7) brickwall filter: On of the earliest designs, intended for highest
suppression possible,with high delay and pre-ringing.
Bluetooth Audio Encoder
The Bluetooth transmission takes the highest codec by default. You can
choose the highest codec supported for the Bluetooth connection by
27
this option.
Balance
If there is any imbalance between the left and right channels when
playing music, you can adjust the channel balance here. It supports
L20-R20 adjustment.
28
All To DSD
When the All To DSD function is turned on, the PCM signals will be
converted to DSD for output with sound quality further improved.
【Principle】All To DSD is mainly about switching digital signals from
PCM to DSD format. So when making digital-to-analog conversion, it
can use DSD format, enriching music styles with clearer and natural
sound quality. In addition, since the lowest format of the DSD is DSD64,
i.e. 4 times of the 44.1k/16bit (just looking at the data size), the All To
DSD function is upsampling the 44.1k/16bit audio signals. Third-party
apps also support All To DSD.
Notice: the All To DSD mode will heat up the device more seriously, and
the battery life will be relatively shortened.
Adjustable volume at LO
29
When it is selected, the volume is adjustable at LO output. Otherwise, it
is fixed at the maximum volume.
Display
The display settings consist of Sample rate display, Dark theme,
Brightness level, Night light, Wallpaper, Screen timeout, Font size,
Display size, Screen saver and lock screen display. The following are
detailed descriptions of some common items.
Sample rate display
Settings->Display->Sample rate display
With it turned on, the sample rate of the currently playing song will be
displayed.
30
Night light
The color of the display screen will be adjusted in amber under Night
light mode, e to enable the Night light mode at a custom time , or
from sunset to sunrise.
Screen timeout
31
This option is to set the time when the device will enter sleeping mode
after inactivity. The device will enter low power consumption mode
after 10 minutes of sleeping. Short press the Power/Lockscreen button
to wake it up.
Font size
There are four standards available, which respectively are small, default,
large and largest.
32
Display size
The display size corresponds to the size of the icons and texts displayed
on the screen.
33
Global
System navigation
There are 3 navigation ways for your preference and needs, including
Gesture navigation, 2-button navigation and 3-button navigation.
34
Multi-function button
You can customize the multi-function buttons to select a frequently
used function for one-button quick start.
For example, you can set the button to add to favorites, random play,
play/pause, switch filter, switch equalizer, delete the currently playing
35
song, switch to USB DAC mode, switch to Bluetooth mode, no function,
etc.
Power-off timer
There are two types of the timer, Sleep and Idle poweroff.
Sleep
The device will automatically shut down when the time reaches the set
value. It can be set to any integer value between 0 and 120 minutes.
(Note that if it is turned OFF, the sleep shutdown function will be
disabled.)
Idle poweroff
If the device is not working without any operation, it will automatically
turn off once the timer reaches the set value. It can be set to any
36
integer value between 0 and 50 minutes. (Note that if it is turned OFF,
the idle shutdown function will be disabled.)
In-vehicle mode
【Principle】After turning on the In-vehicle mode, you can connect the
M11S to the on-board USB port, and the M11S will power on
automatically and switch to the In-vehicle mode screen when the
vehicle engine starts, and power off automatically when the vehicle
engine stops.
37
【How to set】Go to Settings->Global->In-vehicle mode, or the drop-
down menu to turn on the in-vehicle mode.
Double tap to wakeup
If the Double tap to wakeup function is enabled, the sleep device can be
wake up by double-tapping the screen.
38
System
Languages & input
The first time the device starts up, you can choose an appropriate
language from the prompt.
If you want to choose other languages, you can go to the Settings
menu. Here are the instructions.
1) Go to the menu of Settings-> System-> Languages & input->
Languages;
2) In the Languages page, tap Add a language;
3) Select a language;
4) After selecting the language, hold the “=” icon on the right side of
the target language and drag it to the top, so to successfully select the
language.
39
Reset options
"Reset WiFi, mobile & Bluetooth" will reset all network settings,
including WiFi and Bluetooth.
"Reset app preferences" will reset all preferences including the items
shown in the following picture.
40
"Erase all data", i.e. factory reset, will erase all data from your device's
internal storage, and all settings will be reset to default. Please back up
your important data before resetting.
FiiO Music APP
The M11S has built in the FiiO Music app, a professional audio playing
application specially developing for Android-based system and
flagship-grade music players.

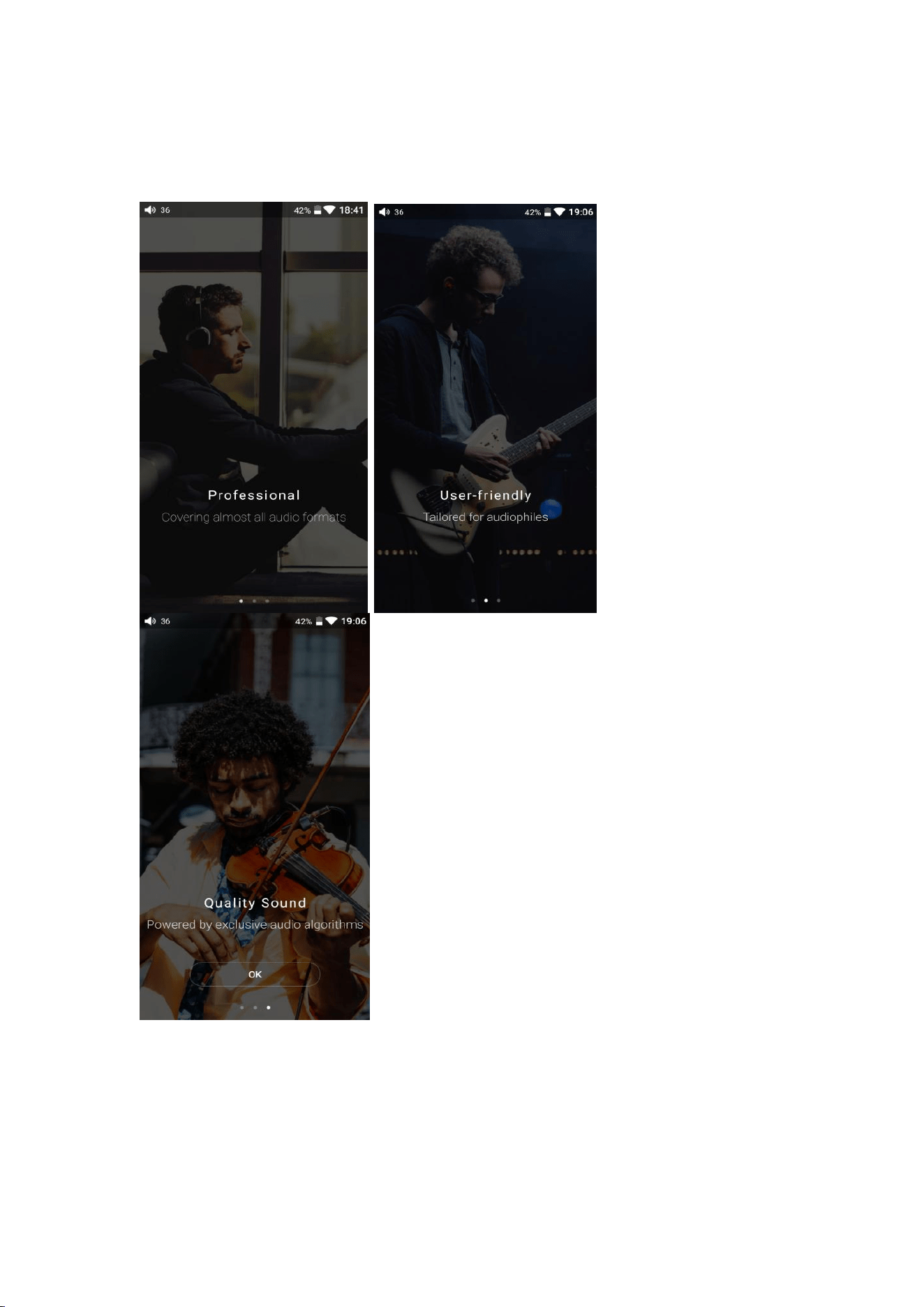

1.Homepage
FiiO Music APP will enter the homepage once it starts up as shown
below.
41
FiiO Music will enter the homepage once it starts up as shown below.
1) Settings icon: tap the icon to enter the settings page.
2) Playing menu: press the icon to enter the playing page.
42
3) Recently played: the list of recently played songs will be presented
chronologically.
4) Frequently played: the list of recently played songs will be presented
based on playing frequencies.
5) Recently added: a list of recently added songs will be presented
chronologically.
43
44
45
46

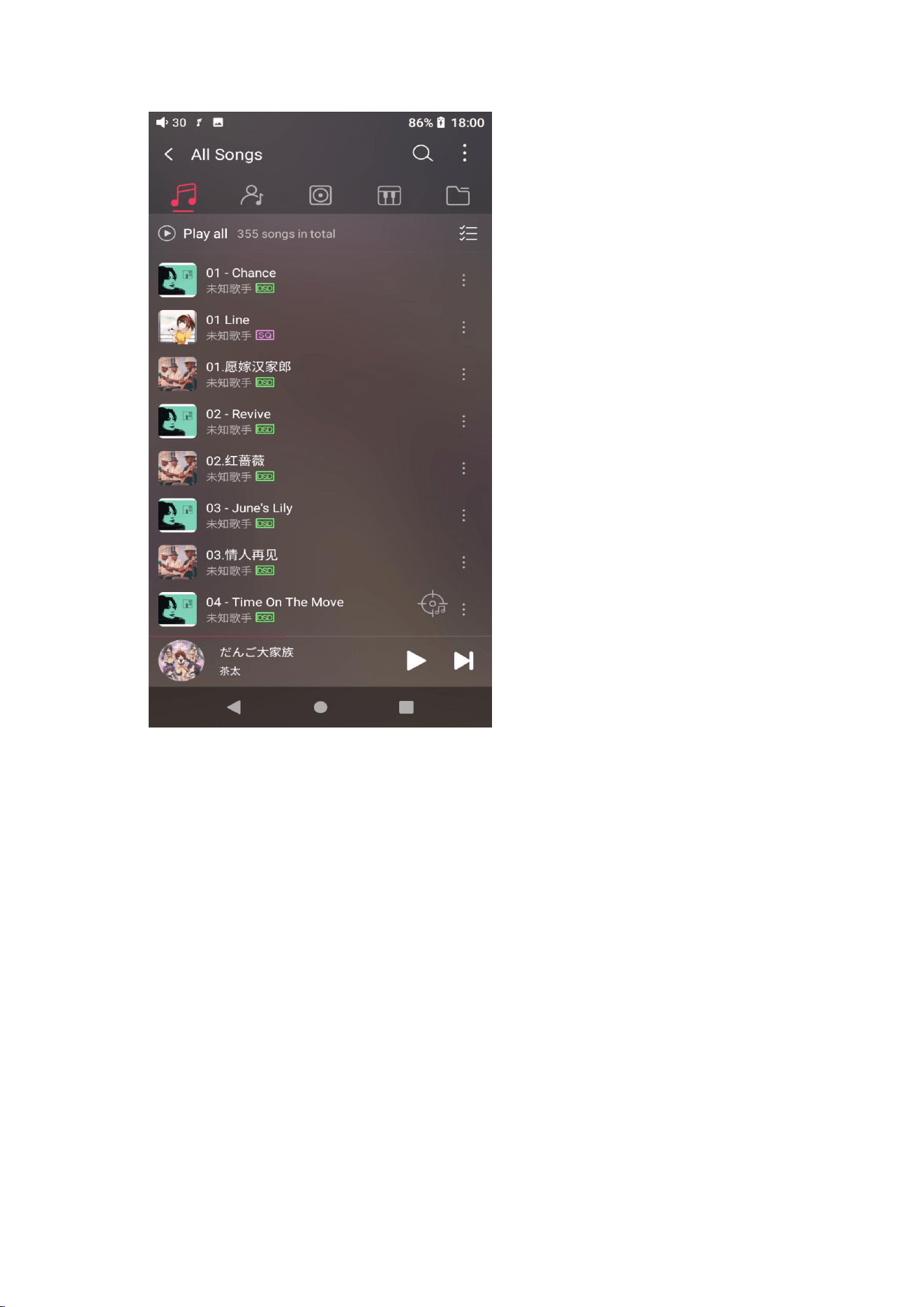

2. Quickly locate all songs
Slide the screen with your finger on the letter bar at the right side. A
quick search icon will show up in the middle of the screen. Sliding to
corresponding initials and relieving your finger, it will directly jump to
the songs starting with the initial you have chosen.
47
3. All songs menu
Tap the icon at the right corner of each track to wake up the hidden
menu. Then tap the icon in the menu to perform corresponding
operations.
48
49

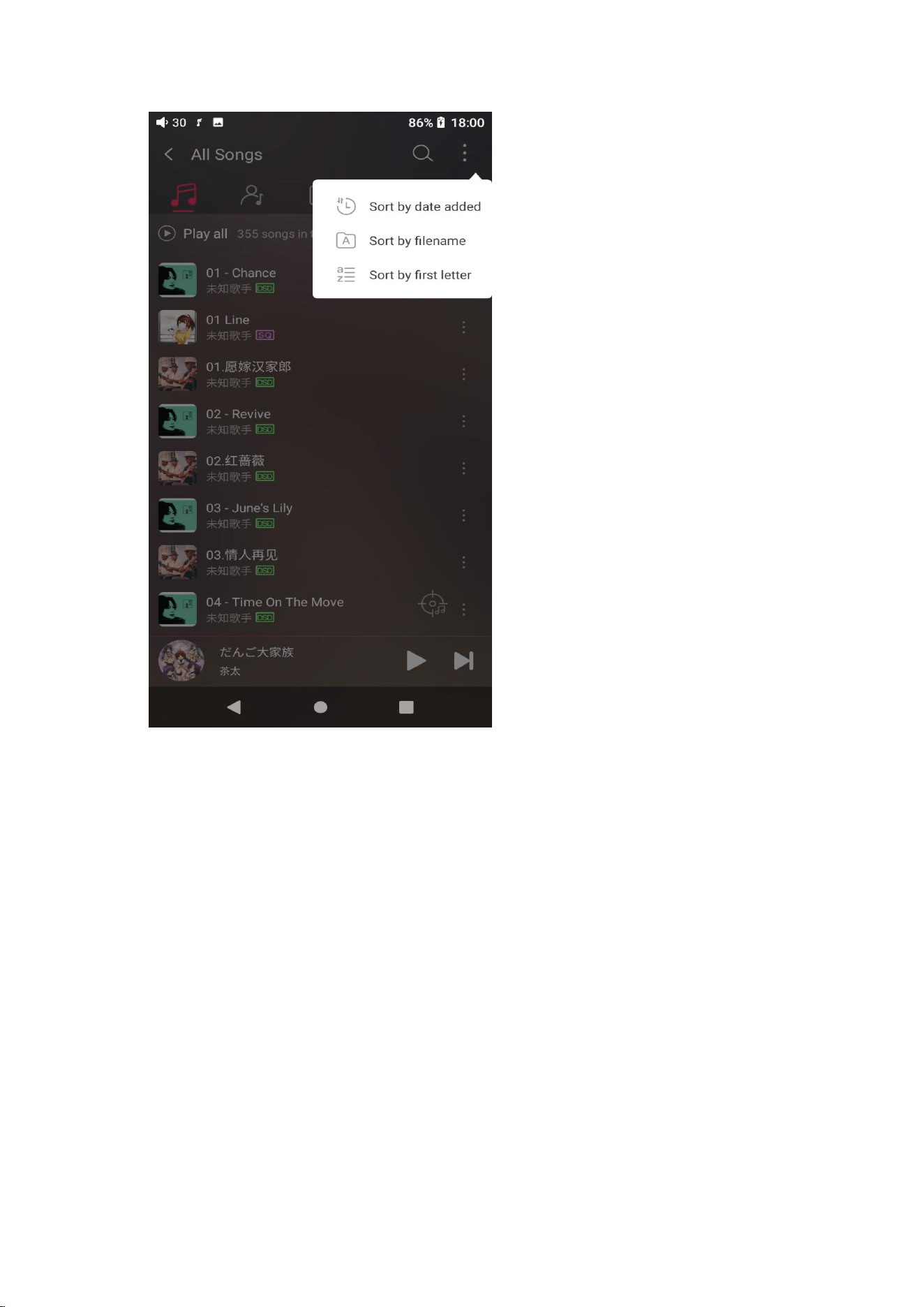

Tapping the hidden menu on the upper right corner of the screen, you
can decide the way of songs sorted as Sort by date added, Sort by
filename and Sort by the first letter.
Bulk management: Play music, WiFi music transfer, Add to my favorites,
Add to playlists, Delete selected, and Exit bulk management.
50
51
52

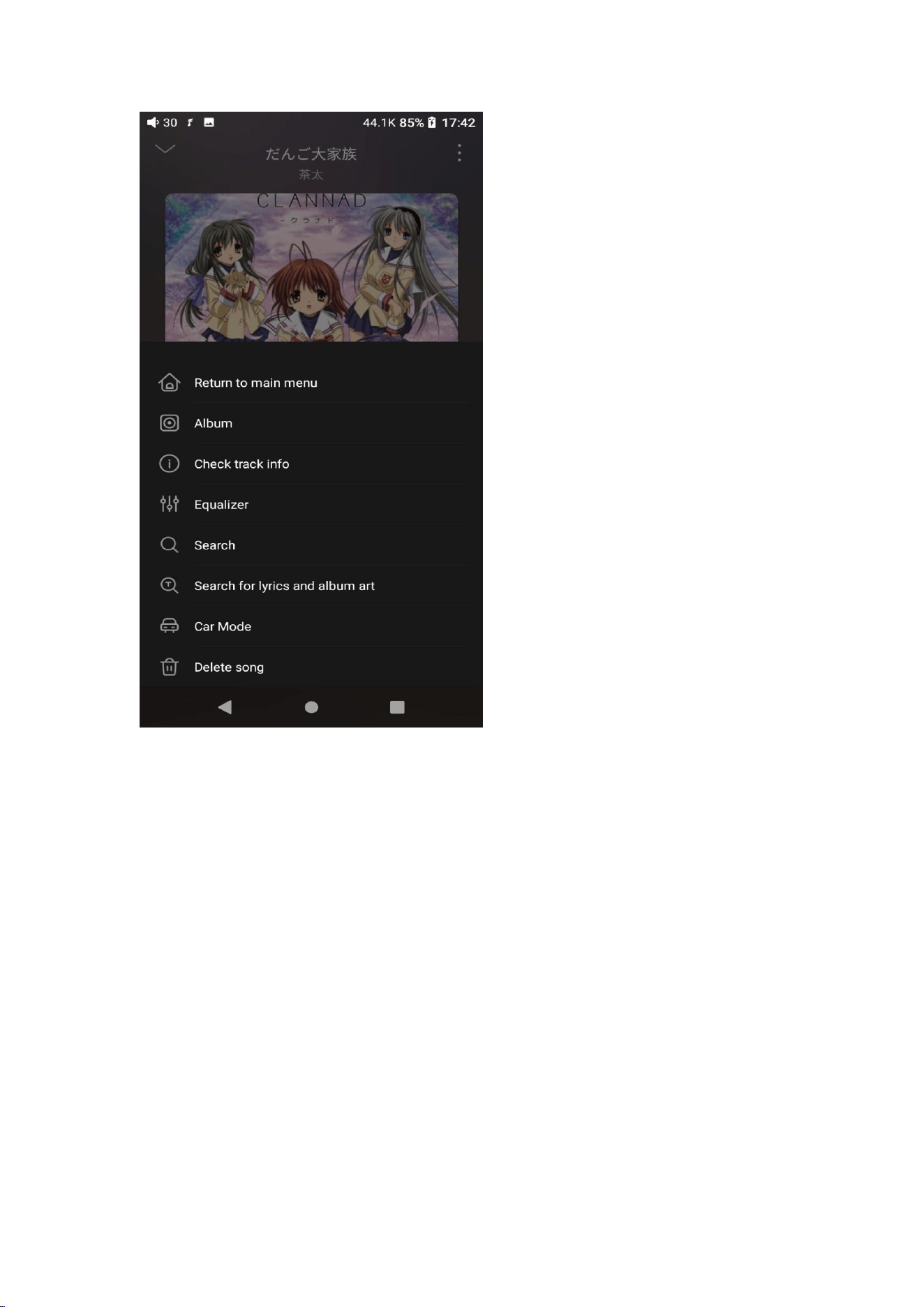

4. Playing page
53
54
Switch page: by tapping the middle of the album cover, it will switch
pages between album cover and lyrics circularly. Swipe left and right to
switch songs.
Adjust volume: slide up/down on the volume touch panel or press the
physical button to increase/decrease the volume.
Playing progress: slide left and right on the progress bar below the
album cover to quickly adjust the progress of the now playing song.
jump to the corresponding part of the track now playing;
55
Notes: on the lyrics display page, you can adjust the song progress,
lyrics timeline and font size.
56
57
5. Equalizer
FiiO Music has a built-in equalizer, on which you can straightly choose
the preset EQ for listening, or adjust it through the 10 frequency bands
within 20Hz~20kHz from -12 to +12 dB, fully meeting personal music
tastes.
58
59
Choose preset EQ: swipe left or right on the bottom of the screen to
switch equalizer.
Customized EQ: drag the corresponding frequency band up and down
to slightly adjust the EQ curve (on the bands page, switch left and right
to change the option). Successively adjusting the EQ in need, it will
immediately take effect.
Reset EQ: Tap the Reset button at the upper right corner to reset the
present EQ.
Notes: if the system is reset to factory mode, all EQ settings will be
reset to default.
60
6. UV meter
There is a newly added UV meter (audio meter) with a dB threshold and
dynamic pointer displayed. Closing to the red threshold of 0dB means
audio distortion.
How to enable it: tap the song cover on the now playing page to enter
the UV meter displaying page.

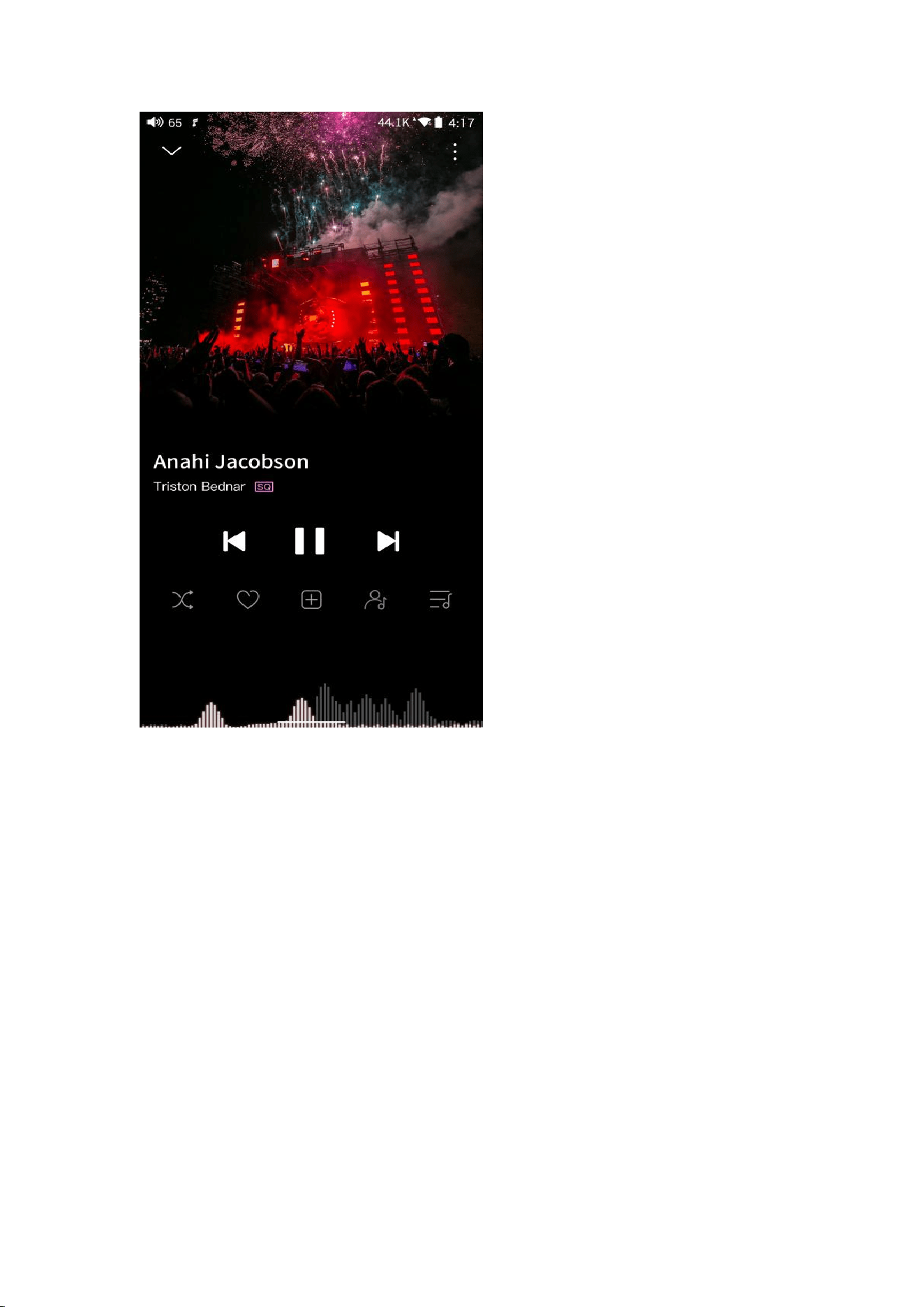

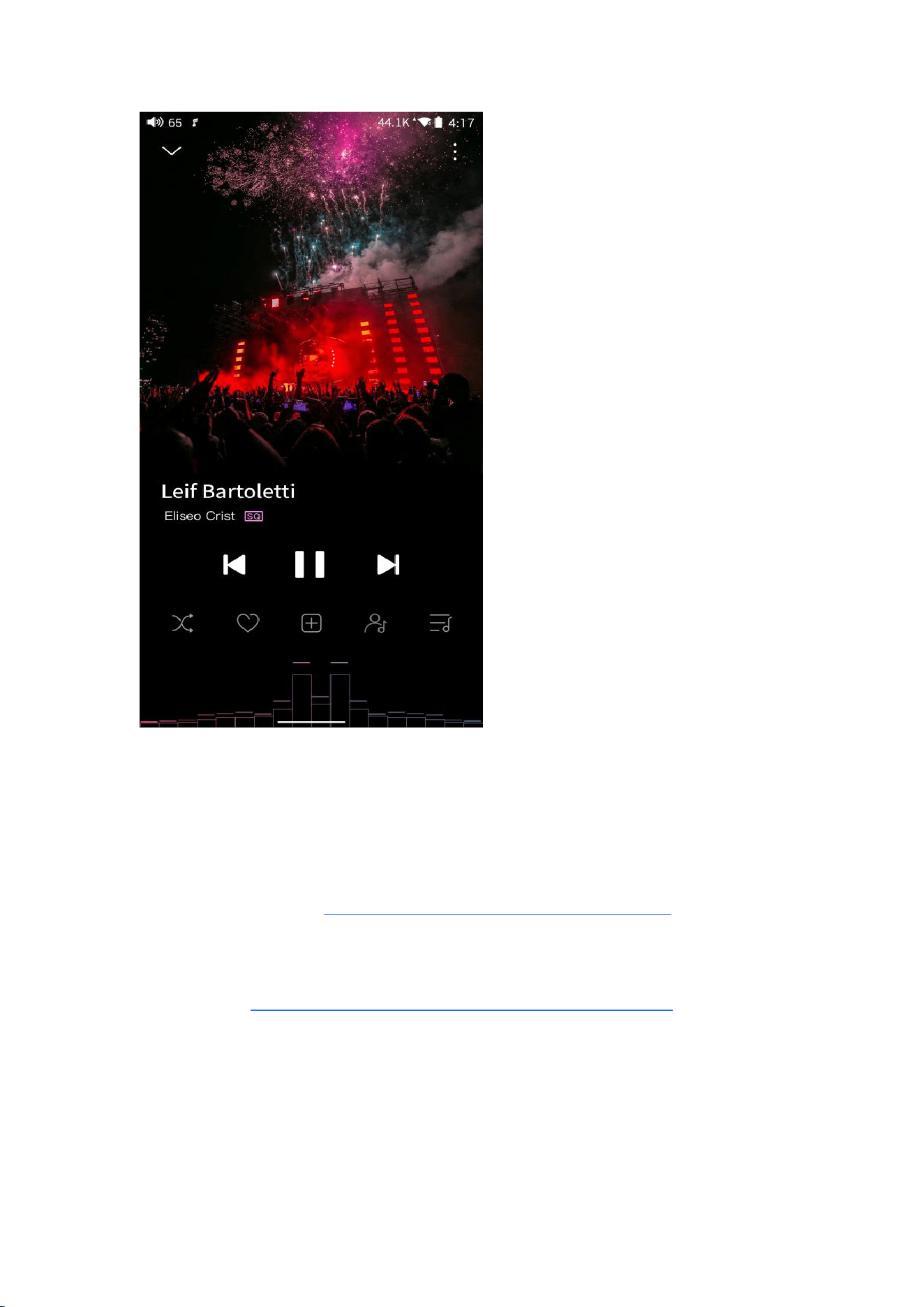

7. Frequency spectrum playing page
There is a newly added frequency spectrum mode in the now playing
page, which has 3 built-in spectrum effects available. Besides, users can
61
self-define Full screen display or Original display for the spectrum mode.

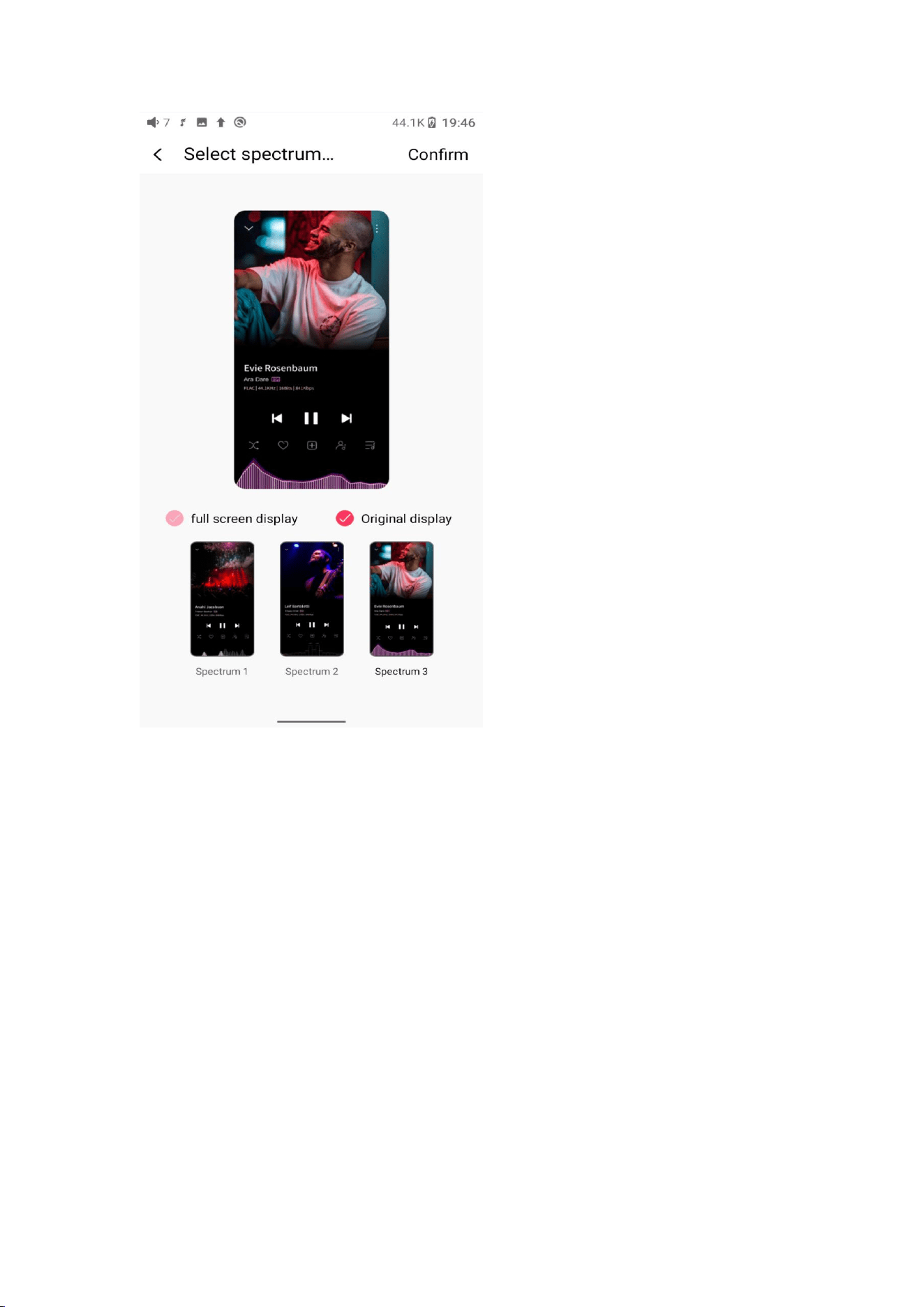

How to enable it: go to the Settings menu in FiiO Music app->Theme-
>Now playing page. Choose Spectrum display.
62
63
Square cover and large cover:
64
66
Instructions for commonly-used
functions
1. Screenshot
The M11S supports screenshot: swipe down the screen with 3 fingers,
or hold the power and volume down button at the same time.
The screenshot is stored in FiiO M11S\Files\Internal
storage\Pictures\Screenshots.
2. USB Audio digital output
The M11S supports connecting to external decoders (USB Audio).
Follow the steps to enable it.
1) In FiiO Music app, turn on the USB output
2) Use an OTG adapter cable to connect the M11S to the external
decoder.
3) Starting up the FiiO Music app or any music app, the M11S can work
as a USB digital device.
It supports most decoders on the market. For those unsupported,
please turn off the USB output in FiiO Music app, or unplug and re-plug
the USB device after exiting FiiO Music app to try playing again.
3. FiiO Link Bluetooth control
There are mainly 3 steps.
1) On the FiiO Music app of the M11S, Settings->FiiO Link->┆ (on the
upper right corner of the display), choose Bluetooth as the Server.
2) Connect the M11S to the mobile phone through Bluetooth.
3) On the FiiO Music app of the mobile phone, Settings->FiiO Link->┆
(on the upper right corner of the display), choose Bluetooth as the
67
Client.
Notes: iPhones only support FiiO Link WiFi control but not Bluetooth.
4. FiiO Link Wifi control
There are mainly 3 steps.
1.Make sure the M11S and your mobile phone are connected to the
same WiFi network.
2.On the FiiO Music app of the M11S, Settings->FiiO Link->┆ (on the
upper right corner of the display), choosing WiFi as the Server. Now an
IP address will show up.
68
3. On the FiiO Music app of the mobile phone, Settings->FiiO Link->┆
(on the upper right corner of the display), choosing WiFi as the Client.
Input the IP address in the pop-up dialog and complete the connection.
Notes: iPhones only support FiiO Link WiFi control but not Bluetooth.
5.How to use the DLNA function?
The DLNA function means the M11S can read and receive music files
stored on the device (name it Device A) which supports DLNA function
69
through WiFi.
1. Make sure the M11S and Device A are connected to the same WiFi
network.
2.On the FiiO Music app of the M11S, tap DLNA on the main menu and
search for Device A to play music of it.
Notes: If there are any devices that cannot use the DLNA function,
please give us feedback for further analysis. FiiO Music app does not
support music transmission at present but only music reception. We will
consider adding the transmission function later.
6.How to use the coaxial function of M11S?
M11S coaxial port supports output and input of coaxial signals.
Coaxial input:
Coaxial decoding mode, M11S is used as a coaxial decoder.
70
1. Switch the SPDIF work mode of M11S to SPDIF IN mode from
Settings-Audio or go to the drop-down or Settings menu of the M11S,
and choose the working mode as SPDIF RX mode.
2. Use coaxial cable to connect M11S and coaxial output device;
3. Connect the headphone to the M11S to use it.
Coaxial output:
this function will not use M11S's DAC for decoding, but output to the
coaxial decoder for decoding.
1. Switch the SPDIF work mode of M11S to SPDIF OUT mode from
Settings-Audio;
And please turn on 'Coaxial output' option before using the coaxial
output function.
2. Use a coaxial cable with one side connected to M11S and the other
side to a coaxial decoder;
71
3. When you use the FiiO Music, DSD OUT should give priority to DoP. If
the coaxial decoder doesn't support it, please select D2P mode.
7.What can be done if I forget my password? How to enter recovery
mode?
The device needs to be reset from recovery mode if you forget the
password.
Turn off the device first. Hold the play/pause button then plug a USB
cable in USB 3.0 port for power supply. It will enter recovery mode
after turning on. On the display, choose "Wipe data/factory reset->Yes.
You could switch the option via the volume +/- or play/pause buttons.
Then choose "Reboot system now" by pressing the power button to
restart the device.
Firmware upgrade, factory data reset
and technical support
1.How to upgrade firmware?
The M11S supports online upgrade and local upgrade.
72
Online upgrade
If a new firmware is available and can be detected (with the M11S
connected to an available internet), an upgrade notification will show
up in the notification center. Tap on it to enter the update menu for the
online upgrade. If there's no upgrade notification showing up, you can
go to the "Technical Support->Firmware Upgrade" menu, and tap the
"Check for updates" icon to check manually.
Local upgrade
Also, the M11S can be upgraded locally by a firmware package.
Download the firmware package file from FiiO website, and copy it to
the internal storage of the M11S or an SD card. Go to the "Technical
73
Support->Firmware Upgrade->Local Upgrade" menu, and find the
firmware package file to start the upgrade.
Notes:
1.Do not unzip the firmware package file.
2.Before the upgrade, ensure the power of the device is adequate
(>30%) so to avoid upgrade failure.
3.If the device goes to factory mode which cannot detect the firmware,
the reason may be that the firmware file is damaged. At this time, press
the power button to reboot the device. Re-download the firmware file
and restart the upgrade.
2.Force to reboot
If something wrong that happened to the device (stuck in the Welcome
page, no response, etc.), you can hold the Power and the Play button
together for 10 seconds to force it to reboot.
3.Factory data reset
74
If there are some problems happened to the device, perform the factory
data reset would help (In the menu of Settings->System->Reset
options).
Notes: The "Factory data reset" will erase all data from the internal
storage and reset the device to defaults. Please backup corresponding
files in advance.
4.Technical support
1) On the homepage, tap Technical Support to enter the menu. Here are
several commonly-used functions and our contacts.
2) Firmware update: online and local upgrade are available.
FAQ (frequently asked questions): parts of frequently asked questions
and corresponding measures are listed.
3) Quick start guide: tap to check out the internal quick start guide of
75
the M11S.
4) Contact us: here shows our email address, Facebook, Twitter, etc.
