AIR NEEDLE SCALER/FLUX CHIPPER
MODEL NO: SA52
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure health & safety, local authority, and general workshop practice regulations are adhered to when using this
equipment.
WARNING! Disconnect from air supply before changing accessories or servicing.
9 Maintain the needle scaler in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may
be dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
9 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are
secure.
9 Only use needles which are specically designed for use with a needle scaler.
9 Wear approved safety eye/face shield, ear defenders, and hand protection.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9 Keep children and non-essential persons away from the working area.
8 DO NOT use the needle scaler for a task it is not designed to perform.
WARNING! DO NOT use needle scaler if damaged or thought to be faulty. (Contact Sealey service agent).
8 DO NOT use needle scaler unless you have been instructed in its use by a qualified person.
8 DO NOT carry the needle scaler by the air hose, or yank the hose from the air supply.
8 DO NOT operate needle scaler if you are tired or under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT carry needle scaler with your hand on the power trigger in order to avoid unintentional starting.
8 DO NOT direct air from the air hose at yourself or others.
9 When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION

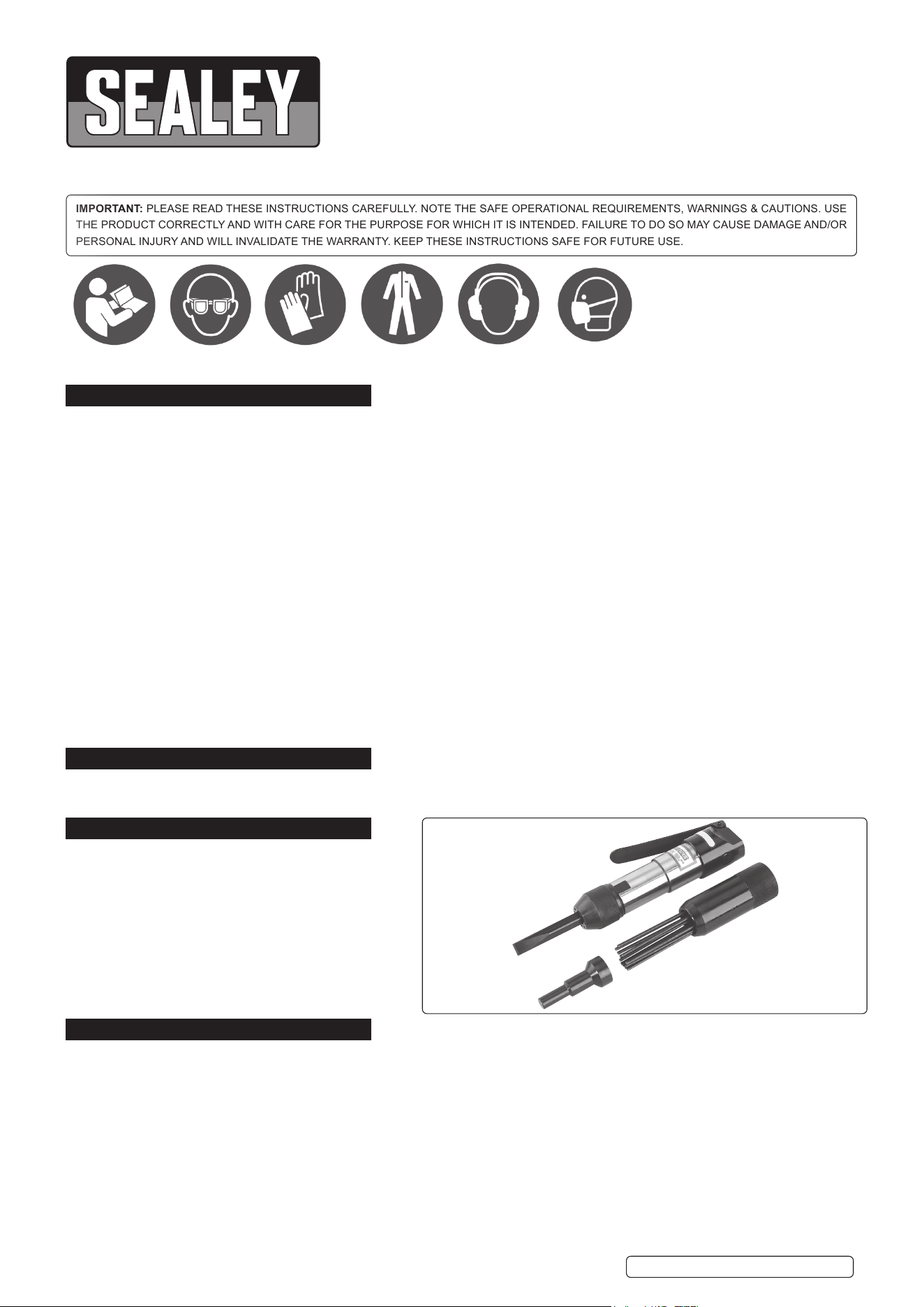

Straight type air hammer supplied with interchangeable needle and chisel heads. Suitable for cleaning heavy paint and rust scale from metal
surfaces. Palm control trigger mechanism. Replacement needle set and chisel available.
3. SPECIFICATION
Stroke: .............................32mm
Free speed: ...................... 4800bpm
Air consumption:.......................3cfm
Operating pressure: ................... 90psi
Air inlet size:.......................1/4”BSP
Noise Power: .....................105dB(A)
Noise Pressure: ....................94dB(A)
Vibration Emission Value:.............8.56m/s²
Uncertainty Emission Value:...........1.34m/s²
Replacement Needle Set (12pc): .......SA51/16
Replacement Chisel: ................SA52/15
4. PREPARATION
4.1. AIR SUPPLY
4.1.1. Ensure tool valve (or trigger) is in the “off” position before connecting to the air supply.
4.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the tool. Too high an air pressure and unclean air
will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1.3. Drain the air tank daily. Water in the air line will damage the tool.

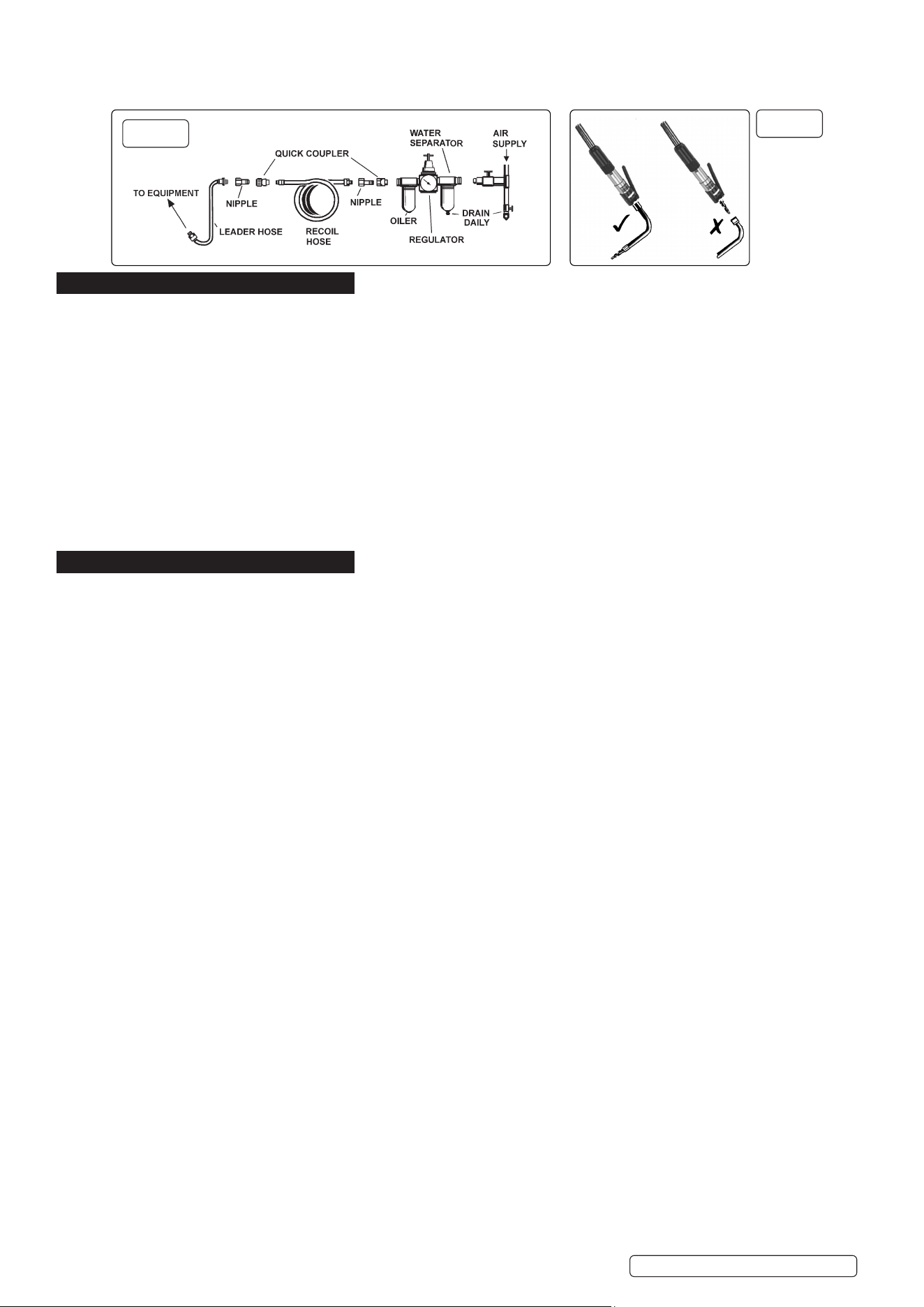

4.1.4. Clean air inlet filter weekly. Recommended hook-up procedure is shown in fig.1.
4.1.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and fittings must have the same inside dimensions.
4.1.6. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
SA52 Issue 3 (H,F) 24/01/20
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear ear
protection
Wear protective
clothing
Wear a mask
4.2. COUPLINGS
Vibration may cause failure if a quick change coupling is connected directly to the tool. To overcome this, connect a leader hose to
the tool. A quick change coupling may then be used to connect the leader hose to the air line recoil hose. See fig.1 & 2.
5. OPERATION
WARNING! Ensure you read, understand and apply safety instructions before use.
Note: Numbers in brackets refer to item numbers in the parts diagram.
5.1. FLUX CHIPPER
5.1.1. Fit the spring (4) onto the rounded end of the chisel (15) before tting the chisel into the barrel sleeve (12).
5.1.2. Fit the nut (20) over the sharpened end of the chisel (15), screw it onto the barrel sleeve (12) and tighten.
5.1.3. Connect the tool to the air hose.
5.1.4. To start the tool, depress the throttle lever.
5.2. NEEDLE SCALER
5.2.1. To use as a needle scaler, unscrew the nut (20) and remove the chisel (15) and spring (4).
5.2.2. Fit the needle driver (14) and ensure the spring (18) is located in the needle tube (19).
5.2.3. Ensure the needle holder (17) is tted with needles (16) such that the heads of the needles do not protrude above the surface of
the needle holder.
5.2.4. Fit the needle holder (17) into the needle tube (19), screw the needle tube (19) onto the barrel sleeve (12) and tighten.
5.2.5. To start the tool, depress the throttle lever.
8 DO NOT allow the tool to free run for an extended period of time as this will shorten its life.
6. MAINTENANCE
WARNING!Disconnect tool from air supply before changing accessories, servicing or performing maintenance.
Replace or repair damaged parts. Use genuine parts only.
Unauthorised parts may be dangerous and will invalidate the warranty.
Note: Numbers in brackets refer to item numbers in the parts diagram.
6.1. To replace the needles (16), unscrew the needle tube (19) from the barrel sleeve (12). Remove the needle holder (17) and replace
the needles (16). (Use genuine Sealey needles only.) Ret the needle holder (17) into the needle tube (19), screw it onto the barrel
sleeve (12) and tighten.
6.2. Lubricate the tool daily with a few drops of Sealey air tool oil dripped into the air inlet.
6.3. Clean the tool after use.
6.4. Loss of power or erratic action may be due to the following:
Excessive drain on the air line. Moisture or restriction in the air pipe. Incorrect size or type of hose connectors. To remedy check
the air supply and follow instructions in section 4.
Grit or gum deposits in the tool may also reduce performance. Flush the tool out with gum solvent oil or an equal mixture of
SAE No 10 oil and parafn.
Allow to dry before use.
6.5. For a full service contact your local Sealey service agent.
6.6. When not in use, disconnect from air supply, clean tool and store in a safe, dry, childproof location.
Original Language Version
© Jack Sealey Limited
g.1
g.2
SA52 Issue 3 (H,F) 24/01/20
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
WARNING! – Risk of Hand Arm Vibration Injury.
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
Measured vibration emission value (a): 8.56 m/s²
Uncertainty value (k): 1.34 m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend that a
specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user (or employer) will need to be carried out to determine the suitable duration of use for each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably from and depend on many factors.
Such factors include; the operator, the task and the inserted tool or consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm Vibration
Syndrome.
Health surveillance.
We recommend a programme of health surveillance to detect early symptoms of vibration injury so that management procedures can be modified
accordingly.
Personal protective equipment.
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from the
uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain warm and dry and
maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the Correct Use and
Maintenance section in these instructions. Guidance relating to the management of hand arm vibration can be found on the HSC website
www.hse.gov.uk - Hand-Arm Vibration at Work.
