AIR NEEDLE
SCALER
84131
EN
Original Instructions
Version 3 – June 2025
PISTOL GRIP
1.1 Product Reference
User Manual for: Pistol Grip Air Needle Sander
Stock No: 84131
Part No: DAT-ANS
1.2 Revisions
Version 1: November 2017
First release
Version 2: November 2021
Version 3: June 2025
As our manuals are continually updated, always ensure
that the latest version is used.
Download the latest version from:
drapertools.com/manuals
1.3 Understanding the Safety Content of
This Manual
WARNING!
– Situations or actions that may result
in personal injury or death.
CAUTION! – Situations or actions that may result
in damage to the product or surroundings.
ATTENTION – Situations or actions that may result in
damage to the product or surroundings.
Important: – Information or instructions of particular
importance.
1.4 Copyright © Notice
Copyright © Draper Tools Limited.
Permission is granted to reproduce this manual for
personal and educational use ONLY. Commercial
copying, redistribution, hiring or lending is strictly
prohibited.
No part of this manual may be stored in a retrieval system
or transmitted in any other form or means without written
permission from Draper Tools Limited.
In all cases, this copyright notice must remain intact.
1. Preface
These are the original product instructions. This
document is part of the product; retain it for the life
of the product, passing it on to subsequent holders.
Read this manual in full before attempting to
assemble, operate, or maintain this product.
This Draper Tools manual describes the purpose
of the product and contains all the necessary
information to ensure its correct and safe use.
Following all the instructions and guidance in
this manual will ensure the safety of both the
product and the operator and increase the
lifespan of the product.
All photographs and drawings within this manual are
supplied by Draper Tools to help illustrate correct
operation of the product.
Every eort has been made to ensure the
information contained in this manual is accurate.
However, Draper Tools reserves the right to amend
this document without prior warning. Always use the
latest version of the product manual.
– 2 –
2. Contents
– 3 –
EN
1. Preface 2
1.1 Product Reference 2
1.2 Revisions 2
1.3 Understanding the Safety Content of This
Manual 2
1.4 Copyright © Notice 2
2. Contents 3
3. Product Introduction 4
3.1 Intended Use 4
3.2 Specication 4
4. Health and Safety Information 5
4.1 General Health and Safety Precautions 5
4.2 Additional Safety Instructions for
Compressed Air 5
4.3 Additional Safety Instructions for Air
Needle Scalers 5
4.4 Residual Risk 6
5. Identication and Unpacking 7

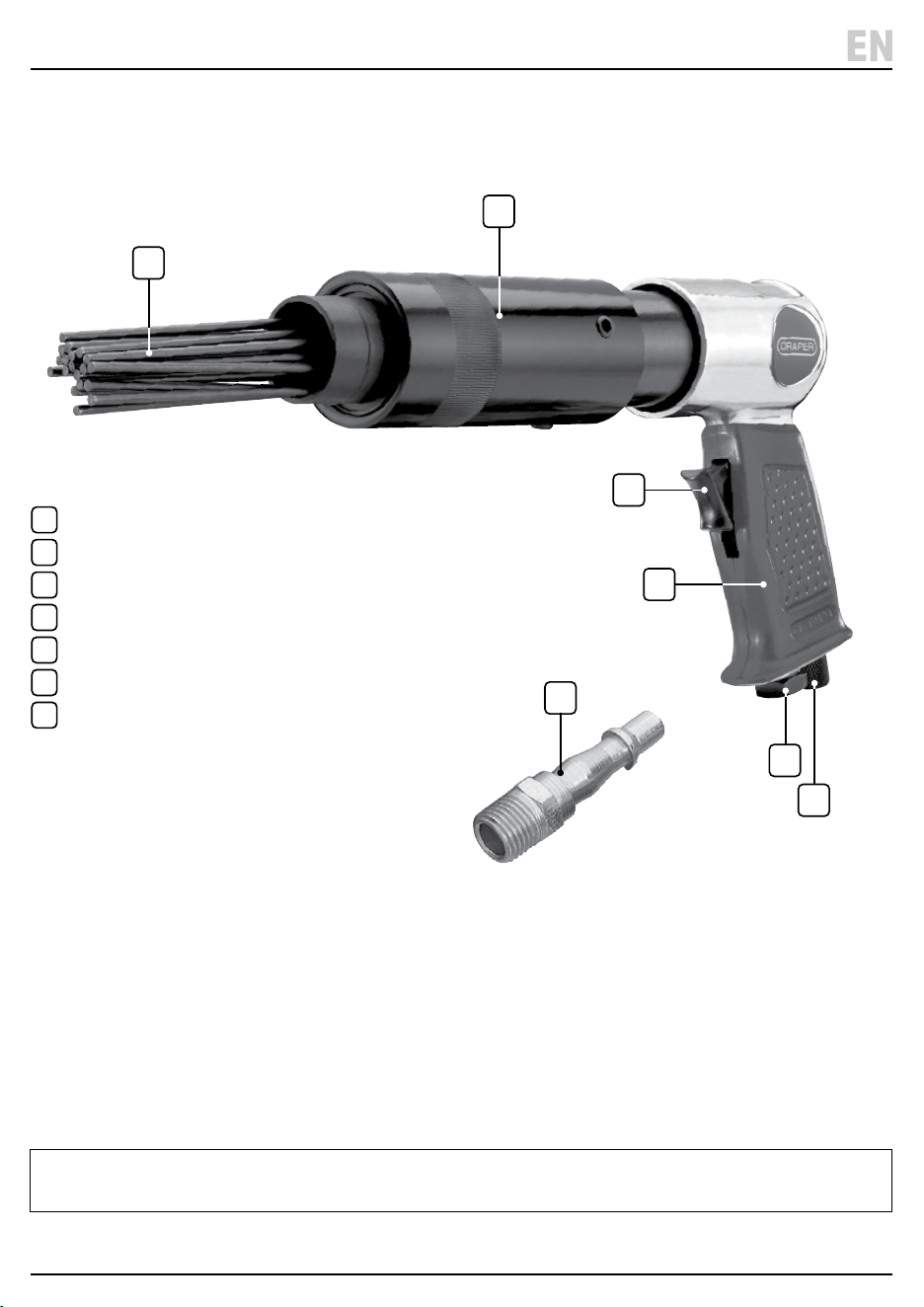

5.1 Product Overview 7
5.2 Packaging 7
6. Preparation Instructions 8

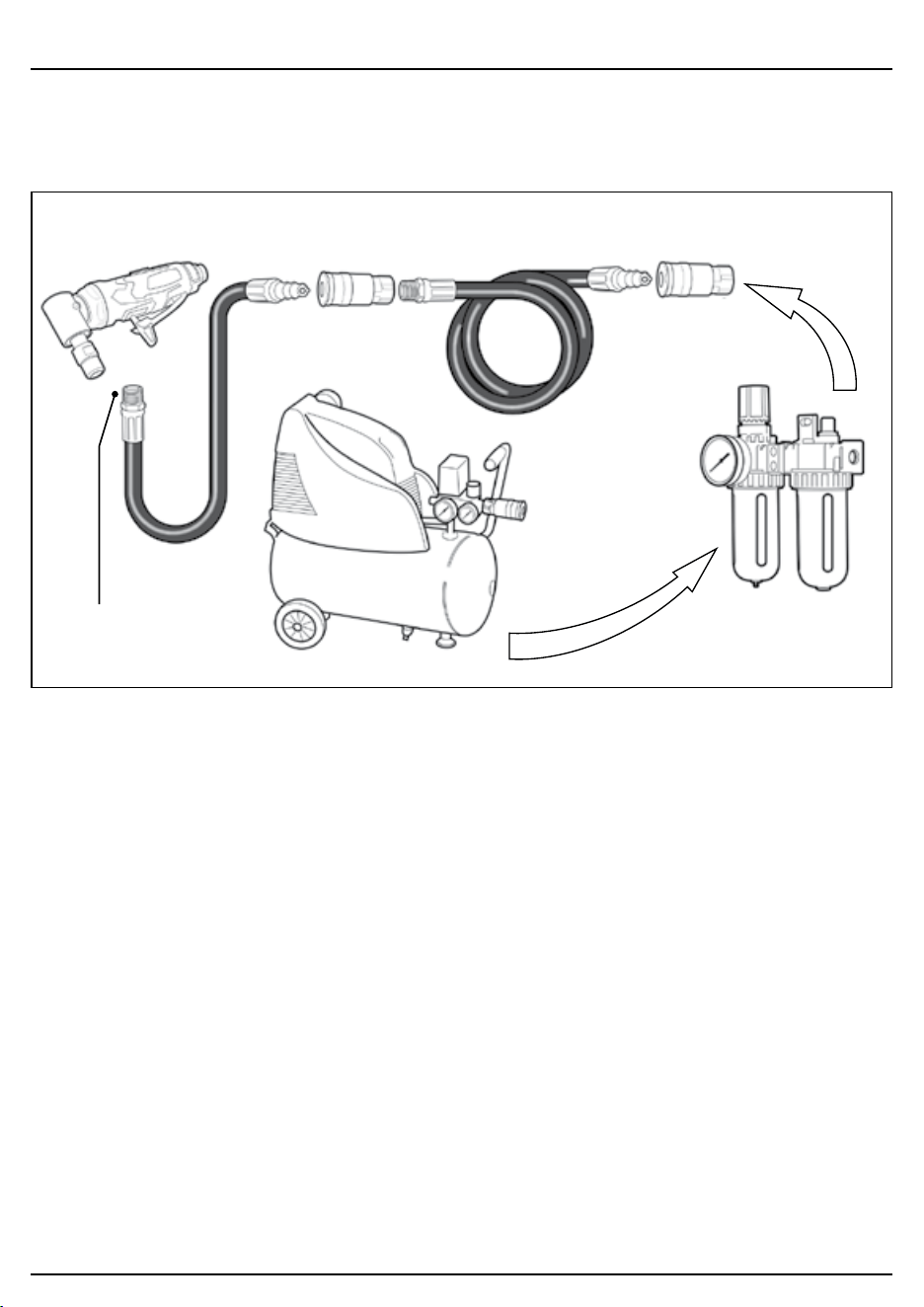

6.1 Preparing the Air Supply for Use (Fig.1) 8

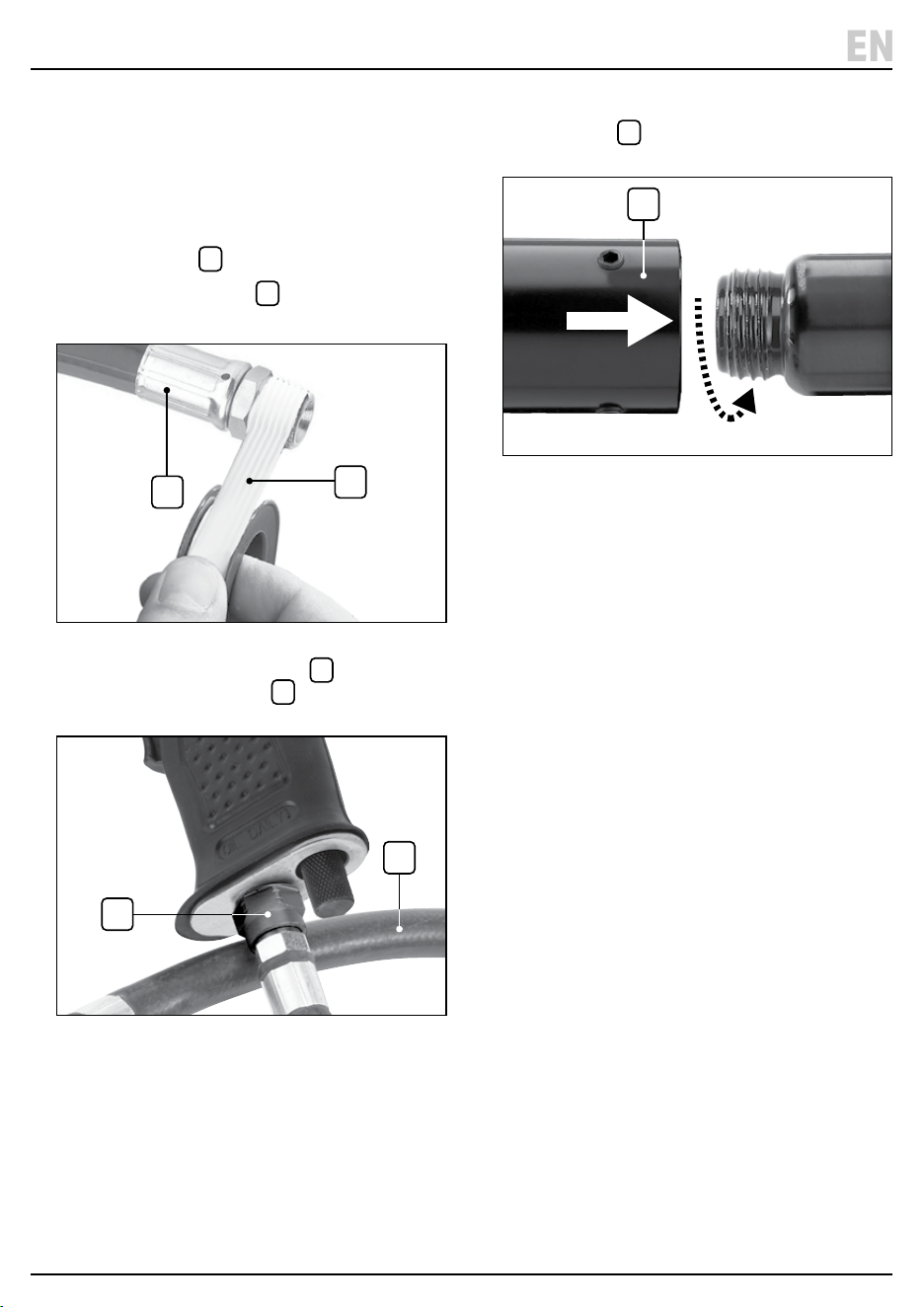

6.2 Connection to the Air Supply (Figs.2 – 3) 9
6.3 Attaching the Scaling Head (Fig.4) 9
7. Operating Instructions 10

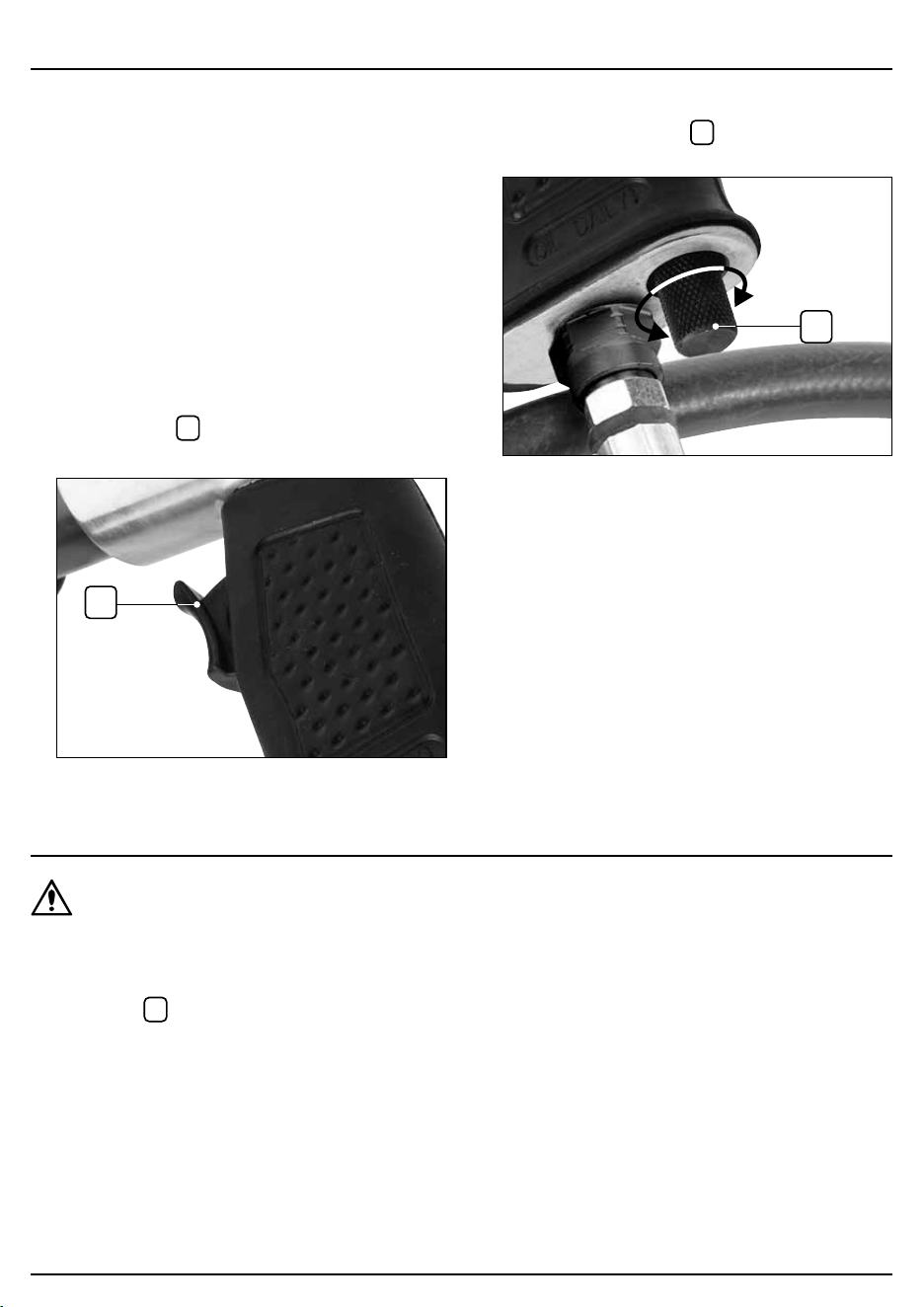

7.1 Trigger Switch (Fig.5) 10
7.2 Airow Regulator (Fig.6) 10
7.3 Dust and Swarf 10
8. Maintenance and Troubleshooting 10
8.1 Every-Day Maintenance Checks 10
8.2 After Use Maintenance Checks 10
8.3 Troubleshooting 11
9. Spares, Returns and Disposal 11
10. Warranty 11
11. Explanation of Symbols 12
– 4 –
3. Product Introduction
3.1 Intended Use
This pistol grip air scaler is designed to be used for a
variety of descaling and corrosion removal applications
such as the removal of heavy paint coating and rust from
metallic surfaces.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts
no responsibility for improper use of this product.
Read this manual in full before attempting to assemble,
operate or maintain the product, and retain it for later
use.
3.2 Specication
Stock No.: 84131
Part No.: DAT-ANS
Quantity of needles: 19
Needle size: 3mm × 180mm
Blows per minute: 4500B/min
Stroke length: 24mm
Maximum operating air pressure: 90psi (6.2bar)
Average air consumption: 113L/Min (4cfm)
Maximum air line size (Internal diameter): 3∕8" (10mm)
Air inlet connector: 1∕4" BSP
Noise emissions:
Sound pressure level: 84dB (A)
Sound power level: 95dB (A)
Vibration level: 9.4m/s²
Net weight: 1.95kg
Important: The declared vibration total values and noise emissions values have been measured in accordance with a
standard test method and may be used for comparing one tool with another. These values may also be used in a
preliminary assessment of exposure.
WARNING! The vibration and noise emissions during actual use of the product can dier from the declared
values depending on the type of work and the area upon which it is used. Before each use, estimate the likely
exposure resulting from the actual conditions of use. Take into account all parts of the operation cycle in
order to identify any safety measures required to protect the operator.
– 5 –
4. Health and Safety Information
Important: Read all the Health and Safety instructions
before attempting to operate, change accessories,
maintain or repair this product. Failure to follow these
instructions may result in injury or damage to the user,
the product or the workpiece
4.1 General Health and Safety
Precautions
• ONLY qualied and trained operators should use or
adjust the air tool.
• DO NOT modify this tool. Modications can reduce
the eectiveness of safety measures and increase the
risks to the operator.
• Retain the safety instructions for future reference and
use by the operator.
• NEVER misuse the tool and DO NOT use the tool if it
has been damaged.
• Inspect the tool periodically to verify that the ratings
and markings required are attached and legible.
• Keep bystanders away during operation.
• ALWAYS Wear appropriate personal protective
equipment (PPE) including eye, ear and hand
protection.
• Have your tool serviced by a qualied repair person
using only identical replacement parts.
4.2 Additional Safety Instructions for
Compressed Air
WARNING! Compressed air can cause severe
injury.
− ALWAYS turn o and disconnect the air supply
before changing accessories, making any
adjustments to the product or leaving it
unattended.
− NEVER direct this product towards yourself or
others.
− Ensure that compressed air is not blocked by or in
contact with any part of your body.
• ONLY use clean, dry and regulated compressed air.
WARNING! NEVER use oxygen, combustible
gases or other bottled gases as a supply for
this product. Use of these substances may
cause the product to explode.
• Draper Tools recommends the use of a whip hose
between the tool and the air supply to reduce
vibration.
WARNING! Whipping hoses can cause severe
injury. ALWAYS check for and replace
damaged or loose hoses and ttings.
• Ensure that the product is compatible with the air
supply before use.
• Ensure all connections are securely tightened.
• Where universal twist couplings (claw couplings) are
used, lock pins must be installed and whip check
safety cables must be used to safeguard against
possible hose-to-tool or hose-to-hose failure.
• DO NOT exceed the maximum stated air pressure.
• The use of an inline water separator, lubricator and
pressure regulator should be used to control the
pressure of the air being supplied to the tool.
• DO NOT obstruct the ability of the trigger to release
once depressed.
• NEVER carry the tool by the air line.
4.3 Additional Safety Instructions for Air
Needle Scalers
WARNING! Risk of injury
to persons.
− Keep hands away from the needles.
− High speed splinters may be emitted from the air
needle scaler during operation.
• ALWAYS wear a correctly tted dust mask when
using this needle scaler.
• Where dust or fumes are created, the priority should
be to control them at the point of emission.
• Disconnect the tool from the energy supply before
changing the inserted tool or accessory.
• Failure of the workpiece, accessories or even of the
inserted tool itself can generate high-velocity
projectiles.
• ALWAYS wear impact-resistant eye protection during
the operation of the needle scaler. The grade of
protection required should be assessed for each use.
• For overhead work, wear a safety helmet. The risk to
others should also be assessed at this time.
• Ensure that the workpiece is securely xed.
• NEVER operate a tool unless the inserted tool is
retained with a proper retainer.
• To avoid injury, retainer parts shall be replaced when
they become worn, cracked or distorted.
EN
– 6 –
4. Health and Safety Information
• Adopt a suitable posture to counteract normal or
unexpected movement due to reaction forces from
the tool. Maintain a balanced body position and
secure footing.
• Release the start and stop device in the case of an
interruption of the energy supply.
• ONLY use lubricants recommended by the
manufacturer.
• Avoid direct contact with the inserted tool during and
after use as it can become hot.
• When using a needle scaler power tool to perform
work-related activities, the operator can experience
discomfort in the hands, arms, shoulders, neck or
other parts of the body. While using the power tool,
the operator should adopt a comfortable posture
while maintaining a secure footing and avoiding
awkward o-balanced postures.
• The operator should change posture during extended
tasks, which can help avoid discomfort and fatigue.
• If the operator experiences symptoms, such as
persistent or recurring discomfort, pain, throbbing,
aching, tingling, numbness, burning sensations or
stiness, these warning signs should not be ignored.
The operator should tell the employer and consult a
qualied health professional.
• Use ONLY sizes and types of accessories and
consumables that are recommended by the tool
manufacturer.
• The tool is not intended for use in potentially
explosive atmospheres and is not insulated against
coming into contact with electric power.
• Ensure there are no electrical cables, gas pipes, etc.,
that can cause a hazard if damaged by use of the tool.
• Noise Hazards
− Exposure to high noise levels can cause
permanent hearing loss and other problems.
Perform a risk assessment and implement any
appropriate controls for identied hazards before
performing any operation.
− Use appropriate hearing protection in accordance
with local occupational health and safety
regulations.
− Operate and maintain the tool appropriately to
prevent unnecessary increase in noise emissions.
• Vibration Hazards
− Exposure to vibration can cause disabling damage
to the nerves and blood supply of the hands and
arms.
− Wear warm clothing when working in cold
conditions and keep your hands warm and dry.
− If you experience numbness, tingling, pain or
whitening of the skin in your ngers or hands,
stop using the tool and consult a qualied health
professional.
− Operate and maintain the tool appropriately to
prevent unnecessary increase in vibration
emissions.
− The risks from vibration hazards are increased
when grip force on the tool is higher. − Hold the
tool with a light but safe grip, keeping in mind that
your grip may need to be altered to react to
unexpected forces.
4.4 Residual Risk
The safety instructions in this manual cannot account for
all possible conditions and situations that may occur.
Exercise common sense and caution when using this
product and protect against any additional conceivable
risks.
– 7 –– 7 –
1
Needles
2
Scaling head
3
Trigger
4
Soft grip handle
5
1 ∕4" BSP air inlet
6
Airow regulator
7
¼” BSP airline coupling screw
adaptor
5. Identication and Unpacking
Carefully remove the product from the packaging and examine it for any signs of damage that may have occurred
during shipment. If any part is damaged or missing, DO NOT attempt to use the product. Please contact the Draper
Helpline; contact details can be found at the back of this manual.
5.1 Product Overview
5.2 Packaging
Keep the product packaging for the duration of the
warranty period for reference should the product need to
be returned for repair.
WARNING! Keep packaging materials out of reach of
children. Dispose of packaging correctly and
responsibly and in accordance with local regulations.
Please visit drapertools.com for our full range of accessories and consumables.
2
1
3
4
5
6
7
EN
– 8 –
6. Preparation Instructions
Important: Before preparing or adjusting this product, read and understand all the safety instructions listed in this
manual.
6.1 Preparing the Air Supply for Use (Fig.1)
1 Fig.
Air Tool
Whip Hose
Air Supply
Drain Daily
Drain Daily
DO NOT INSTALL
QUICK COUPLER
HERE
Air Line
Hose
Air Line
Adaptor
Air Line
Adaptor
Quick
Coupler
Quick
Coupler
Air Filter/
Regulator/Oiler
• This air tool operates at a max. pressure of 6.2bar
(90psi).
• ISO grade 22–32 (SAE grade 5W–15W) monograde oil
should be used in this air tool.
• During use, the oil must be constantly supplied to the
equipment to ensure complete lubrication and
optimum performance.
• The compressed air system must be controlled by a
combination pressure regulator, in-line lubricator and
moisture lter. This will ensure a constant supply of
dry air at all times, provided it is properly maintained.
Important: ALWAYS check the machine operating
pressure before use.
• Water in the compressor tank may cause
considerable corrosion to air tools; the compressor
should be drained daily to avoid excessive water in
the air supply. Dirty or wet air can signicantly
shorten the lifespan of the product.
• When using an air tool with a hose over 25ft long,
Draper Tools recommends increasing the bore of the
hose to the next largest available size (i.e. increase
3⁄8" to 1⁄2"). This will ensure adequate pressure and
volume of air to power the tool.
6. Preparation Instructions
– 9 –
6.2 Connection to the Air Supply
(Figs.2 – 3)
Important: ALWAYS disconnect from the air supply
before assembling, carrying out adjustments, servicing
or maintenance.
To connect the air needle scaler to an air line, a 1⁄4" BSP
male thread whip hose
A
will be required.
• Wind a length of PTFE tape
B
around the thread of
the whip hose.
2 Fig.
A
B
• Remove the bung from the air inlet
5
and attach the
hose via the 1 ∕4" BSP air inlet
5
. The connection
must be tight for an airtight union.
3 Fig.
A
5
6.3 Attaching the Scaling Head (Fig.4)
• Screw the head
2
clockwise onto the threaded
cylinder of the tool body.
4 Fig.
2
EN
– 10 –
7. Operating Instructions
Important: Before operating this product, read and
understand all the safety instructions listed in this
manual. Ensure that the product is fully assembled and
correctly prepared for use.
Note:
• Before connecting the tool to the air supply reduce
the line pressure according to the specication.
• Before tool operation and work commences, ensure
the compressor reservoir is drained of condensate
along with all connected air lines. Check and drain
the air line regulator’s water trap and ll up the
lubrication reservoir.
7.1 Trigger Switch (Fig.5)
• Push the trigger
3
to operate the needle scaler.
• Release the trigger to stop.
5 Fig.
3
7.2 Airow Regulator (Fig.6)
• Turn the airow regulator
6
to adjust the airow as
required.
6 Fig.
6
7.3 Dust and Swarf
• Wear a correctly tted dust mask suitable for the
activity being carried out.
• A mask rated at FFP2 rated or above is recommended
for activities involving ne particles and dust.
8. Maintenance and Troubleshooting
WARNING!
• Disconnect from the air supply before
carrying out any adjustments, servicing or
maintenance.
• Replace the bung in the end of the air line
inlet
5
when the tool disconnected from
the air supply and before storing.
8.1 Every-Day Maintenance Checks
Before connection to the air supply:
• Drain the compressor reservoir of condensate.
• Drain the air lines of condensate.
• Drain the combined separator lter, regulator, water
trap.
• Fill up the combined separator lter, regulator,
lubricant reservoir.
• Check the line pressure is correct for the tool.
8.2 After Use Maintenance Checks
• Repeat the above procedures.
• Lubricate the tool with approximately 1.5ml of oil
directly down the air inlet.
• When not in use store in a dry clean place out of the
reach of children.
8. Maintenance and Troubleshooting
– 11 –
8.3 Troubleshooting
Problem Possible cause Remedy
• Tool will not operate. • Motor or throttle seized with
dirt.
• Rotor vane seized.
• Check for dirt in air inlet.
• Pour air tool lubricating oil into
air inlet.
• Operate trigger in short bursts.
• If tool fails to move, contact
Draper Tools for advice.
• Piston seized. • Motor vane broken
• Gears broken or jammed
• Switch o and detach the air
line. Clean and remove any
obstructions.
• Tool will not shut o. • O’ rings throttle valve dislodged
from seat inlet valve.
• Replace the ‘O’ ring - Contact
Draper Tools for advice.
9. Spares, Returns and Disposal
For spare parts, servicing, and repair and replacement
options, please contact the Draper Tools Product
Helpline for details of your nearest authorised agent.
Draper Tools will endeavour to hold any spare parts, if
applicable, for seven years from the date that it sells the
nal matching stock item.
Any servicing or repairs carried out by unauthorised
personnel or installation of spare parts not supplied by
Draper Tools will invalidate your warranty.
At the end of its working life, dispose of the product
responsibly and in line with local regulations. Recycle
where possible.
EN
10. Warranty
6months from date of purchase – Visit drapertools.com/warranty for more information. However, if the tools are hired
out, the warranty period is 90 days from the date of purchase.
– 12 –
11. Explanation of Symbols
Read the instruction manual .
Wear ear defenders and safety glasses
Wear protective gloves
Wear appropriate protective clothing
Keep out of the reach of children
© Published by Draper Tools Limite ..© Published by Draper Tools Limited
Delta International
Delta International BV
Oude Graaf 8
6002 NL
Weert
Netherlands
Contact Details
Draper Tools
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Email: [email protected]
Product Helpline: +44 (0) 23 8049 4344
Telephone Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355
Please contact the Draper Tools Product Helpline for repair and servicing enquiries.
Warning!
European conformity.
UK Conformity Assessed.
