Matco Tools MT1250 HEAVY-DUTY PNEUMATIC STRAIGHT NEEDLE SCALER

Product's Documents

Below are documents related to this product, you can read online or download:
User Manual Other Documents
  • MT1250_PartsBreakdown_01.pdf - (English) Download
Main documentSpecificationQuestions and answersRelateds Products
MT1250 photo

MT1250_InstructionManual_01.pdf

This is the main product document for model MT1250.

The file format is pdf, 13 pages, you can download this manual here .

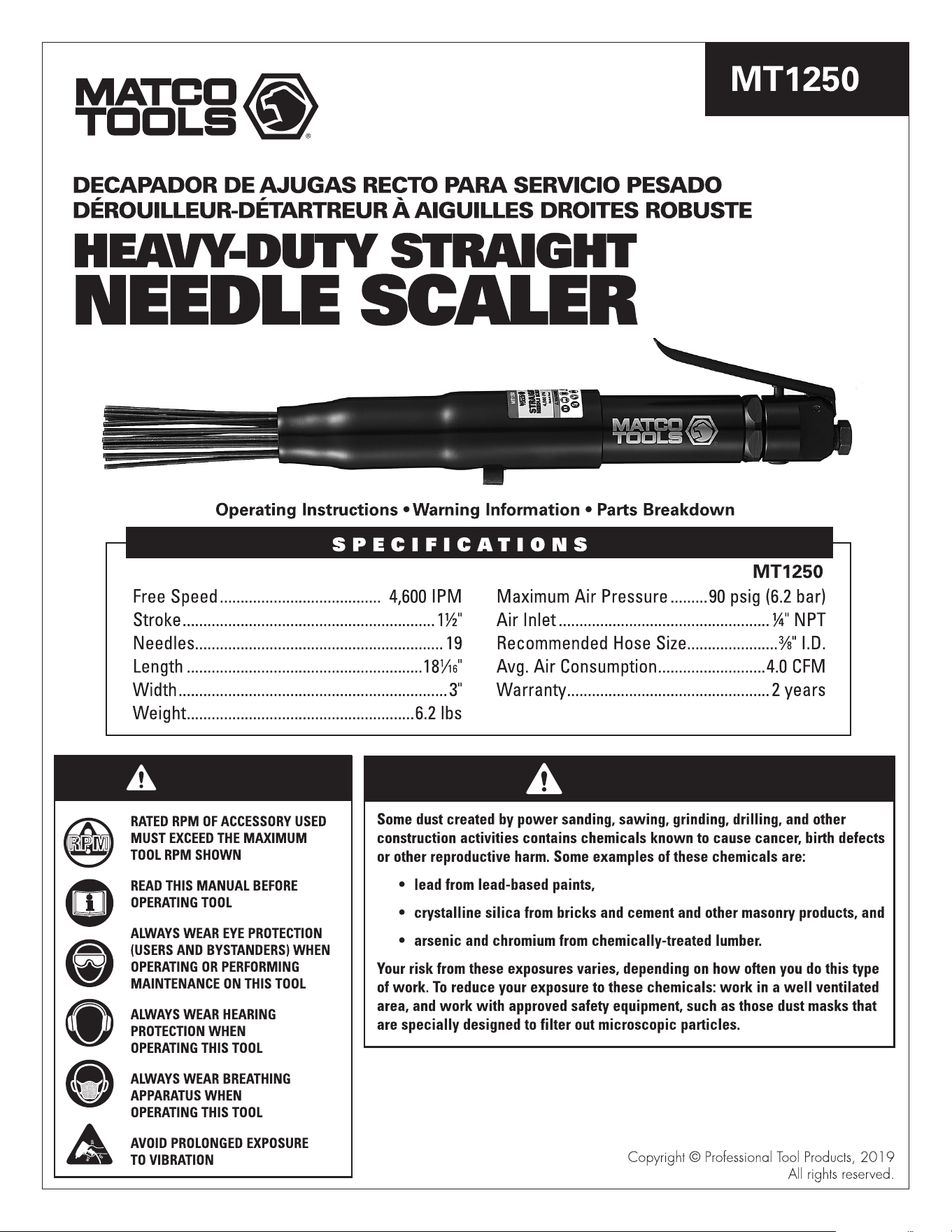

background
WARNING
WARNING
RPMRPMRPM

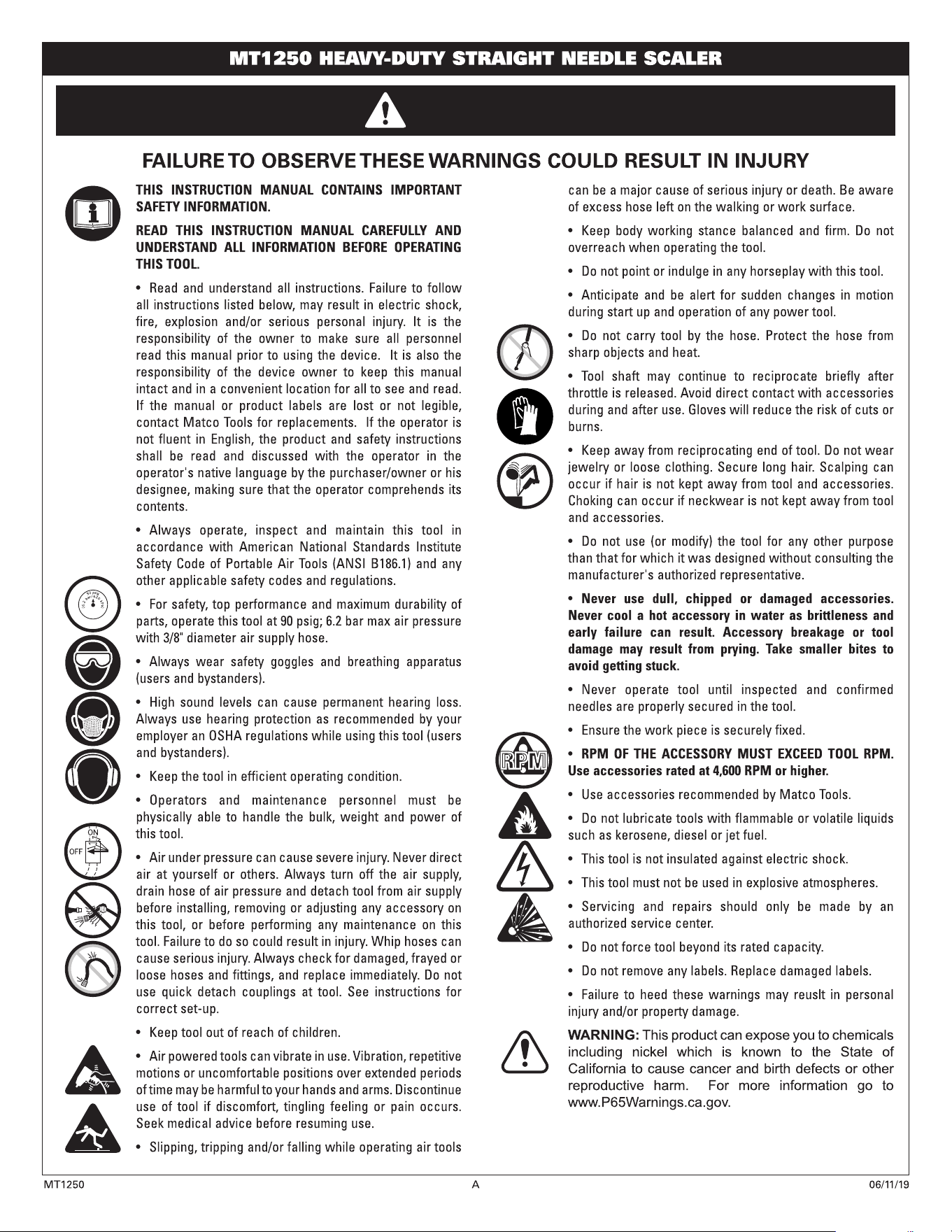

background
WARNING
RPMRPMRPM

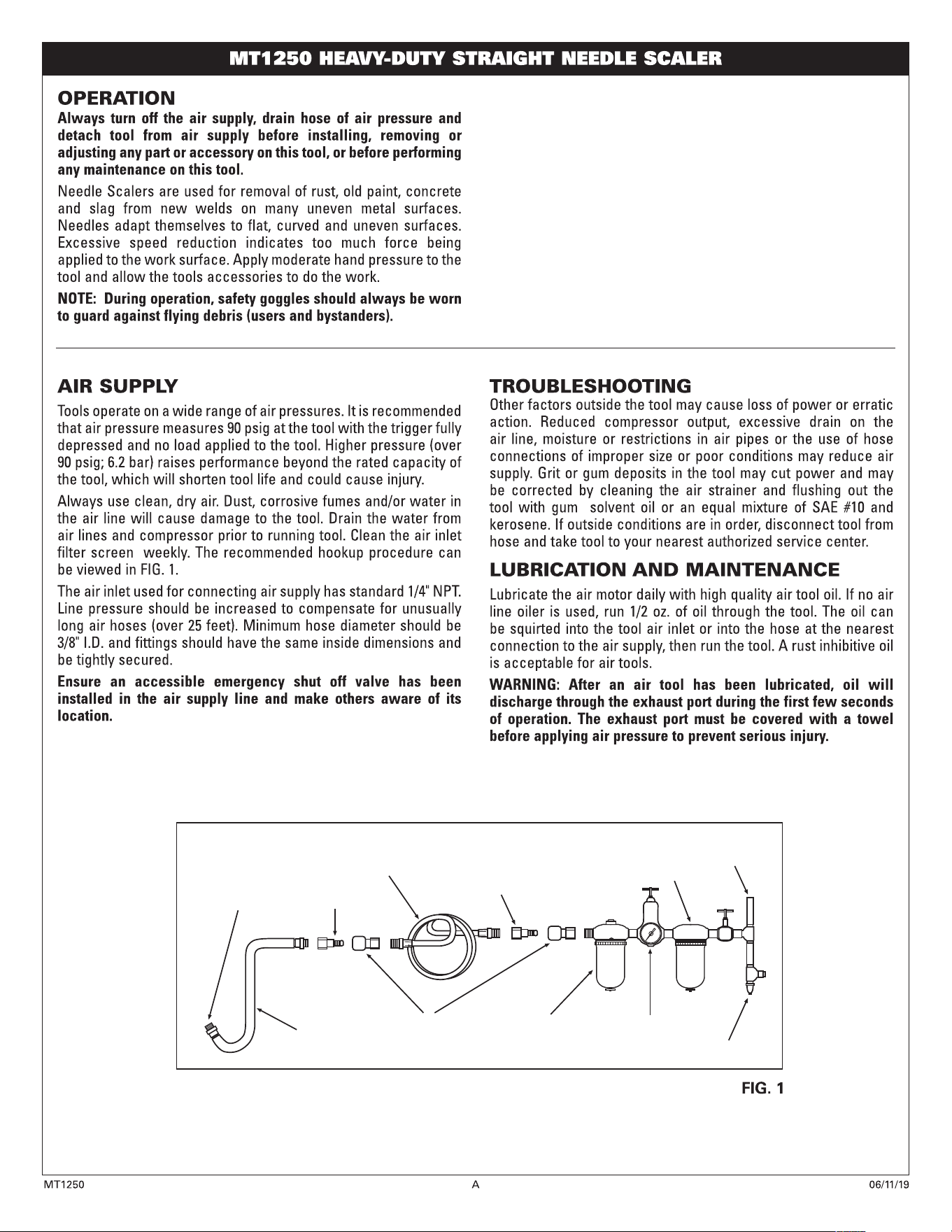

background
Drain Daily
RegulatorOilerQuick CouplerLeader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose
background
background

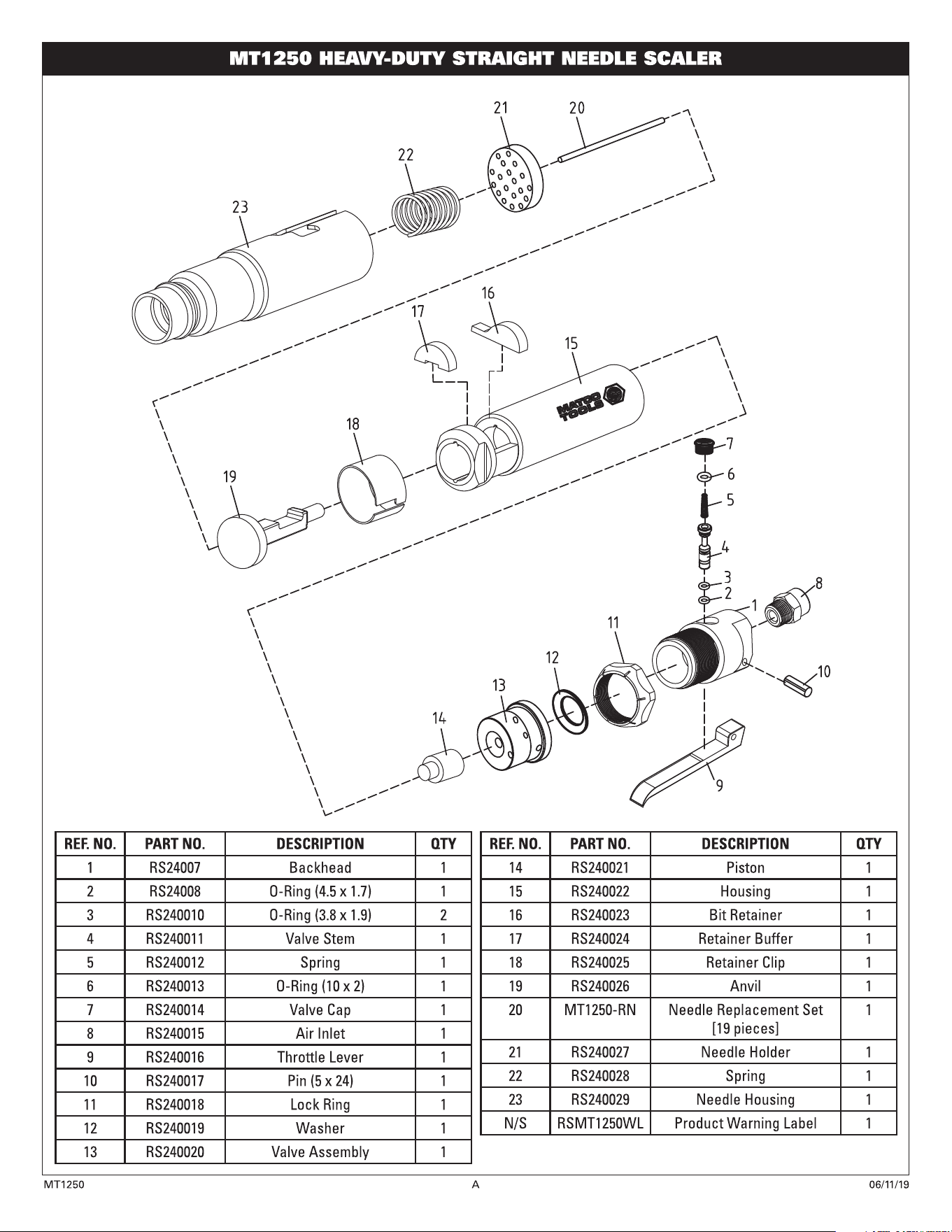

REF. NO. PART NO. DESCRIPTION QTY
1 RS24007 Backhead 1
2 RS24008 O-Ring (4.5 x 1.7) 1
3 RS240010 O-Ring (3.8 x 1.9) 2
4 RS240011 Valve Stem 1
5 RS240012 Spring 1
6 RS240013 O-Ring (10 x 2) 1
7 RS240014 Valve Cap 1
8 RS240015 Air Inlet 1
9 RS240016 Throttle Lever 1
10 RS240017 Pin (5 x 24) 1
11 RS240018 Lock Ring 1
12 RS240019 Washer 1
13 RS240020 Valve Assembly 1
REF. NO. PART NO. DESCRIPTION QTY
14 RS240021 Piston 1
15 RS240022 Housing 1
16 RS240023 Bit Retainer 1
17 RS240024 Retainer Buffer 1
18 RS240025 Retainer Clip 1
19 RS240026 Anvil 1
20 MT1250-RN Needle Replacement Set
[19 pieces]
1
21 RS240027 Needle Holder 1
22 RS240028 Spring 1
23 RS240029 Needle Housing 1
N/S RSMT1250WL Product Warning Label 1

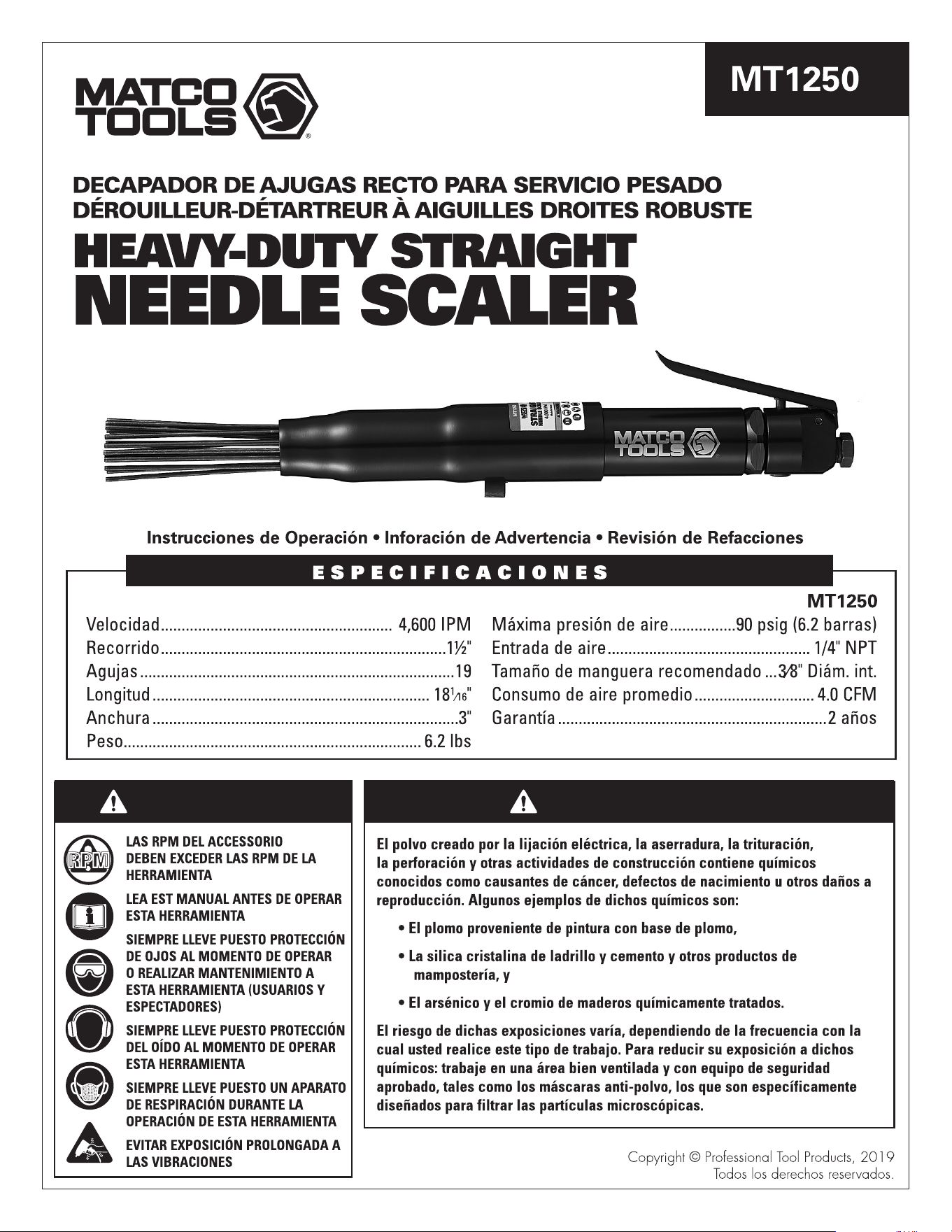

background
RPMRPMRPM
ADVERTENCIAADVERTENCIA

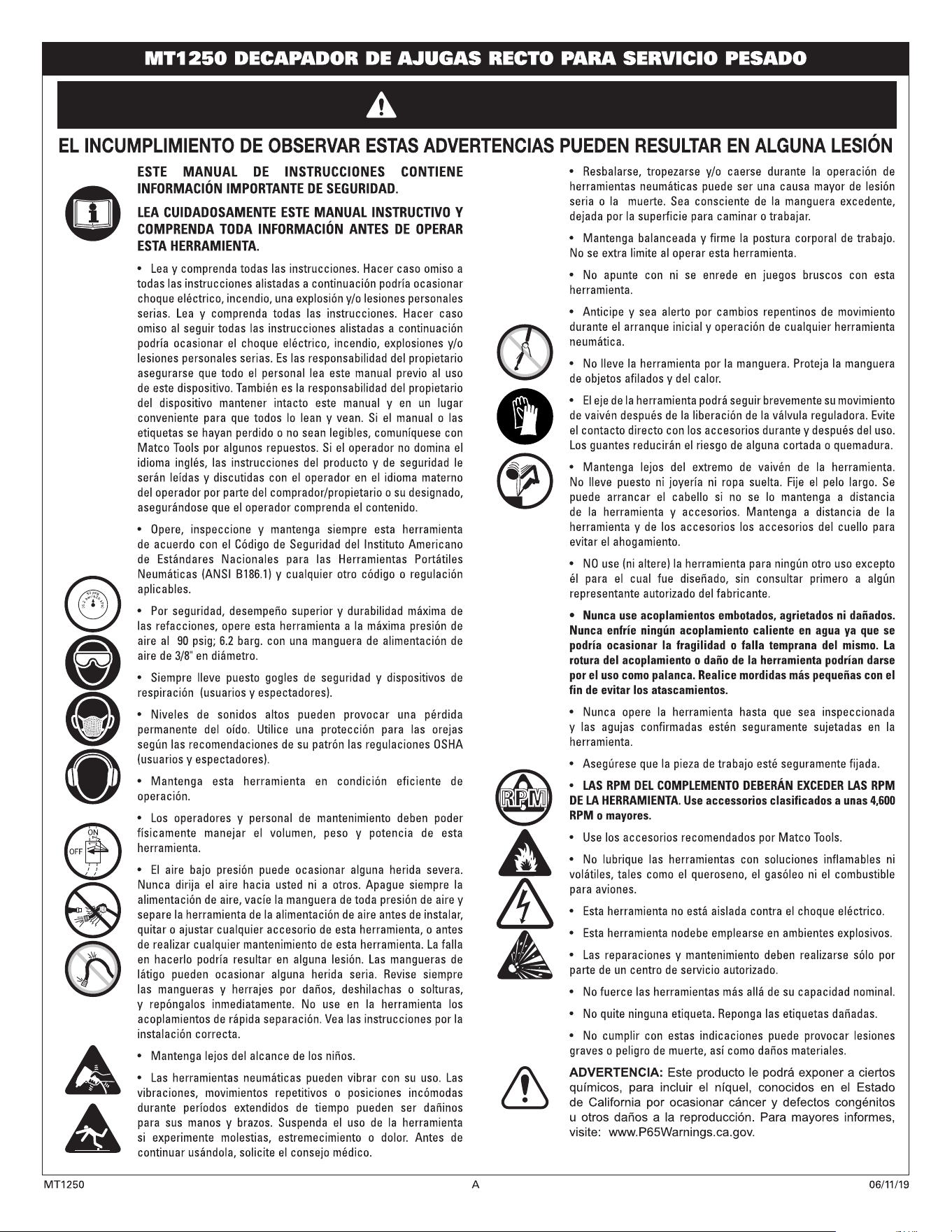

background
ADVERTENCIA
RPMRPMRPM

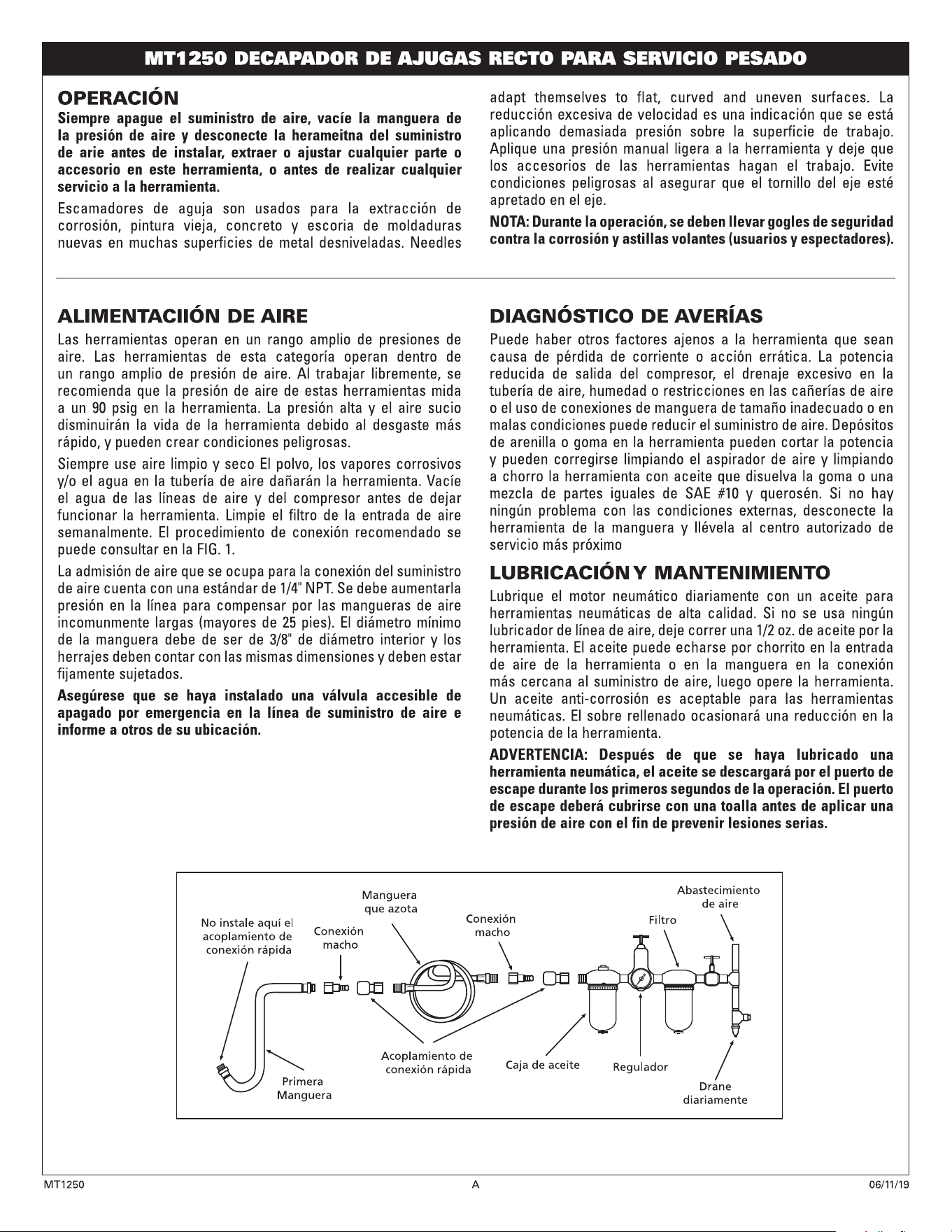

background
FIG. 1
background

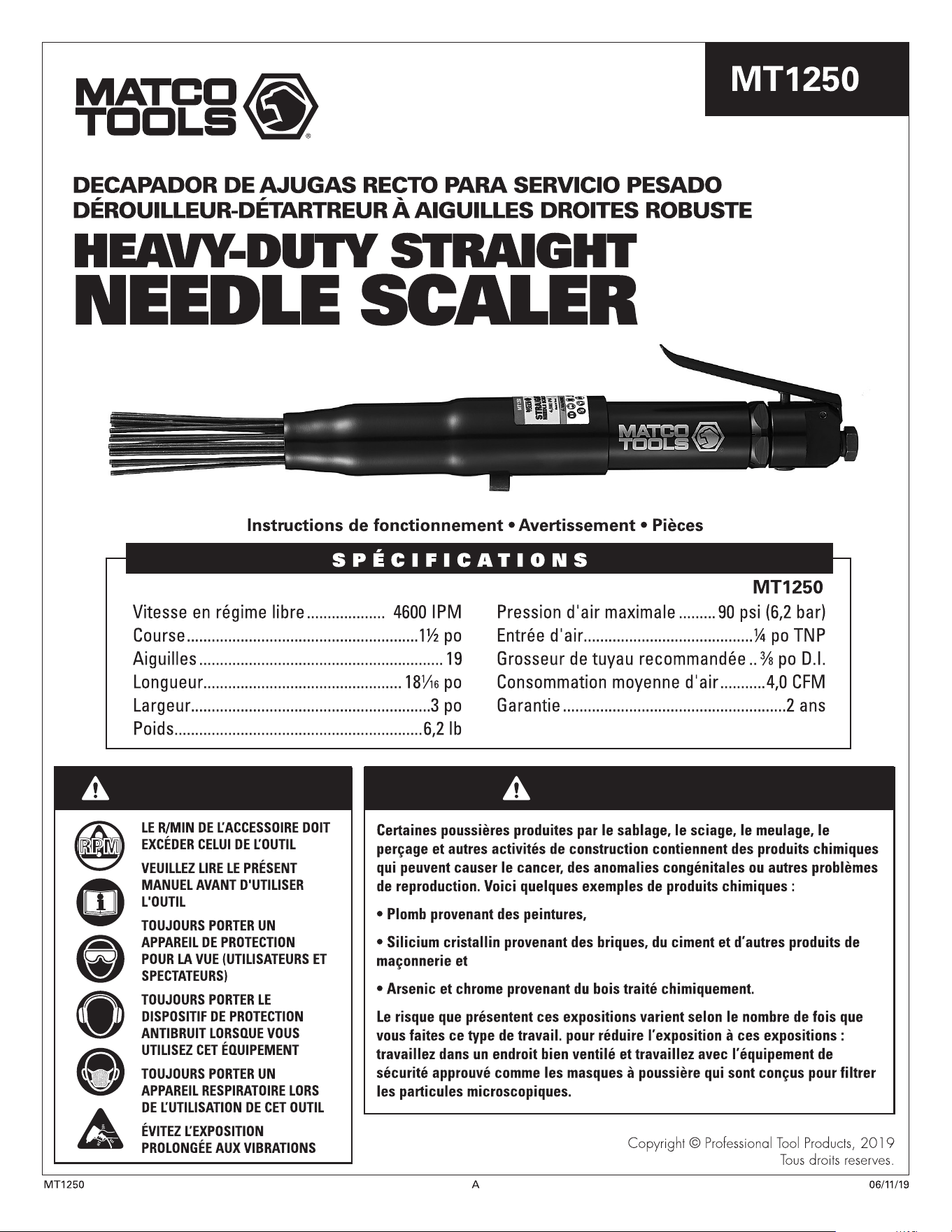

background
RPMRPMRPM
AVERTISSEMENTAVERTISSEMENT

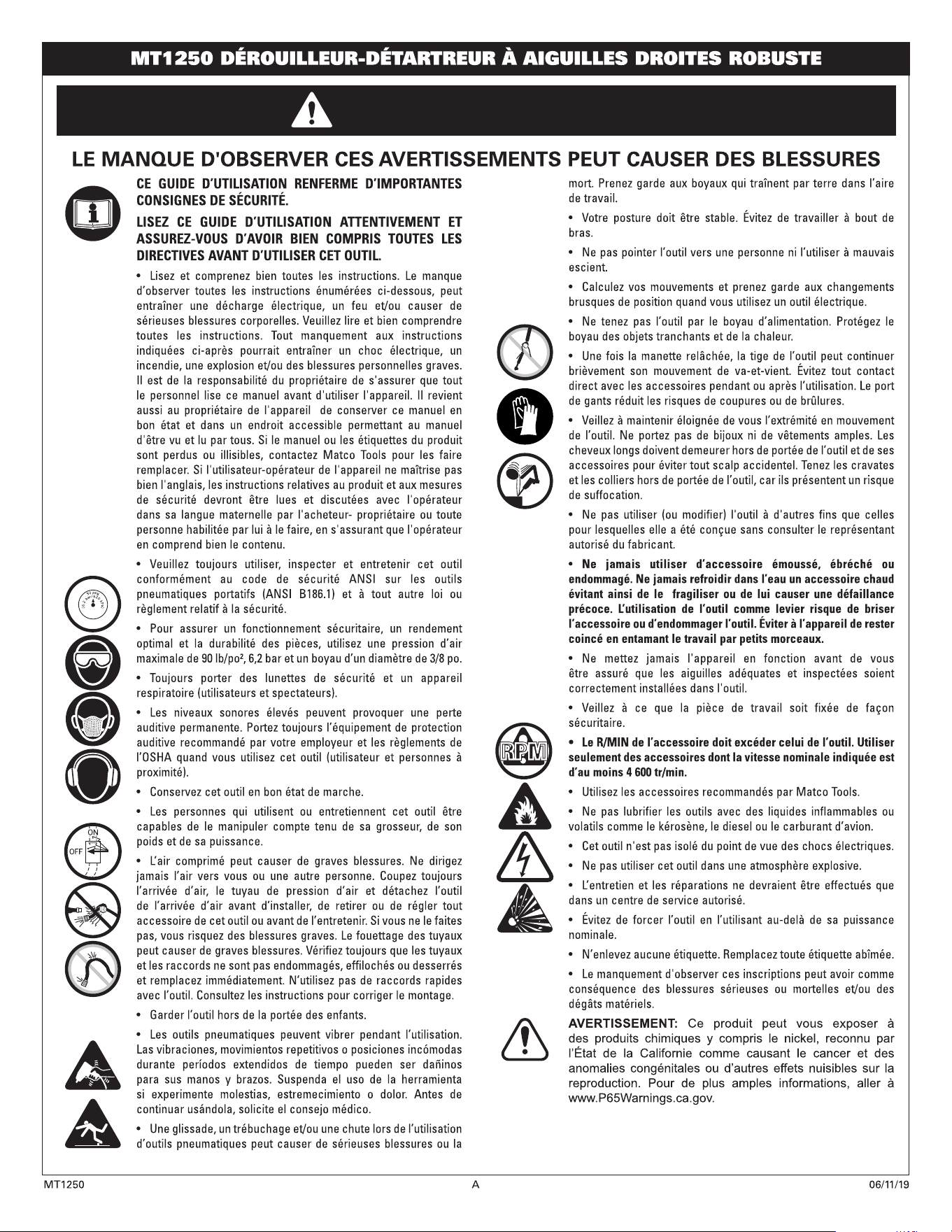

background
AVERTISSEMENT
RPMRPMRPM

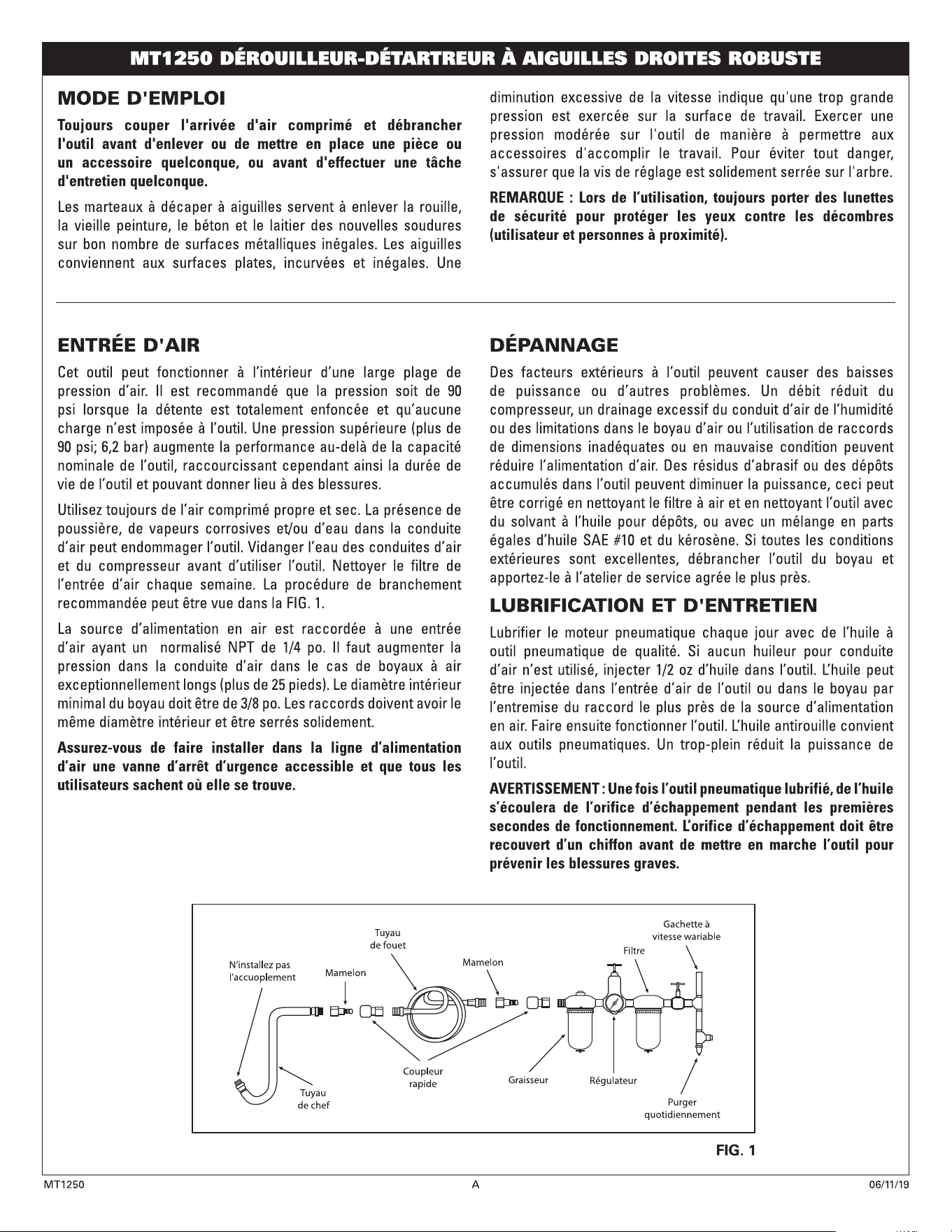

background
background
