4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
YOUR SAFETY AND INSTRUCTION MANUAL
PLEASE READ CAREFULLY
2
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this
manual carefully paying particular attention to the
safety instructions. Failure to do so may result in
personal injury or damage to the product.
Carefully save this instruction manual for future reference.
Ensure the user manual is included when passing the product on
to any third parties.
• Please read and ensure you fully understand the following
precautions and the hazards associated with this type of
heater.
• ALWAYS check for damage before using the heater. Check
for any breakages of parts and any other condition which
may affect the safe functioning of the heater. Any damage
should be properly repaired or the part replaced. If in ANY
doubt DO NOT USE. Consult your retailer.
• ALWAYS keep children and animals away from the heater
at all times.
• Never carry out any modifications on this heater.
• Use ONLY LPG/Butane gas. Ensure the gas bottle is
correctly installed and check for leaks, using soapy water
on all joints. NEVER use a naked flame to check for leaks.
• ALWAYS ensure all gas hose and regulator connections are
GAS TIGHT and the hose is not kinked or folded.
• NEVER use the heater where gasoline, paint thinner or any
other highly flammable vapor or high dust content is
present.
• Use only in well ventilated areas.
• ALWAYS site the heater on a stable, firm level surface.
• ALWAYS ensure that ample ventilation is provided when
the heater is being lit after an extended period without
use.
• Use the heater in accordance with any applicable fire
regulations.
• NEVER use the heater in high rise flats, basements,
3
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
sleeping areas, vehicles or caravans.
• NEVER leave the heater unsupervised when lit. Never
leave the heater alight whilst sleeping.
• NEVER move, handle, change gas bottles or service the
heater when it is still hot or operating. Turn it off and
allow to fully cool.
• Use ONLY the regulator supplied with this heater.
• ALWAYS ensure the heater is correctly positioned as
described in this manual.
• This heater will be hot when in use and for a time after
use and due care must be taken.
• NEVER store gas cylinders any closer than 2m from open
drains, gullies or open cellars.
• LPG is heavier than air and may collect at low levels.
• Read these instructions carefully. Do not allow anybody
who has not read these instructions to light, adjust or
operate this heater.
CARBON MONOXIDE WARNING
WARNING
Lack of ventilation can cause carbon monoxide poisoning.
Carbon monoxide poisoning can kill.
Carbon monoxide is a highly toxic, odourless, colourless and tasteless gas created
by the incomplete burning of fossil fuels, usually due to lack of oxygen.
The signs of carbon monoxide poisoning are headaches, dizziness and/or nausea.
Should these signs be noticed the affected person(s) must get fresh air
immediately. Turn off the heater and have it fully serviced before using it again.
Pregnant women, persons with heart or lung conditions anaemia or under the
influence of alcohol are more likely to be affected by carbon monoxide than
others.
Due consideration should be given to the dangers of carbon monoxide and a
carbon monoxide detector/alarm should be installed in the room where the
heater is located. The alarm should be compliant to the latest regulations and
installed as to the manufacturer’s instructions.
4
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
NOTE: Further information and guidance on the installation of carbon monoxide
alarms can be found in BS EN 50292:2002.
Provision of a carbon monoxide detector/alarm SHOULD NOT be
regarded as a substitute for correct use and proper regular servicing.

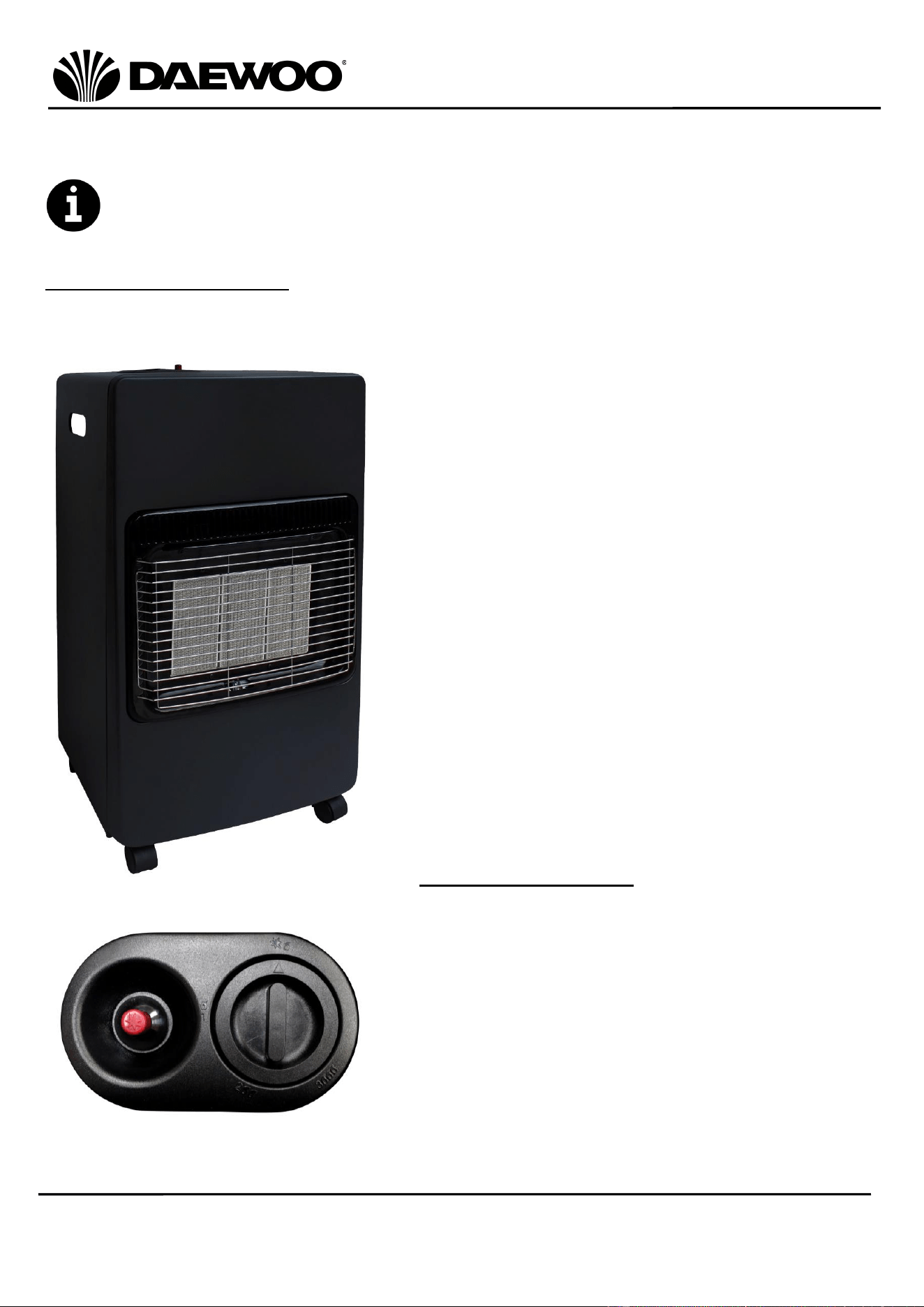

Features of your Heater
The gas supply to this heater is by means of a high pressure hose connected to a
gas cylinder via a pressure regulator.
When the regulator gas valve is opened, gas
will flow to the gas control valve and then on
to the burner assembly. The heater can be
operated at three settings using 1, 2 or 3
burner plates.
This heater is designed to be used with a
15kg LPG/butane gas bottle. Gas bottles are
not supplied but are readily available from
builders’ merchants or specialist gas suppliers
etc.
The minimum surrounding air temperature
for this heater is -50˚C
The maximum is +40˚C.
Ignition Components
The igniter is located to the side of the pilot
light. When the ignition button is pressed a
spark is generated which ignites the gas. Heat
from the flame is sensed by a thermocouple
which is connected to the flame failure valve.
As the thermocouple heats, a small voltage is
produced which opens the safety cut off
valve so that the control valve opens and the
pilot flame is established.
5
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Safety Components
This heater contains a number of safety devices that will cause it to shut down in
unsafe conditions.
The flame failure valve will shut off the gas if the flame extinguishes for any
reason. The thermocouple cools down and the gas supply is shut off so the heater
shuts down automatically.
The oxygen depletion sensor will shut off the gas valve if the CO
2
concentration in
the room where the heater is located exceeds a preset value. The room should
therefore be well ventilated.
The anti-tilt switch will turn off the heater if it is tipped over. If this activates, set
the heater upright, check for damage and wait 15-20 minutes before attempting to
relight the heater. This device may also operate if the heater is bumped, knocked
against or moved whilst lit.
Installation
Whilst unpacking, check the heater for any damage and if any is found do not use
the heater and notify your retailer immediately.
The only assembly required is to connect the gas supply.
DO NOT attempt to operate the heater with any gas other than LPG/Butane.
DO NOT connect the heater to the mains gas supply.
This heater, including the hose and regulator assembly must be inspected before
each use and at least annually by a qualified service engineer. If the hose shows
signs of excessive wear or if the hose is cut it MUST be replaced.
6
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Positioning the heater
The heater must be located on a firm, level surface to minimise the risk of
accidental tipping and the gas bottle should be held by the bottle retainer.
DO NOT operate this heater with the gas bottle in any other than the upright
position.
Ventilation
• This heater must only be operated in a room which is well ventilated.
• Do not operate in a caravan, boat or any room less than 40 cubic metres in
volume.
• Ventilation is essential to reduce the dangers of carbon monoxide poisoning and
from oxygen depletion.
WARNING: IF FRESH OUTSIDE AIR VENTILATION IS NOT PROVIDED CARBON
MONOXIDE POISONING COULD OCCUR.
Adequate ventilation should also reduce the possibility of condensation occurring
and lessen the dangers from the presence of any undetected gas leakage. The
following table shows the smallest size of room for each heat setting and the
ventilation which should be provided.
Number of
Ceramic
Burners in use
Room Size
Ventilation
Low Level
High Level
1
40m
3
40cm
2
40cm
2
2
70m
3
70cm
2
70cm
2
3
105m
3
105cm
2
105cm
2

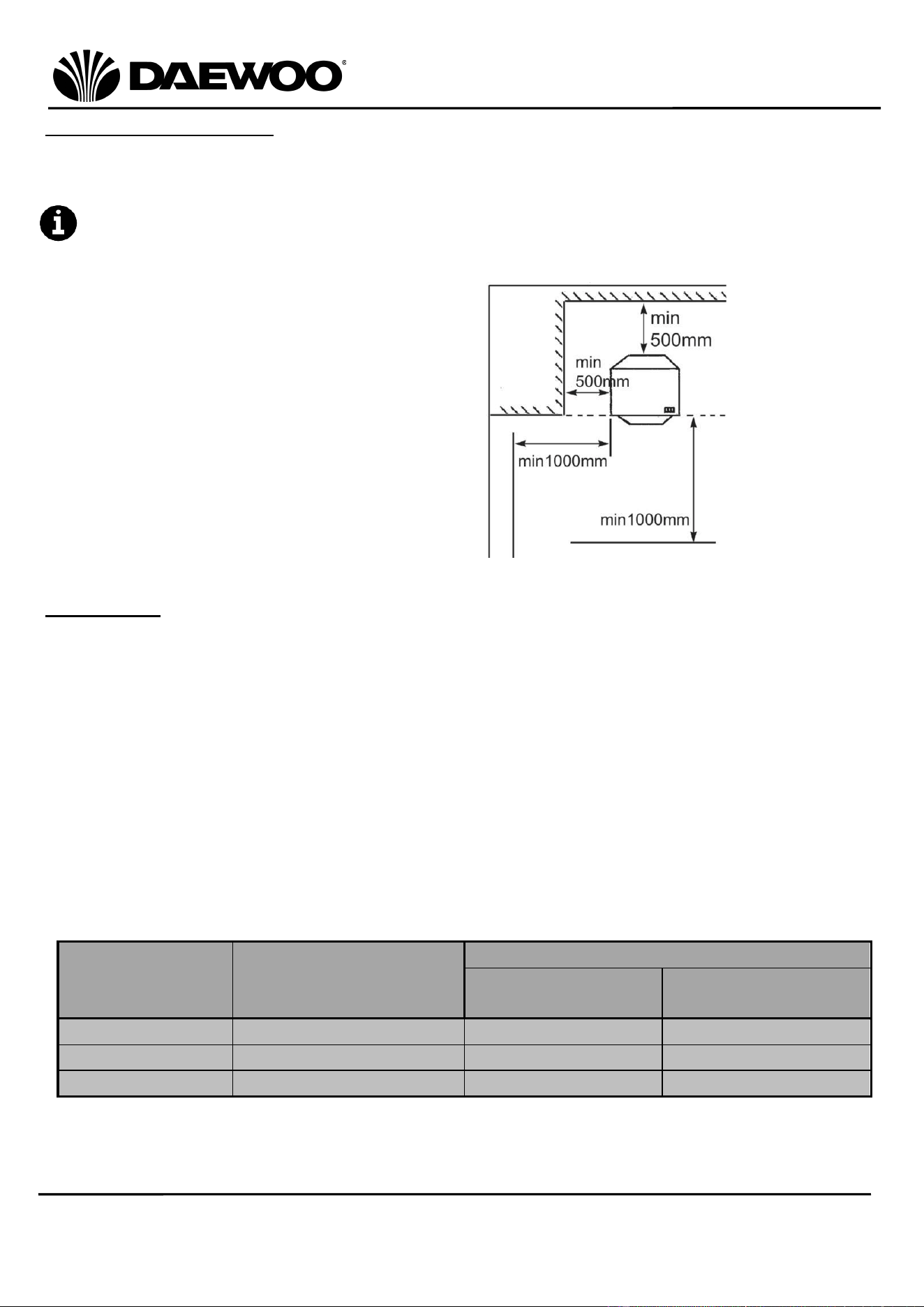

It is recommended that the heater
be positioned with at least 500mm
clearance to the sides and rear.
Any household furnishings should be
a safe distance away as they may be
adversely affected by the heat.
Always position the heater facing
the centre of the room and
positioned as shown in the diagram.
NEVER place objects on or against
the heater.
7
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Heater Preparation

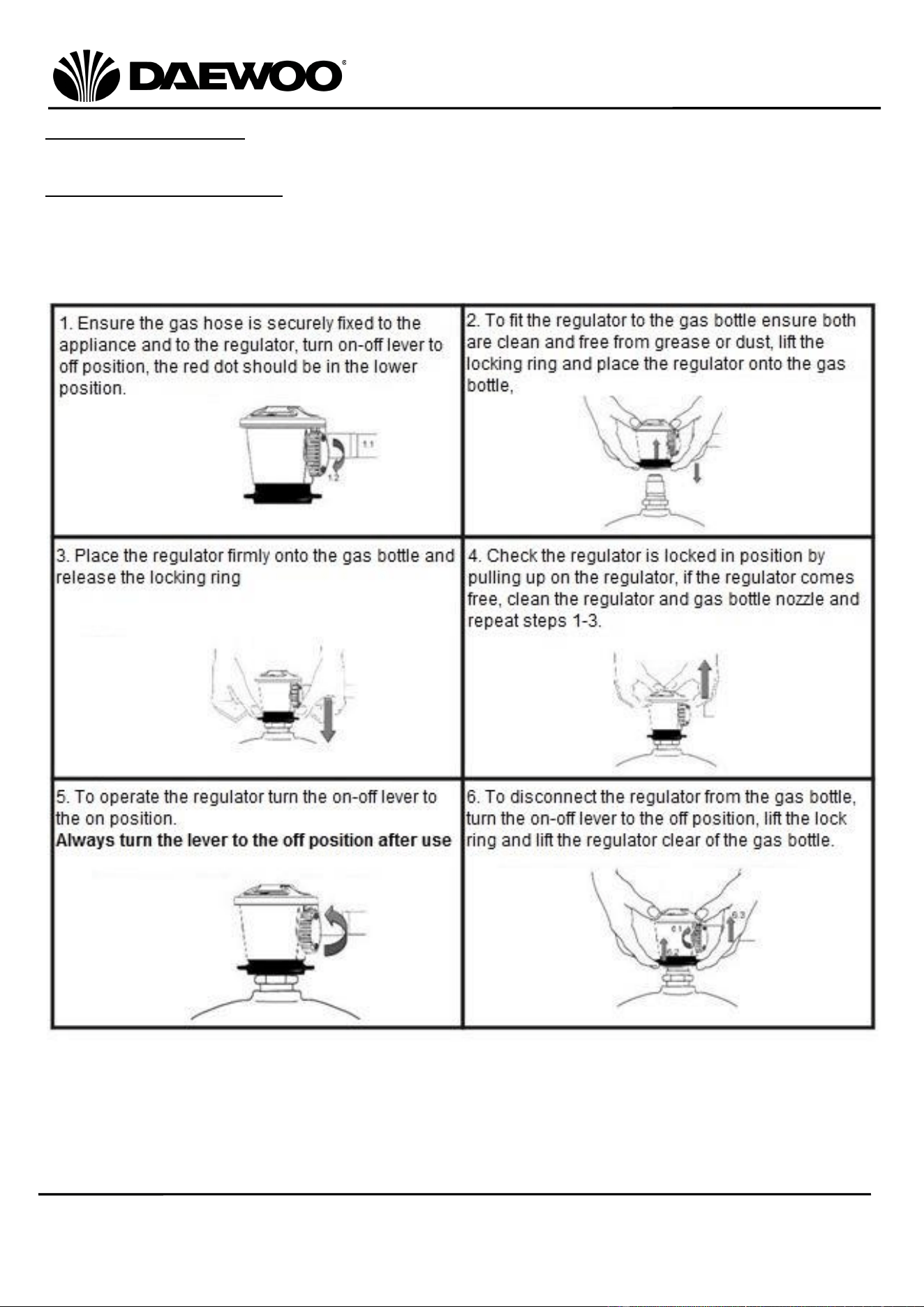

Installing the gas bottle
The connection to the gas bottle must be carried out in a well ventilated area
using the regulator and hose assembly supplied. DO NOT attempt to adjust this
regulator, it has been preset to provide safe and correct operation.
8
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Testing for leaks
This must be carried out in a well ventilated area free from any open flame or
other sources of ignition. With the regulator connected to the gas bottle slowly
turn on the regulator and proceed as follows:
1. Brush all those connections including pipe connections to the gas valve,
regulator connection to the gas bottle and gas bottle valve with a 50:50 solution
of soap and water.
2. A stream of bubbles forming is an indication of a leak. If a leak is found, turn off
the valve on the regulator, disconnect the regulator from the gas bottle and
remove the gas bottle to a cool well ventilated area.
3. Contact your retailer or a qualified engineer for assistance.
4. After leak testing is satisfactorily carried out and no leaks are found, it may be
necessary to twist the gas bottle slightly to allow the regulator and hose to fit
into the rear of the heater without kinking the hose.

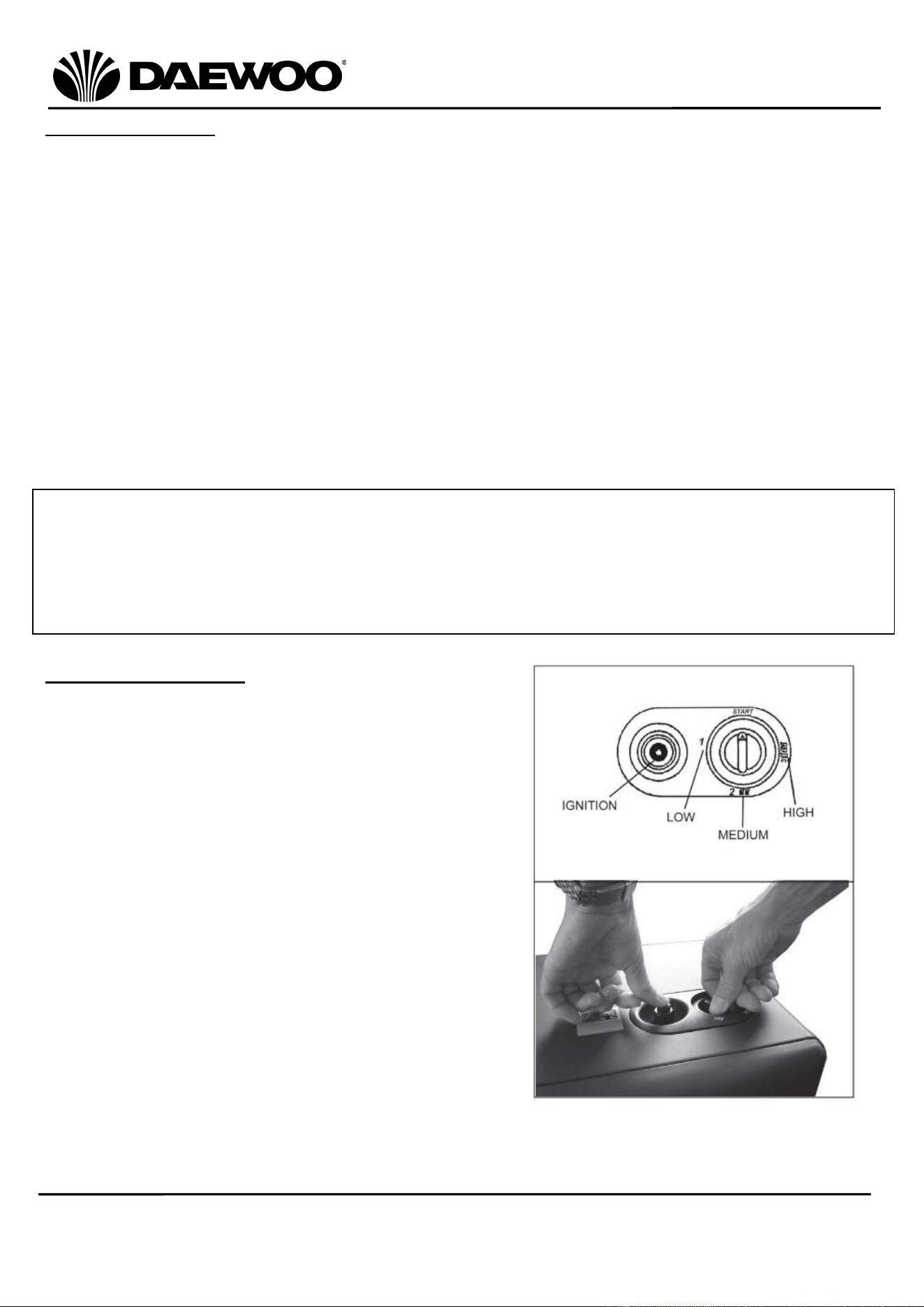

Lighting the Heater
The heater can be regulated to one of three
heat settings, LOW, MEDIUM and HIGH.
1. Open the valve on the gas regulator.
2. Press down and turn the gas control on
the heater to the LOW position. Do not
release the gas control.
3. After 10 seconds press the ignition button
until the pilot light at the bottom of the
burner ignites.
4. Continue to hold the gas control down for
10-15 seconds after ignition. If the pilot
light goes out when releasing, repeat the
above operation.
NOTE: The first time you use a new heater
you may have to hold the gas control down
for a little longer in order to purge air from
the system.
DO NOT USE THE HEATER IF A LEAK IS FOUND
DO NOT USE A NAKED FLAME FOR LEAK TESTING
DO NOT OPERATE ANY ELECTRICAL EQUIPMENT IN THE PRESENCE OF A GAS LEAK
9
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Once the heater is operating, watch the pilot light and check that it is burning
steadily, if it flickers or has a yellow flame, the heater should be checked by a
qualified engineer.
Leave the heater burning on LOW setting for 5 minutes before turning to a higher
setting
To change the setting, push the gas control down slightly and turn to the required
setting.
Turning the Heater Off
Press and turn the control knob to the START position.
Turn off the valve on the gas regulator and if putting into storage, disconnect the
gas bottle.
Changing the Gas Bottle
Always allow the heater to fully cool before removing and replacing the gas bottle.
Never attempt to remove the regulator while the heater is operating.
Storage
For long term storage always disconnect the gas bottle and store the heater and
gas bottle in a well ventilated area away from combustible materials. The gas
bottle is best stored in an outbuilding and preferably not in a basement or indoors.
Whilst in storage, cover the heater and keep dry and free of dust.
Cleaning and Maintenance
WARNING: NEVER ATTEMPT TO SERVICE THE HEATER WHILST IT IS CONNECTED
TO THE GAS BOTTLE. ALLOW TO COOL BEFORE SERVICING.
Cleaning (Annually or as required)
Turn the heater off and allow to fully cool before cleaning.
Use a damp cloth with a warm soap solution to clean the exterior and gas bottle
storage area of the heater. Use nonabrasive household cleaners on stubborn
spots.
Clean inside the heater using compressed air where possible. Blow air back and
forth along the entire burner face and ceramic plates until all dust has been
dislodged.
Take care not to knock the ceramic plates as they are fragile.
Use compressed air to clean the pilot light opening and gas outlets.
Never use abrasive cleaners as they may damage the paint finish.
10
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
General Maintenance
Inspect the heater when bringing back into use after a period of storage. Check
connections for leaks.
Regularly check the hose between the regulator and heater and replace if cracked
or damaged in any way.
The length of the hose is 500mm and is tested to EN16436
Have the heater inspected annually by a qualified service engineer.
• This product is not suitable for primary heating purposes.
• Energy efficiency: Class A
• Direct Heat Output: 4.1kW
• Energy Efficiency Index: EEI=89%
• Please refer to the instruction manual for the assembly, installation,
maintenance, disassembly, recycling and/or disposal at end of life.
This Daewoo gas heater is in following with the following EC directives and
Regulations:
Gas Appliances Regulation (EU) 2016/426(GAR)
Commission Delegated Regulation (EU) 2015/1186 and 2015/1188
The following harmonised standards have been applied:
EN449:2002+A1:2007
This product is in in conformity with EU 2015/1186 and 2015/1188 directive and
regulations.
Model no.: HEA1490
Factory Model No.: PO-E01
Gas Category: I3+(28-30/37)
Type of Gas: G30 (Butane) at 28-30 mbar;
G31 (Propane) at 37 mbar
Pressure: 28~30/37 mbar
Injector Size: 0.58MM
Gas Consumption: 298 g/h Heat Input: 4.1kW
Destination Country: IE
PIN CODE: 2531CT-0032
11
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Troubleshooting
PROBLEM
PROBABLE CAUSE
POSSIBLE SOLUTION
Pilot will not light up
automatically but switch
&lead are satisfactory and
the pilot will light with a
match.
Incorrect position of spark
in relation to gas flow
Request service technician to re-
position spark electrode so that
spark jumps across gas flow
Heater will not remain alight
when pressure is released
from the gas control.
Electromagnetic contact
closes whilst heater is
alight
Request service Engineer to:
a. Ensure that thermocouple
probe is located in pilot
flame.
b. Ensure good connection
between thermocouple and
valve.
c. Check thermocouple.
d. Check electromagnetic valve.
After changing to maximum
position with all three
burners alight, one or more
burner(s) appear below
normal intensity.
a. Blocked Jets.
b. Partially blocked supply
tube.
c. Gas running out.
Request service Engineer to:
a. Remove and clean blocked
jet.
b. Remove the supply tube and
jets and blow through the
tube.
Difficulty in changing from
LOW to MEDIUM and HIGH.
Air draught directed away
from first nozzle.
Position of the pilot flame
incorrect.
a. Relocate the heater so that it
is not affected by draughts.
b. Request service Engineer to
adjust pilot so that flame is
closer to bottom corner of
the second nozzle as well as
first nozzle.
Smell of burning.
Missing place of ceramic
plate.
Inspect each Ceramic plate and
locate position of missing
material.
Repair with fire cement and
leave to set for 24 hours.
Smell of gas
Gas leakage from hose or
tube connection.
Carry out leak test to determine
source.
Pilot flame appears red
Dirt in gas nozzle.
Clean out any dust with
compressed air.
Patchy combustion on
ceramic plates.
Dirty gas outlets. Grime
on plates.
Clean out any dust with
compressed air.
12
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Annex table 1 : Information requirements for gaseous/ liquid fuel local space heaters
Model identifier(s): HEA1490
Indirect heating functionality: [no]
Direct heat output: 4.1 (kW)
Indirect heat output: N/A (kW)
Fuel
Space heating emissions (*)
NOx
Select fuel type
[gaseous]
[specify]
33 [mg/ kWh
input
] (GCV)
Item
Symbol
Value
Unit
Item
Symbol
Value
Unit
Heat output
Useful efficiency (NCV)
Nominal heat
output
P
nom
4.1
kW
Useful efficiency at nominal
heat output
η
th,nom
100
%
Minimum heat
output (indicative)
P
min
N/A
kW
Useful efficiency at minimum
heat output (indicative)
η
th,min
N/A
%
Auxiliary electricity consumption
Type of heat output/room temperature control (select one)
At
nominal
heat
output
el
max
N/A
kW
Single stage heat output, no room temperature
control
[no]
At minimum heat
output
el
min
N/A
kW
two or more manual stages, no room
temperature control
[yes]
In standby mode
el
SB
N/A
kW
with mechanic thermostat room temperature
control
[no]
with electronic room temperature control
[no]
with electronic room temperature control plus
day timer
[no]
with electronic room temperature control plus
week timer
[no]
Other control options (multiple selections possible)
room temperature control, with presence detection
[no]
Room temperature control, with open window
detection
[no]
with distance control option
[no]
with adaptive start control
[no]
with working time limitation
[no]
with black bulb sensor
[no]
Permanent pilot flame power requirement
Pilot flame power
requirement (if
applicable)
P
pilot
0.20
kW
Contact details
ESG Ltd. Brightgate House, 1 Brightgate Way, Stretford, Manchester, M32 0TB.
(*) NOx = nitrogen oxides
13
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Notes
14
4.1kW Gas Heater
Model No. HEA1490
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
GUARANTEE
This product is guaranteed for twelve months from the date of original purchase. If any defect should
occur due to faulty materials or workmanship, please return it to the store it was purchased from.
You will need to have your receipt of purchase to hand. The guarantee is subject to the following provisions:
•
It is only valid within the boundaries of the country of purchase.
•
The product must be correctly installed and operated in accordance with the instructions contained
in the User Manual.
•
The product must be used solely for domestic purposes.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged by inexpert repair.
•
The manufacturer disclaims any liability for incidental or consequential damages.
•
The guarantee is in addition to, and does not diminish, your statutory or legal rights.
Daewoo® is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
