LOAD SLING ADJUSTER WITH BALL
BEARINGS 680KG CAPACITY
Model no: LS501
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAfETY
9 ensure the load sling adjuster is in sound condition and good working order. Take action for immediate repair or replacement of
damaged parts.
9 Use recommended parts only. The use of improper parts may be dangerous and invalidate the warranty.
9 ensure that the adjuster is capable of supporting the load that is to be raised. Maximum capacity 680kg.
9 Keep the adjuster clean for best and safest performance.
9 only use the adjuster in a suitable, well lit work area.
9 Keep the work area clean and free from unrelated materials.
9 ensure that all non-essential persons keep at a safe distance, whilst the adjuster is in use.
9 ensure load sling(s) are fully engaged in their karabiners and that the screw locks are securely closed.
9 Raise and lower the load in a smooth, controlled manner.
▲ DANGER! Use the adjuster for lifting only, NOT for supporting the lifting load.
9 Useaqualiedpersontolubricateandmaintaintheadjuster.
8 DO NOT use the adjuster if damaged.
8 DO NOT allow untrained persons to operate the adjuster.
8 DO NOT exceed the rated capacity (safe working load) of the adjuster.
8 DO NOT raise or lower the load with abrupt or jerky movements.
8 DO NOT attempt to lift a load if the load chains are kinked or knotted.
8 DO NOT shock the load adjuster by allowing the attached load to fall freely, even for very short distances.
8 DO NOT usetheadjustertodragtheloadacrosstheoor.Alwayspositiontheloaddirectlybelowtheadjuster.
8 DO NOT allow anyone to stand, or pass, beneath the raised load.
8 DO NOT use the adjuster for purposes other than that for which it was intended.
9 Store adjuster in a dry, childproof area when not in use.
2. INTRODUCTION
Handles and levels heavy, off centre loads quickly and easily. Ball bearing handle allows for a smooth and easy adjustment. Three adjustment
holes accommodate different sized engines. Ideal for car, van truck and marine engines. If used with cranes of capacity 680kg or more, the load
must be restricted to a 680kg maximum. Supplied with 4 x 275mm chains and 4 x ‘l’ shaped brackets with additional karabiner style screw links.
3. SAfE WORKING LOAD
LS 501
Safe Working Load = 680kg
4. SPECIfICATION
Model No: .................LS501
Sling Span: ................340mm
5. OPERATION
Refer to g.1
IMPORTANT: Before using the load sling adjuster ensure that you have read and understood the safety instructions in Section 1.
4.1 ensure that the load sling adjuster is suspended from a lifting system in which all components are capable of supporting the load to be
lifted plus the load sling adjuster.
4.2 Conrmthattheloaddoesnotexceedthesafeworkingloadoftheadjuster.
4.3 Positionthecarriage(A)atthecentreofthebeam(B)andsuspendtheadjuster,viathecarriage,fromthehookorshackleofthelifting
device.
4.4 ensure that the slings/chains/ropes around the load are adequate and in good condition and that the load is directly below the adjuster.
4.5 Attachslings/chains/ropestoadjusterloadbrackets(C).
4.6 Start to raise load and check whether the adjuster beam remains level. If it does not, lower the load and adjust the carriage towards the
end of the beam which was low. Repeat this check and adjustment until the beam lifts horizontally.
NOTE: DO NOT attempt to reposition the carriage when the adjuster is under load.
lS501 Issue 2 (HF) 17/07/18
Original Language Version
© Jack Sealey limited
Refer to
instructions
Wear protective
gloves
Warning
Wear protective
footwear
6. MAINTENANCE
Refer to g.1
NOTE: Only fully qualied personnel should attempt maintenance or repair.
6.1. Keep the load sling adjuster clean and regularly lubricate the threaded rod (d).
6.2. Carry out a visual inspection every time the adjuster is used.
WARNING! The load chains and brackets are made from special alloy steels and precisely heat treated. DO NOT
weld or re-heat treat.
6.3. depending on the frequency of use and local conditions the adjuster will eventually show signs of wear at which point it
should be replaced. overloading or incorrect hooking may distort the brackets, if this occurs replace immediately.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENvIRONMENT PROTECTION
Recycleunwantedmaterialsinsteadofdisposingofthemaswaste.Alltools,accessoriesandpackagingshouldbesorted,takento
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: no liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

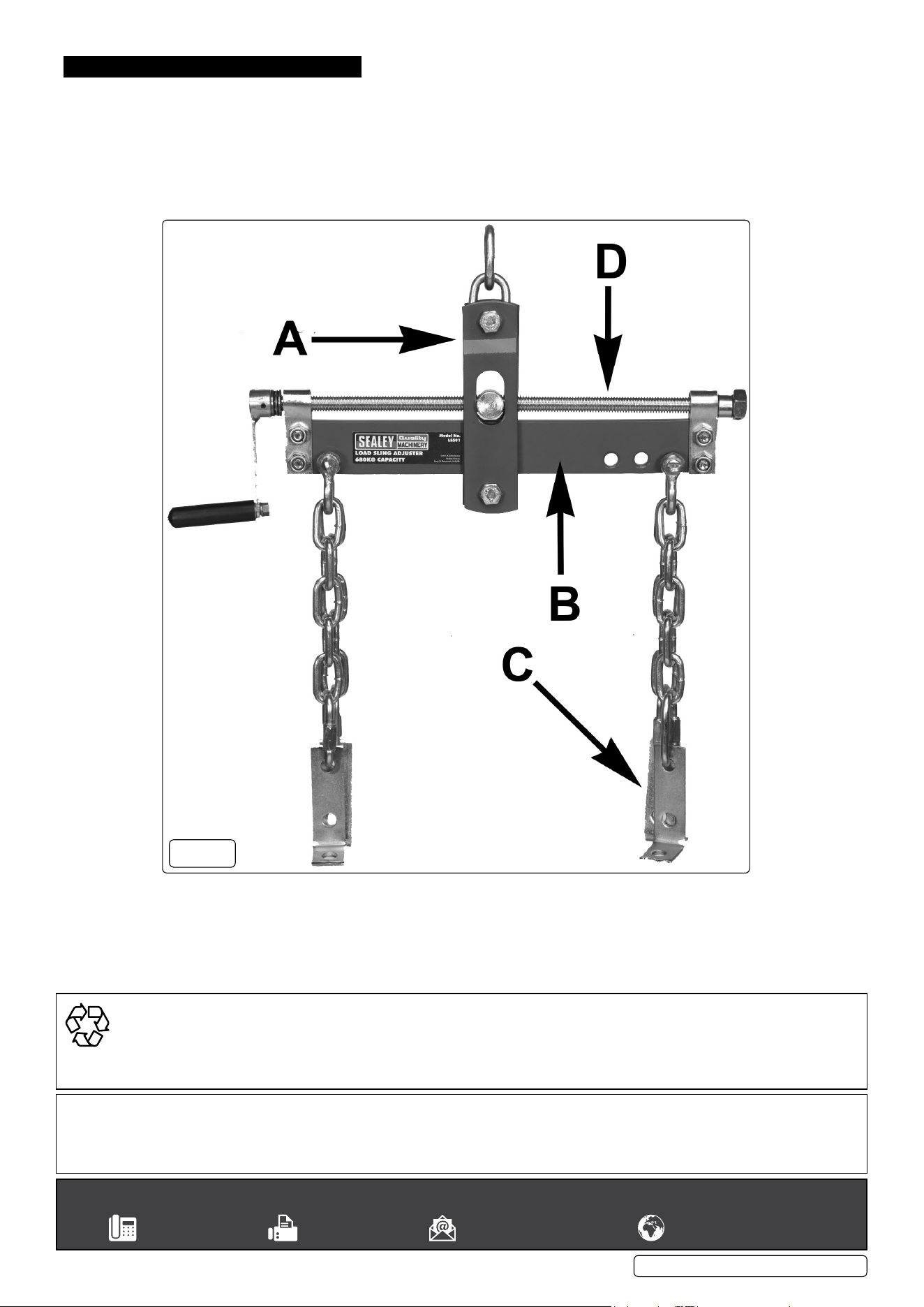

g.1
