1 Introduction
1.1 Product Features
This series of camera adopts new generation sensor with
high sensitivity and advanced circuit design technology. It
features high resolution, low image distortion and low
noise, etc., which makes it suitable for monitoring system
and image processing system.
The main features are as follows:
� High performance CMOS sensor
� High resolution image
� Low illumination, 0.1 lux @ (F1.2, AGC ON)
� Supports auto electronic day & night switch
� Supports auto gain control
1.2 Overview
1.2.1 Overview of DBA Vehicle-Mounted Camera
The overview of the camera is shown below.

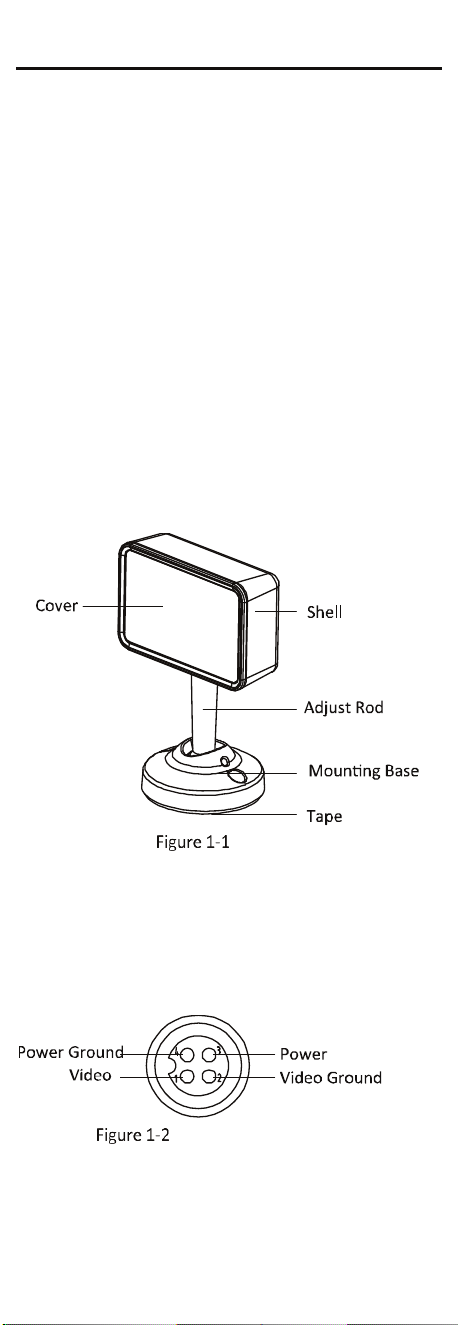

Overview
1.2.2 Cable Description
The device supports two types of cable. Connect the
device with matched cable. The cable descriptions as
below:
Aviation Plug Interface
Interfaces of Aviation Plug
2
4-Pin Din Connetor Interface
Interfaces of 4-Pin Din Connector
The power supply for the camera is 6 VDC to 16 VDC.
2 Installation
Before you start:
� Please make sure that the device in the package is in
good condition and all the assembly parts are
included.
� Make sure that all the related equipment is power-off
during the installation.
� Check the specification of the products for the
installation environment.
� Check whether the power supply is matched with your
power output to avoid damage.
� Be sure that there is enough space to install the
camera and accessories.
� Make sure the part, which is used to install the camera,
is strong enough to withstand four times the weight of
the camera and the mounting.
� If the product does not function properly, please
contact your dealer or the nearest service center. Do
not disassemble the camera for repair or maintenance
by yourself.
� Do not pull and drag the camera cables hard.
Steps:
3
1. Clean the mounting surface with a mixture of
isopropyl and water.
Choose a mounting position that camera can aim at
the driver.

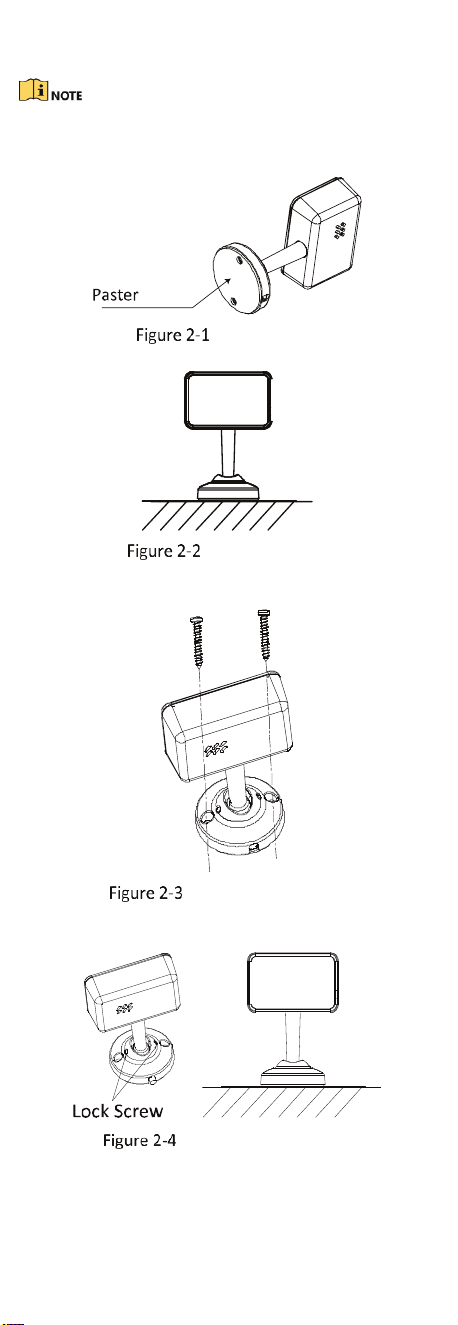

2. Peal the paster of the mounting base.
Peal the Paster
3. Paste the camera onto mounting position.
Paste the Camera
4. Fix the mounting base with two screws as the
picture shown below.
Fix the Mounting Base
5. Adjust the camera angle accordingly, and lock
the shooting angle with two lock screws.
Lock the Shooting Angle
