Low Illumination Fisheye
Vehicle-Mounted Camera
User Manual
UD28557B
© 2022 Hangzhou Hikvision Digital Technology Co., Ltd. All rights
reserved.
This Manual is the property of Hangzhou Hikvision Digital
Technology Co., Ltd. or its affiliates (hereinafter referred to as
"Hikvision"), and it cannot be reproduced, changed, translated, or
distributed, partially or wholly, by any means, without the prior
written permission of Hikvision. Unless otherwise expressly stated
herein, Hikvision does not make any warranties, guarantees or
representations, express or implied, regarding to the Manual, any
information contained herein.
About this Manual
The Manual includes instructions for using and managing the
Product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without
notice, due to firmware updates or other reasons.
Please use this Manual with the guidance and assistance of
professionals trained in supporting the Product.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the
properties of Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the properties of
their respective owners.
LEGAL DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS
MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE,
SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH
ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A
PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT
YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU
FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA,
CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING
NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN
CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES
FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE
ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY
LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK,
HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL
APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR
ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN
A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD
PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY,
INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND
OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR
ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR
PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE
DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL
WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY
NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN
SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND
THE APPLICABLE LAW, THE LATER PREVAILS.
1
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EC, the EMC Directive 2014/30/EC.
2012/19/EU (WEEE directive): Products marked with this
symbol cannot be disposed of as unsorted municipal
waste in the European Union. For proper recycling,
return this product to your local supplier upon the
purchase of equivalent new equipment, or dispose of it
at designated collection points. For more information
see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as unsorted
municipal waste in the European Union. See the product
documentation for specific battery information. The
battery is marked with this symbol, which may include
lettering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more
information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards
requirements.
2
The symbols that may be found in this document are defined as
follows.
Description
Provides additional information to
emphasize or supplement important points
of the main text.
Indicates important oprations or potential
hazardous situation that could result in
damage or property loss.
Keep the camera away from liquid while in use.
Do not drop the camera or subject it to physical shock.
Do not touch senor modules with fingers. If cleaning is necessary, use
clean cloth with a bit of ethanol and wipe it gently. If the camera will not
be used for an extended period, replace the lens cap to protect the
sensor from dirt.
To avoid heat accumulation, good ventilation is required for operating
environment.
Do not aim the camera at the sun or extra bright places. Blooming or
smearing may occur otherwise (which is not a malfunction), and affect
the endurance of sensor at the same time.
The sensor may be burned out by a laser beam, so when any laser
equipment is in using, make sure that the surface of sensor will not be
exposed to the laser beam.
Do not place the camera in extremely hot, cold, dusty or damp locations,
and do not expose it to high electromagnetic radiation.
While in delivery, the camera shall be packed in its original packing, or
packing of the same texture.
If the product does not work properly, contact your dealer or the
nearest service center. Never attempt to disassemble the camera by
yourself. (We shall not assume any responsibility for problems caused
by unauthorized repair or maintenance.)
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss. Before using,
please read the manual carefully and keep it properly for further
reference.
Indicates a hazard with a high level of risk,
which if not avoided, will result in death or
serious injury.
Indicates a potentially hazardous situation,
which if not avoided, could result in
equipment damage, data loss, performance
degradation, or unexpected results.
In the use of the product, you must be in strict compliance with the
electrical safety regulations of the nation and region. Input voltage should
meet both the SELV (Safety Extra Low Voltage) and the Limited Power
Source with AC 24V or DC 12V according to the IEC60950-1 standard.
Refer to technical specifications for detailed information.
Foreword
Symbol Conventions
Symbol
NOTE
CAUTION
WARNING
DANGER
Safety Instruction
3
Before unboxing, check if the package is intact. Refer to the list to
make sure that all the assembly parts are included. The packing list
of the vehicle-mounted camera is shown below.
Table 1-1 Packing List
No.
Picture for Illustration
Name
Quantity
Camera
Screw Pack
The assembly parts may vary according to different camera models.
Refer to the actual device for details.
NOTE
1 Package Check
1.1 Before You Begin
1.2 Packing List
User Manual
2.1 Product Features
This series of camera adopts new generation sensor with high
sensitivity and advanced circuit design technology. It features
high resolution, low image distortion and low noise, etc., which
makes it suitable for monitoring system and image processing
system.
The main features are as follows:
High resolution image (up to 720p)
Low illumination, 0.01 Lux @(F1.2, AGC ON)
Auto white balance
Supports IP68, IP69 water-proof
Supports IK10
Adapts shock-proof design and aviation plug
2 Introduction
High performance CMOS sensor for accurate capture of
moving subjects
5
2.2 Overview
2.2.1 Overview of Camera

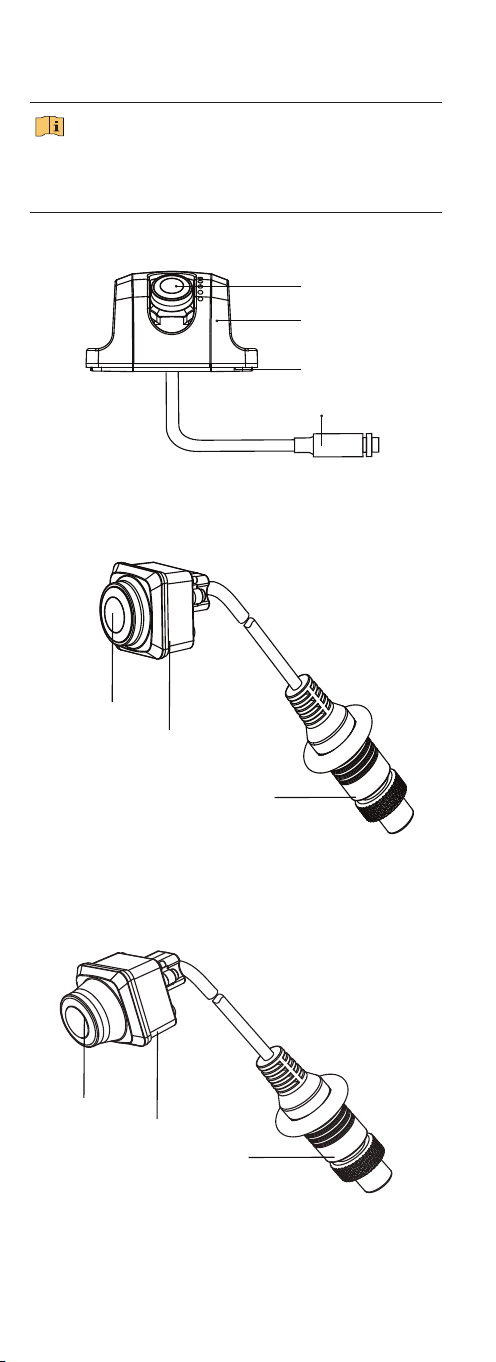

Figure 2-1 AE-VC136T(1.0mm) with Shield
Camera
Body
Rubber Blanket
Cable
The appearance of the device varies according to different
models, as shown in the following figures. Refers to the actual
device for detailed information.
NOTE
Figure 2-2 AE-VC136T(1.0mm)
Rubber
Blanket
Cable
Camera
Rubber
Blanket
Camera
Cable
Figure 2-3 AE-VC136T(2.1mm)
Type A
Type B
Type C
6
Video
Power Ground
Power Supply
Normally Closed
Normally Closed
Video
Power Ground
Power Supply
Power Ground
Power Supply
Video
Normally Closed
Aviation Plug Interface
4-Pins Plug Interface
Cable A
Cable B

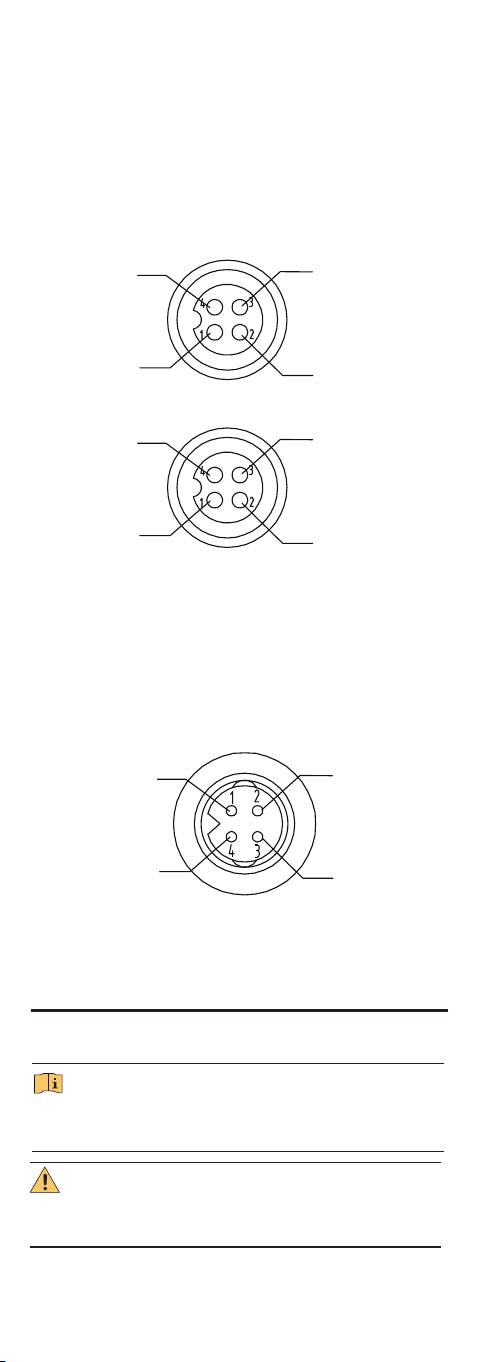

2.2.2 Cables
Figure 2-4 Interfaces of Aviation Plug
Figure 2-5 Interfaces of 4-Pins Plug
The camera is designed with an aviation plug, as shown below, to
ensure shock-proof. Make sure your cable matches with the plug.
9V to 16 V DC power supply for vehicle-mounted cameras.
The camera is designed with a 4-pins plug, as shown below.
Make sure your cable matches with the plug.
9V to 16 V DC power supply for vehicle-mounted cameras.
The product include 2 models, 2 kinds of cables are compared
with different models. Make sure the cable is correct before you
wiring.
3 Installation
Before you start, Please make sure that the device in the package
is in good condition and all the assembly parts are included.
CAUTION
Make sure the part, which is used to install the camera, is
strong enough to withstand four times the weight of the
camera and the mounting.
The installation process of all three models are the same. In
this manual, we illustrate the installation process with the
model with shield.
NOTE
Step 1

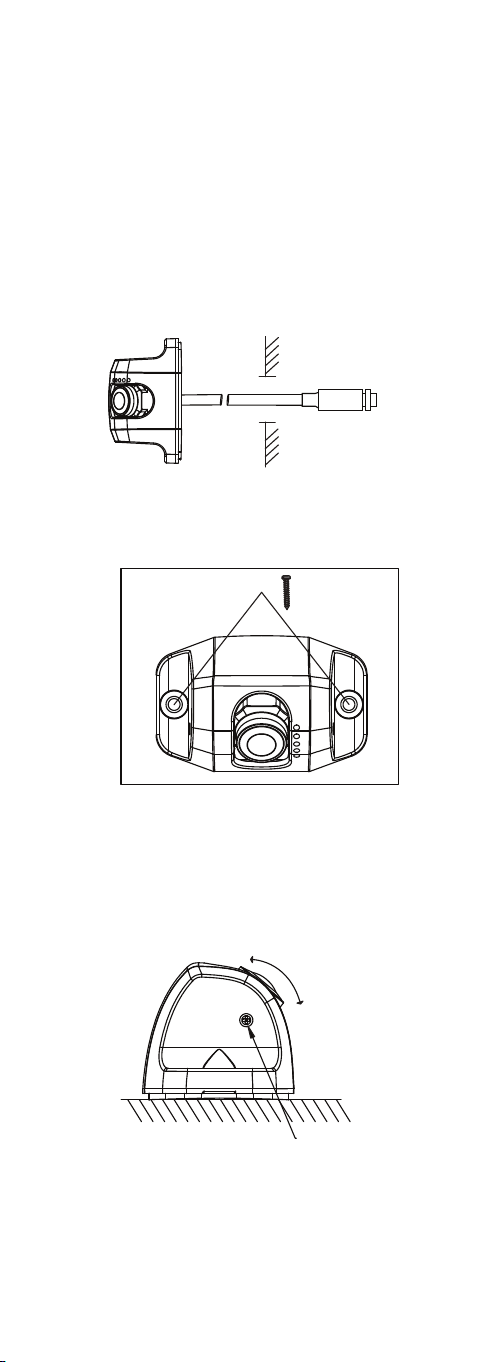

Figure 3-1 Install the Camera in Vehicle
Set Screws × 2
Set Screw
Figure 3-2 Fix with Srews
Choose a suitable mounting location to ensure the
camera catches the driver properly.
Pre-drill holes in the center of the mounting location.
The hole diameter is determined according to the size
of the wire harness, so that the wire harness can be
passed through the car. (If the structure of this section
is a side outlet, there is no need to punch holes and go
directly to step 4).
Step 2 Install the camera to a proper mounting place. Insert
the cable through the cable hole in the vehicle.
Step 3 Fix the camera with screws to make sure it is secured.
Adjust the camera to a desired angle to make sure it
catches the driver properly. Fix the camera angle with
screws using a hex screwdriver to complete
installation.
Step 4
Figure 3-3 Adjust and Fix the Camera Angle
7
