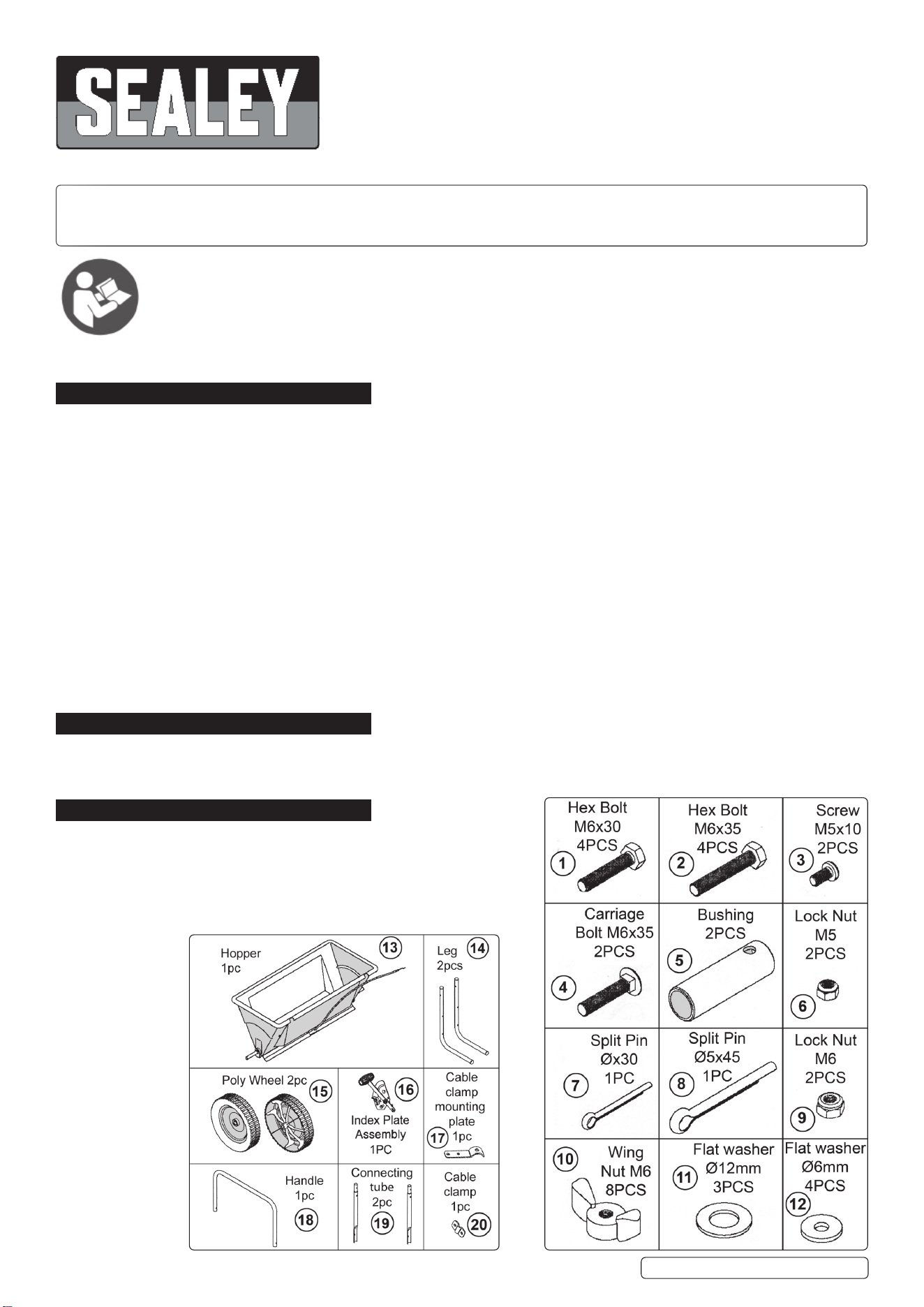

27KG WALK BEHIND DROP SPREADER
MODEL NO: SPD27W
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9 Before each use, check that there is no damage to the spreader and that all fixings are tight.
9 Replace or repair damaged parts. Use only recommended parts. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Ensure that all chemical safety instructions are adhered to when handling products for use in the spreader. A full range of personal
safety equipment is available from your Sealey stockist.
9 Always distribute the load evenly.
9 Ensure all non essential personnel keep a safe distance when the spreader is in use.
9 Keep hands and feet away from moving parts.
8 DO NOT overload the spreader - see Specification.
8 DO NOT leave unattended, especially when loaded.
8 DO NOT allow anybody to sit, stand, or ride on the spreader.
8 DO NOT allow untrained personnel to use the spreader.
8 DO NOT allow children to play in or climb onto the spreader.
8 DO NOT use on windy days when spreading seeds or herbicides.
8 DO NOT tow this spreader with a motorized vehicle of any sort.
8 DO NOT use the spreader for purposes other than for which it is designed.
8 DO NOT operate the spreader when you are tired or under the influence of alcohol, drugs or intoxicating medicines.
9 When loaded, DO NOT operate the spreader over edges, rough surfaces etc. where the spreader is at risk of overturning.
WARNING! Failure to comply with these instructions may result in damage to spreader or other property and/or personal injury.
2. i INTRODUCTION
Manufactured with a strong tubular steel frame and polyethylene dispensing hopper. Fitted with adjustable feed system to control feed quantities.
Designed to spread in a continuous line providing a more accurate application. Suitable for a variety of horticultural agents including grit, seed, salt,
fertilizer and weedkiller.
3. i SPECIFICATION
Model no: ..................................................................SPD27W
Capacity (Volume): ..............................................................25L
Capacity (Weight): .............................................................27kg
Dimensions (W x D x H): ........................... 740 x 810 x 775mm
Spread: ..........................................................................560mm
Refer to
instruction
manual
SPD37W Issue 3 (H,2,3,F) 04/05/23
Original Language Version
© Jack Sealey Limited

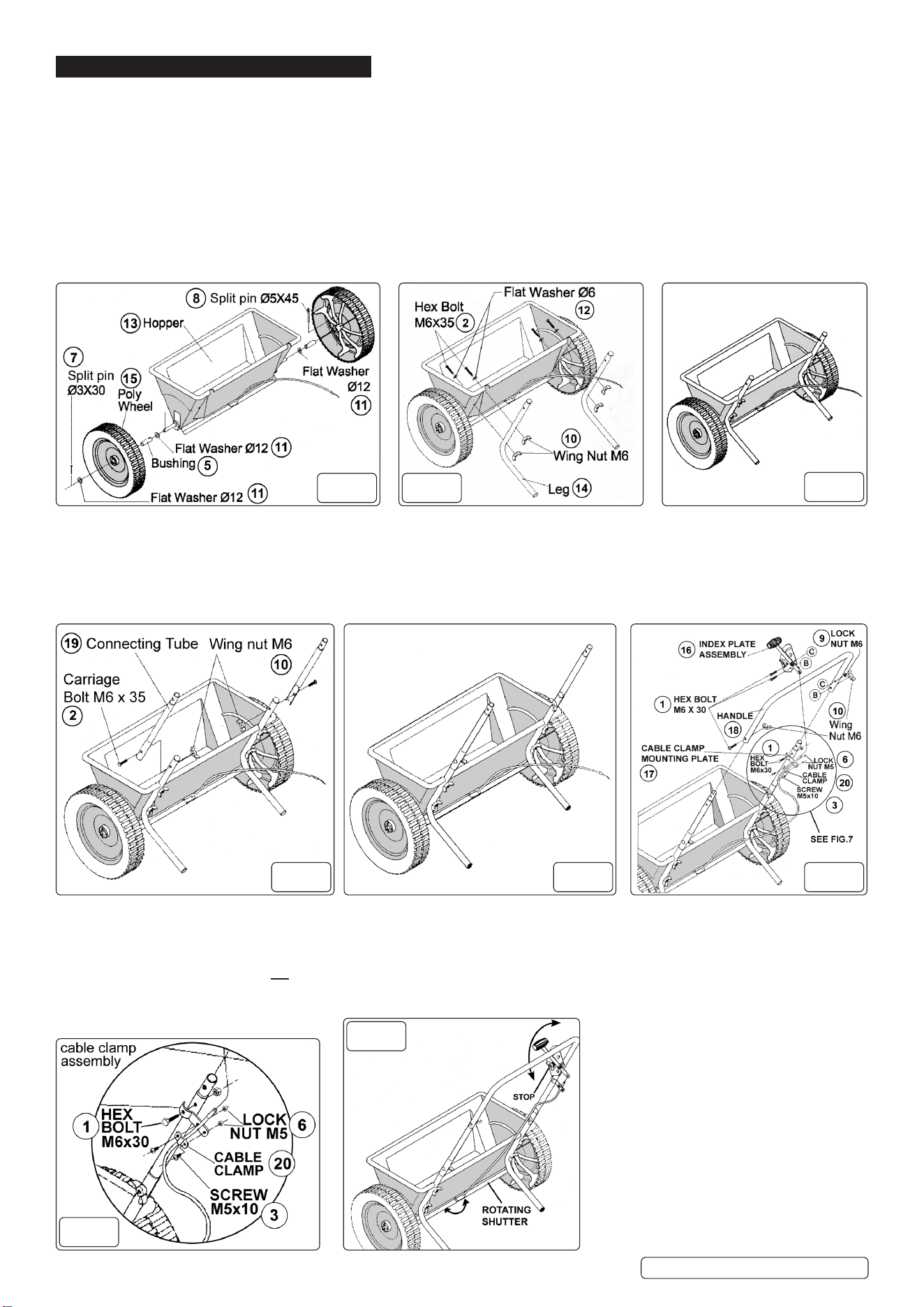

4. ASSEMBLY
4.1. Pleasenotethatthetwowheelsareassembledtotheaxledierently.Thelefthandwheel(asseenfromthehandlesideofthe
hopper)isfreewheeling.Therighthandwheeldrivesthebladeswithinthehopper.Referringtog.1assemblethelefthandwheel
rstbyslidingaØ12mmatwasher(11)ontotheaxlefollowedbyabushing(5).Slideawheel(15)overthebushingfollowedby
anotherØ12mmatwasher(11).InsertthesmallersplitpinØ3mmx30(7)throughtheholesintheendoftheaxleandretainthe
assembly by bending it over.
4.2. Slide another washer (11) and bushing (5) over the axle on the other side of the hopper ensuring that the holes in the bushing are
adjacent to the side of the hopper. Slide the other wheel over the bushing and align the holes in the inner hub of the wheel with the
holesinthebushingandtheholethroughtheaxle.RetainthisassemblybyinsertingthelargersplitpinØ5mmx45(8)throughall
three components. Retain the assembly by bending over the split pin.
4.3. Referringtog.2taketwoM6x35mmbolts(2)anddroptwoØ6mmwashers(12)ontothem.Alignoneleg(14)withtheholesinthe
hopper and insert the bolts through the hopper and the leg. Screw a wing nut (10) onto each bolt and tighten them up to draw the leg
rmlyupagainstthehopper.Attachtheotherlegtothehopperinthesameway.Seeg.3.
4.4. Referringtog.4,assembleaconnectingtube(19)toeachlegusinganM6x35mmhexheadedbolt(2)andanM6Wingnut(10).
Firmlytighteneachnutasshowning.5.
4.5. Referringtog.6,pushthehandleontotheconnectingtubesandxinplaceusinganM6x30mmbolt(1)andanM6Wingnut(10)at
each connection. Firmly tighten each wing nut.
4.6. Referringtog.6,insertthebentendofthecontrolcablethroughtheholeatthebottomoftheindexplateleverandthenattachthe
indexplateassemblytotherighthandsideofthehandleusinganM6x30mmbolt(1)togetherwiththeexistingM6locknut(9)and
wing nut (10) used to mount the handle (18).
4.7. Attach the cable clamp mounting plate (17) to the connecting tube just below the index plate assembly using one M6 x 30mm
bolt(1)withanM6locknut(9)asshowning.7.Laythecontrolcableontothemountingplatebetweenthescrewholes
and lay the cable clamp (20) over the cable and clamp it lightly in place using two M5 x 10 screws (3) and two M5 locknuts (6).
4.8. Referringtog.8,pushtheindexplatelevertothebottomofitstravelandmakesurethatthedistributionslotsonthe
underside of the hopper are not covered by the rotating shutter. Now fully tighten the cable clamp.
4.9. Testtheactionofthelevertoensurethattherotatingshuttersuccessfullyexposesandhidesthedistributionslots.
4.10. Whentherequireddistributionrateisachieved,thestopandwingnutttedintheleverslotcanbebroughtuptothebottomofthe
levertoxitsposition.Seeg.8.
fig.
1
fig.
2
fig.
3
fig.
5
fig.
6
fig.
4
fig.
7
fig.
8
SPD37W Issue 3 (H,2,3,F) 04/05/23
Original Language Version
© Jack Sealey Limited
5. OPERATION
5.1. Thespreaderisdesignedtobepushedatthreemilesanhour,which is a brisk walking pace. Slower or faster speeds will change the
spread pattern. Wet fertiliser will also change the level of coverage you require.
5.2. Cleanthespreaderthoroughlyaftereachusepayingparticularattentiontotheshutoplateandthebottomofthe hopper.
6. MAINTENANCE
6.1. After each use clean material out of hopper.
6.1.1. Rinse/dry inside and outside of spreader after each use.
6.2. Periodically check all fastenings are tight.
6.3. Annually clean and lightly lubricate parts.
6.4. Touchupallscratchedorwornpaintedmetalsurfaces.
6.5. Toavoiddamagingthespreaderneverexceedtheratedloadcapacityof27kg.
6.6. STORAGE.
6.6.1. Before storing ensure that the spreader is clean and dry.
6.6.2. Store indoors or in a protected area during severe weather and in the winter months.
6.6.3. Never allow material to stay in the hopper for extended periods of time.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
SPD37W Issue 3 (H,2,3,F) 04/05/23
Original Language Version
© Jack Sealey Limited

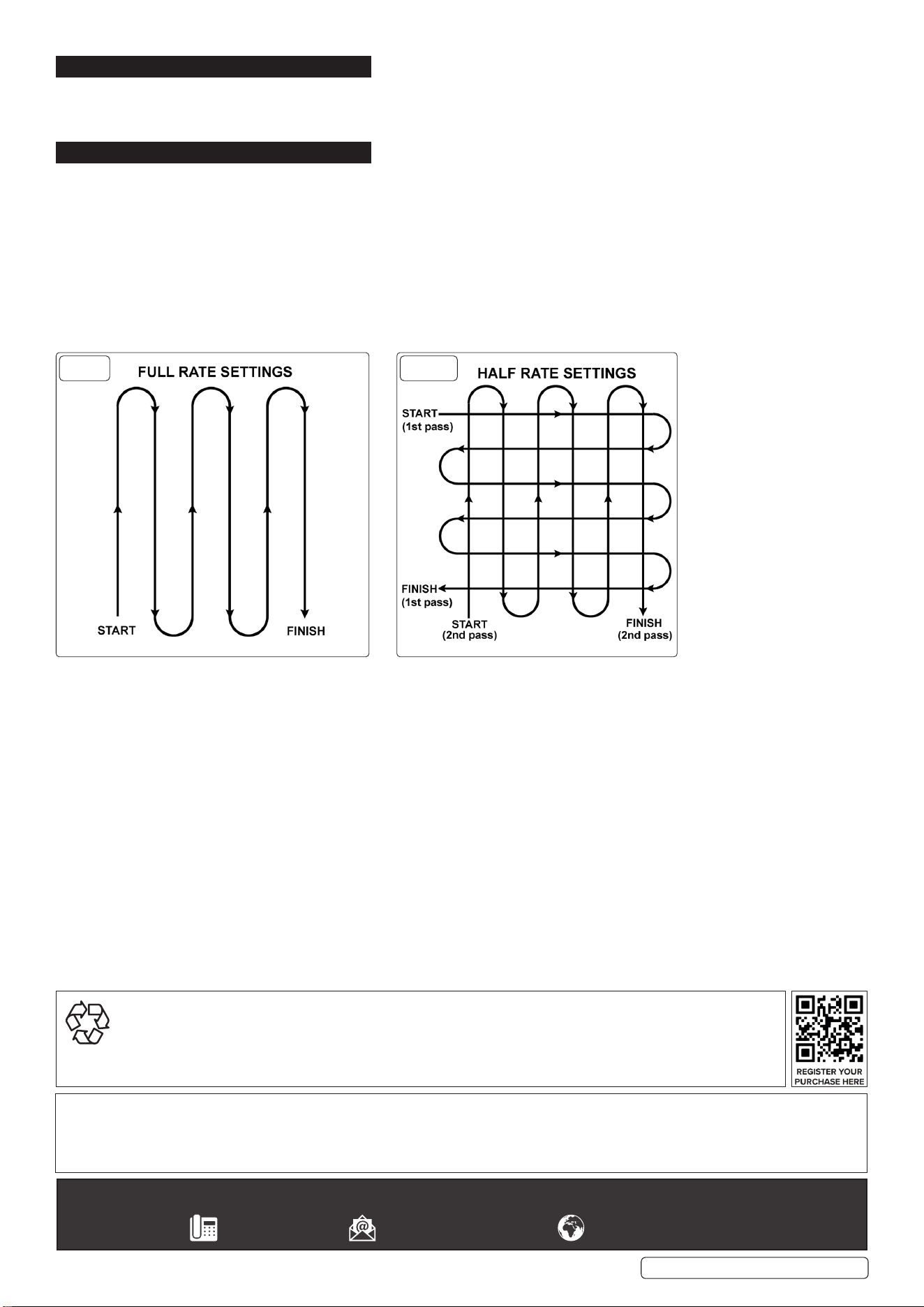

fig.
9
fig.
10
