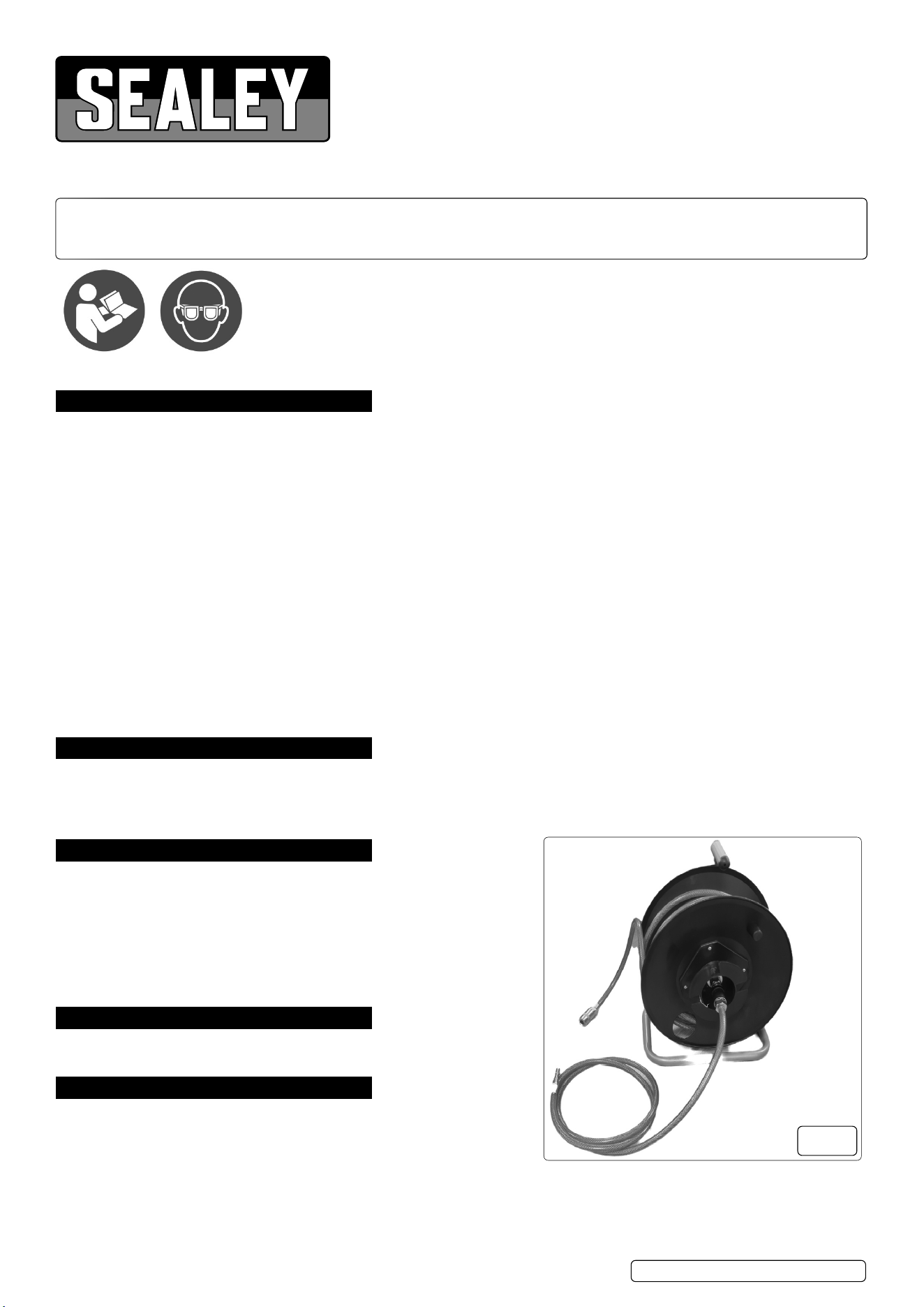

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Original Language Version
© Jack Sealey Limited
PORTABLE MANUAL AIR HOSE REEL, 20M,
Ø6MM ID, 300PSI
MODEL NO: SA825
1. SAFETY
9 Familiarise yourself with the application and limitations of the hose reel, as well as the specific hazards.
9 Maintain the hose reel in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
8 DO NOT place inside a spray booth/oven.
9 Ensure there is adequate lighting.
WARNING! Ensure maximum air pressure is not exceeded (300psi).
9 Keep extended air hose away from heat, oil and sharp edges.
9 Check hose for wear before each use and ensure all connections are secure.
9 Keep the unwound hose away from wet, damp, oily surfaces to avoid debris accumulation in between the hose reel.
WARNING! Always wear approved eye protection when operating the air hose reel.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip footwear.
9 Keep children and unauthorised persons away from the working area.
8 DO NOT operate the hose reel if any parts are damaged or missing as this may cause failure and/or personal injury.
8 DO NOT use the hose reel for any purpose other than that for which it is designed.
8 DO NOT pull the hose from the supply.
8 DO NOT operate the hose reel when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT direct air from the air hose at yourself or others.
WARNING! Ensure the hose is disconnected from the supply when not in use or carrying out any maintenance or assembly.
8 DO NOT position the hose in direct sunlight or in areas of extreme heat or cold.
2. iINTRODUCTION
Lightweight, floor standing hose reel with built in carry handle for easy transportation. Features high grade TPR (Thermoplastic Rubber)
inner tube and a reinforced PVC outer coating, which remains flexible in low temperatures. Silicone-free for use in the bodyshop. Fitted
with quick connectors and supplied with a 1.9m inlet hose to connect the hose reel to a compressor. Drum is manufactured from impact
resistant plastic.
3. sSPECIFICATION
Model No: ............................................................ SA825
Hose Size (ID/OD): .........................................Ø6/11mm
Hose Type: .............................. Reinforced Braided PVC
Inlet Size: .............................................Quick Connector
Length: ....................................................................20m
Maximum Pressure: ............................................ 300psi
Nett Weight: .......................................................... 4.2kg
Outlet Size: ..........................................Quick Connector
4. ASSEMBLY
4.1. REMOVE ALL ITEMS FROM THE PACKAGING.
4.1.1. Connectquickconnectortosideofhosereel(g.1).
5. OPERATION
5.1. CONNECT TO AN AIR LINE
8 DO NOT connect directly to an air tool, connect a leader hose to the tool
rstandthenconnecttheleaderhosetotheairhosereel.
5.2. EXTENDING THE HOSE
5.2.1. Pull the hose out slowly to the length required and stop.
5.3. RETRACTING THE HOSE
5.3.1. Rewind the hose manually.
Refer to
instructions
Wear eye
protection
fig.
1
SA825 Issue:2 (2) 12/03/24
6. MAINTENANCE
WARNING! Before attempting maintenance or inspection, disconnect the hose.
To ensure reliable operation, clean the hose and casing regularly. DO NOT spray or wet the product, but clean with a damp cloth
and warm water. DO NOT use solvents or detergents, as these may permanently damage the item. The hose reel does not require
special maintenance as it is lubricated for life. Replacement of the supply hose should be carried out by skilled personnel only, consult
your nearest authorised service agent.
6.1. STORAGE
6.1.1. Before storing the air hose, ensure it is clean and dry. Store it in a dark, safe, dry, childproof location, where the
temperature will remain reasonably stable.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Original Language Version
© Jack Sealey Limited
REGISTER YOUR
PURCHASE HERE
SA825 Issue:2 (2) 12/03/24
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
