84L VERTICAL FREEZER
USER’S MANUAL
Model : TVF84WMBM
To ensure proper use of the appliance and your safety, please read the
following user manual completely before operating this appliance.
FROST FREE UPRIGHT FREEZER
User Manual
TVFW1AH
TVF61AH
Important Safety Instructions
Name of Parts and Usage
Packing List
Transporting the Appliance
Installation Instructions
Operating Instructions
Defrosting
Energy Saving Tips
Maintenance
Disconnection of the Appliance
Reversing the Door
Troubleshooting
Repair, Service & Warranty
Specifications
1
4
5
6
6
7
8
8
9
10
11
13
14
15
Important Safety Instructions
Name of Parts and Usage
Packing List
Transporting the Appliance
Installation Instructions
Operating Instructions
Defrosting
Energy Saving Tips
Maintenance
Disconnection of the Appliance
Reversing the Door
Troubleshooting
Repair, Service & Warranty
Specifications
1
4
5
6
6
7
8
8
9
10
11
13
14
15
CONTENTS
Important Safety Instructions
Overview
Reversing the Door
Installation Instructions
Operating Instructions
Maintenance and Care of the Appliance
Troubleshooting
Repairs, Service & Warranty
Specifications
1
5
6
8
9
10
12
13
14
Warning:risk of fire / flammable materials.
•
Thank you for purchasing our product and thank you for placing your
confidence in us.
•
Read this manual carefully before use. Follow instructions and keep the
manual for future reference.
•
Follow the operating instructions and safety notices in this manual.
•
If any trouble arise, do not attempt to fix it yourself. Please contact TECO
service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
•
This freezer is designed and approved for use with flammable R600a
refrigerant.
•
The appliance is specifically constructed for domestic use only. The appliance
has not been designed or manufactured for professional use. TECO declines
all responsibility for damage deriving from improper use of the appliance. The
freezer has undergone the necessary tests on the tightness of the refrigeration
circuit and complies with the safety regulations for electrical appliances.
•
All images, illustrations and photos contained in this manual are for illustration
purposes only and may differ from your appliance.
Prohibition symbol
Warning symbol
Note symbol
This is a prohibition symbol.
Any incompliance with instructions marked with this
symbol may result in damage to the product or endanger
the personal safety of the user.
This is a warning symbol.
It is required to operate in strict observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special
caution. Insufficient caution may result in slight or
moderate injury, or damage to the product.
• This appliance contains a small quantity of flammable, non-synthetic
R600a refrigerant.
• The room for installing the appliance must be at least
1m3 per 8g of refrigerant. The amount of refrigerant in
the appliance can be found on the rating plate attached
to the appliance.
• If the refrigerant circuit should become damaged. Avoid
open flames and sources of ignition. Disconnect
the appliance from the mains power. Thoroughly
ventilate the room in which the appliance is situated
for several minutes.
IMPORTANT SAFETY INSTRUCTIONS
1
• The Class 1 freezer is designed to operate on a single phase power supply
within a voltage range of 220~240V/50Hz.
• The refrigeration system contains refrigerant. Do not allow any sharp
objects to come in contact with the refrigerant system to avoid damage the
refrigerant circuit.
• This product is for indoor use only.
• Do not place electrical items or cooking equipment nearby. Keep away from
substances which could cause ignition and good ventilation shall be
always maintained.
• Do not place objects on top of the appliance which are magnetic, heavy or
filled with water.
• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the
appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of
electric shock or fire.
• If the supply cord is damaged, it must be replaced by authorised TECO service
personal, service agent or similarly qualified persons in order to avoid a hazard.
• Do not store flammable, explosive, volatile and highly corrosive materials in
the refrigerator. Containers with flammable gases or liquids can leak at low
temperature. There is a risk of explosion or fire.
• Do not splash water on the appliance. It may cause malfunction or electric shock.
• Always switch off and unplug appliance before cleaning.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the storage compartments of the
appliance.
• For appliances which use flammable insulation blowing gases, Please keep
the products away from the fire or similar glowing substance.
• This appliance is intended to be used in household and similar applications such
as:
o staff kitchen areas in shops, offices and other working environments;
o farm houses and by clients in hotels, motels and other residential type
environments;
o bed and breakfast type environments;
o catering and similar non-retail applications.
IMPORTANT SAFETY INSTRUCTIONS
2
3
3
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if you hands are
damp/wet, as this could cause skin abrasions or
frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with
the appliance.
• Packing (e.g. wraps, polystyrene etc.) can be dangerous for children. There
is a risk of suffocation. Keep packaging materials away from children.
• Contact your local authorities for correct method of disposal. Dispose of all
packaging in a responsible manner in accordance with local regulations.
Installation
Important! For electrical connection carefully follow the instructions given in
specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect the
appliance if it is damaged. Report possible damages immediately to the place
you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to
overheating. To achieve sufficient ventilation follow the instructions relevant to
installation.
• Wherever possible the spacers of the product should be against a wall to avoid
touching or catching warm parts (compressor, con-denser) to prevent possible
burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
Daily Use
• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacture's
instructions.
• Appliance·s manufactures storage recommendations should be strictly adhered
to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates
pressure on the container, which may cause it to explode, resulting in damage to
the appliance.
IMPORTANT SAFETY INSTRUCTIONS
3
Refrigerant and Cyclopentane foaming material used for the freezer
are flammable. Therefore, when the freezer is scrapped, it shall be
kept away from any fire source and be recovered by a special
recovering company with corresponding qualification other than be
disposed by combustion, so as to prevent damage to the
environment or any other harm.
When the freezer is scrapped, disassemble the doors, and remove
gasket of door and shelves; put the doors and shelves in a proper
place, so as to prevent trapping of any child.
Correct Disposal of this product
This marking indicates that this product should not be disposed
with other household waste. To prevent possible harm to the
environment or human health from uncontrolled waste disposal,
recycle it responsibly in accordance with local regulations.
Care and Cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug
from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost
from the appliance. Use a plastic
scraper.
Energy Saving
• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessaries, such as drawers, can be removed to get larger
storage volume and lower energy consumption.
Service
• Any electrical work required to do the servicing of the appliance should be
carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only
genuine spare parts must be used.
Disposal
IMPORTANT SAFETY INSTRUCTIONS
4

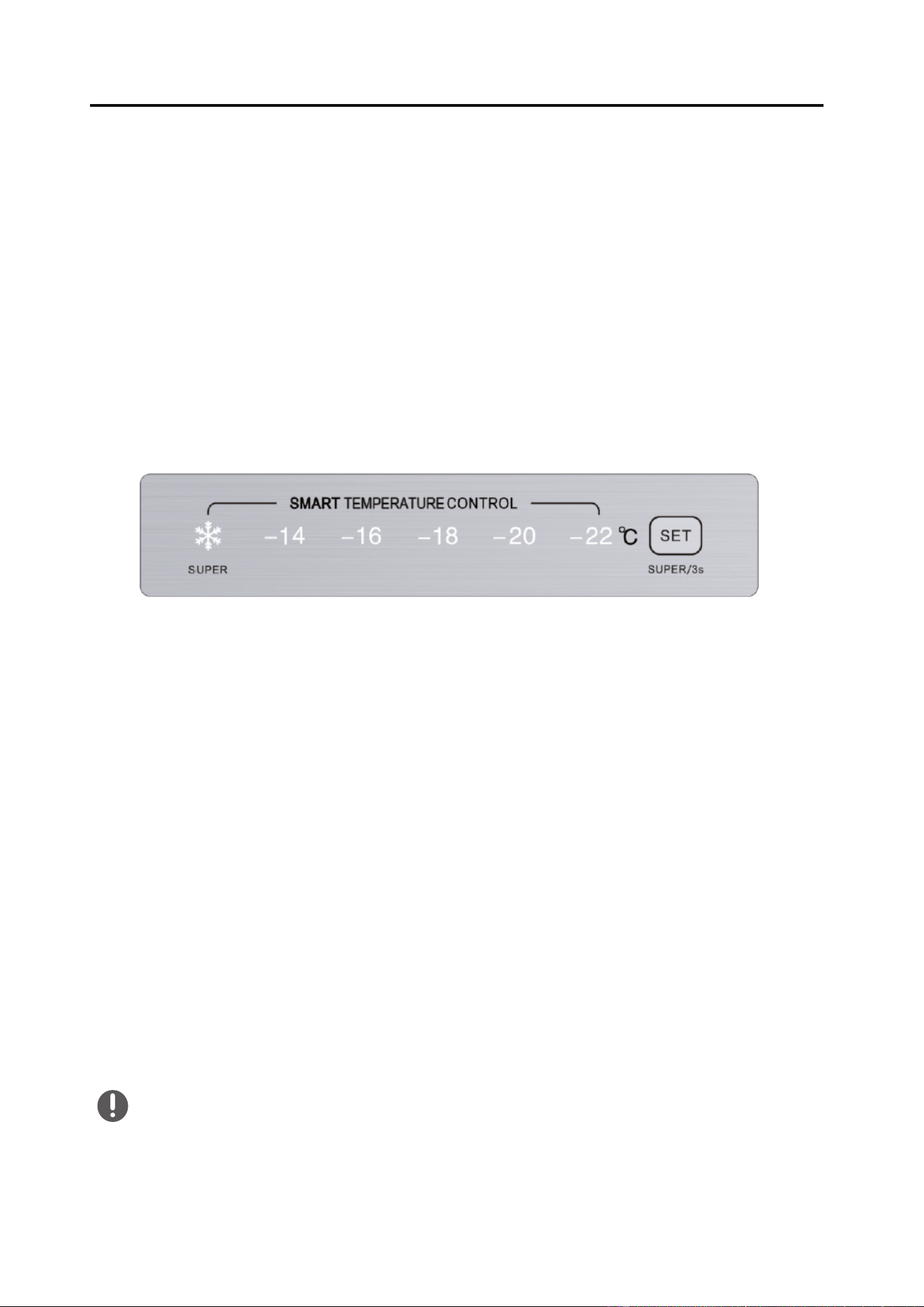

Control Panel
NOTE: The illustration in this manual are for reference only. Actual configuration will
depend on the physical product.

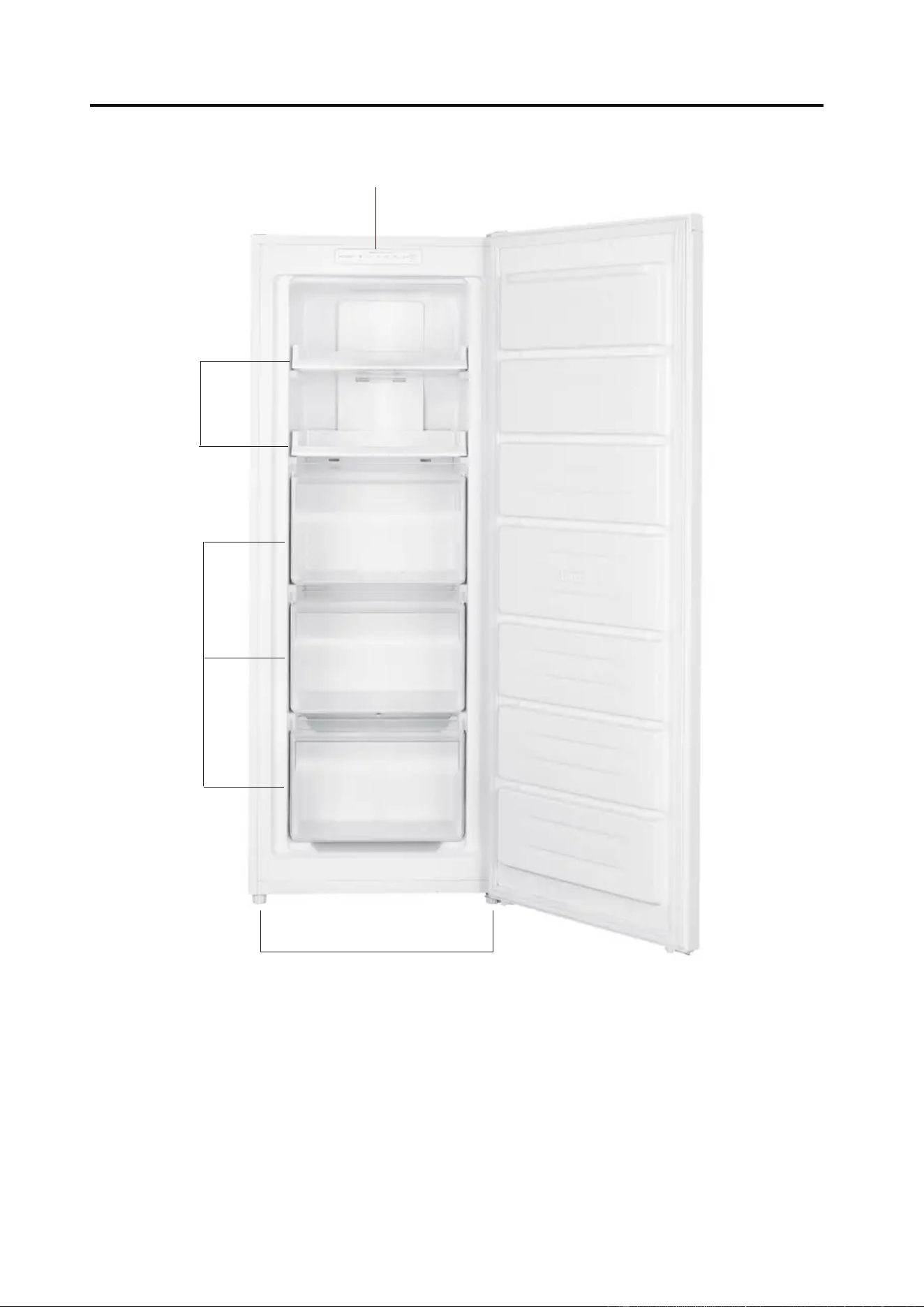

OVERVIEW
5
Freezer
Trays
Freezer
Drawers
Adjustable Feet

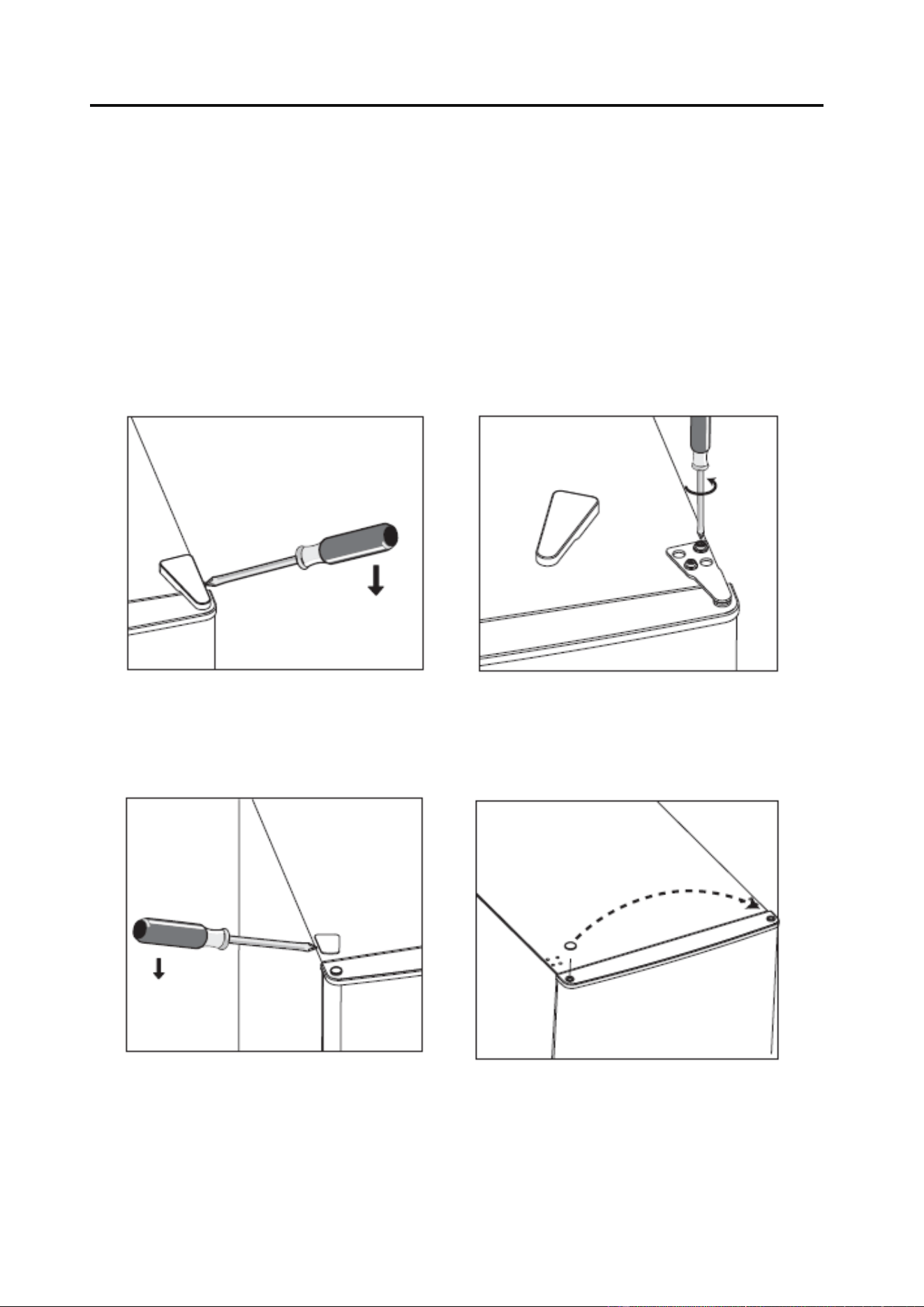

4. Move the hole cap from the left side
to the right, then lift the door and place
it on a padded surface to prevent it from
scratching.

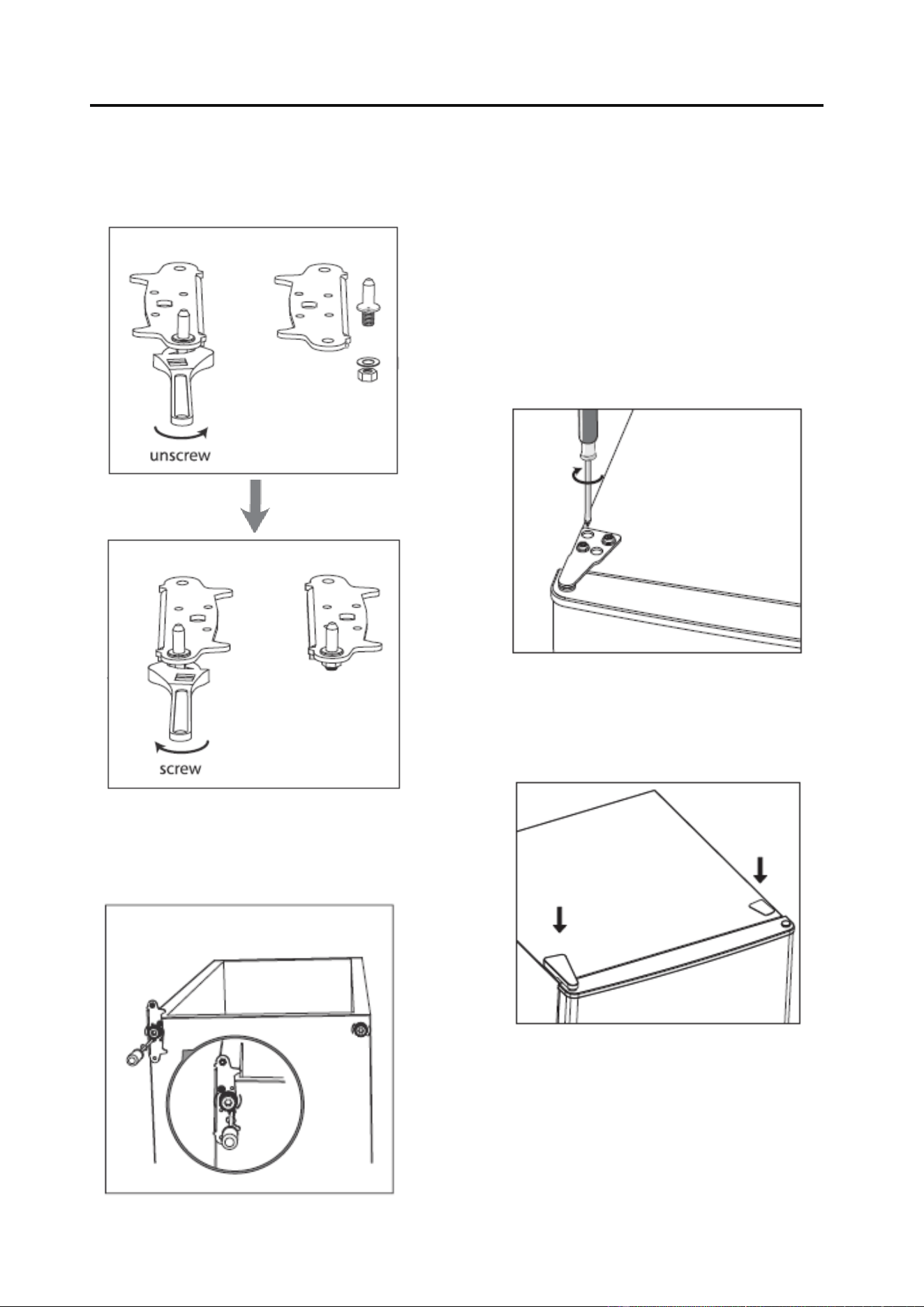

3. Remove the top left screw cover.
2. Unscrew top hinge and then
remove the hinge bracket.
1. Remove the top right hinge cover.
Tool required: Philips screwdriver, Flat bladed screw dirver, Hexagonal spanner.
• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary ti tilt the unit backwards. You should rest the
unit
on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the
re-installation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It is better that 2 people handle the unit during assembly.
REVERSING THE DOOR
6
10. Replace the hinge and screw
covers.
7. Place the door back on. Ensure
the door is aligned horizontally and
vertically so that the seals are closed
on all sides before finally tightening
the top hinge.
8. Insert the hinge bracket and screw
it to the top of the unit.
9. Use a spanner to tighten it if
necessary.
6. Refit the bracket fitting the
bottom hinge pin. Replace both
adjustable feet.
5. Unscrew and remove the
bottom hinge pin, turn the bracket
over and replace it.
REVERSING THE DOOR
7
INSTALLATION INSTRUCTIONS
1. Before using the refrigerator for the first time, remove
all of the packing materials, including the foam base
and adhesive tape holding accessories in place.
2.
3.
The refrigerator should be located on a firm, flat
surface that is strong enough to support the refrigerator
when it is fully loaded.
Choose a location that is not exposed to direct
sunlight, high temperatures, heat sources such as a
stove or radiator, or in a moist area. Do not choose a
location where the temperature will go below 12°C as
this could cause the refrigerator to not function
properly.
4. Leave a minimum of 50mm between each side of the
appliance and the wall. The top of the appliance
should have a minimum of 100mm clearance. This
allows for proper air circulation. This appliance is
intended to be free-standing and should not be built-in
or placed in a recessed area.

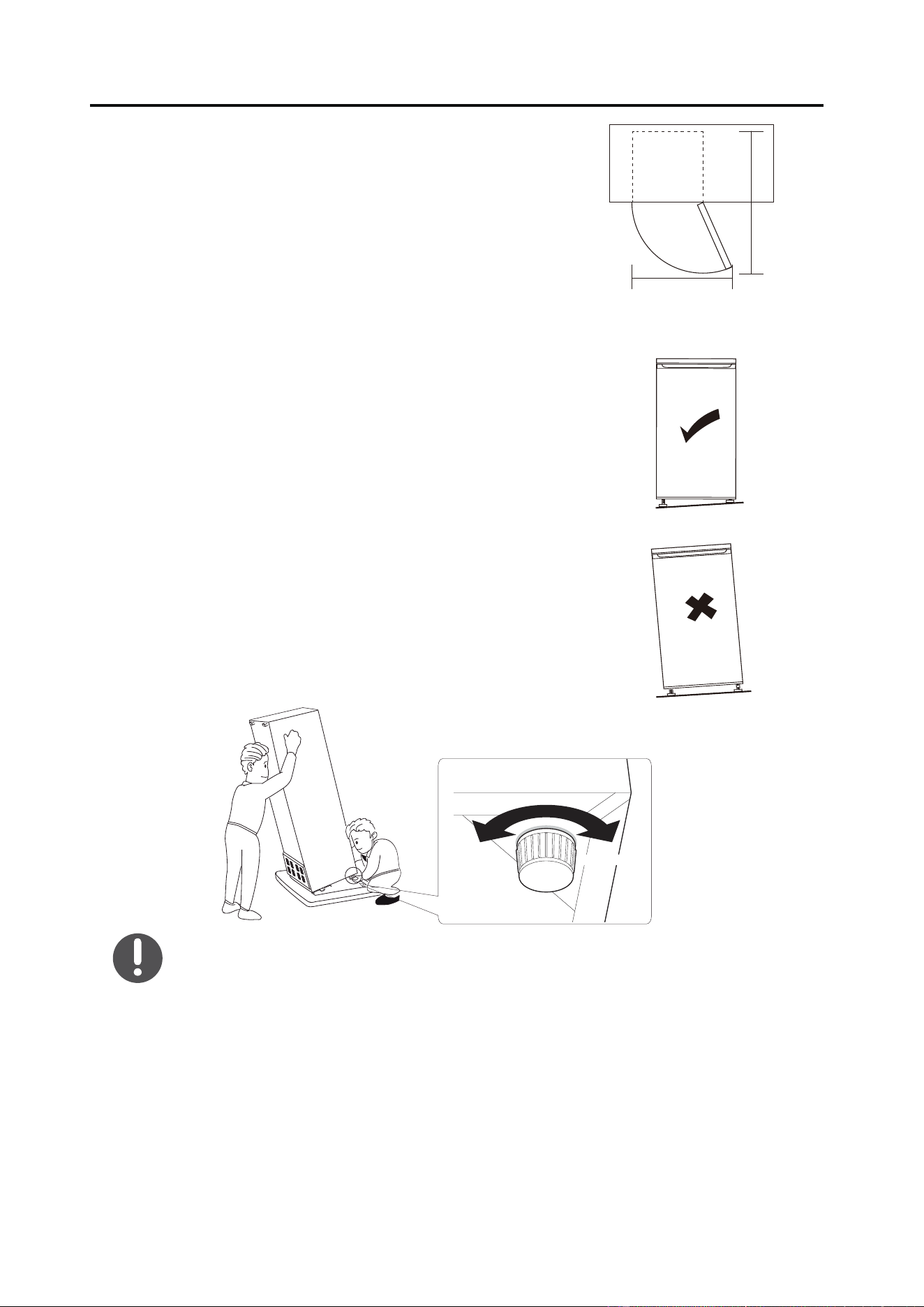

5. The refrigerator legs must be adjusted during
installation in order to function properly. The leveling
legs on the front corners can be adjusted by turning
clockwise to raise the appliance, and counter-clockwise
to lower it. Be sure to have the appliance slope slightly
backward to ensure that the door closes tightly.
912
1092
It must be possible to disconnect the appliance from the power supply;
the plug must therefore be easily accessible after installation.
Electrical Connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate
correspond to your domestic power supply. The appliance must be earthed. The power
supply cable plug is provided with a contact for this purpose. If the domestic power
supply socket is not earthed, connect the appliance to a separate earth in compliance
with current regulations, consulting a qualified electrician. The manufacturer declines
all responsibility if the above safety precautions are not observed.
8
Lengthen Shorten
OPERATING INSTRUCTIONS
First Use
Temperature Setting
• The freezer temperature can be set using the control panel. The control panel
displays the current mode and set temperature. There are five temperature
settings to choose from.
Placement of Food
• The freezer compartment is suitable for freezing fresh food and storing frozen and
deep-frozen food for a long time.
• There should always be some space between items inside for air circulation.
• Food should be kept in sealed packaging to avoid becoming dry or spoil.
• Hot food should be cooled down before placing into the appliance. Otherwise, the
interior temperature and power consumption will increase.
• Reduce opening the door frequently. Keeping the door closed will increase the
appliance efficiency and reduce power consumption.
• Before using the appliance for the first time, wash the interior and all internal
accessories with lukewarm water and some neutral soap so as to remove the
typical smell of a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the
finish.
• When first starting up or after a period out of use, before putting the product in the
compartment let the appliance run at least 2 hours on the highest settings to make
sure it is working properly and to allow it time to fall to the correct temperature.
9
o Do not overfilled the freezer.
o Do not use any electronic equipment inside the appliance.
o Do not store objects which are costly or subject to temperature variations.
e.g. medication or chemicals.
• Press the SET button, the LED indicator will begin to flash. Each subsequent
press of the SET button will cycle through the temperature -14℃, -16℃, -18℃,
-20℃, and -22℃. Note: -18℃ is recommended for normal use.
• Once the desired temperature is selected the LED indicator will flash for five
seconds before locking to the selected temperature setting.
• Press and hold the SET button for 3 seconds to enter SUPER Freezing mode
and the SUPER LED indicator light will turn on.
• To exit the SUPER Freezing mode, press and hold the SET button for 3
seconds again. The SUPER LED indicator light will turn off.
MAINTENANCE AND CARE OF THE APPLIANCE
• Dusts behind the
freezer and on the ground shall be timely cleaned to improve the
cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door
gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the freezer should be cleaned regularly to avoid odor.
Please turn off the power before cleaning interior, remove all foods, shelves,
drawers, etc.
• Use a soft cloth or sponge to clean the inside of the freezer, with two tablespoons of
baking soda and a quart of warm water. Then rinse with water and wipe clean. After
cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the freezer (such as narrow sandwiches, gaps
or corners), it is recommended to wipe them regularly with a soft rag, soft brush,
etc. and when necessary, combined with some auxiliary tools (such as thin sticks)
to ensure
no contaminants or bacterial accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause
odors in the interior of the refrigerator or contaminated food.
• Clean the shelves and drawers with a soft cloth dampened with soapy water or
diluted detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the freezer with a soft cloth dampened with soapy water,
detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as
toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling
water, acid or alkaline items, which may damage the fridge surface and interior.
Boiling water and organic solvents such as benzene may deform or damage plastic
parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short
circuits or affect electrical insulation after immersion.
Cleaning
10
Energy Saving Tips
• The appliance should be located in the coolest area of the room, away from
heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance.
Overloading the appliance forces the compressor to run longer. Foods that freeze
too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the
appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper
toweling. Liners interfere with cold air circulation, making the appliance less
efficient.
• Organize and label food to reduce door openings and extended searches. Remove
as many items as needed at one time, and close the door as soon as possible.
Defrosting
The freezer is made based on the air-cooling principle and thus has an automatic
defrosting function. Frost formed due to man-made or temperature changes can also
be manually removed by disconnection of the appliance from the power supply or by
wiping with a dry towel.
MAINTENANCE AND CARE OF THE APPLIANCE
Door Open Alarm
• If the door is not closed for 90 seconds, the door open alarm will be triggered.
• 5 of the LED indicators will start flash.
• Press the SET button or close the door to cancel the alarm.
High Temperature Alarm
• If a high internal temperature is detected, the high temperature alarm wiil be
triggered.
• 4 of the LED indicators will start flash.
• Press the SET button to cancel the alarm.
Power Failure
When a power failure occurs, the refrigerator can normally store food for several hours. Do
not put additional food into the appliance during a power failure, and do not operate door.
Disconnect the plug from the outlet, and reconnect when the power has been restored.
Always inspect for, and discard, any spoiled or thawed food in the refrigerator before
resuming use of the appliance.
Vacation
Before leaving on any vacation, remove food that could spoil while you are gone. If you
plan to be gone for an extended period of time, we recommend that all of the food should
be removed from the appliance and it should be turned off and unplugged from the outlet.
Clean the interior according to the directions provided in the CLEANING section of this
manual, and leave the door open.
Moving the Freezer
• Turn off the freezer and unplug from the outlet.
• Remove all food; securely tape down all loose items inside.
• Tape the door shut.
• Do not lift or pull the door or door handle during transportation.
• When moving, the appliance cannot be tilted over 45 degrees as possible
damage to the sealed system could occur.
• Take care to avoid strong vibration or impact to the appliance.
11

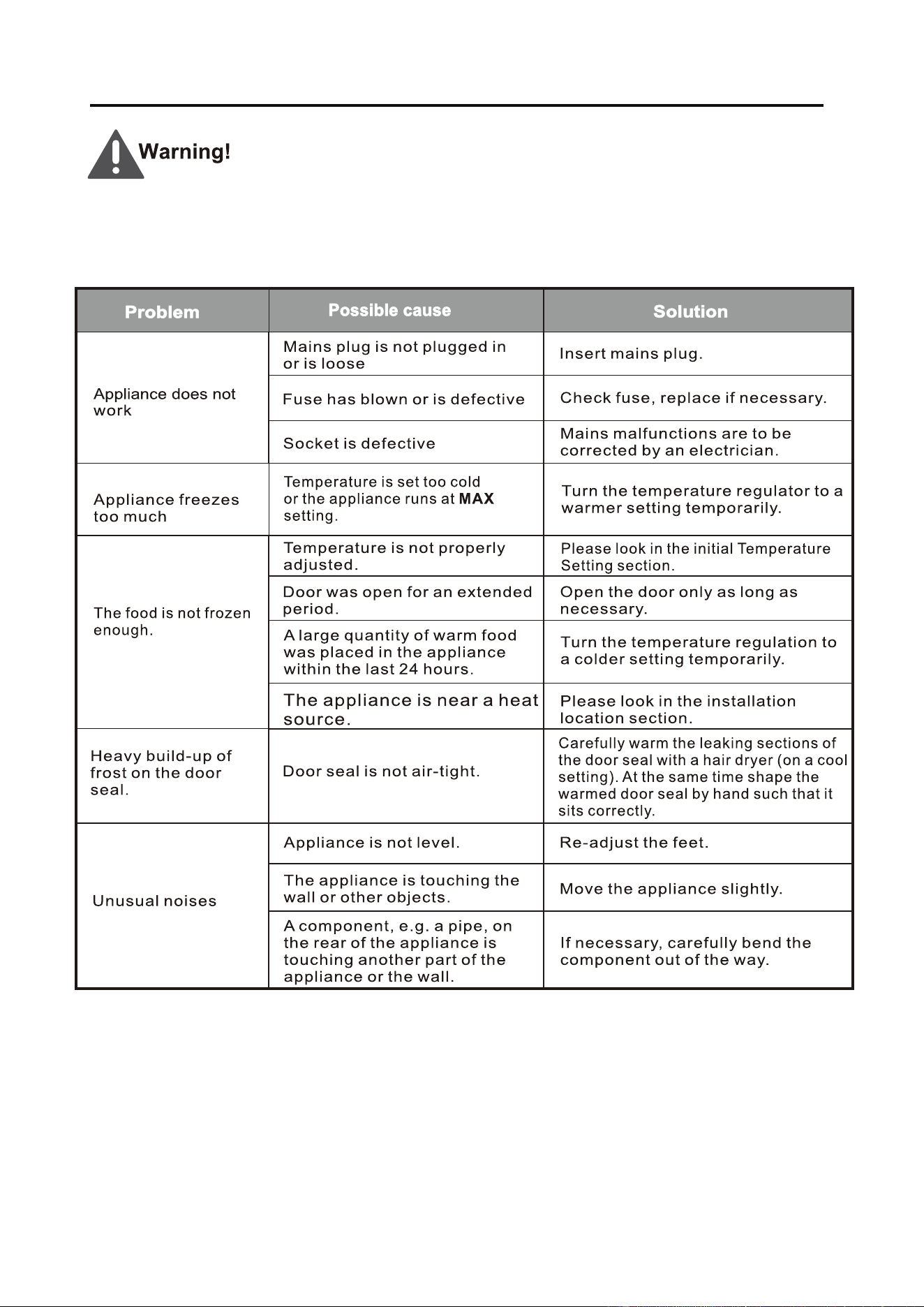

TROUBLESHOOTING
For your safety, unplug the appliance from the mains power source
Only an Authorised Service Person can carry out servicing or
repairs to this appliance. If you have a problem, and the problem
persists after you have made the checks mentioned in this manual,
contact: TECO Australia’s Service on 1300 660 037 (8:30am - 4pm
Mon~Fri AEST
The following are normal conditions that can be encountered during the operation of
this appliance:
• The flow of refrigerant through the coils can cause a noise.
• The sides of the appliance may become warm as a result of the cooling function.
12
,WLVKD]DUGRXVIRUDQ\RQHLQVWDOOLQJUHPRYLQJDOWHULQJUHSDLULQJVHUYLFLQJ
WHVWLQJRUFHUWLI\LQJWKHJDVV\VWHPRIDJDVGHYLFHLHFKDUJLQJGLVFKDUJLQJRU
EUHDNLQJLQWRWKHUHIULJHUDWLRQV\VWHPWKDWXVHVK\GURFDUERQUHIULJHUDQWV
2QO\DQ$XWKRULVHG6HUYLFH3HUVRQFDQFDUU\RXWVHUYLFLQJRUUHSDLUVWRWKLV
DSSOLDQFH,Q4XHHQVODQGWKHDXWKRULVHGSHUVRQPXVWKROGD*DV:RUN
$XWKRULVDWLRQIRUK\GURFDUERQUHIULJHUDQWVEHIRUHFDUU\LQJRXWVHUYLFLQJRU
UHSDLUVZKLFKLQYROYHWKHUHPRYDORIFRYHUV
,)6(59,&(,65(48,5('
,I\RXKDYHDSUREOHPDQGWKHSUREOHPSHUVLVWVDIWHU\RXKDYHPDGHWKH
FKHFNVPHQWLRQHGLQWKLVPDQXDOFRQWDFW
7(&2$XVWUDOLD¶V6HUYLFHRQDPSP0RQa)UL$(67
)RUZDUUDQW\GHWDLOVSOHDVHYLVLW
ZZZWHFRFRPDX
6HUYLFH(PDLOKDGVHUYLFH#WHFRFRPDX
6SDUH3DUWVKDGSDUWV#WHFRFRPDX
14
REPAIRS, SERVICE & WARRANTY
13
I
220 - 240
50
140W
160W
Defrost Power
Capacity (L)
Freezer
Refrigerator
Voltage (V)
Frequency (Hz)
Rated Input Power (W)
Electric shock protection type
Refrigerant
Net Weight (kg)
Climate class
Dimension
(mm)
Width
Depth
Height
T
-
161
R600a
41
540
600
1430
E&OE
NOTE: This product is subject to continuous improvement, specifications
are subject to change without prior notice. This product was tested in
accordance with Electrical safety of electrical appliances AS/NZS 60335,
Household refrigerating appliances – Energy labelling and minimum energy
performance standards requirments AS/NZS 4474.
Model Number
TVF161WNAH
TVF161SNAH
SPECIFICATIONS
1.3A
Rated Current (A)
Group
7
Waterproof Class
IPX0
14
Did you know?
TECO Australia's product range also includes:
Top Load Clothes Washers
Front Load Clothes Washers
Auto Sensing Vented Clothes Dryers
Heat Pump Clothes Dryer
Refrigerators
Chest and Vertical Freezers
Bar Fridges
Televisions
Air Curtains
Air Conditioners
Visit www.teco.com.au for our full range.
Important Safety Instructions
Name of Parts and Usage
Packing List
Transporting the Appliance
Installation Instructions
Operating Instructions
Defrosting
Energy Saving Tips
Maintenance
Disconnection of the Appliance
Reversing the Door
Troubleshooting
Repair, Service & Warranty
Specifications
1
4
5
6
6
7
8
8
9
10
11
13
14
15
www.teco.com.au
LCD-V2 E&OE
TECO
WARRANTY INFORMATION
Teco's warranty information for the product purchased is available at www.teco.com.au.
A copy of the warranty may also be obtained by contacting Teco's Warranty and Service
Department on 1300 660 037 during business hours (Mon - Fri 8.30am - 4pm AEST).
To arrange for servicing of a Teco product, please contact our Warranty and Service
Department on 1300 660 037 during business hours (Mon - Fri 8.30am - 4pm AEST).
To assist in processing any warranty claim that you may have Teco recommends that you:
1. Complete the following information in relation to your purchase:
Name of retailer:
Name of owner:
Date of purchase:
Model No. :
Serial No. :
MFG code:
2. Retain proof of your purchase for any warranty claim. Ideally this proof of
purchase will be the tax invoice issued for your purchase.
3. Complete the following information in relation to the person that installed your Teco
appliance (if applicable):
Installer's name:
Telephone No.:
Licence No.:
C
KTEU-E01
