BAUMR-AG COMRMRBMW7CA Tamping Rammer 10kN 6.5hp User Manual

User Manual

[Revision 1.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

adequat

e engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

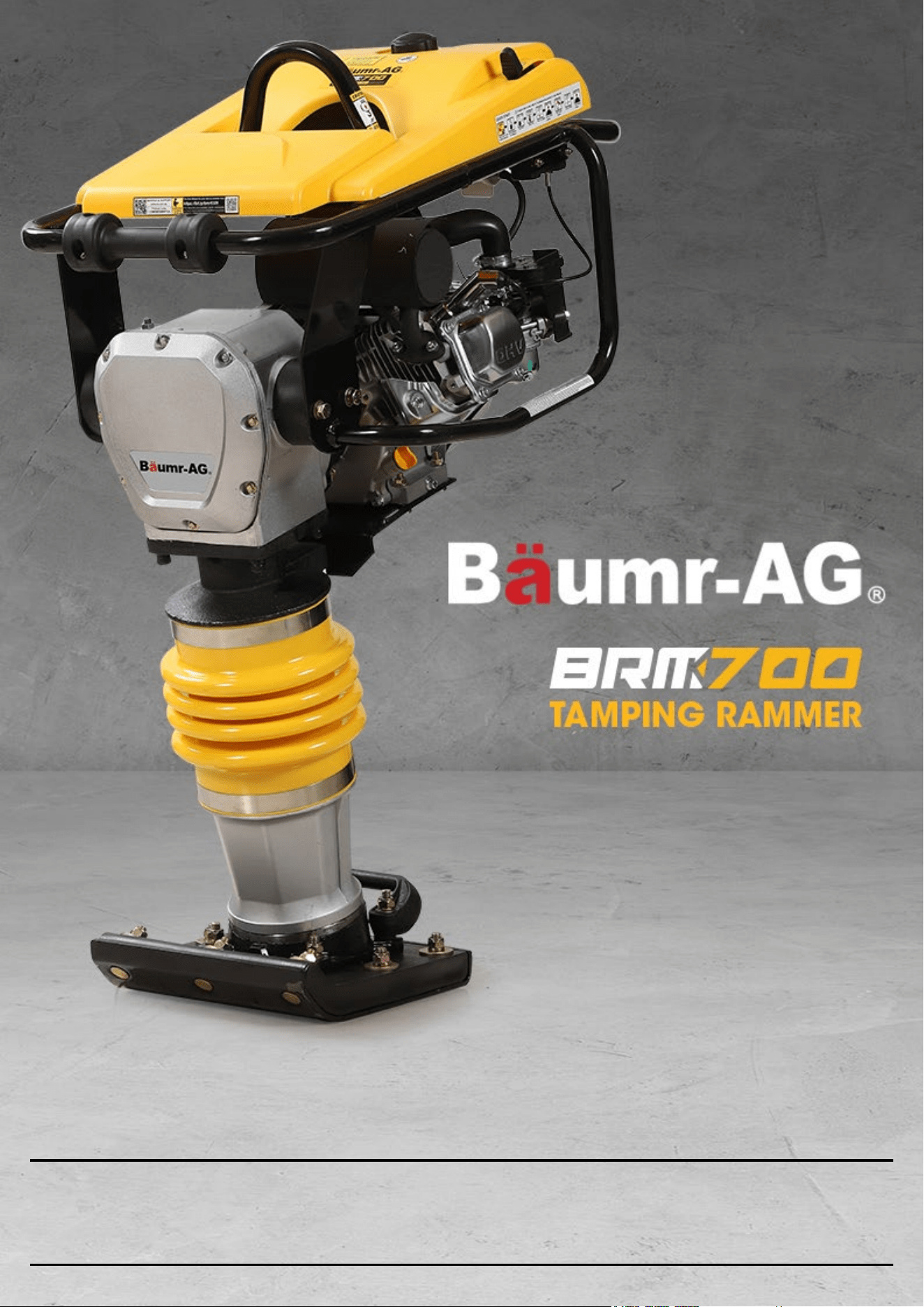

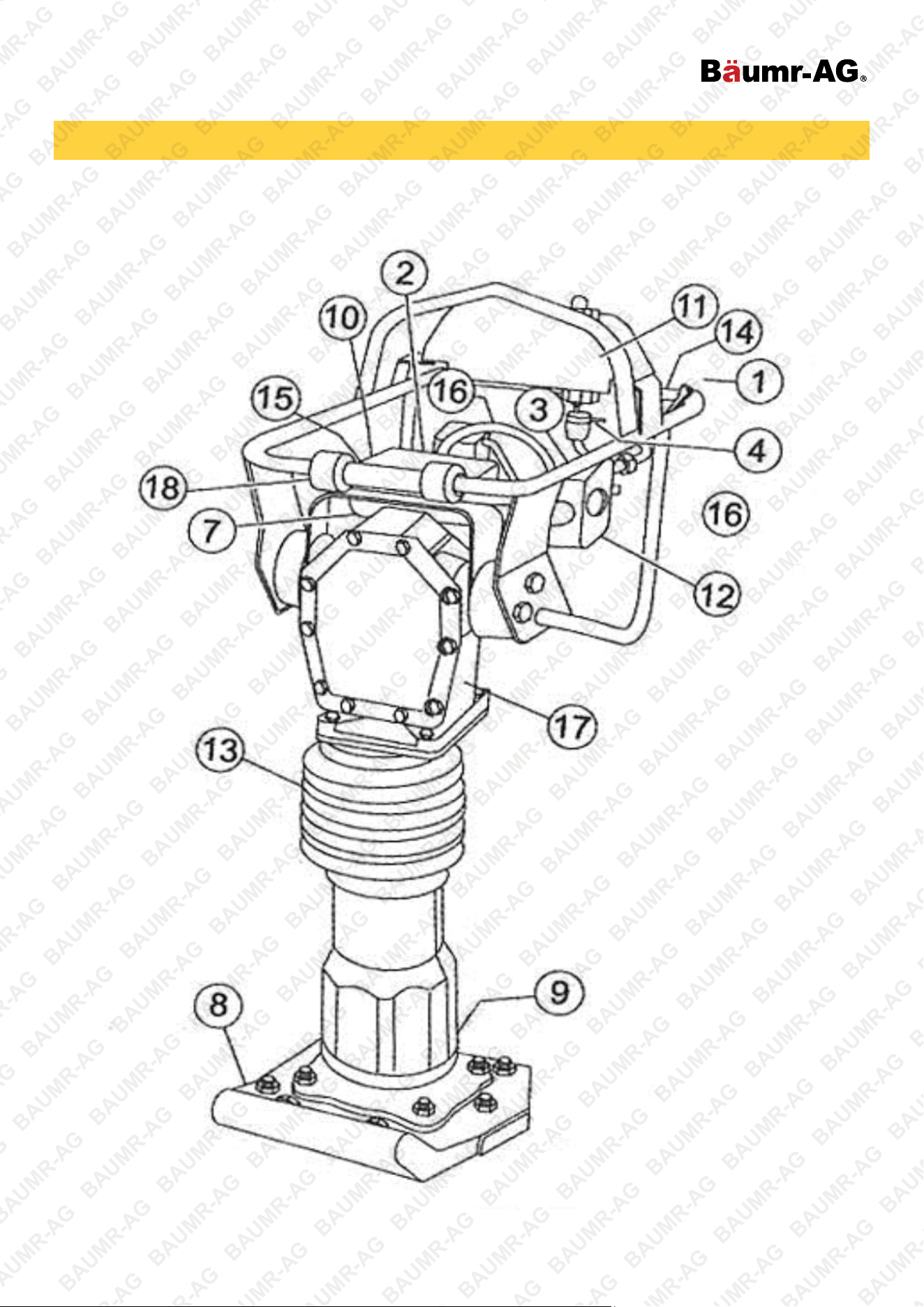

BRM-700 Tamping Rammer

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

•

The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Tamping Rammer Hazard Warnings

• W

ARNING! LETHAL EXHAUST GAS HAZARDS. Engine Exhaust gases contain poisonous carbon monoxide. This gas is colourless and

odorless and can cause death if inhaled. NEVER operate this equipment in a confined area or enclosed structure that does not provide

ample free flow air.

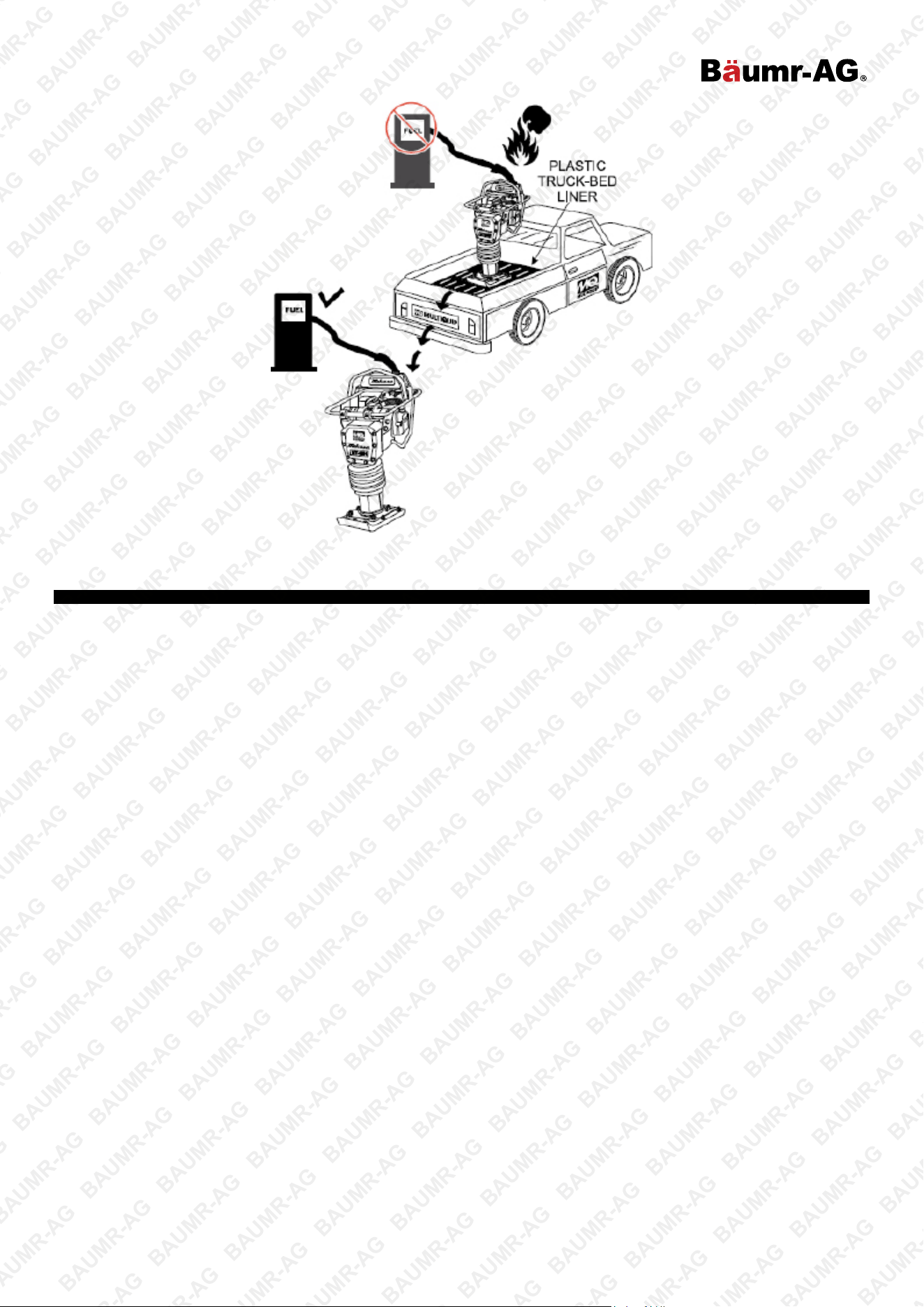

• WARNING! EXPLOSIVE FUEL HAZARDS. Gasoline is extremely flammable, and its vapours can cause an explosion if ignited. DO NOT

start the engine near spilled fuel or combustible fluids. DO NOT fill the fuel tank while the engine is running or hot. DO NOT overfill

tank since spilled fuel could ignite if it comes into contact with hot engine parts or sparks from the ignition system. Store fuel in

approved containers, in well-ventilated areas and be away from sparks and flames.

• WARNING! BURN HAZARDS. Engine components can generate extreme heat. To prevent burns, DO NOT touch these areas while the

engine is running or immediately after operations. Never operate the engine with heat shields or heat guards removed.

• WARNING! RESPIRATOR Y HAZARDS. ALWAYS wear approved respiratory protection when required.

• CAUTION! ROTATING PARTS HAZARDS. NEVER operate equipment with covers, or guards removed. Keep fingers, hands, hair, and

clothing away from all moving parts to prevent injury.

• CAUTION! ACCIDENTAL STARTING HAZARDS. ALWAYS place the ON/OFF switch in the OFF position when the rammer is not in use.

• CAUTION! EYE AND HEARING HAZARDS. ALWAYS wear approved eye and hearing protection.

• CAUTION! EQUIPMENT DAMAGE HAZARDS. Other important messages are provided throughout this manual to help prevent damage

to your light tower, other property, or the surrounding environment.

• DANGER! REFUELING HAZARD.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 4

• DANGER! READ THIS MANUAL. Failure to follow instructions in this manual may lead to serious injury or even death! This equipment

is to be operated by trained and qualified personnel only! This equipment is for industrial use only.

General Safety

• D

O NOT operate or service this equipment before reading this entire manual.

• This equipment should not be operated by persons under 18 years of age.

• NEVER operate this equipment without proper protective clothing, shatterproof glasses, steel toed boots and other protective devices required by

the job.

• NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.

• NEVER operate this equipment under the influence of drugs or alcohol.

• ALWAYS wear proper respiratory (mask), hearing and eye protect ion equipment when operating the rammer.

• Whenever necessary, replace nameplate, operation, and safety decals when they become difficult read.

• Manufacturer does not assume responsibility for any accident due to equipment modifications.

• NEVER use accessories or attachments, which are not recommended for this equipment. Damage to the equipment and/or injury to user may

result.

• NEVER touch the hot exhaust manifold, muffler, or cylinder. Allow these parts to cool before servicing engine or rammer.

• High Temperatures. Allow the engine to cool before adding fuel or performing service and maintenance functions. Contact with hot components

can cause serious burns.

• The engine section of this rammer requires an adequate free flow of cooling air. NEVER operate the rammer in any enclosed or narrow area

where free flow of the air is restricted it will cause serious damage to the rammer or engine and may cause injury to people. Remember the

rammer’s engine gives off DEADLY carbon monoxide gas.

• ALWAYS refuel in a well-ventilated area, away from sparks and open flames.

• ALWAYS use extreme caution when working with flammable liquids. When re fuelling, stop the engine and allow it cool.

• NEVER operate the rammer in an explosive atmosphere or near combustible materials. An explosion or fire could result causing severe bodily

harm or even death.

• DO NOT smoke around or near the machine. Fire or explosion could result from fuel vapours, or if fuel is spilled on a hot engine.

• Topping off to filter port is dangerous, as it tends to spill fuel.

• Stop the engine when leaving the rammer unattended.

• Maintain this equipment in a safe operating condition at all times.

• ALWAYS stop the engine before servicing, adding fuel and oil.

• NEVER run engine without air filter. Severe engine may occur.

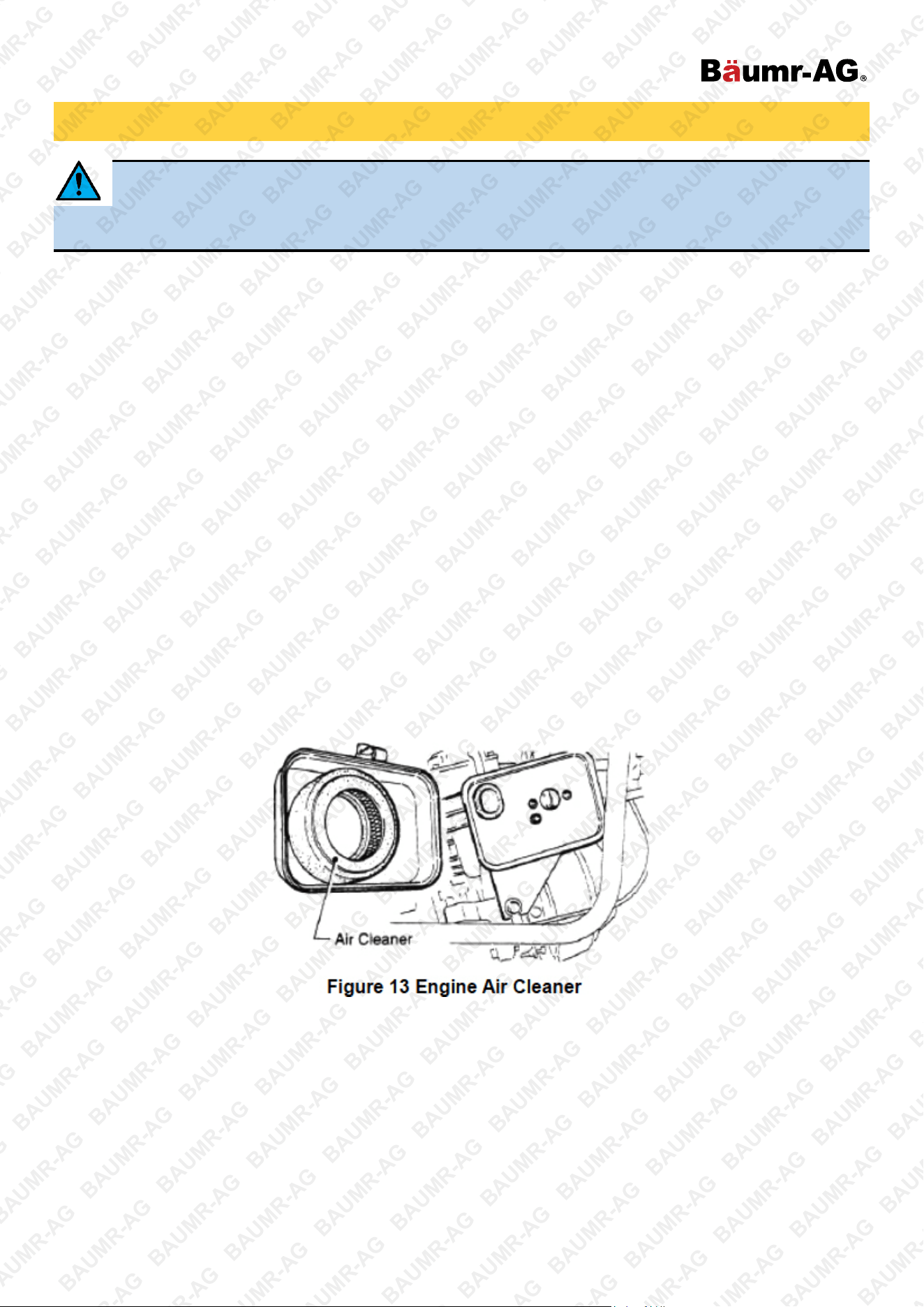

• ALWAYS service air cleaner frequently to prevent carburettor malfunctions.

• ALWAYS check the machine for loosened threads or bolts before starting.

• ALWAYS be sure the operator is familiar with proper safety precautions and operations techniques before using rammer.

• ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children.

• DO NOT operate this equipment unless all guards and safety devices are attached and in place.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 5

• CAUTION must be exercised while servicing this equipment.

• Keep all inexperienced and unauthorized people away from the equipment at all times.

• Unauthorized equipment modifications will void all warranties.

• NEVER pour or spray water over the engine.

• Test the engine ON/OFF switch before operating. The purpose of this switch is to shut down the engine of the rammer.

• Refer to the Engi ne User s Manual for engine technical questions or information recommended for the equipment.

Transporting Safety

•

ALWAYS shut down engine before transporting.

• Tighten fuel tank cap securely and close fuel cock to prevent fuel from spilling.

• D rain fuel when transporting rammer over long distances or bad roads.

• When placing the rammer inside a truck bed for transport, always tie down the rammer.

Maintenance Safety

•

NEVER lubricate components or attempt service on a running rammer.

• ALWAYS allow the rammer a proper amount of time to cool before servicing.

• Keep the rammer in proper running condition.

• Fix damage to the rammer immediately and always replace broken parts.

• Dispose of hazardous waste properly. Examples of potentially hazardous waste are used motor oil, fuel, and fuel filters.

• DO NOT use wooden or plastic containers to dispose of hazardous waste.

Emergencies

•

ALWAYS know the location of the nearest fire extinguisher and first aid kit

• In emergencies always know the location of the nearest phone or keep a phone on the job site. Also know the phone numbers of the nearest

ambulance, doctor and fire department. This information will be invaluable in the case of an emergency.

•

Be aware that the equipment may include hazardous components, such as blades, hot surfaces and

moving parts.

•

Moving blades can cause serious injury and even death if used improperly or without sufficient PPE.

•

Do not use this equipment on uneven surfaces and always maintain good balance when using this

equipment. Failure to do so may cause serious injury.

•

Maintain a secure grip of the trigger assembly at all times.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 6

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 7

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 8

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 6

Parts Identification ....................................................................................................................................... 9

Tamping Rammer ....................................................................................................................................................... 9

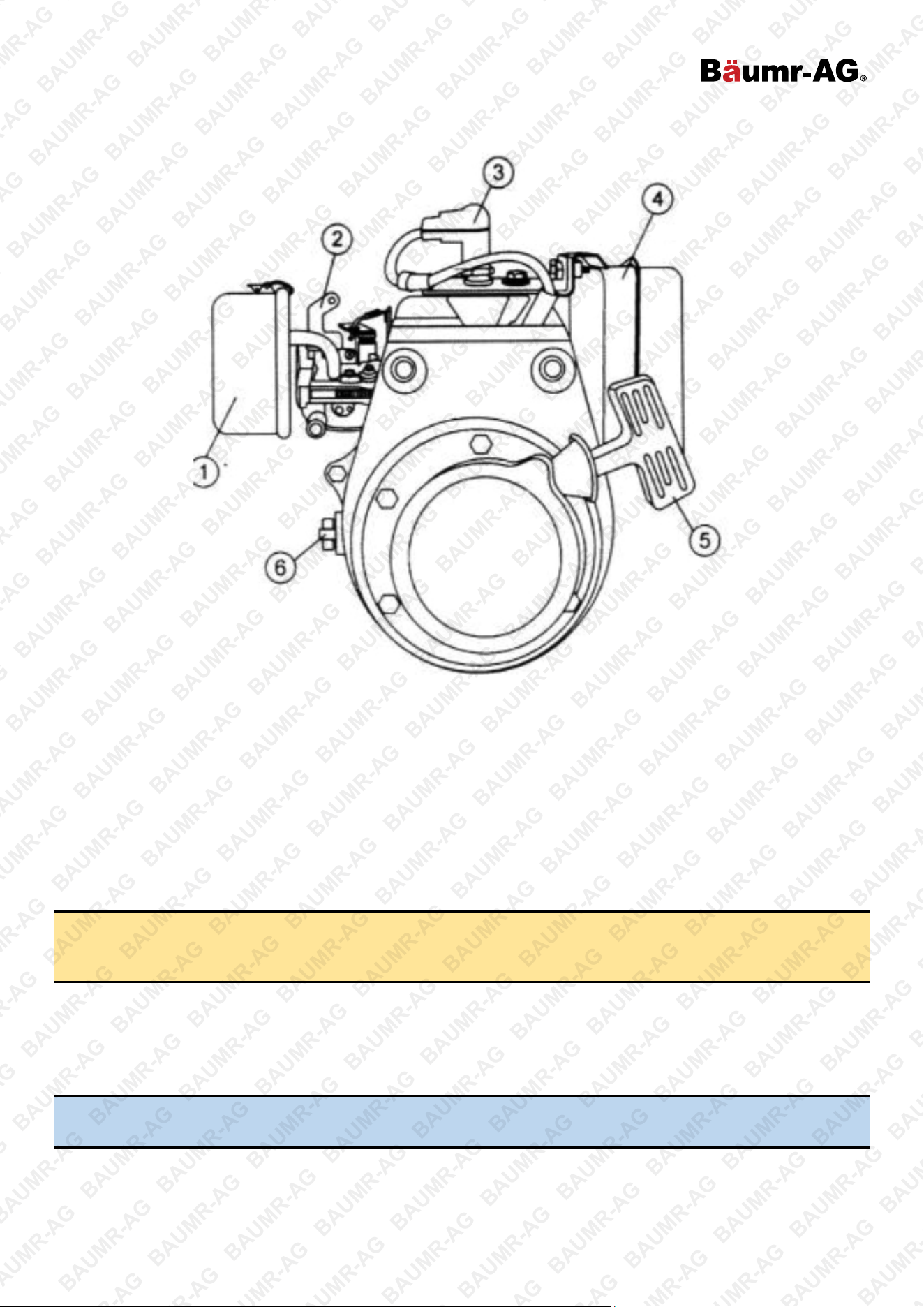

Engine ....................................................................................................................................................................... 11

Operation ..................................................................................................................................................... 12

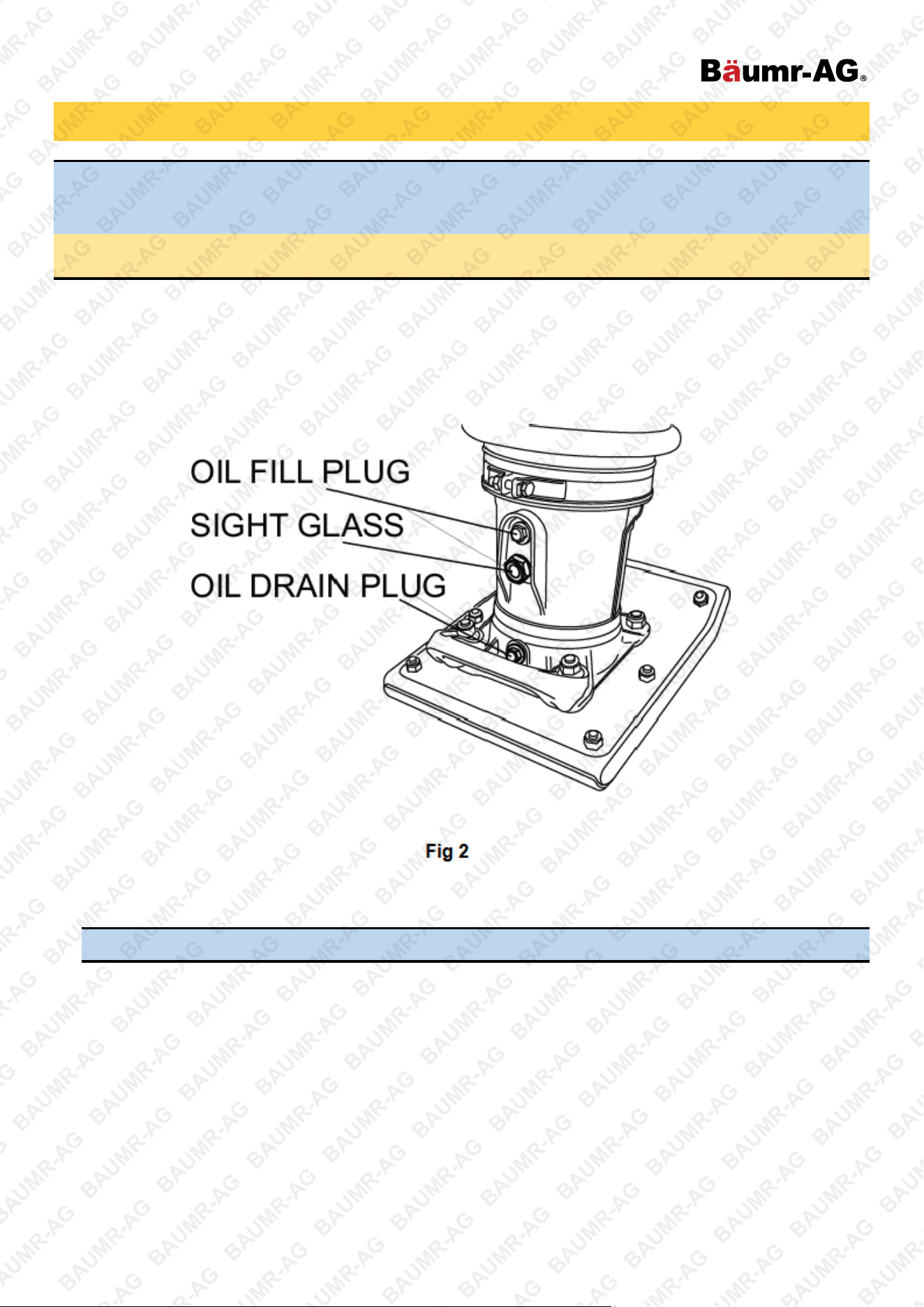

Check Spring Cylinder Oil Bath ................................................................................................................................ 12

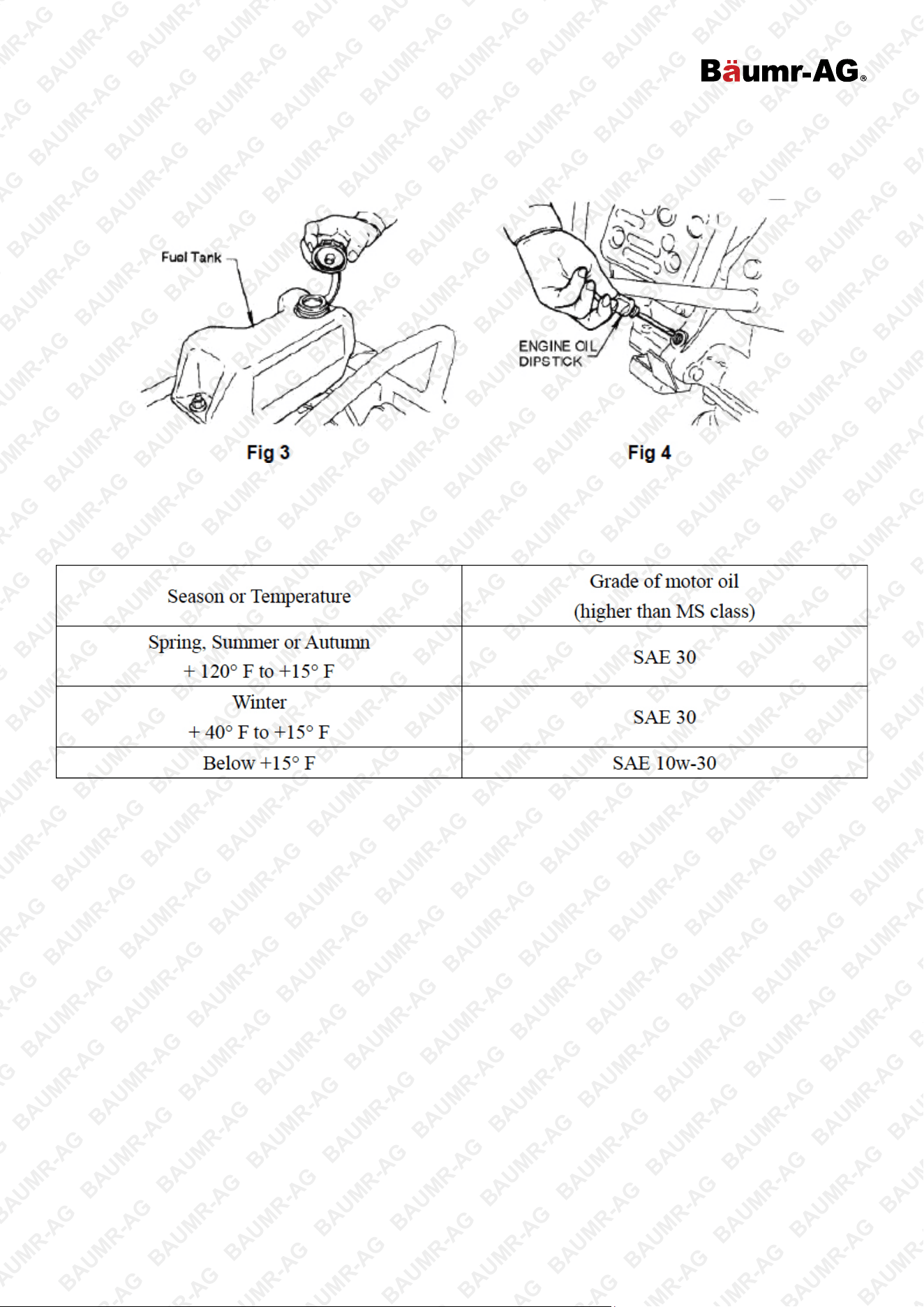

Check the Engine ..................................................................................................................................................... 13

Inspection ................................................................................................................................................................. 13

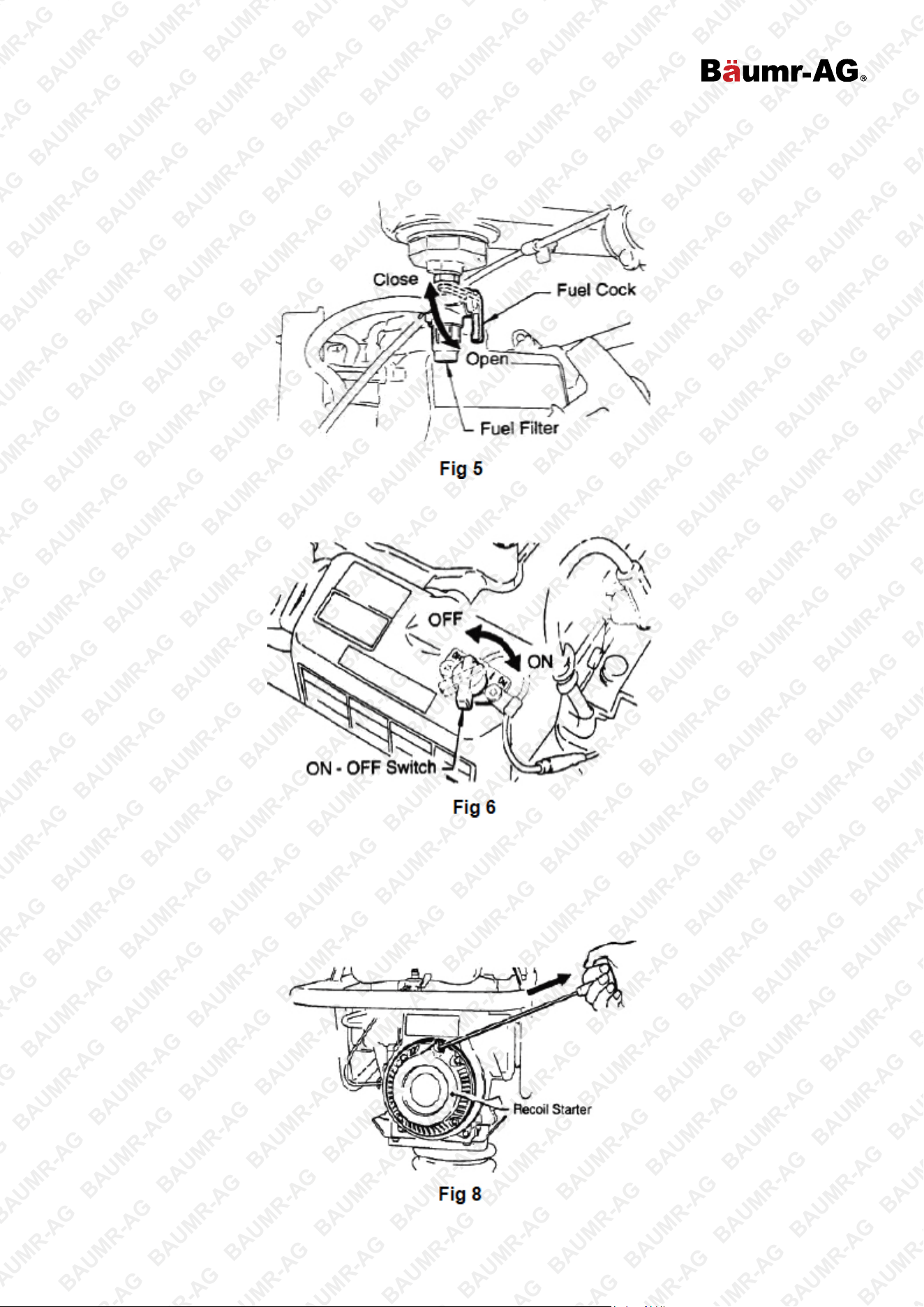

Starting the Engine ................................................................................................................................................... 14

Stopping the Engine ................................................................................................................................................. 16

Maintenance ................................................................................................................................................ 17

Daily .......................................................................................................................................................................... 17

Weekly ...................................................................................................................................................................... 17

200 – 300 Hours ....................................................................................................................................................... 17

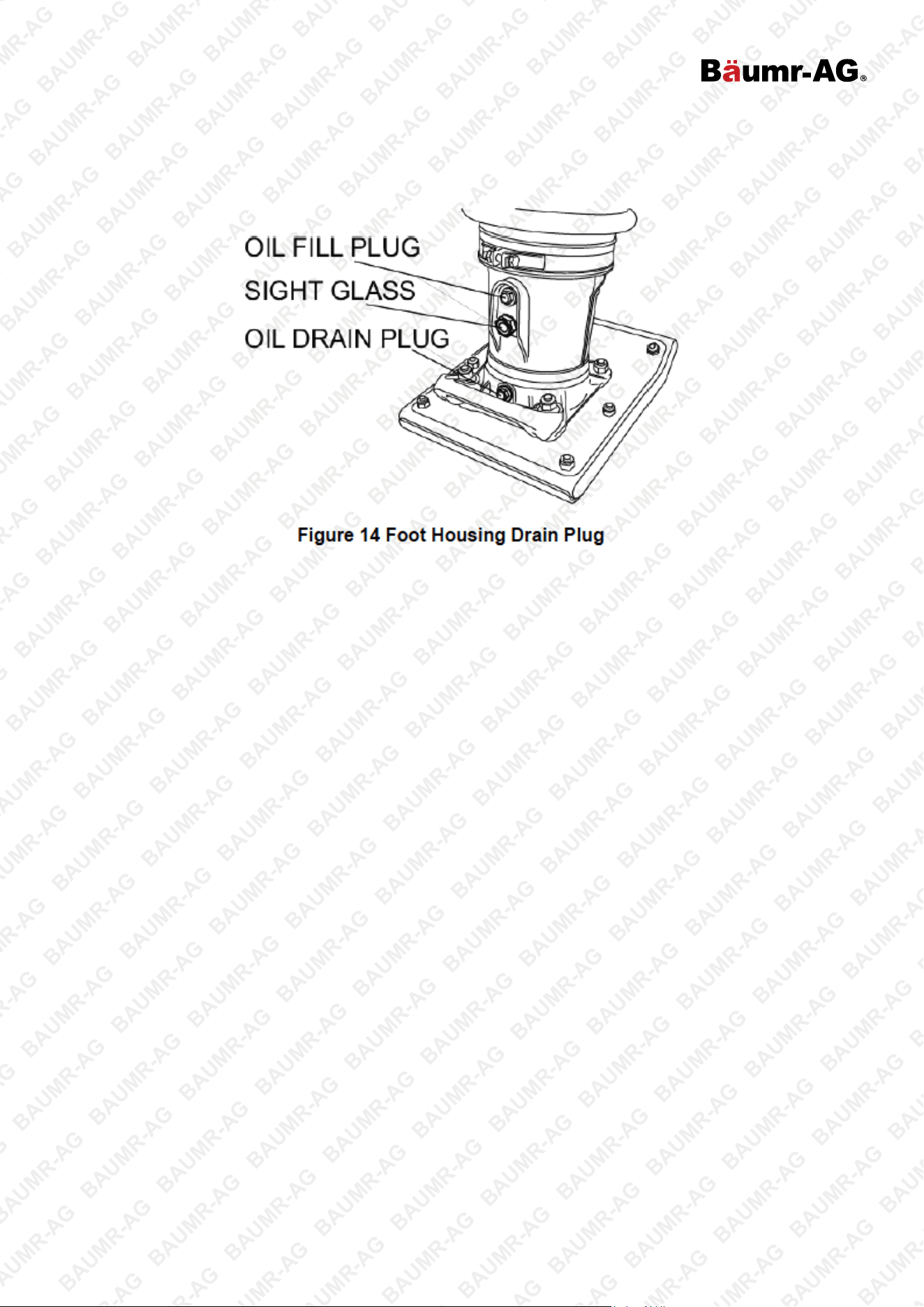

200 – 300 Hours Oil Bath ......................................................................................................................................... 18

Yearly ........................................................................................................................................................................ 18

Long-Term Storage ................................................................................................................................................... 18

Troubleshooting ......................................................................................................................................... 19

Engine ....................................................................................................................................................................... 19

Rammer .................................................................................................................................................................... 20

Specifications ............................................................................................................................................. 21

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 9

Parts Identification

Tamping Rammer

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 10

The image above shows the location of the controls and components for the tamping rammer. The function of

each control is described below.

1. Throttle Lever: Controls engine speed and the tamping action of the rammer.

2. Engine Stop Switch: Controls the starting and stopping of the engine. Switch must be in the ON position

when starting the engine.

3. Choke Lever: Used when starting the engine. Normally used in cold weather conditions. In cold weather

turn the choke lever to the fully closed position, in warm weather set choke lever half way or completely

open.

4. Fuel Shut Off Valve: Supplies fuel from the fuel tank to the engine. To begin fuel flow, move the fuel shut off

valve downward.

5. –

6. –

7. Pre-Cleaner: Pre cleans (first stage) dirt and other debris from entering the engine.

8. Foot: Laminated wood with tempered steel plate for superior shock absorption.

9. Oil Level Sight Glass: Indicates the level of oil in the oil bath reservoir.

10. Recoil Starting Handle: Used when starting the engine. Pull starter handle sharply and quickly, then return

starter handle to starter case before releasing.

11. Fuel Tank/Cap: Poly fuel tank to avoid rust and corrosion, remove this cap to add gasoline.

12. Engine Air Cleaner: Prevents dirt (second stage) and other debris from entering the engine.

13. Bellows: Reservoir for oil bath.

14. Handle: To operate rammer, grip handle assembly firmly on both sides.

15. Muffler: Used to reduce noise and emissions.

16. Spark Plug: Provides spark to the ignition system, replace with engine manufacturer’s recommended type

spark plug.

17. Name Plate: Displays information regarding the rammer.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 11

Engine

The engine must be checked for proper lubrication and filled with fuel prior to operation Refer to the Engine User

Manual for instructions.

1. Secondary Air Cleaner: Prevents dirt and other debris from entering the fuel system. Remove wing nut on

top of air filter canister to gain access to filter element.

2. Choke Lever: Used when starting the engine. Normally used in cold weather conditions In cold weather turn

the choke lever to the fully closed position, in warm weather set choke lever half way or completely open.

3. Spark Plug: Provides spark to the ignition system. Set spark plug gap to 0.6 – 0.7mm (0.024 0.028 inch).

Clean the spark plug once a week.

4. Muffler: Used to reduce noise and emissions.

WARNING! ENGINE COMPONENTS CAN GENERATE EXTREME HEAT. To prevent burns, DO NOT touch

these areas while the engine is running or immediately after operating. NEVER operate the engine with

the muffler removed.

•

Recoil Starter (pull rope): Manual starting method. Pull the starter grip until resistance is felt, then pull

briskly and smoothly.

•

Engine ON/OFF Switch: Controls the starting and stopping of the engine. Switch must be in the ON position

when starting the engine.

NOTE: Operate the engine without an air filter, with a damaged air filter, or a filter in need of replacement

will allow dirt to enter the engine, causing rapid engine wear.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 12

Operation

This section is intended to assist the operator with the initial start-up of the Tamping Rammer. It’s

extremely important that this section should be read carefully before attempting to operate the rammer.

DO NOT use your rammer until this section is thoroughly understood.

CAUTION! READ MANUAL. Failure to understand the operation of the Tamping Rammer could result in

severe damage to the trowel or personal injury.

Check Spring Cylinder Oil Bath

This unit uses an oil bath lubrication system. Perform the following:

1. Check the oil level through the oil level sight glass (Figure 2) at the rear of the tamper foot.

2. If oil is not visible, add Mobil ISO VG46 or other oil with same standard into the oil fill plug opening (Fig 2).

The bath contains approximately 1000 cc.

NOTE: The oil level should be kept at the halfway point of the sight glass.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 13

Check the Engine

1. Fill the fuel tank (Fig. 3) with unleaded gasoline. A t the same time, check the engine oil and make it a habit

to replenish it often.

2. Low levels of oil may result in engine seizure due to high levels of consumption during operations.

3. Check the engine oil level (Fig 4) and if the engine oil level is low, it should be refilled. Use the proper motor

oil as suggested in the Table below.

Inspection

•

Check all nuts, bolts fasteners for tightness Retighten as necessary.

•

Clean any dirt from the recoil starter and foot pedestal Wipe the entire unit clean before operating.

•

Replace any missing or damage Safety Operations decals.

•

Adjust height of handle. Adjust handle by loosening nuts and moving handle to suit operation. Retighten

nuts.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

E&OE © Baumr-AG 14

Starting the Engine

1. Open the fuel shut off valve by moving the fuel cock lever to the OPEN position (Fig 5), then set the engine

start/stop switch (Fig. 5) to the START position.

2. Set the engine ON/OFF switch (Fig 6) to the ON position (start).

3. Move the choke lever to the close position and move the throttle lever to the Full Open position. In warm

weather or when the engine is warm, the unit can be started with choke halfway or completely open.

4. Grip the recoil starter (Fig. 8) handle and pull it until you feel a slight resistance. Then pull sharply and

quickly. Return the recoil starter handle to the starter case before releasing.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

5. If engine fails to start, move the choke lever (Fig. 7) to the half open position to avoid flooding.

6. Repeat steps 1 to 4.

7. If the engine does not start after repeated attempts, check the spark plug for excess fuel Clean and replace

the spark plug as needed.

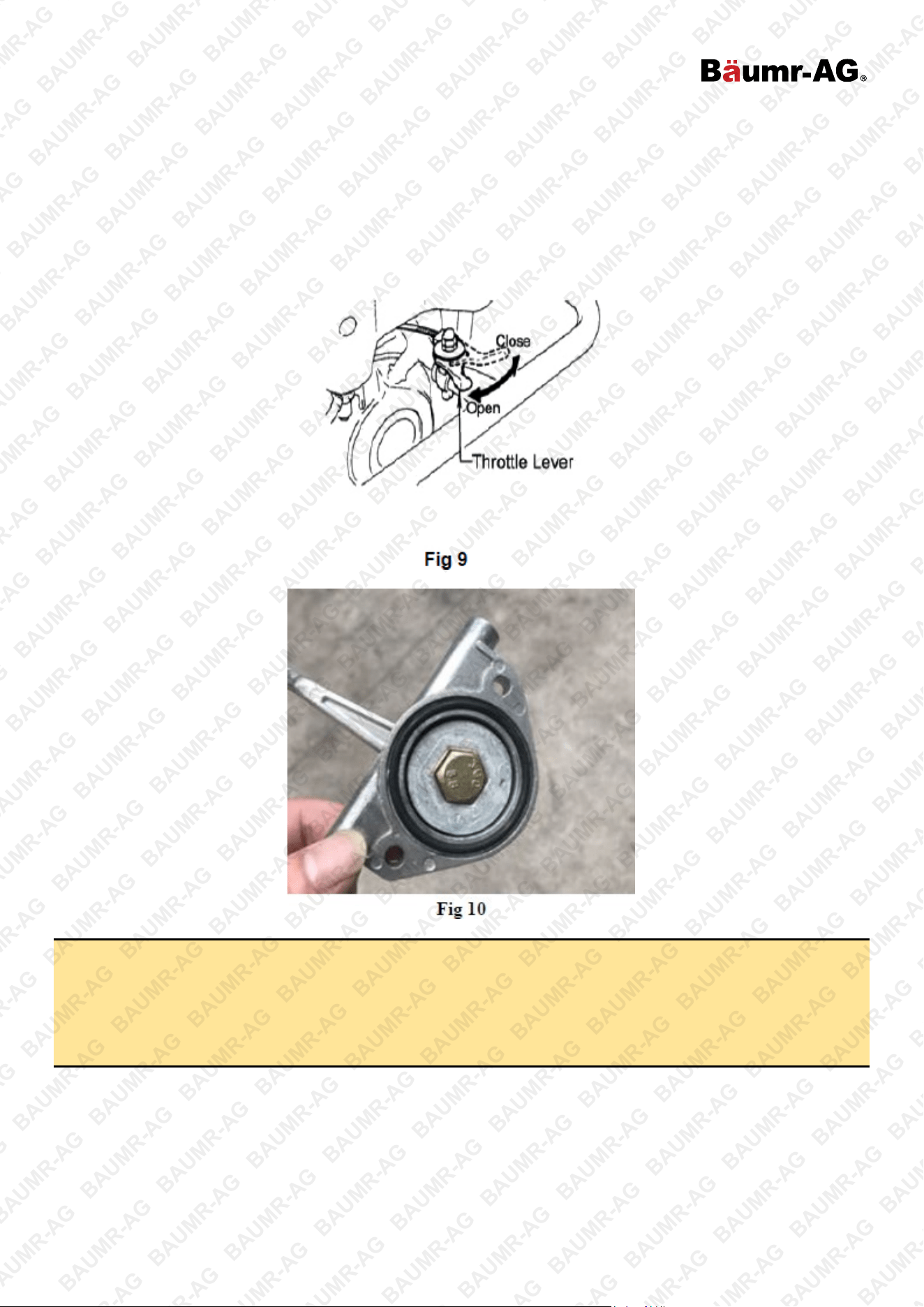

8. To start the tamping rammer action, move the throttle lever (Fig. 9) quickly from IDLE (close) to the FULL

OPEN position. DO NOT move the throttle lever slowly as this may cause damage to the clutch or spring.

Please be noted that for NEW TYPE throttle lever, get O ring from manual and accessories bag and fix in the

throttle lever as Fig 10.

CAUTION! Make sure that the throttle lever is moved to the FULL OPEN position. Operating the rammer

at less than full speeds can result in damage to the clutch springs or foot. The Tamping rammer is

designed to run at 4,000rpm. At optimum rpm, the foot hits at the rate of 680 impacts per minute.

Increasing throttle speed past factory set rpm does not increase impacts and may damage unit. The

rammer is designed to advance while tamping. For faster advance, pull back slightly on the handle so

that rear of foot contacts soil first.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

Stopping the Engine

Normal Shutdown

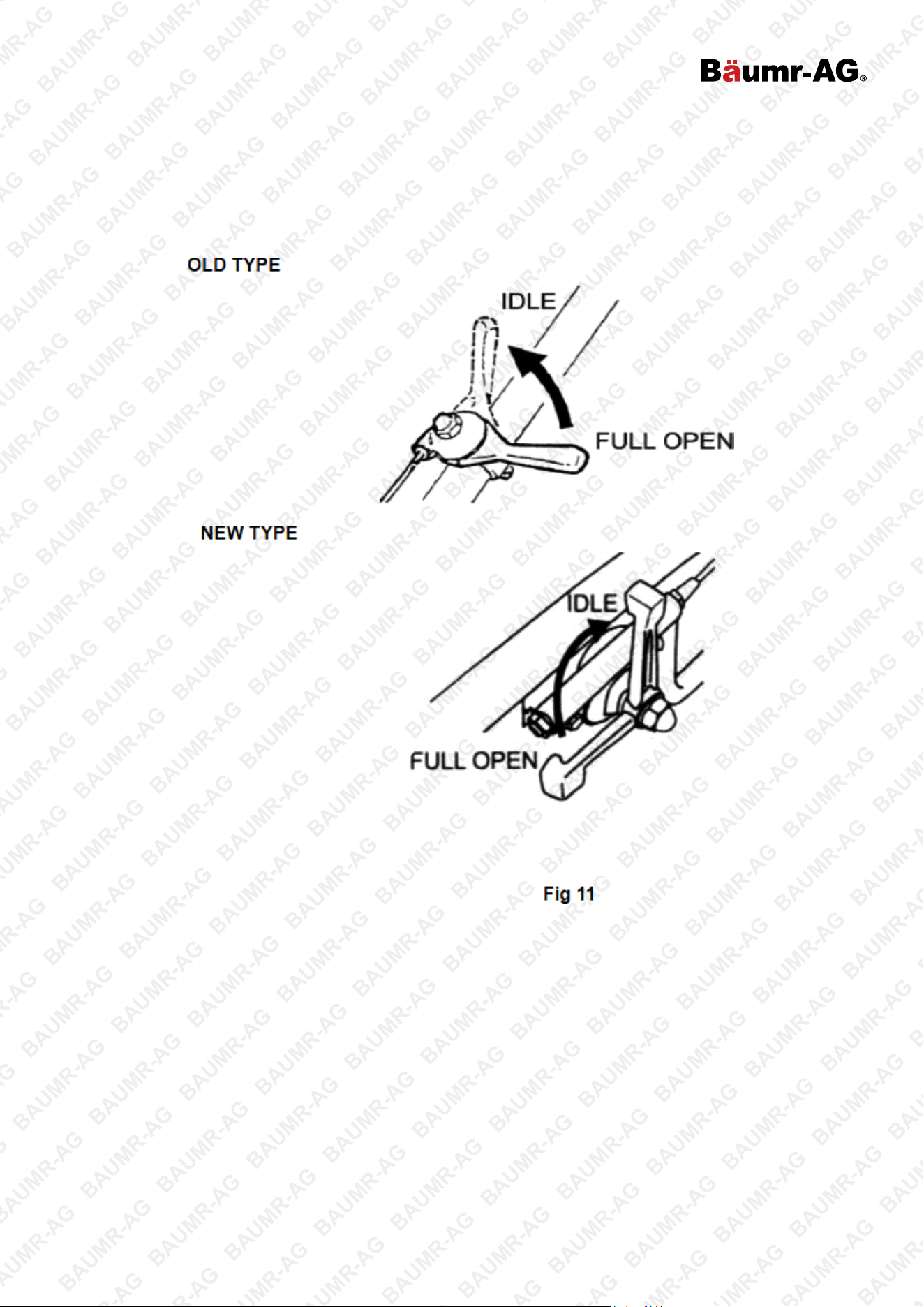

1. Move throttle lever quickly from the FULL OPEN to IDLE position (Fig. 11) and run the engine for three

minutes at low speed. After the engine cools, turn the engine start/stop switch to the STOP position (Figure

6) until engine comes to a complete stop.

2. Close the fuel shut off valve by moving the fuel cock lever to the CLOSED position. See Figure 5.

Emergency Shutdown

Move the throttle lever quickly to the IDLE position, and turn the engine START/STOP switch to the STOP

position.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

Maintenance

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation

depends on factors such as proximity to the ocean and humidity or condensation of water

vapour on metal surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when

applied periodically, it will prevent rust from forming.

Daily

•

Thoroughly remove dirt and oil from the engine and control area. Clean or replace the air cleaner elements

as necessary. Check and retighten all fasteners as necessary. Check the spring box and bellows for oil

leaks. Repair or replace as needed.

Weekly

•

Remove the fuel filter cap and clean the inside of the fuel tank.

•

Remove or clean the filter at the bottom of the tank.

•

Remove and clean the spark plug, then adjust the spark gap to 0.02 – 0.03 inch (0.6 – 0.7mm). This unit has

electronic ignition, which requires no adjustments.

•

Clean air cleaner cover.

200 – 300 Hours

The air cleaner (Figure 13) on the engine side will hardly be contaminated, if it is, however after cleaning the

element with kerosene, dip it in mixed oil consisting of 3 parts of gasoline and 1 part of engine oil. Then tightly

squeeze outer primary element (sponge) and shake off well the inner secondary element before installing them.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

200 – 300 Hours Oil Bath

Drain oil reservoir on foot housing (Figure 14). Refill with approximately 1000cc of MOBIL ISO VG-46 or other oil

with same standard. Oil should be midway in sight glass. Break in oil should be changed after first 50 hours.

Yearly

•

Check the fuel line and the oil line regularly for damage and to ensure that there are no leaks.

•

Replace the oil and fuel lines every two years to maintain the performance and flexibility lines.

Long-Term Storage

•

Drain fuel from fuel tank, fuel line and carburettor.

•

Remove spark plug and pour a few drops of motor oil into cylinder. Crank engine 3 to 4 times so that oil

reaches all internal parts.

•

Clean exterior with a cloth soaked in clean oil.

•

Store unit covered with plastic sheet in moisture and dust free location out of direct sunlight.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

Troubleshooting

Engine

SYMPTOM POSSIBLE PROBLEM SOLUTION

Difficult to start

Fuel is available but spark plug will

not ignite (Power available at high

tension cable)

Ignition plug being bridge Check ignition system

Carbon deposit at ignition Clean or replace ignition

Short circuit due to defective insulators Replace insulators

Improper spark gap Set spark plug gap to the correct gap

Fuel is available but spark plug will

not ignite (Power NOT available at

high tension cable)

Short circuit at stop switch

Check stop switch circuit. Replace

stop switch if defective.

Ignition coil defective Replace ignition coil.

Fuel is available and spark plug

ignites (compression normal)

Muffler clogged with carbon deposits Clean or replace muffler.

Fuel in use inadequate (water, dust)

Flush fuel system and replace with

fresh fuel.

Air Cleaner clogged Clean or replace air cleaner.

Fuel is available and spark plug

ignites (compression low)

Defective cylinder head gasket

Tighten cylinder head bolts or replace

head gasket.

Cylinder worn Replace cylinder.

Spark plug loose Tighten spark plug.

Operation not satisfactory

Not enough power available

(compression normal, no misfiring)

Air cleaner clogged Clean or replace air cleaner.

Air in fuel line Bleed (remove air) from fuel line.

Fuel level in carburettor float chamber

improper

Adjust carburettor float.

Carbon deposits in cylinder Clean or replace cylinder.

Not enough power available

(compression normal, misfiring)

Ignition coil defective

Flush fuel system and replace with

fresh fuel.

Ignition plug often shorts? Clean or replace crankcase.

Fuel in use inadequate (water, dust) Clean or replace muffler.

Engine overheats.

Combustion chamber Clean or replace crankcase.

Exhaust or muffler clogged with

carbon.

Clean or replace muffler.

Spark plug heat value incorrect

Replace spark plug with correct type

spark plug.

Rotational speed fluctuates.

Governor adjustment improper Adjust governor to correct lever.

Governor spring defective Clean or replace ignition.

Fuel flow erratic Check fuel line.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

SYMPTOM POSSIBLE PROBLEM SOLUTION

Air taken in through suction line? Check suction line.

Recoil starter not working properly

Dust in rotating part Clean recoil starter assembly.

Spiral spring failure Replace spiral spring.

Rammer

SYMPTOM POSSIBLE PROBLEM SOLUTION

Engine rotates but amplitude not

uniform or does not strike

Operation speed of throttle lever is

incorrectly set

Set throttle lever to correct position.

Oil in excess Drain excess oil. Bring to correct level.

Clutch slips Replace or adjust clutch.

Spring Failure Replace spiral spring.

Speed of engine improper

Adjust engine speed to correct

operating RPM setting.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BRM-700 Tamping Rammer

Specifications

Plate Size 285 x 345mm

Engine Type 4-Stroke OHV

Engine Displacement 196cc

Max. Output 6.5hp/3600rpm

Fuel Type Regular Unleaded 95+RON

Fuel Capacity 2.8L

Oil Capacity 0.6L

Operation Mass 83kg (when filled with fuel and oil)

Impact Rate (L/min) 450-680

Walk Speed (m/min) 11-14

Leap Height (mm) 40-65

Centrifugal Force 10,000 Nm

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
