IS1580X15VSP Rev-B
Hayward Pool Products
620 Division St, Elizabeth, NJ 07207
Phone: (908) 355-7995
www.hayward.com
PowerFlo
VS
™
300
Owner’s Manual
Model SP1580X15VSP
PowerFlo VS 300 Variable Speed Pump
Note: To prevent potential injury and to avoid unnecessary service calls, read this manual carefully and
completely.
SAVE THIS INSTRUCTION MANUAL
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 2 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
Table of Contents
1. IMPORTANT SAFETY INSTRUCTIONS ................................................................................................................. 3
2. General Information ........................................................................................................................................ 6
2.1. Introduction 6
2.2. Product Dimensions 6
3. Installation and Wiring .................................................................................................................................... 7
3.1. Pump Location 7
3.2. Pump Mounting 7
3.3. Plumbing 7
3.4. Electrical 8
3.5. Electrical Specs 8
3.6. Voltage 8
3.7. Grounding and Bonding 8
3.8. Wiring 8

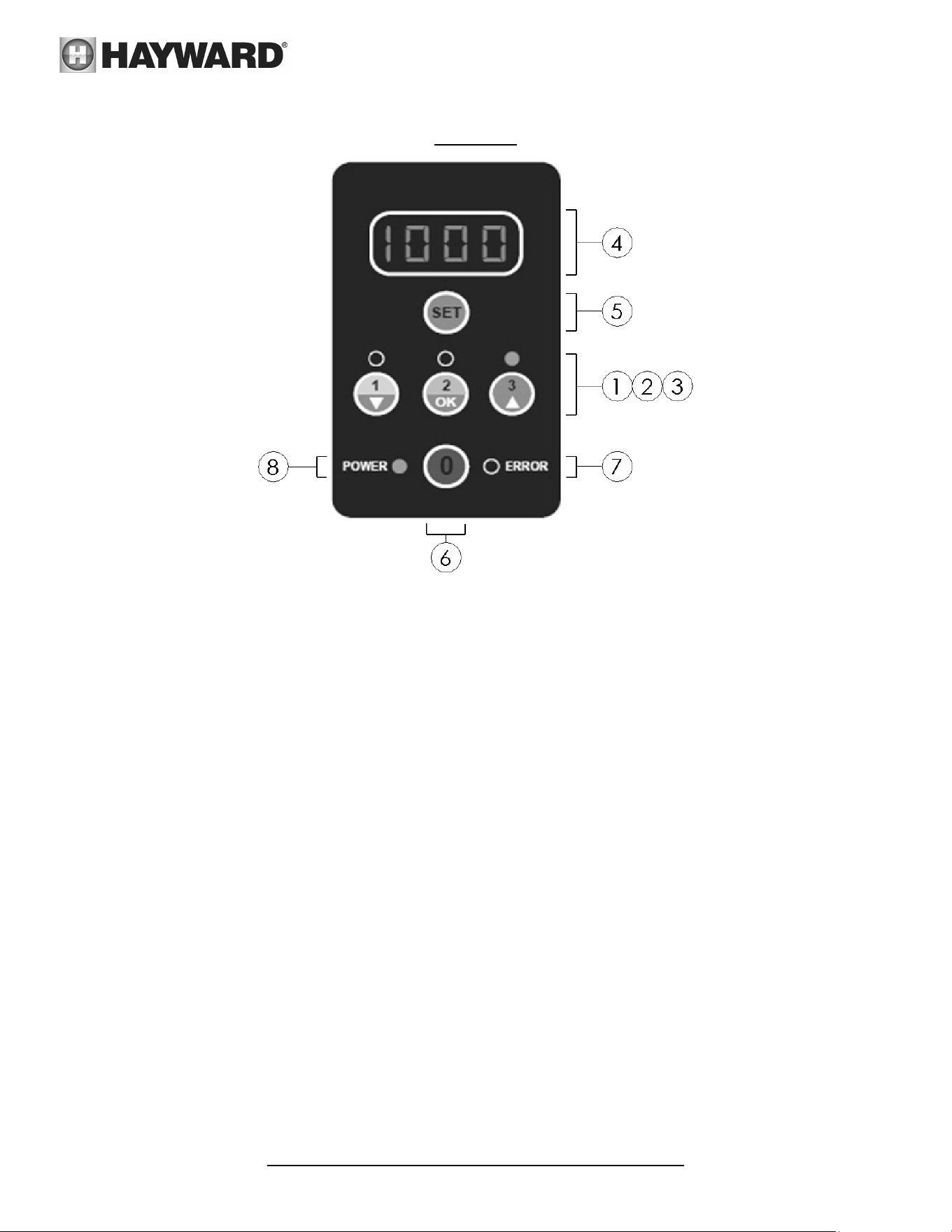

3.9. User Interface Summary 9
3.10. Starting the pump 9
3.11. Display Power Saving Mode 10
3.12. Stopping the Pump 10
3.13. To Change the Default Preset Speed Settings 10
3.14. Lockout Keypad Programming 10
3.15. Recover Factory Default Speed Settings 10
3.16. Fault Errors 10
3.17. Fault Error Code and Troubleshooting Chart 11
4. Maintenance .................................................................................................................................................11
5. Storage / Winterization ................................................................................................................................. 12
5.1. Storing Pump For Winterization 12
6. Shaft Seal Change Instructions ..................................................................................................................... 12
6.1. Shaft Seal Change Procedure 13
7. Replacement Parts ........................................................................................................................................ 14

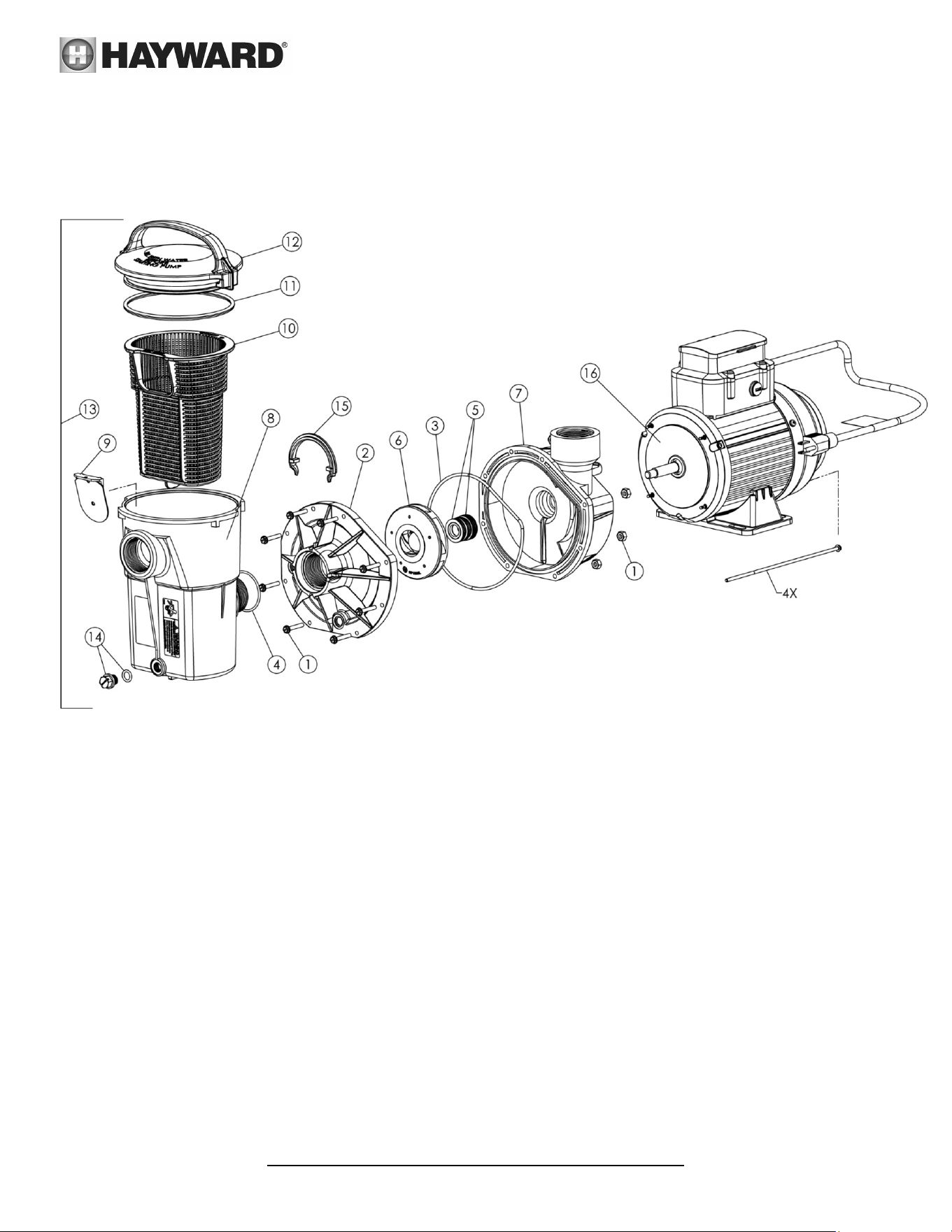

7.1. Parts Diagram 14
7.2. Parts Listing 15
8. Troubleshooting ........................................................................................................................................... 16
8.1. General Problems 16
9. Product Registration ..................................................................................................................................... 18

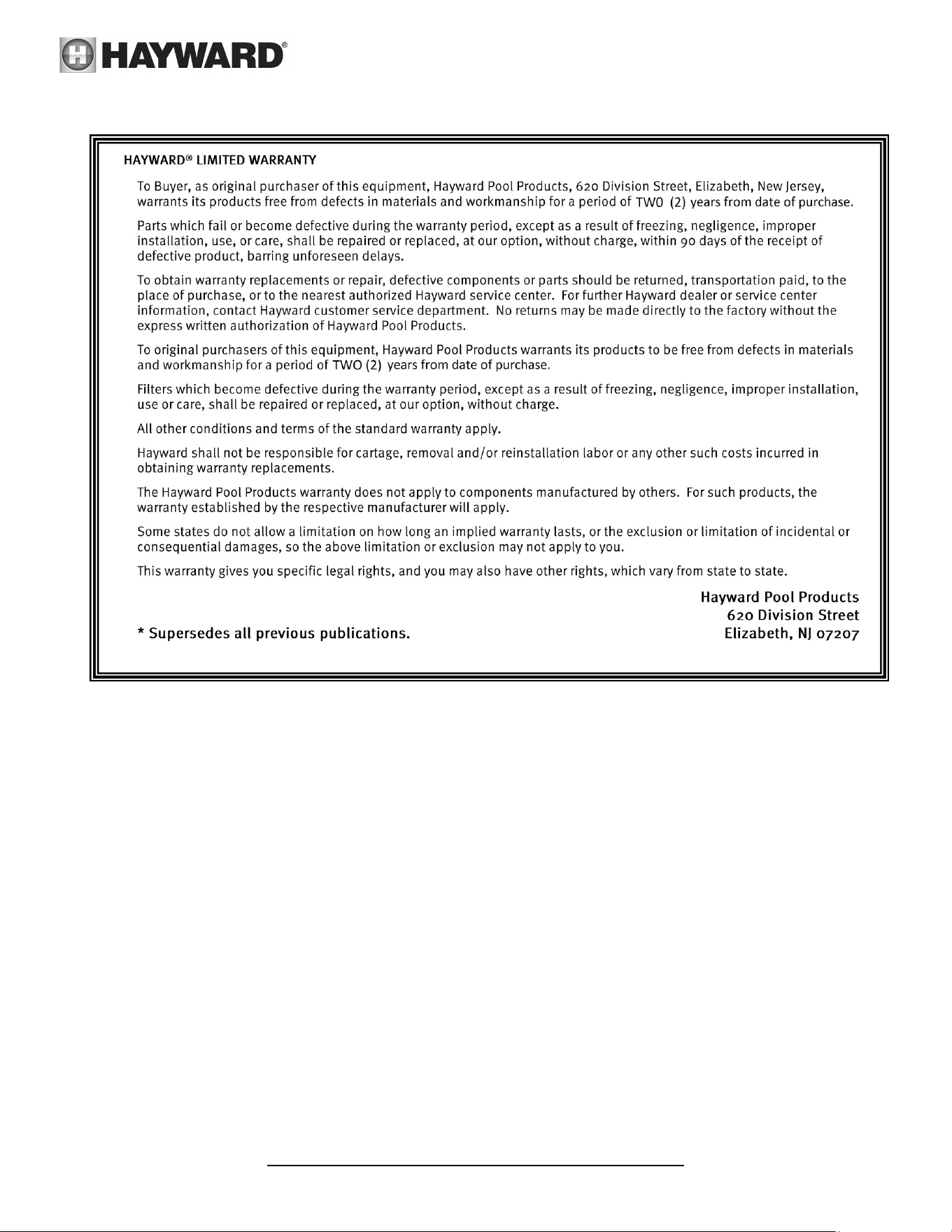

10. Warranty ....................................................................................................................................................... 19
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 3 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
Basic safety precautions should always be followed, including the following: Failure to follow instructions may result in
injury.
This is the safety-alert symbol. When you see this symbol on your pump or in this manual, look for one of the
following signal words, and be alert to the potential for personal injury.
WARNING warns about hazards that could cause serious personal injury, death or major property damage
and if ignored
presents a potential hazard.
CAUTION warns about hazards that will or can cause minor or moderate personal injury and/or property
damage and if ignored pres
ents a potential hazard. It can also make consumers aware of actions that are
unpredictable and unsafe.
The NOTICE label indicates special instructions that are important but not related to hazards.
1. IMPORTANT SAFETY INSTRUCTIONS
Before installing or servicing this electrical equipment, turn power supply OFF.
WARNING – READ AND FOLLOW ALL INSTRUCTIONS in this owner’s
manual and on the equipment. Failure to fol
low instructions can cause severe injury and/or death.
WARNING – This product should be installed and serviced only by a qualified professional.
CAUTION – All electrical wiring MUST be in conformance with all applicable local codes, regulations, and
the National Electric Code (NEC).
USE OF NON-HAYWARD REPLACEMENT PARTS VOIDS WARRANTY.
ATTENTION INSTALLER - THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION,
OPERATION, AND SAFE USE OF THIS VARIABLE SPEED PUMP THAT MUST BE FURNISHED TO THE END USER OF THIS
PRODUCT. FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS COULD RESULT IN SERIOUS INJURY.
WARNING – To reduce risk of injury, do not permit children to use or climb on this product. Closely
supervise children at all tim
es. Components such as the filtration system, pumps, and heaters must be positioned
to prevent children from using them as a means of access to the pool.
CAUTION – This pump is intended for use on permanently installed swimming pools and may also be used
with hot tub
s and spas if so marked. Do NOT use with storable pools. A permanently installed pool is constructed in
or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is
constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity.
Though this product is designed for outdoor use, it is strongly advised to protect the electrical components from the
weather. Select a well-drained area, one that will not flood when it rains. It requires free circulation of air for
cooling. Do not install in a damp or non-ventilated location. If installed within an outer enclosure or beneath the
skirt of a hot tub or spa, adequate ventilation and free circulation of air must be provided to prevent overheating of
the motor.
WARNING – Pool and spa components (seals, gaskets, etc.) have a finite life. All components should be
inspected frequently and replaced at lea
st every ten years, or if found to be damaged, broken, cracked, missing, or
not securely attached.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 4 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
WARNING – Risk of Electric Shock. All electrical wiring MUST be in conformance with applicable local
codes, regulations, and the National Electric Code (NEC). Hazardous
voltage can shock, burn, and cause death or
serious property damage. To reduce the risk of electric shock, do NOT use an extension cord to connect unit to
electric supply. Provide a properly located electrical receptacle. Before working on pump or motor, turn off power
supply to the pump.
WARNING – To reduce the risk of electric shock replace damaged wiring immediately. Locate conduit to
prevent abuse from lawn mowers, hedge trimmers and other equipment.
WARNING – Electrical ground all electrical equipment before connecting to electrical power supply. Failure to ground
all electrical equipment can cause serious or fatal electrical shock hazard.
WARNING – Do NOT ground to a gas supply line.
WARNING – To avoid dangerous or fatal electrical shock, TURN OFF POWER to all electrical equipment before working.
WARNING – Risk of Electric Shock. In accordance with the National Electric Code (NEC), connect only to a
branch circuit protected by a ground-fault
circuit-interrupter (GFCI). Contact a qualified electrician if you cannot
verify that the circuit is protected by a GFCI. The unit must be connected only to a supply circuit that is protected by
a ground-fault circuit-interrupter (GFCI). Such a GFCI should be provided by the installer and should be tested on a
routine basis. To test the GFCI, push the test circuit button. The GFCI should interrupt power. Push the reset button.
Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts
power to the pump without the test button being pushed, a ground current is flowing, indicating the possibility of an
electric shock. Do not use this pump. Disconnect the pump and have the problem corrected by a qualified service
representative before using.
WARNING – Failure to bond pump to pool structure will increase risk for electrocution and could result in
injury or death. To reduce t
he risk of electric shock, see installation instructions and consult a professional
electrician on how to bond pump. Also, contact a licensed electrician for information on local electrical codes for
bonding requirements.
Notes to electrician: Use a solid copper conductor, size 8 or larger. Run a continuous wire from external bonding lug
to reinforcing rod or mesh. Connect a No. 8 AWG (8.4 mm
2
) [No. 6 AWG (13.3 mm
2
) for Canada] solid copper bonding
wire to the pressure wire connector provided on the pump housing and to all metal parts of swimming pool, spa, or
hot tub, and to all electrical equipment, metal piping (except gas piping), and conduit within 5 ft. (1.5 m) of inside
walls of swimming pool, spa, or hot tub. IMPORTANT - Reference NEC codes for all wiring standards including, but
not limited to, grounding, bonding and other general wiring procedures.
WARNING – Suction Entrapment Hazard. Suction in suction outlets and/or suction outlet covers, which are
damaged, broken, cracked,
missing, or unsecured cause severe injury and/or death due to the following entrapment
hazards (symbols complements of APSP):
Hair Entrapment - Hair can become entangled in suction outlet cover.
Limb Entrapment - A limb inserted into an opening of a suction outlet sump or suction outlet cover that is damaged,
broken, cracked, missing, or not securely attached can result in a mechanical bind or swelling of the limb.
Body Suction Entrapment - A differential pressure applied to a large portion of the body or limbs can result in an
entrapment.
Evisceration/ Disembowelment - A negative pressure applied directly to the intestines through an unprotected
suction outlet sump or suction outlet cover which is damaged, broken, cracked, missing, or unsecured can result in
evisceration/disembowelment.
Mechanical Entrapment - There is potential for jewelry, swimsuits, hair decorations, fingers, toes, or knuckles to be
caught in an opening of a suction outlet cover resulting in mechanical entrapment.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 5 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
WARNING – To Reduce the risk of Entrapment Hazards:
When outlets
are small enough to be blocked by a person, a minimum of two functioning suction outlets per
pump must be installed. Suction outlets in the same plane (i.e. floor or wall), must be installed a minimum of
three feet (3’) [0.91 meter] apart, as measured from near point to near point.
Dual suction fittings shall be placed in such locations and distances to avoid “dual blockage” by a user.
Dual suction fittings shall not be located on seating areas or on the backrest for such seating areas.
The maximum system flow rate shall not exceed the flow rating as listed on the suction outlet cover.
Never use pool or spa if any suction outlet is damaged, broken, cracked, missing, or not securely attached.
Replace damaged, broken, cracked, missing, or not securely attached suction outlet components
immediately.
In addition to two or more suction outlets per pump installed in accordance with latest APSP standards and
CPSC guidelines, follow all national, state, and local codes applicable.
Installation of a vacuum release or vent system, which relieves entrapping suction, is recommended.
WARNING – Hazardous Pressure. Pool and spa water circulation systems operate under hazardous
pressure during start-up, n
ormal operation, and after pump shut-off. Stand clear of circulation system equipment
during pump start-up. Failure to follow safety and operation instructions could result in violent separation of the
pump housing and cover due to pressure in the system, which could cause property damage, severe personal injury,
or death. Before servicing pool and spa water circulation system, all system and pump controls must be in off
position and filter manual air relief valve must be in open position. Before starting pump, all system valves must be
set in a position to allow system water to return back to the pool. Do not change filter control valve position while
pump is running. Before starting pump, fully open filter manual air relief valve. Do not close filter manual air relief
valve until a steady stream of water (not air or air and water mix) is discharged from the valve. All suction and
discharge valves MUST be OPEN when starting the circulation system. Failure to do so could result in severe
personal injury and/or property damage.
WARNING – Separation Hazard. Failure to follow safety and operation instructions could result in violent
separation of
pump components. Strainer cover must be properly secured to pump housing with strainer cover lock
ring. Before servicing pool and spa circulation system, all system and pump controls must be in off position and
filter manual air relief valve must be in open position. Do not operate pool and spa circulation system if a system
component is not assembled properly, damaged, or missing. Do not operate pool and spa circulation system unless
filter manual air relief valve body is in locked position in filter upper body. All suction and discharge valves MUST be
OPEN when starting the circulation system. Failure to do so could result in personal injury and/or property damage.
WARNING – Failure to remove pressure test plugs and/or plugs used in winterization of the pool/spa from
the suction outlets can res
ult in an increase potential for suction entrapment as described above.
WARNING – Failure to keep suction outlet components clear of debris, such as leaves, dirt, hair, paper and
other material can result in
an increase potential for suction entrapment as described above.
WARNING – Never operate the circulation system at more than 30 PSI maximum.
WARNING – Never change the filter control valve position while the pump is running.
WARNING – Fire and burn hazard. Motors operate at high temperatures and if they are not properly isolated
fro
m any flammable structures or foreign debris they can cause fires, which may cause severe personal injury or
death. It is also necessary to allow the motor to cool for at least 20 minutes prior to maintenance to minimize the
risk for burns.
WARNING – Failure to install according to defined instructions may result in severe personal injury or
death.
SAVE THESE INSTRUCTIONS
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 6 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
2. General Information
2.1. Introduction
This manual contains information for the proper installation and operation of the Hayward PowerFlo VS 300 Variable
Speed Pump. The instructions in this manual MUST be followed precisely.

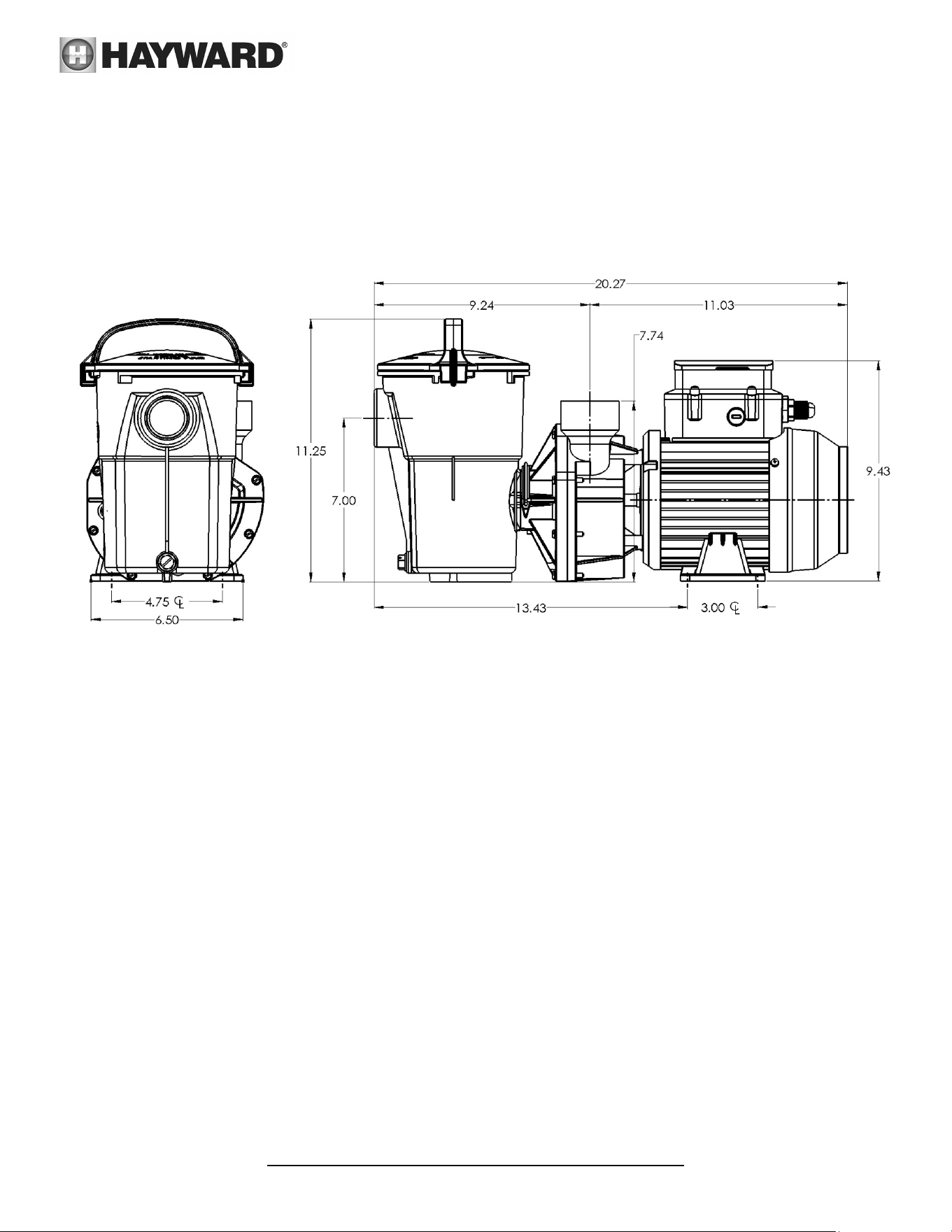

2.2. Product Dimensions
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 7 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
3. Installation and Wiring
WARNING – This product should be installed and serviced only by a qualified professional.
No
te: For FCC part 15 compliance, use flexible metallic conduit or a shielded power supply cable when installing this
device.
3.1. Pump Location

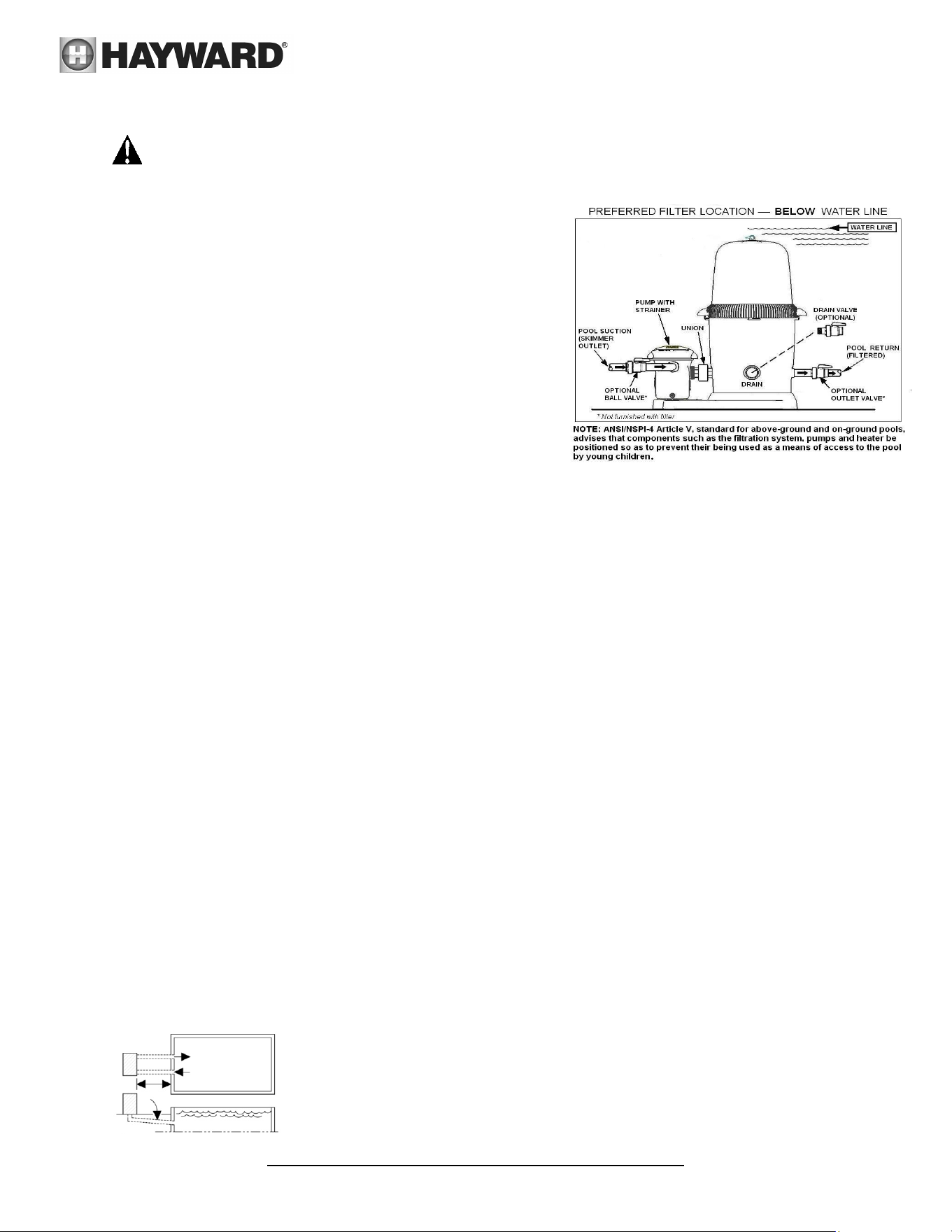

The PowerFlo VS 300 pump MUST be installed below the pool
water line (see Figure to right).
Install pump on a firm, level base or pad to meet all local and
national codes. The field supplied base or pad must be level and
vibration-free.
Pump motors require free circulation of air for cooling.
Do NOT install pump in a damp or non-ventilated location.
Though the pump is designed for outdoor use, it is strongly
advised to protect the electrical components from the weather.
Select a well-drained area, one that will not flood when it rains.
3.2. Pump Mounting
Install pump on a level concrete slab or other rigid base to meet all local and national codes. Secure pump to base
with screws or bolts to further reduce vibration and stress on pipe or hose joints. The base must be level, rigid, and
vibration free. Pump mount must:
Allow pump inlet height to be below wate
r level.
Allow use of s
hort, direct suction
pipe (to reduce friction losses).
Allow for valves in suction and discharge piping.
Be protected f
rom excess moisture and flooding.
Allow adequate access for servicing pump
and piping.
3.3. Plumbing
1. Use PTFE tape to seal threaded connections on molded plastic components. All plastic fittings must be new or
thorou
ghly cleaned before use. NOTE - Do NOT use Plumbe
r’s Pipe Dope as it may cause cracking of the plastic
components.
When applying PTFE tape to plastic threads, wrap the entire
threaded portion of the male fitting
with one to two layers of tape. Wind the t
ape clockwise as you face the open end of the fitting, be
ginning at the
end of the fitting. The pump suction and outlet ports have molded-in
thread stops.
Do NOT attempt to force
hose connector fitting past
this stop. It is only necessary to tighten fittings enough to
prevent leakage. Tighten
fitting by hand and then use a tool to engage fitting an additional 1
½ turns. Use
care when using PTFE tape as
friction is reduced considerably; do NOT
over-tighten fitting or you may ca
use damage. If leaks occur, remove
connector, clean off
old PTFE tape, re-wrap with one to two additional layers of PTFE tape, and re
-install
connector.
2. Piping -
Flexible Hose, PVC, or Reinforced Hose are all acceptable piping meth
ods.
3. For pu
mp outlet use 1-1/2" PVC pipe or reinforced hose. For pump su
ction on ALL models, use 1-1/2" reinforced
hose. Increase size if a long run is needed. For pipe larger than port, use reducing fitting in strainer port.
4. To avoid pump strain, supp
ort suction and outlet independently. Place supports near pump. To avoid strain le
ft
by a gap at last connection, start
all piping at pump and run pipe AWAY from pump.
5. NEVER use suction pipe SMALLER than pump suction connections.
Suction pipe inlet must be lower than pump
inlet port.
6. Fittings (elb
ows, tees, valves, etc.) restrict flow. For better efficiency, use the fewest possibl
e fittings. Avoid
fittings that c
ould cause an air trap. Pool and spa fittings MUST conform to the
International Association of Plumbing and Mechanical Officials (IAPMO) standards.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 8 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
3.4. Electrical
WARNING
– All electrical wiring MUST conform to local codes, regulations, and the National Electric Code
(NEC).
WARNING – Ground and bond pump before connecting to electrical power supply. Failure to ground and
bond pump c
an cause serious or fatal electrical shock hazard. Do NOT ground to a gas supply line. To avoid
dangerous or fatal electrical shock, turn OFF power to pump before working on electrical connections. Fire Hazard -
match supply voltage to pump nameplate voltage. Insure that the electrical supply available agrees with the pump’s
voltage, phase, and cycle, and that the wire size is adequate for the amps rating and distance from the power
source. Use copper conductors only.
3.5. Electrical Specs
1. Voltage: 115VAC, 60Hz, Single Phase
2. Speed Rang
e: 0 - 3400 rp
m
Use copper co
nductors only. For indoor & outdoor use. Connect pump to a 15 amp branch circuit in accordance with
local codes, regulations, and the National Electric Code (NEC). A disconnecting means located at least 5 ft. from the
inside wall of the pool, spa, or hot tub must be provided.
3.6. Voltage
Voltage at pump MUST NOT be more than 10% above or below nameplate rated voltage, or components may
overheat, causing overload tripping and reduced component life. If voltage is less than 90% (104 VAC) or more than
110% (126 VAC) of rated voltage (115 VAC) when pump is running at full load, consult the power company.
3.7. Grounding and Bonding
1. Install, ground, bond, and wire pump in accordance with local or national electrical code requirements.
2. Permanently ground pump. Use green ground terminal
provided under access plate; use size and type wire
required by c
ode. Connect ground termin
al to electrical service ground.
3. Bond pu
mp to pool structure. Bonding will connect all metal parts wi
thin and around the pool with a continuous
wire. Bonding reduces the risk of a current passing b
etween bonded metal object
s, which could potentially
cause electrical shock if grounded or shor
ted. Refere
nce NEC codes for all wiring standards including, but not
limited to, grounding, bo
nding and genera
l wiring procedures.
4. Use a solid copper conductor, size 8 or larger. Run wire from exter
nal bonding lug to reinforcing ro
d or mesh.
Con
nect a No. 8 AWG (8.4 mm
2
) [No. 6 AWG (13.3 mm
2
) for Canada] solid copper bonding wire to the pressure
wire connecto
r provided on the motor housing and to all metal parts of swimming p
ool, spa, or hot tub, and to
all electrical e
quipment, metal piping (except gas piping), and conduit within 5 ft. (1
.5 m) of inside walls of
swimmin
g po
ol, spa, or hot tub.
3.8. Wiring
WARNING
– All electrical wiring MUST conform to local codes, regulations, and National Electric Code (NEC)
1. Pump MUST be permanently connected to circuit. If other lights or appliances are also on the same circuit, be
sure to add their amp loads before calculating wire and circuit breaker sizes. Use th
e circuit breaker as the
master On-O
ff
switch.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 9 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
3.9. User Interface Summary
Figure 3.9-1
1. Button
“1/
▾”: used to select the fixed LOW speed or to decrease speed while in the programming mode.
2. Button “2/OK”: used to select the fixed MEDIUM speed or to confirm/save para
meters while in the
progra
mming mode.
3. Button “3/
▴”: used to select the fixed HIGH speed or to increase speed while in the programming mode.
4. LED display window: displays the current speed of the motor, or error code message.
5. “SET” button: used to enter the programming mode or to reset the control.
6. Button “O”: used to STOP the motor.
7. Error light: illuminates when there is a fault detected.
8. Power light: illuminates when power turns on.
3.10. Starting the pump
To start the pump press the button “1”, “2” or “3” to select the preset fixed speed. If the pump starts from standby
mode, it starts up and subsequently runs with the selected fixed speed.
The default speed settings are as follows.
Speed 1 = 1600 rpm
Speed 2 = 2600 rpm
Speed 3 = 3400 rpm
The pump will automatically change from selected speed “3” to speed “1” after 2 hours of run time.
The pump will automatically change from selected speed “2” to speed “1” after 24 hours of run time.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 10 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
3.11. Display Power Saving Mode
The LED display turns off after three minutes if there is no action detected from the keypad.
3.12. Stopping the Pump
If the pump is stopped normally by pressing the Button “O”, the “POWER” LED flashes and the LED display window
shows “OFF”. If the pump is stopped by a detected fault, the “POWER” LED flashes and the LED display window will
show an error code number. Refer to the error code chart for the error code number shown and its description of the
fault detected.
3.13. To Change the Default Preset Speed Settings
Press the button “1”, “2” or “3” for the fixed speed which is to be changed. The LED window displays the current
speed, then press and hold the “SET” button for at least three (3) seconds until the speed displayed in the LED window
begins to flash. The speed can then be changed using the “
▾” or “▴” buttons. The speed decreases or increases by
50 rp
m. The upper limit of the speed is 3400 rpm and the lower limit is 1000 rpm. To save the set speed, confirm with
the “OK” button. To cancel and return to the original speed press the “SET” button.
3.14. Lockout Keypad Programming
The keypad programming can be locked out for security to avoid unauthorized changes. The lock out function is
initialized by pressing the “O” and “SET” buttons simultaneously. Once the lock out security function is activated, a “.”
(period) mark will be displayed at the right side of the LED display window. To unlock the security lockout function, just
repeat the same operation as above.
3.15. Recover Factory Default Speed Settings
The motor can be reset to the factory default speed settings by pressing the “SET” button for at least 15 seconds then
releasing it. The three LED’s for the fixed speeds and the “POWER” LED turn on.
3.16. Fault Errors
In case of a fault error occurs, the “ERROR” light turns on and the LED display window displays an error code. The
message will not be cleared until the reason for the fault error is corrected. Refer to the error code chart for the error
code number shown and it’s description of the fault detected.
To view the error records history, while in standby mode press the “O” button first and then press the “SET” button
within 1 second. Press the “
▴” button to go to the next error code. Press the “▾” button to delete the current error
record. To delete all error records, press the “▾” button for at least 3 seconds. Pressing the “SET” button or doing
nothin
g within 30 seconds will exit the error code view mode.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 11 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
3.17. Fault Error Code and Troubleshooting Chart
Code Troubleshooting
01 DC – link over voltage
02 DC – link under voltage
03 DC – link voltage is too low
04 IPM over-current software protection
05 IPM over-current hardware protection
07 AC input over-voltage
08 AC input under-voltage
10 Electric thermal protection for pump over-load
11 Motor over speed
13 IPM over temperature
16 Motor out of step
17 PFC output DC low voltage
20 Earth short circuit
21 Motor Phase short circuit
22 Output phase missing
31 Communication error with master
41 Current sensor circuit error
42 Inrush current preventing relay error
43 Voltage sensor error, AC voltage and DC voltage do not match
51 IPM temperature sensor circuit error
60 Motor rotor lock
61 DSP ROM error
62 DSP RAM error
63 DSP watchdog error
66 Communication error with driver
If the troubleshooting steps listed above do not help to resolve the error condition, then the problem may be internal
to the motor/drive. Contact Hayward Technical Service at (908) 355-7995 for additional assistance.
4. Maintenance
Clean strainer basket regularly. Do NOT strike basket to clean. Inspect strainer cover gasket regularly and replace as
necessary.
Hayward pumps have self-lubricating motor bearings and shaft seals. No lubrication is necessary.
Keep motor clean. Insure motor air vents are free from obstruction to avoid damage. Do NOT use water to hose off
motor.
Occasionally, shaft seals must be replaced, due to wear or damage. Replace with genuine Hayward seal assembly
kit. See “Shaft Seal Change Instructions” in this manual.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 12 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
5. Storage / Winterization
WARNING – Separation Hazard. Do not purge the system with compressed air. Purging the system with
compressed a
ir can cause components to explode, with risk of severe injury or death to anyone nearby. Use only a
low pressure (below 5 PSI), high volume blower when air purging the pump, filter, or piping.
ATTENTION – Allowing the pump to freeze with water in it will void the warranty.
ATTENTION – Use ONLY propylene glycol as antifreeze in your pool/spa system. Propylene glycol is non-
toxic and will not damage plastic system components; other anti-freezes are highly toxic and may damage plastic
components in the system.
Drain all water from pump and piping when expecting freezing temperatures or when storing pump for a long time
(see instructions below). Gravity drain system as far as possible.
Keep motor dry and covered during storage. To avoid condensation/corrosion problems, do NOT cover or wrap pump
with plastic film or bags.
5.1. Storing Pump For Winterization
WARNING
– To avoid dangerous or fatal electrical shock hazard, turn OFF power to motor before draining
pump. Failur
e to disconnect power may result in serious personal injury or death.
1. Drain water level below all inlets to the pool.
2. Remove drain plugs and strainer cover from strainer housing. (See “Parts Diag
ram” in section 7.1 of this manual
for pu
mp componen
t locations.)
3. Disconnect p
ump from mounting pad, wiring (after power has been
turned OFF), and piping.
4. Once the pump is fully drained of water, re-install the s
t
rainer cover and drain plugs. Store pump in a dry area.
6. Shaft Seal Change Instructions
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ AND FOLLOW ALL INSTRUCTIONS
When servicing electrical equipment, basic safety precautions should always be observed including the following.
Failure to follow instructions may result in injury.
WARNING – To reduce risk of injury, do not permit children to use this product.
Disconnect all electrical
power service to pump before beginning sh
aft seal replacement.
Only qualified
personnel should attempt rotary seal replacement. Contact your local authorized Hayward Deal
er or
service center if you have a
ny questions.
The National Electrical Code requires either a three (3) foot maximum twist-lock cord set with a
GFCI protected
receptacle or hard wire (conduit) connection for swimming pool pump installation. Do not use extension cords.
Refer to Figure 7
.1-1 for pump compon
ent locations.
Exercise extreme care in handling both the rotating and the stationar
y sections
of the two-part replacement seal. Foreign
matter or impr
oper handling will easily scratch the graphite and cera
mic sealing surfaces.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 13 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
6.1. Shaft Seal Change Procedure
1. Shut off water flow to pump by closing appropriate valves or by plugging both the skimmer outlet port and return
port to pool. Disconnect pi
ping or hoses from the motor/pump assembly.
2. Remove the strainer by disengaging and removing the strainer cover. Remove the basket. Lift up
on strainer ‘C’
clip and remove. Finally, slide strainer housing forward
and remove.
3. Unscrew eight (8) screws and remove pump cover, exposing the impe
ller.
4. Remove the c
anopy or the shaft cover plate from the end of motor opposite the impeller.
5. Hold the motor shaft securely by either inserting a screwdriver in slot
at end of shaft or by using an open-end
wrench to engage the flat surfaces provide
d near end of motor shaft. Rotate the impeller in a counterclockwise
direction and remove it
from the motor shaft.
6. Note how the steel spring section of the
old seal is positioned on impeller hub and remove it by pulling from
the
impeller.
7. Remo
ve motor fan cover then loosen four (4) motor through bolts from the back of motor and remove
pump
housin
g/shroud from the front of the moto
r.
8. Remove the c
eramic stationary portion of the old seal by pressing the white ceramic seat out of the pump hou
sing
recess. If ass
embly is tight, tap lightly from the “motor” side.
9. Clean and lubricate the impeller stem and the pump housing recess with a dilute
solution of non-granulated
liquid-type soap. Do not use petroleu
m or silicone lubricants as these can contribute to seal leak
age.
10
. Press the new rotating portion of the seal assembly onto the impeller stem with the polished blac
k graphite
surface facing away from the impeller.
11. Carefully pres
s the stationary ceramic portion of the seal into the recess of the pump housing/sh
roud, with the
polished flat surface facing out.
12. Carefully insert the motor shaft through the pump hou
sing/shroud and align with white ceramic stationary se
al
assembly in place and secu
re the motor to pump housing/shroud with four
(4) motor through bolts removed in
step #7. Be sure motor
base and pump discharge port are positioned properly. Alternately tighten the moto
r
through bolts until the pump housing is secure. Make certain motor shaft turns freely be
fore proceeding then re-
attach motor fan cover.
13. Screw the imp
eller (clockwise) with the rotating portion of seal in place onto the motor shaft.
Hand-tighten the
impeller in place.
14. Clean (replac
e if necessary) the O-ring and replace on pump cover. Assemble the pump cove
r to the pump
housing/ shroud with the eight (8
) screws removed in step #3. Tighten screws alternately and evenly.
15. Re-assemble strainer by sliding strainer housing onto pump cover. Install strainer ‘C’
clip by pushing clip down
onto grooved pump cover coupling. Insert basket and fasten strainer cover.
16. Reconnect pump to the piping or hoses provided. Open
all valves and make sure that the pump
strainer housing
is full of water b
efore restarting the pump.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 14 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
7. Replacement Parts
7.1. Parts Diagram
Figure 7.1-1
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 15 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
7.2. Parts Listing
Ref.
No.
Part No. Description Qty.
1 SPX1500N
Y
Housing Bolt and Nut (1 each) 8
2 SPX1580BP Housing Cover 1
3 SPX1580Z1 Housing O-Ring 1
4 SPX1500W Strainer Housing O-Ring 1
5 SPX1500KA Seal Assembly 1
6 SPX1500
F
Impeller 1
7 SPX1580AAP Pump Housing 1
8 SPX1500CAP Strainer Housing with Basket 1
9 SPX1500RA Check Valve Assembly (Optional) 1
10 SPX1500LX Strainer Basket 1
11 SPX1500P Strainer Cover O-Ring 1
12 SPX1500D2A Strainer Cover with O-Ring 1
13 SP1516 Complete Strainer Assembly 1
14 SPX1700FG Drain Plug with O-Ring 1
15 SPX1515C C-Clip 1
16 SPX1510Z1ECPMV Motor, Variable Speed 1
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 16 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
8. Troubleshooting
8.1. General Problems
Motor Will NOT Start:
1. Check for and correct any improper or loose wiring connections; open switches or relays; trippe
d circuit
breakers, or blown f
u
ses.
2. Manually check the rotation of the m
otor shaft for free movement and lack of obstruction. Corre
ct if
necessary.
Mo
tor Shuts OFF:
1. Check for low voltage or power drop at the motor (frequently caused by undersized
wiring). Contact a
qualified professional to verify the electrical connections.
Mot
or Hums, But Does NOT Start:
1. Impeller jammed with debris. Have a qualified repair professional open the pump and remove
the debris.
Low
Flow – Generally:
1. Clogged or restricted strainer or suction line. Contact
a qualified repair professional.
2. Undersized pool piping. Correct the piping size.
3. Plugged or re
stricted discharge line of filter, valve partially closed (high gauge read
ing). Sand filters –
backwash as per manu
facturer’s instructions; D.E. filters – backwash as per manu
facturer’s instructions;
Cartridge filters – clean or r
e
place the cartridge.
4. Air leak in suc
tion (bubbles issuing from return fitti
ngs). Re-tighten the suction and discharge connections
using P
TFE tape. Inspect other plumbing connections,
and tighten as required.
5. Plugged, restricted, or dam
aged impeller. Replace the impeller including a new seal assembly.
Noisy Pump:
1. Air leak in suction piping causing rumbling in pump.
2. Cavitation due to restricted
or undersized suction line or leak at any joint, lo
w water level in pool, and
unrestricted discharge return lines. Corre
ct suction condition or throttle return lines, if practical.
Holding
hand over ret
urn fitting will sometimes prove this
point or putting in a smaller eyeball fitting.
3. Vibration due to improper
mounting, etc. Put a rubbe
r pad under metal mounting feet.
4. Foreig
n matter in pump housing. Loose stones/debris hitting impeller could be cause, remove an
y of the
above.
5. Motor
bearings noisy from normal wear, rust, overheating, or concentr
ation of chemicals causing seal
damage whic
h will allow chlorinated water to seep into bearings wiping out the grease causing be
aring to
whine. All seal leaks should be replaced at once.
6. Equipment base vibrating.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 17 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
This page left blank intentionally
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 18 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
DATE OF INSTALLATION ____________________
INITIAL PRESSURE GAUGE READING (CLEAN FILTER) _______________________
PUMP MODEL __________________
9. Product Registration
*Retain
this Warranty Certificate in a safe and convenient location fo
r your records
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 19 of 20 PowerFlo VS Variable Speed Pump IS1580X15VSP Rev-B
10. Warranty
Please Print Clearly:
First Name____________________ Last Name_________________________
Street Address__________________________________________________
City_____________________________ State___________ Zip____________
Phone Number_____________________ Purchase Date_________________
E-Mail Address__________________________________________________
Serial
Number
(10-17 digit number)
Model Number_____________________________________________________
Pool Capacity_______________(U.S. Gallons)
Please include me on all e-mail communications regarding Hayward Equipment or promotions.
Mail to: Hayward Pool Products, 620 Division Street, Elizabeth, NJ 07207
Attn: Warranty Dept
OR REGISTER YOUR WARRANTY ON-LINE AT WWW.HAYWARD.COM
DETACH HERE: Fill out bottom portion completely and mail within 10 days of purchase/installation or register online.
-----------------------------------------------------------------------------------------------------------------------------------------
PowerFlo
VS
™
300 Variable Speed Pump Warranty Card Registration
Years Pool has been in service
< 1 year 1-3 4-5 6-10 11-15 >15
Purchased from_____________________________
Builder Retailer Pool Service Internet/Catalog
Company Name_________________________________
Address_______________________________________
City____________________ State_____ Zip__________
Phone_________________________________________
Type of Pool:
Concrete/Gunite Vinyl Fiberglass
Other_____________________________
New Installation Replacement
Installation for:
In Ground Spa
FCC Compliance Statement:
This device complies with part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in residential installations.
This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of more of the following measures:
- Reorient or relocate the receiving antenna.
- Move the equipment away from the receiver.
- Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or
an experienced radio/television technician for additional suggestions.
and PowerFlo VS are registered trademarks o
f Hayward Industries, Inc.
2019 Hayward Industries. All rights reserved.
