Electric Pizza Oven
Model: ZH-1M
Model: ZH-3M
Model: ZH-PT-1D
Model: ZH-PT-1M
Manufacturer: Guangzhou Cambon Kitchen Equipment Co.，Ltd
ADD: Room 101,No.38,Zhangbian Huan Cun Street, Nancun Town,
Panyu District,Guangzhou,Guangdong,China
MADE IN CHINA
This is the original instruction, please read all manual instructions
carefully before operating.
VEVOR reserves clear interpretation of our user manual.
The appearance of the
product shall be subject to the product you received. Please forgive us
that we won't
inform you again if there is any technology or software updates on our
product.
Electric Pizza
Oven
User’s Manual
Welcome to purchase and use our electric pizza oven!
Give full play to the performance of this product, to reduce unnecessary
losses and injuries, read the instructions carefully before use and retain
for future reference.
This series of products is to absorb foreign and domestic benefits of the
product of the same type of design is made, fashionable and vivid color,
reasonable structure, convenient operation, fast heat up, good insulation
properties, energy-saving advantages. This series of products baked
pizza, uniform color, crisp and delicious, excellent flavor.
The oven according to national standards GB4706.39-1997 "Household
and similar electrical appliances - Safety for commercial electric grill and
toasters special requirements" production.
WARNING!
1. Any modification, and improper installation, adjustment, repair or
maintenance may result in property damage or personal injury. For
adjustment or repair should be to contact the supplier by trained
professionals.
2. For your safety, please do not store or use flammable or explosive
gases, liquids or articles in the vicinity of this product.
Welcome to purchase and use our electric pizza oven!
Give full play to the performance of this product, to reduce unnecessary
losses and injuries, read the instructions carefully before use and retain
for future reference.
This series of products is to absorb foreign and domestic benefits of the
product of the same type of design is made, fashionable and vivid color,
reasonable structure, convenient operation, fast heat up, good insulation
properties, energy-saving advantages. This series of products baked
pizza, uniform color, crisp and delicious, excellent flavor.
The oven according to national standards GB4706.39-1997 "Household
and similar electrical appliances - Safety for commercial electric grill and
toasters special requirements" production.
WARNING!
1. Any modification, and improper installation, adjustment, repair or
maintenance may result in property damage or personal injury. For
adjustment or repair should be to contact the supplier by trained
professionals.
2. For your safety, please do not store or use flammable or explosive
gases, liquids or articles in the vicinity of this product.
.Ⅰ Product Shape Structure:
ZH-3M/ZH-1M
ZH-PT-1M / ZH-PT-1D
Maintenance of three-dimensional exploded view:
1. Pizza stone,400*400*9.5mm 2.heating tube,
3.inside components 4.supportBplace of pizza stone 5.downside
support plate of heating tube 6.lampshade 7.Heat lamp 8.board that
holds down cotton 9.Five cylinder terminal 10. left and right plate of
.Ⅰ Product Shape Structure:
ZH-3M/ZH-1M
ZH-PT-1M / ZH-PT-1D
Maintenance of three-dimensional exploded view:
1. Pizza stone,400*400*9.5mm 2.heating tube,
3.inside components 4.supportBplace of pizza stone 5.downside
support plate of heating tube 6.lampshade 7.Heat lamp 8.board that
holds down cotton 9.Five cylinder terminal 10. left and right plate of
machine 11.supportingBlegB 12.support plate of inside components
13.outside components 14. Cable head 15.powerBline 16.Before frame
components 17.components of door 18.on-offBswitch 19.timer
20.Thermostat 21.indicatorBlight

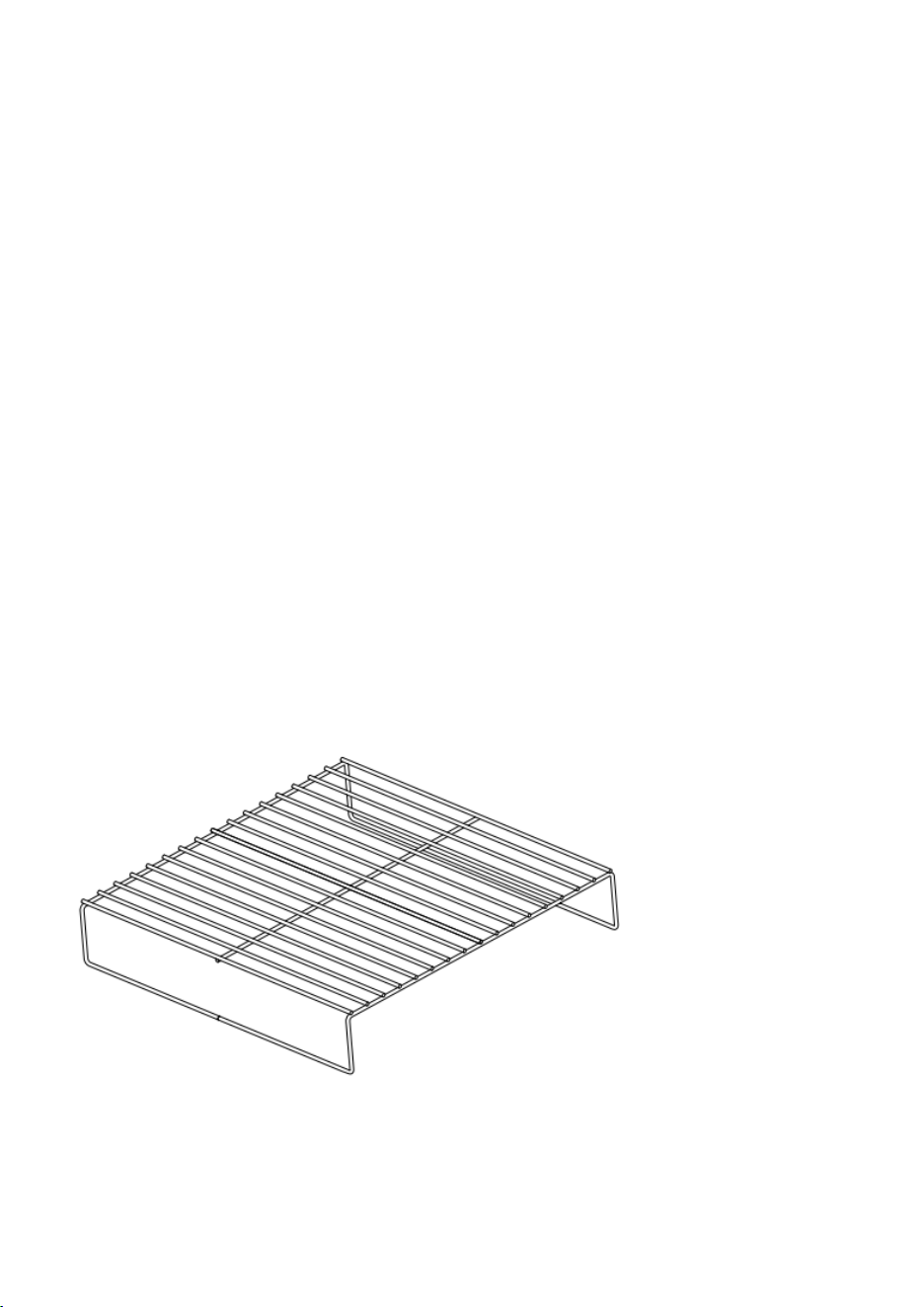

New Gift of pizza oven:
ZH-1M: Mesh Oven Rack*1pc
ZH-3M:Mesh Oven Rack*2pc
Have a nice day!
. daily Ⅹ checks:
Before and after use to pay attention to check the machine status
Before using the machine is tilted?
BPower lines are aging, cracked or broken?
The control panel is not damaged?
Is it heated?
There is no abnormal noise or loss of control?
WARNING!
Must often carry out routine inspections. Regular checks of the
product, can prevent serious accidents have occurred. Feel the
circuit, and to stop using the machine failure. Notified as soon as the
inspection and maintenance of professional and technical personnel.
machine 11.supportingBlegB 12.support plate of inside components
13.outside components 14. Cable head 15.powerBline 16.Before frame
components 17.components of door 18.on-offBswitch 19.timer
20.Thermostat 21.indicatorBlight
New Gift of pizza oven:
ZH-1M: Mesh Oven Rack*1pc
ZH-3M:Mesh Oven Rack*2pc
Have a nice day!
. daily Ⅹ checks:
Before and after use to pay attention to check the machine status
Before using the machine is tilted?
BPower lines are aging, cracked or broken?
The control panel is not damaged?
Is it heated?
There is no abnormal noise or loss of control?
WARNING!
Must often carry out routine inspections. Regular checks of the
product, can prevent serious accidents have occurred. Feel the
circuit, and to stop using the machine failure. Notified as soon as the
inspection and maintenance of professional and technical personnel.

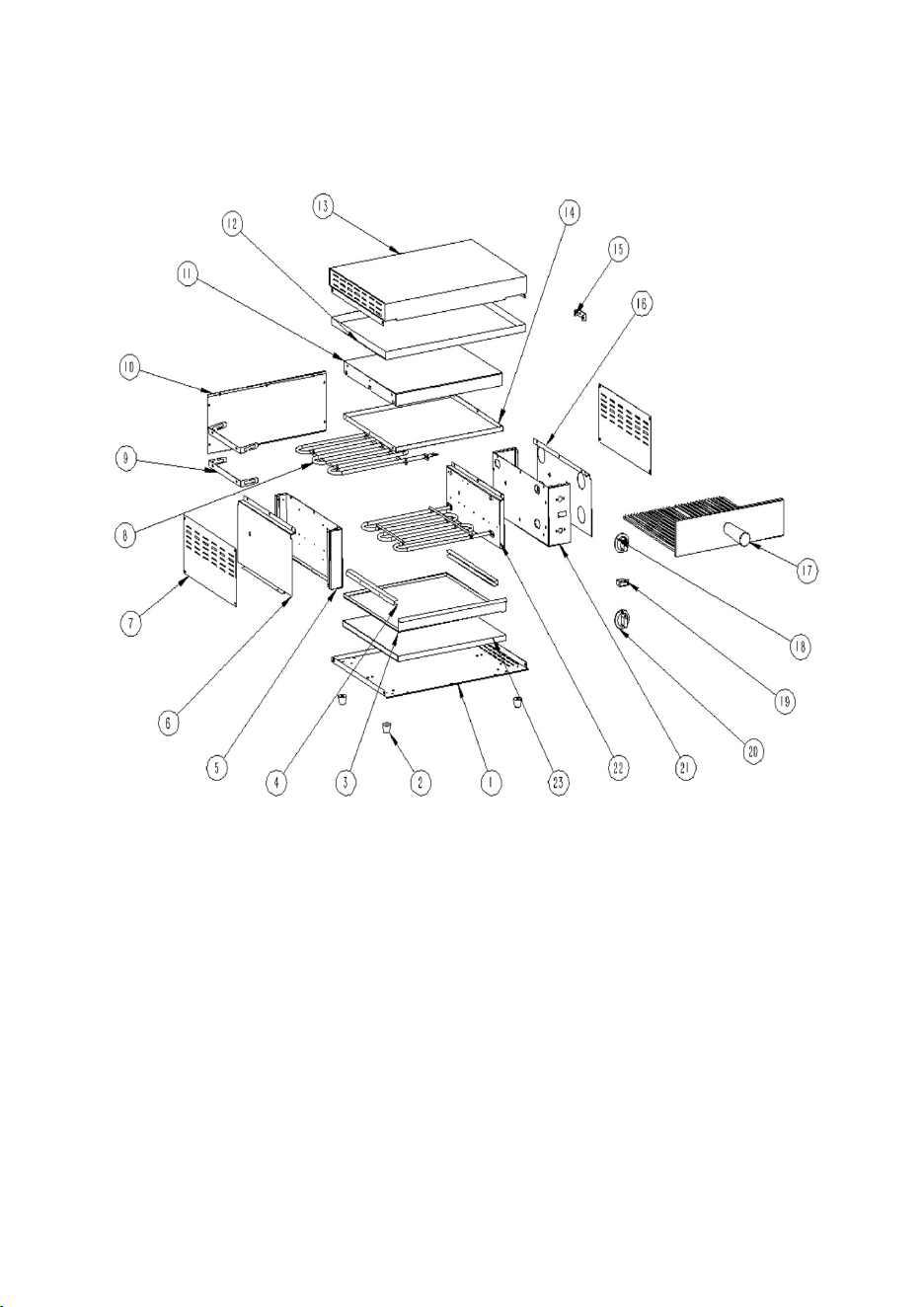

1.the new baseplate 2.rubber feet 3.the new sundry basin
4.the new baked net fixed strip 5.the new left board
6.left cotton plate 7.the new left and right sealing plate
8.the new heating tube 9.heat tube fixed plate
10.after the sealing plate 11.top pressure cotton
12.the new top pressing cotton board 13.the new top tray
14.the new upper side connecting plate 15.turbine stent
16.right cotton plate 17.drawer components
18.time-meter 19.single jade eye switch
20.temperature controller 21.the new right board
22.inside the right plate 23.bottom pressure cotton board
. Basic Parameters:Ⅱ
Name
Electric pizza oven
（
ZH-3M
）
Electric pizza
oven
（
ZH-1M
）
Electric pizza
oven
（
ZH-PT-
1M
）
Electric pizza
oven
（
ZH-PT-
1D
）
Power
(KW)
1.74 1.3 1.5 1.5
Voltage
(V)
110 110 110 110
Frequenc
y (Hz)
60 60 60 60
Dimensions
（
mm
）
560 × 556×435 560 × 556 × 270
485*390*215 485*390*215
Inner
size
（
mm
）
400 × 400 × 150 400 × 400 × 150
345*342*120 345*342*120
Layers 2 1 1 1
IMPORT ANT SAFETY IN STRUCTIONS
(WARNING:To reduce the risk of burns,electrocution,fire or injury to
persons!)
1.Do not disassemble the unit except for the authorized serviceman.
2.Unplug the unit before filling.Do not exceed the MAX mark.
3.Do not touch the socket with wet hand to reduce the risk of
electrocution.
.Transportation and storage:Ⅲ
During transporting, the product should be handled with care, not
1.the new baseplate 2.rubber feet 3.the new sundry basin
4.the new baked net fixed strip 5.the new left board
6.left cotton plate 7.the new left and right sealing plate
8.the new heating tube 9.heat tube fixed plate
10.after the sealing plate 11.top pressure cotton
12.the new top pressing cotton board 13.the new top tray
14.the new upper side connecting plate 15.turbine stent
16.right cotton plate 17.drawer components
18.time-meter 19.single jade eye switch
20.temperature controller 21.the new right board
22.inside the right plate 23.bottom pressure cotton board
. Basic Parameters:Ⅱ
Name
Electric pizza oven
（
ZH-3M
）
Electric pizza
oven
（
ZH-1M
）
Electric pizza
oven
（
ZH-PT-
1M
）
Electric pizza
oven
（
ZH-PT-
1D
）
Power
(KW)
1.74 1.3 1.5 1.5
Voltage
(V)
110 110 110 110
Frequenc
y (Hz)
60 60 60 60
Dimensions
（
mm
）
560 × 556×435 560 × 556 × 270
485*390*215 485*390*215
Inner
size
（
mm
）
400 × 400 × 150 400 × 400 × 150
345*342*120 345*342*120
Layers 2 1 1 1
IMPORT ANT SAFETY IN STRUCTIONS
(WARNING:To reduce the risk of burns,electrocution,fire or injury to
persons!)
1.Do not disassemble the unit except for the authorized serviceman.
2.Unplug the unit before filling.Do not exceed the MAX mark.
3.Do not touch the socket with wet hand to reduce the risk of
electrocution.
.Transportation and storage:Ⅲ
During transporting, the product should be handled with care, not
upside down to prevent damage to the shell and internal. The packaging
has a good product should be placed within the warehouse of a well-
ventilated, non-corrosive gases. Need temporary storage should be
taken when the rain measures.

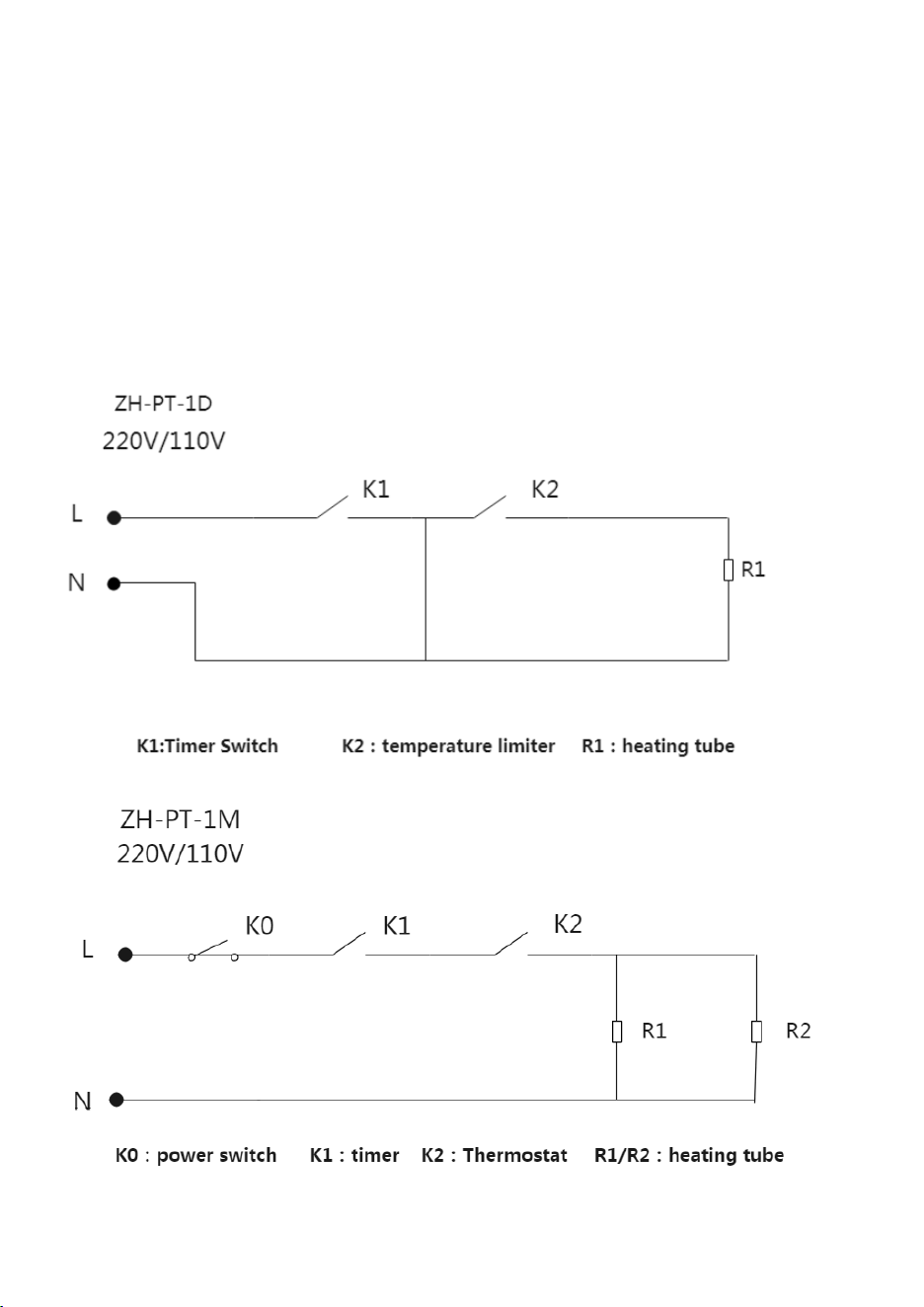

. Electrical Schematic:Ⅸ
ZH-1M
ZH-3M
upside down to prevent damage to the shell and internal. The packaging
has a good product should be placed within the warehouse of a well-
ventilated, non-corrosive gases. Need temporary storage should be
taken when the rain measures.
. Electrical Schematic:Ⅸ
ZH-1M
ZH-3M
ST1/ST2/ST3：Thermostat S1: Switch
S2:Switch of inner lighting PT: Timer Switch
R1: Top heating tube R2: Middle heating tube R3: Bottom
heating tube
H1,H2,H3: Heating indicator HL: Lighting
.Installation Notes:Ⅳ
1. The supply voltage must be consistent with the supply voltage of the
product nameplate.
2. The furnace should be placed on the balance left and right side of the
left objects 10cm or more, on the back should be away from combustible
material (such as brick, etc.) 20cm
Or more. Work can not be placed at the top of combustible materials
such as towels, clothing, etc..
3. When used, can not open the door to pick and place items in order to
avoid danger (cut off the power).
4. The device temperature adjustment range between 50-350 , it is ℃
recommended that the normal use temperature of 200-300 ° C
(depending on the need to adjust themselves to the set temperature).
5. Near the installation location is not storage of inflammable and
explosive materials.
6. The installation of the product should be invited to the professional
and technical personnel to operate, are not free to make changes.
7. Electrical connection and installation of the furnace, should be invited
to hold the electrical operating permit to install.
V.SPECIAL NOTE: WARNING!
1. This product is a commercial machine by trained personnel.
2.This product can not be demolished, and can not be modified, nor can
tilt the installation. Demolition and conversion of this product will cause
serious accidents have occurred.
3. When cleaning, cut off the power, do not direct spray water to the product.
Water conductivity, the product may cause an electric shock due to leakage.
Do not pat the product or place heavy objects on the product, normal
operation can cause equipment damage and dangerous.
4.In the course of their work, front and rear, due to the high-
temperature relationship, do not direct contact with the body inside
and door by hand.
5. prohibit the use of the product labeling other than the power supply
power. Prohibit the use of the of the power supply does not meet
safety standards.
Attention!
Occurrence of thunder and lightning, disconnect the power as soon
as possible, to avoid lightning damage. Prohibit the use of hard, sharp
objects to damage the body surface and the control panel. After use,
disconnect the power. Circuit installation and maintenance must be
carried out by a qualified professional engineering staff. If the power
cord is damaged, to avoid danger, to be replaced by the
manufacturer, or the maintenance department or similarly qualified
persons.
. Instructions:Ⅵ
1. Open the power switch, adjust the thermostat knob to the desired
temperature, then adjust timer(must adjust thermostat and timer, then
machine will start heating);
2.When temperature reaches the set temperature, you can start to
bake Roast; When finish the pizza grilled, need turn off the power
switch, opened the door to remove the pizza.
. Cleaning and Maintenance:Ⅶ
1. Before cleaning off the power to prevent the occurrence of an
accident.
2. Work week after the wet towels available free of corrosive
detergent scrub pizza plate, body surface and the power cord. Never
ST1/ST2/ST3：Thermostat S1: Switch
S2:Switch of inner lighting PT: Timer Switch
R1: Top heating tube R2: Middle heating tube R3: Bottom
heating tube
H1,H2,H3: Heating indicator HL: Lighting
.Installation Notes:Ⅳ
1. The supply voltage must be consistent with the supply voltage of the
product nameplate.
2. The furnace should be placed on the balance left and right side of the
left objects 10cm or more, on the back should be away from combustible
material (such as brick, etc.) 20cm
Or more. Work can not be placed at the top of combustible materials
such as towels, clothing, etc..
3. When used, can not open the door to pick and place items in order to
avoid danger (cut off the power).
4. The device temperature adjustment range between 50-350 , it is ℃
recommended that the normal use temperature of 200-300 ° C
(depending on the need to adjust themselves to the set temperature).
5. Near the installation location is not storage of inflammable and
explosive materials.
6. The installation of the product should be invited to the professional
and technical personnel to operate, are not free to make changes.
7. Electrical connection and installation of the furnace, should be invited
to hold the electrical operating permit to install.
V.SPECIAL NOTE: WARNING!
1. This product is a commercial machine by trained personnel.
2.This product can not be demolished, and can not be modified, nor can
tilt the installation. Demolition and conversion of this product will cause
serious accidents have occurred.
3. When cleaning, cut off the power, do not direct spray water to the product.
Water conductivity, the product may cause an electric shock due to leakage.
Do not pat the product or place heavy objects on the product, normal
operation can cause equipment damage and dangerous.
4.In the course of their work, front and rear, due to the high-
temperature relationship, do not direct contact with the body inside
and door by hand.
5. prohibit the use of the product labeling other than the power supply
power. Prohibit the use of the of the power supply does not meet
safety standards.
Attention!
Occurrence of thunder and lightning, disconnect the power as soon
as possible, to avoid lightning damage. Prohibit the use of hard, sharp
objects to damage the body surface and the control panel. After use,
disconnect the power. Circuit installation and maintenance must be
carried out by a qualified professional engineering staff. If the power
cord is damaged, to avoid danger, to be replaced by the
manufacturer, or the maintenance department or similarly qualified
persons.
. Instructions:Ⅵ
1. Open the power switch, adjust the thermostat knob to the desired
temperature, then adjust timer(must adjust thermostat and timer, then
machine will start heating);
2.When temperature reaches the set temperature, you can start to
bake Roast; When finish the pizza grilled, need turn off the power
switch, opened the door to remove the pizza.
. Cleaning and Maintenance:Ⅶ
1. Before cleaning off the power to prevent the occurrence of an
accident.
2. Work week after the wet towels available free of corrosive
detergent scrub pizza plate, body surface and the power cord. Never
use water to flush directly, prevent the water to penetrate the destruction
of the electrical properties, resulting in electricity safety incidents.
3.When unused for long periods should be clean and placed in a well-
ventilated, non-corrosive gases inside the warehouse.
we suggest you out this machine on stainless steel table, and do not put
flammable materials under machine
. The General Fault Diagnosis:Ⅷ
malfunction reason methods
1
Switch on the power
supply, the indicator
light is on, but the
machine does not
heat up
1.Thermostat
damaged.
2.The heating
tube burns out
1.Replace the
temperature
controller
2.BReplace
theating tube
2
Switch on the power
supply, turn the
thermostat,
temperature rise can
not be controlled
Thermostat
malfunction
Replace
temperature
controller
3
Switch on the power
supply, the indicator
light is not on
Indicator light
damage
Replacing an
indicator
4
When the power
supply is switched on,
the indicator light is
not on and heating
tube not heated
1. The power
supply is
abnormal.
2.The fuse
blew out
1. Check the
power supply and
connection cables
to ensure that the
power supply is
normal.
2.Replace fuse
The fault projects for reference only, if failure occurs, stop using them
immediately and notified as soon as the inspection and maintenance
of professional and technical personnel
use water to flush directly, prevent the water to penetrate the destruction
of the electrical properties, resulting in electricity safety incidents.
3.When unused for long periods should be clean and placed in a well-
ventilated, non-corrosive gases inside the warehouse.
we suggest you out this machine on stainless steel table, and do not put
flammable materials under machine
. The General Fault Diagnosis:Ⅷ
malfunction reason methods
1
Switch on the power
supply, the indicator
light is on, but the
machine does not
heat up
1.Thermostat
damaged.
2.The heating
tube burns out
1.Replace the
temperature
controller
2.BReplace
theating tube
2
Switch on the power
supply, turn the
thermostat,
temperature rise can
not be controlled
Thermostat
malfunction
Replace
temperature
controller
3
Switch on the power
supply, the indicator
light is not on
Indicator light
damage
Replacing an
indicator
4
When the power
supply is switched on,
the indicator light is
not on and heating
tube not heated
1. The power
supply is
abnormal.
2.The fuse
blew out
1. Check the
power supply and
connection cables
to ensure that the
power supply is
normal.
2.Replace fuse
The fault projects for reference only, if failure occurs, stop using them
immediately and notified as soon as the inspection and maintenance
of professional and technical personnel
Electric Pizza Oven
Model: ZH-1M
Model: ZH-3M
Model: ZH-PT-1D
Model: ZH-PT-1M
Manufacturer: Guangzhou Cambon Kitchen Equipment Co.，Ltd
ADD: Room 101,No.38,Zhangbian Huan Cun Street, Nancun Town,
Panyu District,Guangzhou,Guangdong,China
MADE IN CHINA
This is the original instruction, please read all manual instructions
carefully before operating.
VEVOR reserves clear interpretation of our user manual.
The appearance of the
product shall be subject to the product you received. Please forgive us
that we won't
inform you again if there is any technology or software updates on our
product.
Electric Pizza
Oven
User’s Manual
