POWERBLADE MOWSPRPB22EA 22" Self-Propelled Lawn Mower User Manual

THE BATTERY MAY HAVE SOME CHARGE ON ARRIVAL, IT IS IMPORTANT

HOWEVER THAT THE BATTERY IS CHARGED PRIOR TO USE.

User Manual

[Revision 4.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential

to add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

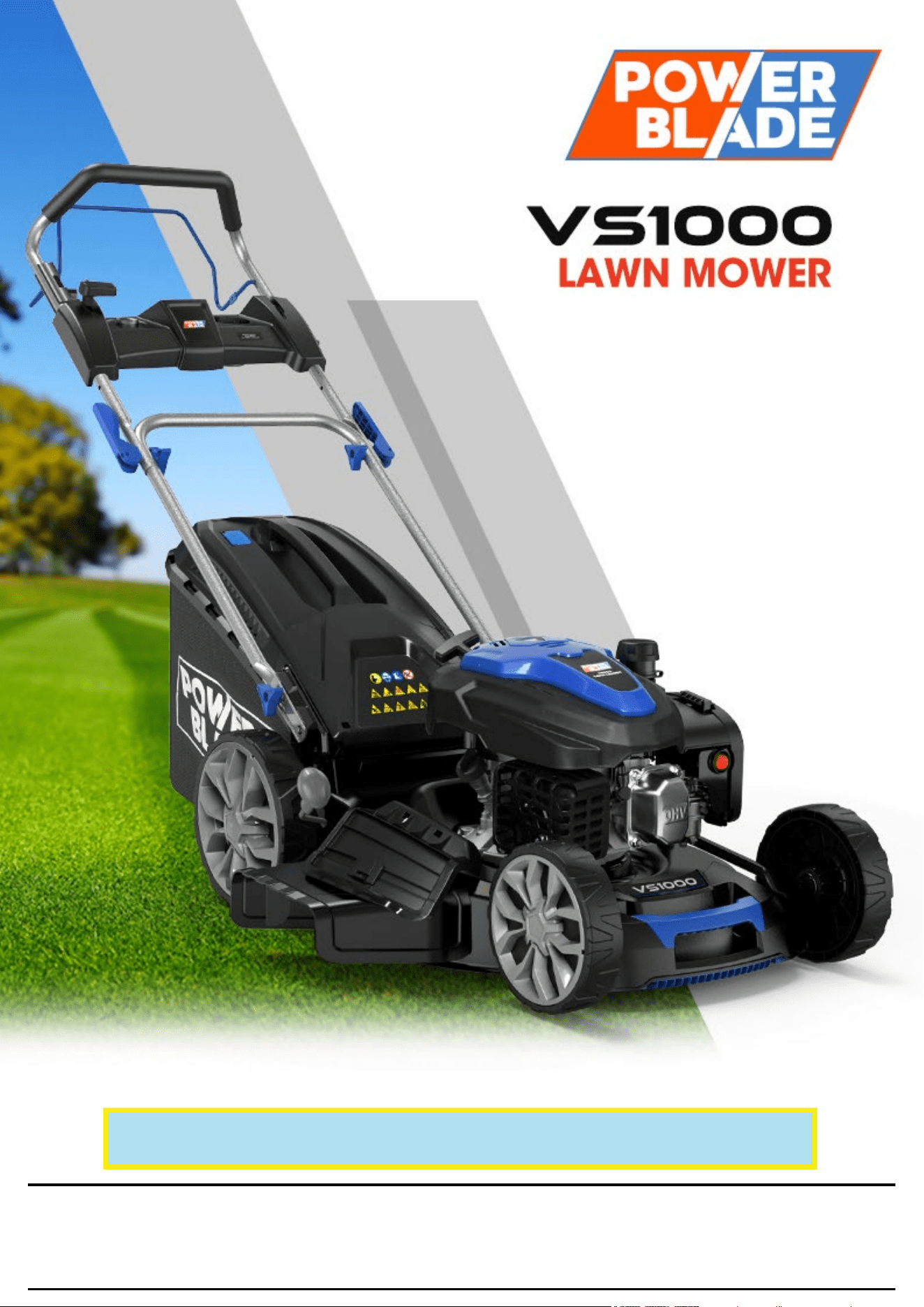

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Wor

k areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear

appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

• P

etrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well-ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• U

sing a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

• K

eep packaging away from children and

pets, potential risk of suffocation or

choking.

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 3

General Electrical Safety

• I

nspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• E

lectrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• T

he equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Intended use

This petrol lawn mower has been designed for cutting lawn areas in private houses and hobby gardens. The machine is to be used only for its

pr

escribed purpose. Any other use is deemed to be a case of misuse. The user/operator, and not the manufacturer, will be liable for any damage or

injuries of any kind caused as a result of this. Please note that our equipment has not been designed for use in commercial, trade, or industrial

applications. Our warranty will be voided if the machine is used in commercial, trade, or industrial businesses or for equivalent purposes.

Training

• R

ead the instructions carefully. Be familiar with the controls and the proper use of the equipment.

• Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations can restrict the age of the operator.

• Never mow while people, especially children, or pets are nearby.

• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

• Whi

le mowing, always wear substantial footwear and long trousers. Do not operate the equipment barefoot or wearing open sandals.

• Thoroughly inspect the area where the equipment is to be used and remove all objects that can be thrown by the machine.

• WARNING - PETROL IS HIGHLY FLAMMABLE.

• Store fuel in containers specifically designed for this purpose.

• Refuel outdoors only and do not smoke while refuelling.

• Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the engine is hot.

• If petrol is spilled, do not attempt to start the engine. Move the machine away from the area of spillage and avoid creating any source of ignition

until petrol vapours have dissipated.

• Replace all fuel tank and container caps securely.

• Replace faulty silencers.

• Before using, always visually inspect to see that the blades, blade bolts, and cutter assembly are not worn or damaged. Replace worn or

damaged blades and bolts in sets to preserve balance.

• On multi-bladed machines, take care as rotating one blade can cause other blades to rotate.

Operation

• D

o not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.

• Mow only in daylight or in good artificial light.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 4

• Avoid operating the equipment on wet grass, where feasible.

• Always be sure of your footing on slopes.

• Walk, never run.

• For wheeled rotary machines, mow across the face of slopes, never up and down.

• Exercise extreme caution when changing direction on slopes.

• Do not mow excessively steep slopes.

• Use extreme caution when reversing or pulling the lawnmower towards you.

• Stop the blade(s) if the lawnmower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the

lawnmower to and from the area to be mowed.

• Never operate the lawnmower with defective guards or without safety devices, such as deflectors and/or grass catchers, in place.

• Do not change the engine governor settings or overspeed the engine.

• Disengage all blade and drive clutches before starting the engine.

• Start the engine or switch on the motor carefully according to instructions, with feet well away from the blade(s).

• Do not tilt the lawnmower when starting the engine or switching on the motor, except if the lawnmower has to be tilted for starting. In this case, do

not tilt it more than absolutely necessary and lift only the part which is away from the operator.

• Do not start the engine when standing in front of the discharge chute.

• Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

• Never pick up or carry a lawnmower while the engine is running.

• Stop the engine and disconnect the spark plug wire, make sure that all moving parts have come to a complete stop and, where a key is fitted,

remove the key:

• Before clearing blockages or unclogging the chute.

• Before checking, cleaning, or working on the lawnmower.

• After striking a foreign object. Inspect the lawnmower for damage and make repairs before restarting and operating the lawnmower.

• If the lawnmower starts to vibrate abnormally (check immediately).

• Stop the engine and disconnect the spark plug wire, make sure that all moving parts have come to a complete stop and, where a key is fitted,

remove the key:

• Whenever you leave the lawnmower.

• Before refuelling.

• Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of

mowing.

• Go slow when using a trailing seat.

Maintenance and Storage

• K

eep all nuts, bolts, and screws tight to ensure the equipment is in safe working condition.

• Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame or spark.

• Allow the engine to cool before storing in any enclosure.

• To reduce the fire hazard, keep the engine, silencer, battery compartment, and petrol storage area free of grass, leaves, or excessive grease.

• Check the grass catcher frequently for wear or deterioration.

• Replace worn or damaged parts for safety.

• If the fuel tank has to be drained, this should be done outdoors.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 5

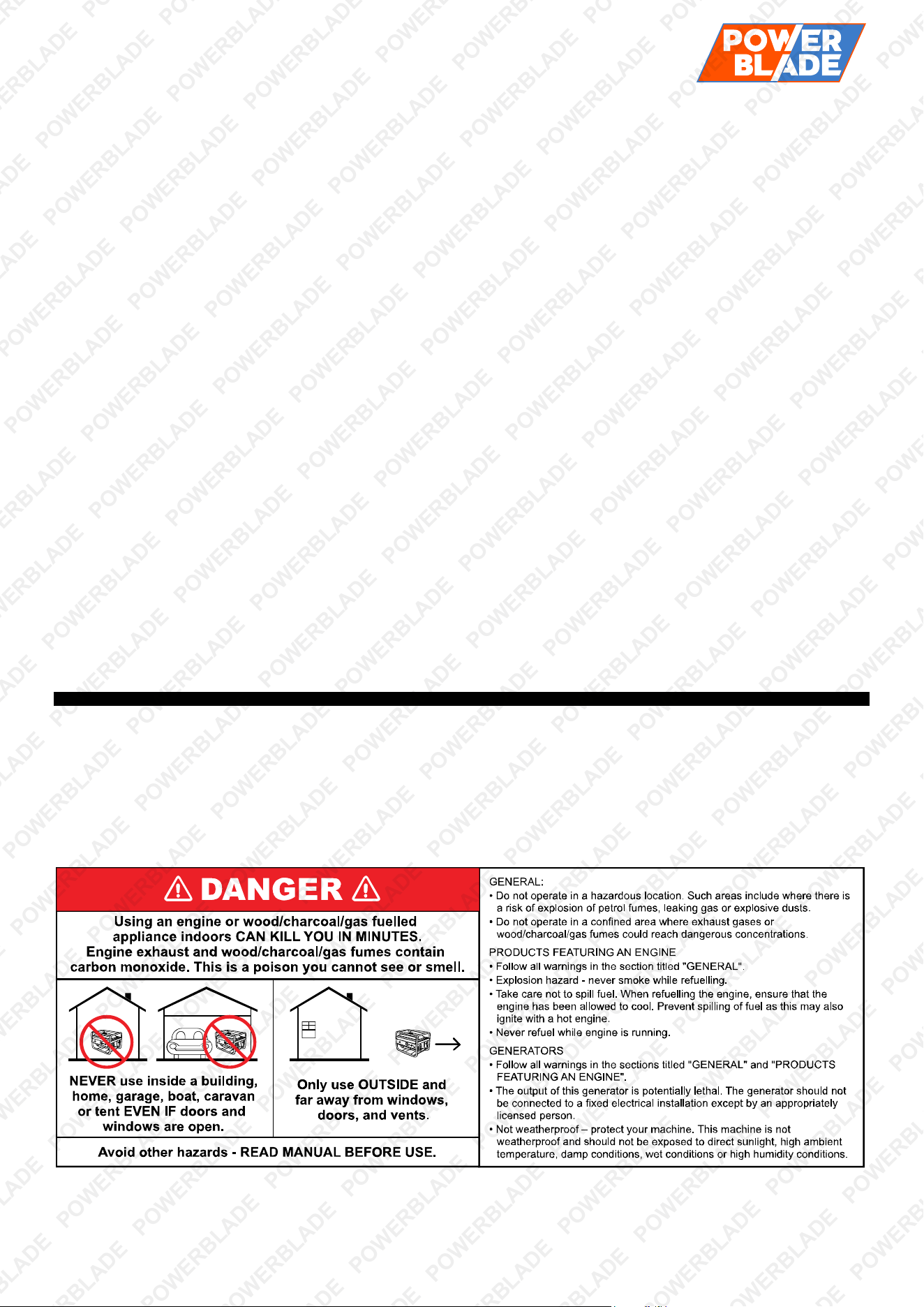

DANGER

Running combustion engines in confined

areas CAN KILL IN MINUTES. Engine

exhaust fumes contain carbon-monoxide –

a deadly gas that you cannot smell or see.

NEVER run a combustion engine in

confined areas EVEN IF windows and doors

are open. ONLY run petrol engines

OUTDOORS and away from doors,

windows, and vents.

Do not operate the equipment in hazardous locations, such

as where there may be a risk of fire or explosions from

flammable liquids, gases or dust.

Do not operate the equipment in confined areas where

exhaust gases, smoke or fumes could reach dangerous

concentrations.

Do not refuel a combustion engine while it is running on or

hot.

Never smoke while refueling combustion engines or

handling flammable substances.

For generators, the electrical output is potentially lethal and

must only be connected to a fixed electrical installation by

an appropriately licensed person.

Be aware that the equipment may include hazardous

components, such as blades, hot surfaces and moving

parts.

Handle any flammable substance with extreme caution.

•

Be aware that the equipment may include hazardous components, such as blades, hot surfaces and

moving parts.

•

Moving blades can cause serious injury and even death if used improperly or without sufficient PPE.

•

Do not use this equipment on uneven surfaces and always maintain good balance when using this

equipment. Failure to do so may cause serious injury.

•

Maintain a secure grip of the trigger assembly at all times.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 6

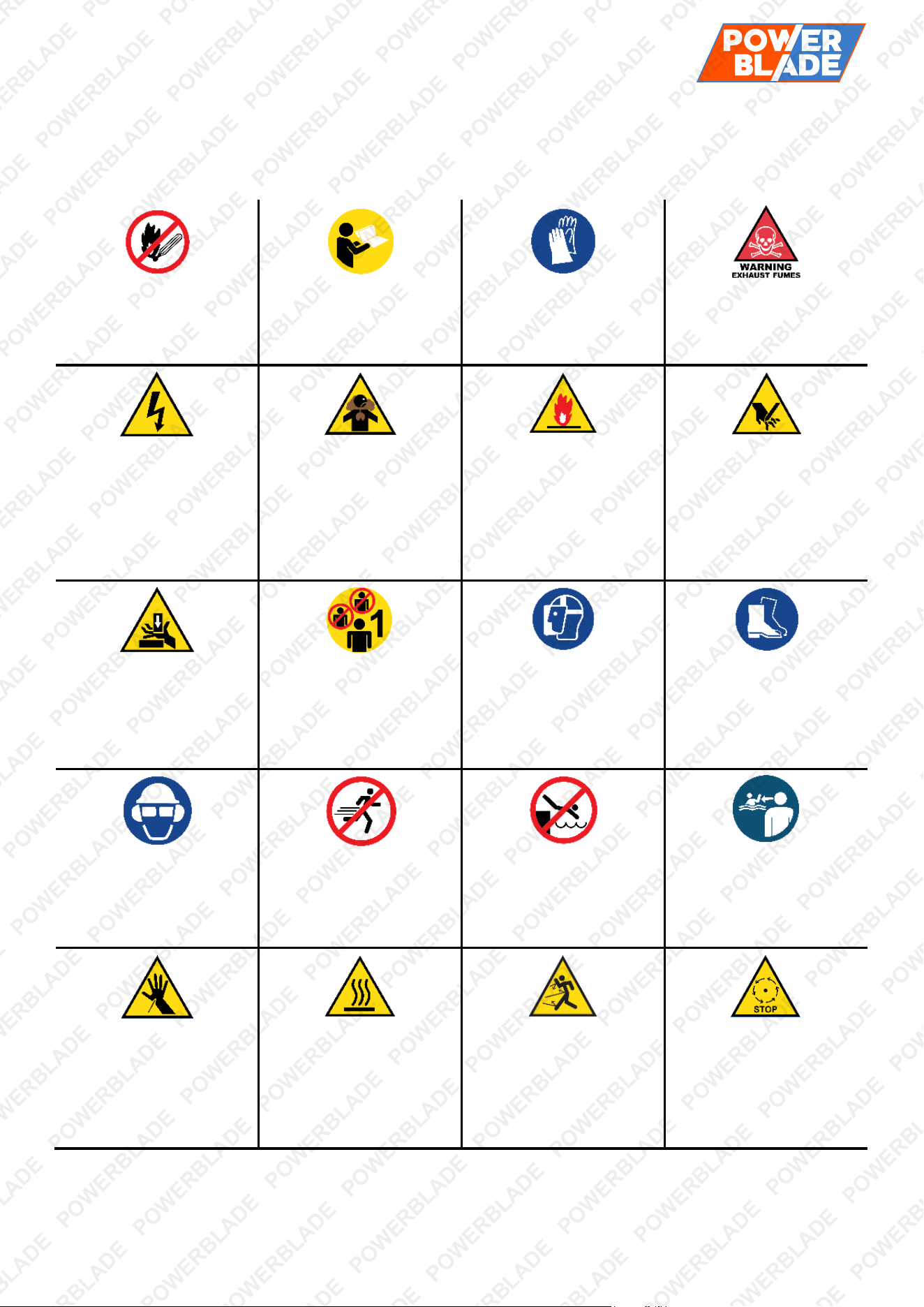

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 7

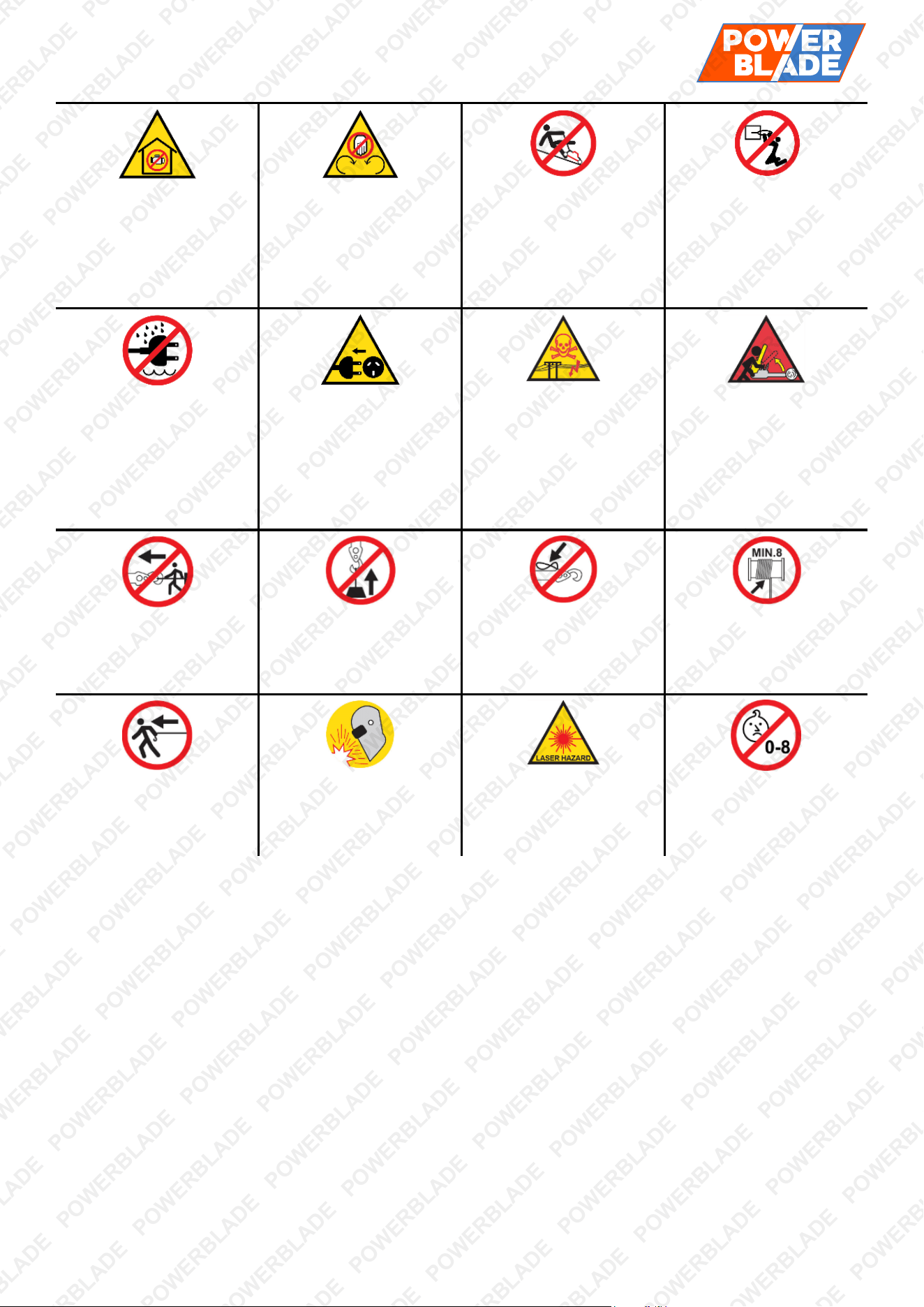

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 8

Table of Contents

Safety ......................................................................................................................................................... 2

Safety Symbols ........................................................................................................................................................... 6

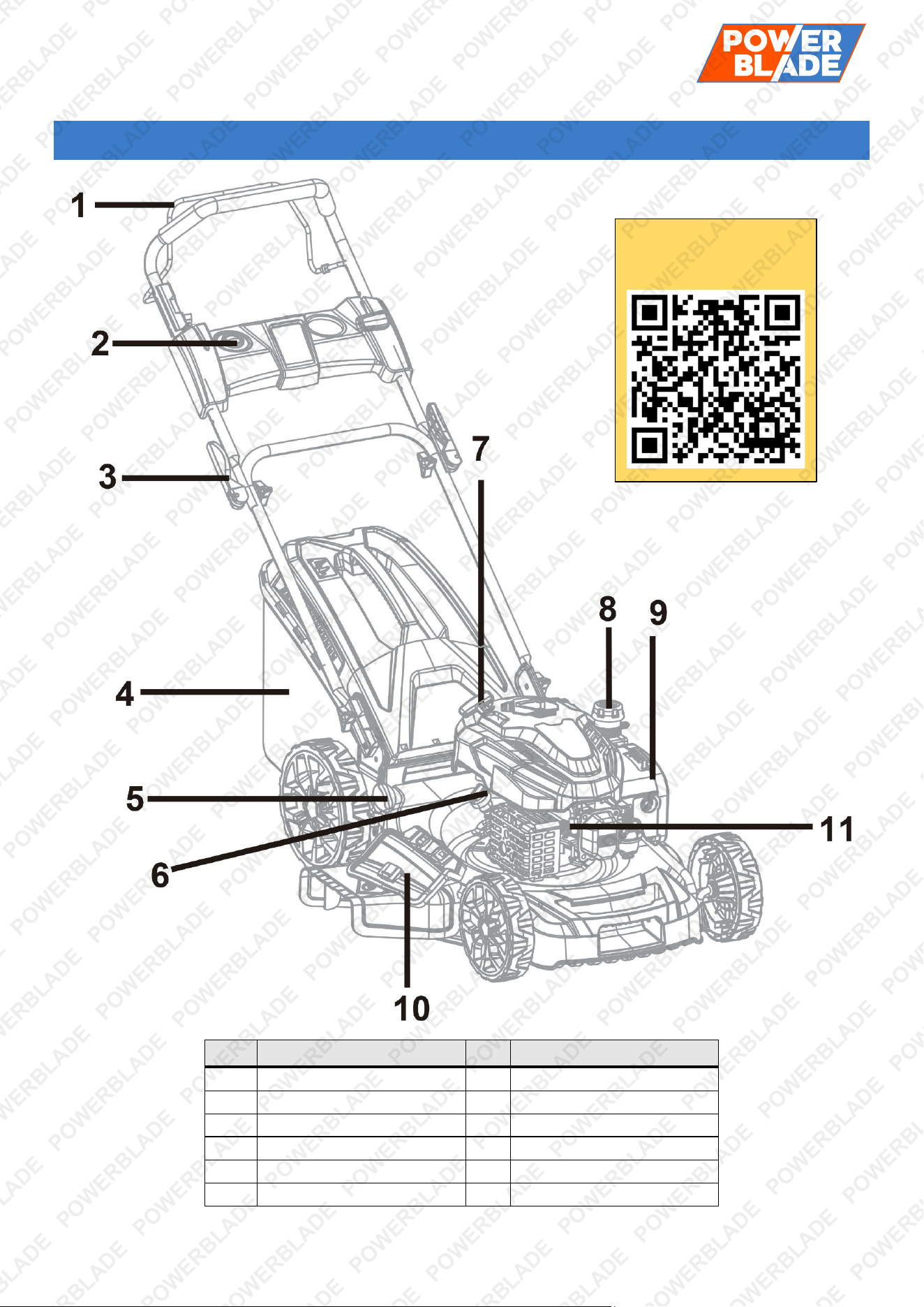

Parts Identification .................................................................................................................................... 9

Assembly ................................................................................................................................................. 10

Handle ...................................................................................................................................................................... 10

Routing the cable ...................................................................................................................................................... 11

Grass Catcher ........................................................................................................................................................... 11

Connecting the Grass Catcher onto the Mower ....................................................................................................... 12

Mulching Plug ........................................................................................................................................................... 12

Side Discharge Chute ............................................................................................................................................... 13

Routing the Throttle and Choke Lever Cables ......................................................................................................... 13

Checking the Engine Oil Level & Filling with Engine Oil .......................................................................................... 14

Filling with Engine Fuel ............................................................................................................................................. 15

Adjustments ............................................................................................................................................. 16

Setting the Cutting Height ......................................................................................................................................... 16

Operation ................................................................................................................................................. 17

Start and Stop the Engine ........................................................................................................................................ 17

To Start the Engine ............................................................................................................................................ 17

Speed Control ........................................................................................................................................................... 18

Stopping the Engine ................................................................................................................................................. 18

To Clean a Flooded Engine ...................................................................................................................................... 18

Using the Self-Propelled Function ............................................................................................................................ 18

Emptying the Grass Catcher .................................................................................................................................... 20

Lithium Battery Care and Maintenance .................................................................................................. 21

Top 3 Battery Care Requirements ............................................................................................................................ 21

Maintenance ............................................................................................................................................. 23

General Cleaning ...................................................................................................................................................... 23

Spark Plug ................................................................................................................................................................ 23

How to Service the Air Filter ..................................................................................................................................... 23

Changing the Engine Oil ........................................................................................................................................... 24

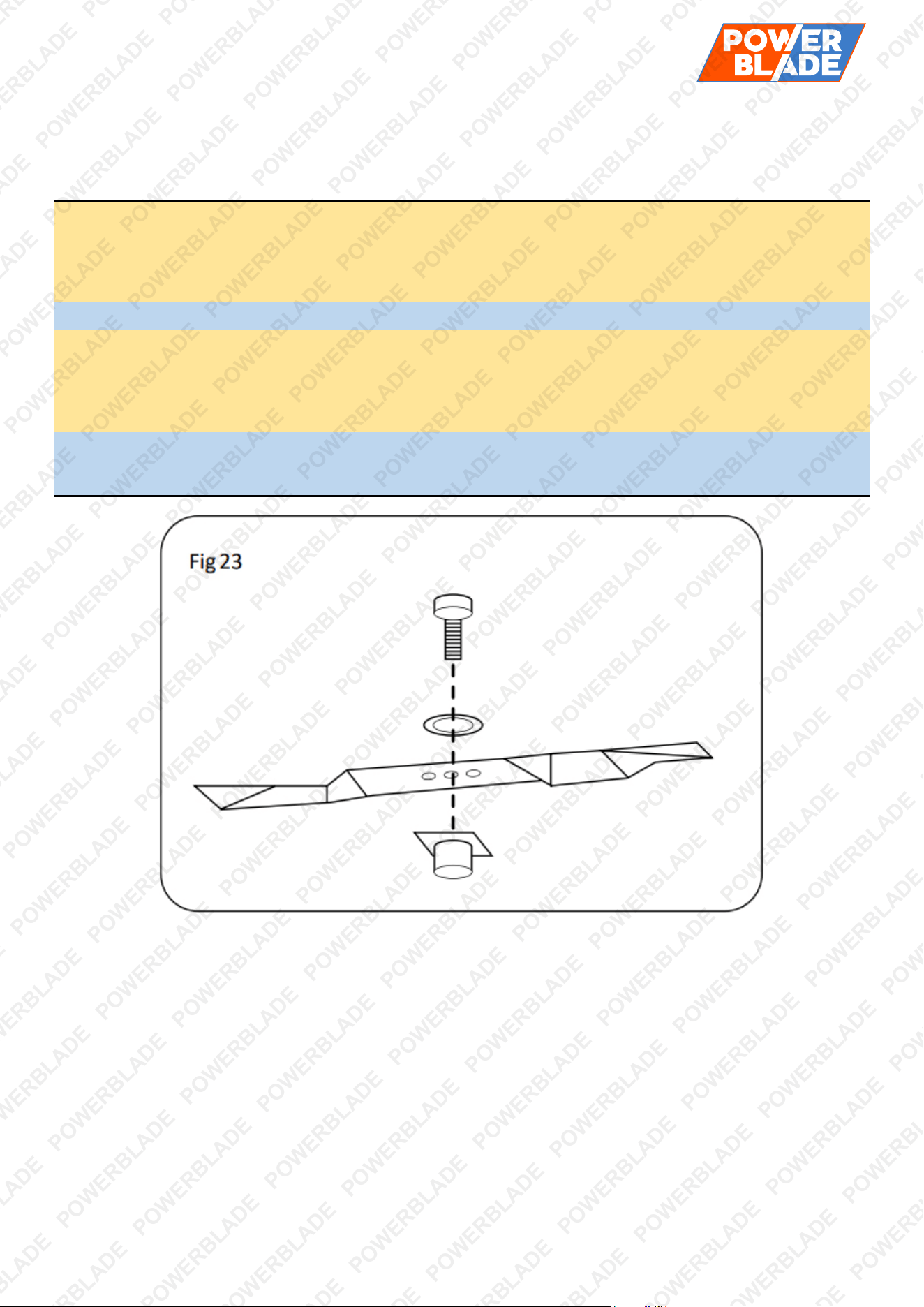

Replacing the Blade.................................................................................................................................................. 25

Storing the Lawnmower for Short Periods ................................................................................................................ 25

Storing the Lawnmower for Extended Periods ......................................................................................................... 26

Maintenance Schedule ............................................................................................................................................. 26

Maintenance Schedule – Petrol Engine / Machine ................................................................................................... 27

Transport .................................................................................................................................................................. 28

Troubleshooting ...................................................................................................................................... 29

Specifications .......................................................................................................................................... 30

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 9

Parts Identification

No. Name No. Name

1

Drive lever (clutch lever)

7

Starter handle

2

Start button

8

Fuel tank cap

3 Quick lock handle 9 Air filter

4 Grass box/bag/catcher 10 Side discharge cover

5 Engine oil cap 11 Spark plug boot

6 Height adjusting handle

Spare parts available

for purchase, scan QR

code below:

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 10

Assembly

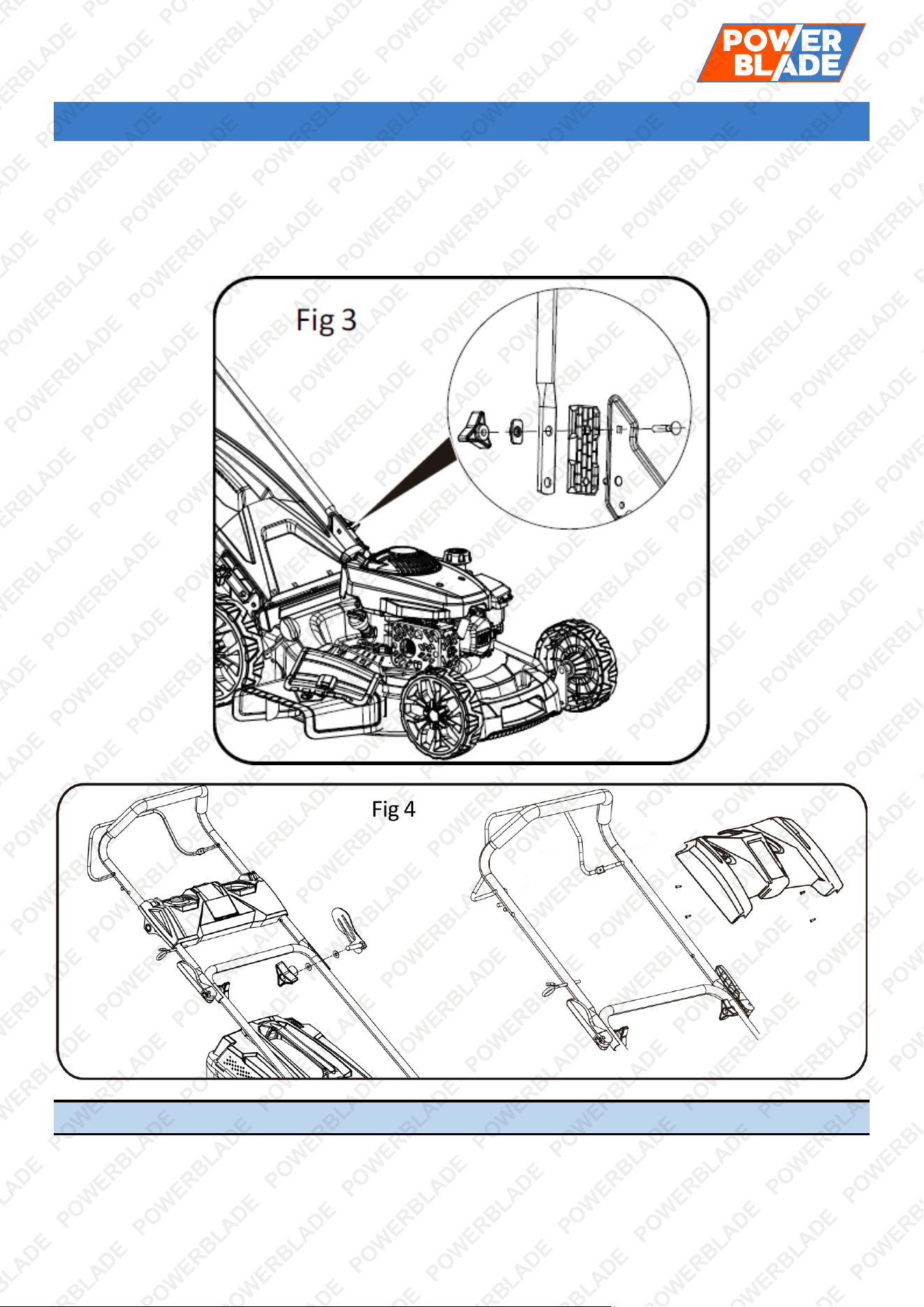

Handle

1. Fasten the lower handle to the device using two bolts and two small knobs on each side.

2. Unfold the upper handle and fix it to the lower handle using the big knobs and the bolts on each side.

NOTE: Make sure the recoil starter guide is on the right handle when you stand behind the mower.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 11

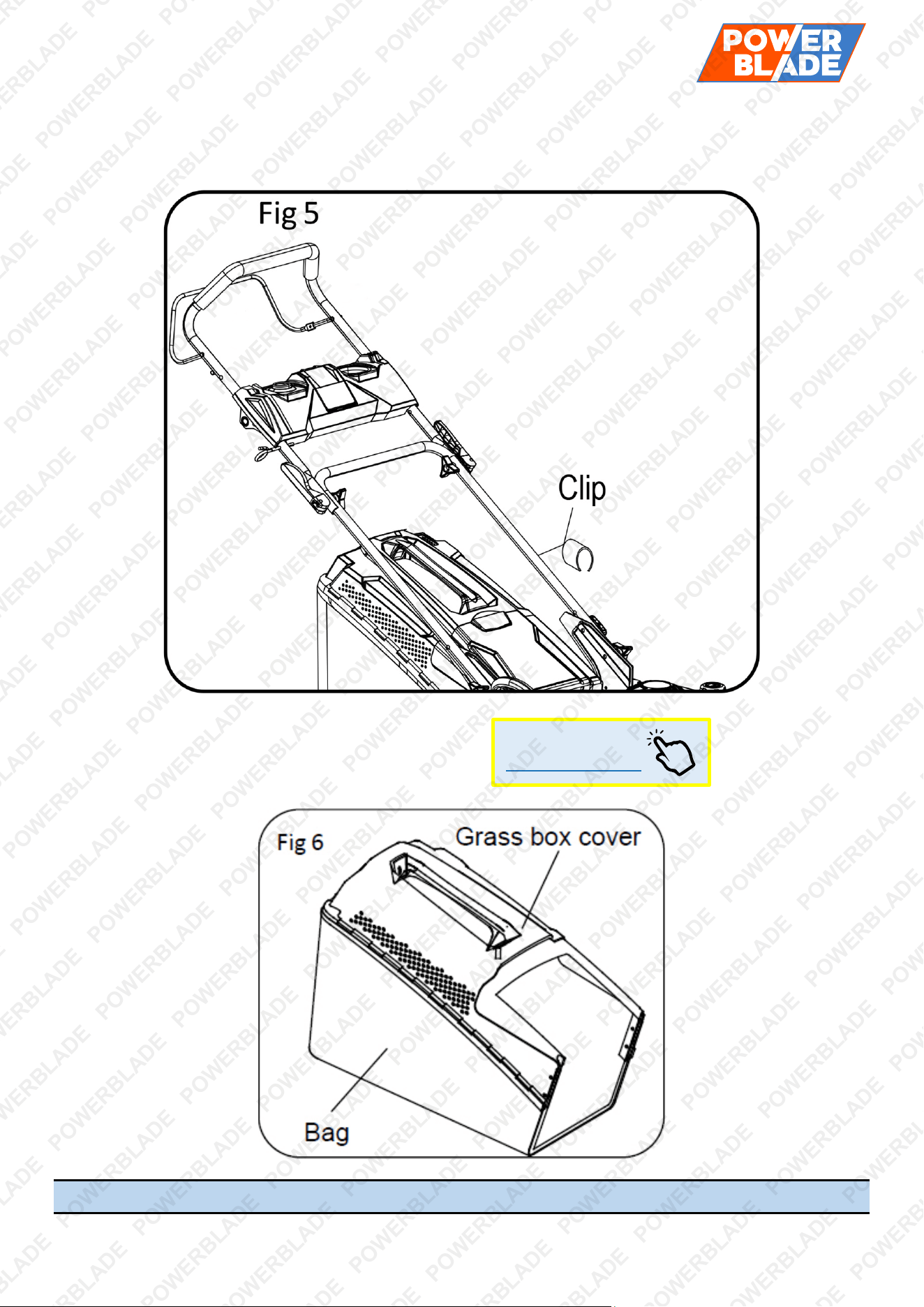

Routing the cable

Use the supplied cable clip to route the cable up the lower part of the handle

Grass Catcher

Fasten the upper cover and the lower cover together.

NOTE: Make sure that each buckle is fully secured.

Video Tutorial:

Catcher Assembly

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 12

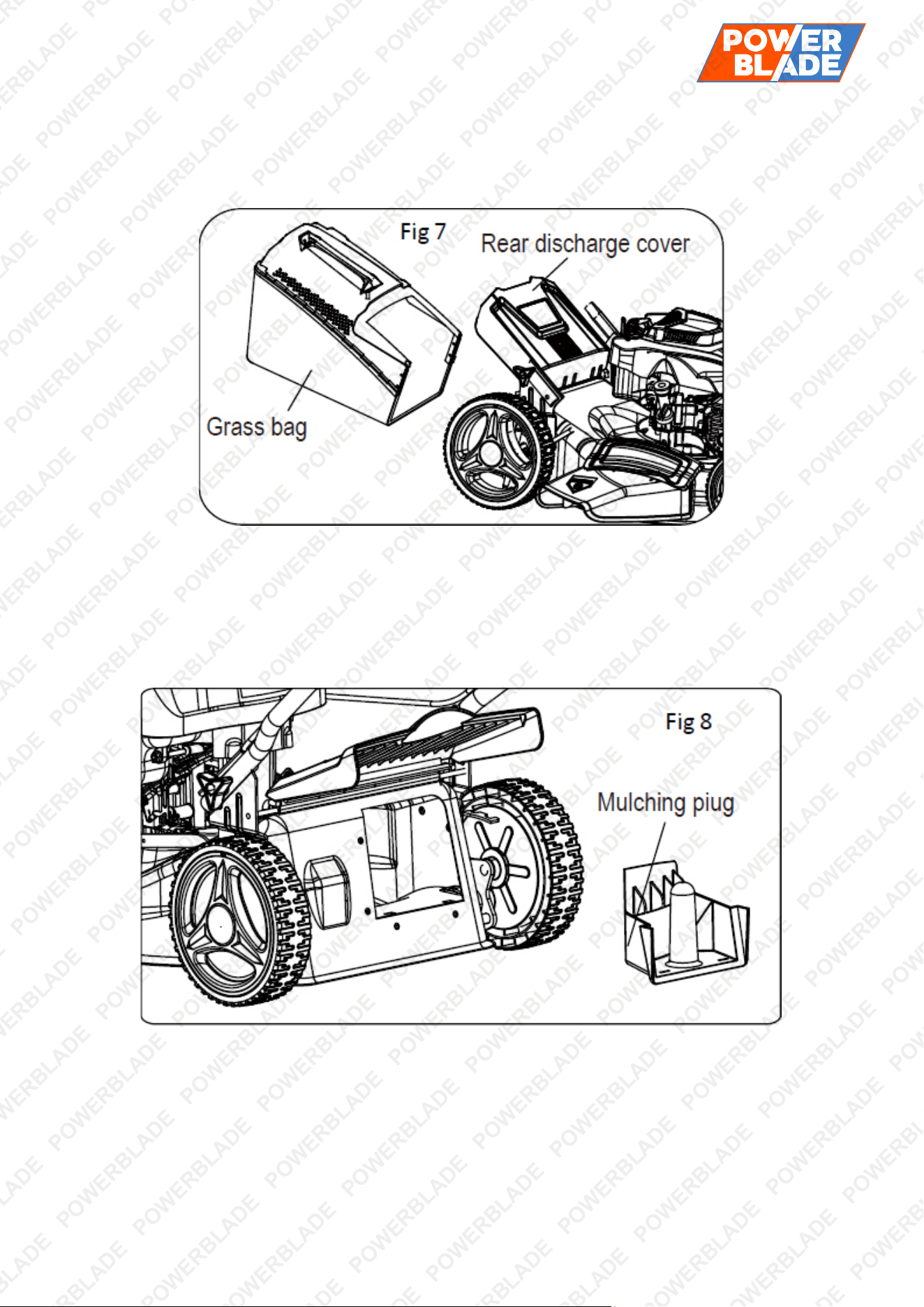

Connecting the Grass Catcher onto the Mower

1. Lift the back cover by hand, and then attach the grass box.

2. After ensuring that the grass box is securely attached, lower the rear cover.

Mulching Plug

1. Remove the grass bag.

2. Push the plastic mulching plug into the discharge chute until it is locked in place.

3. Release the flap; it will close back to cover the mulching plug.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 13

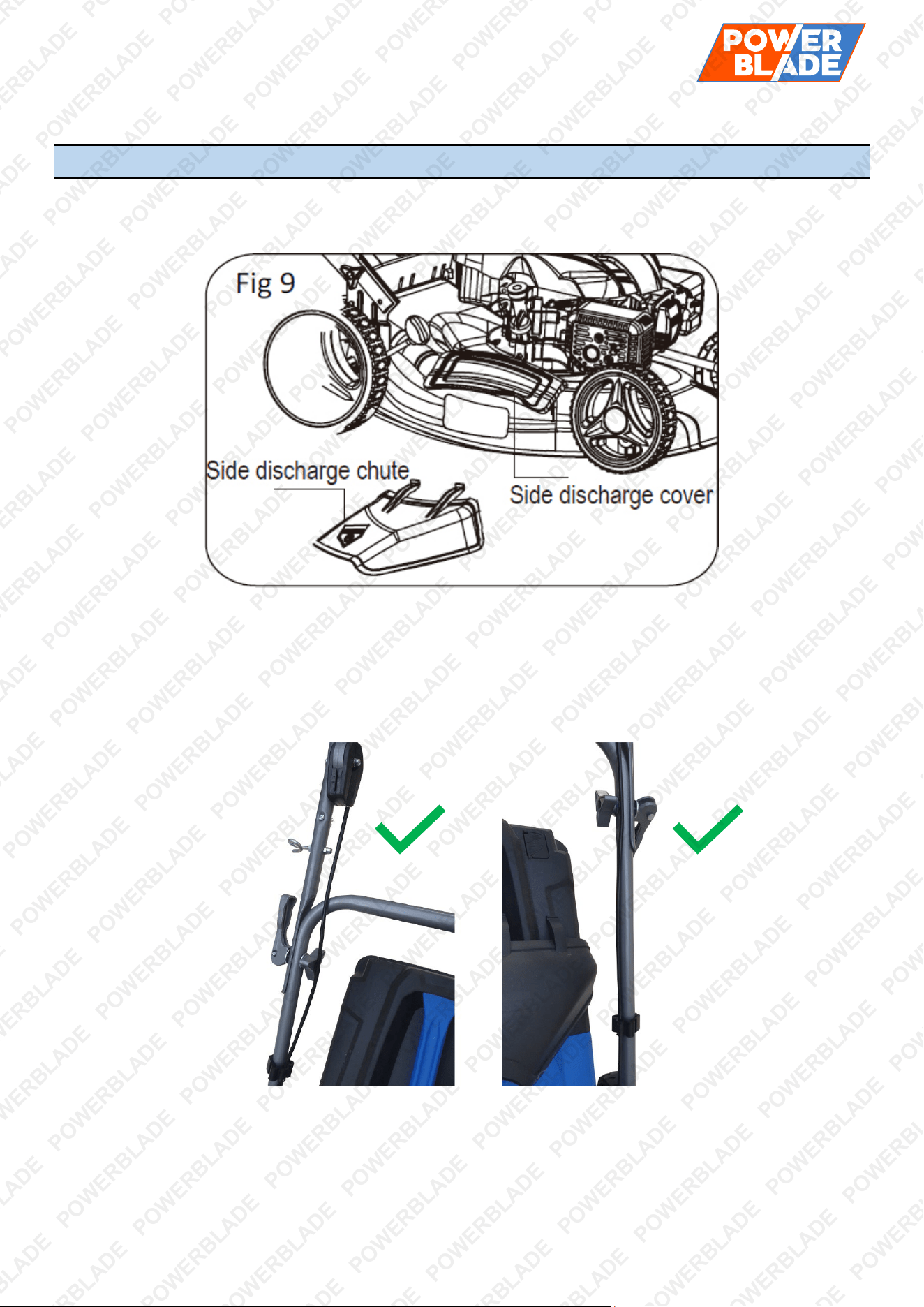

Side Discharge Chute

NOTE: When using the side discharge function, first remove the grass bag and plug the mulching plug.

1. Lift the side discharge cover with one hand and hook in the side discharge duct with the other hand.

2. Release the side discharge cover to secure the duct in position.

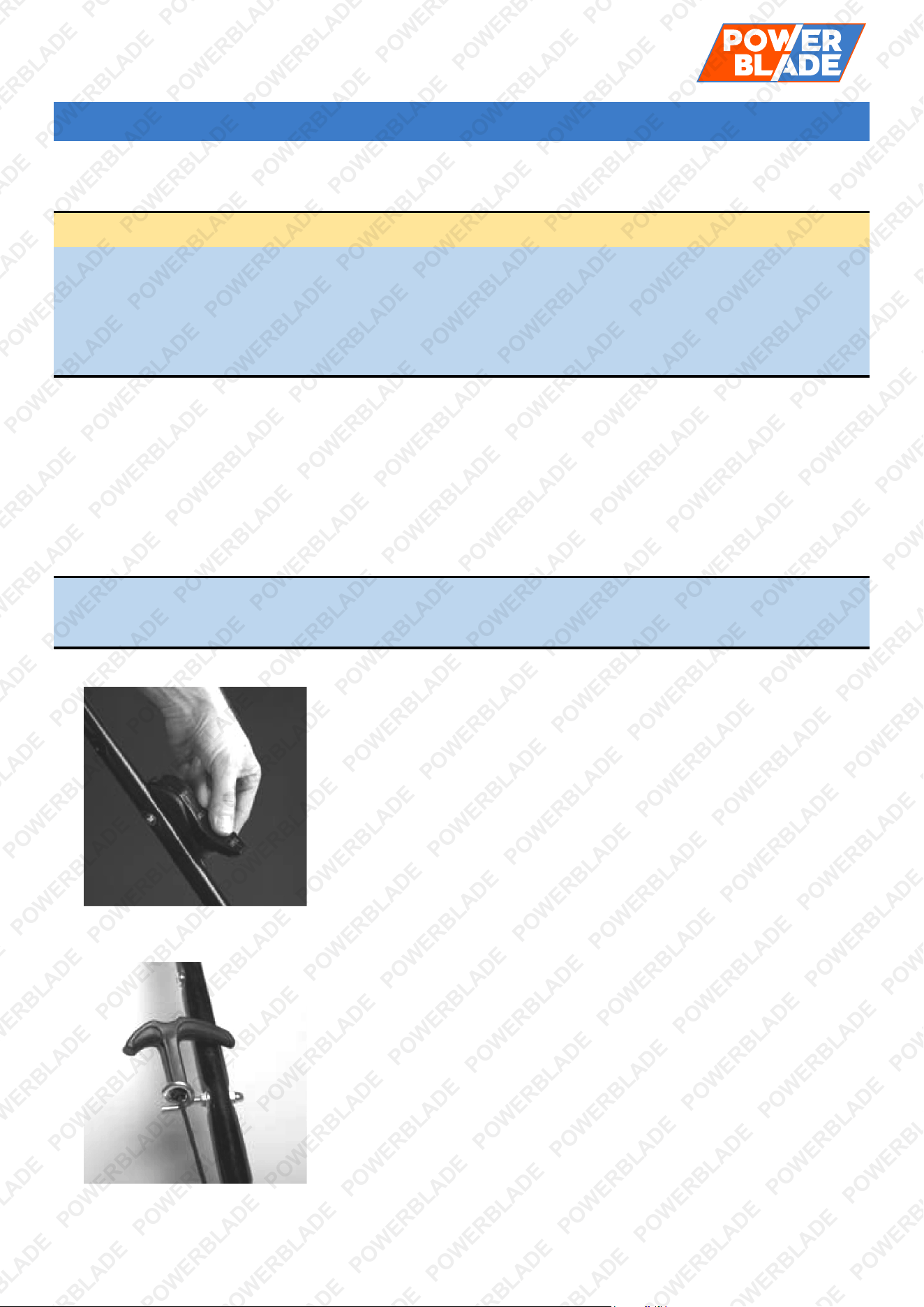

Routing the Throttle and Choke Lever Cables

The images below show how to correctly route the cables. They must be routed on the inside of the handles if

you intend on regularly folding them for storage. If routed underneath the handles or in any other way than

shown, you will risk pinching and damaging the cables.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 14

VIDEO TUTORIAL: FOLDING THE HANDLES FOR STORAGE

Checking the Engine Oil Level & Filling with Engine Oil

CAUTION: The following procedures and

adjustments must be performed before the

engine is started. Do not attempt to make any of

these adjustments while the engine is running.

CAUTION: To prevent engine damage, the

engine is shipped without oil or petrol. The

engine must be filled with the correct grade of

oil and petrol before starting the engine.

NOTE: Running the engine with a low oil level

will cause engine damage. It is recommended

that high detergent, premium quality 4-stroke

engine oil be used. Using non-detergent oil can

shorten the engine’s service life and using 2-

stroke oil will damage the engine.

CAUTION: Always use high-quality detergent oil

classified as SAE 30 oil (or equivalent, e.g., SAE

10W/30, often termed as 4-stroke lawn mower

oil). Never use additives with the recommended

oil. To prolong the life of your engine, it is important

that the oil is changed after the first 5 hours of use.

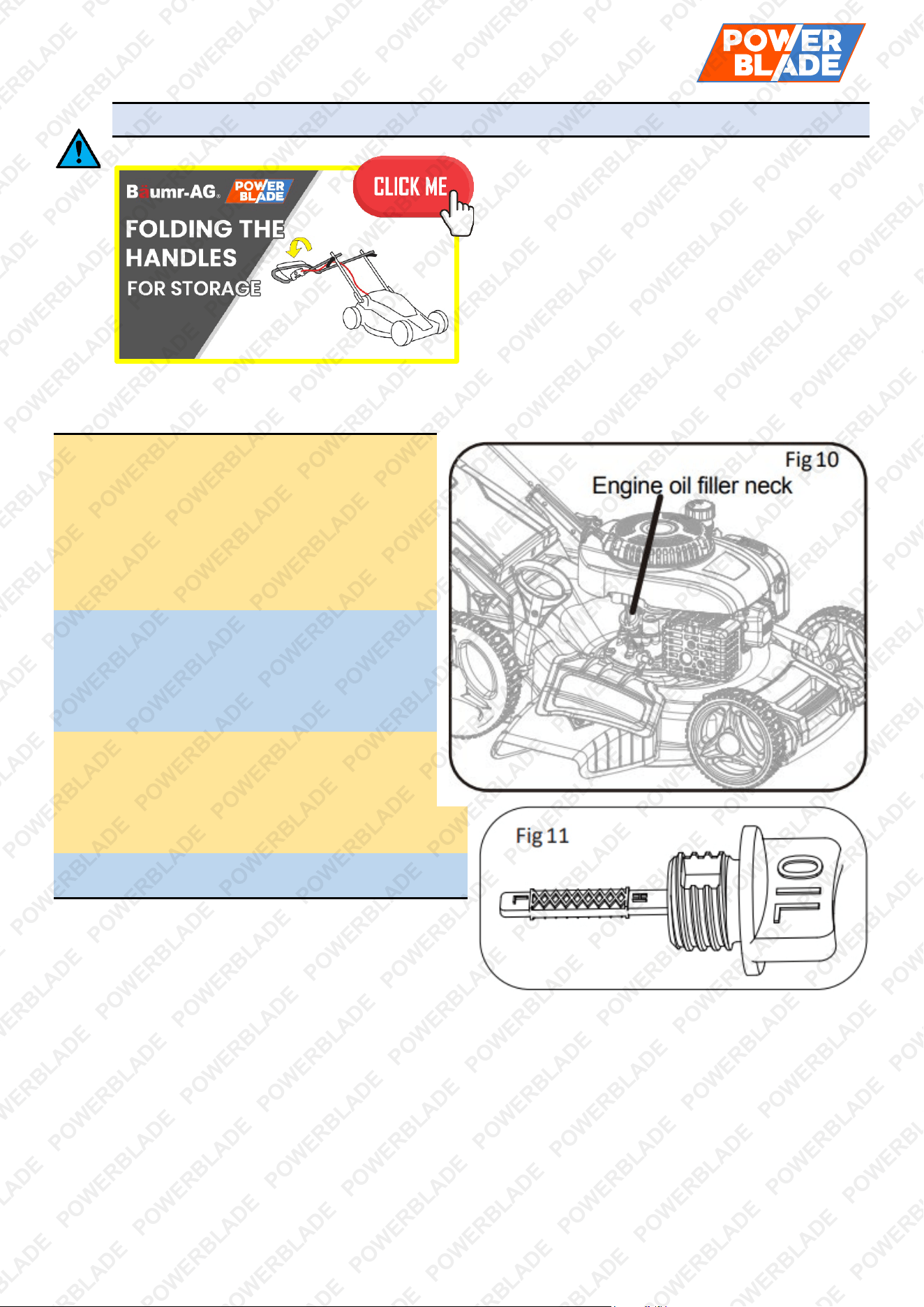

NOTE: To check the engine oil level, stop the engine

and place the mower on a level surface.

1. Remove the oil filler dipstick and wipe oil from it with

a clean cloth.

2. Insert the dipstick into the oil filler neck, but do not

turn it in.

3. Then remove the dipstick and check the oil level. The oil level must be between the Min and Max marks on

the dipstick. If near the lower level, fill to the upper level with the recommended oil (SAE 30 or equivalent).

Do not overfill. Wipe away any spilt oil.

4. Align the ribs of the cap with the groove of the filler neck, then rotate 1/4 turn to secure it.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 15

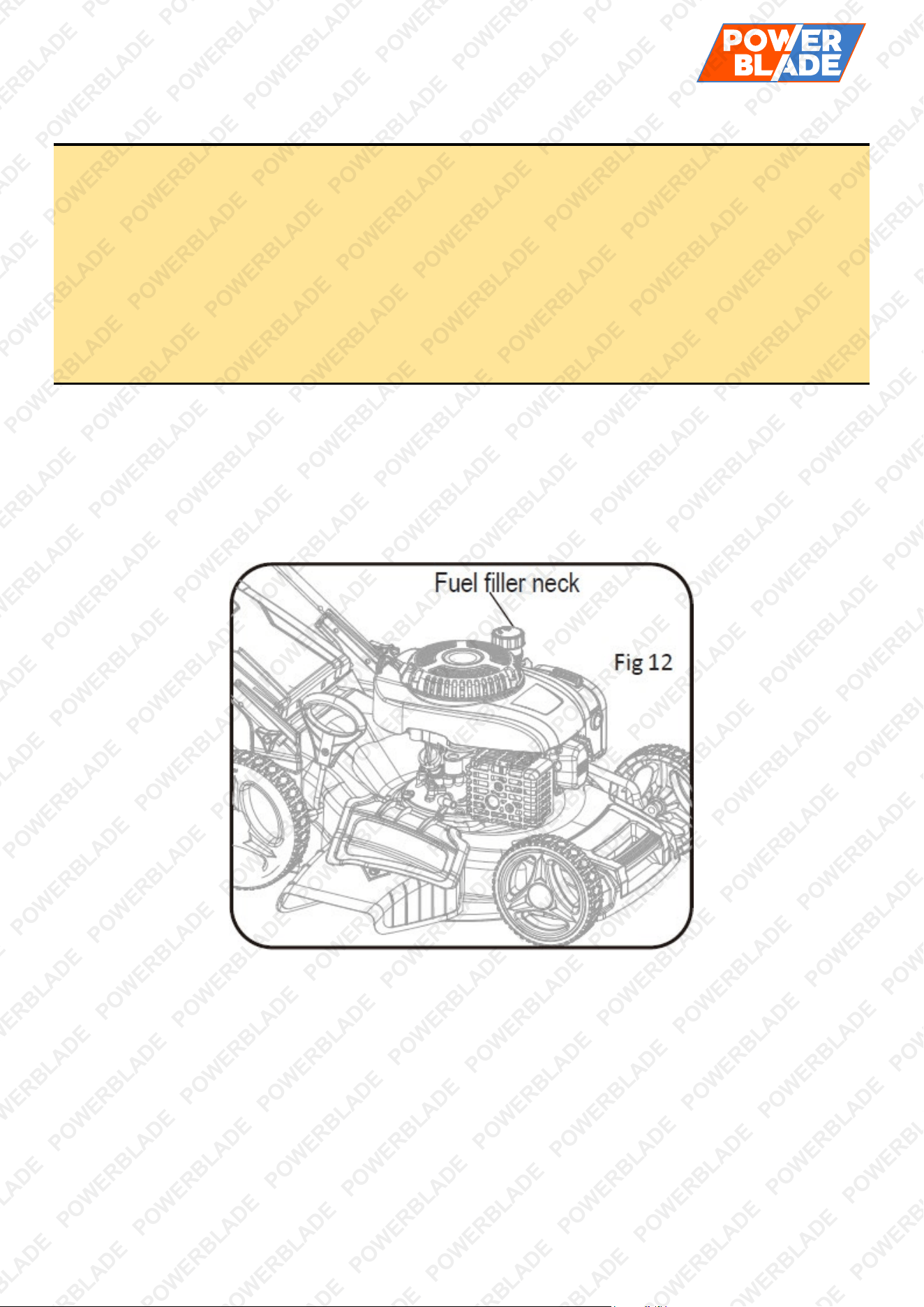

Filling with Engine Fuel

CAUTION: Always use clean, fresh unleaded petrol. Purchase fuel in quantities that can be used within

30 days. Never mix oil with petrol.

CAUTION: Do not fill into the base of the neck to allow for fuel expansion. Do not overfill the fuel tank.

CAUTION: WARNING: Petrol is highly flammable, and extreme precaution must be taken when handling

or working with it. Keep out of reach of children.

CAUTION: To prevent engine damage, the engine is shipped without oil or petrol. The engine must be

filled with the correct grade of oil and petrol before starting the engine.

WARNING: Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or

sparks in the area where the engine is refuelled or where petrol is stored. Avoid repeated or prolonged

contact with skin or inhalation of vapour.

1. Clean the area around the petrol filler cap before removing the cap. Remove the warning tag and check the

fuel level.

2. Refill the tank if the fuel level is low.

3. Refuel carefully to avoid overfilling or spilling fuel. There should be no fuel in the filler neck.

4. Clean up any overflow or splashes of petrol before starting the engine.

5. Tighten the filler cap after filling, finger tight only.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 16

Adjustments

Setting the Cutting Height

CAUTION: Adjust the cutting height only when the engine is switched off and the spark plug boot has

been pulled.

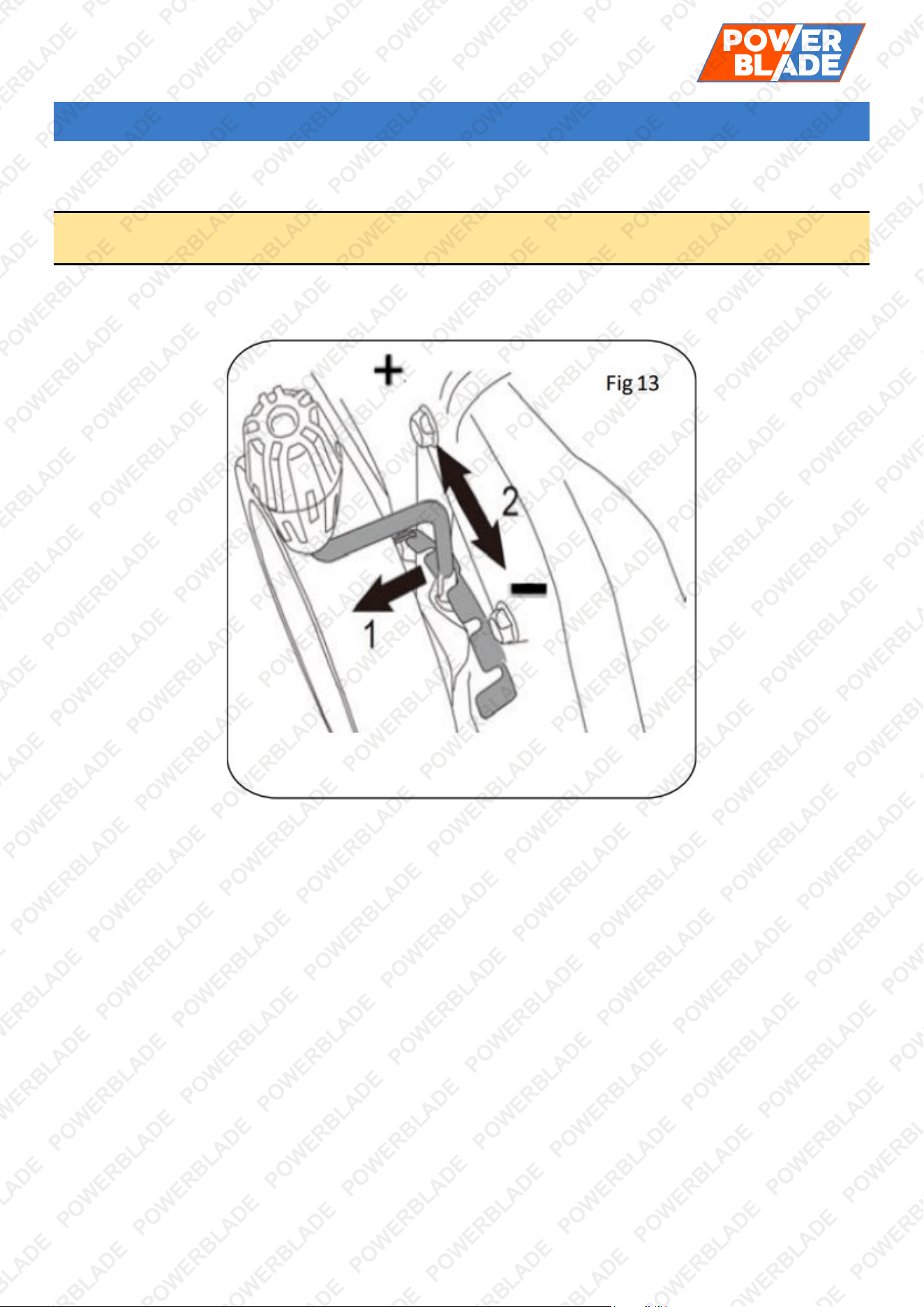

The cutting height is centrally adjusted with the cutting height adjusting handle. Different cutting heights can be

selected.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 17

Operation

Start and Stop the Engine

WARNING: The blade begins to rotate as soon as the engine is started.

NOTE: Do not operate the machine in enclosed or poorly ventilated areas, as the exhaust gas contains

toxic substances. Keep hands, feet, hair, and clothing away from all moving parts of the machine. The

exhaust and other parts of the machine will become hot during use. Make sure that the blade is securely

fastened before starting the engine.

NOTE: To start the engine, make sure that the spark plug boot is located on the plug and the machine is

filled with sufficient oil and petrol.

To Start the Engine

Electric Start:

1. Pull the start/brake lever towards the handle and hold it there.

2. Press the START/STOP button.

Manual Start:

NOTE: • Before starting the mower check the oil and fuel levels. Warranty will be void if the engine

becomes faulty due to insufficient oil and fuel levels. • Ensure the mower is set to the highest height

setting so the blade is not resting deep into the grass.

1. Move the throttle lever to the START/RUN position.

2. Pull the recoil starter lightly until you feel resistance then pull quickly until the engine starts. Do not pull the

cord with a jerk or release it until fully rewound.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 18

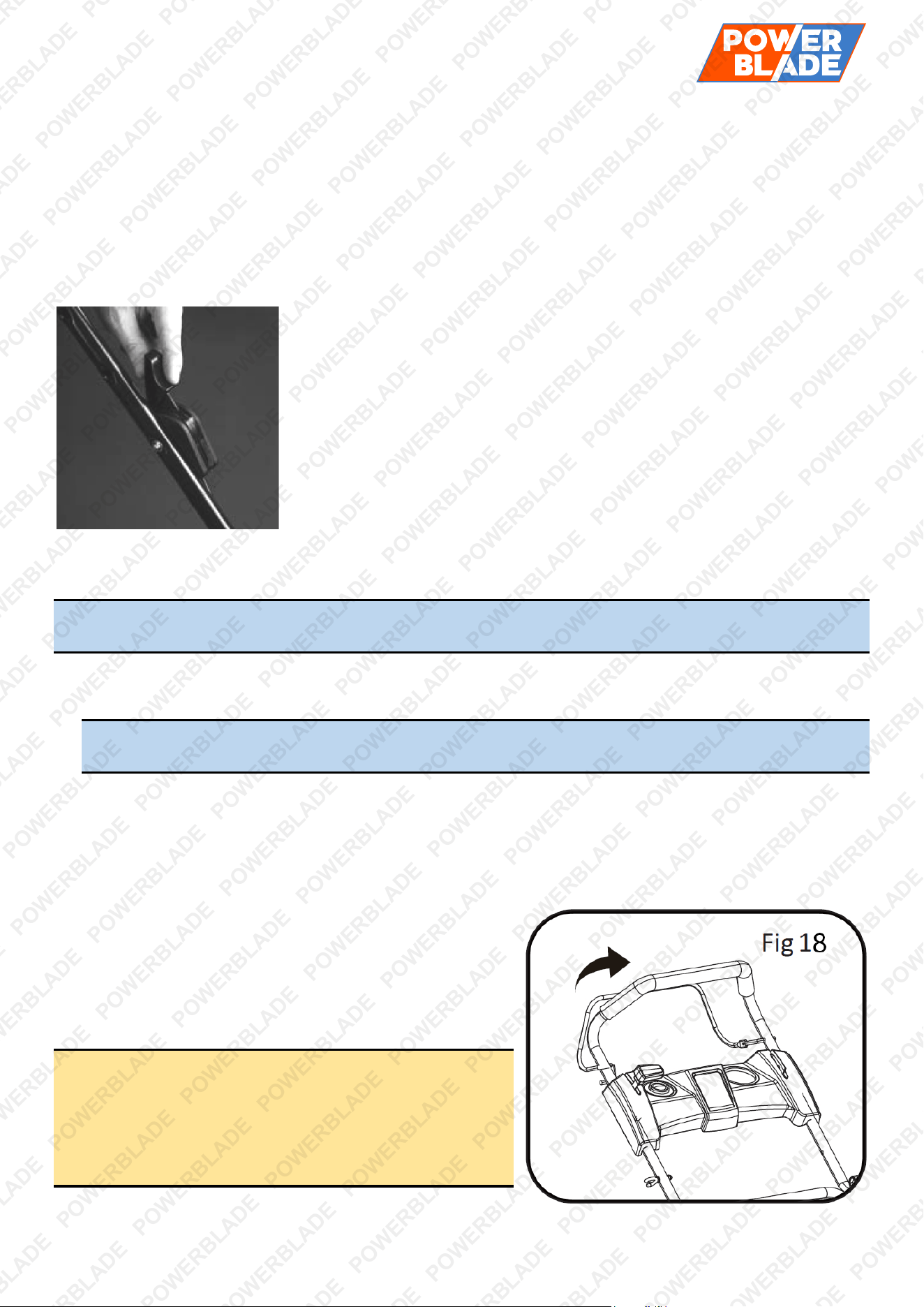

Speed Control

The speed of this motor is preset at the factory and will automatically maintain the motor speed during operation.

There is NO speed adjustment on the Start and stop lever. The lever is just to run or stop the motor.

Stopping the Engine

To stop the engine, push the throttle lever right back to the OFF position.

To Clean a Flooded Engine

NOTE: If the engine won’t start after you have operated the starter several times, the engine may be

flooded with excess fuel. Use the following procedure to clear and start a flooded engine.

1. Release the engine start/stop lever to stop the engine.

2. Remove the spark plug, dry it, and then reinstall it.

NOTE: Install the spark plug carefully by hand to avoid cross-threading. After the plug is seated,

tighten 1/8 to 1/4 turn with a socket spanner to compress the washer.

3. Pull the engine start/stop lever toward the upper handle.

4. Operate the starter as described above.

Using the Self-Propelled Function

As shown in Fig 18, this unit is equipped with a self-propelled

system. If you press the drive lever (clutch lever), the clutch for

the drive will engage, and the lawnmower will start to move

with the engine running.

To stop the moving lawnmower, simply release the drive lever

in good time.

WARNING: Always observe the strictest safety procedures

when using the lawnmower. Carefully read the safety

instructions in this manual before using the lawnmower.

WARNING: Never open the ejector flap when the grass bag

has been detached (to be emptied) and the engine is still

running. The rotating blade can cause serious injuries!

1. Select your required setting.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 19

2. Start the engine, allow it to run, and set it to the required speed (see “To Start the Engine”).

3. Keep a firm grip on the upper handle with the engine stop/start lever and drive lever (clutch lever) engaged

and walk along with its self-propelling to start mowing.

When Mowing:

•

Walk. never run with the mower. be very careful when mowing uneven or rough ground.

•

Mow across slopes. never up and down.

•

Be careful when changing the direction of the mower on a slope.

•

Do not mow excessively steep slopes.

Note: Grass clippings can clog underneath the mower deck, preventing the blades from turning. This

can overheat the engine, causing excessive wear to engine components, reducing the lawn mower's

overall lifespan or catastrophic failure of engine bearings and pistons.

Clogging occurs if you mow wet, long, or lush grass. For the best result, mow when the grass is dry

and use a whipper snipper to reduce the height of grass longer than 15cm (6”) before mowing on the

highest cutting setting.

•

Grass grows at different rates at different time of the year. Never use the lowest cutting height for the first cut

of the season or in drought conditions.

•

Only about one thirds of the grass height should be cut.

•

When mowing with the mulching function, do not cut high or wet grass to ensure that the cut grass can be

scattered efficiently. When you have been cutting for several minutes, please stop the mower, and clean the

blade and the deck.

•

Do not remove grass debris in the mower casing or on the blade by hand or with your feet. Instead, use

suitable tools such as a brush or broom.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 20

Emptying the Grass Catcher

A lawn mower generates significant airflow when it moves the grass into the catcher. The catcher is fitted with a

full indicator flap, which stays up if there is space inside. When the space inside the catcher is filled with grass,

the airflow is no longer enough to raise the flap. The flap will drop at this point, indicating it is time to empty the

catcher.

As soon as grass clippings start to trail the lawn mower, it is time to empty the grass catcher.

NOTE· Before taking off the grass catcher, switch off the engine and wait until the blade has come to a

stop.

1. To take off the grass catcher, use one hand to lift up the ejector flap and the other to grab onto the carry

handle. The ejector flap automatically falls down after removing the grass catcher and closes off the rear

chute opening.

2. Empty the grass catcher of grass debris and then refit grass catcher.

NOTE: If any grass residue is caught in the discharge chute, clean it using a brush. Do not remove grass

debris in the mower casing or on the blade with your hand or feet. Instead, use suitable tools such as a

brush or broom. To ensure that the cut grass can be collected into the grass catcher, the discharge

opening, and interior of the mower casing must be cleared of any blockage.

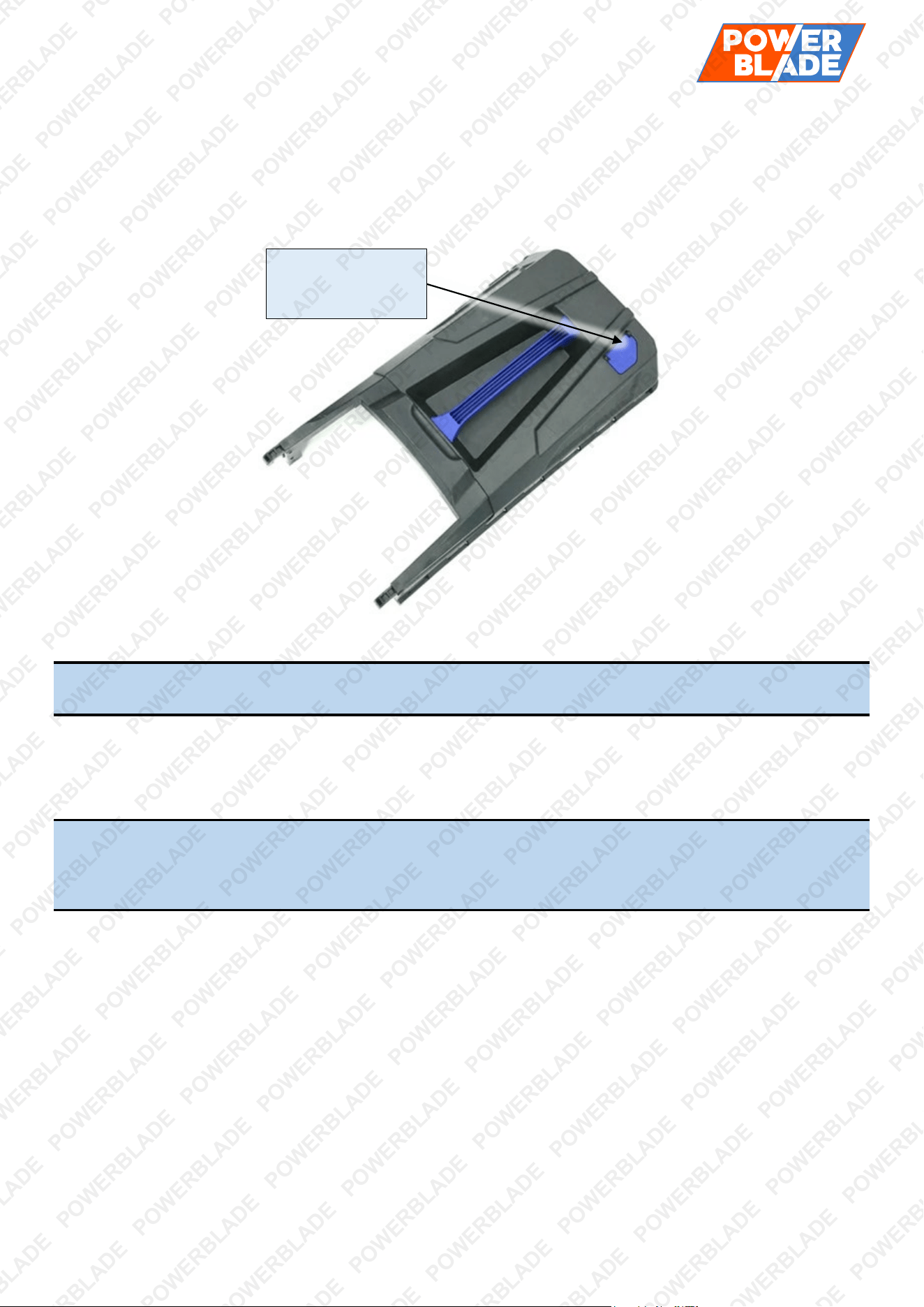

Grass catcher full

indicator flap

(example)

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

E&OE © PowerBlade 21

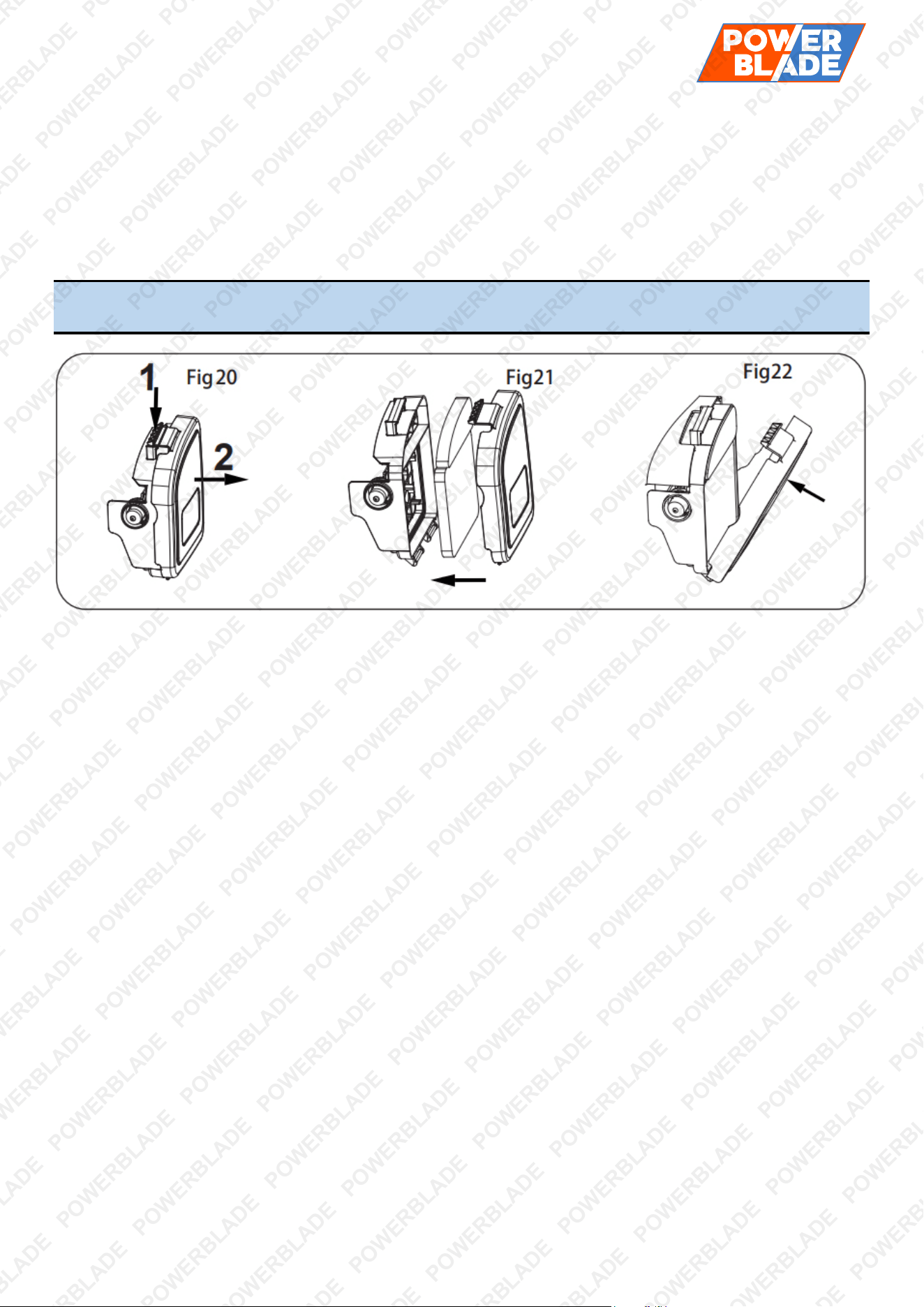

Lithium Battery Care and Maintenance

Top 3 Battery Care Requirements

1. Charge battery before first use. The battery may arrive with some charge, regardless of this the

battery must be charged on the initial charge and for each subsequent charge.

2. Charge battery immediately when it is depleted. Do not store a depleted battery. This will

permanently impact the life of the battery. If the battery is going to be stored for a period of time, fully

charge the battery before storing.

3. Disconnect battery when not in use. To prolong the life of a battery, disconnect it from the unit

when not in use. Disconnect chargers from the battery once charged.

To ensure the battery maintains optimum performance, follow the guidelines outlined below.

•

For best results, charge batteries in temperatures between 10°C and 30°C

•

When battery is charged, disconnect the charger from the power supply and remove the battery from the

charger.

•

If a battery is stored or otherwise unused for an extended period, and the battery has no charge remaining

when you check it, consider it to be damaged. Do not attempt to recharge it or to use it. Replace it with a

new battery.

•

Use only with the battery charger specified by the manufacturer.

•

Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the

battery charger if it has a damaged electrical cord or plug.

•

Do not use the charger in wet areas or expose it to rain or water.

•

The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to 500 charge cycles,

whichever occurs first. One charge cycle is a period of use from fully charged, to fully discharged, and fully

recharged again.

•

Explosion hazard – protect the battery against heat, for example, direct sunlight and fire. Do not store

batteries in vehicles or locations subject to heat.

•

Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of

serious personal injury, never use any cordless product in the presence of open ﬂame. Exploding batteries

can propel debris and chemicals.

•

Do not open the battery – danger of short-circuiting and/or explosion.

•

Do not attempt to destroy or disassemble the battery pack or remove any of its components.

•

Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury

may result.

•

Explosion hazard – do not open and/or short-circuit the battery.

•

Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the

battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with

water. If liquid contacts eyes, immediately seek medical attention, flush with clean water for at least 10

minutes. Liquid ejected from the battery may cause irritation or burns.

•

Dispose of non-serviceable batteries in an environmentally responsible manner and according to local

regulations.

Failure to adhere to the requirements above may result in the battery becoming inoperative or battery life being

reduced. In extreme cases or abuse, battery overheating, or fire may result.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

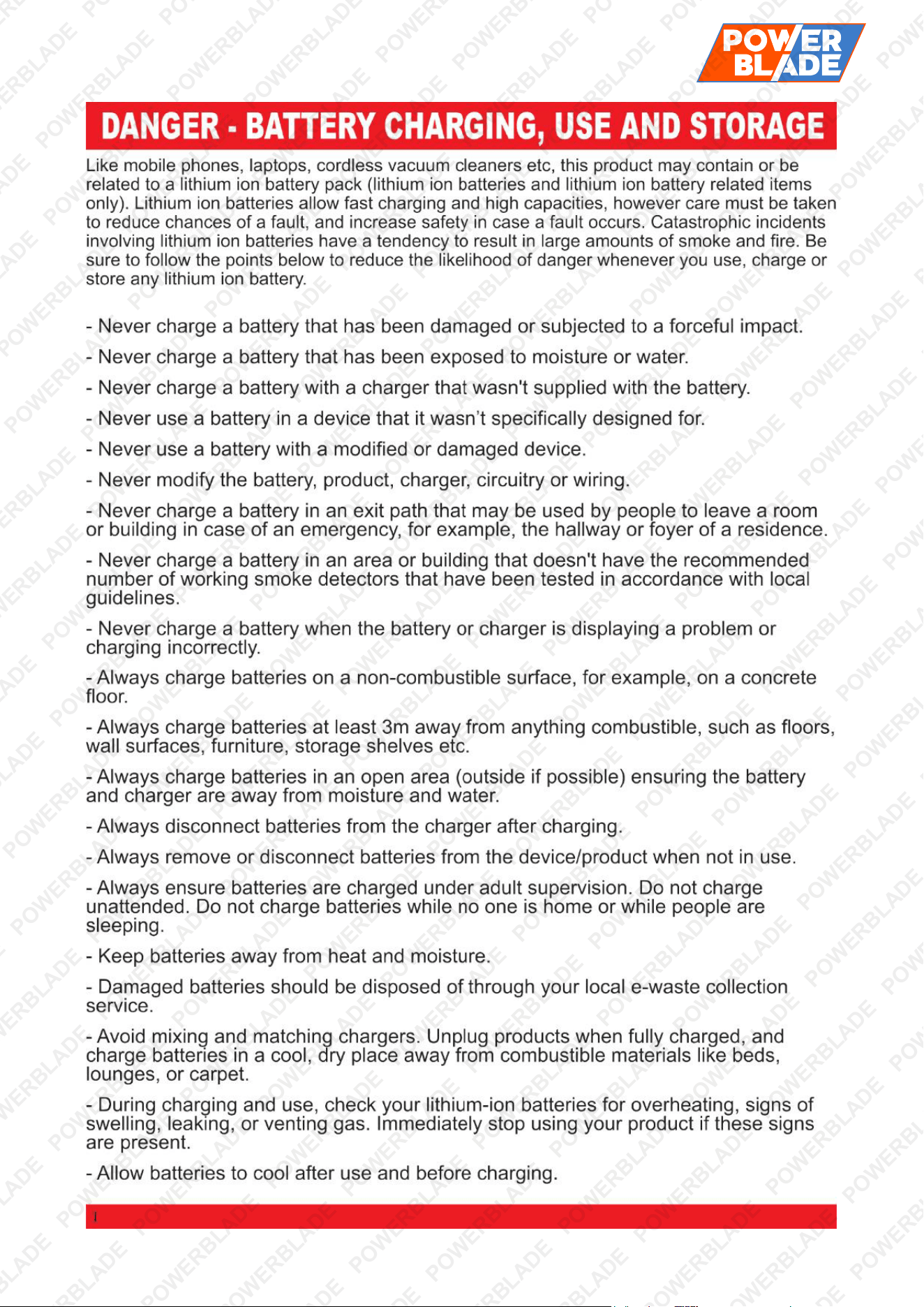

VS1000 22” Electric Start Lawn Mower

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

Maintenance

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends

on factors such as proximity to the ocean and humidity or condensation of water vapour on metal

surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when applied

periodically, it will prevent rust from forming.

WARNING: Before performing any maintenance or cleaning work, switch off the engine and wait until the

blade has come to a stop.

General Cleaning

The lawn mower should be cleaned thoroughly every time after it has been used. Always clean your lawnmower

immediately after use. Do not allow grass cuttings and other debris to become dry and hard on any of the mower

surfaces. Dried grass remnants and dirt may impair the mowing operation.

•

Check that the grass chute is free of any residual grass. Remove any such residue.

•

Check the underside of the lawn mower and the blade mount. For this purpose, tilt the lawn mower onto its

left side (opposite the oil filler neck).

NOTE: Before placing the lawn mower on its side, fully drain the fuel tank using a petrol extraction

pump. Do not tilt the lawn mower by more than 90 degrees.

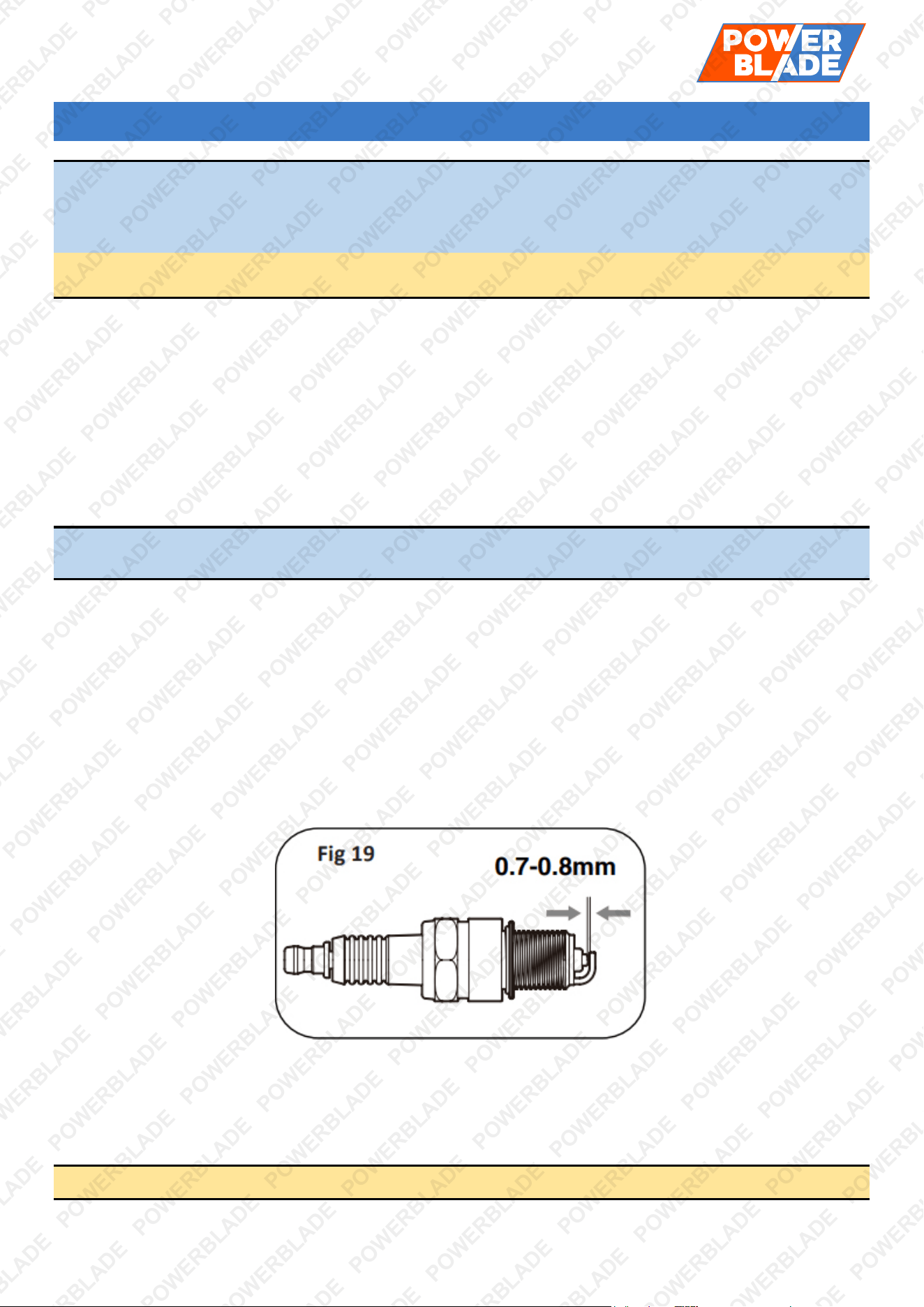

Spark Plug

1. Once the engine has cooled, pull off the spark plug with a twist.

2. Remove the spark plug using a spark plug wrench.

3. Clean the spark plug with a wire brush (not supplied).

4. Using a feeler gauge, set the gap to 0.75 mm.

5. Install the spark plug carefully by hand to avoid cross-threading.

6. After the spark plug is seated, tighten with the spanner to compress the washer.

How to Service the Air Filter

Soiled air filters reduce the engine output by supplying too little air to the carburettor. If the air contains a lot of

dust, the air filter should be checked more frequently.

WARNING: Never run the engine without the air filter element installed.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

1. Remove the air cleaner outside cover. Be careful to prevent dirt and debris from falling into the air cleaner

assembly.

2. Separate the air filter from the air filter housing.

3. Inspect the air filter. Clean a dirty air filter with warm water and mild soap. Allow the air filter to dry thoroughly

before re-installation.

4. Install the air filter assembly onto the carburettor and secure it with a screw.

NOTE: Do not use pressurized air or solvents to clean the filter. Pressurized air can damage the filter,

and solvents will dissolve the filter.

Changing the Engine Oil

1. Tilt the lawnmower towards the oil filler, have a container ready to catch the oil, and remove the dipstick.

Once the oil has been emptied, replace the dipstick and wipe clean any spillages.

2. Refill with 400 ml of SAE 30 oil or equivalent, i.e., SAE 5W/30, SAE 10W/30. When the dipstick is rested on

the filler pipe (i.e., not turned in place), the oil level must be between the min and max marks on the dipstick.

See "Checking the Engine Oil Level and Filling with Engine Oil."

3. Start the engine and allow it to run briefly.

4. Stop the engine, wait one minute, and check the oil level. Top up if necessary.

Note: See more in the engine manual (if available).

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

Replacing the Blade

For safety reasons, you should only ever have your blade sharpened, balanced, and mounted by an authorised

service workshop. For optimum results, it is recommended that the blade be inspected once a year.

WARNING: Before you remove the grass collection bag, stop the engine, and wait until the blade stops

completely.

WARNING: You will need garden gloves (not provided) and a spanner wrench (not provided) to remove

the blade.

NOTE: Don’t invert the mower. Tip it slightly towards the oil filler pipe and reach under the deck.

WARNING: Always handle the blade with care; sharp edges could cause injury. Use gloves. Renew your

metal blade after 50 hours of mowing or 2 years, whichever is sooner, regardless of condition.

WARNING: If the blade is cracked or damaged, replace it with a new one.

WARNING: Don’t hold the blade directly by hand.

NOTE: Maintain the sharpness of the blade when cutting grass. If the blade has worn excessively and

become pitted and blunt, it should be replaced or sharpened. The sharpness of the blade will affect the

performance of the lawnmower.

Storing the Lawnmower for Short Periods

The lawnmower can be stored for short periods of time (less than 15 days) without performing any storage

maintenance. Before placing the lawnmower into storage, always carry out the following:

1. Allow the engine to fully cool.

2. Ensure the grass bag is empty.

3. Clean all debris from under the mower deck.

4. Store the lawnmower on a flat and level surface with the mower upright.

5. Store in a safe place which is not accessible to children or people who are not familiar with its operation.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

Storing the Lawnmower for Extended Periods

If the lawnmower is to be placed into storage for more than 15 days, storage maintenance must be performed. If

the following steps are not carried out, the lawnmower may not start correctly when next operated and may need

to be serviced.

CAUTION: Do not empty the petrol tank in enclosed areas, near fire, or when smoking. Petrol fumes can

cause explosions and fire.

1. Empty the petrol tank with a petrol suction pump if available.

2. Start the engine and let it run until any remaining petrol has been used up.

3. Change the oil at the end of every season. To do so, remove the used engine oil from a warm engine and

refill with fresh oil.

4. Clean the cooling fins of the cylinder and the housing.

5. Be sure to clean the entire machine to protect the paint.

6. Store the machine in a well-ventilated place.

Maintenance Schedule

Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble-free use.

Please keep this manual safe for future reference. It is recommended that the following maintenance schedule is

adhered to. This will ensure the lawnmower operates correctly and is safe to use.

12 hours of use 24 hours of use 36 hours of use

Air filter Clean Clean Replace

Spark plug Check Clean Replace

Engine oil Check Replace Check

NOTE: The engine oil should be changed after the first 5 hours of use.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

Maintenance Schedule – Petrol Engine / Machine

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Replace

Check. Tighten as necessary

Replace

Clean

Replace as necessary

Check. Clean

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Check level. Adjust as necessary

Perform

Sharpen. Replace as necessary

R

eplace

Replace

Check. Replace as necessary

Major Service

–

Normal Use

24 Months / 200

Hours Use

12 Months /

100 Hours

Use

Clean, Oil and Replace

as necessary.

Clean. Replace as necessary

6 Months / 50

Hours Use

Clean. Replace as necessary

3 Months / 25

Hours Use

Check

After First 5

Hours Use

Every Use

Check level. Adjust

as necessary

Check

Check level. Adjust

as necessary

Check level. Adjust

as necessary

Check tension.

Clean & adjust as

necessary.

How to

remove the cover.

Component / Task

Engine Oil

****

Engine Oil Filter

*

Loose Engine / Machine

Fasteners

Air Filter

Spark Plug

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Float Bowl

*

Fuel Lines / Hoses

Fuel injector

*

Fuel Pump

*

Fuel Tank

Idle Speed

Valve Clearance

Cylinder Head Fasteners

Combustion Chamber

Battery Electrolyte

*

Major Service

Cutting Blade / Chain

*

Water Pump Oil

**

Hydraulic Fluid

***

Drive Belt

Maintenance *

* Where applicable. ** Pressure washers with non-sealed water pumps. *** Log splitters only.

**** Briggs & Stratton "EXi" engines do NOT require engine oil changes; just ensure that oil level is correct.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

Transport

1. Empty the petrol tank. Always let the engine run until it has used up the remainder of petrol in the tank.

2. Empty the engine oil from the warm engine.

3. Remove the spark plug boot from the spark plug.

4. Clean the cooling fins of the cylinder and the housing.

5. Use the original packaging to ship whenever possible.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

Troubleshooting

WARNING: Before performing any maintenance or cleaning work, switch off the engine and wait until the

blade has come to a stop.

CAUTION: • Improper repairs can result in the product functioning unsafely. This endangers yourself

and your environment. • Faults which cannot be rectified with the aid of following table may be rectified

by a specialist company only (customer service centre). • Please be aware that any improper repairs will

also invalidate the warranty and additional costs may be incurred. • Use only genuine spare parts. Only

these spare parts are designed and suitable for the product. The use of other spare parts not only voids

the warranty, you can also endanger yourself and your environment.

Fault/Malfunction Cause Remedy

Loud while running, machine

vibrates heavily

Screws are loose Check screws

Blade fasteners are loose Check blade fasteners

Blade is unbalanced Replace blade

Engine does not start

Spark plug is defective Replace spark plug

Cutting blade worn or

damaged

Replace blade

Fuel tank is empty Refill with fuel

Engine may be flooded Remove plug and dry

Engine runs unsteadily

Air filter is soiled Clean the air filter

Spark plug is soiled Clean the spark plug

Uneven mowing results

Blade is blunt Sharpen the blade

Cutting height is too low Set correct height

Grass catcher is not filled

sufficiently

Blade is worn Replace the blade

Grass catcher is clogged Empty the grass catcher

Lawn / Grass is wet Allow the lawn to dry

Discharge

channel/housing blocked

Clear the discharge channel/housing

Underside of the mower

deck clogged

Clean the underside of the mower deck

Self-propel function no

longer works

Excessive grass build-up.

Remove drive belt cover plate from the underside of

the mower and remove all clumps of grass build-up.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

VS1000 22” Electric Start Lawn Mower

Specifications

Engine Type Air Cooled 4-Stroke

Power Type Petrol

Fuel Type Petrol Regular Unleaded 95+ RON

Engine Displacement 224cc

Starting System Push Button (Electric)

Blade Style Rotary

Blade Type Straight blade

Blade Qty 4

Cutting Width 22”

Deck Material Steel

Cutting Height 25 - 75mm

Front Wheels 8"

Rear Wheels 10"

Height Adjustment System Central, 7 Positions

Warranty 24 Months

Note: Minimal Assembly Required

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.
