BAUMR-AG TILSAWBMRAX95 800W Electric Tile Saw Cutter User Manual

User Manual

[Revision 3.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

•

The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

IMPORTANT!

• BE

AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS BLADES, HOT SURFACES AND MOVING

PARTS.

• MOVING BLADES CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR WITHOUT SUFFICIENT PPE.

• DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE WHEN USING THIS EQUIPMENT.

FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.

• MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.

Intended Use

•

The machine may be used only if all safety and working instructions in these instructions for use are followed, and only for cutting tiles, glazed

tiles as well as marble and granite panels.

• The machine is not suitable for cutting concrete slabs, paving stones or bricks. The device is not suitable for commercial or industrial use.

• Any other type of use is inappropriate.

• Any modification which could lead to a change in the original characteristics of the machine.

• Improper use or modifications to the device or the use of components that are not tested and approved by the manufacture may result in

unforeseen damage!

• Any use that deviates from its intended use and is not included in these instructions is considered unauthorized use and relieves the manufacture

from his or her legal liability.

General Safety Instructions

•

To operate this device safely, the user must have read and understood these instructions for use before using the device for the first time.

• If you sell or pass the device on, you must also read over these operating instructions.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Using of a cord suitable for outdoor use reduce the risk of

electric shock.

General Safety Information for Power Tools

• W

ARNING! READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC

SHOCK, FIRE AND/OR SERIOUS INJURY.

• Store all safety notes and safety instructions for future reference.

• The term power tool in all the warnings listed below refers to your mains operated (corded) power tool.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 4

Safety At Work

•

Keep work area clean and well lit. Cluttered and dark areas invite accidents.

• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gasses or dust. Power tools create sparks,

which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

•

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, range and refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power toll. Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase the risk of electric shocks.

• A residual current device (RCD) is installed to protect the user from electric shock.

Personal safety

•

Safety alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under

the influence of drugs, alcohol or medication. A moment of inattention whole operating power tools may result in serious personal injury

• Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard-hat, or hearing protection

used for appropriate conditions will reduce personal injuries.

• Avoid accidental starting. Ensure the switch is in the off position before plugging it. Carrying power tools with your finger on the switch or plugging

in power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may

result in personal injury.

• Do not overreach. Always keep proper footing and balance. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or

long hair can be caught in moving parts.

• If devices are provided for connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these

devices can reduce dust related hazards.

Power Tool Use and Care

•

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for

which it was designed.

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must

be repaired.

• Disconnection of the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive

safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the

power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any condition. If damaged, have the power tool

repaired before use. Many accidents are caused by poorly maintained electrical tools.

• Keeping cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. In accordance with these instructions and in the manner intended for particular type of power

tool, taking into account the working conditions and the work to be performed. Use of the power tools for operations different from intended could

result in hazardous situation.

Service

•

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power

tool is maintained.

Safety Notes for Tile Cutter

•

Only use the power tool for those materials specified under intended use. The power tool may otherwise be overloaded.

• Make sure that the electric tool is mounted on a flat surface with sufficient load-bearing capacity. A tool not mounted as prescribed is unstable

and dangerous.

• Do not stand on the power tool. There is a risk of serious injury if the power tool tips over or if you accidentally come into contact with the cutting

disc.

• Do not stand in a line with the cutting disc of the electrical tool, but rather always stand laterally offset from the cutting disc. Thus, your body is

protected against a possible setback.

• Use the electrical tool only with the included protective hood. The protective hood must be affixed securely to the electrical tool and set in such a

way that it ensures the maximum level of safety possible, i.e. the smallest possible area of the cutting disc is exposed to the operator. The

protective hood should protect the operator from broken pieces and accidental contact with the cutting disc.

• Use only diamond cutting discs for your electrical tool. Just because you are able to attach an accessory to your power tool does not guarantee

that it is safe to use.

• Do not use any teethed or segmented cutting disc for your electrical tools. When using teethed cutting discs there is danger of backfire.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 5

• The permitted revolutions of the tool must be at least as high as the highest revolutions specified on the power tool. Accessories that rotate faster

than they are permitted to may break and fly around.

• Diamond cutting discs may only be used for the recommended purposes. E.g.: Never use the side surface of cutting disc to grind. Cutting discs

are designed to be used to remove material with edge to the disc. Lateral forces on these tools may break them.

• Always used undamaged tensioning flanges in the correct size and shape for the cutting disc you have selected. Suitable flanges support the

cutting disc and thus reduce the risk of disc breakage.

• External diameter and thickness of the tool must match the dimension specification of your power tool. Incorrectly dimension tools cannot be

sufficiently shielded or controlled.

• Cutting discs, flanges or other accessories must fit precisely to the disc spindle of your power tool. Tools that do not fit precisely to the sanding

spindle f the power tool will rotate unevenly, vibrate heavily and may cause loss of control over the device.

• Do not use damaged tools. Check the tools used for splintering and cracks prior to each use. If the power tool or the tool itself is dropped, check

to see whether it is damaged or use an undamaged tool. When you have checked and inserted the tool, ensure that you and any other people in

the vicinity are clear of the rotating tool and operate the power tool for a minute at the highest revolutions. Damaged tool will usually break within

this test period.

• Wear personal safety gear. Depending on the work you are doing, wear a full-face visor, visor or protective goggles. If appropriate, wear a dust

mask, ear defenders, protective gloves or a special apron designed to keep sanding and material particles away from you. Your eyes should be

protected from the flying objects that may be generated during various applications, Dust or breathing masks must be capable of filtering the dust

generated during operation. If you are exposed to loud noise for extended periods, you may suffer a loss of hearing.

• Ensure that other people are kept a safe distance from your workplace. Anyone entering the workplace must wear personal protective gear.

Pieces of the materials or broken tools may fly away and cause injuries even outside the direct workplace.

• Hold tool by the insulated handle surfaces only when you are carrying out tasks during which is it possible that the tools will come across hidden

power cables or its own cable. Contact with a power-carrying cable can also put metal parts of the unit under power and cause an electric shock.

• Keep the power cable away from rotating tools. If you lose control of the unit, the power cable may be cut or caught up and your hand or arm may

be pulled into the rotating tool.

• Clean the ventilation slots of your power tool regularly. The motor fans draw dust into the housing and a large deposit of metal dust can cause

electrical hazards.

• Never bring your hands into the cutting area when the power tool is running. Contact with the cutting disc holds a risk of serious injury.

• Never reach behind the cutting disc to hold the work piece or to remove chips. The distance between your hands and the operating cutting disc is

too small.

• Only guide the work piece as far as the operating cutting disc. Otherwise there is a risk of kickback when the cutting disc becomes jammed in the

entering work piece.

• Use the power tool only when the work surface is free from all setting tools, work piece parts etc. Objects the come into contact with the rotating

cutting disc may hit the operator at a high speed.

• Always cut one work piece at a time. Work pieces they are stacked or stacked against each other may block the cutting disc or slid about when

cutting.

• Long work pieces must be supported at the free end. Freely swinging work piece ends may cause loss of control.

• Always use a parallel stopper. This improves the accuracy of the cut and reduces the possibility of a jammed cutting disc.

• If the cutting disc is jammed or you need to interrupt your work, switch off the device and hold it motionless until the disc has come to a standstill.

Never attempt to pull a still operating cutting disc out of the cut as this may cause kickback. Investigate and take corrective actions to eliminate

the cause of the jam.

• Do not switch the power tool back on as long as it remains stuck in the work piece. Allow the cutting disc to achieve the full revolutions before you

continue to cut carefully. Otherwise, the disc may get caught, jump out to the work piece or cause kickback.

• After switching off the unit, do not attempt to stop the cutting disc by applying pressure from the side. Touching the cutting disc may lead to

injuries.

• Use the electric tool always with the residual current device. Check the function of the switch before every use. The switch does not protect

against direct touching of electric conductor.

• Never use the electric tool without cooling water. Check the cooling water level before every use. A dry run can cause failure of the tool and thus

lead to injuries.

• Do not pull the mains plug if this or the outlet is wet. First turn off the current by taking out of the fuse and/or with the circuit breaker of the

respective circuit. Pull first the plug and then test the extension for possible water traces.

• Empty the cooling water container before every transport. Residual cooling water can penetrate the electrical motor parts.

Additional Safety Notes

•

Store the unused power tool safely in a dry place that can be locked. This ensures that the power tool is not damaged as a result of storage and

the inexperienced persons do not operate it.

• Never leave the power tool before it has come to a completed standstill. Tools that continue to operate may cause injury.

• Never use the power tool with a damaged cable. Do not touch a damaged cable and pull out the power plug. Damaged cables increase the risk of

electric shock.

• Prevent overheating of the device and the work piece. Excess heat may damage the tool and the device.

• Shortly after being used, the tool may be very hot. Allow a hot tool to cool down. Touching a hot tool may cause burns.

• Never clean a hot tool with flammable liquids. There is a risk of fire and explosion.

• Wear hearing protection when working. The effects of noise can result in a loss of hearing.

• Keep the handles dry and free of grease. Slippery handles can lead to accidents.

• Always comply with all applicable domestic and international safety, health, and working regulations. Inform yourself before you start work about

the regulations that apply at the site of the device.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 6

• Note that the moving parts can also be fitted behind ventilation openings.

• Symbols affixed to your device may not be removed or covered. Information on the device that is no longer legible must be replaced immediately.

Risks Caused by Vibrations

• CAUT

ION! RISK OF INJURY DUE TO VIBRATIONS! VIBRATIONS MAY, IN PARTICULAR FOR PERSONS WITH CIRCULATION

PROBLEMS, CAUSE DAMAGE TO BLOOD VESSELS AND/OR NERVES. IF YOU NOTICE ANY OF THE FOLLOWING SYMPTOMS, STOP

WORKING IMMEDIATELY AND CONSULT A DOCTOR. NUMBNESS OF BODY PARTS, LOSS OF SENSE OF FELLING, ITCHING, PINS

AND NEEDLES, PAIN, CHANGES IN SKIN COLOUR.

• The vibration values specified in the technical data represent the main uses of the device. The actual existing vibrations during use may deviate

from these as a result of the following factors:

• Incorrect use of the product

• Unsuitable tools inserted

• Unsuitable material

• Insufficient maintenance

• You can reduce the risk considerably by following the tips below:

• Maintain the device in accordance with the instructions in the operating instructions.

• Avoid working at low temperatures.

• When it is cold, make sure your body and your hands are kept warm.

• Take regular breaks and move your hands at the same time to promote circulation.

Residual Risk

•

Even when the machine is used for its intended purpose, and all safety instructions in these instructions for use are obeyed, the following residual

risks may arise:

• Contact with the cutting wheel in a position where it is not protected.

• Interfering with the running cutting wheel.

• Using the cutting wheel with damaged diamond layer.

• Rebound of work piece and work piece parts.

• WARNING! THIS MACHINE IS LIKELY TO EMIT NON-IONIZING RADIATION, PRODUCES AN ELECTROMAGNETIC FIELD DURING

OPERATION. THIS FIELD MAY UNDER SOME CIRCUMSTANCES INTERFERE WITH ACTIVE OR PASSIVE MEDICAL IMPLANTS. TO

REDUCE THE RISK OF SERIOUS OR FATAL INJURY, IT IS RECOMMEND THAT PERSONS WITH MEDICAL IMPLANTS TO CONSULT

THEIR PHYSICIAN AND THE MEDICAL IMPLANT MANUFACTURER BEFORE OPERATING THIS MACHINE.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 7

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 8

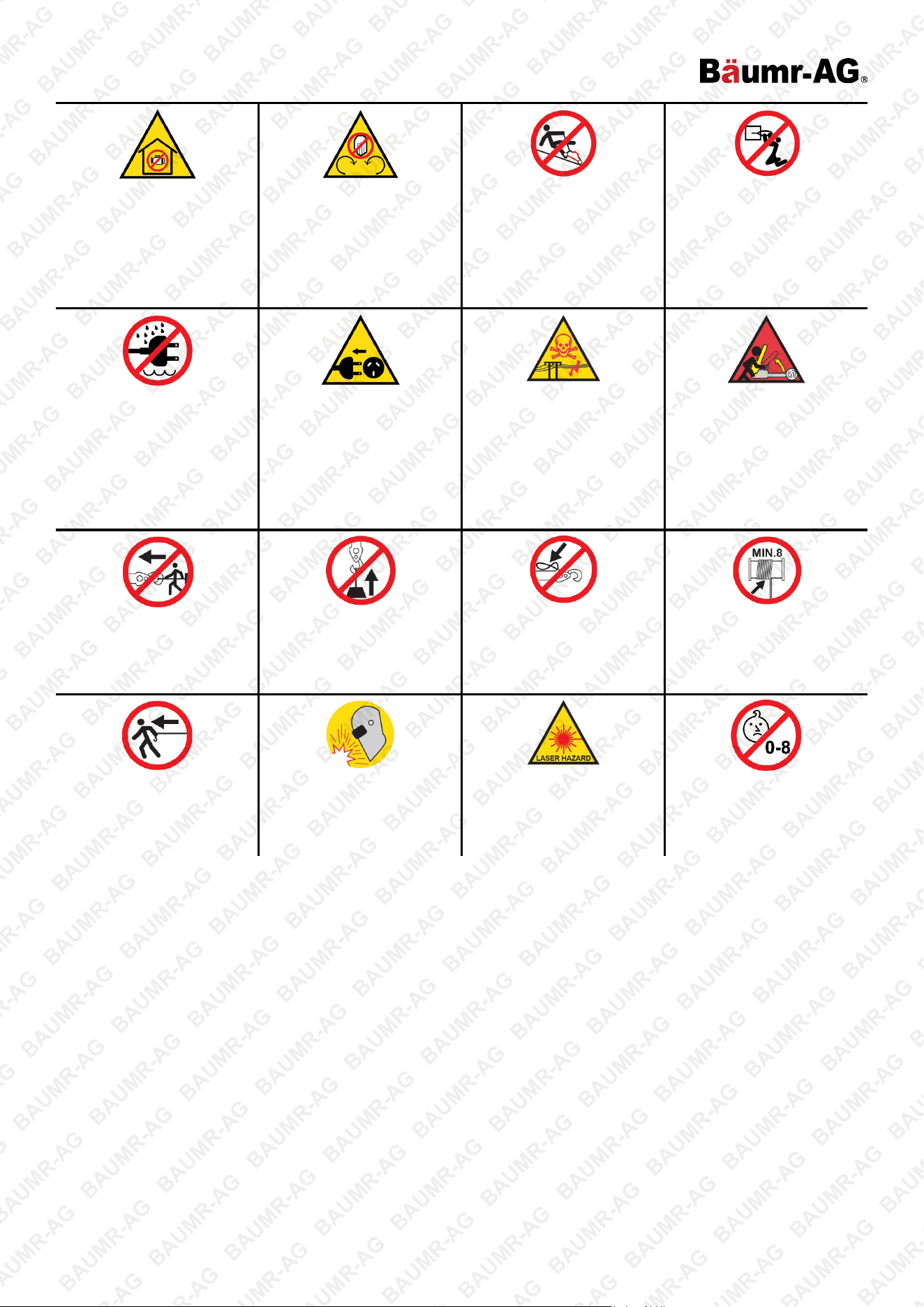

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 9

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 7

Parts Identification ..................................................................................................................................... 10

Assembly ..................................................................................................................................................... 11

Angle Guide Scale and Water Pipe Assembly ......................................................................................................... 11

Folding the Legs Out ................................................................................................................................................ 11

Fitting the Hand Grip................................................................................................................................................. 12

Assembling the Water Pump .................................................................................................................................... 12

Operation ..................................................................................................................................................... 15

First Use ................................................................................................................................................................... 15

Checking the Installed RCD ..................................................................................................................................... 15

Right Angle Cutting ................................................................................................................................................... 16

Device Startup .......................................................................................................................................................... 17

Stop Device .............................................................................................................................................................. 17

Diagonal Cutting ....................................................................................................................................................... 17

Bevel Cutting ............................................................................................................................................................ 18

Servicing the Saw ....................................................................................................................................... 19

Water Change and Tank Cleaning ........................................................................................................................... 19

Cutting Wheel Replacement ..................................................................................................................................... 19

Re-Fitting a Cutting Wheel ....................................................................................................................................... 20

Cleaning and Maintenance ........................................................................................................................ 21

Storage ........................................................................................................................................................ 21

Disposal ....................................................................................................................................................... 21

Troubleshooting ......................................................................................................................................... 22

Specifications ............................................................................................................................................. 23

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 10

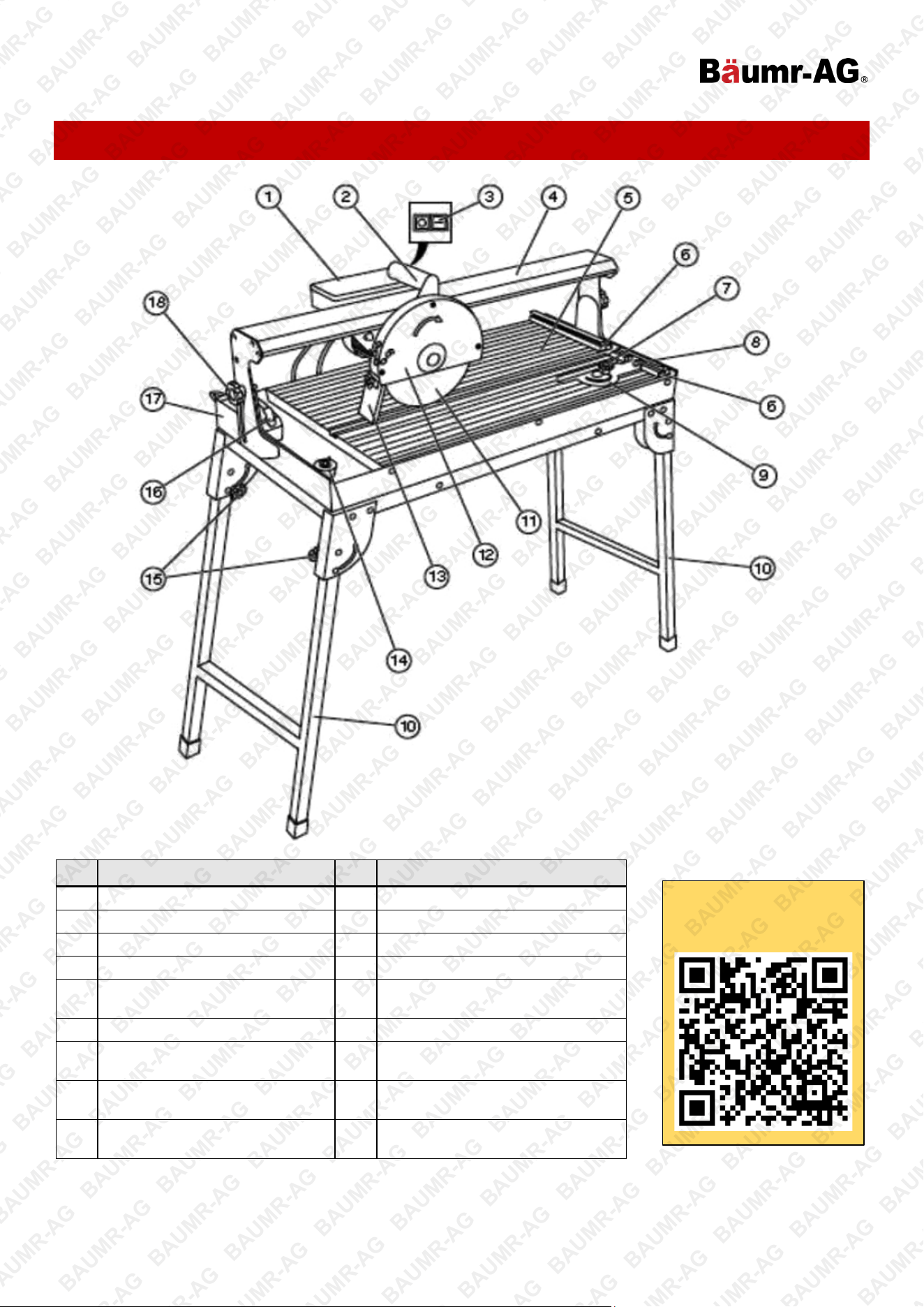

Parts Identification

No. Name No. Name

1

Motor

10

Support legs

2

Hand grip

11

Cutting wheel

3 ON/OFF switch 12 Protective hood

4 Guide rail 13 Water spay protector

5 Work piece support 14

Rubber Stopper for cooling water

outflow

6 Work piece stopper 15 Locking screw-support legs

7

Locking screw-angle guide scale

(star shaped bolt, mitre cut)

16 Cooling water pump

8

Locking screw-angle guide scale

(Knurled bolt, parallel cut)

17 Water tank

9 Angle guide scale 18

Locking screw-angle adjuster (star

handle bolt, Jolly cuts)

Spare parts available

for purchase, scan QR

code below:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 11

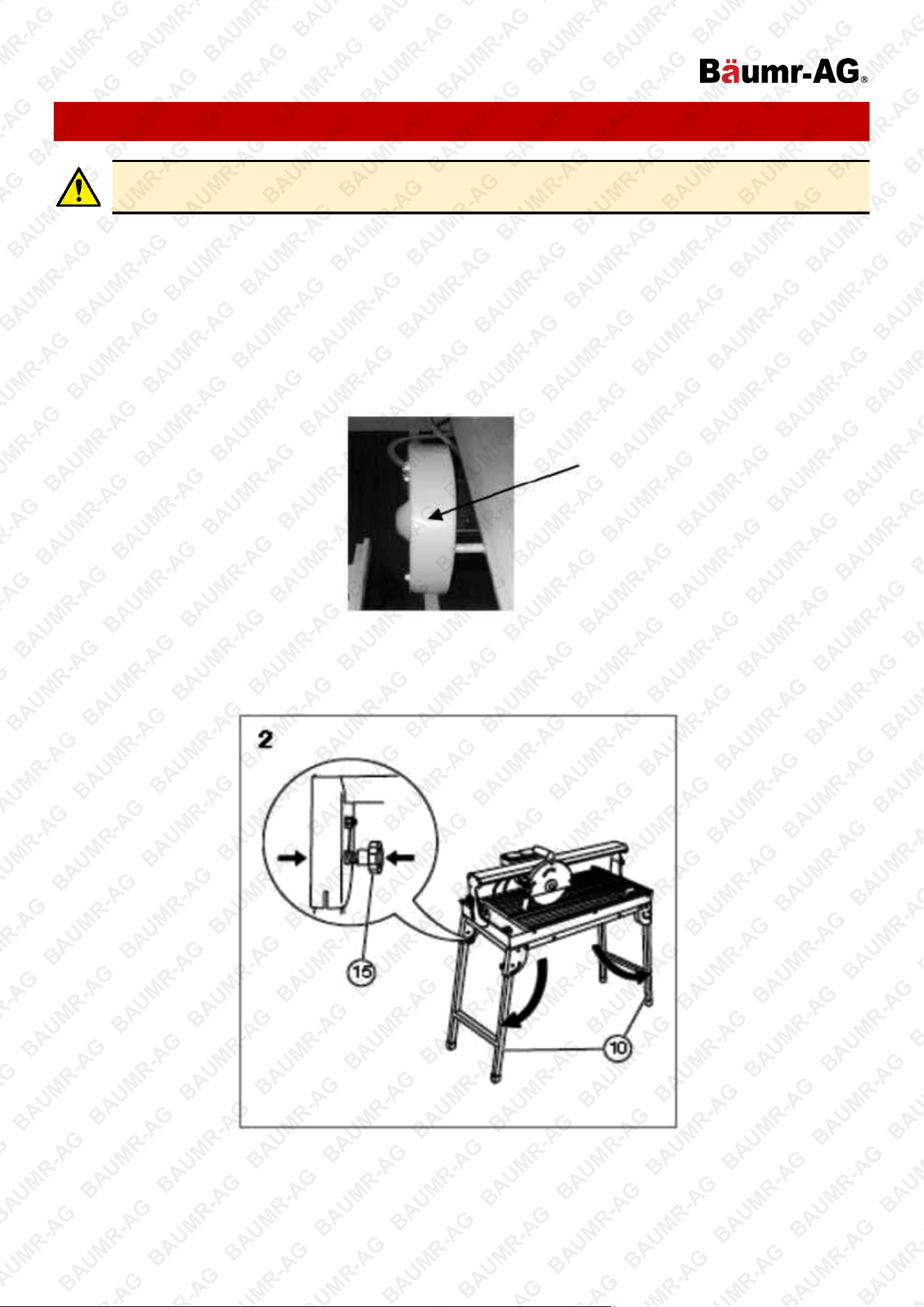

Assembly

DANGEROUS! Danger of injury! No parts may be installed or removed unless the motor has been

turned off and the tool has been unplugged from the mains.

Angle Guide Scale and Water Pipe Assembly

1. Assemble the locking screw (7, 8), parallel to the suitable place.

2. Adjust the angle guide scale (9) to the right degree and secure it.

3. Secure one end of the pipe onto the pump (16).

4. Secure the other end of the pipe onto the connector on inner connector guard of the blade.

Folding the Legs Out

1. Lay the machine on its side.

2. Press in the lock (15) on either side or fold out the support legs (10).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 12

3. The lock must snap back into place!

4. Position the machine and its legs horizontally on a stable and level floor, free of obstacles (except material to

be cut) and adequately lit.

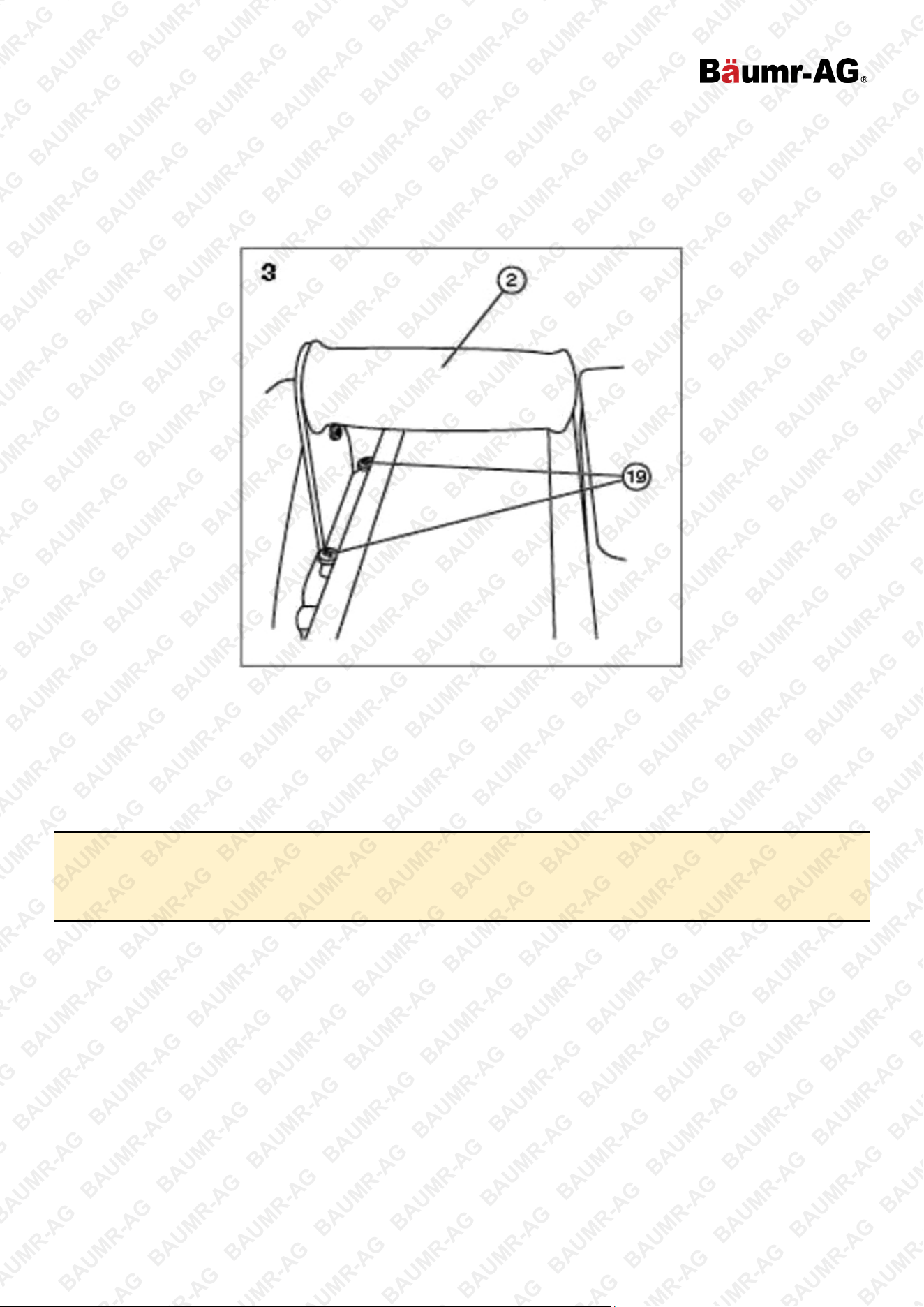

Fitting the Hand Grip

1. Loosen the screws (19) from the cutting head.

2. Insert the hand grip (2) from the side and secure the screws (19) back in.

Assembling the Water Pump

3. Assemble the cooling water pump and fill with cold water. The water bath should be filled up.

WARNING! RISK OF DAMAGE TO THE MACHINE! WHEN FITTING THE WATER PUMP, ENSURE THAT

THE PUMP AND ITS SUPPLY PIPES CANNOT COME INTO THE CUTTING ZONE OF THE CUTTING

WHEEL. THE CLOSURE OF THE PUMP INLET OPENING MUST BE FULLY OPEN DURING CUTTING

OPERATIONS.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 13

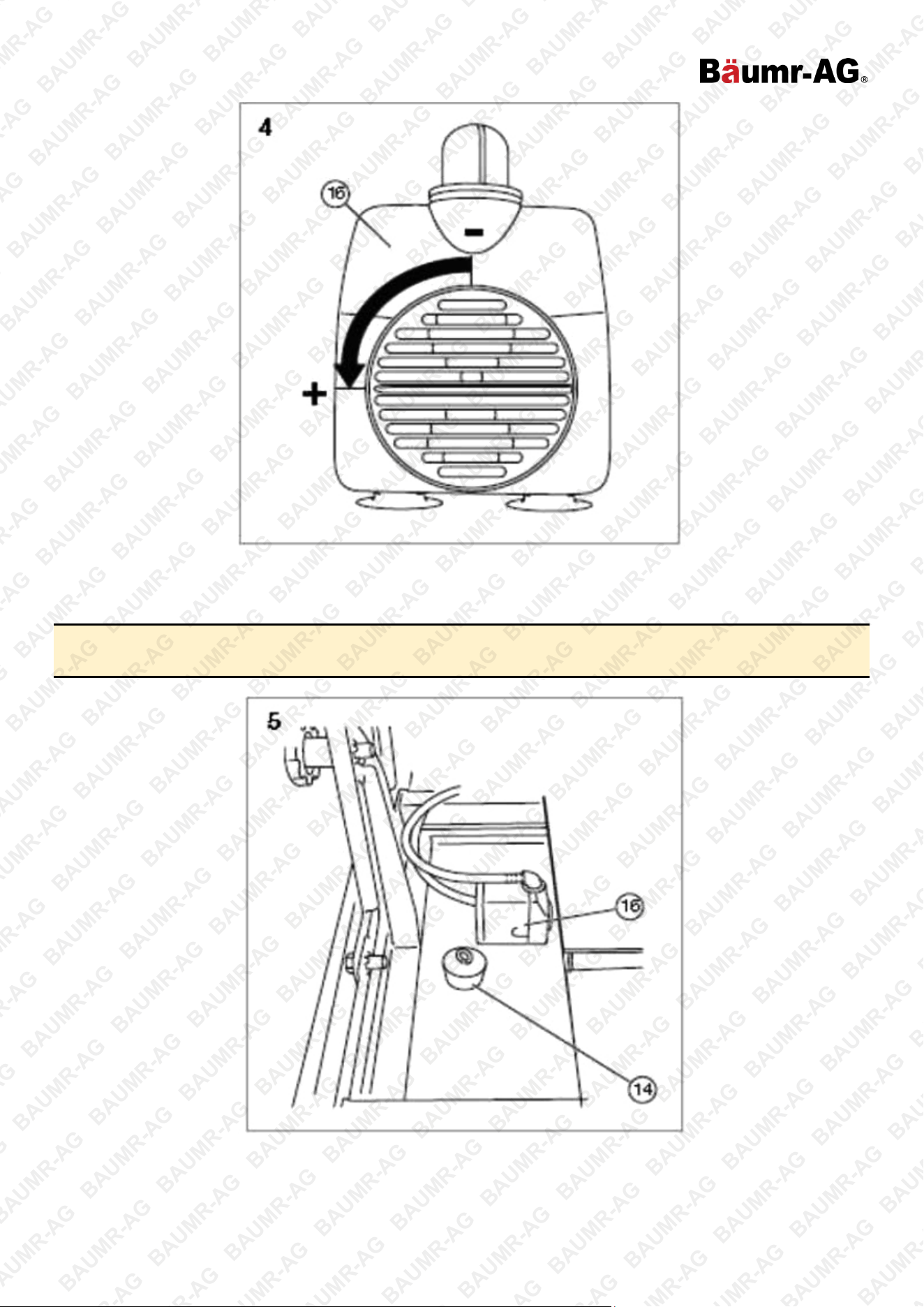

4. The machine is already set up.

5. Turn the closure for the pump inlet to the (+) (open) position.

WARNING! RISK OF DAMAGE TO THE MACHINE! IF THE CLOSURE FOR THE PUMP INLET IS IN THE (-)

(CLOSED) POSITION DURING CUTTING OPERATIONS, THIS WILL DAMAGE THE PUMP MOTOR!

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 14

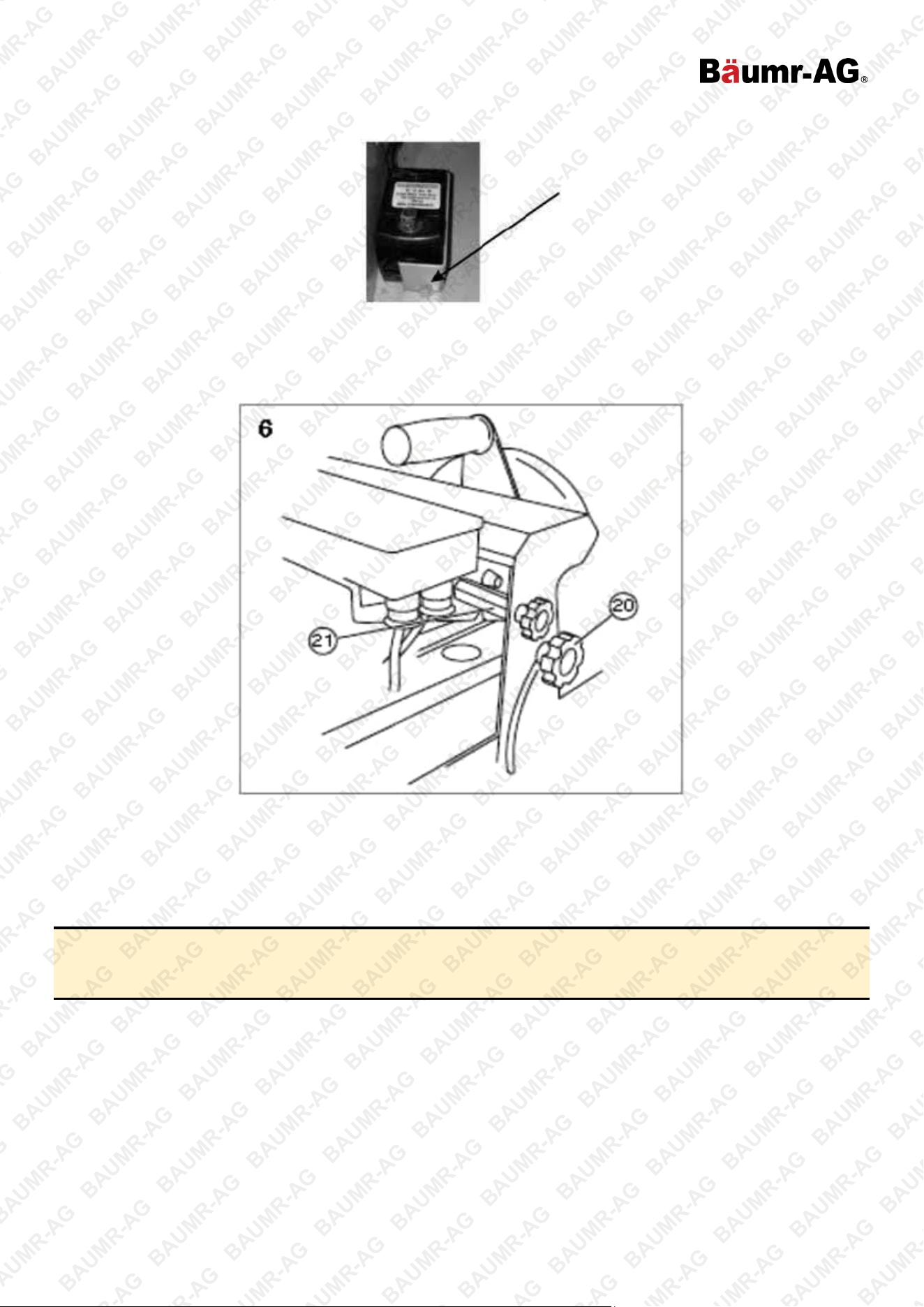

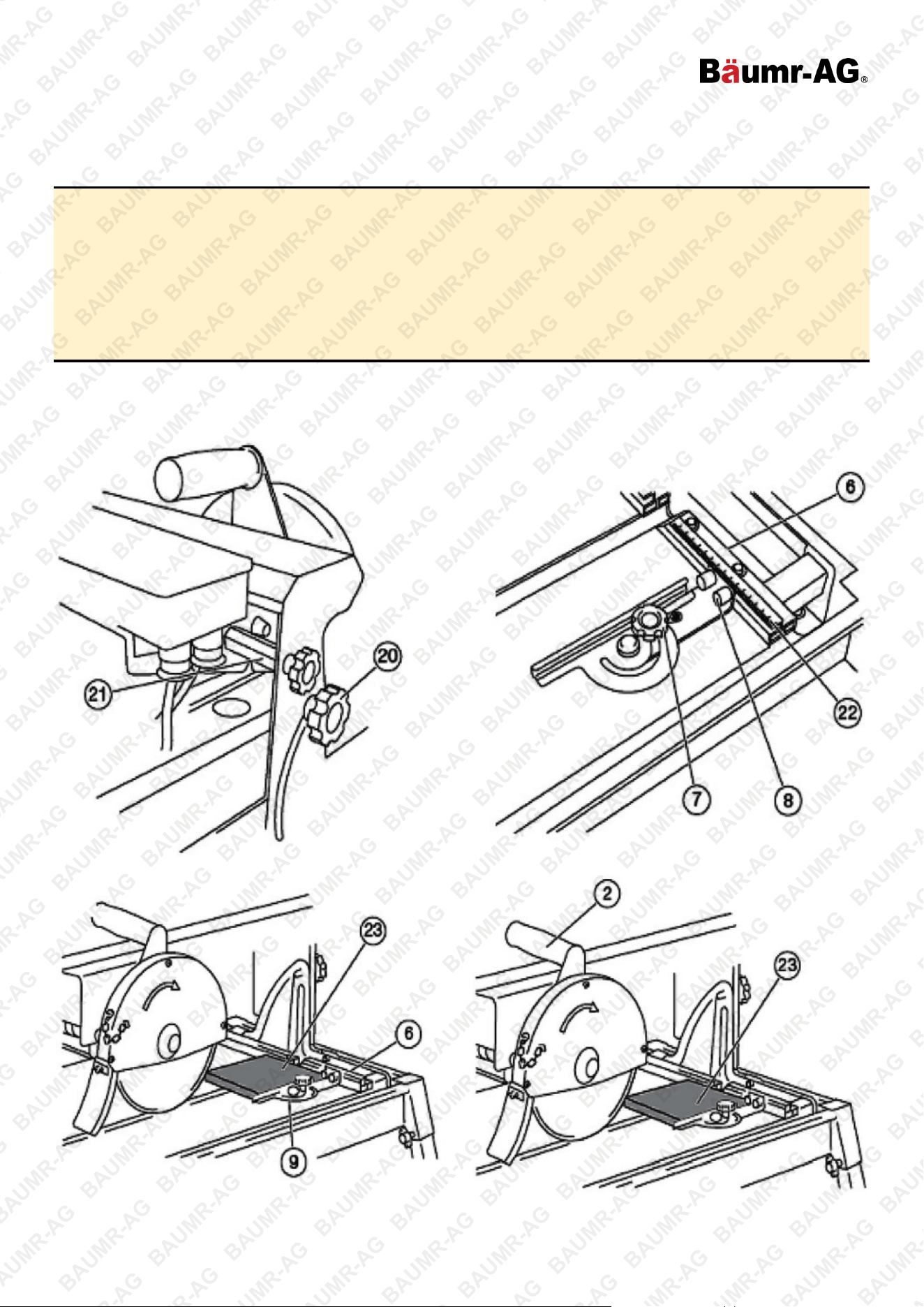

6. Use the pump frame to secure the cooling water pump (16) to the floor of the water tank.

7. Insert the rubber stopper (14) into the opening in the floor of the tank.

8. Fill the tank with water until the inlet opening of the cold-water pump is completely below the water surface.

9. Unscrew the hex screw (20) of the transport protection.

10. The cutting head can be rotated carefully.

11. Slide the cutting head to the side.

12. Unscrew the fastening bolt (21).

WARNING! RISK OF DAMAGE TO THE MACHINE! BEFORE TRANSPORTING THE ENTIRE MACHINE,

YOU MUST FIRST BLOCK THE CUTTING HEAD AGAIN USING THE TRANSPORTING PROTECTOR. DO

NOT SLING/LIFT THE MACHINE IF THIS HAS NOT BEEN DONE.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

E&OE © Baumr-AG 15

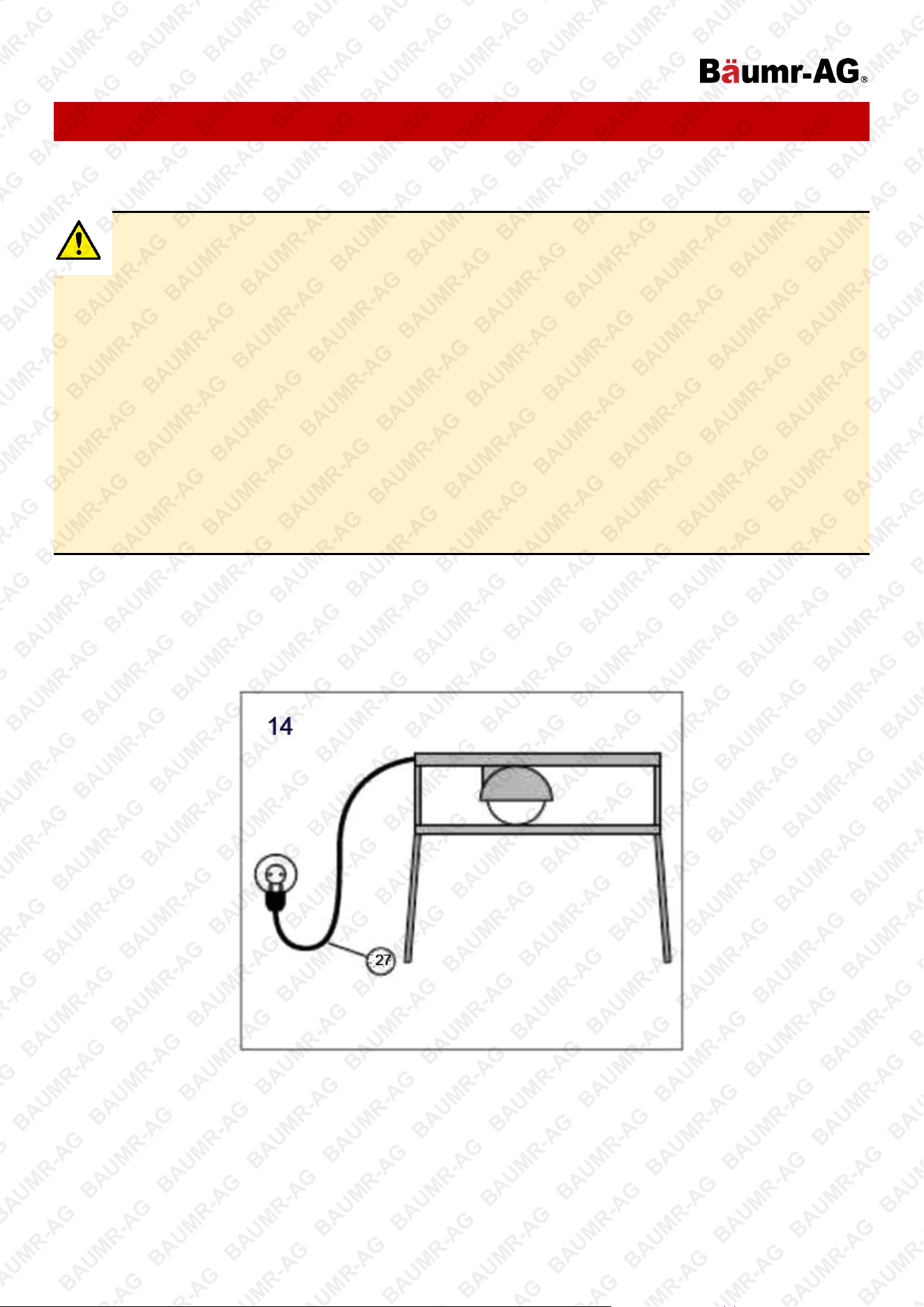

Operation

First Use

DANGEROUS! Danger of injury! Check:  Whether all fasteners are securely tightened and

whether protective devices are properly installed.  Is there any damage on the cutting disc? 

whether the cutting disc is correctly installed and centered relative to the shaft of the cutting

head.  whether the direction of rotation indicated on the cutting disc matches the direction indicated on

the shaft of the cutting head.

DANGEROUS! Risk of electric shock! The device must only be connected to a properly grounded and

grounded outlet. Before connecting, make sure that the cable and plug are not damaged. Make sure that

the mains voltage matches the values indicated on the device.

NOTE! Risk of equipment damage! Make sure the water pump inlet is completely submerged in water.

This device is not intended for long-term use. To avoid overheating and overloading the device, do not

use it for more than 10 minutes at a time. Let the device cool down before starting it up again.

DANGEROUS! Risk of electric shock! Electrical connection. All connections must be dry and must not

touch the ground. Never touch the plug with wet hands.  Position the appliance so that water cannot

enter the plug or socket.  The mains cable should hang in a loop below the level of the socket to

prevent water from running down the cable into the socket.  If the plug is wet, do not unplug the cable!

First, separate the fuse and then pull the plug off.

Checking the Installed RCD

The plug has an installed residual current device (RCD). Check the function prior to each use of the radial tile

cutter.

1. Push the plug into the socket.

2. Press button (reset) (27).

3. The operating display (28) must now light up red.

4. Press button (T) (29).

5. The operating display (28) must go out.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

6. If the test should fail: Do not use the device!

7. If the test id OK: Press the button (Reset) (28) again.

8. The device is now ready for use.

CHECK BEFORE STARTING THE DEVICE! DANGER! RISK OF INJURY! In the event of a functional fault,

immediately press the red button (O) on the ON/OFF switch and unplug.

RISK OF INJURY! The device may only be put into operation if there are no defective, it must be replaced

before the device is used again. Check to make sure the device is in safe operating condition:  check to

make sure there are no visible defects.  check to make sure all device components are correctly

mounted.  check to make sure the safety mechanisms are functioning properly.  check the function of

RCD switch (check the installed RCD-p.15).  check the cooling water level is sufficient.  check the area

which shall be cleared of everything which may hamper the working action.

Right Angle Cutting

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

•

Angle scale adjustment

a. Loosen the star-shaped bolt (7) on the angle scale and set the angle to 90°.

b. Tighten the screw again.

c. Loosen the knurled screw (8) and place the angle scale in the desired position.

d. Retighten the knurled screws.

e. The set cutting width can be read from the scale (22).

•

Workpiece position

− Position the workpiece (23) in such a way that its outer edge rests against the stopper (6) of the

workpiece fixing and is in close contact with the angle scale (9).

DANGEROUS! Danger of injury! Keep away from the working area of the rotating cutting disc

when the machine is in operation.

Device Startup

1. Press the green button on the switch (3).

NOTE: Before starting work, wait until the shaft has reached its maximum speed and the cutting surface of

the blade has been sprayed with cool water.

2. Hold the workpiece (23) with one hand. With your other hand, grasp the cutting head handle (2) and slowly

and evenly move the cutting disc across the workpiece.

Stop Device

Press the red button on the ON/OF switch (3).

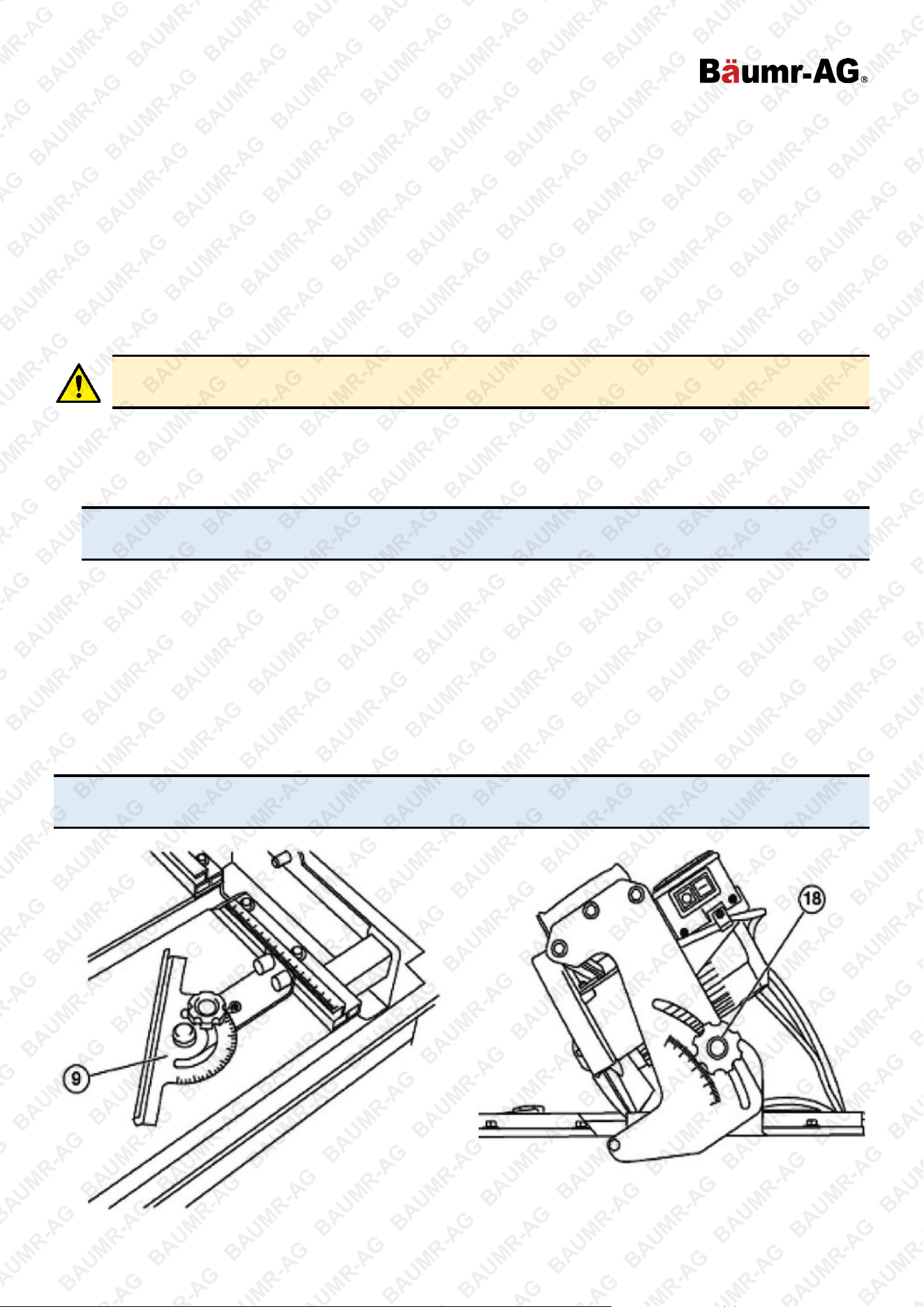

Diagonal Cutting

NOTE. It is recommended that you first perform a test cut before proceeding with complex cuts such as diagonal

and bevel cuts.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

1. Set the angle scale (9) to the desired angle. Adjustment: Right angle cut. Making a cut: Right angle cut.

Bevel Cutting

1. Tilt cutting head

2. Loosen the star handle bolts (18) on both sides of the cutter.

3. Tilt the frame with guide rail to the desired angle. Tighten the star handle bolts again.

4. Set the angle scale to 90°.

5. Adjustment: cutting at a right angle.

6. Making a cut: cutting at a right angle.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

Servicing the Saw

DANGER! DANGER OF INJURY! Prior to any maintenance and/or cleaning:  Switch the machine off. 

Let the machine cool down.  Pull out the plug. You should yourself perform only the steps described

here. For safety reason, each damaged (cracked) tool must be replaced before using. Have all other

work, in particular repairs, conducted by a trained technician. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Improperly performed work may cause damage to the machine and result in injury.

Water Change and Tank Cleaning

1. Rinse with clean water. Remove stubborn dirt with a brush and detergent. Then rinse thoroughly with clean

water to prevent foam formation.

2. Bring a suitable container to the drain hole of the water tank.

3. Remove the rubber plug (14) to drain the dirty water.

4. Use clean water to remove dirt in the water tank and on the water pump body.

5. Insert the rubber plug back into the drain hole of the water tank.

6. Fill the water tank (17) with water until the inlet opening of the cold-water pump is completely below the

water surface.

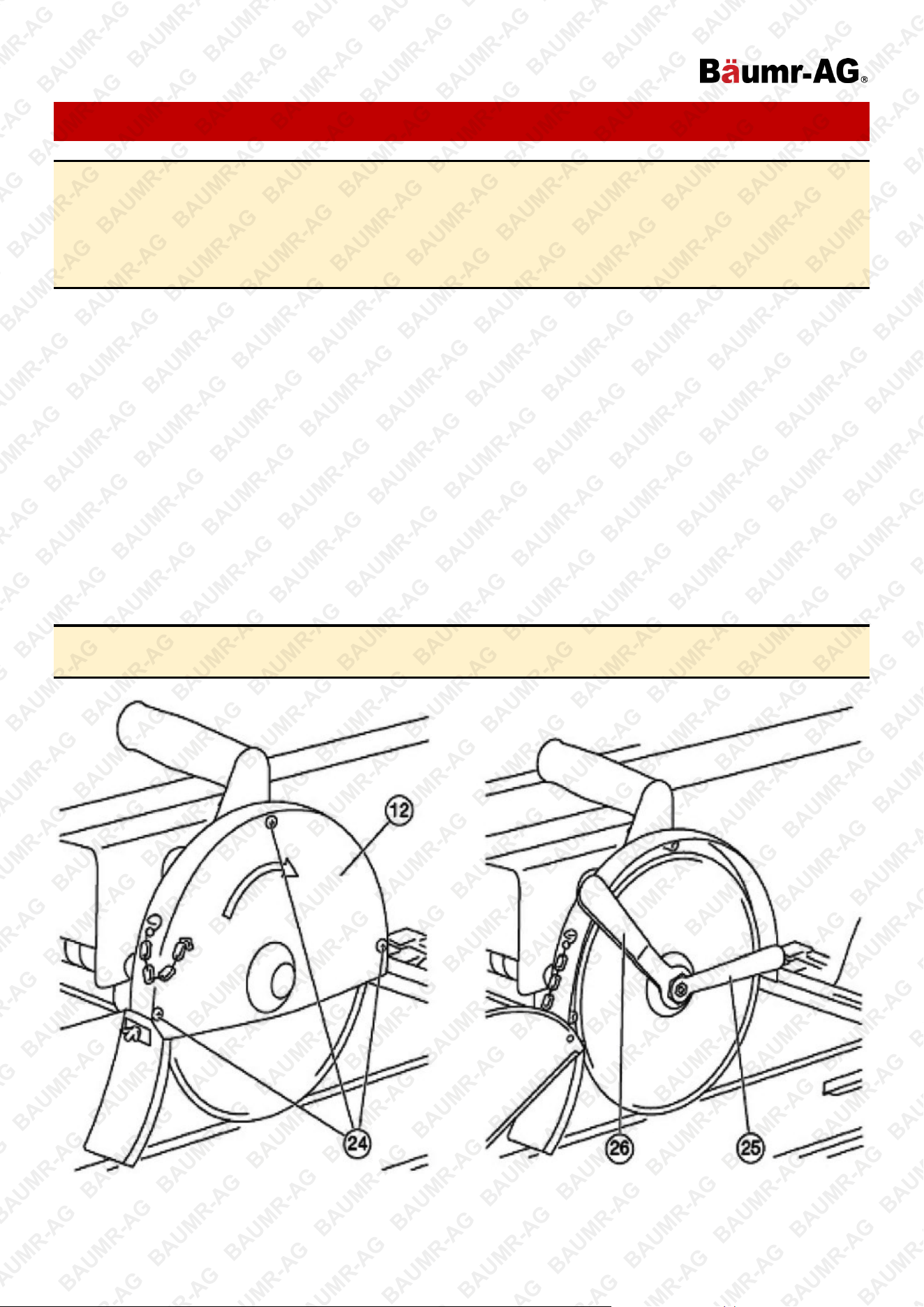

Cutting Wheel Replacement

WARNING! Ensure power is switched OFF or the machine is unplugged from the mains power. Always

wear gloves when changing cutting wheels.

1. Loosen the fixing screws (24) of the protective cover (12) and remove the cover.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

2. Lock the motor shaft with a small wrench (25) to prevent it from turning.

3. Turn the large wrench (26) to the right (clockwise; left-hand thread) to loosen the flange nut.

4. The rear clamping flange must remain on the shaft.

Re-Fitting a Cutting Wheel

WARNING! DANGER OF INJURY! Check that the cutting wheel runs perfectly concentrically in the right

direction, and that it has no damage.

1. First, push the cutting wheel, and then the clamping flange onto the motor shaft. The arrow embossed onto

the cutting wheel must point in the direction of rotation of the smaller spanner.

2. Turn the larger spanner to the left (counterclockwise; left hand thread!) to tighten the flange nut.

3. Check through turning by hand (wear gloves!) that the cutting disc turns without sideways or vertical play. If

necessary, correct the seating of the cutting wheel.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

Cleaning and Maintenance

What? How?

Check the mains cable, mains plug, extension cords, water

pump and cutting blade for damage.

Visual inspection

Check all screw connections and tighten if necessary. Visual inspection

Remove dust and debris.

Blow off dust and chips with compressed air or use a soft

brush.

Remove dust and debris from engine vents.

Remove dust and debris with a vacuum cleaner or a soft

brush.

Remove deposits from the water pump. Remove deposits with a soft cloth.

Coolant replacement Water change and tank cleaning.

Storage

•

Keep the device, instruction manual and accessories, if any, in the original packaging. In this case, all the

necessary information and details will always be at your fingertips.

•

To avoid damage to the device during transport, carefully pack it or use the original packaging.

•

Keep the device in a dry place.

Disposal

•

Do not dispose of power tools with household waste!

•

Decommissioned power tools are subject to separate collection and disposal in accordance with

environmental regulations.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

Troubleshooting

DANGER OF INJURY! Improperly conducted repairs may prevent your machine working safely. Such

repairs will endanger you and your surroundings.

Minor faults are often sufficient to cause a malfunction. In most cases, you will be able to correct these faults

easily yourself. Please refer to the table below before contacting the manufacturer or an authorised service

centre. This will help you save much effort and expenses.

Fault Possible Cause Possible Remedy

Motor does not run. No mains voltage

Check cables, plug, and socket and

fuse

Motor runs, but cutting wheel stops

under load

Flange nut loose

Check that the flange nut is tight and

tighten as required.

Cutting wheel runs off-center/ vibrates

strongly.



Cutting disc warped.



Cutting disc is mounted

incorrectly.



Change the cutting wheel.



Re-fit the cutting wheel.

Little or no water flow



Water pump draws in air.



Water hose is kinked.



Closure pump inlet closed.



Add more water.



Change the position of the hose.



Set the pump inlet to (+) (open)

position.

Cutting wheel has contact colouration.



Insufficient cooling water.



Side friction due to drift when

cutting.



Correct the supply of water.



Guide the cutting head more

slowly through the material.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BTS95 8” Electric Tile Saw

Specifications

Motor 800W Copper

Blade 200mm (8”) Diamond

Motor Speed 3000 RPM

Mitre Range +/- 45°

Bevel Range + 45°

Max Cutting Depth 32mm @ 90°, 28mm @ 45°

Max. Cut Length 620mm

Max. Diagonal Cut 435mm

Deck Size 690 x 385mm

Input Voltage 240V AC 50Hz

Power Plug Australian Standard

Note: Some Assembly Required

Please Note: Performing angled bevel cuts can be arduous, if you choose to perform such cuts, please ensure

that you are qualified to do so before operating the machine. Please also be aware of any adjustable parts of the

machine that may be in the cutting line when performing an angled cut that is otherwise not in the way when in

normal operation. It is recommended to guide the circular saw blade along the full range of the cutting table

before activating its power to ensure no object is obstructing an angled cut.

Please Note: The supplied blade may not be suitable for all applications, refer to a tile supplier for the

recommended blade.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
