Safety & Warning
• Read and understand this entire manual before assembling, installing, operating,
or servicing this product. Failure to follow these warnings and instructions can
cause death, personal injury or damage to valuable property.
• While assembling this product, keep work area clean and well lighted, and keep
spectators and children out of the work area.
• When using the stove, please be sure to check whether it is deformed or
damaged. Especially if there is a crack or breakage on the glass, never use it.
• When the stove is used once, the color of the stainless steel grid will change.
This has nothing to do with badness. It is recommended to burn at high
temperature for 2 hours after the first use.
• When setting the stove, please set it in a flat place.
• When assembling the product, the hand clips and sharp parts may be
disassembled up and down. Please be sure to wear gloves for assembly.
• Please pay attention to the use of stoves in tents or extended spaces. Please
keep the air well ventilated.
• Carbon monoxide is a colorless and transparent gas that must be discharged
safely to avoid accumulation in a closed environment.
• It is best to place a carbon monoxide detector in the space of the stove. Never let
children and pets near the stove, it will be very hot.
• Try to install safety protection devices, and be careful not to let children touch
their hands.
• When using the stove, please put it on the fire-resistant floor to prevent the tent
floor from catching fire. Please add fuel carefully when opening the fuel injection
port.
• Every time you operate the parts of the high-temperature furnace, please use
heat-resistant gloves to avoid burns.
• Fuel, propane, fuel nozzle, paint, thinner and combustible materials should be
stored away from the stove and ventilation pipes. This kind of combustible material
is recommended to be 6 feet (about 180 cm) away from the furnace.
• The furnace may be overturned under special circumstances such as collision,
earthquake and fuel input. Please pay attention to the stove carefully to prevent it
- 3 -
from tipping over!
• Don't touch the heater with your hands when using it, it will cause serious burns.
• Please wait for the stove to cool sufficiently before storing it to prevent burns.
Please pay attention. Pots, vermicelli, pots and other objects heated on the
stove should be prevented from being stable and falling off! Don't use the fuel tank
to make a fire. Fuel such as fuel tank and ignition device containing combustible
gas may explode in the furnace, causing serious injury, injury, death and fire.
• During the use of the furnace, it needs to be confirmed continuously. Don't leave
the burning furnace unattended for a long time.
• When storing the stove, carefully observe the surroundings to prevent Mars from
igniting the surrounding environment
• It's better to have a fire extinguisher of suitable size nearby. To decide the size,
please discuss it with the local fire department.
• Pay attention to the choice of fuel. Or paint-treated wood will discharge harmful
toxins when it burns. Please pay attention when there are no toxic chemicals in the
fuel. This product should be installed with chimney and used. Please keep the
fuel injection port closed except for injection.
• When installing the chimney, please pay attention to whether the abnormal air
flow at least 3m in the sky is suitable for the surrounding environment. After use,
please wipe off the flow, dust, food and other leaves and store them after wiping
off.
• In the manufacturing process, small scratches in the assembly process have no
style in the use of products, so they have nothing to do with product quality.
Specifications
Model Series
VOLD-002A
Cavity Volume (in³)
3000
Length of Exhaust Pipe (ft)
6.3
Gross Weight (kg)
25.5
MEAS(mm)
625×400×340
- 5 -

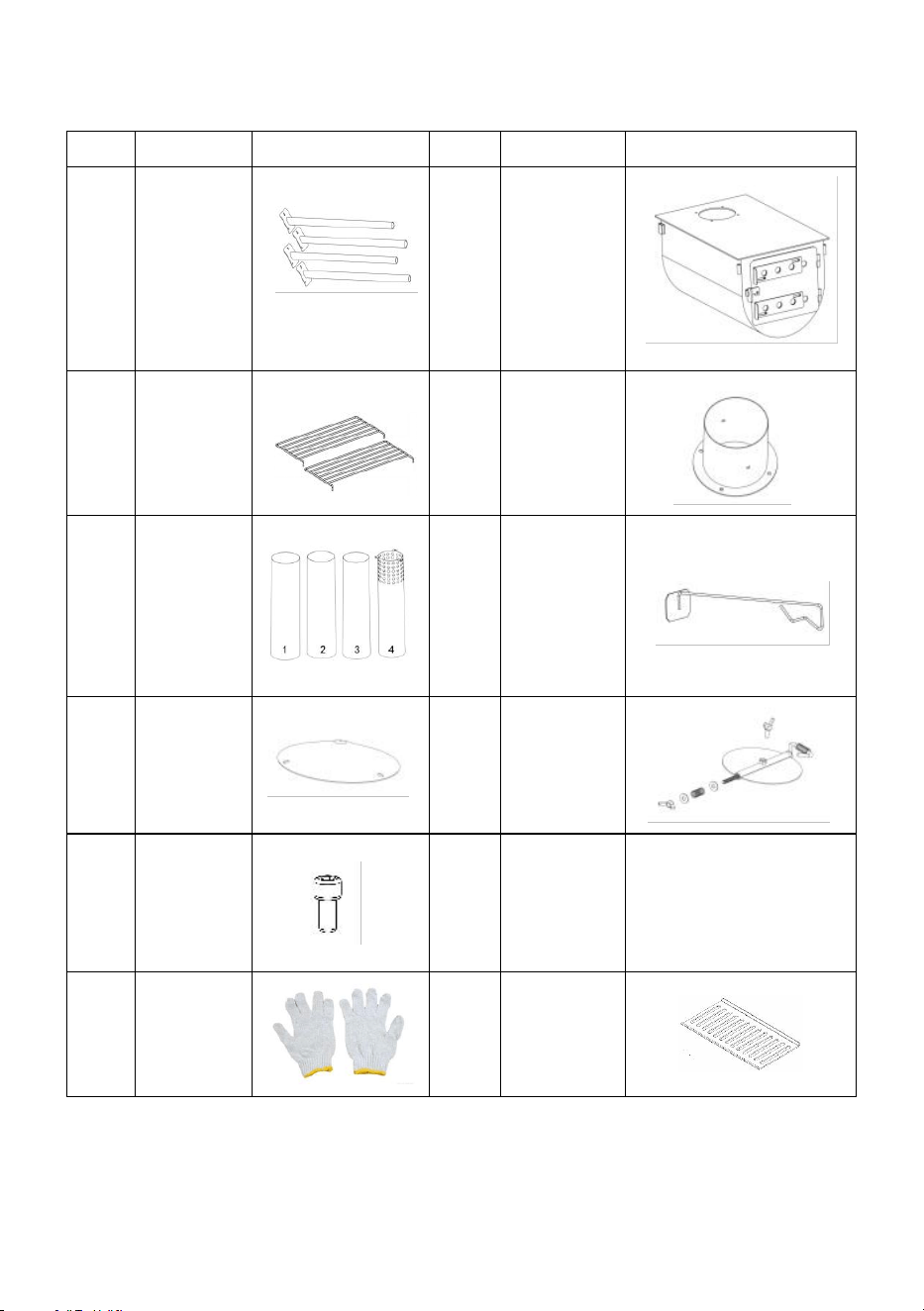

Instructions

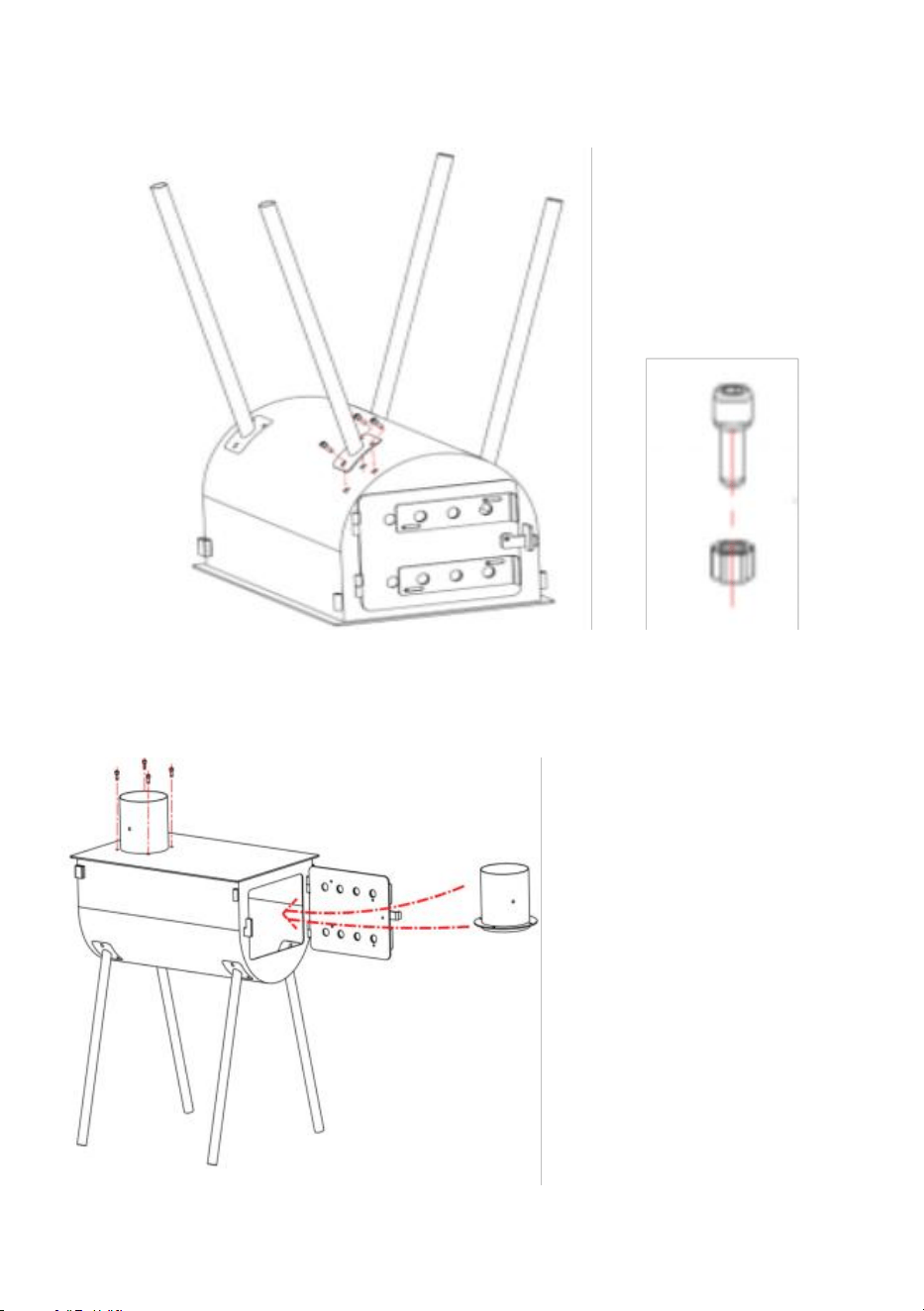

STEP1: Legs (A) to Fire Box (B) with screw (I).
- 6 -
STEP2: Attach the Bottom Flue Support (D) to Fire Box (B) with the Screw
(I).

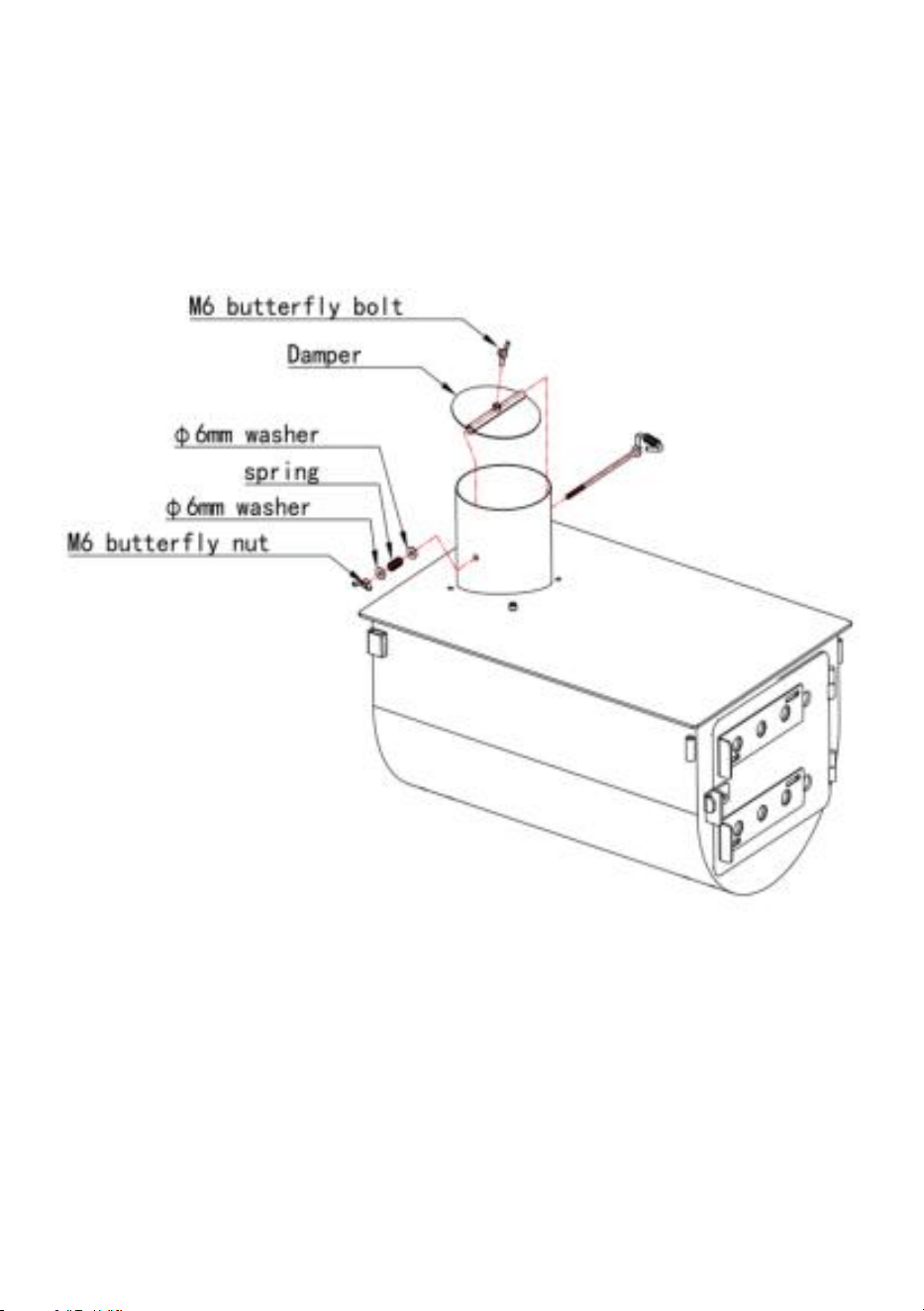

STEP3: Put the round dumper into the chimney base, connect it with a
long rod, place it in the middle, tighten the butterfly bolt, and install it
externally as shown in the figure above. Adjust the tightness of the damper
by screwing the butterfly nut.
Please make sure that the internal valve plate is open during ignition.
- 7 -
The Fourth Flue

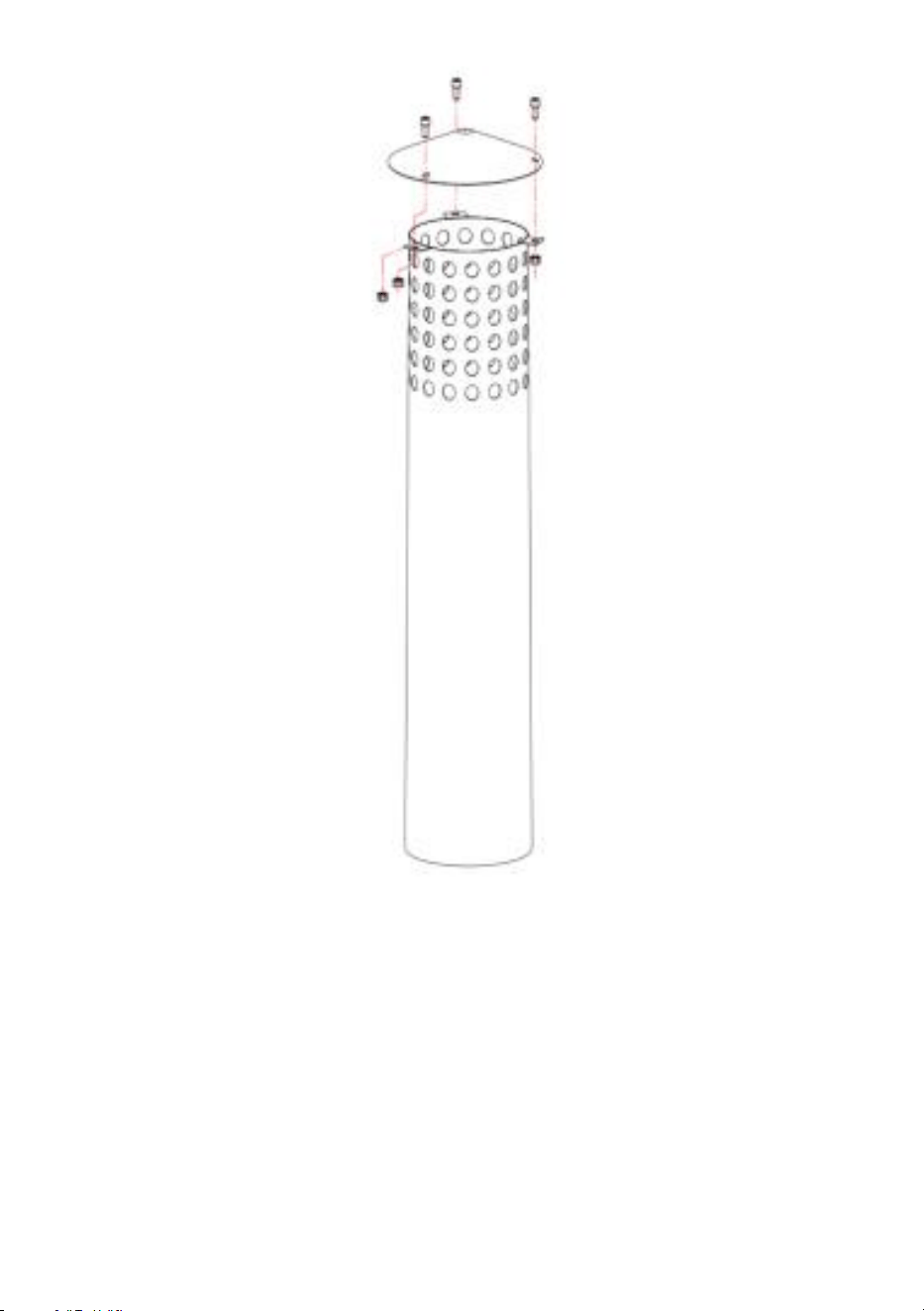

STEP4: Assemble the chimney cover. Use the screw (J) to assemble the
chimney cover and the thinnest chimney (with exhaust hole at the top).
- 8 -

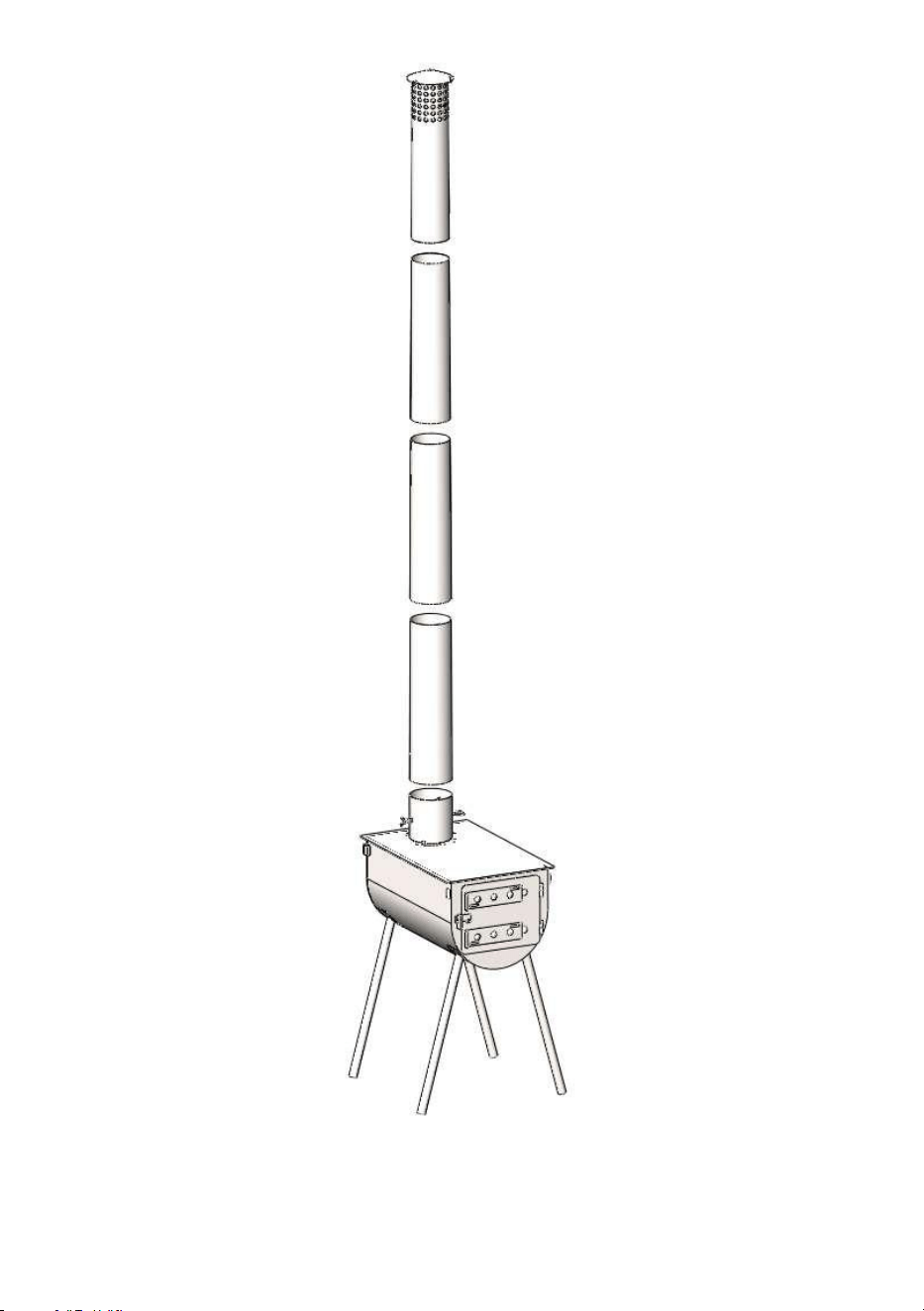

STEP5: Attach Top Flue Pipe to remaining Flue Pipe.
The Fourth Flue Pipe
The Third Flue Pipe
The Second Flue Pipe
The First Flue Pipe
- 9 -

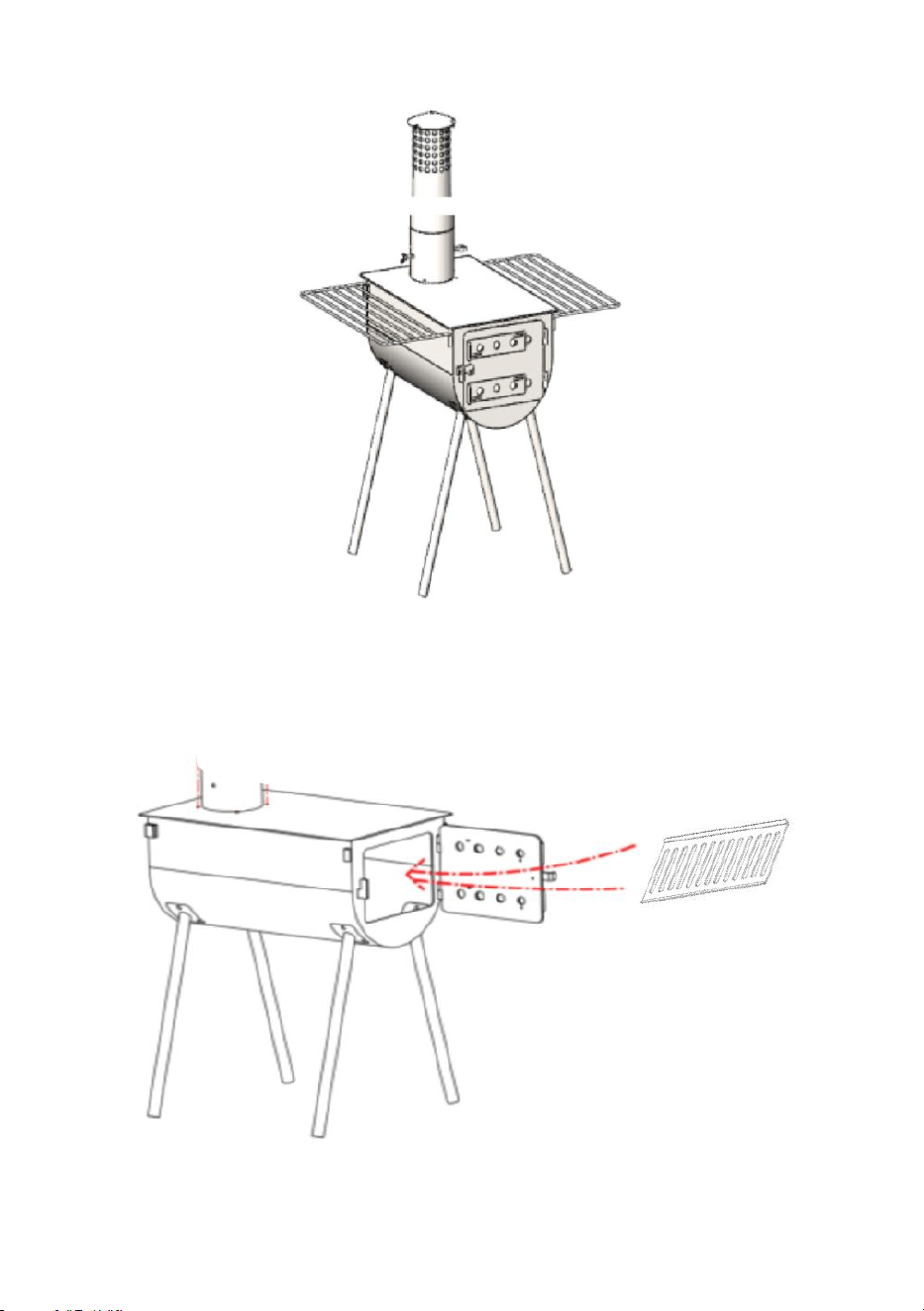

STEP6: Place side nets on both sides.
STEP7: Put the grate into the furnace chamber
- 10 -
