Sealey CP20VAGX SV20 Series 115mm Brushless Cordless Angle User Manual

20V Ø115MM BRUSHLESS ANGLE GRINDER -

BODY ONLY

MODEL NO: CP20VAGX

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

1.1. POWER TOOL SAFETY WARNINGS

 WARNING! Read all safety warnings, instructions, illustrations and specications provided with this tool. Failure to follow all

instructions listed below may result in electric shock, re and/or serious injury.

 WARNING! Disconnect the tool from the battery unit before changing accessories, servicing, performing any maintenance or storing.

9  Maintainthetoolandbatteryingoodcondition.Checkforalignmentorbindingofmovingpartsandanyotherconditionthatmaya󰀨ect

the power tool’s operation. If damaged have the tool repaired before use.

9 Replace or repair damaged parts. Use an authorised service agent and recommended parts only. Unauthorised parts may be

dangerous and will invalidate the warranty.

9  Ensurethesawisswitchedo󰀨beforeinstallingthebatterypack.

9 Keep the tool and clean for best and safest performance.

9  Dressproperly.Removeillttingclothing.Removeties,watches,ringsandotherloosejewelleryandcontainlonghair.

9  Evaluateyourworkingareabeforeusingthemulti-toole.g.ceilings,oorsandenclosuresmaycontainelectricalitemsorwaterpiping.

9 Keep work area clean and well lit.

9 Ensure battery pack is correctly inserted into the tool handle and latched in place before attempting to switch it on.

9 Secure loose work pieces with a clamp, vice or other adequate holding device.

9 Stay alert, watch what you are doing and use common sense when operating a power tool.

8 DO NOToperatethetoolwhenyouaretiredorundertheinuenceofalcohol,drugsorintoxicatingmedication.

9  Preventunintentionalstarting.Ensuretheswitchisintheo󰀨positionbeforeconnectingthebatterypack,pickinguporcarryingthe

tool.

9  Removeanyadjustingkeyorwrenchbeforeturningthetoolon.

8 DO NOToverreach.Maintaincorrectbalanceandfooting.Ensuretheoorisnotslipperyandwearnon-skidshoes.

9 Keep children and unauthorised persons away from the working area.

9 Keep tool and charger in the case and store in a safe, dry, childproof area.

9 Store idle power tools out of reach of children and DO NOT allow persons unfamiliar with the power tool or these instructions to

operate the power tool.

9 Use power tool, accessories in accordance with these instructions, taking into account the working conditions and the work to be

performed.

9 Keep handles and grasping surfaces clean and free from oil and grease.

9  Havethetoolservicedbyaqualiedrepairpersonusingonlyidenticalreplacementparts.

8 DO NOT force the tool. Use the correct power tool for the application.

8 DO NOTusethetooliftheswitchdoesnotturnitonando󰀨.

8 DO NOT allow children to operate the tool.

8 DO NOToperatethetoolifanypartsaremissingasthismaycausefailureand/orpersonalinjury.

8 DO NOT hold unsecured work piece in your hand.

8 DO NOT leave the tool operating unattended.

8 DO NOTcarrythetoolwithyourngeronthepowerswitch.

8 DO NOT use the tool for a task it is not designed to perform.

8 DO NOT get the tool or battery charger wet or use in damp or wet locations.

1.2. SPECIFIC GRINDER SAFETY PRECAUTIONS

8 DO NOTuseaccessorieswhicharenotspecicallydesignedandrecommendedbythetoolmanufacturer.Justbecausethe 

accessory can be attached to your power tool, it does not assure safe operation.

9  Theratedspeedoftheaccessorymustbeatleastequaltothemaximumspeedmarkedonthepowertool.Accessoriesrunningfaster

 thantheirratedspeedcanbreakandyapart.

9 The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized

accessories cannot be adequately guarded or controlled.

9  Thearboursizeofwheels,anges,backingpadsoranyotheraccessorymustmatchthemountinghardwareofthepowertoolwill

 runoutofbalance,vibrateexcessivelyandmaycauselossofcontrol.

9 Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be

pulled into the spinning accessory.

9 Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull

the power tool out of your control.

CP20VAGXIssue:2(1,3)14/07/21

Original Language Version

©JackSealeyLimited

Refer to

instruction

manual

Wear eye

protection

Wear a

mask

Wear ear

protection

Wear protective

gloves

8 DO NOTrunthepowertoolwhilecarryingitatyourside.Accidentalcontactwiththespinningaccessorycouldsnagyourclothing,

pulling the accessory into your body.

9  Regularlycleanthepowertool’sairvents.Themotor’sfanwilldrawthedustinsidethehousingandexcessiveaccumulationof 

powdered metal may cause electrical hazards.

8 DO NOToperatethepowertoolnearammablematerials.Sparkscouldignitethesematerials.

8 DO NOT use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

9  Properlytthespindleofthepowertool.Accessorieswitharbourholesthatdonotandmaycauselossofcontrol.

8 DO NOT use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing

 padforcracks,tearorexcesswear,wirebrushforlooseorcrackedwires.Ifpowertooloraccessoryisdropped,inspectfordamage

 orinstallanundamagedaccessory.Afterinspectingandinstallinganaccessory,positionyourselfandbystandersawayfromtheplane

 oftherotatingaccessoryandrunthepowertoolatmaximumno-loadspeedforoneminute.Damagedaccessorieswillnormallybreak

apart during this test time.

9  Wearpersonalprotectiveequipment.Dependingonapplication,usefaceshield,safetygogglesorsafetyglasses.Asappropriate,

wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye

 protectionmustbecapableofstoppingyingdebrisgeneratedbyvariousoperations.Thedustmaskorrespiratormustbecapableof

 ltratingparticlesgeneratedbyyouroperation.Prolongedexposuretohighintensitynoisemaycausehearingloss.

9  Keepbystandersasafedistanceawayfromworkarea.Anyoneenteringtheworkareamustwearpersonalprotectiveequipment.

 Fragmentsofworkpieceorofabrokenaccessorymayyawayandcauseinjurybeyondimmediateareaofoperation.

9 Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact

 hiddenwiringoritsowncord.Cuttingaccessorycontactinga“live”wiremaymakeexposedmetalpartsofthetoolliveandcouldgive

the operator an electric shock.

9  Maintainarmgriponthetoolandpositionyourbodyandarmtoresistkickbackforces.Alwaysusetheauxiliaryhandle,ifprovided

 formaximumcontroloverkickbackortorquereactionduringstartup.

9 Never place your hand near a rotating accessory.

8 DO NOT position your body in the area where a power tool will move if kickback occurs.

9  Usespecialcarewhenworkingcorners,sharpedgesetc.Avoidbouncingandsnaggingtheaccessory.

8 DO NOT attach any other type of blade to the tool.

9 Only use recommended wheel types.

9 The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip.

9  Theguardmustbesecurelyattachedtothetoolandpositionedformaximumsafety,sotheleastamountofwheelisexposedtowards

the operator.

9  Wheelsmustonlybeusedforrecommendedapplicationse.g.donotgrindwiththesideofacuto󰀨wheel.

9  Alwaysuseundamagedwheelangesthatareofthecorrectsizeandshapefortheselectedwheel.DO NOT use worn down wheels

from larger power tools.

2. i INTRODUCTION

Ergonomic, lightweight and compact design. Brushless motor, which gives an improved performance and requires less maintenance than the

brushedequivalent,givingyouamoreefficient,longerlastingtool.Featuresspindlelockforquickdiscchangesandadjustablediscguard.Supplied

withside/tophandleandsoftgripforaddedcomfortandcontrol.Slideon/offlockonswitch.Discnotincluded-GrindingDisc,orderModelNo.

PTC/115G,CuttingDisc,orderModelNo.PTC/115C.Requirescompatible20Vbatteryandmainscharger,soldseparately.

3. i SPECIFICATION

Model No: ...........................................................CP20VAGX

Battery ...................20V2Ah-6AhLithium-ion(notincluded)

Consumable parts:

CP20VBP2-2AhBattery,CP20VBP4-4AhBattery,

CP20VBP6-6AhBattery

Disc size ..................................................................Ø115mm

Free speed .............................................................10000rpm

Motor power ....................................................................48W

Noise power/pressure .......................................... 97/86dB(A)

Replacement parts:

CP20VMC-MainsCharger(notincluded)

Spindle size ....................................................................M14

Vibration/uncertainty ........................................ 5.598/1.5m/s²

4. OPERATION

 WARNING: Removebatterybeforetting/removingwheelsormaintenanceiscarriedout.

4.1.  Ensurethatyouhaveread,understoodandcomplywithallthesafetyinstructionsinSection1.

4.2. TO REMOVE BATTERY

4.2.1. To remove the battery from the equipment, depress the spring loaded buttons on the battery pack. Remove the battery pack by sliding

out. DO NOT touch the metal battery terminals.

Original Language Version

©JackSealeyLimited

fig.

DANGER OF FIRE/EXPLOSION HAZARD

 WARNING! The grinding process can produce streams of sparks which are a potential source of ignition, especially when

grinding metal.

8 DO NOT use the grinder where there are flammable liquids, solids or gases.

8 DO NOT allow grinder sparks to make contact with the operator’s clothing or any other fabric such as cleaning rags. Fabrics

contaminated with flammable materials such as petrol, oil, grease, paint and solvents are a particular fire hazard.

9 To reduce the risk of clothing catching fire the operator should wear wool or cotton outer garments treated with a fire retardant

in preference to man-made fibres.

fig.

CP20VAGXIssue:2(1,3)14/07/21

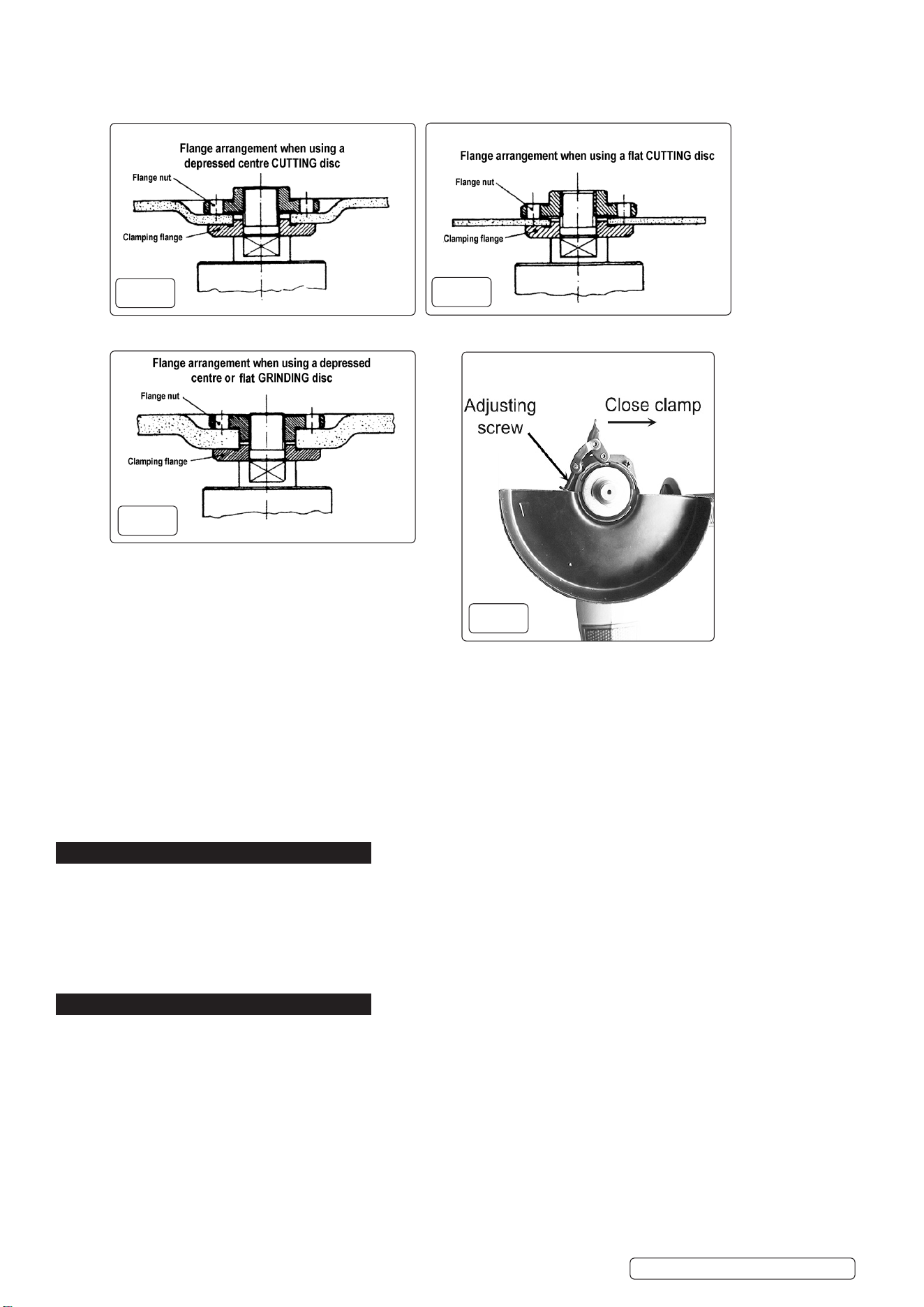

4.3. FITTING A DISK

4.3.1. Lockgearboxinordertoundoortightenangeandclampnut(g.2).Depressbuttononthetopsurfaceofthetoolhead(g.1).

4.3.2. FLAT CUTTING DISK g.3

4.3.3. DEPRESSED CENTRE CUTTING DISK g.4

4.3.4. DEPRESSED CENTRE OR FLAT GRINDING DISK g.5

4.4. GUARD ADJUSTMENT g.6

 WARNING: Alwaysworkwithguardinplace.

 WARNING: Removebatterybeforetting/removingwheels

or maintenance is carried out.

4.4.1. Open clamp by raising lever and rotate to required location.

4.4.2. Clampingforcecanbeadjustedbyscrewingintheadjusting

screw.

4.5. PREPARATION

4.5.1. Attachgrinding/cuttingdiscaccordingtosection4.3andpositionthehandlegripconvenientlyforthetask.

4.5.2. Ensure the disc safety guard is correctly positioned.

 WARNING! When the grinder first starts it will kick to the right. You must ensure, therefore, that the tool is securely gripped in both hands.

Especially important is the position you choose for the side handle in order to maintain stability.

 WARNING! Before use, ensure that you are wearing approved safety goggles, ear defenders, appropriate dust mask if dust will

 begeneratedandsafetygloves,andthatallothersafetyinstructionsinSection1arefollowedcarefully.

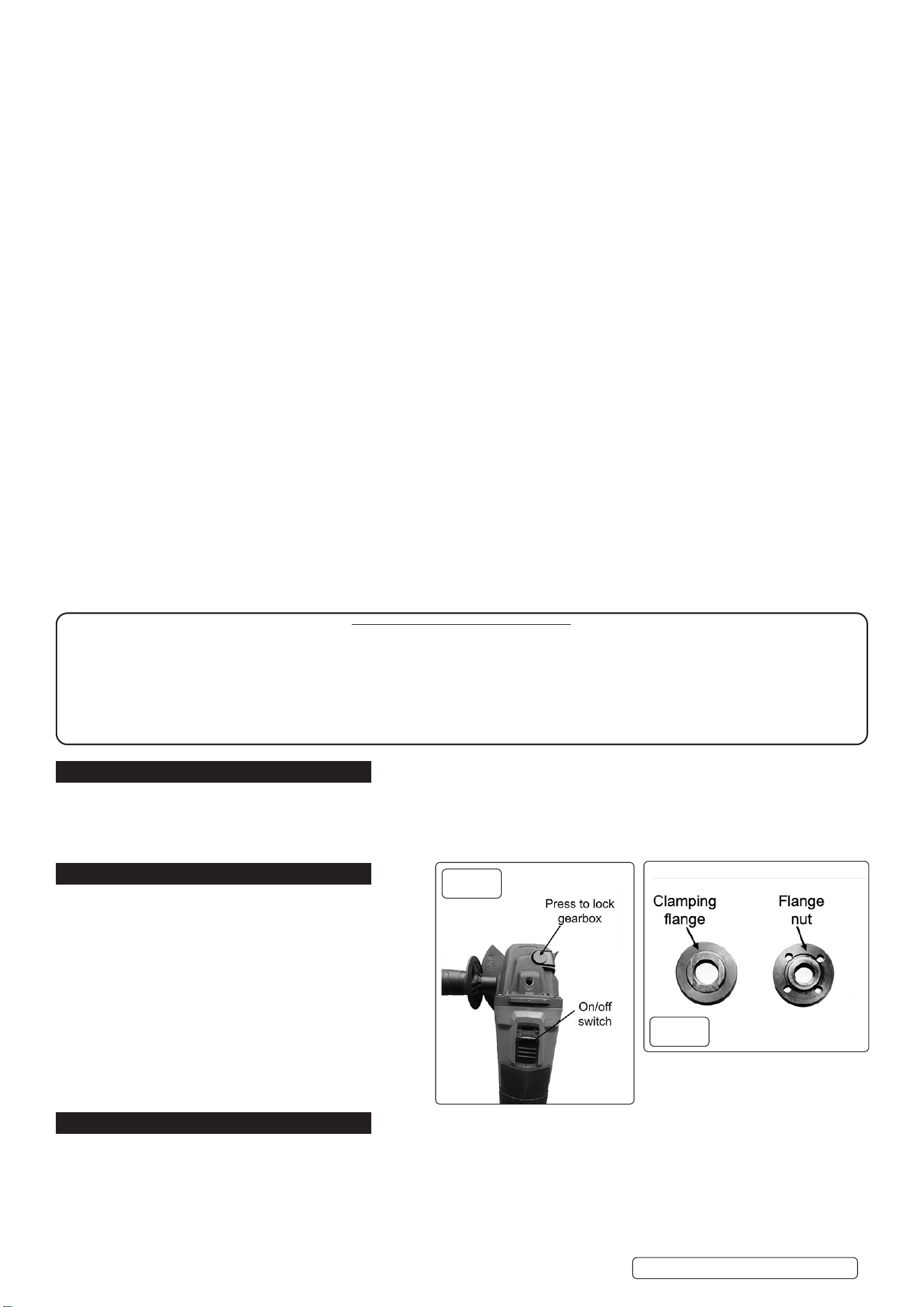

4.6. ON/OFF SWITCH g.1

4.6.1. TheON/OFF(I/O)switch(fig.1)isdesignedtoavoidaccidentalstarting.SlideitforwardandthendepresstolockintheONposition.

4.6.2. To release the ON switch press it’s rear edge and it will return to the OFF position.

5. CONSUMABLES

 WARNING! DO NOT USEDISCSTHATAREDAMAGED,ORSUSPECTEDTOBEDAMAGED.

5.1. Before using a grinding/cutting disc ensure that there are no fissures or cracks. Once mounted on the grinder, test the disc before use by

 facingthegrinderinasafedirection(pointawayfromyourself,othersandvulnerableitems)andrunforashorttime.

▲ DANGER! Useofdamageddiscsisdangerousandmaycausepersonalinjury.

5.2. Grindingandcuttingdiscsusedinassociationwiththismachineshallbeofanadequatespeedratingandbesuitableforthejobinhand.

 ThediscsshallbemadeinaccordancewithBritishStandard4481:Part11989.Onlypersonsholdingagrindingwheelcertificateare

authorised to change grinding discs. Ensure that the speed rating on the disc is equal to, or higher than, that of the grinder.

6. MAINTENANCE

 WARNING: Alwaysdisconnectthebatterybeforecarryingoutanyinspection,maintenanceorcleaning.

6.1. GENERAL INSPECTION

6.1.1. Regularlycheckthatallthexingscrewsaretight. 

6.1.2. Repairs should be carried out by an authorised service centre.

6.2. CLEANING

 WARNING:Alwayswearprotectiveequipmentincludingeyeprotectionandgloveswhencleaningthistool.

6.2.1. Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device’s service life.

6.2.2. Clean the body of your machine with a soft brush, or dry cloth.

6.2.3. Neverusecausticagentstocleanplasticparts.Ifdrycleaningisnotsu󰀩cient,amilddetergentonadampclothisrecommended.

6.2.4. Water must never come into contact with the tool. Ensure the tool is thoroughly dry before using it.

6.2.5. Ifavailable,useclean,dry,compressedairtoblowthroughtheventilationholes(whereapplicable).

6.3. LUBRICATION

6.3.1. Lightly lubricate all moving parts at regular intervals with a suitable spray lubricant.

Original Language Version

fig.

CP20VAGXIssue:2(1,3)14/07/21

6.4. STORAGE

6.4.1. Store this tool carefully in a secure, dry place out of the reach of children.

WARNING! – Risk of Hand Arm Vibration Injury.

This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.

ThistoolissubjecttothevibrationtestingsectionoftheMachineryDirective2006/42/EC.

This tool is to be operated in accordance with these instructions.

Measured vibration emission value (a): ..........5.598m/s²

Uncertainty value (k):.........1.5m/s²

Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend that a

specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.

Ahealthandsafetyassessmentbytheuser(oremployer)willneedtobecarriedouttodeterminethesuitabledurationofuseforeachtool.

NB: Stated Vibration Emission values are type-test values and are intended to be typical.

Whilst in use, the actual value will vary considerably from and depend on many factors.

Such factors include; the operator, the task and the inserted tool or consumable.

NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.

The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm Vibration

Syndrome.

Health surveillance.

Werecommendaprogrammeofhealthsurveillancetodetectearlysymptomsofvibrationinjurysothatmanagementprocedurescanbemodified

accordingly.

Personal protective equipment.

Wearenotawareofanypersonalprotectiveequipment(PPE)thatprovidesprotectionagainstvibrationinjurythatmayresultfromthe

uncontrolleduseofthistool.Werecommendasufficientsupplyofclothing(includinggloves)toenabletheoperatortoremainwarmanddryand

maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the Correct Use and

Maintenancesectionintheseinstructions.GuidancerelatingtothemanagementofhandarmvibrationcanbefoundontheHSCwebsite

www.hse.gov.uk-Hand-ArmVibrationatWork.

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycleunwantedmaterialsinsteadofdisposingofthemaswaste.Alltools,accessoriesandpackagingshouldbesorted,takento

a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely

unserviceableandrequiresdisposal,drainanyfluids(ifapplicable)intoapprovedcontainersanddisposeoftheproductandfluids

according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty:Guaranteeis36monthslabourandtwoyearspartswarrantyfrompurchasedate,proofofwhichisrequiredforanyclaim.

WEEE REGULATIONS

Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment

(WEEE).Whentheproductisnolongerrequired,itmustbedisposedofinanenvironmentallyprotectiveway.Contactyourlocalsolid

waste authority for recycling information.

Original Language Version

CP20VAGXIssue:2(1,3)14/07/21

Sealey CP20VAGX SV20 Series 115mm Brushless Cordless Angle Grinder

Product's Documents

User Manual

Specifications

Sealey CP20VAGX Questions and Answers
