84746
EN
Version 4
May 2023
230V
PATIO WEED
SWEEPER
1.1 Product Reference
User Manual for: 230V Patio Weed Sweeper
Stock No: 84746
Part No: PS1
1.2 Revisions
Version 1: October 2015
First release
Version 2: November 2016
General formatting updates
Version 3: November 2022
General formatting and content updates
Version 4: May 2023
Updates to What’s in the Box? section
For the latest version of this manual and the associated
parts list, if applicable, please visit
drapertools.com/manuals
1.3 Understanding the Safety Content of
This Manual
WARNING! – Situations or actions that may result
in personal injury or death.
CAUTION! – Situations or actions that may result
in damage to the product or surroundings.
Important: – Information or instructions of particular
importance.
1.4 Copyright © Notice
Copyright © Draper Tools Limited.
Permission is granted to reproduce this manual for
personal and educational use ONLY. Commercial
copying, redistribution, hiring or lending is strictly
prohibited.
No part of this manual may be stored in a retrieval system
or transmitted in any other form or means without written
permission from Draper Tools Limited.
In all cases, this copyright notice must remain intact.
1. Preface
– 2 –
These are the original product instructions. This
document is part of the product; retain it for the life
of the product, passing it on to subsequent holders.
Read this manual in full before attempting to
assemble, operate or maintain this product.
This Draper Tools manual describes the purpose
of the product and contains all the necessary
information to ensure its correct and safe use.
Following all the instructions and guidance in
this manual will ensure the safety of both the
product and the operator and increase the
lifespan of the product.
All photographs and drawings within this manual are
supplied by Draper Tools to help illustrate correct
operation of the product.
Every eort has been made to ensure the
information contained in this manual is accurate.
However, Draper Tools reserves the right to amend
this document without prior warning. Always use the
latest version of the product manual.
EN
2. Contents
– 3 –
EN
1. Preface 2
1.1 Product Reference 2
1.2 Revisions 2
1.3 Understanding the Safety Content of This
Manual 2
1.4 Copyright © Notice 2
2. Contents 3
3. Product Introduction 4
3.1 Intended Use 4
3.2 Specication 4
4. Health and Safety Information 5
4.1 General Health and Safety Precautions 5
4.2
Additional Precautions for this Patio Sweeper
5
4.3 Connection to the Power Supply 6
4.4 Residual Risk 6
5. Identication and Unpacking 7

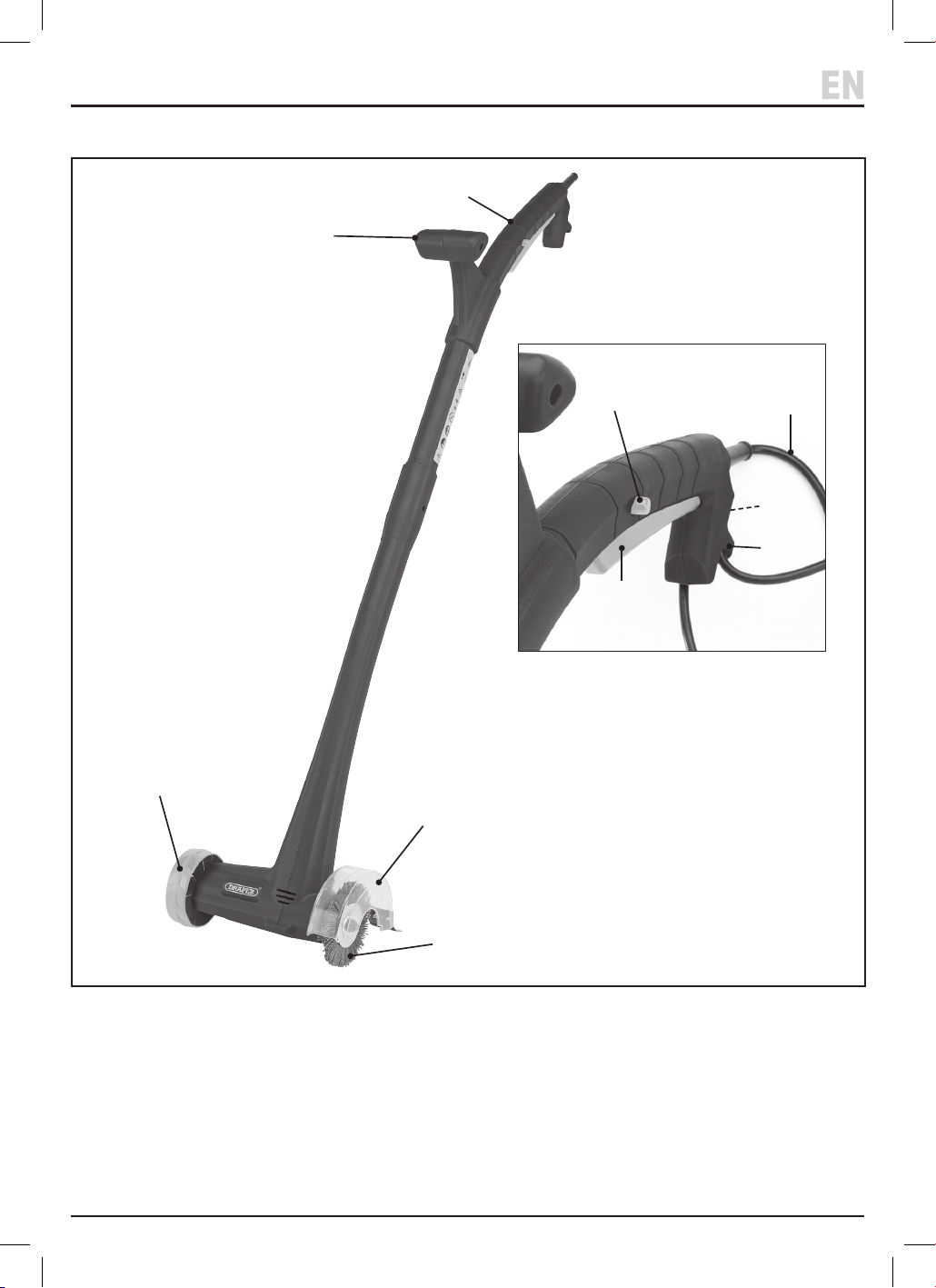

5.1 Product Overview 7

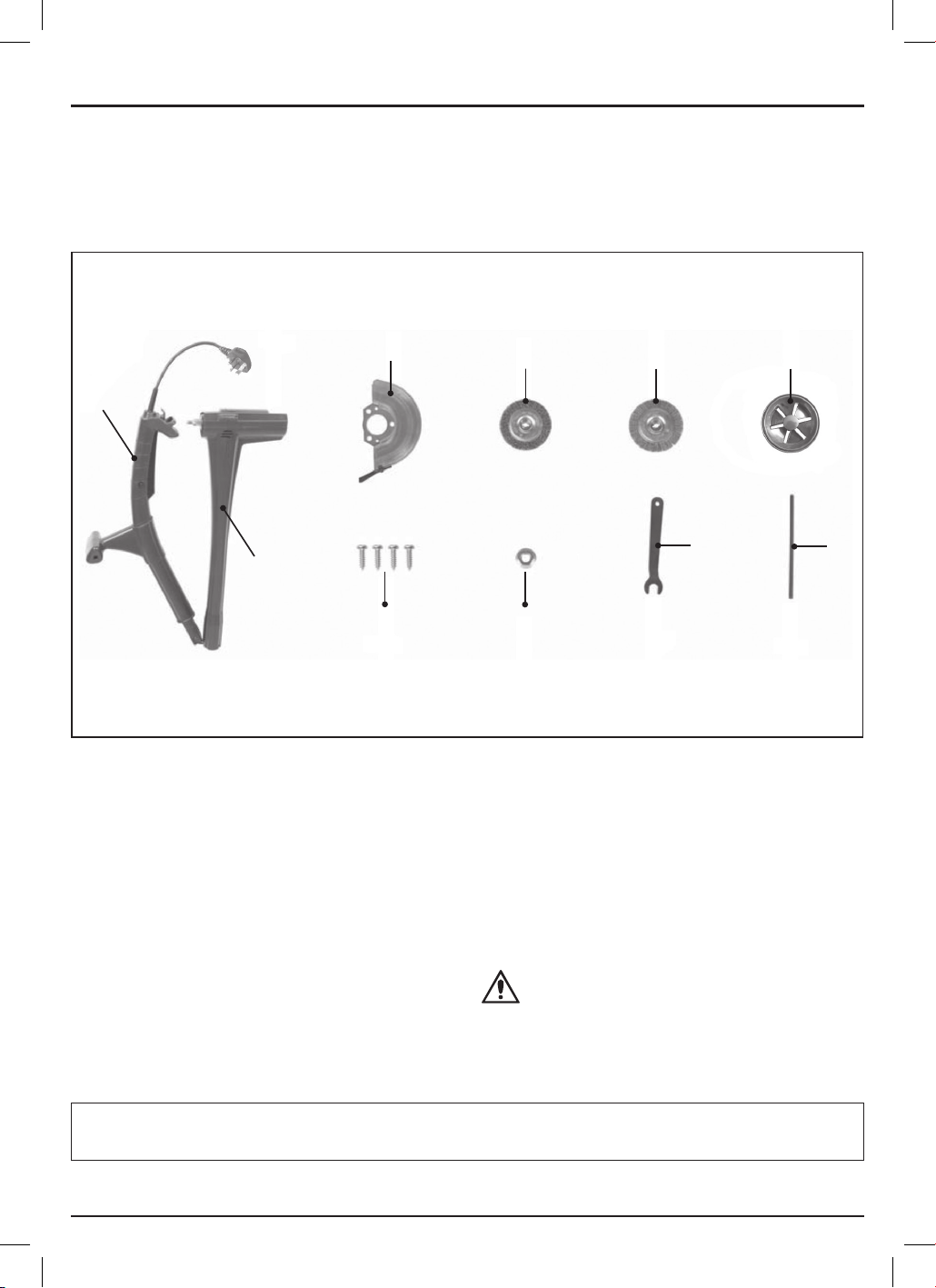

5.2 What’s in the Box? 8
5.3 Packaging 8

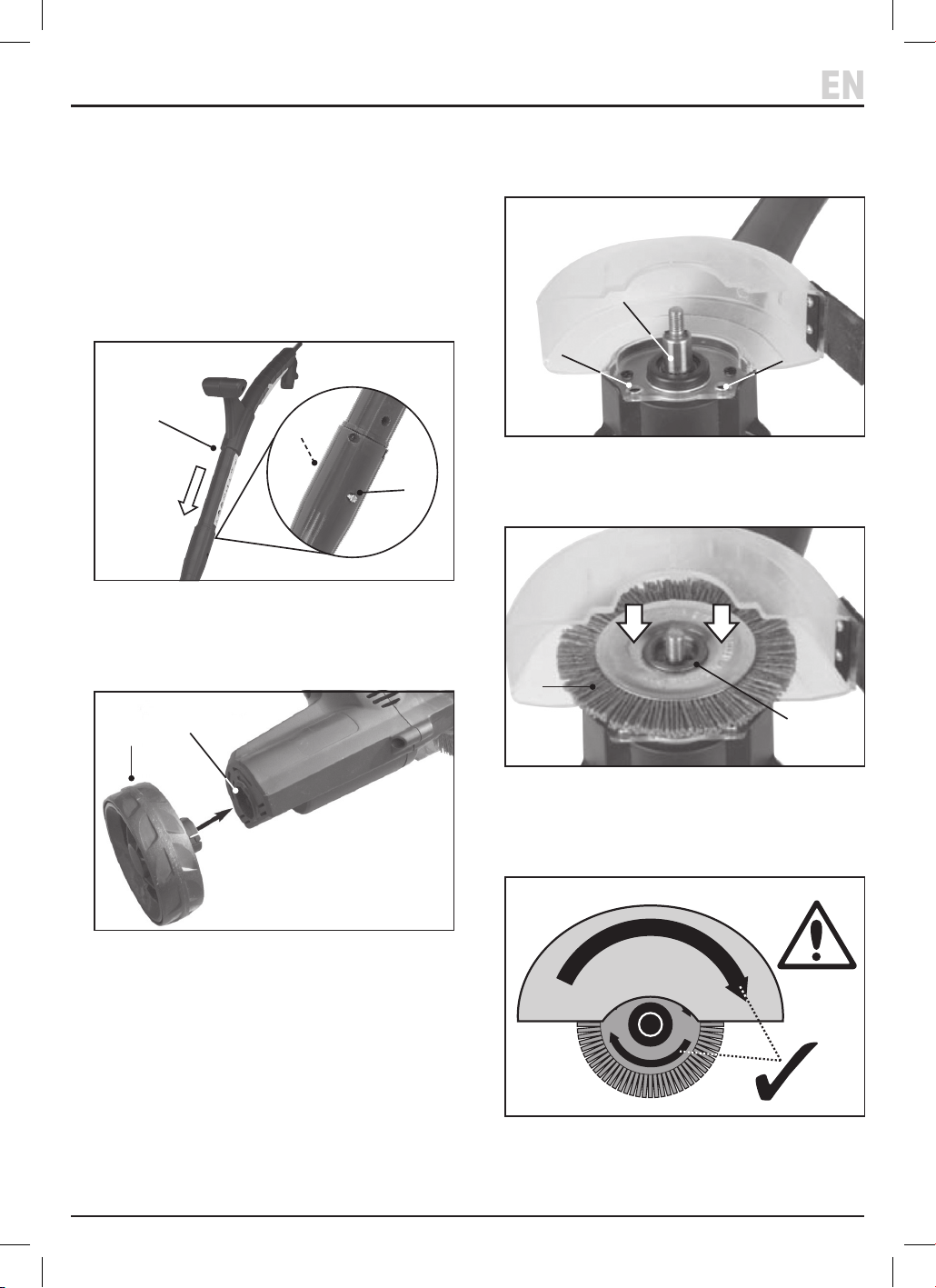

6. Assembly Instructions 9
7. Operating Instructions 11
7.1 Operation 11
7.2 Notes on Use 12
8. Maintenance and Storage 13
8.1 General Maintenance 13
8.2 Storing the Machine 13
9. Spares, Returns and Disposal 14
10. Warranty 15

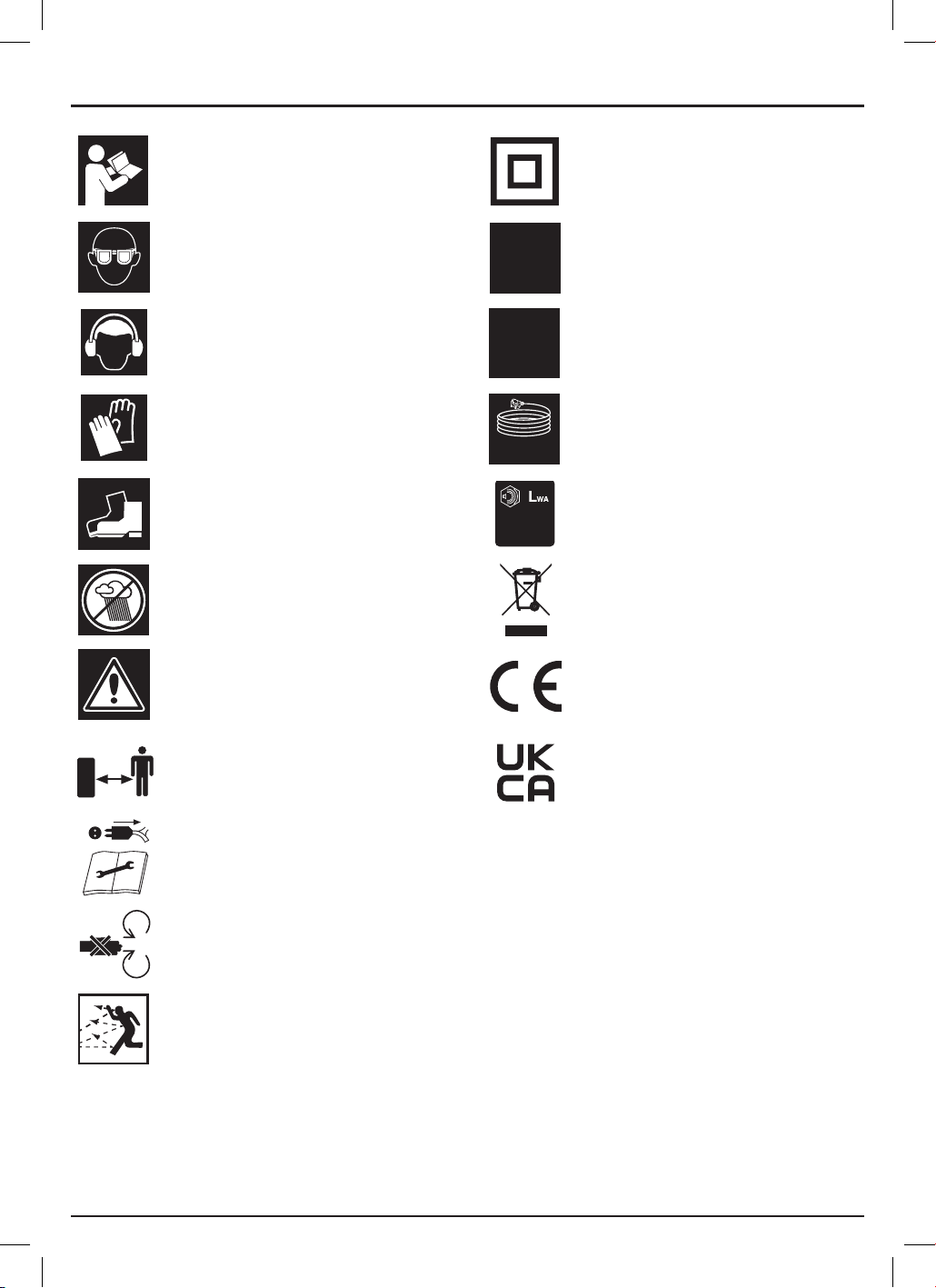

11. Explanation of Symbols 16
Notes 17
3. Product Introduction
Stock No.: 84746
Part No.: PS1
Rated voltage: 220–240V AC
Rated frequency: 50Hz
Rated input: 140W
Max. brush size: Ø100mm
No load speed: 1,200rpm
Noise emissions:
Sound pressure level: 68dB(A)
Uncertainty: 3 dB(A)
Sound power level: 88dB(A)
Uncertainty: 3dB(A)
Vibrations: <2.5m/s2
Vibration uncertainty: 1.5m/s2
Appliance class: Class II
Weight:
Gross: 2.32kg
Net: 2.11kg
Important: The declared vibration total values and noise emissions values have been measured in accordance with a
standard test method and may be used for comparing one tool with another. These values may also be used in a
preliminary assessment of exposure.
WARNING! The vibration and noise emissions during actual use of the product can dier from the declared
values depending on the mode selected and the workpiece upon which it is used. Before each use, estimate
the likely exposure resulting from the actual conditions of use. Take into account all parts of the operation
cycle in order to identify any safety measures required to protect the operator.
– 4 –
3.2 Specication
3.1 Intended Use
This product is designed to clear weeds, moss and dirt
from joints and grout lines in patios and other paved
surfaces, and is intended for outdoor use. Any other
application beyond the conditions established for use
will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
Important: This product is suitable for use on horizontal
surfaces ONLY.
WARNING! This product is not a toy and must be
respected.
Read this manual in full before attempting to assemble,
operate or maintain the product, and retain it for later
use.
4. Health and Safety Information
Important: Read all the Health and Safety instructions
before attempting to operate, maintain or repair this
product. Non-compliance with these instructions may
result in injury or damage to the user, the product or the
work surface.
4.1 General Health and Safety
Precautions
• This machine is not intended for use by persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge unless they have
been given supervision or instruction concerning the
use of the appliance by a person responsible for their
safety.
• Keep this product out of reach of children at all times.
• Observe all standard safety precautions and good
practices when working with machines and
mechanical tools in an outdoor environment.
• DO NOT modify this product in any way and ONLY use
spare parts supplied by Draper Tools.
• Keep your work environment clear and well-lit, with
bystanders at a safe distance.
• Use this product ONLY in exterior and well-ventilated
environments.
• Before every use, inspect the product for broken,
cracked, loose or corroded parts.
Important: DO NOT use this product if it is damaged
in any way. DO NOT attempt to open a damaged
product; contact Draper Tools to discuss repair and
replacement options.
• ONLY connect the product to a power supply
matching the rated voltage of the product.
• Keep the power cable away from oil, sharp edges,
sources of heat and the spinning brush attachments.
• If the supply cord is damaged, it must be replaced
with a special cable available from Draper Tools or its
authorised service agent.
• NEVER pull on the power cable to disconnect the plug
from the socket.
• NEVER handle the plug or operate this product with
wet hands.
• Use the product only in the manner described in this
manual.
• Wear appropriate personal protective equipment,
including safety goggles, ear defenders and
protective footwear and gloves.
• Remove all adjustment tools before use.
• DO NOT overreach and maintain good balance while
using the tool.
• DO NOT immerse this product in water or subject it to
wet conditions.
• DO NOT expose this product to frost.
• Maintain the machine appropriately and correctly in
order to prevent damage to moving parts and
mechanisms.
• ONLY have the machine serviced by authorised and
suitably qualied personnel.
• This is a Class II appliance.
4.2 Additional Precautions for this Patio
Sweeper
• This product must be supplied through a residual
current device (RCD) with a rated residual operating
current of no greater than 30mA.
• DO NOT tamper with or disable any of the safety
systems employed by this machine.
• NEVER operate the machine if the brush guard, brush
or guide wheel are damaged or missing.
• ALWAYS ensure that all assembly points are securely
fastened before use.
− Ensure that the brush attachment is mounted
securely and soundly before EVERY use.
• Ensure that the planned route is free from
obstructions and that the material is suitable for use
with this machine.
− ALWAYS keep the power cable clear of the
intended route.
• Keep a rm and secure grip on both handles during
use.
• ALWAYS keep the brush attachment clear or the work
surface and surrounding objects during start-up.
• Keep hands, feet and loose clothing well away from
the brush attachment while the product is connected
to a mains power supply.
− ALWAYS disconnect the product from the power
supply when clearing jammed or binding brushes.
• Be aware of stones or other debris that may be thrown
into the air by the brush attachment.
– 5 –
EN
4. Health and Safety Information
• ALWAYS release the trigger switch and safety lock
and allow the brush to completely stop before
transporting or repositioning the product.
• Be wary of the exposed brushes during
transportation.
• To reduce the risks associated with prolonged
exposure to vibrations through the handles, avoid
operating the machine for longer than necessary.
• If the product vibrates abnormally during use,
immediately stop the machine, allow it to cool and
investigate the cause.
− DO NOT use the machine until the issue has been
resolved.
• ALWAYS switch o the engine, allow the brush
attachment to stop completely and allow the engine
to cool before adjusting, maintaining or transporting
the machine.
• To avoid accidental start-up, ensure that the safety
lock is engaged and the trigger switch is not
depressed while transporting the tool or connecting it
to mains power.
4.3 Connection to the Power Supply
This appliance is supplied with an approved plug and
cable for your safety. The value of the fuse tted is
marked on the pin face of the plug. Should the fuse need
replacing, ensure the substitute is of the correct rating,
approved to BS 1363/A and ASTA or BS Kite marked.
ASTA
BSI
Replacement of the fuse should only be performed by
suitably qualied personnel.
If the power supply cord is damaged, it must be replaced
by Draper Tools, an authorised service agent or similarly
qualied personnel in order to avoid a hazard.
The damaged or incomplete plug, when cut from the
cable, shall be disabled to prevent connection to a live
electrical outlet.
This product is Class II* and is designed for connection to
a power supply matching that detailed on the rating label
and compatible with the plug tted.
If an extension lead is required, use an approved and
compatible lead rated for this appliance. Follow all the
instructions supplied with the extension lead.
If the plug must be connected in an outside environment,
ensure that the outlet or extension lead is suitably
designed for outside use.
Important: Always follow the extension lead instructions
regarding maximum load while the cable is wound. If in
doubt, unwind the entire cable. A coiled extension lead
generates heat which could melt the lead and cause a
re.
Important: This product MUST be used with a residual
current device (RCD), e.g. Draper Stock Nos. 69307 or
89301. ALWAYS read the manufacturer instructions for
any RCD use. For your safety, if an extension cable is
used, the RCD MUST be installed at the power outlet and
not into the extension lead.
*Double Insulated: This product is double insulated and
does not require an earth connection to protect against
electric shock from accessible conductive parts in the
event of failure of the basic insulation.
4.4 Residual Risk
The safety instructions in this manual cannot account for
all possible conditions and situations that may occur.
Exercise common sense and caution when using this
product and protect against any additional conceivable
risks.
– 6 –
5. Identication and Unpacking
5.1 Product Overview
(1) Auxiliary handle
(2) Brush attachment
(3) Brush guard
(4) Cable strain relief clamp
(5) Cable strain relief loop
(6) Guide wheel
(7) Main handle
(8) Power cable and plug
(9) Safety lock
(10) Trigger switch
– 7 –
EN
(1)
(2)
(6)
(9)
(8)
(7)
(5)
(4)
(3)
(10)
5. Identication and Unpacking
5.3 Packaging
Keep the product packaging for the duration of the
warranty period for reference should the product need to
be returned for repair.
WARNING! Keep packaging materials out of
reach of children. Dispose of packaging
correctly and responsibly and in accordance
with local regulations.
(A) 1 x Upper frame
(B) 1 x Lower frame
(C) 1 x Brush guard
(D) 1 x Nylon brush
(E) 1 x Steel brush
(F) 1 x Guide wheel
(G) 4 x 3.5 x 13mm screws
(H) 1 x M8 nut
(I) 1 x M8 spanner
(J) 1 x Pin tool
Please visit drapertools.com for our full range of accessories and consumables.
– 8 –
5.2 What’s in the Box?
Carefully remove the product from the packaging and
examine it for any signs of damage that may have
occurred during shipment.
Before assembling the product, lay the contents out and
check them against the parts shown below. If any part is
damaged or missing, do not attempt to use the product.
Please contact the Draper Helpline; contact details can
be found at the back of this manual.
(A)
(B)
(I)
(J)
(C)
(D) (E) (F)
(G)
(H)
6. Assembly Instructions
Important: Before attempting to assemble or use this
product, read and understand all the safety instructions
listed in this manual. ALWAYS ensure that the power
cable is disconnected from the mains supply before
assembling or adjusting this product.
Important: Take care not to overtighten screw xings.
1. Insert the upper frame (A) into the lower frame (B) and
secure the pieces together using a 3.5 x 13mm screw
(G) through each side.
(A)
1 Fig.
(G)
(G)
2. Insert the guide wheel (F) into the opening (11) at the
base of the lower frame, ensuring that it clicks into
place.
2 Fig.
(F)
(11)
– 9 –
EN
3. Align the brush guard with the holes around the
brush axle (12) and secure it in place with the two
remaining screws (G).
3 Fig.
(12)
(G)
(G)
4. Push the chosen brush (D) (E) fully onto the axle,
ensuring it ts soundly on the mount (13).
4 Fig.
(E)
(13)
Important: Ensure that the rotation direction marked
on the brush matches the direction indicated on the
guard.
D
I
R
E
C
T
I
O
N
O
F
R
O
T
A
T
I
O
N
5 Fig.
6. Assembly Instructions
– 10 –

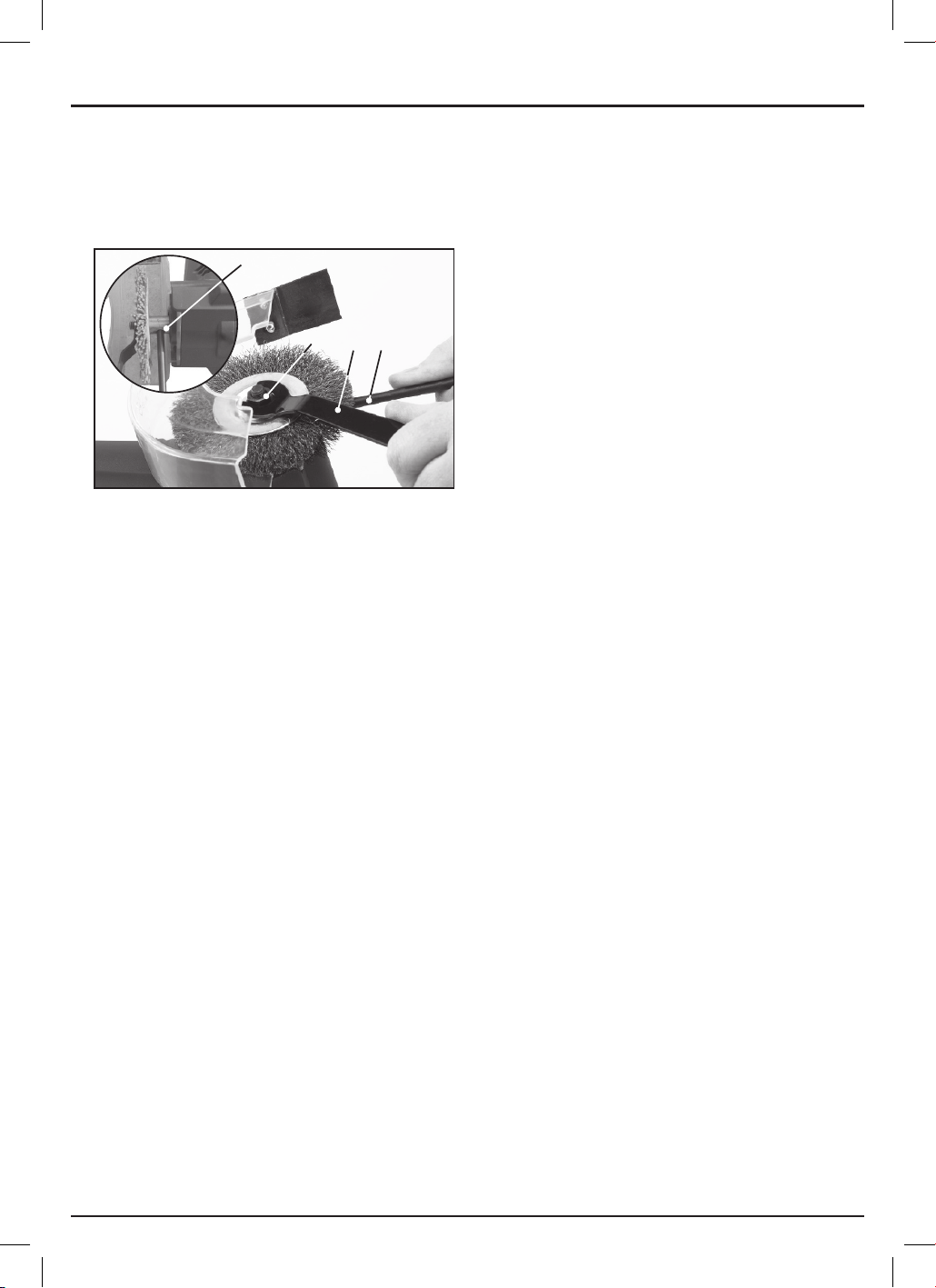

5. Insert the pin tool (J) into the hole (14) in the brush
axle and place the M8 nut (H) onto the end of the
brush axle.
6. Using the pin tool to lock the axle, use the M8
spanner (I) to tighten the nut into place.
6 Fig.
(14)
(I)
(H)
(J)
To change the brush attachment, use the pin tool and
spanner to remove the nut and slide the brush away from
the axle.
7. Operating Instructions
– 11 –
EN
7.1 Operation
WARNING! Ensure that the brush attachment is
in good condition and is securely and soundly
attached before EVERY use. The safety lock
MUST be engaged when transporting the
product.
1. Move the product to the required location before
connecting the power cable to a mains supply.
Important: This product MUST be supplied via an
RCD installed at the power outlet to reduce the risk of
shock.

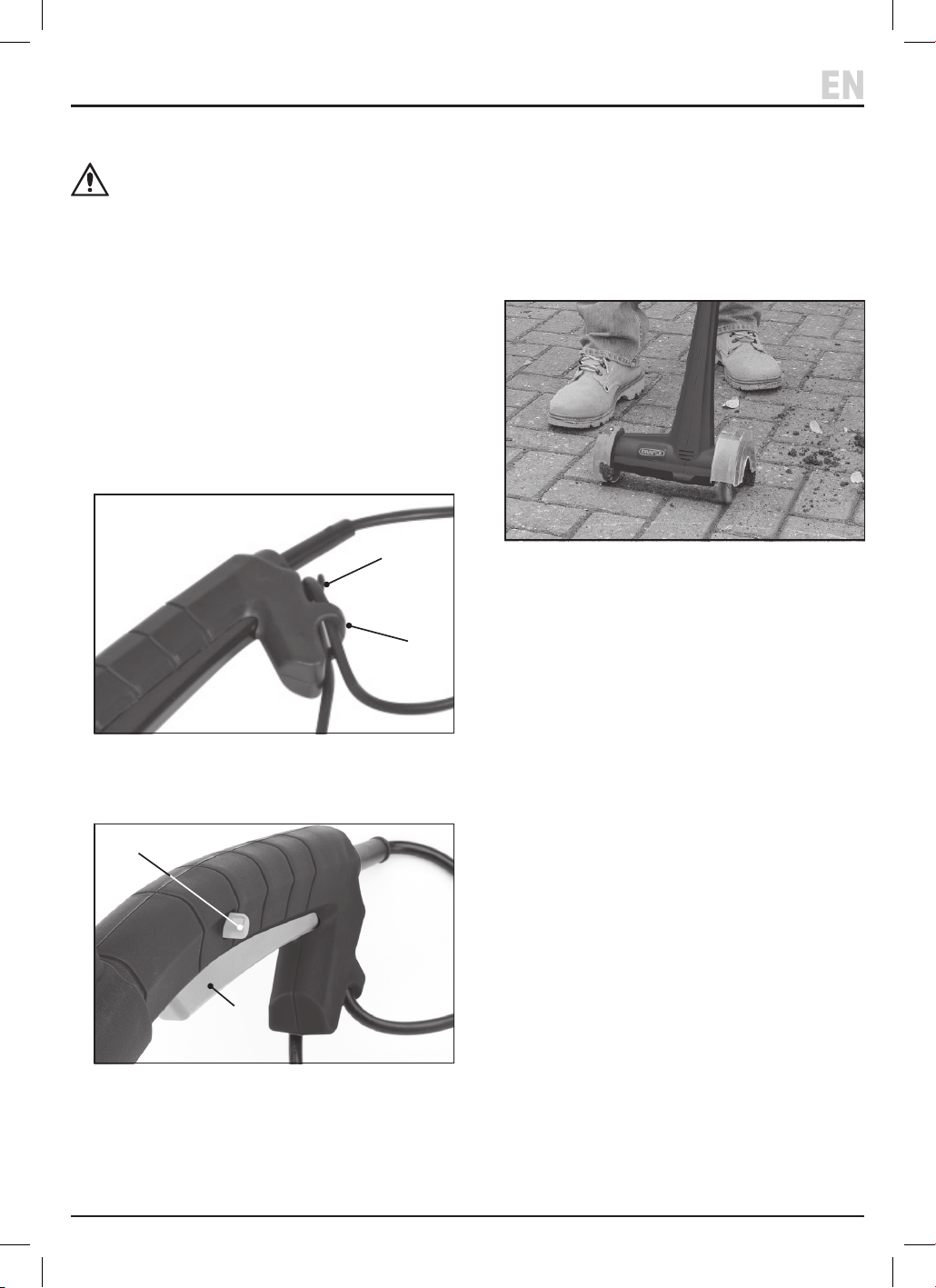

2. Form a loop in the power cable and feed it up through
the cable strain relief loop (5), then hook it over the
cable strain relief clamp (4) and pull downwards to
tighten it.
7 Fig.
(4)
(5)
3. To switch on the tool, press and hold the safety lock
(9) and squeeze the trigger switch (10).
8 Fig.
(9)
(10)
Important: Ensure that the brush attachment (2) is
safely clear of the surface as you switch the machine
on.
4. Slowly and carefully lower the machine into a joint in
the surface until the brush contacts the material and
the guide wheel (6) rests on the surface.
5. Gripping both handles, guide the brush along the
joint until the required materials have been cleared.
6. To switch o the machine, release both the trigger
switch and the safety lock.
9 Fig.
Important: ALWAYS switch o the machine before
moving to a new location or joint.
7.2 Notes on Use
Important: Read these instructions in full before using
this product.
• Draper Tools strongly recommends trialling the
machine on a small and discreet area before full use to
assess the risk of any damage to the surface.
• This machine is suitable for use on horizontal surfaces
underfoot ONLY.
− DO NOT use this product to clear walls or other
vertical surfaces, or the underside of overhanging
ledges.
• Assess the suitability of each brush for the operation
before EVERY use.
− The steel brush (E) is suitable for robust surfaces
and stubborn weeds.
− Draper Tools recommends that the nylon brush (D)
is used for light vegetation and where the surface
may be too sensitive for the steel brush.
CAUTION! NEVER use this product to clean
between highly sensitive surfaces, such as
tiles.
• Check the condition of the brush attachment before
EVERY use.
− DO NOT use damaged or excessively worn
brushes.
• ALWAYS operate the machine in a vertical position
and grip it with both hands.
• For a consistent nish, the machine should travel at a
constant speed during operation.
− For best results, guide the machine along at
roughly walking pace.
− If necessary, pass the machine over the same area
several times.
7. Operating Instructions
– 12 –
8. Maintenance and Storage
– 13 –
EN
Important: ALWAYS ensure that the machine is
disconnected from the power supply, and has completely
stopped, and that the safety lock is engaged before
attempting to maintain this product.
8.1 General Maintenance
Other than the brush attachments, this product contains
no parts that are serviceable by the user. However,
regular care will help to ensure a longer lifespan for the
product. Draper Tools recommends cleaning the product
immediately after each use.
• Keep all switches and air vents clean and free from
dust and debris as far as possible.
− Use a vacuum or compressed air at low pressure to
clean around the air vents and switches.
• Use a lightly damp cloth and mild soap to clean the
machine frame.
− DO NOT use solvents or other aggressive
substances as they may damage plastic or
insulated parts of the product.
− Take care not to allow any moisture inside the
body of the machine during cleaning.
• Use a brush to clean the brush guard of any
accumulating dust or debris.
• Replace the brush attachments when they become
excessively worn or show signs of damage.
• If excessive sparking occurs in the motor, the carbon
motor brushes may need changing.
− Have the machine inspected by an authorised
service agent; DO NOT attempt to remove or
service the motor yourself.
8.2 Storing the Machine
• Disconnect the plug from the power supply when not
in use and store the cable tidily.
• Store the machine in an upright position.
• Store the machine in a clean and dry location, out of
direct sunlight and out of reach of children.
• Store the product in temperatures between 5–30°C
where there is no risk of frost.
For spare parts, servicing, and repair and replacement
options, please contact the Draper Tools Product
Helpline for details of your nearest authorised agent.
Draper Tools will endeavour to hold any spare parts, if
applicable, for seven years from the date that it sells the
nal matching stock item.
Any servicing or repairs carried out by unauthorised
personnel or installation of spare parts not supplied by
Draper Tools will invalidate your warranty.
Important: ALWAYS clean the product of any dirt or
debris before returning it to Draper Tools or its
authorised agent.
At the end of its working life, dispose of the product
responsibly and in line with local regulations. Recycle
where possible.
DO NOT dispose of this product with domestic waste;
most local authorities provide appropriate recycling
facilities.
9. Spares, Returns and Disposal
– 14 –
10. Warranty
Draper Tools products are carefully tested and inspected
before shipment and are guaranteed to be free from
defective materials and workmanship.
Should the tool develop a fault, return the complete tool
to your nearest distributor or contact Draper Tools
directly. Contact information can be found at the back of
this manual.
Proof of purchase must be provided.
If, upon inspection, it is found that the fault occurring is
due to defective materials or workmanship, repairs will
be carried out free of charge. This warranty period covers
parts and labour for 12 months from the date of
purchase. Where tools have been hired out, the warranty
period covers 90 days from the date of purchase.
This warranty does not apply to any consumable parts,
batteries or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling,
alterations, accidents, or repairs attempted or made by
any personnel other than the authorised Draper Tools
repair agent.
In all cases, to make a claim for faulty workmanship or
materials within the standard warranty period, please
contact or return the product to the place of purchase.
Proof of purchase may be required.
If the place of purchase is no longer trading or if you
experience any diculties with your warranty, please
contact Customer Services with the product details and
your proof of purchase. Contact details can be found at
the back of this manual.
If the tool is not covered by the terms of this warranty,
repairs and carriage charges will be quoted and charged
accordingly.
This warranty supersedes any other guarantees
expressed or implied and variations of its terms are not
authorised.
Your Draper Tools guarantee is not eective until you can
produce, upon request, a dated receipt or invoice to
verify your purchase within the guarantee period.
Please note that this warranty is an additional benet
and does not aect your statutory rights.
Draper Tools Limited
– 15 –
EN
11. Explanation of Symbols
Read the instruction manual
Wear suitable protective goggles
Wear ear defenders
Wear protective gloves
Wear protective footwear
Do not use in rain or snow or expose the
product to wet conditions
Warning!
Keep bystanders at a safe distance from
the work area
Switch o the product and disconnect
the power supply before cleaning or
maintaining the product
Rotating parts; keep hands and feet away
from the brush
Beware of objects ricocheting out of the
guard
Class II construction
(Double insulated)
Rated input
No load speed
Power cable length
89
dB
Continuous A-weighted sound power level
WEEE –
Waste Electrical & Electronic Equipment
Do not dispose of Waste Electrical & Electronic Equipment
in with domestic rubbish
European conformity
UK Conformity Assessed
– 16 –
140
W
1200
rpm
10M
approved
Notes
– 17 –
EN
Notes
– 18 –
Notes
– 19 –
EN
© Published by Draper Tools Limited© Published by Draper Tools Limited
Delta International
Delta International BV
Oude Graaf 8
6002 NL
Weert
Netherlands
Contact Details
Draper Tools
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Email: [email protected]
Product Helpline: +44 (0) 23 8049 4344
Telephone Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355
General Fax: +44 (0) 23 8026 0784
Please contact the Draper Tools Product Helpline for repair and servicing enquiries.
