BAUMR-AG CONTRWBMRA6C0 36" Troweller Machine Trowelling User Manual

Video Tutorial:

Starting a 4-Stroke

User Manual

[Revision 8.0 October 2022]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

adequat

e engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Trowelling Machine

i

Table of Contents

Safety ............................................................................................................................................................. 1

Operation ....................................................................................................................................................... 3

Technique ................................................................................................................................................................... 3

Trowelling ................................................................................................................................................................... 3

Quick Start Guide ......................................................................................................................................... 6

Maintenance .................................................................................................................................................. 7

Spark Plug .................................................................................................................................................................. 7

Air Filter ...................................................................................................................................................................... 7

Oil................................................................................................................................................................................ 7

Specifications ............................................................................................................................................... 8

Trowelling Machine

Safety

Hazards and Risks

•

Never allow an untrained person to operate machine without adequate instruction.

•

Ensure all users read, understand and follow the operating instructions.

•

Serious injury may result from improper or careless use of this machine.

•

Power trowels are heavy units and require a multiple person lift, using correct lifting techniques and people

of appropriate strength. Where provided, use the lifting eye for mechanical lifts using approved lifting

devices.

Mechanical Hazards

•

DO NOT operate the machine unless all protective guards are in place.

•

Ensure that the motor operation switch is in the OFF position and the spark plug ignition lead is

disconnected before removing the guards or making adjustments.

•

DO NOT increase the governed no-load motor speed above 3,500RPM. Any increase may result in personal

injury and damage to the machine.

•

Be sure the runaway protection switch provided is working properly so that if the handle should slip away

from your control, the ignition supply will be cut off. However momentum may allow the handle to rotate one

full turn before stopping the machine. Step away from the machine if control is lost.

•

Take care not to come in contact with the muffler when the engine is hot, since it may result in severe burns.

•

Keep hands and feet clear of rotating or moving parts as they will cause injury if contact is made.

•

It is important that the operator retains a firm grip with the left hand at some point on the handle when

starting the engine, preferably close to throttle control.

•

When starting the trowel do not exceed ¼ throttle setting. A higher setting could engage the centrifugal

clutch causing the handle to rotate.

•

Be careful with the trowel around pipes sticking out of the floor or other obstacles. Should the trowel blades

catch on these, serious damage to the machine or harm to the operator may result.

•

Ensure that repairs to the motor and machine are carried out by qualified personnel.

Fire & Explosion Hazards

•

PETROL is extremely flammable and explosive under some conditions.

•

ENSURE that petrol is only stored in an approved storage container.

•

DO NOT refuel the motor while it is in operation or hot.

•

DO NOT refuel the motor in the vicinity of sparks, naked flames or a person smoking.

•

DO NOT overfill the fuel tank and avoid spilling petrol when refuelling. Spilled petrol or petrol vapour may

ignite. If spillage occurs, ensure that the machine is dry before starting the motor.

•

Ensure that the fuel tank cap is securely fitted after refuelling.

Chemical Hazards

•

DO NOT operate or refuel a petrol motor in a confined space without adequate ventilation.

•

Carbon monoxide exhaust gases from internal combustion motor driven units can cause death in confined

spaces.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trowelling Machine

Noise Hazards

•

Excessive noise can lead to temporary or permanent loss of hearing.

•

Wear an approved hearing protection device to limit noise exposure, as required by Occupational Health and

Safety regulations.

Protective Clothing

•

Wear protective goggles, clothing and footwear while operating the machine.

Additional Hazards

•

Slips/trips/falls are major causes of serious injury or death. Beware of obstacles or water left on the walking

or work surface.

•

Exercise caution and ensure that the perimeter of elevated formwork or platforms is protected.

•

Always maintain good footing so that you do not slip and lose control of the handle when starting or

operating the trowel.

•

Always ensure that the operators have been properly trained prior to using the equipment.

•

Children and small animals should NEVER be present in the work area during operation of the trowelling

machine.

•

ALWAYS check your trowelling machine for loose or missing nuts and bolts before starting. Tighten any

loose fasteners and replace missing or broken parts.

•

Perform all routine maintenance as described within this manual. Failure to do so will void your warranty and

will eventually result in premature equipment failure.

•

NEVER perform maintenance on a running piece of equipment. Shut down the engine and allow it to cool

before servicing the trowelling machine, including mechanical work or lubrication.

•

ALWAYS replace missing, damaged or unclear safety labels to ensure operator awareness and safety.

•

NEVER operate the trowelling machine with missing or damaged safety guards. Replace immediately with

appropriate Nexus parts.

•

NEVER put hands, feet, or other appendages inside the guard ring or belt guard while the engine is running,

even at idle or with protective clothing, as serious injury may result.

•

NEVER wear loose fitting clothing or jewellery around rotating equipment such as the trowelling machine as

it may become entangled in the machinery, resulting in serious injury.

•

NEVER fuel the trowelling machine while the engine is running. Ensure the engine has cooled sufficiently

before refuelling to avoid igniting gasoline fumes.

•

ALWAYS refuel the trowelling machine in a well-ventilated area, away from ignition sources such as sparks,

flames, and lit cigarettes. Smoking while fuelling the equipment may result in explosion.

•

NEVER operate the trowelling machine in explosive environments such as those where paint fumes,

methane, natural gas, fine particulate, aerosol propellant, or solvent fumes are present.

•

NEVER smoke near the trowelling machine as stray gasoline fumes may ignite. Operating the trowelling

machine around an open flame may also result in explosion.

•

ALWAYS shut down the engine and allow it to cool off before lifting or transporting the trowelling machine.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trowelling Machine

Operation

Technique

The easiest direction to pull the trowelling machine is backward. Pulling gently on the handle while holding it with

both hands will cause it to float toward you.

The handle will try to rotate away from you while the engine is running, so hold it firmly to

keep it steady.

If the entire trowel is pulling to the right or left, balance it by lifting up or pressing down on the handle. Do not try

to stop the sideways motion of the trowel with direct sideways force, balance it by lifting or pressing down on the

handle. Practice holding the trowel steady in one place for a few minutes at a time.

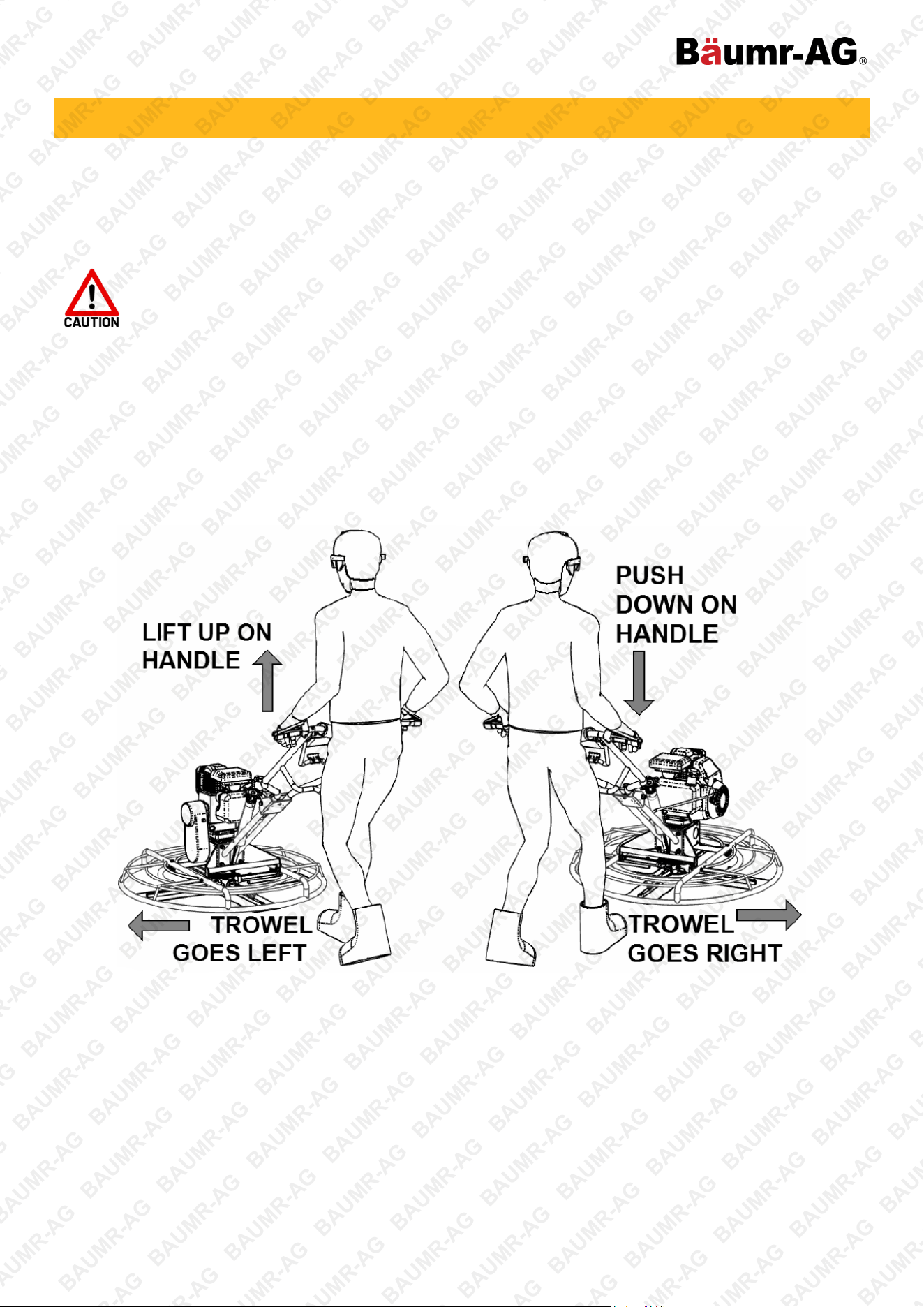

To move sideways it is always best to let the trowel do the work. The rotating blades create a sideways force

when the trowel is leaned forward or backward. Lift up on the handle to make the machine go left, or press

downward on the handle to make the trowel go to the right. The best way to remember this is “Lift to go Left”.

Never press or lift with enough force to make the blades edges dig into the concrete.

Trowelling

Trowelling the concrete surface eliminates large aggregates near the surface, levels bumps and depressions,

and consolidates the surface to make it stronger. The surface must first be sufficiently cured to support the

weight of the trowel. The surface should first be levelled using a float or vibratory screed. To use the standard

finish blades, the concrete should be cured enough that the operator does not leave a footprint deeper than

about 3mm (1/8 inch).

The ideal way to trowel is to work backward, traveling up and down the slab pulling the trowelling machine

towards you and making elongated, overlapping sweeps (see image below).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trowelling Machine

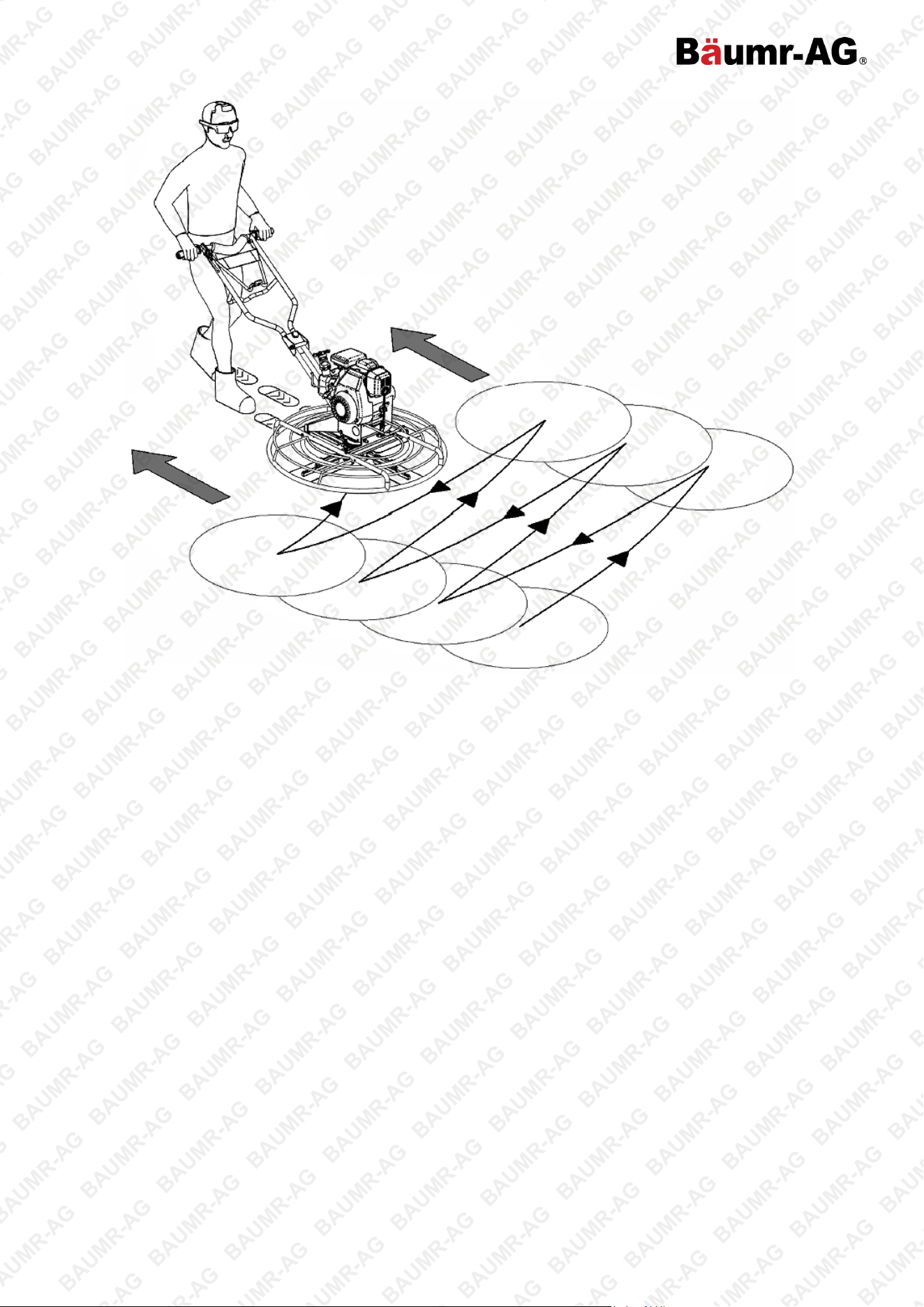

Ideal trowelling motion

This allows you to thoroughly cover your footprints in the concrete as you walk. Work steadily and patiently,

going too fast will result in poor consolidation and an unattractive finish. Each pass should be made in a

perpendicular direction to the previous one (see image on the next page).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trowelling Machine

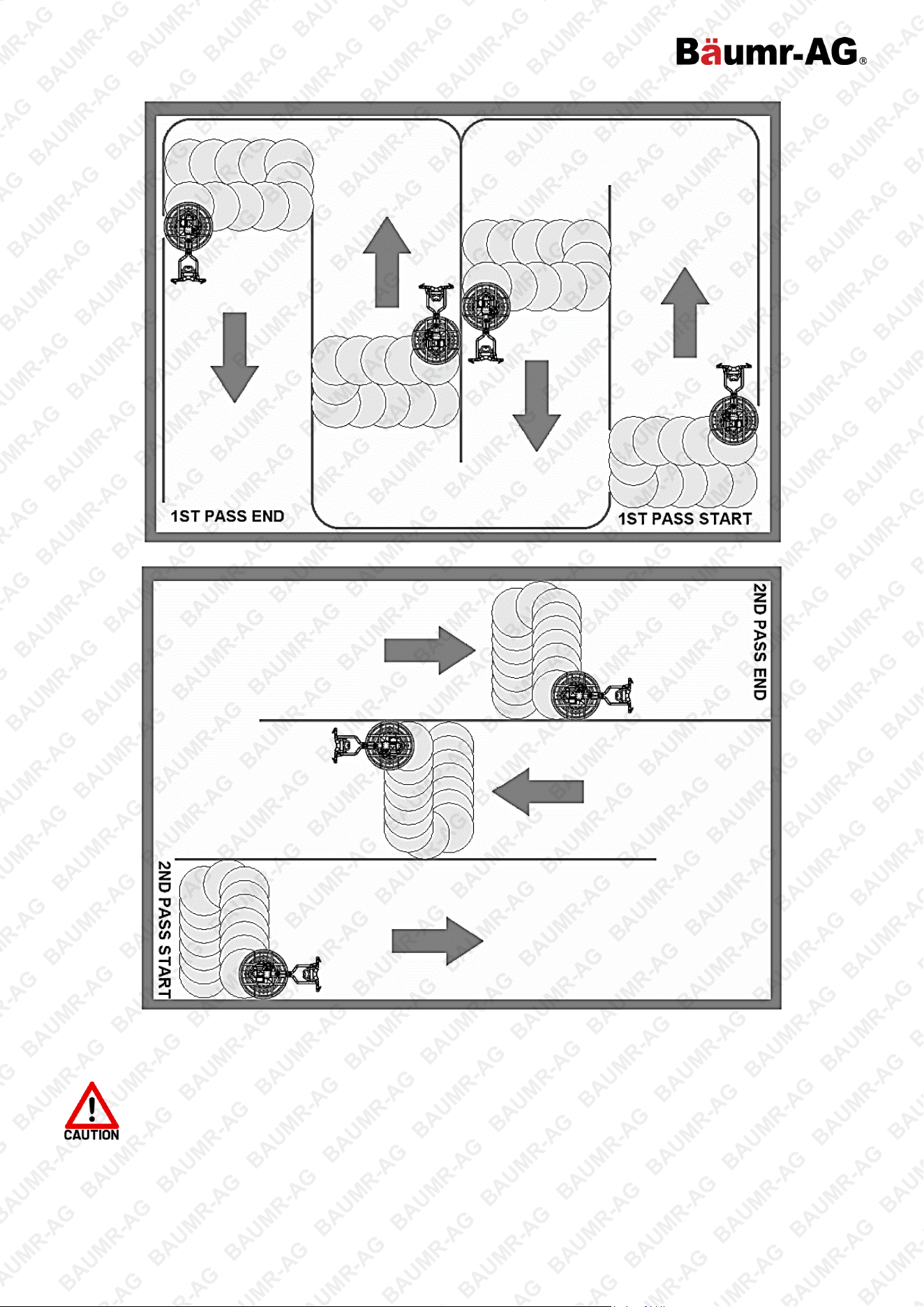

Trowelling pass direction

ALWAYS look where you are going. Be aware of any pipes or other protrusions from the

concrete to avoid tripping or striking the blades. Striking the blades can bend the trowel

arms or damage the drivetrain.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trowelling Machine

Quick Start Guide

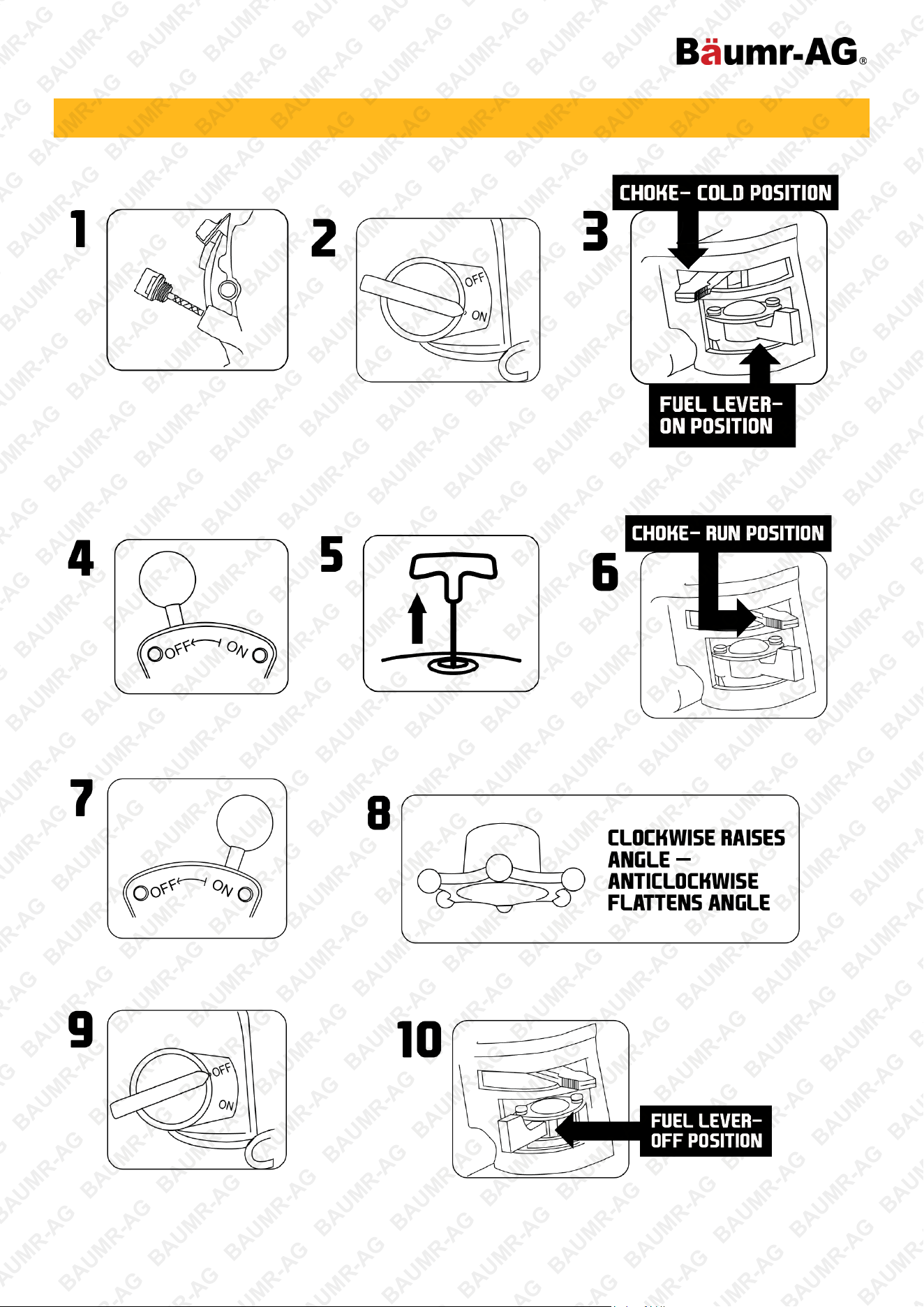

Remove oil dipstick (or cap)

and ensure enough engine oil

(500ml 10W30 recommended)

Locate ON/OFF switch and turn

on

Turn fuel lever ON and choke to cold

Ensure clutch is OFF

Pull starter cord until it kicks

(about 3 – 4 times, more if cold

weather)

Turn choke to run

Once engine is running, push

clutch to ON to turn blades

Turn handle to adjust blade angle

When finished, turn clutch off

and turn engine off

Turn fuel lever OFF when stored

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trowelling Machine

Maintenance

Spark Plug

Clean or replace the spark plug as needed to ensure proper operation.

Refer to the table below for frequency.

The spark plug becomes very hot during operation and remains hot for a while after stopping

the engine. Do not touch the spark plug while it is hot.

Note: Refer to the Technical Data for the recommended spark plug type and the electrode

gap setting.

•

Remove the spark plug and inspect it.

•

Replace the spark plug if the insulator is cracked or chipped.

•

Clean the spark plug electrodes with a wire brush.

•

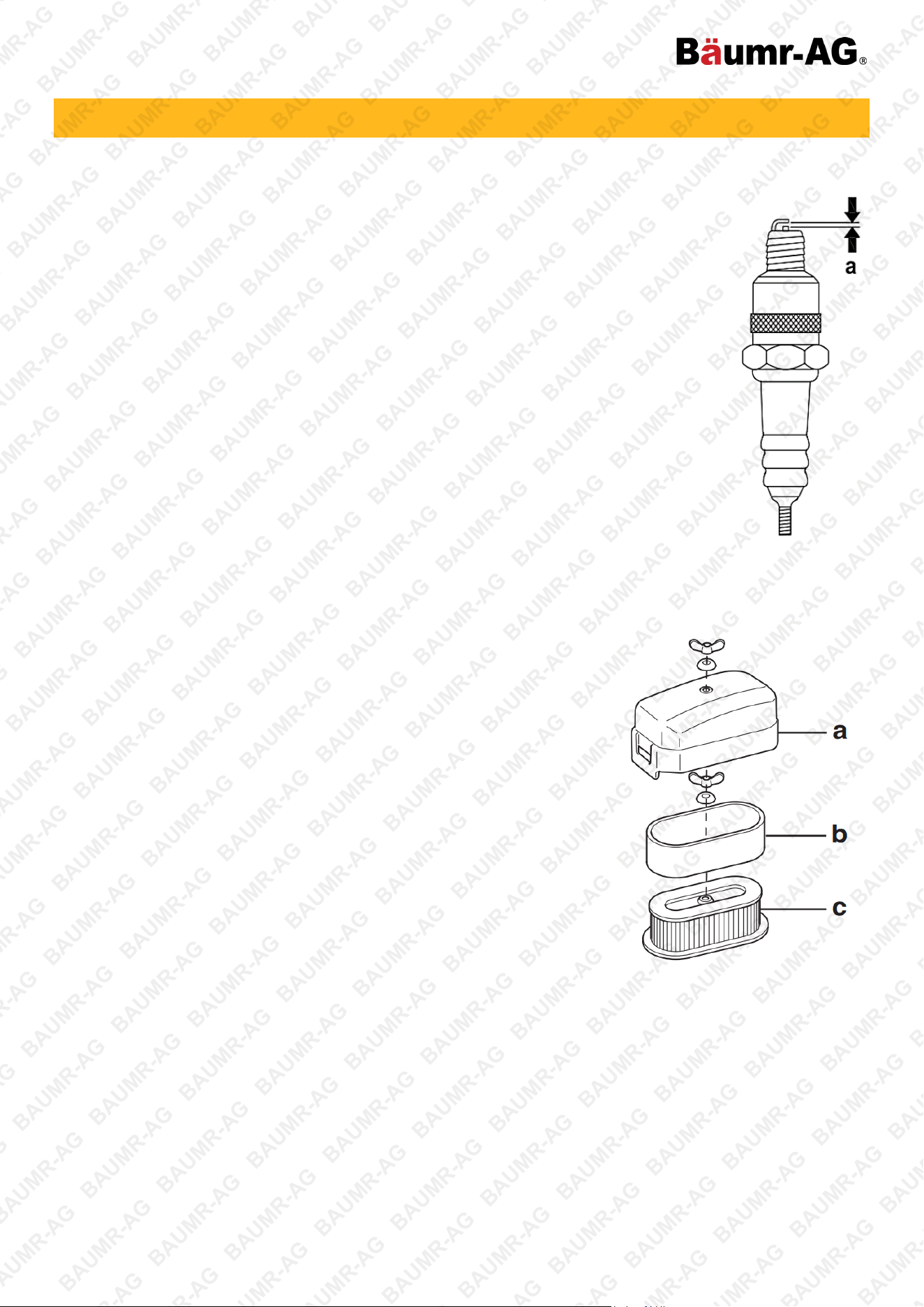

Set the electrode gap (a) 0.6 – 0.7 mm

•

Tighten the spark plug securely.

Air Filter

NOTE: NEVER run the engine without the air cleaner. Severe engine

damage will occur.

The engine is equipped with a dual-element air cleaner.

Under normal operating conditions, the elements should be cleaned once

every week. Under severe, dry and dusty conditions, the elements should

be maintained daily. Replace an element when it is saturated with dirt that

cannot be removed.

•

Remove the air cleaner cover (a). Remove the filter assembly by pulling

it straight up. Inspect both elements for holes or tears. Replace

damaged elements.

•

Wash the foam element (b) in a solution of mild detergent and warm

water. Rinse it thoroughly in clean water. Allow the element to dry

thoroughly.

•

Tap the paper element (c) lightly to remove excess dirt or blow

compressed air through the filter from the inside out. Replace the paper

element if it appears heavily soiled.

Oil

Please check oil before every use. To drain the oil, remove the drain plug with a 10mm socket.

Be careful! Ensure there is a proper draining bowl for the old oil. Trowelling machine may need to be

slightly tilted.

Once drained, fasten the screw plug back in. Refill with 600ml of 10W30 (recommended) engine oil by removing

the dipstick (circled in red) and pouring into cavity.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trowelling Machine

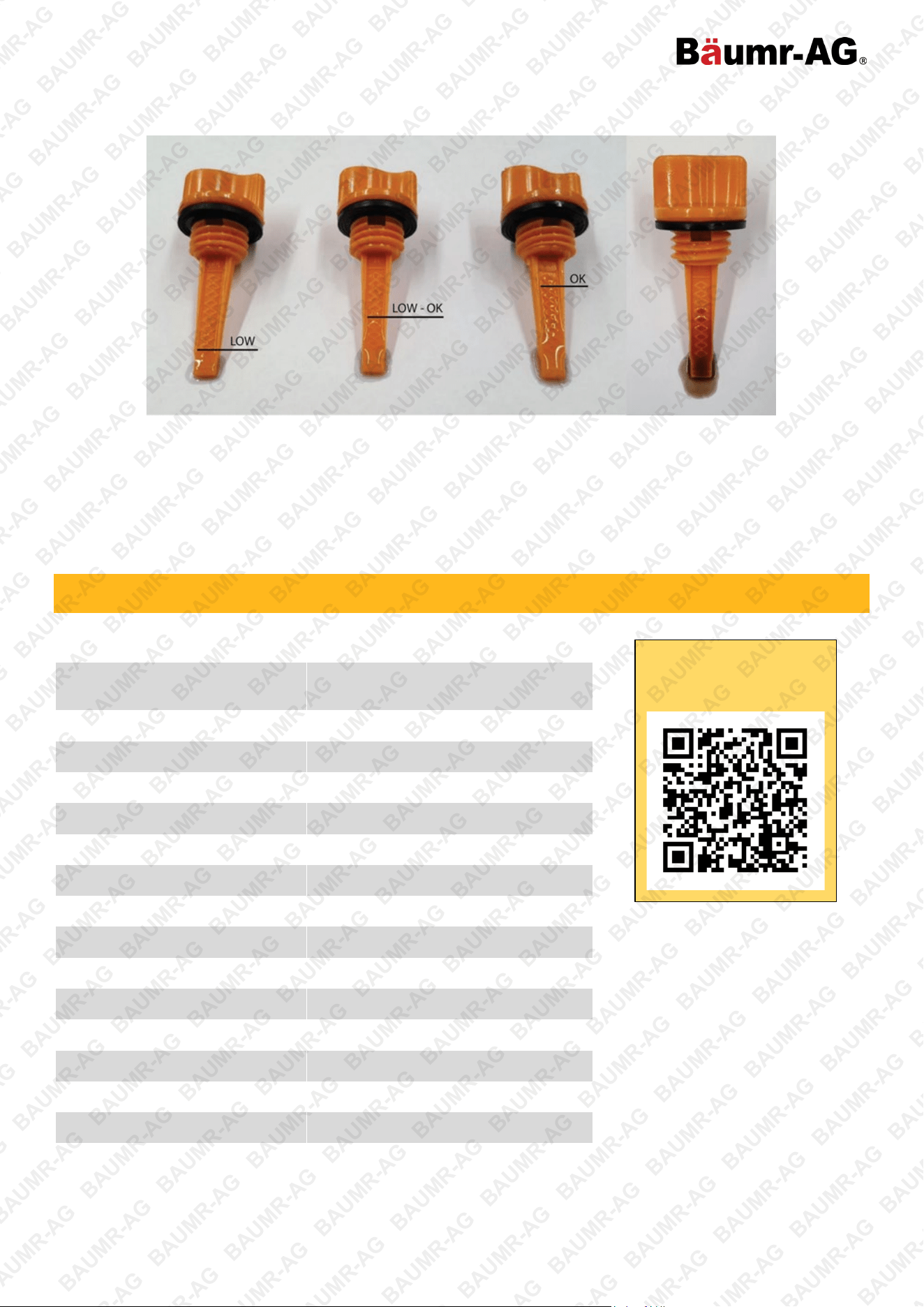

Check oil by removing dipstick and wiping it clean. Dip it back into its cavity without fully screwing it back in.

LOW Needs refilling or more added

LOW-OK Enough but will need refilling soon

OK Enough

Consider replacing oil if in far-right condition.

Specifications

Weight

100kg

Engine Type

Single-Cylinder, 4-Stroke, Air-Cooled,

OHV horizontal shaft Honda GX160

Engine Displacement

163CC

Engine Max. Output

5.5hp/3600rpm

Fuel Type

Regular Unleaded 95+RON

Fuel Tank Capacity

3.6L

Rated Continuous Operation

2-3 hours (Load Dependent)

Oil Type

SAE 10W30

Oil Capacity

0.6L

Noise Level at 7m

74db

Trowel Diameter

915mm/36 inch

Guard Diameter

960mm/38 inch

Number of Blades

4

Speed Range

55-90rpm (optimal-limited)

Pitch Range

0-15 degrees

Gearbox Oil Capacity

1.18L

Spare parts available

for purchase, scan QR

code below:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trowelling Machine

Some experts believe that the incorrect or prolonged use of almost any product

may cause serious injury or death. To help reduce your risk of serious injury or

death, refer to the information below. For more information, see

www.datastreamserver.com/safety



Consult all documentation, packaging and

product labelling before use. Note that some

products feature documentation available

online. It is recommended to print and retain

the documentation.



Before each use, check the product for

loose/broken/damaged/missing parts, wear or

leaks (if applicable). Never use a product with

loose/broken/damaged/missing parts, wear or

leaks.



Products must be inspected and serviced (if

applicable) by a qualified technician every 6

months. This is based on average residential

use by persons of average size and strength,

and on a property of average metropolitan

size. Use beyond these recommendations

may require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed access

to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific application or

description of application. Be sure to attain third-party approval

from a qualified specialist for your application before use,

regardless of any assurances from the retailer or its

representatives.



This product is not intended for use where fail-safe operation is

required. As with any product (for example, automobile,

computer, toaster), there is the possibility of technical issues

that may require the repair or replacement of parts, or the

product itself. If the possibility of such failure and the associated

time it may take to rectify could in any way inconvenience the

user, business or employee, or financially affect the user,

business or employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but not

limited to, a condition requiring product return, replacement,

parts replacement or service by a technician may cause

financial loss, loss of employee time or an inconvenience

requiring compensation.



If this product has been purchased in error when considering

the information presented here, contact the retailer directly for

details of their returns policy, if required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical,

including photocopying, scanning or recording, or any information storage and retrieval system, without express

permission or consent from the publisher.

BAUMR-AG CONTRWBMRA6C0 36" Troweller Machine Trowelling Power Trowel Concrete Helicopter

Product's Documents

Product manual

Specifications

BAUMR-AG CONTRWBMRA6C0 Questions and Answers
