BREEZE PRO SENSOR
Model: LTV-WSDTH04
DC: 071620
REPLACEMENT SENSOR - STATION CONNECTION
ADD TO THE LA CROSSE VIEW APP
1. Open your La Crosse View app, select the Devices tab from the main menu, and
then press the ADD DEVICE or PLUS (+) button near the bottom of the page.
2. Scan or type in the La Crosse View Device ID located on the bottom
of the sensor.
3. Give the device a Name and Location, and then press Save. Provided you have
the station connected to the Internet, you should begin to see your sensor data in
the app within the next few minutes.
For help with adding and removing devices within the La Crosse View app, please
view our video here: bit.ly/add_devices
La Crosse View Device ID
Page | 2
AA
AA
AA
For users setting this up as a replacement sensor, follow these steps to get it synced
with your display:
1. Press and release the SENSOR button on your station until you see the WIND
section light up. Hold the MINUS (-) button to delete the original sensor. The
Reception Icon will begin to animate, indicating it is searching for a new sensor
connection.

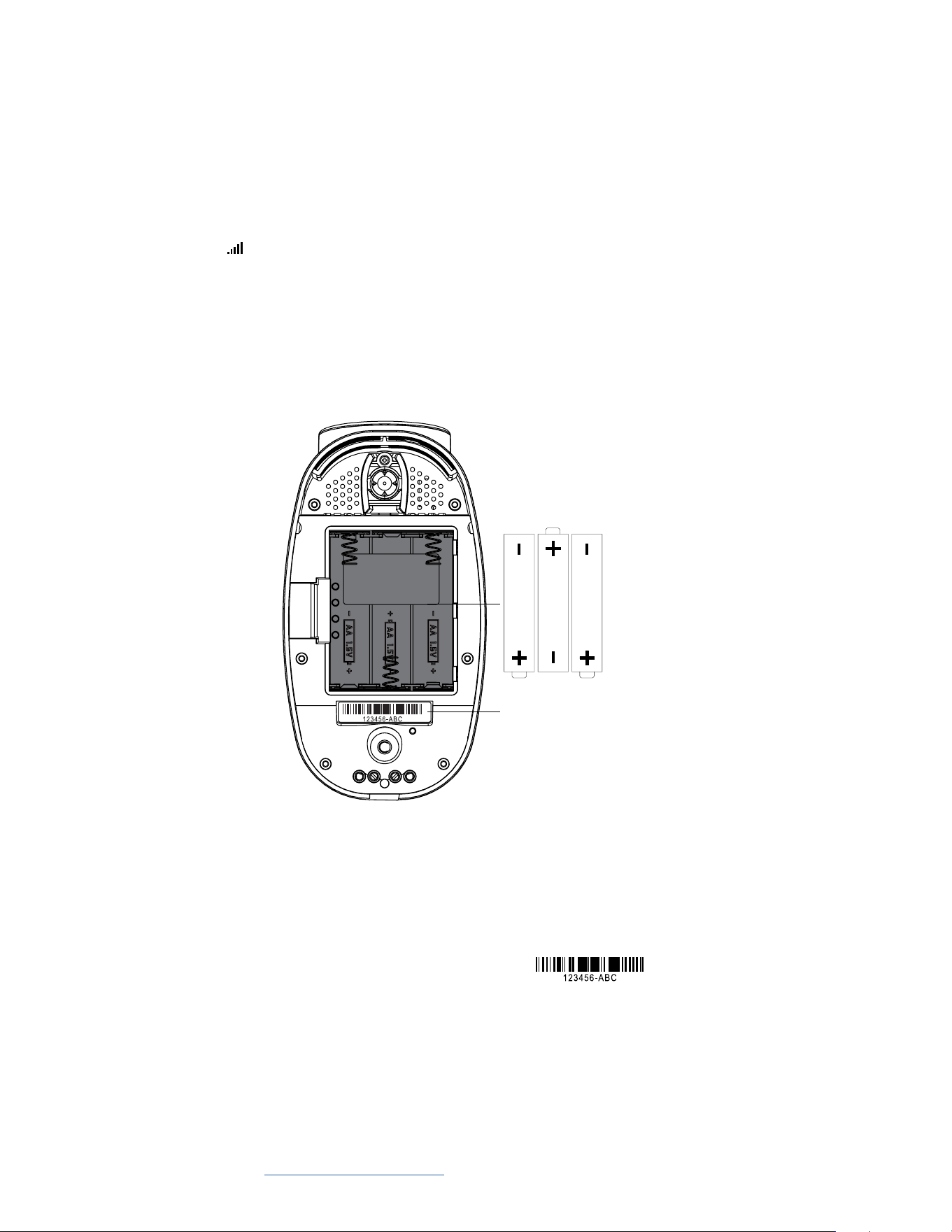

2. Install 3 new AA alkaline batteries into the Breeze Pro sensor (as shown below).
3. Keep the sensor near the display and allow 5 minutes for the sensor readings to
appear.
MOUNTING
The illustrations above are not to scale and are for informative purposes only.
For additional sensor information, visit: www.lacrossetechnology.com/support
Page | 3

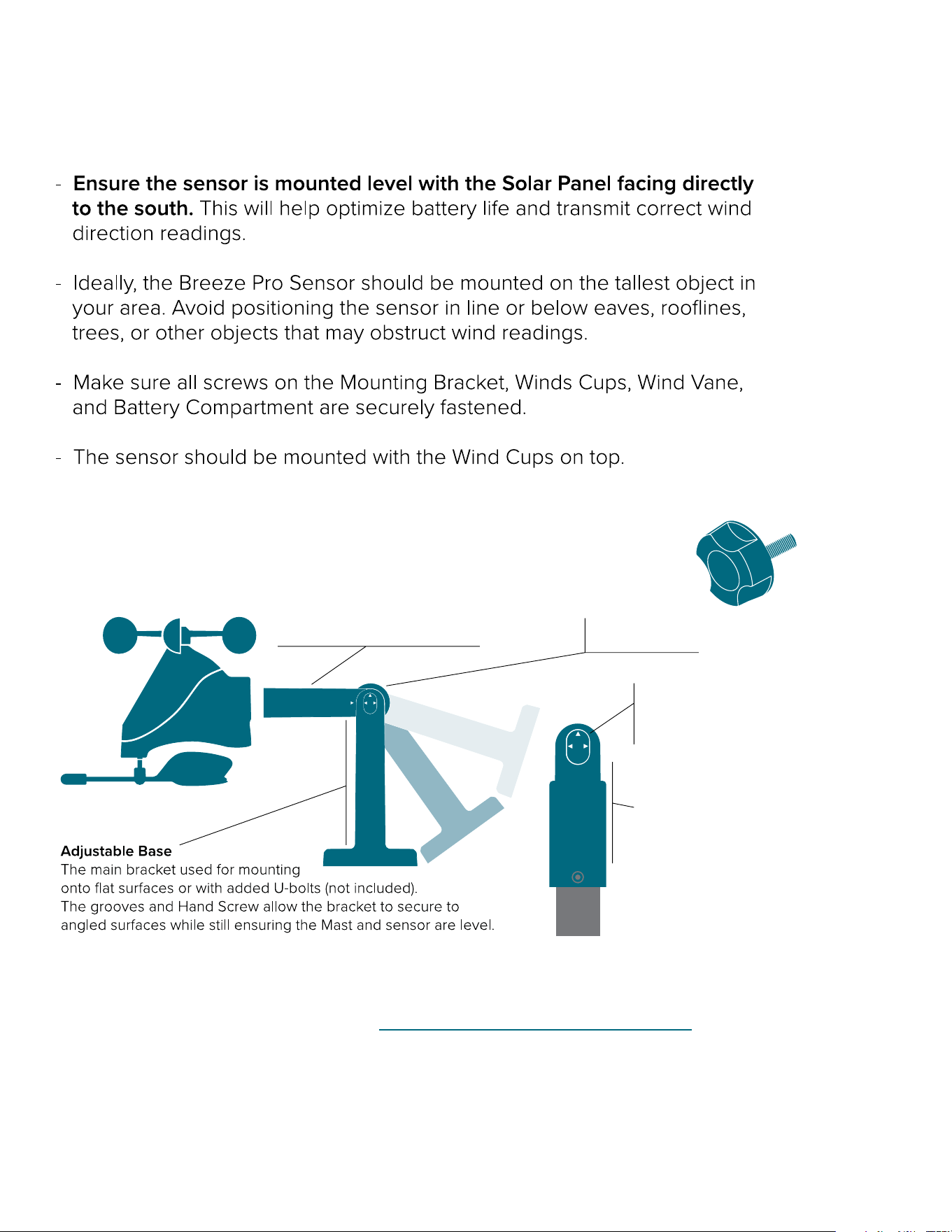

For Accurate Measurements
Mast
The horizontal conduit where the sensor
attaches. This Piece will connect to either
the Adjustable Base or Pole Adapter.
Pole Adapter
Used in place of the Adjustable Base
for mounting on top of cylindrical
conduits.
Alignment Arrows
Provide exact 90 or 180 degree
angles when aligned with the arrow
on the Mast.
1-Inch Maximum Pole Diameter
Hand Screw
Used to lock down and secure the Mast
to the Adjustable Base or Pole Adapter.
Included Mounting Accessories
U-bolt Adapters
Tripod Setup
Chimney Mount
1B Pole Adapter
1A Adjustable Base

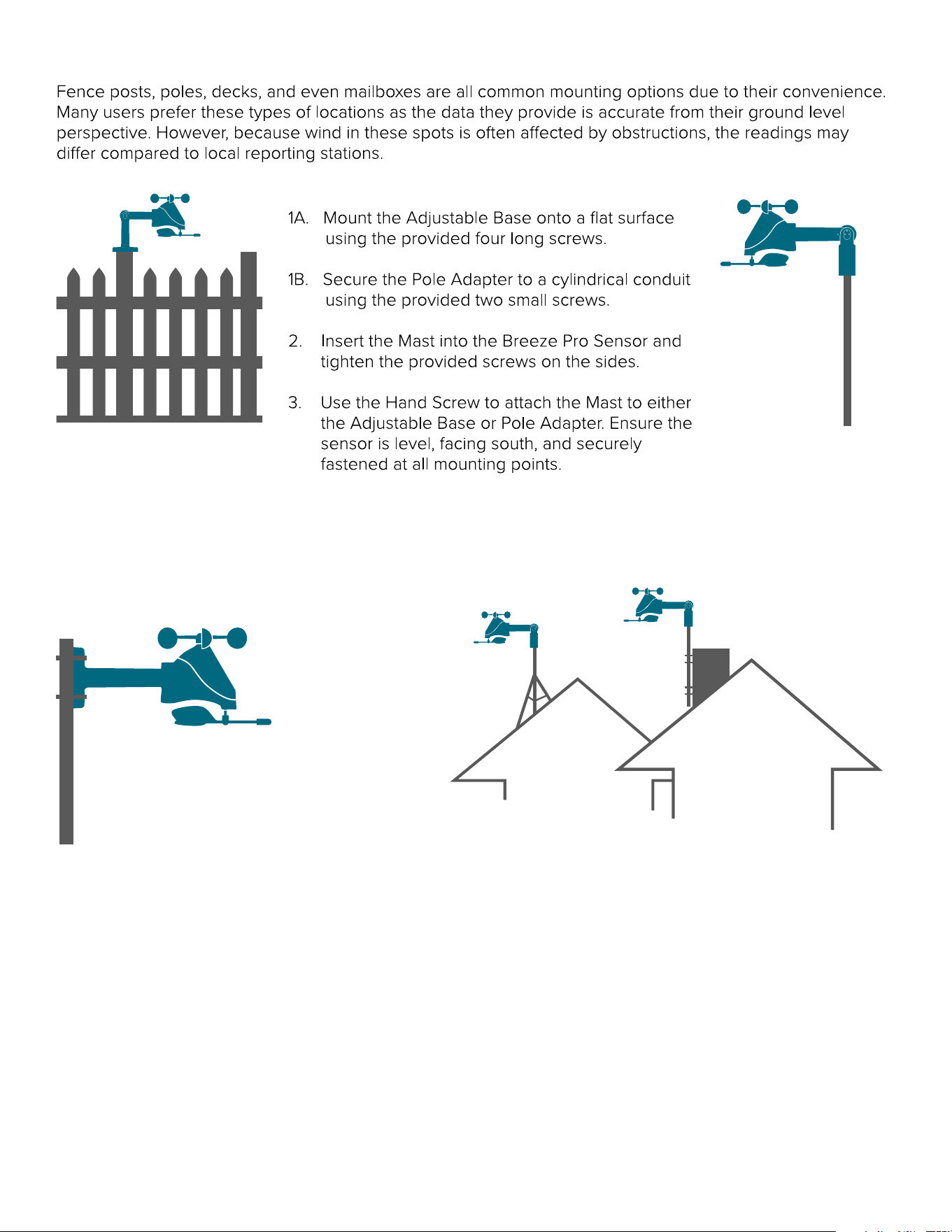

Basic Assembly
Basic Installation Options
Advanced Installation Options
Some advanced installation options include tripods, wall mounts, eave cross mounts, chimney mounts,
and many others. Any of these can be combined with U-bolts for attachment onto a tall cylindrical conduit
using our Adjustable Base. Please note that these advanced options will require additional equipment and
possibly professional help for best results.
The illustrations above are not to scale and are for informative purposes only.
La Crosse Technology is not responsible for any damages or injury that may occur during installation.
CARE + MAINTENANCE
•
Do not mix old and new batteries.
•
Do not mix Alkaline, Lithium, standard, or rechargeable batteries.
•
Always purchase the correct size and grade of battery most suitable for intended use.
•
Clean the battery contacts and also those of the device prior to battery installation.
•
Ensure the batteries have with correct polarity (+ / -).
•
Remove batteries from equipment that will not to be used for an extended period.
•
Promptly remove expired batteries.
Page | 4
• Wind Speed Range: 0 to 111 mph (0 to 178 kMh)
• Degrees of Wind Direction: 360° with 16 Cardinal Directions
• Outdoor Temp. Range: -40°F to 140°F (-40°C to 60°C)
• Outdoor Humidity Range: 10 to 99%RH
• Transmission Range: 400 Feet (121.92 Meters)
• Power Requirements: 3-AA Alkaline batteries (not included)
• Update Interval: Every 31 Seconds
• Sensor Dimensions:
• With Bracket: 6.21” L x 12.28” W x 9.87” H (15.77cm L x 31.19cm W x 25.07cm H)
• Without Bracket: 6.21” L x 8.25” W x 6.67” H (15.77cm L x 20.96cm W x 16.94cm H)
• Type 17 Sensor
SPECIFICATIONS
Page | 5
WARRANTY INFO
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials &
workmanship.
La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601
For Full Warranty Details, Visit: www.lacrossetechnology.com/support
