8458-9502008-001 06/18
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Visit our website: www.craftsman.comUsed under license
CAUTION: Before using this product,
read this manual and follow all its Safety
Rules and Operating Instructions.
Operator’s Manual
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
4-Cycle
1.62 cu in. (26.5 cc) Engine
HANDHELD BLOWER
Model No. 154.58973*
*The last digit of the model number varies.
2
SAFETY

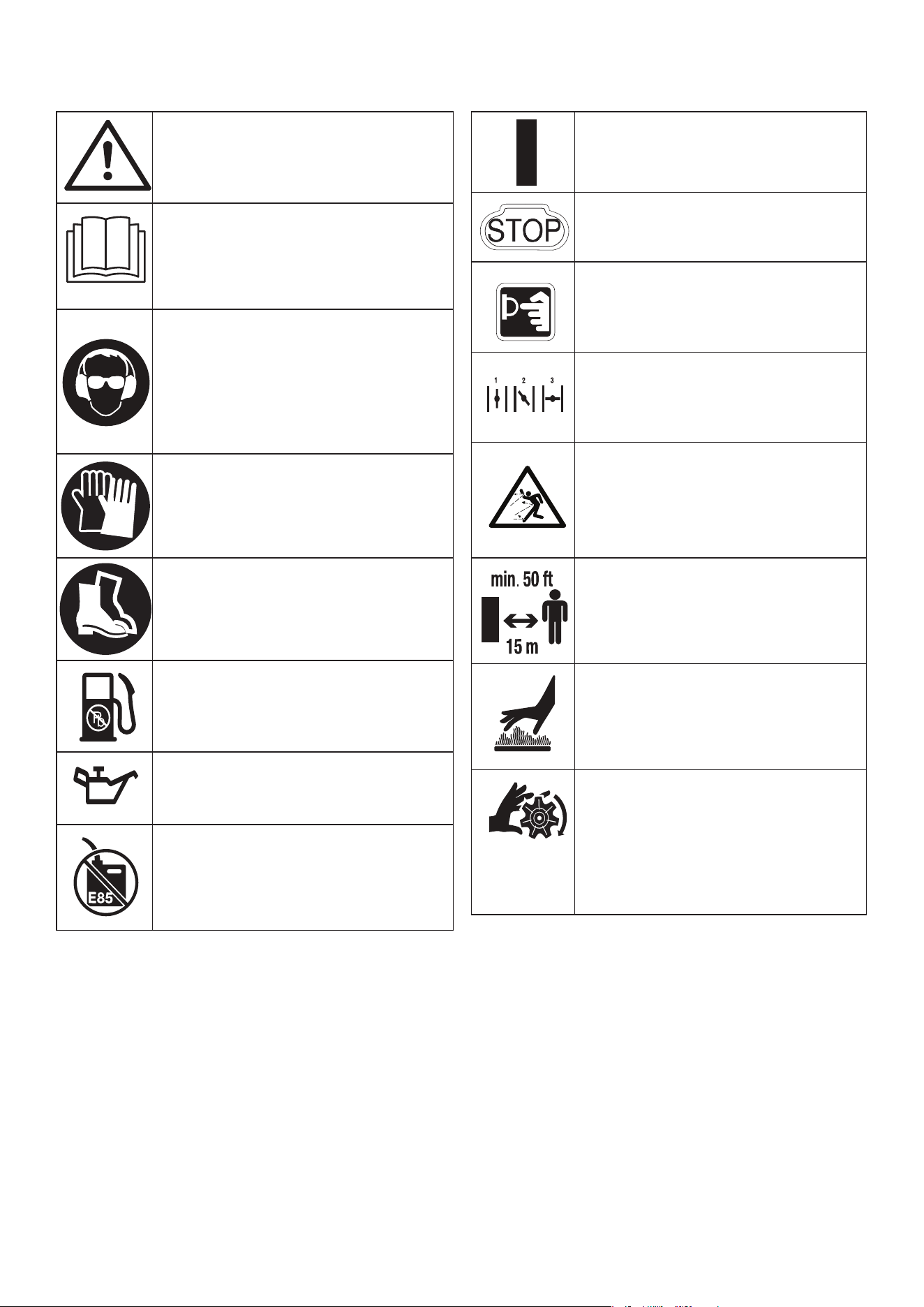

The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER: Signals an EXTREME hazard.
Failure to obey a safety DANGER symbol WILL result
in serious injury or death to yourself or to others.
WARNING: Crude oil, gasoline, diesel
fuel and other petroleum products can expose you
to chemicals including toluene and benzene, which
are known to the State of California to cause cancer
and birth defects or other reproductive harm. These
exposures can occur in and around oil elds, reneries,
chemical plants, transport and storage operations such
as pipelines, marine terminals, tank trucks and other
facilities and equipment. For more information go to:
www.P65Warnings.ca.gov/petroleum.
WARNING: Signals a SERIOUS
hazard. Failure to obey a safety WARNING symbol
CAN result in serious injury to yourself or to others.
CAUTION: Signals a MODERATE
hazard. Failure to obey a safety CAUTION symbol
MAY result in property damage or injury to yourself or
to others.
NOTE: Advises you of information or instructions vital to the
operation or maintenance of the equipment.
SPARK ARRESTOR NOTE
NOTE: For users on U.S. Forest Land and in the states of
California, Maine, Oregon and Washington. All U.S. Forest
Land and the state of California (Public Resources Codes
4442 and 4443), Oregon and Washington require, by law
that certain internal combustion engines operated on forest
brush and/or grass-covered areas be equipped with a spark
arrestor, maintained in effective working order, or the engine
be constructed, equipped and maintained for the prevention of
re. Check with your state or local authorities for regulations
pertaining to these requirements. Failure to follow these
requirements could subject you to liability or a ne. This unit is
factory equipped with a spark arrestor. If it requires replacement,
contact a Sears Parts & Repair Service Center to install the
appropriate muffler assembly. For location and purchase
information call 1-888-331-4569.
CALIFORNIA PROPOSITION 65
WARNING: This product contains a
chemical known to the state of California to cause
cancer, birth defects or other reproductive harm.
Read the operator’s manual and follow all warnings and
safety instructions. Failure to do so can result in serious
injury to the operator and/or bystanders.
TABLE OF CONTENTS
SAFETY ......................................................................................2

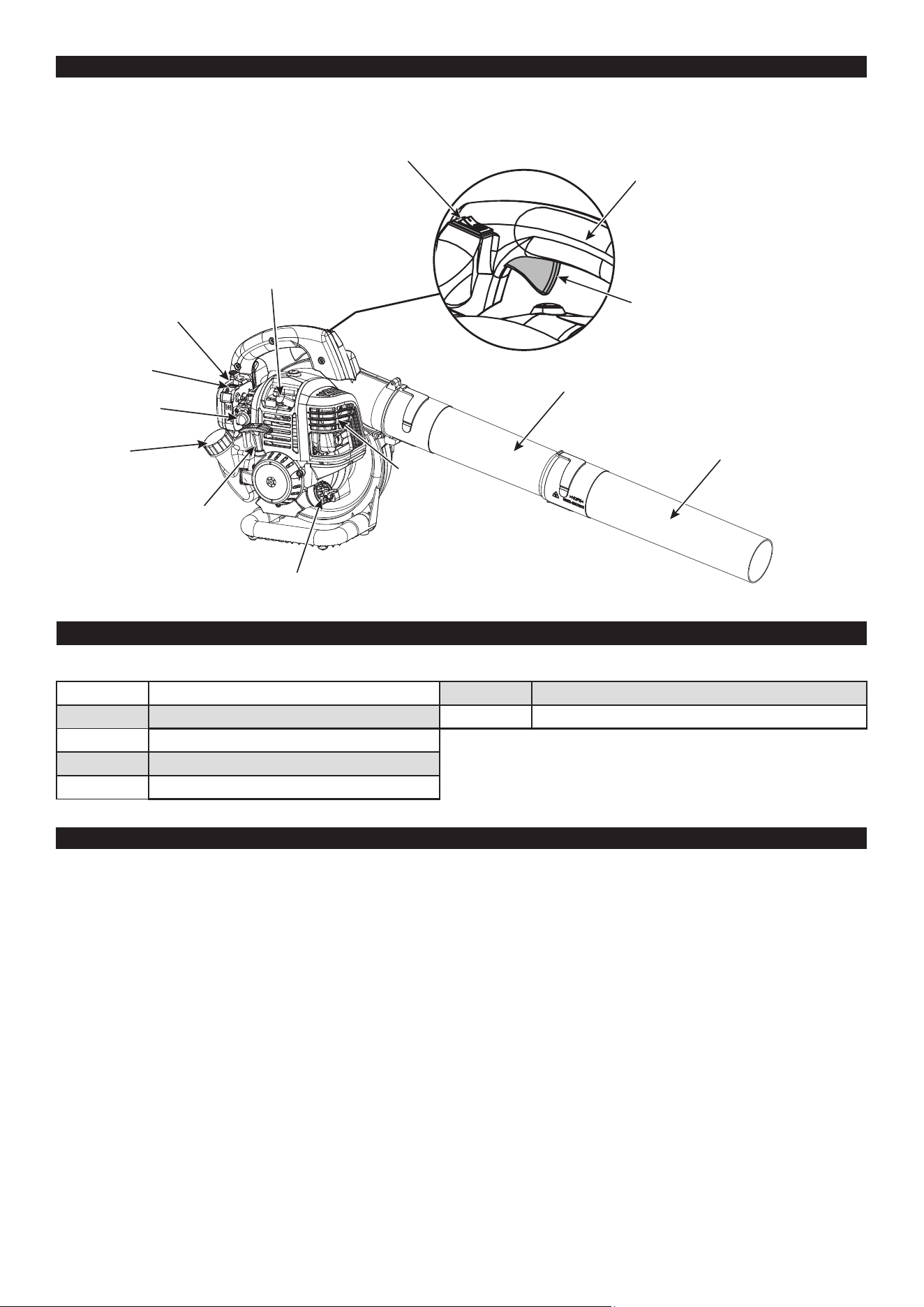

KNOW YOUR UNIT ....................................................................6
SPECIFICATIONS* ..................................................................... 6
ASSEMBLY ................................................................................. 7
OIL AND FUEL ...........................................................................8
STARTING AND STOPPING ......................................................9
OPERATION ............................................................................. 10
MAINTENANCE ....................................................................... 11
CLEANING AND STORAGE ....................................................14
TROUBLESHOOTING ..............................................................15
All information, illustrations and specications in this manual
are based on the latest product information available at the time
of printing. We reserve the right to make changes at any time
without notice.
© Sears Brands, LLC
3
• IMPORTANT SAFETY INSTRUCTIONS •
READ ALL INSTRUCTIONS BEFORE OPERATING
WARNING: When using the unit, all
safety instructions must be followed. Please read these
instructions before operating the unit in order to ensure
the safety of the operator and any bystanders. Please
keep these instructions for later use.
• Read the instructions carefully. Be familiar with the controls
and proper use of the unit.
• Do not operate this unit when tired, ill or under the inuence
of alcohol, drugs or medication.
• Never allow children to operate the unit. Teens must be
trained, accompanied and supervised by an adult. Never
allow adults to operate the unit without proper instruction.
• All guards and safety attachments must be installed properly
before operating the unit.
• Inspect the unit before use. Replace damaged parts. Check
for fuel leaks. Make sure all fasteners are in place and
secure. Replace parts that are cracked, chipped, or damaged
in any way. Do not operate the unit with loose or damaged
parts.
• Be aware of risk of injury to the head, hands and feet.
• Carefully inspect the area before starting the unit. Remove
rocks, broken glass, nails, wire, string and other objects that
may be thrown or become entangled with the unit.
• Clear the area of children, bystanders and pets; keep
them outside a 50-foot (15 m) radius, at a minimum. Even
then, they are still at risk from thrown objects. Encourage
bystanders to wear eye protection. If you are approached,
stop the unit immediately.
• Squeeze the throttle control and check that it returns
automatically to the idle position. Make all adjustments or
repairs before using the unit.
• Do not change the engine governor settings or overspeed
the engine.
• This unit is intended for occasional, household
use only.
SAFETY WARNINGS FOR GAS UNITS
WARNING: Gasoline is highly
ammable and its vapors can explode if ignited. Take
the following precautions:
• Store fuel only in containers specically designed and
approved for the storage of such materials.
• Always stop the engine and allow it to cool before lling
the tank. Never remove the fuel tank cap or add fuel when
the engine is hot. Always loosen the fuel tank cap slowly to
relieve any pressure in the tank
before fueling.
• Always add fuel in a clean, well-ventilated outdoor area
where there are no sparks or ames. DO NOT smoke.
• Never operate the unit without the fuel cap securely
in place.
• Avoid creating a source of ignition for spilled fuel. Wipe up
any spilled fuel from the unit immediately, before starting
the unit. Move the unit at least 30 ft. (9.1 m) from the fueling
source and site before starting the engine. DO NOT smoke.
• Never start or run the unit inside a closed room or building.
Breathing exhaust fumes can kill. Operate this unit only in a
wellventilated outdoor area.
WHILE OPERATING
• Wear safety glasses or goggles that meet current ANSI /
ISEA Z87.1 standards and are marked as such. Wear ear/
hearing protection when operating this unit. Wear a face
mask or dust mask if the operation is dusty.
• Wear heavy long pants, boots, gloves and a long sleeve
shirt. Do not wear loose clothing, jewelry, short pants,
sandals or go barefoot. Secure hair above shoulder level.
• Use the unit only in daylight or good articial light.
• Avoid accidental starting. Be in the starting position
whenever pulling the starter rope. The operator and unit must
be in a stable position while starting. Refer to Starting and
Stopping.
• Use the right tool. Only use this tool for its
intended purpose.
• Always hold the unit with both hands when operating. Keep a
rm grip on both handles or grips.
• Do not overreach. Always keep proper footing and balance.
Take extra care when working on stairs, steep slopes or
inclines. To avoid serious injury, do not operate the unit while
on a ladder or a roof.
• Keep hands, face, and feet away from all moving parts. Do
not touch or try to stop moving parts.
• Do not touch the engine or muffler. These parts get extremely
hot from operation, even after the unit is turned off.
• Do not operate the unit faster than the speed needed to do
the job. Do not run the unit at high speed when not in use.
• Do not force the unit. It will do a better, safer job when used
at the intended rate.
• Always stop the unit when operation is delayed or when
walking from one location to another.
• Before setting the unit down, always make sure the engine is
off and all moving parts have stopped.
• If you strike or become entangled with a foreign object, stop
the unit immediately and check for damage. Do not operate
the unit before repairing damage. Do not operate the unit
with loose or damaged parts.
• Turn the engine off and disconnect the spark plug for
maintenance or repair.
• Use only original equipment manufacturer (OEM)
replacement parts and accessories for this unit. Use of any
other parts or accessories could lead to serious injury to the
user, or damage to the unit, and void the warranty.
• Keep the unit clean. Carefully remove vegetation and other
debris that could block moving parts.
• To reduce re hazard, replace a faulty muffler and spark
arrestor. Keep the engine and muffler free from grass, leaves,
excessive grease or carbon build up.
• If the unit starts to vibrate abnormally, stop the
unit immediately. Inspect the unit for the cause of the
vibration. Vibration is generally an indicator of trouble.
4
BLOWER SAFETY
• Do not insert anything into the air openings, blower tube or
nozzle. Do not operate the unit if any of the air openings or
tubes are blocked. Keep the air openings free from dust, lint,
hair and anything else that may reduce airow.
• Do not operate the unit without the blower tube securely
attached.
• Do not use the unit to spray liquids, especially ammable or
combustible liquids, such as gasoline. Do not use the unit in
areas where such liquids are present.
• Do not use the unit for spreading chemicals, fertilizer or any
other substance that may contain toxic materials.
• Do not set the unit down on any surface while the unit is
running. Debris can be picked up by the air intake and
thrown out the discharge opening, resulting in damage to the
unit or property or causing serious injury to bystanders or the
operator.
• During operation, never point the unit in the direction of
people, animals, windows or automobiles. Always direct
blowing debris away from people, animals, windows or
automobiles.
• Use extra caution when blowing debris near solid objects,
such as trees, walls, fences, etc. When possible, blow away
from such objects, not toward them.
• Take care when working near valuable plants. The force of
the blown air could damage tender plants.
• Never attempt to clear a clogged air intake opening while the
unit is running.
• Keep hair, ngers and all other body parts away from moving
parts and openings.
OTHER SAFETY WARNINGS
• Maintain the unit with care.
• All service, other than the maintenance procedures
described in this manual, should be performed by a Sears or
other qualied service dealer.
• Never remove, modify or make inoperative any safety device
furnished with the unit.
• Before inspecting, servicing, cleaning, storing, transporting
or replacing any parts on the unit:
1. Stop the unit.
2. Make sure all moving parts have stopped.
3. Allow the unit to cool.
4. Disconnect the spark plug wire.
• Secure the unit while transporting.
• Never store the unit with fuel in the tank, inside a building
where fumes may reach an open ame (pilot lights, etc.) or
sparks (switches, electrical motors, etc.).
• Store the unit in a dry place, secured or at a height to prevent
unauthorized use or damage. Keep the unit out of the reach
of children.
• Never douse or squirt the unit with water or any
other liquid.
• Keep handles dry and clean (free from debris, oil and
grease).
• Clean the unit after each use. Refer to Cleaning and Storage.
Do not use solvents or strong detergents.
• Keep these instructions. Refer to them often and use them to
instruct other users. If you loan this unit to others, also loan
them these instructions.
SAVE THESE INSTRUCTIONS
5
• SAFETY & INTERNATIONAL SYMBOLS •
This operator’s manual describes safety and international symbols and pictographs that may appear on this product. Read the
operator’s manual for complete safety, assembly, operating and maintenance and repair information.
SAFETY ALERT SYMBOL
Indicates danger, warning or caution. May
be used in conjunction with other symbols or
pictographs.
READ OPERATOR’S MANUAL
WARNING: Read the operator’s
manual(s) and follow all warnings and safety
instructions. Failure to do so can result in
serious injury to the operator and/or bystanders.
WEAR EYE AND HEARING PROTECTION
WARNING:Thrown objects and
loud noise can cause severe eye injury and
hearing loss. Wear eye protection meeting
current ANSI / ISEA Z87.1 standards and ear
protection when operating this unit. Use a full
face shield when needed.
WEAR HAND PROTECTION
Wear heavy duty work gloves to protect hands.
WEAR FOOT PROTECTION
Wear boots with slip-resistant and puncture-
resistant soles.
UNLEADED FUEL
Always use clean, fresh unleaded fuel.
OIL
Refer to operator’s manual for the proper type
of oil.
DO NOT USE E85 FUEL IN THIS UNIT
WARNING: It has been proven
that fuel containing greater than 10% ethanol
will likely damage this engine and void the
warranty.
ON/OFF STOP CONTROL
ON / START / RUN
ON/OFF STOP CONTROL
OFF or STOP
PRIMER BULB
Push primer bulb, fully and slowly,
10 times.
CHOKE CONTROL
1.•RUNchokeposition
2.•PARTIALchokeposition
3.•FULLchokeposition
THROWN OBJECTS CAN CAUSE SEVERE
INJURY
WARNING: Small objects can
be propelled at high speed, causing injury.
KEEP BYSTANDERS AWAY
WARNING: Keep all
bystanders, especially children and pets, at
least 50 feet (15 m) from the
operating area.
HOT SURFACE
WARNING:Do not touch a hot
muffler or cylinder. You may get burned. These
parts get extremely hot from operation. When
turned off, they remain hot for a short time.
BLOWERS – ROTATING IMPELLER
BLADES CAN CAUSE SEVERE INJURY
WARNING:Stop the unit
and allow the impeller to stop before
changing tubes, cleaning or performing any
maintenance. Keep hands and feet away from
moving parts.
6
KNOW YOUR UNIT
APPLICATIONS
• Cleaning yards, garages, driveways, porches, patios, around
walls, fences and more
On/Off Switch
Throttle Control
Starter Rope Grip
Air Filter Cover
Primer Bulb
Fuel Cap
Lower Blower Tube
Upper Blower Tube
Oil Fill Plug
Handle
Muffler
Choke Lever
Spark
Plug Cover
INCLUDED PARTS
Quantity Item Quantity Item
1 Fast Start Guide 1 Warranty statement
1 Operator’s Manual 1 EPA warrantly letter
1 Torx wrench
1 Spark plug wrench
1 60 ml bottle of oil
SPECIFICATIONS*
Engine type ............................................................................................................................................................. Air-Cooled, 4-Cycle
Displacement ........................................................................................................................................................... 1.62 cu in. (26.5 cc)
Spark plug gap ................................................................................................................................... 0.025 in. - 0.31 in. (0.6 - 0.8 mm)
Lubrication .............................................................................................................................................................................SAE 30 Oil
Crankcase lubrication capacity ...................................................................................................................................... 2.03 oz. (60 ml)
Fuel tank capacity ........................................................................................................................................................ 9.47 oz. (280 ml)
Approximate unit weight (no fuel) .................................................................................................................................9.26 lbs. (4.2 kg)
Volume of air moved ............................................................................................................................................... 410 CFM (697 m
3
/h)
Air blowing speed ...................................................................................................................................................... 125 MPH (55 m/s)
* All specications are based on the latest product information available at the time of printing. We reserve the right to make
changes at any time without notice.
7
ASSEMBLY
WARNING: To avoid serious personal
injury and damage to the unit, shut the unit off before
removing or installing blower tubes or nozzles.
WARNING: To prevent serious personal
injury, never operate the unit without the upper blower
tube rmly installed.
INSTALLING THE BLOWER TUBE(S)
Always install the upper blower tube. The lower blower tube
is optional.
Installing the Upper Blower Tube
1. Align the slots on the upper end of the upper blower tube with
the bumps on the blower outlet (Fig. 1).
2. Install the upper blower tube onto the blower outlet (Fig. 1).
3. While holding the handle, twist the upper blower tube
clockwise until it locks into place (Fig. 1).
Installing the Lower Blower Tube
1. Align the slots on the lower blower tube with the bumps on the
lower end of the upper blower tube (Fig. 2).
2. Install the lower blower tube onto the upper blower
tube (Fig. 2).
3. While holding the upper blower tube, twist the lower blower
tube clockwise until it locks into place (Fig. 2).
REMOVING THE BLOWER TUBE(S)
Removing the Upper Blower Tube
1. Twist the upper blower tube counterclockwise until it unlocks
from the blower outlet (Fig. 3).
2. Remove the upper blower tube from the blower outlet.
Removing the Lower Blower Tube
1. While holding the upper blower tube, twist the lower blower
tube counterclockwise until it unlocks from the blower tube.
2. Remove the lower blower tube from the upper blower tube.
Blower
Outlet
Upper
Blower Tube
Handle
Slot
Bumps
Fig. 1
Upper
Blower Tube
Lower Blower Tube
Bump
Slot
Fig. 2
Upper
Blower Tube
Slot
Fig. 3
8

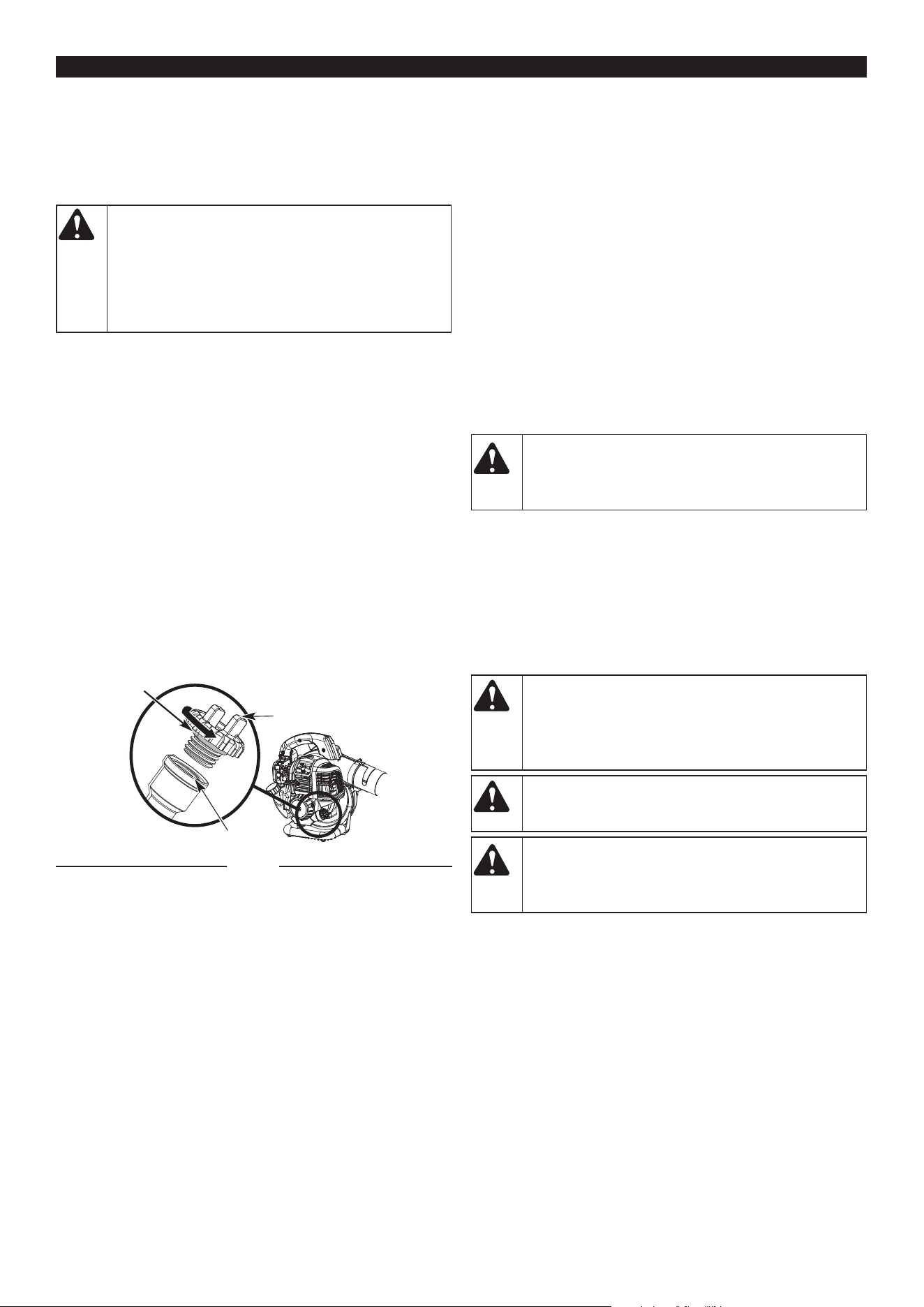

OIL AND FUEL
USING THE RIGHT OIL
Use a high-quality SAE 30 weight oil. DO NOT use dirty oil.
Failure to use clean oil of the correct type can cause premature
engine wear and failure.
ADDING OIL: INITIAL USE
WARNING: OVERFILLING THE
CRANKCASE MAY CAUSE SERIOUS PERSONAL
INJURY. Check the oil level before each use. The
importance of maintaining the proper oil level cannot
be overemphasized. Change the oil according to the
Maintenance Schedule.
NOTE: This unit was shipped without oil in the crankcase. Oil
must be added before starting the unit.
NOTE: This unit comes with a 2.03 uid oz. (60 ml) container
of oil.
1. Set the unit on a flat, level surface.
2. Unscrew the oil ll plug (Fig. 4).
3. Pour the entire container of oil into the oil ll hole (Fig. 4).
DO NOT overll. Refer to Checking the Oil Level.
NOTE: Never add oil to the fuel tank. This unit has a four-cycle
engine. DO NOT mix oil with gasoline.
4. Wipe up any oil that may have spilled.
5. Reinstall the oil ll plug.
NOTE: Make sure the O-ring is in place on the oil ll plug
(Fig. 4).
O-Ring
Oil Fill Plug
Oil Fill Hole
Fig. 4
USING THE RIGHT FUEL
The use of old fuel is the most common cause of performance
problems. Use only fresh, clean unleaded gasoline.
NOTE: This unit has a four-cycle engine. DO NOT mix oil
with gasoline.
Definition of Blended Fuels
Today’s fuels are often a blend of gasoline and oxygenates such
as ethanol, methanol or MTBE (ether). Alcohol-blended fuel
absorbs water. As little as 1% water in the fuel can make fuel
and oil separate, forming acids when stored. ALWAYS use fresh
fuel (less than 30 days old).
NOTE: Dispose of old fuel according to federal, state and local
regulations.
Using Blended Fuels
If using a blended fuel:
• Always use fresh unleaded gasoline
• Use the fuel additive STA-BIL
®
or an equivalent
WARNING: DO NOT USE E85 FUEL IN THIS UNIT.
It has been proven that fuel containing greater than
10% ethanol will likely damage this engine and void the
warranty.
Using Fuel Additives
Use a fuel additive, such as STA-BIL Fuel Stabilizer or an
equivalent, to inhibit corrosion and minimize gum deposits. Add
0.8 oz. (23 ml) of fuel additive per gallon of fuel, according to the
instructions on the container. NEVER add fuel additives directly
to the unit’s fuel tank.
FUELING THE UNIT
WARNING: Gasoline is extremely ammable. Ignited
vapors may explode. Always stop the engine and allow
it to cool before lling the fuel tank. Do not smoke while
lling the tank. Keep sparks and open ames at a
distance from the area.
WARNING: Remove the fuel cap slowly to avoid
injury from fuel spray. Never operate the unit without
the fuel cap securely in place.
WARNING: Add fuel in a clean, well ventilated
outdoor area. Wipe up any spilled fuel immediately.
Avoid creating a source of ignition for spilled fuel. Do
not start the engine until fuel vapors dissipate.
1. Position the unit with the fuel cap facing up.
2. Slowly remove the fuel cap.
3. Place the fuel container spout into the fuel tank ll hole and ll
the tank.
NOTE: Do not overll the tank.
4. Wipe up any fuel that may have spilled.
5. Reinstall the fuel cap.
6. Move the unit at least 30 ft. (9.1 m) from the fuel container
and the fueling site before starting the engine.
9
STARTING AND STOPPING
WARNING: Operate this unit only in a well-ventilated
outdoor area. Carbon monoxide exhaust fumes can be
lethal in a conned area.
WARNING: Avoid accidentally starting the unit. To
avoid serious injury, the operator and the unit must be
in a stable position when pulling the starter rope (Fig.
7).
WARNING: When starting the unit, make sure it is not
directed toward people, animals, windows, automobiles
or loose debris.

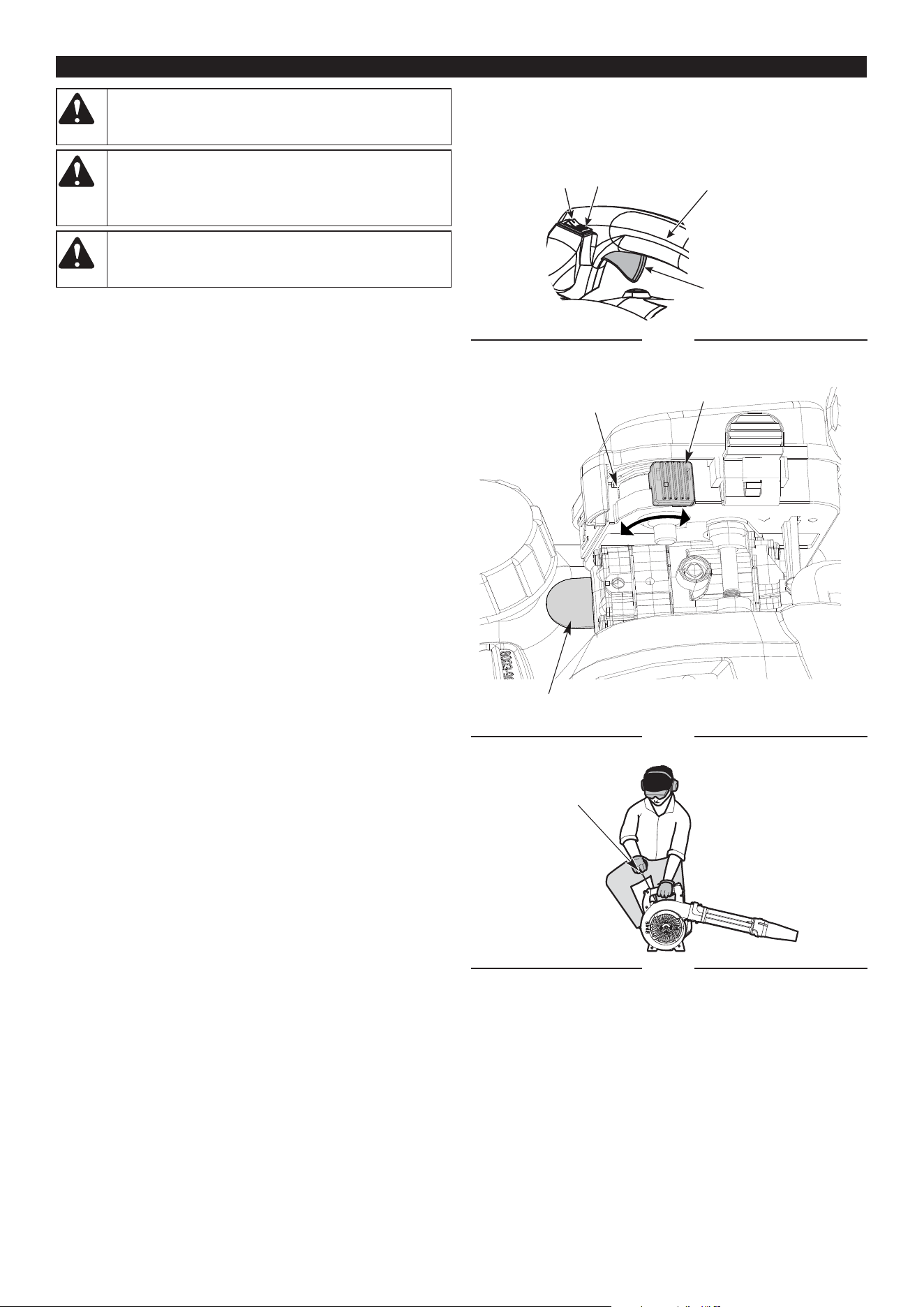

STARTING INSTRUCTIONS
1. Check the oil level. Refer to Checking the Oil Level.
2. Fill the fuel tank. Refer to Fueling the Unit.
NOTE: There is no need to turn the unit on. The On/Off switch is
in the ON ( I ) position at all times (Fig. 5).
3. Slowly press and release the primer bulb 10 times (Fig. 6).
4. Move the choke lever to the Full Choke position (Fig. 6).
5. DO NOT squeeze the throttle control. Crouch in the starting
position (Fig. 7).
6. DO NOT squeeze the throttle control. Pull the starter rope with
a controlled and steady motion 3 to 5 times to start the engine
(Fig. 7).
7. Allow the engine to warm up for no more than 10 seconds.
Then squeeze the throttle control; the choke lever will return to
the Choke Off position. Continue squeezing throttle control to
operate the blower.
IF... the engine does not start, begin the starting procedure with
step 3.
IF... the engine fails to start after a few attempts, squeeze
the throttle control to return move the choke to the Choke Off
position. Pull the starter rope with a controlled and steady
motion 3 to 8 times. The engine should start. If it does not,
repeat this instruction.
IF THE UNIT WAS RUN FOR 10-15 MINUTES AND THE
ENGINE IS HOT... perform steps 3, 5, 6, 7 to restart the engine.
Squeeze and hold the throttle control. Run the unit for 2-5
minutes, or as needed. The unit may be used during this time.
If the engine speed uctuates, move the the choke lever to
the Full Choke position and run the unit for 2-5 minutes, or as
needed. The unit may be used during this
time. Then squeeze and hold the throttle control to operate the
blower.
STOPPING INSTRUCTIONS
1. Release the throttle control and allow the engine to idle.
2. Press and hold the On/Off switch in the OFF (STOP) position
untilthe engine comes to a complete stop (Fig. 5).
Throttle Control
Handle
On (I) Off (=STOP)
Fig. 5
Primer Bulb
Full Choke
Choke Off
Fig. 6
Starting
Position
Starter Rope Grip
Fig. 7
10
OPERATION
WARNING: To prevent serious personal injury, never
operate the unit without the upper blower tube rmly
installed.
WARNING: Always wear eye, hearing, hand, foot
and body protection to reduce the risk of injury when
operating this unit. Wear a face mask or dust mask if
the operation is dusty.

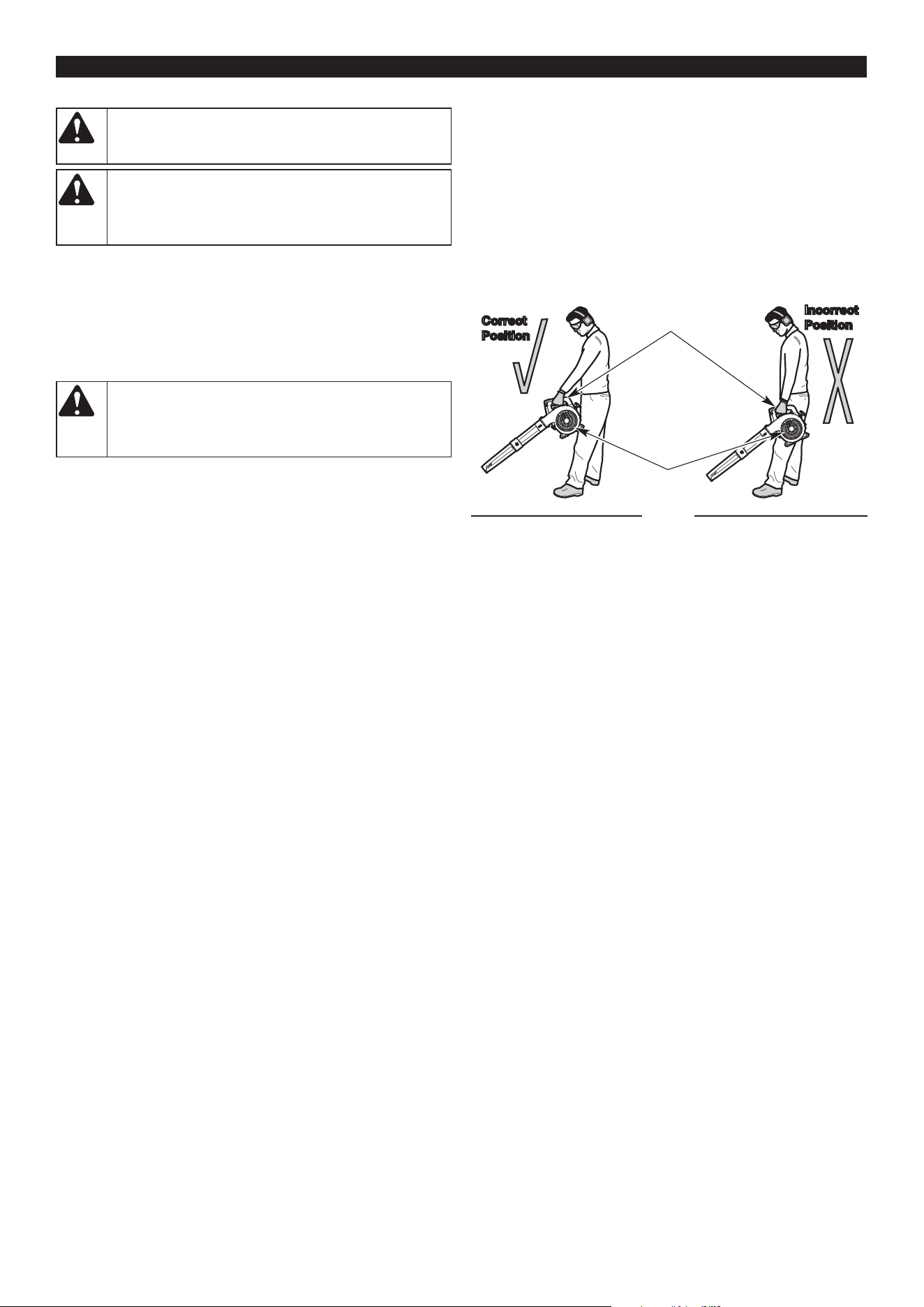

HOLDING THE UNIT
• Stand in the operating position (Fig. 8). Stand up straight. Do
not bend over.
• Keep feet apart and rmly planted.
• Hold the unit in front of, and away from, your body (Fig. 8).
WARNING: To prevent serious personal injury or
damage to the unit, DO NOT hold the unit at your side
(Fig. 8). The engine may be extremely hot. DO NOT
block the air intake.
TIPS FOR BEST RESULTS
• Conserve water by using the blower instead of a hose to
perform many outdoor cleaning actions.
• Operate the unit only at reasonable hours, not early in the
morning or late at night when people might be disturbed.
Comply with times listed in local ordinances. Usual
recommendations are 9:00 a.m. to 5:00 p.m., Monday
through Saturday.
• To reduce noise levels, operate the unit at the lowest speed
• needed to do the job. Limit the number of pieces of power
equipment used at any one time.
• Use rakes or brooms to loosen debris before operation.
• In dusty conditions, slightly dampen surfaces.
• Watch out for children, pets, open windows and freshly
washed cars. Blow debris safely away. Never direct the unit
toward anyone while the unit is in operation.
• Sweep the unit from side to side with the blower tube several
inches above the ground. Slowly advance, keeping the
accumulated debris in front of the operator.
• Use the nozzle to concentrate the air stream closer to the
ground.
• Clean up after operation. Dispose of debris appropriately.
HandleCorrect
Position
Incorrect
Position
Air Intake
Fig. 8
11
MAINTENANCE
WARNING: To avoid serious personal injury, always
stop the engine and allow it to cool before cleaning
or maintaining the unit. Never perform cleaning or
maintenance while the unit is running. Disconnect
the spark plug wire to prevent the unit from starting
accidentally.
WARNING: Wear protective clothing and observe all
safety instructions to prevent serious personal injury.

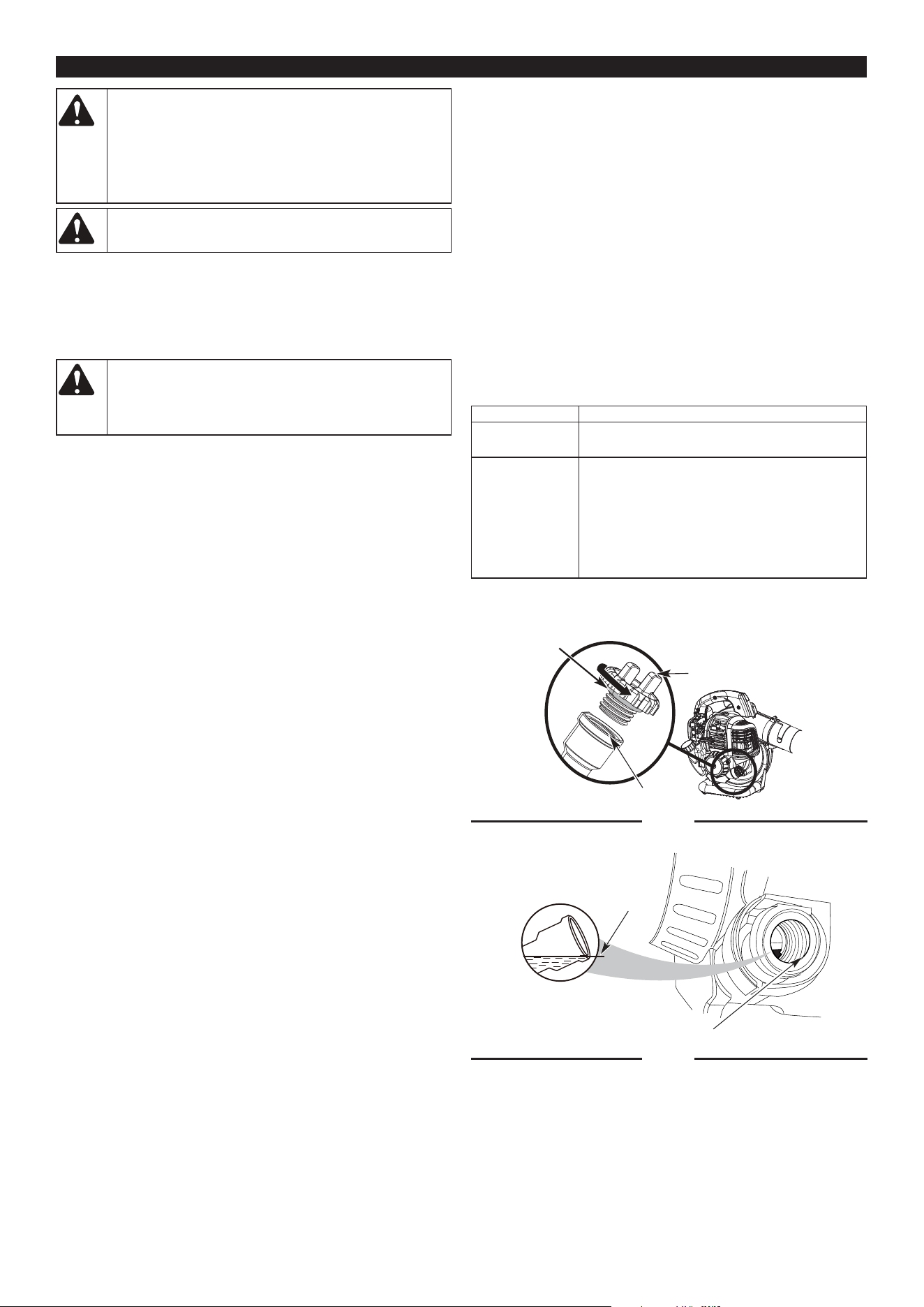

CHECKING THE OIL LEVEL
WARNING: OVERFILLING THE CRANKCASE MAY
CAUSE SERIOUS PERSONAL INJURY. Check the oil
level before each use. The importance of maintaining
the proper oil level cannot be overemphasized.
1. Stop the engine and allow it to cool.
2. Set the unit on a flat, level surface, such as a workbench or
table.
NOTE: Failure to keep the engine level may result in oil overll.
3. Clean the area around the oil ll plug (Fig. 11) to prevent
debris from entering the oil ll hole.
4. Unscrew the oil ll plug.
5. Look into the oil ll hole; use a ashlight if necessary. Add oil
to the oil fill hole until the oil level is visible on the first
thread of the oil reservoir (Fig.10). If the oil level is too low,
add oil to the oil ll hole until the oil level touches the bottom
thread of the oil ll hole.
NOTE: DO NOT overll the crankcase.
6. Wipe up any oil that may have spilled.
7. Reinstall the oil ll plug.
NOTE: Make sure the O-ring is in place on the oil ll plug
(Fig. 9).
MAINTENANCE SCHEDULE
Perform these required maintenance procedures at the
frequency stated in the table. These procedures should also be
a part of any seasonal tune-up.
NOTE: Some maintenance procedures may require special tools
or skills. If unsure about these procedures, take the unit
to a Sears or other qualied service dealer.
Call 1-888-331-4569 for more information.
NOTE: Maintenance, replacement, or repair of the emission
control devices and system may be performed by a
Sears or other qualied service dealer.
Call 1-888-331-4569 for more information.
NOTE: Please read the California/EPA statement that came
with the unit for a complete listing of terms and coverage
for the emissions control devices, such as the spark
arrestor, muffler, carburetor, etc.
FREQUENCY MAINTENANCE REQUIRED
Every 10 hours • Clean and re-oil the air lter. Refer to
Maintaining the Air Filter.
After the rst
10 hours and
at 38 hours
• Change the oil. Refer to Changing
the Oil.
• Have the rocker arm clearance
checked by a Sears or other qualied
service dealer.
• Check the spark plug condition and gap.
Refer to Maintaining the Spark Plug.
O-Ring
Oil Fill Plug
Oil Fill Hole
Fig. 9
Oil Fill Line
Oil Visible on
First Thread
Fig. 10
12

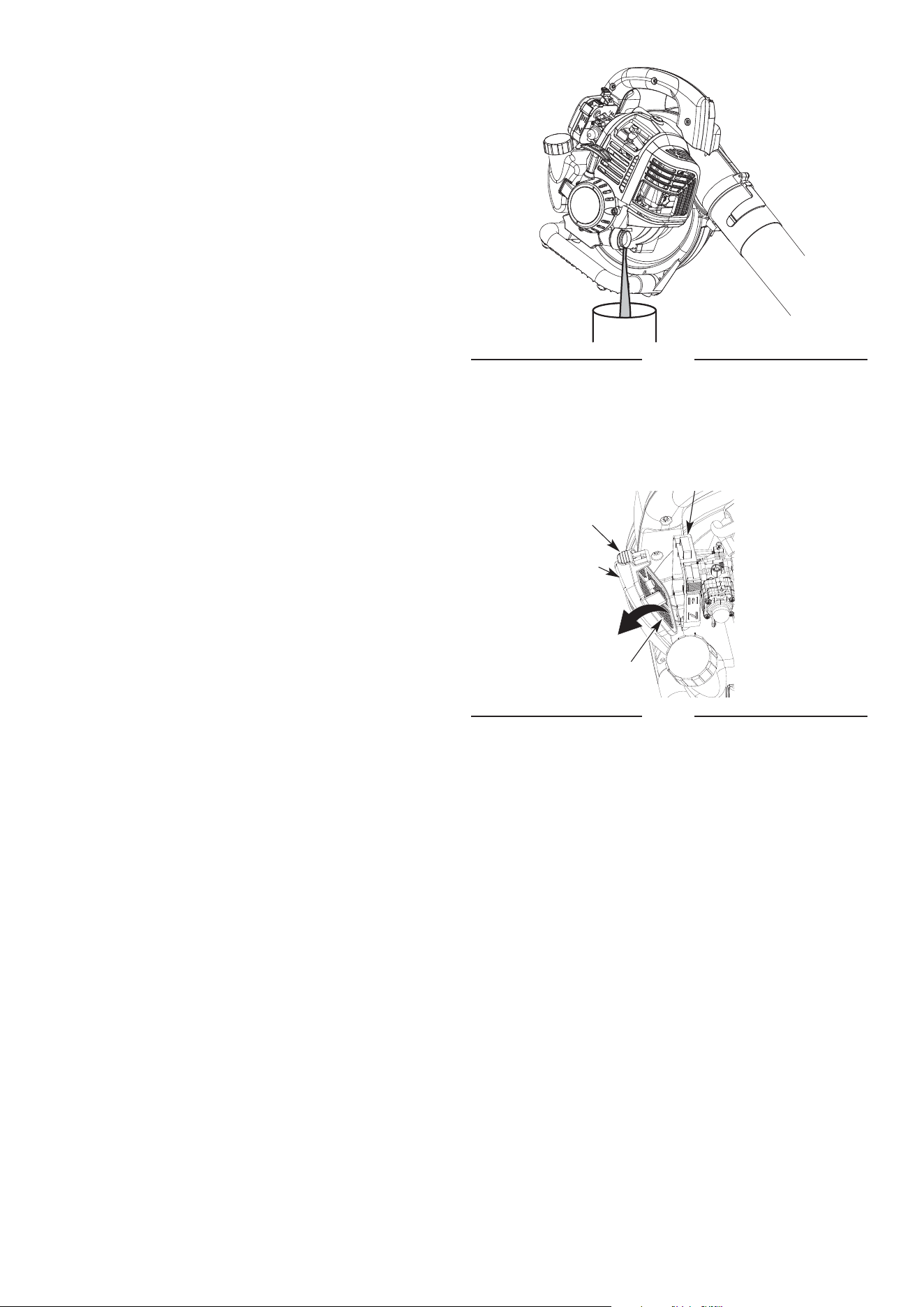

CHANGING THE OIL
Change the oil while the engine is still warm. The oil will ow
freely and carry away more impurities.
1. Clean the area around the oil ll plug (Fig. 9) to prevent debris
from entering the oil ll hole.
2. Unscrew the oil ll plug.
3. Tip the unit vertically to pour the oil out of the oil ll hole
and into a container (Fig. 11). Allow ample time for complete
drainage.
NOTE: Dispose of the old oil according to federal, state and
local regulations.
4. Wipe up any oil that may have spilled.
5. Pour 2.03 .oz. (60 ml) of SAE 30 oil into the oil ll hole.
NOTE: DO NOT overll. Refer to Checking the Oil Level.
6. Wipe up any oil that may have spilled.
7. Reinstall the oil ll plug.
NOTE: Make sure the O-ring is in place on the oil ll plug
(Fig. 9).
MAINTAINING THE AIR FILTER
Failure to maintain the air lter can result in poor performance or
can cause permanent damage to the engine. Engine failure due
to improper air lter maintenance is not covered by the product
warranty.
Cleaning the Air Filter
1. Open the air lter cover: press in the lock tab and swing the
backplate straight down (Fig. 12).
2. The lter is centered on an attachment pin in the backplate.
Pry the air lter up at the edge of the backplate and pull lter
up and off of the pin.
3. Wash the air lter in detergent and water. Rinse the air lter
thoroughly and allow it to dry.
4. Lightly coat the air lter with clean SAE 30 oil.
5. Squeeze the air lter to spread and remove excess oil.
6. Reinstall the air lter (Fig. 12).
NOTE: Operating the unit without the air lter and air lter cover
will VOID the warranty.
7. Swing the air lter cover backplate up until it snaps into place
on the cover (Fig. 12).
Fig. 11
Air Filter
Air Filter Cover
Lock Tab
Backplate
Fig. 12
13

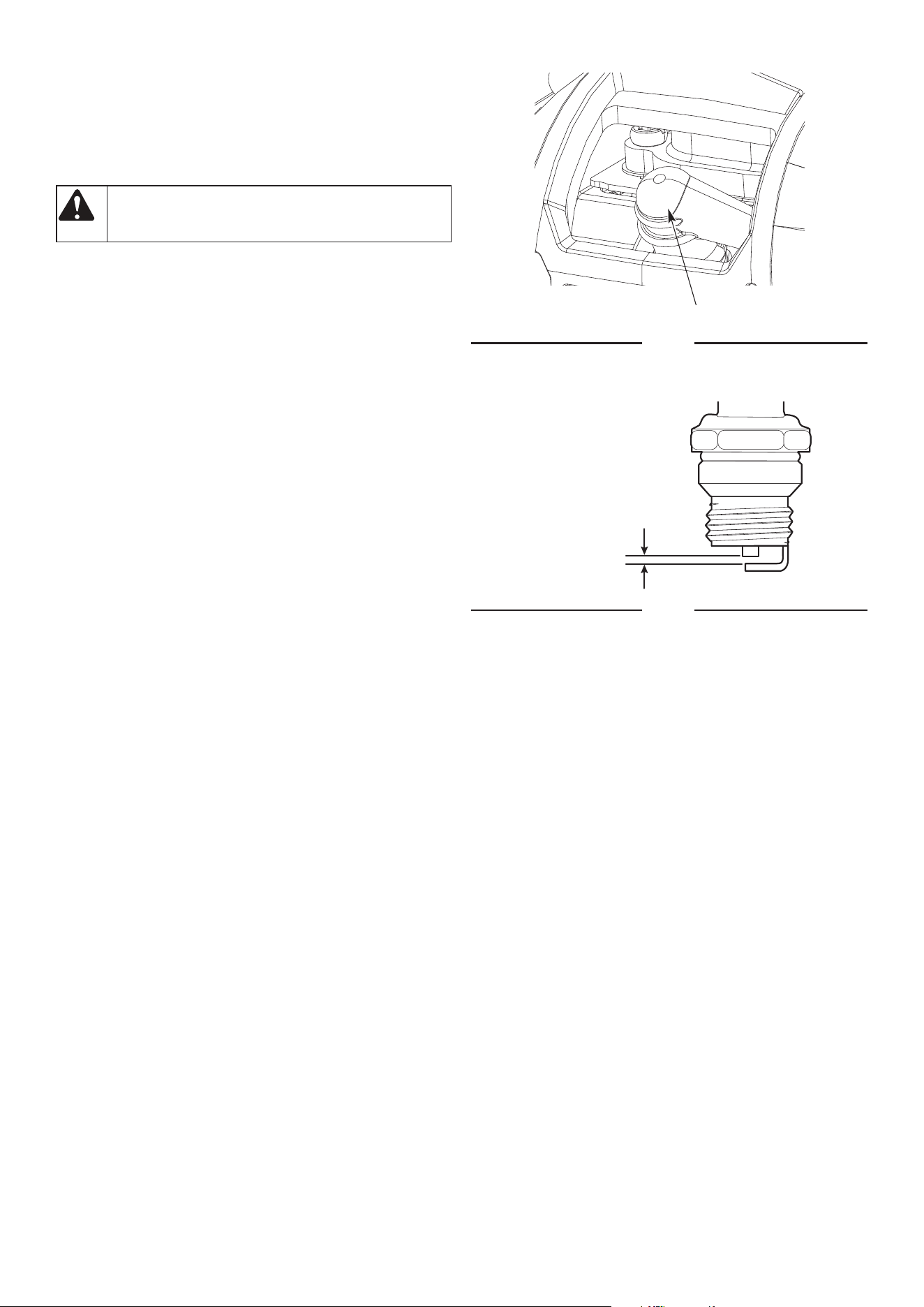

MAINTAINING THE SPARK PLUG
1. Stop the engine and allow it to cool.
2. Grasp the spark plug boot rmly and pull it from the spark
plug (Fig. 13).
3. Clean around the spark plug. Remove the spark plug from the
cylinder head with a 5/8-inch socket, turning counterclockwise.
WARNING: Do not sand blast, scrape or clean spark
plug electrodes. Grit in the engine could damage the
cylinder.
4. Inspect the spark plug. If the spark plug is cracked, fouled or
dirty, replace it with replacement part Newstar AM5C, or a
NGK CMR5H, or an equivalent spark plug.
5. Use a feeler gauge to set the air gap at
0.025 - 0.31 in. (0.6 mm - 0.8 mm) (Fig. 14).
6. Install the spark plug in the cylinder head. Tighten the spark
plug with a 5/8-inch socket, turning it clockwise until snug.
NOTE: If using a torque wrench, torque to:
159 in.•lb. (18 N•m). Do not over tighten.
7. Reattach the spark plug boot.
Spark Plug Boot
Fig. 13
0.025 in. - 0.31 in.
(0.6 mm - 0.8 mm)
Fig. 14
14
CLEANING AND STORAGE
CLEANING
WARNING: To avoid serious personal injury, always
stop the engine and allow it to cool before cleaning or
maintaining the unit.
Use a small brush to clean the outside of the unit. Do not use
strong detergents. Household cleaners that contain aromatic oils
such as pine and lemon, and solvents such as kerosene, can
damage plastic. Wipe off any moisture with a soft cloth.
STORAGE
• Never store a fueled unit where fumes may reach an open
ame or spark.
• Allow the engine to cool before storing.
• Lock up the unit to prevent unauthorized use or damage.
• Store the unit in a dry, well-ventilated area.
• Store the unit out of the reach of children.
Long-term Storage
1. Remove the fuel cap, tip the unit and drain the fuel into an
approved container. Reinstall the fuel cap.
2. Start the engine and allow it to run until it stalls. This ensures
that all fuel has been drained from the carburetor.
3. Allow the engine to cool. Remove the spark plug and put 5
drops of any high-quality motor oil into the cylinder. Pull the
starter rope slowly to distribute the oil. Reinstall the spark
plug.
4. Thoroughly clean the unit and inspect it for any loose or
damaged parts. Repair or replace damaged parts and tighten
loose screws, nuts or bolts.
Preparing the Unit for Use after Long-term Storage
1. Remove the spark plug. Tip the unit and drain all of the oil
from the cylinder into an approved container. Reinstall the
spark plug.
2. Change the oil. Refer to Changing the Oil.
NOTE: Do not use fuel that has been stored for more than 30
days. Dispose of old fuel and oil according to federal,
state and local regulations.
15
TROUBLESHOOTING
PROBLEM SOLUTION
THE ENGINE WILL NOT START
The fuel tank is empty Fill the fuel tank with fresh fuel
The primer bulb was not pressed enough Press the primer bulb 10 times
The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel
The spark plug is fouled Replace the spark plug
The engine is hot
Refer to the IF... THE ENGINE IS HOT instructions in the Starting
and Stopping section
THE ENGINE WILL NOT IDLE
The air lter is dirty Clean or replace the air lter
The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel
The idle speed is incorrect
Adjust the idle speed
THE ENGINE WILL NOT ACCELERATE
The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel
The air lter is dirty Clean or replace the air lter
THE ENGINE LACKS POWER OR STALLS
The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel
The air lter is dirty Clean or replace the air lter
The spark plug is fouled Replace the spark plug
If further assistance is required, take the unit to a Sears or other qualied service dealer.
16
