Model No. DH18
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly
maintained, give you years of trouble free performance.
www.dellonda.co.uk
DH18 Issue:5 14/08/24
Dellonda Electric Adjustable Desk Frame, Digital Controls,
70kg Capacity, Black
2
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings & cautions. Use the product correctly and with
care for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep
these instructions safe for future use.

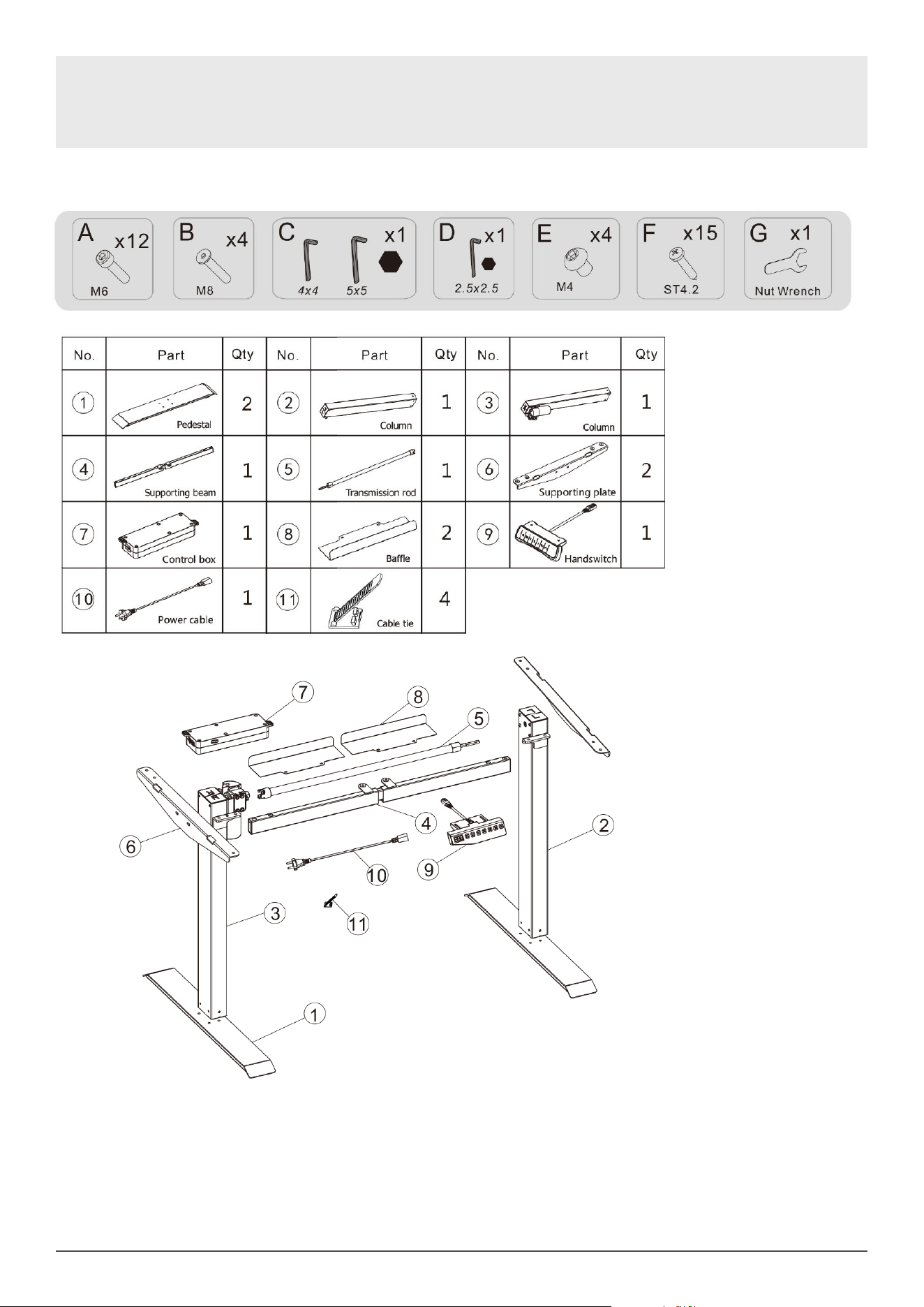

Contents
Specication
• Height range: 710-1210mm
• Horizontal adjustment: 850-1290mm
• Max. load capacity: 70kg
• Noise Level: <50dB
• Recommended Desktop Dimensions (W x D): 1000 - 1600 / 500 - 800mm
• Speed: 25mm/s
• Supply: 230V
3
About the Product
Height-adjustable desk frame creates the possibility of a sitting or standing working environment. Features digital control panel with four
programmable memory presets enabling you to reach your desired height with the push of a button. Single motor system ensures a fast and stable
adjustment. Features ultra-quiet operation with sound level less than 50dB. Range of four desktop designs available; Model No’s. DH19, DH20,
DH21, DH22. Some simple assembly is required.
Safety Instructions
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using.
• Inspect power supply leads, plugs and all electrical connections for wear and damage.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or is replaced immediately by a qualied electrician.
• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
• Ensure that repairs are carried out by a qualied electrician.
• Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
• correct fuse.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• GENERAL SAFETY
• ALWAYS make sure there are no hazards in the operating environment. e.g., nothing that will get hooked up on the desk, or stop the desk from
raising or lowering fully.
• Unplug the power source before cleaning. Wipe the dust on surface with slight damp cloth when cleaning, DO NOT get water in the electrical
housing, and be careful not to loosen any cables.
• The electrical housing contains electronic components, metals, plastics, wires etc., dispose of in accordance with environmental legislation, not
the general household waste.
• Check carefully to ensure correct and complete assembly before use.
• Familiarise yourself with all functions and program settings of the product before rst use.
• DO NOT let Children play on the product
• Slight noise caused by the V-ribbed belt or brake system due to structure will not have any effect on the use of the equipment.
• DO NOT clean the unit with corrosive or abrasive materials.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, it’s service agent or a similarly qualied person in order to avoid a hazard
and prolong the life of the equipment.
• Keep the original instructions, for future reference.
• ALWAYS inspect the unit prior to use for fatigue and damage. Professional repair only.

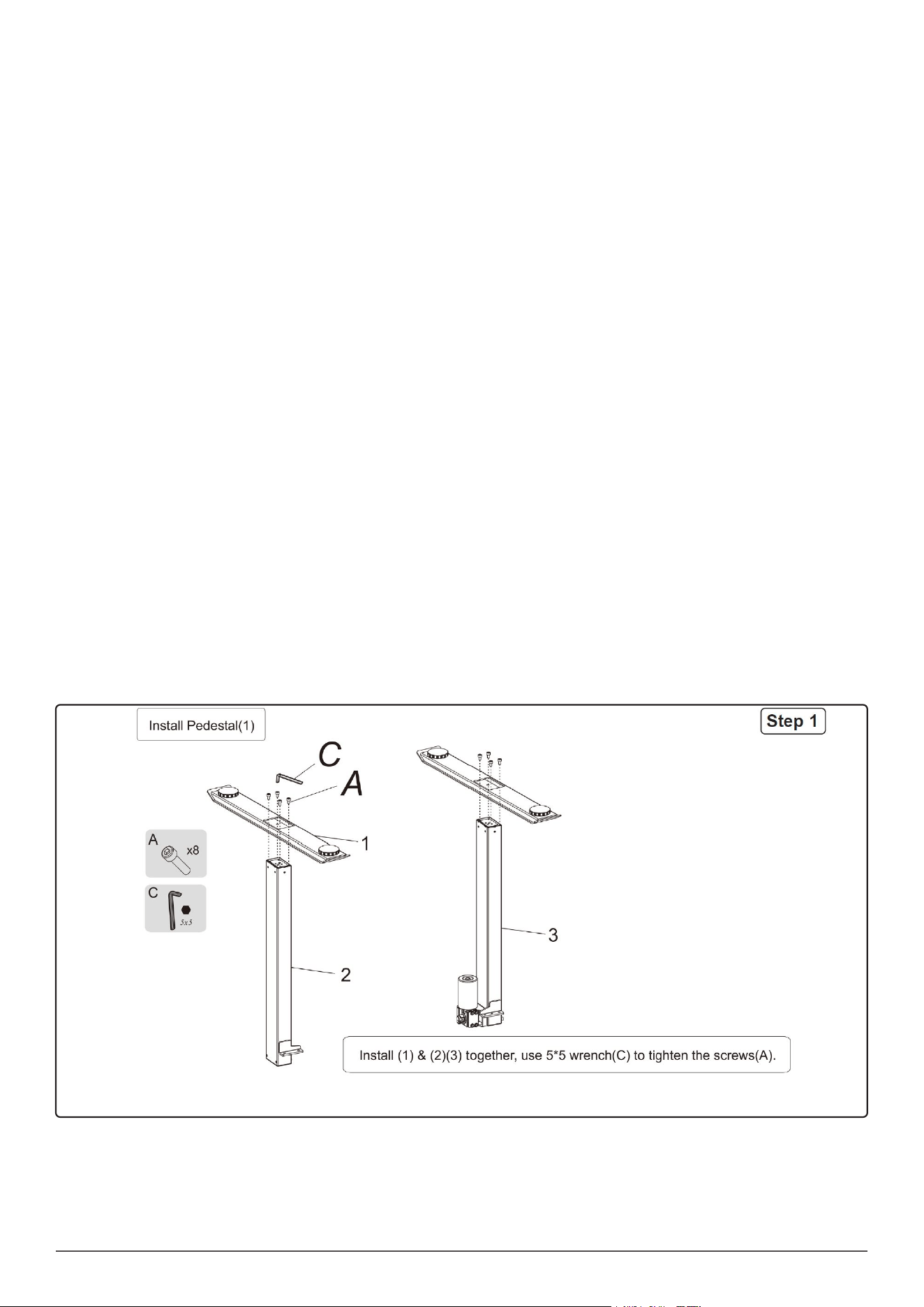

4

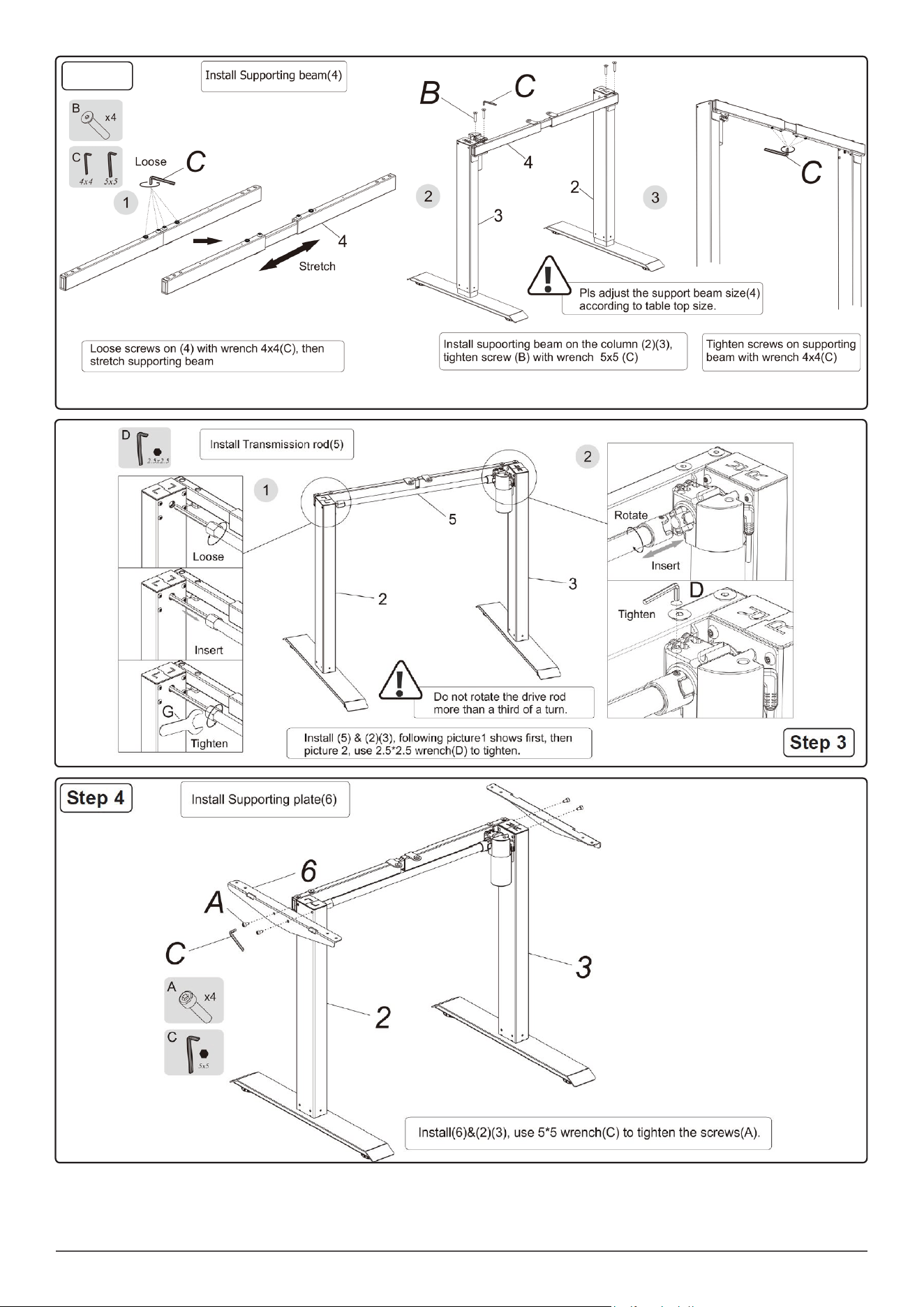

Step 2
5

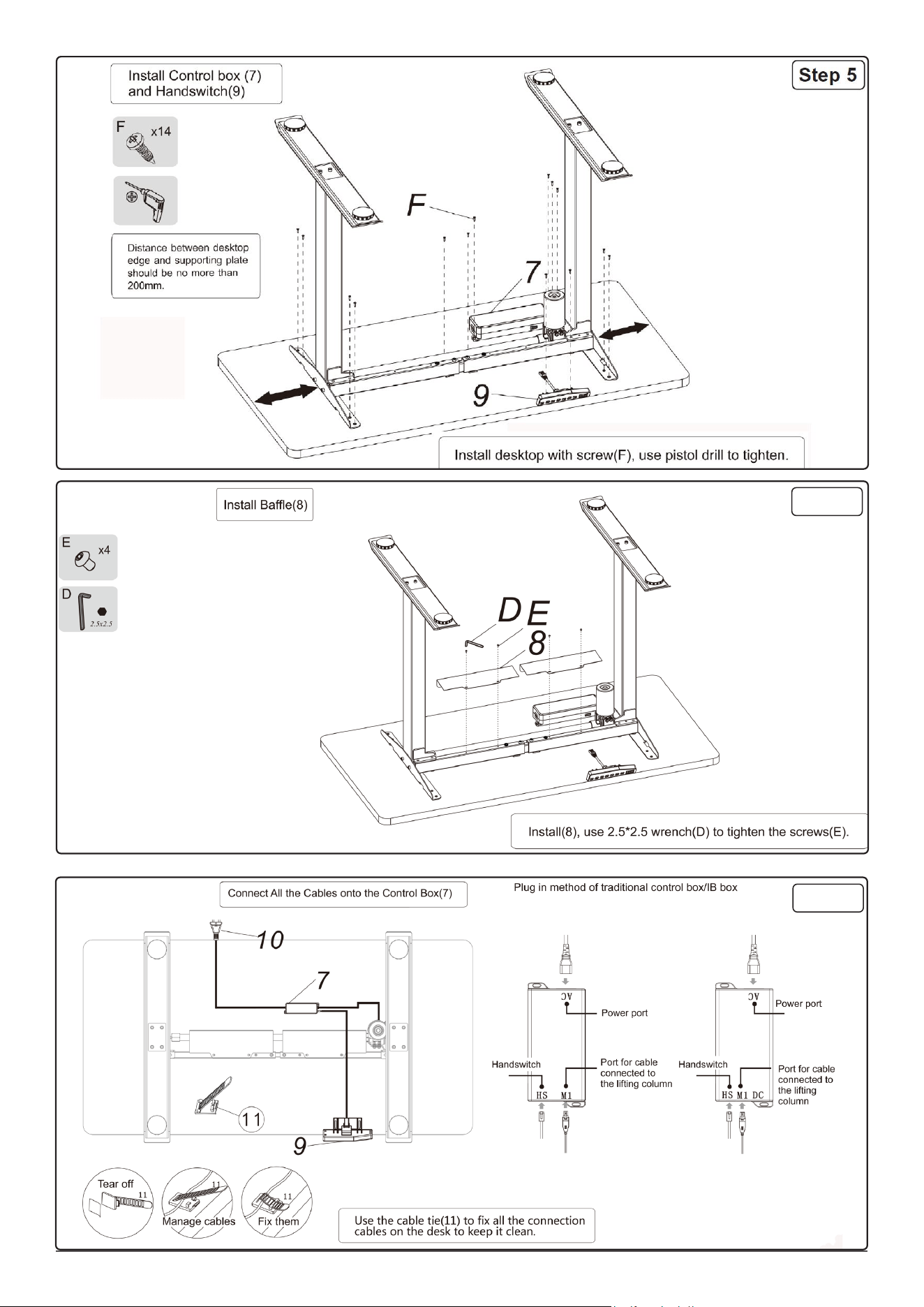

Step 6
Step 7
6
Fault Solution
No response whilst pressing the down button after mains supply
is connected
1. Check if mains supply is connected
2. Contact Dellonda
No response while pressing up arrow/down arrow after mains
supply is connected
1. Contact Dellonda
Rises slowly 1. Check If overloaded (70kg max.)
2. Contact Dellonda
The motor does not move as instructed 1. Contact Dellonda
Desk lowers but will not raise 1. Reposition
2. Contact Dellonda
Desk creeps downwards 1. Check if it is overloaded (70kg max.)
2. Contact Dellonda
Desk repositions frequently 1. Check if it is overloaded (70kg max.)
2. Contact Dellonda
Desk is overworked (duty cycle = max. 2 mins on 18 mins off) 1. Disconnect from mains supply. Suspend use for 18 mins then reconnect
to mains power
2. Contact Dellonda
Not enough up and down height 1. Press M and 3 together for 3 seconds or more, after hearing continuous
beeping twice, factory settings will be restored
Operation

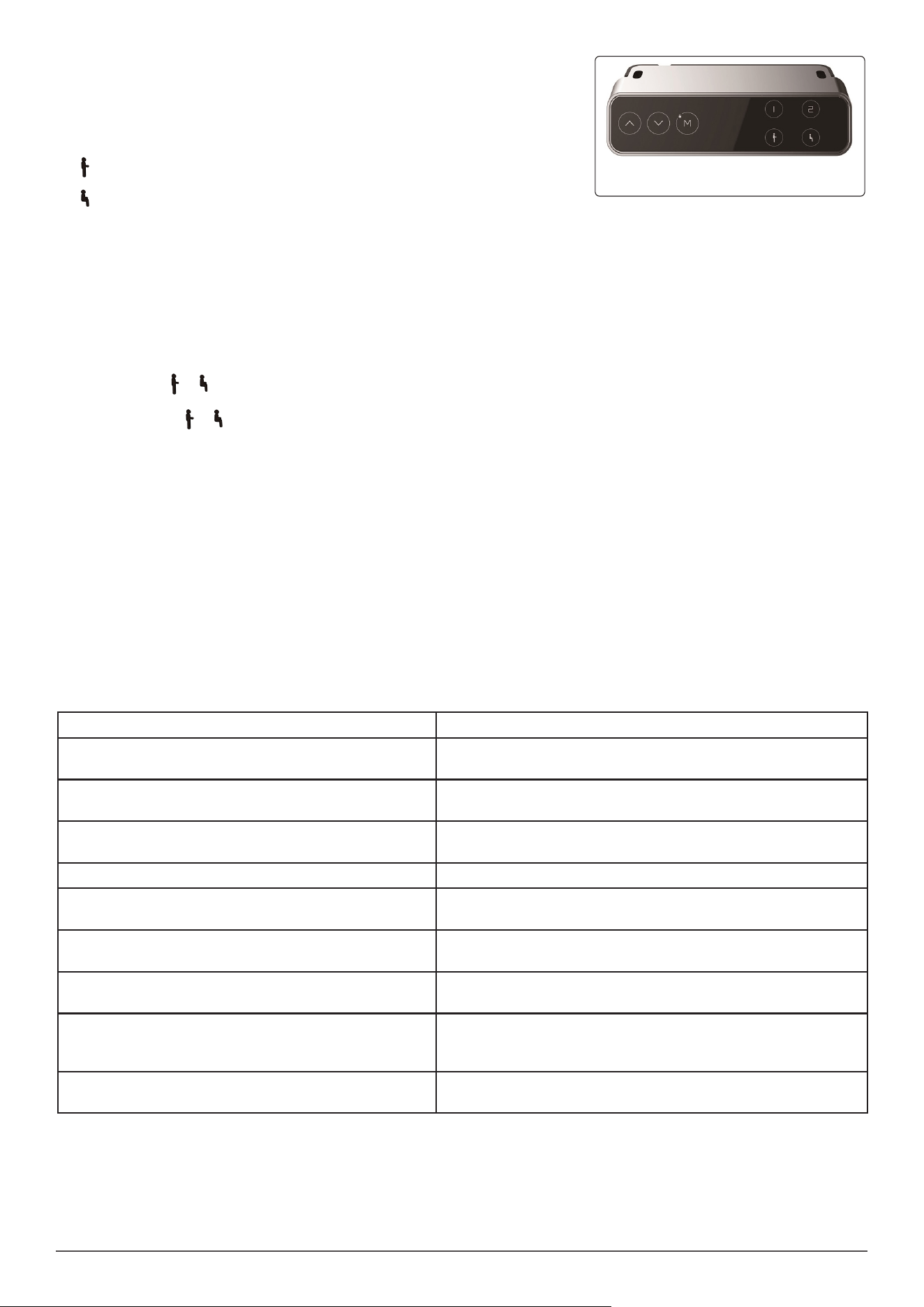

• There are seven buttons:
• 1: ▲ Adjust desk upwards
• 2: ▼Adjust desk downwards
• 3: “1” position 1 rst height position saved by the user
• 4: “2” position 2 second height saved by the user
• 5: display shows 3 standing position saved height
• 6: display shows 4 sitting position saved height
• 7: “M” height saving button, for height memory function; child lock for security
• OPERATING INSTRUCTIONS
• Child lock function:
• a. When the child lock is turned on, the child lock blue indicator light M (directly above) lights up
• b. Press the button indicator to ash once
• c. To unlock or start the child lock, you need to press and hold the M button for about 5 seconds.
• d. Only when the child lock is unlocked, all the buttons can work normally.
• Height Adjustable Function:
• Press the”UP” or “DOWN” button to adjust the height. The LED display shows the current height
• Height Memory Function:
• a. Press UP or DOWN button and adjust the height to the desired height. Press “M” to save the height, and the screen will display “S-“;
• Press “1”, “2”, or , “ “, “ “ then, that is, save the height to the corresponding position 1 or 2 3, or 4, which will show in the display screen as “ S-1“
,”S-2 “, or “S-3 “, or “S-4 “;
• b. Press “1”, “2” and “ “ , “ “button directly to automatically adjust the memory height you saved.
• Anti-collision sensitivity adjustment - optional features:
• a. Press and hold the “▲” “▼” button for 5 seconds at the same time to switch the sensitivity. Switch one le for 1 time and divide it into 4 les
(A-3, A-2, A-1, A-0);
• b. The display shows “A-0 ” , the anti-collision function is off; the display shows “A-1 ”, low sensitivity; Display shows “A-2”, medium sensitivity;
display shows“A-3”, high sensitivity;
• c. During height adjustment, when tabletop comes in contact with another object, it instantly stops and reverses to avoid damage.
• d. Press and hold the “▲” “▼” button for 5 seconds at the same time. If the display does not display the above code, there is no anti-collision
function.
Troubleshooting
• Reset: a. When the LED shows “ASr” or “rSt”, press ▼ button until the desk reaches its lowest height and rebounds to stop, it means the reset
has nished.
• b. If reset does not work and the LED shows “E01” or “E02”, wait 18 mins and retry.
• c. If the ▼ button does not work, please check the cable connection and then remove the mains power supply for at least 10 seconds.
• Reconnect to the power and press ▼ button to start the reset process when it shows the “ASr” or “rSt”.
• d. If any of the above processes do not work , please contact Dellonda.
• COMMON FAULTS/ SOLUTIONS:
