Installation Instructions
7 Series Drain Accessory Kit
Part #00956375
Description
The drain accessory kit provides a contained length of tubing under the unit. The drain pan can be moved,
without being disconnected, to allow access to the front panel screws.
To use the Drain Accessory Kit with the 7CI100A, it is necessary to purchase and install the 4” Leg Accessory
(P/N00956300).
If you experience any problems during the installation of this kit, please call Follett Technical Service toll-free at
(877) 612-5086 or +1 (610) 252-7301 for assistance.
Materials Supplied
§ (1) Pan, hose support
§ (4) Screw, phillips 10-16 x 3/8
§ (1) Clamp, hose
§ (10’) Tubing
§ (1) Cover, hose support
§ (4) Screw, phillips, M5 x 12
§ (1) Angle bracket, hose support
§ (2) Clamp, nylon
§ (1.125”) Edge protector
Installation
1. Remove drip tray and drill 11/32” hole through drain nipple (Fig. 1).

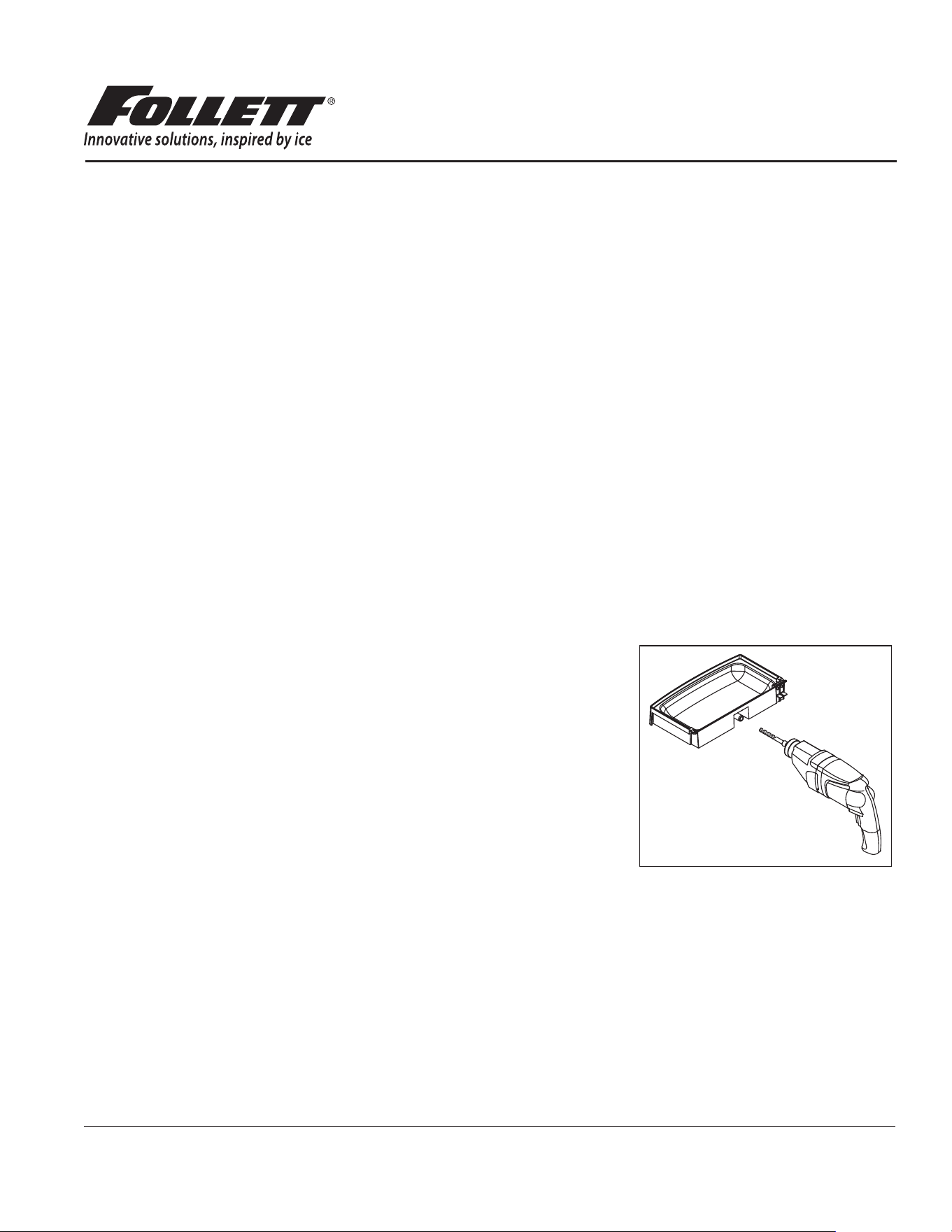

Fig. 1
00978213R00
05/11
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Follett is a registered trademarks of Follett Corporation, registered in US.
2. Install accessory kit (Fig.2).
Pan, Hose Support
Cover, Hose Support
SCREW, PHIL PAN HD, M5 X 12
Angle Bracket, Hose Support
Clamp, Miniature
Tubing, Flex, Braided
Clamp, Nylon, Hose
Edge Protector
25.5
"
(65 cm)
Screw, Phillips Pan Head
10-16 X 3/8"
Notes:
Use nylon clamps to capture 25.5” (65 cm) of drain tube inside the machine. Connect remainder of tube to drain
according to local code.
The angle bracket is used only for 7CI100A countertop units.
The 4” Leg Accessory (P/N00956300) is not included in this kit.

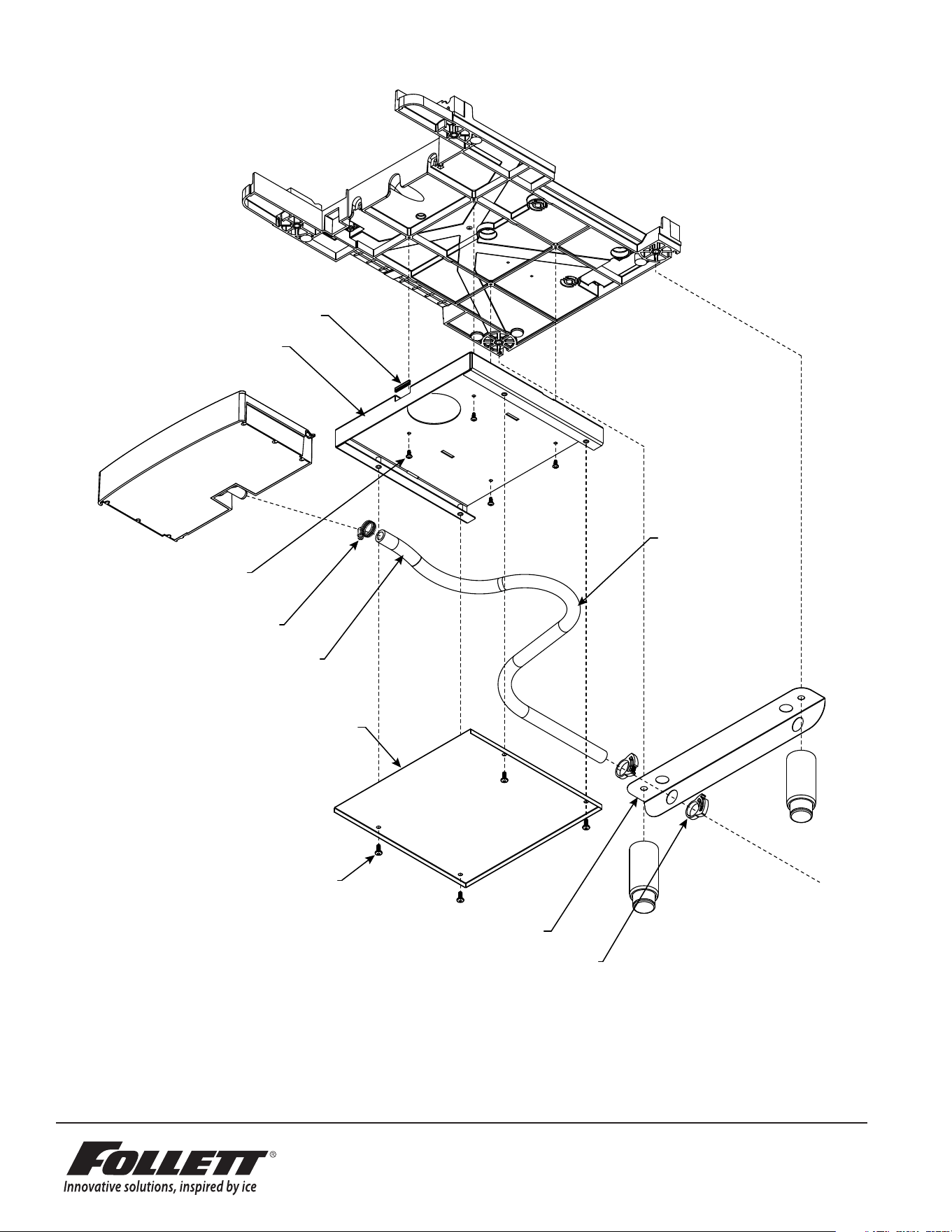

Fig. 2
