1. SAFETY INFORMATION
2. DESCRIPTION OF THE APPLIANCE
3. CONTROL PANEL
4. INSTALLING YOUR NEW APPLIANCE
5. USING YOUR REFRIGERATOR
6. AUTOMATIC ICE MAKER
............................................................................................... 31
7. CLEANING YOUR REFRIGERATOR
8. FOOD STORAGE GUIDE
32....................................................................................................
........................................................................................................................... 35
9. TROUBLESHOOTING
10. NOISES
WE’RE THINKING OF YOU
CUSTOMER CARE AND SERVICE
Register your product for better service:
www.electrolux.com/support/register-warranty
Subject to change without notice.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Thank you for choosing Electrolux. We have designed this product to make your
life simpler and deliver impeccable performance for many years. Please spend a
few minutes reading this document to get the best from your new Electrolux
appliance.
Visit our website to:
Get usage advice or service information
www.electrolux.com
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
2 www.electrolux.com
1. SAFETY INFORMATION
Note: You must read these warnings carefully
before installing or using the refrigerator. If you
need assistance, contact your customer care
centre. The manufacturer will not accept liability,
should these instructions or any other safety
instructions incorporated in this book be ignored.
WARNING
• It is essential the electric outlet is properly
earthed to ground. Consult a qualified
electrician if you are unsure.
• Do not use electrical appliances inside the food
storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
• Unplug the refrigerator before cleaning or
moving it to avoid electric shock.
• Never unplug the refrigerator by pulling the
electrical cord as this may damage it. Grip the
plug firmly and pull straight out.
• If the power cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard
• Don’t use a steam cleaner. If live components
come into contact with condensing steam, they
may short-circuit or cause an electric shock.
• Do not store explosive substances such as
aerosol cans with a flammable propellant this
appliance. If pressurised aerosol containers
bear the word ‘flammable’ and/or a small flame
symbol, do not store them inside any
refrigerator or freezer.If you do so you may
cause an explosion.
• Do not damage the refrigerant circuit.
• This appliance contains insulation formed with
flammable blowing gases. Avoid safety
hazards by carefully disposing of this
appliance.
• If you wish to discard this refrigerator, please
contact your local authorities and ask for the
correct method of disposal.
• When you dispose of your old refrigerators and
freezers, remove any doors. Children can
suffocate if they get trapped inside.
• When positioning the appliance, ensure the
supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the
appliance.
WARNING
R600a refrigerant warning
This appliance contains flammable
R600a refrigerant. Avoid safety
hazards by carefully installing,
handling, servicing and disposing of
this appliance.
• Ensure that the tubing of the refrigerant circuit
is not damaged during transportation and
installation.
• Leaking refrigerant may cause eye injuries or
ignite.
• The room for installing appliance must be at
least 1m
3
per 8g of refrigerant. The amount of
refrigerant in the appliance can be found on
the rating plate inside the appliance.
• If you are unsure of the refrigerant check the
rating plate inside the refrigerator compart-
ment.
• It is hazardous for anyone other than an
Authorised Service Person to service this
appliance. In Queensland Australia the
Authorisation Service Person MUST hold a
Gas Work Authorisation for hydrocarbon
refrigerants to carry out servicing or repairs
which involve the removal of covers.
• Keep ventilation openings in the appliance
enclosure or in the built-in structure, clear of
obstruction.
• Do not use mechanical devices or other
means to accelerate the defrosting process,
other than those recommended by the
manufacturer.
WARNING
Stable Footing
When your refrigerator is in place, you
need to stabilise it. Lift the front of the
refrigerator to take the weight off each
stability foot and make small quarter
turns to each foot until it is in firm
contact with the floor. If you intend to
move the refrigerator, remember to
wind up each foot so that you can move
it freely. Repeat the process of the foot
adjustment once you have settled on
the new location of the refrigerator.
ENGLISH 3
GENERAL WARNINGS
Read the following carefully to avoid damage or
injury. It is important to use your refrigerator
safely. Check these safety points before using
your refrigerator.
• The appliance must be plugged into its own
dedicated electrical outlet.
• The plug must be accessible when the
refrigerator is in position.
• It is essential the powerpoint is properly
earthed to ground. Consult a qualified
electrician if you are unsure.
• Don’t use extension cords or adapter plugs
with this refrigerator.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
• Unplug the appliance before cleaning and
before changing the light bulb (when fitted) to
avoid electric shock.
• Never unplug the refrigerator by pulling the
electrical cord as this may damage it. Grip
the plug firmly and pull straight out.
• Choose a location for your refrigerator that
isn’t too cold. The ambient room temperature
should be above 10°C.
• Stand your refrigerator in a dry place avoid
areas of high moisture or humidity.
• Don’t put the refrigerator in frosty or
unprotected areas like a garage or on the
verandah.
• Don’t plug your refrigerator into a timer fitted
to the powerpoint.
• Do not put the refrigerator in direct sunlight,
near stoves, fires or heaters.
• Do not put the refrigerator on an uneven
surface.
• Do not store flammable materials on or under
the appliance, e.g. aerosols.
• Do not store explosive substances such as
aerosol cans with a flammable propellant in
this appliance.
• Never store fizzy drinks in the freezer
compartment.
Side View
Stabilising foot
wound down
• Never try to repair the refrigerator yourself,
only use a qualified or authorised service
person for repairs.
• Never use electric heaters or dryers to
defrost the freezer because you can receive
an electric shock
• When transporting and installing the
refrigerator, care should be taken to ensure
that no parts of the refrigerating circuit are
damaged.
• Keep ventilation openings in the appliance
enclosure or in the built-in structure clear of
obstruction.
• When installed correctly, your refrigerator
should:
– Have adequate space at the back and
sides for air circulation.
– Be vertically aligned to the surrounding
cupboards.
– Have doors that will self-close from a
partially open position.
• The appliance is not to be used by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
have been given supervision or instruction.
• Children being supervised not to play with
the appliance.
NOTE: You must read these warnings carefully
before installing or using the refrigerator. If you
need assistance, contact your Customer Care
Department. The manufacturer will not accept
liability, should these instructions or any other
safety instructions incorporated in this book be
ignored.
Environmental information.
This appliance is intended to be used in
household and similar applications such as,
• The kitchen areas in shops, offices and
other working enviroments;
• Farm house and by clients in hotels, motels
and other residential type enviroments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications;
4 www.electrolux.com

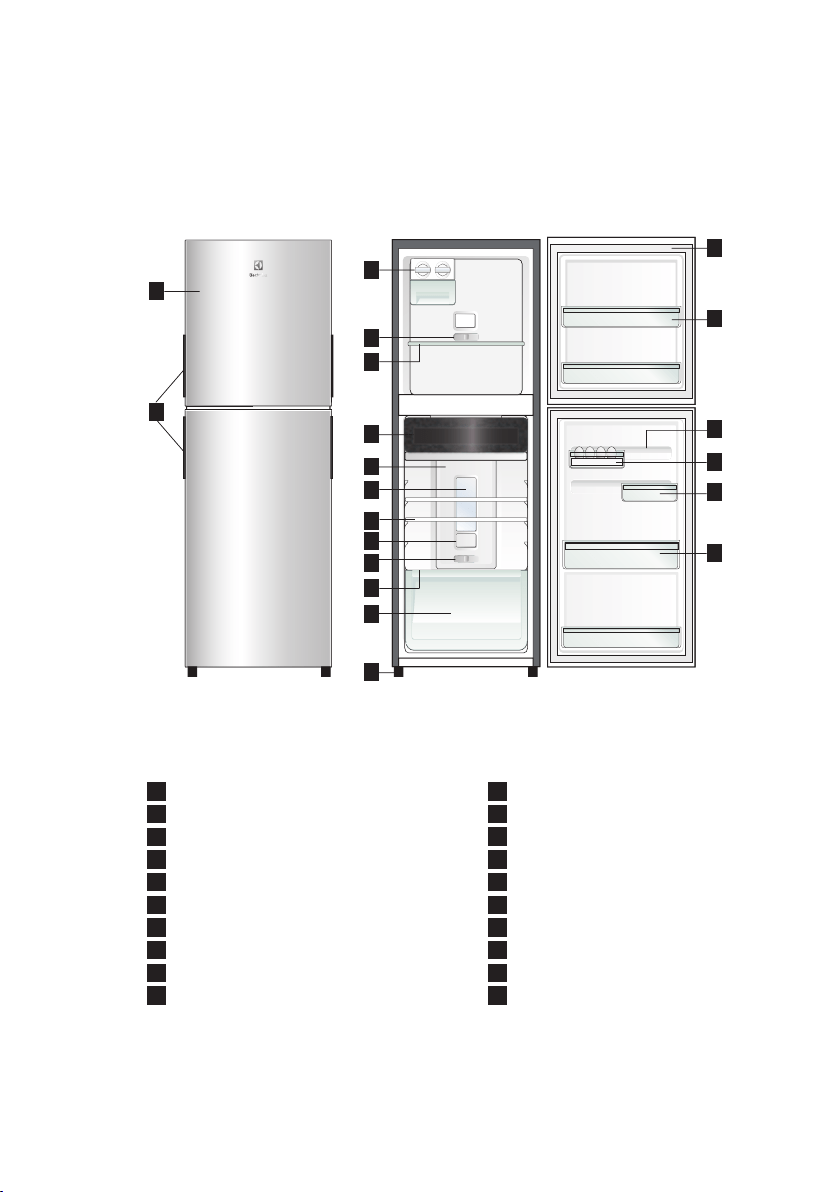

2. DESCRIPTION OF THE APPLIANCE
• ETB2302J-A
• ETB2302J-H
• ETB2502J-A
• ETB2502J-H
• ETB2802J-A
• ETB2802J-H
The details of the refrigerator feature:
Doors Slide Control Refrigerator T
emperature
Door Handles Humidity Slide
Ice Twist & Serve Crisper
FeetSlide Control Freezer T
emperature
GasketsFreezer Shelf
Door BinsTasteSeal Room
Multi Flow
Refrigerator Light
FlexStor Rails
Shelves
Deoderizer
Cover Refrigerator
Features may vary depending on model. Not all models will have features listed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Egg Tray
FlexStor Bins
Bottle Bins

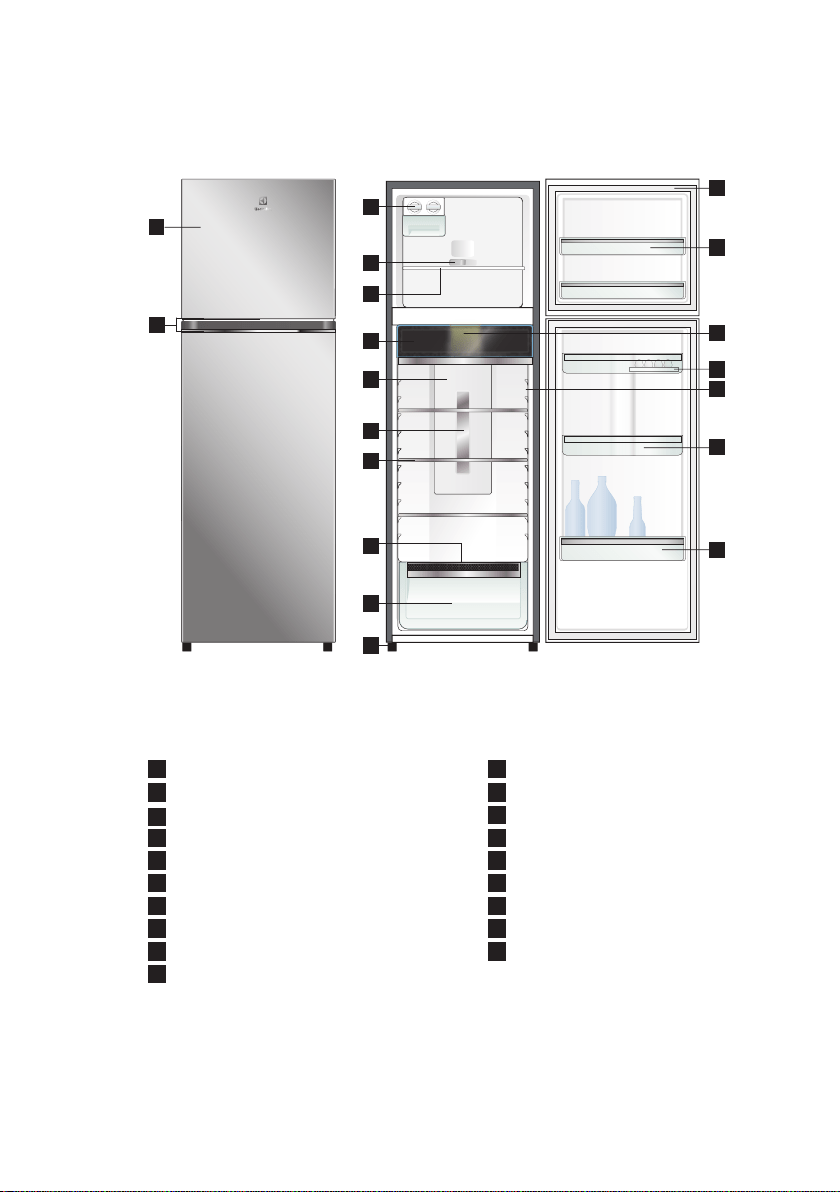

TOP MOUNT REFRIGERATOR FEATURES
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
ETB2802 illustrated
ENGLISH 5

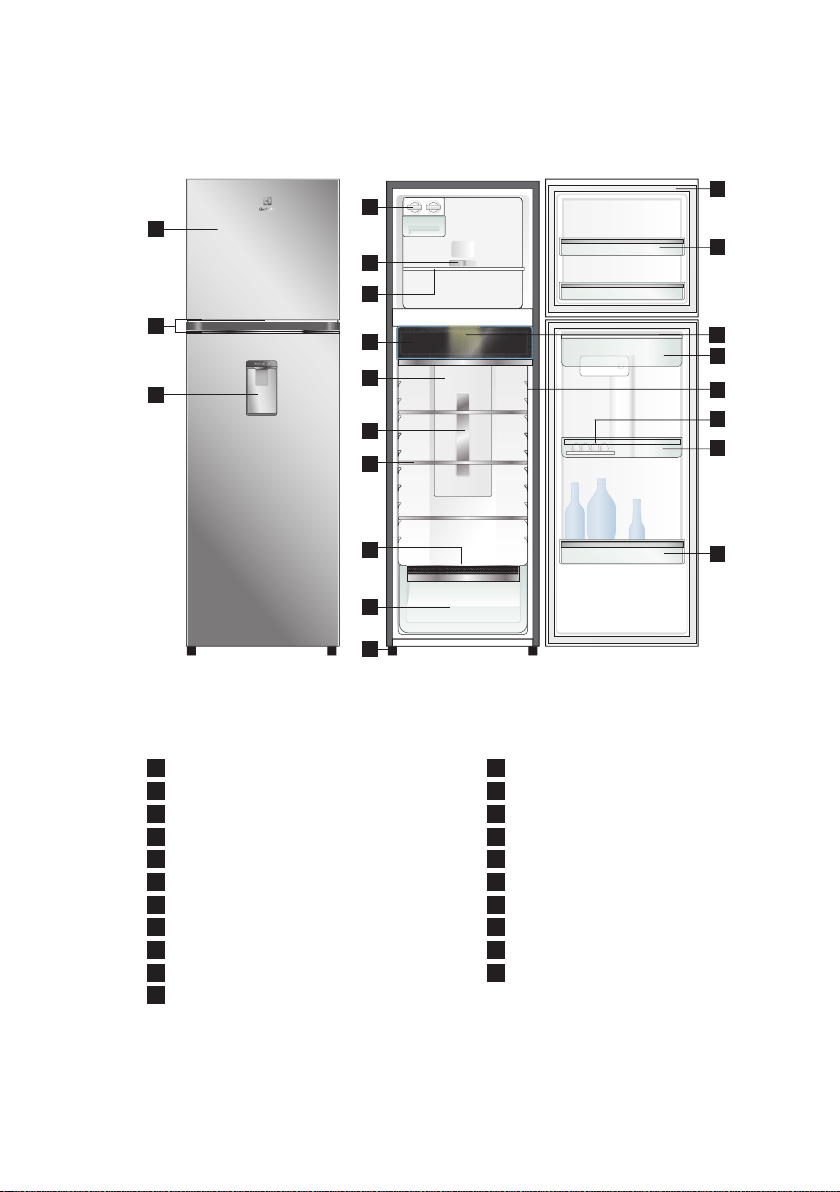

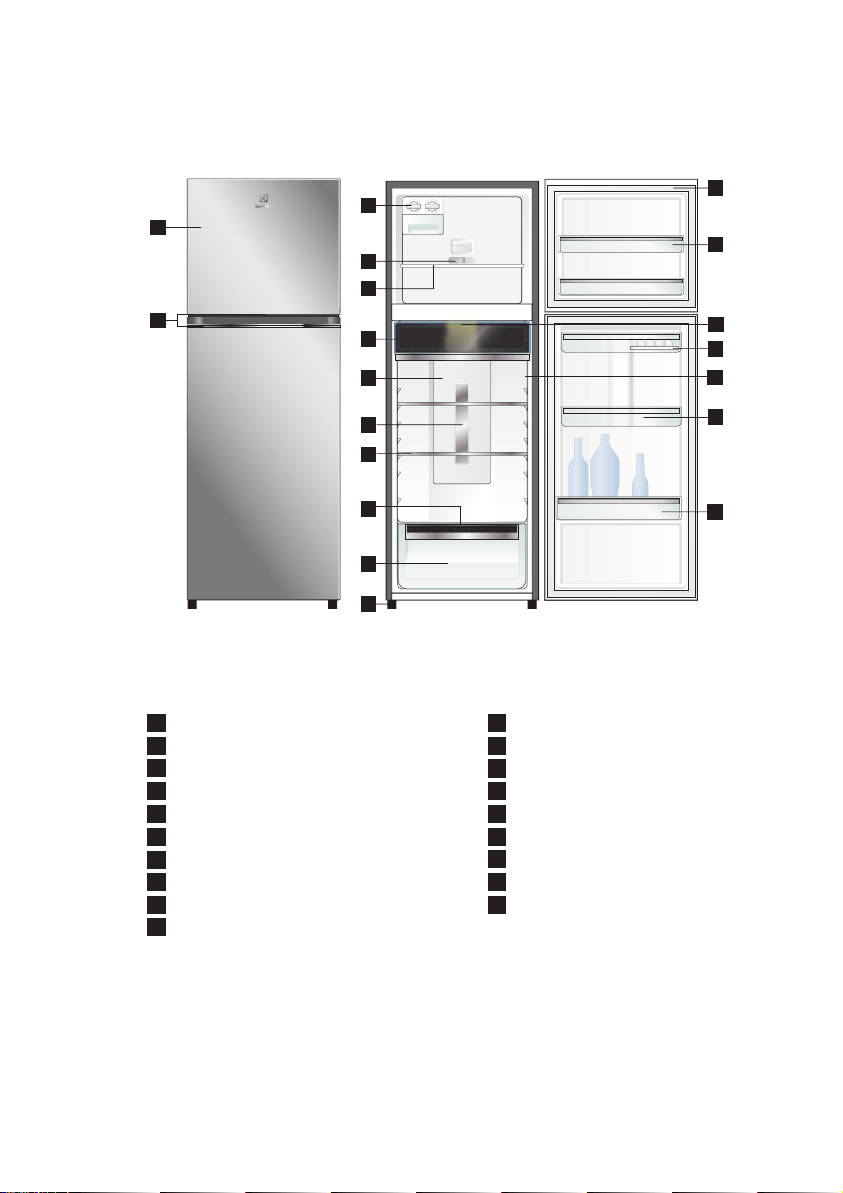

TOP MOUNT REFRIGERATOR FEATURES

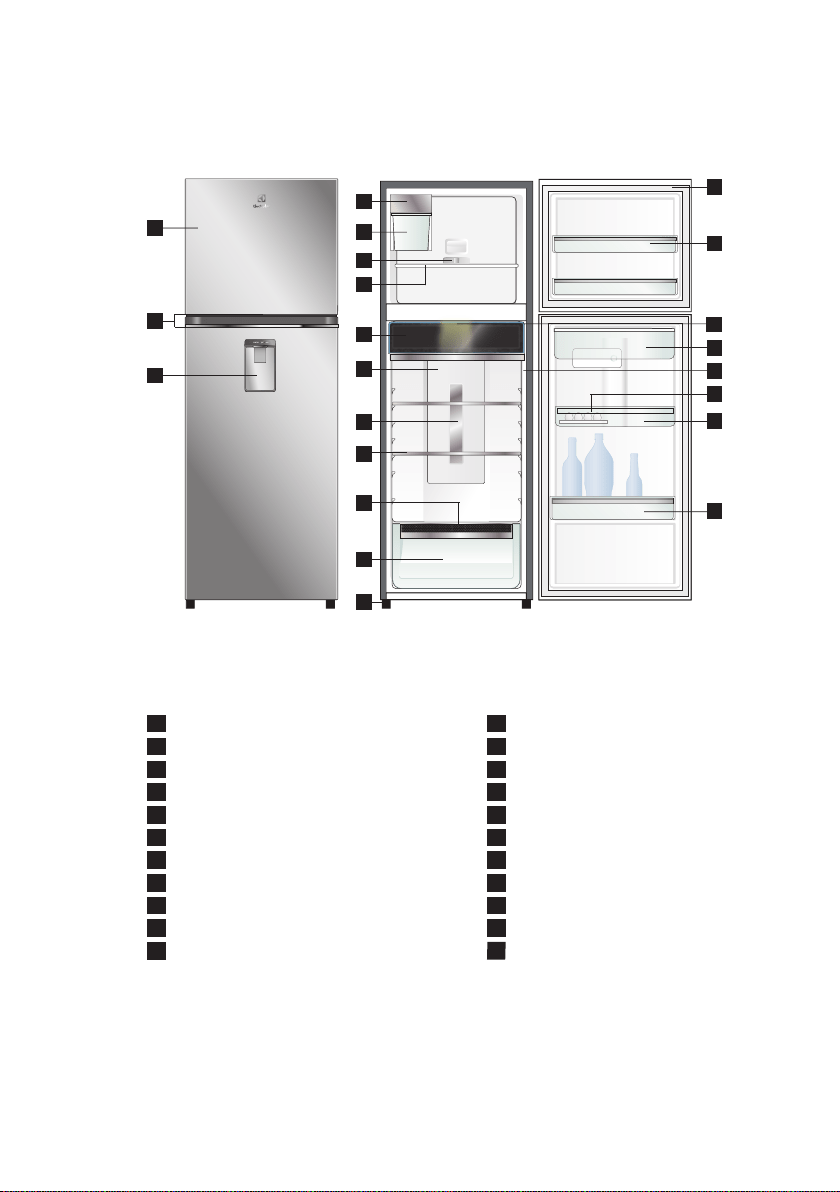

The details of the refrigerator feature:
Door
Crisper
Door Handles
Feet
Ice Twist & Serve
Gaskets
Door Bins Shallow
Slide Control Freezer
T
emperature
Refrigerator Light
Freezer Shelf
Egg Tray
TasteSeal Room
Multi Flow
Metal Cover Deoderizer
Refrigerator
T
emperature Control Panel
Shelves
Auto Humidity Control
Features may vary depending on model. Not all models will have features listed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

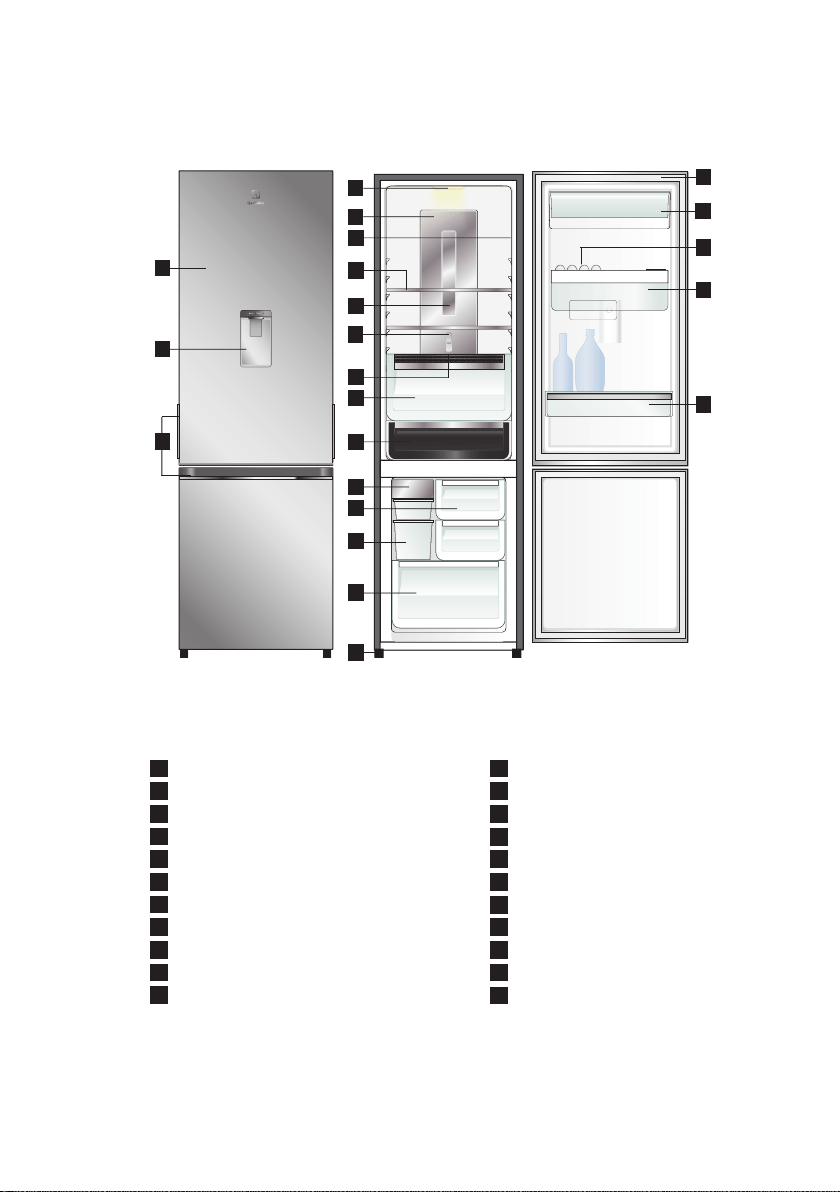

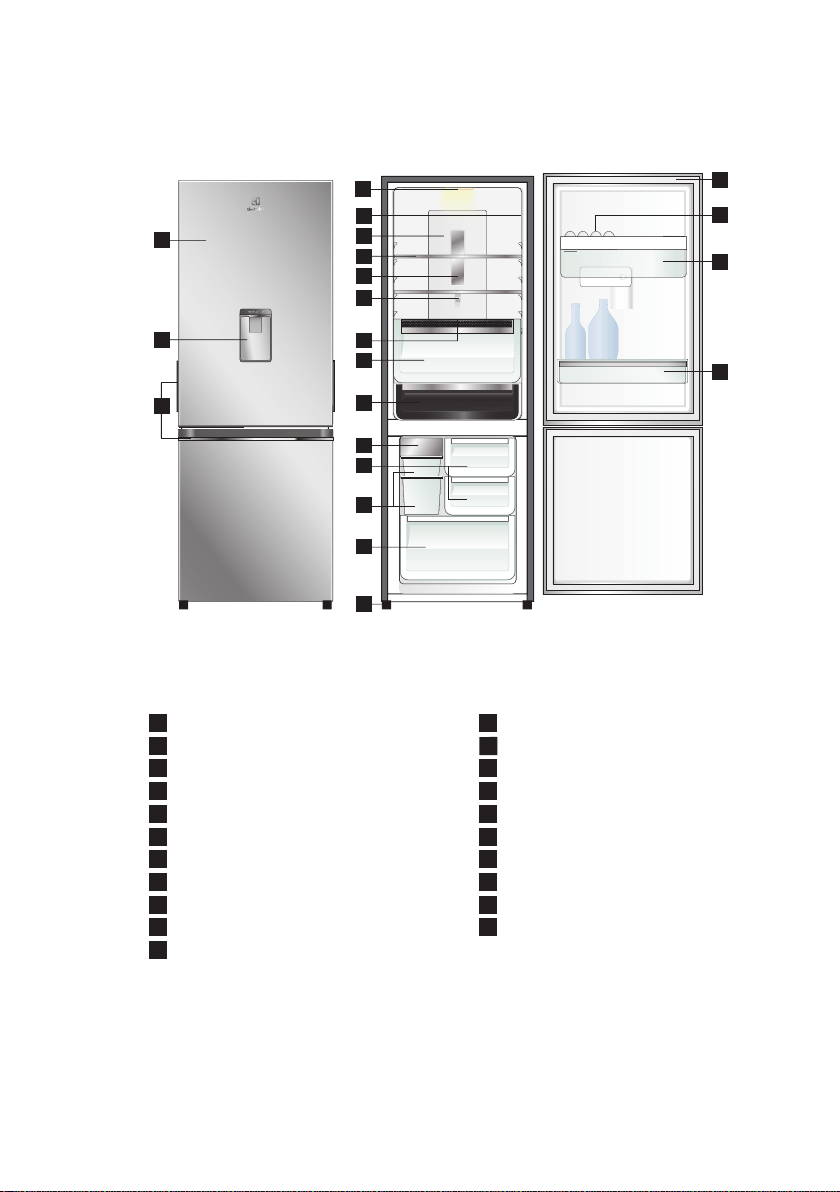

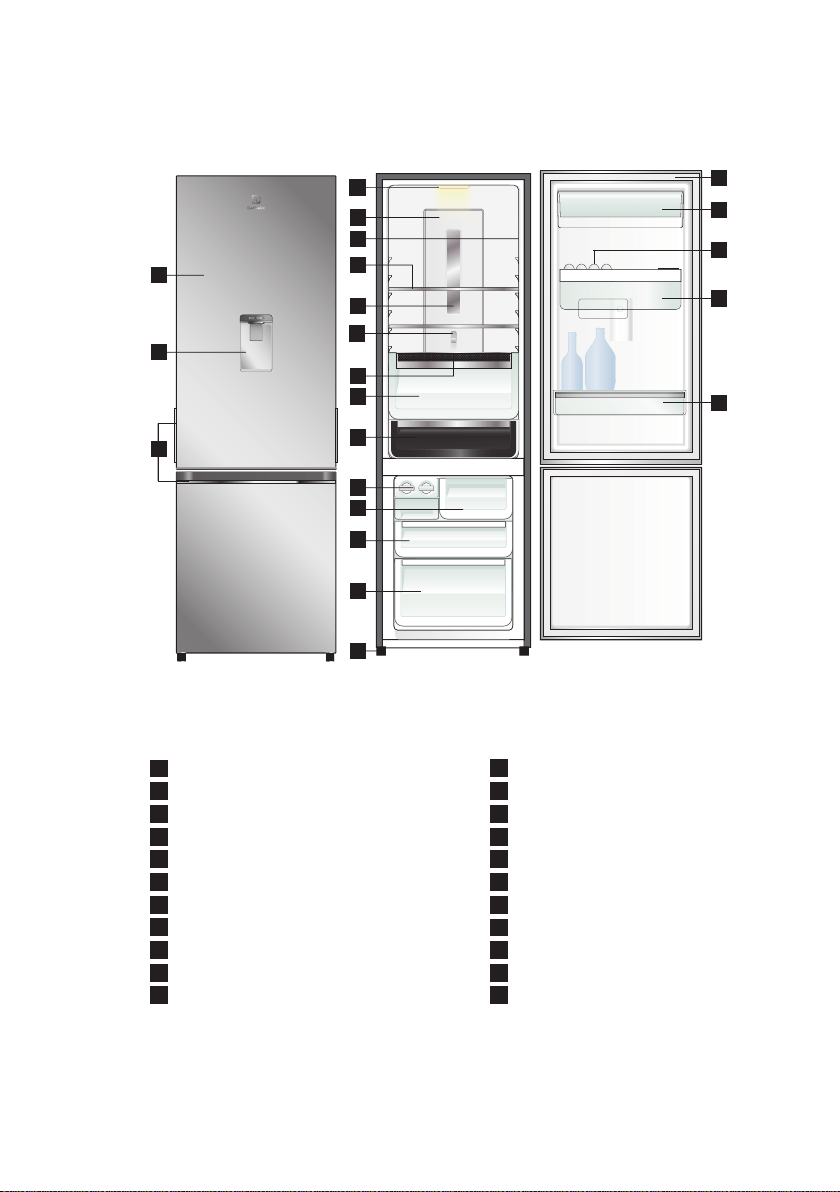

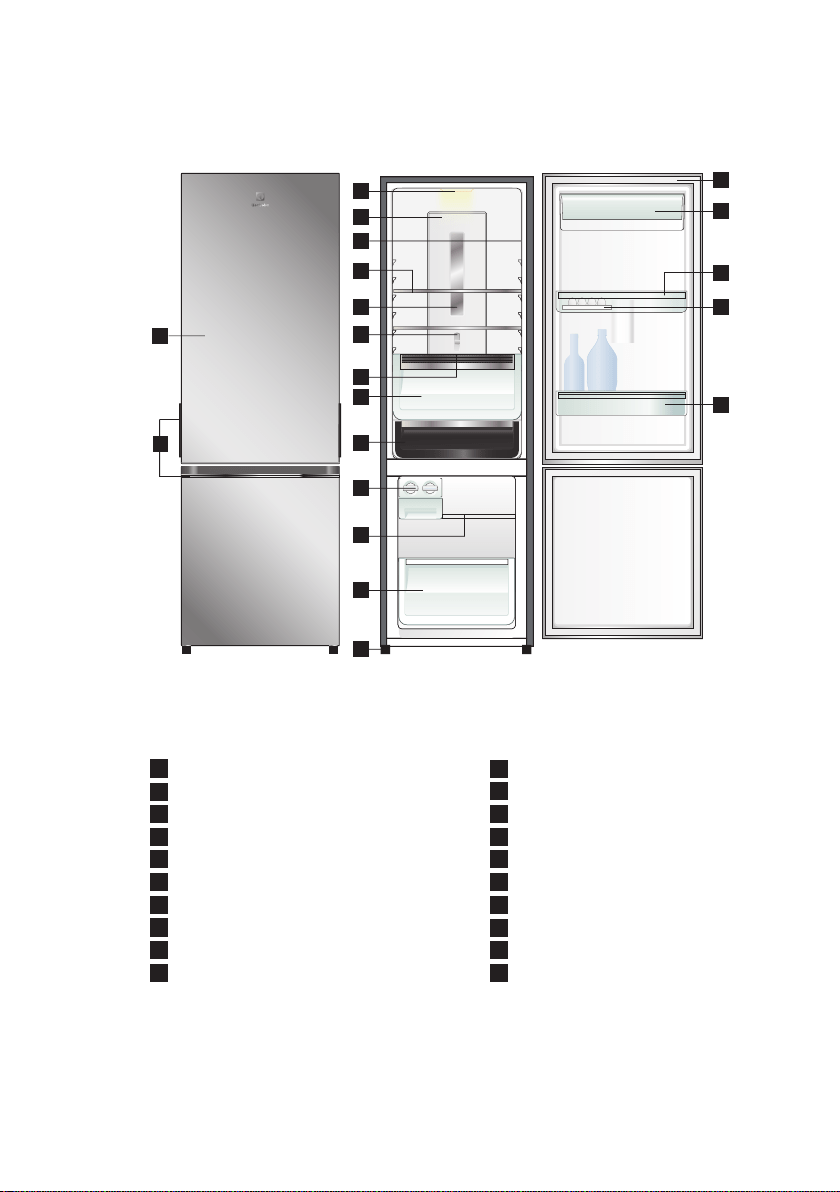

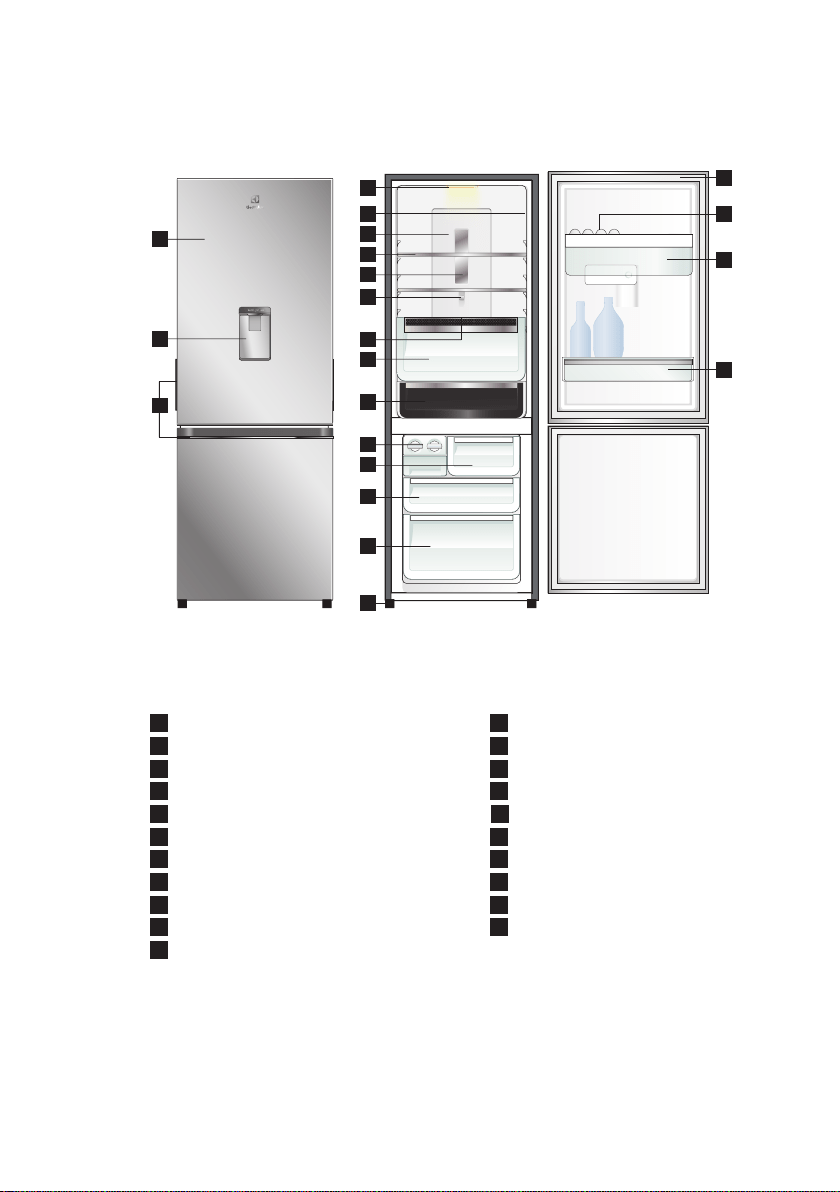

• ETB3400K-A
• ETB3400K-H
2
1
3
4
5
6
7
8
9
10
11
12
13
14
18
19
16
ETB3400
illustrated
15
17
Door Bins Upper
Bottle Bin
18
19
6 www.electrolux.com
TOP MOUNT REFRIGERATOR FEATURES
The details of the refrigerator feature:
Door
Door Handles
Water Dispenser
Ice Twist & Serve
Slide Control Freezer
T
emperature
Freezer Shelf
TasteSeal Room
Multi Flow
Metal Cover Deoderizer
Shelves
Features may vary depending on model. Not all models will have features listed.
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
Crisper
Feet
Gaskets
Door Bins Shallow
Refrigerator Light
Water Tank
Refrigerator
T
emperature Control
Panel
Egg Tray
Door Bin Upper
• ETB3440K-A
• ETB3440K-H
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
20
21
17
ETB3440 illustrated
19
16
18
Auto Humidity Control
11
21
Bottle Bin
ENGLISH 7
• ETB3460K-A
• ETB3460K-H
TOP MOUNT REFRIGERATOR FEATURES
The details of the refrigerator feature:
Door Auto Humidity Control
Door Handles Crisper
Water Dispenser Feet
GasketsAuto Ice Maker
Door Bins ShallowIce Bin
Refrigerator Light
Slide Control Freezer
T
emperature
Freezer Shelf
TasteSeal Room
Water Tank
Multi Flow
Metal Cover Deoderizer
Features may vary depending on model. Not all models will have features listed.
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
Refrigerator
T
emperature Control Panel
Egg Tray
2
1
3
4
7
8
9
10
11
6
12
13
14
15
16
21
20
22
18
ETB3460 illustrated
5
17
19
Shelves
11
22
Bottle Bin
21
Door Bin Upper
8 www.electrolux.com
ETB3700 illustrated
2
1
3
4
5
6
7
8
9
10
11
12
13
14
18
19
16
TOP MOUNT REFRIGERATOR FEATURES
The details of the refrigerator feature:
Door Crisper
Door Handles Feet
Ice Twist & Serve Gaskets
Door Bins ShallowSlide Control Freezer
T
emperature
Refrigerator Light
Freezer Shelf
Egg TrayTasteSeal Room
Multi Flow
Metal Cover Deoderizer
Refrigerator
T
emperature Control Panel
Shelves
Auto Humidity Control
Features may vary depending on model. Not all models will have features listed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
• ETB3700K-A
• ETB3700K-H
Door Bins Upper
Bottle Bin
18
19
15
17
ENGLISH 9
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
20
21
17
19
ETB3740 illustrated
TOP MOUNT REFRIGERATOR FEATURES
The details of the refrigerator feature:
Door
Auto Humidity Control
Door Handles
Crisper
Water Dispenser
Feet
Gaskets
Ice Twist & Serve Door Bins Shallow
Slide Control Freezer
T
emperature
Refrigerator Light
Freezer Shelf
TasteSeal Room
Multi Flow
Water Tank
Metal Cover Deoderizer
Shelves
Features may vary depending on model. Not all models will have features listed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Refrigerator
T
emperature Control Panel
• ETB3740K-A
• ETB3740K-H
19
Egg Tray
16
18
20
Door Bin Upper
21
Bottle Bin
10 www.electrolux.com
TOP MOUNT REFRIGERATOR FEATURES
2
1
3
4
7
8
9
10
11
6
12
13
14
15
16
21
20
22
18
ETB3760 illustrated
The details of the refrigerator feature:
Door Auto Humidity Control
Door Handles Crisper
Water Dispenser
Feet
GasketsAuto Ice Maker
Door Bins ShallowIce Bin
Refrigerator Light
Slide Control Freezer
T
emperature
Freezer Shelf
TasteSeal Room
Water Tank
Multi Flow
Metal Cover Deoderizer
Features may vary depending on model. Not all models will have features listed.
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
Refrigerator
T
emperature Control Panel
Egg Tray
• ETB3760K-A
• ETB3760K-H
5
17
19
Shelves
11
21
22
Door Bin Upper
Bottle Bins
ENGLISH 11

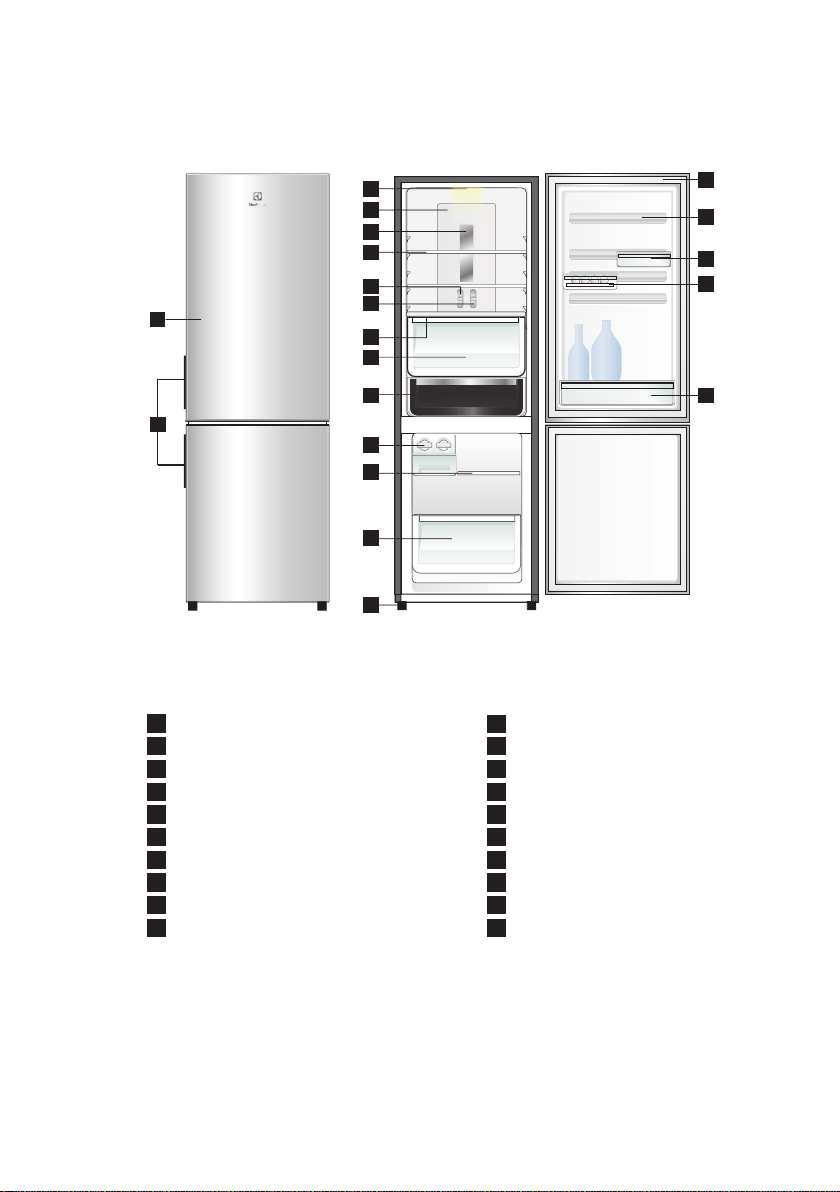

• EBB2802K-A
• EBB2802K-H
BOTTOM MOUNT REFRIGERATOR FEATURES
EBB2802 illustrated
The details of the refrigerator feature:
Door
Ice Twist & Serve
Door Handles
Freezer Shelf
Multi Flow
Freezer Drawer Lower
Feet
Metal Cover Deoderizer
Gaskets
Shelves
FlexStor Rails
Slide Control Refrigerator
T
emperature
Slide Control Freezer
T
emperature
Humidity Slide
FlexStor Bins
Crisper
TasteSeal Room
Features may vary depending on model. Not all models will have features listed.
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Egg Tray
Bottle Bin
1
4
6
7
8
9
10
11
12
13
14
5
15
16
17
18
19
20
2
3
Refrigerator Light
3
12 www.electrolux.com

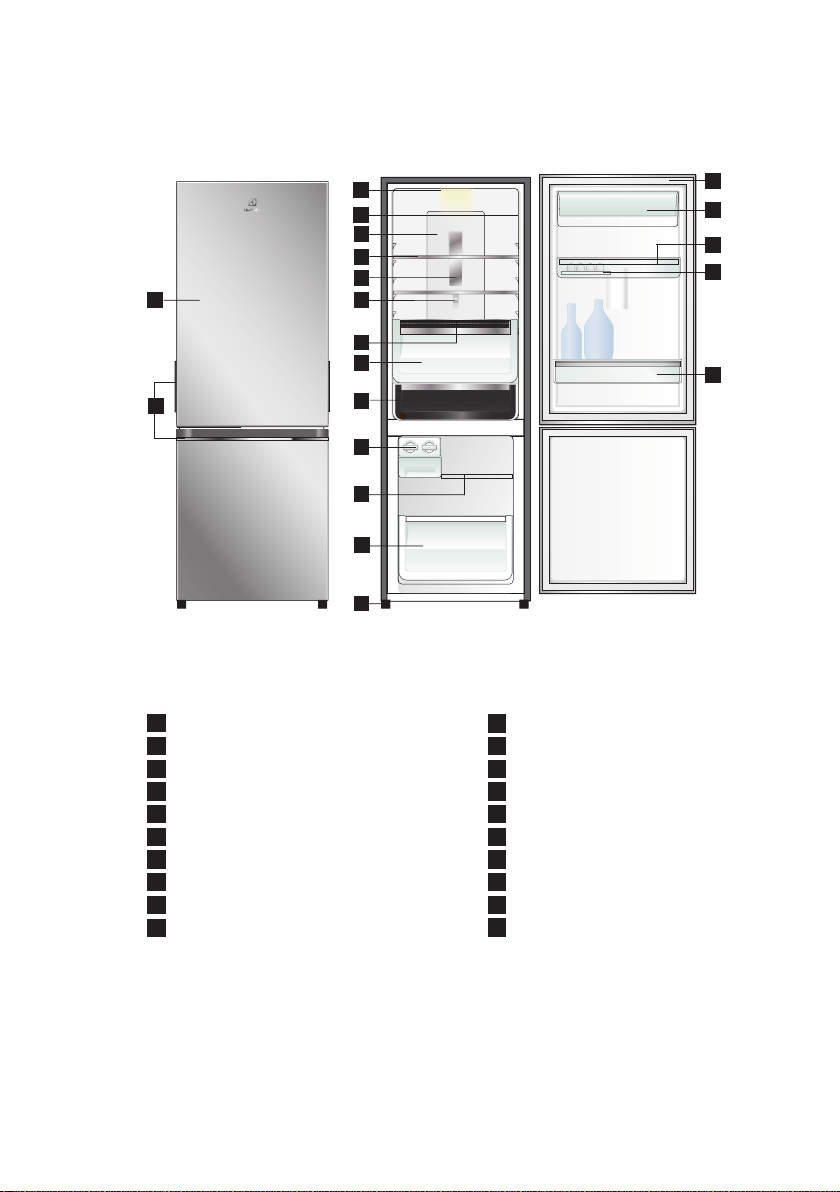

• EBB3402K-A
• EBB3402K-H
BOTTOM MOUNT REFRIGERATOR FEATURES
2
1
5
6
8
9
10
11
12
13
14
7
15
16
17
18
19
20
EBB3402 illustrated
Door
Freezer Shelf
Door Handles
Freezer Drawer Lower
Refrigerator Light
Feet
Gaskets
Refrigerator
T
emperature Control Panel
Door Bin Dairy
Multi Flow
Door Bin Upper
Shelves
Metal Cover Deoderizer
Slide Control Freezer
T
emperature
Egg TrayAuto Humidity Control
Crisper
1
2
3
4
5
6
7
8
9
10
13
14
15
16
17
19
20
Bottle Bin
The details of the refrigerator feature:
Features may vary depending on model. Not all models will have features listed.
18
3
4
TasteSeal Room
Ice Twist & Serve
11
12
ENGLISH 13
BOTTOM MOUNT REFRIGERATOR FEATURES
3
1
2
6
12
10
11
13
14
16
7
17
8
15
18
19
20
21
EBB3442 illustrated
9
Door
Ice Twist & Serve
Water Dispenser
Drawer meat Box
Door Handles
Drawer Middle
Freezer Drawer Lower
Multi Flow
Feet
Shelves
Gaskets
Metal Cover Deoderizer
Slide Control Freezer
T
emperature
Auto Humidity Control
Egg Tray
Crisper
TasteSeal Room
1
2
3
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Water Tank
Bottle Bin
The details of the refrigerator feature:
Features may vary depending on model. Not all models will have features listed.
• EBB3442K-A
• EBB3442K-H
4
5
Refrigerator Light
4
Refrigerator
T
emperature Control Panel
5
14 www.electrolux.com
BOTTOM MOUNT REFRIGERATOR FEATURES
3
1
2
6
12
10
11
13
14
16
7
17
8
15
9
18
19
20
21
• EBB3462K-A
• EBB3462K-H
EBB3462 illustrated
Door
Water Dispenser
Door Handles
Multi Flow
Shelves
Metal Cover Deoderizer
Slide Control Freezer
T
emperature
Auto Humidity Control
Crisper
1
2
3
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
TasteSeal Room
Room
Auto Ice Maker
Drawer Meat Boxes
Ice Bin Small/Large
Freezer Drawer Lower
Feet
Gaskets
Egg Tray
Water Tank
Bottle Bin
The details of the refrigerator feature:
Features may vary depending on model. Not all models will have features listed.
5
4
Refrigerator Light
4
Refrigerator
T
emperature Control Panel
5
ENGLISH 15
• EBB3702K-A
• EBB3702K-H
BOTTOM MOUNT REFRIGERATOR FEATURES
2
1
5
6
8
9
10
11
12
13
14
7
15
16
17
18
19
20
EBB3702 illustrated
Door
Freezer Shelf
Door Handles
Freezer Drawer Lower
Refrigerator
T
emperature Control Panel
Feet
GasketsShelves
Door Bin DairyMetal Cover Deoderizer
Door Bin UpperSlide Control Freezer
Auto Humidity Control
Crisper
Egg Tray
TasteSeal Room
Ice Twist & Serve
1
2
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Bottle Bin
The details of the refrigerator feature:
Features may vary depending on model. Not all models will have features listed.
4
3
Refrigerator Light
3
Multi Flow
4
16 www.electrolux.com
• EBB3742K-A
• EBB3742K-H
BOTTOM MOUNT REFRIGERATOR FEATURES
3
1
2
5
12
10
11
13
14
16
7
17
8
15
18
20
21
22
19
EBB3742 illustrated
9
Door
Ice Twist & ServeWater Dispenser
Freezer Drawer MeatDoor Handles
Freezer Drawer Middle
Freezer Drawer Lower
Refrigerator
T
emperature Control Panel
Feet
Shelves Gaskets
Metal Cover Deoderizer
Slide Control Freezer
T
emperature
Auto Humidity Control
Door Bin Dairy
Crisper
TasteSeal Room
1
2
3
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Egg Tray
Water Tank
Bottle Bin
The details of the refrigerator feature:
Features may vary depending on model. Not all models will have features listed.
4
6
Refrigerator Light
4
Multi Flow
5
ENGLISH 17
• EBB3762K-A
BOTTOM MOUNT REFRIGERATOR FEATURES
Door
Auto Ice MakerWater Dispenser
Drawer Meat BoxesDoor Handles
Bin Ice Small/Large
Freezer Drawer Lower
Refrigerator
T
emperature Control Panel
Feet
Shelves Gaskets
Metal Cover Deoderizer
Slide Control Freezer
T
emperature
Auto Humidity Control
Door Bin Dairy
Crisper
TasteSeal Room
1
2
3
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Egg Tray
Water Tank
Bottle Bin
The details of the refrigerator feature:
Features may vary depending on model. Not all models will have features listed.
EBB3762K illustrated
3
1
2
6
12
10
11
13
14
16
8
17
9
15
18
20
21
22
7
19
5
4
Refrigerator Light
4
Multi Flow
5
• EBB3762K-H
18 www.electrolux.com
DESCRIPTION OPERATION / PRIMARY FUNCTION
3. CONTROL PANEL.
7 5 3 1
Top mount
Freezer temperature adjustment.
- Select the freezer control.
- Slide the control to the left to set it to colder (No.7).
- Slide the control to the right to set less cold (No.1).
Bottom mount freezer
Refrigerator temperature adjustment.
- Select the refrigerator control.
- Slide the control down to set it to colder (No.5).
- Slide the control up to set less cold (No.1).
Refrigerator
Freezer
Freezer temperature adjustment.
- Select the freezer control.
- Slide the control down to set it to colder (No.7).
- Slide the control up to set less cold (No.1).
3.1 TEMPERATURE CONTROL
When you first turn on the refrigerator, set both the refrigerator and freezer temperature
control to normal. Please refer to the below section for information on adjusting
refrigerator and freezer temperature.
When you set a temperature, you set an average temperature for the whole
refrigerator cabinet.
Checking the softness of ice cream is a good indication that your freezer is the
right temperature, while checking the temperature of water kept in the refrigerator
is a good way of checking the temperature of the food compartment.
Temperatures inside each compartment may vary, depending on how much food
you store and where you place it.
High or low room temperature may also affect the actual temperature inside the
refrigerator.
When you change the temperature settings, make small adjustments and wait 24
hours before assessing whether you need to make any further changes.
Recommended Freezer Setting
Room Temp. Setting
Below 15°
Above 15°
7
5
Only install refrigerator indoors where the
room temperature is above 10°
Setting the freezer temperature to
colder is not recommended for
normal or very hot climate condition
as this will limit the cooling capacity to
other sections of the refrigerator. In
very cold climate the freezer will need
to be set colder.
ENGLISH 19
3.2 ABOUT THE USER INTERFACE
Refrigerator temperature scale icons
Temperature adjustment
Refrigerator temperature
scale icons
•
Indicates the temperature setting of the refrigerator
compartment.
Temperature adjustment Temperature Control
•
Touch the ‘TEMP’ button to awaken control.
•
Touch the ‘TEMP’ button to decrease the refrigerator
temperature. There are 5 temperature settings indicated
by the illumination sequence on the display. Once the
coldest temperature is reached the display will return to
the warmest setting with the next press.
DESCRIPTION OPERATION / PRIMARY FUNCTION
ETB3400K-A
ETB3400K-H
●
●
ETB3440K-A
ETB3440K-H
●
●
ETB3700K-A
ETB3700K-H
●
●
ETB3740K-A
ETB3740K-H
●
●
EBB3702K-A
EBB3702K-H
●
●
EBB3742K-A
EBB3742K-H
●
●
EBB3402K-A
EBB3402K-H
●
●
EBB3442K-A
EBB3442K-H
●
●
20 www.electrolux.com
ABOUT THE USER INTERFACE
Refrigerator temperature scale icons
Temperature adjustment
Icemaker status indicator icon
•
Show operation status.
Icemaker adjustment
•
This button selects the status of ice maker.
(On, Off and activate Fast Ice)
DESCRIPTION OPERATION / PRIMARY FUNCTION
Icemaker adjustment
Icemaker status indicator icon
Refrigerator temperature
scale icons
•
Indicates the temperature setting of the refrigerator
compartment.
Temperature adjustment Temperature Control
•
Touch the ‘TEMP’ button to awaken control.
•
Touch the ‘TEMP’ button to decrease the refrigerator
temperature. There are 5 temperature settings indicated
by the illumination sequence on the display. Once the
coldest temperature is reached the display will return to
the warmest setting with the next press.
ETB3460K-A
EBB3462K-H
●
●
EBB3462K-A
EBB3462K-H
●
●
ETB3760K-A
ETB3760K-H
●
●
EBB3762K-A
EBB3762K-H
●
●
ENGLISH 21
3.3 ERROR CODE & ALARMS
ERROR CODE WHAT IT MEAN ...
ERROR CODES
WHAT TO DO ...
Communication error
LED_5 flashes with 1sec
interval
If you see the top temperature
icon is flashing it means that the
control has lost contact with the
main control board.
The appliance will operate at its
last known setting, all auxiliary
functions will not work.
Sensor – Open Circuit /
Short Circuit
Non-icemaker
With icemaker
If you see any combination of
the first, second and third icons
are flashing it means that an
error has been detected on a
sensor.
The refrigerator will run in a
default cycle to prevent food
spoilage.
If you see any combination of
the first, second, third and
fourth and all temperature
icons are flashing it means that
an error has been detected on
a sensor.
The refrigerator will run in a
default cycle to prevent food
spoilage.
Turn the unit off at the
electric outlet
for 5 minutes
and then turn it back on.
Under most circumstances
this will reset the display
enabling normal function
to continue.
If the error re-occurs then
call for service.
Call for service.
Call for service.
22 www.electrolux.com
ALARM ICON WHAT IT MEANS
ALARMS
OPERATION
Activates if the refrigerator or
freezer doors are left open for
longer than 2 minutes.
An alarm will sound and the
affected compartment icon
will flash and the temperature
and icons will fade on and off.
Alarm will sound and icon
will flash indicating which
door is open.
To silence the alarm for 8
minutes while the door is
open press any button
(the icons will continue to
flash until door is closed).
With icemaker
Non-icemaker
Activates if the refrigerator or
freezer doors are left open for
longer than 2 minutes.
An alarm will sound and the
affected compartment icon
will flash and the temperature
and icons will fade on and off.
Alarm will sound and icon
will flash indicating which
door is open.
To silence the alarm for 8
minutes while the door is
open press any button
(the icons will continue to
flash until door is closed).
ENGLISH 23
4. INSTALLING YOUR NEW APPLIANCE
Clean the refrigerator thoroughly according to
instruction, and wipe away any dust that has
accumulated during shipping.
Check that the floor is level. If it is not then
adjust the provided leveling leg so product is
level and stable.
We recommend that you let your refrigertor run
for two to three hours before you put any food
in it. This will allow you to check that it is
operating properly and that enough cool air is
going to the freezer.
Clearance around your Top and Bottom Mount
refrigerator;
• Allow a minimum of 30mm clearance on both
sides of the refrigerator.
• Allow 50mm clearance at the back of the
refrigerator.
• Allow a minimum of 10mm clearance above
the hinge cover.
• If you do not have a cupboard with allowance
for air flow above the refrigerator, the
recommended clearance area on top
increases to 90 mm.
• When positioned in a corner area, spacing of
at 350mm on the hinge side will allow the
doors to open enough to enable the removal
of bins and shelves.
NOTE: In installation where both sides and the
rear of the refrigerator are not enclosed by
cabinetry e.g. the refrigerator is placed against
a wall, the clearance between the rear of
refrigerator and the wall should not be greater
than 75mm.
You refrigerator uses energy efficient
components that may produce different noises
(Refer “Noises” page for examples) to your old
refrigerator. Occasionally a gurgling sound of
refrigerator flowing or the sound of parts
expanding and contracting can be heard.
These noises are quite normal.
350mm
30mm
30mm
DOOR
CABINET
airspace
Recommended
50mm
90 mm
10 mm
Installing your refrigerator

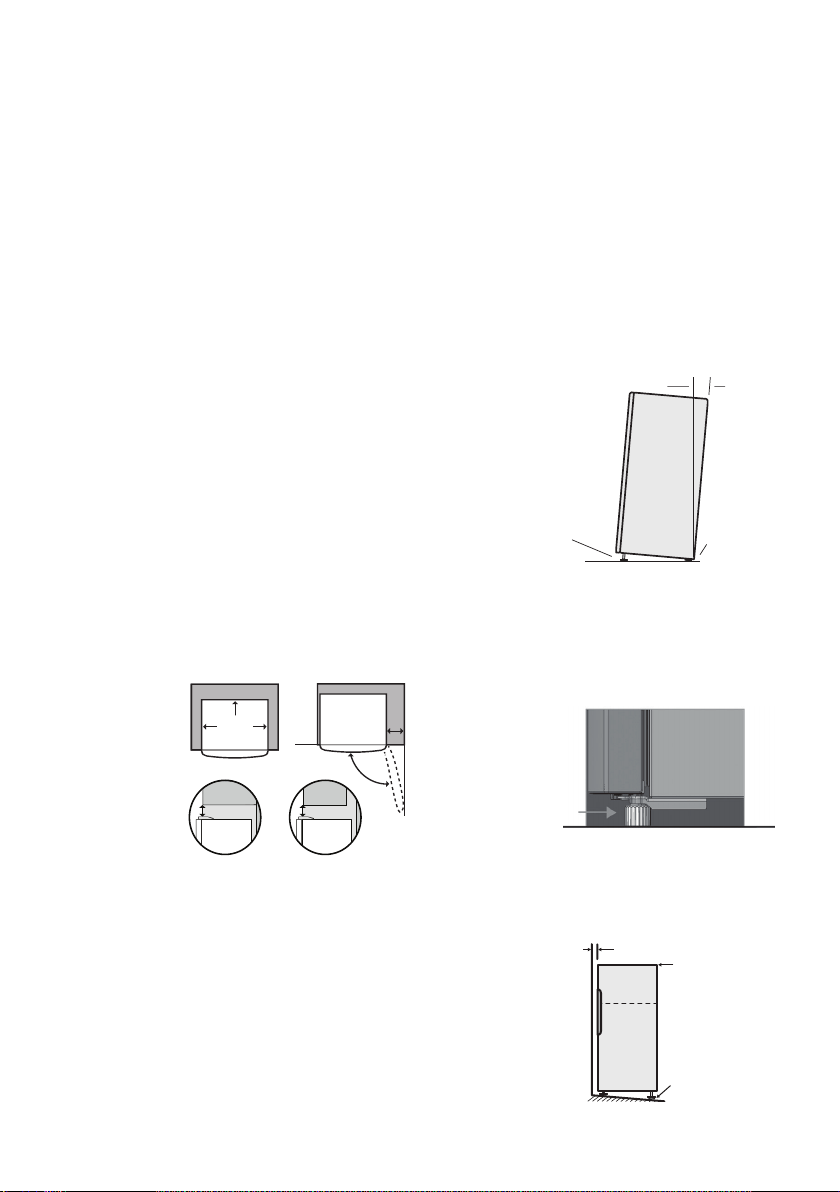

1. Roll the refrigerator into place, the rollers are
designed for forward or backward movement
only, they are not castors. Moving the
refrigerator sideways may damage your floor
and the rollers. Before moving your
refrigerator, ensure height adjusting nut and
the stability foot are fully wound up off the
floor.
2. Wind the height adjusting nut under door
hinge down until the refrigerator is tilted back
by 10mm (see diagram).
3. Wind the height adjusting nut on the handle
side down until the refrigerator is level and
stable. If you have difficulty winding the nut
or height adjusting foot down, have someone
tilt the refrigerator back so you have better
access.
4. Check the alignment of the refrigerator to the
surrounding cupboards to see if it is level.
You can adjust the level as detailed in step 2
and 3.
Height adjusting nut
Fixed rear rollers
10-15mm
aligned to
cupboards
ie. even gap
top of refrigerator is
level ie. horizontal
adjust front feet for
uneveness of floor
eg. wind this foot
down or up
stability foot
wound up
24 www.electrolux.com

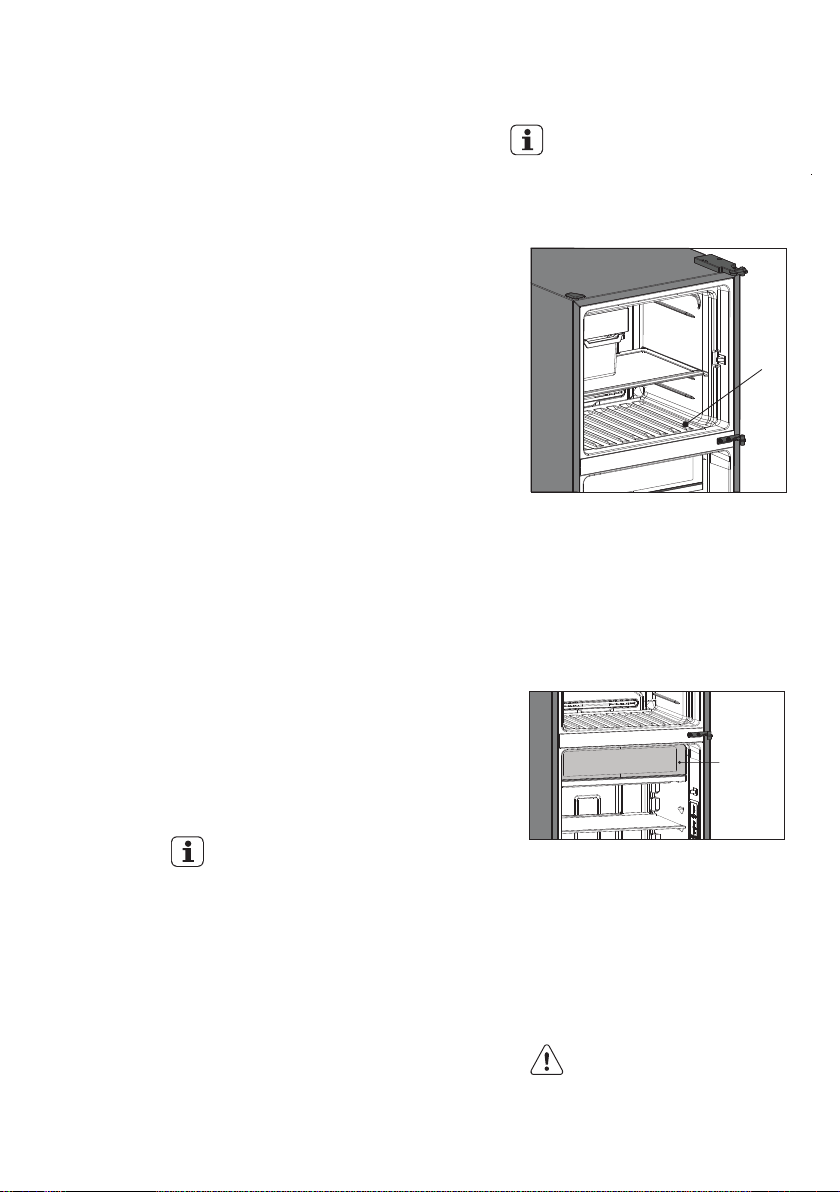

5. USING YOUR REFRIGERATOR
Refrigerators work by transferring heat from the
food inside to the outside air. This operation
makes the back and sides of the refrigerator
feel warm or even hot particularly at start-up
and on warm days – this is normal.
Avoid placing food against the air vents in the
refrigerator as it affects efficient circulation. If
the door is opened frequently, a light frosting
will occasionally occur on the freezer’s interior.
This is normal and will clear after a few days. If
the freezer door is accidentally kept open, a
heavy frost will coat the inside walls and should
be removed.
Your new refrigerator uses a high-speed
compressor, along with other energy-efficient
components, which may make unusual sounds
and be more noticeable at night and quieter
times. These sounds simply indicate your
refrigerator is working how it should. They
include:

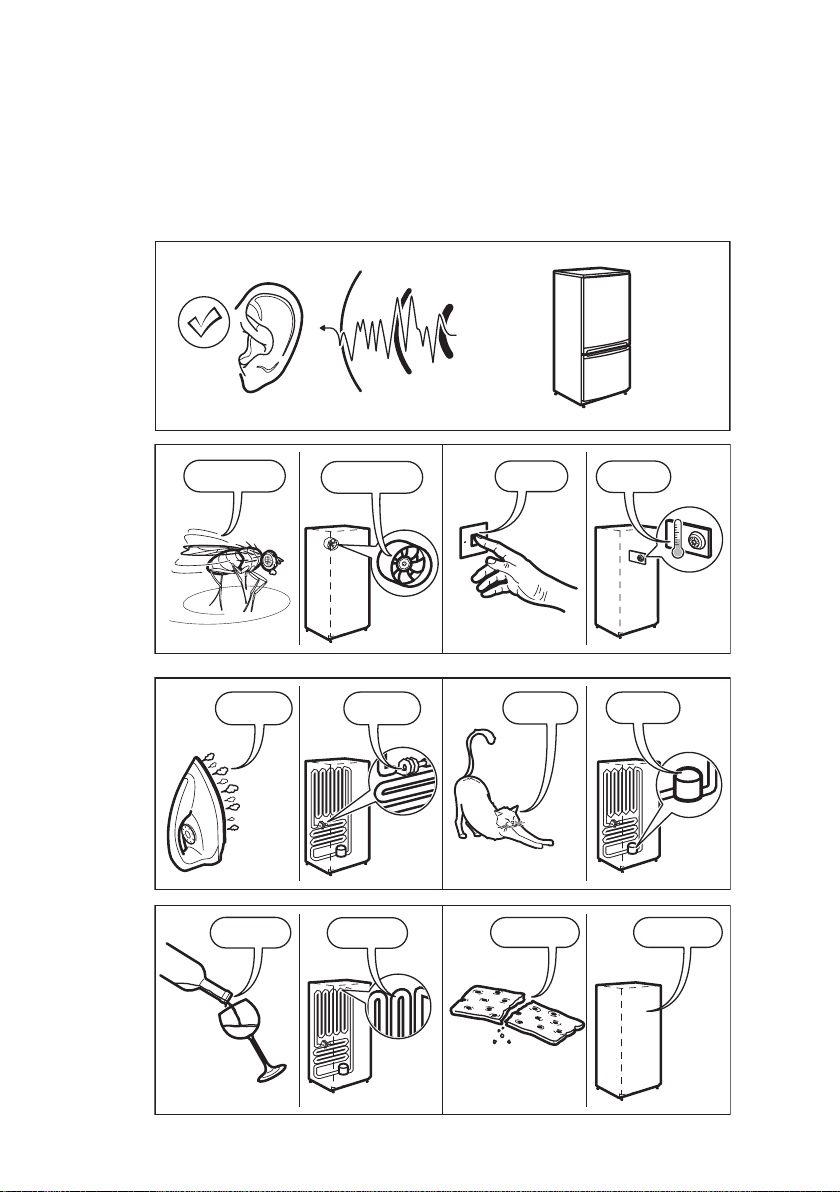

• Compressor running noises; modern,
high-efficiency compressors run much
faster than older models.
• Air movement noise from the small fan
motor;
• A gurgling sound, similar to water boiling;
• A popping noise, heard during automatic
defrosting; and
• A clicking noise, prior to compressor
start-up. Further details can be found in the
Troubleshooting Guide.
• Automatic icemaker, while icemaker
producing ice sounds of ice cubes falling in
to ice bin pumping and/or water filling may
be heard.
For bottom mount refrigerators
(where freezer is below the fresh
food compartment):
• Ensure all freezer drawer and
shelves are pushed back
completely to prevent them from
keeping the door open.
For top mount refrigerators (where
the freezer is on top of the fresh food
compartment).
• Don’t place food forward of the ribs
on the freezer floor, as it will
obstruct the door from closing.
5.1 USING AND REMOVING FEATURES
5.1.1
TasteSeal
Room
Use the
TasteSeal
compartment to store
meat, snack, beverage and dairy
products. You can adjust
TasteSeal
temperature by adjusting the refrigerator
temperature control.
5.1.2 Metal Tray (Option for ETB3** and
EBB3** models)
Metal tray locate in
TasteSeal
room and
can lift off from plastic body for cleaning
follow to instruction in this manual.
Avoid direct contact with food stuff that
contain high acid or alkali and clean it
immediately when found any stain.
CAUTION
Do not use in hot cooking or oven
cooking stoves.
Rib
TasteSeal
Room
ENGLISH 25

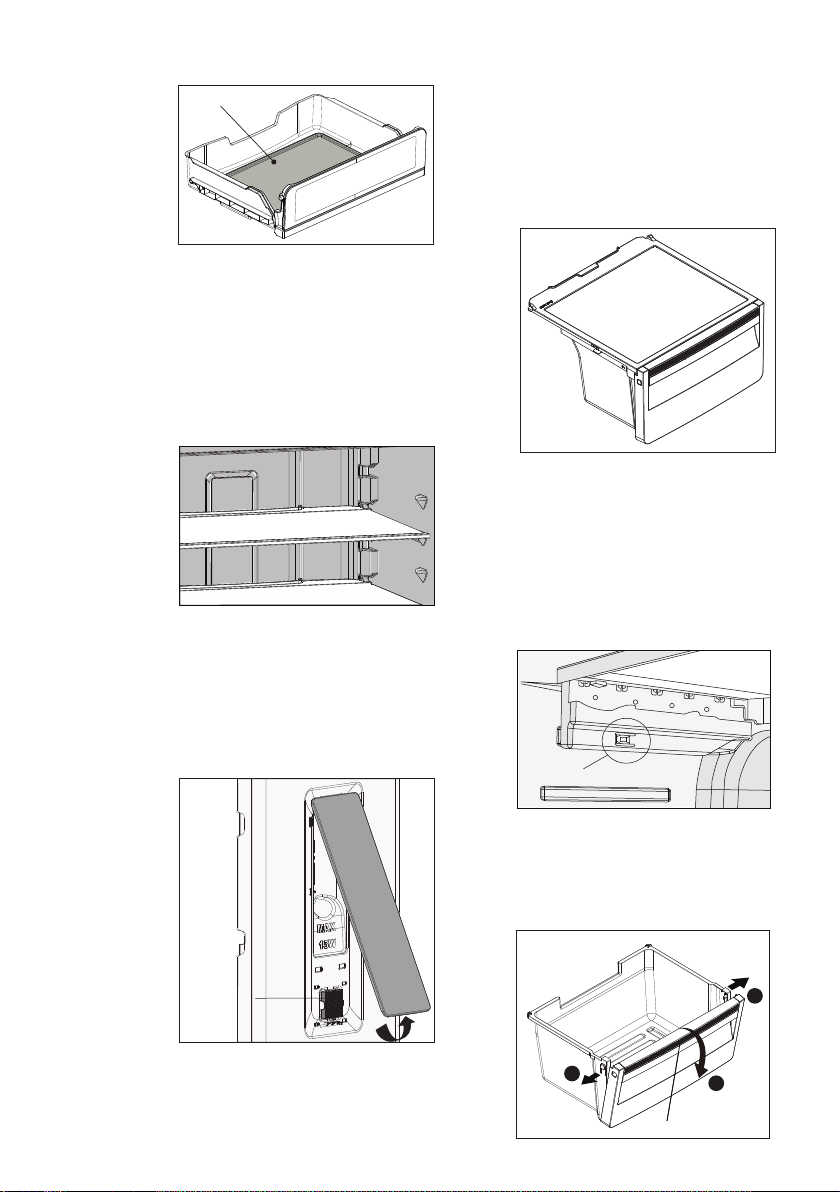

5.1.3 Glass Shelves
To remove the shelves, gently pull them
forward until the shelf comes clear of the
shelf guides.
To return the shelf, make sure there is
nothing behind that may obstruct
movement. Gently push the shelf, into the
cabinet and back into position.
5.1.4 Deodorizer
Your refrigerator is fitted with Deodorizer
to assist with the removal of food odours
inside your refrigerator. Keeping the food
covered and wrapping it in plastic will also
help to reduce the odours inside your
refrigerator.
5.1.5 Crisper Drawer
Crisper drawer is designed for storing
fruits, vegetables, and other fresh
produce. Crisper have an auto humidity
membrane in front of crisper cover to
maintain optimum humidity for longer fresh
vegetables.
- To empty food from the crisper. On
some models it will be necessary to
remove the bottle storage bins.
- Remove the crisper by pulling
forward, then up and forward again.
- For top mount models, remove the
crisper shelf by lifting the catches on
the left and right underside of the
shelf and pulling the shelf forward.
Auto humidity membrane automatically
releases excess moisture and maintains
optimal humidity for your fresh vegetables,
maintaining the taste, texture and
freshness.
Deodorizer
Metal Tray
1
2
1
AHC
CATCH
26 www.electrolux.com
5.1.8
Water Tank
CAUTION
BEFORE REMOVE; to empty the
water in the tank.

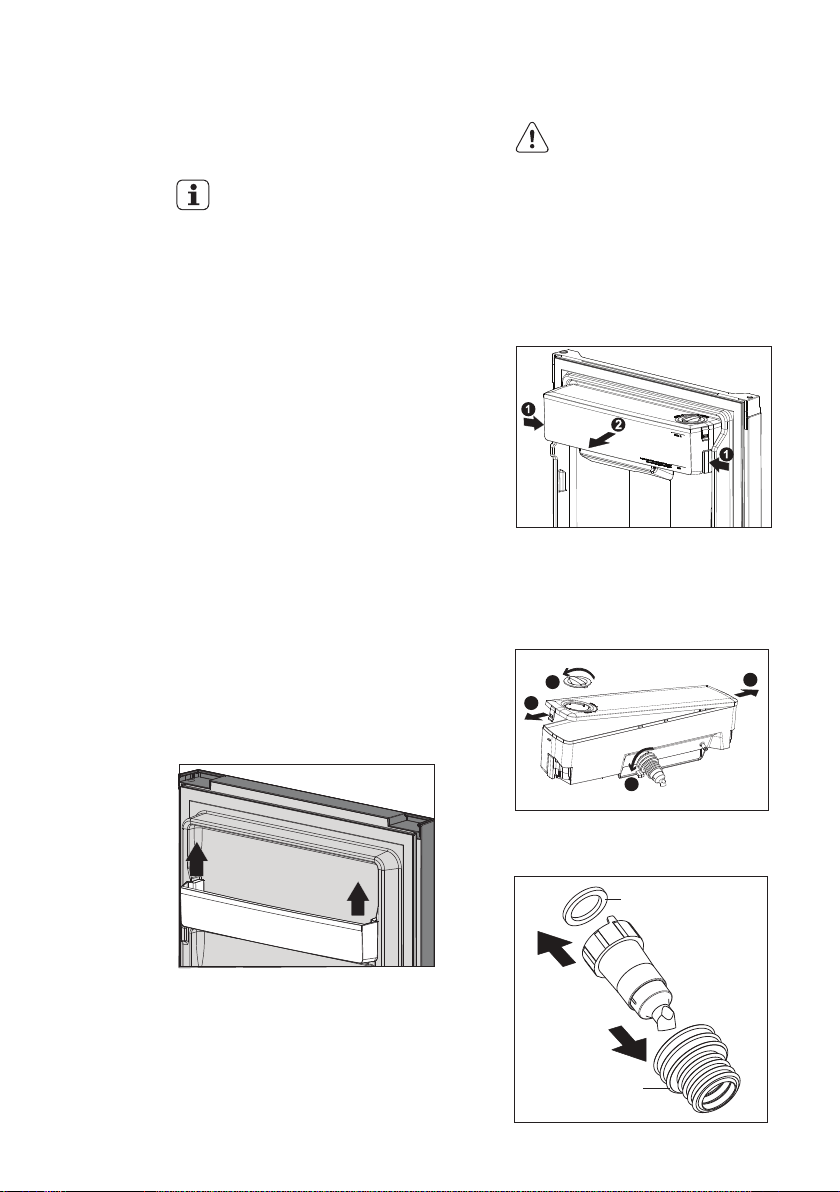

To remove the water tank and
disassembly cleanable parts follow these
steps:
1. Press 2 clips on side of water tank to
unlock water tank from lugs and hold on
the tank.
2. Pull out the water tank.
3. Rotate tank cover lid up and off from the
cover.
4. Unclip the both side clips and lift off
from water tank.
5. Screw the water valve off from tank.
6. Remove nozzle rubber and o-ring from
water valve.
To remove the Auto humidity membrane
part follow these step:
1.
Unclip the both side clips and,
2. Lift off from crisper drawer.
It’s not required to replace the Auto
humidity membrane unless it
becomes damaged or ruined. If the
membrane becames soiled or
dirty, it can be washed with soap
and water. Ensure membrane is
dry before putting back in crisper
drawer. Please contact our service
provider when need to replace
your AHC membrane.
5.1.6 Crisper bin
- Storing Vegetables Usethe crisper bin to
store vegetables, fruits or small items.
You can adjust the humidity inside the
bin by sliding the humidity control. Model
ETB2** and EBB2** have slide control.
5.1.7 Door storage bins
Both the refrigerator and freezer have
door storage bins.
You can adjust the refrigerator bins to
meet different storage needs. All the door
bins are completely removable for
cleaning. If you want to remove or adjust a
bin, lift and unlock from lugs to remove.
To replace, lift up and push bin down until
the support lugs lock it in place.
3
4
4
5
O-ring
nozzle rubber
ENGLISH 27
Rip
water valve
nozzle
Stopper
Reverse the step to assembly the water
tank and return to its place.
NOTE: Screw in the water valve to water
tank till stopper touch the rip and the water
valve nozzle must be point down as
picture.
CAUTION
LED lighting
Your appliance is fitted with long
life LED lighting. In the unlikely
event the LED lights should fail,
then the LED lights should be
serviced by the manufacturer.
Refer to the warranty page for
contact details.
28 www.electrolux.com
The automatic ice making function pumps
water from the water tank located in the
refrigerator and dispenses it into the automatic
ice maker in the freezer.
The ice will then be dropped into the ice bin
located beneath the ice maker. If the water
tank is empty or lower than level, the ice maker
will automatically turn off after 3 attempts at
pumping water from the tank. The ice maker
indicator on the user interface shows the
operational status of the ice maker (Refer
control instructions).
In case water tank is empty and ice maker
show “off” status with red light, you simply can
fill up water and just have to select “
ICEMAKER” to be “on” again to turn on ice
maker to continuous making ice.

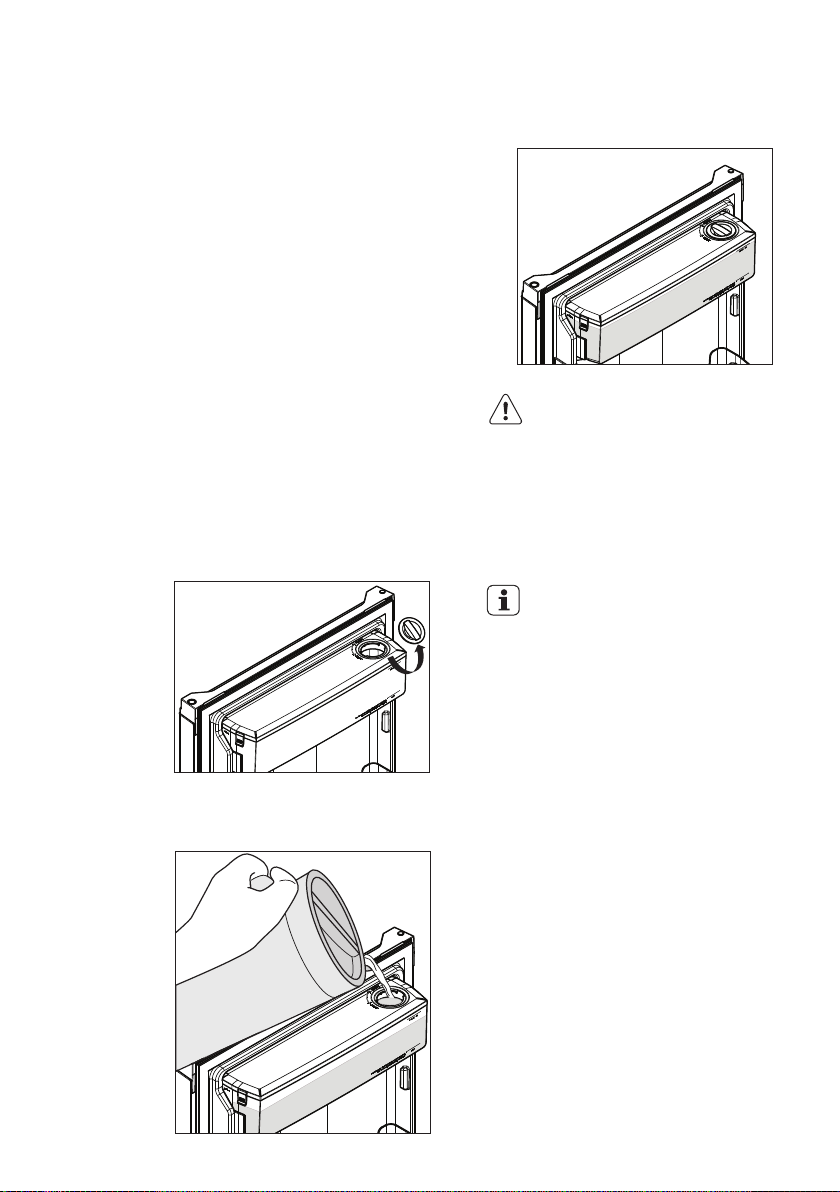

Water Tank Refilling
Step 1. Open the
tank cover lid up and off from
the cover.
Step 2. Pour potable water through the lid at
the top of the water tank.
Step 3.
Closed the tank cover lid.
CAUTION
Do not fill the water tank with anything
other than clean water (Filtered or
Mineral water), soft drink, juice, tea or
hot water etc, can damage your
automatic icemaker. The water tank
can withstand a maximum water
temperature of 60°C.
Tips and Useful Information
Remove and clean ice bin and water
tank once a month, discarding unused
ice and water. This will ensure fresh ice
and smooth operation of your
icemaker. Make sure your refrigerator
is level to avoid uneven ice cubes.
It is recommended to always keep
water level filled above the “Min” level
indication to have water ready for your
chilled drinks, and ready for ice making.
It is recommended to dispense water
out in frist few glasses and/or ice
production to flush out the system or
any impurities in first time use or after
installation.
6. Automatic Ice Maker
ENGLISH 29
7. CLEANING YOUR REFRIGERATOR
WARNING
BEFORE CLEANING: Turn the
refrigerator off at the
electric outlet
and
unplug the cord to prevent any chance
of electrocuting yourself.
Doors and exterior (white and silver):
You should only clean the doors with lukewarm
soapy water and a soft cloth.
CAUTION
Never use stainless steel cleaners,
abrasive pads or other cleaners that will
scratch the surface. Damage to the
appliance after delivery is not covered
by your warranty.
Interior
Clean the inside of your refrigerator regularly
with a soft cloth, unscented mild soap and
lukewarm water.
Thoroughly dry all surfaces and removable
parts and avoid getting water on the controls.
Replace removable parts, plug power cord in
and switch the power on before returning the
food.
Water Tank Assembly
Clean the inside of the water tank regularly with
a soft cloth, unscented mild soap and rinse
thoroughly with lukewarm water to completely
remove any soap residue.
Door seals
Always keep door seals clean by washing them
with a mild detergent and warm water, followed
by a thorough drying.
Sticky food and drink can cause seals to stick
to the cabinet and tear when you open the
door.
CAUTION
Never use hot water, solvents,
commercial kitchen cleaners, aerosol
cleaners, metal polishes, caustic or
abrasive cleaners, or scourers to clean
your refrigerator. Many commercially
available cleaning products and
detergents contain solvents that will
damage your refrigerator. Use only a
soft cloth with an unscented mild soap
and lukewarm water.
To clean a crisper or freezer bin with
telescopic extension slides, simply wipe
with a damp cloth and warm soapy
water. Never immerse the cover in
water, as this could affect the operation
of the slide.
Switching off your refrigerator
If you switch off your refrigerator for an
extended period, follow these steps to reduce
the chances of mould:
1. Remove all food.
2. Remove the power plug from the
electric outlet.
3. Thoroughly clean and dry the Interior.
4. Ensure that all the doors are wedged
open slightly for air circulation.
30 www.electrolux.com
8. FOOD STORAGE GUIDE
CATEGORY FREEZER
REFRIGERATOR
STORAGE TIPS
Meat Sausages and Mince 1-2 Days 2-3 Months
Chops and Steak 4-6 Months3-4 Days
Cold Meats
Keep cold meat at the back of the
refrigerator where it is coldest.
4-6 Months
3-5 Days
Roasts
12 Months3-5 Days
Plastic can cause meat to sweat if
stored in refrigerator for more than
a day.
Poultry Chicken 2 Months1-2 Days
Roast Chicken 12 Months3-5 Days
Eggs 6 Weeks Not Suitable
If poultry takes on a smell or colour
you are unsure about it is best to
throw it out.
Seafood Whole fish and fillets 2 Months2-3 Days
Whole eggs are not suitable for
freezing, slightly beaten eggs may
be frozen for four months.
Store in an airtight container or foil.
Lobster and crabs 2 Months1-2 Days
Prawns 2 Months1-2 Days
Dairy Milk
Never freeze prawns in salty water
as this will dehydrate the flesh.
Yoghurt Not Suitable7-10 Days
Hard Cheeses
If dairy takes on a smell or colour and
you are unsure about it, it is best to
throw it out.
2 Weeks – 2
Months
2 Months
(Grated)
Soft Cheeses Not Suitable1-2 Weeks
Butter
Depending on the variety hard cheese
can last from 2 weeks to 2 months.
12 Months8 Weeks
Fruit &
Vegetables
8-12 Months
When freezing
chop and
blanch in small
portions.
Every fruit and vegetable has a different
shelf life. Some stay fresh for a couple
of days e.g beans, others can last for a
couple of months e.g. onions.
Keep vegetables in the crisper and
away from the air vents to avoid
freezing.
Don’t wash fruit and vegetables
before storing them in the refrigerator
as this can make them susceptible to
rotting.
PRODUCT
7-10 Days Not Suitable
Roast can take up to 48 hours to
defrost properly, transfer frozen
roast to the refrigerator 2 days
before use.
Left Overs
Homemade meals
3-4 Days
2-6 Months
Store in sealed container.
Freeze meals in small portion sizes to
limit wastage.
IMPORTANT
Please note, use this information as a
guide only, actual storage times will vary
depending on how you use your
refrigerator, climatic conditions and the
freshness of the food.
ENGLISH 31
9. TROUBLESHOOTING
CONCERN WHAT TO DO
CONCERN WHAT TO DO
Appliance does not operate at desired temperature
In a modern frost free refrigerator / freezer, cold air is circulated around the various compartments
through air vents using a high efficiency fan.
Appliance noise
Your new refrigerator may make sounds that your old one didn’t make. Because the sounds are
new to you, you might be concerned about them. Most of the new sounds are normal. Hard
surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually
are. The following describes the kinds of sounds and what may be making
Refrigerator is too warm. Ensure food is allowed to cool before placing inside the refrigerator.
Ensure the appliance is set up as per instructions.
Ensure that contents are not obstructing the cooling vents.
Ensure the door is not held open or is being opened too frequently.
Freezer is too warm. Adjust temperature to a colder setting.
Ensure food is allowed to cool before placing inside the freezer.
Ensure the appliance is set up as per instructions.
Ensure that contents are not obstructing the cooling vents.
Ensure the door is not held open or is being opened too frequently.
Food is freezing in
the refrigerator.
Adjust temperature to a warmer setting.
Ensure that fruits and vegetables are stored in the crisper. Items
with a high water content should not be placed near the cooling vents.
Unable to change
temperature settings.
Refer to function guide in Controlling Your Refrigerator.
Ensure that user interface is in "awake" mode before trying to adjust
temperature settings.
Occcasional gurgling, similar
to water boiling
Nothing. As each refrigeration cycle ends, you may hear a gurgling
sound due to the refrigerant flowing in your refrigerator system.
A clicking noise heard
just before the compressor
starts
Nothing. This is normal as your new refrigerator has an automatic
switching action of the temperature control, turning the compressor
on and off.
Motor noise (compressor)
Nothing. This is normal as your new refrigerator uses a variable
speed compressor and fan that at start up and on warm days runs
at a high speed to provide additional cooling.
When less cooling is required the compressor and fan will run at
a lower speed.
Note that the compressor noise may seem louder at the start of the on cycle.
Airflow noise
Nothing, this is normal as your new refrigerator uses high efficiency
fans to circulate air. Fan speed and noise may increase during
periods of heavy usage or hot weather.
Rattling and other noises
Ensure that the cabinet is level and stable, refer to Installation
Instructions.
Check the surroundings of the appliance to ensure there is nothing
touching or placed on top of the appliance.
Ensure that contents of the appliance are not placed in such a way
that they are vibrating (such as bottles).
32 www.electrolux.com
Refrigerator operation
CONCERN WHAT TO DO
Appliance will not run
It is normal for the freezer
fan not to operate during
the automatic defrost cycle,
or for a short time after the
appliance is switched on.
Ensure that the cord is plugged into a live power outlet and outlet is
switched on.
Ensure that the household circuit breaker has not tripped or that the
fuse has not blown.
The appliance maybe in defrost mode, check again in half an hour.
Compressor motor seems to
run too long
At normal room temperatures,
expect your motor to run about
40% to 80% of the time. Under
warmer conditions, expect it to
run even more often.
Ensure that the doors are not held open
Check that large amounts of warm food have not just been placed
inside the appliance.
Note that the appliance will run more than normal just after you install it
or when adjusting to temperature setting changes.
The exterior of the appliance is
warm or hot to touch
This is normal because the
appliance transfers heat from
the inside out through the
outer panels and the divider
between the doors.
Ensure the appliance has the external clearances recommended in the
section “Installing your new appliance”.
The exterior of the cabinet will be much warmer on warmer days it may
even feel hot to touch, as the appliance is working harder.
User interface will not respond
To ensure settings are not
accidentally changed the user
interface will go into sleep
mode when not in use. Press
any button to wake user
interface
Check that the user interface is in awake mode, refer to section
“About the user interface”.
If the user interface is frozen turn the appliance off for five minutes for
the memory to clear, then turn back on.
Alarms Sounding
Alarm activates if the
refrigerator or freezer doors
are left open for longer than 2
minutes.
Check that all doors are fully closed.
To silence the alarm for 8 minutes while the door is open press any
button on user interface or close the door.
Frost build up Check that all doors are fully closed.
Ensure that the doors are not opened too often.
Ensure that the return air vents are not blocked with packaging.
Ensure the seals are clean and not obstructed.
Odours The interior may need cleaning, refer to cleaning guide.
Ensure that food is stored correctly as some food, containers and
wrapping can produce odours.
Check appliance for old or unusual food.
Lights not working
The LED lighting is designed to
dim automatically if the door is
left opened for more than 5
minutes and turn off completely
if the door is open for more
than 7 minutes. Closing the
door will reset the timer.
The LED lighting is also
designed to turn on gradually.
Ensure that the cord is plugged into a live power outlet and outlet is
switched on.
Ensure that the household circuit breaker has not tripped or that the
fuse has not blown.
ENGLISH 33
Crisper
operation
CONCERN WHAT TO DO
Automatic Ice maker system
CONCERN WHAT TO DO
If you still require service
If you have a problem, and the problem persists after you have made the checks mentioned, contact your
nearest Electrolux approved Service Centre or the dealer you bought the refrigerator from. Be ready to
quote the model number, the 9-digit PNC and 8-digit serial number, which is stated on the label inside
the refrigerator compartment.
Excess moisture build up in
crisper
It is normal for there to be some
moisture and humidity in the
crisper bin.
Ensure that the crisper is not over packed.
Crisper bin can not be removed If crisper bin interferes with the door bins, remove door bins before
removing crisper.
Position cabinet so that the door can be fully opened.
Freezing items in the crisper Adjust temperature to a warmer setting.
Ice maker does not produce ice
or not enough ice
Ensure that the Ice Maker is switched on at the user interface refer to
"About the User Interface" for details.
Ensure water tank is full and contains clean water (if liquids other than
clean water have been used, call Electrolux Customer Care).
Ensure water tank is securely pushed into pump housing.
The icemaker is designed to
produce a tray of ice
approximately every 2 hours,
depending on the conditions.
If the freezer compartment is too warm, refer to "freezer is too warm"
then wait 24 hours for the freezer to reach ideal temperature.
Turn the unit off at the mains and leave for 2 minutes then turn the
appliance back on (this will reset the icemaker unit). Check for ice
production after 24 hours.
Check that there is no obstruction under the ice maker and ensure
the ice bin is fitted correctly.
Ice has bad odour or taste Cover food to ensure ice does not absorb foreign odours.
Interior of appliance or ice bin may require cleaning, refer to
“Cleaning your refrigerator”.
Discard stale ice monthly and allow ice maker to produce a fresh supply.
34 www.electrolux.com
10. NOISES
Appliance noise
Your new refrigerator may make sounds that your old one didn’t make. Because the sounds
are new to you, you might be concerned about them. Most of the new sounds are normal.
Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they
actually are. The following describes the kinds of sounds and what may be making them.
BRRR
!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRR
R!
OK
CLICK!
CLICK!
SSSRRR!
SSSRRR!
BRRR!
BRRR!
HISSS!
HISSS!
BLUBB!
BLUBB!
CRACK!CRACK!
ENGLISH 35
www.electrolux.com/shop
A12081659-A-492020
