L2062 Wide Flat Panel Monitor
User’s Guide
First Edition ( )
© Copyright Lenovo .
LENOVO products, data, computer software, and services have been developed exclusively at private expense and are
sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to
use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.
Product numbers
2011
January 2011
1173-HB1
L2062wA
Contents ii
Contents
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Chapter1. Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Chapter 2. Adjusting and using your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Chapter 3. Reference information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Monitor specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Manual image setu p . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Manually installing the monitor driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Appendix A. Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Appendix B. Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Recycling information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Shipping contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Attaching the base and handling your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2
1-
2
Adjusting the tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cable lock slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3
Setting up your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting and turning on your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3
Monitor controls
l
i
Comfort and accessibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Arranging your work area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Positioning your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Quick tips for healthy work habits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Detaching the monitor stand
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-9
Registering your option
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-5
Adjusting your monitor image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Using the On-Screen Display (OSD) controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Selecting a supported display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Understanding power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Caring for your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Using the direct access controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Registering your option
Online technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
. .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Telephone technical support
Installing the monitor driver in Windows 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Installing the monitor driver in Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Installing the monitor driver in Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Trademark s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
.
.
.
1-
2
1-3
DANGER
To avoid shock hazard:
outlet.
properly wired and grounded power outlets.
the power outlet. The power outlet should be easily accessible.
Handling:
Safety information
Before installing this product, read the Safety information.
Safety information iii
General Safety guidelines
For tips to help you use your computer safely,go to:
http://www.lenovo.com/safety
v
v
v
v
v
v
v
Do not remove the covers.
Do not operate this product unless the stand is attached.
Do not connect or disconnect this product during an electrical storm.
The power cord plug must be connected to a properly wired and grounded power
Any equipment to which this product will be attached must also be connected to
To isolate the monitor from the electrical supply, you must remove the plug from
If your monitor weighs more than 18kg(39.68 lb), it is recommended that it be
moved or lifted by two people.
For displays with glossy bezels the user should consider the placement of the display
as the bezel may cause disturbing reflections from surrounding light and bright
surfaces.
While using VESA mount application, the AC inlet must face to down side. Do not
face any other position.
The following are safety instruction:
v
Lenovo suggests that standard power line provided by Lenovo should be used
otherwise, Lenovo bears no liability for any problem resulting from the use of the
power line of other manufacturers.
© Copyright Lenovo 2011. © Chapter 1. 1-1
Chapter 1. Getting started
This User’s Guide contains detailed information of your Flat Panel Monitor. For a
quick overview, please see the Setup Poster that was shipped with your monitor.

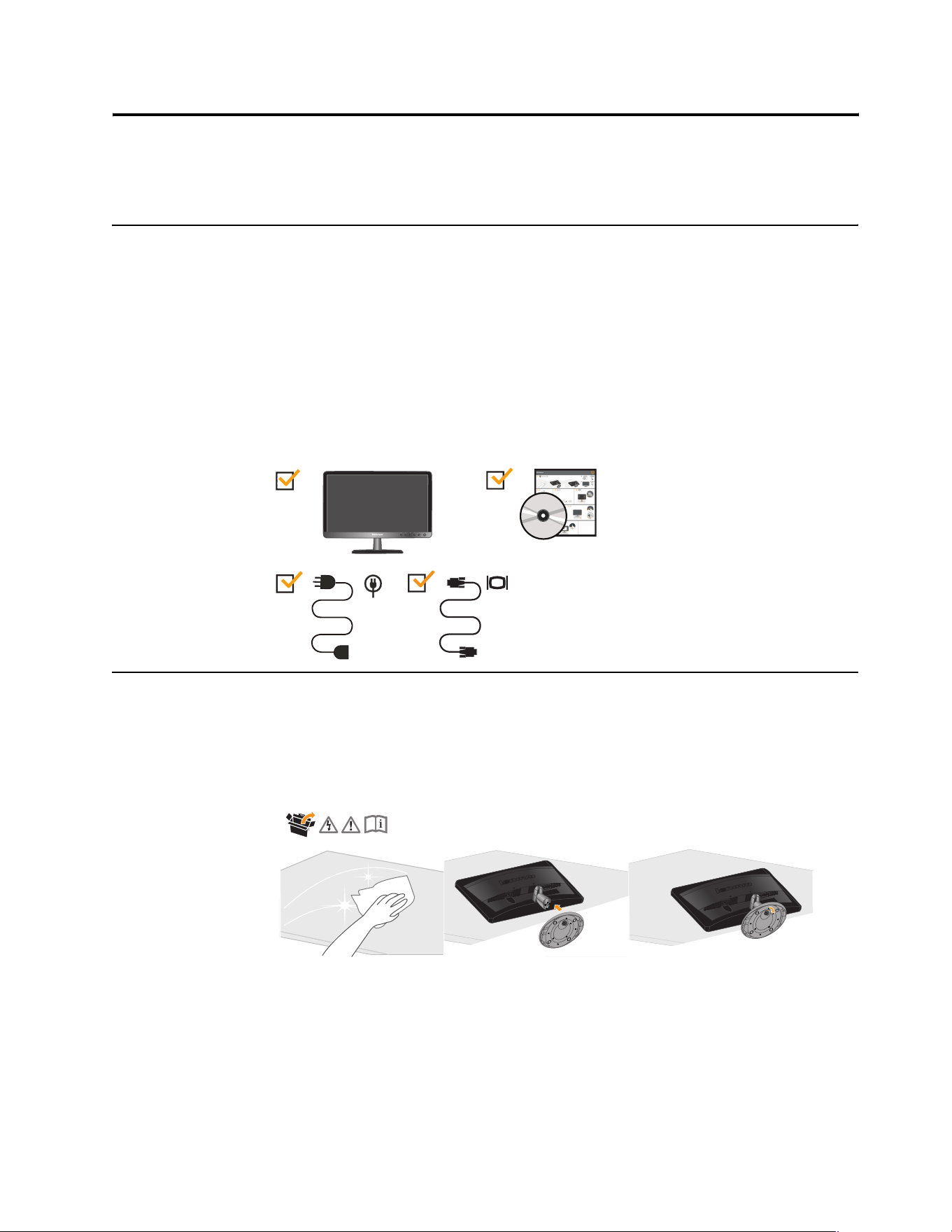

Shipping contents
The product package should include the following items:
• Setup Poster
• Reference and Driver CD
• Flat Panel Monitor
• Power Cord
2.Assemble the base with the monitor's stand.

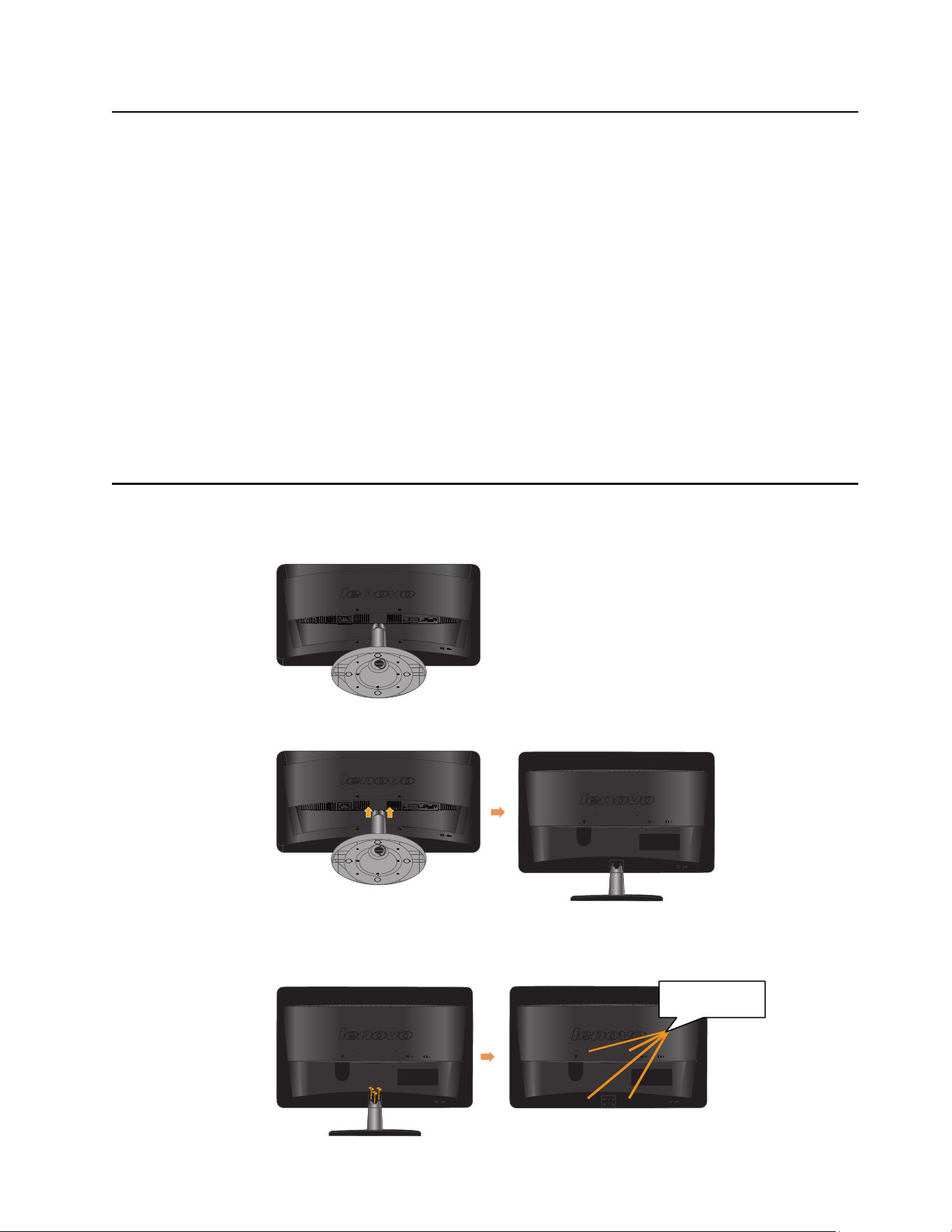

Note:To attach a VESA mount, please see "Detaching the monitor stand" on page 2-9.
To set up your monitor, please see the illustrations below.
Note: Do not touch the monitor within the screen area. The screen area is glass and
can be damaged by rough handling or excessive pressure.
Attaching the base and handling your monitor
1.Carefully lays the monitor on a flat surface.
• Analog Interface Cable
3.Tighten the screws clockwise at the bottom of the base.
Product overview
This section will provide information on adjusting monitor positions, setting user
controls, and using the cable lock slot.

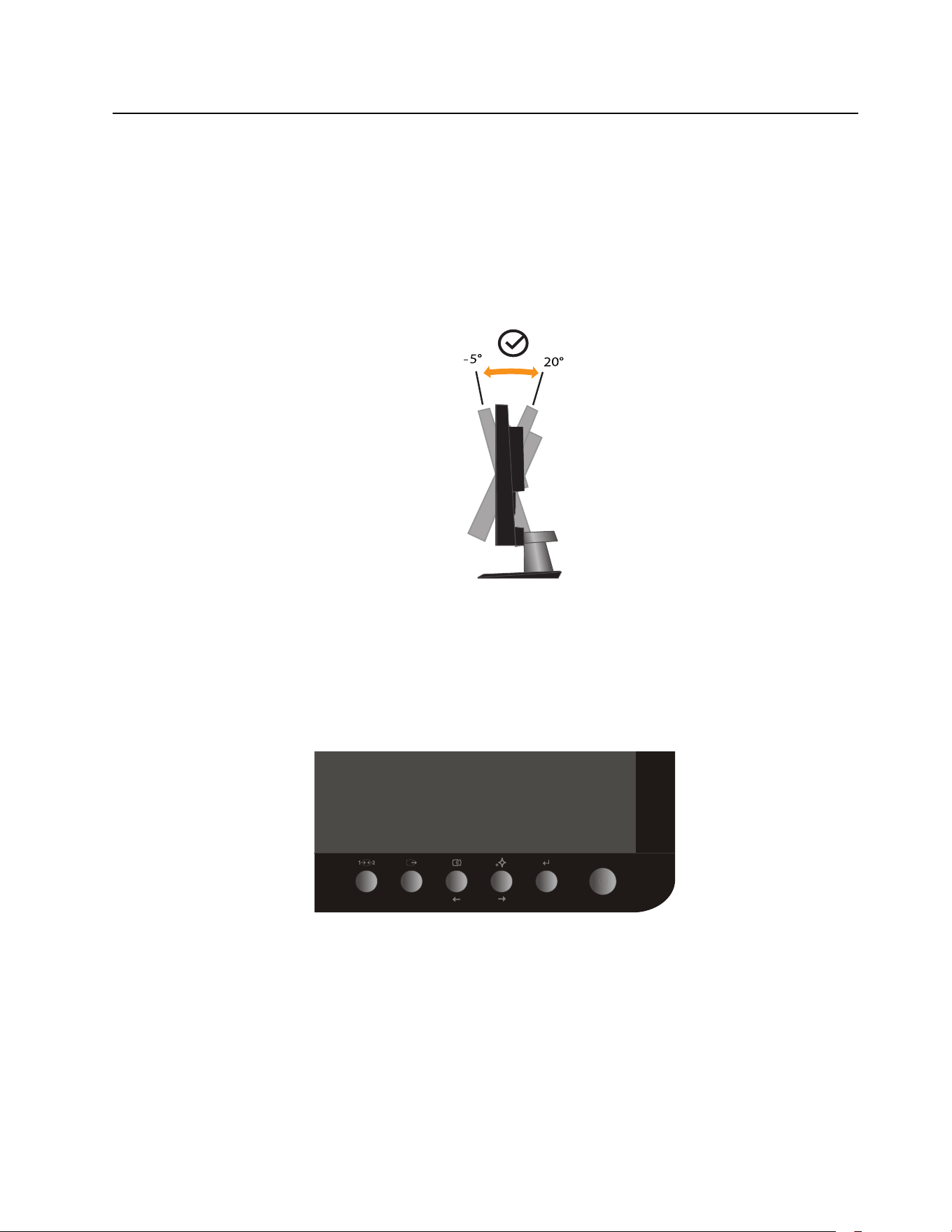

Adjusting the tilt
The illustration below shows the tilt range of the monitor. For more information,
see “Positioning your monitor” on page 2-1.
Monitor controls
Your monitor has controls on the front which are used to adjust the display.
For information on how to use these controls, please see “Adjusting your monitor
image” on page 2-3.
Chapter 1. 1-2
Cable lock slot
Setting up your monitor
This section provides information on how to set up your monitor.

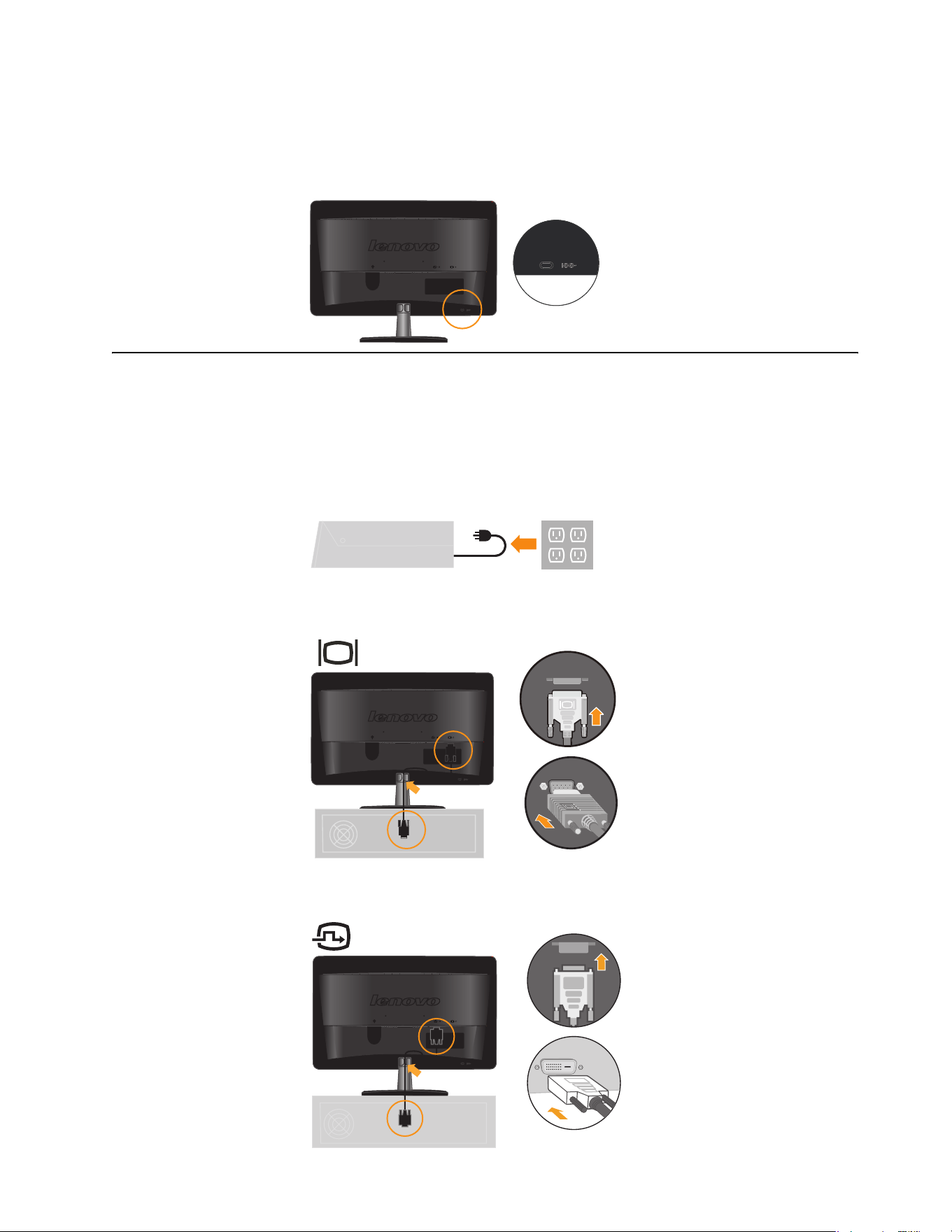

Connecting and turning on your monitor
1. Power off your computer and all attached devices, and unplug the computer
power cord.
2. Connect the analog signal cable to the VGA connector of the monitor and the
other end on the back of the computer.
Note: Be sure to read the Safety information located on page iii before carrying out
this procedure .
Your monitor is equipped with a cable lock slot located on the rear of your monitor (in
the lower position). Please see the instructions that come with the cable lock to learn
how to using it.
Chapter 1. 1-3
3. Connect the digital cable to the DVI connector of the monitor and the other end
on the back of the computer.
Place the cable into the cable clip indicated in below figure.
Place the cable into the cable clip indicated in below figure.

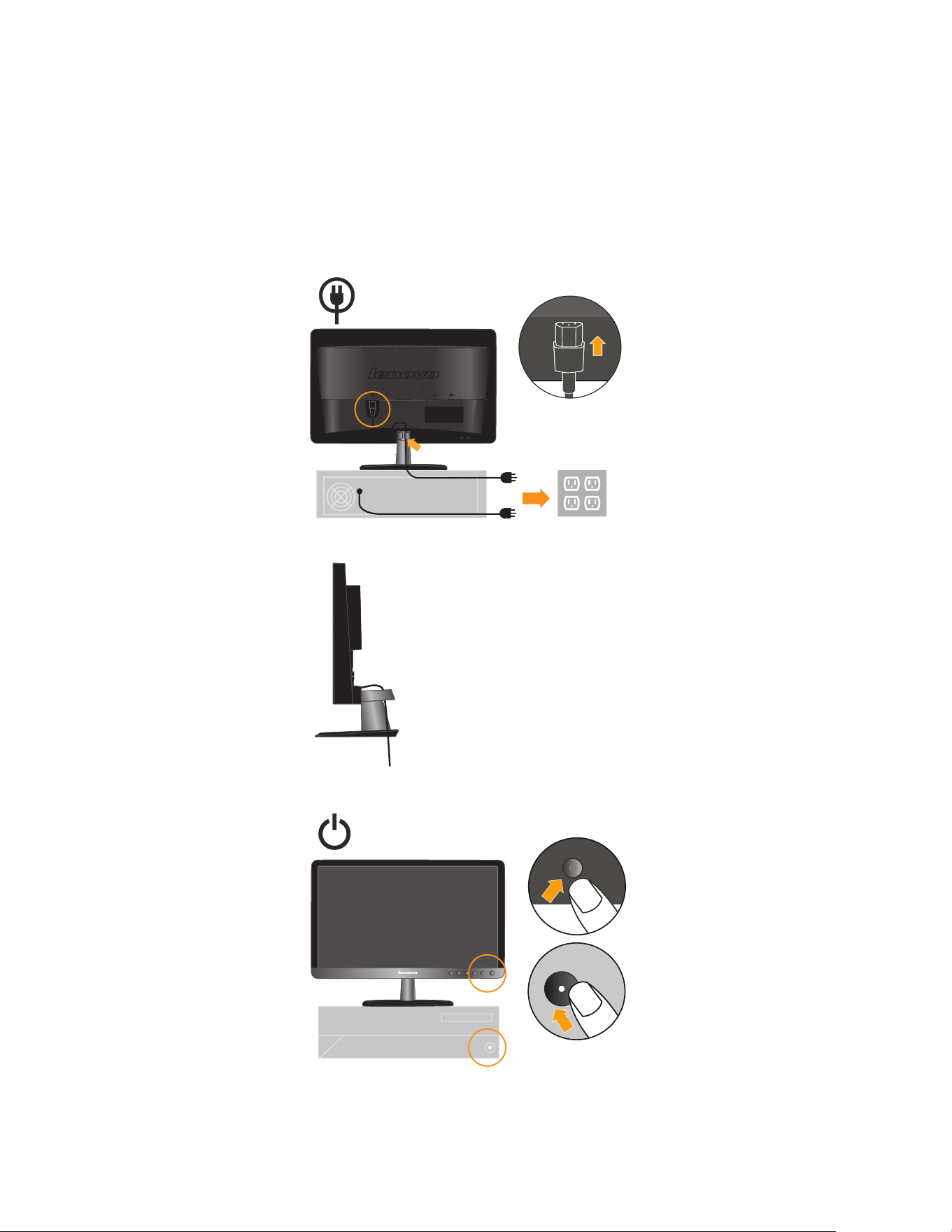

Insert the power cord into the monitor , then plug the monitor power cord and
the computer cord into grounded electrical outlets.
4
.
Note: A certified power supply cord has to be used with this equipment. The
relevant national installation and/or equipment regulations shall be considered. A
certified power supply cord not lighter than ordinary polyvinyl chloride flexible
cord according to IEC 60227 (designation H05VV-F 3G 0.75mm2 or H05VVH2-F2
3G0.75mm2) shall be used. Alternative a flexible cord be of synthetic rubber according
to IEC 60245 (designation H05RR-F 3G 0.75mm2) shall be used.
Chapter 1. 1-4
Power on the monitor and the computer.
6
.
Place the cable into the cable clip indicated in below figure.
Side view after all cables have been placed.
5
.

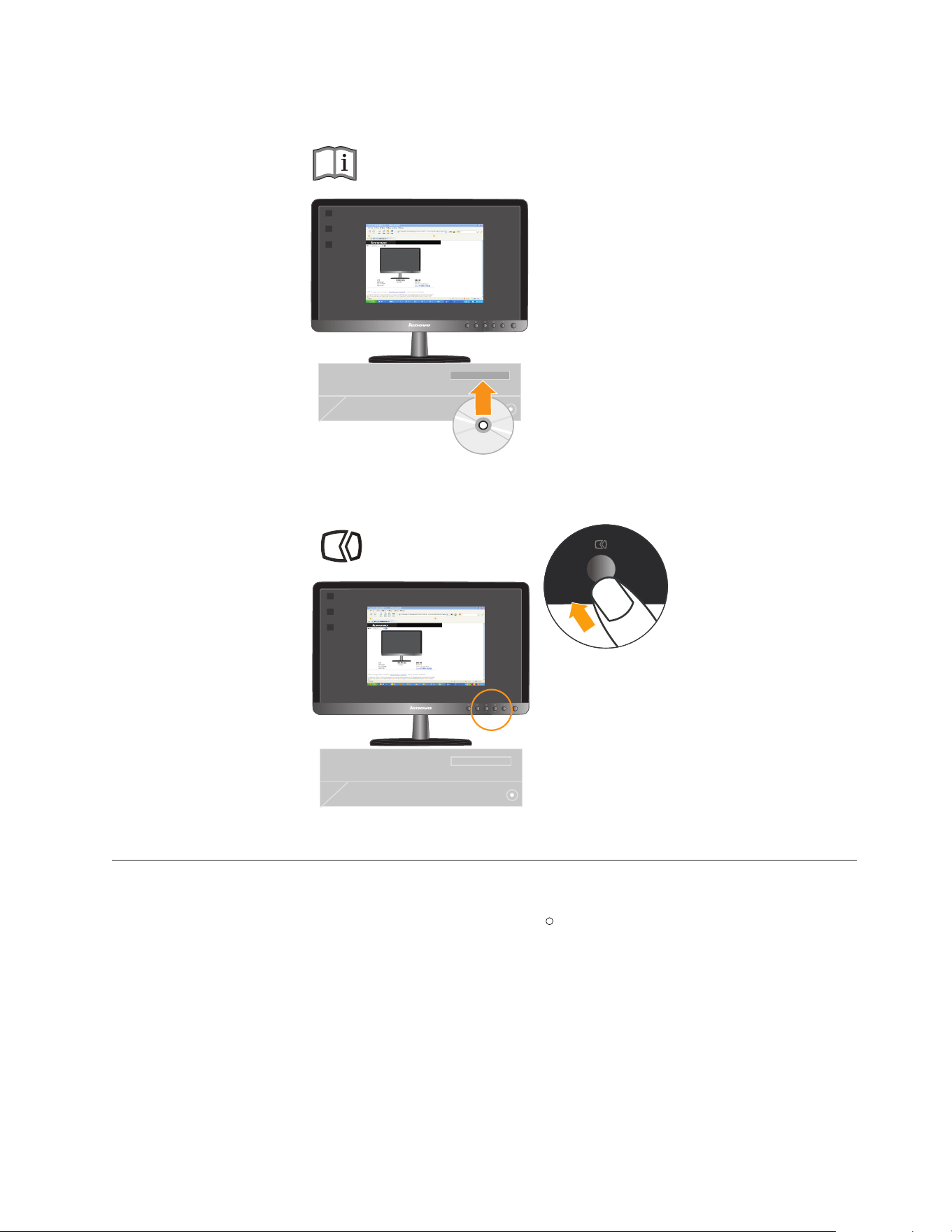

To install the monitor driver, insert the Reference and Driver CD, click Install
driver, and follow the on-screen instructions.
To optimize your monitor image, press the Automatic Image Setup key.
Automatic image setup requires that the monitor is warmed up for at least 15
minutes. This is not required for normal operation.
Note: If automatic image setup does not establish the image that you prefer, perform
manual image setup. See “Manual image setup” on page 3
-3 .
Registering your option
77.
8.
Thank you for purchasing this Lenovo
product. Please take a few moments to
register your product and provide us with information that will help Lenovo to
better serve you in the future. Your feedback is valuable to us in developing
products and services that are important to you, as well as in developing better
ways to communicate with you. Register your option on the following Web site:
http://www.lenovo.com/register
Lenovo will send you information and updates on your registered product unless
you indicate on the Web site questionnaire that you do not want to receive further
information.
R
Chapter 1. 1-5
Chapter 2. Adjusting and using your monitor
This section will give you information on adjusting and using your monitor.
Comfort and accessibility
Arranging your work area
Positioning your monitor
Good ergonomic practice is important to get the most from your personal computer
and to avoid discomfort. Arrange your workplace and the equipment you use to suit
your individual needs and the kind of work that you perform. In addition, use
healthy work habits to maximize your performance and comfort while using your
computer. For more detailed information on any of these topics, visit the Healthy
Computing Web site at: http://www.lenovo.com/healthycomputing/.
Use a work surface of appropriate height and available working area to allow you to
work in comfort.
Organize your work area to match the way you use materials and equipment. Keep
your work area clean and clear for the materials that you typically use and place the
items that you use most frequently, such as the computer mouse or telephone, within
the easiest reach.
Equipment layout and setup play a large role in your working posture. The following
topics describe how to optimize equipment setup to achieve and maintain good
working posture.
Position and adjust your computer monitor for comfortable viewing by considering
the following items:
• Viewing distance: Optimal viewing distances for monitors range from
approximately 510mm to 760mm (20 in to 30 in) and can vary depending on
ambient light and time of day. You can achieve different viewing distances by
repositioning your monitor or by modifying your posture or chair position. Use a
viewing distance that is most comfortable for you.
• Monitor height: Position the monitor so your head and neck are in a comfortable
and neutral (vertical, or upright) position. If your monitor does not have height
adjustments, you might have to place books or other sturdy objects under the
base of the monitor to achieve the desired height. A general guideline is to
position the monitor such that the top of the screen is at or slightly below your
eye-height when you are comfortably seated. However, be sure to optimize your
monitor height so the line of site between your eyes and the center the monitor
suits your preferences for visual distance and comfortable viewing when your eye
muscles are in a relaxed state.
• Tilt: Adjust the tilt of your monitor to optimize the appearance of the screen
content and to accommodate your preferred head and neck posture.
• General location: Position your monitor to avoid glare or reflections on the screen
from overhead lighting or nearby windows.
The following are some other tips for comfortable viewing of your monitor:
• Use adequate lighting for the type of work you are performing.
© Copyright Lenovo 2011. © Chapter 2. 2-1
Quick tips for healthy work habits
• Use the monitor brightness, contrast, and image adjustment controls, if equipped,
to optimize the image on your screen to meet your visual preferences.
• Keep your monitor screen clean so you can focus on the screen’s contents.
Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to
periodically look away from your monitor screen and focus on a far object to allow
your eye muscles to relax. If you have questions on eye fatigue or visual discomfort,
consult a vision care specialist for advice.
The following information is a summary of some important factors to consider to help
you remain comfortable and productive while you use your computer.
• Good posture starts with equipment setup: The layout of your work area and the
setup of your computer equipment have a large effect on your posture while
using your computer. Be sure to optimize the position and orientation of your
equipment by following the tips outlined in “Arranging your work area” on page
2-1 so you can maintain a comfortable and productive posture. Also, be sure to
use the adjustment capabilities of your computer components and office furniture
to best suit your preferences now and as your preferences change over time.
• Minor changes in posture can help avoid discomfort: The longer you sit and
work with your computer, the more important it is to observe your working
posture. Avoid assuming any one posture for an extended period of time.
Periodically make minor modifications in your posture to help deter any
discomforts that might arise. Make use of any adjustments that your office
furniture or equipment provide to accommodate changes in posture
• Short, periodic breaks help ensure healthy computing: Because computing is
primarily a static activity, it is particularly important to take short breaks from
your work. Periodically, stand up from your work area, stretch, walk for a drink
of water, or otherwise take a short break from using your computer. A short break
from work gives your body a welcome change in posture and helps to ensure you
remain comfortable and productive while you do work.
Chapter 2. 2-2
Adjusting your monitor image
This section describes the control features to adjust your monitor image.
Using the direct access controls
The direct access controls can be used when the On Screen Display (OSD) is not
displayed.
Table 2-1. Direct access controls
Chapter 2. 2-3
Icon Control Description
Input Change Switches the video input source
DDC/CI Press and hold for 10 seconds to enable or disable
the DDC/CI function
Exit Exit from menu
Image Setup Activates automatic image adjustment
Novo Vision Direct access to Novo Vision adjustment
Menu Enter menu
Using the On-Screen Display (OSD) controls
To adjust the settings, the user controls can be viewed through the OSD.
To use the controls:
1. Press
to open the main OSD menu.
2. Use
or to move among the icons. Select an icon and press to access that
function. If there is a sub-menu, you can move between options using
or ,
then press
to select that function. Use or to make adjustments. Press to
save.
to move backwards through the sub-menus and exit from the OSD.
3. Press
4. Press and hold
for 10 seconds to lock the OSD. This will prevent accidental
adjustments to the OSD. Press and hold
for 10 seconds to unlock the OSD and
allow adjustments to the OSD.
5. Enables DDC/CI by default. Use OSD Exit Key , Press and hold the
button for
10 seconds to disable / enable DDC/CI function. The words "DDC/CI disable"
or "DDC/CI enable" shows on the screen.
Chapter 2. 2-4
Brightness/Contrast
Brightness Contrast
Exit Left Right Ok

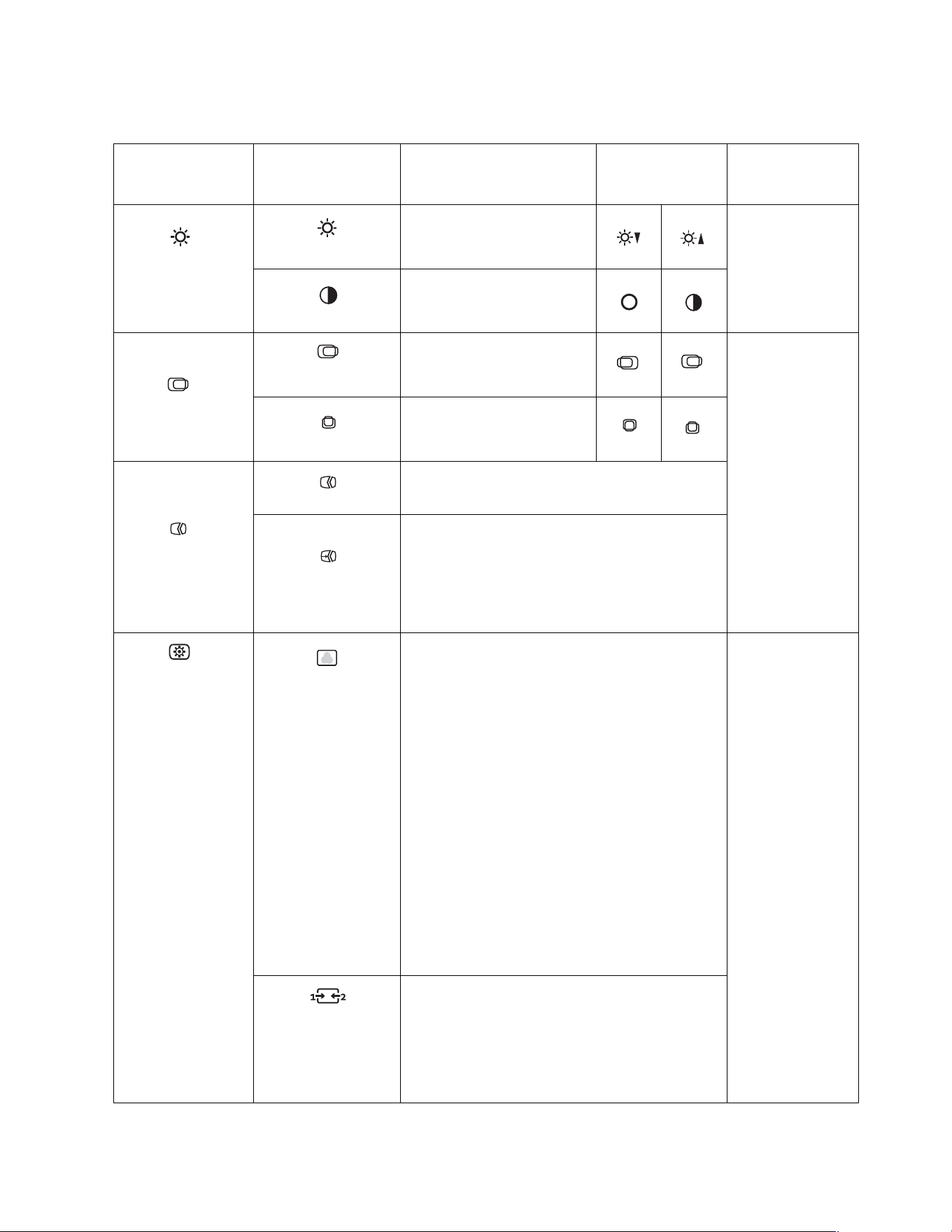

Table 2-2. OSD functions
Chapter 2. 2-5
OSD Icon on Main
Menu
Submenu Description
Controls and
Adjustments
(Analog)
Controls and
Adjustments
(Digital)
Brightness/
Brightness
Same as Analog
Contrast
Contrast
Adjusts difference between
light and dark areas.
Image Position
Horizontal Position
Moves image left or right. Digital input not
applicable
Vertical Position
Moves image up or
down.
Image Setup
Automatic
Optimizes image (size,position,phase, and clock).
Manual
Manually optimizes image(phase and clock).
“
See Manual image setup” on page 3-3
• Clock
• Phase
• Save
Image Properties
Color
Reddish
Adjusts intensity of red green and blue.
Preset Mode
• Neutral
• sRGB
•
• Bluish
Custom
• Red: Increases or decreases the saturation of
’red’ in the image
• Green: Increases or decreases the saturation of
’green’ in the image
• Blue: Increases or decreases the saturation of
’blue’ in the image
• Save: Saves the custom color choices
Same as Analog
Input Signal
This monitor can accept video signals through two
different connectors. Most desktop computers use
a D-SUB connector. Select digital among OSD
Controls when you use DVI connector
Selects D-SUB (Analog)
Selects DVI(Digital)
Adjusts overall screen
brightness.
•
•
Table 2-2. OSD functions
Chapter 2. 2-6
OSD Icon on Main
Menu
Submenu Description
Controls and
Adjustments
(Analog)
Controls and
Adjustments
(Digital)
Scaling
• Original AR:Same Aspect Ratio with input
Signal.
• Full Screen :Expand image to full screen.
Selects type of scaled image.
Same as Analog
Novo Vision
Options
Information
Shows resolution, refresh rate, and product details.
Note: This screen does not allow any changes to
the settings.
Same as Analog
Language
Changes language of menu.
Note: The language chosen only affects the
language of the OSD. It has no effect on any
software running on the computer
Position
Default
Default returns the menu position to the default
settings.
Custom
• Horizontal: Changes the horizontal position of
the OSD.
• Vertical: Changes the vertical position of the
OSD.
Same as Analog
Reset
• Cancel
• Reset
Reset monitor to original settings.
Accessibility
Changes button repeat rate and menu time-out
setting.
Button repeat rate:
Select or to change.
• Off
• Default
• Slow
Menu time out: Sets the length of time the
OSD will remain active after the last time a button
is pressed
Exit
Exit from menu
Screen Prioritization
Adjusts menu location.
Save: save the custom position choices
Text Mode
Web pic Mode
Video Mode
Split-screen Display
•
•
•
•
Selecting a supported display mode
The display mode the monitor uses is controlled by the computer. Therefore, refer to
your computer documentation for details on how to change display modes.
The image size, position and shape might change when the display mode changes.
This is normal and the image can be readjusted using automatic image setup and the
image controls.
Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or
Flat Panel technology is inherently flicker-free.
Note: If your system has previously been used with a CRT monitor and is currently
configured to a display mode outside the range of this monitor, you may need to re-
attach the CRT monitor temporarily until you have re-configured the system;
preferably to 1600 x 900 at 60 Hz, which is the Native Resolution Display mode.
The display modes shown below have been optimized at the factory.
Table 2-3. Factory set display modes
Chapter 2. 2-7
Addressability Refresh rate
640 x 480 60Hz 72Hz 75Hz
700 x 570 50Hz
720 x 400 70Hz
800 x600 56Hz 60Hz 72Hz 75Hz
640 x 350 70Hz
832 x 624 75Hz
1366 x 768 60Hz
1152 x 864 75Hz
1280x1024 60 Hz 70Hz 75Hz
1440x900 60Hz 75 Hz
1600x900 60Hz 75 Hz
1024 x 768 60Hz 70Hz 75Hz
Understanding power management
Power management is invoked when the computer recognizes that you have not used
your mouse or keyboard for a user-definable period. There are several states as
described in the table below.
For optimal performance, switch off your monitor at the end of each working day, or
whenever you expect to leave it unused for long periods during the day.
Table 2-4. Power indicator
State Power Indicator Screen
Restoring
Operation Compliance
On Steady white Normal
Standby/Suspend Orange Blank Press a key or
move the mouse
There may be a
slight delay
before the image
reappears
Note: Standby
also occurs if
there is no image
output to the
monitor
ENERGY STAR
Off Off Blank Press the power
button
There may be a
slight delay
before the image
reappears
ENERGY STAR
Chapter 2. 2-8
Caring for your monitor
Be sure to turn off the power before you perform any maintenance on the monitor.
Do not:
• Apply water or liquid directly to your monitor.
• Use solvents or abrasives.
• Use flammable cleaning materials to clean your monitor or any other electrical
equipment.
• Touch the screen area of your monitor with sharp or abrasive items. This type of
contact may cause permanent damage to your screen.
• Use any cleaner which contains an anti-static solution or similar additives. This
may harm the coating of the screen area.
Do:
• Lightly dampen a soft cloth with water and use this to gently wipe the covers and
the screen.
• Remove grease or finger marks with a damp cloth and a little mild detergent.
Detaching the monitor stand
Step 1: put the display on a flat table with the back side up.
Step 2: lift up the
cable clip and remove it.
Step 3: remove the three screws counterclockwise, take off the bracket,
and install the VESA mounting rack.
Chapter 2. 2-9
VESA holes
Chapter 3. Reference information
This section contains monitor specifications, troubleshooting information and
instructions to manually install the monitor driver.
Monitor specifications
Table 3-1. Monitor specifications for type-model
Dimensions Height
Depth
Width
362.5 mm (14.27 in)
174.8 mm (6.88 in)
480.0 mm (18.90 in)
Stand Tilt Range: -5°, +20°
VESA mount Supported 100mmx100 mm (3.94 inx3.94 in )
Image Viewable image size
Maximum height
Maximum width
Pixel pitch
508.0 mm(20.00 in)
249.1 mm(9.81 in)
442.8 mm (17.43 in)
0.2768 mm (0.0109 in) (V)
Power input Supply voltage
Max supply current
90-264VAC (100~240VAC+/-10%)
-
1.5 A
Power consumption
Note: Power consumption
figures are for the monitor
and the power supply
combined
Normal operation
Standby/Suspend
Off
<
W
< 1W
< 0.5W at 100Vac & 240Vac
Video input (Analog) Input signal
Horizontal
addressability
Vertical addressability
Clock frequency
Analog Direct Drive, 75 ohm 0.7V
1600 pixels (max)
-
-
900 lines (max)
153 MHz
L2062wA
22
© Copyright Lenovo 2011. © Chapter 3. 3-1
Communications VESA DDC CI
Supported Display Modes
(VESA Standard modes
between noted ranges)
Horizontal frequency
Vertical frequency
30 kHz - 83 kHz
Native Resolution 1600 x 900 at 60 Hz
Temperature Operating
Storage
Shipping
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
-20° to 60° C (-4° to 140° F)
Humidity Operating
Storage
Shipping
5% to 95% non-condensing
5% to 95% non-condensing
% to 80% non-condensing
8
50 Hz - 76 Hz
Video input (Digital) Interface
Input Signal
Horizontal
addressability
Vertical addressability
Clock frequency
DVI
VESA TMDS (Panel Link™)
1600 pixels (max)
-
900 lines (max)
153 MHz
Troubleshooting
If you have a problem setting up or using your monitor, you might be able to solve it
yourself. Before calling your dealer or Lenovo, try the suggested actions that are
appropriate to your problem.
Table 3-2. Troubleshooting
Problem Possible cause Suggested action Reference
The words "Out
of Range" are
shown on the
screen, and the
power indicator
is flashing white
The system is set to a
display mode which
is not supported by
the monitor
If you are replacing an
old monitor, reconnect it
and adjust the display
mode to within the
specified range for your
new monitor
If using a Windows
system, restart the system
in safe mode, then select a
supported display mode
for your computer
If these options do not
work, contact the Support
Center
“Selecting a
supported display
mode” on page 2-7
The image
quality is
unacceptable
The video signal cable
is not connected with
the monitor or system
completely
Be sure the signal cable is
firmly plugged into the
system and monitor
“Connecting and
turning on your
monitor” on page 1-3
The color settings
may be incorrect
Select another color
setting from the OSD
menu
“Adjusting your
monitor image” on
page 2-3
The automatic image
setup function was
not performed
Perform automatic image
setup
“Adjusting your
monitor image” on
page 2-3
The power
indicator is not
lit and there is
no image
• The monitor’s
power switch is
not switched on
• The power cord is
loose or
disconnected
• There is no power
at the outlet
• Be sure the power
cord is connected
properly
• Be sure the outlet has
power
• Power on the
monitor
•Try using another
power cord
•Try using another
electrical outlet
“Connecting and
turning on your
monitor” on page 1-3
Screen is blank
and power
indicator is
steady orange or
flashing white
The monitor is in
Standby/Suspend
mode
• Press any key on the
keyboard or move
the mouse to restore
operation
•Check the Power
Options settings on
your computer
“Understanding
power management”
on page 2-8
Chapter 3. 3-2
Manual image setup
If automatic image setup does not establish the image that you prefer, perform
manual image setup.
Note: Have your monitor powered on for about 15 minutes, until the monitor warms
up.
The power
indicator is white,
but there is no
The video signal cable
is loose or
disconnected from the
system or monitor
Be sure the video cable is
connected with the
system properly
“Connecting and
turning on your
monitor” on page 1-3
The monitor
brightness and
contrast are at the
lowest setting
Adjust the brightness and
contrast setting on the
OSD menu
“Adjusting your
monitor image” on
page 2-3
One or more of
the pixels appear
discolored
This is a characteristic
of the LCD
technology and is not
an LCD defect
If there are more than five
pixels missing, contact
the Support Center
Appendix A,
“Service and
Support,” on page
A-1
• Fuzzy lines
in text or a
blurry
• Horizontal
or vertical
lines
through the
• Image setup has
not been
optimized
• Your system
Display
Properties setting
have not been
optimized
Adjust the resolution
settings on your system
to match the native
resolution for this
monitor: 1600 x 900 at 60
Hz
“Adjusting your
monitor image” on
page 2-3
“Manual image
setup”
Perform automatic image
setup. If automatic image
setup does not help,
perform manual image
setup
“Selecting a
supported display
mode” on page 2-7
When working in the
native resolution, you
may find additional
improvements by
adjusting the Dots Per
Inch (DPI) setting on your
system
See the Advanced
section of your
system’s display
properties
Table 3-2. Troubleshooting
Problem Possible cause Suggested action Reference
at the bottom of the monitor to open the OSD menu. 1. Press
2. Use
or to select and press to access.
or to select Clock and Phase adjustment. 3. Use
• Clock (pixel frequency) adjusts the number of pixels scanned by one
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the picture does not have the correct width.
• Phase adjusts the phase of the pixel clock signal. With a wrong phase
adjustment, the picture has horizontal disturbances in light picture.
4. When the image no longer looks distorted, save the Clock and Phase adjustments.
to leave the OSD menu.
5. Press
Chapter 3. 3-3
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640
x 480 at a refresh rate of 60 Hz.
Manually installing the monitor driver
Below are steps for manually installing the monitor driver in Microsoft
Windows 7,
Microsoft Windows Vista and Microsoft Windows XP
. Please see the Install Driver
section of the Reference and
Driver CD for automatic installation.
Installing the monitor driver in Windows 7
To use the Plug and Play feature Microsoft Windows 7, do the following:
Note: You must download file from the Lenovo Monitor CD to use the Plug and Play
feature in Windows 7.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Select the " " file and click the Open button. Click the OK button.
14.
Select and click Next. The files will be copied from the CD to
your hard disk drive.
15.
16.
LEN131A.inf
LEN L2062 wA
Turn off the computer and all attached devices.
Ensure that the monitor is connected correctly.
Turn on the monitor and then the system unit. Allow your computer to start the
Windows 7 operating system.
Open the Display Properties window by clicking Start, Control Panel and
Hardware and Sound icon. and then double-clicking the Display icon.
Click the Change the display settings tab.
Click the Advanced icon.
Click the Properties button.
Click the Driver tab.
Open the Hardware Update Wizard window by clicking on Update Driver and Next.
Select Install from a list or Specific location(Advanced), and then click Next.
Select "Don't search. I will choose the driver to install" option, and then click Next.
17.
Click the Have Disk button. Click the Browse button and navigate to the
following directory:
X:\Monitor Drivers
(where X is the drive letter designator for the CD-ROM drive).
Close all open windows and remove the CD.
Restart the system. The system will automatically select the maximum refresh
rate and corresponding Color Matching Profiles.
Chapter 3. 3-4
Click the Monitor tab.
Installing the monitor driver in Windows Vista
To use the Plug and Play feature Microsoft Windows Vista, do the following:
Note: You must download file from the Lenovo Monitor CD to use the Plug and Play
feature in Windows Vista.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow your computer to start the
Windows Vista operating system.
4. Open the Display Properties window by clicking Start, Control Panel and then
double-clicking the Hardware and Sound icon.
5. Click the Personalization icon.
6. Click the Display Settings icon.
7. Click the Advanced Settings button.
8. Click the Monitor tab.
9. Click the Properties button.
10. Click the Driver tab.
11. Open the "Update Driver Software-Generic PnP Monitor" window by clicking
on Update Driver and then click the "Browse my computer for driver software"
button.
12. Select "Let me pick from a list of device drivers on my computer".
13. Click the Have Disk button. Click the Browse button and navigate to the
following directory:
X:\Monitor Drivers
(where X is the drive letter designator for the CD-ROM drive).
14. Select the " " file and click the Open button. Click the OK button.
15. Select and click Next. The files will be copied from the CD to
your hard disk drive.
16. Close all open windows and remove the CD.
17. Restart the system. The system will automatically select the maximum refresh
rate and corresponding Color Matching Profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640
x 480 at a refresh rate of 60 Hz.
LEN131A.inf
LEN L2062wA
Chapter 3. 3-5
Installing the monitor driver in Windows XP
To use the Plug and Play feature in Windows XP, files should be loaded from the
Reference and Driver CD.
Note: This section must be completed before continuing with the Windows XP
automatic image setup.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow the system to boot into
Windows XP.
4. Open the Display Properties window by clicking Start J Control
Panel, and
then double-clicking the Display icon.
5. Click the Settings tab.
6. Click the Advanced button.
7. Click the Monitor tab.
8. Click the Properties button.
9. Click the Drivers tab.
10. Open the Hardware Update Wizard window by clicking on Update Driver
.
11. Select Install from a list or Specific location(Advanced), and then click Next.
12. Select "Don't search. I will choose the driver to install" option, and then click
Next.
13. Click the Have Disk button. Click the Browse button and navigate to the
following directory:
X:\Monitor Drivers
(where X is the drive letter designator for the CD-ROM drive).
14. Select the " " file and click the Open button. Click the OK button.
15. Select and click Next. The files will be copied from the CD to
your hard disk drive.
16. Close all open windows and remove the CD.
17. Restart the system. The system will automatically select the maximum refresh
rate and corresponding Color Matching Profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640
x 480 at a refresh rate of 60 Hz.
LEN131A.inf
LEN L2062wA
Chapter 3. 3-6
Appendix A. Service and Support
Registering your option
Online technical support
Telephone technical support
Country or Region Telephone Number
China 800-810-8888
400-810-8888
Argentina 0800-444-2722(Spanish)
Australia 1300-557-073
Austria 800295730(German)
Belgium 80076524(French, Dutch)
Bolivia 800-100-764(Spanish)
© Copyright Lenovo 2011. © Appendix A. A-1
The following information describes the technical support that is available for your
product, during the warranty period or throughout the life of your product. Refer to
the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms.
Register to receive product service and support updates, as well as free and
discounted computer accessories and content. Go to:
http://www.lenovo.com/register
Online technical support is available during the lifetime of a product at:
http://www.lenovo.com/support
Product replacement assistance or exchange of defective components also is available
during the warranty period. In addition, if your option is installed in a Lenovo
computer, you might be entitled to service at your location. A Lenovo technical
support representative can help you determine the best alternative.
Installation and configuration support through the Customer Support Center will
be available until 90 days after the option has been withdrawn from marketing.
After that time, the support is cancelled, or made available for a fee, at Lenovo’s
discretion. Additional support is also available for a nominal fee.
Before contacting a Lenovo technical support representative, please have the
following information available: option name and number, proof of purchase,
computer manufacturer, model, serial number and manual, the exact wording of any
error message, description of the problem, and the hardware and software
configuration information for your system.
Your technical support representative might want to walk you through the problem
while you are at your computer during the call.
Telephone numbers are subject to change without notice. The most up-to-date
telephone list for Lenovo
Support is always available at:
h
ttp://consumersupport.lenovo.com
South Africa 800982393
Appendix B. Notices
Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
© Copyright Lenovo 2011. © Appendix B. B-1
Lenovo may not offer the products, services, or features discussed in this document
in all countries. Consult your local Lenovo representative for information on the
products and services currently available in your area. Any reference to a Lenovo
product, program, or service is not intended to state or imply that only that Lenovo
product, program, or service may be used. Any functionally equivalent product,
program, or service that does not infringe any Lenovo intellectual property right
may be used instead. However, it is the user s responsibility to evaluate and verify
’
the operation of any other product, program, or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents. You can send license inquiries, in writing, to:
LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow
disclaimer of express or implied warranties in certain transactions, therefore, this
statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. Lenovo may make improvements
and/or changes in the product(s) and/or the program(s) described in this publication
at any time without notice.
The products described in this document are not intended for use in implantation or
other life support applications where malfunction may result in injury or death to
persons. The information contained in this document does not affect or change
Lenovo product specifications or warranties. Nothing in this document shall operate
as an express or implied license or indemnity under the intellectual property rights
of Lenovo or third parties. All information contained in this document was obtained
in specific environments and is presented as an illustration. The result obtained in
other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those Web
sites. The materials at those Web sites are not part of the materials for this Lenovo
product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments may
vary significantly. Some measurements may have been
made
on development-level
systems and there is no guarantee that these measurements will be the same
on
generally available systems. Furthermore, some measurements may have been
estimated through extrapolation. Actual results may vary. Users of this document
should verify the applicable data for their specific environment.
Trademarks
Recycling
information
Appendix B. B-2
Lenovo encourages owners of information technology (IT) equipment to responsibly
recycle their equipment when it is no longer needed. Lenovo offers a variety of
programs and services to assist equipment owners in recycling their IT products. For
information on recycling Lenovo products, go to:
http://www.lenovo.com/lenovo/environment/recycling
Collecting and recycling a disused Lenovo computer or monitor
If you are a company employee and need to dispose of a Lenovo computer or
monitor that is the property of the company, you must do so in accordance with the
Law for Promotion of Effective Utilization of Resources. Computers and monitors
are categorized as industrial waste and should be properly
disposed
of
by an
industrial waste disposal contractor certified by a local government. In accordance
with the Law for Promotion of Effective Utilization of Resources, Lenovo Japan
provides, through its PC Collecting and Recycling Services, for the collecting, reuse,
and recycling of disused computers and monitors. For details, visit the Lenovo Web
site at: www.ibm.com/jp/pc/service/recycle/ pcrecycle/.
Pursuant to the Law for Promotion of Effective Utilization of Resources, the
collecting and recycling of home-used computers and monitors by the manufacturer
was begun on October 1, 2003. This service is provided free of charge for home-used
computers sold after October 1, 2003. For details, visit
the Lenovo Web site at:
www.ibm.com/jp/pc/service/recycle/personal/.
Disposing of Lenovo computer components
Some Lenovo computer products sold in Japan may have components that contain
heavy metals or other environmental sensitive substances. To properly dispose of
disused components, such as a printed circuit board or drive, use the methods
described above for collecting and recycling a disused computer or monitor.
The following terms are trademarks of Lenovo in the United States, other countries,
or both:
Lenovo
The Lenovo logo
ThinkCentre
ThinkPad
ThinkVision
Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of
companies.
Other company, product, or service names may be trademarks or service marks of
others.
