Seamless Flush Mount
1020

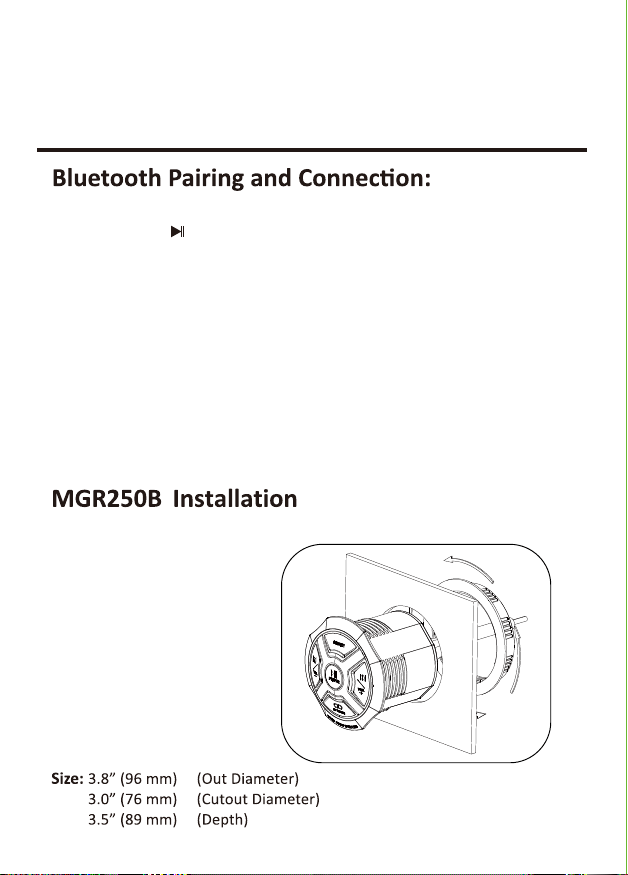

Connecng MGR250B to your device
1. Press and Hold for three seconds un�l power indicator lights Blue.
2. The system will automa�cally go into pairing mode. The power indicator
will turn Blue and the Bluetooth indicator will blink Blue while
wai�ng for Bluetooth connec�on. Please be sure that Bluetooth is turned
ON on your device, select “Boss Audio MGR250B” on your device to
connect the Bluetooth controller (if the Bluetooth controller is connected
the light will turn to solid Blue).
3. When the device is out of Bluetooth range, Bluetooth will be disconnected
automa�cally and automa�cally reconnect when detected in range again.
(If not please just repeat steps 1 and 2).
4. Input mode indicator --- Blue light for Bluetooth, Red light for AUX In, and
Purple light for USB.
User’s Manual
MGR250B
Red
Blue
White
Gray
Green
ACC
REMOTE

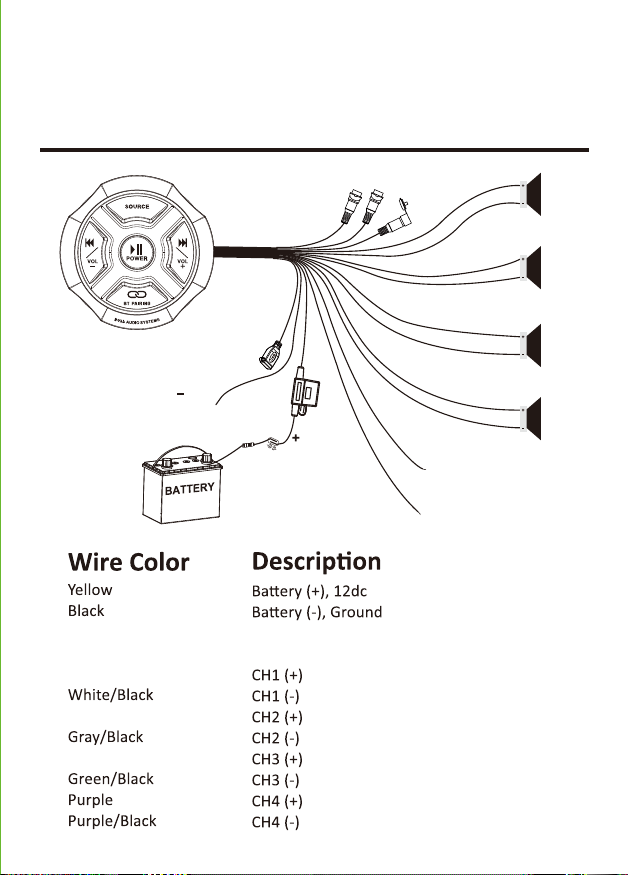

Power and Speaker Wiring
Features
Stream and Control your
Favorite Music APPs
What’s Included
4 Channel
Conformal Coated PCB

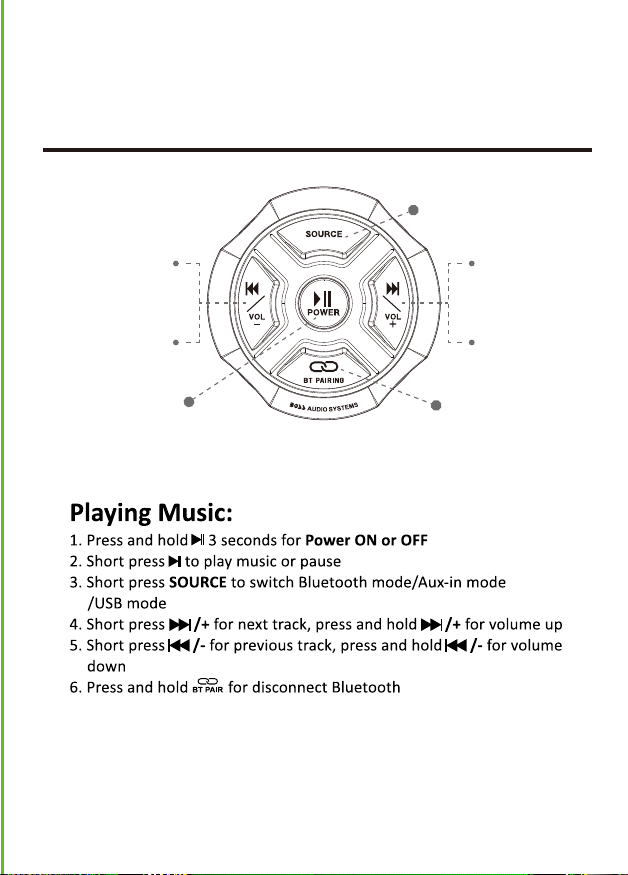

Play / Pause
