H7 FLOW
MID-TOWER AIRFLOW CASE
ENGLISH
03
A.

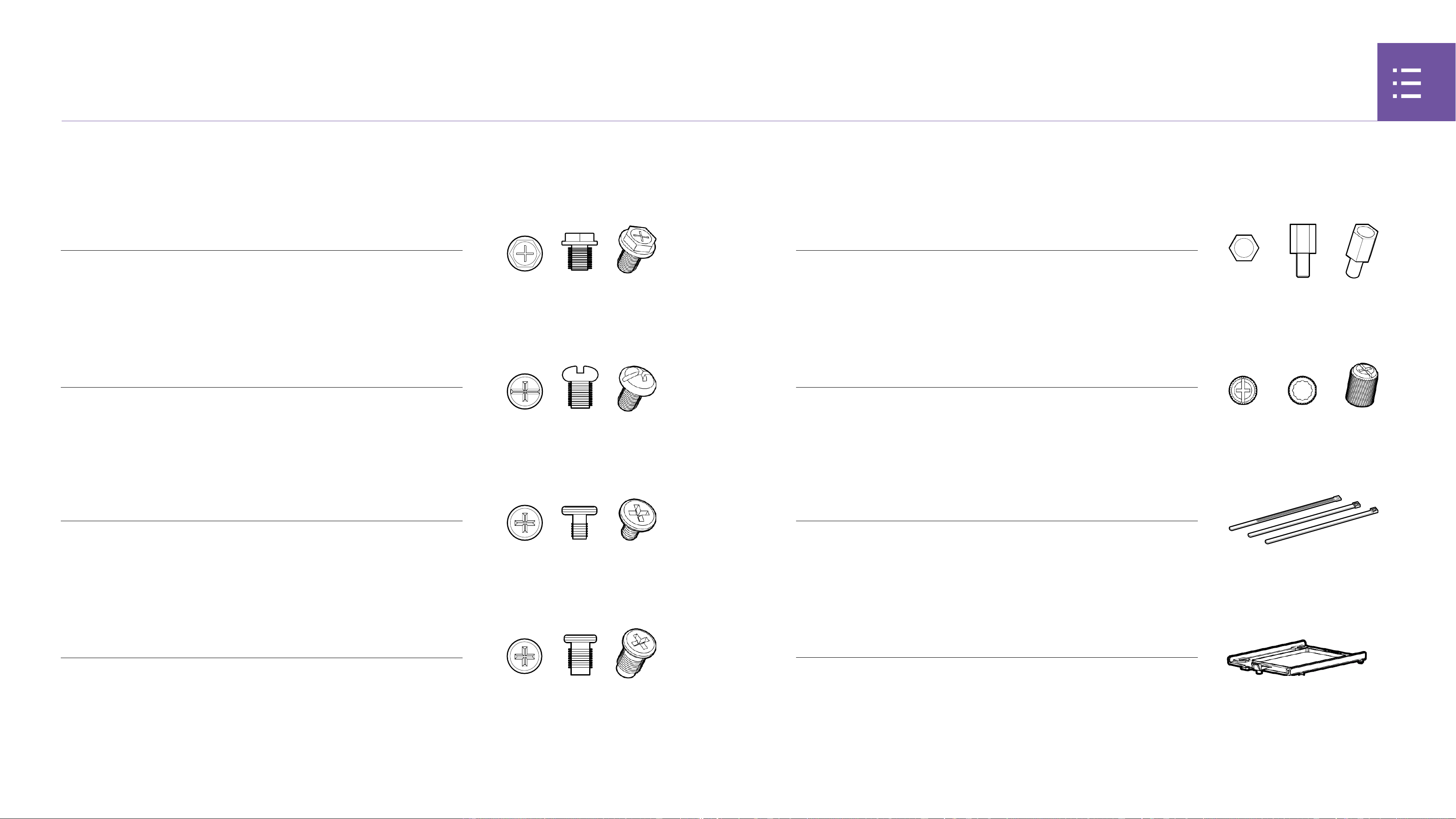

Hexagon Screw 6-32 x 6mm
Power supply installation
B.
Screw 6-32 x 5mm
Motherboard installation, 3.5 hard drive
installation
C.
Screw M3 x 5mm
2.5 hard drive installation
D.
Screw KB5 x 10mm
Fan installation
x4
x17
x24
x12
E.
Standoff 6-32 x 6.5+4mm
Motherboard installation
F.
Standoff Wrench
Motherboard installation
G.
Cable Ties
Cable managment
H.
SSD Tray
SSD drive installation
x1
x1
x10
x2
1.1 ACCESSORY BOX
H7 FLOW MID-TOWER AIRFLOW CASE
04
230mm 480mm

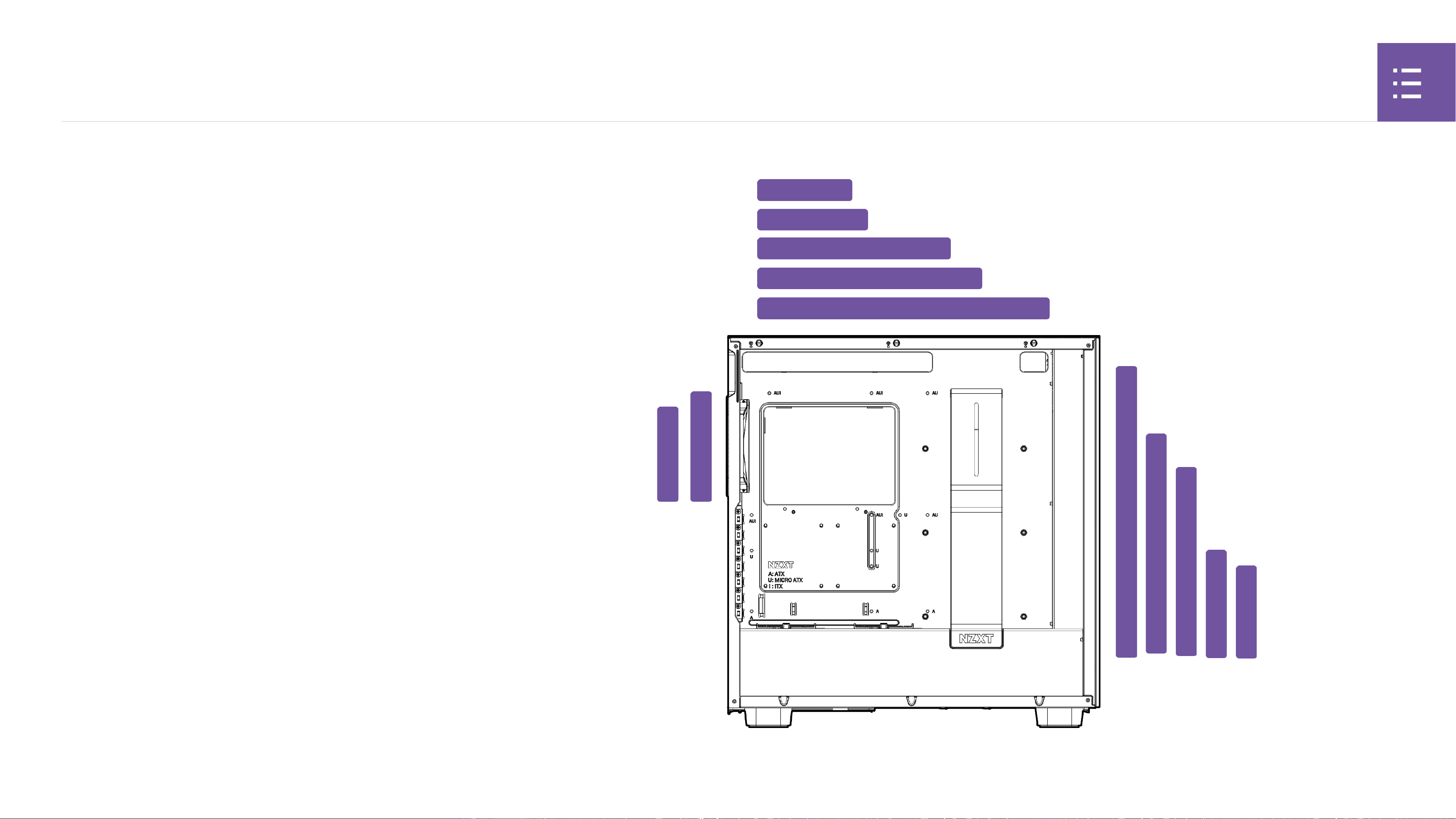

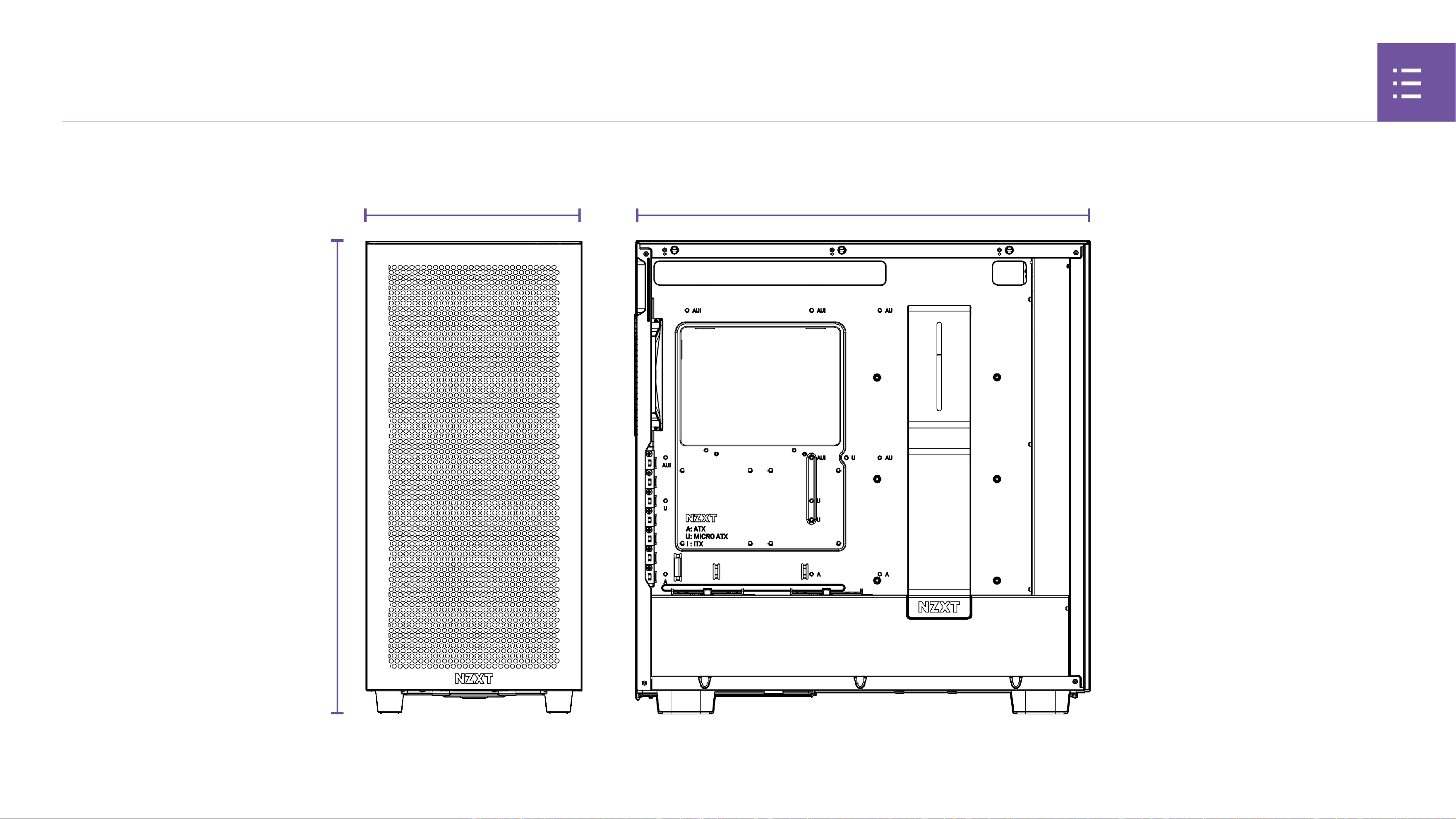

1.2 CLEARANCES AND SPECIFICATIONS
H7 FLOW MID-TOWER AIRFLOW CASE
505mm
05
Motherboard Support
EATX, ATX, Micro-ATX and Mini-ITX
2.5” SSD Support
4+2
3.5” HDD Support
2
Expansion Slots
7
Cable Management
18-22mm
CPU Cooler Clearance
185mm
GPU Clearance
400mm
Front Radiator
60mm
Top Radiator
30mm
1.2 CLEARANCES AND SPECIFICATIONS
H7 FLOW MID-TOWER AIRFLOW CASE
06
2.2 Cable Connections ............................... 10
2.7
Motherboard Installation ........................ 15
2.3 Buttons and I/O .......................................
11
2.8 SSD Drive Installation ........................... 16
2.4 Panel Removal ..................................... 12
2.9 HDD Drive Installation .......................... 17
2.5 Cable Bar ........................................... 13
2.10 Expansion Card Installation .................. 18
2.6 Cable Management System..................... 14
2.1
Exploded View ...................................... 08
2. COMPONENTS & PORTS
H7 FLOW MID-TOWER AIRFLOW CASE
08
8 Front I/O Module
4 PCI Insert
NO. PART NAME
NO. PART NAME
1
Top Panel 5 PSU Dust Filter
3 Rear Exhaust Fan 7 Tempered Glass Panel
6 Cable Bar
2 Top Filter
1
8
2
3
4
5
6
7

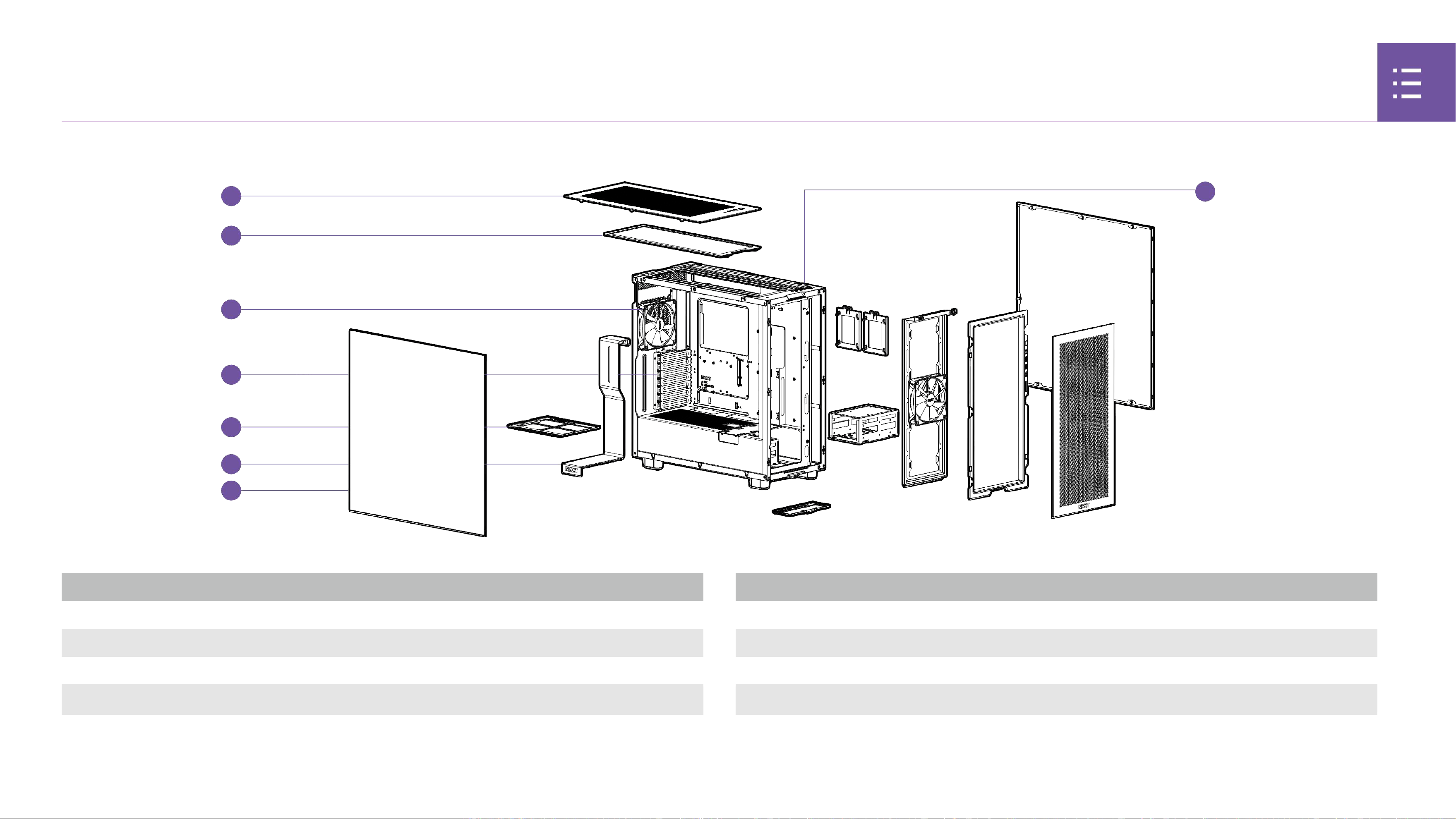

2.1 EXPLODED VIEW
H7 FLOW MID-TOWER AIRFLOW CASE
09

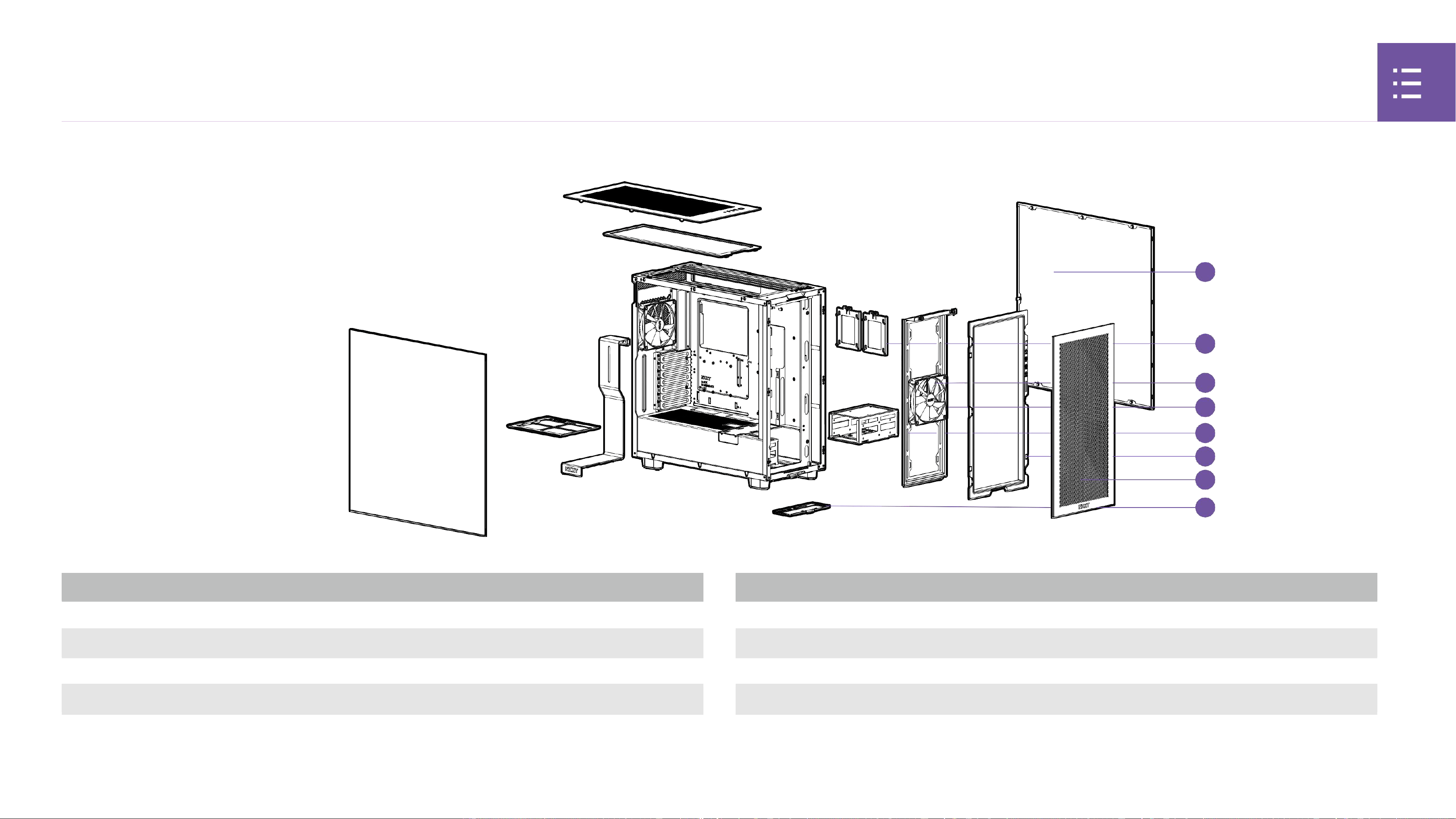

16 Front Bottom Dust Filter
12 Front Cooler Bracket
NO. PART NAME
NO. PART NAME
9 Right Side Panel 13 HDD Cage
11
Front Intake Fan 15 Front Mesh Panel
14 Front Filter
10 SSD Tray
9
10
11
12
13
14
15
16
2.1 EXPLODED VIEW
H7 FLOW MID-TOWER AIRFLOW CASE
10
FOR INTEL STANDARD F_PANEL HEADER USB 3.2 GEN 2 TYPE-C USB 3.2 GEN 1 TYPE-A HD AUDIO

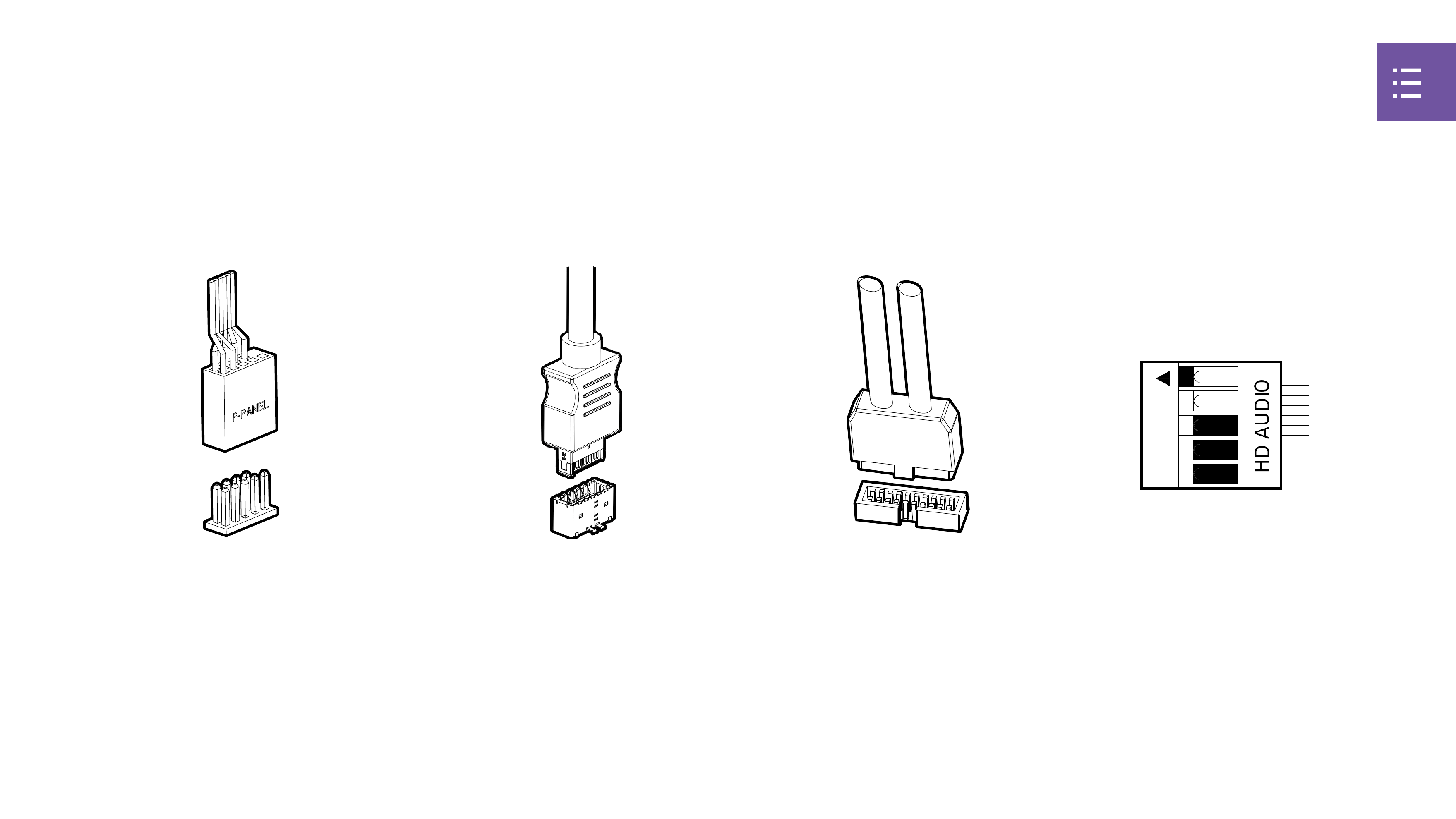

2.2 CABLE CONNECTIONS
H7 FLOW MID-TOWER AIRFLOW CASE
11
2 USB 3.2 Gen2 Type-C
1
Headset Jack
3 USB 3.2 Gen1 Type-A
5 Power LED
NO. PORT NAME

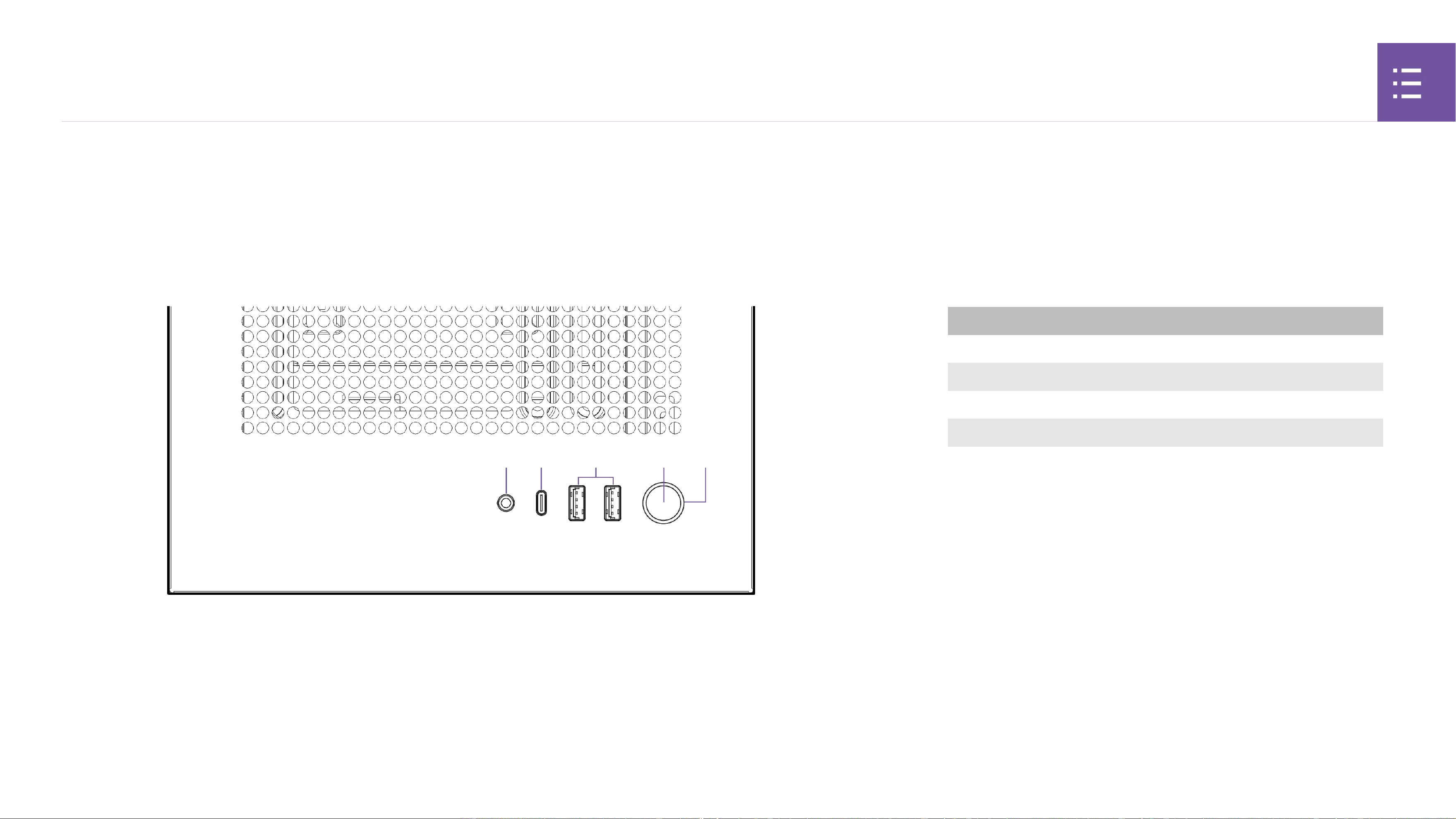

2.3 BUTTONS AND I/O
H7 FLOW MID-TOWER AIRFLOW CASE
1
2 3 4 5
4 Power Switch
12

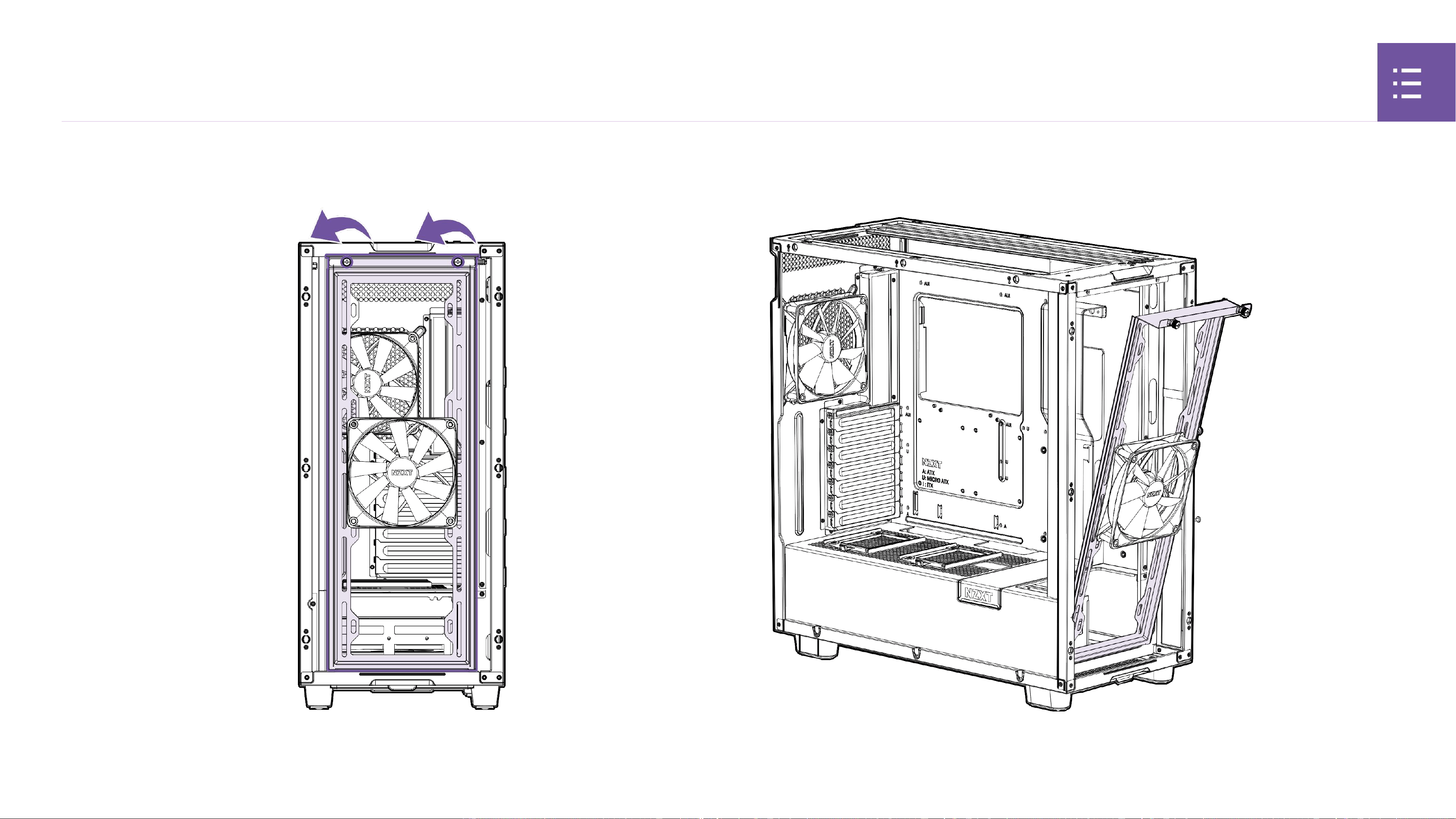

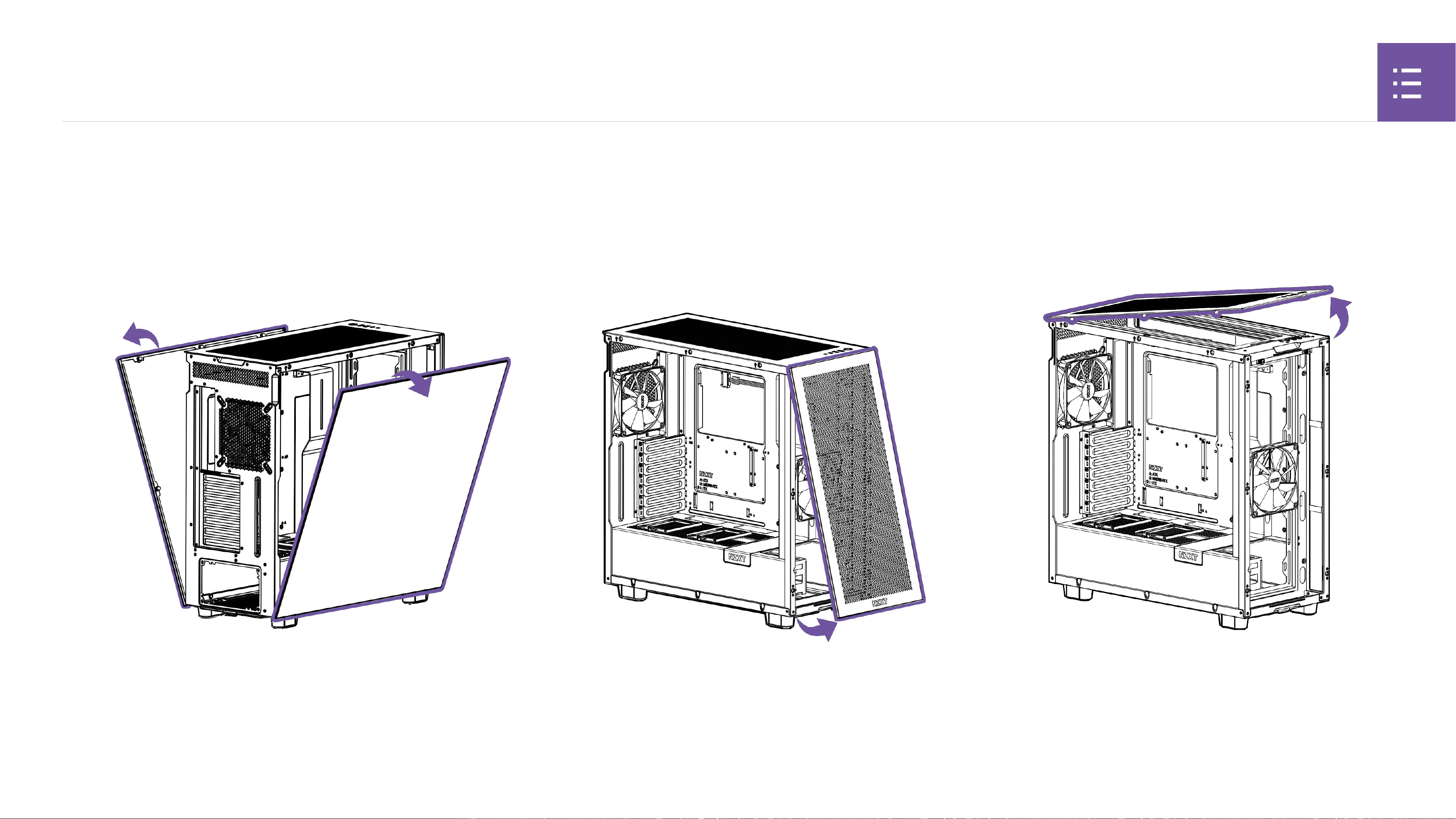

2.4 PANEL REMOVAL
H7 FLOW MID-TOWER AIRFLOW CASE
13

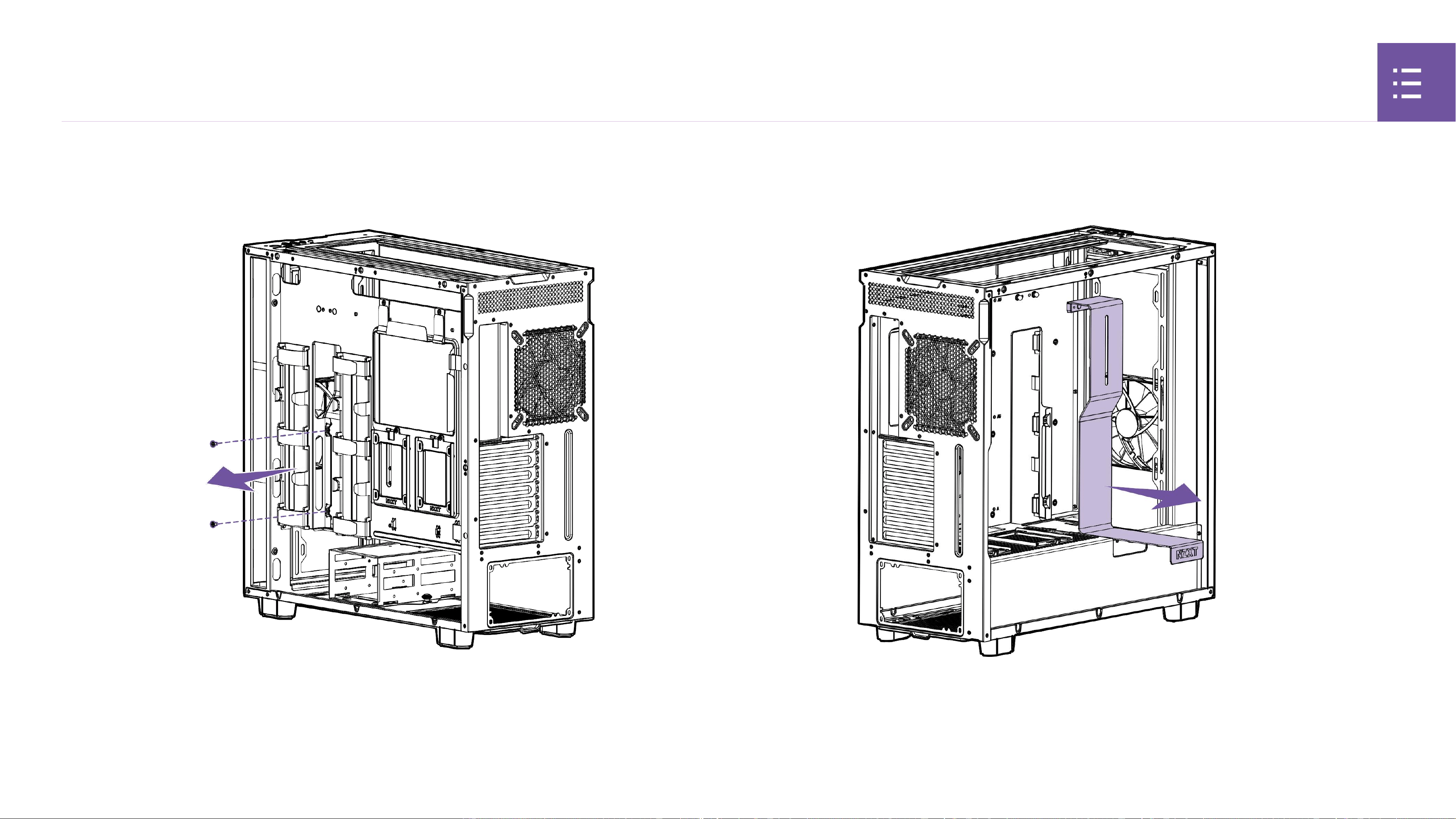

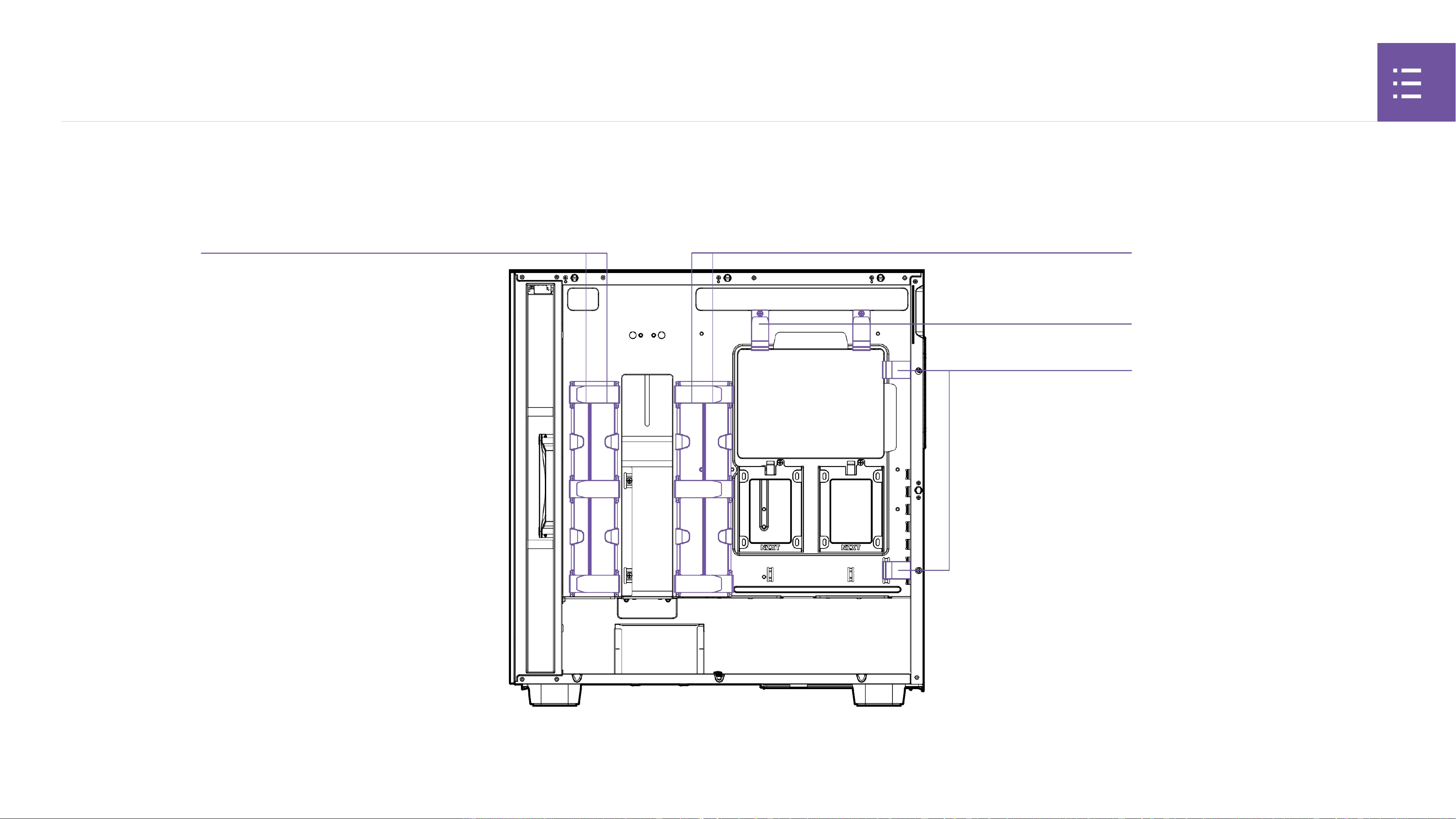

2.5 CABLE BAR
H7 FLOW MID-TOWER AIRFLOW CASE
14
FAN CABLE CHANNEL
8 PIN CABLE CHANNEL
FRONT I/O CABLE AND FAN CABLE CHANNEL
24 PIN CABLE AND SATA CABLE CHANNEL
2.6 CABLE MANAGEMENT SYSTEM
H7 FLOW MID-TOWER AIRFLOW CASE
15
E
B

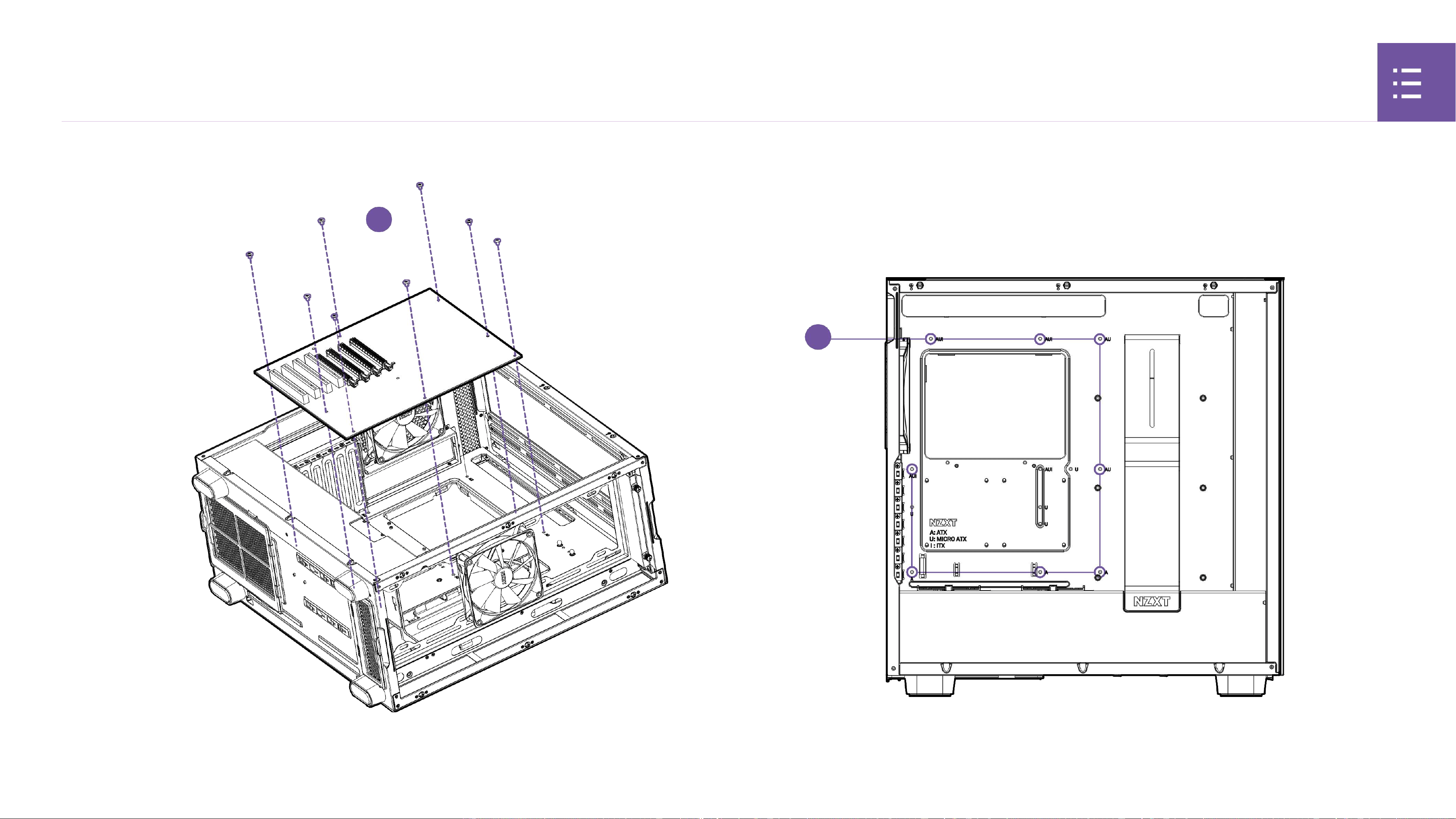

2.7 MOTHERBOARD INSTALLATION
H7 FLOW MID-TOWER AIRFLOW CASE
16

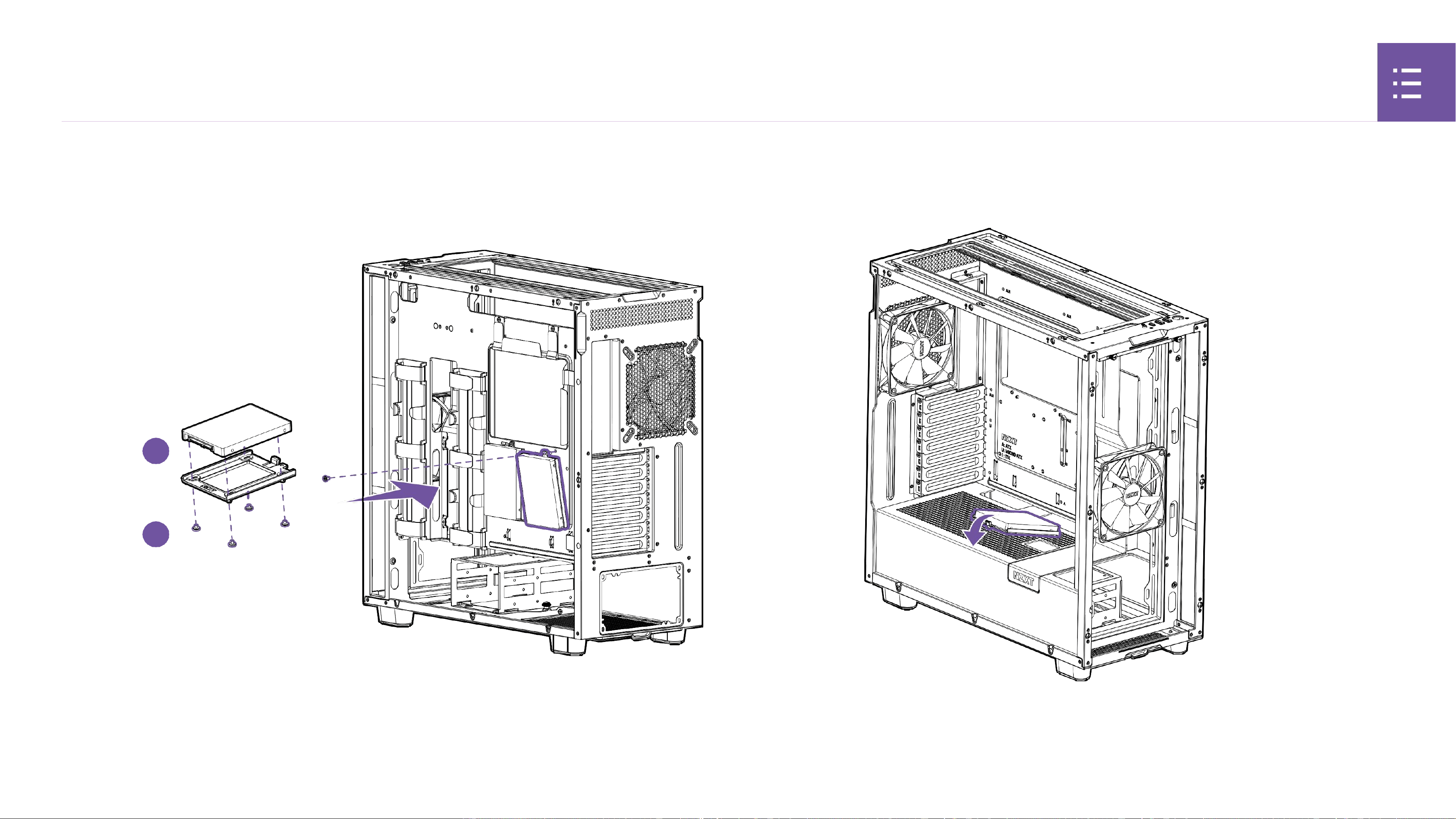

2.8 SSD DRIVE INSTALLATION
H7 FLOW MID-TOWER AIRFLOW CASE
H
C
17
3
B
4
2
1

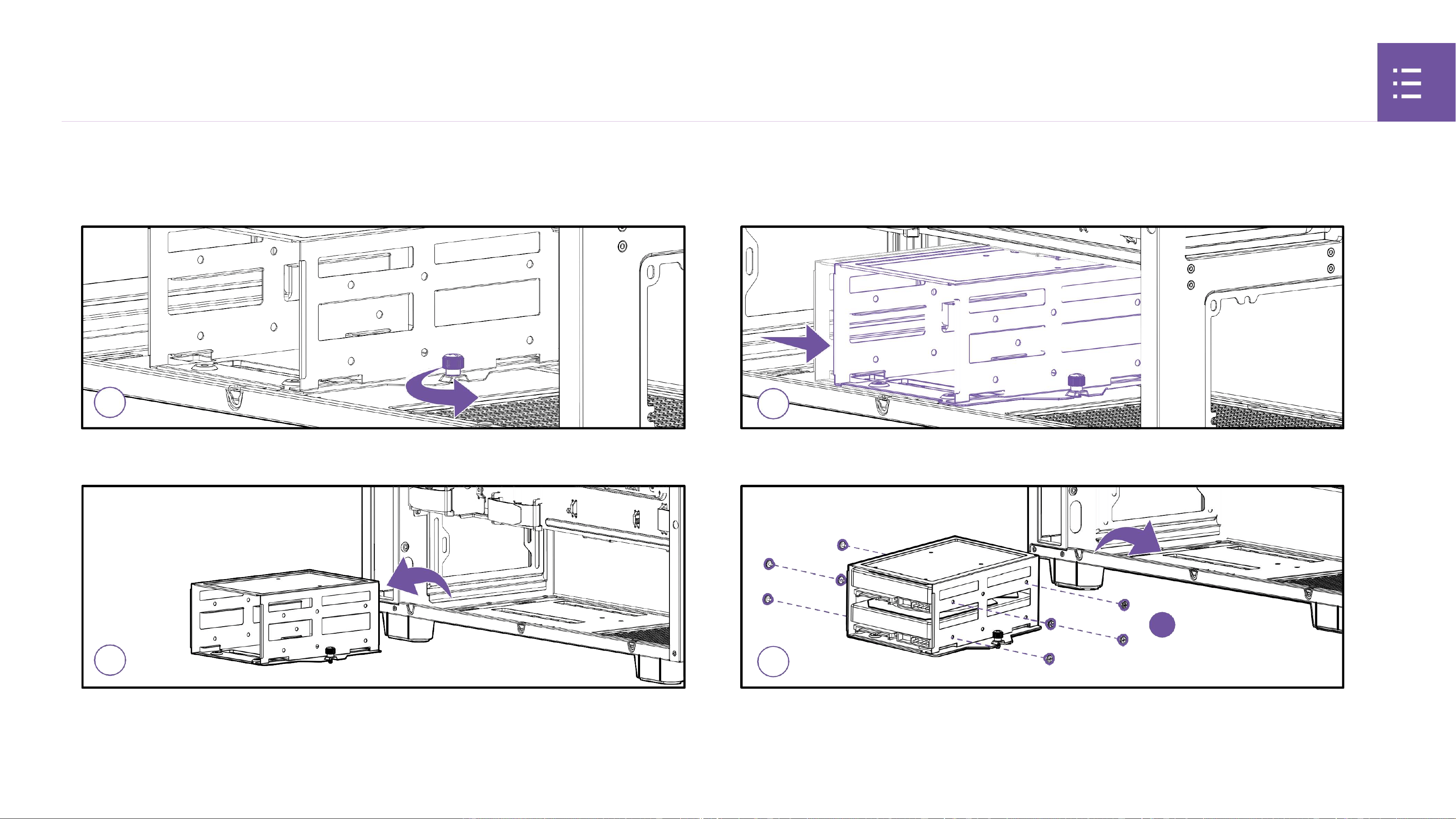

2.9 HDD DRIVE INSTALLATION
H7 FLOW MID-TOWER AIRFLOW CASE
18

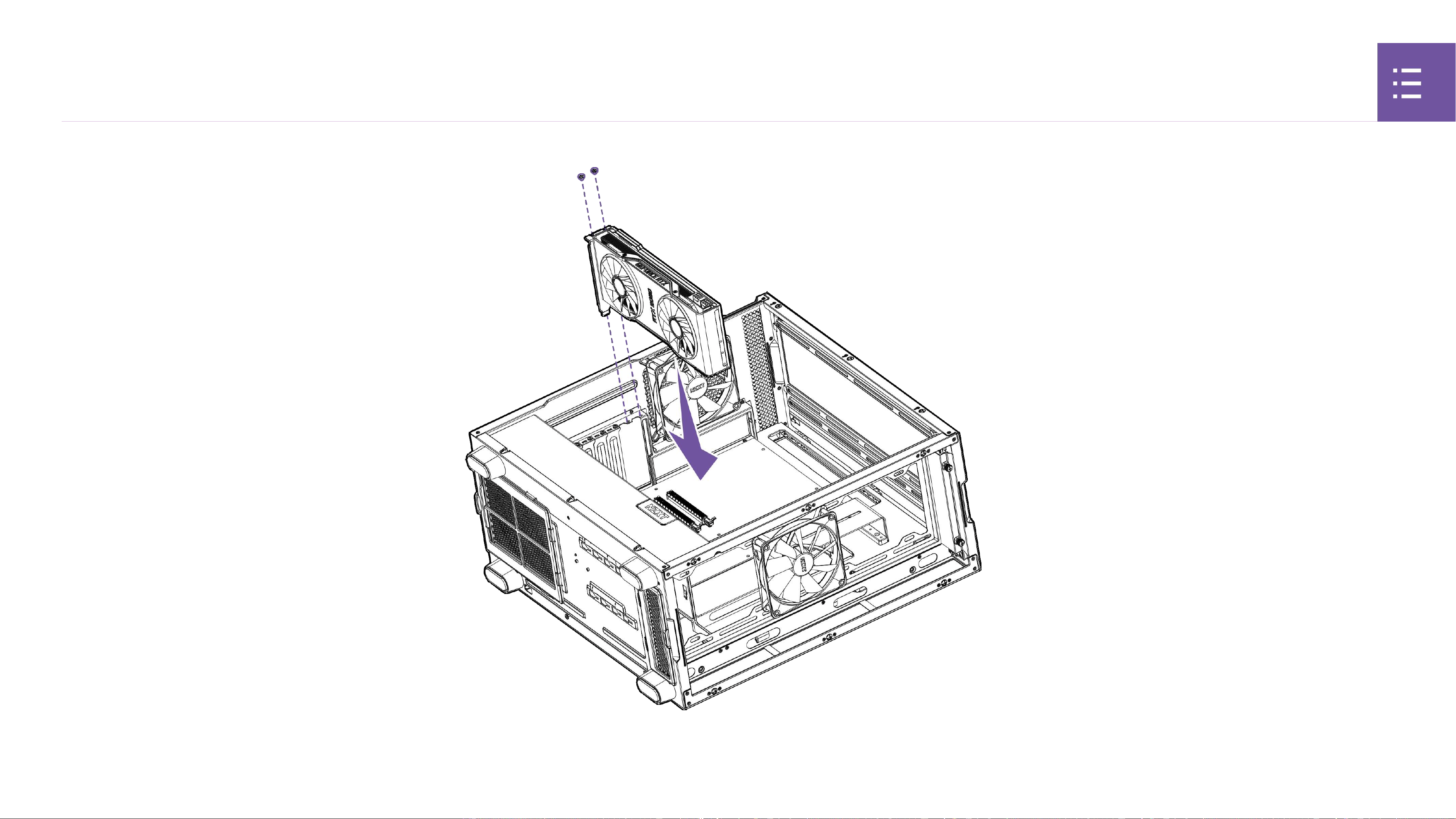

2.10 EXPANSION CARD INSTALLATION
H7 FLOW MID-TOWER AIRFLOW CASE
19
A
IMPORTANT
•

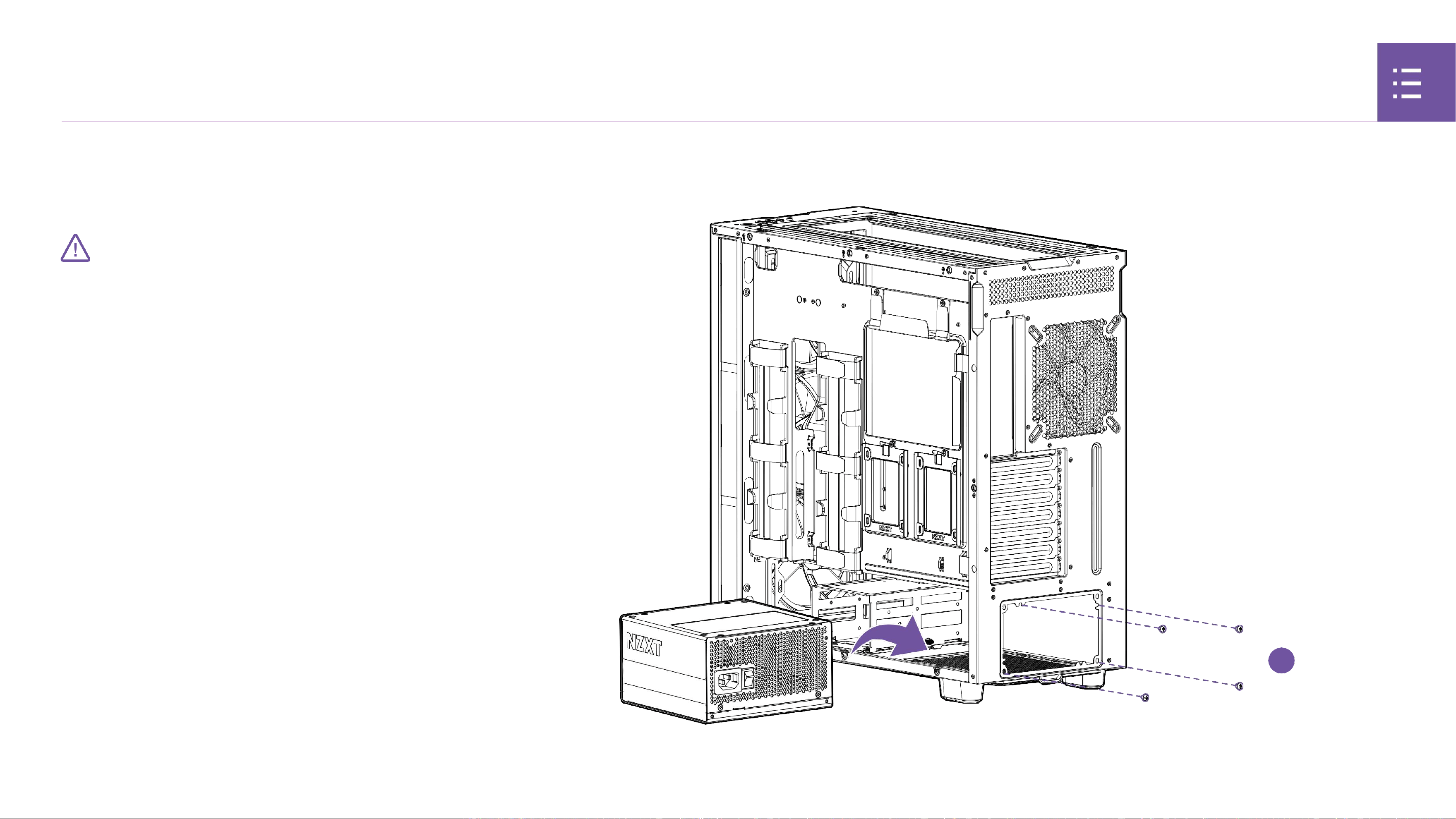

Install the PSU with the fan facing down.
2.11 POWER SUPPLY INSTALLATION
H7 FLOW MID-TOWER AIRFLOW CASE
20
FAN
Top: 3 X 120mm / 2 X 140mm
Front: 3 X 120mm / 3 X 140mm
Rear: 1 X 120mm / 1 X 140mm

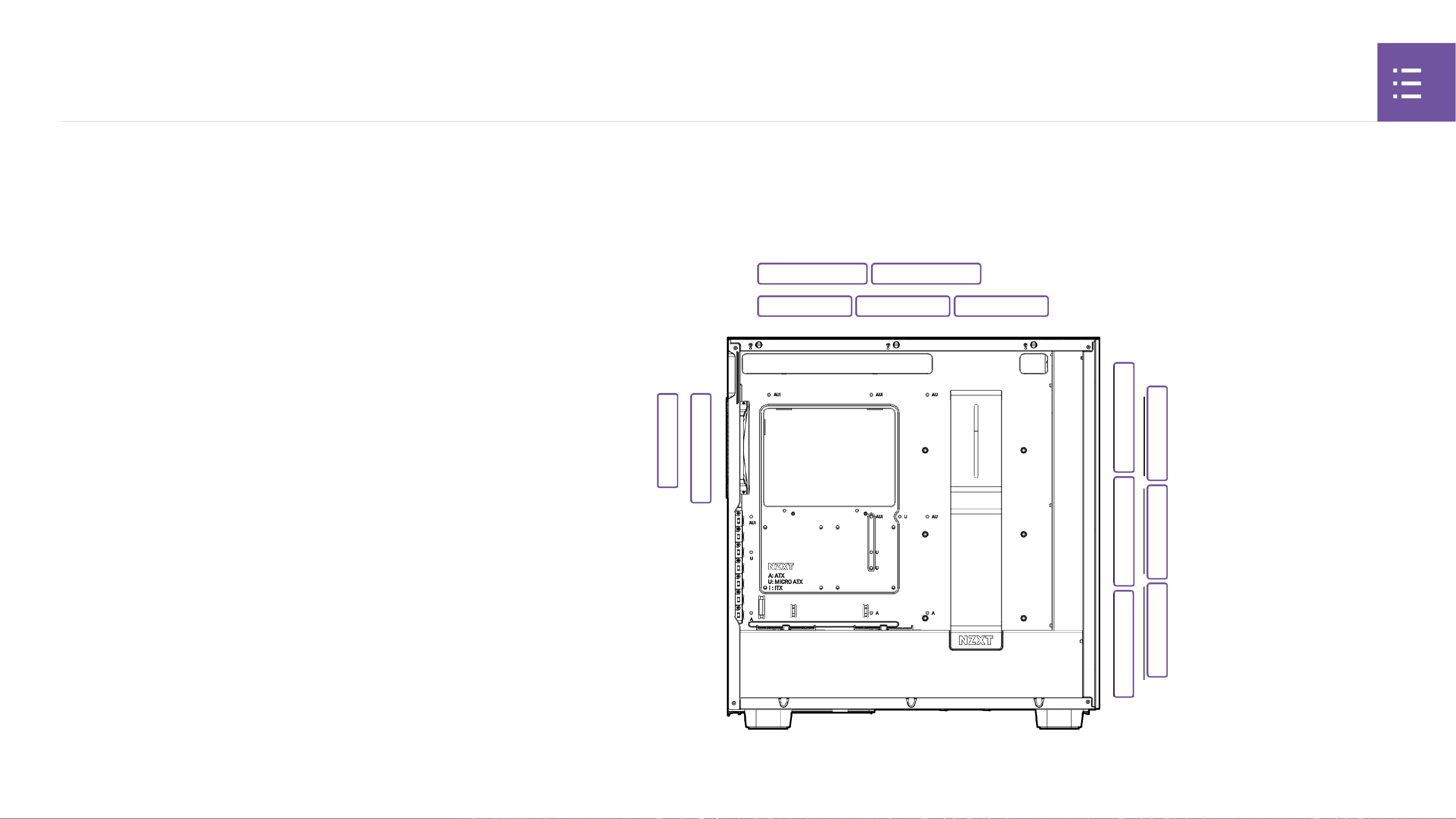

2.12 FAN AND RADIATOR SUPPORT
H7 FLOW MID-TOWER AIRFLOW CASE
140mm
120mm
120mm
140mm
120mm
120mm 120mm 120mm
140mm
140mm
140mm
120mm
140mm
21
140mm
RADIATOR
Top: Up to 360mm
Front: Up to 360mm
Rear: Up to 140mm
120mm
2.12 FAN AND RADIATOR SUPPORT
H7 FLOW MID-TOWER AIRFLOW CASE
360mm
280mm
240mm
120mm
140mm
360mm
280mm
240mm
140mm
120mm
22

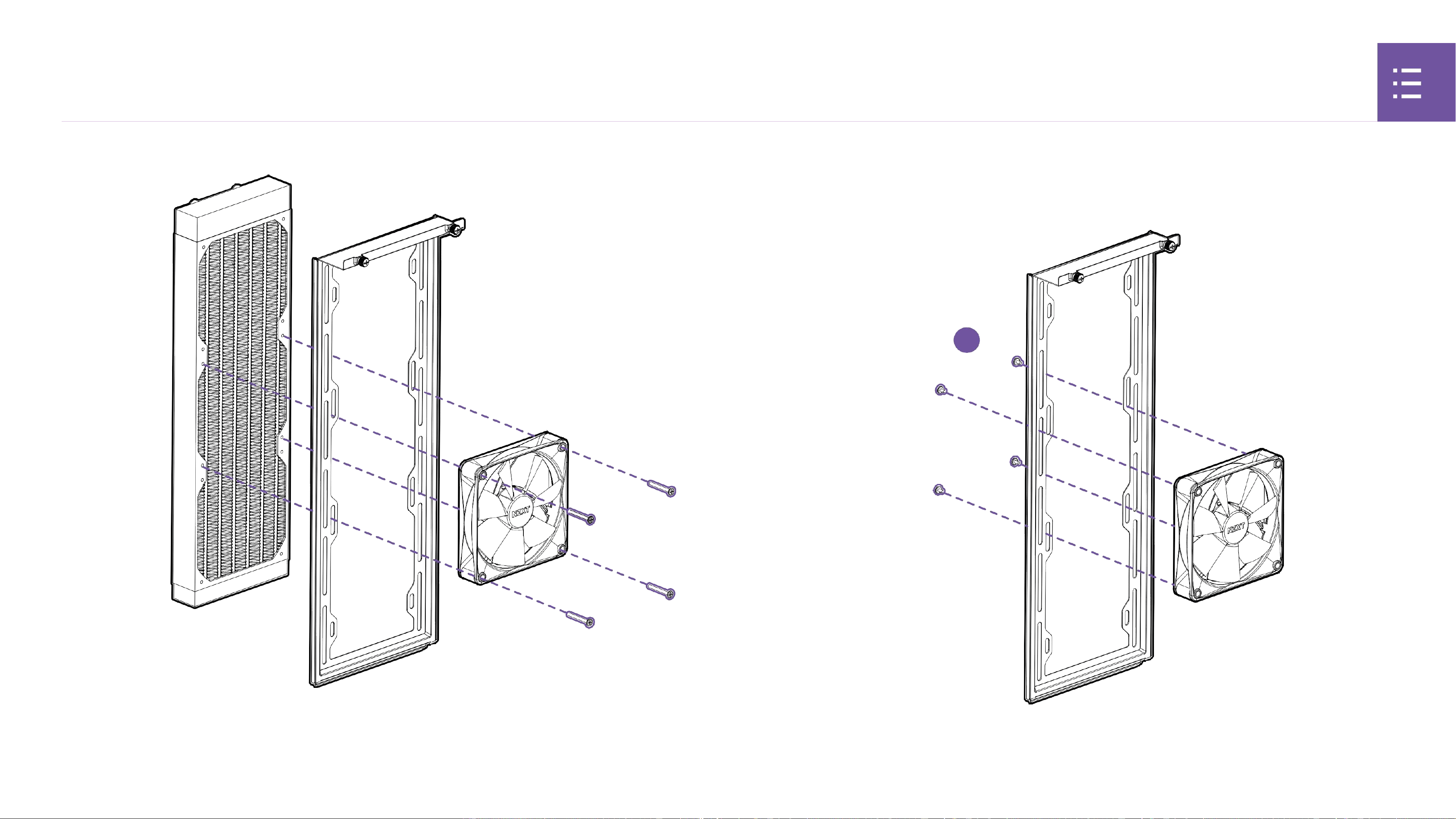

2.13 FAN AND RADIATOR INSTALLATION
H7 FLOW MID-TOWER AIRFLOW CASE
23
The screws shown will be provided
within liquid cooler packaging.
2.13 FAN AND RADIATOR INSTALLATION
H7 FLOW MID-TOWER AIRFLOW CASE
D
A- 2
