DS1050 GENERATOR
This manual provides information regarding the operation
and maintenance of these products. We have made every
effort to ensure the accuracy of the information in this
manual. We reserve the right to change this product at
any time without prior notice.
5800 Ontario Mills Pkwy
Ontario, CA 91764 USA
www.duromaxpower.com
Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri
844-DUROMAX
User Manual
REV: DS1050-04022018
CONTENTS
3
1.
Introduction ..................................................................................................................... 6
General Safety Procedures ............................................................................................ 7
Quick Start Guide .......................................................................................................... 10
Generator Components ............................................................................................... 12
Package Contents ......................................................................................................... 14
Introduction
3.
Check the Gas Level ...................................................................................................... 20
Starting the Generator ................................................................................................. 21
Starting the Generator
2.
Adding Gasoline Mix ..................................................................................................... 16
Grounding the Generator ............................................................................................ 17
High Altitude Operation ............................................................................................... 17
Generator Setup
4.
AC Usage ........................................................................................................................ 24
Connecting a Load to the Generator .......................................................................... 26
DC Usage ........................................................................................................................ 28
Using the Generator
CONTENTS
4
5.
6.
7.
Maintenance Schedule ................................................................................................. 32
Maintenance Log .......................................................................................................... 33
Cleaning the Air Cleaner .............................................................................................. 34
Spark Plug Maintenance .............................................................................................. 36
Storage and Transportation ........................................................................................ 38
Specications ................................................................................................................. 39
......................................................................................................................... 44
Basic Troubleshooting ................................................................................................. 42
Wiring Diagram ............................................................................................................ 43
Maintenance and Care
Warranty
Troubleshooting
8.
.................................................................................................. 48
Contact Information
INTRODUCTION
Notice Regarding Emissions
DuroMax has cemented its reputation as one of the markets leading power equipment companies
who are headquartered in the US. All of our products are manufactured to the strictest guidelines
and go through countless testing in all phases of production.
Evolving our strong engine line, DuroMax has complemented its oerings to include Pressure
Washers, Water Pumps, Engines and now oering V-Twin engines. Reliability is the highest
standard we hold ourselves to, whether its powering a heater during a winter storm that knocks
out power, dewatering a ooded property, or washing away a deck for the summer season
Engines that are certied to comply with U.S. EPA emission regulations for SORE (Small o Road
Equipment), are certied to operate on regular unleaded gasoline, and may include the following
emission control systems: (EM) Engine Modications and (TWC) Three-Way Catalyst (if so equipped).
6
STOP
Please do not return
to store.
Durostar representatives are ready to help you
with any questions, concerns, or issues about your
new product. We can guide you through assembly,
start up, and how to operate your new generator.
We want you to be able to put your new generator
to use right away!
CALL US BEFORE YOU CONSIDER
RETURNING THE PRODUCT!
1-844-DUROMAX
TOLL FREE
SAFETY ALERT SYMBOL
DANGER: This generator produces poisonous carbon monoxide gas when running. This
gas is both odorless and colorless. Even if you do not see or smell gas, carbon monoxide
may still be present. Breathing this poison can lead to headaches, dizziness, drowsiness,
and eventually death.
● Use outdoors ONLY in non-conned areas.
● Keep several feet of clearance on all sides to allow proper ventilation of the generator.
WARNING: The exhaust from this product contains chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm.
WARNING: This generator produces heat when running. Temperatures near exhaust can
exceed 150°F (65°C).
● Do not touch hot surfaces. Pay attention to warning labels on the generator denoting
hot parts of the machine.
● Allow generator to cool several minutes after use before touching engine or areas
which heat during use.
The safety alert symbol is used with one of the safety words (DANGER,
CAUTION, or WARNING) to alert you of hazards. Please pay attention to
these hazard notices both in this manual and on the generator.
GENERAL SAFETY PROCEDURES
7
Please familiarize yourself with the following safety symbols and words:
● DANGER: Indicates a hazard that will result in serious injury or death if instructions are not
followed.
● WARNING: Indicates a strong possibility of causing serious injury or death if instructions are not
followed.
● CAUTION: Indicates a possibility of personal injury or equipment damage if instructions are not
followed.
WARNING: This generator may emit highly ammable and explosive gasoline vapors,
which can cause severe burns or even death. A nearby open ame can lead to an
explosion even if not directly in contact with gas.
● Do not operate near an open ame.
● Do not smoke near generator.
● Always operate on a rm, level surface.
● Always turn generator o before refueling.
● Allow generator to cool for at least 2 minutes before removing fuel cap. Loosen cap
slowly to relieve pressure in tank.
● Do not overll gas tank. Gas may expand during operation. Do not ll to the top of
the tank.
● Always check for spilled gas before operating.
● Empty the gasoline tank before storing or transporting the generator.
● Before transporting, turn fuel valve to the o position and disconnect the spark plug.
WARNING: This generator produces a powerful voltage, which can result in electrocution.
● ALWAYS ground the generator before using it (see the “Grounding the Generator”
portion of the “PREPARlNG THE GENERATOR FOR USE section).
● Generator should only be plugged into electrical devices, either directly or with an
extension cord. NEVER connect to a building electrical system without a qualied
electrician. Such connections must comply with local electrical laws and codes. Failure
to comply can create a backow of power, which may result in serious injury or death
to utility workers.
● Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal
decking or steel work. GFCls are available in-line with some extension cords.
● Do not use uncovered in rainy or wet conditions.
● Do not touch bare wires or receptacles (outlets).
● Do not allow children or non-qualied persons to operate.
GENERAL SAFETY PROCEDURES
8
In addition to the above safety notices, please familiarize yourself with the safety and
hazard markings on the generator.
GENERAL SAFETY PROCEDURES
9

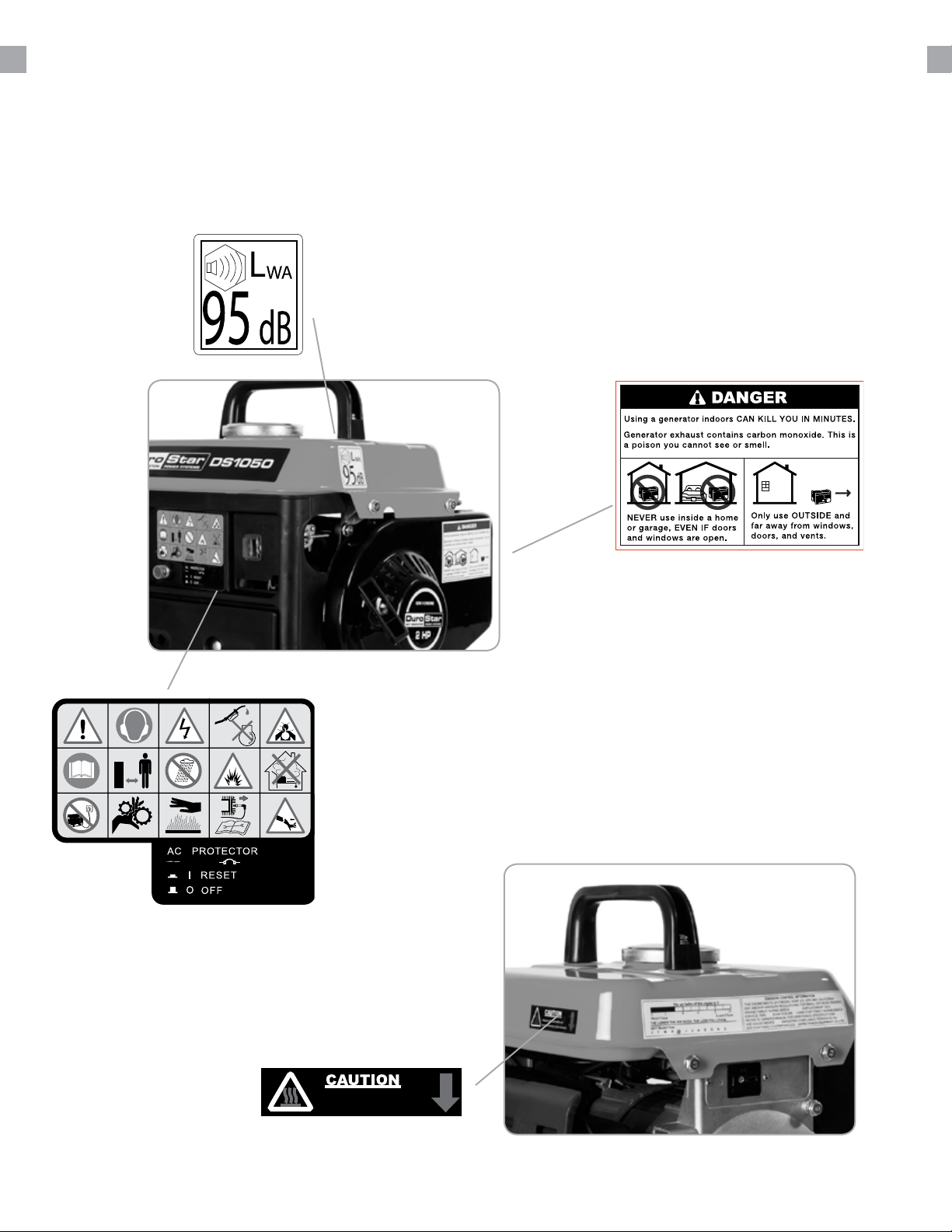

Exhuast outlet and muffler will
become extremely hot. Do Not Touch.
QUICK START GUIDE

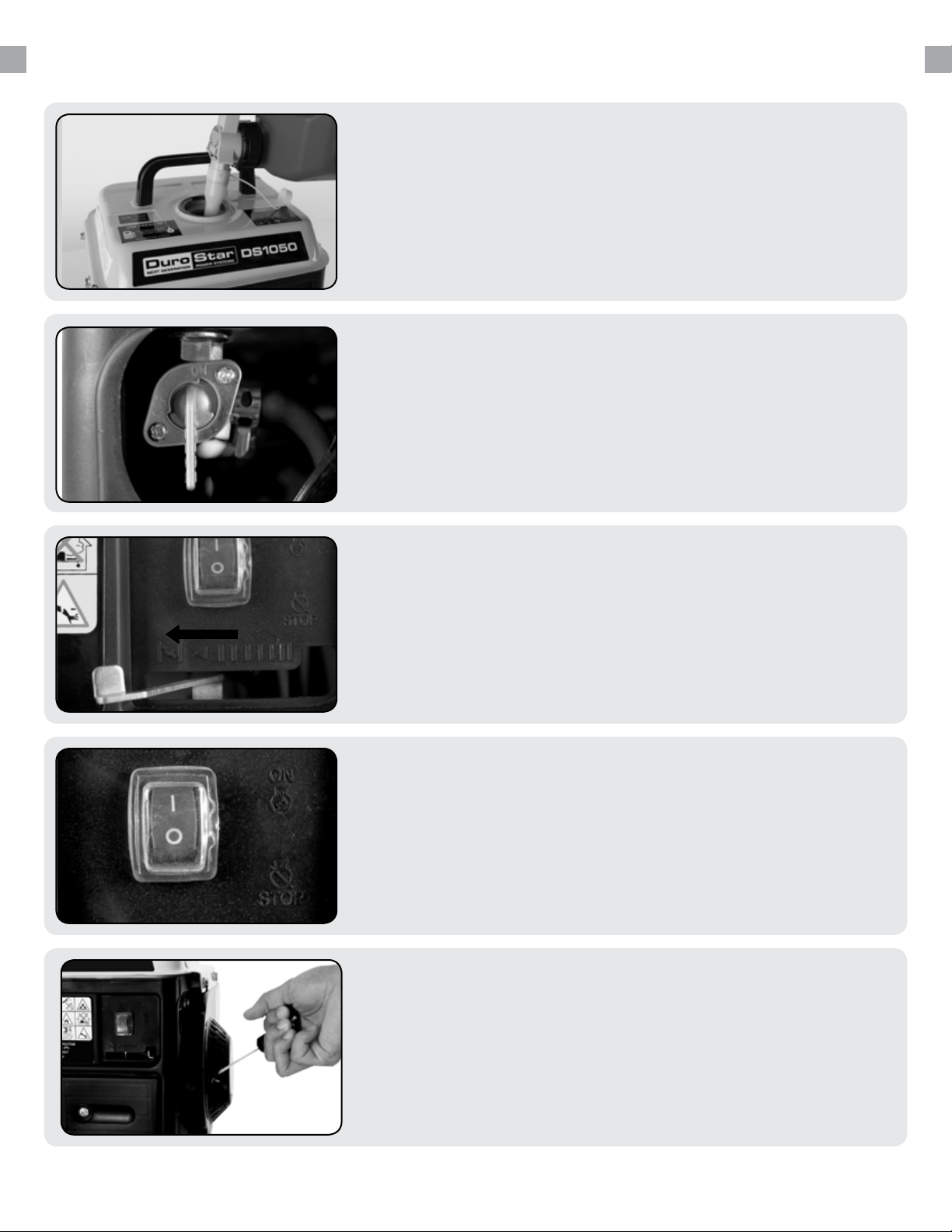

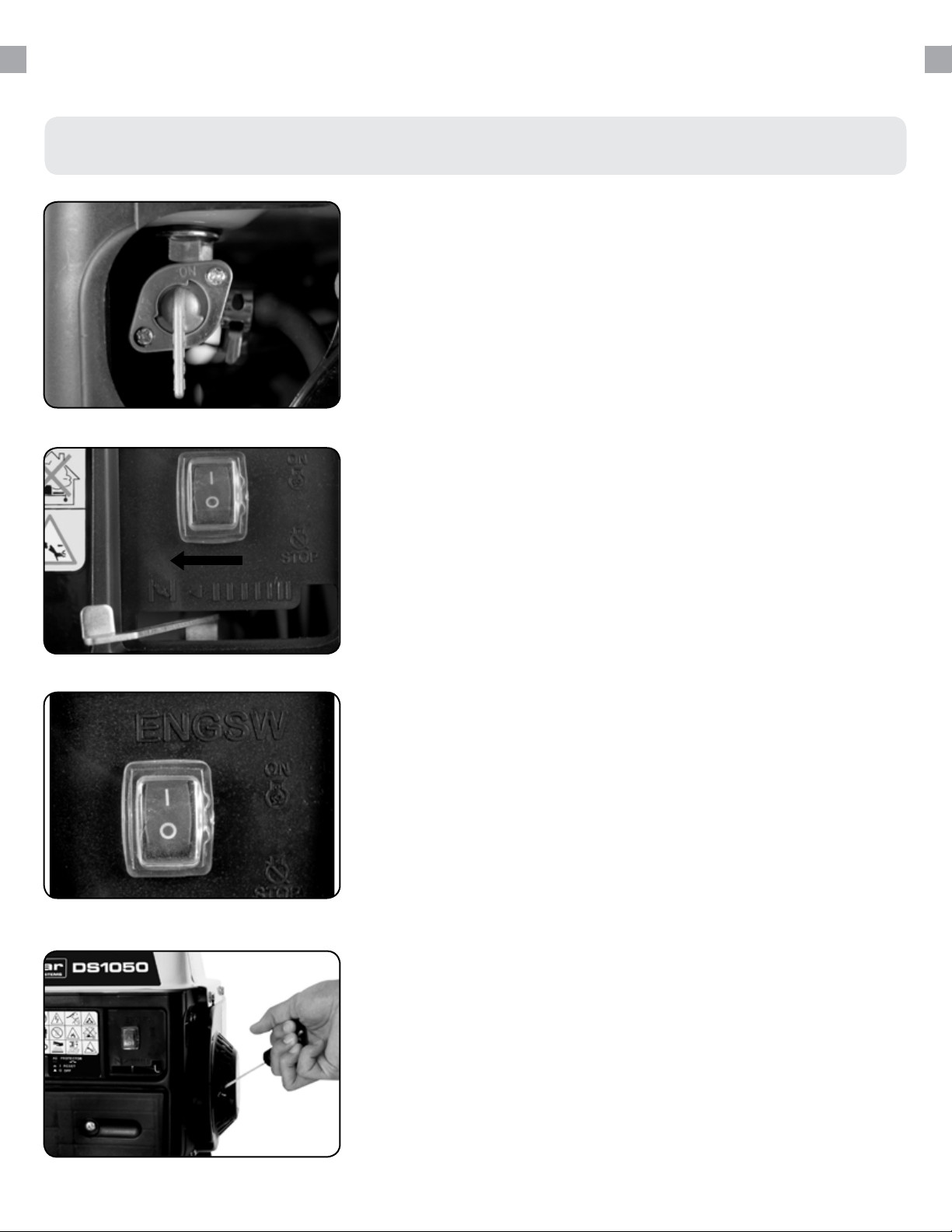

Add gasoline mix
The fuel cap is located on top of the fuel tank. Fill the tank
with fresh unleaded gasoline 87 octane or higher mixed
50:1 with 2-Stroke Oil. The tank is full when you see fuel in
the bottom of the fuel lter cup.
1.
Turn gas valve on
The gas valve is located above the recoil start on the
bottom of the fuel tank. Rotate the valve clockwise to the
vertical position to turn on the gas supply.
2.
10

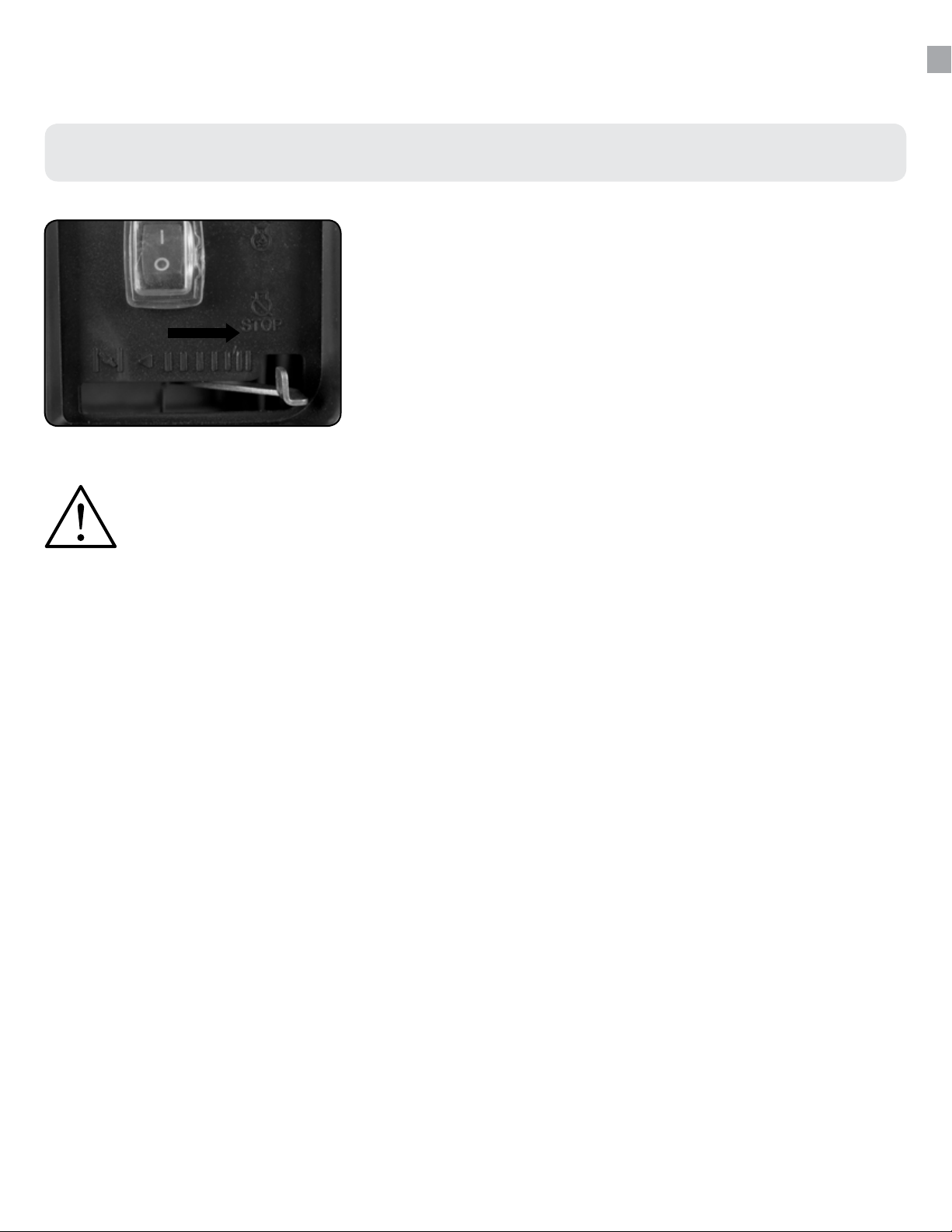

Close choke
The choke lever is located above the air lter to the left
of the recoil start. Slide the lever to the right to cut the air
supply and allow more gas into the engine to start.
3.
Pull recoil start
Pull the recoil start handle quickly the complete length of the
rope and then let it retract slowly. The unit will generally start
within 3 pulls. CAUTION: DO NOT let go of the handle while
the rope is extended this may cause damage to yourself or
your machine.
5.
Flip engine switch to ON
The engine switch is located on the left side of the front
power panel. Flip the switch to on.
4.
Open choke
The choke lever is located above the air lter to the left of
the recoil start. Slide the lever to the left to open the choke
and increase air into the carburetor for normal running.
6.
Turn breaker on & connect
devices
Connect your devices to the receptacles on the front panel.
Start with the largest loads rst.
7.
11

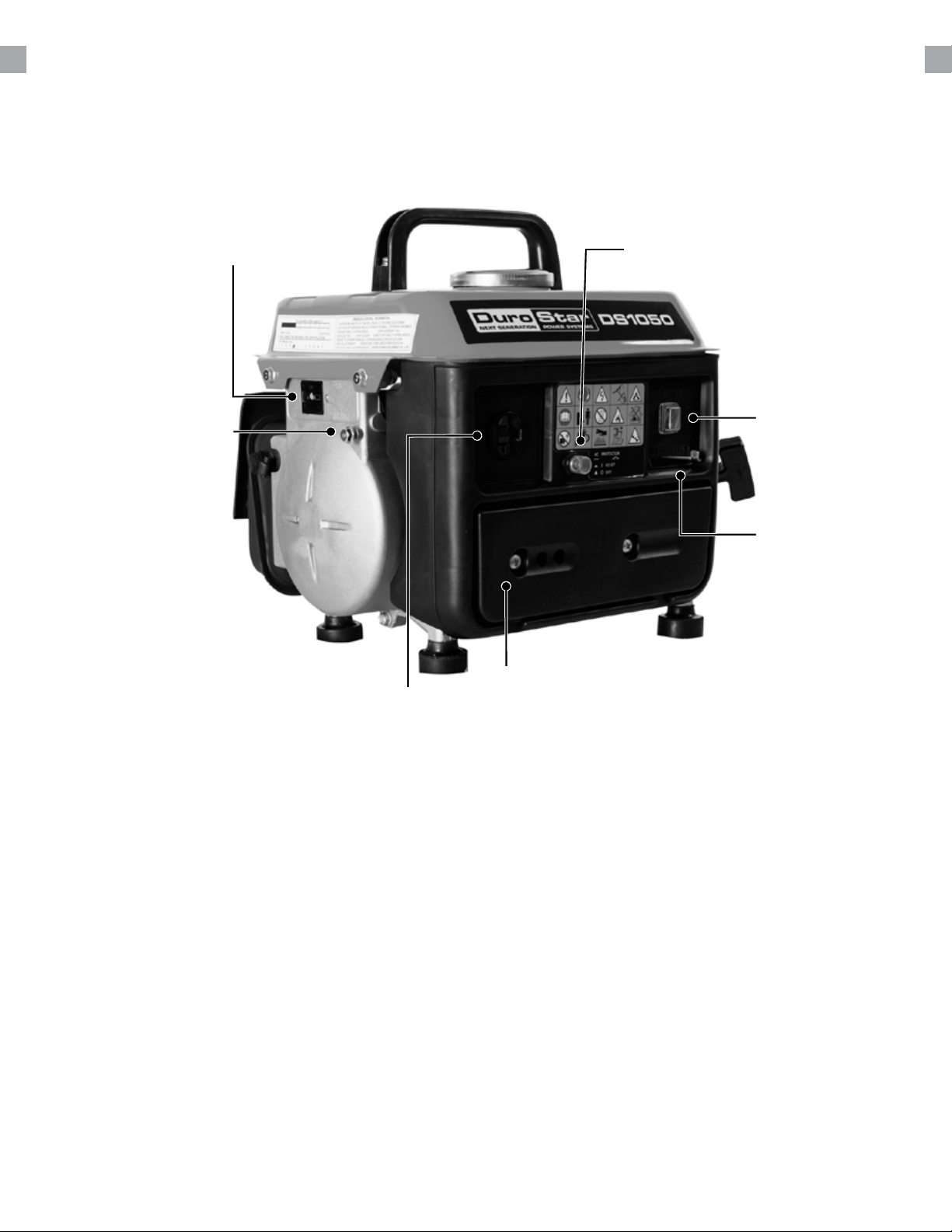

GENERATOR COMPONENTS
12
2. Choke Lever
1. Air Cleaner
3. Circuit Breaker
5. 110V 3-Prong Recepticle
6. Ground Terminal
4. Engine Switch
1. Air Cleaner - a removable, cleanable, oiled, sponge-like element that cleans the air going into
the engine.
2. Choke Lever - Allows the airow into the carburetor to be restricted to assist in starting the
engine.
3. Circuit Breaker - Resettable switch that protects the generator from electrical overload.
4. Engine Switch – 3 Position Switch to “Start”, “Run”, or turn “O” the generator.
5. 110v 3-Prong Receptacle - Use to connect electrical devices that run 110 Volt, 60 Hz, single
phase, AC current (NEMA 5-20).
6. Ground Terminal - Connect a ground wire here to properly ground the generator.
7. T-Shaped 12VDC - 12v DC Outlet used to charge batteries.
*Charging Cable Included

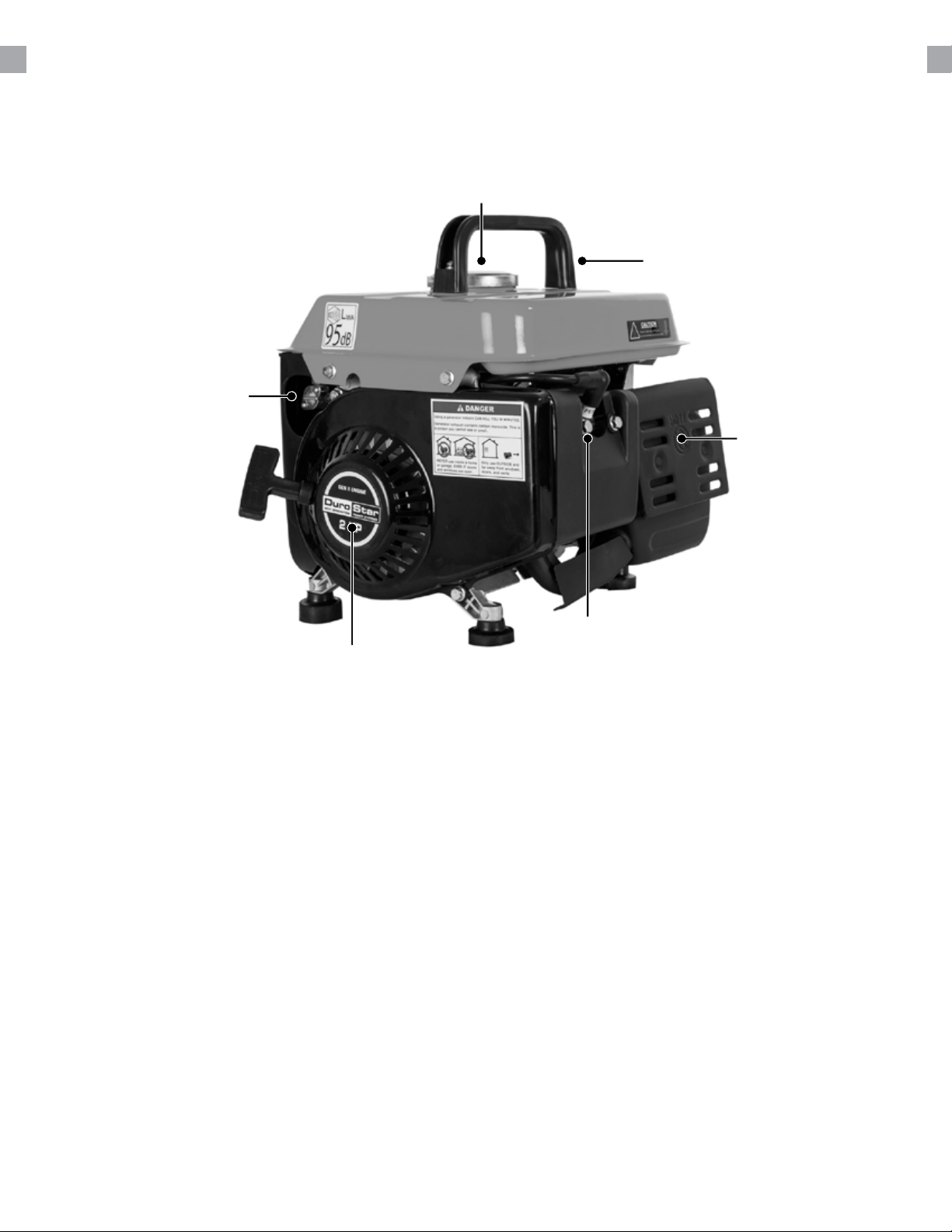

7. T-Shaped 12VDC
8. Fuel Cap
10. Muer
11. Spark Plug
9. Handle
8. Fuel Cap - Allows access to ll the fuel tank.
9. Handle - Easy access handle for convenient transportation.
10. Muer – Reduces engine emissions and reduces nois
11. Spark Plug - Provides ignition spark for the engine.
12. Recoil Start – Easy Pull Recoil Start to start the engine without the electric start.
13. Fuel Valve - On/O Valve that allows fuel into the engine.
13
13. Fuel Valve
12. Recoil Start
PACKAGE CONTENTS
Your generator comes with the items listed below. Please check to see that all of the following
items are included with your generator.
● Note: Actual tools may dier in appearance or design from image shown.
14

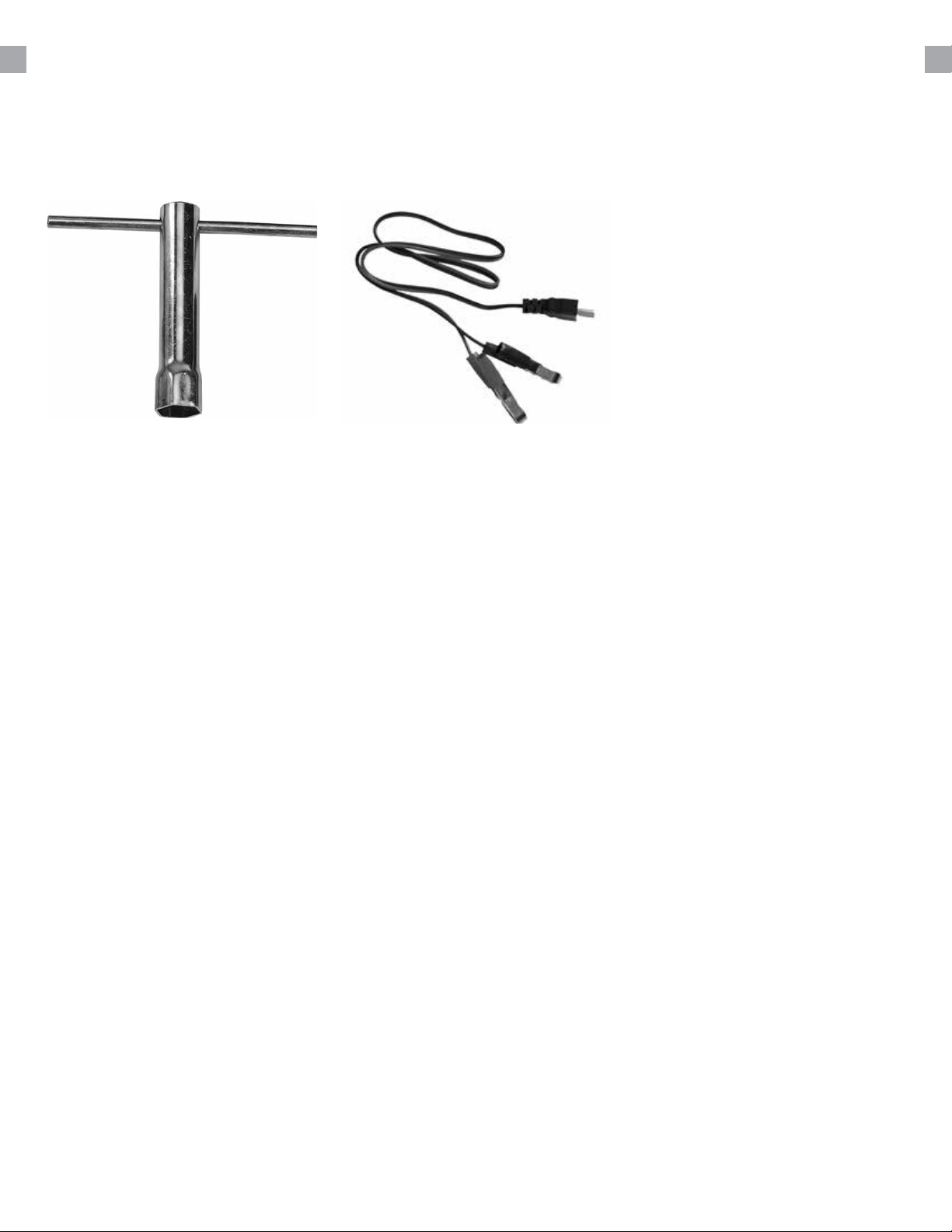

Charging Cables
Used to charge Automotive
style 12V Batteries.
Spark Plug Wrench
Used in spark plug
maintenance, inspection, and
installation.

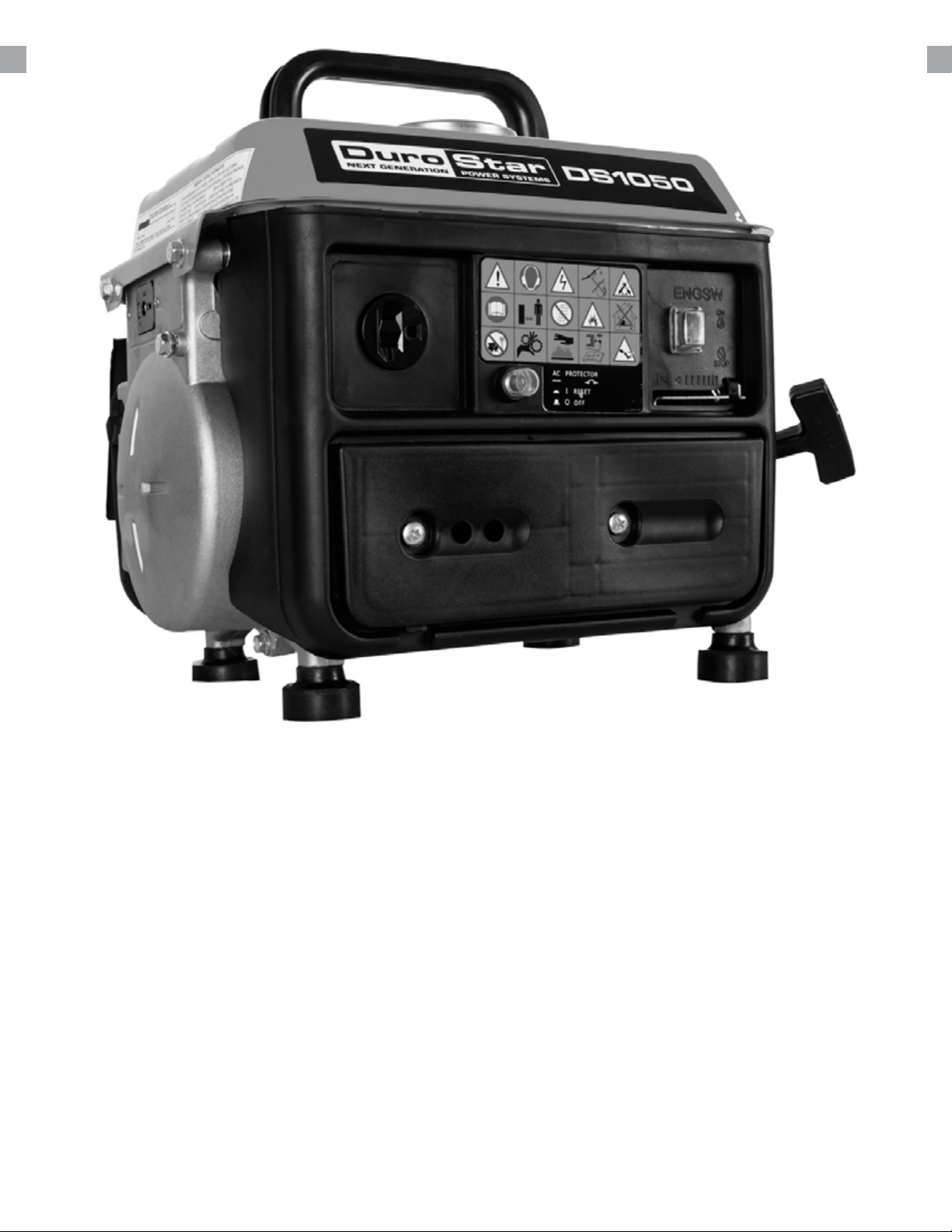

GENERATOR SETUP
Proper setup of your generator will get you going as soon as possible while making sure you and
your equipment are safe and cared for.

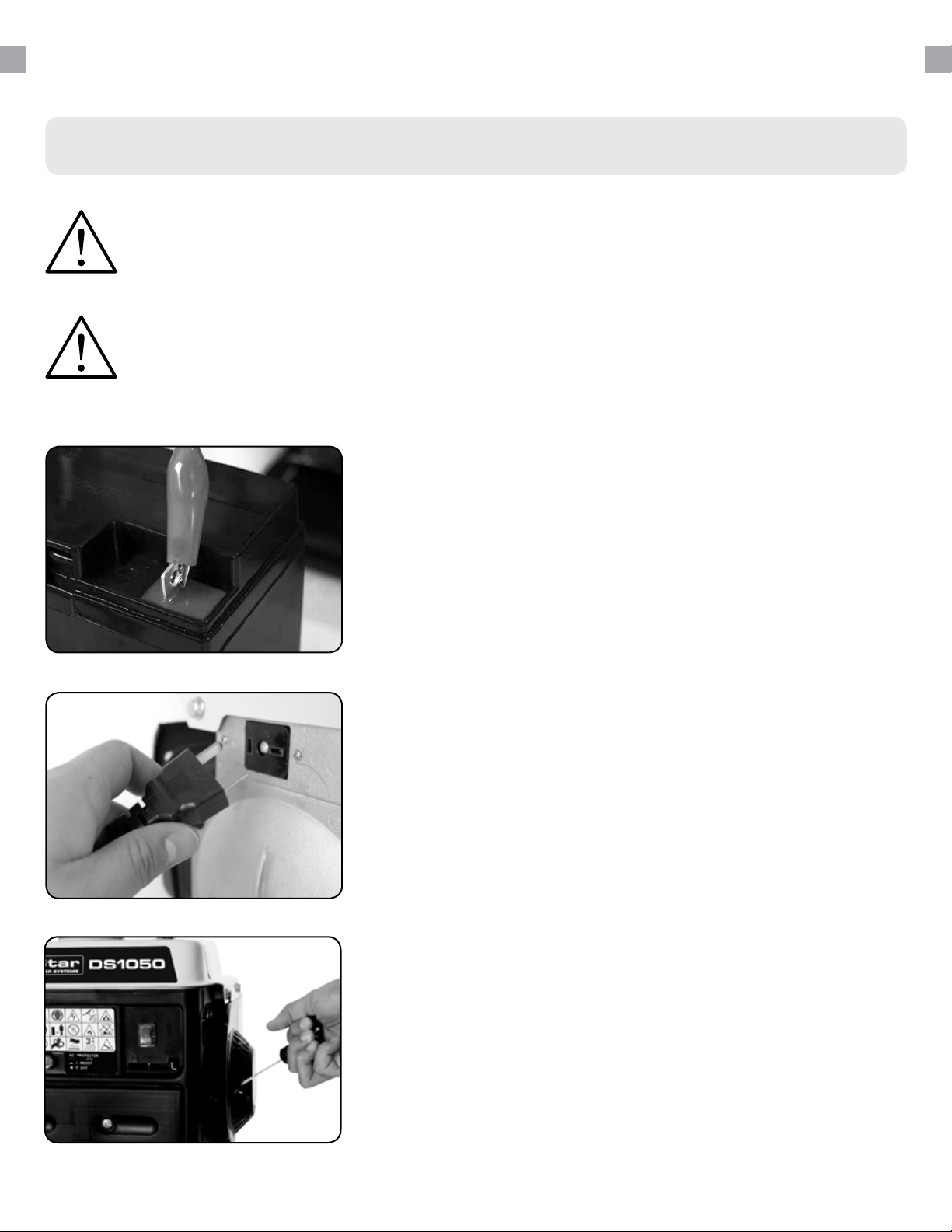

WARNING: Gasoline and gas fumes are highly ammable.
● Do not ll tank near an open ame.
● Do not overll. Always check for fuel spills.
16

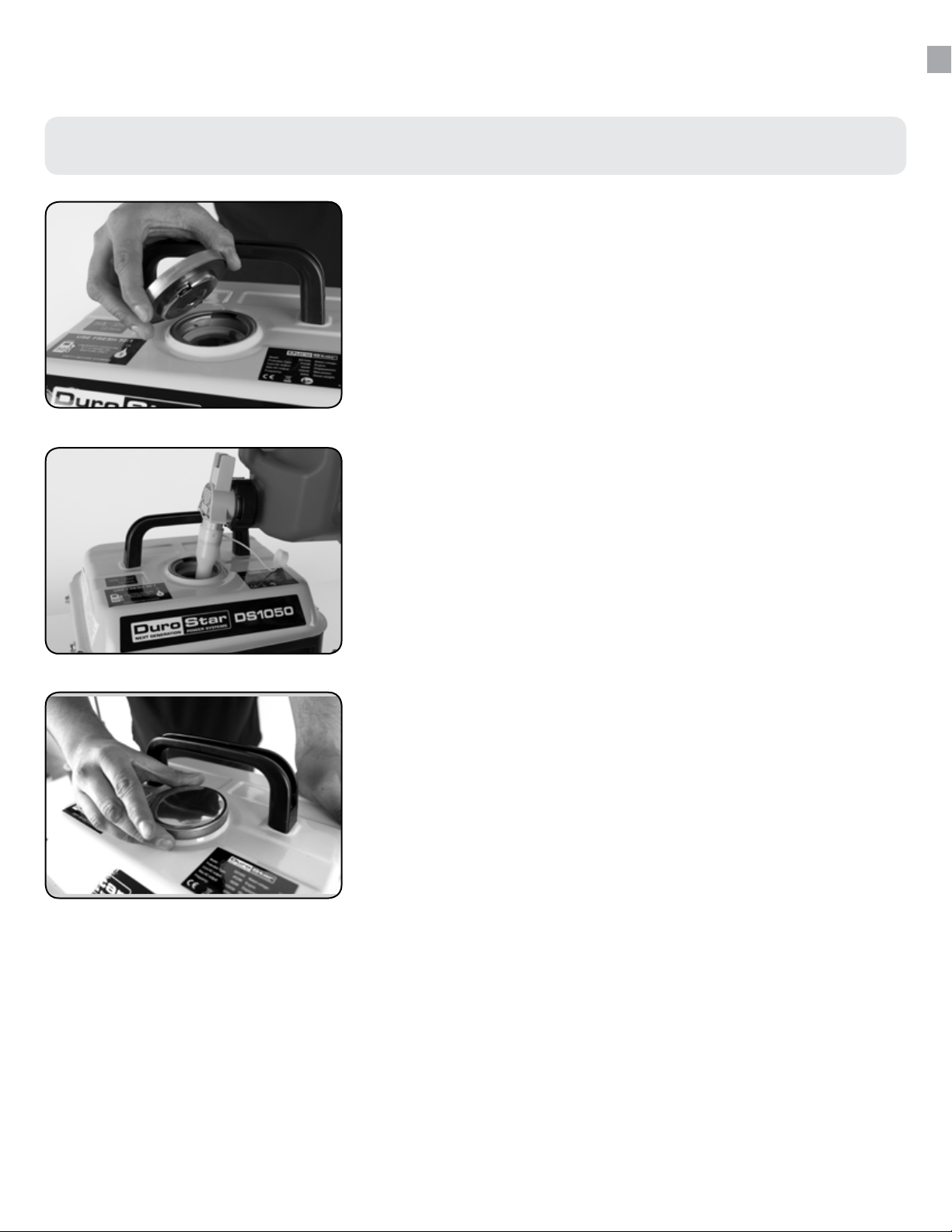

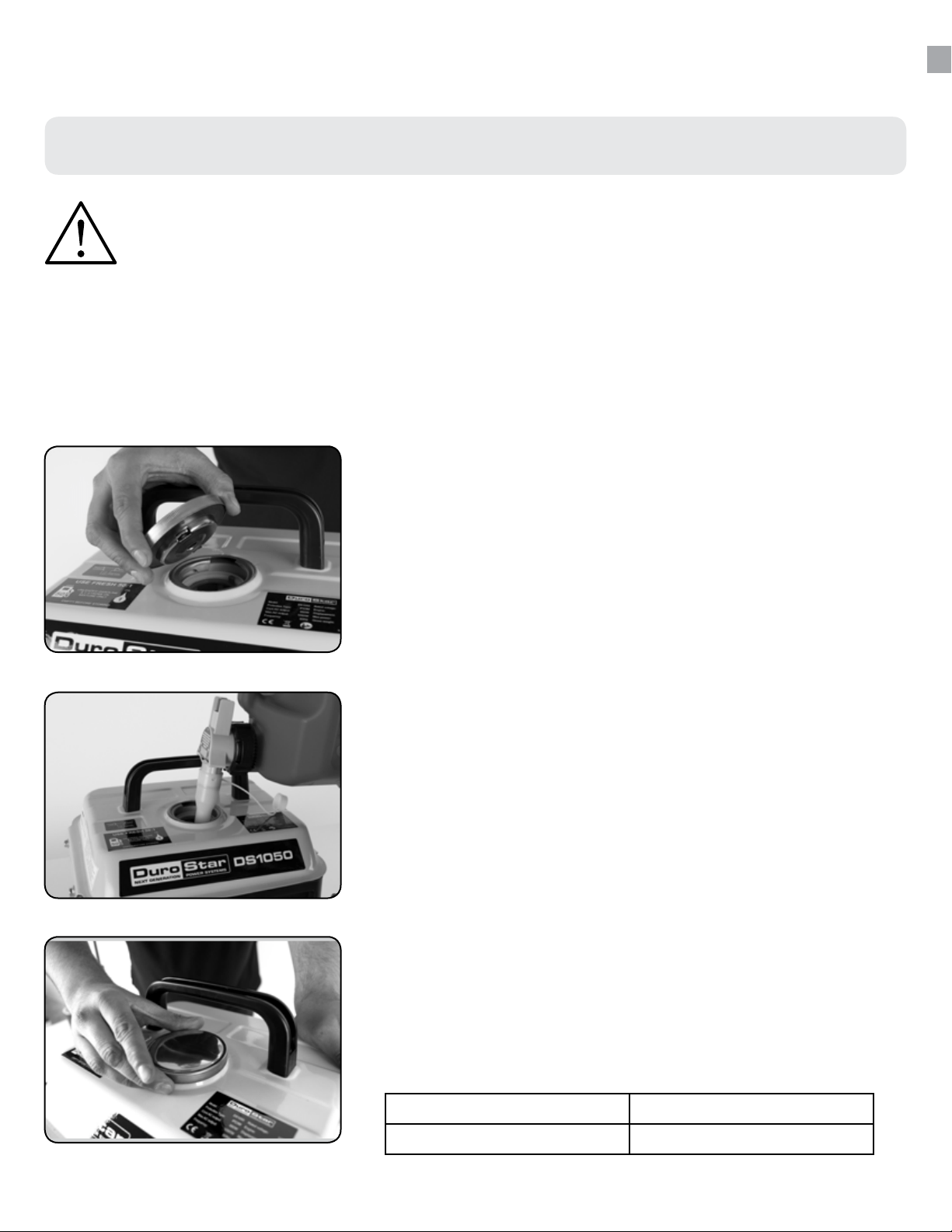

Step 1 - Adding Gasoline
Add Gasoline Mix
a. Make sure the generator is on a level surface.
b. Unscrew gas cap and set aside (NOTE: the gas cap
may be tight and hard to unscrew).
c. Slowly add unleaded gasoline to the fuel tank. Be
careful not to overll. Please refer to the chart below
to nd the gas capacity of your generator model
d. Replace fuel cap and wipe up any spilled gasoline
with a dry cloth.
NOTE: Gas can expand. Do not ll the gas tank
to the very top. Leave a minimum of 1.5 in of open
space.
IMPORTANT:
● Always use a 50:1 oil/gasoline mixture.
● Never use old gas.
● Avoid getting dirt or water in the fuel tank.
● Gas can age in the tank and make it hard to start up
the generator in the future.
● Never store generator for extended periods of time
with fuel in the tank.
2.
To ensure that the generator runs smoothly use only FRESH, UNLEADED GAS WITH AN OCTANE
RATING OF 87 OR HIGHER mixed 50:1 with 2-Stroke Oil.
Model Number DS1050
Gas Tank Capacity 1.05 US Gallons (4L)
GENERATOR SETUP

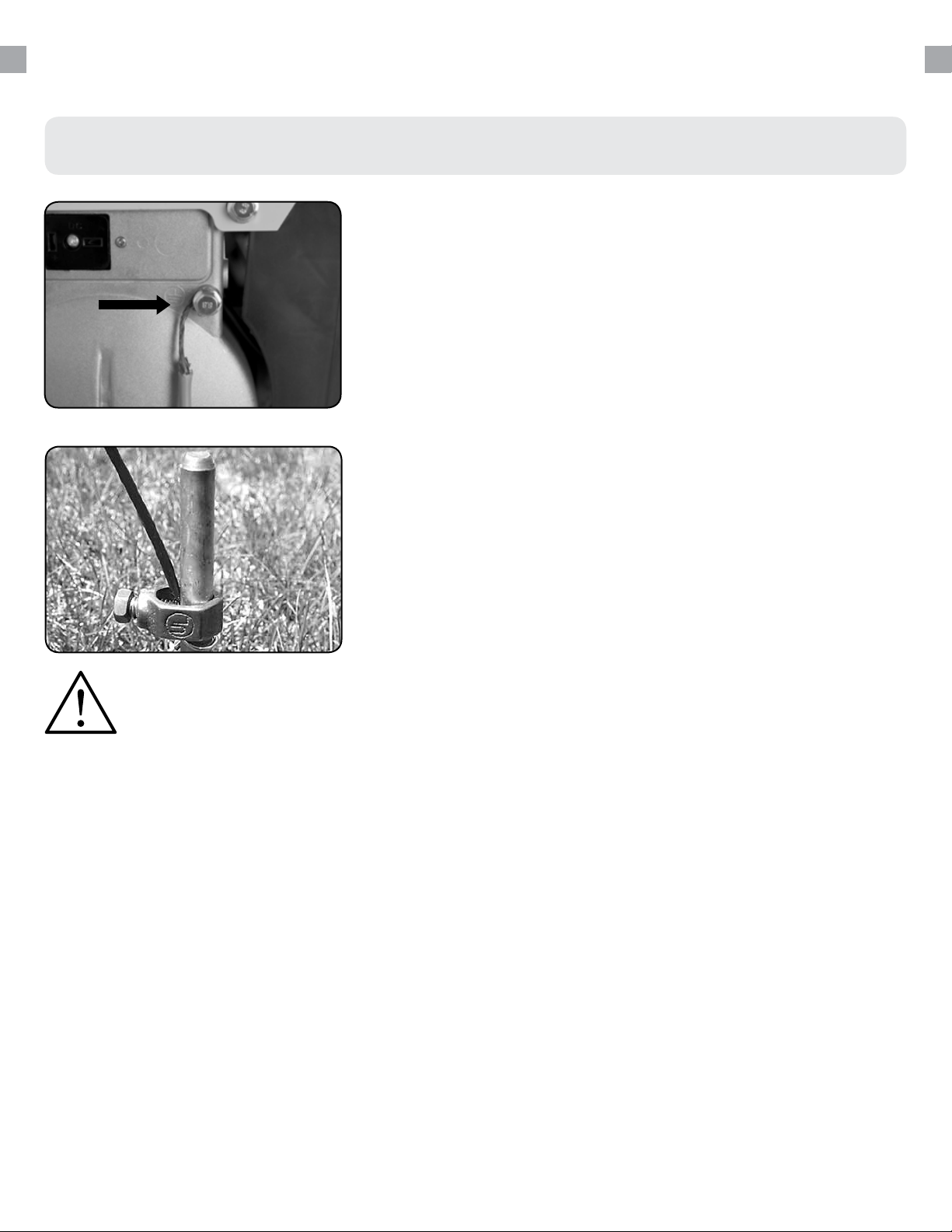

Attach grounding wire
a. Ground the generator by tightening the grounding
nut against a grounding wire.
b. Connect the other end to a copper or brass
grounding rod that’s driven into the earth.
A generally acceptable grounding wire is a No. 12 AWG
(American Wire Gauge) stranded copper wire.
Grounding codes can vary by location. Please contact a local
electrician to check the grounding regulations for your area.
1.
Step 2 - Grounding the Generator
WARNING: Failure to properly ground the generator can result in electrocution.
17
High Altitude Operation
At high altitude, the standard carburetor air/fuel mixture will be too rich. Performance will decrease, and
fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting.
Operation at an altitude that diers from that at which this engine was certied, for extended periods of
time, may increase emissions. High altitude performance can be improved by specic modications to the
carburetor. If you always operate your generator at altitudes above 5,000 feet (1,500 meters), have a dealer
perform this carburetor modication. This engine, when operated at high altitude with the carburetor
modications for high altitude use, will meet each emission standard throughout its useful life. Even with
carburetor modication, engine horsepower will decrease about 3.5% for each 1,000-foot (300-meter)
increase in altitude. The eect of altitude on horsepower will be greater than this if no carburetor
modication is made.
When the carburetor has been modied for high altitude operation, the air/fuel mixture will be too lean
for low altitude use. Operation at altitudes below 5,000 feet (1,500 meters) with a modied carburetor may
cause the engine to overheat and result in serious engine damage.
19
STARTING THE GENERATOR
If this is not your rst time using the generator there are still steps you should take to prepare it for
operation each time you use it.
IMPORTANT: At this point you should be familiar with the procedures described in the rst
portion of this section entitled “GENERATOR SETUP” If you have not yet read this section, go
back and read it now.
Check Gasoline Mix
a. Make sure the generator is on a level surface.
b. Unscrew gas cap and set aside (NOTE: the gas cap
may be tight and hard to unscrew).
c. Slowly add unleaded gasoline to the fuel tank. Be
careful not to overll.
d. Replace fuel cap and wipe up any spilled gasoline
with a dry cloth.
NOTE: Gas can expand. Do not ll the gas tank
to the very top. Leave a minimum of 1.5 in of open
space.
IMPORTANT:
● Always use a 50:1 oil/gasoline mixture.
● Never use old gas.
● Avoid getting dirt or water in the fuel tank.
● Gas can age in the tank and make it hard to start up
the generator in the future.
● Never store generator for extended periods of time
with fuel in the tank.
1.
Step 1 - Check the gas level
STARTING THE GENERATOR
20
Starting the Generator Using Gasoline
21
Turn gas valve on
Close choke
Flip engine switch to ON
The gas valve is located above the recoil start on the bottom
of the fuel tank. Rotate the valve clockwise to the vertical
position to turn on the gas supply.
The choke lever is located above the air lter to the right
of the recoil start. Slide the lever to the left to cut the air
supply and allow more gas into the engine to start.
The engine switch is located on the left side of the front
power panel. Flip the switch to on.
1.
2.
3.
Pull recoil start
Pull the recoil start handle quickly the complete length of the
rope and then let it retract slowly. The unit will generally start
within 3 pulls. CAUTION: DO NOT let go of the handle while
the rope is extended this may cause damage to yourself or your
machine.
4.
Step 2 - Starting the Generator
CAUTION: Disconnect all electrical loads from the generator before attempting to
start!
22
Open choke
Push the choke to the OPEN position as the engine warms up.
5.
Starting the Generator Using Gasoline
STARTING THE GENERATOR (CONTINUED)

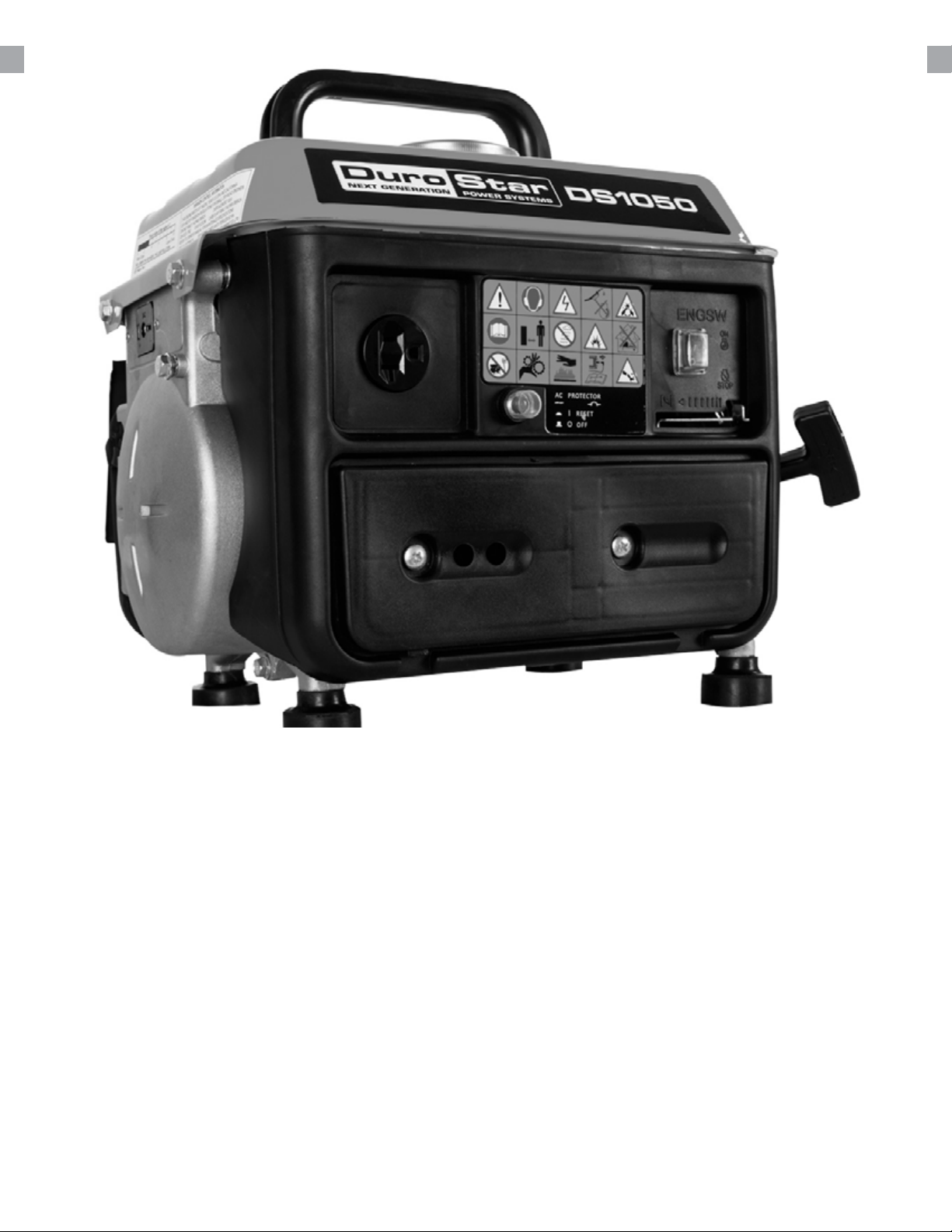

USING THE GENERATOR
If this is not your rst time using the generator there are still steps you should take to prepare it for
operation each time you use it.
IMPORTANT: At this point you should be familiar with the procedures described in the rst
portion of this section entitled “GENERATOR SETUP” If you have not yet read this section, go
back and read it now.
USING THE GENERATOR
AC Usage
● You may connect electrical devices running on AC current according to their wattage
requirements.
● The chart below shows the rated and surge wattage of your generator according to its model
number.
● The rated wattage corresponds to the maximum wattage the generator can output on a
continuous basis.
● The surge wattage corresponds to the maximum amount of power the generator can output for
a short period of time. Many electrical devices such as refrigerators require short bursts of extra
power, in addition the rated wattage listed by the device, to stop and start their motors. The
surge wattage ability of the generator covers this extra power requirement.
The total running wattage requirement of the electrical devices connected to the generator should
not exceed the rated wattage of the generator itself. To calculate the total wattage requirement of
the electrical devices you wish to connect, nd the rated (or running) wattage of each device. This
number should be listed somewhere on the device or in its instruction manual.
If you cannot nd this wattage, you may calculate it by multiplying the Voltage requirement by the
Amperage drawn: Watts = Volts x Amps. If these specications are not available you may estimate
the Watts required by your device by using the chart on the next page.
Once you have found the rated wattage requirement of each electrical device, add these numbers
to nd the total rated wattage you wish to draw from the generator. If this number exceeds
the rated wattage of the generator, DO NOT connect all these devices. Select a combination of
electrical devices, which has a total rated wattage lower than or equal to the rated wattage of the
generator.
Fuel Source Rated (Running Wattage) Surge (Peak) Wattage
Gasoline 950 1050
24
25
Tool or Appliance Rated (Running) Watts Additional Surge Watts
Electric water heater (40 gal) 1050 0
Hot plate 2500 0
Radial arm saw 2000 2000
Electric Stove 1500 0
Circular Saw 1500 1500
Air compressor (1 HP) 1500 3000
Window air conditioner 1200 1800
Miter saw 1200 1800
Microwave 1000 2000
Well water pump 1000 1500
Reciprocating saw 960 1040
Sump pump 800 1200
Refrigerator freezer 800 1200
Furnace blower 800 1300
Computer 800 0
Electric drill 600 900
Television 500 0
Deep freezer 500 800
Garage door opener 480 600
Stereo 400 0
Box fan 300 600
Clock radio 300 0
Security system 180 0
DVD Player 100 0
Common light bulb 75 0
CAUTION - The generator can only run at its surge wattage capacity for a very short time.
Connect only electrical devices requiring a rated (running) wattage equal to or less than
the rated wattage of the generator. Never connect devices requiring a rated wattage
equal to the surge wattage of the generator.
NOTE: The above wattage gures are estimates only.
Try to check the wattage listed on your electrical devices before consulting this chart.
USING THE GENERATOR (CONTINUED)

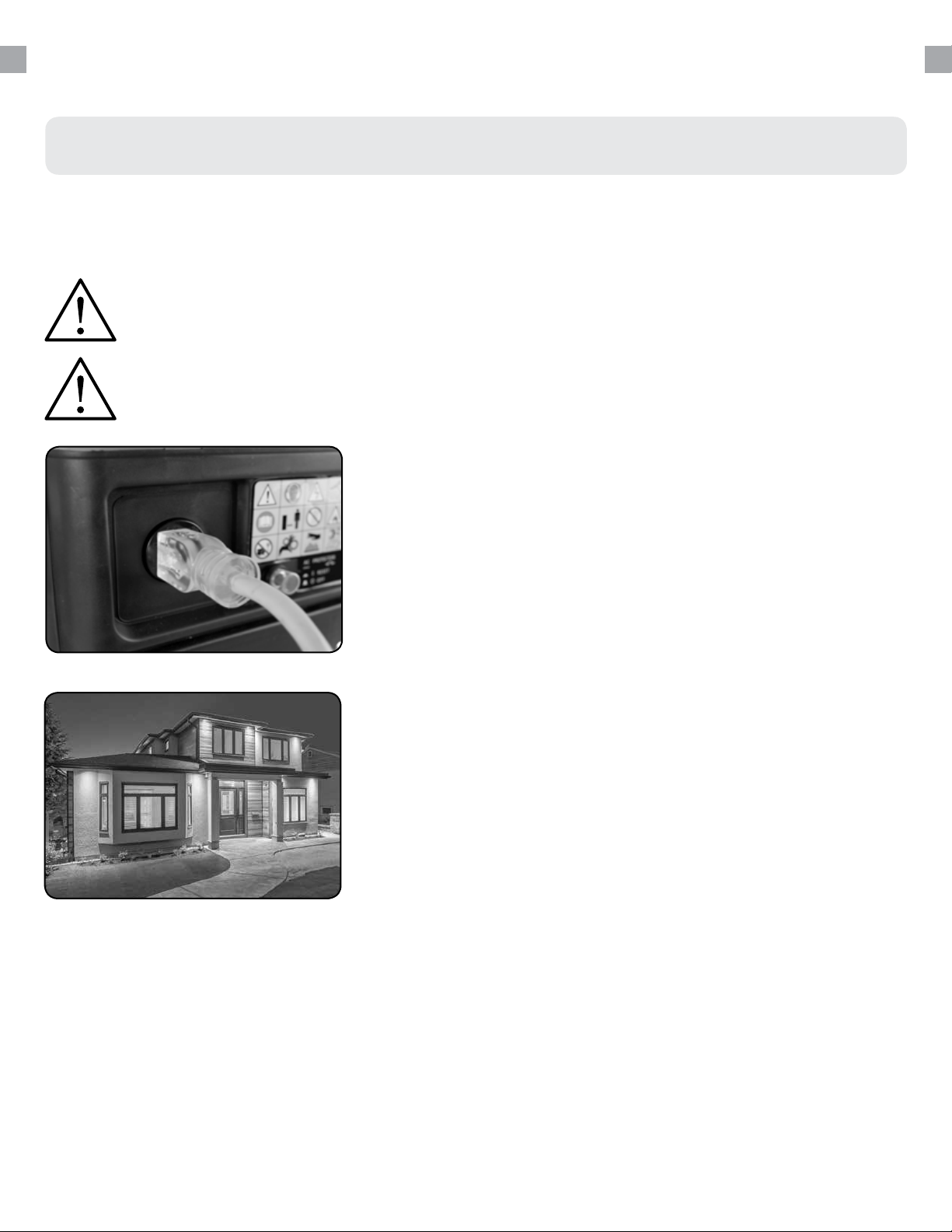

Connecting a load to the generator

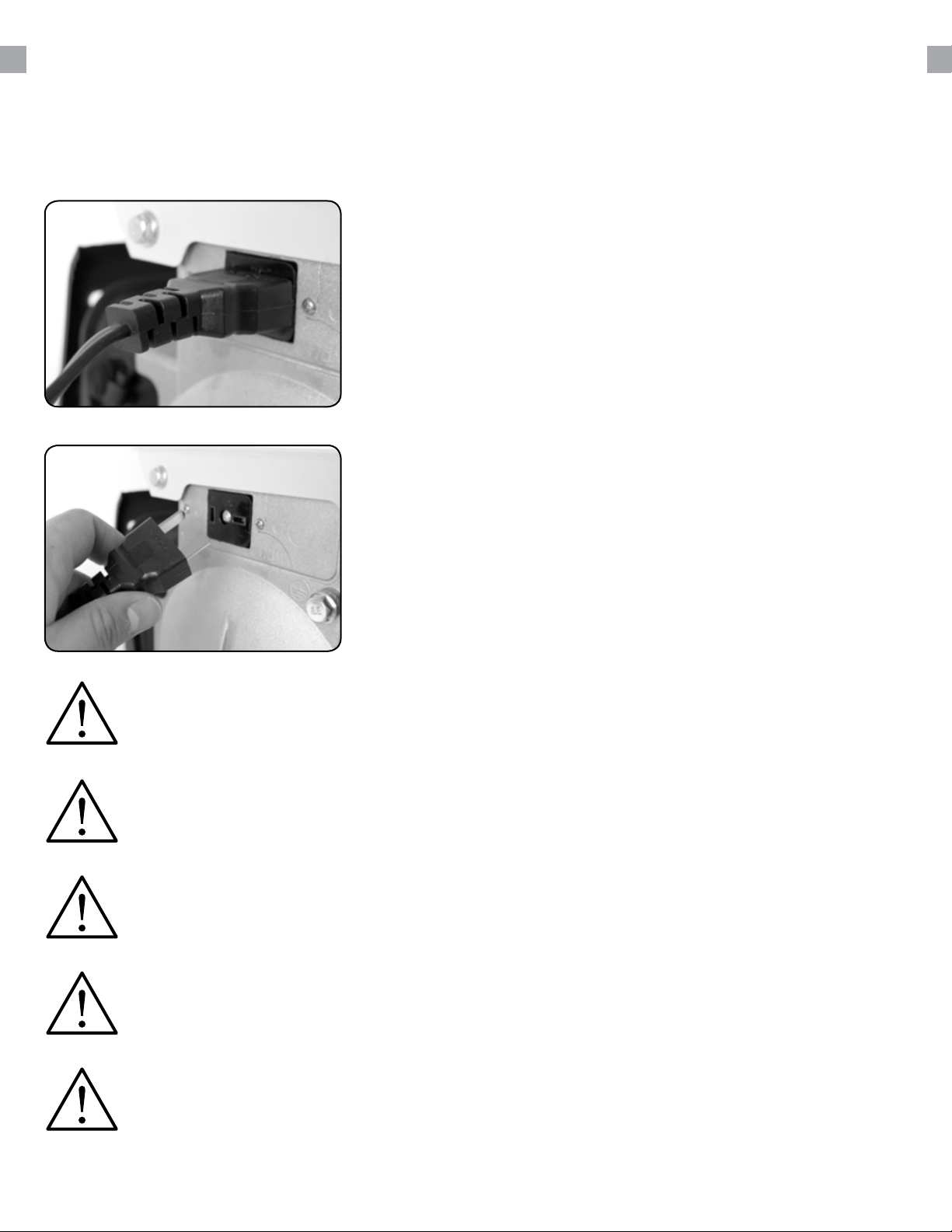

NOTE: Be sure to attach devices to the correct receptacle (outlet).
● 110v devices can be directly connected to the 110v ONLY receptacles.
Plug in devices
Plug in devices to the appropriate receptacle.
1.
CAUTION: Do not connect 50Hz or 3-phase loads to the generator.
CAUTION: Do not connect 240V loads to the generator.
26
Turn on connected devices
Start or turn on appliances starting with the biggest loads
rst.
2.
27
Choosing the right power cord
Long or thin cords can drain the power provided to an electrical device by the generator. When
using such cords, allow for a slightly higher rated wattage requirement for the electrical device. See
table below for recommended cords based on the power requirement of the electrical device.
DEVICE REQUIREMENTS WIRE GAUGE BY LENGTH (ft.)
AMPS WATTS (120/240V) 10 25 50 100 150
5 600/1200 18 16 14 12 10
10 1200/2400 16 14 12 10 8
15 1800/3600 14 12 10 8 6
20 2400/4800 12 10 8 6 4
25 3000/6000 10 8 6 4 4
30 3600/7200 8 6 4 4 NR
40 4800/9600 6 4 4 NR NR
50 6000/1200 4 4 2 NR NR
*NR = NOT RECOMMENDED
CAUTION: The DC receptacle is for recharging 12 Volt automotive-type batteries
only. Do not connect any other device to this receptacle.
CAUTION: Never try to jump start a car with your generator.
USING THE GENERATOR (CONTINUED)
DC Usage
Connect the battery
Plug in the charging wire
Start Generator
Connect one charging wire to the positive terminal on the
battery and the other charging wire to the negative terminal
on the battery.
Plug in the DC charging wire to the outlet on the generator.
Turn the engine switch on and pull the recoil rope to start
the genertor.
1.
2.
3.
28
DANGER - Stored batteries emit highly explosive hydrogen gas when charged.
Batteries also contain acid, which can cause severe chemical burns.
DANGER - Do not allow open ames or cigarettes nearby for several minutes after
charging a battery.
DANGER - Always wear protective goggles and rubber gloves when charging a
battery.
DANGER - If battery acid gets on your skin, ush with water. If battery acid gets in
your eyes, ush with water and call a physician immediately.
DANGER - If battery acid is swallowed, drink large quantities of milk and call a
Physician immediately.
29
Charge the battery
Allow the generator to run and charge the battery. Charge time
may vary based on battery size and age.
4.
Disconnecting
When disconnecting, always disconnect the wires from the
generator rst to avoid a spark.
5.
30

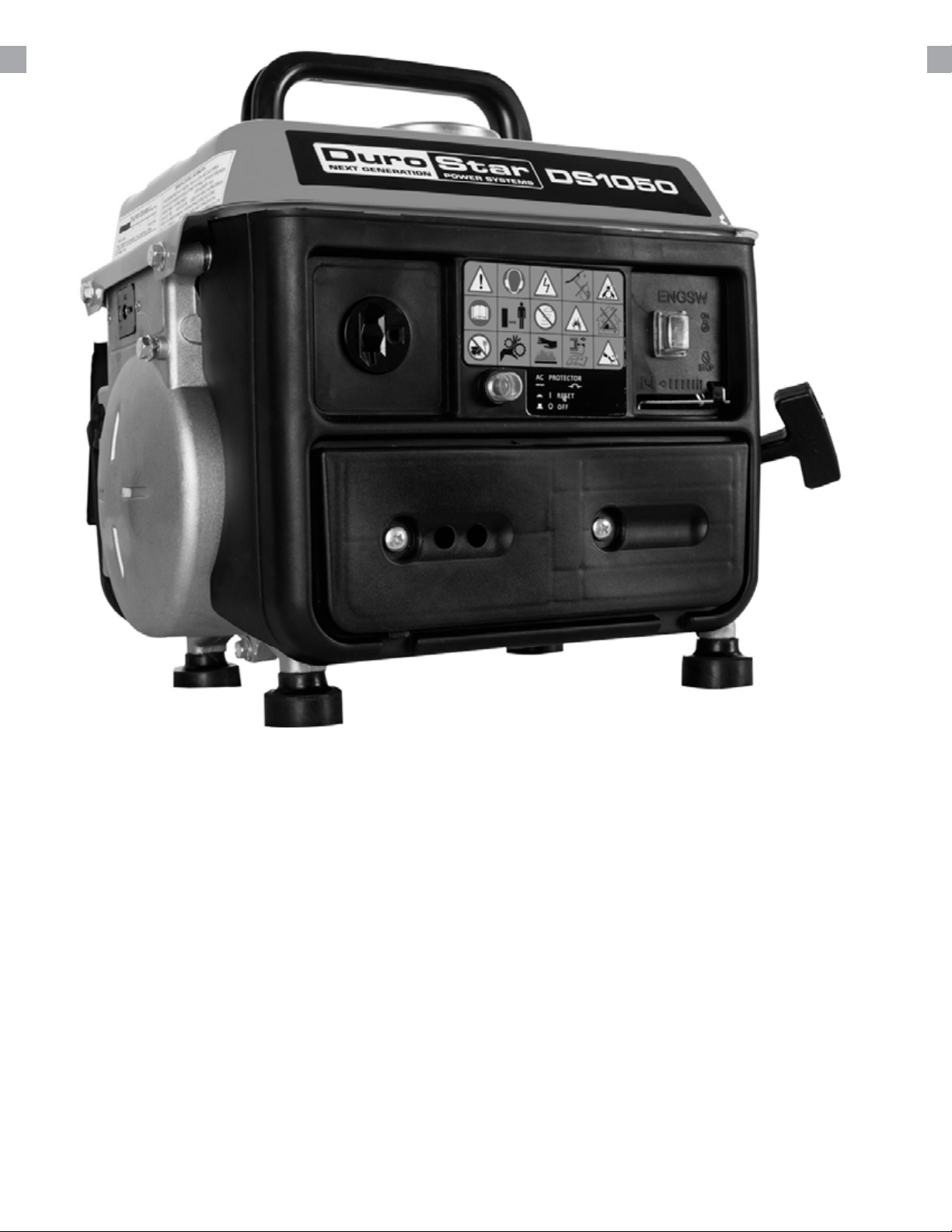

MAINTENANCE AND CARE
Proper maintenance and storage of your generator is essential to ensure trouble free use of your
generator when you need it.
By following the maintenance and care requirements, you can keep your generator running
smooth and ecient for years to come.
31
MAINTENANCE AND CARE
Proper routine maintenance of your generator is essential for safe, economical, and trouble-free
operation. It will also help reduce air pollution.
Maintenance Schedule
Remember that this schedule is based on the assumption that your machine will be used for its
designed purpose. Sustained high-load, high temperature operation, or use in unusually wet or
dusty conditions, will require more frequent service.
WARNING: Improper maintenance, or failure to correct a problem before operation, can
cause a malfunction in which you can be seriously injured or killed. Always follow the
inspection and maintenance recommendations and schedules in this instruction manual.
● Make sure the engine is o before you begin any maintenance or repairs.
● Let the engine and exhaust system cool before touching.
● To reduce the possibility of re or explosion, be careful when working around
gasoline. Use only a nonammable solvent, not gasoline, to clean parts. Keep
cigarettes, sparks, and ames away from all fuel related parts.
SERVICE
REGULAR SERVICE PERIOD
BEFORE
EACH USE
EVERY MO. OR
20 HRS
EVERY 3 MO. OR
50 HRS
EVERY 6 MO. OR
100 HRS
EVERY 12 MO.
OR 300 HRS
AIR CLEANER CHECK
CHANGE
SEDIMENT CUP CLEAN
SPARK PLUG CLEAN-
ADJUST
REPLACE
SPARK ARRESTOR CLEAN
IDLE SPEED CHECK /
ADJUST
COMBUSTION
CHAMBER
CLEAN
500 HOURS
FUEL TANK / FILTER CLEAN
FUEL TUBE CHECK EVERY 24 MO. (REPLACE IF NECESSARY)
TO BE PERFORMED AT EVERY MONTH INDICATED OR HOUR INTERVAL WHICH EVER COMES FIRST
32
MAINTENANCE LOG
Date Generator Hours Maintenance Performed
33
Routine maintenance of the air cleaner helps maintain proper airow to the carburetor. Check
that the air cleaner is free of excessive dirt after every use.
Note: Improper maintenance may cause less air to enter the engine or dirty air to enter the
engine causing overheating and engine wear.
MAINTENANCE AND CARE (CONTINUED)
Cleaning the air cleaner
Open cleaner cover
Remove cleaner element
Wipe out cleaner casing
Unhinge the clasps at the top and bottom of the air cleaner
cover.
Remove the sponge-like elements from the casing.
Wipe the dirt from inside the empty air cleaner casing.
1.
2.
3.
34
Replace elements in casing
Replace the sponge-like elements in the air cleaner casing and
replace the cover.
7.
35

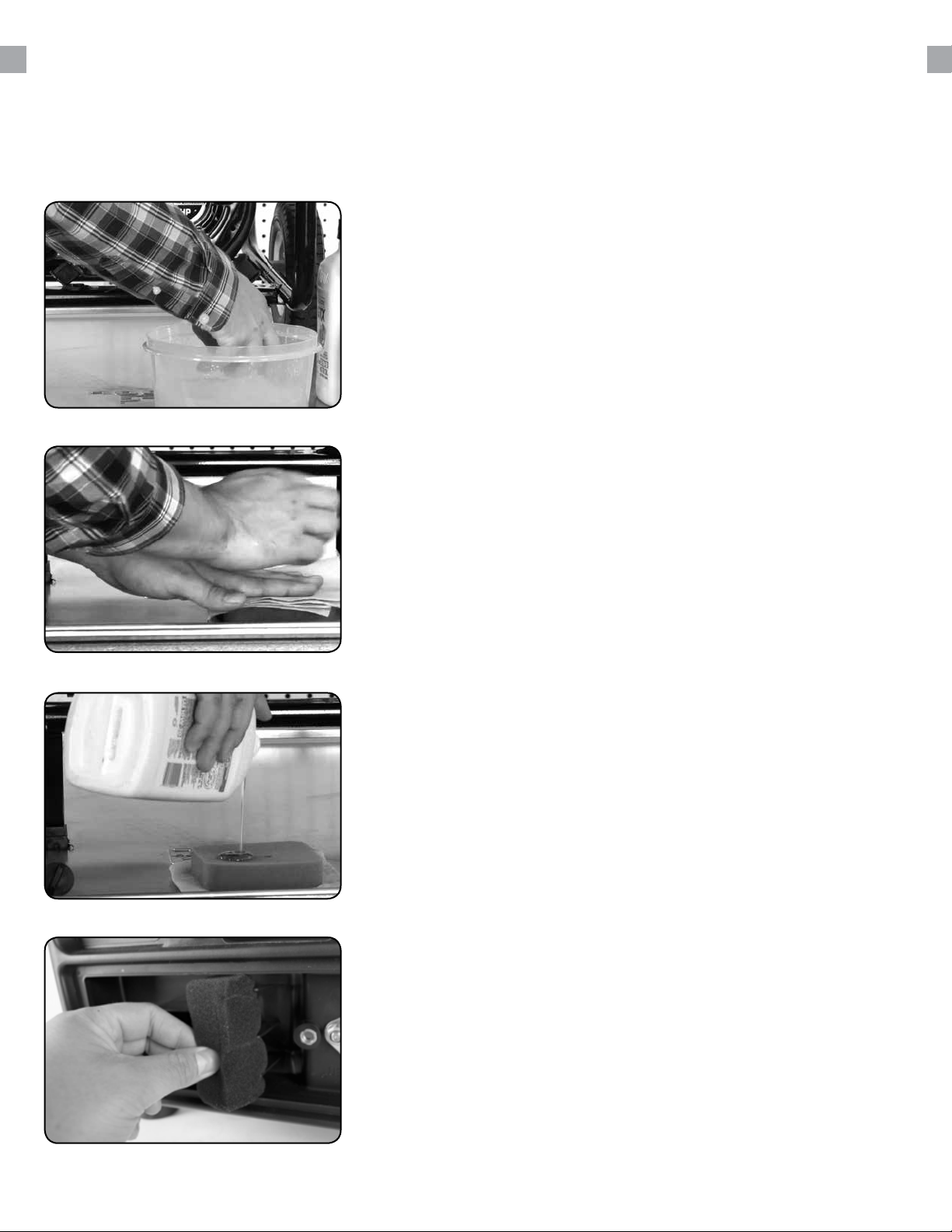

Wash cleaner element
Wash the sponge-like elements in household dish detergent
and warm water.
4.
Dry cleaner element
Allow the elements to dry completely.
5.
6.
Add engine oil to elements
Soak the dry elements in a small amount of engine oil. Ring
out any excess oil.

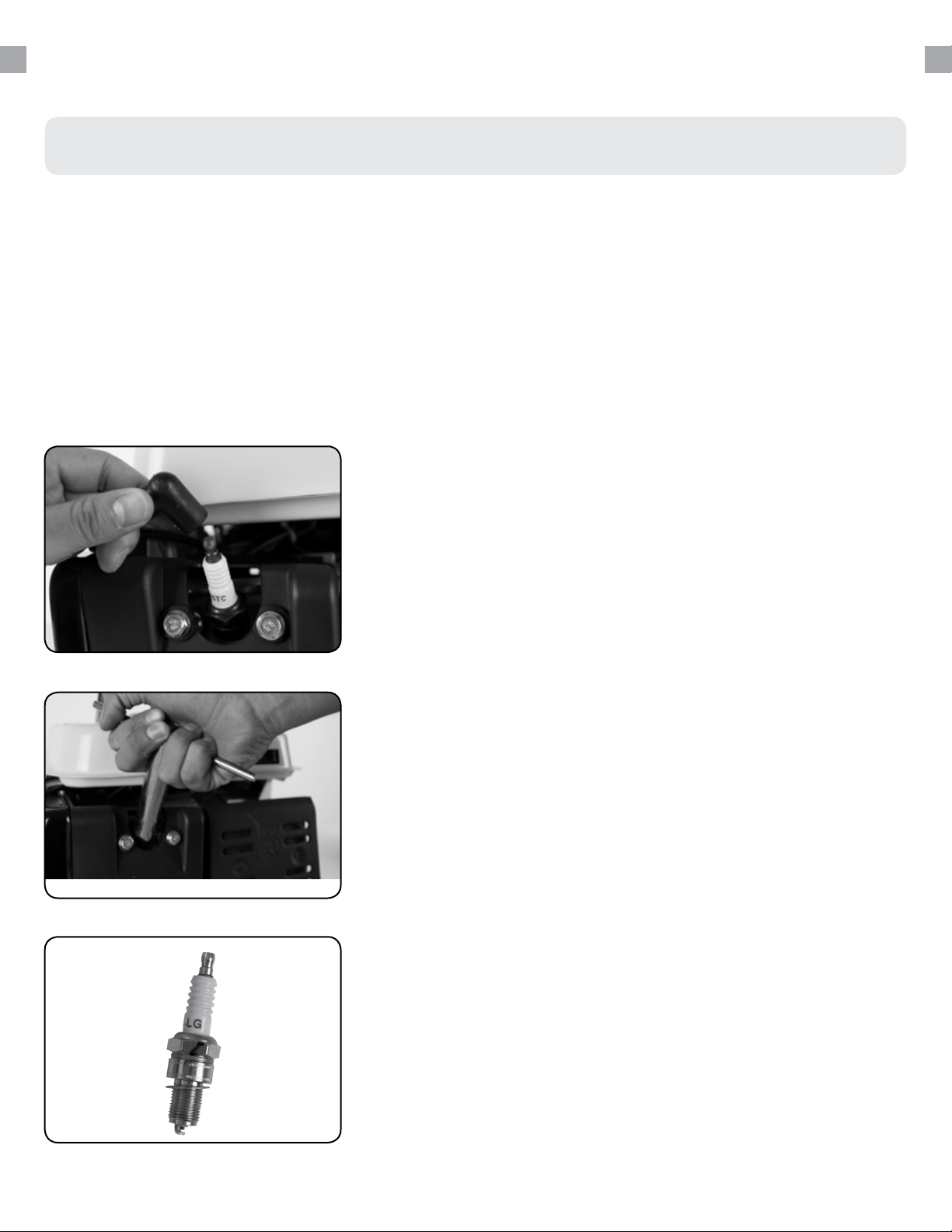

The spark plug is important for proper engine operation. A good spark plug should be intact,
free of deposits, and properly gapped.
Improper maintenance may cause reduced fuel economy, misres, trouble starting, or damage
to the spark plug threads.
Spark Plug Maintenance
Remove spark plug cap
Remove spark plug
Inspect spark plug
Pull on the spark plug cap to remove it.
Unscrew the spark plug from the generator using the spark
plug wrench included with this product.
Visually inspect the spark plug. If it is cracked or chipped,
discard and replace with a new spark plug. We recommend
using a F5TC spark plug such as NGK BPR5ES.
1.
2.
3.
MAINTENANCE AND CARE (CONTINUED)
36
Measure plug gap
Measure the plug gap with a gauge. The gap should be 0.7-0.8
mm (0.028-0.031 in).
4.
Clean and re-gap
Replace spark plug
Replace spark plug cap
If you are re-using the spark plug, use a wire brush to clean
any dirt from around the spark plug base and then re-gap the
spark plug.
Screw the spark plug back into its place on the generator
using the spark plug wrench.
Replace the spark plug cap.
5.
6.
7.
37
CAUTION: Never place any type of storage cover on the generator while it is still
hot.
When transporting your generator:
● Empty the gas tank (see “Emptying the Gas Tank” in the “Maintenance” section).
● Disconnect the spark plug.
● Do not obstruct any ventilation openings & keep the generator in a cool dry area.
Storage and Transportation
Storage Period Storage Preparation
If you plan on starting
the same day.
1. Turn o the main breaker.
2. Allow the unit to run 3 - 5 minutes.
3. Turn o the key.
4. Store.
If you plan on starting
the unit again within
30 days.
1. Turn o the main breaker.
2. Allow the unit to run 3 - 5 minutes.
3. Turn o the fuel valve.
4. Allow the unit to stall out.
5. Turn o the key.
6. Add fuel stabilizer to the gas remaining in the tank.
7. Store.
If you do not plan to
start the unit for
longer than 30 days.
1. Turn o the main breaker.
2. Allow the unit to run 3 - 5 minutes.
3. Turn o the fuel valve.
4. Allow the unit to stall out.
5. Turn o the key.
6. Drain the fuel tank (See “Emptying the Gas Tank” in the “Maintenance” section)
7. Drain the carburetor
a. Remove the drain bolt from the carburetor.
b. Drain the small amount of remaining fuel from the carburetor bowl.
8. Oil the cylinder
a. Remove the spark plug.
b. Put 2 tbsp. of 10w30 motor oil directly into the spark plug hole
c. Pull the recoil start one time.
d. Replace the plug.
9. Remove the battery and place on tender indoors.
MAINTENANCE AND CARE (CONTINUED)
38
SPECIFICATIONS
AC Rated Wattage (Gasoline) 950W
AC Surge Wattage (Gasoline) 1050W
AC Rated Voltage 110V
AC Rated Frequency 60 Hz
AC Phase Single
DC Voltage 12V
DC Amperage 5.3A
Dimensions LENGTH 14in.
WIDTH 12in.
HEIGHT 13.5in.
Engine Type 2-Stroke Forced-Air
Ignition System Non-Contact Transistor
Displacement 63cc
Starting Type Recoil
Fuel Tank Capacity 1.05 US Gal. (4L)
Run Time @ 50% (Gasoline) 6 hr.
Fuel:Oil Mix 50:1
Noise Level <95db
39
TROUBLESHOOTING
This section of the manual is to help you troubleshoot problems with your generator.
TROUBLESHOOTING
Mode Description
Engine will not start
Engine Switch is “O” Set engine switch to “run”
Fuel Valve is “Closed” Turn fuel valve to “open”
Choke is open Close the choke
Engine is out of fuel Add fuel
Fuel is old or contaminated Change fuel
Spark Plug is dirty Clean spark plug
Spark Plug is broken Replace spark plug
Generator is not level
Move generator to a level
surface
Engine runs, but there
is no electrical output
Circuit Breaker is “O” Turn “on” circuit breaker
Wiring connection is bad Replace extension cord(s)
Device connected to generator
is malfunctioning
Disconnect malfunctioning
device
Generator runs, but
does not support all
electrical devices
connected
Generator is overloaded
Disconnect 1 or more items to
reduce the load
Device connected to generator
is bad
Disconnect malfunctioning
device
Air cleaner is dirty Clean / replace the air lter
42
WIRING DIAGRAM
43
44
WARRANTY
3-year Warranty
All DuroMax/DuroStar Power Equipment warrant the original purchasers to a 3-year Parts Warranty
(Residential Use ONLY: Unusually heavy or commercial use is covered for a period of 1-year) in
the event of failure due to defects in electrical or mechanical components. Freight on any items
submitted for replacement or repair under the Warranty are the responsibility of the equipment
owner. This warranty is non-transferable and only valid to the original purchaser.
Warranty Exclusions
The DuroMax/DuroStar Power Equipment warranty does not cover repairs or returns when
the fault is: Normal Wear and Tear, Installation Use or Maintenance Services, Cosmetic defects,
Accessories, Failures due to acts of God or Natural Disasters, or problems related to/from
aftermarket or non-OEM parts.
Warranty Limitations
DuroMax/DuroStar Power Equipment does not claim or hold any obligation to loss of time, freight
charges, use of product, or any incidental damages from the use of this product. THIS WARRANTY
IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED.
U.S. EPA AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The U.S. Environmental Protection Agency (EPA), California Air Resources Board, and Imperial
Industrial Supply Co. LTD. / DuroMax Power Equipment are pleased to explain the emissions
control system’s warranty on your 2018 small o-road engine. In California, new equipment that
use small o-road engines must be designed, built, and equipped to meet the State’s stringent anti-
smog standards. DuroMax Power Equipment must warrant the emissions control system on your
small o-road engine for the period listed below provided there has been no abuse, neglect, or
improper maintenance of your equipment.
Your emissions control system may include parts such as: carburetors or the fuel injection system,
ignition system, catalytic converters, fuel tanks, valves, lters, clamps, connectors, and other
associated components. Also, included may be hoses, belts, connectors, sensors, and other
emission-related assemblies.
Where a warrantable condition exists, DuroMax Power Equipment will repair your small o-road
engine at no cost to you including diagnosis, parts, and labor.
MANUFACTURER’S WARRANTY COVERAGE:
This emissions control system is warranted for two years. If any emissions-related part on your
equipment is defective, the part will be repaired or replaced by DuroMax Power Equipment.
45
OWNER’S WARRANTY RESPONSIBILITIES:
● As the small o-road engine owner, you are responsible for performance of the required
maintenance listed in your owner’s manual. DuroMax Power Equipment recommends that you
retain all receipts covering maintenance on your small o-road engine, but DuroMax Power
Equipment cannot deny warranty solely for the lack of receipts or your failure to ensure the
performance of all scheduled maintenance.
● As the small o-road engine owner, you should however be aware that the DuroMax Power
Equipment may deny you warranty coverage if your small o-road engine or a part has failed
due to abuse, neglect, or improper maintenance or unapproved modications.
● You are responsible for presenting your small o-road engine to a DuroMax Power Equipment
distribution center or service center as soon as the problem exists. The warranty repairs should
be completed in a reasonable amount of time, not to exceed 30 days.
● If you have any questions regarding your warranty coverage, contact us at 844-DUROMAX or
email [email protected].
DEFECTS WARRANTY REQUIREMENTS:
The warranty period begins on the date the engine or equipment is delivered to an ultimate
purchaser and extends for a period of Two Years.
GENERAL EMISSIONS WARRANTY COVERAGE:
DuroMax Power Equipment warrants to the ultimate purchaser and each subsequent owner that
the engine or equipment is:
1. Designed, built, and equipped to conform with all applicable regulations adopted by the Air
Resources Board; and
2. Free from defects in materials and workmanship that causes the failure of a warranted part for
a period of two years.
The warranty on emissions-related parts will be interpreted as follows:
1. Any warranted part that is not scheduled for replacement as required maintenance in the
Owner’s Manual must be warranted for the warranty period stated above. If any such part fails
during the period of warranty coverage, it must be repaired or replaced by the manufacturer
according to Subsection (4) below. Any such part repaired or replaced under the warranty must
be warranted for the remaining warranty period.
1. Any warranted part that is scheduled only for regular inspection in the Owner’s Manual must be
warranted for the warranty period stated above. A statement in such written instructions to the
eect of “repair or replace as necessary” will not reduce the period of warranty coverage. Any
such part repaired or replaced under warranty must be warranted for the remaining warranty
period.
2. Any warranted part that is scheduled for replacement as required maintenance in the Owner’s
Manual must be warranted for the period prior to the rst scheduled replacement point for
that part. If the part fails prior to the rst scheduled replacement, the part must be repaired or
replaced by the engine manufacturer according to Subsection (4) below. Any such part repaired
or replaced under warranty must be warranted for the remainder of the period prior to the rst
scheduled replacement point for the part.
3. Repair or replacement of any warranted part under the warranty must be performed at no
charge to the owner at a warranty station.
4. Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be
provided at all manufacturer distribution centers that are franchised to service the subject
engines.
5. The owner must not be charged for diagnostic labor that leads to the determination that
a warranted part is in fact defective, provided that such diagnostic work is performed at a
warranty station.
6. The manufacturer is liable for damages to other engine components proximately caused by a
failure under warranty of any warranted part.
7. Throughout the emissions warranty period stated above, the manufacturer must maintain a
supply of warranted parts sucient to meet the expected demand for such parts.
8. Any replacement part may be used in the performance of any warranty maintenance or repairs
and must be provided without charge to the owner.
a. Such use will not reduce the warranty obligations of the manufacturer.
9. Add-on or modied parts that are not exempted by the Air Resources Board may not be used.
The use of any nonexempt add-on or modied parts will be grounds for disallowing a warranty
claim. The manufacturer will not be liable to warrant failures of warranted parts caused using a
nonexempt add-on or modied part.
10. The manufacturer issuing the warranty shall provide any documents that describe that
manufacturer’s warranty procedures or policies within ve working days of request by the Air
Resources Board.
WARRANTY (CONTINUED)
46
Exhaust Emission Warranty Parts List.
1. Fuel Metering System
i. Carburetor and internal parts (and/or
pressure regulator or fuel injection
system).
ii. Air/fuel ratio feedback and control
system.
iii. Cold start enrichment system.
2. Air Induction System
i. Controlled hot air intake system.
ii. Intake manifold.
3. Ignition System
i. Spark Plugs.
ii. Magneto or electronic ignition system.
iii. Spark advance/retard system.
4. Air Injection System
i. Air pump or pulse valve.
ii. Valves aecting distribution of ow.
iii. Distribution manifold.
5. Catalyst or Thermal Reactor System (i)
Catalytic converter.
i. Thermal reactor.
ii. Exhaust manifold.
6. Particulate Controls
7. Traps, lters, precipitators, and any other
device used to capture particulate
emissions.
8. Electronic controls.
9. Vacuum, temperature, and time sensitive
valves and switches.
10. Hoses, belts, connectors, and assemblies.
11. Evaporative Emission Warranty Part List
i. Fuel Tank*
ii. Fuel Cap
iii. Fuel Line
iv. Fuel Line Fittings
v. Clamps**
vi. Pressure Relief Valves**
vii. Control Valves**
viii. Control Solenoids**
ix. Electronic Controls**
x. Vacuum Control Diaphragms**
xi. Control Cables**
xii. Control Linkages**
xiii. Purge Valves
xiv. Vapor Hoses
xv. Liquid/Vapor Separator
xvi. Carbon Canister
xvii. Canister Mounting Brackets
xviii. Carburetor Purge Port Connector
47
CUSTOMER SERVICE
Duromax Power Equipment is comitted to ensuring that our products perform when they need
to. Our generators are your lifeline in the event of an emergency. Should you have any problems,
please contact our customer service department:
DUROMAX POWER EQUIPMENT
5800 Ontario Mills Parkway
Ontario, CA 91764
Customer Service: 844-DUROMAX
Customer Service Hours: 8-5pm PST
Website: www.duromaxpower.com
Email: [email protected]
48
49
5800 Ontario Mills Parkway
Ontario, CA 91764
United States
844-DUROMAX
