Dji MINI 2 SE User Manual

2023.02

v1.0

User Manual

Searching for Keywords

Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe

Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to

begin a search.

Navigating to a Topic

View a complete list of topics in the table of contents. Click on a topic to navigate to that

section.

Printing this Document

This document supports high resolution printing.

Using this Manual

Legend

Warning Important Hints and Tips Reference

Read Before the First Flight

Read the following documents before using DJI

Mini 2 SE:

1. User Manual

2. Quick Start Guide

3. Safety Guidelines

It is recommended to watch all tutorial videos on the ocial DJI website and read the safety guidelines

before using for the rst time. Prepare for your rst ight by reviewing the quick start guide and refer to

this user manual for more information.

Video Tutorials

Go to the address below or scan the QR code to watch the DJI Mini 2 SE tutorial videos,

which demonstrate how to use DJI Mini 2 SE safely:

http://www.dji.com/mini-2-se/downloads

Download the DJI Fly App

Make sure to use the DJI Fly app during flight. Scan the QR code above to download the latest version.

The Android version of DJI Fly is compatible with Android v7.0 and later. The iOS version of DJI Fly is

compatible with iOS v11.0 and later.

* For increased safety, ight is restricted to a height of 98.4 ft (30 m) and a range of 164 ft (50 m) when not

connected or logged into the app during flight. This applies to DJI Fly and all apps compatible with DJI

aircraft.

The operating temperature of this product is 0° to 40° C. It does not meet the standard operating

temperature for military grade application (-55° to 125° C), which is required to endure greater

environmental variability. Operate the product appropriately and only for applications that it meets the

operating temperature range requirements of that grade.

Contents

Using this Manual

Legend

Read Before the First Flight

Video Tutorials

Download the DJI Fly App

Product Prole

Introduction

MTOM Statement

Preparing the Aircraft

Preparing the Remote Controller

Aircraft Diagram

Remote Controller Diagram

Activating DJI Mini 2 SE

Aircraft

Flight Modes

Aircraft Status Indicator

Return to Home

Vision System and Infrared Sensing System

Intelligent Flight Mode

Flight Recorder

Propellers

Intelligent Flight Battery

Gimbal and Camera

Remote Controller

Prole

Using the Remote Controller

Optimal Transmission Zone

Linking the Remote Controller

Remote Controller Warnings

DJI Fly App

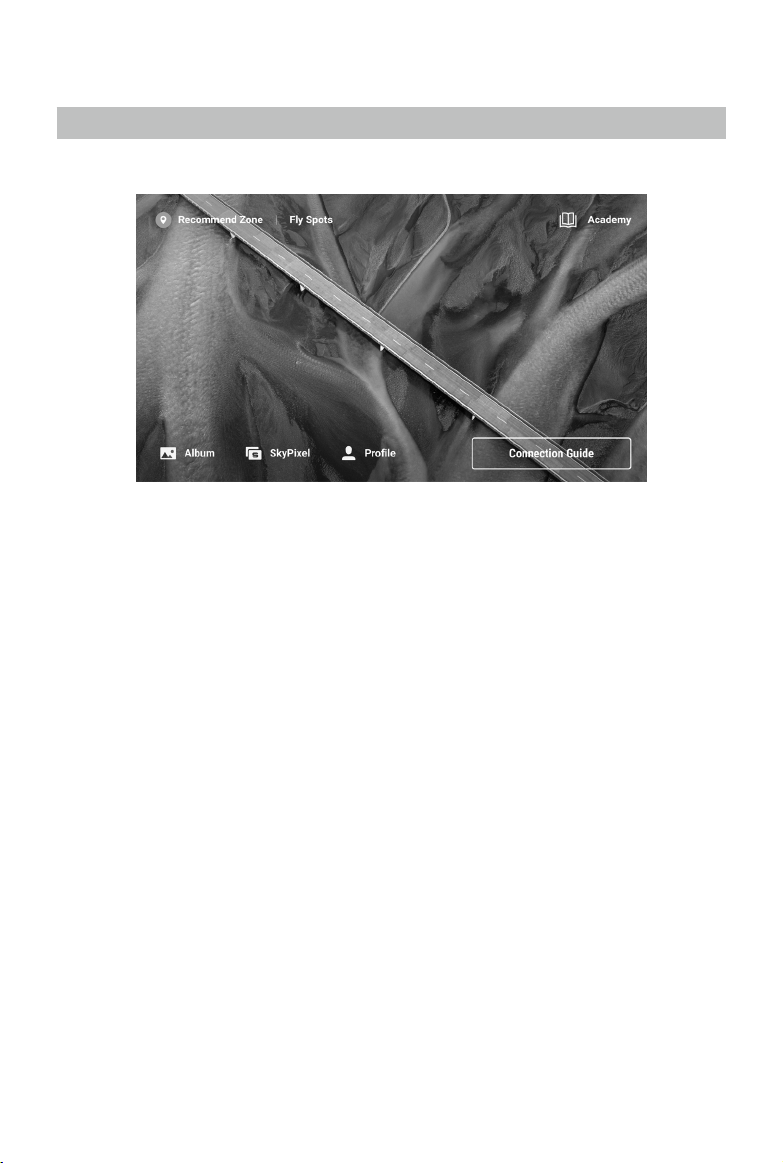

Home

Camera View

DJI MINI 2 SE User Manual

Flight

Flight Environment Requirements

Operating the Aircraft Responsibly

Flight Limits and GEO Zones

Pre-Flight Checklist

Auto Takeo/Landing

Starting/Stopping the Motors

Flight Test

Appendix

Specications

Calibrating the Compass

Updating Firmware

After-Sales Information

Maintenance Instructions

List of Items Including Qualied Accessories

List of Spare and Replacement Parts

List of Safeguards

Risk and Warnings

Disposal

Product Prole

This section introduces DJI Mini 2 SE

and lists the components of the aircraft

and remote controller.

Product Prole

Introduction

DJI Mini 2 SE boasts a foldable design and an ultralight weight of 246 g. Featuring a Downward Vision

System and Infrared Sensing System, DJI Mini 2 SE can hover and y indoors as well as outdoors and

automatically initiate Return to Home (RTH). With a fully stabilized 3-axis gimbal and 1/2.3” sensor

camera, DJI Mini 2 SE shoots 2.7K video and 12MP photos. The Intelligent Flight Mode QuickShots

provide ve sub modes.

DJI Mini 2 SE comes equipped with the DJI RC-N1 remote controller, which boasts DJI’s long-range

transmission OCUSYNC

2.0 technology, oering a maximum transmission range of 6 mi (10 km) and

video quality of up to 720p from the aircraft to the DJI Fly app on a mobile device. The remote controller

works at both 2.4 GHz and 5.8 GHz, and is capable of selecting the best transmission channel

automatically without latency. The aircraft and camera can easily be controlled using the onboard

buttons.

DJI Mini 2 SE has a maximum flight speed of 36 mph (57.6 kph) and a maximum flight time of 31

minutes, while the maximum runtime of the remote controller is six hours.

Maximum ight time was tested in an environment with no wind while ying at a consistent 10.5 mph

(17 kph) and the maximum ight speed was tested at sea level altitude with no wind. These values

are for reference only.

The remote controller reaches its maximum transmission distance (FCC) in a wide-open area with

no electromagnetic interference at an altitude of approx. 400 ft (120 m). The maximum transmission

distance refers to the maximum distance that the aircraft can still send and receive transmissions. It

does not refer to the maximum distance the aircraft can y in a single ight. The maximum runtime

was tested in a laboratory environment and without charging the mobile device. This value is for

reference only.

5.8 GHz is not supported in some regions. This frequency band will automatically be disabled in

these regions. Observe local laws and regulations.

MTOM Statement

DJI Mini 2 SE (Model MT2SD) is a quarotor aircraft. The Maximum Take-O Mass (MTOM) is 246 g

including a microSD card. Please follow the instructions below to ensure ight safety.

1. DO NOT add any payload to the aircraft not included in the original packaging or being qualied for

the use of the aircraft.

2. DO NOT use non-qualied replacement parts, such as propellers, intelligent ight batteries, etc.

3. DO NOT retrot the aircraft.

DJI MINI 2 SE User Manual

Preparing the Aircraft

All aircraft arms are folded before the aircraft is packaged. Follow the steps below to unfold the aircraft.

1. Remove the propeller holder.

2. Remove the gimbal protector from the camera.

3. In the following order, unfold the front arms, rear arms, and all the propellers.

It is recommended to install a gimbal protector to protect the gimbal and use a propeller holder to

secure the propellers when the aircraft is not in use.

The propeller holder and USB charger are only included in the combo package.

Unfold the front arms before unfolding the rear arms.

Make sure the gimbal protector is removed and all arms are unfolded before powering on the aircraft.

Otherwise, it may aect the aircraft self-diagnostics.

4. All Intelligent Flight Batteries are in hibernation mode before shipment to ensure safety. Use the USB

charger to charge and activate Intelligent Flight Batteries for the rst time.

DJI MINI 2 SE User Manual

Preparing the Remote Controller

1. Remove the control sticks from their storage slots on the remote controller and screw them into

place.

2. Pull out the mobile device holder. Choose an appropriate remote controller cable based on the type

of mobile device. A Lightning connector cable, Micro USB cable, and USB-C cable are included in

the packaging. Connect the end of the cable without the remote controller logo to the mobile device.

Make sure the mobile device is secured.

If a USB connection prompt appears when using an Android mobile device, select the option to

charge only. Otherwise, it may result in connection failure.

DJI MINI 2 SE User Manual

Aircraft Diagram

Remote Controller Diagram

1. Gimbal and Camera

2. Power Button

3. Battery Level LEDs

4. Downward Vision System

5. Infrared Sensing System

6. Motors

7. Propellers

8. Antennas

9. Battery Compartment Cover

10. USB-C Port

11. microSD Card Slot

12. Aircraft Status Indicator

1. Power Button

Press once to check the current battery level.

Press once, then again, and hold to power

the remote controller on or o.

2. Flight Mode Switch

Switch between Sport, Normal, and Cine

mode.

3. Flight Pause/Return to Home (RTH) Button

Press once to make the aircraft brake and

hover in place (only when GPS or Downward

Vision System are available). Press and hold

the button to initiate RTH. The aircraft returns

to the last recorded Home Point. Press again to

cancel RTH.

DJI MINI 2 SE User Manual

Activating DJI Mini 2 SE

DJI Mini 2 SE requires activation before using for the first time. After powering on the aircraft and

remote controller, follow the on-screen instructions to activate DJI Mini 2 SE using DJI Fly. An internet

connection is required for activation.

4. Battery Level Indicators

Displays the current battery level of the remote

controller.

5. Control Stick

Use the control sticks to control the aircraft

movements. Set the control stick mode in DJI

Fly. The control sticks are removable and easy

to store.

6. Customizable Button

Press once to recenter the gimbal or tilt the

gimbal downward (default settings). The button

can be set in DJI Fly.

7. Photo/Video Toggle

Press once to switch between photo and video

mode.

8. Remote Controller Cable

Connect to a mobile device for video linking via

the remote controller cable. Select the cable

according to the mobile device.

9. Mobile Device Holder

Used to securely mount the mobile device to

the remote controller.

10. Antennas

Relay aircraft control and video wireless

signals.

11. USB-C Port

For charging and connecting the remote

controller to the computer.

12. Control Sticks Storage Slot

For storing the control sticks.

13. Gimbal Dial

Controls the tilt of the camera. Press and hold

the customizable button to use the gimbal

dial to adjust the zoom in video mode.

14. Shutter/Record Button

Press once to take photos or start or stop

recording.

15. Mobile Device Slot

Used to secure the mobile device.

Aircraft

DJI Mini 2 SE contains a ight controller,

video downlink system, vision system,

propulsion system, and an Intelligent

Flight Battery.

Aircraft

DJI Mini 2 SE contains a ight controller, video downlink system, vision system, propulsion system, and

an Intelligent Flight Battery.

Flight Modes

DJI Mini 2 SE has three ight modes, plus a fourth ight mode that the aircraft switches to in certain

scenarios. Flight modes can be switched via the Flight Mode switch on the remote controller.

Normal Mode: The aircraft utilizes GPS and the Downward Vision System to locate itself and stabilize.

Intelligent Flight Mode is enabled in this mode. When the GPS signal is strong, the aircraft uses GPS to

locate itself and stabilize. When the GPS is weak and the lighting conditions are sucient, the aircraft

uses the Downward Vision System to locate itself and stabilize. When the Downward Vision System is

enabled and lighting conditions are sucient, the maximum ight altitude angle is 25° and the maximum

ight speed is 10 m/s.

Sport Mode: In Sport mode, the aircraft uses GPS and the Downward Vision System for positioning.

The aircraft responses are optimized for agility and speed making it more responsive to control stick

movements. The maximum ight speed is 16 m/s, maximum ascent speed is 5 m/s, and maximum

descent speed is 3.5 m/s.

Cine Mode: Cine mode is based on Normal mode and the ight speed is limited, making the aircraft

more stable during shooting. The maximum ight speed is 6 m/s, maximum ascent speed is 2 m/s, and

maximum descent speed is 1.5 m/s.

The aircraft automatically changes to Attitude (ATTI) mode when the Downward Vision System is

unavailable or disabled and when the GPS signal is weak or the compass experiences interference. In

ATTI mode, the aircraft may be more easily aected by its surroundings. Environmental factors such

as wind can result in horizontal shifting, which may present hazards, especially when ying in conned

spaces. The aircraft cannot position itself or brake automatically in this mode, therefore the pilot should

land the aircraft as soon as possible to avoid accidents.

The aircraft cannot sense obstacles on its route automatically. The pilot should stay alert about the

surrounding environment and control the aircraft to avoid obstacles.

The maximum speed and braking distance of the aircraft signicantly increase in Sport mode. A

minimum braking distance of 30 m is required in windless conditions.

Descent speed signicantly increases in Sport mode. A minimum braking distance of 10 m is required

in windless conditions.

The responsiveness of the aircraft signicantly increases in Sport mode, which means a small control

stick movement on the remote controller translates into the aircraft moving a large distance. Be vigilant

and maintain adequate maneuvering space during ight.

During video mode in Normal or Cine mode, the ight speed is limited when the pitch of the gimbal

is near -90° or 0° in order to ensure shooting is stable. If there are strong winds, the restriction will

be disabled to improve the wind resistance of the aircraft. As a result, the gimbal may vibrate while

recording.

DJI MINI 2 SE User Manual

Aircraft Status Indicator

DJI Mini 2 SE has an aircraft status indicator, which shows the status of the ight control system of the

aircraft. Refer to the table below for more information about the aircraft status indicator.

Aircraft Status Indicator States

Normal States

Blinks red, yellow, green, blue, and

purple alternately

Powering on and performing self-

diagonistic tests

Blinks purple slowly Warming up

Blinks green slowly GPS enabled

×2 Blinks green twice repeatedly Downward Vision System enabled

Blinks yellow slowly

GPS and Downward Vision System

disabled (ATTI mode enabled)

Blinks green quickly Braking

Warning States

Blinks yellow quickly Remote controller signal lost

Blinks red slowly Low battery

Blinks red quickly Critically low battery

Blinks red IMU error

—

Solid red Critical error

Blinks red and yellow alternately Compass calibration required

Aircraft Status Indicator

DJI MINI 2 SE User Manual

Return to Home

The Return to Home (RTH) function brings the aircraft back to the last recorded Home Point and lands

when the GPS signal is strong. There are three types of RTH: Smart RTH, Low Battery RTH, and

Failsafe RTH. If the aircraft successfully recorded the home point and the GPS signal is strong, the RTH

will be triggered when either the user starts Smart RTH, the aircraft battery level is low, or the signal

between the remote controller and the aircraft is lost. RTH will also be triggered in other abnormal

scenarios such as if there is a loss of video transmission.

GPS

Description

Home Point

The default Home Point is the first location where the aircraft received a

strong or moderately strong GPS signal (where the icon shows white). It is

recommended to wait until the Home Point is successfully recorded before

ying. After the Home Point is recorded, the aircraft status indicator blinks

green and a prompt appears in DJI Fly. If it is necessary to update the Home

Point during the ight (such as if the user changes position), the Home Point

can be manually updated under Safety in System Settings on DJI Fly.

Smart RTH

If the GPS signal is sucient, Smart RTH can be used to bring the aircraft back to the Home Point. Smart

RTH is initiated either by tapping

in DJI Fly or by pressing and holding the RTH button on the remote

controller. Exit Smart RTH by tapping

in DJI Fly or by pressing the RTH button on the remote controller.

Low Battery RTH

To avoid unnecessary danger due to insucient power, DJI Mini 2 SE will intelligently determine whether

the current battery level is sucient to return home based on the current location. Low Battery RTH is

triggered when the Intelligent Flight Battery is depleted to the point that the safe return of the aircraft

may be aected.

The user can cancel RTH by pressing the RTH button on the remote controller. If RTH is cancelled

following a low battery level warning, the Intelligent Flight Battery may not have enough power for the

aircraft to land safely, which may lead to the aircraft crashing or being lost.

The aircraft will land automatically if the battery level is extremely low. Auto landing cannot be canceled

but the remote controller can be used to alter the horizontal movement and the descent speed of the

aircraft during landing (the descend speed cannot be adjusted when the battery level can only last long

enough to descend from its current altitude).

When the Intelligent Flight Battery level is too low and there is not enough power to return home,

land the aircraft as soon as possible. Otherwise, the aircraft will fall when it runs out of power,

resulting in the aircraft being damaged and other potential hazards.

DJI MINI 2 SE User Manual

Failsafe RTH

In DJI Fly, users can set the action of the aircraft as Return to Home, Land, or Hover when the remote

controller signal is lost. If the action was set as Return to Home, and where the Home Point has

been recorded, the GPS signal is good, and the compass is functioning normally, Failsafe RTH will

automatically activate after the remote controller signal is lost for more than 11 seconds.

The aircraft will y backward for 50 m on its original ight route and ascend to the present RTH altitude

to enter Straight Line RTH. When the aircraft ies backwardF along the original ight route and is less

than 20 m from the Home Point, it will stop ying backward on the original ight route and enter Straight

Line RTH at the current altitude.

The aircraft will enter or remain in Straight Line RTH if the remote controller signal is restored during RTH.

Other RTH Scenarios

There will be a prompt to initiate RTH if the video link signal is lost during flight while the remote

controller is still able to control the movements of the aircraft. RTH can be cancelled.

RTH Procedure (Straight Line)

1. The Home Point is recorded.

2. RTH is triggered.

3. a. If the aircraft is less than 20 m from the Home Point when RTH begins, it will hover in place and

not return to home.

b. If the aircraft is farther than 20 m from the Home Point when RTH begins, it will ascend to the

present RTH altitude and return home at a horizontal speed of 10.5 m/s. If the current altitude is

higher than the RTH altitude, the aircraft will y to the Home Point at the current altitude.

4. After reaching the Home Point, the aircraft lands and the motors stop.

The aircraft cannot return to the Home Point if the GPS signal is weak or unavailable. If the GPS signal

becomes weak or unavailable after RTH is triggered, the aircraft will hover in place for a while before

landing.

It is important to set a suitable RTH altitude before each ight. Launch DJI Fly and set the RTH

altitude. In Smart RTH and Low Battery RTH, if the current altitude of the aircraft is less than the RTH

altitude, it automatically ascends to the RTH altitude rst. If the altitude of the aircraft reaches or is

higher than the RTH altitude, it will y to the Home Point at its current altitude.

During RTH, the speed, altitude, and orientation of the aircraft can be controlled using the remote

controller if the remote controller signal is normal. However, the remote controller cannot be used to

pan left or right. When the aircraft is ascending or ying forward, the user can push the control stick

completely in the opposite direction to make the aircraft exit RTH and hover in place.

GEO zones will aect RTH. If the aircraft ies into a GEO zone during RTH it will hover in place.

The aircraft may not be able to return to a Home Point when the wind speed is too high. Fly with

caution.

DJI MINI 2 SE User Manual

Detection Fields

The Downward Vision System works best when the aircraft is at an altitude of 0.5 to 10 m and its

operating range is 0.5 to 30 m.

Infrared Sensing System

Downward Vision System

Landing Protection

Landing Protection will activate during Smart RTH and Auto Landing.

1. During Landing Protection, the aircraft will automatically detect and carefully land on suitable ground.

2. If the ground is determined unsuitable for landing, DJI Mini 2 SE will hover and wait for pilot

conrmation.

3. If Landing Protection is not operational, DJI Fly will display a landing prompt when the aircraft

descends below 0.5 m. Tap conrm or pull down on the throttle stick to land.

Vision System and Infrared Sensing System

DJI Mini 2 SE is equipped with a Downward Vision System and Infrared Sensing System. The

Downward Vision System consists of one camera and the Infrared Sensing System consists of two 3D

infrared modules. The Downward Vision System and Infrared Sensing System help the aircraft maintain

its current position, hover in place more precisely, and to y indoors or in other environments where GPS

is unavailable.

71°

56°

DJI MINI 2 SE User Manual

Using the Vision Systems

When GPS is unavailable, the Downward Vision System is enabled if the surface has a clear texture and

there is sucient light. The Downward Vision System works best when the aircraft is at an altitude of 0.5

to 10 m. If the altitude of the aircraft is above 10 m, the Vision System may be aected. Extra caution is

required.

Follow the steps below to use the Downward Vision System.

1. Make sure the aircraft is in Normal or Cine mode. Power on the aircraft.

2. The aircraft hovers in place after takeo. The aircraft status indicator blinks green twice, indicating

the Downward Vision System is working.

Pay attention to the ight environment. The Downward Vision System and Infrared Sensing System

only work under limited conditions and cannot replace human control and judgment. During

ight, always pay attention to the surrounding environment and to the warnings on DJI Fly and be

responsible for and maintain control of the aircraft.

The aircraft has a max hovering altitude of 5 m if GPS is unavailable.

The Downward Vision System may not function properly when the aircraft is ying over water.

Therefore, the aircraft may not be able to actively avoid water below when landing. It is recommended

to maintain ight control at all times, make reasonable judgments based on the surrounding

environment, and avoid relying on the Downward Vision System.

Note that the Downward Vision System and Infrared Sensing System may not function properly when

the aircraft is ying too fast. The Infrared Sensing System only takes eect when the ight speed is no

more than 12 m/s.

The Downward Vision System cannot work properly over surfaces that do not have clear pattern

variations or there is weak light. The Downward Vision System cannot work properly in any of the

following situations. Operate the aircraft cautiously.

a) Flying over monochrome surfaces (e.g., pure black, pure white, pure green).

b) Flying over highly reective surfaces.

c) Flying over water or transparent surfaces.

d) Flying over moving surfaces or objects.

e) Flying in an area where the lighting changes frequently or drastically.

f) Flying over extremely dark (< 10 lux) or bright (> 40,000 lux) surfaces.

g) Flying over surfaces that strongly reect or absorb infrared waves (e.g., mirrors).

h) Flying over surfaces without clear patterns or texture. (e.g., power pole).

i) Flying over surfaces with repeating identical patterns or textures (e.g., tiles with the same design).

j) Flying over obstacles with small surface areas (e.g., tree branches).

DJI MINI 2 SE User Manual

Intelligent Flight Mode

QuickShots

QuickShot shooting modes include Dronie, Rocket, Circle, Helix, and Boomerang. DJI Mini 2 SE records

according to the selected shooting mode and automatically generates a short video. The video can be

viewed, edited, or shared to social media from playback.

Dronie: The aircraft ies backward and ascends with the camera locked on the subject.

Rocket: The aircraft ascends with the camera pointing downward.

Circle: The aircraft circles around the subject.

Helix: The aircraft ascends and spirals around the subject.

Boomerang: The aircraft ies around the subject in an oval path, ascending as it ies away from

its starting point and descending as it ies back. The starting point of the aircraft forms one end of

the long axis of the oval, while the other end of its long axis is at the opposite side of the subject

from the starting point. Make sure there is sucient space when using Boomerang. Allow a radius

of at least 99 ft (30 m) around the aircraft and allow at least 33 ft (10 m) above the aircraft.

Using QuickShots

1. Make sure that the Intelligent Flight Battery is suciently charged. Take o and hover at least 6.6 ft (2 m)

above the ground.

Keep the sensors clean at all times. DO NOT tamper with the sensors. DO NOT use the aircraft in

environment with dust and humidity. DO NOT obstruct the Infrared Sensing System.

DO NOT y when it is rainy, smoggy, or the visibility is lower than 100 m.

Check the following every time before takeo:

a) Make sure there are no stickers or any other obstructions over the Infrared Sensing System or

Downward Vision System.

b) If there is any dirt, dust, or water on the Infrared Sensing System or Downward Vision System,

clean with a soft cloth. DO NOT use any cleanser that contains alcohol.

c) Contact DJI Support if there is any damage to the glass of the Infrared Sensing System or

Downward Vision System.

2 m

DJI MINI 2 SE User Manual

2. In DJI Fly, tap the shooting mode icon to select QuickShots and follow the prompts. Make

sure that you understand how to use the shooting mode and that there are no obstacles in the

surrounding area.

3. Choose a shooting mode, select your target subject in the camera view by tapping the circle on the

subject or dragging a box around the subject, and tap Start to begin recording (It is recommended

to choose a human as a target subject rather than a building). The aircraft will y back to its original

positon once shooting is nished.

4. Tap

to access the short video or the original video. You can edit the video or share to social

media after downloading.

Exiting QuickShots

Press the Flight Pause/RTH button once or tap in DJI Fly to exit QuickShots. The aircraft will hover in

place.

Use QuickShots at locations that are clear of buildings and other obstacles. Make sure that there are

no humans, animals, or other obstacles on the ight path.

Pay attention to objects around the aircraft and use the remote controller to avoid collisions with the

aircraft.

DO NOT use QuickShots in any of the following situations:

a) When the subject is blocked for an extended period or outside the line of sight.

b) When the subject is more than 50 m away from the aircraft.

c) When the subject is similar in color or pattern with the surroundings.

d) When the subject is in the air.

e) When the subject is moving fast.

f) When the lighting is extremely low (<300 lux) or high (>10,000 lux).

DO NOT use QuickShots in places that are close to buildings or where the GPS signal is weak.

Otherwise, the ight path will be unstable.

Make sure to follow local privacy laws and regulations when using QuickShots.

DJI MINI 2 SE User Manual

Flight Recorder

Flight data including ight telemetry, aircraft status information, and other parameters are automatically

saved to the internal data recorder of the aircraft. The data can be accessed using DJI Assistant 2

(Consumer Drones Series).

Propellers

There are two types of DJI Mini 2 SE propellers, which are designed to spin in dierent directions. Marks

are used to indicate which propellers should be attached to which motors. The two blades attached to

one motor are the same.

Propellers With marks Without marks

Illustration

Mounting Position

Attach to the motors of the arm with

marks

Attach to the motors of the arm without

marks

Attaching the Propellers

Attach the marked propellers to the motors of the arm with marks and the unmarked propellers to the

motors of the arm without marks. Use the the screwdriver from the package to mount the propellers.

Make sure the propellers are secure.

Detaching the Propellers

Use the screwdriver to detach the propellers from the motors.

Propeller blades are sharp. Handle with care.

The screwdriver is only used to mount the propellers. DO NOT use the screwdriver to disassemble

the aircraft.

If a propeller is broken, remove the two propellers and screws on the corresponding motor and

discard them. Use two propellers from the same package. DO NOT mix with propellers in other

packages.

Only use ocial DJI propellers. DO NOT mix propeller types.

Purchase the propellers separately if necessary.

Make sure that the propellers are installed securely before each flight. Check to make sure the

screws on the propellers are tightened after every 30 hours of ight (approx. 60 ights).

MarkedUnmarked

DJI MINI 2 SE User Manual

Make sure all propellers are in good condition before each ight. DO NOT use aged, chipped, or

broken propellers.

Stay away from the rotating propellers and motors to avoid injuries.

Place the aircraft correctly when storing. It is recommended to use a propeller holder to fix the

propellers. DO NOT squeeze or bend the propellers during transportation or storage.

Make sure the motors are mounted securely and rotating smoothly. Land the aircraft immediately if a

motor is stuck and unable to rotate freely.

DO NOT attempt to modify the structure of the motors.

DO NOT touch or let your hands or body come in contact with the motors after ight as they may be

hot.

DO NOT block any of the ventilation holes on the motors or the body of the aircraft.

Make sure the ESCs sound normal when powered on.

Intelligent Flight Battery

The DJI Mini 2 SE Intelligent Flight Battery is a 7.7 V, 2250 mAh battery with smart charging and

discharging functionality.

Battery Features

1. Balanced Charging: during charging, the voltages of the battery cells are automatically balanced.

2. Auto-Discharging Function: to prevent swelling, the battery automatically discharges to approx. 96%

of the battery level when it is idle for one day, and automatically discharges to approx. 72% of the

battery level when it is idle for nine days. It is normal to feel moderate heat being emitted from the

battery during the discharging process.

3. Overcharge Protection: the battery stops charging automatically once fully charged.

4. Temperature Detection: to prevent damage, the battery only charges when the temperature is

between 5° and 40° C (41° and 104° F). Charging stops automatically if the temperature of the

battery exceeds 50° C (122° F) during the charging process.

5. Overcurrent Protection: the battery stops charging if an excess current is detected.

6. Over-discharge Protection: discharging stops automatically to prevent excess discharge when the

battery is not in ight use. Over-discharge protection is not enabled when the battery is in ight use.

7. Short Circuit Protection: the power supply is automatically cut if a short circuit is detected.

8. Battery Cell Damage Protection: DJI Fly displays a warning prompt when a damaged battery cell is

detected.

9. Hibernation Mode: if the battery cell voltage is lower than 3.0 V or the battery level is less than 10%,

the battery enters Hibernation mode to prevent over-discharge. Charge the battery to wake it from

hibernation.

10. Communication: information about the voltage, capacity, and current of the battery is transmitted to

the aircraft.

Refer to the DJI Mini 2 SE Disclaimer and Safety Guidelines and the stickers on the battery

before use. Users take full responsibility for all usage and operations.

DJI MINI 2 SE User Manual

Using the Battery

Checking Battery Level

Press the power button once to check the battery level.

LED1

LED2

LED3

LED4

Battery Level LEDs

Power Button

The battery level indicators display the power level of the flight battery during charging and

discharging. The statuses of the indicator are dened as follows:

LED is on. LED is ashing. LED is o.

LED1 LED2 LED3 LED4 Battery Level

battery level

88%

75%

battery level ≤

88%

63%

battery level ≤ 75%

50%

battery level ≤ 63%

38%

battery level ≤ 50%

25%

battery level ≤ 38%

13%

battery level ≤ 25%

battery level ≤ 13%

Powering On/Off

Press the power button once, then press again, and hold for two seconds to power the battery on or

o. The battery level LEDs display the battery level when the aircraft is powered on.

Press the power button once and the four battery level LEDs will blink for three seconds. If LED 3 and 4

blink simultaneously without pressing the power button, this indicates the battery is abnormal. Insert the

Intelligent Flight Battery again and make sure that it is securely mounted.

Low Temperature Notice

1. Battery capacity is signicantly reduced when ying in low-temperature environments of 0° to 5° C (32°

to 41° F). It is recommended to hover the aircraft in place for a while to heat the battery. Make sure to

fully charge the battery before takeo.

2. To ensure the optimal performance of the battery, keep the battery temperature above 20° C (68° F).

3. The reduced battery capacity in low-temperature environments reduces the wind speed resistance

performance of the aircraft. Fly with caution.

4. Fly with extra caution at high sea levels.

DJI MINI 2 SE User Manual

Charging the Battery

Fully charge the Intelligent Flight Battery before each flight. It is recommended to use the charging

devices provided by DJI, such as the DJI Mini 2 SE Two-way Charging Hub, DJI 30W USB-C Charger,

or other USB Power Delivery chargers.

1. Connect the USB charger to an AC power supply (100-240V, 50/60 Hz). Use a power adapter if

necessary.

2. Attach the aircraft to the USB charger.

3. The battery level LEDs display the current battery level during charging.

4. The Intelligent Flight Battery is fully charged when all the battery level LEDs are on. Detach the USB

charger when the battery is fully charged.

In cold environments, insert the battery into the battery compartment and turn on the aircraft to

warm up before taking o.

The battery cannot be charged if the aircraft is powered on.

DO NOT charge an Intelligent Flight Battery immediately after ight as the temperature may be too

high. Wait until it cools down to room temperature before charging again.

The charger stops charging the battery if the battery cell temperature is not within the operating

range of 5° to 40° C (41° to 104° F). The ideal charging temperature is 22° to 28° C (71.6° to 82.4° F).

Fully charge the battery at least once every three months to maintain battery health.

It is recommended to use a QC2.0 or PD2.0 USB charger to charge. DJI does not take any

responsibility for damage caused by using a charger that does not that meet the specied

requirements.

When using the DJI 18W USB charger, the charging time is approximately 1 hour and 22 minutes.

It is recommended to discharge the Intelligent Flight Batteries to 30% or lower during transport or

storage. This can be done by ying the aircraft outdoors until the battery level is less than 30%.

The Battery Charging Hub can charge up to three batteries. Visit the ocial DJI Online Store for more

information about the Battery Charging Hub.

DJI MINI 2 SE User Manual

Battery Protection Mechanisms

The battery LED indicators can display battery protection notications triggered by abnormal charging

conditions.

If one of the battery protection mechanisms activate, unplug the charger, and then plug it in again to

resume charging. If the charging temperature is abnormal, wait for the charging temperature to return

to normal and the battery will automatically resume charging without the need to unplug and plug the

charger again.

Installing/Removing the Battery

Install the Intelligent Flight Battery in the aircraft before use. Insert the battery in the battery compartment

and secure the battery clamp. A clicking sound indicates the battery is fully engaged. Make sure that

the battery is fully inserted and the battery cover is secure in place.

LED1 LED2 LED3 LED4

Battery Level

battery level ≤ 50%

50%

battery level ≤ 75%

75%

battery level

100%

Fully charged

The table below shows the battery level during charging.

The blinking frequency of the battery level LEDs will be dierent when using dierent USB chargers. If

the charging speed is fast, the battery level LEDs will blink quickly. If the charging speed is extremely

slow, the battery level LEDs will blink slowly (once every two seconds). It is recommended to change

the USB-C cable or USB charger.

If the battery is not correctly inserted into the aircraft, LED 3 and 4 blink simultaneously. Insert the

Intelligent Flight Battery again and make sure that it is securely mounted.

The four LEDs blink simultaneously to indicate the battery is damaged.

Battery Protection Mechanisms

LED1 LED2 LED3 LED4 Blinking Pattern Battery Protection Item

LED2 blinks twice per second Overcurrent detected

LED2 blinks three times per

second

Short circuit detected

LED3 blinks twice per second Overcharge detected

LED3 blinks three times per

second

Over-voltage charger detected

LED4 blinks twice per second Charging temperature is too low

LED4 blinks three times per

second

Charging temperature is too

high

DJI MINI 2 SE User Manual

-90°

0°

20°

DO NOT detach the battery when the aircraft is powering on.

Make sure that the battery is mounted rmly.

Gimbal and Camera

Gimbal Prole

The 3-axis gimbal of DJI Mini 2 SE provides stabilization for the camera, allowing you to capture

clear and stable images and video. The control tilt range is -90° to +20°. The default control tilt

range is -90˚ to 0˚, and the tilt range can be extended to -90˚ to +20˚ by enabling “Allow Upward

Gimbal Rotation” in DJI Fly.

Press the battery clamp and detach the battery from the battery compartment to remove it.

Use the gimbal dial on the remote controller to control the tilt of the camera. Alternatively, enter the

camera view in DJI Fly. Press the screen until a circle appears and drag the circle up and down to

control the tilt of the camera.

Gimbal Operation Modes

Two gimbal operation modes are available. Switch between the operation modes in DJI Fly.

Follow Mode: the angle between the orientation of the gimbal and aircraft front remains constant at all times.

FPV Mode: the gimbal synchronizes with the movement of the aircraft to provide a rst-person ying

experience.

Make sure there are no stickers or objects on the gimbal before taking o. When the aircraft is powered

on, DO NOT tap or knock the gimbal. Take o from open and at ground in order to protect the gimbal.

Precision elements in the gimbal may be damaged in a collision or impact, which may cause the

gimbal to function abnormally.

Avoid getting dust or sand on the gimbal, especially in the gimbal motors.

Fully engagedNot engaged

DJI MINI 2 SE User Manual

A gimbal motor error may occur in the following situations: a. The aircraft is on uneven ground or the

gimbal is obstructed. b. The gimbal experiences excessive external force, such as during a collision.

DO NOT apply external force to the gimbal after the gimbal is powered on. DO NOT add any extra

payload to the gimbal as this may cause the gimbal to function abnormally or even lead to permanent

motor damage.

Make sure to remove the gimbal protector before powering on the aircraft. Also, make sure to mount

the gimbal protector when the aircraft is not in use.

Flying in heavy fog or clouds may make the gimbal wet, leading to temporary failure. The gimbal

recovers full functionality once it is dry.

Camera Prole

DJI Mini 2 SE uses a 1/2.3" CMOS sensor camera, which can shoot up to 2.7K video and 12MP

photos, and supports shooting modes such as Single, AEB, Timed Shot, and Panorama.

The aperture of the camera is F2.8 and can shoot at 1 m to innity.

Make sure the temperature and humidity is suitable for the camera during usage and storage.

Use a lens cleanser to clean the lens to avoid damage.

DO NOT block any ventilation holes on the camera as the heat generated may damage the device

and hurt the user.

Storing Photos and Videos

DJI Mini 2 SE supports the use of a microSD card to store your photos and videos. A UHS-I Speed

Grade 3 rating or above microSD card is required due to the fast read and write speeds necessary for

high-resolution video data. Refer to the Specications section for more information about recommended

microSD cards.

Without a microSD card inserted, users can still capture single photos or record 720p normal videos.

The le will be directly stored on the mobile device.

Do not remove the microSD card from the aircraft while it is powered on. Otherwise, the microSD

card may be damaged.

To ensure the stability of the camera system, single video recordings are limited to 30 minutes.

Check camera settings before use to make sure the congurations are correct.

Before shooting important photos or videos, shoot a few images to test the camera is operating

correctly.

Photos or videos cannot be transmitted from the microSD card in the aircraft using DJI Fly if the

aircraft is powered o.

Make sure to power o the aircraft correctly. Otherwise, the camera parameters will not be saved

and any recorded videos may be damaged. DJI is not responsible for any failure of an image or video

to be recorded or having been recorded in a way that is not machine-readable.

Download Photos and Videos

1. Make sure that the aircraft is connected to the mobile device via the remote controller and taht the

motors have not started.

2. Launch DJI Fly, enter playback, and tap

in the upper left corner to access the les to download.

Remote Controller

This section describes the features

of the remote controller and includes

instructions for controlling the aircraft

and the camera.

Remote Controller

Profile

DJI Mini 2 SE comes equipped with the DJI RC-N1 remote controller, which boasts DJI’s long-range

OcuSync 2.0 transmission technology, oering a maximum transmission range of 6 mi (10 km) and 720p

when displaying video from the aircraft to DJI Fly on your mobile device. Easily control the aircraft and camera

using the onboard buttons. The detachable control sticks make the remote controller easier to store.

In a wide-open area with no electromagnetic interference, OcuSync 2.0 smoothly transmits video links

at up to 720p. The remote controller works at both 2.4 GHz and 5.8 GHz, and will automatically select

the best transmission channel.

The built-in battery has a capacity of 5200 mAh and a maximum run time of 6 hours. The remote

controller charges the mobile device with a charging ability of 500mA@5V. The remote controller

automatically charges Android devices. To charge iOS devices, make sure that the charging function is

enabled in DJI Fly each time the remote controller is powered on (Charging for iOS devices is disabled

by default).

Compliance Version: The remote controller is compliant with local regulations.

Control Stick Mode: The control stick mode determines the function of each control stick movement.

Three pre-programmed modes (Mode 1, Mode 2, and Mode 3) are available and custom modes can

be congured in DJI Fly. The default mode is Mode 2.

Using the Remote Controller

Powering On/O

Press the power button once to check the current battery level. If the battery level is too low, recharge

before use.

Press once, then press again and hold to power the remote controller on or o.

Charging the Battery

Use a USB-C cable to connect the USB charger to the USB-C port of the remote controller. It takes

approx. four hours to fully charge the remote controller.

Controlling the Gimbal and Camera

1. Shutter/Record Button: press once to take a photo or to start or stop recording.

2. Photo/Video Toggle: press once to switch between photo and video mode.

DJI MINI 2 SE User Manual

Controlling the Aircraft

The control sticks control the orientation (pan), forward/backward movement (pitch), altitude (throttle),

and left/right movement (roll) of the aircraft. The control stick mode determines the function of each

control stick movement.

Gimbal Dial

Customizable Button

Shutter/Record Button

Photo/Video Toggle

3. Gimbal Dial: use to control the tilt of the gimbal.

4. Press and hold the customizable button in order to be able to use the gimbal dial to adjust the zoom

in video mode.

Right StickLeft Stick

Turn RightTurn Left

Down

RightLeft

Down

Turn RightTurn Left

RightLeft

Forward

Backward

Left Stick Right Stick

Forward

Backward

Right Stick

Down

Forward

Backward

Left Stick

Turn RightTurn Left

RightLeft

Mode 1

Mode 2

Mode 3

DJI MINI 2 SE User Manual

Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are available and custom modes can be

congured in DJI Fly. The default mode is Mode 2. The gure below explains how to use each control

stick, using Mode 2 as an example.

Stick Neutral/Center Point: Control sticks are in the center position.

Moving the control stick: The control stick is pushed away from the center position.

Remote Controller

(Mode 2)

Aircraft

(

Indicates Nose Direction)

Remarks

Throttle Stick: Moving the left stick up or down

changes the altitude of the aircraft.

Push the stick up to ascend and down to

descend. The more the stick is pushed away

from the center position, the faster the aircraft

will change altitude.

Push the stick gently to prevent sudden and

unexpected changes in altitude.

Yaw Stick: Moving the left stick to the left or

right controls the orientation of the aircraft.

Push the stick left to rotate the aircraft counter-

clockwise and right to rotate the aircraft

clockwise.

The more the stick is pushed away from the

center position, the faster the aircraft will

rotate.

Pitch Stick: Moving the right stick up and down

changes the pitch of the aircraft.

Push the stick up to y forward and down to y

backward.

The more the stick is pushed away from the

center position, the faster the aircraft will move.

Roll Stick: Moving the right stick to the left or

right changes the roll of the aircraft.

Push the stick left to y left and right to y right.

The more the stick is pushed away from the

center position, the faster the aircraft will move.

DJI MINI 2 SE User Manual

Flight Pause/RTH Button

Press once to make the aircraft brake and hover in place. If the aircraft is performing a QuickShot, RTH,

or auto landing, press once to exit the procedure before braking.

Press and hold the RTH button until the remote controller beeps to start RTH. Press this button again to

cancel RTH and regain control of the aircraft. Refer to the Return to Home section for more information

about RTH.

Flight Mode Switch

Toggle the switch to select the desired ight mode.

Position Flight Mode

Sport Sport Mode

Normal Normal Mode

Cine Cine Mode

Customizable Button

To customize the function of this button, go to System Settings in DJI Fly and select Control.

Customizable functions include recentering the gimbal and toggling between the map and live view.

Remote Controller Alert

The remote controller sounds an alert during RTH. The alert cannot be cancelled. The remote controller

sounds an alert when the battery level is low (6% to 15%). A low battery alert level can be cancelled by

pressing the power button. A critical battery level alert (less than 5%), however, cannot be cancelled.

DJI MINI 2 SE User Manual

Optimal Transmission Zone

The signal between the aircraft and the remote controller is most reliable when the antennas are

positioned in relation to the aircraft as depicted below.

Linking the Remote Controller

The remote controller is linked to the aircraft before delivery. Linking is only required when using a new

remote controller for the rst time. Follow these steps to link a new remote controller:

1. Power on the remote controller and the aircraft.

2. Launch DJI Fly.

3. In camera view, tap

and select Control and Pair to Aircraft (Link). The remote controller will beep

continually.

4. Press and hold the power button of the aircraft for more than four seconds. The aircraft beeps once

to indicate it is ready to link. The aircraft beeps twice to indicate linking is successful. The battery

level LEDs of the remote controller will glow solid.

Make sure the remote controller is within 0.5 m of the aircraft during linking.

The remote controller will automatically unlink from an aircraft if a new remote controller is linked to

the same aircraft.

Turn o Bluetooth and Wi-Fi of the mobile device for optimal video transmission.

Fully charge the remote controller before each ight. The remote controller sounds an alert when the

battery level is low.

If the remote controller is powered on and not in use for ve minutes, an alert will sound. After six

minutes, the aircraft automatically powers o. Move the control sticks or press any button to cancel

the alert.

Adjust the mobile device holder to make sure the mobile device is secure.

Fully charge the battery at least once every three months to maintain battery health.

Strong

Weak

Optimal Transmission Zone

DJI MINI 2 SE User Manual

Remote Controller Warnings

The battery level LEDs will start blinking slowly after disconnecting with the aircraft. The remote

controller will beep and power o automatically after disconnecting from the aircraft or not in use for a

long time.

Avoid interference between the remote controller and other wireless equipment. Make sure to turn o

the Wi-Fi on your mobile device. Land the aircraft as soon as possible if there is severe interference.

DO NOT operate the aircraft when the light condition is too bright or dark using mobile device to

monitor the ight. The user is responsible for the correct adjustment of display brightness and that

the pilot shall avoid direct sunlight on the monitor during ight operation.

Stop operating the control sticks or press the ight pause button if an unexpected operation occurs.

DJI Fly App

This section introduces the main

functions of the DJI Fly app.

DJI Fly App

Home

Launch DJI Fly and enter the home screen.

Fly Spots

View or share nearby suitable ight and shooting locations, learn more about GEO zones, and preview

aerial photos of dierent locations taken by other users.

Academy

Tap the icon in the top right corner to enter Academy and view product tutorials, ight tips, ight safety,

and manual documents.

Album

View photos and videos from DJI Fly and your mobile device. Select the clip to download. QuickShot

videos can be created and viewed after downloading to the mobile device and rendering. Create

contains Templates and Pro. Templates automatically edit imported footage. Pro allows users to edit

footage manually.

SkyPixel

Enter SkyPixel to view videos and photos shared by users.

Prole

View the account information, ight records, DJI forum, online store, Find My Drone feature, and other settings.

DJI MINI 2 SE User Manual

Camera View

1. Flight Mode

N Mode

: displays the current ight mode.

2. System Status Bar

In Flight

: indicates the aircraft flight status and displays various warning messages. Tap to view more

information when a warning prompt appears.

3. Battery Information

24'26"

: displays the current battery level and remaining ight time. Tap to view more information about

the battery.

4. Video Downlink Signal Strength

: displays the video downlink signal strength between the aircraft and remote controller.

5. GPS Status

: displays the current GPS signal strength.

6. System Settings

: tap to view information about safety, control, camera, and transmission.

Safety

RTH: tap to set the Return to Home Altitude and update the Home Point.

Flight Protection: tap to set the max altitude and the max distance for ights.

Sensors: tap to view the compass and IMU statuses and start calibration if necessary.

Unlock GEO Zone: tap to view information about unlocking GEO Zones.

Find My Drone: use the map to nd the location of the aircraft on the ground.

Advanced Safety Setting: include the behavior settings for the aircraft when lost signal, Emergency Propeller

Stop, and Payload Mode.

When the remote controller signal is lost, the behavior of the aircraft can be set to Return to Home, Descend,

or Hover.

“Emergency Only” indicates that the motors can only be stopped mid-ight in an emergency situation, such

as a collision, a motor stalling, the aircraft rolling in the air, or the aircraft being out of control and ascending

1 2 3 4 5 6

1415

DJI MINI 2 SE User Manual

or descending quickly. “Anytime” indicates that the motors can be stopped mid-ight anytime once the user

performs a combination stick command (CSC).

When accessories are mounted to the aircraft, Payload Mode is enabled automatically once a payload is

detected. The ight performance will be reduced according when ying with any payload. Note that the max

service ceiling above sea level is 2,000 m and the max ight speed and ight range are limited when Payload

Mode is enabled.

Stopping the motors mid-ight will cause the aircraft to crash.

Control

Aircraft Settings: tap to set the measurement system.

Gimbal Settings: tap to set the gimbal mode, allow upward gimbal rotation, recenter the gimbal, and to

calibrate the gimbal. Advanced gimbal settings include speed and smoothness for pitch and yaw.

Remote Controller Settings: tap to set the function of the customizable button, to calibrate the remote

controller, to enable phone charging when an iOS device is connected, and to switch control stick modes.

Make sure to understand the operations of a control stick mode before changing control stick mode.

Beginner Flight Tutorial: view the ight tutorial.

Connect to Aircraft: when the aircraft is not linked to the remote controller, tap to start linking.

Camera

Photo: tap to set the photo size.

General Settings: tap to view and set histogram, overexposure warning, gridlines, white balance, and auto

sync HD photos.

Storage: tap to check microSD card capacity and format.

Cache Settings: tap to set to cache when recording and the max video cache capacity.

Reset Camera Settings: tap to restore all the camera settings to default.

Transmission

Frequency and channel mode settings.

A lives treaming platform can be selected to broadcast the camera view in real time.

About

View device information, rmware information, app version, battery version, and more.

7. Shooting Mode

Photo: Single, AEB, and Timed Shot.

Video: video resolution can be set to 2.7K 24/25/30 fps, and 1080p 24/25/30/48/50/60 fps.

Pano: Sphere, 180°, and Wide Angle. The aircraft automatically takes several photos according to the

selected type of Pano and generates a panoramic shot in DJI Fly.

QuickShots: choose from Dronie, Circle, Helix, Rocket, and Boomerang.

8. Zoom

: The icon shows the zoom ratio. Tap to adjust the zoom ratio. Tap and hold the icon to expand

the zoom bar and slide on the bar to adjust the zoom ratio.

9. Shutter/Record Button

: tap to take a photo or to start or stop recording a video.

10. Playback

: tap to enter playback and preview photos and videos as soon as they are captured.

11. Camera Mode Switch

: choose between Auto and Manual mode when in photo mode. In Manual mode, shutter and ISO can

be set. In Auto mode, AE lock and EV can be set.

12. Shooting Parameters

RES&FPS

2.7K 30

+0.7

: Displays the current shootings parameters. Tap to access parameter settings.

DJI MINI 2 SE User Manual

13. microSD Card Information

Storage

1:30:30

: displays the remaining number of photos or video recording time of the current microSD card.

Tap to view the available capacity of the microSD card.

14. Flight Telemetry

D 80m, H 150m, 5.6m/s, 3m/s: displays the distance between the aircraft and the Home Point, height from

the Home Point, aircraft horizontal speed, and aircraft vertical speed.

15. Map

Displays information such as the orientation and tilt angle of the aircraft, position of the remote controller,

and position of the Home Point.

Collapse

Switch to minimap

Aircraft tilt angle

Home Point

Remote controller position

Aircraft orientation

Switch to Attitude

Indicator

16. Auto Takeoff/Landing/RTH

: tap the icon. When the prompt appears, press and hold the button to initiate auto takeo or

landing.

Tap

to initiate Smart RTH and have the aircraft return to the last recorded Home Point.

17. Back

: tap to return to the home screen.

Press the screen until a circle appears and drag the circle up and down to control the tilt of the gimbal.

Make sure to fully charge your mobile device before launching DJI Fly.

Mobile cellular data is required when using DJI Fly. Contact your wireless carrier for data charges.

DO NOT accept phone calls or use texting features during ight if you are using a mobile phone as

your display device.

Read all safety tips, warning messages, and disclaimers carefully. Familiarize yourself with the related

regulations in your area. You are solely responsible for being aware of all relevant regulations and

ying in a way that is compliant.

a) Read and understand the warning messages before using the auto-take o and auto-landing features.

b) Read and understand the warning messages and disclaimer before setting the altitude beyond the

default limit.

c) Read and understand the warning messages and disclaimer before switching between ight modes.

d) Read and understand the warning messages and disclaimer prompts near or in GEO zones.

e) Read and understand the warning messages before using the Intelligent Flight modes.

Land the aircraft immediately at a safe location if a prompt appears in the app instructing you to do so.

Review all warning messages on the checklist displayed in the app before each ight.

Use the in-app tutorial to practice your ight skills if you have never operated the aircraft or if you do

not have sucient experience to operate the aircraft with condence.

Cache the map data of the area where you intend to y the aircraft by connecting to the internet

before each ight.

The app is designed to assist your operation. Use sound discretion and DO NOT rely on the app

to control the aircraft. The use of the app is subject to DJI Fly Terms of Use and DJI Privacy Policy.

Read them carefully in the app.

Flight

This section describes safe ight

practices and ight restrictions.

Flight

Once pre-flight preparation is complete, it is recommended to hone your flight skills and practice

ying safely. Make sure that all ights are carried out in an open area. Strictly abide by local laws and

regulations when ying. Make sure to read the Safety Guidelines to understand the safety notices before

ying.

Flight Environment Requirements

1. Do NOT use the aircraft in severe weather conditions including wind speeds exceeding 10.7 m/s,

snow, rain, and fog.

2. Only fly in open areas. Tall structures and large metal structures may affect the accuracy of the

onboard compass and GPS system. It is recommended to keep the aircraft at least 5 m away from

structures.

3. Avoid obstacles, crowds, high-voltage power lines, trees, and bodies of water. It is recommended to

keep the aircraft at least 3 m above water.

4. Minimize interference by avoiding areas with high levels of electromagnetism such as locations near

power lines, base stations, electrical substations, and broadcasting towers.

5. Aircraft and battery performance is subject to environmental factors such as air density and

temperature. The maximum service ceiling above sea level of the aircraft is 13,123 ft (4,000 m)

when ying with the Intelligent Flight Battery. Otherwise, the battery and aircraft performance may be

reduced.

6. Aircraft cannot use GPS within the polar regions. Use the Downward Vision System when ying in

such locations.

7. DO NOT take o from moving surfaces such as a moving boat or vehicle.

8. DO NOT use the aircraft near accidents, res, explosions, oods, tsunamis, avalanches, landslides,

earthquakes, dust, or sandstorms.

9. Use the battery charging hub in a temperature range of 5° to 40° C (41° to 104° F).

10. Operate the aircraft, battery, remote controller and battery charging hub in a dry environment.

11. DO NOT use the battery charging hub in severe weather conditions including snow, rain, ice, hail, or

fog.

12. DO NOT use the aircraft, remote controller, battery, and battery charging hub in salt spray, bird

ocks, or during thunderstorms and sandstorms.

Operating the Aircraft Responsibly

To avoid serious injury and property damage, observe the following rules:

1. Make sure you are NOT under the influence of anesthesia, alcohol, or drugs or suffering from

dizziness, fatigue, nausea, or any other conditions, whether physical or mental, that could impair

your ability to operate the aircraft safely.

2. Upon landing, power o the aircraft rst, then switch o the remote controller.

3. DO NOT drop, launch, re, or otherwise project any dangerous payloads on or at any buildings,

persons or animals, or which could cause personal injury or property damage.

DJI MINI 2 SE User Manual

Max Flight Altitude

Max Radius

Home Point

Height of aircraft

when powered on

4. DO NOT use an aircraft that has been crashed or accidentally damaged or an aircraft that is not in

good condition.

5. Make sure you have been suciently trained and have contingency plans for emergency situations or

for when accidents occur.

6. Make sure you have a ight plan and never y the aircraft recklessly.

7. Respect the privacy of others when using the camera. Make sure you comply with local privacy laws,

regulations, and moral standards.

8. DO NOT use this product for any reason other than general personal use. DO NOT use it for any

illegal or inappropriate purpose (such as spying, military operations, or unauthorized investigations).

9. DO NOT use this product to defame, abuse, harass, stalk, threaten, or otherwise violate the legal

rights (such as the right of privacy and publicity) of others.

10. DO NOT trespass onto the private property of others.

Flight Limits and GEO Zones

GEO (Geospatial Environment Online) System

DJI's Geospatial Environment Online (GEO) System is a global information system that provides real-time

information on ight safety and restriction updates and prevents UAVs from ying in restrict airspace.

Under exceptional circumstances, restricted areas can be unlocked to allow ights in. Prior to that, the

user must submit an unlocking request based on the current restriction level in the intended ight area.

The GEO system may not fully comply with local laws and regulations, users shall be responsible for

their own ight safety and must consult with the local authorities on the relevant legal and regulatory

requirements before requesting to unlock a ight in a restricted area. For more information about the

GEO system, visit http://www.dji.com/ysafe.

Flight Limits

Unmanned aerial vehicle (UAV) operators should abide by the regulations from self-regulatory

organizations such as the International Civil Aviation Organization, the Federal Aviation Administration,

and local aviation authorities. For safety reasons, flight limits are enabled by default to help users

operate this aircraft safely and legally. Users can set ight limits on height and distance.

Altitude limits, distance limits, and GEO zones function concurrently to manage ight safety when GPS

is available. Only altitude can be limited when GPS is unavailable.

Flight Altitude and Distance Limits

The ight altitude and distance limits can be changed in DJI Fly. Based on these settings, the aircraft will

y in a restricted cylinder as shown below:

DJI MINI 2 SE User Manual

Flight Limits DJI Fly App

Aircraft Status

Indicator

Max

Altitude

Altitude of the aircraft cannot exceed

the specied value

Warning: height limit

reached

Blinks green and

red alternatively

Max

Radius

Flight distance must be within the

max radius

Warning: distance limit

reached

When GPS is weak

Flight Limits DJI Fly App

Aircraft Status

Indicators

Max

Altitude

Height is restricted to 16 ft (5 m)

when the GPS signal is weak and

Infrared Sensing System is operating.

Height is restricted to 98 ft (30 m)

when the GPS signal is weak and

Infrared Sensing System is not

operating.

Warning: height limit

reached.

Blinks red and

green alternately

Max

Radius

The restrictions on the radius are disabled and warning prompts cannot be received in

the app.

There will be no altitude limit if the GPS signal becomes weak during ight as long as the GPS signal

was stronger than weak (white or yellow signal bars) when the aircraft was powered on.

If the aircraft is in a GEO zone and there is a weak or no GPS signal, the aircraft status indicator will

glow red for ve seconds every twelve seconds.

If the aircraft reaches an altitude or radius limit, you can still control the aircraft, but you cannot y it

any further. If the aircraft ies out of the max radius, it will automatically y back within range when

the GPS signal is strong.

For safety reasons, do not y close to airports, highways, railway stations, railway lines, city centers,

or other sensitive areas. Fly the aircraft only within your line of sight.

GEO Zones

All GEO zones are listed on the DJI ocial website at http://www.dji.com/ysafe. GEO zones are divided

into dierent categories and include locations such as airports, airelds where manned aircraft operate

at low altitudes, national borders, and sensitive locations such as power plants. By default, the GEO

system limits ights into or takeos within zones that may cause safety or security concerns.

You will receive a prompt in DJI Fly if your aircraft is approaching a GEO zone and the aircraft will be

restricted from ying in the area.

When GPS is available

DJI MINI 2 SE User Manual

Pre-Flight Checklist

1. Make sure the gimbal protector is removed.

2. Make sure the remote controller, mobile device, and Intelligent Flight Battery are fully charged.

3. Make sure the Intelligent Flight Battery and the propellers are mounted securely and the propellers

are spread.

4. Make sure the aircraft arms are unfolded.

5. Make sure the gimbal and camera are functioning normally.

6. Make sure that there is nothing obstructing the motors and that they are functioning normally.

7. Make sure that DJI Fly is successfully connected to the aircraft.

8. Make sure that the camera lens and Downward Vision System sensors are clean.

9. Use only genuine DJI parts or parts certified by DJI. Unauthorized parts or parts from non-DJI

certied manufacturers may cause system malfunctions and compromise safety.

10. Make sure the max ight altitude is set properly according to local regulations.

11. DO NOT y over densely populated areas.

12. Make sure the aircraft and remote controller are functioning normally.

Auto Takeoff/Landing

Auto Takeo

Use auto takeo when the aircraft status indicator blinks green.

1. Launch DJI Fly and enter the camera view.

2. Complete all steps in the pre-ight checklist.

3. Tap

. If conditions are safe for takeo, press and hold the button to conrm.

4. The aircraft will take o and hover approx. 3.9 ft (1.2 m) above the ground.

The aircraft status indicator blinks green twice repeatedly to indicate that the aircraft is reliant on the

Downward Vision System to y and can only y stable at altitudes below 30 m. It is recommended to

wait until the aircraft status indicator is slowly blinking green before using auto takeo.

DO NOT take o from a moving surface such as a moving boat or vehicle.

Auto Landing

Use auto landing when the aircraft status indicator blinks green.

1. Tap

. If conditions are safe to land, press and hold the button to conrm.

2. Auto landing can be cancelled by tapping

3. If the Downward Vision System is working normally, Landing Protection will be enabled.

4. Motors stop after landing.

Choose the proper place for landing.

DJI MINI 2 SE User Manual

Stopping the Motors

There are two methods to stop the motors.

Method 1: when the aircraft has landed, push and hold the throttle stick down. The motors will stop

after three seconds.

Method 2: when the aircraft has landed, push the throttle stick down, and perform the same CSC that

was used to start the motors for 2 s. Release both sticks once the motors have stopped.

Starting/Stopping the Motors

Starting the Motors

A Combination Stick Command (CSC) is used to start the motors. Push both sticks to the bottom inner

or outer corners to start the motors. Once the motors start spinning, release both sticks simultaneously.

Method 1 Method 2

If the motor is started unexpectedly, perform the same CSC to stop motors immediately.

Stopping the Motors Mid-Flight

The motors should only be stopped mid-flight in an emergency situation such as if a collision has

occurred or if the aircraft is out of control and is ascending or descending very quickly, rolling in

the air, or if a motor has stalled. To stop the motors mid-flight, use the same CSC that was used

to start the motors for 2 s. The default setting can be changed in DJI Fly.

Stopping motors mid-ight will cause the aircraft to crash.

DJI MINI 2 SE User Manual

It is important to understand the basic ight guidelines for the safety of both you

and those around you.

DO NOT forget to read the safety guidelines.

Flight Test

Takeo/Landing Procedures

1. Place the aircraft in an open, at area with the aircraft status indicator facing towards you.

2. Power on the remote controller and the aircraft.

3. Launch DJI Fly, connect the mobile device to the aircraft, and enter the camera view.

4. Wait until the aircraft status indicator blinks green slowly to indicate that the Home Point has been

recorded and it is now safe to y.

5. Gently push the throttle stick to take o or use auto-takeo.

6. Pull the throttle stick or use auto-landing to land the aircraft.

7. After landing, push the throttle down and hold. The motors stop after three seconds.

8. Power o the aircraft before the remote controller.

Video Suggestions and Tips

1. The pre-ight checklist is designed to help you y safely and to ensure that you can shoot video

during ight. Go through the full pre-ight checklist before each ight.

2. Select the desired gimbal operation mode in DJI Fly.

3. It is recommended to take photos or record videos when ying in Normal or Cine mode.

4. DO NOT y in bad weather conditions such as when it is raining or windy.

5. Choose the camera settings that best suit your needs.

6. Perform ight tests to establish ight routes and to preview scenes.

7. Push the control sticks gently to keep the aircraft movement smooth and stable.

Appendix

Specifications

Aircraft

Maximum Propeller Speed 16928 RPM

Maximum Take-O Weight 246 g (including the Intelligent Flight Battery, propellers, and a microSD card)

Dimensions

Folded: 138×81×58 mm

Unfolded: 159×203×56 mm

Unfolded (with propellers): 245×289×56 mm

Diagonal Distance 213 mm

Max Ascent Speed

5 m/s (Sport Mode)

3 m/s (Normal Mode)

2 m/s (Cine Mode)

Max Descent Speed

3.5 m/s (Sport Mode)

3 m/s (Normal Mode)

1.5 m/s (Cine Mode)

Max Speed (near sea level, no

wind)

16 m/s (Sport Mode)

10 m/s (Normal Mode)

6 m/s (Cine Mode)

Max Service Ceiling Above Sea

Level

With Intelligent Flight Battery: 13,123 ft (4,000 m)

Max Flight Time 31 mins (measured while ying at 17 kph in windless conditions)

Max Wind Speed Resistance 10.7 m/s (Scale 5)

Max Tilt Angle

40° (Sport Mode)

25° (Normal Mode)

25° (Cine Mode)

Max Angular Velocity

250°/s (Sport Mode)

250°/s (Normal Mode)

250°/s (Cine Mode)

Operating Temperature 0° to 40° C (32° to 104° F)

GNSS GPS+GLONASS+Galileo

Operating Frequency 2.400-2.4835 GHz, 5.725-5.850 GHz

Transmission Power (EIRP)

2.4 GHz: ≤26 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)

5.8 GHz: ≤26 dBm (FCC), ≤23 dBm (SRRC), ≤14 dBm (CE)

Hovering Accuracy Range

Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)

Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal

Mechanical Range

Tilt: -110° to +35°

Roll: -35° to +35°

Pan: -20° to +20°

Controllable Range Tilt: -90° to 0° (default), -90° to +20° (extended)

DJI MINI 2 SE User Manual

Stabilization 3-axis (tilt, roll, pan)

Max Control Speed (tilt) 100°/s

Angular Vibration Range ±0.01°

Sensing System

Downward Hovering Range: 0.5-10 m

Operating Environment

Non-reective, discernible surfaces with

diuse reectivity of >20%;

Adequate lighting of lux >15

Camera

Sensor 1/2.3” CMOS, Eective Pixels: 12 M

Lens

FOV: 83°

35 mm format equivalent: 24 mm

Aperture: f/2.8

Focus range: 1 m to ∞

ISO Range

Video 100-3200

Photo 100-3200

Electronic Shutter Speed 4-1/8000 s

Max Image Size 4000×3000

Still Photography Modes

Single shot

Interval: 2/3/5/7/10/15/20/30/60 s (JPEG)

5/7/10/15/20/30/60 s (JPGE+RAW)

Automatic Exposure Bracketing (AEB): 3 Frames at 2/3 EV Step

Video Resolution

2.7K: 2720×1530 24/25/30 p

FHD: 1920×1080 24/25/30/48/50/60 p

Max Video Bitrate 100 Mbps

Supported File Formats

FAT32 (≤ 32 GB)

exFAT (> 32 GB)

Photo Format JPEG/DNG (RAW)

Video Format MP4 (H.264/MPEG-4 AVC)

Remote Controller (Model: RC231)

Operating Frequency 2.400-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance

(unobstructed, free of

interference)

10 km (FCC), 6 km (CE/SRRC/MIC)

Transmission Distance (in

common scenarios)

Strong interference (e.g., city center): approx. 3 km

Moderate interference (e.g., outer suburbs, small towns): approx. 6 km

No interference (e.g., rural areas, beaches): approx. 10 km

Operating Temperature -10° to 40° C (14° to 104° F)

Transmitter Power (EIRP)

2.4 GHz: ≤26 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)

5.8 GHz: ≤26 dBm (FCC), ≤23 dBm (SRRC), ≤14 dBm (CE)

Battery Capacity 5200 mAh

Operating Current/Voltage

1200 [email protected] V (with Android device)

700 [email protected] V (with iOS device)

Supported Mobile Device Size 180×86×10 mm (Height×Width×Thickness)

Supported USB Port Types Lightning, Micro USB (Type-B), USB-C

Video Transmission System OcuSync 2.0

DJI MINI 2 SE User Manual

Live View Quality 720p@30fps

Max Bitrate 8 Mbps

Latency (depending on

environment and mobile device)

200 ms

Charger

Input 100-240 V, 50/60 Hz, 0.5 A

Output 12V 1.5A / 9V 2A / 5V 3A

Rated Power 18 W

Intelligent Flight Battery

Battery Capacity 2250 mAh

Voltage 7.7 V

Charging Voltage Limit 8.8 V

Battery Type Li-ion

Energy 17.32 Wh

Weight 82.5 g

Charging Environment

Temperature

5° to 40° C (41° to 104° F)

Max Charging Power 29 W

App

App DJI Fly

Required Operating System

iOS v11.0 or later; Android v7.0 or later

SD Cards

Supported SD Cards UHS-I Speed Grade 3 rating or above microSD card

Recommended microSD Cards

16 GB: SanDisk Extreme

32 GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Industrial,

SanDisk Extreme V30 A2, SanDisk Extreme Pro V30 A1, SanDisk Extreme

Pro V30 A2, Lexar 633x, Lexar 667x

64 GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Extreme

V30 A1, SanDisk Extreme V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x,

Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1

128 GB: Samsung Pro Plus, Samsung Evo Plus, SanDisk Extreme V30 A2,

SanDisk Extreme Plus V30 A1, SanDisk Extreme Plus V30 A2, Lexar 633x,

Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303

V30 A1, Netac Pro V30 A1

256 GB: SanDisk Extreme V30 A2

Aircraft takeo weight includes battery, propellers, and a microSD card.

Aircraft registration is required in some countries and regions. Check local rules and regulations

before use.

The transmission distance in common scenarios listed above are the typical values tested in an FCC

area without obstruction.

These specications have been determined through tests conducted with the latest rmware. Firmware

updates can enhance performance. It is highly recommended to update to the latest rmware.

DJI MINI 2 SE User Manual

Calibrating the Compass

It is recommended to calibrate the compass in the following situations when ying outdoors:

1. Flying at a location further than 31 miles (50 km) away from the location the aircraft was last own.

2. The aircraft has not been own for more than 30 days.

3. A compass interference warning appears in DJI Fly and/or the aircraft status indicator blinks red and

yellow alternatively.

DO NOT calibrate the compass in locations where magnetic interference may occur such as close

to magnetite deposits or large metallic structures such as parking structures, steel reinforced

basements, bridges, cars, or scaolding.

DO NOT carry objects that contain ferromagnetic materials such as mobile phones near the aircraft

during calibration.

It is not necessary to calibrate the compass when ying indoors.

Calibration Procedure

Choose an open area to carry out the following procedure.

1. Tap System Settings in DJI Fly, select Safety, then Calibrate, and follow the on-screen instructions.

The aircraft status indicator is solid yellow, indicating calibration has started.

2. Hold the aircraft horizontally and rotate it 360°. The aircraft status indicator will turn solid green.

3. Hold the aircraft vertically and rotate it 360° around a vertical axis.

4. If the aircraft status indicator blinks red, the calibration has failed. Change your location and try the

calibration procedure again.

If the aircraft status indicator blinks red and yellow alternatively after calibration is completed, this

indicates that the current location is not suitable for ying the aircraft due to the level of magnetic

interference. Choose a new location.

A prompt will appear in DJI Fly if compass calibration is required before takeo.

The aircraft can take o immediately once calibration is complete. If you wait more than three

minutes to take o after calibration, you may need to calibrate again.

DJI MINI 2 SE User Manual

Updating Firmware

When you connect the aircraft or remote controller to DJI Fly, you will be notied if a new rmware update

is available. To update, connect the mobile device to the internet and follow the on-screen instructions.

Note that the rmware cannot be updated if the remote controller is not linked to the aircraft.

Make sure to follow all the steps to update rmware. Otherwise, the update may fail. The aircraft will

power o automatically after the rmware update is complete.

The rmware update will take approx. 10 minutes. It is normal for the gimbal to go limp, aircraft

status indicators to blink, and the aircraft to reboot. Wait patiently until the update is complete.

Before performing an update, make sure the Intelligent Flight Battery is at least 15% charged and the

remote controller is at least 20% charged.

The remote controller may become unlinked from the aircraft after updating. Relink the remote

controller and aircraft. Note that the update may reset various main controller settings, such as the

RTH altitude and the maximum ight distance, to default settings. Before updating, take note of your

preferred DJI Fly settings and readjust them after the update.

After-Sales Information

Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and

support.

Maintenance Instructions

To avoid serious injury to children and animals, observe the following rule:

1. Small parts, such as cables and straps, are dangerous if swallowed. Keep all parts out of reach of

children and animals.

2. Store the Intelligent Flight Battery and remote controller in a cool, dry place away from direct sunlight

to ensure the built-in LiPo battery does NOT overheat. Recommended storage temperature:

between 22° and 28° C (71° and 82° F) for storage periods of more than three months. Never store

in environments outside the temperature range of -10° to 45° C (14° to 113° F).

3. DO NOT allow the camera to come into contact with or become immersed in water or other liquids.

If it gets wet, wipe it with a dry soft, absorbent cloth. Turning on an aircraft that has fallen into water

may cause permanent component damage. DO NOT use substances containing alcohol, benzene,

thinners or other ammable substances to clean or maintain the camera. DO NOT store the camera

in humid or dusty areas.

4. DO NOT connect this product to any USB interface that is older than version 3.0. DO NOT connect

this product to any "power USB" or similar devices.

5. Check every part of the aircraft after any crash or violent impact. If you have any problems or

questions, please contact a DJI authorized dealer.

6. Regularly check the Battery Level Indicators to see the current battery level and overall battery life.

The battery is rated for 200 cycles. It is not recommended to continue use afterward.

DJI MINI 2 SE User Manual

7. Post-Flight Checklist

a. Make sure the Intelligent Flight Battery and the propellers are in good condition.

b. Make sure that the camera lens and Vision System sensors are clean.

c. Make sure to attach the gimbal protector before storing or transporting the aircraft.

8. Make sure to transport the aircraft with the arms folded when powered o.

9. The battery will enter sleep mode after long-term storage. Charge the battery to exit sleep mode.

10. Store the aircraft, remote controller, battery, and battery charging hub in dry environments.

11. Remove the battery before any service at the aircraft, e.g., cleaning or attachment/detachment of

propellers. Make sure that the aircraft and the propellers are clean. If there is any dirt or dust, clean it

with a soft cloth. Do not use any cleanser that contains alcohol. Do not wet clean the aircraft. Liquids

that penetrate into the housing of the aircraft and can cause a short circuit of the electronics. Liquid

can destroy the electronics of the aircraft.

List of Items Including Qualified Accessories

Items Weight Dimensions

DJI Mini 2 Propellers 1.9 g (each pair) 119.38×66.04 mm (Diameter×Pitch)

DJI Mini 2 Intelligent Flight

Battery

82.5 g 75×38.7×19.6 mm

Mavic Mini DIY Creative Kit Approx. 2 g 14.6×8.3×0.3 mm

microSD Card Approx. 0.3 g (not exceed 1 g) 15×11×1.0 mm

List of Spare and Replacement Parts

1. DJI Mini 2 Propellers

2. DJI Mini 2 Intelligent Flight Battery

List of Safeguards

Below is the list of the mechanical safeguards and operation safeguards for DJI Mini 2 SE.

1. The Combination Stick Command (CSC) can be performed to stop the propellers in case of an

emergency. Refer to the Starting/Stopping the Motors section for details.

2. The Return to Home (RTH) function. Refer to the Return to Home section for details.

3. The vision system and infrared sensing system. Refer to the Vision System and Infrared Sensing

System section for details.

4. The DJI GEO system provides real-time information on flight safety and restriction updates and

prevents UAVs from ying in restricted airspace. Refer to the Flight Limits section for details.

DJI MINI 2 SE User Manual

Risk and Warnings

When the aircraft detects risk after powering on, there will be warnings prompt on DJI Fly. Pay attention

to the listed situations below.

1. If the location is not suitable for take-o, DJI Fly will prompt.

2. If the location is not suitable for landing, DJI Fly will prompt.

3. If the compass and IMU experience interference and need to be calibrated, DJI Fly will prompt.

4. Follow the on-screen instructions when prompted.

Disposal

Observe the local regulations related to electronic devices when disposing of the aircraft and remote

controller.

This content is subject to change.

Download the latest version from

http://www.dji.com/mini-2-se

If you have any questions about this document, please contact

DJI by sending a message to [email protected].

is a trademark of DJI.

DJI Support

http://www.dji.com/support

Dji MINI 2 SE

Product's Documents

User Manual

Specifications

Dji MINI 2 SE Questions and Answers
