nursery evaporative humidifier
Huey
Hello, i’m
Own’s Handbk
read & save these important instructions
manual del propietario
lea y guarde estas instrucciones importantes
mode d’emploi
lire et conserver ces instructions importantes
Hola, me llamo Huey, humidificador evaporativo vivero.
Bonjour, je suis le Huey, humidificateur par évaporation de pépinière.
2 English
Welce to Vnadobaby
Vornado began in 1945, continues to revolutionize airflow today and is now tailored for the nursery.
®
A THIRD
genati
NAME
Thank you for choosing to put a Vornadobaby product in your nursery. Our
goal is to provide healthy, comfortable air - through every season. Vornado
has been doing this for quite a while now. We’ve brought all our experience in
air health and comfort, and tailored it exclusively for your nursery.
3
English
Español p. 30
Français p. 58
Important Instructions ............................................................................. 4
Safety ......................................................................................................... 6
Huey Controls........................................................................................... 7
Plug In & Placement ................................................................................ 8
Using Huey For The First Time ............................................................. 10
Huey Water Bottle ................................................................................. 11
How To Use ............................................................................................. 13
Changing Huey’s Wick .......................................................................... 14
Extending Wick Life .............................................................................. 16
Keeping Huey Clean ............................................................................. 17
Tips .......................................................................................................... 22
Troubleshooting .................................................................................... 23
Warranty .................................................................................................. 25
Contents
4 English
Please visually inspect all internal and external components
before connecting to electric current. If any damage is found,
DO NOT USE THIS UNIT and contact Vornado Air LLC at
1-800-234-0604.
This appliance has a polarized plug. (One blade is wider than
the other.) To reduce the risk of electrical shock, this plug is
intended to fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician. Do not attempt to defeat this
safety feature.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electrical shock
and injury to persons, including the following:
- Do Read all instructions before using this Humidifier.
- Do Turn the Humidifier off if the relative humidity exceeds
60%. Humidity levels above 60% may allow moisture to build
up indoors and condense on surfaces, where microorgan-
isms can settle and grow. For accurate humidity readings, use
a hygrometer which is available at most hardware stores and
home centers.
- Do Unplug the Humidifier prior to moving, cleaning or refill-
ing.
- Do Unplug and empty this Humidifier when not in operation.
- Always unplug when not in use or when leaving the dwelling
or premises for extended periods of time.
- Do Empty water from the Humidifier if the Humidifier is to be
turned off and left for more than 8 hours, as leaving the water
will encourage the growth of microorganisms. If this hap-
pens, thoroughly clean and disinfect the Humidifier. (Refer to
the KEEPING HUEY CLEAN.)
- Do Remove the Water Bottle first if you need to move the
Humidifier to another location.
- This Humidifier requires periodic cleaning. Refer to the
KEEPING HUEY CLEAN instructions provided. Do Not clean
the Humidifier in any manner other than as instructed in this
manual.
- Do Not use this product on an uneven surface. Always place
this product on a firm, flat surface.
- Do Not operate the Humidifier with a damaged cord or plug,
after the Humidifier malfunctions, or has been dropped or
damaged in any manner. If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
- Do Not run power cord under carpeting.
- Do Not cover cord with throw rugs, runners or similar ob-
jects. Arrange the power cord away from traffic areas, so it
will not become a tripping hazard.
IMPORTANT
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING.
5
English
- Do Not place the Humidifier near heat sources such as stoves,
radiators or heaters.
- Do Not pour water through the top Outlet Air Grill on the
Power Head.
- Do Not use undiluted bleach or ammonia, strong detergents,
abrasive cleansers, gasoline, paint thinner or other solvents to
clean this Humidifier. Use only water and mild detergents to
perform daily maintenance on your Humidifier.
- Do Not ATTEMPT TO DISASSEMBLE THE POWER HEAD. DO-
ING SO WILL VOID YOUR WARRANTY AND COULD CAUSE
DAMAGE AND/OR PERSONAL INJURY. The Power Head con-
tains no user serviceable parts. If you experience a problem,
please see the limited warranty for information.
- Do Not repeatedly remove and replace the Water Bottle. This
will overfill the Base and water will spill out.
- Humidifiers should be kept away from children and not be
placed in a child’s room without supervision.
- Do use common sense when using this product and/or any
electrical appliance. This appliance is not intended for use by
persons (including children) with a reduced physical, sensory
or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction con-
cerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do
not play with the appliance.
Note: This equipment has been tested and found to comply
with the limits for Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the
receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) his device must accept
any interference received, including interference that may cause
undesired operation.
Industry Canada ICES-003 Compliance: CAN ICES-3 (B)/NMB-
3(B)
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
READ AND SAVE THESE INSTRUCTIONS
6 English
Safety
Plug It In Safely! Your Huey has a 6 ft. power cord. Vornado recommends placing product as
close to an outlet as possible and securing the remaining cord.
Finger Friendly Design
Resists curious fingers.
Topple-Resistant
Spill-Proof Wide Base
Resists splashing and spills.
Ergonomic Water Bottle
Easy to fill. Easy to carry. Easy
to load.
Enclosed Water Bottle
Protected on all sides from
tampering toddlers.
Locking Controls
Keep Huey Off when not in
use or lock in your desired
settings.
Power Cord Wrap
Secured power cord prevents
strangulation hazard.
7
English
Huey Controls
Fan ( - Low, High)
Humidity ( )
Power ( )
Control Lock ( )
1
2
3
4
1
4
2
3
8 English
Plug In & Placement
Power Cord Wrap
For your convenience and safety the power cord
has a Power Cord Wrap to keep the power cord
neat and out of harms way.
1. First, release the Power Cord Wrap around the
power cord and unwind the power cord to
desired length.
2. Close the Power Cord Wrap until any
unwanted power cord is securely wrapped.
Safety Tip: Power cords increase strangulation
risks. Secure the power cord inside the Power
Cord Wrap as much as possible.
9
English

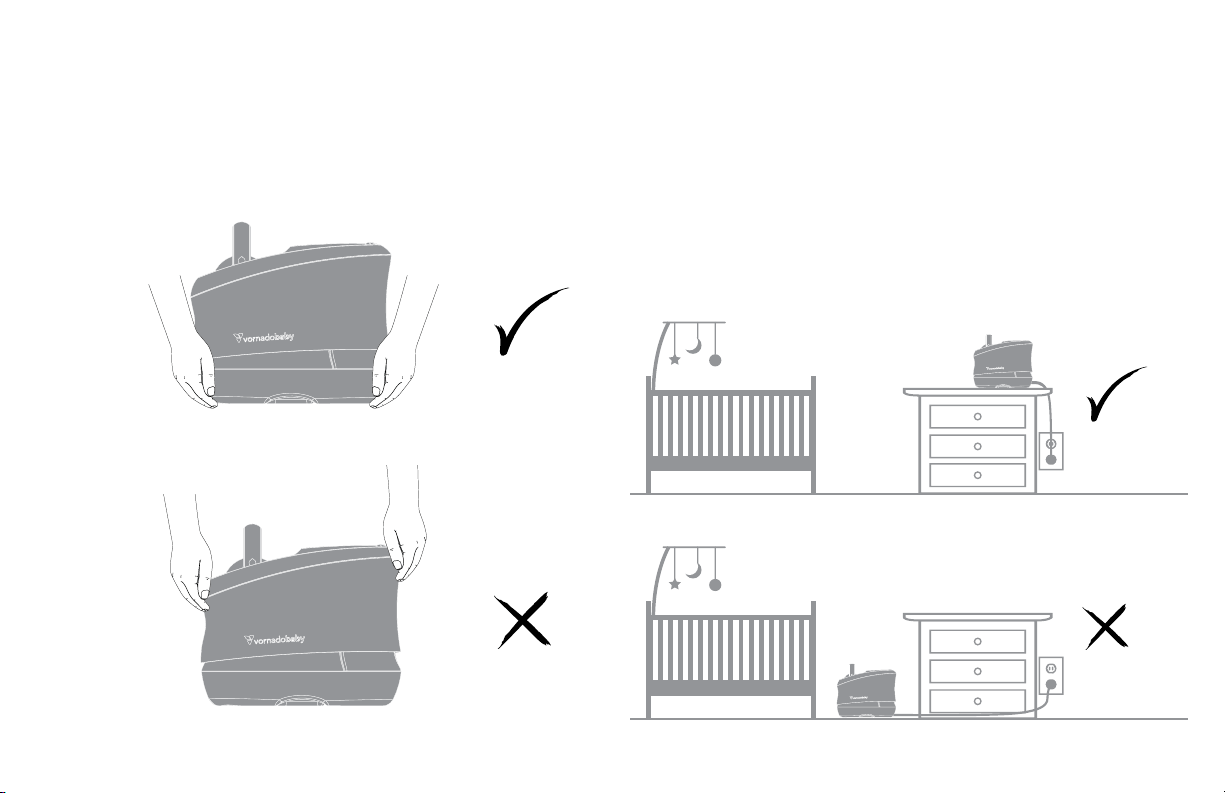

Set Up
1. Always lift Huey from the bottom.
2. Position Huey to not blow directly on any
objects.
Safety Tip: It is best to position Huey close to the
power outlet and store excess power cord within
the Power Cord Wrap.
10 English
Your new Huey uses a sizable volume of water,
so we recommend checking the Base and
Water Bottle for leaks that may have occurred
due to damage caused in shipping.
Note: A visual inspection may not reveal
hairline fractures.
To Check For Leaks:
1. Place Huey on a water-resistant surface.
2. Remove and fill the Water Bottle with water
to inspect for leaks.
3. Replace Water Bottle and inspect the base
of Huey for leaks.
Leaking?
In the slight chance your Huey has leaks,
contact Consumer Services and we will
immediately replace damaged parts.
• On first use, the Wick may give off a mild
odor. The odor is not harmful and will go
away after the first few hours of operation.
Warning: Do not add oils or scents.
• Once Huey has reached the desired humidity
in the room, it is normal for the fan to come
back on periodically to take a sample of the
room’s humidity level. This is to maintain a
more accurate humidity reading in the room.
• Allow for optimum airflow by keeping the
grill unobstructed. Ensure curtains and other
items are far enough away from Huey to not
be pulled into the side inlets or interfere with
airflow.
• We recommend you operate your Huey con-
tinuously. This helps maintain humidity all day
long, costs only pennies a day, and will not
harm Huey.
• Lower humidity control settings or turn off
Huey if moisture forms on walls or windows.
Using Huey For The First Time
11
English
Huey’s Water Bottle will glow to notify you
when water level is low.
It is recommended to refill the Water Bottle at
this time to maintain humidity level in the room.
This notification will appear after approximately
12 hours, depending on use.
Running Huey without water will Not cause
damage.
Huey Water Bottle
To give you a little time, Huey’s Bottle
illuminates before it is is completely empty.
Huey also stores water in his base, giving
busy parents a bit more time to refill.
12 English
Huey Water Bottle

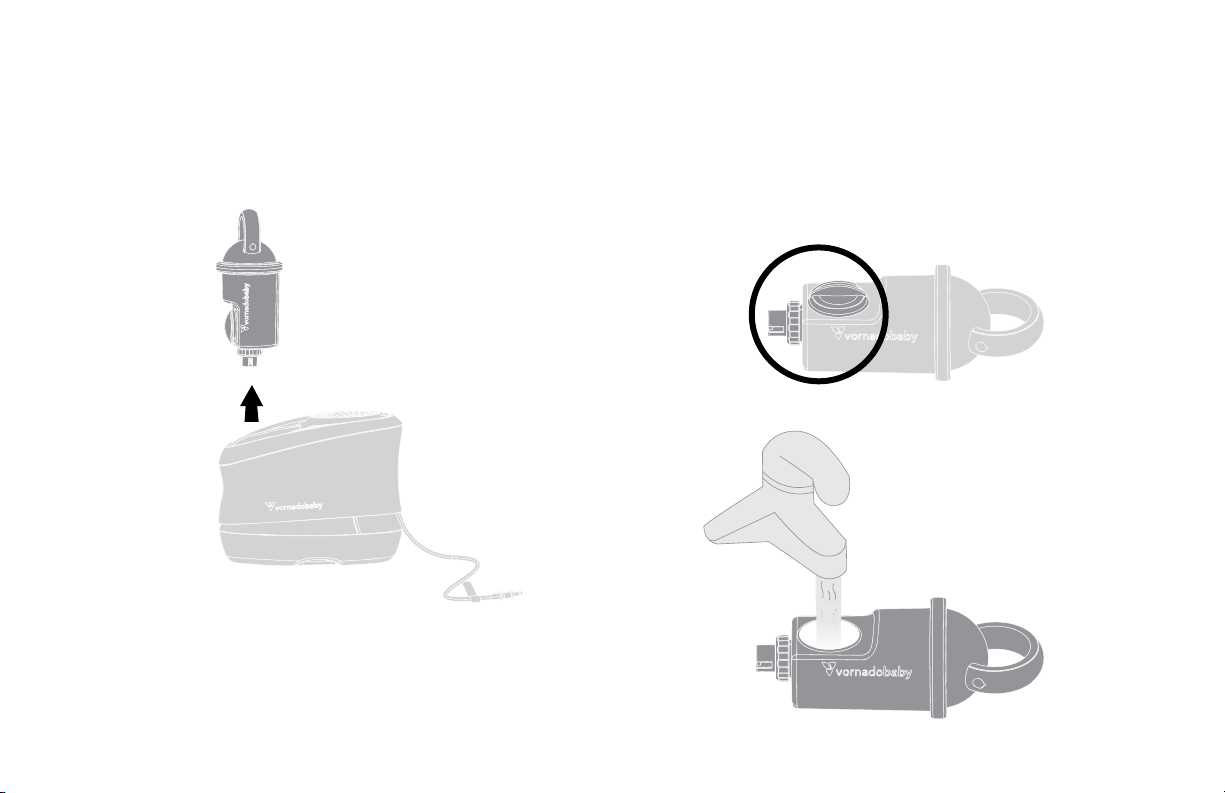

Refilling the Water Bottle
1. Remove Water Bottle.
2. Choose a Water Bottle opening that is
convenient for your sink. Remove Water Bottle
Cap and fill Water Bottle with cool, clean water.
13
English
3. Replace Water Bottle cap and place Water
Bottle inside Huey.
Note: Ensure the rubber ring around the
Water Bottle Cap is properly positioned before
replacing the Water Bottle Cap.
Note: Filling the Tank for the first time. The water
inside the Water Bottle will drain into the base
of Huey. After a few seconds you will notice the
Water Bottle is 1/3 empty.
4. Repeat filling the Water Bottle with cool with
cool, clean water and replace Water Bottle
inside Huey.
14 English
Operation

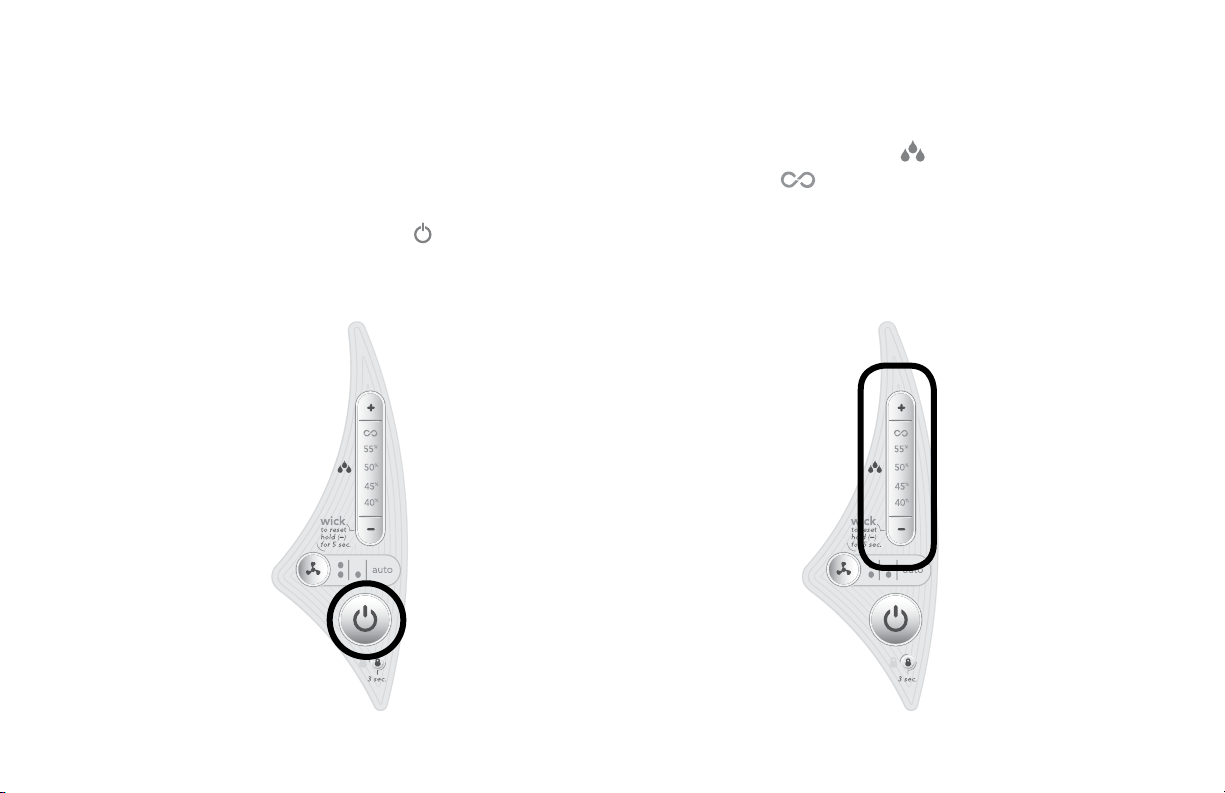

1. Plug power cord into standard wall outlet.
2. Press the Power button On ( ). The control
panel will illuminate when On and dim after
approximately 20 seconds.
3. Select desired Humidity ( ) level, 40% to
Continuous ( ), by the pressing (+/-) button.
The Continuous level will output humidity
continuously.
How To Use
15
English
4. Select desired Fan ( ) setting, Low ( ), High ( )
or Auto. Selecting Auto offers a more precise
humidity control. Fan speed will fluctuate
between high, low and off to better maintain
set humidity level with a minimal amount of
fan noise.
Huey features a child-resistant button,
keeping Huey in parents’ desired setting.
Lockable Controls
1. To engage this feature press and
hold the Control Lock button ( )
for 3 seconds. The Control Lock
icon will blink 3 times rapidly to
show it is locked.
Note: The Control Lock icon will
blink 3 times slowly if any button
is pressed while the Control Lock
is engaged. While this feature
is engaged you will not be able
to change the settings or Power
Huey Off. If Huey is powered Off,
you may still engage the
Control Lock.
2. To turn this feature off press and hold the
Control Lock button ( ) for 3 seconds.
Note: Previous
control settings
are kept for the
next time Huey
is powered On,
unless Huey is
unplugged.
16 English
Replacing the Wick

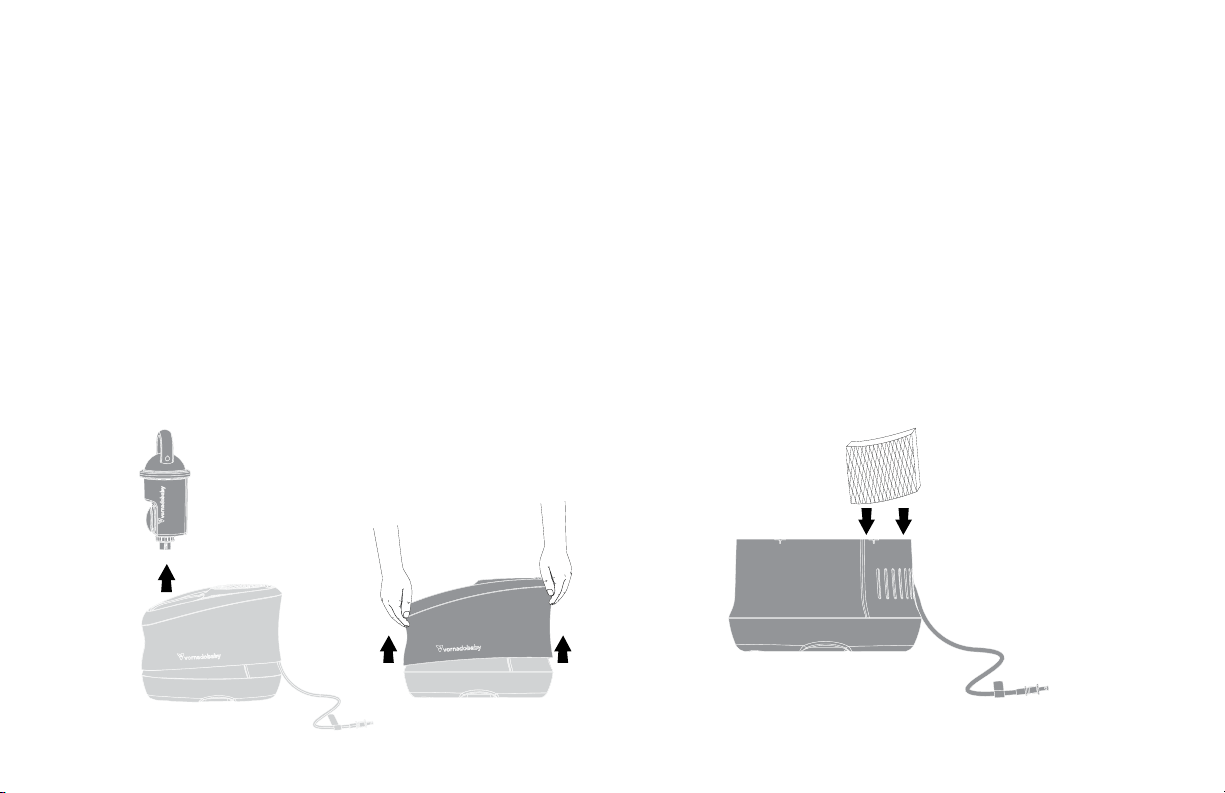

1. Power Huey Off and unplug.
2. Remove Water Bottle.
3. Remove Huey top by lifting upward.
4. Discard used Wick and install a new genuine
Vornado® Wick. Bend the Wick slightly when
placing inside Huey.
Note: Make sure the Wick fits flush against the
bottom and sides of Huey.
Changing Huey’s Wick
While your Huey came equipped with a Wick, you will eventually have to replace it, after approxi-
mately 1,000 hours, depending on use. The word Wick will illuminate when it is time to replace the
wick. Replace the Wick with only a genuine Vornado
®
brand Wick.
17
English
5. Replace Huey top and replace Water Bottle. 6. To reset Wick notification, press and hold (-)
button for 5 seconds or until Wick is no longer
illuminated.
18 English

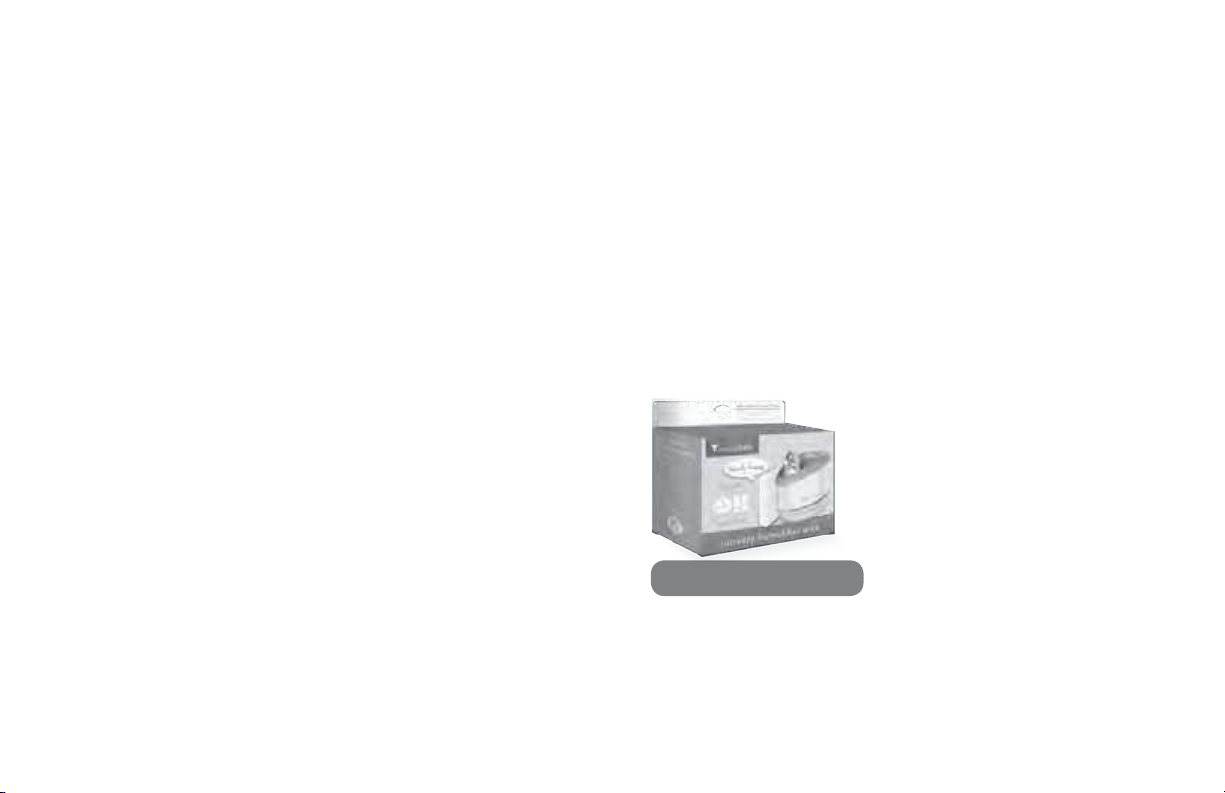

Automatic Refill Program
Select the shipment interval and Vornado will
send replacement Wicks automatically. Eliminate
the hassle of remembering to reorder. Maintain
the high efficiency of your Vornado Huey.
To sign up, visit www.vornadobaby.com, email
support@vornadobaby.com or call
1-800-234-0604. Cancel at anytime.
Model # MD1-0033
Extending Wick Life
Many factors affect the life of the Wicks, includ-
ing amount of use, water hardness, and outside
environmental factors.
1. The additional sodium in chemically softened
water may cause Wicks to harden or become
mushy. Try using untreated or tap water.
2. Hard water or water with excessive minerals
such as lime or iron may shorten Wick life.
Periodically remove the Wick and clean,
by soaking them in cool tap water and two
teaspoons of white vinegar for 20 minutes,
then rinse in cool water. DO NOT wring.
3. If Huey is filled, do not leave it Off for more
than 8 hours. Leaving the Wick too long in a
filled Huey without the fan running may cause
mold, mildew, and deterioration.
19
English
Keeping Huey Clean
Proper cleaning of your Huey is essential to the air quality and performance of your Huey. The fre-
quency in which your Huey will need to be cleaned will vary, depending on use, water hardness, and
outside environmental factors. It is recommended to thoroughly clean Huey several times throughout
the season, or when algae, mineral deposits or other particles begin to form.
Disinfecting the Base
1. Power Huey Off and unplug.
2. Remove Water Bottle.
3. Remove Huey top by lifting upward.
Note: Do not submerge Huey in water. Do not
place any parts in dishwasher.
4. Remove Wick.
Always unplug Huey before starting any part of the cleaning process.
2
3 4
1
20 English

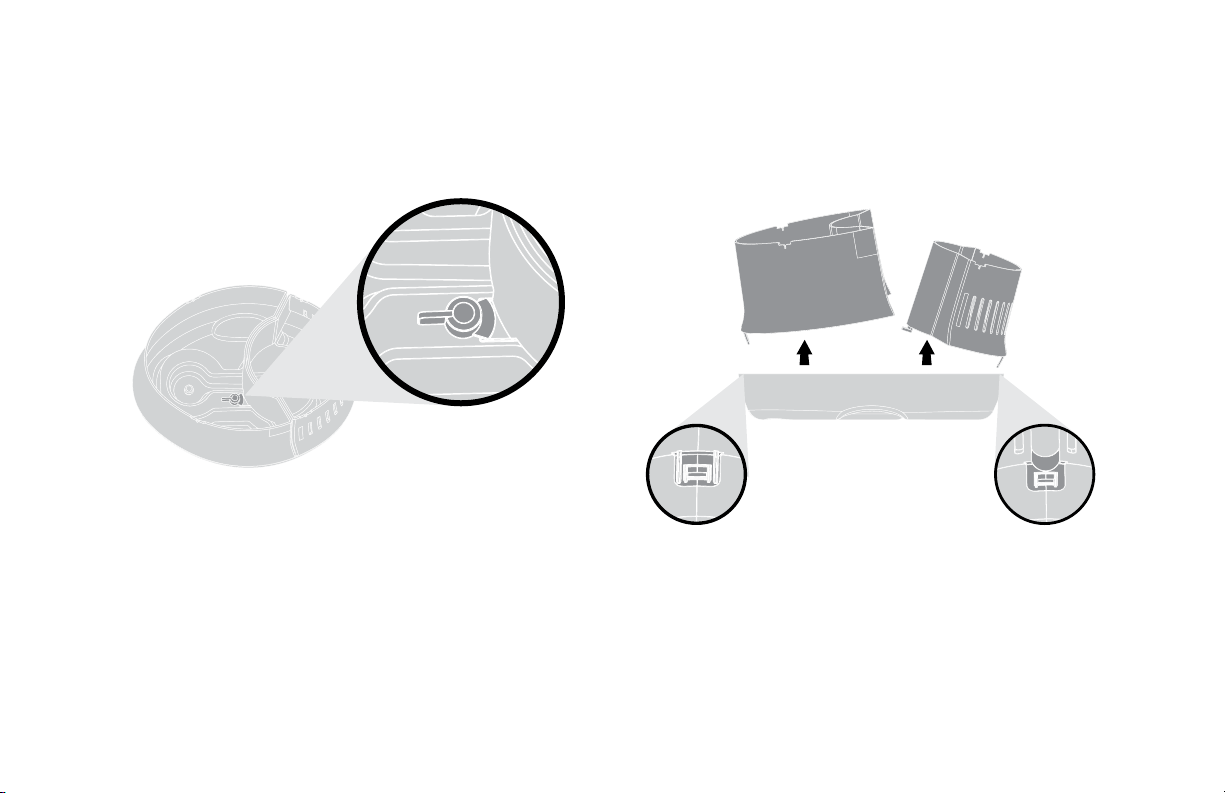

5. Unlock base by rotating Lock Tab. 6. Gently detach side inlets from the base.
Keeping Huey Clean
Always unplug Huey before starting any part of the cleaning process.
Base Tab 1 Base Tab 2
21
English

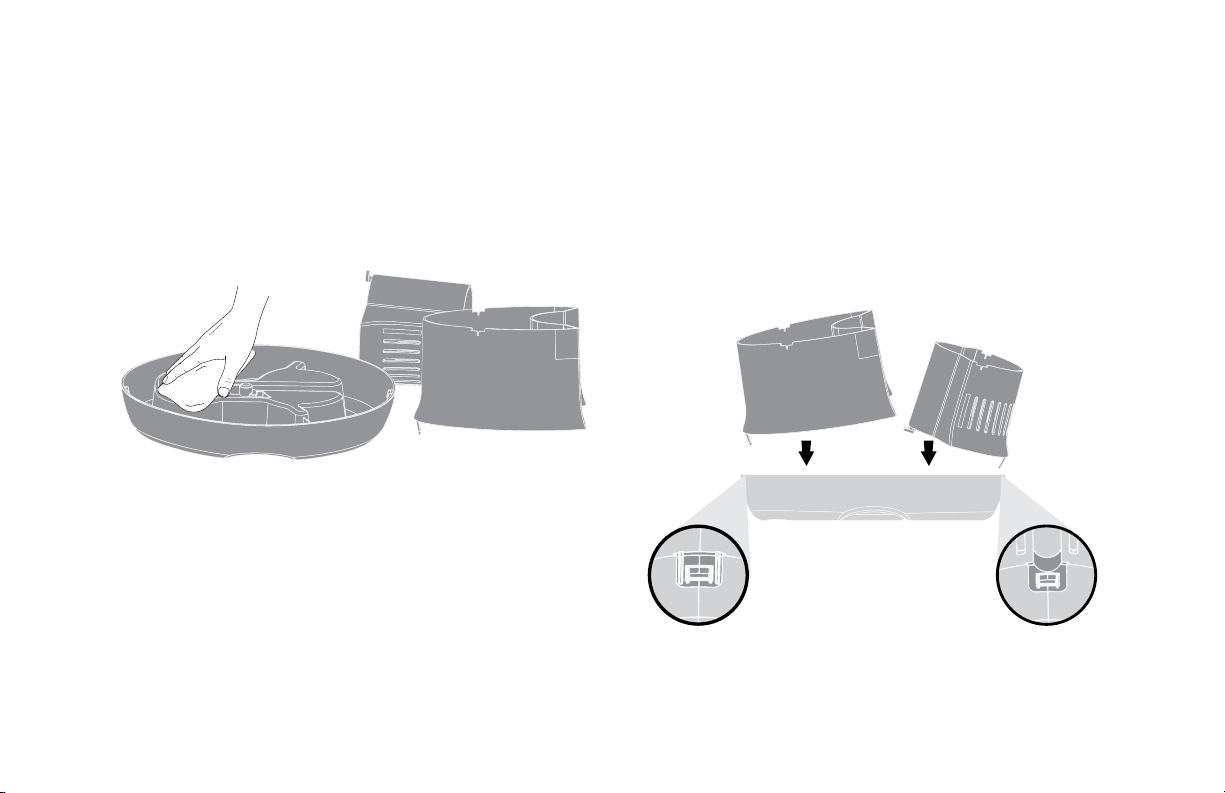

7. Clean the side inlets and any impurities in the
base with a damp cloth.
8. Replace side inlet by aligning along the sides
of the base.
Note: Be sure each side inlet is locked inside the
base tabs.
Always unplug Huey before starting any part of the cleaning process.
Base Tab 1 Base Tab 2
22 English
Cleaning the Motor
1. Clean the underside of the motor by wiping
away any impurities with a soft cloth.
Cleaning Grill

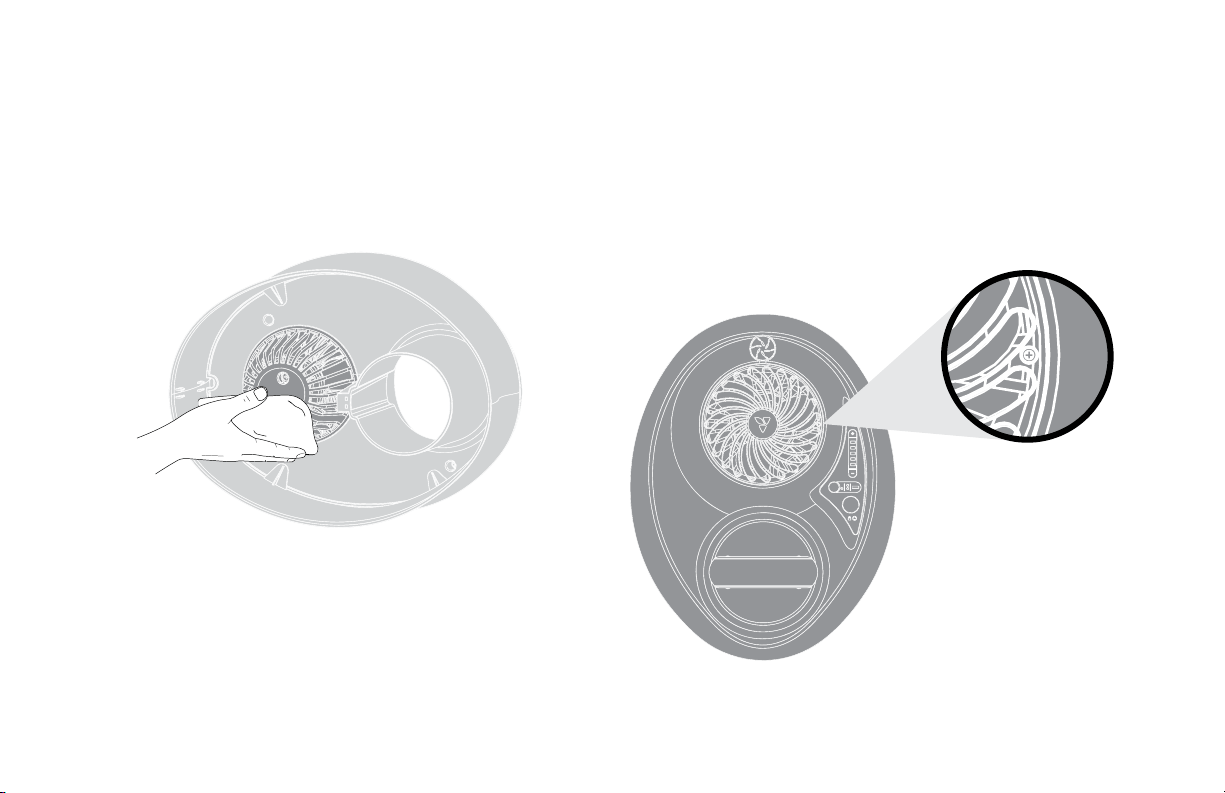

1. Using a Phillips Head screwdriver, remove the
screw located at the 3 o’clock position inside
the grill.
Keeping Huey Clean
Always unplug Huey before starting any part of the cleaning process.
23
English
Always unplug Huey before starting any part of the cleaning process.

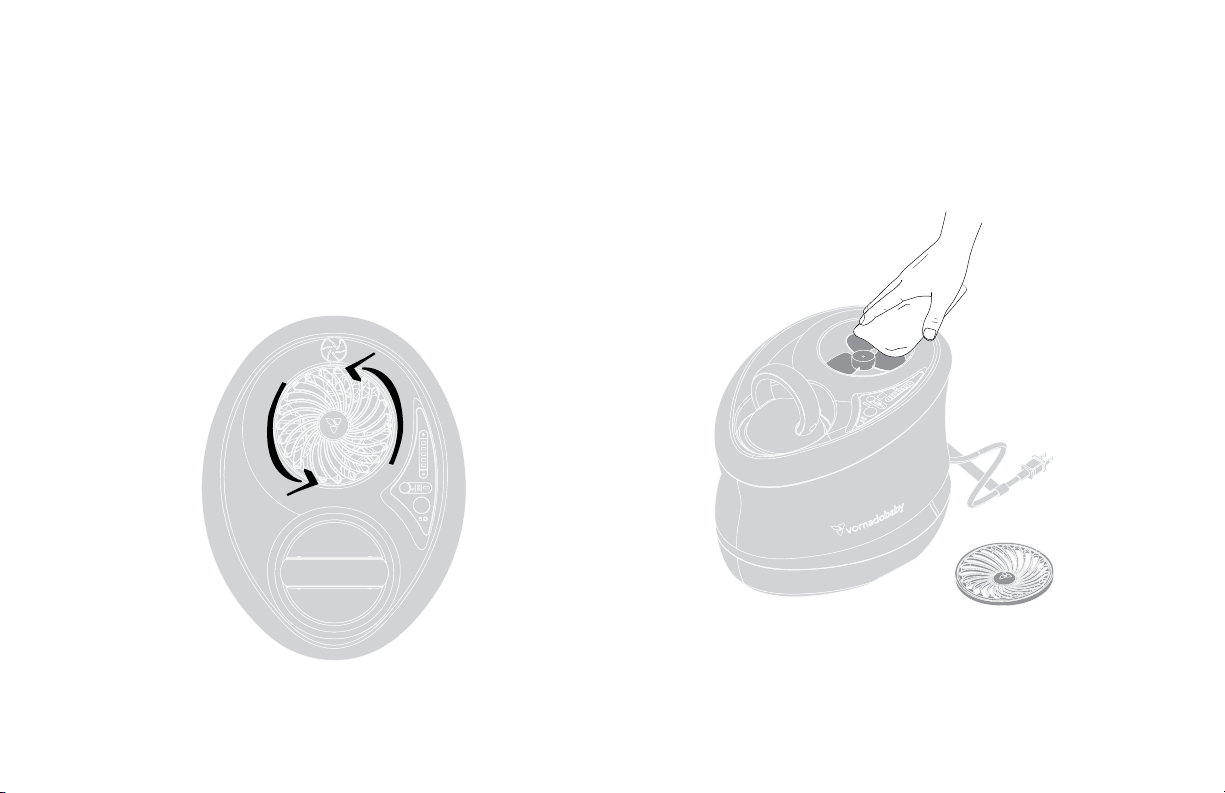

2. Twist Grill counterclockwise to unlock and lift
upward.
Tip: Use the screwdriver to lift the Grill.
3. Clean any impurities on the Grill and Blade
with a damp cloth.
Note: Do not use gasoline, thinners,
solvents or other chemicals for cleaning.
Do not clean in dishwasher.
24 English
Always unplug Huey before starting any part of the cleaning process.

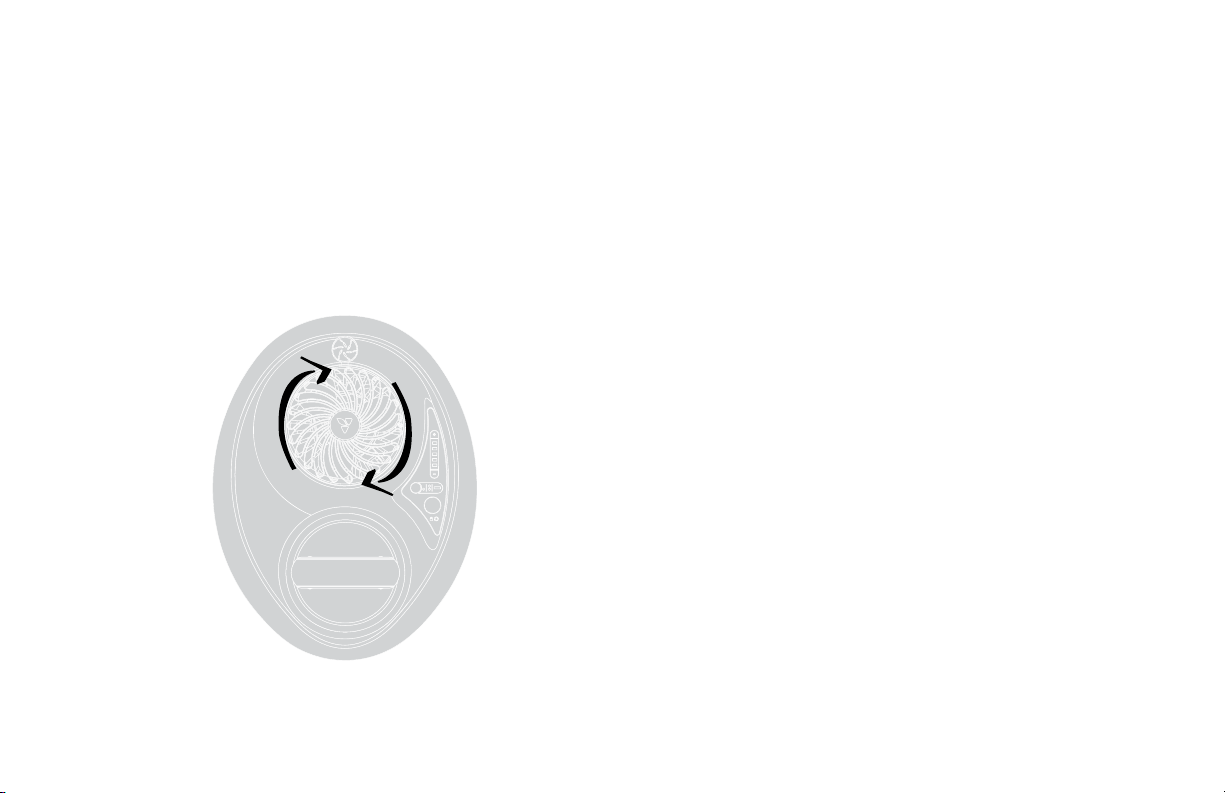

Reinstall the Grill
1. Replace Grill onto Huey and twist clockwise
until the Grill aligns with the screw hole.
Replace screw.
Keeping Huey Clean
25
English
• During the off-season or after extended
periods of non-use, you may choose to store
your Huey. To ensure long life of the product,
it is recommended to store your Huey by
following these instructions:
• Unplug power cord, wrap cord neatly and
secure with Power Cord Wrap.
• Thoroughly clean your Huey. Use the brush
attachment on your household vacuum
cleaner to vacuum any accumulated dust
on Huey or wipe down the entire surface
with a soft cloth. You may also use a can of
compressed air for debris.
• Cover, or place Huey back into retail carton
if available. This will prevent Huey from ac-
cumulating dust over time.
• Store Huey in a cool and dry location.
• Always set Power button to Off and unplug
Huey before cleaning.
• The motor is permanently lubricated and re-
quires no oiling. Do not use gasoline, thinners,
solvents or other chemicals for cleaning.
• Your Huey has no user serviceable parts.
Do not disassemble Huey. This will void
your warranty. If service is required, return
your Huey to Vornado (see WARRANTY for
instructions).
Tips
26 English
Unit is not plugged in. Plug Power Cord into electrical outlet.
Household circuit breaker / ground fault interrupter has tripped or
blown a fuse. Reset circuit breaker / ground fault interrupter, or replace
fuse. For assistance, contact a licensed electrician.
Unit is damaged or in need of repair. Cease usage and unplug.
Contact Consumer Service for assistance.
This is normal. Water is being dispensed into Base.
Water level in Tank is empty or too low. Refill with clean, cool tap water.
Unit has reached its set point. When set humidity level is reached, the
Fan will turn off until humidity level in the room drops below humidity
set point.
Airflow is blocked. Remove obstruction.
Unit fails to
power on.
Unit makes a
bubbling or
gurgling sound.
Unit is not
producing
desired amount
of humidity.
Troubleshoot
27
English
Unit settings are too low. Set to High Fan Speed and Continuous Hu-
midity for maximum humidity output.
The additional sodium in chemically softened water may cause Wicks
to harden or become mushy. Try using untreated tap water or distilled
water.
Periodically remove the Wick and clean, by soaking them in cool tap
water and two teaspoons of white vinegar. Let stand 20 minutes, then
rinse in cool water. Allow excess water to run off and dry before replac-
ing them in the Base. DO NOT wring.
Unit is not
producing
desired amount
of humidity (cont.)
Wicks are in need
of replacement
too often.
28 English
Happy Pent Guantee
Call Tl Free
800.234.0604
www.vornadobaby.com
support@vornadobaby.com
Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser this Vornadobaby® Huey Evaporative Vortex Humidifier
(“Product”) is free from defects in material or workmanship for a period of five (5) years from the date of purchase. If any such
defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.
For warranty or repair service:
Call 1-800-234-0604 or email support@vornadobaby.com to obtain a Return
Authorization (“RA”) form. Please have or include your Product’s model number
and serial number, as well as your name, address, city, state, zip code and phone
number when contacting Vornado for warranty service.
After receiving the RA form, ship your Product to:
Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS
67002. For your convenience, please have your model number and serial
number when contacting Vornado with service inquiries. To assure proper
handling, packages must be clearly marked with the RA number. Packages not
clearly marked with the RA number may be refused at the receiving dock. Please
allow 1-2 weeks for repair and return of your Product after the Product
is received.
Product registration available online at www.vornadobaby.com
Repairs not covered by the warranty or outside the warranty period will
require a fee to cover the cost of materials, labor, handling and shipping.
This warranty does not apply to defects resulting from abuse of the Product,
modification, alteration, repair or service of the Product by anyone other
than Vornado, mishandling, improper maintenance, commercial use of the
Product, damages which occur in shipment or are attributed to acts of God.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE
EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LI-
ABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO
THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequen-
tial damages, or allow limitations on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may have other rights that vary from state to state.
Simply stated: If you’re not satisfied with this product, let us know. We’ll make it right.
© 2015 Vornado Air LLC Andover, KS 67002 U.S. Patent Pending. Specifications subject to change
without notice. Vornado® and Vornadobaby® are trademarks owned by Vornado Air LLC.
Designed, engineered and supported in Andover, KS
