The AUX Power Cable for Smart DewHeater Controllers is
ONLY intended for use with a Celestron Smart DewHeater
Controller. Do not use this cable with other devices or
damage could occur. Before using this cable, please read
through this instruction sheet.
The AUX Power Cable connects one of the 12V DC power
outputs on the Smart DewHeater Controller to one of the
controller’s AUX ports. When connected, the cable provides
power for accessories to the controller’s other AUX ports.
This is a great way to power optional accessories like the
SkyPortal WiFi Module or the Celestron Focus Motor.
NOTE: If you are using a Celestron mount, you do
not need this AUX Power Cable. The normal AUX cable
connection from the controller to the mount will provide
power to the controller’s other AUX ports.

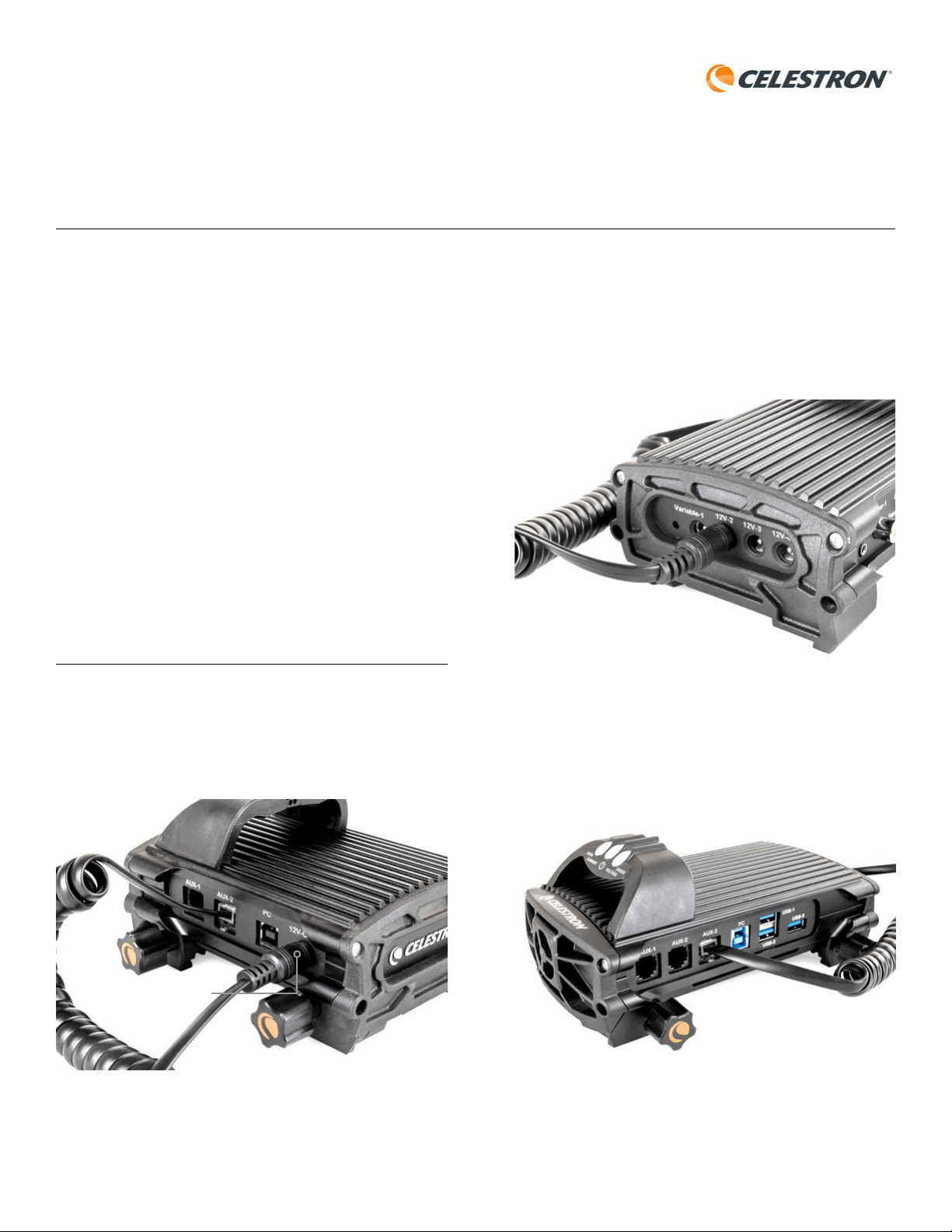

To connect the cable to the
Smart DewHeater Controller
1. Make sure the controller is turned off.
2. Plug the cable’s barrel connector into one of the 12V DC
power output ports on the controller.
a. The Smart DewHeater Controller 2x has only one power
output port (Fig. 1A).
POWER OUTPUT PORT

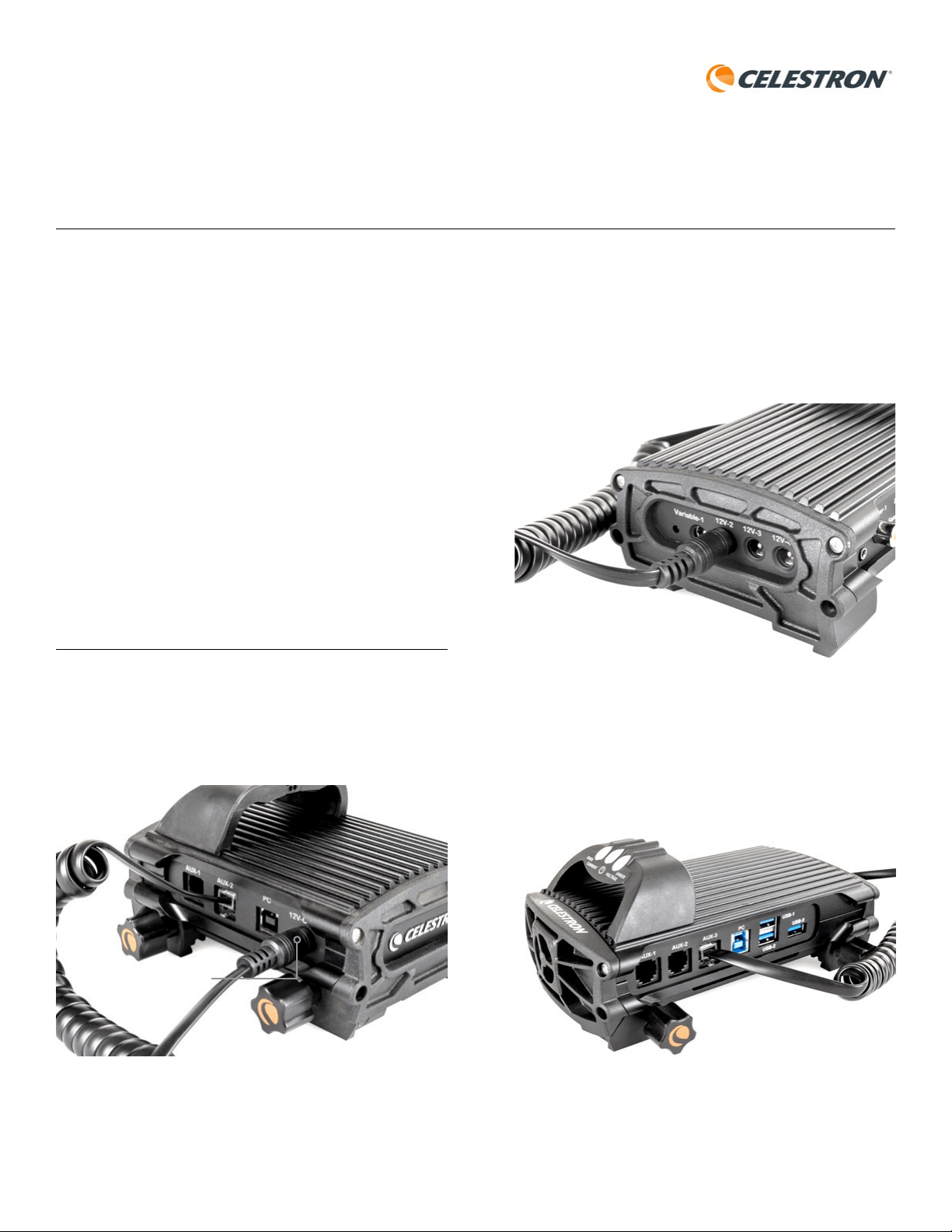

FIG. 1A: AUX POWER CABLE PLUGGED INTO POWER OUTPUT PORT OF
SMART DEWHEATER CONTROLLER 2X
b. The Smart DewHeater and Power Controller 4x has
four power output ports (Fig. 1B). You can connect
the cable to any port. However, if you are using power
output port #1 (the one that has variable DC output),
make sure it is set to 12V DC before connecting the
cable.

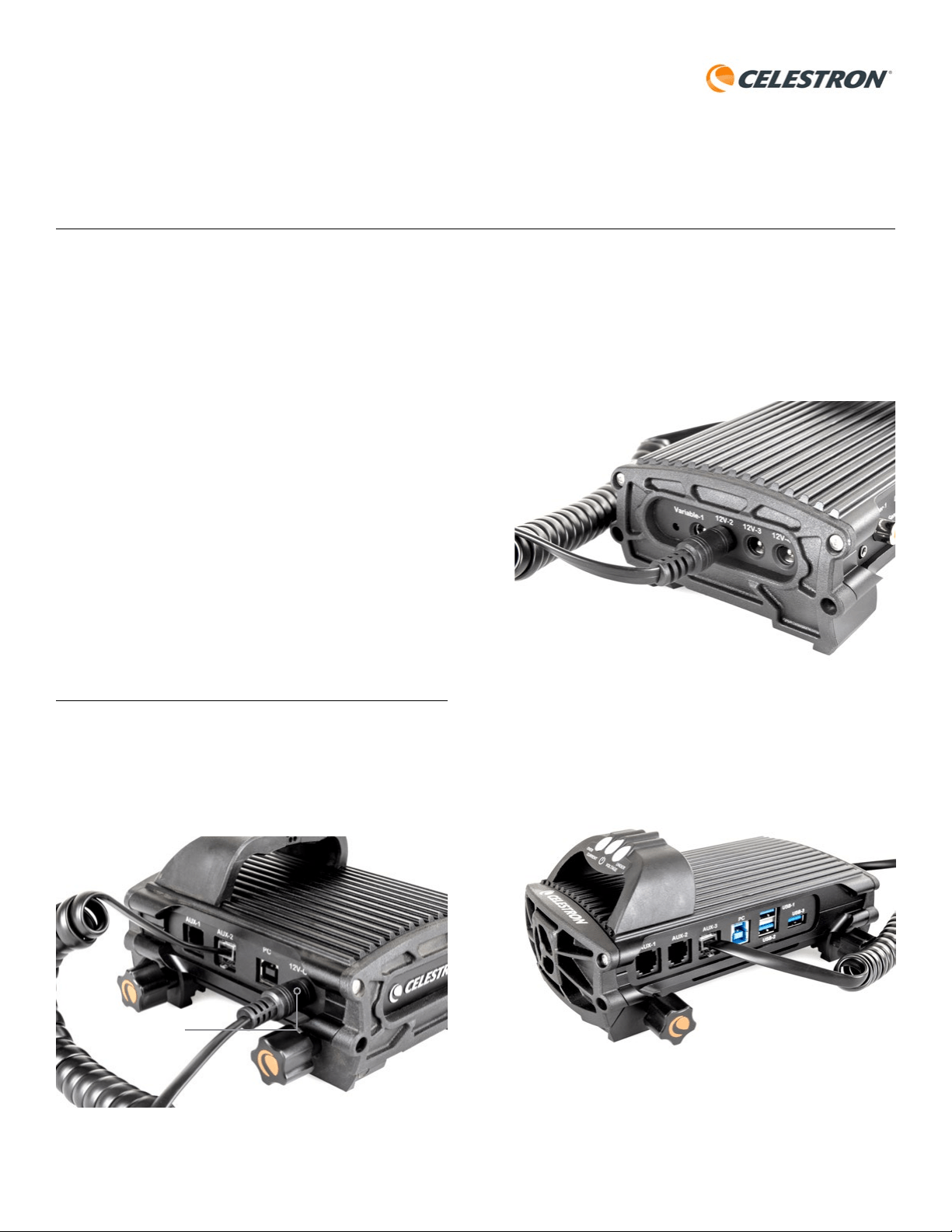

FIG. 1B: AUX POWER CABLE PLUGGED INTO POWER OUTPUT PORT OF
SMART DEWHEATER AND POWER CONTROLLER 4X
3. Plug the cable’s modular connector into one of the AUX
ports on the controller (Fig. 2).

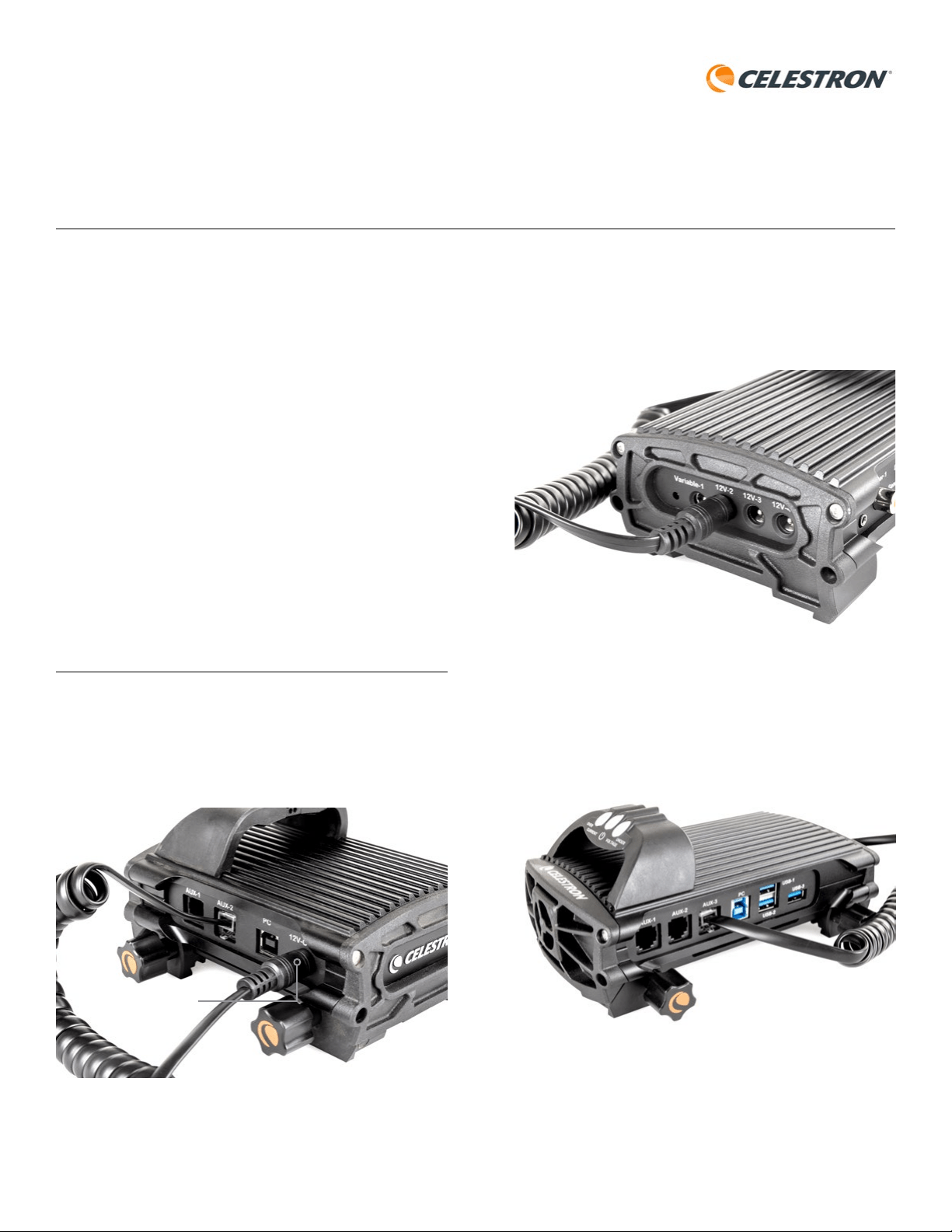

FIG. 2: AUX POWER CABLE PLUGGED INTO AUX PORT OF
SMART DEWHEATER AND POWER CONTROLLER 4X
INSTRUCTION MANUAL
AUX Power Cable
for Smart DewHeater Controllers
#94038
