Pyle PSCBLKIT22 Pedal Board Patch Cable D.I.Y. Kit

Product's Documents

Below are documents related to this product, you can read online or download:

This is the main product document for model PSCBLKIT22.

The file format is pdf, 2 pages, you can download this manual here .



Model:

PSCBLKIT22

PatchCableLengthSetup&Connection



Youcanassemblethecableconnectionintwodifferentmethods:StraightorRight‐AngleProfiles.



Right‐AngleProfileConnection:

Cutthecabletothedesiredlength,thenusetheequippedcablestrippertostripthecableaspicturedbelow,

revealingabout¼’’oftheinnerredwire.



Enlargethecenteroftheinnerredwire.Thiswillensureaproperconnectiononcetheconnectorisinserted.



Addthe

connectorfirmlyontotheexposedredwire‐‐ensuringtheinsideneedleoftheconnectorreachesthe

centercoreofthecable.Applyfirmpressureandrotate/turntheconnectortoensuresecurecontact.



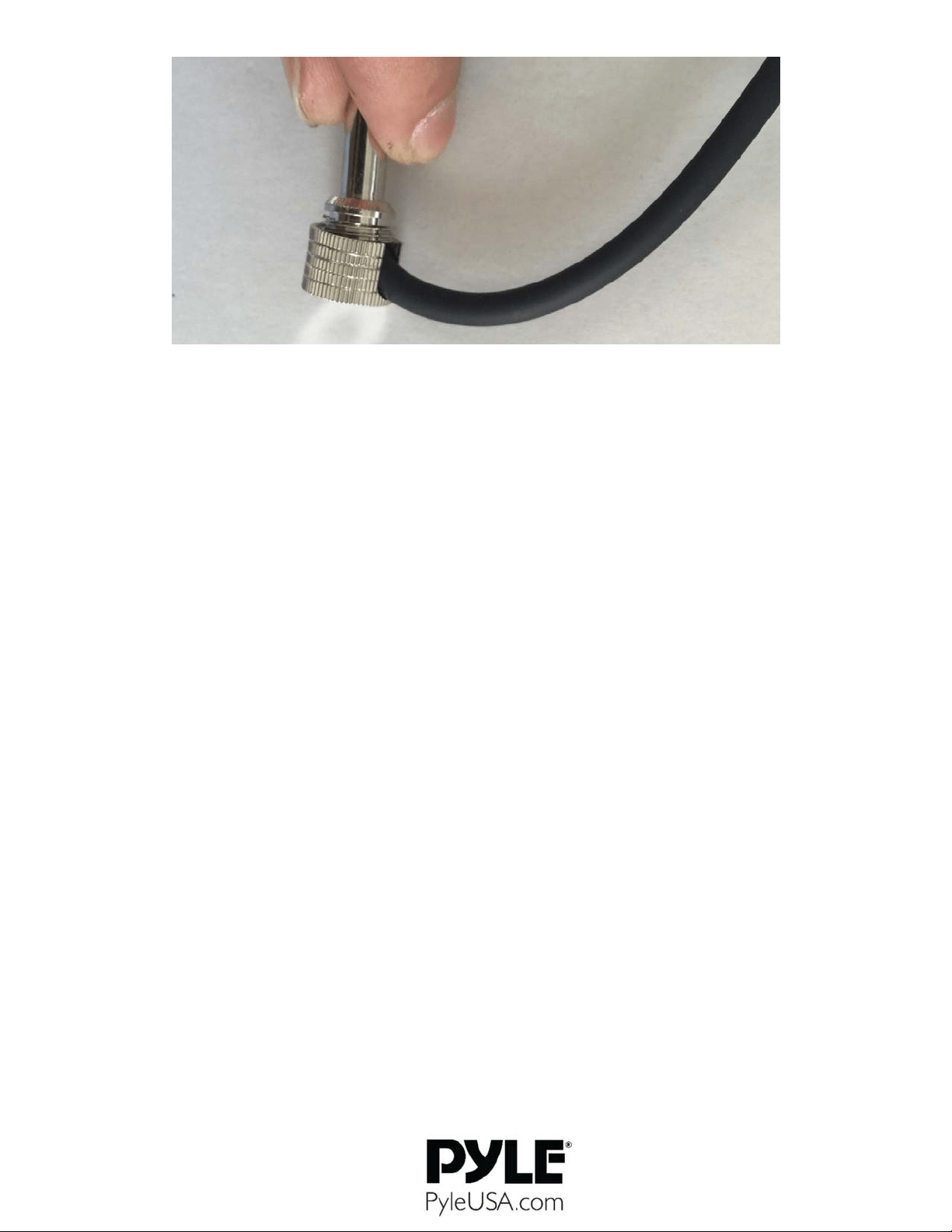

Bendthecableslightly,assoitallowsyoufastenthecapconnectorcaptotheconnectorbasethreading.



Repeattheabovestepstoaddtheconnectortotheoppositeendofthecable.Ifpossible,useacabletester

tocheckifyouhavesuccessfullycreatedacustompatch

cable.
