Casio XW-P1 Synthesizer User Manual

Safety Precautions

Before trying to use the instrument, be sure to read the

separate “Safety Precautions”.

XWP1-E-1B

USER’S GUIDE

Please keep all information for future reference.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

Declaration of Conformity

Model Number: XW-P1

Trade Name: CASIO COMPUTER CO., LTD.

Responsible party: CASIO AMERICA, INC.

Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801

Telephone number: 973-361-5400

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Important!

Please note the following important information before using this product.

• Before using the optional AC Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully check

the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is

seriously damaged.

• Never attempt to recharge batteries.

• Do not use rechargeable batteries.

• Never mix old batteries with new ones.

• Use recommended batteries or equivalent types.

• Always make sure that positive (+) and negative (–) poles are facing correctly as indicated near the battery compartment.

• Replace batteries as soon as possible after any sign they are getting weak.

• Do not short-circuit the battery terminals.

• The product is not intended for children under 3 years.

• Use only a CASIO AD-E95100L adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

This mark applies in EU countries only.

Manufacturer:

CASIO COMPUTER CO., LTD.

6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan

Responsible within the European Union:

CASIO EUROPE GmbH

Casio-Platz 1, 22848 Norderstedt, Germany

● Any reproduction of the contents of this manual, either in part or its entirety, is prohibited. Except for your own, personal

use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.

● IN NO EVENT SHALL CASIO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,

DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE

USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

● The contents of this manual are subject to change without notice.

● The actual appearance of the product may be different from that shown in the illustrations in this User’s Guide.

● Company and product names used in this manual may be registered trademarks of others.

E-1

E-2

Contents

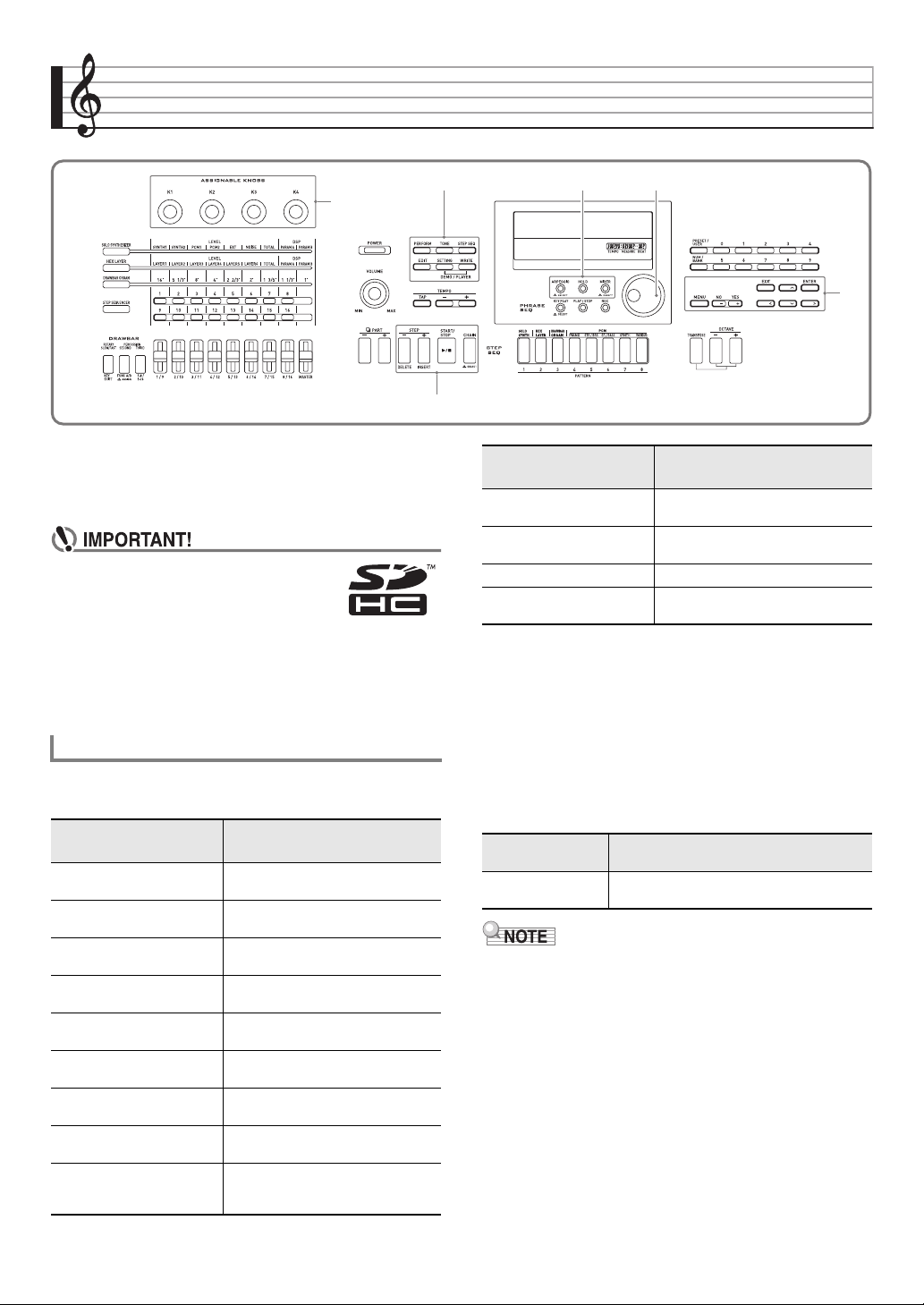

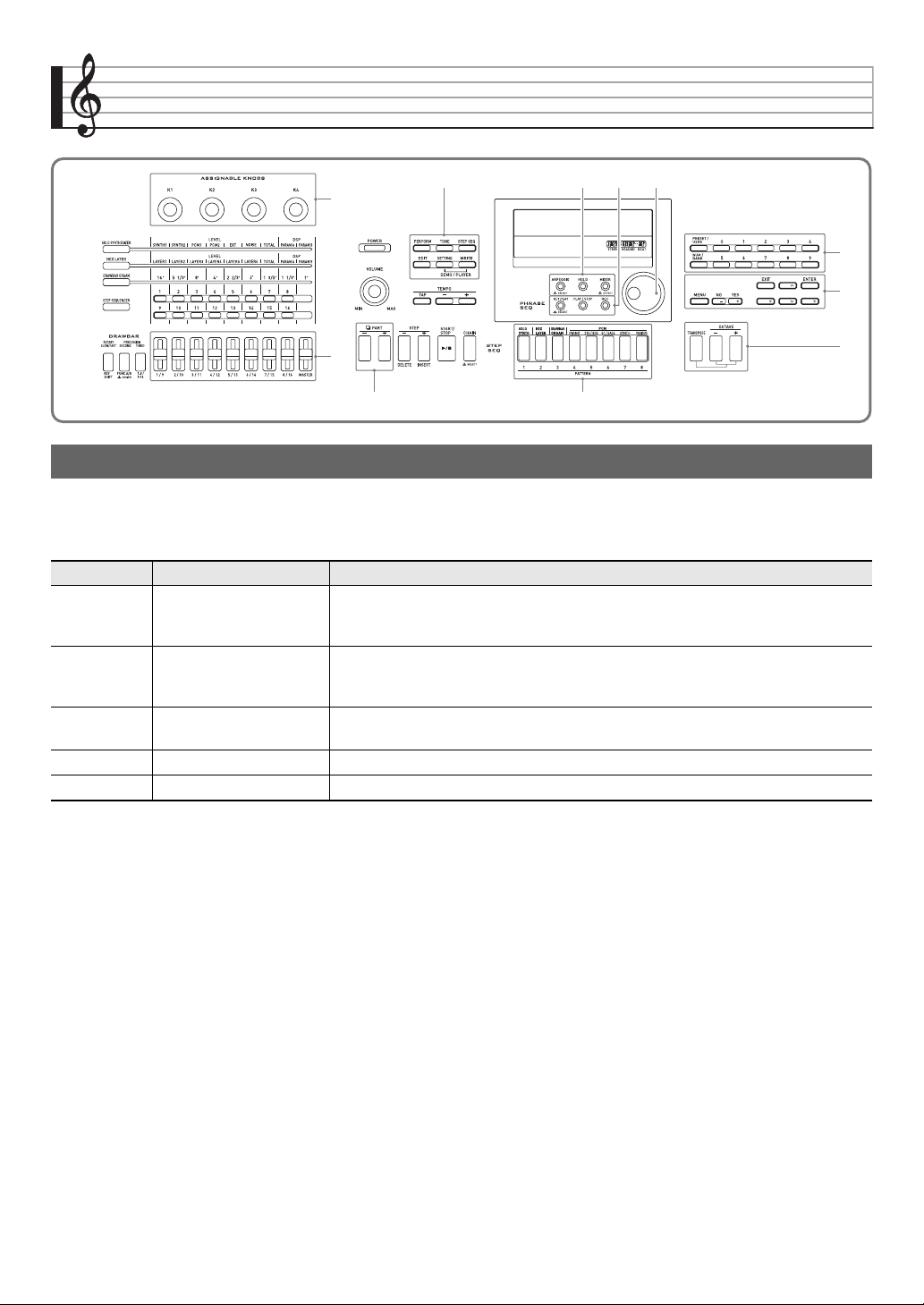

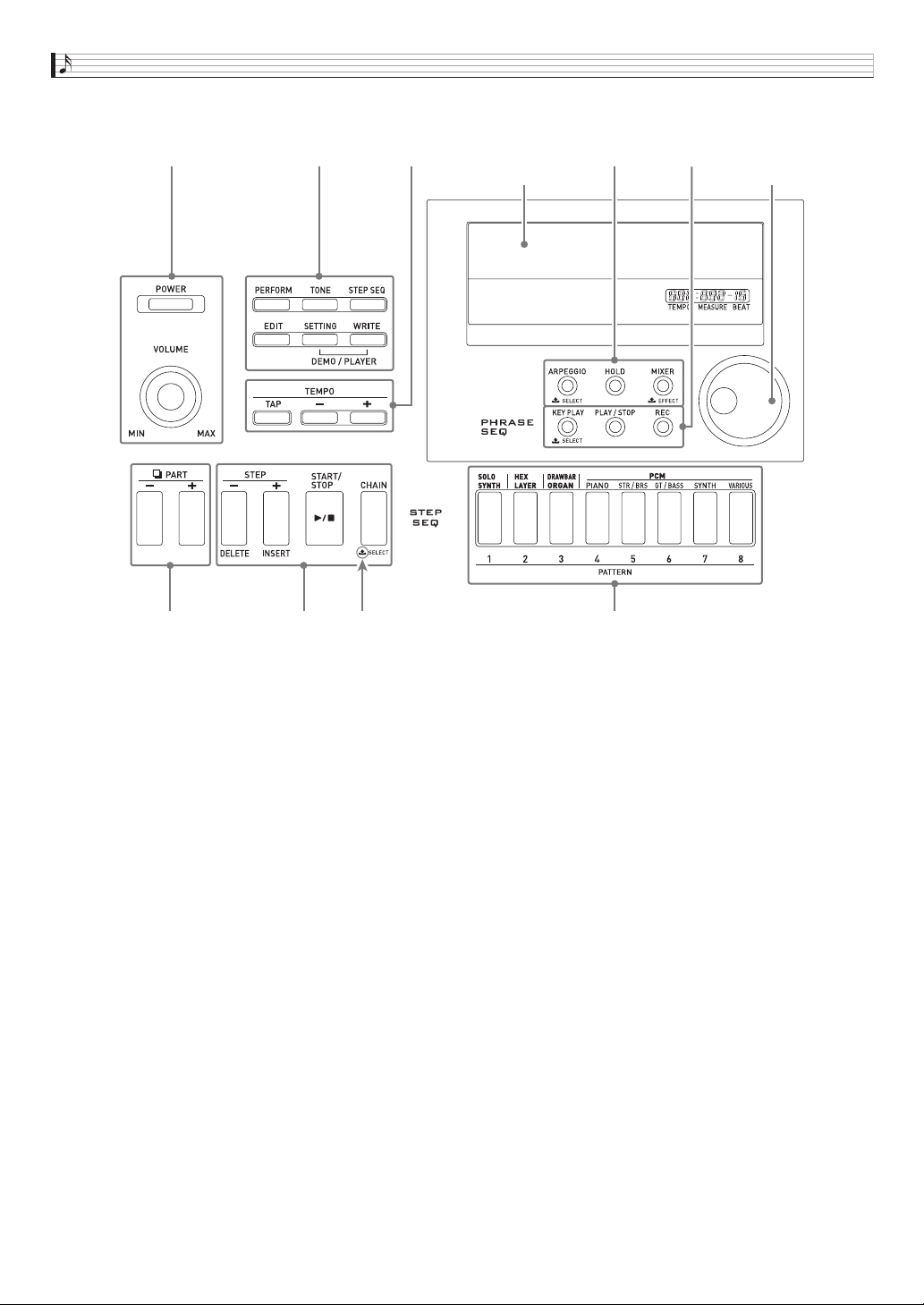

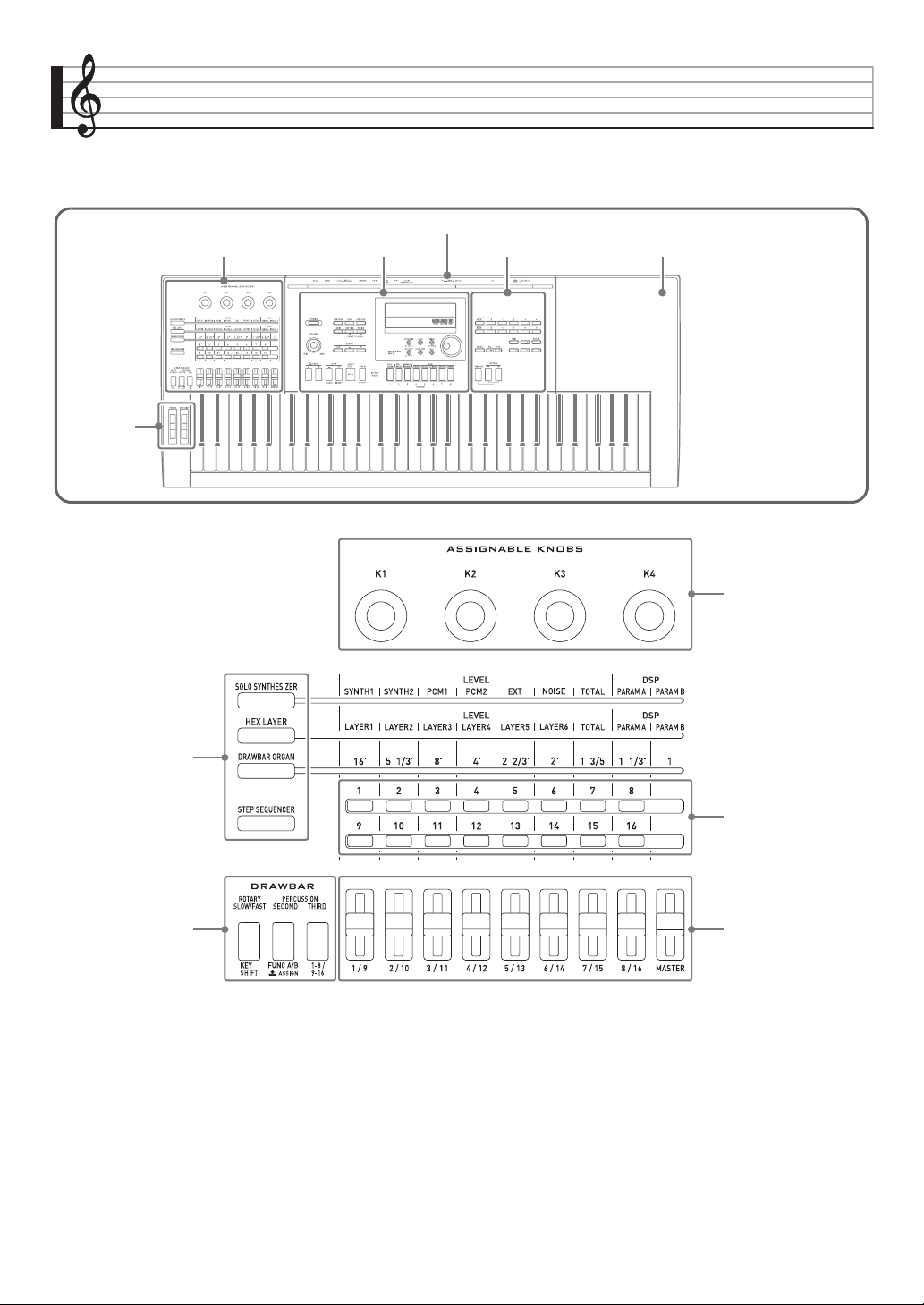

General Guide ............................. E-5

Getting Ready to Play ................ E-8

Connections ...............................................E-8

Power Supply .............................................E-9

Using a Household Power Outlet ............................E-9

Using Batteries...................................................... E-10

Auto Power Off...................................................... E-10

Bundled and Optional Accessories ..........E-10

Learning to Play by Playing

(For Synthesizer Novices) ....... E-11

Playing with Built-in Tones .......................E-11

Creating Tones.........................................E-12

Using the Step Sequencer and

Phrases ....................................................E-14

Arpeggio Function .................................................E-14

Phrase Sequencer ................................................E-14

Step Sequencer ....................................................E-15

Using the Performance Function..............E-16

Playing a Built-in Demo Song ..................E-17

Conclusion ...............................................E-17

Selecting and

Creating Tones ......................... E-18

Overview ..................................................E-18

To select a tone........................................E-20

To edit and save a tone as a user tone....E-21

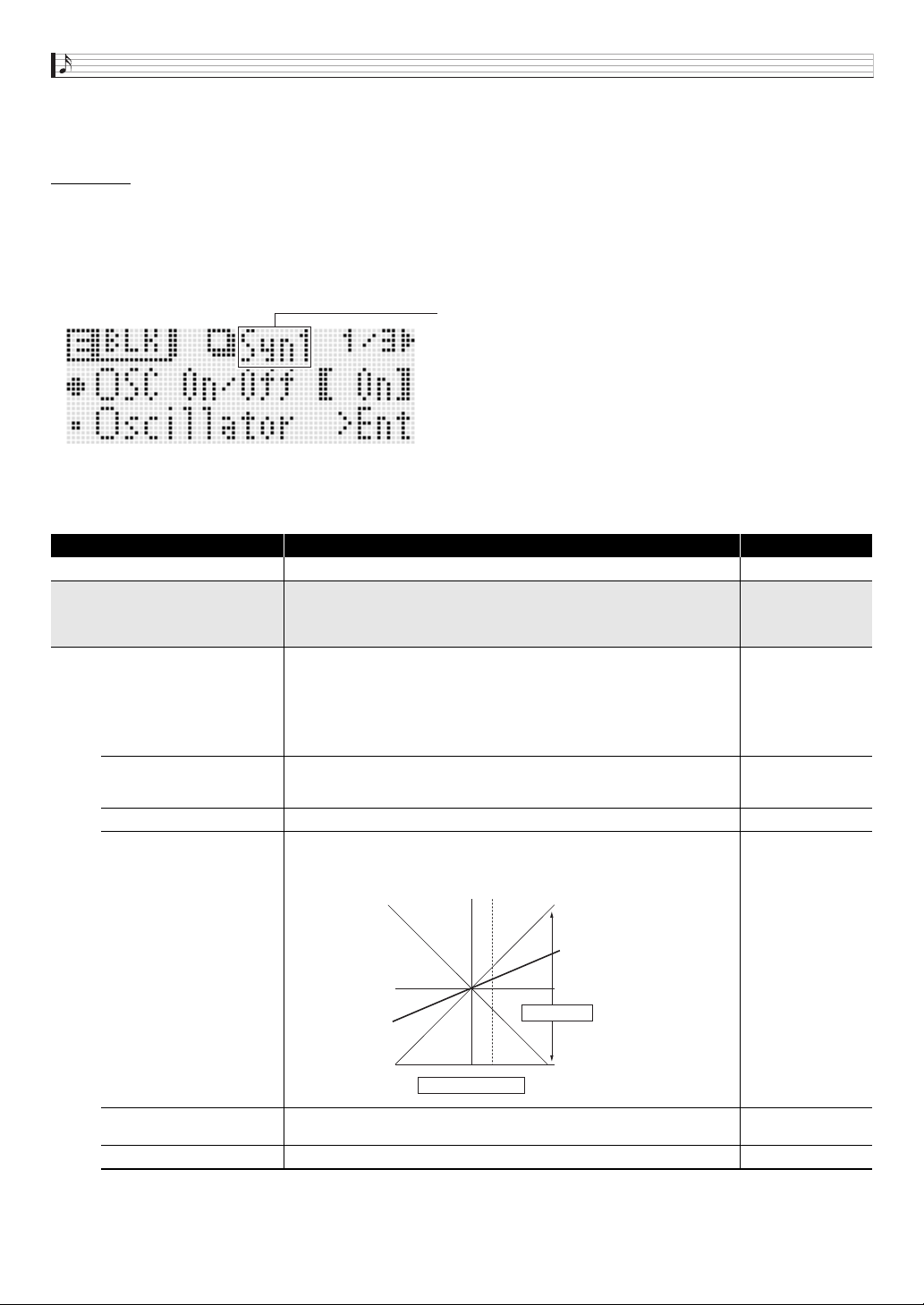

Editable Solo Synthesizer Tone Parameters ........ E-22

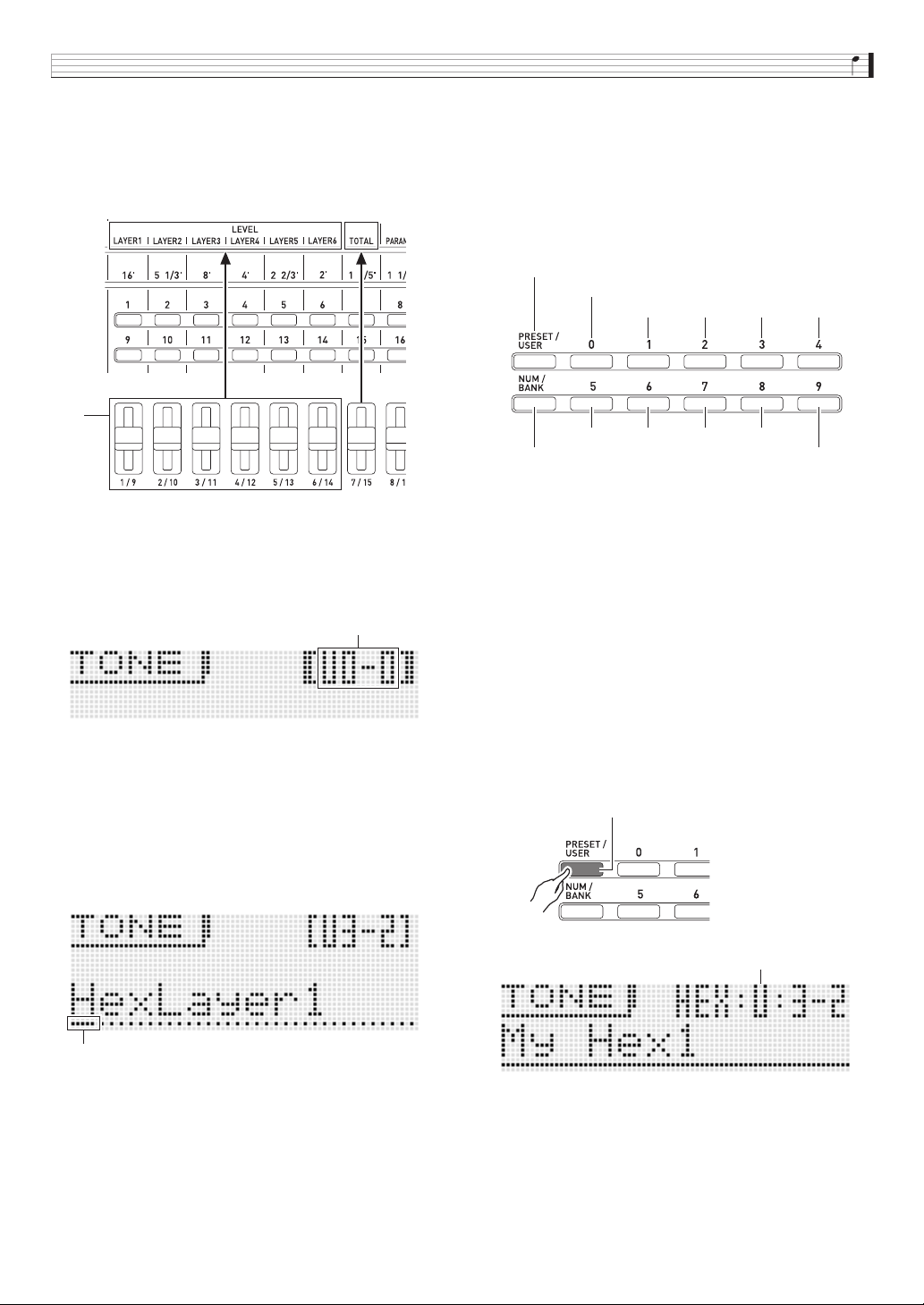

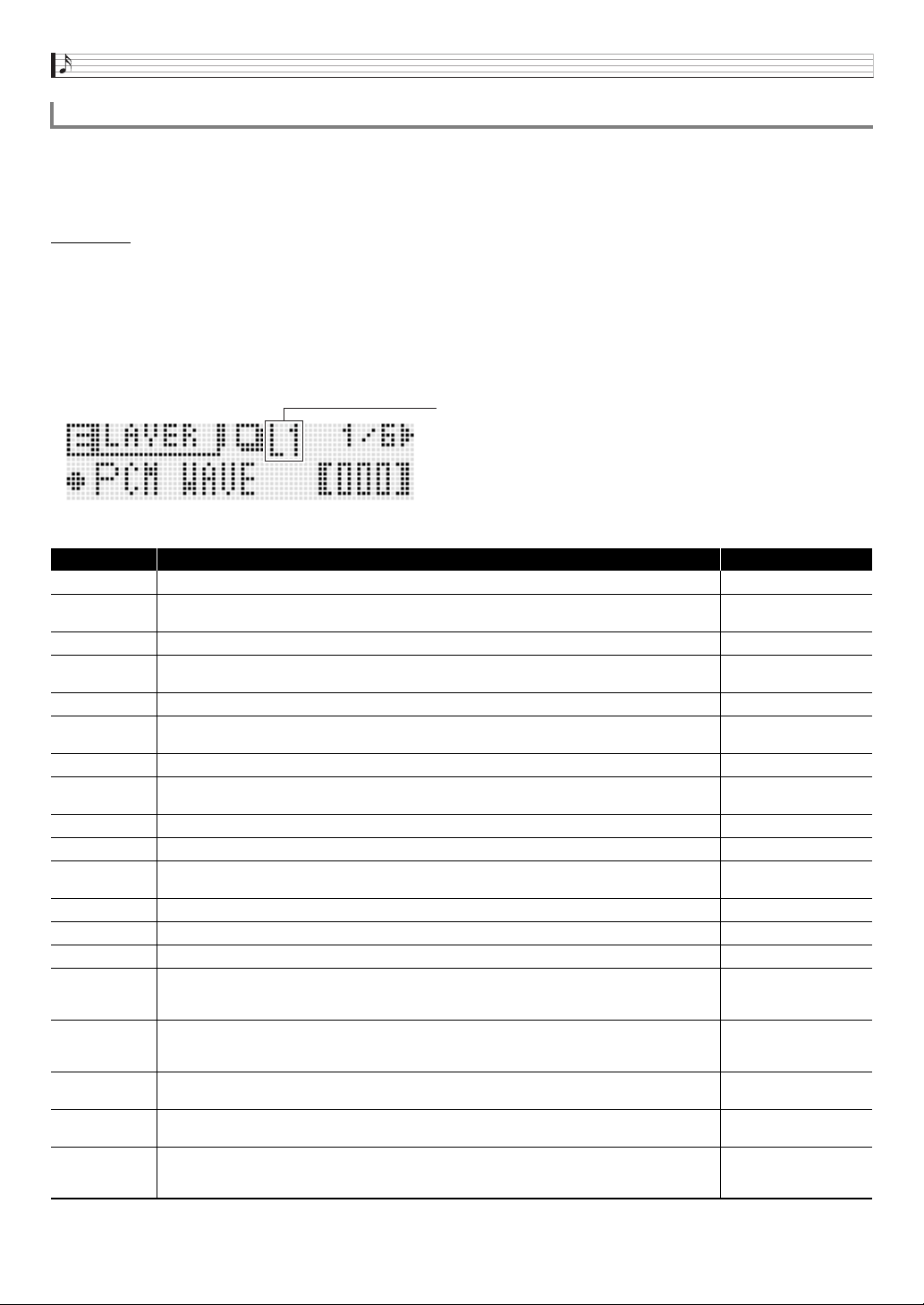

Editable Hex Layer Tone Parameters ...................E-30

Editable Drawbar Organ Tone Parameters...........E-32

Editable PCM Melody Tone

(Non-drum PCM Tones) Parameters ....................E-33

Editable Drum PCM Tone Parameters..................E-34

Controlling Sounds .................................. E-35

Using a Pedal ....................................................... E-35

Using the Wheels (Bender, Modulation) ............... E-35

Using the Assignable Knobs................................. E-35

Using Sliders......................................................... E-36

Using the Hold Button ........................................... E-36

Changing the Pitch of Notes in Semitone Steps

(Transpose) or Octave Steps (Octave Shift)......... E-36

Applying Effects to Notes ........................ E-37

To configure effect settings................................... E-38

Saving an Edited DSP .......................................... E-39

Sounding Arpeggio Phrases

Automatically ............................ E-40

To use the Arpeggio Function ................. E-40

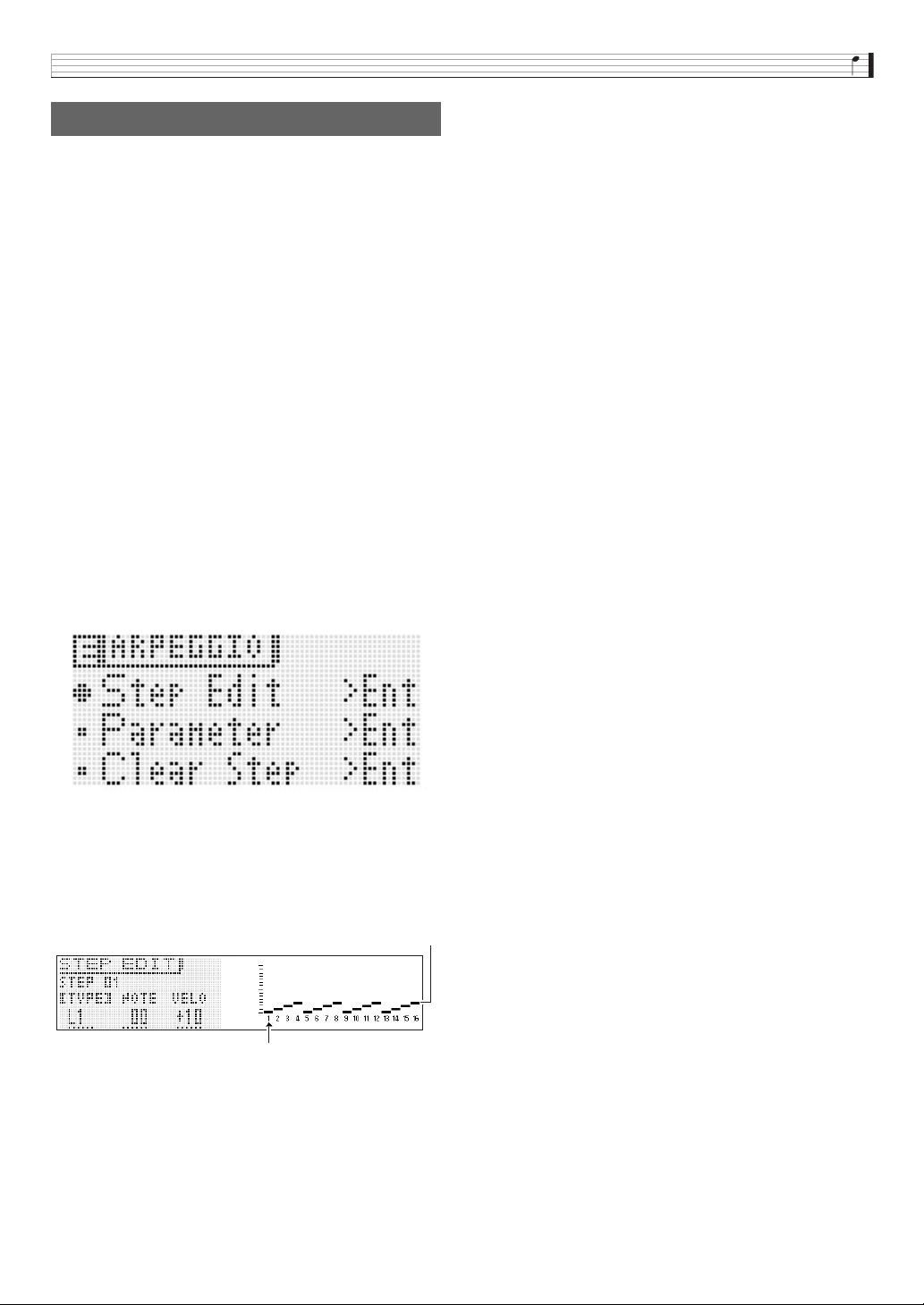

Editing an Arpeggio ................................. E-41

Clearing Arpeggio Data ........................... E-43

Recording and Playing Back

Phrases...................................... E-44

To play back a preset .............................. E-44

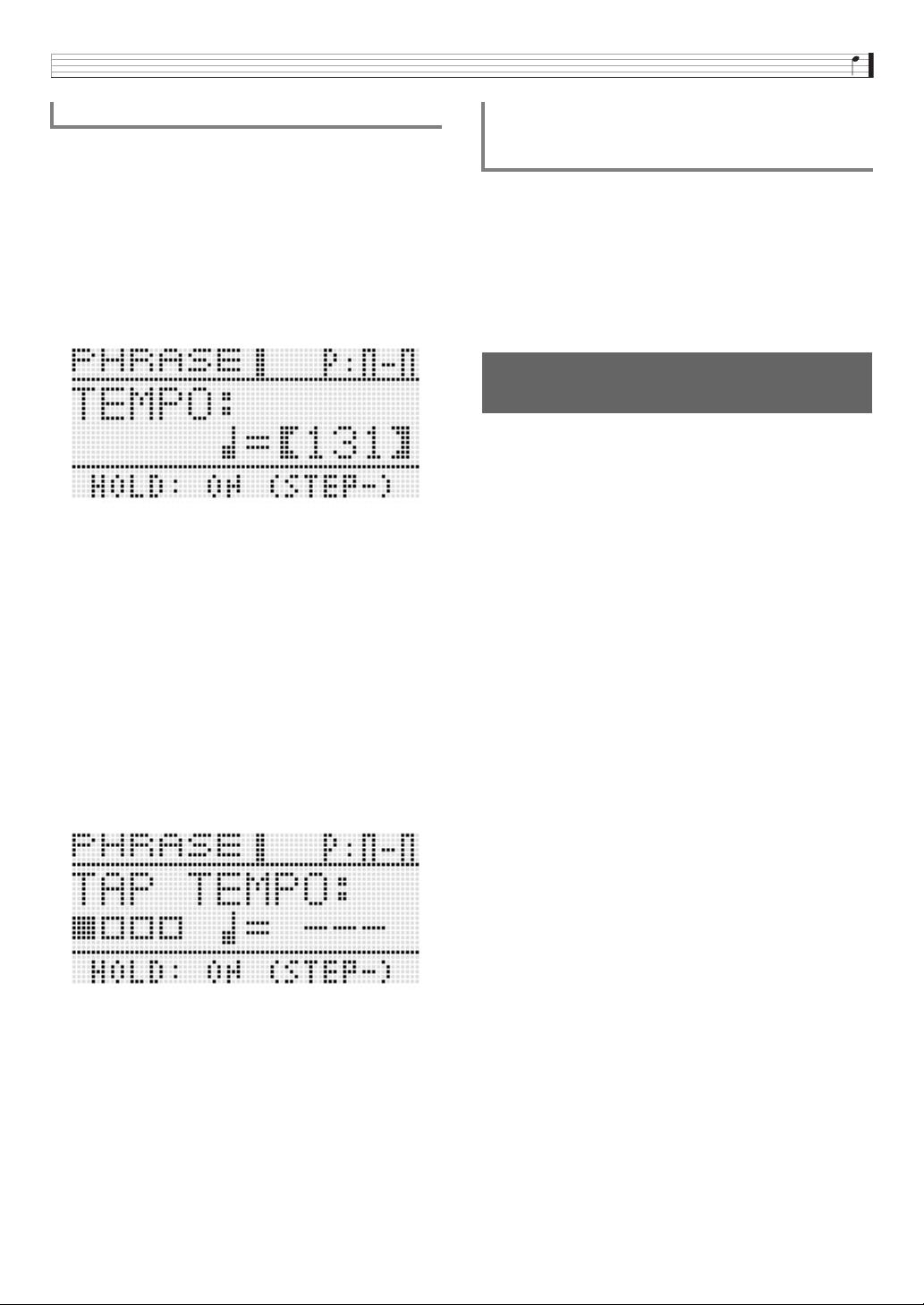

To change the tempo setting ................................ E-45

You can use the phrase selection screen

to select the recommended tone for the currently

selected phrase as your Zone Part 1 tone. ........... E-45

To start phrase playback by

pressing keyboard key (Key Play) ........... E-45

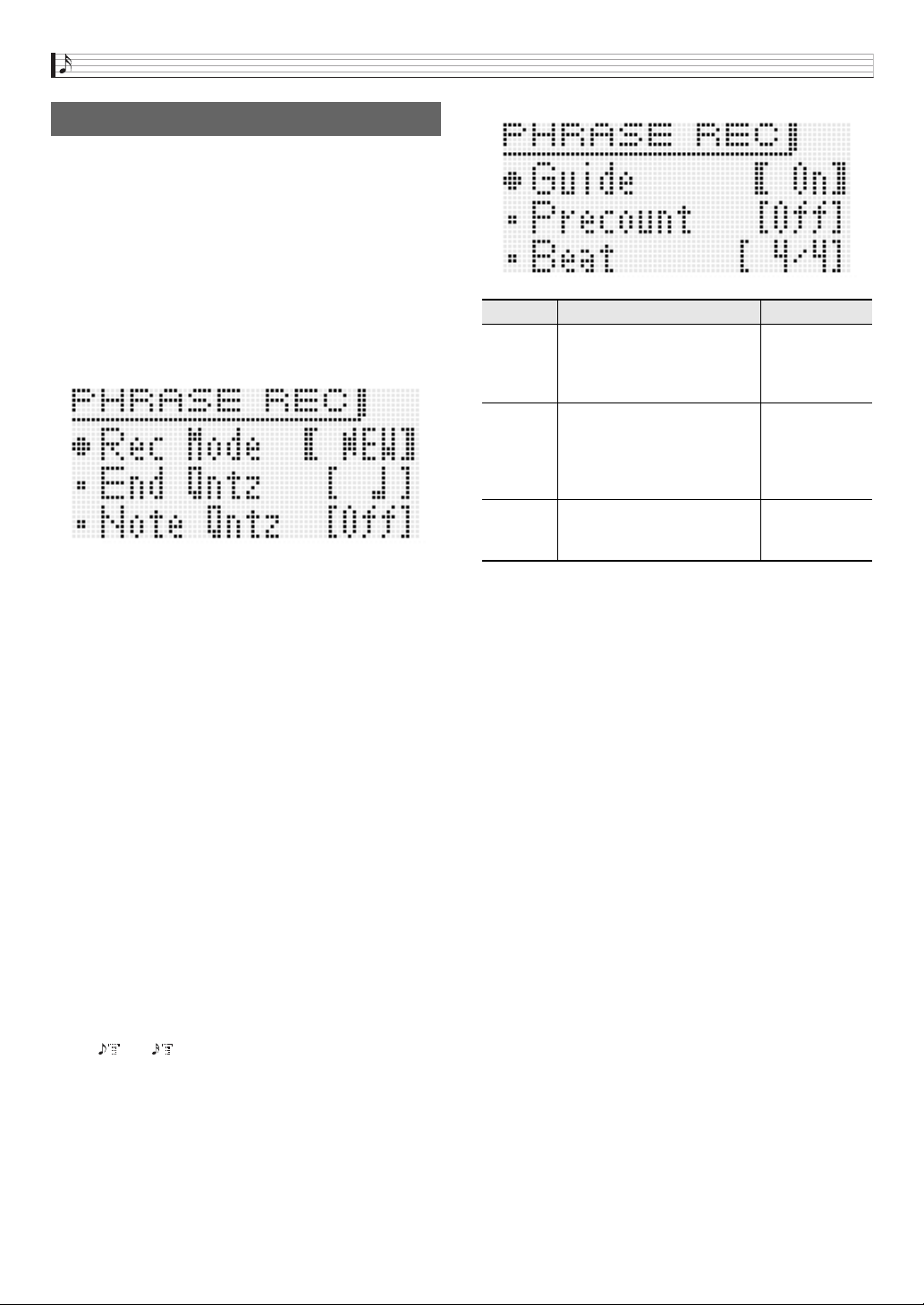

Recording a New Phrase ........................ E-46

Phrase Data Settings ............................................ E-47

Recording Over Another Phrase

(Overdubbing) ......................................... E-47

Indicators Next to Phrase Numbers......... E-48

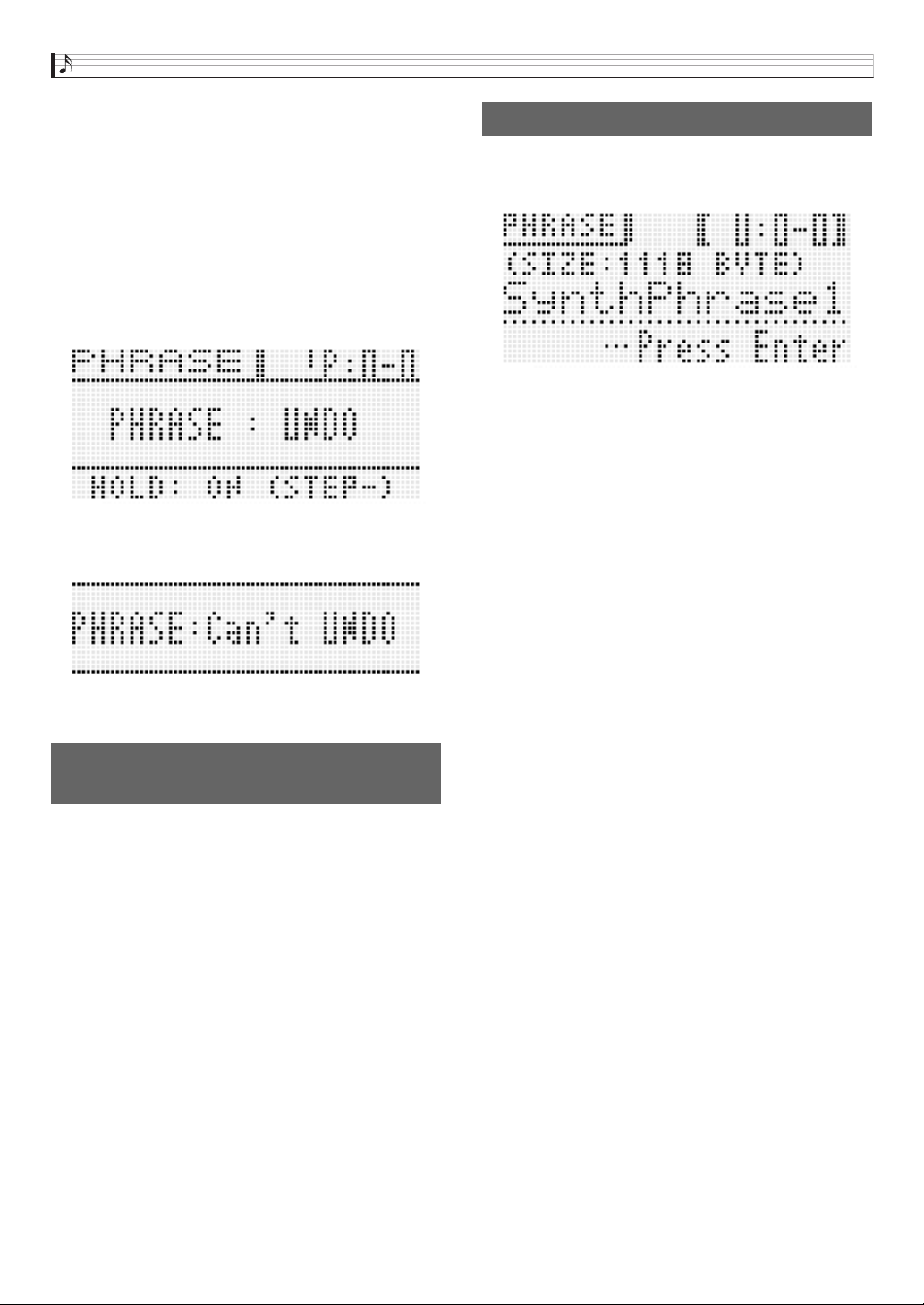

To save a phrase..................................... E-48

Contents

E-3

Using the Step Sequencer ....... E-49

How the Step Sequencer is organized.....E-49

Playing Back a Step Sequence................E-51

Editing a Sequence -Simple Editing.........E-51

To turn a step on or off ..........................................E-52

To configure tied note settings ..............................E-52

Using the Sliders to Change Note and

Velocity Settings....................................................E-52

Using the Master Slider to Change Note and

Velocity Settings....................................................E-53

Changing Slider Assignments ...............................E-53

Changing the Function Assigned

to the Master Slider ...............................................E-53

Inputting Step Data by Playing

on the Keyboard, etc. ............................................ E-54

Changing the Solo1 Channel ................................E-54

Changing the Timing of Pattern Switching ............E-55

Syncing Step Sequencer Playback

with an Arpeggio ................................................... E-55

Changing the Step Sequencer Tone........E-55

To sound a single part (solo mode)..........E-55

Editing a Sequence - Advanced...............E-55

To perform advanced parameter editing ............... E-55

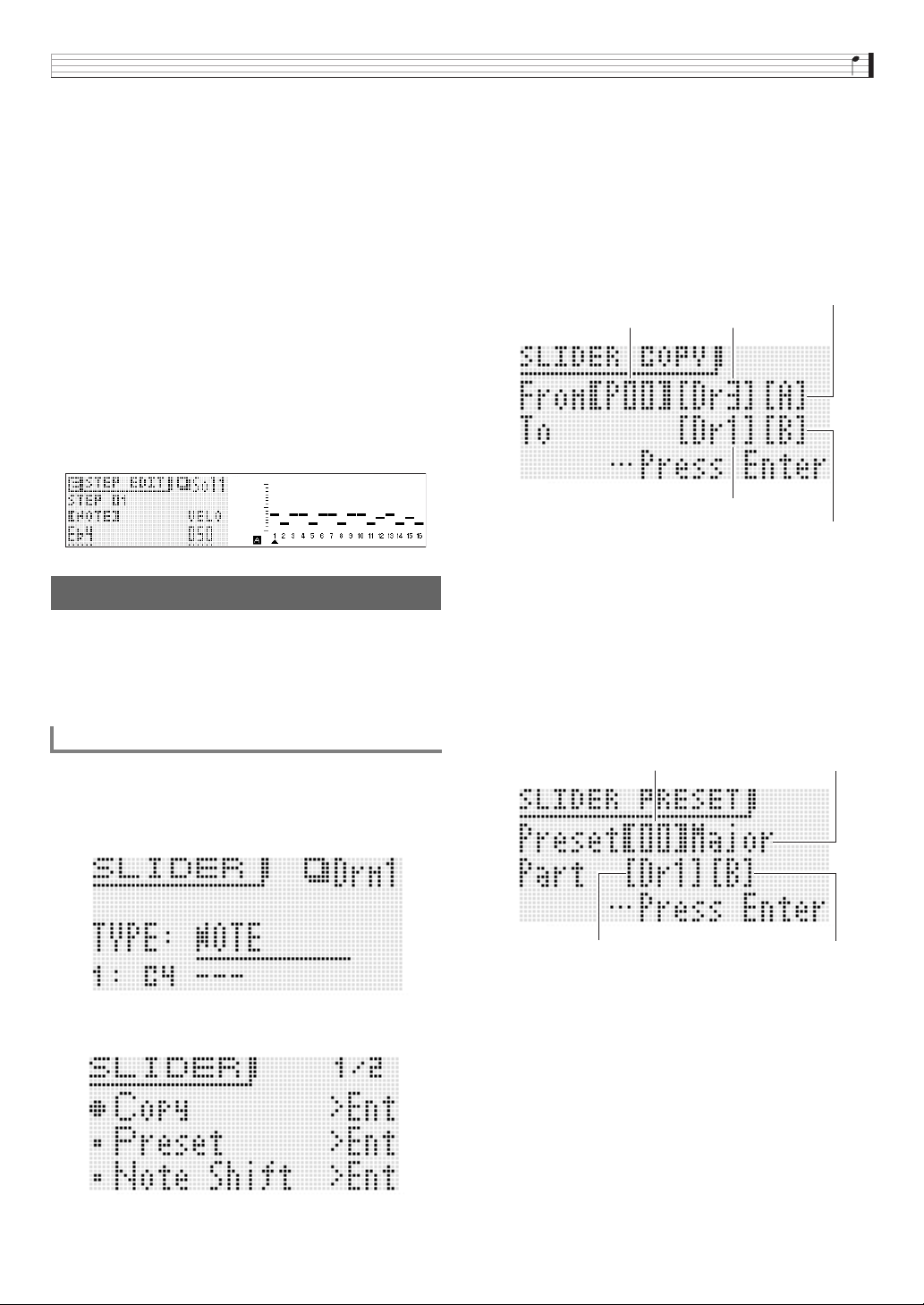

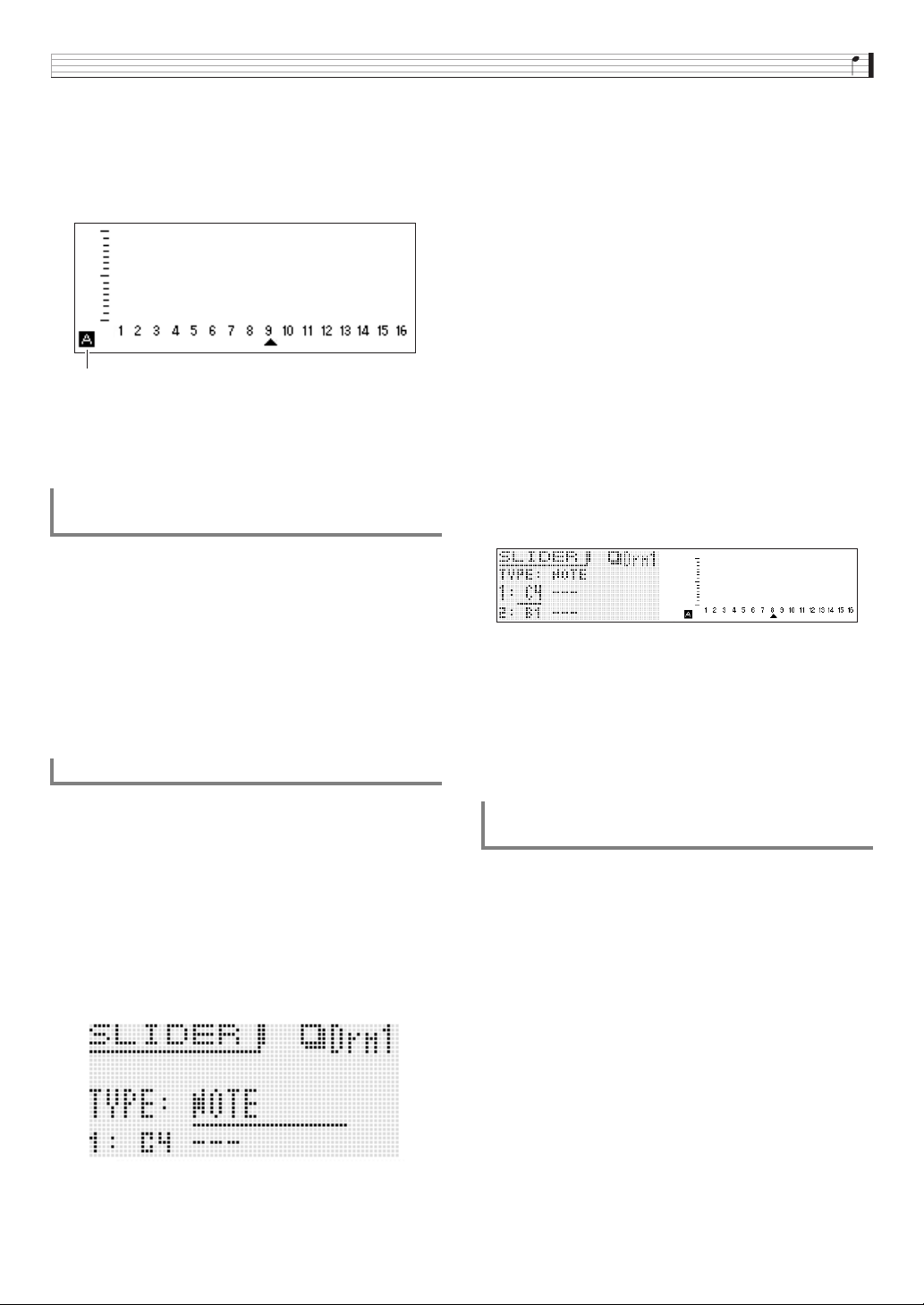

Changing Slider Settings..........................E-59

To copy slider settings from another slider............ E-59

To save an edited sequence ....................E-60

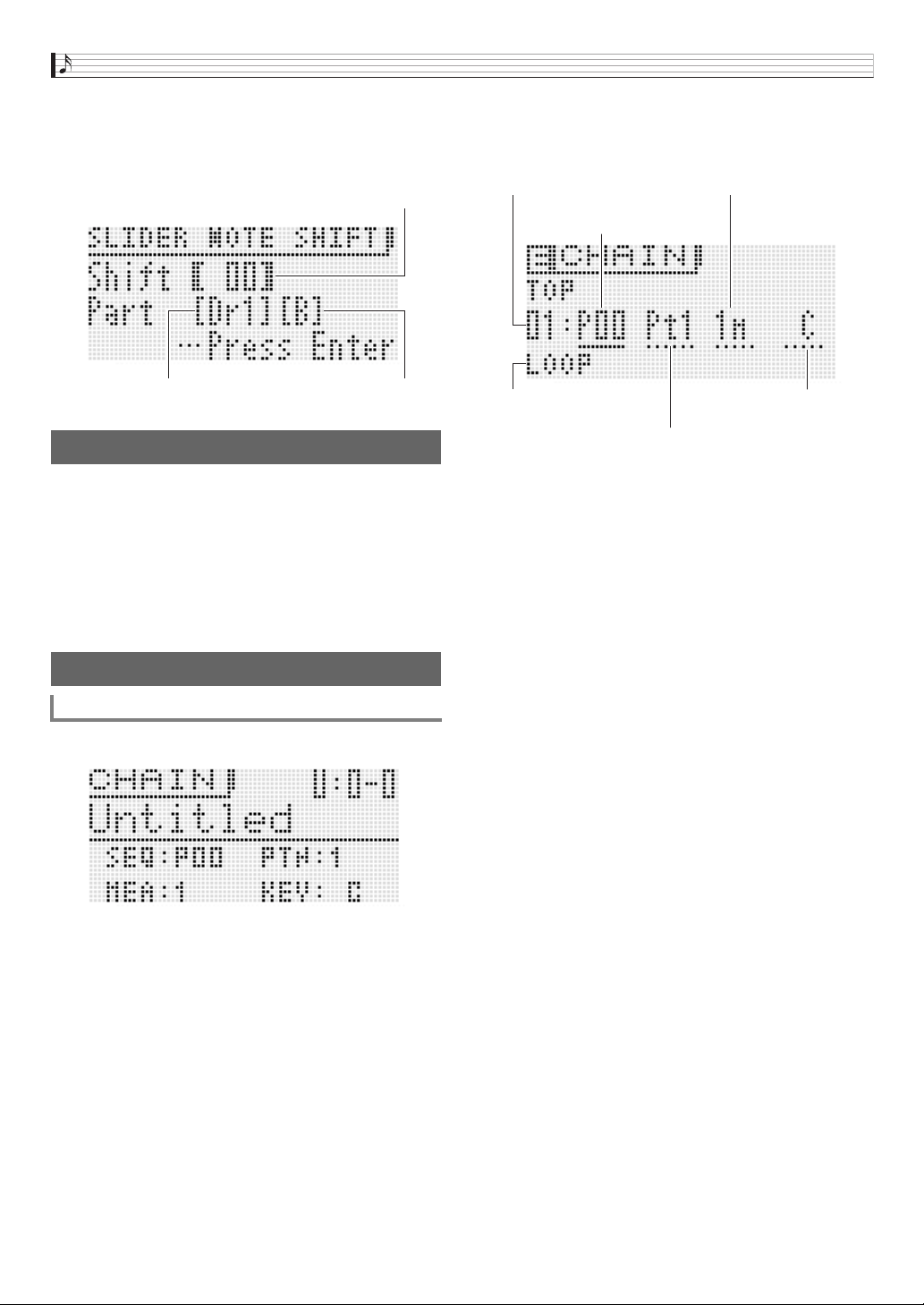

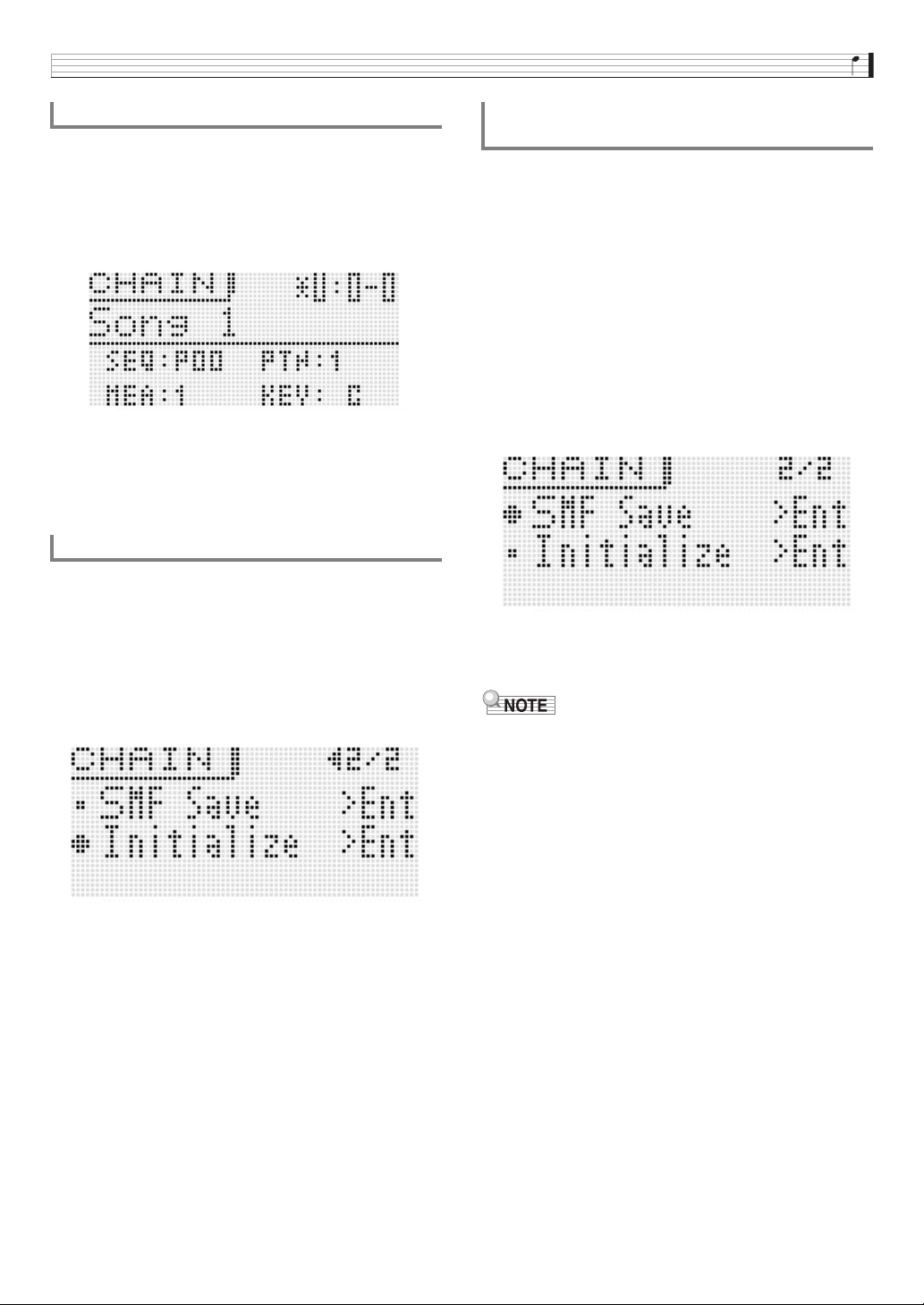

Chaining ...................................................E-60

To create a chain .................................................. E-60

To play back a chain .............................................E-61

To initialize chain settings .....................................E-61

To save a chain in SMF format

to a memory card ..................................................E-61

Using the Performance

Mode .......................................... E-62

Overview ..................................................E-62

Registering and Recalling

Performances...........................................E-62

To register a performance .....................................E-62

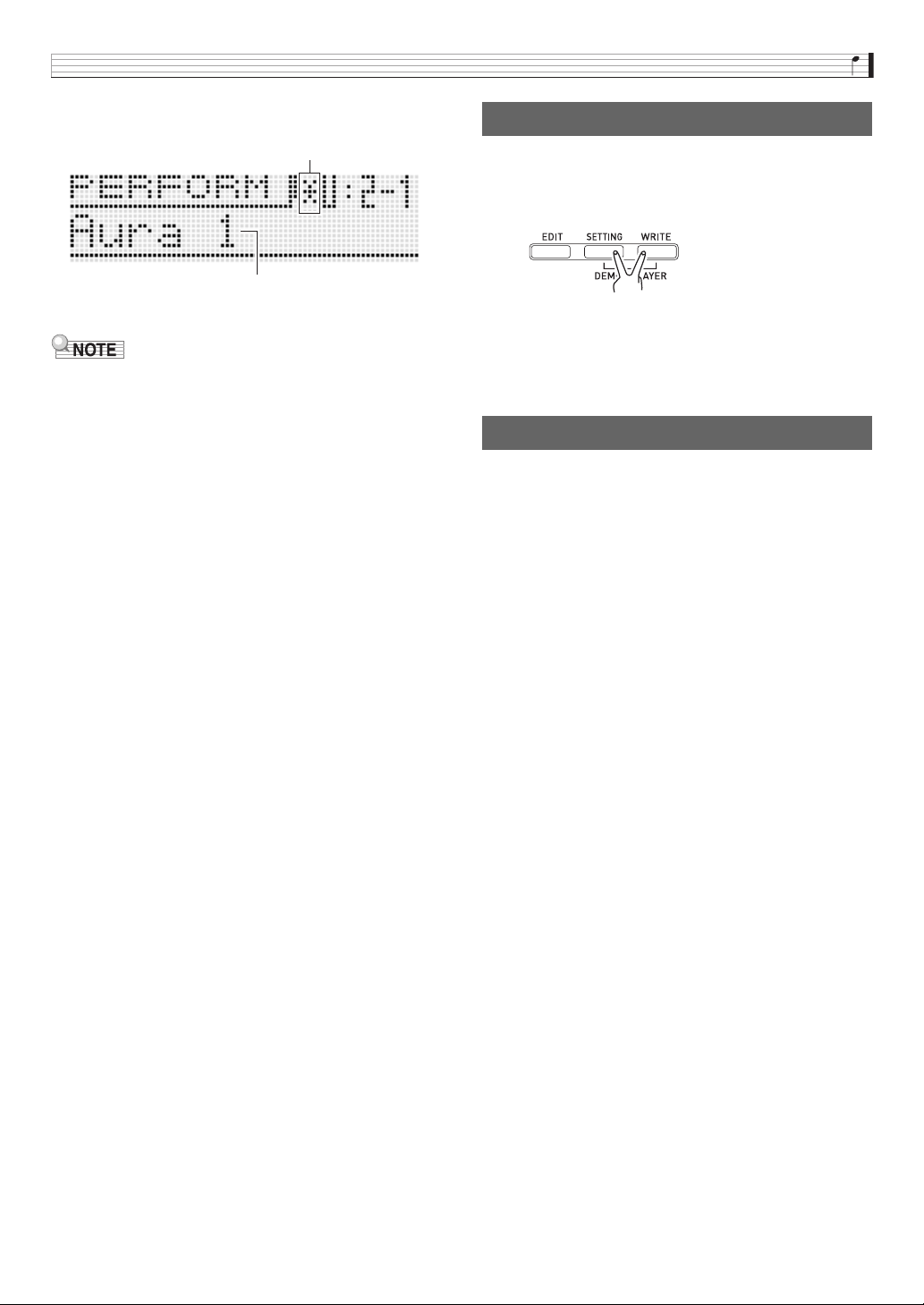

To recall a performance ........................................ E-63

Editable Performance Parameter List ......E-64

Other Useful Functions ............ E-67

Using the Mixer ....................................... E-67

Instant Adjustment of Settings using

the Sliders and Step Buttons ................................ E-67

Mixer Settings ....................................................... E-68

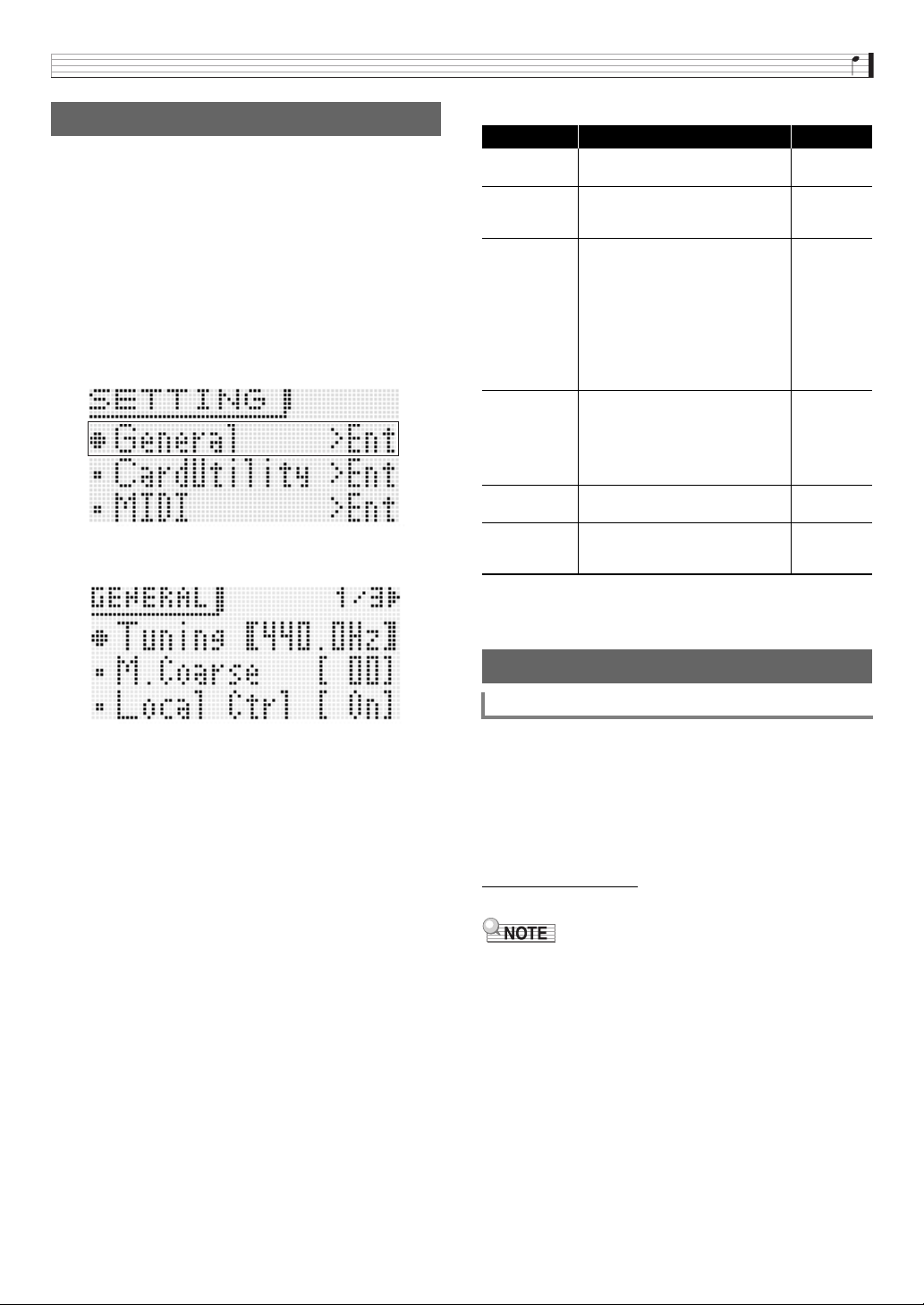

Global Synthesizer Settings .................... E-69

Tuning (Fine tuning of note pitch) ......................... E-69

Local Control......................................................... E-69

Master Coarse Tune

(Tuning of note pitch in semitone steps) ............... E-69

Initial Power On Mode .......................................... E-69

Display Contrast ................................................... E-69

Auto Power Off On/Off.......................................... E-69

Using MIDI............................................... E-69

What is MIDI? ....................................................... E-69

MIDI Settings ........................................................ E-70

Deleting Data Saved

on the Synthesizer................................... E-71

Initializing Synthesizer Global

Settings and Data.................................... E-71

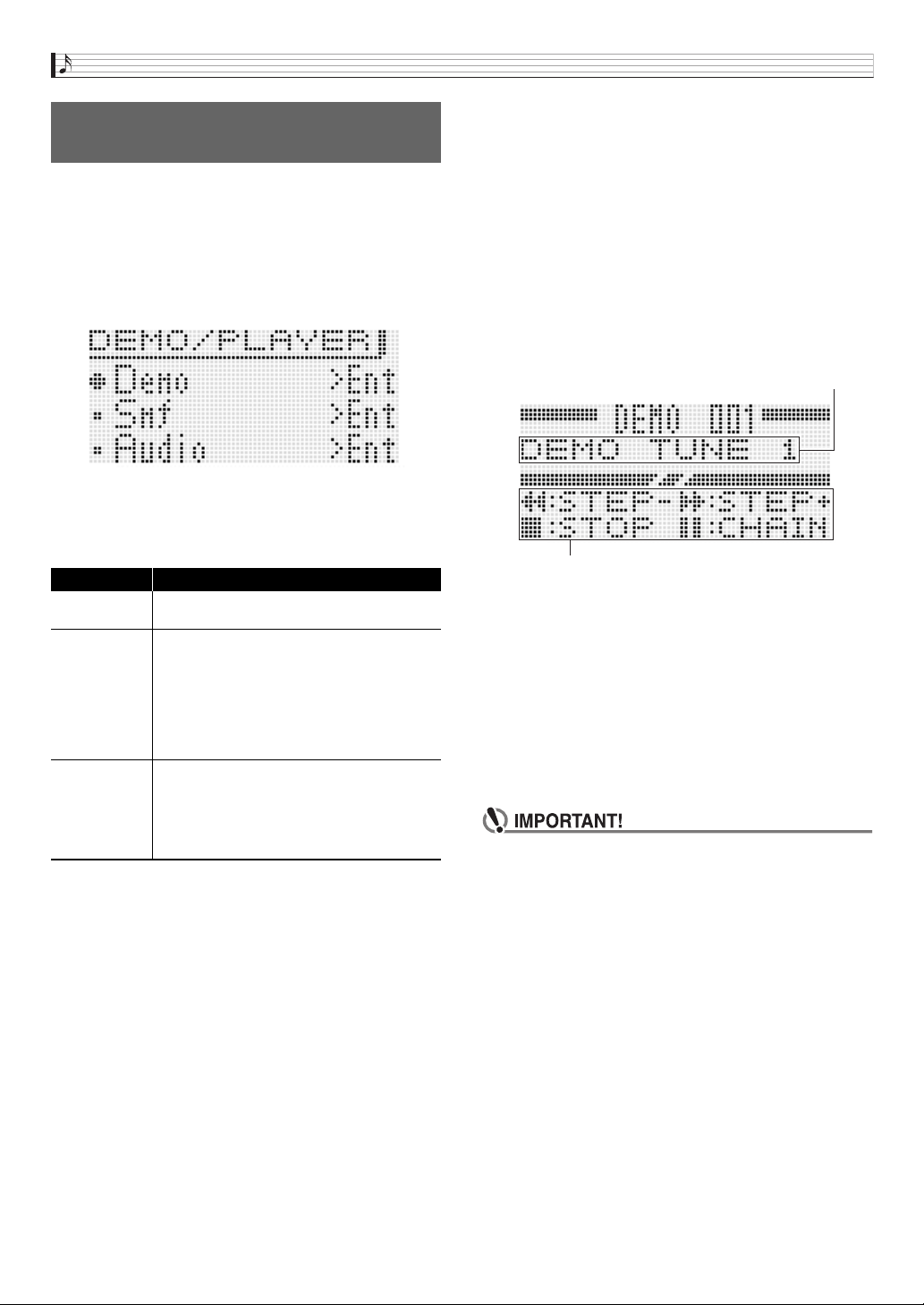

Playing a Demo Tune or

a File from a Memory Card...................... E-72

Using a Memory Card............... E-73

Supported Data Types .......................................... E-73

Card and Card Slot Precautions ........................... E-74

Loading and Removing

a Memory Card........................................ E-74

Formatting a Memory Card...................... E-75

Saving Synthesizer Data

to a Memory Card.................................... E-75

To save Synthesizer data to a memory card ........ E-75

To batch save all Synthesizer data

to a memory card.................................................. E-76

Loading Data from a Memory Card ......... E-77

To load data to Synthesizer memory

from a memory card.............................................. E-77

To batch load all Synthesizer memory data

from a memory card.............................................. E-77

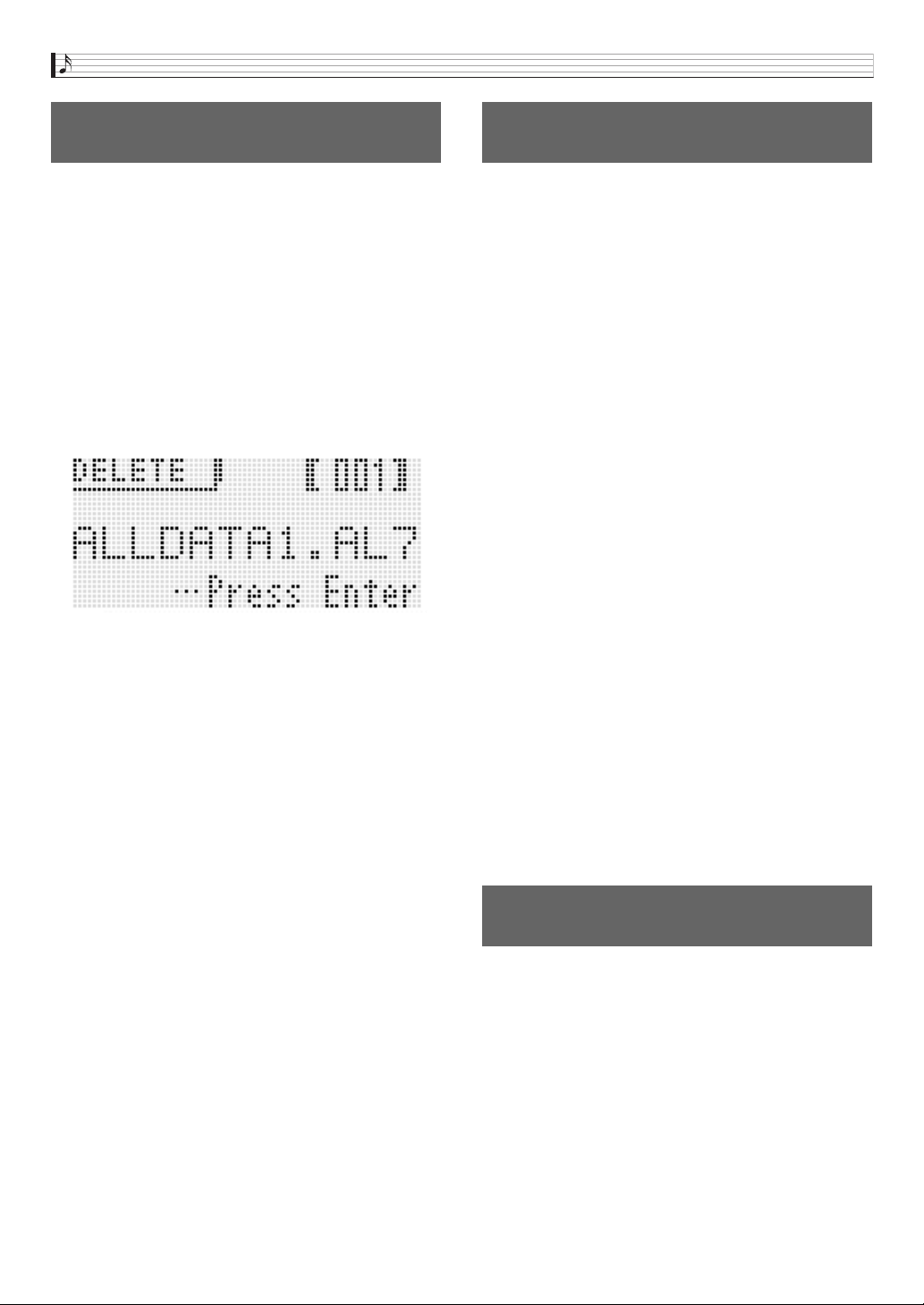

To delete a file from a memory card........ E-78

To rename a file on a memory card......... E-78

Playing a Music File

from a Memory Card ............................... E-78

Contents

E-4

Connecting to a Computer ...... E-79

Minimum Computer System

Requirements...........................................E-79

Connecting the Synthesizer to Your Computer ..... E-79

Saving and Loading Synthesizer Data

to a Computer and Editing Synthesizer

Data on a Computer.................................E-80

Reference .................................. E-81

Error Messages........................................E-81

Troubleshooting .......................................E-82

Specifications ...........................................E-84

Operating Precautions .............................E-86

DSP Effect List .........................................E-87

DSP Type List .......................................................E-87

DSP Parameter List .............................................. E-88

Supported Input Characters .....................E-91

MIDI Implementation Chart

E-5

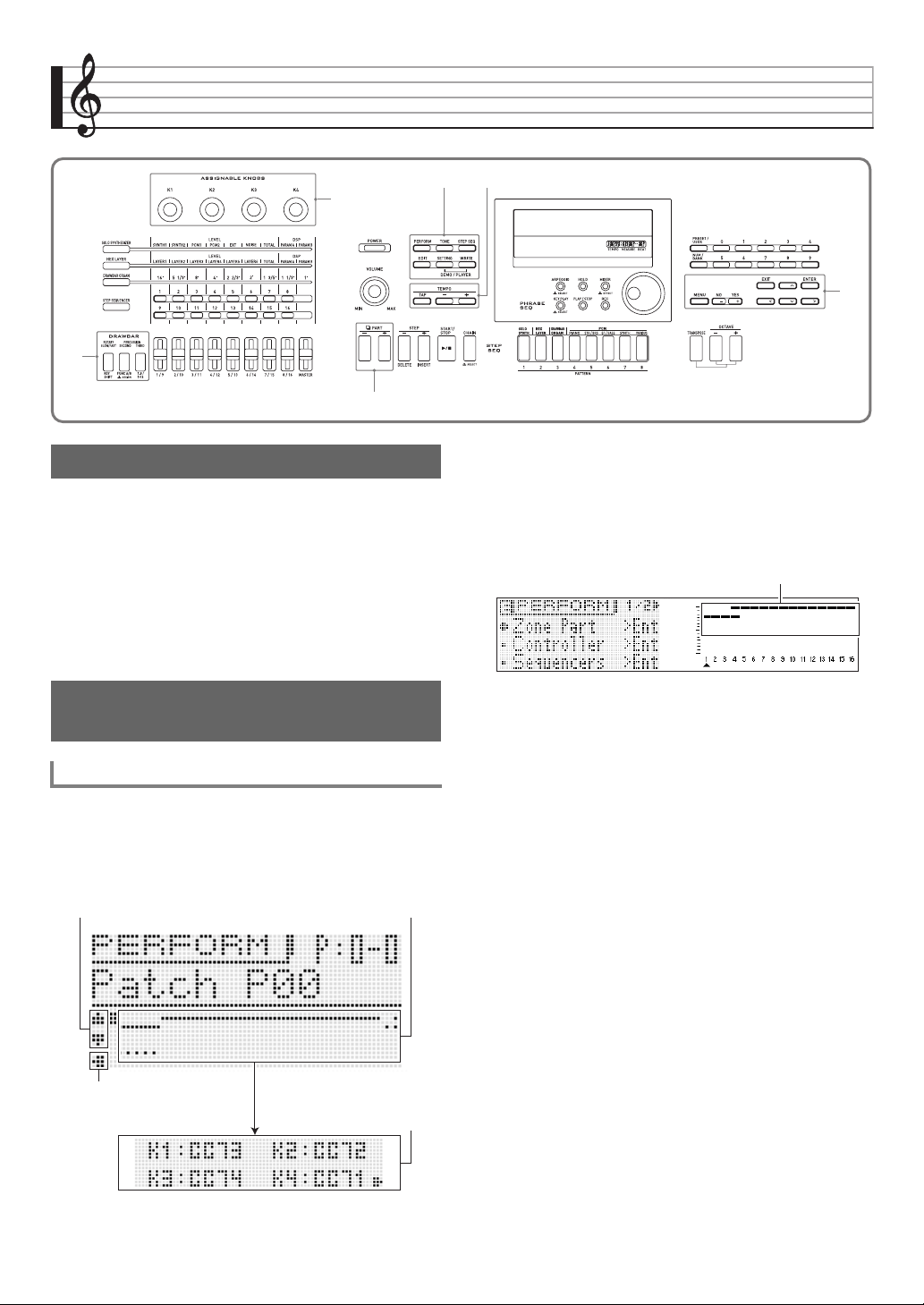

General Guide

• In this manual, buttons, knobs, terminals, and other parts are referred to using a combination of group numbers

(

, etc.) and part names.

Groups

through

are laid out to facilitate adjustment of a sound as you listen to it.

Use these buttons to select the functions assigned to the sliders (

) and

buttons. ☞ Page E-35

Use these buttons to change the effects assigned to drawbar organ tones, and the parts assigned to the sliders (

☞ Page E-32

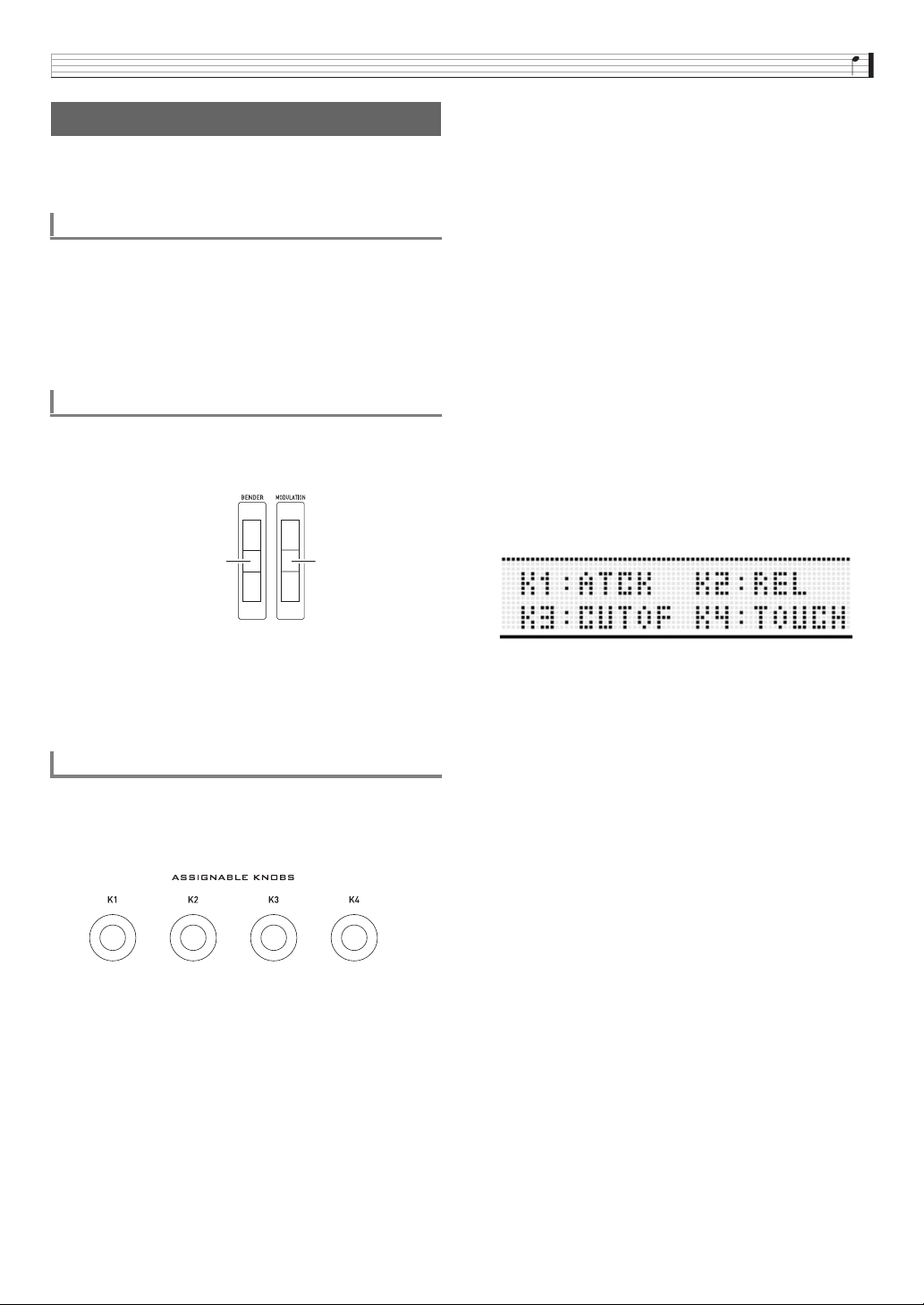

Use these knobs to adjust attack, decay, and other sound parameters. ☞ Page E-35

Use these buttons with the step sequencer to turn each step or part on or off. ☞ Page E-52

Use these sliders to control drawbar organ tones. They are also used for editing with the step sequencer and mixer.

☞ Page E-35, E-52, E-67

Left Center Right Tray

Back

Lower left

• The tray is angled slightly.

Take care so items placed

on it do not slide off.

• Do not place cups or any

other liquid containers on

the tray.

(Sliders)

Left

General Guide

E-6

Use the [POWER] button to turn power on or off, and the [VOLUME] knob to adjust the volume level. ☞ Page E-9

Use the top three buttons to select the Synthesizer’s mode. Use the bottom three buttons to edit and save tone and other

data, and to configure system-wide general settings. ☞ Page E-11, E-12, E-69

Use these buttons to adjust the tempo of the step sequencer, phrase, and other playback. ☞ Page E-45

Use these buttons to select a part for editing with the step sequencer or mixer. ☞ Page E-51, E-67

Use these buttons to select a step for step sequencer playback or editing. ☞ Page E-51

Use these buttons to select a tone category or step sequencer pattern. ☞ Page E-11, E-51

Use these buttons to turn the arpeggiator and hold functions on or off, and to change mixer or effect settings.

☞ Page E-38, E-40, E-67

Use these buttons to perform phrase sequencer recording and playback. ☞ Page E-44

Use the dial for quick change of the numbers and values that appear on the display. ☞ Page E-12

bk bl

8 bn bo

Center

LCD

Indicates name of function

when button is held down.

(Dial)

General Guide

E-7

Use these buttons to select a tone number, performance number, etc. ☞ Page E-20

Use the six buttons on the right to move the cursor on the screen, and the minus (–) and plus (+) buttons to change a

displayed value. Press the [MENU] button to display a menu of options for the operation you are currently performing.

☞ Page E-21

Use these keys for one-touch alteration of the pitch of a sound. ☞ Page E-36

Use [BENDER] to bend notes and [MODULATION] to add vibrato to notes. ☞ Page E-35

Back

See the next page.

Right

Lower left

E-8

Getting Ready to Play

• Whenever you connect any device to the Synthesizer, be sure to read the user documentation that comes with the device.

• This Synthesizer does not have built-in speakers. It will no produce unless you connect some device for sound output.

Back left

Back right

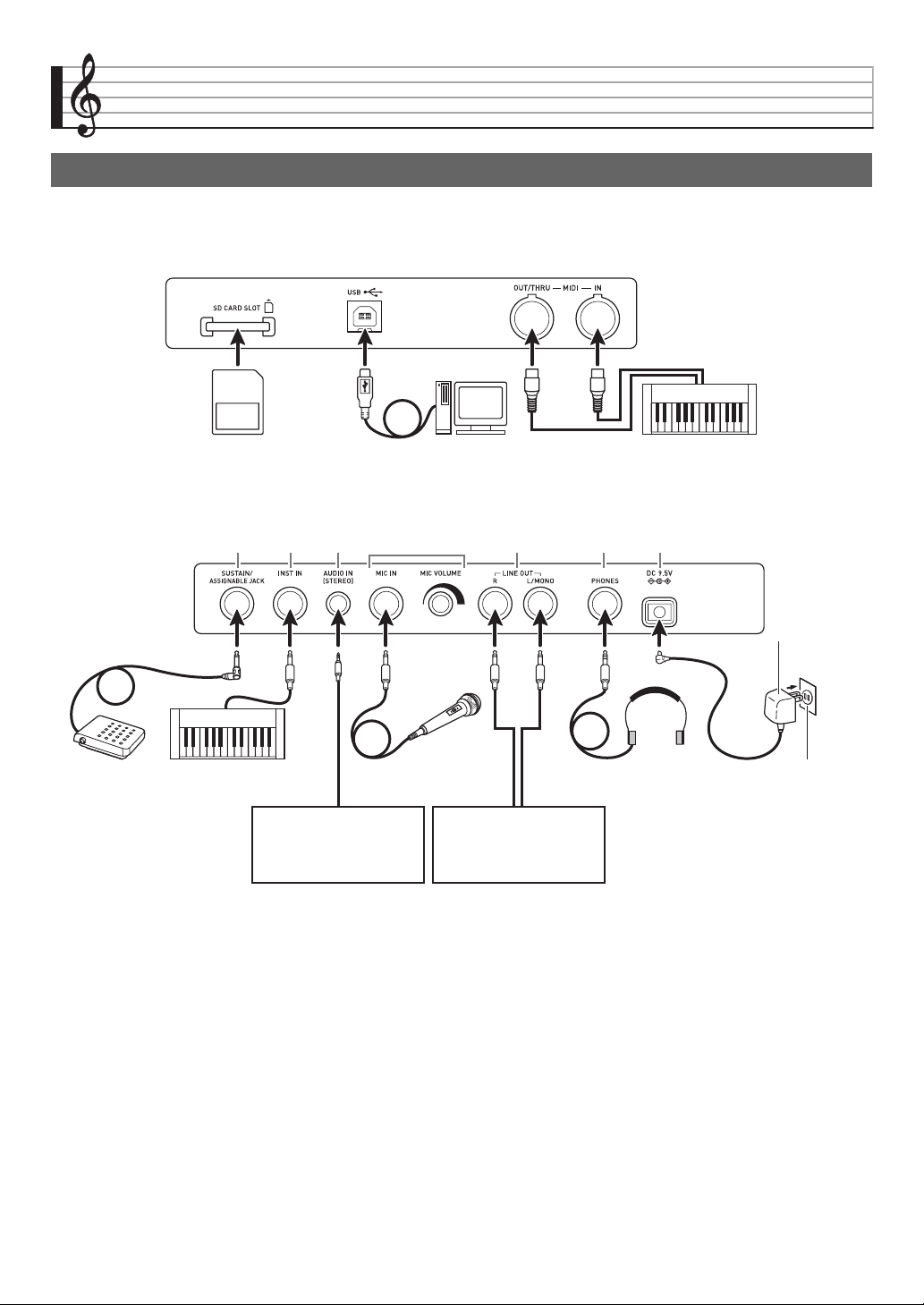

Connections

Memory card (page E-73) Computer (page E-79) Other electronic music instrument (page E-69)

(1) (2) (3) (5) (6) (7)(4)

*1 Standard plug (monaural)

*2 Stereo standard plug

*3 Stereo mini plug

Pedal Microphone Headphones Household

power outlet

CD player, audio player,

etc.

Audio device, amplifier, etc.

Other electronic music

instrument

*1 *3 *1 *1 *1 *2

Configuration

and type

depends on your

geographic

location.

Getting Ready to Play

E-9

Prepare a household power outlet or batteries.

• Be sure to comply with the separate “Safety

Precautions”. Incorrect use of this product creates the

risk of electric shock and fire.

• Always make sure that the product is turned off before

plugging in or unplugging the AC adaptor, or before

loading or removing batteries.

Make sure that you use only the AC adaptor (JEITA Standard,

with unified polarity plug) specified for this product. Use of a

different type of AC adaptor can cause malfunction.

Use the AC adaptor specified for this

Synthesizer to connect it to a household power

outlet.

Press

POWER to turn on power.

• To turn off power, press

POWER again.

To do this: Do this:

(1) Use a pedal Connect an optionally available sustain pedal. For information about the type of

effect applied when the pedal is depressed, see page E-65.

(2) Input sound from another electronic

musical instrument

Use a commercially available connecting cord to connect the output terminal

(monaural) of the other instrument to the Synthesizer.

• You can also apply effects to input sounds (page E-67) and use input sounds

when creating new tones as part of the Synthesizer’s tones (page E-22).

(3) Input from an external device Use a commercially available connecting cord to connect the output terminal

(stereo) of a CD player or portable audio player to the Synthesizer.

(4) Input external sound using a

microphone

Connect a commercially available dynamic microphone to the Synthesizer.

You can use

MIC VOLUME to adjust sound input with the microphone

independently of other sound.

• For information about applying effects to sound input with a microphone, see

page E-67. For information about using input sounds for tone creation, see

page E-22.

(5) Output Synthesizer sound using audio

equipment or an amplifier

Use a commercially available connecting cord to connect the input terminal

(AUX IN, etc.) of the audio equipment or amplifier to the Synthesizer.

• For monaural output with a single connecting cord, connect the cord to the

L/MONO terminal of the Synthesizer.

(6) Use headphones Connect optional or commercially available headphones to the Synthesizer.

• Do not listen to music at very loud volumes for long periods. Doing so creates

the risk of hearing damage.

(7) Supply power to the Synthesizer See “Power Supply” below.

*4 Before connecting, be sure to turn off power to the Synthesizer and the device being connected, and turn

VOLUME down

to a low level.

Power Supply

Using a Household Power Outlet

Specified AC Adaptor: AD-E95100L

AC adaptor

• Configuration and type

depends on your

geographic location.

DC 9.5V

Household power outlet

Getting Ready to Play

E-10

• If you press

POWER only lightly, the display will

light up momentarily but power will not turn on. This

does not indicate malfunction. Press

POWER firmly

and completely to turn on power.

• The AC adaptor will become warm to the touch after

very long use. This is normal and does not indicate

malfunction.

• To prevent breaking of the wire, take care to avoid

putting any type of load on the power cord.

• Never insert metal, pencils, or any other objects into

the product’s 9.5V DC terminal. Doing so creates the

risk of accident.

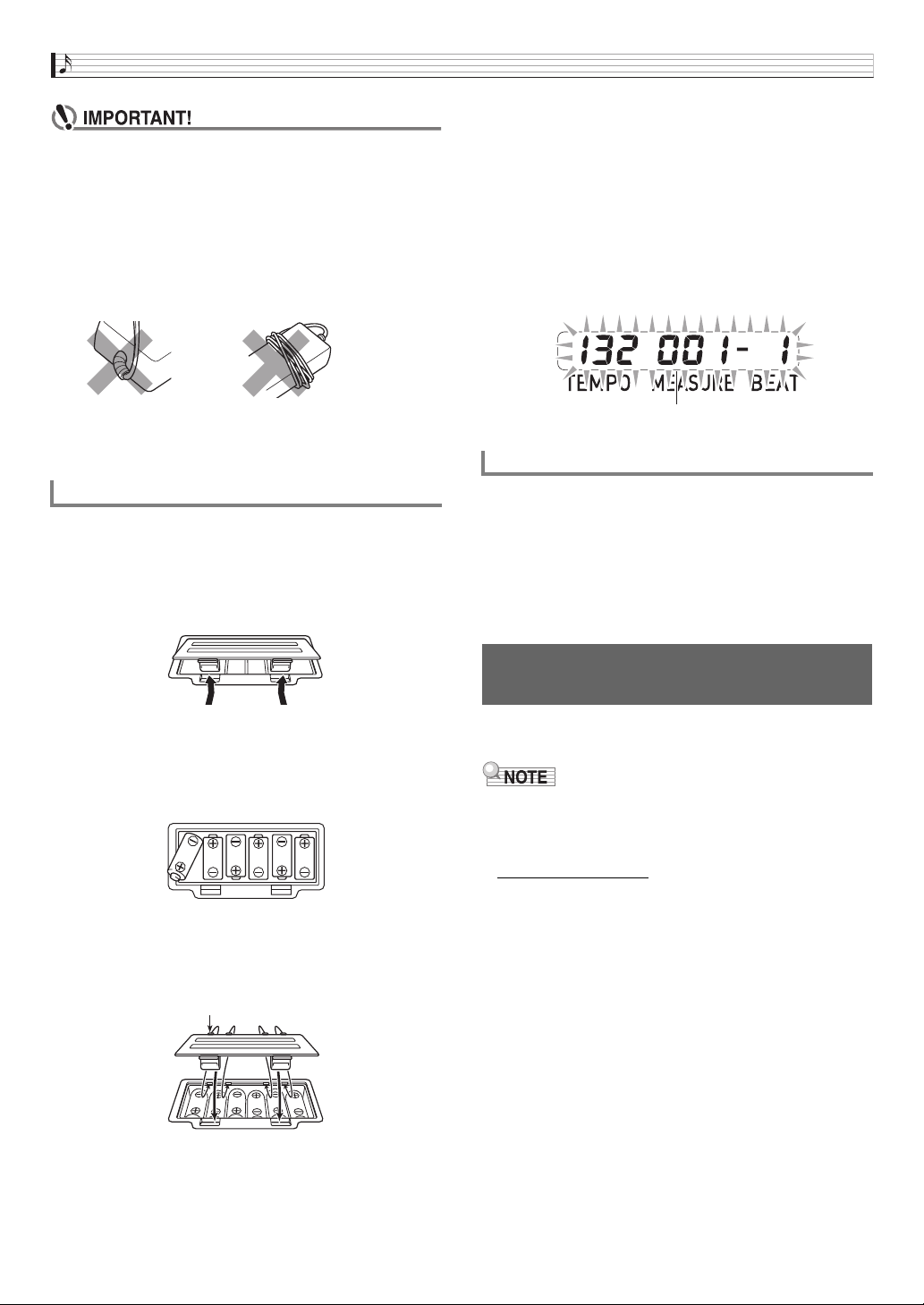

You can use six D-size batteries for power.

• Use alkaline or zinc-carbon batteries.

Never use oxyride or any other nickel based batteries.

Open the battery cover on the bottom of the

Synthesizer.

Load six D-size batteries into the battery

compartment.

• Make sure the positive + and negative - ends of the

batteries are facing as shown in the illustration.

Insert the tabs of the battery cover into the

holes on the side of the battery compartment,

and close the cover.

Press

POWER to turn on power.

■ Low Battery Indication

The following shows the approximate battery life.

Approximately 35 hours* (alkaline batteries, using the

optional CASIO CP-16 headphones)

* Using a high volume setting, playing in very low

temperatures, and certain other playing conditions can

shorten battery life.

Low battery power is indicated when the message “Battery

Low” appears and the indicators shown below flash on the

display. Replace the batteries with new ones.

The Synthesizer turns off automatically to avoid wasting

power if no operation is performed for a preset amount of

time. The Auto Power Off trigger time is six minutes under

battery power and four hours under AC adaptor power.

• You can disable Auto Power Off by turning off the “Auto

Power Off” setting as described under “Global Synthesizer

Settings” (page E-69).

Use of unauthorized accessories creates the risk of fire,

electric shock, and personal injury.

• You can get information about accessories that are sold

separately for this product from the CASIO catalog

available from your retailer, and from the CASIO website at

the following URL.

http://world.casio.com

No bending! No winding!

Using Batteries

Tabs

Auto Power Off

Bundled and Optional

Accessories

Low battery indication (flashing)

E-11

Learning to Play by Playing (For Synthesizer Novices)

This chapter gets you started with basic operations by actually

using the Synthesizer, while avoiding getting too bogged

down in theory and technical details. It is the perfect place to

start for those who are using a synthesizer for the first time.

So, let’s get started!

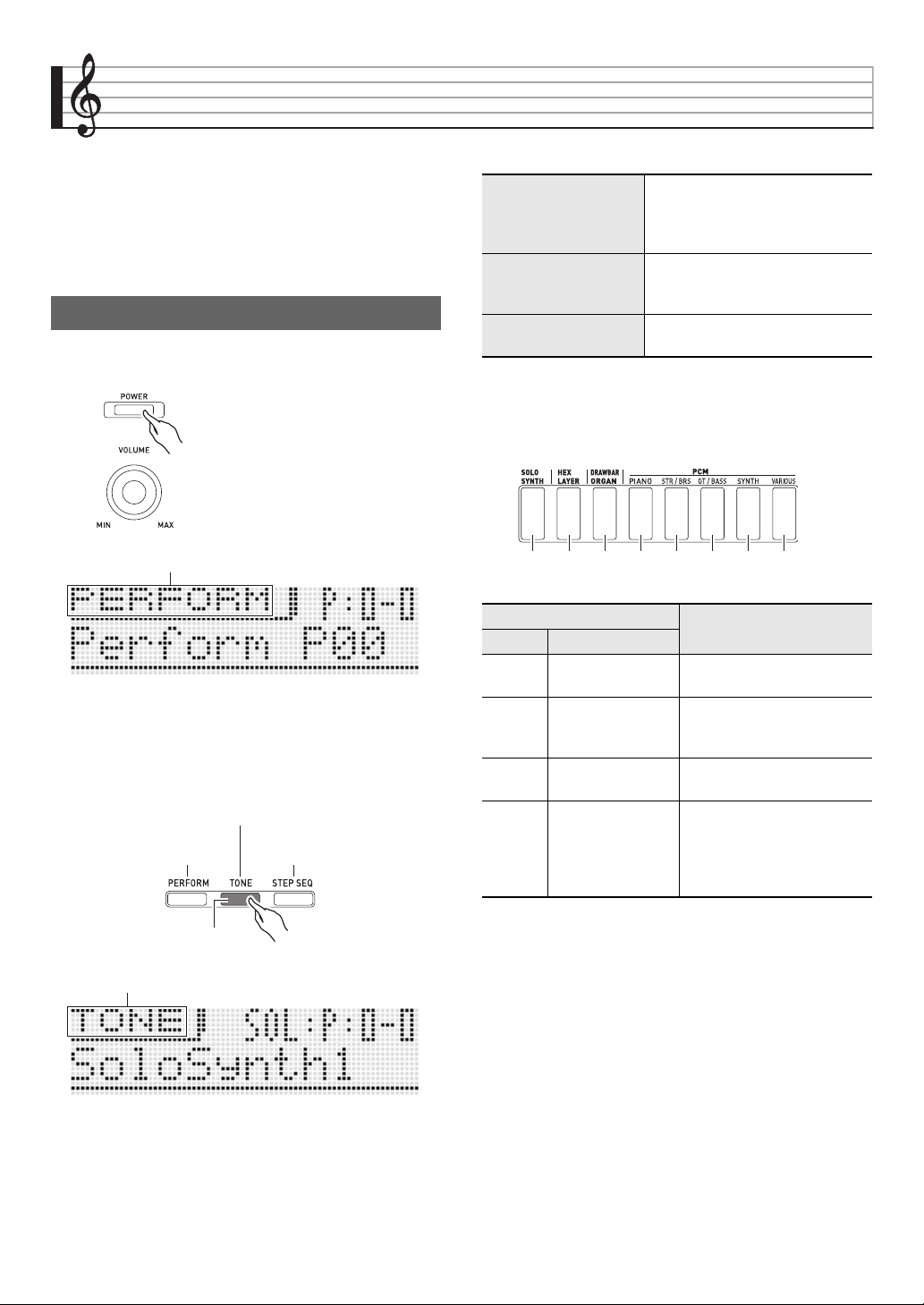

Press

POWER to turn on power. The Synthesizer initially

enters its Performance Mode.

The Performance Mode is great for tapping to the full power of

the Synthesizer during performances, but it is a bit too

advanced for our basic explanation here. For now, let’s start

out with some basic operations in the Tone Mode.

Press

TONE to enter the Tone Mode.

■ Three Synthesizer Modes

Here, lets select a tone hear what it sounds like.

Tones are divided among eight categories. Use the

buttons to select the category you want.

• For more information, see page E-20.

Playing with Built-in Tones

Performance Mode

Tone Mode

Step Sequencer Mode

Lit

Tone Mode

Performance Mode

Use this mode for playing and

performing. It enables high-level

performance with tone categories,

a Step Sequencer, and more.

Tone Mode

Use this mode for tone creation.

You can select a single tone and

edit it the way you want.

Step Sequencer Mode

This mode is for creating step

sequencer data (sets).

Category

Description

Number of Tones

Number Name Preset User

1 Solo Synthesizer

This category contains traditional analog synthesizer tones. You

can select a waveform as a base, and then edit the three

elements of a sound (pitch, tone, volume) to create exactly the

sound you want. Monophonic.

100 100

2 Hex Layer

In this category, up to six tones are layered for ensemble sounds

with plenty of depth. Each of the layered sounds can be edited

individually.

50 50

3 Drawbar Organ

This category includes traditional drawbar organ tones with nine

drawbars and rotary speakers. The Synthesizer’s

sliders

operate as drawbars with these tones.

50 50

PCM

Piano The tones in this category let you use sampled sounds to

reproduce the sounds from a variety of different instruments.

420 110

5 Strings/Brass

6Guitar/Bass

7 Synthesizer

8 Various

Selecting and Creating Tones

E-21

Select the tone you want to edit.

• You can select a preset tone or an existing user tone

for editing.

Press

EDIT.

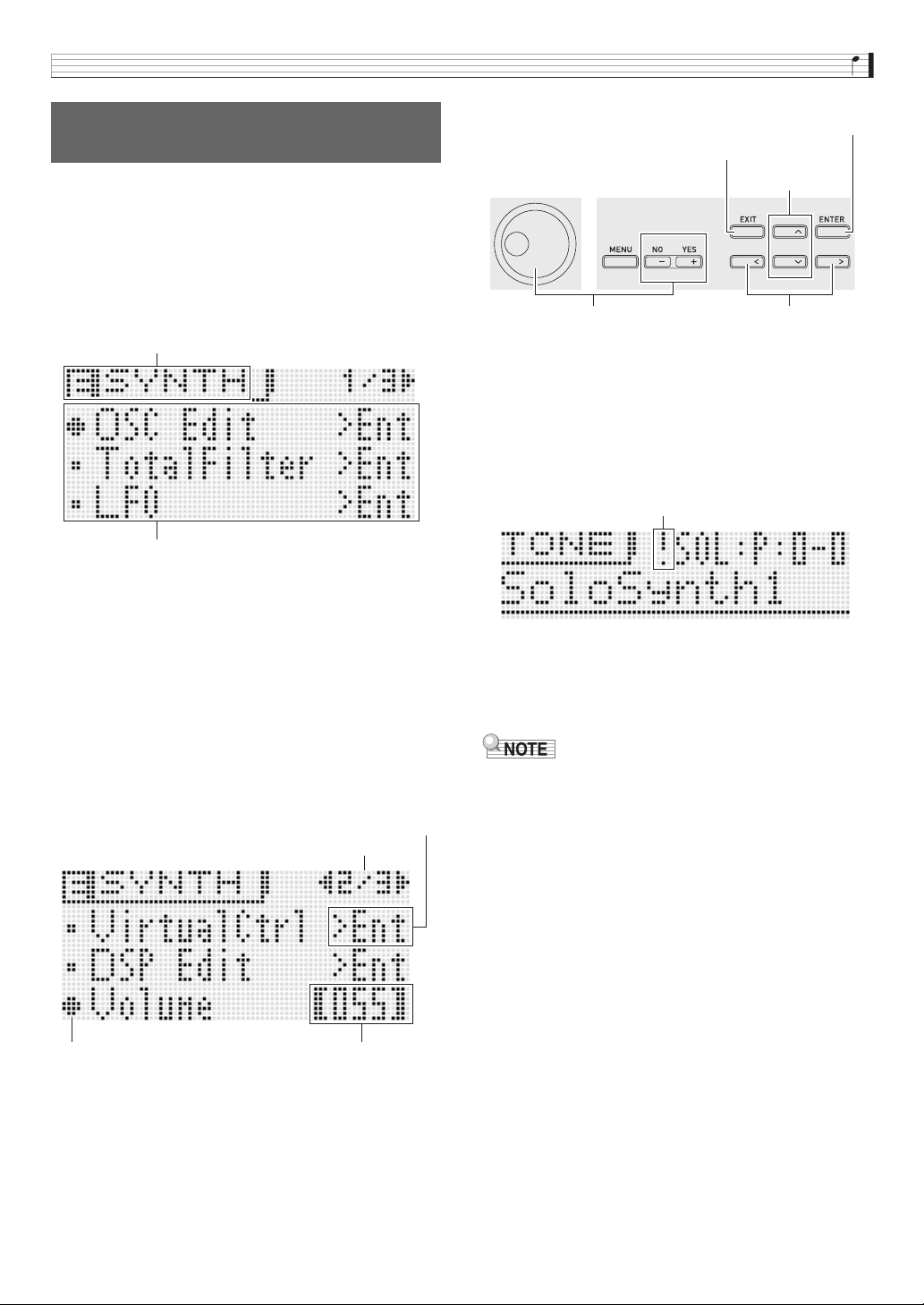

This will display the top screen of the tone editing list.

Example: First page of the Solo Synthesizer tone editing

list

Use

to select the item you want and change

the selected setting.

• You also can change setting by rotating the

dial.

• For details about the displayed contents, see the

information presented for each tone category in the

sections of this manual from “Editable Solo Synthesizer

Tone Parameters” (page E-22) to “Editable Drum PCM

Tone Parameters” (page E-34).

Example: To select the “Volume” item on the top screen

and change its setting to 055

After you finish with your edits, press

EDIT.

This exits the tone editing list.

• The edits pending indicator ( ! ) on the display indicates

that there are pending edits that have not been saved

yet. Your edits will be lost if you change to another

operation without saving them. Advance to step 5

below if you want to save your edits.

Press

WRITE and then save your edited tone

as a user tone.

• For information about how to delete user tones, see

page E-71.

• The settings of some of the items on the tone editing list

can be changed using the Synthesizer’s sliders, without

going through the tone editing list. See “Controlling

Sounds” in the next section.

■ Saving User Tones to an External Device

• Memory card (page E-73)

• Computer (page E-79)

To edit and save a tone as a user

tone

List title

List

The options on this screen are groups, which are

made up of multiple items. Selecting a group and

pressing

ENTER will enter the group.

Page

Item selection Cursor Setting

bqbo

Changes setting. Scrolls pages.

Selects item.

Enters a group.

Exits a group.

Edits pending indicator

Selecting and Creating Tones

E-22

Solo Synthesizer tones are synthesized by combining tones of the six blocks, number (1) through (6), in the illustration below.

Before actually getting into tone editing, you should spend a little time becoming familiar with the structure and the details of each

block.

■ Solo Synthesizer Tone Configuration Diagram

* Envelope Generator

Editable Solo Synthesizer Tone Parameters

MIC IN

INST IN

(1) Synth OSC1 Block

Synth OSC Filter Amp

(2) Synth OSC2 Block

(3) PCM OSC1 Block

PCM OSC Filter Amp

(4) PCM OSC2 Block

(5) External Input Sound Block

Pitch shifter Filter Amp

(6) Noise Block

Noise

generator

Filter Amp

(8) LFO1 Block

LFO

(9) LFO2 Block

(7) Total Block

Filter

Solo

Synthesizer

DSP

Output

To blocks (1) through (9)

(10) Controllers

• Keyboard

• Pedal

•

HOLD

• Bender

• Modulation

• MIDI receive messages

(Virtual controllers)

To blocks (1) through (7)

Selecting and Creating Tones

E-23

Description

(1) Synthesizer OSC1 Block

“OSC” is an abbreviation of “oscillator”, which is where a sound is actually produced. These two

synth OSC blocks creates sound using a sine wave, sawtooth wave, or other base waveform,

just like an analog synthesizer.

• Synth OSC: Generates the base sound and determines the pitch.

• Filter: Cuts some of the frequencies to adjust timbre.

• Amp: Adjusts volume.

• Three EG (envelope generators):

Control changes in pitch, timbre, volume, and other parameters over time.

The nearby illustration shows an example of a volume envelope.

(2) Synthesizer OSC2 Block

(3) PCM OSC1 Block

This block creates sound based on PCM sounds (same sound quality as sounds in the PCM

Tone category). For information about show the editable parameters of this block differ from

those for the OSC blocks above, see “Editable Parameters of Blocks (1) through (6)” (page

E-24).

(4) PCM OSC2 Block

(5) External Input Sound Block

Instead of an oscillator, this block creates sound based on sound input through the

Synthesizer’s

MIC IN and INST IN jacks. The pitch change range of sound produced by

this block is limited.

(6) Noise Block

Instead of an oscillator, this block creates sound based on noise generated by a special noise

generator. The pitch of sound produced by this block cannot be edited.

(7) Total Block

This block combines signals (1) through (6) and sends the completed tone to the filters and

DSP (a type of effect).

(8) LFO1 Block

“LFO” is an abbreviation of “low-frequency oscillator”. The LFOs send waveform information to

each block that is used as the basis for modulation, tremolo and other reverb effects.

(9) LFO2 Block

(10) Controllers

Controllers include the keyboard, bender, and other controllers, as well as MIDI messages.

Control messages are sent to blocks (1) through (9) to control tones.

A virtual controller function can be used to freely configure combinations of controller types

(sources) and the parameters being controlled (destinations) to perform such actions as “pedal

depressed, change volume”.

Volume

Time

Attack Sustain Release 2

Decay Release 1

Selecting and Creating Tones

E-24

■ Editable Parameters of Blocks (1) through (6)

•The nine sliders (

) and four knobs (

) can be used for quick and easy adjustment of some of the parameters in the list

below (page

E-35).

Preparation

Perform the following steps from the screen in step 2 of the procedure under “To edit and save a tone as a user tone” on page

E-21.

Select “OSC Block >Ent” and then press

ENTER to enter the group.

Use the

PART minus (–) and plus (+) buttons to select the block you want to edit.

Editable Parameter List

• Shaded cells indicate a group made up of multiple items. Press

ENTER to display the items that make up a group.

• (V) at the end of a display item indicates an item that can be selected as a Block (10) virtual controller destination (page E-29).

Display Text Description Settings

OSC On Off OSC on/off. Selecting off disables the entire block. Off, On

Oscillator >Ent (Block (1) to (5) only)

Oscillator. Group of editable parameters associated with the pitch of the synth

OSC, PCM OSC, and pitch shift.

• This group can be entered by performing step 1 under “To edit and save a tone

as a user tone” (page E-21) and then holding down

EDIT.

Synth Wave

(Blocks (1) and (2) only)

PCM Wave

(Blocks (3) and (4) only)

Synth wave, PCM wave. Selects the base wave for a sound generated by the

synth OSC or PCM OSC.

• A wave whose name is displayed with “L” or “B” next to it will sound at a pitch

that is one octave lower than the actual pitch. In the case of a “B” wave, nothing

will sound when a keyboard key higher than C5 is pressed.

• See the separate “Appendix” for details about wave types.

• This item is not present in Block (5).

See the separate

“Appendix”.

Pitch (V)

Pitch. Adjusts the maximum and minimum pitch values within a range of ±2

octaves. A setting of –256 lowers the pitch two octaves, while a setting of 255

raises the pitch two octaves.

–256 to 0 to +255

Detune (V) Detune. Fine adjustment of the tuning. –256 to 0 to +255

KeyFollow (V)

Key follow. Adjusts the amount of pitch change between neighboring keyboard

keys. A higher value represents greater change.

Example: When Key Follow Base is keyboard key C4

–128 to 0 to +127

KeyFolBase (V)

Key follow base. Keyboard key that is the center of key follow.

• Setting value can be specified using the keyboard keys.

C-1 to G9

Env.Depth (V) Envelope depth. Specifies how the envelope shown below is applied. –64 to 0 to +63

Block

Syn1: Synth OSC1

Syn2: Synth OSC2

PCM1: PCM OSC1

PCM2: PCM OSC2

Ext: External input

Noise: Noise

Key Follow = 127

Key Follow = 64

Key Follow = 0

Key Follow = -127

Key Follow

Key Follow Base

Selecting and Creating Tones

E-25

Envelope >Ent

Pitch envelope. Group of editable envelope (Envelope Generator) parameters

applied to the synth OSC, PCM OSC, and pitch shifter.

• The figure below also applies to filter, amp, and other envelopes. With the pitch

envelope, the pitch of the sound corresponds to the vertical (Level) axis.

Init.Level (V) Initial level. Pitch of the sound at initial note on. –64 to 0 to +63

Atk.Time (V) Attack time. Time it takes until the attack level is reached from the initial level. 0 to 127

Atk.Level (V) Attack level. Target level reached immediately after note on. –64 to 0 to +63

Dec.Time (V)

Decay time. Time it takes for the sound to reach the sustain level from the attack

level.

0 to 127

Sus.Level (V)

Sustain level. Level the sound is sustained as long as a key or pedal is

depressed.

–64 to 0 to +63

Rel.Time1 (V) Release time 1. Time it takes to reach Release Level 1 after a key is released. 0 to 127

Rel.Level1 (V) Release level 1. Target level reached immediately after a key is released. –64 to 0 to +63

Rel.Time2 (V) Release time 2. Time it takes to reach Release Level 2 from Release Level 1. 0 to 127

Rel.Level2 (V) Release level 2. Second target level reached after a key is released. –64 to 0 to +63

Clk.Trig

Clock trigger. Specifies the number of beats for resetting the envelope. Selecting

a setting from 1/4U to 4U resets to the timing of the back beat.

Off, 1/4, 1/3, 1/2, 2/3,

1, 3/2, 2, 3, 4, 1/4U,

1/3U, 1/2U, 2/3U, 1U,

3/2U, 2U, 3U, 4U

Ext.Trig

(Block (5)

only)

External trigger. When on, the envelope is reset by an external trigger. Off, On

LFO1 Depth (V) LFO1 depth. Specifies how LFO1 from Block (8) is applied. –64 to 0 to +63

LFO2 Depth (V) LFO2 depth. Specifies how LFO2 from Block (9) is applied. –64 to 0 to +63

PulseWidth

(Blocks (1) and (2) only) (V)

Pulse width. Adjusts the width of the square wave when the synth wave is a

square wave.

0 to 127

PWM LFO1 Depth

(Blocks (1) and (2) only) (V)

PWM LFO1 depth. Adjusts the depth of pulse width modulation by LFO1.

–64 to 0 to +63

PWM LFO2 Depth

(Blocks (1) and (2) only) (V)

PWM LFO2 depth. Adjusts the depth of pulse width modulation by LFO2. –64 to 0 to +63

Sync OSC (Block (2) only)

Oscillator sync. Turning on this resets the Block (2) sound wave in accordance

with the Block (1) sound wave period, cause them to become synced.

Off, On

OriginalKey (Block (5) only)(V)

Original key. Selects the keyboard keys where the externally input sound to

Block (5) is sounded as-is at its original pitch.

• Setting can be specified using the keyboard keys.

C-1 to G9

MicInstLvl (Block (5) only) (V) Mic/inst level. Level of external input sound to Block (5). 0 to 127

Display Text Description Settings

RL1

RL2

AT DT RT1 RT2

Level

Time

IL : Init Level RT1 : Release Time1

AT : Attack Time RL1 : Release Level1

AL : Attack Level RT2 : Release Time2

DT : Decay Time RL2 : Release Level2

SL : Sustain Level

PWM

Selecting and Creating Tones

E-26

TrigThresh (Block (5) only) (V)

Trigger threshold. Specifies the external input level threshold value that

determines whether or not an external input trigger (page E-25) is applied.

0 to 127

TrigRelease

(Block (5) only) (V)

Trigger release time. Adjusts the time following external input trigger (page E-25)

operation that the next trigger operation is blocked.

0 to 127

P.ShiftMode (Block (5) only)

Pitch shifter mode. A larger setting value lengthens the time until note on, but

increases tone quality. When this setting is off, the same pitch sounds no matter

which keyboard key is pressed.

Off, 1, 2, 3

P.ShiftMix (Block (5) only)

Pitch shifter mix. Specifies the volume ratio between the pitch shifted sound (shift

sound) and the unshifted sound.

0: Shift sound only

7: Both sounds at same volume

15: Original sound only

0 to 15

Noise Type (Block (6) only)

Noise type. Selects the type of noise generated by Block (6). White noise (equal

noise for all frequencies), pink noise (noise inversely proportional to the

frequency) and other types of noise are available.

• See the separate “Appendix” for a complete list of noise types.

See the separate

“Appendix”.

Filter >Ent

Filter. Group of editable parameters associated with the filters (tones) in each

block.

Gain

Gain. Specifies how the volume of frequency components that are higher than

the cut off frequency setting value described below is attenuated. There is no cut

off when “Flat” is specified here.

–18dB, –12dB, –6dB,

–3dB, Flat

Cutoff (V) Cutoff frequency. Specifies the filter cutoff frequency. 0 to 15

TouchSense (V)

Touch sense. Specifies the degree of change in the filter in accordance with

change in keyboard playing touch.

–64 to 0 to +63

KeyFollow (V)

Key follow. Adjusts the amount of filter change between neighboring keyboard

keys. A higher value represents greater change.

–128 to 0 to +127

KeyFolBase (V)

Key follow base. Keyboard key that is the center of key follow.

• Setting can be specified using the keyboard keys.

C-1 to G9

Env.Depth (V) Envelope depth. Specifies how the envelope shown below is applied. –64 to 0 to +63

Envelope >Ent

Filter envelope. Group of editable envelope (Envelope Generator) parameters

applied to filters.

• For details about group items and setting ranges, see “Pitch Envelope”. With

this group, the vertical (Level) axis in the pitch envelope diagram corresponds

to how the filter is applied.

0 to 127 (Initial Level

to Release Level 2)

• The setting ranges

for Clock Trigger

and External Input

Trigger are the

same as those for

Pitch Envelope.

LFO1 Depth (V) LFO1 depth. Specifies how LFO1 from Block (8) is applied. –64 to 0 to +63

LFO2 Depth (V) LFO2 depth. Specifies how LFO2 from Block (9) is applied. –64 to 0 to +63

Amp >Ent

Amp. Group of editable parameters associated with the amp (volume) in each

block.

Volume (V) Volume. Specifies the amp volume. 0 to 127

TouchSense (V)

Touch sense. Specifies the degree of change in volume in accordance with

change in keyboard playing touch.

–64 to 0 to +63

KeyFollow (V)

Key follow. Adjusts the amount of volume change between neighboring keyboard

keys. A higher value represents greater change.

–128 to 0 to +127

KeyFolBase (V)

Key follow base. Keyboard key that is the center of key follow.

• Setting can be specified using the keyboard keys.

C-1 to G9

Envelope >Ent

Amp envelope. Group of editable envelope (Envelope Generator) parameters

applied to amps.

• For details about group items, see “Pitch Envelope”. The vertical (Level) axis in

the pitch envelope diagram corresponds to the volume in the case of this

group. However, the setting range for the nine items from Initial Level to

Release Level 2 is 0 to 127, which is different from the pitch envelope items.

0 to 127 (Initial Level

to Release Level 2)

• The setting ranges

for Clock Trigger

and External Input

Trigger are the

same as those for

Pitch Envelope.

LFO1 Depth (V) LFO1 depth. Specifies how LFO1 from Block (8) is applied. –64 to 0 to +63

LFO2 Depth (V) LFO2 depth. Specifies how LFO2 from Block (9) is applied. –64 to 0 to +63

Legato

Legato. Turning this setting on causes subsequent notes to be played smoothly

and connected.

Off, On

Portamento Portamento. Turning on this setting applies a portamento effect. Off, On

Display Text Description Settings

Selecting and Creating Tones

E-27

■ Block (7): Total Block Filter Editable Parameters

Preparation

On the screen that appears in step 2 under “To edit and save a tone as a user tone” (page E-21), select “Total Filter >Ent” and then

press

ENTER to enter the group.

Editable Parameter List

• Shaded cells indicate a group made up of multiple items. Press

ENTER to display the items that make up a group.

• (V) at the end of a display item indicates an item that can be selected as a Block (10) virtual controller destination (page E-29).

PortaTime (V)

Portamento Time. Specifies the time until the next note is reached by

Portamento.

0 to 127

Display Text Description Settings

FilterType

Filter type. Selects the filter type.

LPF: Low-pass filter. Cuts high-range components above the cut off frequency.

BPF: Band-pass filter. Cuts low-range and high-range components outside of a range centered on

the cut off frequency.

HPF: High-pass filter. Cuts low-range components below the cut off frequency.

Refer to the cell to the

left.

Cutoff (V) Cutoff frequency. Specifies the cut off frequency of all Solo Synthesizer tones. 0 to 127

Resonance (V) Resonance. Emphasizes notes in the vicinity of the cut off frequency to alter the tone. 0 to 127

TouchSense (V)

Touch sense. Specifies the degree of change in the filter in accordance with change in keyboard

playing touch.

–64 to 0 to +63

KeyFollow (V)

Key follow. Adjusts the amount of filter change between neighboring keyboard keys. A higher value

represents greater change.

–128 to 0 to +127

KeyFolBase (V)

Key follow base. Keyboard key that is the center of key follow.

• Setting can be specified using the keyboard keys.

C-1 to G9

Env.Retrig

Envelope generator retrigger. Turning on this setting retriggers the filter with each keyboard key

press.

Off, On

Env.Depth (V) Envelope depth. Specifies how the envelope shown below is applied. –64 to 0 to +63

Envelope >Ent

Total filter envelope. Group of editable envelope (Envelope Generator) parameters applied to Total

Block filters.

• For details about group items, see “Pitch Envelope”. With this group, the vertical (Level) axis in the

pitch envelope diagram corresponds to how the filter is applied.

0 to 127 (Initial Level to

Release Level 2)

• The setting ranges for

Clock Trigger and

External Input Trigger

are the same as those

for Pitch Envelope.

LFO1 Depth (V) LFO1 depth. Specifies how LFO1 from Block (8) is applied. –64 to 0 to +63

LFO2 Depth (V) LFO2 depth. Specifies how LFO2 from Block (9) is applied. –64 to 0 to +63

Display Text Description Settings

Selecting and Creating Tones

E-28

■ Block (8): LFO1 and Block (9): LFO2 Editable Parameters

Preparation

Perform the following steps from the screen in step 2 of the procedure under “To edit and save a tone as a user tone” on page

E-21.

Select “LFO >Ent” and then press

ENTER to enter the group.

Use the

PART minus (–) and plus (+) buttons to select the block you want to edit.

Editable Parameter List

• (V) at the end of a display item indicates an item that can be selected as a Block (10) virtual controller destination (page E-29).

Display Text Description Settings

WaveType

Wave type. Specifies one of the following wave types to be used for LFO.

Refer to the cell to the

left.

Sync

Sync. Specifies what LFO is synced with.

Off: No syncing

Tempo: Synced with beat specified by clock sync (see below).

LFO1 (Can be selected with LFO2 only.): Synced with LFO1.

Refer to the cell to the

left.

Rate (V)

Rate. Specifies the LFO speed (frequency). This setting is enabled when the above Sync setting is

off.

0 to 127

Clk.Sync

Clock sync. Specifies the number of beats synced with the LFO frequency. Selecting a setting from

1/4U to 4U syncs with the timing of the back beat.

• This setting a valid only when the sync setting is “Tempo”.

1/4, 1/3, 1/2, 2/3, 1, 3/2,

2, 3, 4, 1/4U, 1/3U, 1/2U,

2/3U, 1U, 3/2U, 2U, 3U,

Depth (V) Depth. Specifies how LFO is applied. 0 to 127

Delay (V) Delay. Specifies the degree of delay in the timing for applying LFO. 0 to 127

Rise (V)

Rise. Specifies the time it takes from the start of application of the LFO until the effect reaches the

level specified by Depth above.

0 to 127

Mod.Depth (V) Modulation depth. Specifies how modulation is applied to the LFO. 0 to 127

Sin

(Sine Wave)

Puls 1:3

(Square Wave 1:3)

Tri

(Triangular Wave)

Puls 2:2

(Square Wave 2:2)

Saw up

(Sawtooth Wave Up)

Puls 3:1

(Square Wave 3:1)

Saw down

(Sawtooth Wave

Down)

Random

(Random)

Selecting and Creating Tones

E-29

■ Block (10): Controllers Editable Virtual Controller Parameters

These controllers are virtual controllers for adjusting any editable parameters (destinations) with any input method (source).

Preparation

Perform the following steps from the screen in step 2 of the procedure under “To edit and save a tone as a user tone” on page

E-21.

Select “VirtualCtrl >Ent” and then press

ENTER to enter the group.

• Controllers are numbered 1 through 8, and are assigned to the

sliders (1/9 through 8/16).

Use the

PART minus (–) and plus (+) buttons to select the number of the controller you want to edit.

Editable Parameter List

■ Other Editable Items

This section explains parameters that are not part of the blocks described up to this point. These settings not only apply to the Solo

Synthesizer, but also to other category tones as well.

Preparation

Display the screen in step 2 of the procedure under “To edit and save a tone as a user tone” on page E-21.

Editable Parameter List

• Shaded cells indicate a group made up of multiple items. Press

ENTER to display the items that make up a group.

Display Text Description Settings

Source

Source. Specifies the input method.

Off: None

CC00 to CC97: MIDI control change*

NoteOnKeyNum: Key number of MIDI note on message

NoteOnVel: Velocity value of MIDI note on message

Ch.Pressure: MIDI channel after touch

Bend Up: Upward operation from

BENDER center

Bend Down: Downward operation from

BENDER center

Modulation:

MODULATION operation

LFO1: LFO1 (Block (8))

LFO2: LFO2 (Block (9))

* For details about each setting, refer to the MIDI Implementation document

(http://world.casio.com/) and other MIDI documentation.

Refer to the cell to the

left.

Depth Depth. Specifies how virtual controller is applied. –128 to 0 to +127

Dest Destination. Specifies the destination parameter for a virtual controller operation.

•Off

• Block (1) to (9)

parameters (pages

E-24 through E-28)

whose “Display Text”

items have “(V)” after

them.

• DSP parameters (page

E-88)

Display Text Description Settings

DSP On/Off

(Non-Solo

Synthesizer

tones only)

DSP on/off. Specifies whether or not DSP should be applied to tones.

• When this setting is on, pressing

ENTER enters the DSP editing screen (page E-39).

• This item is not displayed on the Solo Synthesizer tone editing list.

Off, On

DSP Edit >Ent

DSP edit. Group of editable effect function DSPs (page E-37). Press

ENTER to advance to the

DSP editing screen.

Disabled when the above DSP On/Off setting is off.

Volume Volume. Specifies the main volume. 0 to 127

Rev.Send Reverb send. Specifies how reverb (page E-37) is applied to a tone. 0 to 127

Cho.Send

(Non-Solo

Synthesizer

tones only)

Chorus send. Specifies how chorus (page E-37) is applied to a tone.

• This item is not displayed on the Solo Synthesizer tone editing list.

0 to 127

Selecting and Creating Tones

E-30

Hex Layer tones have three types of editable parameters: parameters for each of the individual layers (Layer 1 through Layer 6),

parameters that affect all six of the layers, and the same parameters that apply to the other tone categories.

•The nine sliders (

) and four knobs (

) can be used for quick and easy adjustment of some of the parameters in the list below (page E-35).

■ Editable Parameters for Individual Layers (Layer 1 through Layer 6)

Preparation

Perform the following steps from the screen in step 2 of the procedure under “To edit and save a tone as a user tone” on page

E-21.

Select “Layer Edit >Ent” and then press

ENTER to enter the group.

• You also can enter the group using the following shortcut: Perform step 1 under “To edit and save a tone as a user tone”

(page E-21) and then hold down

EDIT. This will enter the group.

Use the

PART minus (–) and plus (+) buttons to select the layer number you want to edit.

Editable Parameter List

Editable Hex Layer Tone Parameters

Display Text Description Settings

LayerOn/Off Layer on/off. Selecting off disables layer. Off, On

PCM Wave

PCM wave. Selects a tone from among the PCM waves.

• See the separate “Appendix” for information about PCM wave types.

See the separate

“Appendix”.

Volume Volume. Specifies the volume. –128 to 0 to +127

Pan

Pan. Specifies the stereo position of the sound. 0 indicates the center, while a smaller values shifts

to the left and a larger value shifts to the right.

–64 to 0 to +63

CoarseTune Coarse tune. Changes the pitch of notes by semitone units. –24 to 0 to +24

FineTune

Fine tune. Fine tunes the pitch of the sound. Lowers the value up to –256 or raises the value up to

+255 in semitone steps.

–256 to 0 to +255

Cutoff Cutoff frequency. Specifies the cut off frequency of the layered tone. –128 to 0 to +127

TouchSense

Touch sense. Specifies the degree of change in volume in accordance with change in keyboard

playing touch.

–128 to 0 to +127

Atk.Time Attack time. Specifies the time it takes to reach peak value from note on. –128 to 0 to +127

Dec.Time Decay time. Specifies the time it takes for the volume to reach the sustain level from the attack level. –128 to 0 to +127

Sus.Level

Sustain level. Specifies the volume at which the sound is sustained as long as a key or pedal is

depressed.

–128 to 0 to +127

Rel.Time Release time. Specifies the time it takes for a sustained sound to decay after a key is released. –128 to 0 to +127

Rev.Send Reverb send. Specifies how reverb (page E-37) is applied to a tone. –128 to 0 to +127

Cho.Send Chorus send. Specifies how chorus (page E-37) is applied to a tone. –128 to 0 to +127

KeyRangeLow

Key range low. Specifies the lower limit of the enabled keyboard range. Nothing sounds when any

keyboard key below this range is pressed.

• Setting can be specified using the keyboard keys.

C-1 to G9

KeyRangeHi

Key range high. Specifies the upper limit of the enabled keyboard range. Nothing sounds when any

keyboard key above this range is pressed.

• Setting can be specified using the keyboard keys.

C-1 to G9

VelRangeLow

Velocity range low. Specifies the minimum value of the effective velocity. Nothing sounds when

velocity less than this setting is played.

0 to 127

VelRangeHi

Velocity range high. Specifies the maximum value of the effective velocity. Nothing sounds when

velocity greater than this setting is played.

0 to 127

Pitch Lock

(Layers 2, 4, and

6 only)

Pitch lock. When this setting is turned on for Layer 2, the Layer 2 pitch is changed to the same pitch

as Layer 1 so both pitches are the same. The same is true for Layers 3 and 4, and Layers 5 and 6.

Off, On

Layer number

Selecting and Creating Tones

E-31

■ Editable Parameters for All Layers (Layer 1 through Layer 6)

Preparation

Display the screen in step 2 of the procedure under “To edit and save a tone as a user tone” on page E-21.

Editable Parameter List

• Shaded cells indicate a group made up of multiple items. Press

ENTER to display the items that make up a group.

■ Editable Parameters Common to Other Tone Categories

See “Other Editable Items” on page E-29.

Display Text Description Settings

Detune

Detune. Causes the tuning of Layers 1 through 6 to be slightly different from each other. A

larger setting value increases the amount of detuning. The maximum value (31) results in

a difference of 100 cents (semitones) between Layer 1 and Layer 6.

0 to 31

Pitch LFO >Ent Pitch LFO. Group of editable LFOs applied to the pitch of a layered tone.

WaveType

Wave type. Specifies a wave type to be used for LFO. The details of the selectable waves

are the same as those for “WaveType” of “Block (8): LFO1 and Block (9): LFO2 Editable

Parameters” (page E-28).

Sin, Tri, SawUp,

SawDown, Puls1:3,

Puls2:2, Puls3:1

Rate Rate. Specifies the LFO speed (frequency). 0 to 127

Depth Depth. Specifies how LFO is applied. –128 to 0 to +127

Delay Delay. Specifies the degree of delay in the timing for applying LFO. 0 to 127

Rise

Rise. Specifies the time it takes from the start of application of the LFO until the effect

reaches the level specified by Depth above.

0 to 127

Mod.Depth Modulation depth. Specifies how modulation is applied to the LFO. 0 to 127

After Depth After depth. Specifies LFO change when MIDI channel after touch is received. 0 to 127

Amp LFO >Ent

Amp LFO. Group of editable LFOs applied to the volume of a layered tone. Group items

and setting ranges are the same as “LFO (Pitch LFO)”, above.

Refer to the cell to the

left.

Detune = 31

+50cent

−

50cent

Detune = 0

Layer2 Layer3Layer1

Layer6Layer5Layer4

Selecting and Creating Tones

E-32

There are two types of parameters: drawbar organ tone specific editable parameters and the same parameters that apply to the

other tone categories.

•The nine sliders (

), three buttons (

), and four knobs (

) can be used for quick and easy adjustment of some of the

parameters in the list below (page E-35).

■ Drawbar Organ Specific Editable Parameters

Preparation

Display the screen in step 2 of the procedure under “To edit and save a tone as a user tone” on page E-21.

Editable Parameter List

• Shaded cells indicate a group made up of multiple items. Press

ENTER to display the items that make up a group.

■ Editable Parameters Common to Other Tone Categories

See “Other Editable Items” on page E-29.

Editable Drawbar Organ Tone Parameters

Display Text Description Settings

Ft16' 16 feet. Specifies the pull out amount of the 16-foot drawbar. 0 to 8

Ft5 1/3' 5 and 1/3 feet. Specifies the pull out amount of the 5 1/3-foot drawbar. 0 to 8

Ft8' 8 feet. Specifies the pull out amount of the 8-foot drawbar. 0 to 8

Ft4' 4 feet. Specifies the pull out amount of the 4-foot drawbar. 0 to 8

Ft2 2/3' 2 and 2/3 feet. Specifies the pull out amount of the 2 2/3-foot drawbar. 0 to 8

Ft2' 2 feet. Specifies the pull out amount of the 2-foot drawbar. 0 to 8

Ft1 3/5' 1 and 3/5 feet. Specifies the pull out amount of the 1 3/5-foot drawbar. 0 to 8

Ft1 1/3' 1 and 1/3 feet. Specifies the pull out amount of the 1 1/3-foot drawbar. 0 to 8

Ft1' 1 foot. Specifies the pull out amount of the 1-foot drawbar. 0 to 8

Perc.2nd

2nd overtone percussion. Turning this setting on applies a second overtone percussion

sound.

Off, On

Perc.3rd

3rd overtone percussion. Turning this setting on applies a third overtone percussion

sound.

Off, On

Perc.Decay Percussion decay time. Specifies the decay time of percussion sound. 0 to 127

On Click Key on click. Turns the click sound when a key is pressed on or off. Off, On

Off Click Key off click. Turns the click sound when a key is released on or off. Off, On

Type Wave type. Selects either a sine wave or detune for the drawbar tone basic wave. Sin, Vin

Vib.Rate Vibrato rate. Specifies the vibrato rate (frequency). 0 to 127

Vib.Depth Vibrato depth. Specifies how vibrato is applied. 0 to 127

Rot.Setting >Ent Rotary setting. Group of settings for the

ROTARY SLOW/FAST function.

Button Assign

Button assign. Selects the DSP parameter (page E-88)*

assigned to

ROTARY

SLOW/FAST.

Off, 1 to 8 *

On Value On value. DSP parameter value when the above button is on (lit). *

Off Value Off value. DSP parameter value when the above button is off (unlit). *

*1: Depends on the currently selected DSP parameter (page E-88).

*2: Range of the DSP parameter assigned to

ROTARY SLOW/FAST.

Selecting and Creating Tones

E-33

There are two types of parameters: PCM melody tone specific editable parameters and the same parameters that apply to the

other tone categories.

The drum sets in the Variance category of the PCM tones have different editable parameters. See “Editable Drum PCM Tone

Parameters” for more information about them.

■ Editable Non-drum Set PCM Tone Parameters

Preparation

Display the screen in step 2 of the procedure under “To edit and save a tone as a user tone” on page E-21.

Editable Parameter List

■ Editable Parameters Common to Other Tone Categories

See “Other Editable Items” on page E-29.

Editable PCM Melody Tone (Non-drum PCM Tones) Parameters

Display Text Description Settings

Atk.Time Attack time. Specifies the time it takes to reach peak value from note on. –64 to 0 to +63

Rls.Time Release time. Specifies the time it takes for a sustained sound to decay after a key is released. –64 to 0 to +63

Cutoff Cutoff frequency. Specifies the tone cutoff frequency. –64 to 0 to +63

Vib.Type

Vibrato type. Specifies one of the wave types below to be used for vibrato.

Sin (sine wave), Tri (triangular wave), Saw (sawtooth wave), Sqr (square wave)

Sin, Tri, Saw, Sqr

Vib.Depth Vibrato depth. Specifies how vibrato is applied. –64 to 0 to +63

Vib.Rate Vibrato rate. Specifies the vibrato rate (frequency). –64 to 0 to +63

Vib.Delay Vibrato delay. Specifies the delay in the timing for applying vibrato. –64 to 0 to +63

Oct.Shift Octave shift. Changes the tone of notes in octave units. –2 to 0 to +2

TouchSense

Touch sense. Specifies the degree of change in volume in accordance with change in keyboard

playing touch.

–64 to 0 to +63

Selecting and Creating Tones

E-34

The editable parameters described here are for the drum set tones in the Variance tone category. There are two types of

parameters: PCM drum tone specific editable parameters and the same parameters that apply to the other tone categories.

■ Editable Drum Set PCM Tone Parameters

Preparation

Display the screen in step 2 of the procedure under “To edit and save a tone as a user tone” on page E-21.

Editable Parameter List

• Shaded cells indicate a group made up of multiple items. Press

ENTER to display the items that make up a group.

■ Editable Parameters Common to Other Tone Categories

For information about Solo Synthesizer tones, see “Other Editable Items” on page E-29.

Editable Drum PCM Tone Parameters

Display Text Description Settings

Inst Edit >Ent

Instrument edit. Group of editable drum tone parameters for each

keyboard.

• Press a keyboard key to specify the keyboard to be edited.

• This group can be entered by performing step 1 under “To edit and save

a tone as a user tone” (page E-21) and then holding down

EDIT.

(C-1 to G9)

Inst Select >Ent

Instrument select. Group of editable tone parameters. Keyboard key

pressure (Velocity) is divided into four velocity ranges. Each range can be

configured to sound a different tone (Inst Number).

•Use the

PART minus (–) and plus (+) buttons to select the range

you want to edit.

Inst Number

Instrument number. Selects the drum tone wave assigned to each

velocity range.

• See the separate “Appendix” for details about wave types.

See the separate

“Appendix”.

VelRangeHi Velocity range high. Determines the high limit of each velocity range. 0 to 127

Volume Volume. Specifies drum sound volume. –128 to 0 to +127

Pan Pan. Specifies the stereo position of drum sound. –64 to 0 to +63

Rev.Send Reverb send. Specifies how reverb is applied to a drum tone. 0 to 127

NoteOffMode

Note off mode. Turning on this setting causes note off to be performed

when a key is released.

Off, On

Assign Grp

Assign group. Specifies as a value from 1 to 15 which group the currently

selected keyboard should be placed into. Only one keyboard in a group is

sounded at any time (non-polyphonic).

Off, 1 to 15

Pitch LFO >Ent

Pitch LFO. Group of editable LFOs applied to pitch. Group items and

setting ranges are the same as “LFO (Pitch LFO)” under “Editable

Parameters for All Layers (Layer 1 through Layer 6)” (page E-31).

Refer to the cell to the

left.

Amp LFO >Ent

Amp LFO. Group of editable LFOs applied to volume. Group items and

setting ranges are the same as “LFO (Amp LFO)” under “Editable

Parameters for All Layers (Layer 1 through Layer 6)” (page E-31).

Refer to the cell to the

left.

Inst Number

[1] [2] [3] [4]

Cannot be

specified.

range 1 range 2 range 3 range 4

Velocity Range Hi

[1] [2] [3] [4] 127 Velocity

Selecting and Creating Tones

E-35

You can use a pedal, the bender, or other devices, to instantly

change the pitch and volume of notes, the envelope, and

other parameters as you perform.

A pedal operation can be used to sustain notes, arpeggios

(page E-40), or phrases (page E-44), or to apply a soft effect.

• For information about connecting a pedal, see page E-8.

• You can specify the effect applied by a pedal operation by

performing the following operation on the performance

editing list: Controller >Ent 3 Pedal. See page E-65 for

more information.

The

BENDER wheel can be use to seamlessly raise or

lower the pitch of a sound, while the

MODULATION wheel

adds vibrato (modulation effect) to the sound.

• Do not have a wheel rotated as you turn on Synthesizer

power.

• You can control the bend range of the

BENDER wheel

by configuring the following settings on the performance

editing list: BendRngDwn, BendRngUp (page E-64).

The four

ASSIGNABLE KNOBS can be assigned

functions that enable instant adjustment of a sound attack

time and other envelope parameters (page E-22), volume,

and more.

• The following shows the knob functions for each Zone Part

1 tone category.

Solo Synthesizer tones (page E-24)

Hex layer tones (page E-30)

Drawbar organ tones (page E-32)

PCM melody tones (page E-33)

PCM drum tones (page E-34)

The above functions show the abbreviated names used on

the tone mode screen.

• You can change the operations currently assigned to the

assignable knobs by performing the following operation on

the on the performance editing list (page E-65):

Controller >Ent 3 K1 to K4.

Controlling Sounds

Using a Pedal

Using the Wheels (Bender, Modulation)

Using the Assignable Knobs

K1 : Cut off Frequency (Block (7)) (page E-27)

K2 : Resonance (Block (7)) (page E-27)

K3 : Attack Time (Block (1) to (6) Amp >Envelope >)

(page E-26)

K4 : Release Time 1 (Block (1) to (6) Amp >Envelope >)

(page E-26)

Raises and lowers pitch.

(Releasing wheel returns

to original pitch.)

Applies modulation.

(Raising wheel

applies modulation.)

K1 : Cut off Frequency (Layer 1 to 6 individual) (page E-30)

K2 : Detune (Layer 1 to 6 global) (page E-31)

K3 : Attack Time (Layer 1 to 6 individual) (page E-30)

K4 : Release Time (Layer 1 to 6 individual) (page E-30)

K1 : Vibrato Rate

K2 : Vibrato Depth

K3 : Percussion Decay Time

K4 : Reverb Send (Same as other tone categories.)

K1 : Cut off Frequency

K2 : Attack Time

K3 : Release Time

K4 : Reverb Send (Same as other tone categories.)

K1 : Volume (Drum Inst >)

K2 : Pan (Drum Inst >)

K3 : Reverb Send (Drum Inst >)

K4 : Reverb Send (Same as other tone categories.)

Selecting and Creating Tones

E-36

You can used the nine sliders (

) to adjust the volume

balance between the multiple sounds (see below) that make

up a tone, and to make simple adjustments in some DSP

parameters.

When you select a tone, the button (

) that corresponds to

its category lights, and the sliders (

) and the three buttons

(

) are assigned functions that correspond to the tone

category.

• In the Performance Mode or Step Sequencer Mode, you

can use the

buttons (HEX LAYER, etc.) to edit tones

with the sliders without changing to another mode.

• Adjustment with the sliders is not possible for PCM tones.

• For more information about slider functions, see page E-49

for the Step Sequencer Mode and page E-67 for the Mixer

Mode.

When the

HOLD button is lit (by pressing it), the currently

sounding note, arpeggio (page E-40), or phrase (page E-44)

will be sustained.

• Pressing

HOLD again will cause its light to go out,

indicating that hold is turned off.

You can use the

TRANSPOSE and OCTAVE (–, +)

buttons to change the pitch of the keyboard notes in

semitone or octave steps.

• For information about fine tuning the pitch in hertz steps

(Tuning), see page E-69.

To change the pitch in semitone steps, hold

down

TRANSPOSE as you press the

OCTAVE minus (–) or plus (+) button.

• The setting range for this operation is one octave

upwards and downwards (–12 semitones to +12

semitones).

Using Sliders

Solo Synthesizer tones : Volume settings of lock (1) through

(6) (Amp >Volume, page E-26)

Hex Layer Tones : Volume of Layers 1 through 6

(Volume, Page E-30)

Drawbar Organ Tones : Pull out amount of nine drawbars

(Ft16' through Ft1', page E-32)

Tone category

selection

Block (1) to (6)

volume

Layer 1 to 6 volume

Main volume

(page E-29)

PARAM A, PARAM B of current DSP type (page E-88)

Labels show names of adjustable parameters.

Drawbar feet

Functions during drawbar organ tone selection*

* During selection of a non-drawbar organ tone, the leftmost button

is assigned the Step Sequencer key shift function (page E-51).

The other two buttons are disabled.

ROTARY SLOW/FAST : Toggles the rotation speed between slow

(SLOW, button unlit) and fast (FAST,

button lit).

PERCUSSION SECOND: 2nd overtone percussion (page E-32)

PERCUSSION THIRD : 3rd overtone percussion (page E-32)

Using the Hold Button

Changing the Pitch of Notes in Semitone

Steps (Transpose) or Octave Steps (Octave

Shift)

Lights when HOLD is on.

Selecting and Creating Tones

E-37

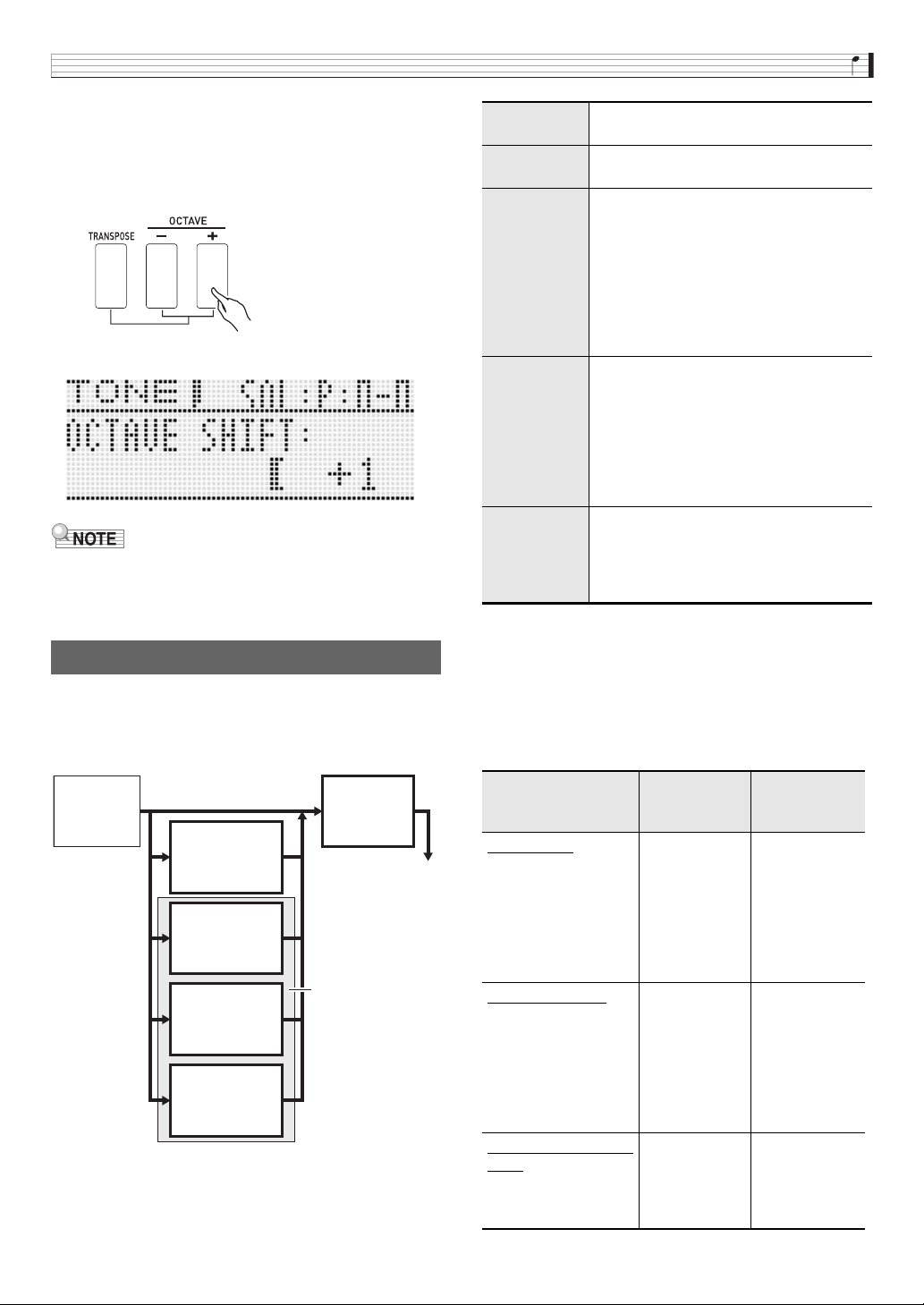

To change the pitch in octave steps, use the

OCTAVE minus (–) and plus (+) buttons

(without holding down

TRANSPOSE).

• The setting range for this operation is three octaves

upwards and downwards (–3 octaves to +3 octaves).

• While the setting screen shown above is displayed you can

the

dial or the

minus (–) or plus (+) buttons to

change the setting. If you do not perform any operation for

a while, the setting screen will be exited automatically.

You can apply reverb, vibrato, and other effects to notes to

enhance their sound.

■ Effect Block Diagram

* When a tone with DSP (tone that uses a particular DSP)

that is not a Solo Synthesizer tone is selected. A tone with

DSP will have “DSP” next to its display name on the mixer

screen (page E-67) or performance editing screen (page

E-64).

■ Chorus and DSP Use Restrictions

Only one of the three effect types (Chorus, Normal DSP, Solo

Synthesizer DSP) can be enabled at any time.

Applying Effects to Notes

Sound

Source

(5) Master

Equalizer

Goes through (2), (3),

or (4). Also refer to

the “Chorus and DSP

Use Restrictions”

below.

Output

(1) Reverb

(2) Chorus

(3) Normal DSP

(4) Solo

Synthesizer

DSP

(1) Reverb Adds reverberation to make it sound like

you are playing in a room or in a hall.

(2) Chorus Combines multiple layers of the same note

to create a sound with more depth.

(3) Normal

DSP

A collection of versatile Normal DSP

effects help to enhance the sound of tones.

For example, distortion can be applied to

an electric guitar sound to make it sound

more powerful. There are 46 different

Normal DSP types, and the most

appropriate one for the selected tone is

applied automatically.

A DSP can be

edited and saved as a user DSP.

(4) Solo

Synthesizer

DSP

One of the elements that makes up a Solo

Synthesizer tones. See “(7) Total Block” in

the “Editable Solo Synthesizer Tone

Parameters” on page E-22. There are six

Solo Synthesizer DSP types. When you

edit a Solo Synthesizer DSP, it is saved as

part of a Solo Synthesizer user tone. You

cannot save it as a user DSP.

(5) Master

Equalizer

Adjusts the frequency characteristics of the

Synthesizer’s notes. The Master Equalizer

can be used to adjust the frequency and

gain of four frequency bands: low, mid1,

mid2, and high.

Under this condition:

This type of

effect is valid:

And effects are

applied to each

part like this:

Chorus Mode

• A tone other than

the Song Sequencer

is selected by Zone

Part 1, and the

Chorus is selected

by “Chorus/DSP

Select” (page E-38).

(2) Chorus Depends on the

mixer chorus

send value

(page E-68) and

the selected

tone chorus

send value

(page E-29).

Normal DSP Mode

• A tone other than

the Song Sequencer

is selected by Zone

Part 1, and the DSP

is selected by

“Chorus/DSP

Select” (page E-38).

(3) Normal DSP (3) is applied

only to parts

whose mixer

DSP line (page

E-68) is on.

Solo Synthesizer Tone

Mode

• Solo Synthesizer

tone selected by

Zone Part 1.

(4) Solo

Synthesizer

DSP

(4) is applied

only to Zone

Part 1 and parts

whose mixer

DSP line is on.

Selecting and Creating Tones

E-38

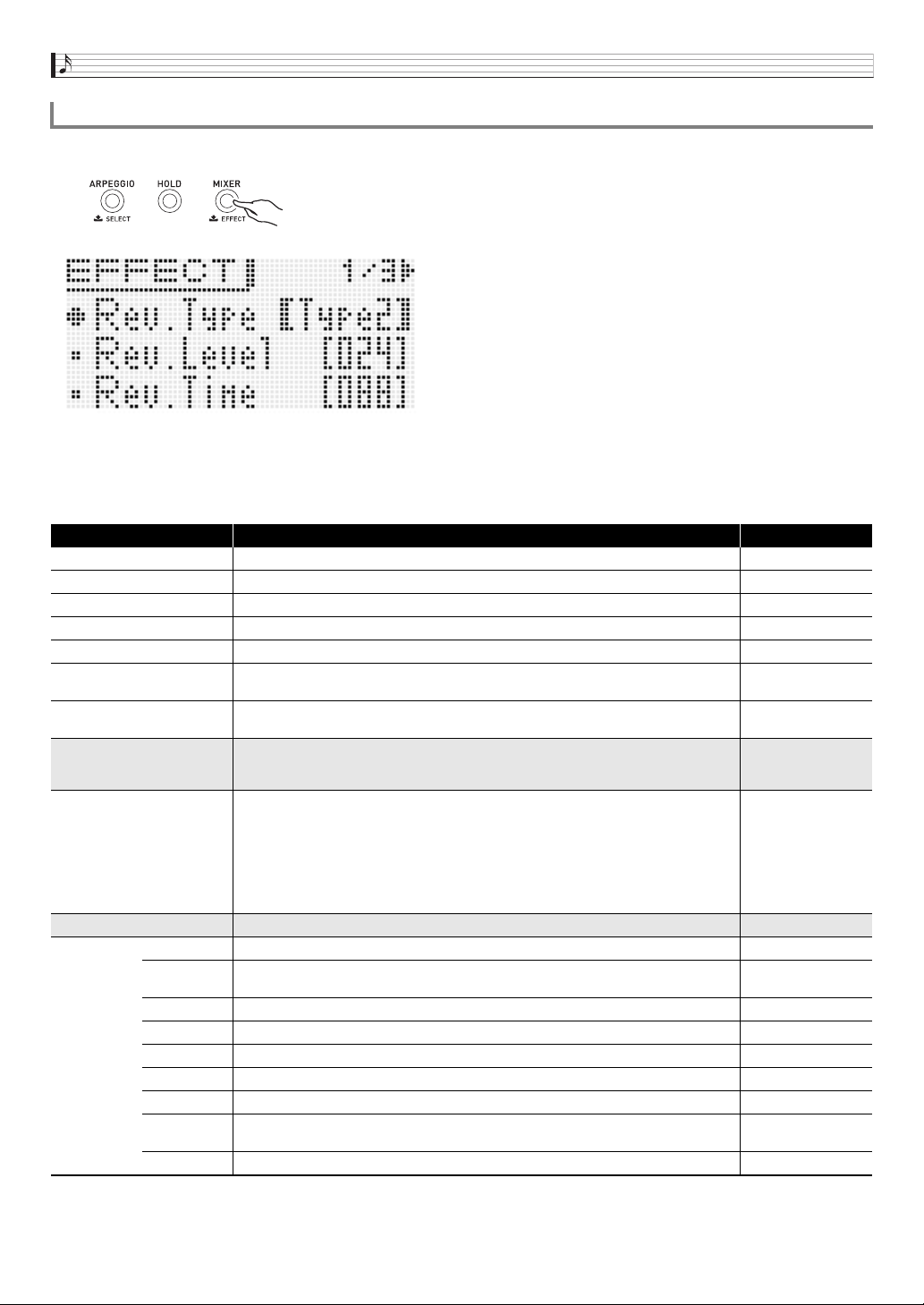

Hold down

EFFECT until the effect list top screen shown below appears.

Next, refer to the list below as you perform operations with the

controls to select items and change

settings.

■ Effect Settings

To configure effect settings

Display Description Settings

Rev Type Reverb type. Reverb effect type. Type1, Type2

Rev Level Reverb level. Reverb effect level. 0 to 127

Rev Time Reverb time. Reverb sustain time. 0 to 127

Cho Level Chorus level. Chorus effect level. 0 to 127

Cho Rate Chorus rate. Rate of chorus effect undulation. 0 to 127

ChoSendRev

Chorus send level to reverb. Specifies how reverb is applied to the entire sound to which

the chorus effect is being applied.

0 to 127

Cho/DSP

Chorus/DSP select. Selects use of either Chorus or Normal DSP (“Chorus and DSP Use

Restrictions”, page E-37).

Cho, DSP

DSP Select >Ent

Displays the main Normal DSP selection screen.

• You will not be able to go any further if a Solo Synthesizer tone is selected for Zone Part

(Normal DSP

selection

screen)

You can select from among preset and user tones for the Normal DSP using the same

procedures as those for tone selection.

• For a list of preset Normal DSPs, see the separate Appendix. Selecting “ton” applies the

initial preset DSP of each tone.

• Param A and Param B (page E-88) for the currently selected DSP type appear on the

display. You can adjust these parameters using

K1 and K2.

• Pressing

EDIT while this screen is displayed will change to the DSP editing screen

(page E-39).

ton

Preset: 0-0 to 9-9

User: 0-0 to 9-9

Master EQ >Ent Master equalizer setting group (item (5) of the “Effect Block Diagram” on page E-37)

EQ Enable Turning this setting off disables the Master EQ setting. Off, On

Low Freq Low frequency band. Adjusts the low frequency band.

200Hz, 400Hz,

800Hz

Low Gain Low gain. Adjusts the low gain. –12 to 0

to +12

Mid1 Freq Mid 1 frequency band. Adjusts the mid1 frequency band. 1.0kHz to 5.0kHz

Mid1 Gain Mid1 gain. Adjusts the mid gain. –12 to 0

to +12

Mid2 Freq Mid 2 frequency band. Adjusts the mid2 frequency band. 1.0kHz to 5.0kHz

Mid2 Gain Mid2 gain. Adjusts the mid2 gain. –12 to 0

to +12

High Freq High frequency band. Adjusts the high frequency band.

6.0kHz, 8.0kHz,

10.0kHz

High Gain High gain Adjusts the high gain. –12 to 0

to +12

Selecting and Creating Tones

E-39

DSPs are divided among 53 DSP types according to effects.

Preset Normal DSPs 0-0 and 0-1 are compressor type DSPs.

There are two DSP types: a Normal DSP specific type and a

Solo Synthesizer DSP specific type.

When editing and saving a DSP, you must first specify its type

and then edit it in accordance with its type.

• For a list of DSP types, see “DSP Type List” on page E-87.

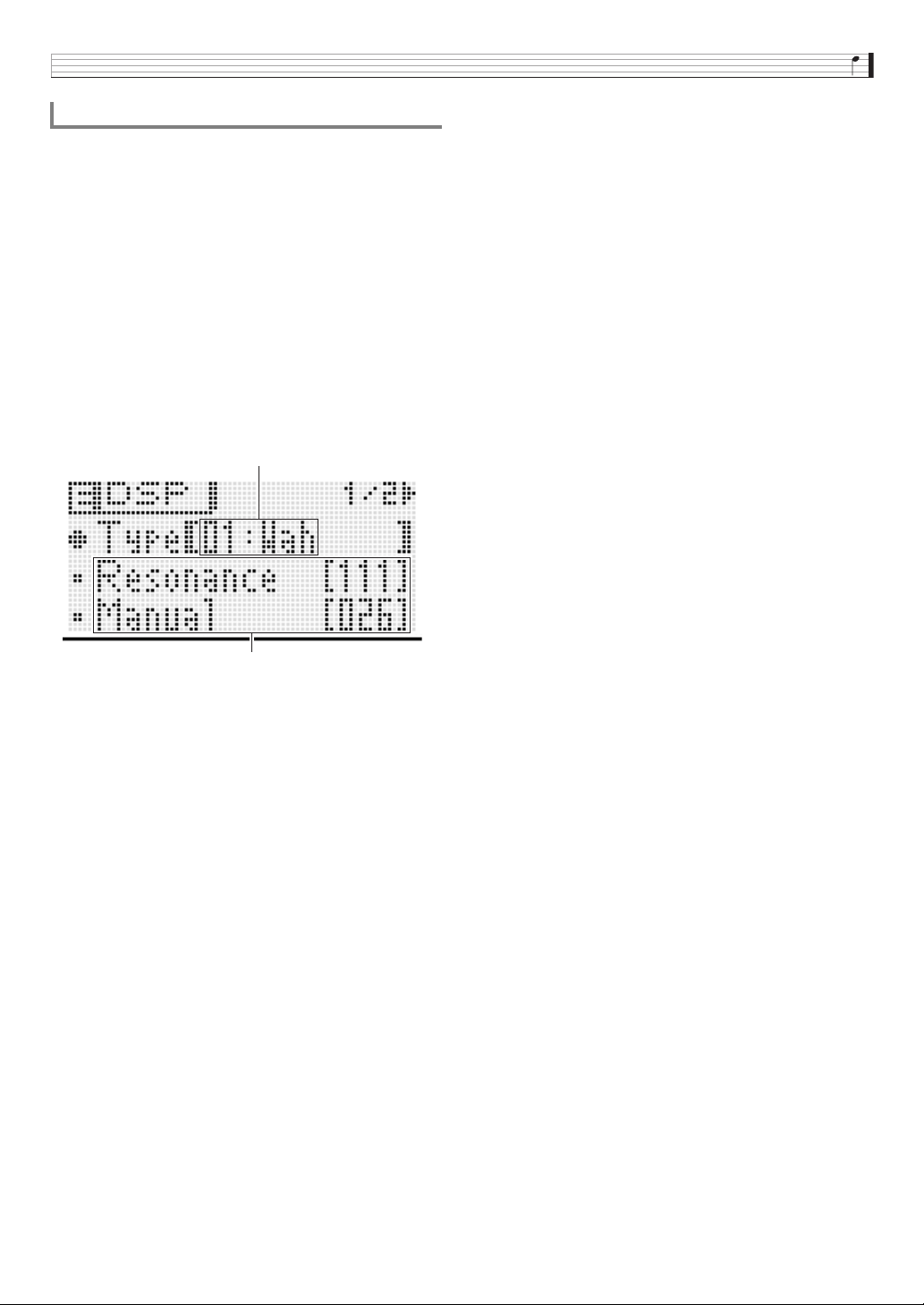

Select the tone to which you want to apply the

DSP. Next, on the editing screen of the tone,

select DSP Edit >Ent (page E-29) and then press

ENTER to display the DSP editing screen

shown below.

• When editing a Normal DSP, you can display the DSP

editing screen from the Normal DSP selection screen

(page E-38) by pressing

EDIT.

Use the

dial to select a DSP type number.

Use the same operation as these for tone

editing (page E-21) to select and configure the

DSP parameters on the screen.

• DSP parameters depend on the DSP type. For details,

see the “DSP Parameter List” (page E-88).

After you finish editing a DSP, save it as

described below.

Press

WRITE to display the screen for saving a user

tone. Save the data as a user tone (page E-12).

• If you displayed the DSP editing screen from the

Normal DSP selection screen (page E-38) in step 1

Press

WRITE to display the screen for saving a

DSP. Save the edited DSP as a user DSP using the

same operation as that for a user tone.

■ Saving a User DSP to an External Device

• Memory card (page E-73)

• Computer (page E-79)

Saving an Edited DSP

DSP type number: type name

DSP parameter

E-40

Sounding Arpeggio Phrases Automatically

With the Arpeggio Function, you can play various arpeggios

automatically by simply pressing keys on the keyboard. You

can select from a number of different arpeggio options,

including playing arpeggios from a chord, playing various

phrases automatically, and more.

• The Arpeggio Function has 100 arpeggio type presets. A

type presets can be edited and saved as a user arpeggio

type. There is memory for up to 100 user arpeggio types.

• The following functions are also available for selecting an

arpeggio type.

Hold down

ARPEGGIO until the arpeggio

type selection screen shown below appears on

the display.

Select a preset or user arpeggio type.

• To select an arpeggio type, perform the same operation

as steps 3 through 6 for selecting a tone (page E-20).

• If you want to turn on the hold function (HOLD), press

STEP +. Each press toggles HOLD between on and

off.

• If you want to turn on the sync function (SYNC), use

STEP – to cycle through the available sync settings

described below.

• The HOLD and SYNC settings are performance

parameters.

Press some keys and the arpeggio will start to

play automatically.

• To turn off the Arpeggio Function, press

ARPEGGIO again.

• To stop arpeggio HOLD playback, press

ARPEGGIO or change the HOLD function in step 2 of

the above procedure to OFF.

■ You can use the arpeggio type selection screen

to select the recommended tone for the currently

selected arpeggio type as your Zone Part 1 tone.

Hold down

ARPEGGIO until the arpeggio

type selection screen appears on the display.

Hold down

EDIT until

ARPEGGIO starts

to flash and then stops flashing to remain lit.

• In the case of a user arpeggio, the tone that was

selected as the Zone Part 1 tone when the user data

was saved is the recommended tone.

Hold (HOLD) : The arpeggio continues to play after

keyboard keys are released. This is useful,

for example, when you use the Split

Function to insert an arpeggio on one part

of the keyboard.

Sync (SYNC) : The Step Sequencer automatically plays

and stops in sync with the Arpeggio

Function when keyboard keys are pressed.

To use the Arpeggio Function

Arpeggio bank and number

Hold setting Sync setting

Arpeggio name

OFF : The arpeggio will play while keyboard keys are

depressed.

ON : The arpeggio will continue to play even after the

keyboard keys are released

OFF : Sync setting is turned off.

ON : Arpeggio play is synced with only the play

operation of the Step Sequencer.

S/S : Arpeggio play is synced with both the play and

stop operations of the Step Sequencer.

Sounding Arpeggio Phrases Automatically

E-41

There are two arpeggio types: step type and variation type.

• With a step type arpeggio, you can edit its steps and its

parameters. A step type arpeggio can contain up to 16

steps. You can change the following values for each step.

• With a variation type arpeggio, you can edit only its

parameters.

Hold down

ARPEGGIO until the arpeggio

type selection screen shown below appears on

the display.

From among the preset or user arpeggio types

select the arpeggio type you want to edit.

• To select an arpeggio type, perform the same operation

as steps 3 through 6 for selecting a tone (page E-20).

Press

EDIT.

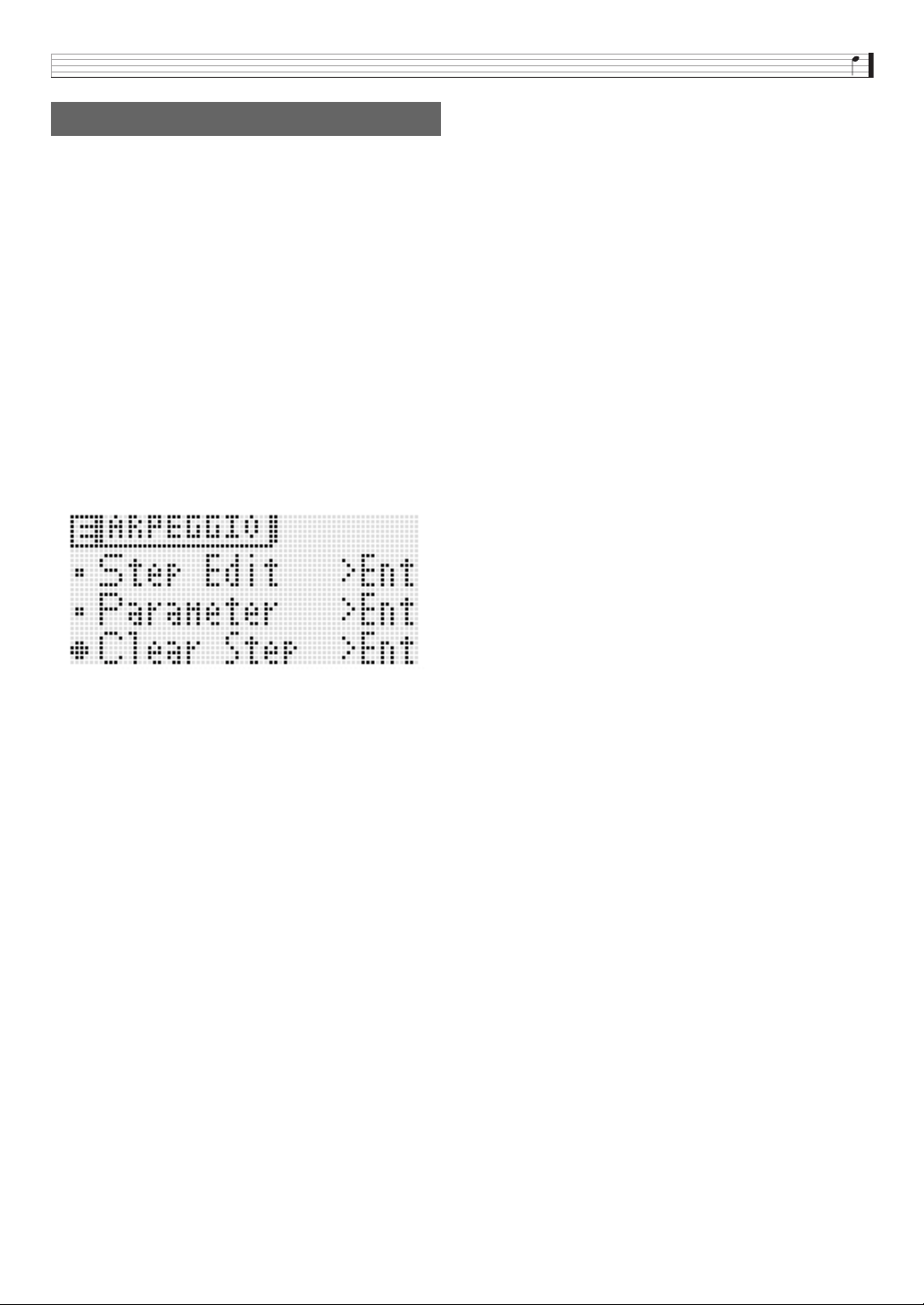

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “Step

Edit”, and then press

ENTER.

• The “Step Edit” option will not be displayed if you

selected a variation type arpeggio in step 2 above.

Use the

dial or the

minus (–) and plus (+)

buttons to change the TYPE, NOTE, and VELO

settings.

• You can also use the

1 to 16 buttons to toggle

each step on or off.

•While TYPE is selected, use the

minus (–) and

plus (+) buttons to turn the TYPE setting on or off.

• You can use

(eight sliders excluding “MASTER”) to

change the values of the applicable step directly. When

using the sliders, press

1-8/9-16 to toggle between

steps 1 through 8 (button unlit) and steps 9 through 16

(button lit). Note, however, that you will not be able to

use the sliders when TYPE is TIE and OFF.

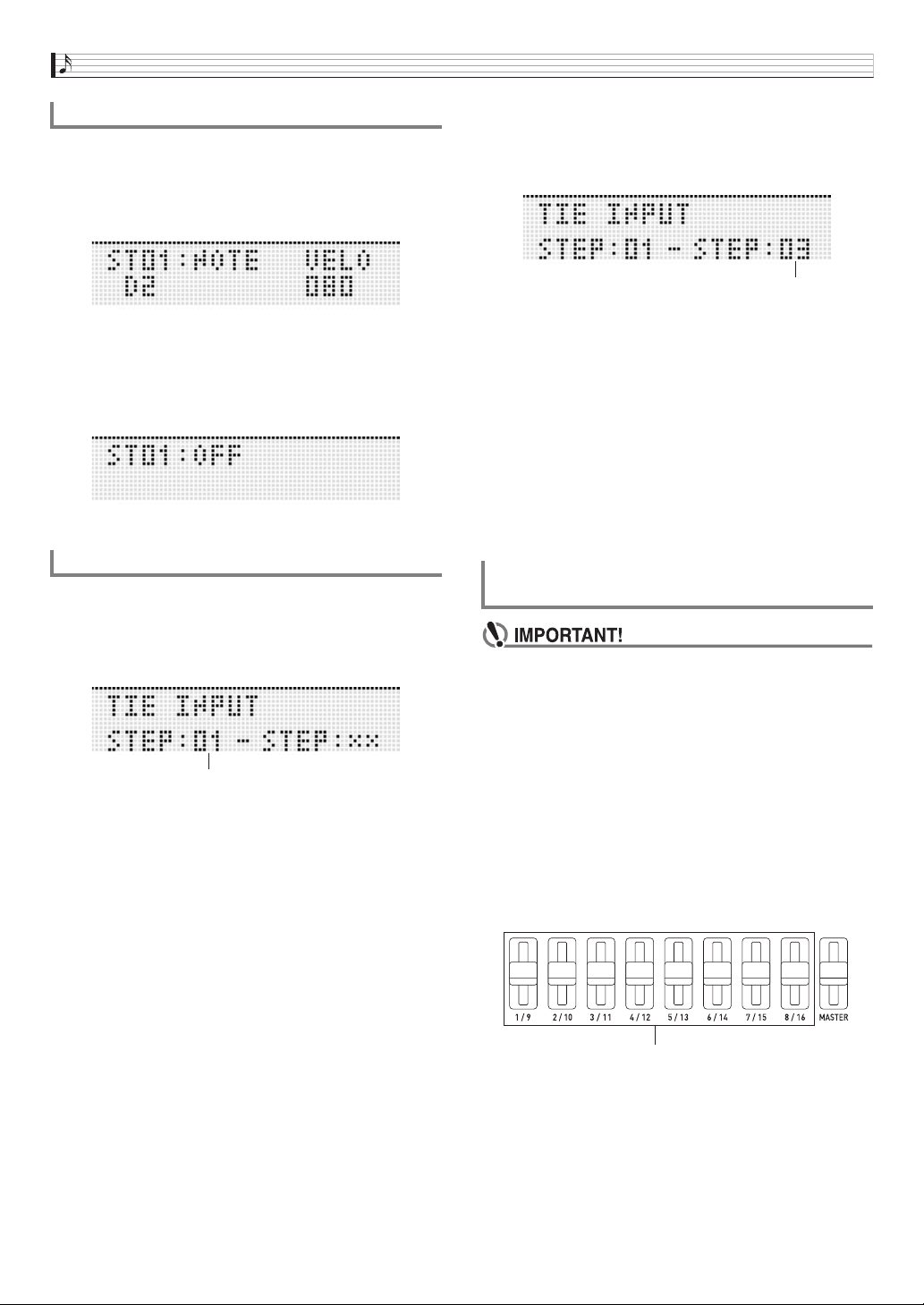

• You can specify the tie setting. For details how, see “To

configure tied note settings” on page E-52.

• The table below shows the contents of the arpeggio

step editing menu.

Editing an Arpeggio

TYPE : Specifies the relative position in the arpeggio

pattern where each of the keyboard notes will play.

You can specify positions starting from the lowest

note played (L1) or from the highest note played

(U1). You can even specify simultaneous play of up

to five notes (P2 through P5).

NOTE: Specifies a relative shift, in semitone steps, from

the note played on the keyboard.

VELO : Specifies the volume of the note.

Step type

Step number

Sounding Arpeggio Phrases Automatically

E-42

After the TYPE, NOTE, and VELO settings are the way you want, press

EXIT to return to the arpeggio

menu screen.

Use the

up (q) and down (w) buttons to move the item selection cursor (0) to “Parameter”, and

then press

ENTER.

Use the

dial or the

minus (–) and plus (+) buttons to change the parameter settings.

• The table below shows the contents of the parameter editing menu.

After you finish arpeggio parameter editing, save it as described below.

•Press

WRITE to display the screen for saving arpeggio data. Save the arpeggio by performing the same operation as

that for saving a user tone (page E-12).

• For information about deleting data you saved, see page E-71.

■ Saving Arpeggio Data on an External Device

• Memory card (page E-73)

• Computer (page E-79)

Menu Layer

Description Settings

1 2

Step Edit >Ent

TYPE

Specifies the relative position in the arpeggio pattern where the keyboard notes will play starting

from the lowest note played (which is L1).

• If the number of keys pressed is less than the number of configured type (L) settings (i.e. if you

press only three keyboard keys for an arpeggio pattern that includes settings for L1 through L6),

the arpeggio pattern will repeat, playing the keyboard key notes one octave higher.

• At any point the above causes the range of one higher octave to be exceeded, arpeggio play will

return to the L1 note automatically.

L1 to L8

Specifies the relative position in the arpeggio pattern where the keyboard notes will play starting

from the highest note played (which is U1).

• If the number of keys pressed is less than the number of configured type (U) settings (i.e. if you

press only three keyboard keys for an arpeggio pattern that includes settings for U1 through

U6), the arpeggio pattern will repeat, playing the keyboard key notes one octave lower.

• At any point the above causes the range of one lower octave to be exceeded, arpeggio play will

return to the U1 note automatically.

U1 to U8

Specifies how many of the notes played on the keyboard, starting from the highest note played,

should be played simultaneously.

• When the number of keys pressed is less than the polyphony (P) value specified here, only the

notes that are played are sounded.

P2 to P5

NOTE Shifts the notes produced by pressing keys in semitone steps. –24 to +24

VELO Changes the velocity of pressed keys. –64 to +63

Menu Layer

Description Settings

1 2

Parameter >Ent

Max Step Maximum step. Can be edited only by step type. 1 to 16

Step Size Step size. Specifies the note length between steps. 2, 6,, 7,, 8

NoteLngth

Note length. Specifies the length of the note that is sounded as

a percentage of the step size. (100% for the same length as

the original, 50% for half the original.)

1 to 100%

Groove

Groove. Specifies the timing of the off-beat step. (50% for

even. Larger values increase the length of the first half of the

note.)

10 to 90%

Grv.Type

Groove type. Specifies the note length when the Groove

setting is anything besides 50%.

Norml: Plays back at the actual percentage of the

step length.

Short: Adjusts to a short step in accordance with the

step.

Velocity

Velocity. Specifies the velocity of an input arpeggio. Specifying

KeyOn inputs a velocity value in accordance with the degree

of key pressure applied.

KeyOn, 1 to 127

Hold Pedal Hold pedal. Specifies on/off switching for hold used by a pedal. On, Off

Sounding Arpeggio Phrases Automatically

E-43

Use the procedure below to clear preset step data or step

data that was edited using Step Edit (page E-42) and create

new step data from scratch.

• Note that variation type data cannot be cleared.

Hold down

ARPEGGIO until the type

selection screen shown below appears on the

display.

From among the preset or user arpeggio types

select the arpeggio type you want to clear.

• The procedure for selecting an arpeggio type is the

same as that for selecting a tone (page E-20).

Press

EDIT.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “Clear

Step”, and then press

ENTER.

Press

ENTER again.

This should cause “Clear?” to appear on the display.

Press

YES.

The message “Complete!” will appear on the display when

the data is cleared.

Clearing Arpeggio Data

E-44

Recording and Playing Back Phrases

The Phrase Sequencer is a great way to record musical

phrases that suddenly pop into your mind for later playback.

• The Sequencer has 100 preset phrases.

• You can record a new phrase or overdub onto an existing

phrase to create a user phrase. There is memory for

storage of up to 100 user phrases for later recall when you

need them.

• In addition to what you play on the keyboard, your pedal,

wheel, and knob operations are also recorded as part of

phrase.

• You can choose either of two different playback options:

one-time playback (loop off) or repeat playback (loop on).

• Overdubbing during looped playback is supported. You

also can temporarily cancel overdubbing and perform

looped playback only.

• Pressing a keyboard key will start playback of the phrase

from the corresponding pitch (Key Play).

Hold down

KEY PLAY until the preset

phrase selection screen shown below appears

on the display.

Select the number of the phrase you want to

play.

• To select a phrase number, perform the same

operation steps 3 through 6 for selecting a tone (page

E-20).

Press

STEP + to toggle looping between on

and off.

Press

STEP – to toggle hold between on and

off.

Press

PLAY/STOP to start phrase playback.

• If the phrase is looped, the

PLAY/STOP light will go

out momentarily to indicate when playback returns to

the beginning of the phrase.

• You can also use the above procedure to play back

user phrases as well.

• Phrase loop and hold settings are saved as parameters

for each phrase.

To play back a preset

Phrase number

Loop setting Hold setting

Phrase name

OFF : One-time playback

ON : Looped playback

OFF : Phrase plays back only while

PLAY/STOP is

depressed, and stops when the button is released.

ON : Phrase playback starts when

PLAY/STOP is

pressed and stops when

PLAY/STOP is

pressed again.

Recording and Playing Back Phrases

E-45

There are two different methods you can use to change the

tempo setting: using the TEMPO buttons or tapping a beat

with a button.

• You can use this procedure to adjust the tempo not only for

phrases, but also for other functions as well.

■ To change the tempo using the TEMPO buttons

Press the

TEMPO – (slower) or

TEMPO +

(faster) button.

• This displays the tempo screen shown below.

• If you do not perform any operation for a few seconds,

the display will return to previous screen automatically.

Use the

TEMPO –, + buttons to change the

tempo (beats per minute).

• Holding down either button or rotating the dial will scroll

the tempo values at high speed.

• You can specify a tempo value in the range of 30 to

255.

Press the

EXIT button.

• This exits the tempo screen.

■ To adjust the tempo by tapping a beat

TAP the

TAP button four times at the speed

(tempo) you want to set.

• The tempo setting will change in accordance with your

tapping speed as soon as you tap the fourth time.

After setting the tempo by tapping, you then

can use the procedure under “To change the

tempo using the TEMPO buttons” (page E-45) to

make fine adjustments.

Hold down

KEY PLAY until the phrase

selection screen appears on the display.

Hold down

EDIT until

KEY PLAY starts to

flash.

• In the case of a user phrase, the tone that was selected

as the Zone Part 1 tone when the user data was saved

is the recommended tone.

Press

KEY PLAY so the button becomes lit.

Press keyboard key to start playback of the

phrase.

• If the key you press to start phrase playback is higher

or lower than the phrase’s original pitch, the phrase will

play at the pitch of pressed key.

• When the hold setting is turned off, the phrase is played

only while the keyboard key is depressed, and stops

when the key is released. When the hold setting is

turned on, phrase playback starts when the keyboard

key is pressed and does not stop until the

PLAY/

STOP key is pressed.

• You can use the “Phrase Key Range Lo” and “Phrase

Key Range Hi” settings to specify the high point and the

low point of the keyboard where Key Play can be

performed (page E-66).

To change the tempo setting

You can use the phrase selection screen to

select the recommended tone for the currently

selected phrase as your Zone Part 1 tone.

To start phrase playback by

pressing keyboard key (Key Play)

Recording and Playing Back Phrases

E-46

In addition to what you play on the keyboard, pedal, knob, and

wheel operations are also recorded in phrases.

• You can record up to approximately 1,600 notes for a single

phrase. Also, recorded wheel and knob operations

significantly reduce the remaining number of notes

available for recording.

Press

REC.

This will cause the

REC light to flash.

• If OVDB (overdubbing) is displayed as the “Rec Mode”

setting, use the

minus (–) and plus (+) buttons to

change it to NEW (new phrase). This will enter the new

phrase recording standby mode.

• End quantize and note quantize settings can be

configured as required.

■ End Quantize (End Qntz)

When you perform a button operation to end recording of a

new phrase, there is a chance that your timing may be off.

The end quantize settings described below can be used to

correct the timing of the end point automatically and make its

positioning more natural.

■ Note Quantize (Note Qntz)

When recording keyboard play, there may be cases when

your timing strays a bit. The note quantize settings described

below can be used to correct the timing of keyboard play

automatically and correct the timing of notes you play on the

keyboard. (Note that only key press timing is correct. The

timing of other operations such as key release, and wheel,

pedal, and knob operations are not corrected.)

•Pressing

MENU will display a menu of the detailed

settings shown below. Use the

up (q) and down

(w) buttons to select a parameter and then use the

minus (–) and plus (+) buttons to change its

setting.

Recording will start when you press the

REC, or when you start to play by performing a

pedal, knob, or wheel operation or play

something on keyboard.

REC will light when recording starts.

When recording reaches the point where you

want to stop, press

PLAY/STOP.

REC will become unlit and “!TEMP” (temporary) will

appear for the phrase number.

• Pressing

REC in place of

PLAY/STOP in step 3

above will stop recording, temporarily change to the

overdub standby mode, and start looped playback of

the phrase you have recorded. For details about

overdubbing, see “Recording Over Another Phrase

(Overdubbing)” (page E-47).

After you finish recording, save the data as

described below.

• Press

WRITE to display the screen for saving a

phrase (page E-48).

• For information about deleting data you saved, see

page E-71.

■ Saving a Phrase to an External Device

• Memory card (page E-73)

• Computer (page E-79)

Recording a New Phrase

Off : Phrase end point timing not adjusted.

1M : Phrase end point is adjusted to measure-unit

positions.

2 : Phrase end point is adjusted to quarter note-unit

positions.

6 : Phrase end point is adjusted to eighth note-unit

positions.

Off : Timing not adjusted. (Notes are

recorded as played.)

, , 7, : Timing of actual keyboard play is

corrected to the nearest note in

accordance with the specified note unit.

Menu Description Setting Range

Guide

Guide tone. Specifies whether

or not a count tone is sounded

during phrase recording and/or

record standby.

Off, On

Precount

Precount. Specifies the

number of measures of count

to be inserted prior to the start

of button operation triggered

phrase recording.

Off,

1:1 measure,

2:2 measures

Beat

Beat. Specifies the beat when

Guide, Precount, or end

quantize 1M is being used.

2/4 to 8/4,

2/8 to 16/8

Recording and Playing Back Phrases

E-47

When playing on keyboard to start phrase playback (page

E-45), the phrase data will play back in the key it was

originally recorded in (Original Key) if you press the key for

the first note recorded in the phrase.

Phrase data settings can be used to specify that playback

should be performed using the originally recorded notes, even

when keyboard keys are pressed for notes other than those in

the original phrase data. Each phrase has a Key Shift setting

that you can use to change the pitch of the original key in

semitone steps.

Hold down

KEY PLAY until the phrase

selection screen appears on the display.

Select the number of the phrase whose settings

you want to configure.

• To select a phrase number, perform the same

operation steps 3 through 6 for selecting a tone (page

E-20).

Press

EDIT.

Use the

up (q) and down (w) buttons to

select a parameter and then use

or the

minus (–) and plus (+) buttons to change its

setting.

After you finish configuring settings, save them

as described below.

• Press

WRITE to display the screen for saving a

phrase (page E-48).

• For information about deleting data you saved, see

page E-71.

■ Saving a Phrase to an External Device

• Memory card (page E-73)

• Computer (page E-79)

Select the phrase you want to overdub.

• To select a phrase, perform the same operation steps 3

through 6 for selecting a tone (page E-20).

Press

REC.

This will cause

REC to flash.

• If NEW is displayed as the “Rec Mode” setting, use the

minus (–) and plus (+) buttons to change it to

OVDB (overdubbing). This will enter the overdubbing

standby mode. A phrase number and name will be

shown on the display, but you cannot select a phrase at

this time.

• If you want, configure the note quantize (Note Qntz)

setting (page E-46) at this time.

Press

REC or start playing with a pedal,

knob, or wheel operation, or by playing

something on the keyboard. Any one of these

operations will start overdub recording.

This will cause

REC and

PLAY/STOP to light

(without flashing).

• The original phrase will playback as a loop. Anything

you play on the keyboard and any operations you

perform during loop playback will be overdubbed onto

the original phrase.

When recording reaches the point where you

want to stop, press

PLAY/STOP.

REC and

PLAY/STOP will become unlit and an

exclamation point (!) will appear next to the phrase

number.

Phrase Data Settings

Menu Description Setting Range

OriginalKey

Original Key. Specifies

the keyboard key that

corresponds to the first

note of the phrase played

by Key Play. (The initial

Original Key default

settings the note played

when the phrase was

recorded.)

• Setting can be

specified using the

keyboard keys.

C– to G9

Key Shift

Key shift. Specifies the

key shift, in semitone

steps, of a phrase when

the keyboard key

corresponding to the

original is or the PLAY/

STOP key is pressed.

(To disable key shift,

specify 000.)

–127 to 000 to

+127

Recording Over Another Phrase

(Overdubbing)

Recording and Playing Back Phrases

E-48

■ To pause overdubbing during looped playback

In step 4 of the above procedure, press

REC instead of

PLAY/STOP.

• This will cause

REC to start flashing.

• Though what has been recorded up to that point continues

to play as a loop, further recording is not possible while

overdubbing is paused.

• Press

REC again to resume overdubbing.

■ To delete the last recorded data (undo)

While phrase playback is in progress or stopped, or while

overdubbing is in progress or paused, hold down

REC

until the undo screen appears.

• The message “Can’t UNDO” will be appear on the display if

you try to perform an undo operation again after already

undoing the last recording.

• A phrase that has been saved as a user phrase cannot be

undone.

The meanings of the indicators that are appended to the

phrase number on the display are described below.

• If you change the phrase number selection in step 2 of the

procedure under “To play back a preset” while an

exclamation point (!) is appended to the currently selected

phrase number (indicating that it is an unsaved user

phrase), the unsaved user phrase will be discarded. To

save an unsaved user phrase, use the procedure under “To

save a phrase”, below.

Press

WRITE to display the screen for saving a phrase.

Save the phrase by performing the same operation as that for

saving a user tone (page E-12).

• If there is not enough Synthesizer memory space available

to store the phrase data, the message “not enough space”

will appear on the above display in place of “Press Enter”,

and you will not be able to save the phrase data. If this

happens, delete some of the user data in Synthesizer

memory to free up memory space.

• The Synthesizer can store up to 100 user phrases with a

combined total of up to 128KB.

• For information about deleting phrase data you saved, see

page E-71.

■ Saving a Phrase to an External Device

• Memory card (page E-73)

• Computer (page E-79)

Indicators Next to Phrase

Numbers

! : Unsaved phrase

* : Saved user phrase

! TEMP : Newly recorded phrase that has not been saved

To save a phrase

E-49

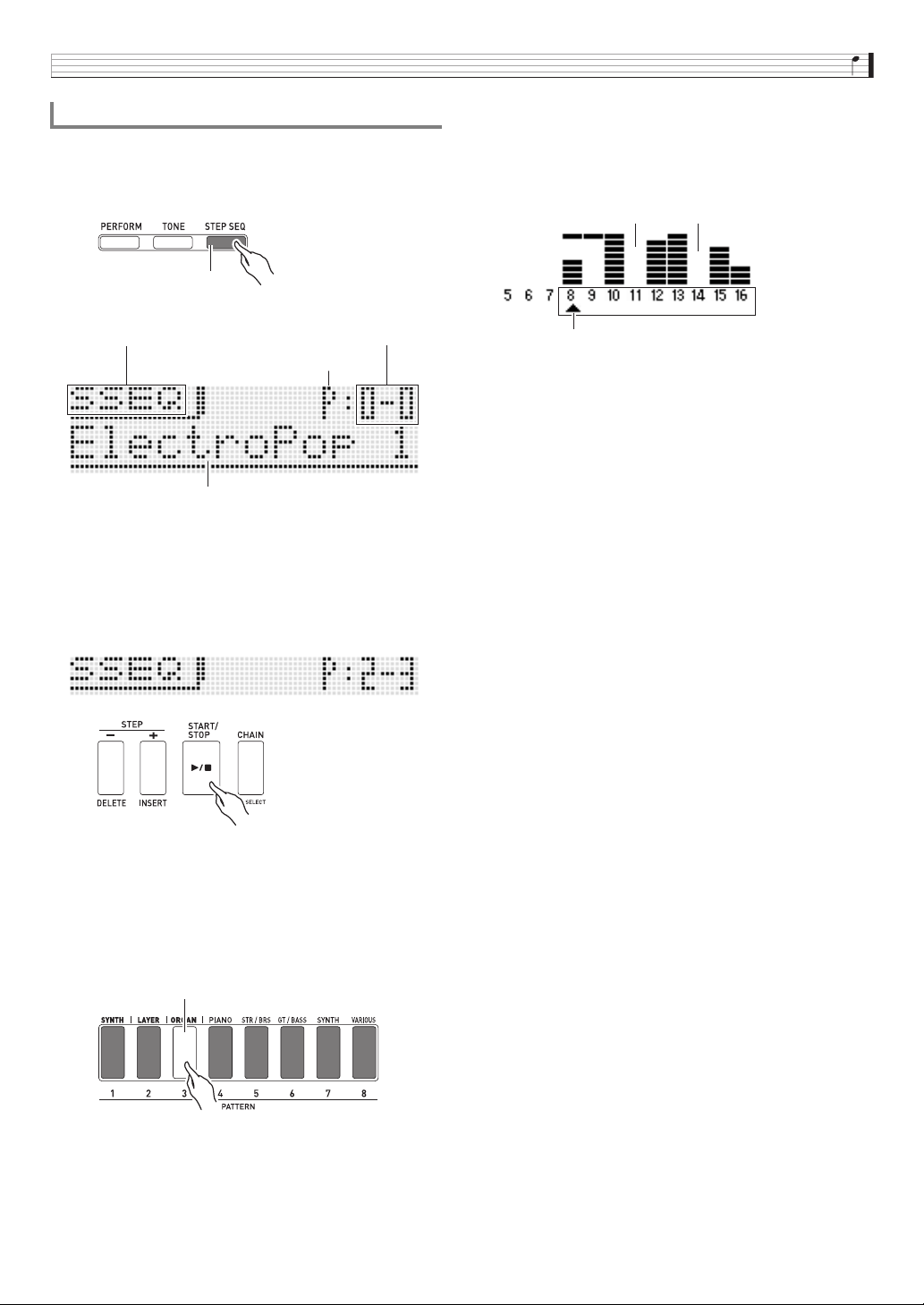

Using the Step Sequencer

The Step Sequencer provides up to 16 steps. The Synthesizer’s sliders can be used to control step notes and velocity in real time.

The Step Sequencer is not just a rhythm machine, it makes it possible for you to compose music as you play on the keyboard.

You can edit each step of a preset sequence to create your own rhythm pattern and save the result as a user sequence.

• The Step Sequencer has 100 preset sequences. You also can store up to 100 of your own user sequences.

• There are two ways to edit a step: simple editing without using the editing screen, and the editing screen that provides more

detailed modification of a step.

• Wheel (bender, modulation) and knob operations can also be recorded as part of a sequence.

• Up to 99 different patterns can be chained together with the Step Sequencer and played back as a loop. You can store up to 100

chained sequences.

• Phrase Sequencer playback can be started from the Step Sequencer.

The following describes the configuration of a single sequence.

• A part (PART) consists of nine note parts (Drum 1 to 5, Bass, Solo 1 and 2, Chord) and four control parts.

• The control parts can be configured with pitch bends/control changes and Phrase Sequencer play triggers (that start and stop

playback).

• For details about the settings and other information about each part, see “Editing a Sequence - Advanced” on page E-55.

• Each sequence has eight different patterns. You can configure separate beat (Beat Info) for each of the eight patterns.

• A track consists of data 16 steps along with their track parameters.

• You can use the Synthesizer’s mixer function to change Step Sequencer tones. For details, see “Using the Mixer” on page E-67.

How the Step Sequencer is organized

9 bl

Using the Step Sequencer

E-50

8ch

9ch

10ch

11ch

12ch

13ch

14ch

15ch

16ch

3456789

10 11 12 13 14 15 16

Track

Drum 1

Drum 2

Drum 3

Drum 4

Drum 5

Bass

Solo 1

Solo 2

Chords

Control 1

Control 2

Control 3

Control 4

Beat

Sliders

(page E-52)

Master Slider

(page E-53)

Mixer

(page E-67)

Part

(page E-49)

Patterns 1 through 8

(page E-49)

Note Part

Control Part

Step Data

Track Parameters

• Maximum step

• Step size

•Others

Control Type

• Control track only

Off, On, Tie

Note 1 *Note 2 *Note 3 Velocity

Value Key shift

• Phrase only

* Control track only

Sequence Parts

Track

Note Part

Control Part

Using the Step Sequencer

E-51

A step sequence can be played back from the Performance,

Tone, or Step Sequencer Mode.

The step sequence can be changed by switching to a different

pattern, selecting a different sequence bank and number, and

by shifting the key (Key Shift).

•If the

CHAIN button is lit (indicating the Chain

Mode), press

CHAIN to turn off the light before

starting the procedure below.

Press

START/STOP.

The

START/STOP button will flash and sequence

playback will start.

•Pressing

START/STOP while playback is in

progress will stop the sequence and cause the

START/STOP button light to go out.

• Step Sequencer playback can be performed

automatically, without pressing

START/STOP, by

using the Arpeggio Function to specify Step Sequencer

playback triggers. For details, see the section of this

manual from “To use the Arpeggio Function” on page

E-40.

• For information about changing the playback tempo,

see “To change the tempo setting” (page E-45).

To change to a different pattern, enter the Step

Sequencer Mode and press one of the

PATTERN 1 to 8 buttons.

The light of the button whose pattern you select will go

out.

• When changing to a different measure, the light of the

button of the currently selected pattern will flash until a

point is reached where the change can be made.

• Pressing the button of the currently selected pattern will

cause its button light to flash, indicating that playback is

standing by to stop. Next, pressing

START/STOP

will stop playback when it reaches the end of the

currently playing measure. To cancel the stop standby

operation described above, press the flashing button

again.

If you want to change to a different sequence,

enter the Step Sequencer Mode and change the

sequence bank and/or number.

• To select a sequence, perform the same operation

steps 3 through 6 for selecting a tone (page E-20).

If you want to shift the key, press

STEP

SEQUENCER and then press

KEY SHIFT.

• When the original key is C2, you can shift the key by

pressing a keyboard key within the range of D2 to B2.

• You can specify whether or not to shift the key of each

individual part. For details, see the section of this

manual from “Editing a Sequence - Advanced” on page

E-55.

• The Key Shift on/off setting is saved as Performance

parameter.

Simple editing of a sequence can be performed from the

Performance, Tone, or Step Sequencer Mode.

•If the

CHAIN button is lit (indicating the Chain

Mode), press

CHAIN to turn off the light before

starting the procedure below.

If the Synthesizer is in the Performance or Tone

Mode, press

STEP SEQUENCER.

This enters the Step Sequencer Mode, which causes the

STEP SEQUENCER button to light.

Perform steps 1 through 3 of the procedure

under “Playing Back a Step Sequence” on page

E-51 to select the sequence and pattern you

want to edit.

Use the

PART minus (–) and plus (+) buttons

to select the part you want to edit.

A pointer (e) will appear on the display under the number

of the currently displayed part.

• The pointer (e) does not appear on the display if you

select a control type part.

Edit each part using the procedures in the

following sections.

Playing Back a Step Sequence

Sequence name

Beat

Sequence bank, number

Measure

Tempo

Editing a Sequence -Simple

Editing

Selected part numberSelected part name

Using the Step Sequencer

E-52

■ On (Sounding)

Press the

1 to 16 button of the number of the step you

want to turn on.

When a step is on, its

1 to 16 button is lit and NOTE is

displayed next to its step number.

■ Off (Not sounding)

Press the

1 to 16 button of the number of the step you

want to turn off.

When a step is turned off, the light of its

1 to 16 button is

unlit and OFF is displayed next to its step number.

• There is no step on/off setting for a control part.

While holding down

STEP SEQUENCER,

press the

1 to 16 button that corresponds to

the step number of the first note of the tied

group.

Next, while holding down

STEP

SEQUENCER, press the

1 to 16 button that

corresponds to the step number of the last note

of the tied group.

• This turns on the step you specified as the start of the

tied group. It also ties together all of the notes from the

first step up to the last step.

• The

1 to 16 buttons that correspond to the step

numbers included in the tied group will all be flashing.

Release

STEP SEQUENCER and the button lights

will go out. (Even though the button lights go out, the

notes in the group remain tied.)

• To check which steps are tied, hold down

STEP

SEQUENCER and then press any one of the

1 to

16 buttons. This will cause the

1 to 16 buttons of

the steps included in the tied group to flash.

• A control part doe not have a tie setting.

•If the

STEP SEQUENCER button is not lit, press

STEP SEQUENCER to turn on the light before starting

the procedure below.

■ Slider Operations

Use

1/9 to 8/16 to change the note and velocity settings

(note part) of the notes of steps 1 through 16.

• In the case of a control part, the sliders can be used to

change the control effect. For details, see “Editing a

Sequence - Advanced” on page E-55.

•Press

1-8/9-16 to toggle slider operations between

steps 1 through 8 and steps 9 through 16.

• Step 1 through 8 operation is selected when the

1-8/

9-16 button is unlit. Step 9 through 16 operation is selected

when the

1-8/9-16 button is lit.

To turn a step on or off

To configure tied note settings

First step number

Using the Sliders to Change Note and

Velocity Settings

Last step number

Steps 1 through 8 or steps 9 through 16 (selectable)

Using the Step Sequencer

E-53

■ Selecting a Slider Function

Pressing

FUNC A/B toggles the sliders between two

functions.

Example: Preset sequence

FUNC A/B unlit: L (NOTE)

FUNC A/B lit: M (VELOCITY)

• Moving a

1/9 to 8/16 slider will turn on the

corresponding step, even if it is currently turned off.

• Slider function switching cannot be performed for a

control part.

You can use the

MASTER slider to batch change the

settings (note, velocity, staccato/tenuto, playback speed,

groove) of all of the parts.

• The settings that can be changed using the master slider

depend on the part type.

• For some parts, the master slider cannot be used to change

settings.

• You can assign other settings to the master slider, if you

want. For more information, see “Changing the Function

Assigned to the Master Slider” on page E-53 and

“Changing Slider Settings” on page E-59.

Under default settings, the A sliders have note settings

assigned to them, while the B sliders have velocity settings

assigned. You can use the procedure below to assign note

settings, velocity settings, or both note and velocity settings to

sliders.

You also can specify the note or velocity setting that is

selected at each of the eight slider positions.

Press

STEP SEQUENCER.

Hold down

FUNC A/B until the SLIDER

screen shown below appears.

Use the

PART minus (–) and plus (+) buttons

to select the part whose slider assignments you

want to change.

Press

FUNC A/B to select the set of sliders

(A or B) whose assignments you want to

change.

Move the display cursor to “TYPE” and then

use the

NO and YES buttons to assign one

of the following functions to the selected

sliders.

Use the

dial, the

up (q) and down (w)

buttons, or the

PATTERN (1 to 8) buttons to

move the display cursor to the slider position

(1 to 8) whose setting you want to change.

• The numbers 1 through 8 indicate the eight slider

positions, from top (8) to bottom (1).

Use the

NO and YES buttons to change the

note or velocity value at the currently selected

slider position.

• You can also press the keyboard key that corresponds

to the note you want to input to specify the note and

velocity for the currently selected slider position.

• For a chord part, you can specify up to three values.

Press

STEP SEQUENCER.

Hold down

FUNC A/B until the SLIDER

screen appears.

Press

MENU and then press the

right (I)

button to move the item selection cursor (0) to

“M.Slider”.

Using the Master Slider to Change Note and

Velocity Settings

Changing Slider Assignments

Indicates the selected function as L or M.

NOTE : Note

VELO : Velocity

NOTE & VELO : Both note and velocity

Changing the Function Assigned to the

Master Slider

Using the Step Sequencer

E-54

Press

ENTER.

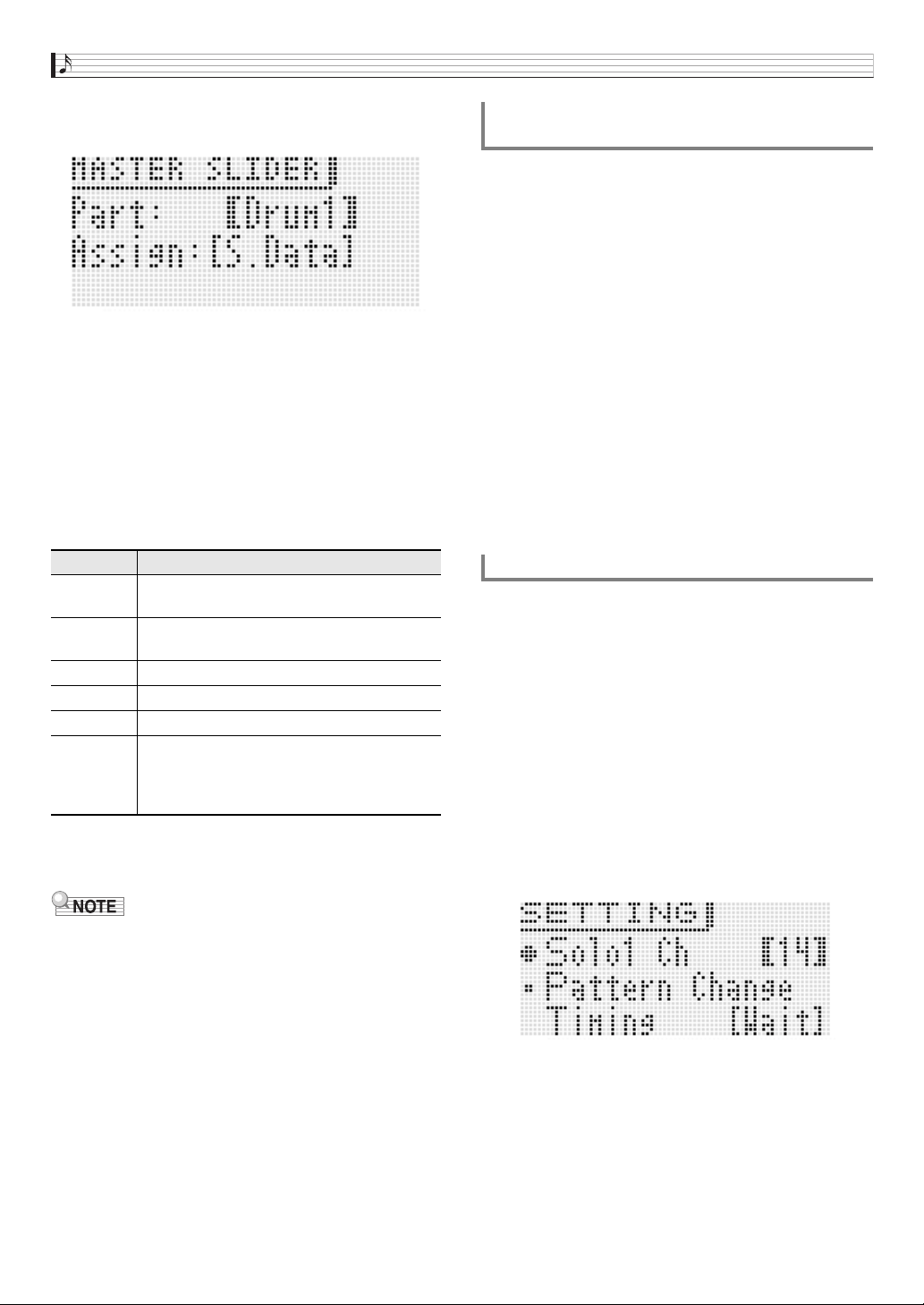

This will display the master slider setting screen.

Use the

minus (–) and plus (+) buttons and

the

PART minus (–) and plus (+) buttons to

display the name of the part you want to change

to inside the brackets % next to Part.

Use the

up (q) and down (w) buttons to

move to the “Assign” setting, and then use the

dial or the

minus (–) and plus (+) buttons

to change to one of the settings described

below.

• For details about step size, note length, and groove

assignments, see “Step Sequencer Parameters” on

page E-56.

• Slider functions can also be modified as described below.

For information about making these changes, see

“Changing Slider Settings” on page E-59.

– Copying settings from another slider

– Scale, drum, velocity slider presets

– Note shift

You can input note, velocity, and other step data by

performing keyboard, pitch bend, and knob operations as you

play.

• When inputting a pitch bend or knob operation, you first

need to use the control track to select the pitch bender or

knob and then perform in input.

Press

EDIT.

Use the

down (w) button to move the item

selection cursor (0) to “Step Edit”, and then

press

ENTER.

Input data as described below.

■ While sequence playback is in progress

Press keyboard keys and perform other operations as

required according to the timing of playback.

■ While sequence playback is stopped

Perform input into the currently displayed step.

Solo1 is normally assigned to channel 14.

You can use the procedure below to change the assignment

to channel 1 when you want to use Solo Synth or other special

tones as the solo tone.

Press

STEP SEQUENCER.

Press

MENU and then press the

right (I)

button.

After confirming that the item selection cursor

(0) is next to “Setting”, press

ENTER.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “Solo1

Ch”.

Use the

minus (–) and plus (+) buttons to

change the Solo1 channel setting.

• The Solo1 channel setting is saved as Performance

parameter.

Assign Description

Nop No operation. Master slider operation is

disabled.

S. Data Step data. Changes the data of all of the steps

(1 thorough 16) that are currently turned on.

S. Size Step size

NoteLn Note length

Groove Groove

Octave When there are notes assigned to sliders 1

through 8, moving the master slider when this

setting is in effect will change the octaves of

the notes (Range: –1 to 0 to 1).

Inputting Step Data by Playing on the

Keyboard, etc.

Changing the Solo1 Channel

1 : Channel 1

14 : Channel 14

Using the Step Sequencer

E-55

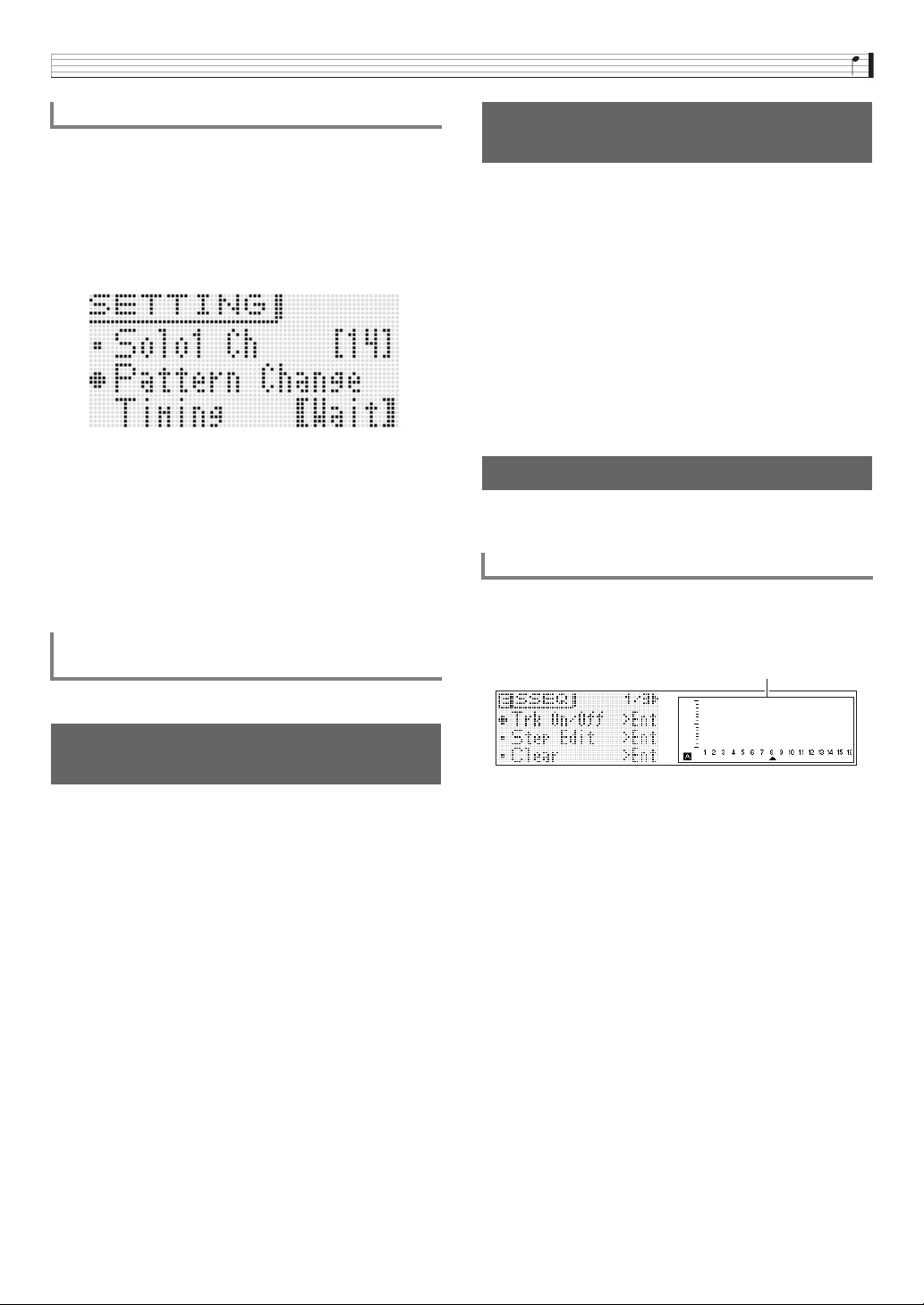

Perform steps 1 through 3 of the procedure

under “Changing the Solo1 Channel” on page

E-54.

Use the

up (q) and down (w) to move the

item selection cursor (0) to “Pattern Change

Timing”.

Use the

minus (–) and plus (+) buttons to

select one of the pattern switching timings

described below.

• The pattern switching timing setting is saved as

Performance parameter.

See “To use the Arpeggio Function” on page E-40.

You can use the Synthesizer’s mixer function to change the

Step Sequencer tone.

• Data assigned by the mixer to channels 8 through 16 is

saved as Step Sequencer data.

• Mixer parameters are applied to all pattern parameters.

• For details, see “Using the Mixer” on page E-67.

Press

STEP SEQUENCER and then press

EDIT.

• This step is not necessary if you already pressed

EDIT and are already editing a step sequence.

Press

MIXER.

Hold down the button (

9 to 16 note part

buttons) that corresponds to the part you want

to solo.

• To cancel the solo setting, exit the Step Sequencer

Mode or display the Track On/Off screen (page E-56).

• For details about mixer operations, see “Using the

Mixer” on page E-67.

You can use the procedures in this section for advanced,

detailed editing of sequence parameters.

Press

STEP SEQ.

Press

EDIT.

Use the

cursor (U, q, w, I) buttons to

move the item selection cursor (0) to the menu

item for the edits you want to perform.

Changing the Timing of Pattern Switching

Wait : Wait until the start of the next measure.

Real : Switch immediately, even if it is partway through a

measure.

Syncing Step Sequencer Playback with an

Arpeggio

Changing the Step Sequencer

Tone

To sound a single part

(solo mode)

Editing a Sequence - Advanced

To perform advanced parameter editing

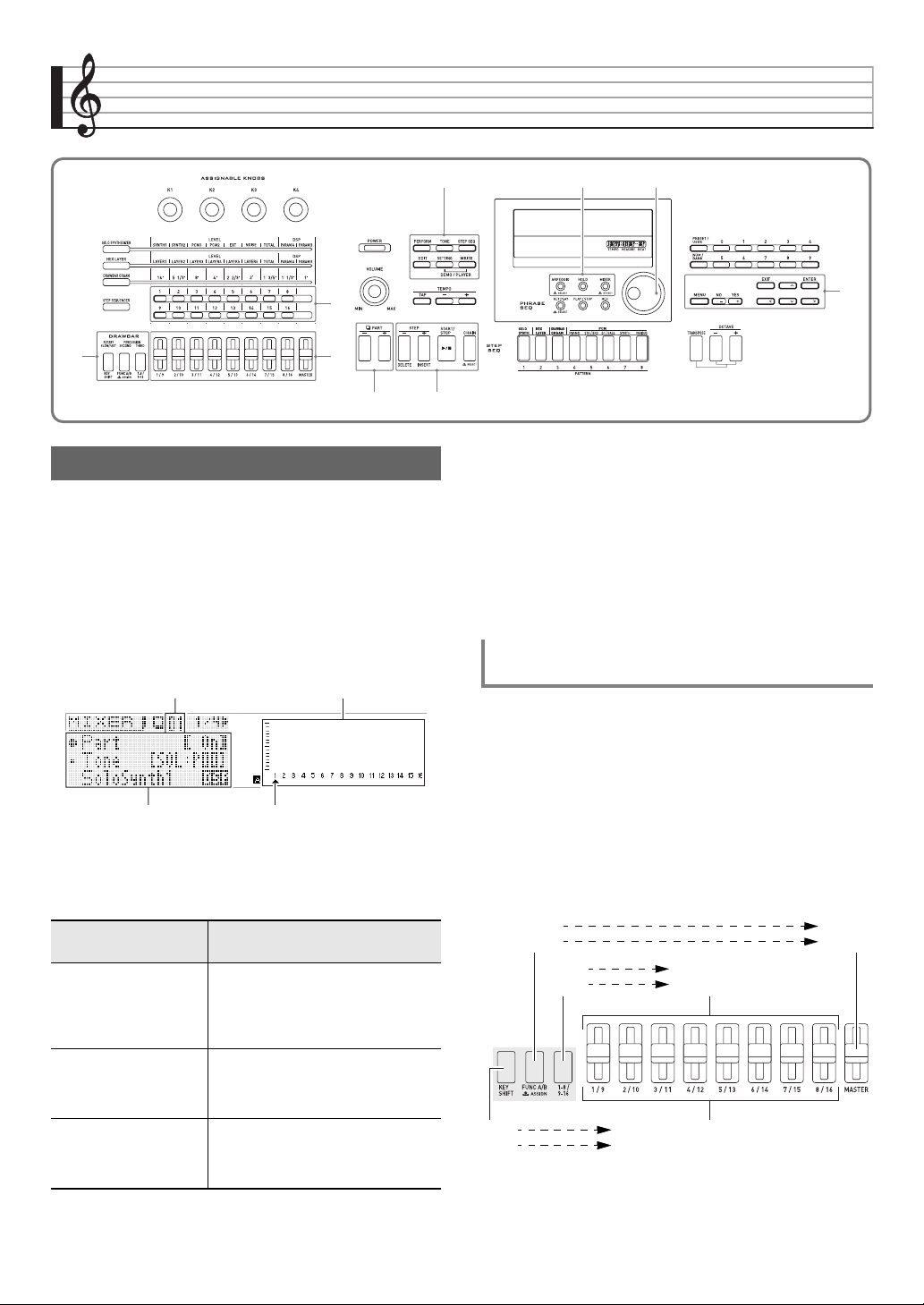

Mixer screen

Using the Step Sequencer

E-56

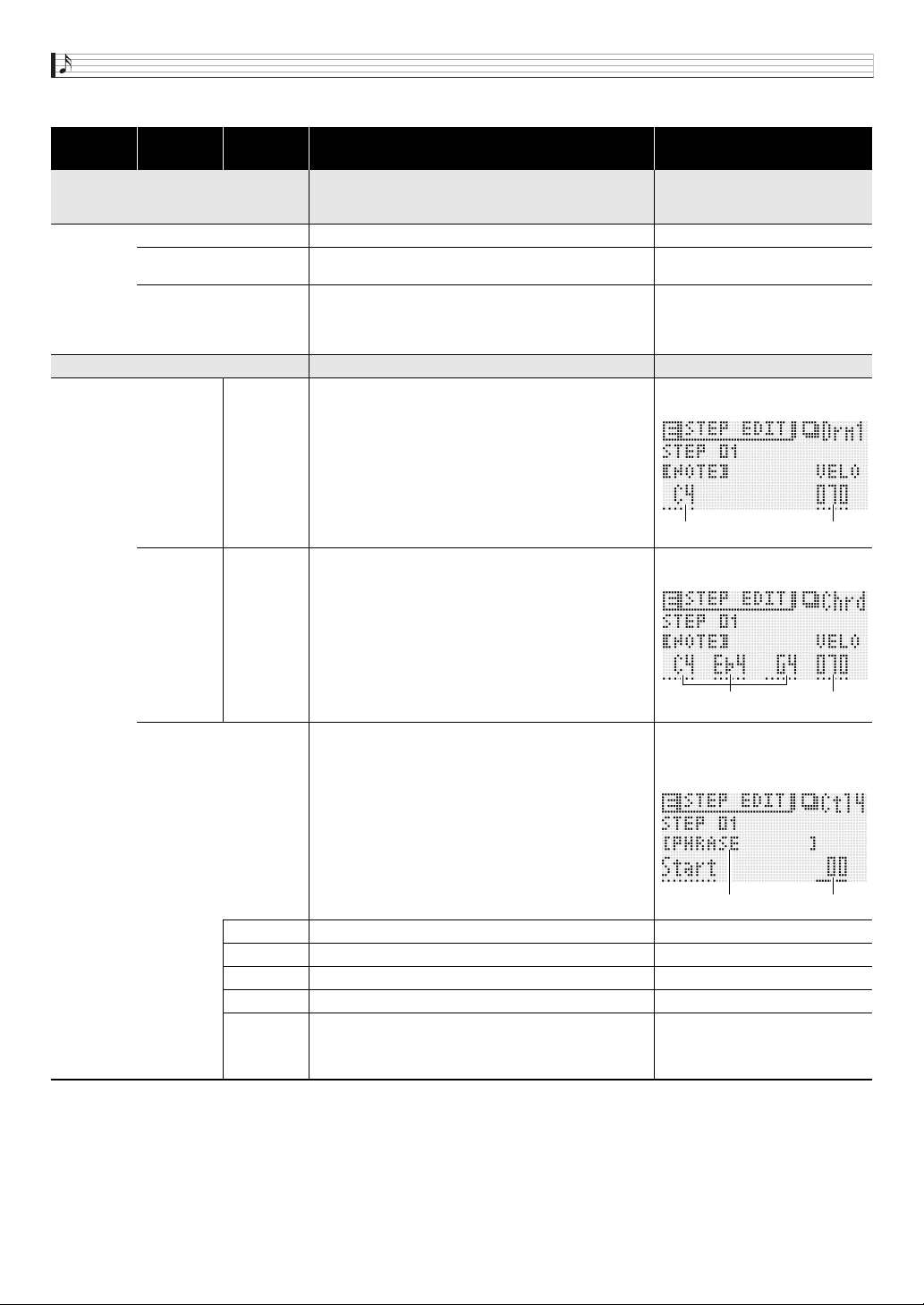

■ Step Sequencer Parameters

Level 1 Level 2 Level 3 Description

Setting Range and

Screen Contents

Trk On/Off >Ent Track editing

•Pressing

EDIT while in the Step Sequencer Mode will

display the same screen as Trk On/Off >Ent.

Pattern Pattern number 1 to 8

Part Part name. Drm1 to 5, Bass, Sol1 to 2, Chrd,

Ctl1 to 4

Track Track on/off. Use

1 to 16 to toggle.

•

1 to 4 correspond respectively to Control Parts 1

through 4. In the same way,

8 to 16 correspond to

Note Parts (page E-50).

Off, On

Step Edit >Ent Step editing. Step-specific editing group.

Drm1 to 5,

Bass,

Sol1 and 2

NOTE, VELO Selects off (OFF), on (NOTE), or tie (TIE) for a step. When

on, note (NOTE) and velocity (VELOCITY) parameter

settings are configured. The tie setting cannot be selected

for Step 1.

Off, (When on) NOTE: C– to G9,

(When on) VELO: 1 to 127, Tie

Chrd NOTE, VELO Selects off (OFF), on (NOTE), or tie (TIE) for a step. When

on, note (NOTE) and velocity (VELOCITY) parameter

settings are configured. The tie setting cannot be selected

for Step 1.

Off, (When on) NOTE: Off or C– to

G9, (When on) VELO: 1 to 127, Tie

Ctl1 to 4 Control part (Ctl) effects. Data of each part. NOP: No operation. Other setting

ranges are as shown below.

Example screen shot below shows

PHRASE screen.

BEND Pitch Bender –128 to +127

CC1 to 97 MIDI control change. 0 to 127, Pan only –64 to +63

K1 to 4 Knob operations specified by a Performance, etc. 0 to 127

TEMPO Tempo 30 to 255

PHRASE Specifies triggers for starting and stopping Phrase

Sequencer playback. Display for Control 4 (Ctl4) only.

Nop: Disabled, Stop: Stop playback,

Start: Start playback,

–24 to +24: Shift from original key

(When Start is selected)

Note Velocity

Notes of chord Velocity

Menu Value

Using the Step Sequencer

E-57

Track Param >Ent Track parameter

Max Step Maximum step. Specifies the number of steps played back

by a part. If the specified maximum number of steps is

exceeded during playback, playback returns to the first step.

1 to 16

Step Size Step size. Specifies the note length between steps. 2, 6, , 7, , 8

NoteLngth Note length. Note on note length specified as a percentage

of the step size. 100% specifies the same size as the

original, while 50% specifies a note length that is half the

original.

1 to 100%

Groove Groove. Specifies the on note timing of the off-beat step.

The step note length changed alternately by step playback.

50% specifies even, while a larger value increases the first

half note length.

10 to 90%

Grv.Type Groove type. Specifies the note on note length type when

anything other than 50% is specified for Groove.

Norml: Normal Playback performed

with length based on actual

percentage.

Short: When step length is changed

by Groove, adjusts to the shorter

length.

Ctrl.Ch

(Control part only)

Control Channel. Specifies the channel that applies the

Control Track effect.

Channel 1, 8 to 16

Smooth

(Control part only)

Smooth. Controls Control Track playback. When on, control

data is interpolated and played back

On, Off

Phrase No.

(Control part 4 only)

Phrase Sequencer number. Specifies the Phrase Sequencer

number to be controlled.

P00 to 99, U00 to 99

Key Shift >Ent Key shift editing group. This setting cannot be configured for

Control 1 through 3. Real-time setting is not supported when

Control 4 is configured to perform Phrase Sequencer key

shift.

Enable Key shift on/off Off, On

BreakPoint Point between C and B where key shift drops the octave

when the key is exceeded.

C to B

Realtime Real-time. Specifies breakpoint timing. On: Change immediately

Off: Change at the next note

Beat Info Beat setting 2/4 to 8/4, 2/8 to 16/8

Level 1 Level 2 Level 3 Description

Setting Range and

Screen Contents

Using the Step Sequencer

E-58

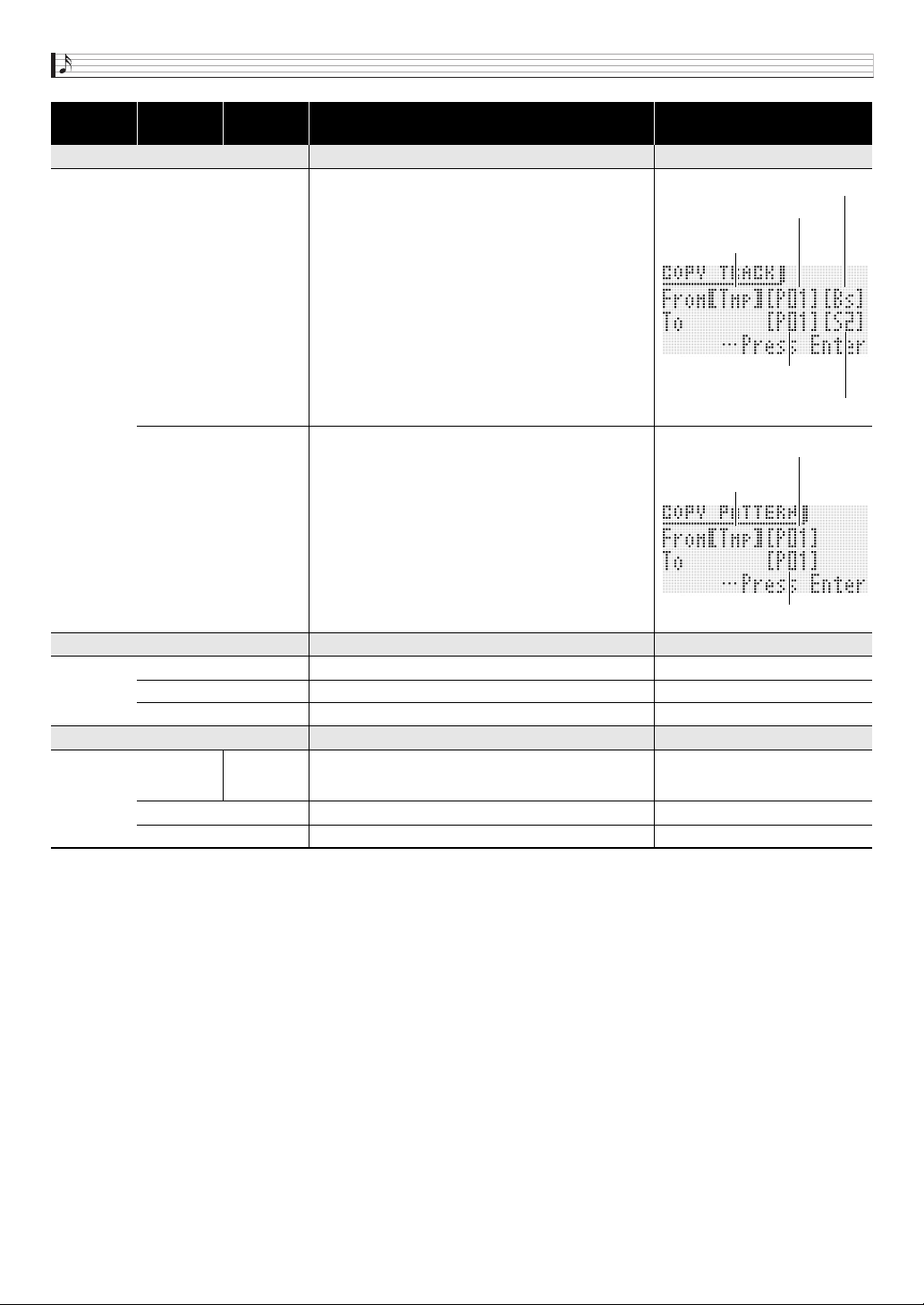

Copy >Ent Data copy

Track Copies data from another track. Copies step data and part

parameter data.

• Data being edited (TMP) can also be copied.

• The following are parts that can be copied.

Pattern Copy data from another pattern.

• Data being edited (TMP) can also be copied.

Note Shift >Ent Note shift editing group

Shift Specifies how much to shift in semitone steps. –24 to +24

Ptn Specifies a pattern to be shifted. 01 to 08

Part Specifies a part to be shifted. Dr1 to 5, Bas, Sl1 and 2, Chd

Clear >Ent Track data clear

Track Pattern, Part Selects a pattern and/or part inside a track. Pattern: 01 to 16

Part: Drm1 to 5, Bass, Sol1 and 2,

Chrd, Ctl1 to 4

Pattern Clears all patterns.

Set Clears all track (set) data.

Level 1 Level 2 Level 3 Description

Setting Range and

Screen Contents

From To

Dr1 to S2 3 Dr1 to S2

Chord 3 Chord

Ctrl1 to 3 3 Ctrl1 to 3

Ctrl4 3 Ctrl4

Copy destination pattern

number

Copy destination part name

Copy source pattern number

Copy source part name

Copy source sequence

(bank, number)

Copy destination pattern number

Copy source pattern number

Copy source sequence

(bank, number)

Using the Step Sequencer

E-59

Use the

cursor (U, q, w, I) buttons to

move the brackets % or the cursor to the item

whose setting you want to change, and then

use the

minus (–) and plus (+) buttons to

change the selected setting.

•Use

PATTERN to change the pattern number.

• Use the

PART minus (–) and plus (+) buttons to

change the part name.

•Use

STEP minus (–) and plus (+) buttons to

change the step number.

• To return to the previous menu level, press

EXIT.

• The mixer screen shows current settings.

• While the Step Edit screen is displayed, the keyboard

will sound the tone of the currently selected part. The

mixer screen shows the settings of each step (the note,

velocity or value item that is currently being changed).

• On the mixer screen, notes are shown in a specific

position on the screen as C through B, regardless of the

actual octave.

In addition to the changes you can make using the simple

editing procedures (page E-51), you can also do the following.

• Copy settings from another slider

• Scale, drum, velocity slider presets

• Note shift

Press

STEP SEQUENCER.

Hold down

FUNC A/B until a screen like the

one shown below appears on the display.

Press

MENU.

Use the

cursor (U, q, w, I) buttons to

move the item selection cursor (0) to the item

you want and then press

ENTER. The items

available on the screen are described below.

■ Copy: Copies settings from another slider.

Use the

cursor (U, q, w, I) buttons to move the

brackets % to an item and then use the

minus (–) and

plus (+) buttons to change the item’s setting.

• Chord parts can be copied between chord parts only.

• Data being edited (!TEMP) can be specified as a copy

source.

■ Preset: Scale, drum, velocity slider presets

Use the

cursor (U, q, w, I) buttons to move the

brackets [ ] to an item and then use the

minus (–) and

plus (+) buttons to change the item’s setting. Inputting a

slider preset number automatically causes the slide preset

name to change accordingly.

• The following shows the slider preset numbers and their

corresponding slider preset names.

1 Major, 2 Minor, 3 Dorian, 4 Lydian,

5 Mixolydn (Mixolydian), 6 Phrygian, 7 Locrian,

8 M.Minor (Melodic Minor), 9 H.Minor (Harmonic Minor),

10 H.M. 5th (Harmonic Minor 5th), 11 Altered (Altered),

12 WholeTon (Whole Tone), 13 Diminish (Diminished),

14 Pentaton (Pentatonic), 15 M.Penta (Minor Pentatonic),

16 Blues, 17 Kick (Bass Drum), 18 Snare, 19 Hi-hat,

20 Toms, 21 Cymbal, 22 Velocity

• The following are the chord part only slider preset numbers

and their slider preset names.

1 Diatonic, 2 Minor, 3 H.Minor (Harmonic Minor), 4 Velocity

Changing Slider Settings

To copy slider settings from another slider

FUNC A/B button setting

Copy destination pattern name

FUNC A/B button setting

PatternCopy source sequence number

Slider preset name

Pattern name FUNC A/B button setting

Slider preset number

Using the Step Sequencer

E-60

■ Note Shift: Shifts notes.

Use the

cursor (U, q, w, I) buttons to move the

brackets [ ] to an item and then use the

minus (–) and

plus (+) buttons to change the item’s shift value setting.

Press

WRITE to display the screen for saving a sequence.

Save the sequence by performing the same operation as that

for saving a user tone (page E-12).

• For information about deleting data you saved, see page

E-71.

■ Saving Sequences to an External Device

• Memory card (page E-73)

• Computer (page E-79)

In the Step Sequencer Mode, press

CHAIN.

Press

EDIT.

Use the

cursor (U, q, w, I) buttons to

move the cursor to an item and then input the

setting you want.

• Button operations to change a setting depend on the

item that is selected.

• For the chain type, you can specify LOOP, which loops

playback, or END to end chain playback.

• You can use

DELETE to delete part of a chain.

• You also can insert part of a chain by pressing

INSERT.

• To check the currently selected pattern, press

CHAIN and the press

START/STOP to play the

pattern. You can edit a pattern as it is playing.

Press

WRITE to display the screen for

saving a chain. Save the chain by performing

the same operation as that for saving a user

tone (page E-12).

• For information about deleting data you saved, see

page E-71.

■ Saving a Chain to an External Device

• Memory card (page E-73)

• Computer (page E-79)

To save an edited sequence

Chaining

To create a chain

Shift value (–24 to +24)

Pattern name FUNC A/B button setting

Sequence number: To select a sequence, perform the

same operation steps 3 through 6

for selecting a tone (page E-20).

Pattern number :

(–, +) or

PATTERN

Measure :

(–, +)

Key shift :

(–, +) or keyboard key (leftmost

keys, one octave from C to B)

Chain type :

(–, +)

Chain number

Chain type

Sequence number

Pattern number

Measure

Key shift

Using the Step Sequencer

E-61

Hold down

CHAIN until the CHAIN screen

appears.

Use the

dial,

buttons, or the

minus

(–) and plus (+) buttons to display the chain you

want to play.

Press

START/STOP.

• To stop playback, press

START/STOP again.

• You can rearrange a chain later, if you want. For details

about how, see “To create a chain” on page E-60.

Hold down

CHAIN until the CHAIN screen

appears.

Press

MENU.

Use the

dial or

cursor (U, q, w, I)

buttons to move the item selection cursor (0)

to “Initialize” and then press

ENTER.

Press

ENTER again.

This should cause “Sure?” to appear on the display.

Press

YES.

The message “Complete!” will appear on the display when

initialization is complete.

• Before performing the following procedure, insert a memory

card into the Synthesizer.

Hold down

CHAIN until the CHAIN screen

appears.

Use the

dial,

buttons, or the

minus

(–) and plus (+) buttons to display the chain you

want to save.

Press

MENU.

Use the

dial or

cursor (U, q, w, I)

buttons to move the item selection cursor (0)

to “SMF Save” and then press

ENTER.

• For the remainder procedure, perform the steps starting

from step 4 under “Saving Synthesizer Data to a

Memory Card” (page E-75)

• To save data to a memory card, see “Using a Memory

Card” on page E-73.

To play back a chain

To initialize chain settings

To save a chain in SMF format to a memory

card

E-62

Using the Performance Mode

You can use the Performance Mode to perform with up to four

tones assigned to the keyboard. In addition to tone

assignments, you can also save effect, Step Sequencer, and

other settings as a setup (called a “performance”) which can

be recalled at any time, even while you are playing, to

instantly change the sequencer’s setup.

• There are 100 preset performances. You can edit preset

performances and save it as one of 100 user performances.

See the separate “Appendix” for a list of preset

performances.

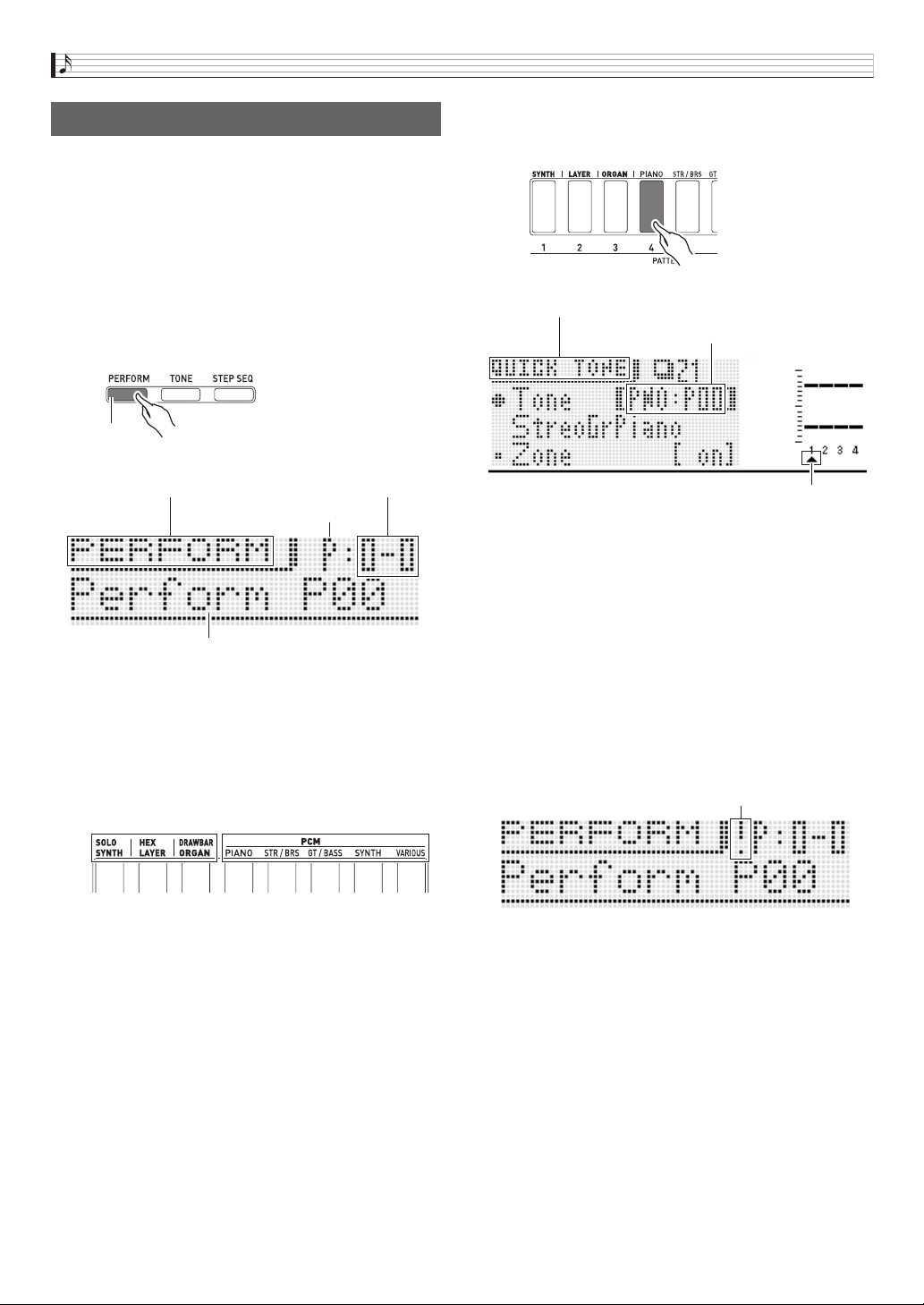

Press

PERFORM.

The button will light and the Synthesizer will enter the

Performance Mode.

Select a performance bank and number the

same procedures as those for selecting a tone.

Press

EDIT.

This will display the top screen of the performance editing

list.

Select items and change settings on the screen

using the same procedures as those used when

selecting a tone.

• For details about editing, see “Editable Performance

Parameter List” on page E-64.

After you finish with your edits, press

EDIT.

This exits the editing list.

Press

WRITE and then save your edited

performance as a user performance.

• For information about how to save user data, see the

procedure for saving user tone data (page E-12).

■ Saving User Performance Data to an External

Device

• Memory card (page E-73)

• Computer (page E-79)

Overview

Registering and Recalling

Performances

To register a performance

Press

left (U) to advance to

the screen below.

K1 to K4 knob functions

(page E-64)

Zone 1 to 4 on/off and

keyboard range setting

screen (page E-64)

Use

up (q) / down (w)

to select a zone to edit

(page E-64).

Zone 1 to 4 on/off and keyboard range settings

Using the Performance Mode

E-63

Press

PERFORM.

The button will light and the Synthesizer will enter the Performance Mode.

Select a performance bank and number the same procedures as those for selecting a tone.

This will recall the contents of the performance you selected.

• Recalled performance contents are the same as those described in “Editable Performance Parameter List” in the next

section of this manual.

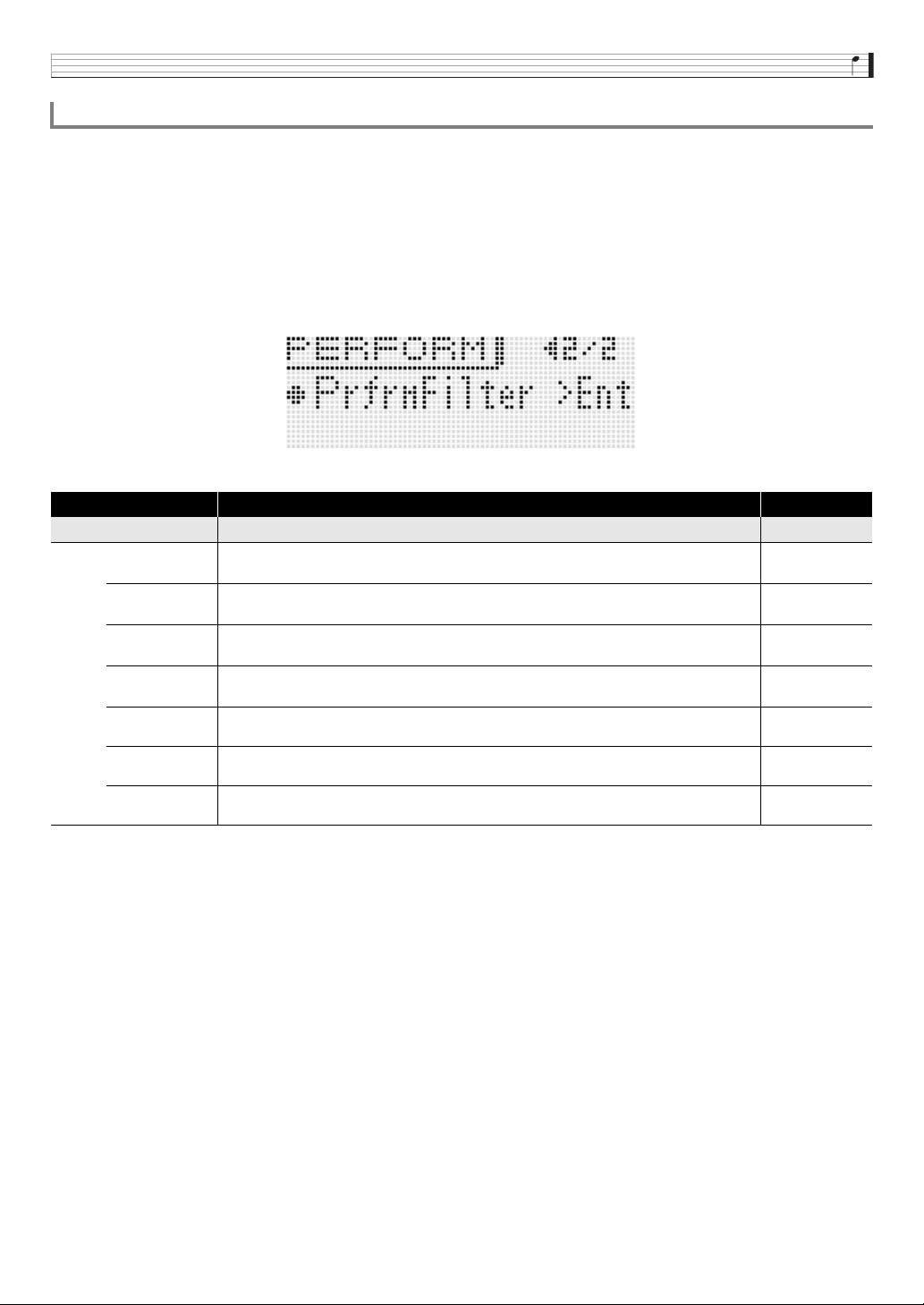

• Here you can configure a performance filter to omit certain settings (Sequencer, arpeggio, etc.) contained in recalled

performance data. Press

MENU to display the performance menu. Next, select “PrfrmFilter >Ent” shown below to enter

the group and configure performance filer settings.

Performance Filter Setting List

To recall a performance

Display Description Settings

PrfrmFilter >Ent Performance filter

Step Seq

Step Sequencer on/off. Turning on this setting filters out Step Sequencer items contained in the

Sequencer Parameter group of the Editable Performance Parameter List (page E-64).

Off, On

Arpeggio

Arpeggio on/off. Turning on this setting filters out Arpeggio items contained in the Sequencer

Parameter group of the Editable Performance Parameter List (page E-64).

Off, On

Phrase

Phrase on/off. Turning on this setting filters out Phrase Sequencer items contained in the

Sequencer Parameter group of the Editable Performance Parameter List (page E-64).

Off, On

Tempo

Tempo on/off. Turning on this setting filters out Tempo settings contained in the Sequencer

Parameter group of the Editable Performance Parameter List (page E-64).

Off, On

Sys Rev

System reverb. Turning on this setting filters out reverb items contained in the Effect Parameter

group of the Editable Performance Parameter List (page E-64).

Off, On

Sys Cho

System chorus. Turning on this setting filters out chorus items contained in the Effect Parameter

group of the Editable Performance Parameter List (page E-64).

Off, On

Master EQ

Master Equalizer (Master EQ). Turning on this setting filters out master equalizer items contained

in the Effect Parameter group of the Editable Performance Parameter List (page E-64).

Off, On

Using the Performance Mode

E-64

Editable Parameter List

Editable Performance Parameter List

Display Description Settings

Zone Parame >Ent

Zone parameters. This group includes parameters for each of the zones (Zone 1 through 4).

• Use the

PART minus (–), plus (+) buttons to select the zone you want to edit.

• You also can enter the group using the following shortcut: Perform step 2 under “To register a

performance” (page E-62) and then hold down

EDIT. This will enter the group.

Zone

Zone on/off. Turns all zones on or off This setting is different from the mixer function page (page

E-68) part on/off (Part Enable) setting.

Off, On

Tone

Tone. Selects the tone for each zone. This setting is the same as the mixer function part tone

(page E-68).

• While this item is selected, you can select a tone using the same operation as that used in the

Tone Mode.

• This setting can also be configured using quick editing (page E-16).

• There are some limitations on the selection of tone categories for Zones 2 through 4 (page

E-16).

• A tone with DSP will have DSP next to the tone name on the display (page E-37).

Zone 1:

Solo Synth P00 to

Various U29

Zone 2 to 4:

Piano P00 to

Various U29

KeyRangLow

Key range low. Specifies the low key range of the keyboard for each zone. This setting is used in

combination with the Key Range Hi setting to configure key ranges for each zone.

For example, configuring F3 (low) to C7 (high) for Zones 1 and 2 and C2 (low) to E3 (high) for

Zones 3 and 4 will enable play of Zone 1 and 2 tones on the right side keyboard range in the

illustration below, and the Zone 3 and 4 tones on the left side keyboard.

• Setting can be specified using the keyboard keys.

C-1 to G9

KeyRangHi

Key range high. Specifies the high range of the keyboard for each zone. This setting is used in

combination with the Key Range Lo setting to configure key ranges for each zone.

C-1 to G9

Volume Volume. This setting is the same as the mixer function tone volume (page E-68). 0 to 127

Pan

Pan. Adjusts the left-right position of sound in the stereo field. This setting is the same as the

mixer function part panning (page E-68).

–64 to 0 to +63

Oct.Shift Octave shift. Shifts the tone of notes by octave units. –2 to 0 to +2

Transpose

Transpose. Shifts the tone of notes by semitone units. This setting is the same as the mixer

function part coarse tune (page E-68).

–12 to 0 to +12

FineTune Fine tune. This setting is the same as the mixer function part fine tune (page E-68). –99 to 0 to +99

BendRngDwn Bend range down. Pitch change amount for downward bender operation. 0 to 24

BendRngUp Bend range up. Pitch change amount for upward bender operation. 0 to 24

Rev Send Reverb send. This setting is the same as the mixer reverb send (page E-68). 0 to 127

Cho Send Chorus send. This setting is the same as the mixer chorus send (page E-68). 0 to 127

DSP Line DSP line. This setting is the same as the mixer function part DSP line (page E-68). Off, On

Knob1Enable Knob 1 on/off. Enables/disables

K1 operation for each zone. Off, On

Knob2Enable Knob 2 on/off. Enables/disables

K2 operation for each zone. Off, On

Knob3Enable Knob 3 on/off. Enables/disables

K3 operation for each zone. Off, On

Knob4Enable Knob 4 on/off. Enables/disables

K4 operation for each zone. Off, On

Bend Enable Bender on/off. Enables/disables

BENDER operation for each zone. Off, On

Wheel Enable Modulation wheel on/off. Enables/disables

MODULATION operation for each zone. Off, On

Pedal Enable

Pedal on/off. Enables/disables operation of a pedal plugged in to the

SUSTAIN/

ASSIGNABLE JACK for each Zone.

Off, On

C2 F3E3 C7

Zone 3

Zone 4

Zone 1

Zone 2

Using the Performance Mode

E-65

Arp Enable Arpeggio on/off. Enables/disables arpeggio function (page E-40) for each zone. Off, On

Phrase Enable Phrase on/off. Enables/disables the Phrase Sequencer (page E-44) for each zone. Off, On

Controller >Ent Controller parameters. This is group of editable controller parameters.

Knob Target 1. Selects the parameter controlled by

K1 knob operation. For example, if

“CC67:Soft” is specified for this setting,

K1 operation will apply a soft pedal effect.

CC00 to CC97: MIDI control change*

NRPN, RPN: MIDI NRPN and RPN parameters*

Ch Pressure: MIDI channel pressure*

Arpeggio: Preset arpeggio type (page E-40)

Tempo: Tempo setting (page E-45)

EQ Low Gain - EQ High Gain: Master EQ >Low Gain - High Gain (page E-38)

*1 For details about each setting, refer to the MIDI Implementation document

(http://world.casio.com/) and other MIDI documentation.

*2 After selecting these parameters, press

ENTER again and then adjust the items below.

MSB: 63H for NRPN, 65H for RPN (Setting range: 000 to 127)

LSB: 62H for NRPN, 64H for RPN (Setting range: 000 to 127)

Send Data: Specifies whether knob operation controls MSB or LSB. (Settings: MSB, LSB)

Refer to the cell to

the left.

K2 to K4

Knob Target 2 to Knob Target 4. As with K1 (Knob Target 1), Selects the parameter controlled by

K2 to K4 knob operation.

Same as K1.

Pedal

Pedal. Specifies the function of the pedal plugged in to

SUSTAIN/ASSIGNABLE JACK.

Hold: Pressing the pedal sustains notes. This is a sustain effect.

Soft: Pressing the pedal slightly lowers the volume of notes.

Sostenuto (Sostenut): Pressing the pedal while keyboard keys are depressed sustains (holds)

only the notes of the pressed keyboard keys.

Step Sequencer Play/Stop (SSEQ P/S): Pressing the pedal starts or stops Step Sequencer

sequence playback.

Phrase Sequencer Play/Stop (Phrase P/S): Pressing the pedal starts or stops Phrase Sequencer

phrase playback.

Phrase Record (Phrase REC): Same function as the Phrase Sequencer

REC button.

Rotary Slow/Fast (Rotary S/F): Pressing the pedal performs the same operation as drawbar

organ tone

SLOW/FAST. This changes the speed of rotary speaker rotation.

Refer to the cell to

the left.

Touch

Touch. Specifies touch sensitivity when the keyboard is played.

Off (Off): Notes sound at a fixed volume level regardless of keyboard pressure.

Normal

Light: High-volume notes are easily produced even with light keyboard pressure.

Refer to the cell to

the left.

TchOffVel

Touch off velocity. Specifies the volume level at which the above touch curve setting values

become off.

0 to 127

Sequencers >Ent

Sequencers parameter. This group includes Step Sequencer (page E-49), Phrase Sequencer

(page E-44), and Arpeggio function (page E-40).

Tempo

Tempo. Adjusts the Phrase Sequencer and Step Sequencer playback tempo. You also can

change the playback tempo using

TEMPO.

30 to 255

Step SEQ Number Step sequencer number. Specifies the Step Sequencer sequence (page E-51).

Preset00 to

User99

Solo1 Ch

Step Sequencer solo track part. Step Sequencer Solo Track 1 is normally Part 14, but it can be

changed to Part 1 (Zone Part 1, page E-54).

1, 14

Change

Step Sequencer change timing. Specifies the switching timing when a pattern is changed by the

Step Sequencer (page E-55).

Wait, Real

Key Shift

Step Sequencer key shift Switches the Step Sequencer key shift function between on and off

(page E-51).

Off, On

Pattern Step sequencer pattern number. Selects the step sequencer pattern (page E-49). 1 to 8

Arp On/Off Arpeggio on/off. The arpeggio function is disabled while this setting is off. Off, On

Arp Type Arpeggio type. Specifies the arpeggio type (page E-40).

Preset00 to

User99

ArpKeyRgLo

Arpeggio key range low. Specifies the low keyboard range where the arpeggio function is

enabled. This setting is used in combination with the Arpeggio Key Range Hi setting to configure

the keyboard range where the arpeggio function is enabled.

C-1 to G9

Display Description Settings

Using the Performance Mode

E-66

ArpKeyRgHi

Arpeggio key range high. Specifies the high keyboard range where the arpeggio function is

enabled. This setting is used in combination with the Arpeggio Key Range Lo setting to configure

the keyboard range where the arpeggio function is enabled.

C-1 to G9

Arp Hold Arpeggio hold on/off. Enables/disables arpeggio hold (page E-40). Off, On

Arp Synchro Arpeggio synchronization. Switches the arpeggio sync setting (page E-40). Off, On, S/S

Key Play Phrase key play. Turns Phrase Sequencer Phrase key play on or off. Off, On

Phrase Phrase number. Selects the phrase of the Phrase Sequencer (page E-44).

Preset00 to

User99

PhrKeyRgLo

Phrase key range low. Specifies the low keyboard range where Phrase Sequencer key play is

effective (page E-45). This setting is used in combination with the Phrase Key Range Hi setting to

specify the keyboard range where key play is enabled.

C-1 to G9

PhrKeyRgHi

Phrase key range high. Specifies the effective high keyboard range where Phrase Sequencer key

play is effective (page E-45). This setting is used in combination with the Phrase Key Range Lo

setting to specify the keyboard range where key play is enabled.

C-1 to G9

Effect >Ent

Effect parameter. This group includes effect settings (page E-38). For details about group items,

see “Effect Settings” (page E-38).

MIDI >Ent

MIDI parameters. This group includes MIDI parameter (page E-70) settings. Use the

PART

minus (–), plus (+) buttons to select one of the Synthesizer’s 16 sound source parts for editing.

Ext Out Ch

External Out Channel. Specifies the MIDI send channel for sending information about each part

to an external destination.

1 to 16

Ext In Ch External in channel. This is the MIDI message channel received by each part. Off, 1 to 16

Gen Out

Internal send on/off. Specifies whether or not the information of each part is sent to the

Synthesizer’s sound source.

Off, On

MIDI Out

MIDI output on/off. Specifies whether or not MIDI send of the information of each part is

performed from

MIDI OUT/THRU.

Off, On

USB Out

USB output on/off. Specifies whether or not MIDI send of the information of each part is

performed from

USB.

Off, On

Display Description Settings

E-67

Other Useful Functions

The mixer lets you make adjustments to the tone, volume

level, and other settings* of the Synthesizer’s sound source

parts (Parts 01 through 16, external input parts, page E-18),

while viewing the balance between the parts on the display.

* Settings that affect individual parts are called “part

settings”, wile settings that affect all parts are called

“master settings”.

Press

MIXER.

This displays the mixer screen.

Use the

PART minus (–) and plus (+) buttons

to select the part whose settings you want to

configure.

Use the

cursor (U, q, w, I) buttons to

select the item you want, and then use the

dial or

minus (–) and plus (+) buttons to

change its setting.

• For details about settings, see “Mixer Settings” on page

E-68

After settings are the way you want, press

MIXER to exit the mixer screen.

You can use the

1/9 to MASTER sliders and the

step

(1 to 16) buttons to make instant changes in mixer settings.

Press

MIXER.

This displays the mixer screen.

Use the

KEY SHIFT, FUNC A/B, and 1-8/9-16

buttons to change the part assigned to the

1/9 to MASTER sliders.

• Each press of one of the above buttons toggles the

button between being lit and unlit.

Using the Mixer

To perform this

adjustment:

Select this part:

Individual settings (page

E-68) of parts 01 through

All, 01 to 16

• “All” can be selected to batch adjust all

parts from 01 through 16. To select

“All”, press the

PART minus (–)

button once while “01” is displayed.

Master settings (page

E-68)

Master

• To select “Master”, press the

PART minus (–) button twice while

“01” is displayed.

External input part

settings (page E-68)

Ext

• To select “Ext”, press the

PART

minus (–) button three times while

“01” is displayed.

Part being configured Current part setting

Setting item list Indicates part being configured

Instant Adjustment of Settings using the

Sliders and Step Buttons

Unlit

Lit

Master

Ext

Unlit

Lit

Part 01 - 08

Part 09 - 16

Unlit

Lit

Part 01 through 08 (or 09 through 16)

All parts (leftmost slider only)

Other Useful Functions

E-68

Move a slider to adjust the setting of the part assigned to it.

• Use the

cursor (U, q, w, I) buttons to select a setting item.

Use the

1 to 16 buttons to toggle parts 01 through 16 between on and off.

• Each press of a button toggles it between lit (on) and unlit (off).

• Holding a button down will turn that part on and turn all other parts off (solo mode). Press the same button again to exit the

solo mode.

Example: To enter the solo mode for Part 08

■ Part 01 through Part 16 Settings

■ External Input Part Settings

■ Master Settings

Mixer Settings

Display Description Settings

Part

Part on/off. Turns each part on or off. This is the same parameter that is turned on and off by the

1to16 buttons (page E-68).

Off, On

Tone

Part tone. This is the tone of each part.

While this item is selected, you can select a tone using the same operation as that used in the Tone

Mode.

• A tone with DSP will have DSP next to the tone name on the display (page E-37).

Part 01: Solo Synth

P00 to Various U29

Part 02 to 16: Piano

P00 to Various U29

Volume Part volume. This is the volume of each part. 0 to 127

Pan Part panning. Adjusts the left-right position of sound in the stereo field. –64 to 0 to +63

CoarseTune Part coarse tune. Shifts the pitch of notes by semitone units. –12 to 0 to +12

FineTune Part fine tune. Shifts the pitch of notes by cent units. –99 to 0 to +99

BendRange

Part bend range. Specifies (in semitone units) the maximum change in pitch when the

BENDER

wheel is rotated.

–24 to 0 to +24

DSP Line Part DSP line. Specifies whether DSP (page E-37) is applied to the notes of each part. Off, On

Rev Send Part reverb send. Controls how the reverb effect (page E-37) is applied to each part. 0 to 127

Cho Send Part chorus send. Controls how the chorus effect (page E-37) is applied to each part. 0 to 127

Display Description Settings

Part

Same as “Part 01 through Part 16 Settings” (page E-68).

Volume

Pan

DSP Line

Rev Send

Cho Send

N.Thresh

Noise gate threshold. Reduces noise by cutting all input sound at a volume that is smaller than this

setting value.

0 to 127

N.Release

Noise gate release. Time that input sound is cut after its volume drops below the noise gate threshold

value.

0 to 127

Auto Level

Auto level control. Automatically adjusts the input signal level. The greater the setting value, the stronger

the effect.

Off, 1 to 3

Display Description Settings

Volume Master volume. Adjusts the volume of all the parts. 0 to 127

Pan Master panning. Adjusts the left-right position of sound in the stereo field of all the parts. –64 to 0 to +63

Lit

Hold down for a short while.

Other Useful Functions

E-69

The following are Synthesizer settings that can be configured

globally.

• Tuning (Fine tuning of note pitch)

• Local Control

• Master Coarse Tune (Tuning of note pitch in semitone

steps)

• Initial Power On Mode

• Display Contrast

• Auto Power Off On/Off (page E-10)

Press

SETTING.

This displays the setting screen with “General >Ent”

selected.

Press

ENTER.

Use the

cursor (U, q, w, I) buttons to

select the item you want, and then use the

dial or

minus (–) and plus (+) buttons to

change its setting.

Setting Item

After settings are the way you want, press

SETTING to exit the setting screen.

The letters MIDI stand for Musical Instrument Digital Interface,

which is the name of a worldwide standard for digital signals

and connectors that makes it possible to exchange musical

data between musical instruments and computers (machines)

produced by different manufacturers.

For details about the MIDI specifications of this Synthesizer,

see the “MIDI Implementation” document at the website

located at the URL below.

http://world.casio.com/

• Use a separately available or commercially available MIDI

cable to connect the MIDI terminals of your Synthesizer and

another electronic musical instrument for exchange of MIDI

data (page E-8).

• For information about connecting a computer, see page

E-79.

• For information about the relationship between each

Synthesizer part (page E-67) and the MIDI IN and MIDI

OUT channels, see “Editable Performance Parameter List”

(page E-64).

• This Synthesizer conforms to General MIDI Level 1 (GM).

Global Synthesizer Settings

Display Description Settings

Tuning

Tuning. Fine tuning of Synthesizer

pitch in 0.1 Hertz steps.

415.5 to

465.9Hz

M.Coarse

Master coarse tune. Adjustment of

overall Synthesizer pitch in semitone

units

–24 to 0 to

+24

Local Ctrl

Local control. Turning off local

control disables the Synthesizer’s

internal sound source, so nothing

sound when keyboard keys are

pressed. Turn off local control when

you want to use the Synthesizer

keyboard and pedal operations to

operate an external sound source,

without producing any sound from

the Synthesizer itself.

Off, On

Start Up

Start up item. Specifies one of the

following as the Synthesizers initial

power on mode.

Perfm: Performance Mode

Tone: Tone Mode

S.Seq: Step Sequencer Mode

Refer to the

cell to the

left.

Contrast

Display contrast. Adjusts the

contrast of the display.

1 to 17

Auto Power

Auto Power Off function on/off.

Turning off this setting disables Auto

Power Off (page E-10).

Off, On

Using MIDI

What is MIDI?

Other Useful Functions

E-70

Press

SETTING.

Use the

down (w) button to select

“MIDI >Ent” and then press

ENTER.

Use the

cursor (U, q, w, I) buttons to

select the item you want, and then use the

dial or

minus (–) and plus (+) buttons to

change its setting.

Setting Item

* To apply setting changes, turn the Synthesizer off and then

back on again. A message to that effect appears on the

display whenever you exit a setting screen.

After settings are the way you want, press

SETTING to exit the setting screen.

• You can also use performance data editing to change the

MIDI data send channel and configure other settings. For

more information, see the “MIDI >Ent” group (page E-66).

MIDI Settings

Display Description Settings

Device ID

Device ID. Selects the ID number of

the Synthesizer for MIDI system

exclusive message send/receive.

• While “All” is selected, a system

exclusive message is sent

regardless of the ID number.

• For details about the ID number,

see MIDI Implementation at

http://world.casio.com/.

1 to 16, ALL

Basic Ch

Basic channel. Specifies the receive

channel of “Perform NRPN”, “S.Seq

NRPN”, and other MIDI messages

described below.

1 to 16

MIDIOutSel

MIDI OUT select. Specifies what is

output as MIDI OUT.*

KEY (Keyboard): Synthesizer

keyboard play, operations, etc.

MIDI (MIDI IN): Messages input via

MIDI IN (MIDI THRU)

USB (USB IN): Messages input via

USB

Refer to the

cell to the

left.

USBOutSel

USB out select. Specifies what is

output as USB out.*

KEY (Keyboard): Keyboard and

other Synthesizer operations.

MIDI (MIDI IN): Messages input via

MIDI IN

Refer to the

cell to the

left.

MIDI In

MIDI IN on/off (MIDI IN enable).

While this setting is turned on,

messages input via

MIDI IN are

reflected by the Synthesizer’s

internal sound source.

Off, On

USB In

USB IN on/off (USB IN enable).

While this setting is turned on,

messages input via

USB are

reflected by the Synthesizer’s

internal sound source.

Off, On

Sync Mode

Sync mode. Settings for MIDI

syncing between the Synthesizer

and an external device.*

Off: No syncing

Mast (Master): Outputs Clock, Start/

Stop (Step Sequencer), and other

signals from the Sequencer to

control an external device.

Slav (Slave): Receives Clock, Start/

Stop, and other signals from an

external device.

• Step Sequencer and Phrase

Sequencer playback is not

possible unless Clock is received.

Start/Stop is interpreted as Step

Sequencer start/stop.

Refer to the

cell to the

left.

Perform NRPN

Performance NRPN change.

When this setting is turned on, a

Synthesizer performance (page

E-63) can be selected by a MIDI

NRPN message from an external

device.

Off, On

S.Seq NRPN

Step Sequencer NRPN change.

When this setting is turned on, a

Synthesizer sequence (page E-51)

can be selected by a MIDI NRPN

message from an external device.

Off, On

Phrase NRPN

Phrase NRPN change. When this

setting is turned on, a Synthesizer

phrase (page E-44) can be selected

by a MIDI NRPN message from an

external device.

Off, On

Arp NRPN

Arpeggio NRPN change. When this

setting is turned on, a Synthesizer

arpeggio type (page E-40) can be

selected by a MIDI NRPN message

from an external device.

Off, On

Display Description Settings

Other Useful Functions

E-71

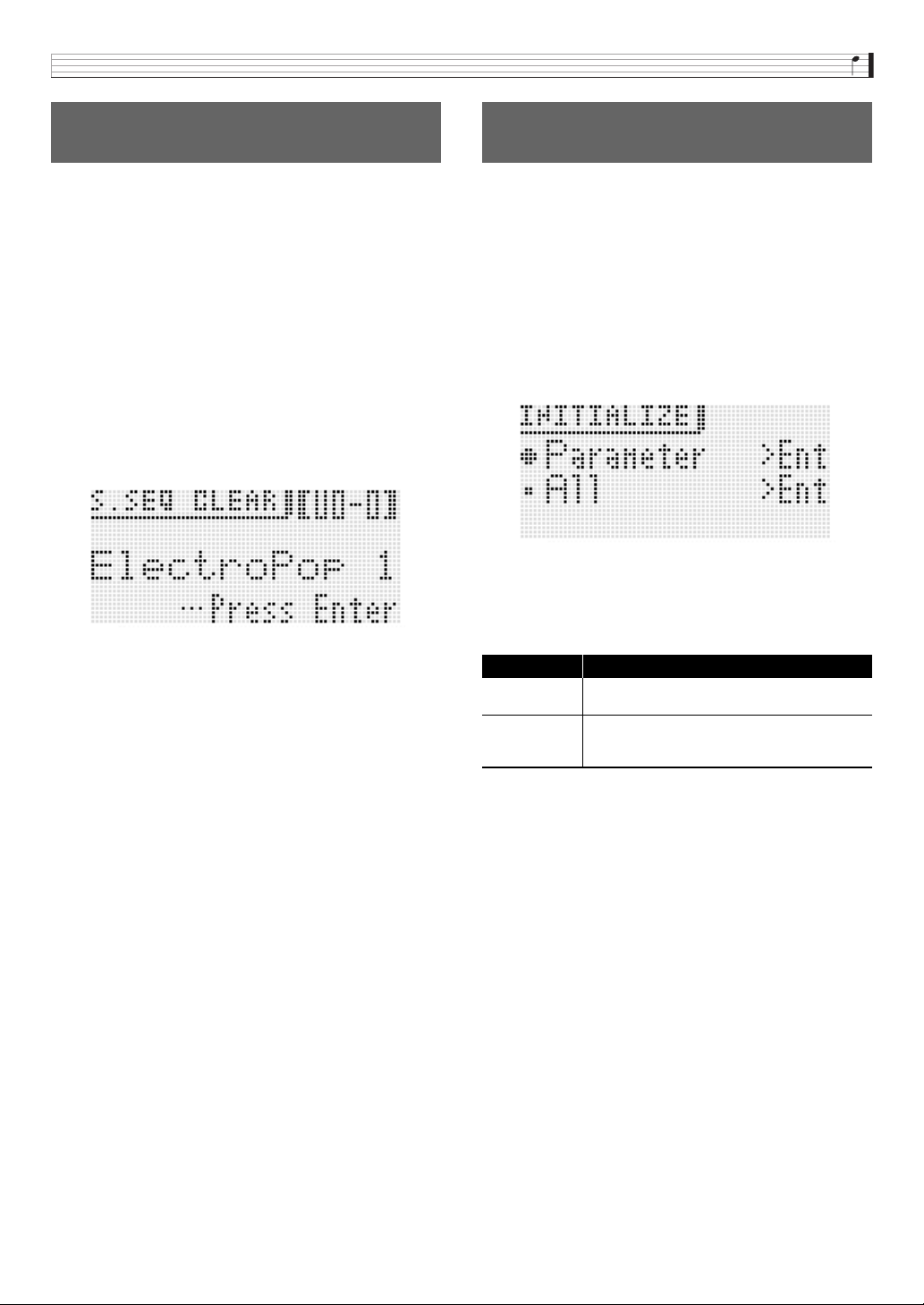

Use the procedure below to delete user tones, user

sequences, and other data that you created, and return

memory to its initial factory default status.

Referring to the table in step 2 of the procedure

under “To save Synthesizer data to a memory

card” (page E-75), perform the procedure

required for the type of data you want to delete.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “Clear

USER” and then press

ENTER.

• This causes a menu screen like the one shown below

to appear on the display. The sample screen below

shows the screen that appears when you perform this

procedure from the Step Sequencer Mode.

• In the case of the Phrase Sequencer, the phrase data

size is also displayed.

Use the

dial or

minus (–) and plus (+)

buttons to select the user data you want to

delete.

Press the

ENTER button.

In response to the “Sure?” message that

appears, press the

YES button to delete or

the

NO button to cancel.

You can use the procedure below to initialize Synthesizer

global settings and data, and return them to their initial factory

defaults.

Press

SETTING.

Press

ENTER.

Use the

cursor (U, q, w, I) buttons to

select “Initialize >Ent” and then press

(ENTER).

This will display the INITIALIZE screen.

Use the

up (q) and down (w) buttons to

select the initialization option you want.

Initialization Options

Press

ENTER.

This should cause “Sure?” to appear on the display.

Press

YES.

The message “Complete!” will appear on the display when

delete is complete.

Press

SETTING to exit the setting screen.

Deleting Data Saved on the

Synthesizer

Initializing Synthesizer Global

Settings and Data

Display Description

Parameter >Ent Parameters only. Initializes all Synthesizer

settings except for display contrast (E-69).

All >Ent All settings and data. Initializes all Synthesizer

global settings and data, and return them to their

initial factory defaults.

Other Useful Functions

E-72

You can use the procedure below to play back the

Synthesizer built in demo tunes, and to play back SMF

(Standard MIDI File) music files or audio files stored on a

memory card.

Press

SETTING and

WRITE at the same

time.

This will enter the Playback Mode.

Use the

up (q) and down (w) buttons to

select the type of playback you want to perform.

Auto Playback Types

Press

ENTER.

This displays the playback screen.

• In the case of a demo tune, playback will start

automatically. In the case of an SMF music file or an

audio file, use the

minus (–) and plus (+) buttons

to select a file and press

START/STOP to start

playback.

• While playback is in progress, you can use the

dial

minus (–) and plus (+) buttons to change to a

different tune or file for playback.

You also can use the four

buttons to perform fast

forward and other playback operations as shown

below.

Demo Tune Playback Screen

• You can use the

PART minus (–) and plus (+)

buttons to adjust the volume of audio playback.

Press

START/STOP.

This stops playback and exits the playback screen.

• You also can stop playback by pressing the

SETTING and WRITE buttons at the same time or by

pressing

EXIT.

• Never touch the memory card loaded in the Synthesizer

audio playback is in progress. Doing so can cause

operational problems or file corruption, or it can make

the card unusable due to electrostatic charge.

Playing a Demo Tune or a File

from a Memory Card

Display Description

Demo >Ent

Demo Tune (Demo). For playback of the

Synthesizer’s built-in demo tunes.

SMF >Ent

SMF (Standard MIDI File) music files. For

playback of SMF music files from a memory card

loaded in the Synthesizer’s card slot.

• Supported playback music files formats are SMF

format 0 and 1 MIDI files (MID).

• Make sure that the data you want to play is in the

MUSICDAT folder (page E-77) on the memory

card.

Audio >Ent

Audio file. For playback of audio files from a

memory card loaded in the Synthesizer’s card slot.

• Supported playback audio files are those that

have been converted using a computer data

editor (page E-80). For details, refer to the user

documentation that comes with your data editor.

Tune name

Operation Guide

s (Fast Reverse) :

STEP –

d (Fast Forward) :

STEP +

Y (Stop) :

START/STOP

k (Pause) :

CHAIN

E-73

Using a Memory Card

You can save Synthesizer user area data to a memory card

and load data from a memory card to Synthesizer memory.

You also can play music files (MIDI files) stored on a memory

card on the Synthesizer.

• Use a memory card that satisfies the

conditions below.

Format: SDHC or SD

Capacity: 32GB or less

Use of any memory cards other than

those defined above is not

supported.

• SDHC Logo is a trademark of SD-3C,

LLC.

■ Data that can be saved to and exported from a

memory card

• For information about saving and importing individual data

items, see “Saving Synthesizer Data to a Memory Card”

(page E-75) and “Loading Data from a Memory Card” (page

E-77).

• For details about saving and loading all data, see “To batch

save all Synthesizer data to a memory card” (page E-76)

and “To batch load all Synthesizer memory data from a

memory card” (page E-77).

■ Data that can be directly played back from a

memory card

• If you want to use data stored on a memory card that is not

supported by this Synthesizer, you need either to copy the

data to a memory card supported by the Synthesizer, or

use Data Editor to transfer the data from a computer to the

Synthesizer. For more information, see “Connecting to a

Computer” (page E-79).

Supported Data Types

Data Type

Description

(File Name Extension)

User performances

(page E-62)

Performance data edited with the

Synthesizer (ZPF)

User PCM melody tones

(page E-33)

Melody tone data edited with the

Synthesizer (ZTN)

User drawbar organ tones

(page E-32)

Drawbar organ tone data edited with

the Synthesizer (ZDO)

User hex layer tones

(page E-30)

Melody hex layer tone data edited

with the Synthesizer (ZLT)

User Solo Synthesizer tones

(page E-22)

Solo Synthesizer tone data edited

with the Synthesizer (ZSY)

User PCM drum tones

(page E-34)

Drum tone data edited with the

Synthesizer (ZDR)

User DSP data

(page E-39)

DSP data edited with the Synthesizer

(DS7)

User step sequences

(page E-51)

Step sequence data recorded with

the Synthesizer (ZSS)

Step sequence chains

(page E-61)

Sequence chain data recorded with

the Synthesizer (ZSC, MID (save

only))

User phrases

(page E-44)

Phrase data recorded with the

Synthesizer (ZPH)

User arpeggios

(page E-41)

Arpeggio data edited with the

Synthesizer (ZAR)

All data All of the above data (ZAL)

Setting data Setting data configure with the

Synthesizer (ZST)

Data Type

Description

(File Name Extension)

Song files

(page E-78)

SMF format 0 or 1 MIDI files (MID)

Data Type

Description

(File Name Extension)

Using a Memory Card

E-74

• Be sure to observe the precautions provided in the

documentation that comes with the memory card.

• Memory cards have a write-protect switch. Use it when you

want to protect the data on the card from accidental

deletion.

• Avoid using a memory card under the following conditions.

Such conditions can corrupt data stored on the memory

card.

– Areas subjected to high temperature, high humidity, or

corrosive gas.

– Areas subjected to strong electrostatic charge and digital

noise.

• Never touch the contacts of a memory card when loading it

or removing it from the Synthesizer.

• The message “Please Wait” will remain on the display while

a data save operation is in progress. Do not perform any

other operation while it is displayed.

Turning off the Synthesizer or removing the memory card

can cause Synthesizer data to be deleted or become

corrupted. It also can cause the Synthesizer to fail to turn

on when

POWER is pressed. If this happens, refer to

“Troubleshooting” (page E-82).

• If the message “No Card” appears on the display, it means

there is no memory card in the card slot. For details about

what appears on the display while a card is loaded, see

“Playing a Music File from a Memory Card” (page E-78).

• Never insert anything besides a memory card into the card

slot. Doing so creates the risk of malfunction.

• Electrostatic charge from your fingers or the memory card

to the card slot can cause malfunction of the Synthesizer. If

this happens, turn the Synthesizer off and then back on

again.

• A memory card can become quite warm after very long use

in the card slot. This is normal and does not indicate

malfunction.

• A memory card must be positioned correctly when

being loaded into the Synthesizer. Trying to force an

improperly oriented memory card into the slot can

damage the memory card and the slot.

With the top of the memory card facing

upwards (so you can see it), carefully insert it

into the Synthesizer’s SD card slot (

) until

stops with a click.

To remove the memory card first press it into

the slot further.

• This will cause the memory card to disengage and eject

partially. Pull the memory card the rest of the way out of

the slot.

Card and Card Slot Precautions

Loading and Removing a Memory

Card

Top

Using a Memory Card

E-75

• Format a memory card before using it for the first time.

• Before formatting a memory card, make sure it does

not have any valuable data stored on it.

• The memory card format operation performed by this

Synthesizer is a “quick format”. If you want to

completely delete all of the data on the memory card,

format it on your computer or some other device.

Insert the memory card you want to format into

the Synthesizer’s card slot.

• Make sure the memory card is write-enabled. Check

the position of the card’s write-protect switch to ensure

it is not in the write-protect position.

Press

SETTING.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to

“CardUtility” and then press

ENTER.

• This causes the “CARD UTIL” screen to appear.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “Format”.

Press the

ENTER button.

• This will cause the confirmation message “Sure?” to

appear.

Press the

YES button to format the memory

card or the

NO button to cancel.

• The message “Please Wait” will remain on the display

while the format operation is being performed. Do not

perform any Synthesizer operation while this message

is on the display. “Complete!” appears on the display

after formatting is complete.

• Formatting may take as long as a few minutes to

complete.

Insert the memory card into the card slot.

Depending on the type of data you want to save

to the memory card, perform one of the steps

shown below.

Formatting a Memory Card Saving Synthesizer Data to a

Memory Card

To save Synthesizer data to a memory card

To save this

type of data:

Perform these steps:

One user

performance

1. Press

PERFORM.

2. Press

MENU.

One user PCM

melody tone

1. Press

TONE.

2. Press one of the

PIANO to VARIOUS

buttons to select a melody tone.

3. Press

MENU.

One user drawbar

organ tone.

1. Press

TONE.

2. Press

DRAWBAR ORGAN.

3. Press

MENU.

One user hex layer

tones

1. Press

TONE.

2. Press

HEX LAYER.

3. Press

MENU.

One user Solo

Synthesizer tone

1. Press

TONE.

2. Press

SOLO SYNTH.

3. Press

MENU.

One user PCM

drum tone

1. Press

TONE.

2. Press

VARIOUS and then select the

drum tone.

3. Press

MENU.

One user DSP 1. Hold down

MIXER until the EFFECT

screen appears on the display.

2. Use the

cursor (U, q, w, I) buttons

to move the item selection cursor (0) to

“DSP Select” and then press

ENTER.

• “Ent” is not displayed in the case of a Solo

Synthesizer tone.

3. Press

MENU.

One user step

sequence

1. Press

STEP SEQ.

2. Press

MENU.

One step

sequence chain

1. Hold down

CHAIN until the CHAIN

screen appears on the display.

2. Press

MENU.

One user phrase 1. Hold down

KEY PLAY until the PHRASE

screen appears on the display.

2. Press

MENU.

One user arpeggio 1. Hold down

ARPEGGIO until the

ARPEGGIO screen appears on the display.

2. Press

MENU.

All data 1. Press

SETTING.

2. Use the

up (q) and down (w)

buttons to move the item selection cursor

(0) to “CardUtility” and then press

ENTER.

3. Use the

up (q) and down (w)

buttons to move the item selection cursor

(0) to “All data” and then press

ENTER.

Using a Memory Card

E-76

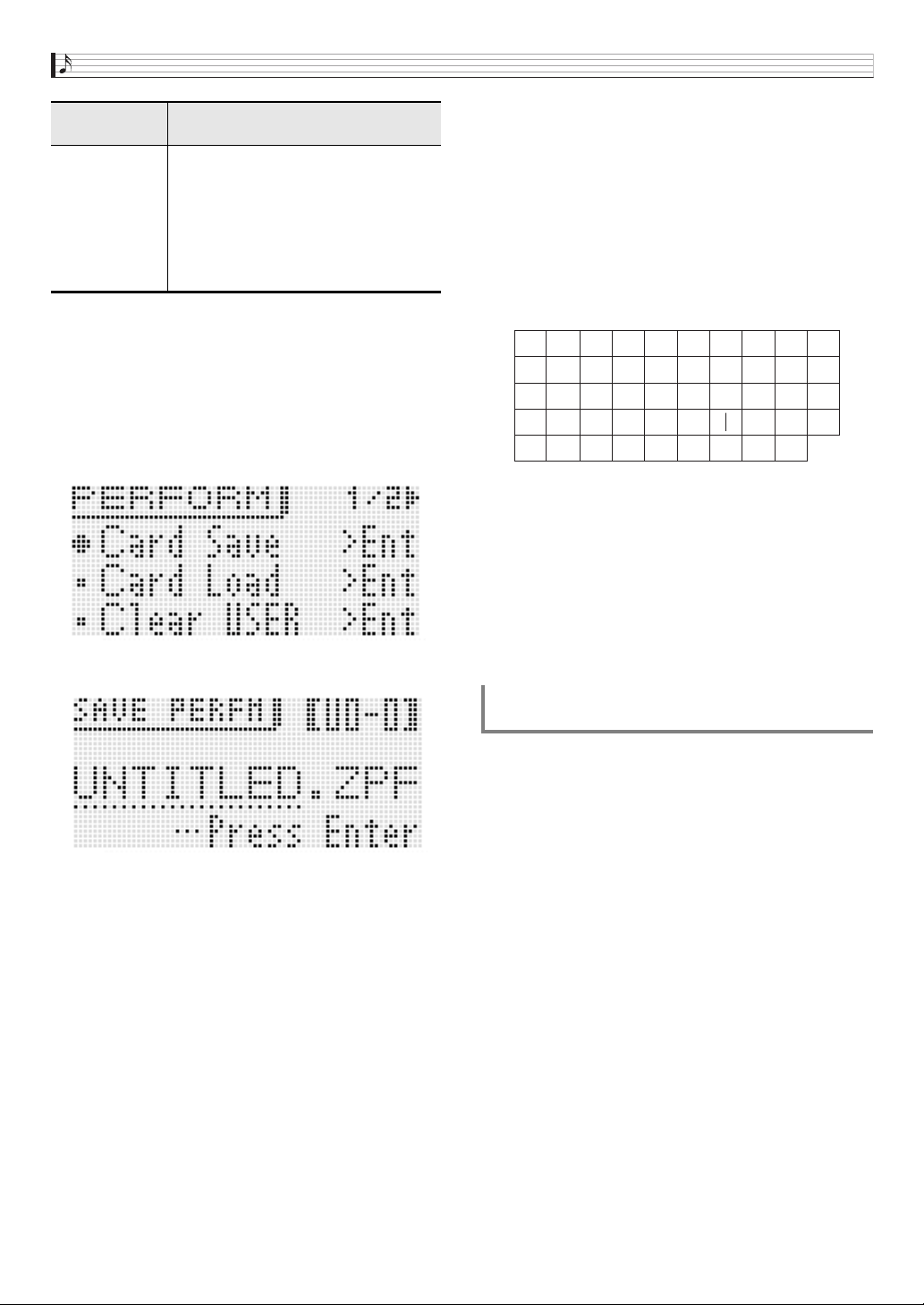

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “Card

Save” (or “Save” if you want to save all data)

and then press

ENTER.

• This displays a screen like the one shown below. (As

an example, the remainder of this procedure uses the

screen that appears when you perform these steps

from the Performance Mode.)

Press

ENTER.

Select the bank and memory location number,

and input a file name. You can perform the

following steps to change the initial default file

name that is assigned automatically.

• For details about inputting characters, see “Creating

Tones” on page E-12.

• The characters you can select are shown below.

• The three characters at the end of a file name are a file

name extension, which indicates the type of data stored

in the file.

After everything is the way you want, press the

(ENTER) button.

In response to the “Sure?” message that

appears, press the

YES button to save or

the

NO button to cancel.

Press

SETTING.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to

“CardUtility” and then press

ENTER.

• This causes the “CARD UTIL” screen to appear.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “ALL

Data” and then press

ENTER.

Setting data 1. Press

SETTING.

2. Use the

up (q) and down (w)

buttons to move the item selection cursor

(0) to “CardUtility” and then press

ENTER.

3. Use the

up (q) and down (w)

buttons to move the item selection cursor

(0) to “SettingData” and then press

ENTER.

To save this

type of data:

Perform these steps:

(1) Use the

cursor (U, I) buttons to move the cursor

to the character you want to change.

(2) Use the

dial or

minus (–) and plus (+)

buttons to change the character.

To batch save all Synthesizer data to a

memory card

}

{

)

(

Using a Memory Card

E-77

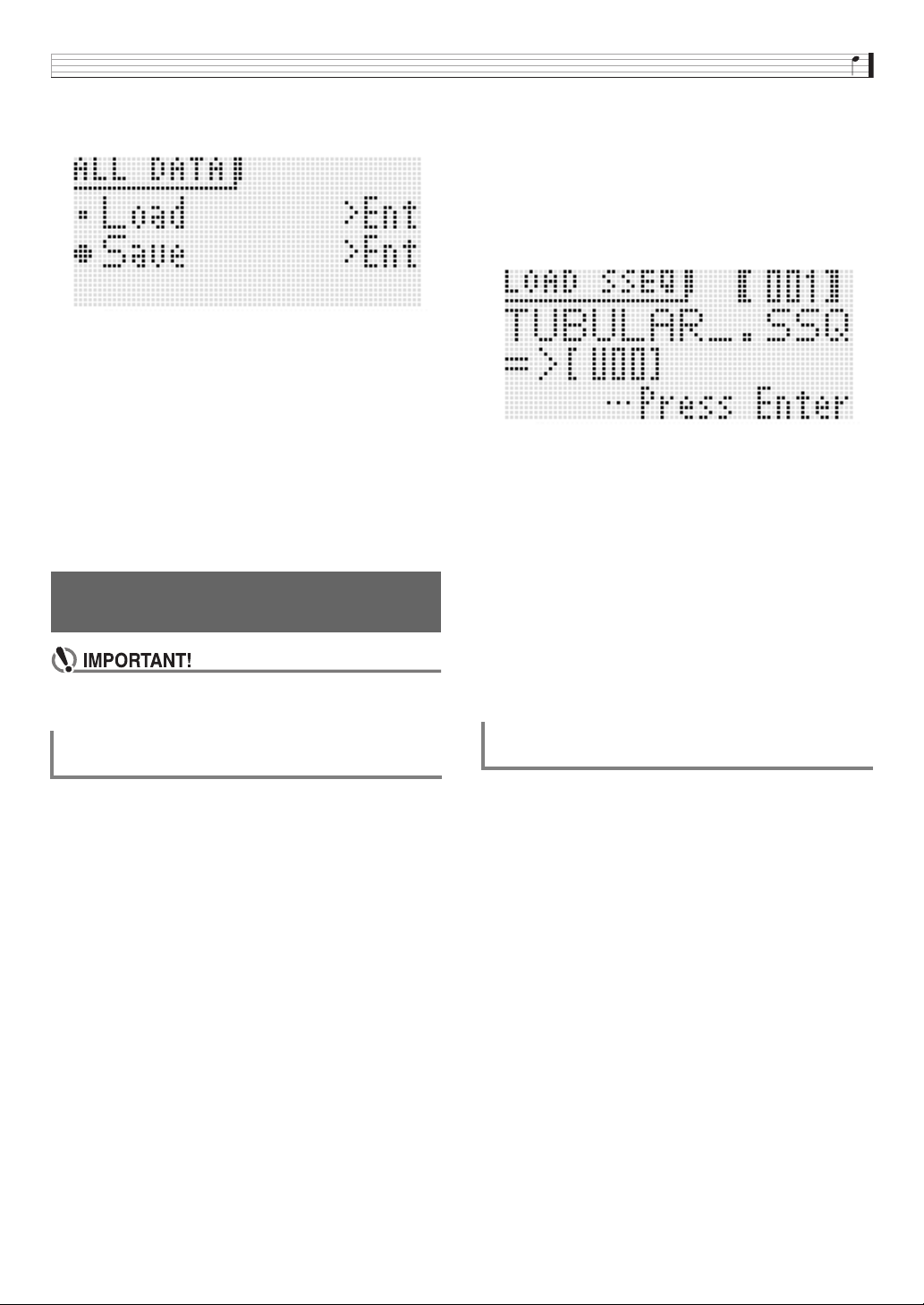

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “Save”.

• The remainder of the steps are the same as those from

step 3 under “To save Synthesizer data to a memory

card” (page E-75).

■ Memory card Data Storage

The above procedure stores Synthesizer data in a folder

named MUSICDAT on the memory card.

• The MUSICDAT folder is created automatically when you

format the memory card on the Synthesizer (page E-75).

• Note that files not in the MUSICDAT folder cannot be

loaded, deleted, or renamed by this Synthesizer. You also

will not be able to load or delete any file stored in any

subfolder inside the MUSICDAT folder.

• Make sure that all of the data you want to load is in the

MUSICDAT folder on the memory card.

Insert the memory card into the card slot.

Referring to the table in step 2 of the procedure

under “To save Synthesizer data to a memory

card” (page E-75), perform the procedure

required for the type of data you want to load

from the card.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “Card

Load” (or “Load” if you want to load all data)

and then press

ENTER.

• This causes a menu screen like the one shown below

to appear on the display. The sample screen below

shows the screen that appears when you perform this

procedure from the Step Sequencer Mode.

Use the

dial or

minus (–) and plus (+)

buttons to display the file you want to import.

Use the

down (w) button to move the

cursor downwards, and then use the

dial or

minus (–) and plus (+) buttons to display the

destination of the load operation.

Press the

ENTER button.

In response to the “Sure?” message that

appears, press the

YES button to load or the

NO button to cancel.

Press

SETTING.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to

“CardUtility” and then press

ENTER.

• This causes the “CARD UTIL” screen to appear.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “All

Data” and then press

ENTER.

• The remainder of the steps are the same as those from

step 3 under “To load data to Synthesizer memory from

a memory card” (page E-77).

Loading Data from a Memory

Card

To load data to Synthesizer memory from a

memory card

To batch load all Synthesizer memory data

from a memory card

Using a Memory Card

E-78

Insert the memory card into the card slot.

Press

SETTING.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to

“CardUtility” and then press

ENTER.

• This causes the CARD UTIL screen to appear.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to “Delete”

and then press the

ENTER button.

• This displays a screen for specifying the file to be

deleted.

Use the

dial or

minus (–) and plus (+)

buttons to display the file you want to delete.

Press the

ENTER button.

In response to the “Sure?” message that

appears, press the

YES button to delete or

the

NO button to cancel.

• Pressing the

YES button displays the message

“Please Wait” (indicating the operation is in progress).

Do not perform any operation while this message is on

the display. “Complete!” appears on the display after

the operation is complete.

Insert the memory card into the card slot.

Press

SETTING.

Use the

up (q) and down (w) buttons to

move the item selection cursor (0) to

“CardUtility” and then press

ENTER.

• This causes the CARD UTIL screen to appear.

Use the

cursor (U, q, w, I) buttons to

move the item selection cursor (0) to

“Rename” and then press the

ENTER

button.

• This displays a screen for specifying the file to be

renamed.

Use the

dial or

minus (–) and plus (+)

buttons to display the file you want to rename.

Use the

left (U) and right (I) buttons to

move the cursor to the name character position

you want to change, and then use the

dial or

minus (–) and plus (+) buttons to select the

character you want.

After the name is the way you want, press the

ENTER button.

In response to the “Sure?” message that

appears, press the

YES button to rename

the file or the

NO button to cancel.

• Pressing the

YES button displays the message

“Please Wait” (indicating the operation is in progress).

Do not perform any operation while this message is on

the display. “Complete!” appears on the display after

the operation is complete.

You can use the Synthesizer to play music files and audio

files that you have saved to a card with your computer.

For details about the playback method, see “Playing a Demo

Tune or a File from a Memory Card” on page E-72.

To delete a file from a memory

card

To rename a file on a memory

card

Playing a Music File from a

Memory Card

E-79

Connecting to a Computer

You can connect the Synthesizer to a computer and

exchange MIDI data between them. You can send play data

from the Synthesizer to music software running on your

computer, or you can send MIDI data from your computer to

the Synthesizer for playback.

The following shows the minimum computer system

requirements for sending and receiving MIDI data. Check to

make sure that your computer complies with these

requirements before connecting the Synthesizer to it.

• Operating System

•USB port

• Never connect to a computer that does not conform to

the above requirements. Doing so can cause problems

with your computer.

• Make sure you follow the steps of the procedure below

exactly. Connecting incorrectly can make data send

and receive impossible.

Turn off the Synthesizer and then start up your

computer.

• Do not start up the music software on your computer

yet!

After starting up your computer, use a

commercially available USB cable to connect it

to the Synthesizer.

Turn on the Synthesizer.

• If this is the first time you are connecting the

Synthesizer to your computer, the driver software

required to send and receive data will be installed on

your computer automatically.

Start up your computer’s music software.

Configure the music software settings to select

one of the following as the MIDI device.

• For information about how to select the MIDI device,

see the user documentation that comes with the music

software you are using.

• Be sure to turn on the Synthesizer first before starting

up your computer’s music software.

• Once you are able to connect successfully for the first time,

there is no problem with leaving the USB cable connected

when you turn off your computer and/or Synthesizer.

• You can alter the Synthesizer’s MIDI setup by changing the

MIDI data send channel or other settings. For details, see

“MIDI Settings” (page E-70).

• For detailed specifications and connections that apply to

MIDI data send and receive by this Synthesizer, see the

latest support information provided by the website at the

following URL.

http://world.casio.com/

Minimum Computer System

Requirements

Windows

XP (SP2 or later)

Windows Vista

Windows

Mac OS

X (10.3.9, 10.4.11, 10.5.8 or later,

10.6.8 or later, 10.7.1 or later)

*1: Windows XP Home Edition

Windows XP Professional (32-bit)

*2: Windows Vista (32-bit)

*3: Windows 7 (32-bit, 64-bit)

Connecting the Synthesizer to Your

Computer

CASIO USB-MIDI : (For Windows 7, Windows Vista,

Mac OS X)

USB Audio Device : (For Windows XP)

Computer USB port

A connector

B connector

Synthesizer USB port

USB cable

(A-B type)

Connecting to a Computer

E-80

You can transfer user tones, phrases, and other data you

saved with the Synthesizer to a computer for storage. Later,

you can return the data back to the Synthesizer when you

need it.

You can also edit tone, performance and other Synthesizer

data on a computer, where it is easier to work with. A special

Data Editor application is required in order to perform

operations such as these.

Go to the CASIO WORLDWIDE site at the

following URL.

http://world.casio.com/

At the site, select a geographic area or country.

After accessing the area site, navigate to the

minimum computer system requirements for

Data Editor for this product.

• You should be able to find a link to Data Editor

information on the product introduction page of this

product. If you cannot find such a link, use the search

form of the area site where you are located to enter the

model name of this product and search for it.

• Note that site contents are subject to change without

notice.

Check if your computer system complies with

the minimum requirements for Data Editor.

Download Data Editor and its user’s guide to

your computer.

Follow the procedure in the Data Editor user’s

guide you downloaded in step 5 to install Data

Editor.

Use the procedures in the Data Editor user’s

guide to transfer and edit data.

• See the Data Editor user’s Guide for information about

the types of data that can be transferred and the data

that can be edited.

Saving and Loading Synthesizer

Data to a Computer and Editing

Synthesizer Data on a Computer

E-81

Reference

Error Messages

Display

Message

Cause Required Action

Format 1. The current memory card format is not compatible

with this Synthesizer.

1. Format the memory card on the Synthesizer (page

E-75).

2. The memory card capacity is greater than 32GB. 2. Use a memory card with a capacity of 32GB or

less.

3. You are trying to use an SDXC card. 3. SDXC cards not supported. Use an SD or SDHC

memory card.

4. There is something wrong with the memory card. 4. Use a different memory card.

Card Full There is not enough room available on the memory

card.

Delete some of the files on the memory card to make

room for new data (page E-78), or use a different

card.

Card R/W Memory card data is corrupted. Use a different memory card.

No Card 1. The memory card is not loaded correctly in the

Synthesizer’s card slot.

1. Correctly load the memory card into the card slot.

2. The memory card was removed while some

operation was in progress.

2. Do not remove the memory card while any

operation is in progress.

No Data You tried to save a Synthesizer user area (user

rhythm, user rhythm song, etc.) that does not contain

any data to the memory card.

Select a user area that contains data.

No File 1. There is no MUSICDAT folder (page E-77) on the

memory card.

1. Create a MUSICDAT folder on the memory card or

format the memory card on the Synthesizer (page

E-75).

2. There is no loadable or playable data in the

MUSICDAT folder.

2. Move the file you want to load or play into the

memory card’s MUSICDAT folder.

Not SMF0/1 You are attempting to play back SMF Format 2 file. This Synthesizer supports playback of SMF Format 0

or Format 1 only.

Protect The memory card is write-protected. Use the memory card’s write protect switch to enable

writing.

Read Only A read-only file with the same name you are trying to

use is already stored on the memory card.

• Use a different name to save the new file.

• Remove the read-only attribute from the existing

file and overwrite it with the new file.

• Use a different memory card.

Size Over 1. The data on the memory card is too big to play. 1. This Synthesizer supports playback of song data

files with a maximum size of about 320KB.

2. The data you are trying to load is too large. 2. The following is the approximate maximum data

sizes (per data item) when loading data into

Synthesizer memory.

User phrase: 8KB

A total of approximately 128KB of user phrase

(total of all 100 user presets) can be loaded.

3. Chain SMF data size is too large to convert the

data and save it to a card.

3. The Synthesizer can convert up to 320KB of chain

SMF data and save it to a card.

Wrong Data 1. The memory card data is corrupted. Use a different memory card.

2. The memory card contains data that is not

supported by this Synthesizer.

Memory Full There is not enough memory capacity required for

phrase sequencer operations.

Shorten the phrase so it takes up less memory space.

Reference

E-82

File Name When renaming a file on a memory card, attempting

to specify a file name that is already used.

Use a different name.

Invalid Tone You selected a Synthesizer tone, hexlayer tone, or

drawbar organ tone for a part other than PART1

(ZONE1).

Select Synthesizer, hexlayer, or drawbar organ tones

only for PART1 (ZONE1).

Battery Low Battery power is low. Replace the batteries or change to AC adaptor power

(page E-9).

Write Error! Writing to internal storage memory failed. Try again.

Troubleshooting

Symptom Action

Included Accessories

I can’t find something that should be

included with the product.

Carefully check inside all of the packing materials.

Power Requirements

Power will not turn on. • Check the AC adaptor or make sure that the batteries are facing correctly (page

E-9).

• Replace the batteries with new ones or switch over to AC adaptor power (page

E-9).

The display lights up momentarily but

power does not turn on when I press

POWER.

Press

POWER firmly and completely to turn on power.

The Synthesizer outputs a loud sound and

then suddenly powers down.

Replace the batteries with new ones or switch over to AC adaptor power (page

E-9).

The Synthesizer suddenly powers down

after a few minutes.

This happens when Auto Power Off (page E-10) is triggered.

Display

The display keeps going out or is flashing. Replace the batteries with new ones or switch over to AC adaptor power (page

E-9).

Screen contents are visible only from

straight ahead.

This is due to production limitations. It does not indicate malfunction.

Sound

Nothing happens when I press any

keyboard key.

• Adjust the main volume setting (page E-12).

• This Synthesizer does not have built-in speakers. It will no produce unless you

connect some device for sound output (page E-8).

No sound is produced when a start the

Step Sequencer.

When the arpeggio function is being triggered by start of the Step Sequencer, the

sequence will not start until you play something on the keyboard.

Notes keep sounding, without stopping. Replace the batteries with new ones or switch over to AC adaptor power (page

E-9).

Some notes are cut off while they are

playing.

Notes are cut off whenever the number of notes being sounded exceeds the

maximum polyphony value of 64 (1 to 32 for some tones). This does not indicate

malfunction.

The volume or tone setting I configured

has changed.

• Adjust the main volume setting (page E-12).

• Replace the batteries with new ones or switch over to AC adaptor power (page

E-9).

Output volume does not change even

though I change my keyboard pressure.

Change the Touch setting (page E-65).

Display

Message

Cause Required Action

Reference

E-83

In certain keyboard ranges, the volume

and tone quality sound are slightly

different from those in other keyboard

ranges.

This is due to system limitations. It does not indicate malfunction.

With some tones, octaves do not change

at the far ends of the keyboard.

This is due to system limitations. It does not indicate malfunction.

The pitch of the notes does not match

other accompanying instruments or

sounds strange when played along with

other instruments.

Check the transpose and octave shift settings (page E-36).

There is digital noise mixed with the sound

when I play high notes with a Solo

Synthesizer tone.

This is due to system limitations. It does not indicate malfunction.

The reverb of notes seems to change

suddenly.

Check and adjust the reverb setting (page E-37).

Computer Connection

I can’t exchange data between the

Synthesizer and a computer.

• Check to make sure that the USB cable is connected to the Synthesizer and

computer, and that the device is selected correctly with your computer’s music

software settings (page E-79).

• Turn off the Synthesizer and then exit the music software on your computer.

Next, turn the Synthesizer back on and then restart the music software on your

computer.

Symptom Action

Reference

E-84

Specifications

Model XW-P1

Keyboard 61 standard-size keys

Touch Response 2 types, Off

Maximum Polyphony 64 notes (1 to 32 for some tones)

Tones 620 preset, 310 user

Solo Synthesizer Tones 100 preset, 100 user

Hex Layer Tones 50 preset, 50 user

Drawbar Organ Tones 50 preset, 50 user

PCM Melody Tones 400 preset, 100 user

PCM Drum Tones 20 preset, 10 user

Effects

Reverb System reverb

Chorus System chorus

DSP 100 preset, 100 user

53 types (46 normal, 7 Solo Synthesizer)

Master Equalizer 4 bands

Demo Songs 3 songs

Performance Functions 100 preset, 100 user

Phrase Functions

Preset Phrases 100

User Phrases 100

Playback Mode One time, loop

Memory Capacity 128KB

Other Overdubbing

Step Sequencer Functions

Preset Sequences 100

User Sequences 100

Number of Tracks Mono: 8, Poly: 1, Control: 4

Patterns 8 types per sequence

Chains 100

Maximum Steps 16

Other Phrase function control

Mixer 16 internal parts + Externally input parts

Other Functions

Transpose ±1 octaves (–12 to 0 to +12 semitones)

Octave Shift ±3 octaves

Tuning A4 = 415.5 - 440.0 - 465.9Hz

Arpeggios Preset: 100

User: 100

MIDI 16 multi-timbre received, GM Level 1 standard

Wheels Bender, modulation

Memory Cards

Supported Memory Cards SD or SDHC memory cards, 32GB or less

Functions SMF playback, audio file playback, file storage, file recall, file delete, card format

Reference

E-85

• Design and specifications are subject to change without notice.

Inputs/Outputs

USB port TYPE B

MIDI IN/OUT terminal IN, OUT

Sustain/Assignable jack Standard jack (sustain, sostenuto, soft, start/stop)

Phones jack Stereo standard jack

Line Out R, L/MONO jacks Standard jack × 2

Output Impedance: 2.3kΩ, Output Voltage: 1.7V (RMS) MAX

Audio In jack Stereo mini jack

Input Impedance: 9kΩ, Input Sensitivity: 200mV

Inst In Jack Standard jack

Input Impedance: 9kΩ, Input Sensitivity: 200mV

Mic In jack Standard jack (connect a dynamic microphone only)

Input Impedance: 3kΩ, Input Sensitivity: 10mV

Power Jack 9.5V DC

Power Supply 2-way

Batteries 6 D-size zinc-carbon batteries or alkaline batteries

Battery Life Approximately 35 hours (alkaline batteries, using the optional CASIO CP-16 headphones)

AC Adaptor AD-E95100L

Auto Power Off Approximately 6 minutes after last key operation during battery use,

approximately 4 hours after last key operation during AC adaptor use. Auto Power Off can be

disabled.

Power Consumption 9.5V = 4W

Dimensions 94.8 × 38.4 × 12.4 cm (37

/8 × 15

/8 × 4

/8 inch)

Weight Approximately 5.4kg (11.9 lbs) (without batteries)

Reference

E-86

Be sure to read and observe the following operating

precautions.

■ Location

Avoid the following locations for this product.

• Areas exposed to direct sunlight and high humidity

• Areas subjected to temperature extremes

• Near a radio, TV, video deck, or tuner

The above devices will not cause malfunction of the

product, but the product can cause interference in the audio

or video of a nearby device.

■ User Maintenance

• Never use benzine, alcohol, thinner, or other chemical

agents to clean the product.

• To clean the product or its keyboard, wipe with a soft cloth

moistened in a weak solution of water and a mild neutral

detergent. Wring all excess moisture from the cloth before

wiping.

■ Included and Optional Accessories

Use only accessories that are specified for use with this

product. Use of unauthorized accessories creates the risk of

fire, electric shock, and personal injury.

■ AC Adaptor Handling Precautions

• Use a power outlet that is easily accessible so you can

unplug the AC adaptor when a malfunction occurs or

whenever else you need to do so.

• The AC adaptor is intended for indoor use only. Do not use

it where it might be exposed to splashing or moisture. Do

not place any container, such as a flower vase, that

contains liquid on the AC adaptor.

• Store the AC adaptor in a dry place.

• Use the AC adaptor in an open, well-ventilated area.

• Never cover the AC adaptor with newspaper, a table cloth,

a curtain, or any other similar item.

• Unplug the AC adaptor from the power outlet if you do not

plan to use the product for a long time.

• Never try to repair the AC adaptor or modify it in any way.

• AC adaptor operating environment

Temperature: 0 to 40°C

Humidity: 10% to 90% RH

• Output polarity: &

■ Weld Lines

Lines may be visible on the exterior of the product. These are

“weld lines” that result from the plastic molding process. They

are not cracks or scratches.

■ Musical Instrument Etiquette

Always be aware of others around you whenever using this

product. Be especially careful when playing late at night to

keep the volume at levels that do not disturb others. Other

steps you can take when playing late at night are closing

windows and using headphones.

Operating Precautions

Reference

E-87

■ Normal DSP Types

• Type numbers 01 through 14 are single type DSPs, while numbers 15 through 46 are dual type DSPs. A single type DSP is one

with a single structure, while a dual type is a combination of two single type DSPs.

• The name of a dual DSP is formed by its two constituent single DSP names, in the order that they are applied. For example, type

15 named “Wah-Compressor” connects in line to “Wah” and “Compressor”, in that sequence.

• For details about parameters that can be configured with each DSP type, refer to the sections shown in the table below.

■ Solo Synthesizer DSP Types

• For information about the parameters whose settings can be configured for each DSP type, see “Solo Synthesizer DSP

Parameters” (page E-90).

DSP Effect List

DSP Type List

For information about this DSP type: Go here:

Single type (Type numbers 01 through 14) Normal DSP Single Type DSP Parameters (page E-88)

Dual type (Type numbers 15 through 46) Normal DSP Dual Type DSP Parameters (page E-90)

Type Number DSP Type Name Screen Name

01 Wah Wah

02 Compressor Comp

03 Distortion Dist

04 Enhancer Enhance

05 AutoPan AutoPan

06 Tremolo Tremolo

07 Phaser Phaser

08 Flanger Flanger

09 Chorus Chorus

10 Delay Delay

11 Reflection Reflect

12 Rotary Rotary

13 RingModulator RingMod

14 Lo-Fi Lo-Fi

15 Wah-Compressor WahCmp

16 Wah-Distortion WahDst

17 Wah-Chorus WahCho

18 Wah-Flanger WahFln

19 Wah-Reflection WahRef

20 Wah-Tremolo WahTrm

21 Wah-AutoPan WahPan

22 Compressor-Wah CmpWah

23 Compressor-Distortion CmpDst

24 Compressor-Chorus CmpCho

25 Compressor-Flanger CmpFln

26 Compressor-Reflection CmpRef

27 Compressor-Tremolo CmpTrm

28 Compressor-AutoPan CmpPan

29 Distortion-Wah DstWah

30 Distortion-Compressor DstCmp

31 Distortion-Chorus DstCho

32 Distortion-Flanger DstFln

33 Distortion-Reflection DstRef

34 Distortion-Tremolo DstTrm

35 Distortion-AutoPan DstPan

36 Chorus-Reflection ChoRef

37 Chorus-AutoPan ChoPan

38 Flanger-Reflection FlnRef

39 Flanger-AutoPan FlnPan

40 Reflection-Distortion RefDst

41 Reflection-Chorus RefCho

42 Reflection-AutoPan RefPan

43 Tremolo-Distortion TrmDst

44 Tremolo-Chorus TrmCho

45 Tremolo-Flanger TrmFln

46 Tremolo-Reflection TrmRef

Type Number DSP Type Name Screen Name

Bypass Bypass

01 Auto Pan AutoPan

02 Distortion Dist

03 Flanger Flanger

04 Chorus Chorus

05 Delay Delay

06 Ring Modulator RingMod

Type Number DSP Type Name Screen Name

Reference

E-88

■ Normal DSP Single Type DSP Parameters

• (Param A) and (Param B) are parameters assigned to the

8/16 and MASTER sliders when Hex Layer tones are

selected.

01: Wah

This is a “wah” effect that can automatically affect the

frequency using an LFO.

Parameters and Value Ranges:

1 :Resonance (0 to 127) (Param B)

Adjusts the strength of resonance.

2 :Manual (0 to 127) (Param A)

Adjusts the wah filter reference frequency.

3 :LFO Rate (0 to 127)

Adjusts the LFO rate.

4 :LFO Depth (0 to 127)

Adjusts the LFO depth.

5 :LFO Waveform (off, sin, tri, random)

Selects the LFO waveform.

02: Compressor

Compresses the input signal, which can have the effect of

suppressing level variation and make it possible to sustain

dampened sounds longer.

Parameters and Value Ranges:

1 :Attack (0 to 127)

Adjusts the attack amount of the input signal. A smaller

value causes prompt compressor operation, which

suppresses the attack of the input signal. A larger values

delays compressor operation, which causes the attack of

the input signal to be output as-is.

2 :Release (0 to 127)

Adjusts the time from the point the input signal drops

below a certain level until the compression operation is

stopped. When an attack feeling is desired (no

compression at the onset of sound), set this parameter to

as low a value as possible. To have compression applied

at all times, set a high value.

3 :Level (0 to 127) (Param B)

Adjusts the output level.

4 :Threshold (0 to 127) (Param A)

Adjusts the volume level at which the compression

operation starts.

03: Distortion

Digital distortion that applies an overtone to the input signal

and distorts it.

Parameters and Value Ranges:

1 :Gain (0 to 127) (Param A)

Adjusts the input signal gain.

2 :Level (0 to 127) (Param B)

Adjusts the output level.

04: Enhancer

Phase shifts low-range sounds and high-range sounds of the

input signal to enhance the signal’s profile.

Parameters and Value Ranges:

1 :Low Frequency (0 to 127) (Param A)

Adjusts the low range enhancer frequency.

2 :Low Phase (0 to 127)

Adjusts the phase shift amount of the low-range enhancer.

3 :High Frequency (0 to 127) (Param B)

Adjusts the high range enhancer frequency.

4 :High Phase (0 to 127)

Adjusts the phase shift amount of the high-range

enhancer.

05: Auto Pan

Performs continual left-right panning of the input signal using

an LFO.

Parameters and Value Ranges:

1 :LFO Rate (0 to 127)

Adjusts the panning rate.

2 :LFO Depth (0 to 127) (Param B)

Adjusts the panning depth.

3 :LFO Waveform (sin, tri)

Selects the LFO waveform.

4 :Manual (Range: –64 to 0 to 63) (Param A)

Adjusts the pan (stereo position).

–64 is full left, 0 is center, and 63 is full right.

06: Tremolo

Adjusts the volume of the input signal using an LFO.

Parameters and Value Ranges:

1 :LFO Rate (0 to 127) (Param A)

Adjusts the tremolo rate.

2 :LFO Depth (0 to 127) (Param B)

Adjusts the tremolo depth.

3 :LFO Waveform (sin, tri)

Selects the LFO waveform.

07: Phaser

Produces a distinctive pulsating, broad sound by using an

LFO to change the phase of the input signal and then mixes it

with the original input signal.

Parameters and Value Ranges:

1 :Resonance (0 to 127)

Adjusts the strength of the resonance.

2 :LFO Rate (0 to 127) (Param A)

Adjusts the LFO rate.

3 :LFO Depth (0 to 127) (Param B)

Adjusts the LFO depth.

4 :LFO Waveform (sin, tri, random)

Selects the LFO waveform.

DSP Parameter List

Reference

E-89

08: Flanger

Applies wildly pulsating and metallic reverberation to sounds.

LFO waveform is selectable.

Parameters and Value Ranges:

1 :LFO Rate (0 to 127) (Param A)

Adjusts the LFO rate.

2 :LFO Depth (0 to 127) (Param B)

Adjusts the LFO depth.

3 :LFO Waveform (sin, tri, random)

Selects the LFO waveform.

4 :Feedback (0 to 127)

Adjusts the strength of feedback.

09: Chorus

Gives sounds depth and breadth. Chorus type is selectable.

Parameters and Value Ranges:

1 :LFO Rate (0 to 127) (Param A)

Adjusts the LFO rate.

2 :LFO Depth (0 to 127) (Param B)

Adjusts the LFO depth.

3 :LFO Waveform (sin, tri)

Selects the LFO waveform.

4 :Feedback (0 to 127)

Adjusts the strength of feedback

5 :Type (mono, stereo, tri)

Selects the chorus type.

10: Delay

Delays the input signal and feeds it back to create a repeating

effect and give sounds more breadth.

Parameters and Value Ranges:

1 :Delay Time (0 to 127) (Param A)

Adjusts the delay time.

2 :Feedback (0 to 127)

Adjusts the repeat of the delay.

3 :Ratio Lch (0 to 127)

Adjusts the delay time of the left channel. This value is a

ratio of the value specified for Delay Time.

4 :Ratio Rch (0 to 127)

Adjusts the delay time of the right channel. This value is a

ratio of the value specified for Delay Time.

5 :Wet Level (0, 1, 2, 3, 4, 5) (Param B)

Adjusts the level of the delay sound.

6 :Type (1, 2)

Selects the delay type.

7 :Tempo Sync (Range: Off, 1/4, 1/3, 3/8, 1/2, 2/3, 3/4, 1,

4/3, 3/2, 2)

Adjusts the relationship between tempo and delay time of

the Sequencer.

When Off is selected, the current setting of the Delay Time

parameter is used for the delay time. When any other

setting is selected, the delay time is synced with the

Sequencer beat.

Selecting 1, for example, the delay time is approximately

equal to the length of one beat.

(Delay time is not precisely synced with the beat.)

Important!

When adjusting the delay time and type, certain settings can

result in a switching sound in the delay.

11: Reflection

An effector that extracts early reflections from reverb. Applies

acoustic presence to sounds.

Parameters and Value Ranges:

1 :Type (1, 2, 3, 4, 5, 6, 7, 8) (Param A)

Selects from among the eight available reflection patterns.

2 :Feedback (0 to 127) (Param B)

Adjusts the repeat of the reflected sound.

12: Rotary

This is a rotary speaker simulator.

Parameters and Value Ranges:

1 :Overdrive Gain (0, 1, 2, 3) (Param A)

Adjusts overdrive gain.

2 :Overdrive Level (0 to 127)

Adjusts the overdrive output level.

3 :Speed (Slow, Fast) (Param B)

Switches the speed mode between fast and slow.

4 :Brake (Rotate, Stop)

Stops speaker rotation.

5 :Fall Acceleration (0 to 127)

Adjusts acceleration when the speed mode is switched

from fast to slow.

6 :Rise Acceleration (0 to 127)

Adjusts acceleration when the speed mode is switched

from slow to fast.

7 :Slow Rate (0 to 127)

Adjusts the speaker rotation speed in the slow speed

mode.

8 :Fast Rate (0 to 127)

Adjusts the speaker rotation speed in the fast speed

mode.

13: Ring Modulator

Multiplies the input signal with an internal oscillator signal to

create a metallic sound.

Parameters and Value Ranges:

1 :OSC Frequency (0 to 127) (Param A)

Sets the reference frequency of the internal oscillator.

2 :LFO Rate (0 to 127)

Adjusts the LFO rate.

3 :LFO Depth (0 to 127) (Param B)

Adjusts the LFO depth.

4 :Type (1, 2, 3)

1 :Delay repeat determined by Delay Time.

2 :Delay repeat determined by Delay Time and Ratio L/R.

1 :Outputs the ring modulated signal only.

2 :Outputs the ring modulated signal and the input signal.

3 :Outputs a signal with a chorus effect applied to 2 (ring

modulated signal and input signal).

Reference

E-90

14: Lo-Fi

Applies various types of noise to the input signal to reproduce

a retro Lo-Fi sound.

Includes wow and flutter for rotational fluctuation like that in

tapes and records, a Noise 1 generator that generates

continual FM radio type, and a Noise 2 generator that

generates record play types scratch noise.

Parameters and Value Ranges:

1 :Wow and Flutter Rate (0 to 127)

Adjusts the wow and flutter rate.

2 :Wow and Flutter Depth (0 to 127)

Adjusts the wow and flutter depth.

3 :Noise1 Level (0, 1, 2, 3, 4, 5) (Param A)

Adjusts the level of Noise Generator 1.

4 :Noise2 Level (0, 1, 2, 3, 4, 5) (Param B)

Adjusts the level of Noise Generator 2.

5 :Noise2 Density (0, 1, 2, 3, 4, 5)

Adjusts the frequency of Noise Generator 2.

6 :Bit (0, 1, 2, 3)

Distorts the sound. A larger number produces greater

distortion.

Important!

Raising the noise level while a note is not sounding will cause

noise to sound, even if there is no input signal.

■ Normal DSP Dual Type DSP Parameters

Dual type DSPs are configured by combining two different

single type DSPs. Use the procedure below to determine what

parameters that can be configured for each dual type DSP,

and the operation, and setting ranges of dual type DSPs.

Example: Type number 29: Distortion-Wah

1. The DSP type name has two parts: a left side part and a

right side part.

Distortion-Wah 3 “Distortion” and “Wah”

2. Find out what parameters you can configure by looking up

the left side part of a dual type DSP in the “Type Name”

column of the table below.

3. Find the same type names in the table under “Normal DSP

Single Type DSP Parameters” on pages E-88 through

E-90, and note the operation and setting ranges of the

items that are the same as those shown in the

“Configurable Parameters” column of the above table.

4. Next, repeat steps 2 and 3 above for the right side part of

the dual type DSP parameter name.

• (Param) in the table under step 2 of this procedure are

parameters assigned to the

8/16 and MASTER sliders

when Hex Layer tones are selected. The (Param) of the

single type DSP whose name is on the left is assigned the

8/16 button, while the single type DSP whose name is

on the right is assigned the

MASTER button.

■ Solo Synthesizer DSP Parameters

• (Param A) and (Param B) are parameters assigned to the

8/16 and MASTER sliders when Solo Synthesizer

tones are selected.

(No number): Bypass

Selecting this option disables application of DSP.

No parameters

01: Auto Pan

Parameters and Ranges

1 :LFO Waveform (Range: sin, tri)

2 :LFO Rate (Range: 0 to 127) (Param A)

3 :LFO Depth (Range: 0 to 127) (Param B)

4 :Manual (Range: –64 to 0 to 63)

02: Distortion

Parameters and Ranges:

1 :Gain (Range: 0 to 127) (Param A)

2 :Level (Range: 0 to 127) (Param B)

03: Flanger

Parameters and Ranges

1 :LFO Waveform (Range: sin, tri, random)

2 :LFO Rate (Range: 0 to 127) (Param A)

3 :LFO Depth (Range: 0 to 127) (Param B)

Type Name Configurable Parameters

Wah LFO Waveform

LFO Rate

LFO Depth (Param)

Distortion Gain (Param)

Level

Chorus LFO Waveform

LFO Rate (Param)

LFO Depth

Flanger LFO Waveform

LFO Rate (Param)

LFO Depth

Reflection Feedback (Param)

Compressor Threshold (Param)

Level

Auto Pan LFO Waveform

LFO Rate

LFO Depth

Manual (Param)

Tremolo LFO Waveform

LFO Rate (Param)

LFO Depth

• In our “Distortion-Wah” example, the left side part of the

name is “Distortion” so we can see in the above table

that “Gain” and “Level” parameters can be configured.

You can find out about the operations and setting ranges

of “Gain” and “Level” by referring to “03: Distortion” on

page E-88.

• The parameter numbers that appear on the parameter

setting screen start from 1, and the number is

incremented for each successive parameter.

The parameter numbers of our “Distortion-Wah” example

would be as shown below.

1: Gain

2: Level

3: LFO Waveform

4: LFO Rate

5: LFO Depth

Reference

E-91

04: Chorus

Parameters and Ranges

1 :LFO Waveform (Range: sin, tri)

2 :LFO Rate (Range: 0 to 127) (Param A)

3 :LFO Depth (Range: 0 to 127) (Param B)

05: Delay

Parameters and Ranges

1 :Delay Time (Range: 0 to 127) (Param A)

2 :Feedback (Range: 0 to 127)

3 :Damp (Range: 0 to 3)

Adjusts damping of the high-range. 3 results in maximum

damping.

4 :Wet Level (Range: 0, 1, 2, 3, 4, 5) (Param B)

5 :Tempo Sync (Range: Off, 1/4, 1/3, 3/8, 1/2, 2/3, 3/4, 1,

4/3, 3/2, 2)

06: Ring Modulator

Parameters and Ranges

1 :Frequency (Range: 0 to 127) (Param A)

Adjusts the modulation frequency of the ring modulator.

2 :Dry Level (Range: 0 to 127)

Adjusts the level of the original sound.

3 :Wet Level (Range: 0 to 127) (Param B)

Adjusts the sound level of the ring modulator.

• For information about parameters not included in the

above, see the explanations of the parameters with the

same names under “Normal DSP Single Type DSP

Parameters” (page E-88).

Supported Input Characters

Function Transmitted Recognized Remarks

Basic

Channel

1 - 16

Default

Changed

Note

Number

0 - 127

1True voice

After

Touch

Control

Change

Pitch Bender

Key’s

Ch’s

Velocity

9nH v = 1 - 127

9nH v = 0, 8nH v =

9nH v = 1 - 127

9nH v = 0

Note ON

Note OFF

Mode

Mode 3

0 - 127

Mode 3

Default

Messages

Altered

Model: XW-P1 Version : 1.0

6, 38

16 - 19

Bank select

Modulation

Portamento Time

Data entry LSB, MSB

Volume

Pan

Expression

Hold 1

Portamento On/Off

**: no relation

MIDI Implementation Chart

Program

Change

0 - 127:True #

System Exclusive

System

Common

: Song Pos

: Song Sel

: Tune

Aux

Messages

Remarks

: All sound off

: Reset all controller

: Local ON/OFF

: All notes OFF

: Active Sense

: Reset

System

Real Time

: Clock

: Commands

Mode 1 : OMNI ON, POLY

Mode 3 : OMNI OFF, POLY

Mode 2 : OMNI ON, MONO

Mode 4 : OMNI OFF, MONO

O : Yes

X : No

70 - 90

98, 99

100, 101

Sostenuto

Soft pedal

Reverb send

Chorus send

NRPN LSB, MSB

RPN LSB, MSB

*1: Depends on tone.

2: For details about NRPN, RPN, and system exclusive messages, see MIDI Implementation at

http://world.casio.com/

3: In accordance with pedal effect setting.

MA1203-B Printed in China

XWP1-E-1B
