90002740A Date: 15.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
High-quality, integrated insert rangehoods seamlessly blend
with cabinetry and can be installed in a variety of kitchen
layouts. Quiet and ecient, the powerful external motor is
installed outside the home to ensure near-silent extraction
inside the kitchen, without compromising on performance.
Enjoy seamless operation with Wi-Fi enabled remote control
and Bluetooth Hood to Hob connectivity.
MODELS
Integrated Rangehood, 60cm
with External Motor, HP60IDCHEX4
Integrated Rangehood, 90cm,
with External Motor HP90IDCHEX4
SERIES & STYLE
Series 7
Contemporary Style
PRELIMINARY SPECIFICATION GUIDE INTEGRATED INSERT RANGEHOOD
WITH EXTERNAL MOTOR
FEATURES
1 Seamlessly integrated
2 Wi-Fi enabled for remote control and notifications
through the SmartHQ™ app and Bluetooth Hood to Hob
connectivity
3 External silent motor for quiet and eective extraction of
odours and steam
4 Powerful 1200m3/hr maximum airflow
5 Energy-ecient LED lighting creates a warm (or cold),
even glow
6 Sleek black glass finish with real stainless steel frame
7 Three fan speeds plus a boost function
8
Intuitive LED-illuminated soft touch buttons
9 Automatic alert works as a reminder to clean filters for
optimal performance
"0 Removable, easy-to-clean filters that eectively trap
grease
EXTERNAL BLOWER & MOUNTING KIT
External blower & mounting kit
Backdraft damper assembly
Roof penetration pipe – 150mm internal diameter PVC
Duct adapter 150–200mm
Ø200mm Flexible ducting – 6m length
ACCESSORIES
1 Aluminium Filter 792942 for HP60IDCHX4
2 Aluminium Filter 792943 for HP90IDCHX4
3 Extra Ducting Length 792961
Ø200mm, 6m length
90002740A Date: 15.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

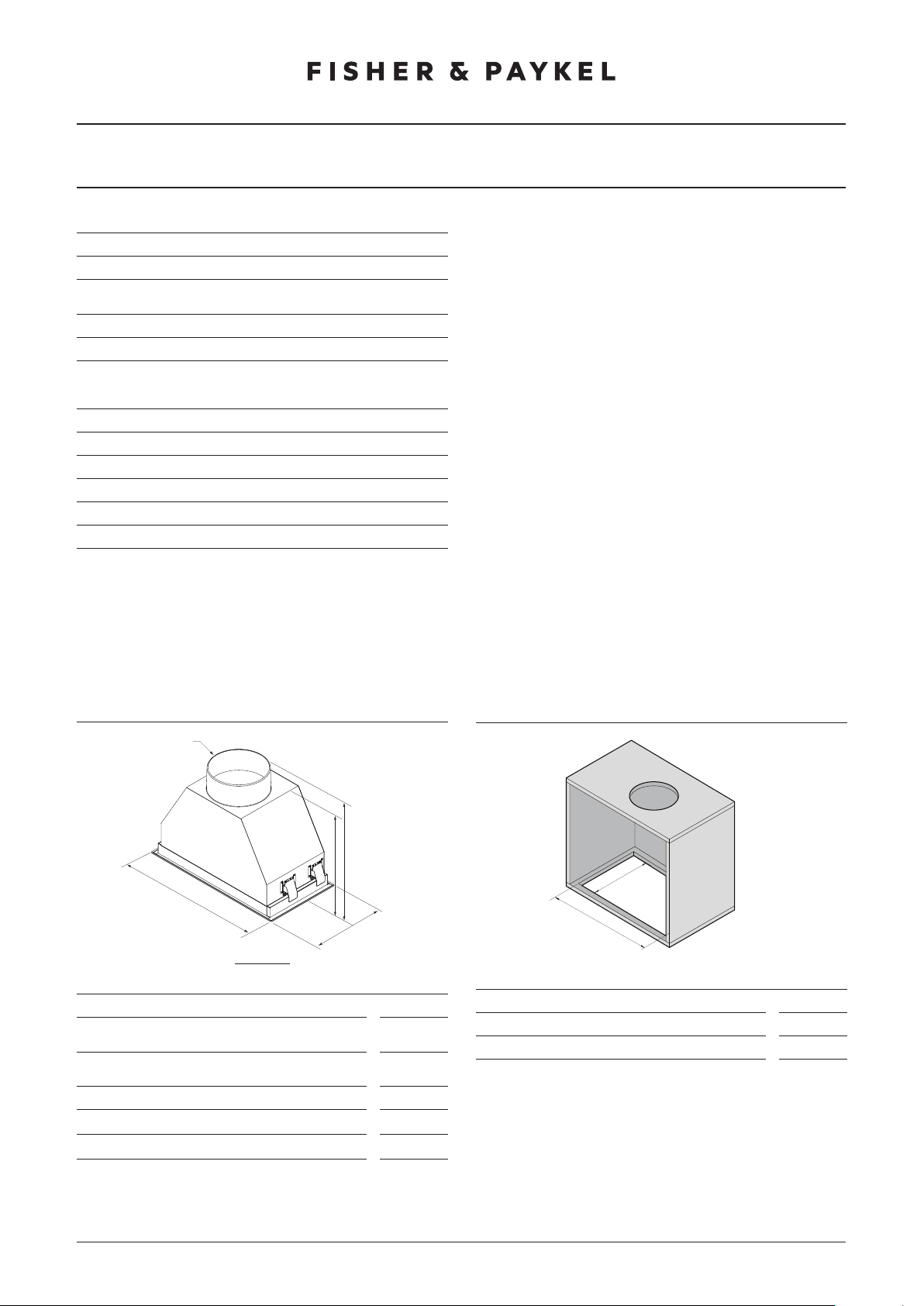

PRODUCT DIMENSIONS
mm
A
Overall height of rangehood without
ducting adapter
16
b
Overall height of rangehood with
ducting adapter
98
c
Overall width of rangehood 50
d
Overall depth of rangehood 280
e
Diameter of ducting outlet 200
SPECIFICATIONS
Model No. HP60IDCHEX4
Dimensions H 98mm x W 50mm x D280mm
Diameter of
vent connection
200mm
Weight 6.4kg
Install option Only roof mount external motor, external duct
Minimum distance
above cooktops
Consult the cooktop installation guide for
details of the required installation height
of the rangehood.
Electrical
Supply 20VAC, 50Hz
Outlet pin plug
Light source
Type Bi colour LED strip
Temperature 4000K
ISO VIEW
PRELIMINARY SPECIFICATION GUIDE INTEGRATED INSERT RANGEHOOD, 60CM
WITH EXTERNAL MOTOR
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A
Overall width of the cutout 500
B
Overall depth of the cutout 260
b
a
c
d
e
b
a
90002740A Date: 15.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

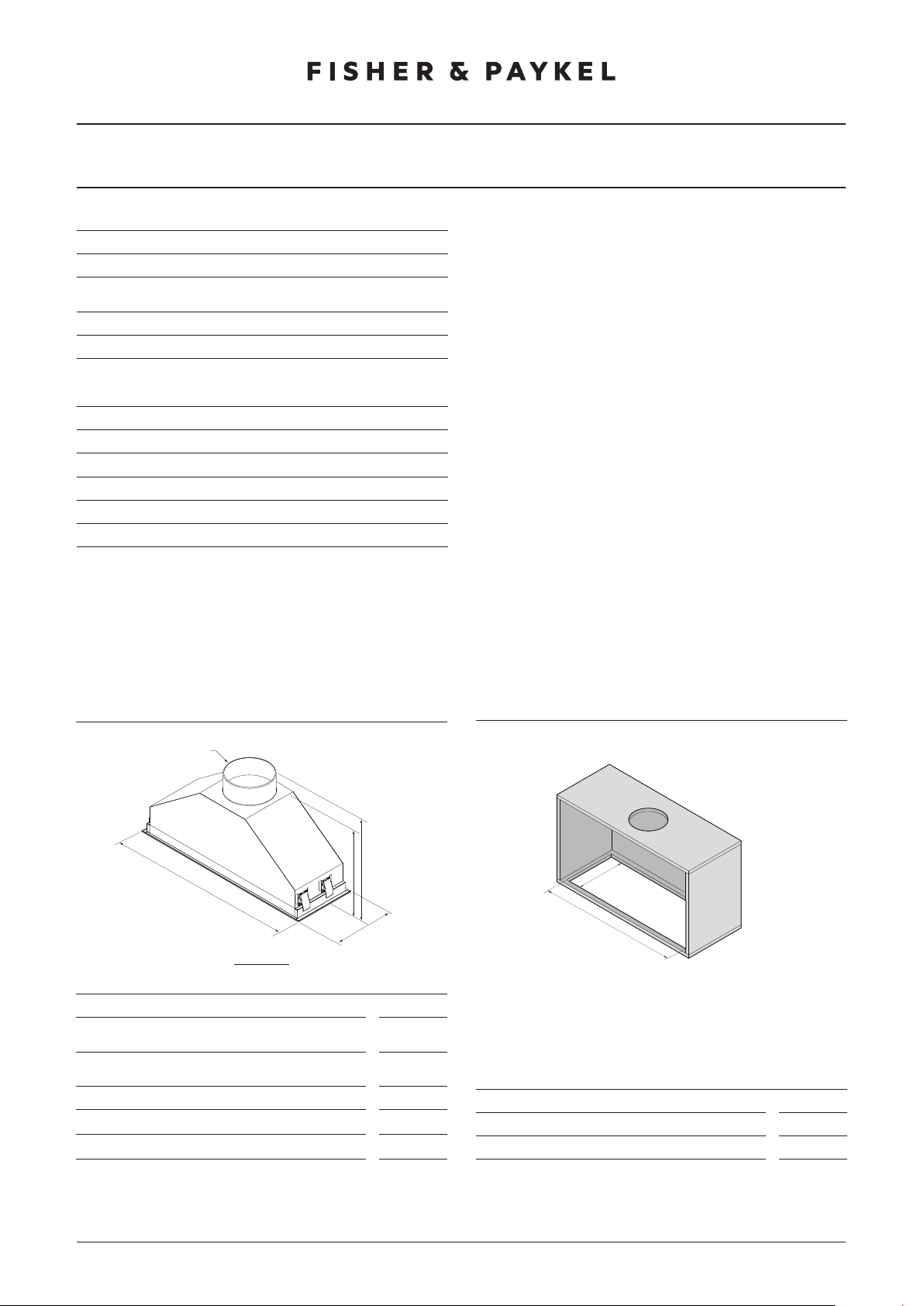

SPECIFICATIONS
Model No. HP90IDCHEX4
Dimensions H 98mm x W 80mm x D280mm
Diameter of
vent connection
200mm
Weight 8.4kg
Install option Only roof mount external motor, external duct
Minimum distance
above cooktops
Consult the cooktop installation guide for
details of the required installation height
of the rangehood
Electrical
Supply 20VAC, 50Hz
outlet pin plug
Light source
Type Bi colour LED strip
Temperature 4000K
CAVITY DIMENSIONS: STANDARD INSTALLATION
A
b
PRODUCT DIMENSIONS
mm
A
Overall height of rangehood without
ducting adapter
16
b
Overall height of rangehood with
ducting adapter
98
c
Overall width of rangehood 80
d
Overall depth of rangehood 280
e
Diameter of ducting outlet 200
PRELIMINARY SPECIFICATION GUIDE INTEGRATED INSERT RANGEHOOD, 90CM
WITH EXTERNAL MOTOR
b
a
c
d
e
mm
A
Overall width of the cutout 800
B
Overall depth of the cutout 260
ISO VIEW
90002740A Date: 15.12.2022 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary
from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to
safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRELIMINARY SPECIFICATION GUIDE SILENT EXTERNAL MOTOR
SPECIFICATIONS
Model No. HB1200E for use with HP60IDCHEX4 and
HP90IDCHEX4 model rangehoods
Dimensions H 755mm x Ø 400mm
Diameter of
vent connection
200mm
Weight 5.kg
Install option Only with compatible rangehood. Roof mount
external motor, external duct
Distance from
rangehood
4–6m
Electrical
Supply 20VAC, 50Hz
Outlet pin plug
Length of
power cord
6000mm
PRODUCT DIMENSIONS
mm
A
Overall height 755
B
Overall diameter 400
c
Height of the blower unit
174
d
Height of the external blower and backdraft
damper
275
Outer diameter of roof pipe 160
e
Diameter of ducting outlet 200
f
Diameter of grill 15
a
b
ø
c
f
ø
e
ø
d
Illustration not to scale
g
ø
FRONT VIEW
INSTALLATION REQUIREMENTS
Mount the blower with 4-6m of ducting.
Mount the blower with 4-6m from the rangehood.
Use only the supplied Fisher & Paykel flexible ducting. If additional
ducting is required this can be purchased from Fisher & Paykel.
Should have at least 2 bends for best performance.
External Motor
Roof
Ceiling
Ducting
Power cords
Rangehood
